Description

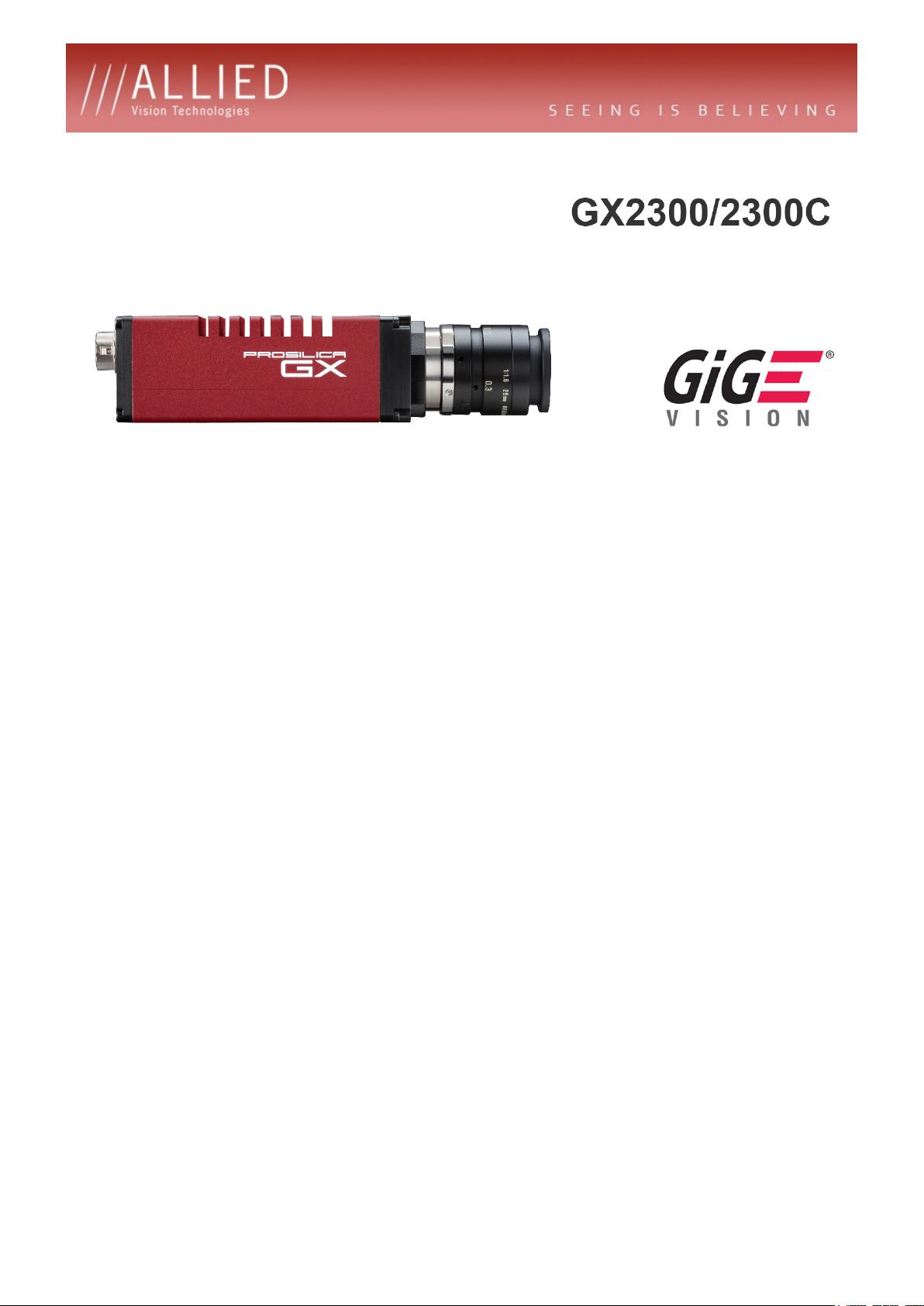

4 Megapixel CCD camera with high frame rate - Dual port GigE
The 4 Megapixel Prosilica GX2300 is a very high-resolution CCD camera with Gigabit Ethernet
output (GigE Vision®). The GX2300 features the high-quality Truesense KAI-04050 image
sensor that provides superior image quality, excellent sensitivity and low noise. The GX2300
has two screw-captivated Gigabit Ethernet ports configured as a Link Aggregation Group
(LAG) to provide a sustained maximum data rate of 240 MBytes per second. The Prosilica
GX2300 can also work at half the bandwidth (120 MB/s) using a single cable.
●
3-axis Motorized lens controls
●
Video auto-iris
●
Single or dual Ethernet port operation
●
Thermal management enclosure
●
Models:
❍
GX2300, 2336 x 1752, 32 fps (dual port) - 28 fps (single port), CCD, mono
❍
GX2300C, 2336 x 1752, 32 fps (dual port) - 28 fps (single port), CCD, color
●
Modular Options:
❍
Nikon F-mount (Factory conversion)
❍
Canon EF Lens Mount (Factory conversion via RS232 I/O)
❍
IRC Filter on Monochrome cameras (Factory installation)
❍
Taped glass and microlens (Factory built)
❍
Taped glass No microlens (Factory built)
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/prosilica-gx/gx2300.html 1
Specifications
Prosilica GX 2300
Interface IEEE 802.3 1000baseT
Resolution 2336 x 1752
Sensor Truesense KAI-04050
Sensor type CCD Progressive
Sensor size Type 1
Cell size 5.5 µm
Lens mount C (adjustable) / F
Max frame rate at full resolution 32 fps
A/D 14 bit
On-board FIFO 128 MB
Output
Bit depth 14 (mono) - 12 (color) bit
Mono modes Mono8, Mono12, Mono12Packed, Mono14
Color modes YUV YUV411Packed
Color modes RGB
Raw modes BayerGR8, BayerGR12, BayerGR12Packed
Opto-coupled I/Os 2 inputs, 4 outputs
RS-232 1
Operating temperature 0°C ... +50°C
Power requirements (DC) 5V - 24V
Power consumption (12 V) 5.8W (1 port) - 6.9W (2 ports)
Mass 269 g
Body Dimensions
(L x W x H in mm)
Regulations CE, FCC Class A, RoHS (2011/65/EU)
RGB8Packed, BGR8Packed, RGBA8Packed, BGRA8Packed,
RGB12Packed
General purpose inputs/outputs (GPIOs)
Operating conditions/Dimensions
107.2 x 53.3 x 33 (including connectors, w/o tripod and lens)
Download Prosilica GX2300 technical drawing (click here)
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/prosilica-gx/gx2300.html 2
Smart features
The Prosilica GX2300 features include:
●
Auto Exposure
●
Auto Gain
●
Auto White balance
●
Flexible Binning
●
Region of Interest readout (AOI partial scan)
●
DSP subregion (selectable ROI for auto features)
●
StreamBytesPerSecond (easy bandwidth control)
●
Stream hold
●
Asynchronous external trigger and sync I/O
●
Global shutter (digital shutter)
●
Recorder and Multiframe Acquisition Modes
●
3-axis motorized lens control
●
Video-type autoiris
Application Note:
Integrating Motorized Lenses with Prosilica GX Cameras
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/prosilica-gx/gx2300.html 3
Applications
The GX2300 is ideal for a wide range of applications including:
●
LCD panel inspection
●
High-resolution industrial inspection
●
3-D metrology
●
General machine vision
●
Public security
●
Military surveillance
●
Traffic imaging (Intelligent Traffic Systems)
●
Embedded systems
●
OEM applications
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/prosilica-gx/gx2300.html 4
