ALLIED Vision Technologies Prosilica GX1910 User Manual

Description
2 Megapixel HD CCD camera with high frame rate - Dual port GigE
The new 2/3" format Prosilica GX1910 is a high-resolution CCD camera with a Gigabit Ethernet interface (GigE Vision®). The GX1910 incorporates the new Truesense KAI-02150 CCD sensor providing excellent image quality in High Definition resolution (1080p). The GX1910 has two screw-captivated Gigabit Ethernet ports configured as a Link Aggregation Group (LAG) to provide a sustained maximum data rate of 240 MBytes per second. The Prosilica GX1910 can also work at half the bandwidth (120 MB/s) using a single cable.
Video auto-iris
Single or dual Ethernet port operation
Thermal management enclosure
Models:
GX1910, 1920 x 1080, 63 fps (dual port) - 55 fps (single port), CCD, mono
GX1910C, 1920 x 1080, 63 fps (dual port) - 55 fps (single port), CCD, color
Modular Options:
Nikon F-mount (Factory conversion)
Canon EF Lens Mount (Factory conversion via RS232 I/O)
IRC Filter on Monochrome cameras (Factory installation)
Taped glass and microlens (Factory built)
Taped glass No microlens (Factory built)
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/prosilica-gx/gx1910.html 1

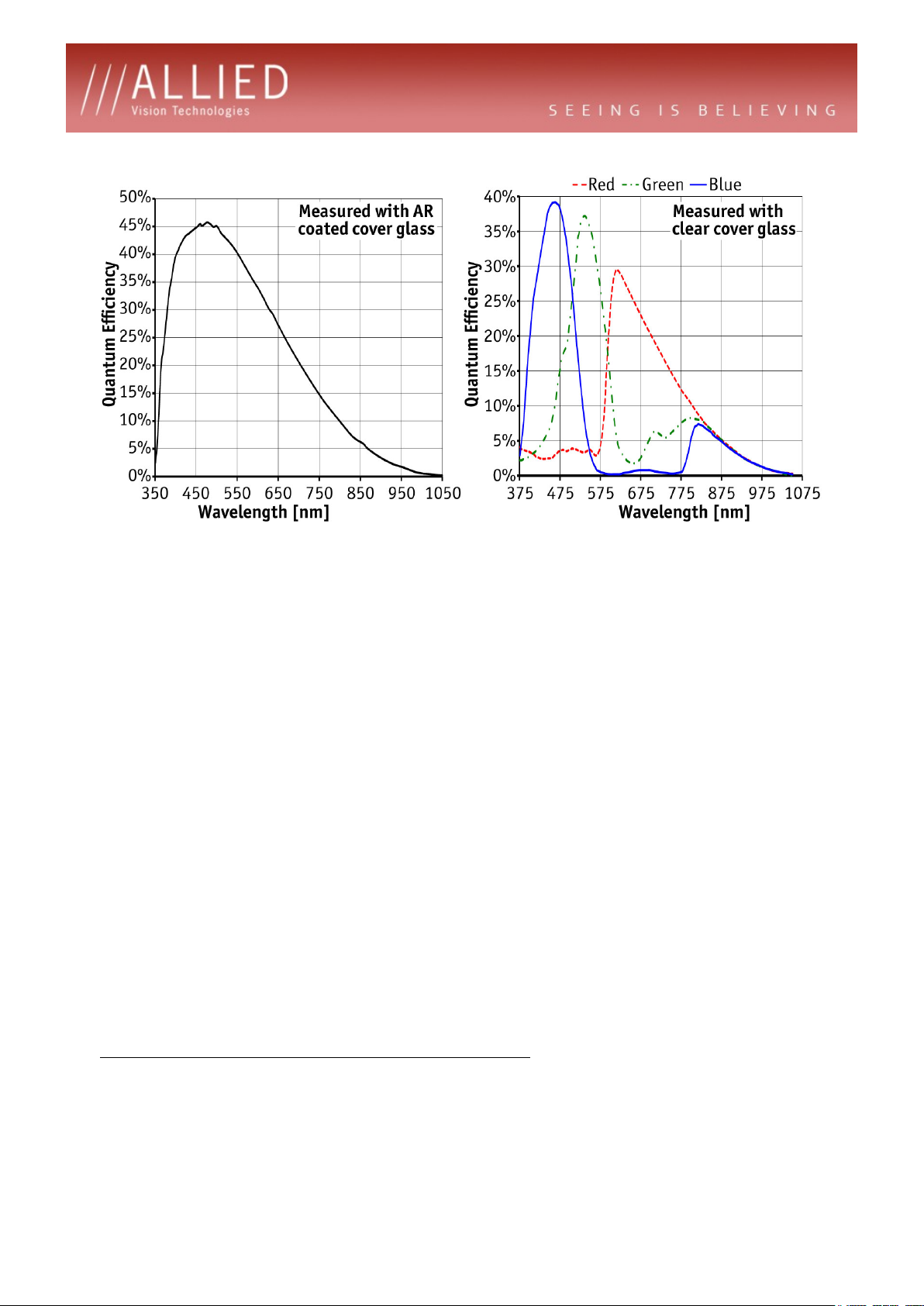

Specifications
Prosilica GX 1910
Interface IEEE 802.3 1000baseT Resolution 1920 x 1080 Sensor Truesense KAI-02150 Sensor type CCD Progressive Sensor size Type 2/3 Cell size 5.5 µm Lens mount C (adjustable) Max frame rate at full resolution 63 fps A/D 14 bit On-board FIFO 128 MB
Output Bit depth 14 (mono) - 12 (color) bit Mono modes Mono8, Mono12, Mono12Packed, Mono14 Color modes YUV YUV411Packed
Color modes RGB
Raw modes BayerGR8, BayerGR12, BayerGR12Packed
Opto-coupled I/Os 2 inputs, 4 outputs RS-232 1
Operating temperature 0°C ... +50°C Power requirements (DC) 5V - 24V Power consumption (12 V) 5.6W (1 port) - 6.7W (2 ports) Mass 269 g Body Dimensions
(L x W x H in mm) Regulations CE, FCC Class A, RoHS (2011/65/EU)
RGB8Packed, BGR8Packed, RGBA8Packed, BGRA8Packed,
RGB12Packed
General purpose inputs/outputs (GPIOs)
Operating conditions/Dimensions
107.2 x 53.3 x 33 (including connectors, w/o tripod and lens)
Download Prosilica GX1910 technical drawing (click here)
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/prosilica-gx/gx1910.html 2
Smart features
The Prosilica GX1910 features include:
Auto Exposure
Auto Gain
Auto White balance
Flexible Binning
Region of Interest readout (AOI partial scan)
DSP subregion (selectable ROI for auto features)
StreamBytesPerSecond (easy bandwidth control)
Stream hold
Asynchronous external trigger and sync I/O
Global shutter (digital shutter)
Recorder and Multiframe Acquisition Modes
3-axis motorized lens control
Video-type autoiris
Application Note:
Integrating Motorized Lenses with Prosilica GX Cameras
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/prosilica-gx/gx1910.html 3
Applications
The GX1910 is ideal for a wide range of applications including:
Industrial inspection
Machine vision
LCD panel inspection
Medical imaging
Ophthalmology
Aeronautical and aerospace
Public security
Surveillance
Traffic imaging
OEM applications
Application Case Studies:
Giant Billboard on Times Square Uses AVT Camera for Interactive Advertising Fashion retailer Forever 21’s new flagship store in New-York City features giant computer vision billboard that interacts with consumers.
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/prosilica-gx/gx1910.html 4
