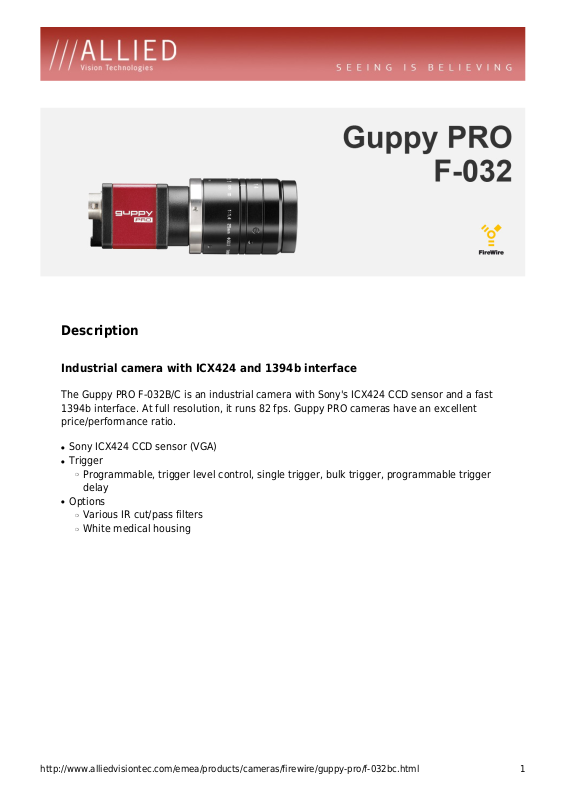

Description
Industrial camera with ICX424 and 1394b interface
The Guppy PRO F-032B/C is an industrial camera with Sony's ICX424 CCD sensor and a fast
1394b interface. At full resolution, it runs 82 fps. Guppy PRO cameras have an excellent
price/performance ratio.
●
Sony ICX424 CCD sensor (VGA)
●
Trigger
❍
Programmable, trigger level control, single trigger, bulk trigger, programmable trigger
delay
●
Options
❍
Various IR cut/pass filters
❍
White medical housing
http://www.alliedvisiontec.com/emea/products/cameras/firewire/guppy-pro/f-032bc.html 1
Specifications
Guppy PRO F-032
Interface IEEE 1394b - 800 Mb/s, 1 port
Resolution 656 x 492
Sensor Sony ICX424
Sensor type CCD Progressive
Sensor size Type 1/3
Cell size 7.4 µm
Lens mount C-Mount
Max frame rate at full resolution 82 fps
A/D 12 bit
Output
Bit depth 8-12 bit
Mono modes 8/12/16
Color modes YUV 411/422
Color modes RGB RGB8
Raw modes 8/12/16
General purpose inputs/outputs (GPIOs)
Opto-coupled I/Os 1/3
Operating conditions/Dimensions
Operating temperature +5 °C ... +45 °C
Power requirements (DC) 8 V - 36 V
Power consumption (12 V) <3.5 W
Mass 80 g
Body Dimensions
(L x W x H in mm)
Regulations CE, FCC Class B, RoHS
44.8 x 29 x 29 mm incl. connectors
Download technical drawing (click here)
http://www.alliedvisiontec.com/emea/products/cameras/firewire/guppy-pro/f-032bc.html 2
Smart features
●
AOI (separate AOI for auto features)
●
Programmable LUT, gamma
●
Debayering, color correction
●
Gain
❍
Auto/manual
❍
Manual gain control: 0 - 24.4 dB
●
Exposure
❍
Auto/manual
❍
Exposure time: 37 µs - 67 s
●
Binning (2 x 2 b/w)
●
Sub-Sampling (2 x 2 b/w)
http://www.alliedvisiontec.com/emea/products/cameras/firewire/guppy-pro/f-032bc.html 3
Applications
The Guppy PRO F-032B/C is an ultra-compact 1394b camera for a large variety of industrial
applications:
●
Machine vision
●
Robotics
●
Logistics
●
Security and Surveillance
●
Healthcare
●
Pharmaceutical industry
●
Food inspection
●
Motion analysis
●
ITS/Traffic monitoring
●
... and more
Application Case Studies:
●
Magical Crystal Ball – PufferSphere Multimedia Display
Spectacular interactive sphere relies on AVT Guppy PRO camera for vision-based human
interaction.
http://www.alliedvisiontec.com/emea/products/cameras/firewire/guppy-pro/f-032bc.html 4
