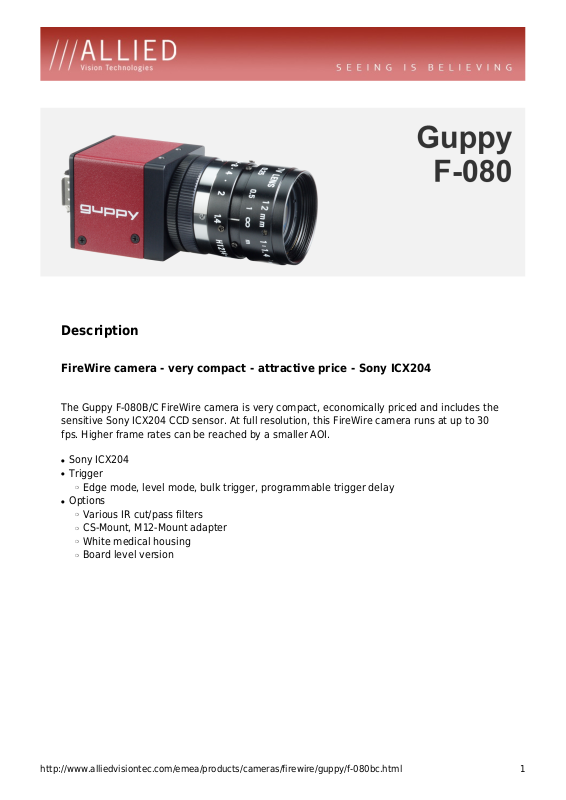

Description
FireWire camera - very compact - attractive price - Sony ICX204
The Guppy F-080B/C FireWire camera is very compact, economically priced and includes the
sensitive Sony ICX204 CCD sensor. At full resolution, this FireWire camera runs at up to 30
fps. Higher frame rates can be reached by a smaller AOI.
●
Sony ICX204
●
Trigger
❍
Edge mode, level mode, bulk trigger, programmable trigger delay
●
Options
❍
Various IR cut/pass filters
❍
CS-Mount, M12-Mount adapter
❍
White medical housing
❍
Board level version
http://www.alliedvisiontec.com/emea/products/cameras/firewire/guppy/f-080bc.html 1
Specifications
Guppy F-080
Interface IEEE 1394a - 400 Mb/s, 1 port
Resolution 1032 x 778
Sensor Sony ICX204
Sensor type CCD Progressive
Sensor size Type 1/3
Cell size 4.65 µm
Lens mount C
Max frame rate at full resolution 30 fps
A/D 12 bit
Output
Bit depth 12 bit
Mono modes Mono8
Color modes YUV n/a
Color modes RGB n/a
Raw modes Raw8
General purpose inputs/outputs (GPIOs)
TTL I/Os 1 input, 3 outputs
RS-232 1
Operating conditions/Dimensions
Power requirements (DC) 8 V - 36 V
Power consumption (12 V) <2 W
Mass 50 g
Body Dimensions
(L x W x H in mm)
Regulations CE, FCC Class B, RoHS
48.2 x 30 x 30 mm incl. connectors
Download Guppy technical drawing (click here)
http://www.alliedvisiontec.com/emea/products/cameras/firewire/guppy/f-080bc.html 2
Smart features
●
Programmable LUT
●
Gain
❍
Auto/manual
❍
Manual gain control: 0 - 24 dB
●
Exposure
❍
Auto/manual
❍
Exposure time: 54 µs - 67 s
●
Separate AOI for auto functions
●
Auto white balance
http://www.alliedvisiontec.com/emea/products/cameras/firewire/guppy/f-080bc.html 3
Applications
The Guppy F-080B/C is a compact mainstream FireWire camera with a very good pricing - it
fits for many applications:
●
Machine vision
●
Quality control
●
Robotics
●
Industrial inspection
●
Security
●
ITS/Traffic monitoring
●
... and many more
Application Case Studies:
●
Underwater Vision
AVT Sponsored Team from Cornell University Wins 2010 RoboSub Challenge with Guppy
equipped Autonomous Underwater Vehicle.
●
Mass and Class
Industrial Inspection: Even for small mass-produced parts, it is worth using industrial
image-processing systems to guarantee first-class quality. At NP Plastics, small plastic
rollers for document binders are checked with AVT's FireWire cameras 600 times per
minute in three dimensions.
●
Virtual Prototypes
Industrial Inspection: Using “Augmented Reality,” auto manufacturers can integrate virtual
CAD prototypes into actual modules or vehicles to find and solve assembly problems before
production begins. The Unifeye Prototyping System from Metaio with AVT FireWire cameras
makes it possible.
http://www.alliedvisiontec.com/emea/products/cameras/firewire/guppy/f-080bc.html 4
