Description
Ultra-compact, inexpensive 1394 VGA machine vision camera

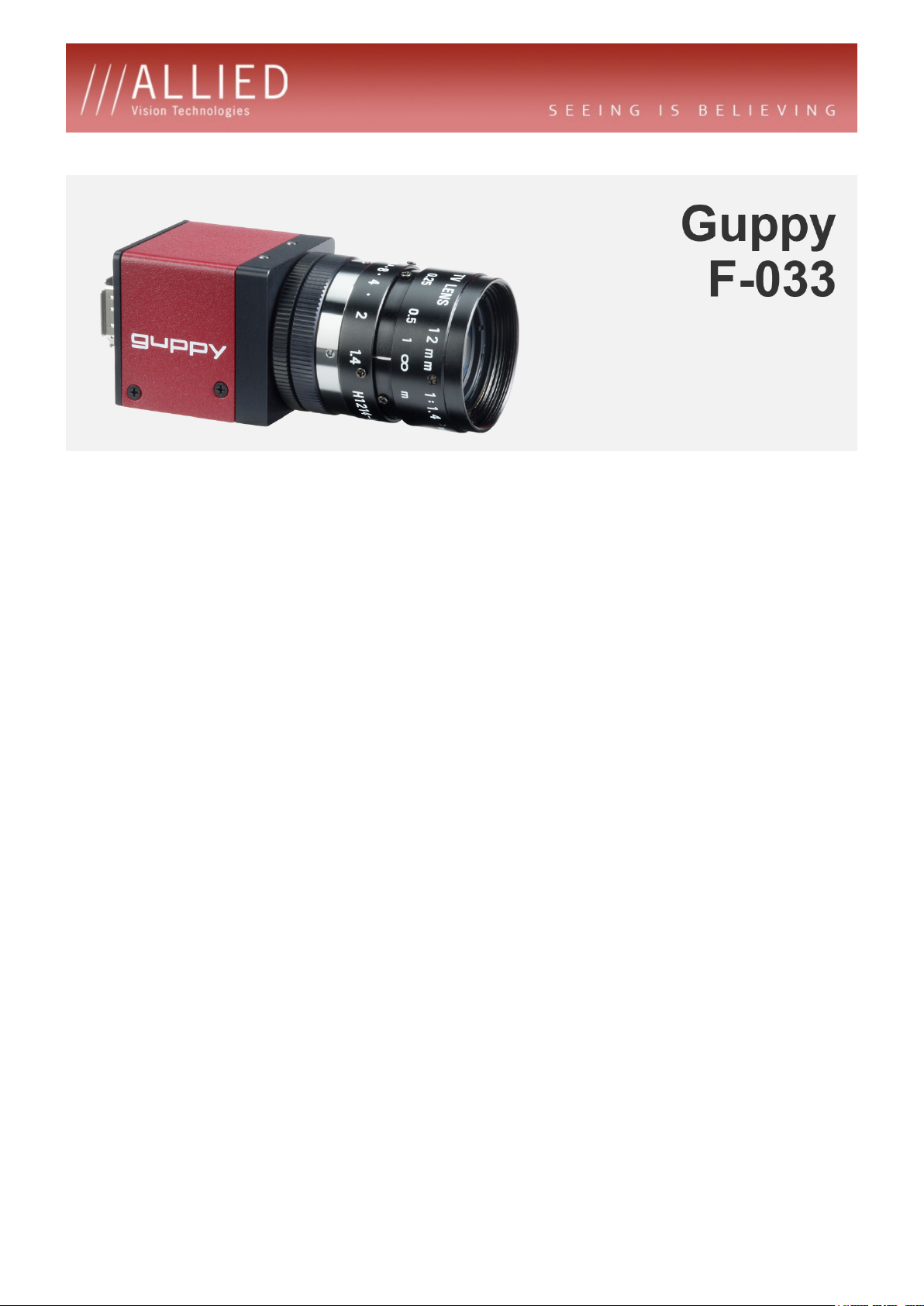

The Guppy F-033B/C is an ultra-compact, inexpensive VGA machine vision camera with a
sensitive CCD sensor (Sony ICX424). At full resolution, it runs up to 58 fps. Higher frame
rates can be reached by a smaller AOI.
●
Sony ICX424 (progressive scan)
●
Trigger
❍
Edge mode, level mode, bulk trigger; programmable trigger delay
●
Options
❍
Various IR cut/pass filters
❍
CS-Mount, M12-Mount adapter
❍
On request: board level version
http://www.alliedvisiontec.com/emea/products/cameras/firewire/guppy/f-033bc.html 1
Specifications
Guppy F-033
Interface IEEE 1394a - 400 Mb/s, 1 port
Resolution 656 x 494
Sensor Sony ICX424
Sensor type CCD Progressive
Sensor size Type 1/3
Cell size 7.4 µm
Lens mount C
Max frame rate at full resolution 58 fps
A/D 10 bit
Output
Bit depth 8 bit
Mono modes Mono8
Color modes YUV n/a
Color modes RGB n/a
Raw modes Raw8
General purpose inputs/outputs (GPIOs)
TTL I/Os 1 input, 3 outputs
RS-232 1
Operating conditions/Dimensions
Power requirements (DC) 8 V - 36 V
Power consumption (12 V) <2 W
Mass 50 g
Body Dimensions
(L x W x H in mm)
Regulations CE, FCC Class B, RoHS
48.2 x 30 x 30 mm incl. connectors
Download Guppy technical drawing (click here)
http://www.alliedvisiontec.com/emea/products/cameras/firewire/guppy/f-033bc.html 2
Smart features
●
Programmable LUT
●
Gain
❍
Auto/manual
❍
Manual gain control: 0 - 24 dB
●
Exposure
❍
Auto/manual
❍
Exposure time: 129 µs - 67 s
●
Separate AOI for auto features
●
Auto white balance
http://www.alliedvisiontec.com/emea/products/cameras/firewire/guppy/f-033bc.html 3
Applications
This inexpensive, reliable mainstream VGA machine vision camera addresses a wide range of
imaging applications. With its ultra-compact, small housing, the Guppy F-033B/C is the
perfect fit for all applications with space constraints.
●
Machine vision
●
Robotics (robust housing, lightweight camera)
●
Quality control
●
Ophthalmology
●
Semiconductor inspection
●
Industrial inspection
●
ITS/Traffic monitoring
●
... and many more
Application Case Studies:
●
AVT Cameras Inspect Airbag Inflator
Industrial Inspection: Manufacturer of high-pressure gas chargers uses AVT Guppy cameras
for 100% leak control.
●
Advertising In The Third Dimension
Multimedia & Entertainment: With the Virtual Stage, advertisors are discovering a new
dimension: the floor. This innovative system transmits advertising messages in an original,
entertaining and
