Description
NIR optimized camera with ICX285, Peltier cooling -20 °C

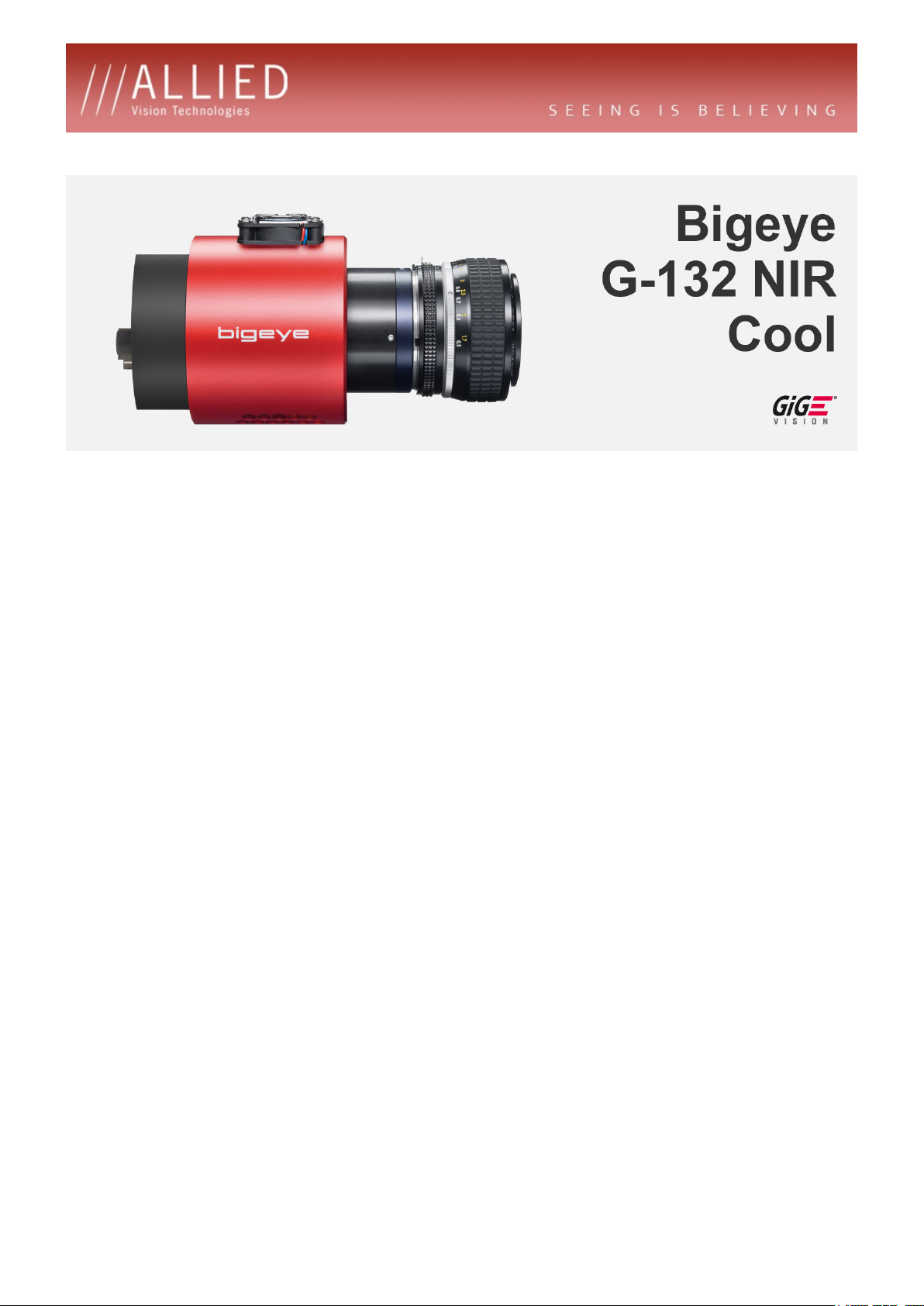

The Bigeye G-132B NIR Cool is distinguished by high performance both in the visible spectrum and the NIR spectrum; its ICX285 CCD sensor is modified for enhanced NIR sensitivity.
ICX285 EXview HAD CCD sensor, 1280 x 1024 pixels

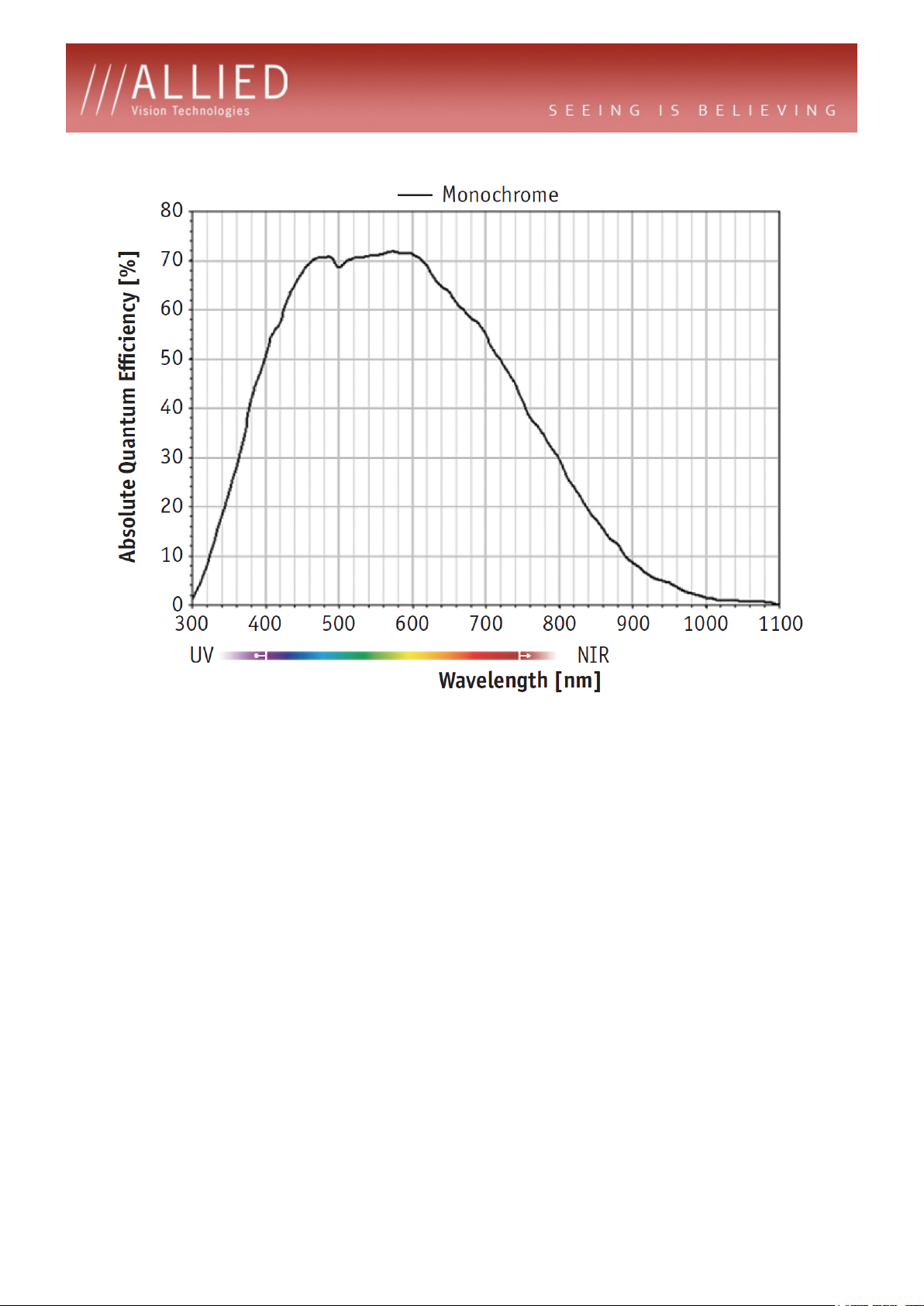

Extended sensitivity ranging from 350 nm to 1000 nm
Exposure time up to 4292 s (≈ 71 min)
GigE Vision
Multi-functional, user-configurable I/O interface
Reliable operation under rough industrial conditions
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/bigeye-g/g-132b-nir-cool.html 1
Specifications
Bigeye G-132 NIR Cool
Interface IEEE 802.3 1000baseT Resolution 1280 x 1024 Sensor Sony ICX285 Sensor type CCD Progressive Sensor size Type 2/3 Cell size 6.45 µm Cooling temperature -20 °C Dark noise tdb Dark current tbd Saturation capacity tbd Dynamic range tbd Lens mount C-Mount Max frame rate at full resolution 12.5 fps A/D 12 bit On-board FIFO 32 MB
Output Bit depth 12 bit Mono modes Mono8, Mono12, Mono12Packed
General purpose inputs/outputs (GPIOs) TTL I/Os 1/1 Opto-coupled I/Os 3/3 RS-232 2
Operating conditions/Dimensions Operating temperature 0 °C ... 35 °C Power consumption (12 V) max. <36 W, typ. <18 W Mass 1270 g Body Dimensions
(L x W x H in mm) Regulations CE, RoHS (2002/95/EC)
100.8 x 90 x 99 mm incl. connectors, w/o lens
Download technical drawing (click here)
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/bigeye-g/g-132b-nir-cool.html 2
Smart features
Gain (6 dB)
Exposure time 80077 µs to 4294 seconds (≈ 71 min)
Binning (2x1, 2x2)
Three look-up tables (LUTs)
Gamma (0.45, 0.5, 0.7)
Five storable user sets
Easy integration
The Bigeye G-132 NIR Cool can be easily integrated into your application, since it is GigE Vision compliant and compatible with AVT's GigE SDKs. Additionally, this camera can be used with numerous third-party software solutions.
http://www.alliedvisiontec.com/emea/products/cameras/gigabit-ethernet/bigeye-g/g-132b-nir-cool.html 3
Applications
The Bigeye G-132B NIR Cool is a prime quality CCD camera that is sensitive both in the visible and the NIR spectrum. It is optimal for applications requiring long exposure times.
Typical applications:
Low-noise imaging (industrial and scientific imaging)
Image acquisition with long exposure times
Microscopy with high resolution
Fluorescence microscopy
Gel electrophoresis, DNA documentation
Non-destructive evaluation of photosensitive objects
Astronomy
Solar cell/wafer inspection
