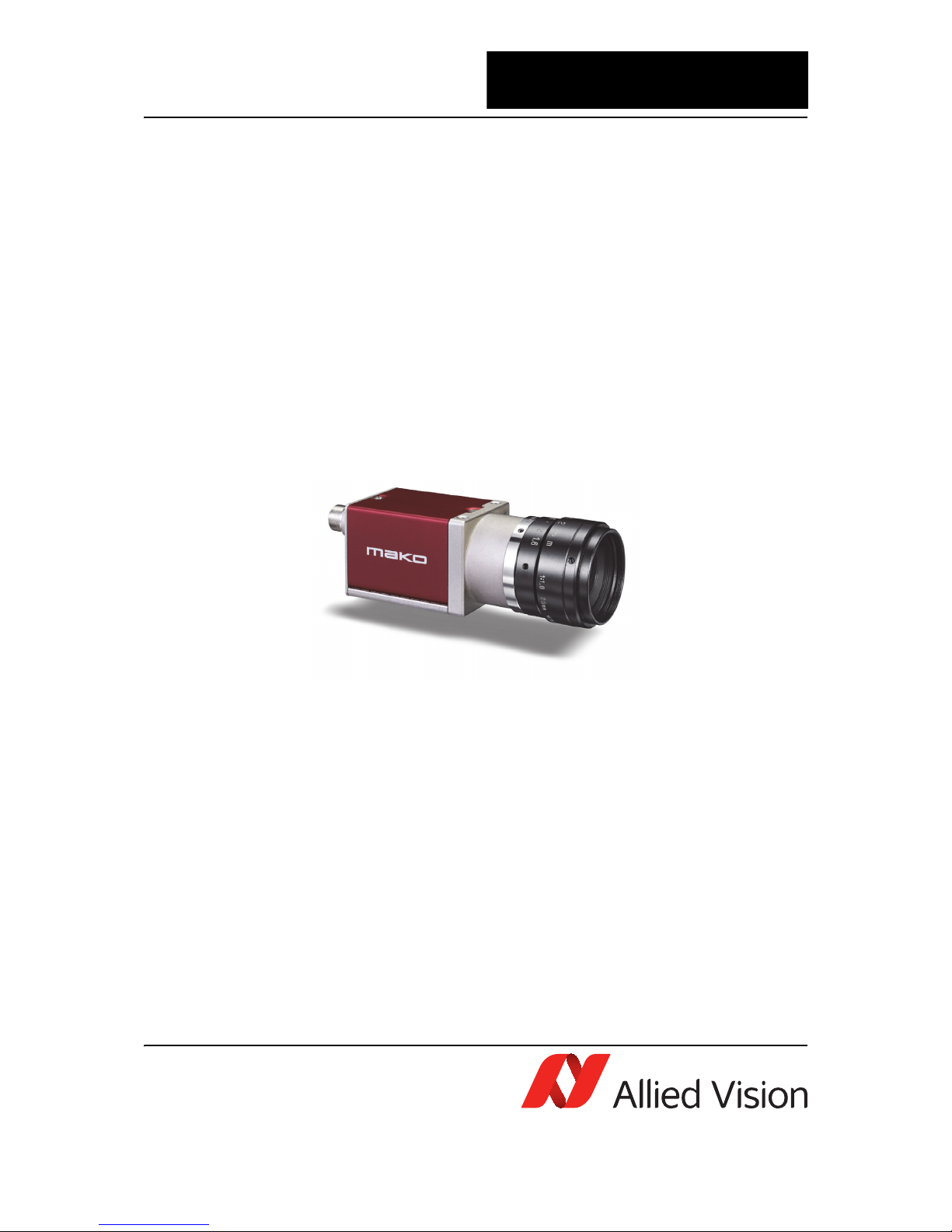

Allied Vision Mako G-125B/C, Mako G-050B/C, Mako G-131B/C, Mako G-192B/C, Mako G-223B/C (NIR) Technical Manual

Technical Manual

GigE Vision Cameras

V3.0.0

15 January 2015

Allied Vision Technologies GmbH
Taschenweg 2a
D-07646 Stadtroda / Germany

Allied Vision Mako

Mako Technical Manual V3.0.0

2

Legal notice

For customers in the U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a residential environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communica­tions. However there is no guarantee that interferences will not occur in a particular installation.
If the equipment does cause harmful interference to radio or television reception, the user is
encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the distance between the equipment and the receiver.

• Use a different line outlet for the receiver.

• Consult a radio or TV technician for help.

You are cautioned that any changes or modifications not expressly approved in this manual could
void your authority to operate this equipment. The shielded interface cable recommended in this
manual must be used with this equipment in order to comply with the limits for a computing
device pursuant to Subpart B of Part 15 of FCC Rules.

For customers in Canada

This apparatus complies with the Class B limits for radio noise emissions set out in the Radio
Interference Regulations.

Pour utilisateurs au Canada

Cet appareil est conforme aux normes classe B pour bruits radioélectriques, spécifiées dans le
Règlement sur le brouillage radioélectrique.

Life support applications

These products are not designed for use in life support appliances, devices, or systems where mal­function of these products can reasonably be expected to result in personal injury. Allied Vision
Technologies customers using or selling these products for use in such applications do so at their
own risk and agree to fully indemnify Allied Vision Technologies for any damages resulting from
such improper use or sale.

Trademarks

Unless stated otherwise, all trademarks appearing in this document of Allied Vision Technologies
are brands protected by law.

Warranty

The information provided by Allied Vision Technologies is supplied without any guarantees or
warranty whatsoever, be it specific or implicit. Also excluded are all implicit warranties concern­ing the negotiability, the suitability for specific applications or the non-breaking of laws and pat­ents. Even if we assume that the information supplied to us is accurate, errors and inaccuracy may
still occur.

Copyright

All texts, pictures and graphics are protected by copyright and other laws protecting intellectual
property. It is not permitted to copy or modify them for trade use or transfer, nor may they be used
on websites.

Allied Vision Technologies GmbH 01/2015

All rights reserved.
Managing Director: Mr. Frank Grube
Tax ID: DE 184383113

Headquarters:

Taschenweg 2a
D-07646 Stadtroda, Germany
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]

Mako Technical Manual V3.0.0

3

Contents

Contacting Allied Vision .......................................................................................... 5

Introduction ................................................................................................................ 6

Document history ................................................................................................................ 6

Conventions used in this manual............................................................................................. 8

Styles ........................................................................................................................... 8

Symbols ........................................................................................................................ 8

More information ................................................................................................................ 8

Before operation ................................................................................................................. 9

Heat dissipation.............................................................................................................. 9

Camera cleaning instructions ............................................................................. 10

Warranty ..................................................................................................................... 10

Avoiding the necessity of camera cleaning ......................................................................... 10

Is it an impurity? – Identifying impurities........................................................................... 11

Where is the impurity? – Locating impurities....................................................................... 11

Cleaning Instructions..................................................................................................... 12

About Mako GigE cameras ................................................................................... 14

Conformity................................................................................................................. 15

FCC – Class B Device ....................................................................................................... 15

Specifications........................................................................................................... 16

Mako G-030B/C ................................................................................................................. 16

Mako G-032B/C ................................................................................................................. 19

Mako G-050B/C ................................................................................................................. 21

Mako G-095B/C ................................................................................................................. 23

Mako G-125B/C ................................................................................................................. 25

Mako G-131B/C ................................................................................................................. 27

Mako G-192B/C ................................................................................................................. 29

Mako G-223B/C (NIR) ......................................................................................................... 31

Mako G-419B/C (NIR) ......................................................................................................... 33

Camera smart features ......................................................................................... 35

Filter and lenses...................................................................................................... 36

IR cut filter....................................................................................................................... 36

Camera lenses................................................................................................................... 36

Mako G-030.................................................................................................................. 37

Mako G-032.................................................................................................................. 37

Mako G-050.................................................................................................................. 37

Mako G-095.................................................................................................................. 38

Mako G-125.................................................................................................................. 38

Mako G-131.................................................................................................................. 38

Mako G-192.................................................................................................................. 38

Mako G-223.................................................................................................................. 39

Mako Technical Manual V3.0.0

4

Mako G-419.................................................................................................................. 39

Camera dimensions................................................................................................ 40

Tripod adapter .................................................................................................................. 40

Cross section: C-Mount ....................................................................................................... 41

Cross section: CS-Mount...................................................................................................... 42

Adjustment of the C-Mount and CS-Mount............................................................................... 43

Mako standard housing....................................................................................................... 43

Camera interfaces .................................................................................................. 44

Status LEDs ...................................................................................................................... 44

Gigabit Ethernet port ......................................................................................................... 45

Mako I/O connector pin assignment ...................................................................................... 45

Mako input description................................................................................................... 46

Mako output description................................................................................................. 47

Control signals.................................................................................................................. 49

Inputs......................................................................................................................... 49

Input/output pin control ................................................................................................ 49

Outputs....................................................................................................................... 49

Trigger timing diagram................................................................................................... 51

Notes on triggering ....................................................................................................... 51

Description of the data path................................................................................ 53

Mako monochrome cameras................................................................................................. 53

Mako with CCD sensors ................................................................................................... 53

Mako with CMOS sensors ................................................................................................. 53

Mako color cameras............................................................................................................ 55

Mako with CCD sensors ................................................................................................... 55

Mako with CMOS sensors ................................................................................................. 55

Camera features ................................................................................................................ 57

Frame memory .................................................................................................................. 65

Resolution and ROI frame rates ......................................................................... 66

Mako G-030B/C: ROI frame rates........................................................................................... 67

Mako G-032B/C: ROI frame rates........................................................................................... 68

Mako G-050B/C: ROI frame rates........................................................................................... 69

Mako G-095B/C: ROI frame rates........................................................................................... 70

Mako G-125B/C: ROI frame rates........................................................................................... 71

Mako G-131B/C: ROI frame rates........................................................................................... 72

Mako G-192B/C: ROI frame rates........................................................................................... 73

Mako G-223B/C: ROI frame rates........................................................................................... 74

Mako G-419B/C: ROI frame rates........................................................................................... 75

Appendix .................................................................................................................... 76

Sensor position accuracy of Mako cameras .............................................................................. 76

Index ........................................................................................................................... 77

Mako Technical Manual V3.0.0

5

Contacting Allied Vision

Contacting Allied Vision

Info



• Technical information:

http://www.alliedvision.com

• Support:

[e-mail]

Allied Vision Technologies GmbH (Headquarters)

Taschenweg 2a
07646 Stadtroda, Germany
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]

Allied Vision Technologies Canada Inc.

101-3750 North Fraser Way
Burnaby, BC, V5J 5E9, Canada
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]

Allied Vision Technologies Inc.

38 Washington Street
Newburyport, MA 01950, USA
Toll Free number +1 877-USA-1394
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]

Allied Vision Technologies Asia Pte. Ltd.

82 Playfair Road
#07-02 D’Lithium
Singapore 368001
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]

Allied Vision Technologies (Shanghai) Co., Ltd.

2-2109 Hongwell International Plaza
1602# ZhongShanXi Road
Shanghai 200235, China
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]

Mako Technical Manual V3.0.0

6

Introduction

Introduction

This Mako Technical Manual describes in depth the technical specifications,
dimensions, all pixel formats, bandwidth and frame rate related subjects.

For detailed information on camera features and controls refer to the GigE Cam-
era and Driver Features and GigE Camera and Driver Attributes documents.

Document history

www



Mako literature:

http://www.alliedvisiontec.com/us/support/downloads/
product-literature/mako.html

Note



We assume that you have already read the GigE Installation
Guide and that you have installed the hardware and software

on your PC or laptop (Gigabit Ethernet network card, cables).
The GigE Installation Guide contains important safety
warnings.

http://www.alliedvisiontec.com/emea/support/downloads/
product-literature/hardware-installation-guide.html

Version Date Remarks

V2.0.0 2013-Aug-30 New Manual - RELEASE Status

V2.0.1 2013-Sep-11 • Added table of contents

•Added Camera cleaning instructions

• Updated the specifications for Mako G-223 and G-419

• Updated chapter Resolution and ROI frame rates on page 66

V2.0.2 2013-Sep-16 • Updated the frame rate information for Mako G-223 and Mako G-419 in

Specifications and Resolution and ROI frame rates chapters

• Updated introduction to include link to Mako literature webpage

•Updated Status LEDs section

• Added captions to tables in Camera lenses section

•Added links to AVT GigE Camera and Driver Features document on page 53

and 57

to be continued on next page

Table 1: Document history

Mako Technical Manual V3.0.0

7

Introduction

continued from last page

V2.0.3 2013-Nov-27 • Updated gain control values for Mako G-223B/C (NIR) and Mako G-223B/C

(NIR)

•Updated Table 23: Status LED (green) on page 44

• Updated the note on StreamHoldCapacity in Specifications and Frame mem-

ory sections

• Updated block diagrams in chapter Description of the data path on page 53

• Updated the Index

V2.0.4 2014-Feb-28 • Updated available color pixel formats for Mako G-223B/C (NIR)and Mako G-

223B/C (NIR)

• Updated optional accessories in the Specifications chapter

•Updated section Cross section: C-Mount on page 41

•Added section Heat dissipation on page 9

• Updated the operating temperature specification for Mako G-032B/C, Mako

G-125B/C, Mako G-223B/C (NIR), and Mako G-223B/C (NIR)

• Updated block diagrams in chapter Description of the data path on page 53
to remove the RS232 mention

• Added Hirose cable information on page 45

V2.1.0 2014-Oct-07 • Updated and rearranged Specifications chapter

•Added Camera smart features on page 35

• Added trigger latency and jitter values for Mako G-032B/C and Mako G-

125B/C

•Updated Mako standard housing drawing

•Updated table 28 on page 57

•Updated Camera features section

• Added Mako G-050 and Mako G-095 cameras:
–Added Mako G-050B/C and Mako G-095B/C specifications and spectral

sensitivity plots
– Added camera lens information on page 37
–Added Mako G-050B/C: ROI frame rates and Mako G-095B/C: ROI frame

rates sections

– Updated Description of the data path and Camera dimensions chapters

V3.0.0 2015-Jan-15 • Updated Allied Vision logo

•Updated Camera cleaning instructions section

• Added Mako G-030, Mako G-131, and Mako G-192 cameras:
–Added Mako G-030B/C, Mako G-131B/C, and Mako G-192B/C specifica-

tions and spectral sensitivity plots

–

Updated Table 12 : Mako camera smart features on page 35
– Added camera lens information on page 37 and 38
–Added Mako G-030B/C: ROI frame rates, Mako G-131B/C: ROI frame

rates, and Mako G-192B/C: ROI frame rates sections

– Updated Description of the data path and Camera dimensions chapters

Version Date Remarks

Table 1: Document history

Mako Technical Manual V3.0.0

8

Introduction

Conventions used in this manual

To give this manual an easily understood layout and to emphasize important
information, the following typographical styles and symbols are used:

Styles

Symbols

More information

For more information on hardware and software read the following:

•The GigE Installation Guide describes the hardware installation proce-

dures for Allied Vision GigE cameras and contains important safety
instructions.

• GigE Camera and Driver Features describes the camera controls of Allied

Vision‘s VIMBA SDK (GenICam) and feature related items.

Style Function Example

Bold Programs, inputs or highlighting important things bold
Courier Code listings etc. Input
Upper case Register REGISTER
Italics Modes, fields Mode
Parentheses and/or blue Links (Link)

Table 2: Styles

Note



This symbol highlights important information.

Caution



This symbol highlights important instructions. You have to
follow these instructions to avoid malfunctions.

www



This symbol highlights URLs for further information. The URL
itself is shown in blue.

Example: http://www.alliedvision.com

Mako Technical Manual V3.0.0

9

Introduction

Before operation

Target group This Technical Manual is the guide to detailed technical information of the

camera and is written for experts.

Getting started For a quick guide on how to get started, read the GigE Installation Guide first.

Heat dissipation

Due to the small packaging and high speed of Mako cameras, take care to ensure
that the housing temperature of the camera does not exceed 45 °C. The follow­ing are general guidelines for heat dissipation:

• Mount the camera on a heat sink such as a metal bracket.

• Lenses, when attached to a camera, act as a heat-sink and help reduce
housing temperature.

• Ensure sufficient air flow. Use a fan if necessary.

www



To download the GigE Installation Guide and GigE Camera
and Driver Features, go to:

http://www.alliedvisiontec.com/emea/support/downloads/
product-literature.html

www



Software packages (including documentation and release
notes) provided by Allied Vision can be downloaded from:

http://www.alliedvisiontec.com/emea/products/
software.html

Caution



Before operating any Allied Vision camera, read the safety
instructions and ESD warnings in the GigE Installation
Guide.

Note



Housing temperature of the camera will increase during
power-up and initial operation. This temperature will
later stabilize.

Mako Technical Manual V3.0.0

10

Camera cleaning instructions

Camera cleaning instructions

This chapter describes safety instructions/cautions valid for Mako cameras in
case of cleaning lenses, optical filters/protection glass or sensors.

Warranty

Avoiding the necessity of camera cleaning

When screwing/unscrewing the camera lens or dust cap, hold the camera with
the C-Mount / CS-Mount opening towards the floor as shown in figure 1. This
minimizes the possibility of any contaminants falling on the glass surface.
Always store cameras and lenses with dust-caps installed.

Note



• Please read these instructions before you contact your
Allied Vision camera dealer for assistance.

• Ask your Allied Vision camera dealer if you are not famil­iar with the procedures described below.

www



For details about camera warranty duration and sen­sor warranty terms, visit:

http://www.alliedvisiontec.com/emea/support/
warranty.html

Caution



Warranty precautions

• To ensure your warranty remains in effect:
– Do not open the camera housing.
– Follow instructions described below.
– Use only optical quality tissue/cloth if you must clean

a lens or filter.

– Use only optics cleaner (60% ethyl alcohol, 40%

ether). Never use aggressive cleaners like benzine or
spirit. Such cleaners may destroy the surface.

– Do not use compressed air which can push dust

into camera and lens.

• Allied Vision does not warranty against any physical
damage to the sensor/filter/protection glass or lenses.
Use utmost care when cleaning optical components.

Mako Technical Manual V3.0.0

11

Camera cleaning instructions

Is it an impurity? – Identifying impurities

If you observe any image artefacts in your video preview of your Mako camera
you may have impurities either on the lens, filter/protection glass, or on the
sensor protection glass. Every Mako camera is cleaned prior to sealing and ship­ment; however, impurities may develop due to handling or unclean environ­ments.

As shown in figure 2, impurities (dust, particles or fluids) on the sensor or
optical components appear as a dark area, patch or spot on the image and
remain fixed in the preview window while you rotate the camera over the target.

Do not confuse this with a pixel defect which appears as a distinct point. Parti­cles can either rest loosely or can be more or less stuck to the optical surface.

Where is the impurity? – Locating impurities

Before you dismount the lens you should find out if the impurity is on the filter,
lens, or sensor. Therefore, you should capture a uniform image (e.g. a white
sheet of paper) with the camera. The affected optical surface is identified when
a suspected optical component is moved and the dirt follows this movement.

1. If you move only the lens (not the camera) and the impurity moves as
well, the impurity is on the lens.

2. If you move the IR cut filter/protection glass window and the impurity
moves as well:

Figure 1: Illustration of camera orientation when removing lens or dust cap

Figure 2: Image with tiny dust on the filter (left) and dust on the sensor (right)

Mako Technical Manual V3.0.0

12

Camera cleaning instructions

Please carefully remove the filter/protection glass and clean it on both
sides using the techniques explained below.

3. If the impurity is neither on the lens nor the IR cut filter/protection glass,
it is probably on the sensor.

Cleaning Instructions

Perform all cleaning operations (lenses, filter/protection glass, and sensor) in
a dust-free clean-room. The optical components are very fragile so it is import­ant to avoid touching them with your fingers or any hard material.

1. Unplug the camera from any power supply before cleaning.

2. Apply a small amount of optics cleaner (60% ethyl alcohol, 40% ether) to
a clean, new lens cleaning tissue.

Acceptable material includes medical-grade sterile optical cotton, or lens
tissue that is chemically pure and free from silicones and other additives.

– Do not use cosmetic cotton.
– Do not use consumer eyeglass cleaning cloths pre-treated with silicon.

The cotton or lens tissue should be moist, but not dripping. Please hold
the camera away from your body to avoid falling particles like flakes from
skin on the sensor. Hold the camera sensor diagonally upwards.

Note



• Taking out the filter requires special care.

• Ask your dealer to help you if you are not
confident with the procedure.

Figure 3: Removing IR cut filter/protection glass using special tools

(P/N: E9020001 for 16mm filter and P/N: 3851 for 22 mm filter)

Figure 4: Medical-grade sterile optical cotton

Mako Technical Manual V3.0.0

13

Camera cleaning instructions

3. Wipe the glass surface with a
spiral motion from the center
to the rim. Normally, several
spiral wipes are recommended.
Wipe only on glass avoiding
contact to metal surfaces,
because microscopic dirt could
be released and could cause
scratches on the glass.

4. When you've finished cleaning,
examine the surface in a strong
light. Take an out-of-focus
picture of a flat, illuminated
surface to see if any dirt or dust
remains.

5. If dust spots remain, repeat
this procedure using new clean
lens tissue (as described
above).

6. If you want to clean your camera with compressed air despite of all the
warnings:

7. Gently blow the impurities off with dust-filtered, oil-free air (< 1 bar).
Using ionized air helps to remove any dirt stuck to the optical component
because of static electricity.

Caution



• Never wipe lenses with dry swabs or tissue—this causes
scratches.

• Do not use any disposable cotton cosmetic swabs; they
may contain contaminants.

Caution



• Use an air blower/compressed air only if you are familiar
with cleaning a camera with this instrument.

• Compressed air may push dust into cameras and
lenses. Therefore keep the pressure at a moderate
strength only:

– The pressure at the tube should be less than 1 bar (15

psi)

– Operating distance: 5–30 cm

Note



If dust spots remain after cleaning twice,
please contact your Allied Vision dealer.

Figure 5: Sensor cleaning

Figure 6: Don’t use compressed air

Mako Technical Manual V3.0.0

14

About Mako GigE cameras

About Mako GigE cameras

Mako Mako cameras have a Gigabit Ethernet interface.

GigE GigE is the abbreviation for Gigabit Ethernet.

All Mako cameras are GigE Vision V1.2 compliant cameras with Gigabit Ethernet
interface. Mako cameras work with Gigabit Ethernet hardware and cable lengths
up to 100 m.

GigE Vision The GigE Vision standard is an interface standard for digital machine vision cam-

eras widely supported in the industrial imaging industry. In contrast, GigE
(Gigabit Ethernet) is the network GigE Vision is built upon.

GenICam GenICam is the command structure for the GigE Vision camera controls.

GenICam is administered by the European Machine Vision Association (EMVA).
GenICam establishes a common camera control interface allowing third-party
software to communicate with cameras from various manufacturers without
customization. Allied Vision GigE cameras are GenICam V1.0 compliant.

Mako Technical Manual V3.0.0

15

Conformity

Conformity

Allied Vision Technologies declares under its sole responsibility that all stan­dard cameras of the Allied Vision Mako family to which this declaration relates
are in conformity with the following standard(s) or other normative docu­ment(s):

• CE, following the provisions of 2004/108/EG directive

• FCC Part 15 Class B

• RoHS (2011/65/EU)

•CE

• WEEE

We declare, under our sole responsibility, that the previously described Allied
Vision Mako cameras conform to the directives of the CE.

FCC – Class B Device

Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential environment. This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation. This
equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. Operation of this equipment in a resi­dential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense. You are cautioned that
any changes or modifications not expressly approved in this manual could void
your authority to operate this equipment.

Mako Technical Manual V3.0.0

16

Specifications

Specifications

Mako G-030B/C

Caution



Before operating any Allied Vision camera, read the safety
instructions and ESD warnings in the GigE Installation
Guide.

http://www.alliedvisiontec.com/emea/support/downloads/
product-literature/hardware-installation-guide.html

Caution



Due to the small packaging and high speed of Mako cameras,
take care to ensure that the housing temperature of the cam-
era does not exceed 45 °C. The following are general guide­lines for heat dissipation:

• Mount the camera on a heat sink such as a metal bracket.

• Lenses, when attached to a camera, act as a heat-sink and
help reduce housing temperature.

• Ensure sufficient air flow. Use a fan if necessary.

Note



All measurements were done without protection glass /
without filter.

The uncertainty in measurement of the quantum efficiency
values is 10%.

This is due to:

• Manufacturing tolerance of the sensor.

• Uncertainties in the measuring apparatus itself
(Ulbricht sphere, optometer, etc.).

Feature Specification

Resolution 644 x 484

Sensor CMV300-3E7M1WP (mono) / CMV300-3E7C1WP (color)

Type CMOS Progressive

Sensor size Type 1/3

Cell size 7.4 m

Lens mount C / CS-Mount

Max frame rate at full resolution 309 fps

Max image bit depth 12 bit

Table 3: Mako G-030B/C camera specifications

Mako Technical Manual V3.0.0

17

Specifications

On-board FIFO 64 MByte, up to 99 frames at full resolution, Mono8/Bayer8, and a

GevSCPSPacketSize = 8192 bytes per packet
Mono formats Mono8, Mono12Packed, Mono12
Color formats BayerRG8, BayerRG12Packed, BayerRG12, Mono8, RGB8Packed,

BGR8Packed, YUV411Packed, YUV422Packed, YUV444Packed

Exposure control 83µs to 2.0s; 1 µs increments
Gain control 0–26 dB
Binning N/A
Decimation Horizontal and Vertical: 1, 2, 4 factor
Opto-coupled I/Os 1 input, 3 outputs
Voltage requirements 12–24 VDC or PoE
Power consumption 2.1 W @ 12 VDC, 2.3 W PoE
Trigger latency* Idle state: 3.1 µs

Frame valid state: 3.1 µs
Trigger jitter* Idle state: 1.2 µs

Frame valid state: 3.1 µs
Operating temperature +5°C to +45°C (housing temperature)

Storage temperature -10°C to +70°C ambient temperature (without condensation)
Body dimensions (L x W x H) 60.5 x 29 x 29 mm; including connectors, without tripod and lens
Mass 80 g (without lens)
Hardware interface standard PoE, IEEE 802.3af 1000BASE-T, 100BASE-TX
Software interface standard GigE Vision Standard 1.2
Camera control interface GenICam V1.0 compliant
Regulatory CE, FCC Class B, RoHS (2011/65/EU), WEEE
*These values are calculated directly from the microcontroller source. These values are only valid for

pixel formats < 16 bit per pixel and applicable in both Idle and Frame valid state:

– Idle state: sensor is ready and camera is idle, waiting for the next trigger
– Frame valid state: sensor is reading out and camera is busy. If the next frame is requested by an

external trigger in this state, higher latency may occur as compared to the Idle state

Feature Specification

Table 3: Mako G-030B/C camera specifications

Mako Technical Manual V3.0.0

18

Specifications

Figure 7: Spectral sensitivity of Mako G-030B

Figure 8: Spectral sensitivity of Mako G-030C

0%

10%

20%

30%

40%

50%

60%

350 500 650 800 950 1100

Quantum Efficiency

Wavelength [nm]

0%

5%

10%

15%

20%

25%

30%

35%

40%

45%

350 500 650 800 950 1100

Quantum Efficiency

Wavelength [nm]

Red Green Blue

Mako Technical Manual V3.0.0

19

Specifications

Mako G-032B/C

Feature Specification

Resolution 658 x 492
Sensor SONY IT CCD ICX424AL/AQ with HAD microlens
Type CCD Progressive
Sensor size Type 1/3
Cell size 7.4 m
Lens mount C / CS-Mount
Max frame rate at full resolution 102 fps
Max image bit depth 12 bit
On-board FIFO 64 MByte, up to 202 frames at full resolution, Mono8/Bayer8, and a

GevSCPSPacketSize = 8192 bytes per packet
Mono formats Mono8, Mono12Packed, Mono12
Color formats BayerRG8, BayerRG12, BayerRG12Packed, Mono8, RGB8Packed,

YUV411Packed, YUV422Packed, YUV444Packed, BGR8Packed

Exposure control 10 µs to 93 s
Gain control 0–30 dB
Horizontal binning 1 to 8 columns
Vertical binning 1 to 14 rows
Opto-coupled I/Os 1 input, 3 outputs
Voltage requirements 12–24 VDC or PoE
Power consumption 2.4 W @ 12 VDC, 2.8 W PoE
Trigger latency* Idle state: 7.2 µs

Frame valid state: 16.9µs
Trigger jitter* Idle state: 4.0 µs

Frame valid state: 13.7 µs
Operating temperature +5 °C to +45 °C (housing temperature)

Storage temperature -10°C to +70°C ambient temperature (without condensation)
Body dimensions (L x W x H) 60.5 x 29 x 29 mm; including connectors, without tripod and lens
Mass 80 g (without lens)
Hardware interface standard PoE, IEEE 802.3af 1000BASE-T, 100BASE-TX
Software interface standard GigE Vision Standard 1.2
Camera control interface GenICam V1.0 compliant
Regulatory CE, FCC Class B, RoHS (2011/65/EU), WEEE
*It is possible to start the exposure of the next frame while the previous frame is read out:

– Idle state: sensor is ready and camera is idle, waiting for the next trigger
– Frame valid state: sensor is reading out and camera is busy. If the Next frame is requested by an

external trigger in this state, higher latency may occur as compared to the Idle state

Table 4: Mako G-032B/C camera specifications

Mako Technical Manual V3.0.0

20

Specifications

Figure 9: Spectral sensitivity of Mako G-032B (without protection/cover glass)

Figure 10: Spectral sensitivity of Mako G-032C (with IR cut filter)

0%

5%

10%

15%

20%

25%

30%

35%

40%

45%

50%

400 500 600 700 800 900 1000

Quantum Efficiency

Wavelength [nm]

0%

5%

10%

15%

20%

25%

30%

400 450 500 550 600 650 700

Quantum Efficiency

Wavelength [nm]

Red Green Blue

Mako Technical Manual V3.0.0

21

Specifications

Mako G-050B/C

Feature Specification

Resolution

812 x 614
Sensor

SONY CCD ICX693ALA/AQA with Super HAD CCD II
Type

CCD Progressive
Sensor size

Type 1/3
Cell size

6.00 m

Lens mount C / CS-Mount

Max frame rate at full resolution 71.2 fps

Max image bit depth 12 bit

On-board FIFO 64 MByte, up to 130 frames at full resolution, Mono8/Bayer8, and a

GevSCPSPacketSize = 8192 bytes per packet
Mono formats Mono8, Mono12Packed, Mono12
Color formats BayerRG8, BayerRG12, BayerRG12Packed, Mono8, RGB8Packed,

YUV411Packed, YUV422Packed, YUV444Packed, BGR8Packed

Exposure control 46 µs to 84 s
Gain control 0–35 dB
Horizontal binning 1 to 8 columns
Vertical binning 1 to 14 rows
Opto-coupled I/Os 1 input, 3 outputs
Voltage requirements 12–24 VDC or PoE
Power consumption 2.1 W @ 12 VDC, 2.4 W PoE
Trigger latency* Idle state: 7.1 µs

Frame valid state: 18.3 µs
Trigger jitter* Idle state: 4.0 µs

Frame valid state: 15.3 µs
Operating temperature +5°C to +45°C (housing temperature)

Storage temperature -10°C to +70°C ambient temperature (without condensation)
Body dimensions (L x W x H) 60.5 x 29 x 29 mm; including connectors, without tripod and lens
Mass 80 g (without lens)
Hardware interface standard PoE, IEEE 802.3af 1000BASE-T, 100BASE-TX
Software interface standard GigE Vision Standard 1.2
Camera control interface GenICam V1.0 compliant
Regulatory CE, FCC Class B, RoHS (2011/65/EU), WEEE
*It is possible to start the exposure of the next frame while the previous frame is read out:

– Idle state: sensor is ready and camera is idle, waiting for the next trigger
– Frame valid state: sensor is reading out and camera is busy. If the Next frame is requested by an

external trigger in this state, higher latency may occur as compared to the Idle state

Table 5: Mako G-050B/C camera specifications

Mako Technical Manual V3.0.0

22

Specifications

Figure 11: Spectral sensitivity of Mako G-050B (without protection/cover glass)

Figure 12: Spectral sensitivity of Mako G-050C (without IR cut filter)

0%

5%

10%

15%

20%

25%

30%

35%

40%

45%

50%

55%

60%

65%

400 500 600 700 800 900 1000

Quantum Efficiency

Wavelength [nm]

0%

5%

10%

15%

20%

25%

30%

35%

40%

45%

50%

55%

400 450 500 550 600 650 700

Quantum Efficiency

Wavelength [nm]

Red Green Blue

Mako Technical Manual V3.0.0

23

Specifications

Mako G-095B/C

Feature Specification

Resolution 1292 x 734
Sensor SONY IT CCD ICX692ALA/AQA with EXview HAD CCD II
Type CCD Progressive
Sensor size Type 1/3
Cell size 4.08 m
Lens mount C / CS-Mount
Max frame rate at full resolution 42.8 fps
Max image bit depth 12 bit
On-board FIFO 64 MByte, up to 69 frames at full resolution, Mono8/Bayer8, and a

GevSCPSPacketSize = 8192 bytes per packet
Mono formats Mono8, Mono12Packed, Mono12
Color formats BayerRG8, BayerRG12, BayerRG12Packed, Mono8, RGB8Packed,

YUV411Packed, YUV422Packed, YUV444Packed, BGR8Packed

Exposure control 41 µs to 84 s
Gain control 0–32 dB
Horizontal binning 1 to 8 columns
Vertical binning 1 to 14 rows
Opto-coupled I/Os 1 input, 3 outputs
Voltage requirements 12–24 VDC or PoE
Power consumption 2.2 W @ 12 VDC, 2.5 W PoE
Trigger latency* Idle state: 7.0 µs

Frame valid state: 22.8 µs
Trigger jitter* Idle state: 4.0 µs

Frame valid state: 19.8 µs
Operating temperature +5°C to +45°C (housing temperature)

Storage temperature -10°C to +70°C ambient temperature (without condensation)
Body dimensions (L x W x H) 60.5 x 29 x 29 mm; including connectors, without tripod and lens
Mass 80 g (without lens)
Hardware interface standard PoE, IEEE 802.3af 1000BASE-T, 100BASE-TX
Software interface standard GigE Vision Standard 1.2
Camera control interface GenICam V1.0 compliant
Regulatory CE, FCC Class B, RoHS (2011/65/EU), WEEE
*It is possible to start the exposure of the next frame while the previous frame is read out:

– Idle state: sensor is ready and camera is idle, waiting for the next trigger
– Frame valid state: sensor is reading out and camera is busy. If the Next frame is requested by an

external trigger in this state, higher latency may occur as compared to the Idle state

Table 6: Mako G-095B/C camera specifications

Mako Technical Manual V3.0.0

24

Specifications

Figure 13: Spectral sensitivity of Mako G-095B (without protection/cover glass)

Figure 14: Spectral sensitivity of Mako G-095C (without IR cut filter)

0%

10%

20%

30%

40%

50%

60%

70%

400 500 600 700 800 900 1000

Quantum Efficiency

Wavelength [nm]

0%

5%

10%

15%

20%

25%

30%

35%

40%

45%

50%

400 500 600 700 800 900 1000

Quantum Efficiency

Wavelength [nm]

Red Green Blue

Mako Technical Manual V3.0.0

25

Specifications

Mako G-125B/C

Feature Specification

Resolution 1292 x 964
Sensor SONY IT CCD ICX445ALA/AQA with EXview HAD microlens
Type CCD Progressive
Sensor size Type 1/3
Cell size 3.75 m
Lens mount C / CS-Mount
Max frame rate at full resolution 30 fps
Max image bit depth 12 bit
On-board FIFO 64 MByte, up to 52 frames at full resolution, Mono8/Bayer8, and a

GevSCPSPacketSize = 8192 bytes per packet
Mono formats Mono8, Mono12Packed, Mono12
Color formats BayerRG8, BayerRG12, BayerRG12Packed, Mono8, RGB8Packed,

YUV411Packed, YUV422Packed, YUV444Packed, BGR8Packed

Exposure control 12 µs to 84 s
Gain control 0–30 dB
Horizontal binning 1 to 8 columns
Vertical binning 1 to 14 rows
Opto-coupled I/Os 1 input, 3 outputs
Voltage requirements 12–24 VDC or PoE
Power consumption 2.3 W @ 12 VDC, 2.7 W PoE
Trigger latency* Idle state: 8.0 µs

Frame valid state: 25.0 µs
Trigger jitter* Idle state: 4.0 µs

Frame valid state: 21.0 µs
Operating temperature +5°C to +45°C (housing temperature)

Storage temperature -10°C to +70°C ambient temperature (without condensation)
Body dimensions (L x W x H) 60.5 x 29 x 29 mm; including connectors, without tripod and lens
Mass 80 g (without lens)
Hardware interface standard PoE, IEEE 802.3af 1000BASE-T, 100BASE-TX
Software interface standard GigE Vision Standard 1.2
Camera control interface GenICam V1.0 compliant
Regulatory CE, FCC Class B, RoHS (2011/65/EU), WEEE
*It is possible to start the exposure of the next frame while the previous frame is read out:

– Idle state: sensor is ready and camera is idle, waiting for the next trigger
– Frame valid state: sensor is reading out and camera is busy. If the Next frame is requested by an

external trigger in this state, higher latency may occur as compared to the Idle state

Table 7: Mako G-125B/C camera specifications

Mako Technical Manual V3.0.0

26

Specifications

Figure 15: Spectral sensitivity of Mako G-125B (without protection/cover glass)

Figure 16: Spectral sensitivity of Mako G-125C (with IR cut filter)

0%

10%

20%

30%

40%

50%

60%

400 500 600 700 800 900 1000

Quantum Efficiency

Wavelength [nm]

0%

5%

10%

15%

20%

25%

30%

35%

40%

400 450 500 550 600 650 700

Quantum Efficiency

Wavelength [nm]

Red Green Blue

Mako Technical Manual V3.0.0

27

Specifications

Mako G-131B/C

Feature Specification

Resolution 1280 x 1024
Sensor e2v EV76C560
Type CMOS Progressive
Sensor size Type 1/1.8
Cell size 5.3 m
Lens mount C / CS-Mount
Max frame rate at full resolution 62 fps
Max image bit depth 10 bit
On-board FIFO 64 MByte, up to 50 frames at full resolution, Mono8/Bayer8, and a GevSCP-

SPacketSize = 8192 bytes per packet

Mono formats Mono8, Mono10

Color formats BayerGB8, BayerGB10, Mono8, RGB8Packed, BGR8Packed, YUV411Packed,

YUV422Packed, YUV444Packed

Exposure control

PixelFormat

ShutterMode:
Global

ShutterMode:
GlobaReset

ShutterMode:
Rolling

Mono8, Mono10, BayerGB8,

BayerGB10, YUV411Packed,

YUV422Packed

12 µs to 1.012 s 12 µs to 0.978 s 12 µs to 0.994 s

RGB8Packed, BGR8Packed,

YUV444Packed

12 µs to 2.124 s 12 µs to 2.053 s 12 µs to 2.086 s

Gain control 0–24 dB
Binning Horizontal: 1 to 2 pixels; Vertical: 1 to 2 rows
Decimation Horizontal and Vertical: 1, 2, 4, 8 factor
Opto-coupled I/Os 1 input, 3 outputs
Voltage requirements 12–24 VDC or PoE
Power consumption 2.0 W @ 12 VDC, 2.2 W PoE
Trigger latency* Idle state: 32.6 µs

Frame valid state: 32.6 µs
Trigger jitter* Idle state: 8.1 µs

Frame valid state: 8.1 µs
Operating temperature +5°C to +45°C (housing temperature)
Storage temperature -10°C to +70°C ambient temperature (without condensation)
Body dimensions (L x W x H) 60.5 x 29 x 29 mm; including connectors, without tripod and lens
Mass 80 g (without lens)
Hardware interface standard PoE, IEEE 802.3af 1000BASE-T, 100BASE-TX
Software interface standard GigE Vision Standard 1.2
Camera control interface GenICam V1.0 compliant
Regulatory CE, FCC Class B, RoHS (2011/65/EU), WEEE

*These values are calculated directly from the microcontroller source. These values are only valid for pixel formats <
16 bit per pixel and applicable in both Idle and Frame valid state:

– Idle state: sensor is ready and camera is idle, waiting for the next trigger
– Frame valid state: sensor is reading out and camera is busy. If the next frame is requested by an external

trigger in this state, higher latency may occur as compared to the Idle state

Table 8: Mako G-131B/C camera specifications

Mako Technical Manual V3.0.0

28

Specifications

Figure 17: Spectral sensitivity of Mako G-131B

Figure 18: Spectral sensitivity of Mako G-131C

0%

10%

20%

30%

40%

50%

60%

70%

400 500 600 700 800 900 1000

Quantum Efficiency

Wavelength [nm]

0%

5%

10%

15%

20%

25%

30%

35%

40%

45%

50%

400 500 600 700 800 900 1000

Quantum Efficiency

Wavelength [nm]

Red Green Blue

Mako Technical Manual V3.0.0

29

Specifications

Mako G-192B/C

Feature Specification

Resolution 1600 x 1200
Sensor e2v EV76C570
Type CMOS Progressive
Sensor size Type 1/1.8
Cell size 4.5 m
Lens mount C / CS-Mount
Max frame rate at full resolution 60 fps
Max image bit depth 10 bit
On-board FIFO 64 MByte, up to 34 frames at full resolution, Mono8/Bayer8, and a GevSCP-

SPacketSize = 8192 bytes per packet
Mono formats Mono8, Mono10
Color formats BayerGB8, BayerGB10, Mono 8, RGB8Packed, BGR8Packed, YUV411Packed,

YUV422Packed, YUV444Packed
Exposure control

PixelFormat ShutterMode:

Global / Rolling

ShutterMode:
GlobaReset

Mono8, Mono10, BayerGB8, BayerGB10,

YUV411Packed, YUV422Packed

14 µs to 0.891 s 14 µs to 0.874 s

RGB8Packed, BGR8Packed, YUV444Packed 14 µs to 1.870 s 14 µs to 1.835 s

Gain control 0–24 dB
Binning Horizontal: 1 to 2 pixels; Vertical: 1 to 2 rows
Decimation Horizontal and Vertical: 1, 2, 4, 8 factor
Opto-coupled I/Os 1 input, 3 outputs
Voltage requirements 12–24 VDC or PoE
Power consumption 2.1 W @ 12 VDC, 2.4 W PoE
Trigger latency* Idle state: 27.7 µs

Frame valid state: 27.7 µs
Trigger jitter* Idle state: 6.9 µs

Frame valid state: 6.9 µs
Operating temperature +5°C to +45°C (housing temperature)
Storage temperature -10°C to +70°C ambient temperature (without condensation)
Body dimensions (L x W x H) 60.5 x 29 x 29 mm; including connectors, without tripod and lens
Mass 80 g (without lens)
Hardware interface standard PoE, IEEE 802.3af 1000BASE-T, 100BASE-TX
Software interface standard GigE Vision Standard 1.2
Camera control interface GenICam V1.0 compliant
Regulatory CE, FCC Class B, RoHS (2011/65/EU), WEEE
*These values are calculated directly from the microcontroller source. These values are only valid for pixel formats

< 16 bit per pixel and applicable in both Idle and Frame valid state:

– Idle state: sensor is ready and camera is idle, waiting for the next trigger
– Frame valid state: sensor is reading out and camera is busy. If the next frame is requested by an external

trigger in this state, higher latency may occur as compared to the Idle state

Table 9: Mako G-192B/C camera specifications

Mako Technical Manual V3.0.0

30

Specifications

Figure 19: Spectral sensitivity of Mako G-192B

Figure 20: Spectral sensitivity of Mako G-192C

0%

5%

10%

15%

20%

25%

30%

35%

400 500 600 700 800 900 1000

Quantum Efficiency

Wavelength [nm]

0%

5%

10%

15%

20%

25%

30%

400 500 600 700 800 900 1000

Quantum Efficiency

Wavelength [nm]

Red Green Blue

Mako Technical Manual V3.0.0

31

Specifications

Mako G-223B/C (NIR)

Feature Specification

Resolution 2048 x 1088
Sensor CMV2000 with microlenses and global shutter
Type CMOS
Sensor size Type 2/3
Cell size 5.5 m
Lens mount C / CS-Mount
Max frame rate at full resolution 49.5 fps
Max image bit depth 12 bit
On-board FIFO 64 MByte, up to 29 frames at full resolution, Mono8/Bayer8, and a

GevSCPSPacketSize = 8192 bytes per packet
Mono formats Mono8, Mono12Packed, Mono12
Color formats BayerGB8, BayerGB12, BayerGB12Packed, Mono8, RGB8Packed,

BGR8Packed, RGBA8Packed, BGRA8Packed, YUV411Packed,

YUV422Packed, YUV444Packed
Exposure control

21 µs

†

to 153 s

Gain control 0–26 dB
Opto-coupled I/Os 1 input, 3 outputs
Voltage requirements 12–24 VDC or PoE
Power consumption 2.4 W @ 12 VDC, 2.8 W PoE
Trigger latency N/A

Trigger jitter N/A

Operating temperature +5°C to +45°C (housing temperature)
Storage temperature -10°C to +70°C ambient temperature (without condensation)
Body dimensions (L x W x H) 60.5 x 29 x 29 mm; including connectors, without tripod and lens
Mass 80 g (without lens)
Hardware interface standard PoE, IEEE 802.3af 1000BASE-T, 100BASE-TX
Software interface standard GigE Vision Standard 1.2
Camera control interface GenICam V1.0 compliant
Regulatory CE, FCC Class B, RoHS (2011/65/EU), WEEE

†

Camera firmware v1.52.8151 shows minimum exposure values without frame overhead time, i.e., 1 µs.

See sensor datasheet for details on frame overhead time. This will be fixed in the next firmware release.

Table 10: Mako G-223 B/C (NIR) camera specifications

Mako Technical Manual V3.0.0

32

Specifications

Figure 21: Spectral sensitivity of Mako G-223B (NIR)

Figure 22: Spectral sensitivity of Mako G-223C (without IR cut filter)

0%

10%

20%

30%

40%

50%

60%

70%

400 500 600 700 800 900 1000

Quantum Efficiency

Wavelength [nm]

Mako G-223 Mako G-223 NIR

0%

5%

10%

15%

20%

25%

30%

35%

40%

45%

50%

300 400 500 600 700 800 900 1000 1100

Quantum Efficiency

Wavelength [nm]

Red Green Blue

Mako Technical Manual V3.0.0

33

Specifications

Mako G-419B/C (NIR)

Feature Specification

Resolution 2048 x 2048
Sensor CMV4000 with microlenses and global shutter
Type CMOS
Sensor size Type 1
Cell size 5.5 m
Lens mount C / CS-Mount
Max frame rate at full resolution 26.3 fps
Max image bit depth 12 bit
On-board FIFO 64 MByte, up to 15 frames at full resolution, Mono8/Bayer8, and a

GevSCPSPacketSize = 8192 bytes per packet
Mono formats Mono8, Mono12Packed, Mono12
Color formats BayerGB8, BayerGB12, BayerGB12Packed, Mono8, RGB8Packed,

BGR8Packed, RGBA8Packed, BGRA8Packed, YUV411Packed,

YUV422Packed, YUV444Packed
Exposure control

41 µs

†

to 153 s

Gain control 0–26 dB
Opto-coupled I/Os 1 input, 3 outputs
Voltage requirements 12–24 VDC or PoE
Power consumption 2.3 W @ 12 VDC, 2.7 W PoE
Trigger latency N/A

Trigger jitter N/A

Operating temperature +5°C to +45°C (housing temperature)
Storage temperature -10°C to +70°C ambient temperature (without condensation)
Body dimensions (L x W x H) 60.5 x 29 x 29 mm; including connectors, without tripod and lens
Mass 80 g (without lens)
Hardware interface standard PoE, IEEE 802.3af 1000BASE-T, 100BASE-TX
Software interface standard GigE Vision Standard 1.2
Camera control interface GenICam V1.0 compliant
Regulatory CE, FCC Class B, RoHS (2011/65/EU), WEEE

†

Camera firmware v1.52.8151 shows minimum exposure values without frame overhead time, i.e., 1 µs.

See sensor datasheet for details on frame overhead time. This will be fixed in the next firmware release.

Table 11: Mako G-419 B/C (NIR) camera specifications

Mako Technical Manual V3.0.0

34

Specifications

Figure 23: Spectral sensitivity of Mako G-419B (NIR)

Figure 24: Spectral sensitivity of Mako G-419C (without IR cut filter)

0%

10%

20%

30%

40%

50%

60%

70%

400 500 600 700 800 900 1000

Quantum Efficiency

Wavelength [nm]

Mako G-419 Mako G-419 NIR

0%

5%

10%

15%

20%

25%

30%

35%

40%

45%

50%

300 400 500 600 700 800 900 1000 1100

Quantum Efficiency

Wavelength [nm]

Red Green Blue

Mako Technical Manual V3.0.0

35

Camera smart features

Camera smart features

Allied Vision cameras support a number of standard and extended features. The
table below identifies a selection of interesting capabilities of the Mako camera
family.

www



A complete listing of camera controls, including control defini­tions can be found online:

PvAPI users: GigE Camera and Driver Attributes document

VIMBA and third-party users: GigE Camera and Driver Features

document

Control Description

Gain control Manual and auto
Exposure control Manual and auto

White balance Red and blue channel; manual and auto control

External trigger event Rising edge, falling edge, any edge, level high, level low
Imaging modes Free-running, external trigger, fixed rate, software trigger
Sync out modes Trigger ready, trigger input, exposing, readout, imaging, strobe, GPO
Region of interest Independent x and y control with 1 pixel resolution
Multicast Streaming to multiple computers

Event channel

In-camera events including exposure start and trigger are asynchronously
broadcasted to the host computer

Chunk data

Captured images are bundled with attribute information such as exposure and

gain value
Color correction matrix Correct color rendering for specific color temperature
Gamma, Hue, Saturation Adjust image gamma, hue, and saturation
Look-up table (LUT) LUTs available on all models
Temperature monitoring Monitor camera temperature: resolution 0.031, accuracy ±1°C

Decimation Sub-sampling available on select models
Mirroring ReverseX and ReverseY available on select models

Binning Different binning modes available on select models: Average and Sum

Sensor shutter modes

Different shutter modes available on select models: Global, Rolling and

GlobalReset

HDR mode Available on Mako G-030

Defect pixel correction Available on select models

Table 12: Mako camera smart features

Mako Technical Manual V3.0.0

36

Filter and lenses

Filter and lenses

IR cut filter

Color cameras are equipped with IR cut filter. The following illustration shows
the spectral transmission of the IR cut filter:

Camera lenses

Allied Vision offers different lenses from a variety of manufacturers.

Figure 25: Approximate spectral transmission of IR cut filter (may vary slightly by filter lot)

(type Hoya C5000)

www



For more information, see:

http://www.alliedvisiontec.com/emea/products/
accessories/lenses.html

0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1

200 400 600 800 1000

Transmittance [T]

Wavelength [nm]

Mako Technical Manual V3.0.0

37

Filter and lenses

The following table lists selected image formats in width x height depending
on camera type, distance and the focal length of the lens.

Mako G-030

Mako G-032

Mako G-050

Note



• Lenses with focal lengths < 8 mm may show shading in
the edges of the image due to microlenses on the sensor.

• The exact values vary and depend on the respective lens.

Focal length for type 1/3 sensor Distance = 500 mm Distance = 1000 mm

4.8 mm 495mm x 371 mm 995 mm x746 mm
8 mm 295 mm x 221 mm 595 mm x446 mm

12.5 mm 187mm x 140 mm 379 mm x284 mm
16 mm 145 mm x 109 mm 295 mm x221 mm
25 mm 91 mm x 68 mm 187 mm x140 mm
50 mm 43 mm x 32 mm 91 mm x68 mm

Table 13: Focal length vs. field of view (Mako G-030)

Focal length for type 1/3 sensor Distance = 500 mm Distance = 1000 mm

4.0 mm 608 mm x 446 mm 1220 mm x 896 mm

4.8 mm 506 mm x 371 mm 1016 mm x 746 mm
8 mm 301 mm x 221 mm 608 mm x 446 mm
12 mm 199 mm x 146 mm 403 mm x 296 mm
16 mm 148 mm x 109 mm 301 mm x 221 mm
25 mm 93 mm x 68 mm 191 mm x 140 mm
35 mm 65 mm x 48 mm 135 mm x 99 mm

Table 14: Focal length vs. field of view (Mako G-032)

Focal length for type 1/3 sensor Distance = 500 mm Distance = 1000 mm

4 mm 604 mm x 457 mm 1213 mm x 917 mm
6 mm 401 mm x 303 mm 807 mm x 610 mm
8 mm 300 mm x 227 mm 604 mm x 457 mm
10 mm 239 mm x 181 mm 482 mm x 365 mm
12 mm 198 mm x 150 mm 401 mm x 303 mm
16 mm 147 mm x 111 mm 300 mm x 227 mm
25 mm 93 mm x 70 mm 190 mm x 144 mm

Table 15: Focal length vs. field of view (Mako G-050)

Mako Technical Manual V3.0.0

38

Filter and lenses

Mako G-095

Mako G-125

Mako G-131

Mako G-192

Focal length for type 1/3 sensor Distance = 500 mm Distance = 1000 mm

4 mm 654 mm x 371 mm 1313 mm x 746 mm
6 mm 434 mm x 247 mm 873 mm x 496 mm
8 mm 324 mm x 184 mm 654 mm x 371 mm
10 mm 258 mm x 147 mm 522 mm x 296 mm
12 mm 214 mm x 122 mm 434 mm x 247 mm
16 mm 159 mm x 91 mm 324 mm x 184 mm
25 mm 100 mm x 57 mm 206 mm x 117 mm

Table 16: Focal length vs. field of view (Mako G-095)

Focal length for type 1/3 sensor Distance = 500 mm Distance = 1000 mm

4.0 mm 595 mm x 446 mm 1195 mm x 896 mm

4.8 mm 495 mm x 371 mm 995 mm x 746 mm
8 mm 295 mm x 221 mm 595 mm x 446 mm
12 mm 195 mm x 146 mm 395 mm x 296 mm
16 mm 145 mm x 109 mm 295 mm x 221 mm
25 mm 91 mm x 68 mm 187 mm x 140 mm
35 mm 64 mm x 48 mm 132 mm x 99 mm

Table 17: Focal length vs. field of view (Mako G-125)

Focal length for type 1/1.8 sensor Distance = 500 mm Distance = 1000 mm

4.5 mm 760 mm x 606 mm 1526 mm x1 217 mm
6 mm 568 mm x 453 mm 1143 mm x 911 mm
10 mm 338 mm x 270 mm 683 mm x 545 mm
17 mm 196 mm x 156 mm 399 mm x 318 mm
25 mm 131 mm x 105 mm 269 mm x 215 mm
35 mm 92 mm x 73 mm 190 mm x 152 mm

Table 18: Focal length vs. field of view (Mako G-131)

Focal length for type 1/1.8 sensor Distance = 500 mm Distance = 1000 mm

4.5 mm 793 mm x 595 mm 1593 mm x 1195 mm
6 mm 593 mm x 445 mm 1193 mm x 895 mm
10 mm 353 mm x 265 mm 713 mm x 535 mm
17 mm 205 mm x 153 mm 416 mm x 312 mm
25 mm 137 mm x 103 mm 281 mm x 211 mm
35 mm 793 mm x 595 mm 1593 mm x 1195 mm

Table 19: Focal length vs. field of view (Mako G-192)

Mako Technical Manual V3.0.0

39

Filter and lenses

Mako G-223

Mako G-419

Focal length for type 2/3*sensors Distance = 500 mm Distance = 1000 mm

4.8 mm 1162 mm x 617 mm 2335 mm x 1240 mm
6 mm 927 mm x 492 mm 1865 mm x 991 mm

6.5 mm 855 mm x 454 mm 1721 mm x 914 mm
8 mm 692 mm x 368 mm 1396 mm x 742 mm
10 mm 552 mm x 293 mm 1114 mm x 597 mm
12 mm 458 mm x 243 mm 927 mm x 492 mm
16 mm 341 mm x 181 mm 692 mm x 369 mm
25 mm 214 mm x 114 mm 439 mm x 223 mm
35 mm 150 mm x 79 mm 310 mm x 165 mm
50 mm 101 mm x 54 mm 214 mm x 114 mm
75 mm 64 mm x 34 mm 139 mm x 74 mm
90 mm 51 mm x 27 mm 114 mm x 60 mm
* A 2/3 inch lens may cause vignetting (1 inch lens recommended)

Table 20: Focal length vs. field of view (Mako G-223)

Focal length for type 1 sensors Distance = 500 mm Distance = 1000 mm

8 mm 692 mm x 692mm 1396 mm x 1396 mm
10 mm 552 mm x 552 mm 1114 mm x 1114 mm
12 mm 458 mm x 458 mm 928 mm x 928 mm
16 mm 340 mm x 340 mm 692 mm x 692 mm
25 mm 214 mm x 214 mm 439 mm x 439 mm
35 mm 150 mm x 150 mm 310 mm x 310 mm
50 mm 101 mm x 101 mm 214 mm x 214 mm
75 mm 64 mm x 64 mm 139 mm x 139 mm
90 mm 51 mm x 51 mm 104 mm x 104 mm

Table 21: Focal length vs. field of view (Mako G-419)

Mako Technical Manual V3.0.0

40

Camera dimensions

Camera dimensions

Tripod adapter

This tripod adapter (Allied Vision order number 4807) ...

• ... can be used for Mako cameras.

• ... is only designed for standard housings.

Note



For information on sensor position accuracy (sensor shift x/y,
optical back focal length z and sensor rotation ):

see Appendix on page 76.

Body size: 29.7 mm x 26 mm x 10 mm (L x W x H)

Figure 26: Tripod adapter dimensions

29.7

26

13

20

23.7

UNC 1/4-20

M6

0

10.9

18.9

A

A

10

3.5

5

6

A-A

Mako Technical Manual V3.0.0

41

Camera dimensions

Cross section: C-Mount

• All color Mako cameras are equipped with the same IR cut filter type.

• Mako G-030, Mako G-032, Mako G-050, Mako G-095, Mako G-125, Mako G­131, and Mako G-192 are equipped with a 16 mm diameter filter.

• Mako G-223 and Mako G-419 are equipped with a 22 mm diameter filter.

www



Choose protection glass or filter according to the
Modular Camera Concept:

http://www.alliedvisiontec.com/us/support/downloads/
product-literature/avt-modular-concept.html

Note



Monochrome Mako cameras with serial number 536873083 or
higher are shipped without a cover ring in the C-Mount thread.
Refer to product change notice for more details.

Figure 27: C-Mount dimensions for Mako G-030 / G-032 / G-050 / G-095 / G-125 / G-131 / G-192 (16 mm

filter)

Figure 28: C-Mount dimensions for Mako G-223 / G-419 (22 mm filter)

Filter

Maximum protrusion: 9.8

C-Mount

16

Filter

18.5

Maximum protrusion: 10.8

C-Mount

Mako Technical Manual V3.0.0

42

Camera dimensions

Cross section: CS-Mount

Choose protection glass or filter according to the Allied Vision Modular Con­cept.

www



Download the Modular Concept at:

http://www.alliedvisiontec.com/emea/support/downloads/
product-literature.html

Figure 29: CS-Mount dimensions for Mako G-030 / G-032 / G-050 / G-095 / G-125 / G-131 / G-192 (16

mm filter)

Figure 30: CS-Mount dimensions for Mako G-223 /G-419 (22 mm filter)

Filter 16

CS-Mount

Maximum
protrusion: 4.8

16

Filter 22

18.5

Maximum
protrusion: 5.8

CS-Mount

Mako Technical Manual V3.0.0

43

Camera dimensions

Adjustment of the C-Mount and CS-Mount

The dimensional adjustment cannot be done by the customer. All modifications
have to be done by the Allied Vision factory.

Mako standard housing

Note



If you need any adjustments, please contact Customer Care:
For phone numbers and e-mail:

see Contacting Allied Vision on page 5.

Figure 31: Camera dimensions standard housing (in mm)

27

60.5

54.7

20

22.6

22.6

2.5

10.4

M2 - 4.5

(2x)

12

20

15 23.7

22 16.5

M3 - 2.3

(3x)

M2 - 2.2

(4x)

10

8.5

4.5 20

M3 - 2.3

(2x)

15

40.5 12.2

29

29

C-Mount

Mako Technical Manual V3.0.0

44

Camera interfaces

Camera interfaces

This chapter describes the Gigabit Ethernet port, inputs and outputs, and trig­ger features.

Status LEDs

The tables below describe the status LEDs of Mako cameras.

Note



Read all Notes and Cautions in the GigE Installation Manual
before using any interfaces.

www



For accessories like cables see:

http://www.alliedvisiontec.com/emea/products/
accessories/gige-accessories.html

Figure 32: Example: Rear view of Mako camera

LED1 color Status

Solid orange Ethernet link established
Flashing orange Network traffic

Table 22: Status LED (orange)

LED2 color Status

Solid green Camera powered
Slow flashing green Booting routine
Four rapid flashes per second Transmission error.

Contact [e-mail]

Table 23: Status LED (green)

Status LEDs

LED1 (orange)

8-pin

camera

LED2 (green)

I/O connector

(+ ext. power)

Mako Technical Manual V3.0.0

45

Camera interfaces

Gigabit Ethernet port

The Gigabit Ethernet port conforms to the IEEE 802.31000BASE-T standard for
Gigabit Ethernet over copper. To prevent EMI (electromagnetic interference)
and for best performance, Category 6 (or higher) cables with S/STP shielding
and connectors are recommended. Applications with longer cable lengths or
harsh EMI conditions require Category 7 (or higher) cables.

Mako I/O connector pin assignment

The General Purpose I/O port uses a Hirose HR25-7TR-8PA(73) connector on the
camera side. The mating cable connector is Hirose HR25-7TP-8S.

Note



• Cable lengths up to 100 m are supported.

• The 8-pin RJ-45 jack provides a pin assignment according
to the Ethernet standard (IEEE 802.3 1000BASE-T).

• All Mako cameras are PoE capable (802.3af/at).

• If both interfaces are used for power (I/O and GigE con­nector via PoE), the camera will only use the power from
the I/O connector.

Accessories

• Cables are available from Allied Vision:

http://www.alliedvisiontec.com/emea/products/
accessories/gige-accessories.html

Figure 33: Camera I/O connector pin assignment

Note



The cable side Hirose connector is available for purchase
from Allied Vision.

P/N: K7600503

2

5

4

7

13

68

Pin Signal Direction Level Description

1 Out 1 Out Open emitter, max. 20 mA Output 1
2 Out 2 Out Open emitter, max. 20 mA Output 2
3 Out 3 Out Open emitter, max. 20 mA Output 3
4In 1 In U

in

(high) = 3.0–24.0 V
up to 36 V with external resistor
of 3.3 k in series
U

in

(low) = 0–1.0 V

Input 1

5 Camera In GND In --- GND for input
6 Camera Out

Power

In Common VCC for outputs max.

30 V DC

Power input for opto-

isolated outputs
7 Camera Power --- 12–24 V DC +/- 10% Camera power supply
8 Ext GND --- GND for ext. Power External Ground for

external Power

Mako Technical Manual V3.0.0

46

Camera interfaces

Mako input description

Mako input block diagram

The input can be connected directly to the system for voltages up to 24 V DC. An
external resistor is not necessary.

Mako delay and minimum pulse width

The minimum pulse width for all Mako cameras is:

Test conditions

The input signal was driven with 3.3 V and no external additional series resistor.

Figure 34: Mako input block diagram

Parameter Value

U

in

(low) 0–1.0 V

U

in

(high) 3–24 V

Current (constant-current source) 3–4 mA

Table 24: Mako input parameters

Figure 35: Mako minimum pulse width

In1

Camera In GND

External Internal

180R

I

F

0

t

44 s

6 s 20 kHz

Mako Technical Manual V3.0.0

47

Camera interfaces

Mako output description

Mako block diagram

Figure 36: Mako output block diagram

Caution



• Maximum 20 mA per output

• Camera Out Power  30 V may damage the camera

Camera Out Power Resistor value*

5V 1.0k

at  5 mA minimum required

current draw

12 V 2.4 k

24 V 4.7 k

* Resistor required if Out1/2/3 connected to a device with < 5 mA draw,
i.e. high impedance

Figure 37: Mako: Camera Out Power and external resistor

ExternalInternal

Camera Out Power

Out1

Out2

R

R

R

Out3

Mako Technical Manual V3.0.0

48

Camera interfaces

For all Mako models:

Test conditions

Output: external 2.4 k resistor to GND, Camera Out Power set to 12 V.

Figure 38: Mako output switching times

Parameter and value

t

d

 1 µs ts  26 µs

t

r

 1 µs tf  21 µs

t

on

= td + tr  2 µs t

off

= ts + tf  47 µs

(t

off

can deviate by  5 µs)

Table 25: Parameters for Mako

Note



Higher external values increase the times in the table above.

Note



We recommend to trigger on the rising edge. This guarantees a
fastest possible reaction time.

I

F

0

I

C

100%

90%

10%

t

t

0

delay time
rise time

turn-on time

storage time
fall time

turn-o time

Optocoup

ler input (internal)

Optocoupler output (extern

al)

to (= ts + tf)

t

d

t

r

ton (= td + tr)

t

s

t

f

t

d

t

on

t

r

t

s

t

f

t

o

Mako Technical Manual V3.0.0

49

Camera interfaces

Control signals

The inputs and outputs of the camera can be configured by software. The differ­ent modes are described below.

Inputs

Input/output pin control

All input and output signals that pass the I/O connector are controlled by the
I/O strobe commands.

Outputs

Output features are configured by software. Any signal can be placed on any
output. The main features of the output signals are described below:

Figure 39: Input block diagram

Signal Description

GPO Configured to be a general purpose output, control is assigned to

SyncOutGpoLevels.

AcquisitionTriggerReady Active once the camera has been recognized by the host PC and is ready to start

acquisition.

FrameTriggerReady Active when the camera is in a state that will accept the next frame trigger.

FrameTrigger Active when an image has been initiated to start. This is a logic trigger

internal to the camera, which is initiated by an external trigger or software
trigger event.

Exposing Exposing – active for the duration of sensor exposure.

FrameReadout Active during frame readout, i.e., the transferring of image data from the CCD

to the camera memory.

Table 26: Output signals

Polarity

selectable

via software

Input state

Input signal

Optocoupler

LP filter

Mako Technical Manual V3.0.0

50

Camera interfaces

Imaging Imaging is high when the camera image sensor is either exposing and/or

reading out data.

Acquiring Active during an acquisition stream.

SyncIn1 Active when there is an external trigger at SyncIn1.

Strobe1 The output signal is controlled according to Strobe1 settings.

Figure 40: Output block diagram

Signal Description

Table 26: Output signals

GPO

Output signal

Optocoupler

Polarity

selectable

via software

Read from

software

Output

mode

selectable

via software

AcquisitionTriggerReady

FrameTriggerReady

FrameTrigger

Exposing

FrameReadout

Acquiring

SyncIn1
Strobe1

Mako Technical Manual V3.0.0

51

Camera interfaces

Trigger timing diagram

The following diagram explains the trigger concept in general.

Notes on triggering

Trigger definitions

Note



For trigger description on camera control basis, see GigE
Camera and Driver Features.

Figure 41: Trigger timing diagram

Term Definition

User trigger Trigger signal applied by the user (hardware

trigger, software trigger)

Logic trigger Trigger signal seen by the camera internal logic

(not visible to the user)

Tpd Propagation delay between the user trigger and

the logic trigger

Exposure High when the camera image sensor is integrating

light

Readout High when the camera image sensor is reading out

data

Table 27: Trigger definitions

User trigger

Logic trigger

Exposure

Readout

Trigger ready

Imaging

Interline time

Idle

Tpd

Trigger
latency

Exposure

start delay

Trigger
jitter

Registered
exposure time

Readout time

NN+1

NN+1

Note: Jitter at the
beginning of an exposure
has no eect on the
length of exposure.

Mako Technical Manual V3.0.0

52

Camera interfaces

Trigger rules

•The end of exposure will always trigger the next readout.

•The end of exposure must always end after the current readout.

•The start of exposure must always correspond with the interline time if

readout is true.

• Exposure start delay equals the readout time minus the registered expo-

sure time.

Triggering during the Idle State

For applications requiring the shortest possible trigger latency and the smallest
possible trigger jitter, the user trigger signal should be applied when imaging
is false and idle is true.

Triggering during the Readout State

For applications requiring the fastest triggering cycle time whereby the camera
image sensor is exposing and reading out simultaneously, the user trigger sig­nal should be applied as soon as a valid trigger ready is detected.

In this case, trigger latency and trigger jitter can be up to 1 line time since expo­sure must always begin on an Interline boundary.

Trigger latency Time delay between the user trigger and the start

of exposure
Trigger jitter Error in the trigger latency time
Trigger ready Indicates to the user that the camera will accept

the next trigger
Registered exposure time Exposure time value currently stored in the camera

memory
Exposure start delay Registered exposure time subtracted from the

Readout time and indicates when the next expo-

sure cycle can begin such that the exposure will

end after the current readout

Interline time Time between sensor row readout cycles
Imaging High when the camera image sensor is either

exposing and/or reading out data
Idle High if the camera image sensor is not exposing

and/or reading out data

Note



The user trigger pulse width should be at least three times the
width of the trigger latency as indicated in Specifications
chapter on page 16.

Term Definition

Table 27: Trigger definitions

Mako Technical Manual V3.0.0

53

Description of the data path

Description of the data path

The following diagrams illustrate the data flow and the bit resolution of the
image data. The individual blocks are described in more detail in the GigE Cam-

era and Driver Features document.

Mako monochrome cameras

Mako with CCD sensors

Mako G-032B, Mako G-050B, Mako G-095B, Mako G-125B

Mako with CMOS sensors

Mako G-030B

Figure 42: Block diagram of Mako monochrome cameras with CCD sensors

Figure 43: Block diagram of Mako G-030 monochrome cameras

Sensor

12 bit

12 bit

HIROSE I/O

GigE

Analog

12 bit

Gamma

12 bit

LUT

12 ĺ 12

Vertical

binning /

Vertical ROI

12 bit

Horizontal

binning

Horizontal

ROI

12 bit

Analog

Gain

Camera control

Analog Analog

ADC

Oset

Frame

memory

Gigabit

Ethernet

interface

HIROSE I/O

12 bit

12 bit

Gigabit
Ethernet
interface

12 bit

LUT

12 ĺ 12

12 bit

Gamma

12 bit

Frame

memory

GigE

‡

Factory calibrated. NOT a user control.

Sensor

array

Analog Analog

Analog

Internal sensor components

Analog

Oset

Sensor

System

Gain

‡

Sensor
System
Oset

‡

Analog

Vertical

ROI

ADC

12 bit

Defect

mask

Gain

Analog

Analog

Decimation

12 bit

Horizontal

ROI

HDR

Analog

Reverse

X/Y

Camera control

Mako Technical Manual V3.0.0

54

Description of the data path

Mako G-131B, Mako G-192B

Mako G-223B, Mako G-223 NIR, Mako G-419B, Mako G-419
NIR

Figure 44: Block diagram of Mako G-131 and Mako G-192 monochrome cameras

Figure 45: Block diagram of Mako G-223, Mako G-223 NIR, Mako G-419, and Mako G-419 NIR

monochrome cameras

HIROSE I/O

10 bit

Gigabit
Ethernet
interface

10 bit

LUT

12 ĺ 12

10 bit

Gamma

10 bit

Frame

memory

GigE

Sensor

array

Analog Analog 10 bit

Analog

Internal sensor components

Analog

Oset

Analog

ROI

ADC

10 bit

Defect

mask

Gain

Decimation

10 bit

Reverse

X/Y

Binning

Camera control

HIROSE I/O

12 bit

12 bit

Gigabit
Ethernet
interface

12 bit

LUT

12 ĺ 12

12 bit

Gamma

12 bit

Frame

memory

GigE

‡

Factory calibrated. NOT a user control.

Sensor

array

Analog Analog 12 bit

Internal sensor components

Analog

Oset

Sensor

System

Oset

‡

Analog

Vertical

ROI

Horizontal

ROI

ADC

12 bit

Defect

mask

Gain

Analog

Camera control

Sensor

System

Gain

‡

Mako Technical Manual V3.0.0

55

Description of the data path

Mako color cameras

Mako with CCD sensors

Mako G-032C, Mako G-050C, Mako G-095C, Mako G-125C

Mako with CMOS sensors

Mako G-030C

Figure 46: Block diagram of Mako color cameras with CCD sensors

Figure 47: Block diagram of Mako G-030C color cameras

12 bit

HIROSE I/O

GigE

12 bit

Gamma

LUT

12 ĺ 12

12 bit

8 bit 8 bit8/12 bit

Gigabit

Ethernet

interface

Frame

memory

Hue

†

Saturation

Color transformation

Bayer

†

Interpolation

3 X 3

For on-camera interpolated PixelFormats only—outputs 8 bit.
Raw un-interpolated PixelFormats skip this block—outputs 8/12 bit
depending upon the bit depth of PixelFormat used.

†

12 bit

Horizontal

binning

§

Sensor

Analog

Analog

ADC

Oset

Analog

Analog

Gain

Vertical

binning

§

/

Vertical ROI

12 bit

Horizontal

ROI

12 bit

White balance

Camera control

§

Color information lost while binning is active.

HIROSE I/O

Sensor

array

Analog Analog

12 bit

GigE

Analog

12 bit

Gamma

12 bit

12 bit

Gigabit
Ethernet
interface

Internal sensor components

12 bit

12 bit

Oset

LUT

12 ĺ 12

8 bit 8 bit

8/12 bit

Frame

memory

Hue

†

Saturation

Color transformation

Bayer

†

Interpolation

3 X 3

For on-camera interpolated PixelFormats only—outputs 8 bit.
Raw un-interpolated PixelFormats skip this block—outputs 8/12 bit
depending upon the bit depth of PixelFormat used.

‡

Factory calibrated. NOT a user control.

†

Sensor

System

Gain

‡

Sensor
System
Oset

‡

Analog

Vertical

ROI

12 bit

White balance

Horizontal

ROI

12 bit

Analog

ADC

HDR*

Analog

Analog

Decimation

Analog

Reverse

X/Y

Gain

Defect

mask

Camera control

Mako Technical Manual V3.0.0

56

Description of the data path

Mako G-131C, Mako G-192C

Mako G-223C, Mako G-419C

Figure 48: Block diagram of Mako G-131 and Mako G-192 color cameras

Figure 49: Block diagram of Mako G-223 and Mako G-419 color cameras

HIROSE I/O

Sensor

array

Analog Analog

10 bit

GigE

Analog

10 bit

Gamma

12 bit

10 bit

Gigabit

Ethernet

interface

Internal sensor components

10 bit

10 bit

Oset

LUT

12 ĺ 12

8 bit 8 bit8/10 bit

Frame

memory

Hue

†

Saturation

Color transformation

Bayer

†

Interpolation

3 X 3

For on-camera interpolated PixelFormats only—outputs 8 bit.
Raw un-interpolated PixelFormats skip this block—outputs 8/10 bit
depending upon the bit depth of PixelFormat used.

†

Analog

ROI

Defect

mask

10 bit

White balance

Reverse

X/Y

10 bit

Gain

Analog

ADC

Decimation

Binning

Camera control

HIROSE I/O

Sensor

array

Analog Analog

12 bit

GigE

12 bit

Gamma

12 bit

12 bit

Gigabit
Ethernet
interface

Internal sensor components

12 bit

12 bit

Oset

LUT

12 ĺ 12

8 bit 8 bit8/12 bit

Frame

memory

Hue

†

Saturation

Color transformation

Bayer

†

Interpolation

3 X 3

For on-camera interpolated PixelFormats only—outputs 8 bit.
Raw un-interpolated PixelFormats skip this block—outputs 8/12 bit
depending upon the bit depth of PixelFormat used.

‡

Factory calibrated. NOT a user control.

†

Sensor
System
Oset

‡

Analog

Vertical

ROI

Defect

mask

12 bit

White balance

Horizontal

ROI

12 bit

Gain

Analog

ADC

Analog

Camera control

Sensor
System

Gain

‡

Mako Technical Manual V3.0.0

57

Description of the data path

Camera features

This chapter lists the camera and driver features for Mako cameras as displayed
with the Vimba Viewer.

www



For a detailed description of all GigE camera and driver con­trols, refer to the GigE Camera and Driver Features document:

http://www.alliedvisiontec.com/fileadmin/content/PDF/
Software/Prosilica_software/Prosilica_firmware/
AVT_GigE_Camera_and_Driver_Features.pdf

Hierarchy level 1 Hierarchy level 2 Hierarchy level 3 Hierarchy level 4

Acquisition

AcquisitionAbort
AcquisitionFrameCount
AcquisitionFrameRateAbs
AcquisitionFrameRateLimit
AcquisitionMode

Continous
SingleFrame
MultiFrame

Recorder
AcquisitionStart
AcquisitionStop
RecorderPreEventCount
SensorShutterMode

(available only on G-131
and G-192)

Global

Rolling

GlobalReset
Tr igg er

TriggerActivation

RisingEdge
FallingEdge
AnyEdge
LevelHigh

LevelLow
Tr igg erD elay Abs
Tr igg erM ode

On

Off
Tr igg erO ver lap

Table 28: Available Mako camera and driver features

Mako Technical Manual V3.0.0

58

Description of the data path

Off

PreviousFrame
TriggerSelector

FrameStart

AcquisitionStart

AcquisitionEnd

AcquisitionRecord
TriggerSoftware
TriggerSource

Freerun

Line1

FixedRate

Software

BufferHandlingControl

(Vimba v1.3 or higher)

StreamAnnounceBufferMinimum
StreamAnnouncedBufferCount
StreamBufferHandlingMode

Controls

BlackLevelControl

BlackLevel
BlackLevelSelector

All

ColorTransformationControl

ColorTransformationMode

Off

Manual
ColorTransformationSelector

RBGtoRGB
ColorTransformationValue
ColorTransformationValueSelector

DSPSubregion

DSPSubregionBottom
DSPSubregionLeft
DSPSubregionRight
DSPSubregionTop

DefectMaskEnable

(available on all models except G-032, G-050, G-095, and G-125)

Exposure

ExposureAuto

Off

Once

Hierarchy level 1 Hierarchy level 2 Hierarchy level 3 Hierarchy level 4

Table 28: Available Mako camera and driver features

Mako Technical Manual V3.0.0

59

Description of the data path

Continuous
ExposureAutoControl

ExposureAutoAdjustTol

ExposureAutoAlg

ExposureAutoMax

ExposureAutoMin

ExposureAutoOutliers

ExposureAutoRate

ExposureAutoTarget
ExposureMode

Timed

Tr igg erW idth

PieceWiseLinearHDR

(available only on G-030)

ExposureTimeAbs
ExposureTimeIncrement
ExposureTimePWL1

(available only on G-030)

ExposureTimePWL2 (available only on G-030)
ThresholdPWL1 (available only on G-030)
ThresholdPWL2 (available only on G-030)

GainControl

Gain
GainAuto

Off

Once

Continuous
GainAutoControl

GainAutoAdjustTol

GainAutoMax

GainAutoMin

GainAutoOutliers

GainAutoRate

GainAutoTarget
GainSelector

Gamma
Hue
LUTControl

LUTEnable
LUTIndex
LUTInfo

LUTAddress

LUTBitLengthIn

LUTBitLengthOut

LUTSize

Hierarchy level 1 Hierarchy level 2 Hierarchy level 3 Hierarchy level 4

Table 28: Available Mako camera and driver features

Mako Technical Manual V3.0.0

60

Description of the data path

LUTLoadAll
LUTMode

Luminance

Red

Green

Blue
LUTSaveAll
LUTSelector

LUT1
LUTValue

Saturation
Whitebalance

BalanceRatioAbs
BalanceRatioSelector

Red

Blue
BalanceWhiteAuto

Off

Once

Continuous
BalanceWhiteAutoControl

BalanceWhiteAutoAdjustTol

BalanceWhiteAutoRate

DeviceStatus

DeviceTemperature
DeviceTemperatureSelector

EventControl

EventData

EventAcquisitionEndFrameID
EventAcquisitionEndTimestamp
EventAcquisitionRecordTriggerFrameID
EventAcquisitionRecordTriggerTimestamp
EventAcquisitionStartFrameID
EventAcquisitionStartTimestamp
EventErrorFrameID
EventErrorTimestamp
EvenExposureEndFrameID
EventExposureEndTimestamp
EventFrameTriggerFrameID
EventFrameTriggerReadyFrameID
EventFrameTriggerReadyTimestamp
EventLine1FallingEdgeFrameID
EventLineFallingEdgeTimestamp

Hierarchy level 1 Hierarchy level 2 Hierarchy level 3 Hierarchy level 4

Table 28: Available Mako camera and driver features

Mako Technical Manual V3.0.0

61

Description of the data path

EventLineRisingEdgeFrameID
EventLineRisingEdgeTimestamp
EventOverflowFrameID
EventOverflowTimestamp

EventID

EventAcquisitionEnd
EventAcquisitionRecordTrigger
EventAcquisitionStart
EventError
EventExposureEnd
EventFrameTrigger
EventFrameTriggerReady
EventLine1FallingEdge
EventLine1RisingEdge
EventLine2FallingEdge
EventLine2RisingEdge
EventLine3FallingEdge
EventLine3RisingEdge
EventLine4FallingEdge
EventLine4RisingEdge
EventOverflow

EventNotification
EventSelector
EventsEnable1

GigE

BandwidthCtrlMode
ChunkModeActive
Configuration

IP Configuration Mode

Current

Current Default Gateway
Current IP Address
Current Subnet Mask

GVCP

Command Retries
Command Timeout
Heartbeat Interval
Heartbeat Timeout

(Vimba 1.3 and higher)

GevSCPSPacketSize
NonImagePayloadSize
PayloadSize
Persistent

Hierarchy level 1 Hierarchy level 2 Hierarchy level 3 Hierarchy level 4

Table 28: Available Mako camera and driver features

Mako Technical Manual V3.0.0

62

Description of the data path

Persistent Default Gateway
Persistent IP Address
Persistent Subnet Mask

StreamBytesPerSecond
StreamFrameRateConstrain
StreamHold

StreamHoldCapacity
StreamHoldEnable

Off

On

Timestamp

GevTimestampControlLatch
GevTimestampControlReset
GevTimestampTickFrequency
GevTimestampValue

IO

Strobe

StrobeDelay
StrobeDuration
StrobeDurationMode

Source

Controlled
StrobeSource

AcquisitionTriggerReady

FrameTriggerReady

FrameTrigger

Exposung

FrameReadout

Acquiring

LineIn1

SyncIn

SyncInGlitchFilter
SyncInLevels
SyncInSelector

SyncIn1

SyncOut

SyncOutLevels
SyncOutPolarity

Normal

Invert
SyncOutSelector

SyncOut1

SyncOut2

Hierarchy level 1 Hierarchy level 2 Hierarchy level 3 Hierarchy level 4

Table 28: Available Mako camera and driver features

Mako Technical Manual V3.0.0

63

Description of the data path

SyncOut3
SyncOutSource

GPO

AcquisitionTriggerReady

FrameTriggerReady

Exposing

FrameReadout

Imaging

Acquiring

LineIn1

Strobe1

ImageFormat

Height
HeightMax
ImageSize
OffsetX
OffsetY
PixelFormat
Width
WidthMax

ImageMode

BinningHorizontal
BinningHorizontalMode

Sum

Average

BinningVertical

BinningVerticalMode

Sum
Average

DecimationHorizontal

DecimationVertical
ReverseX

ReverseY

SensorHeight
SensorWidth

Info

Device MAC address
DeviceFirmwareVersion
DeviceID
DeviceModelName
DevicePartNumber

Hierarchy level 1 Hierarchy level 2 Hierarchy level 3 Hierarchy level 4

Table 28: Available Mako camera and driver features

Mako Technical Manual V3.0.0

64

Description of the data path

DeviceScanType
DeviceVendorName
FirmwareVerBuild
FirmwareVerMajor
FirmwareVerMinor
SensorBits
SensorType

SavedUserSets

UserSetDefaultSelector

Default
UserSet1
UserSet2
UserSet3

UserSetLoad
UserSetSave
UserSetSelector

Default
UserSet1
UserSet2
UserSet3

Stream

Info

GSVP Filter Version

Multicast

MulticastEnable
Multicast IP Address

Settings

GSVP Adjust Packet Size
GSVP Burst Size
GSVP Driver Selector
GSVP Host Receive Buffers
GSVP Max Look Back
GSVP Max Requests
GSVP Max Wait Size
GSVP Missing Size
GSVP Packet Size
GSVP Tilting Size
GSVP Timeout

Statistics

Stat Frame Rate
Stat Frames Delivered
Stat Frames Dropped

Hierarchy level 1 Hierarchy level 2 Hierarchy level 3 Hierarchy level 4

Table 28: Available Mako camera and driver features

Mako Technical Manual V3.0.0

65

Description of the data path

Frame memory

An image is normally captured and transported in consecutive steps. The image
is taken, read out from the sensor, digitized and sent over the Gigabit Ethernet
network. Mako cameras are equipped with a RAM. Table 29 shows how many
frames can be stored by each model.

The memory operates according to the FIFO (first in, first out) principle. This
makes addressing for individual images unnecessary.

Stat Frames Rescued
Stat Frames Shoved
Stat Frames Underrun
Stat Local Rate
Stat Packets Errors
Stat Packets Missed
Stat Packets Received
Stat Packets Requested
Stat Packets Resent
Stat Time Elapsed

StreamInformation

(Vimba v1.3 or higher)

StreamID

StreamType

Note



The number of frames (StreamHoldCapacity) depends on
resolution, pixel format, and packet size. Stated number
of frames is typical for full resolution, Mono8/Bayer8,
and GevSCPSPacketSize = 8192.

Model Memory size Pixel format / Resolution / Packet size

Mako G-030B/C 64 MB memory: 99 frames

Mono8/Bayer8

Full resolution

Payload size of 8192 bytes per packet

Mako G-032B/C 64 MB memory: 202 frames
Mako G-050B/C 64 MB memory: 130 frames
Mako G-095B/C 64 MB memory: 69 frames
Mako G-125B/C 64 MB memory: 52 frames
Mako G-131B/C 64 MB memory: 50 frames
Mako G-192B/C 64 MB memory: 34 frames
Mako G-223B/C 64 MB memory: 29 frames
Mako G-419B/C 64 MB memory: 15 frames

Table 29: Image memory size

Hierarchy level 1 Hierarchy level 2 Hierarchy level 3 Hierarchy level 4

Table 28: Available Mako camera and driver features

Mako Technical Manual V3.0.0

66

Resolution and ROI frame rates

Resolution and ROI frame rates

This section charts the resulting frame rate from changing sensor height from
full image to a single line. Unless otherwise noted, sensors do not give an
increase in readout speed with a reduction in width.

Note



• Data was generated using StreamBytesPerSecond = 124
MB/s (full bandwidth) and an 8-bit pixel format. Frame

rates may be lower if using network hardware incapable
of 124 MB/s.

• ROIs are taken as center image for maximum speed
advantage, where feature OffsetY = (full sensor height –
ROI height)/2.

• BinningVertical is horizontal row summing on CCD
before readout. The frame rate for an ROI at the same
effective height as binning will be slower because the CCD
still needs to read out the “fast readout rows” in ROI
mode.

Mako Technical Manual V3.0.0

67

Resolution and ROI frame rates

Mako G-030B/C: ROI frame rates

Maximum frame rate at full resolution according to formula: 309 fps

*There will be an increase in frame rate with reduced width if the camera is bandwidth limited.

Formula 1: Mako G-030: theoretical maximum frame rate of CCD

Figure 50: Frame rates Mako G-030 as function of ROI height [width=644]

ROI height Width* Frame rate

484 644 309
480 644 312
384 644 384
360 644 407
240 644 586
180 644 752
120 644 1048

60 644 1727
30 644 2554
15 644 3393

Table 30: Frame rates (fps) of Mako G-030 as function of ROI height (pixel) [width=644]

Max. frame rate

1

204 µs 6.25 µs ROI height+

------------------------------------------------- -------------------

=

40

400

4000

0 100 200 300 400 500

Frame rate [fps]

Height [pixels]

Mako Technical Manual V3.0.0

68

Resolution and ROI frame rates

Mako G-032B/C: ROI frame rates

Maximum frame rate at full resolution according to formula: 102.3 fps

* CCD = theoretical maximum frame rate (in fps) of CCD according to given formula

Formula 2: Mako G-032: theoretical maximum frame rate of CCD

Figure 51: Frame rates Mako G-032 as function of ROI height [width=658]

ROI height Frame rate*

492 102.3
480 104.5
320 146.6
240 183.5
120 295.3

60 424.5
30 543.3
10 667.9

2735.4

Table 31: Frame rates (fps) of Mako G-032 as function of ROI height (pixel) [width=658]

Max. frame rate of CCD

1

19.46 µs ROI height 2.29 µs 492 ROI height– 195.81 µs++

-------------------------------------------------- -------------------------- ---------------------- -------------------------- --------------------------

=

100

150

200

250

300

350

400

450

500

550

600

650

700

750

0 100 200 300 400 500

Frame rate [fps]

Height [pixels]

Mako Technical Manual V3.0.0

69

Resolution and ROI frame rates

Mako G-050B/C: ROI frame rates

Maximum frame rate at full resolution according to formula: 71.2 fps

* CCD = theoretical maximum frame rate (in fps) of CCD according to given formula

Formula 3: Mako G-050: theoretical maximum frame rate of CCD

Figure 52: Frame rates Mako G-050 as function of ROI height [width=812]

ROI height Frame rate*

614 71.2
492 83.8
480 85.3
320 111.5
240 131.7
120 181.0

60 222.6
30 251.5
10 275.4

2286.2

Table 32: Frame rates (fps) of Mako G-050 as function of ROI height (pixel) [width=812]

Max. frame rate of CCD

1

22.53 µs ROI height 5.32 µs 614 ROI height– 193.63 µs++

-------------------------------------------------- -------------------------- ---------------------- -------------------------- --------------------------

=

70

90

110

130

150

170

190

210

230

250

270

290

0 50 100 150 200 250 300 350 400 450 500 550 600 650

Frame rate [fps]

Height [pixels]

Mako Technical Manual V3.0.0

70

Resolution and ROI frame rates

Mako G-095B/C: ROI frame rates

Maximum frame rate at full resolution according to formula: 42.8 fps

* CCD = theoretical maximum frame rate (in fps) of CCD according to given formula

Formula 4: Mako G-095: theoretical maximum frame rate of CCD

Figure 53: Frame rates Mako G-095 as function of ROI height [width=1292]

ROI height Frame rate*

734 42.8
640 47.9
614 49.5
492 59.1
480 60.2
320 81.1
240 98.1
120 143.0

60 185.4
30 217.8
10 246.4

2260.1

Table 33: Frame rates (fps) of Mako G-095 as function of ROI height (pixel) [width=1292]

Max. frame rate of CCD

1

31.54 µs ROI height 4.87 µs 734 ROI height– 219.97 µs++

-------------------------------------------------- -------------------------- ---------------------- -------------------------- --------------------------

=

40

60

80

100

120

140

160

180

200

220

240

260

280

0 75 150 225 300 375 450 525 600 675 750

Frame rate [fps]

Height [pixels]

Mako Technical Manual V3.0.0

71

Resolution and ROI frame rates

Mako G-125B/C: ROI frame rates

Maximum frame rate at full resolution according to formula: 30.3 fps

* CCD = theoretical maximum frame rate (in fps) of CCD according to given formula

Formula 5: Mako G-125: theoretical maximum frame rate of CCD

Figure 54: Frame rates Mako G-125 as function of ROI height [width=1292]

ROI height Frame rate*

964 30.3
960 30.4
768 37.1
640 43.5
480 55.5
320 76.5
240 94.4
120 145.5

60 199.3
30 244.5
10 288.1

2310.3

Table 34: Frame rates (fps) of Mako G-125 as function of ROI height (pixel) [width=1292]

Max. frame rate of CCD

1

34.01 µs ROI height 3.09 µs 964 ROI height– 176.42 µs++

---------------------------------------------------- --------------------------- ---------------------- -------------------------- -----------------------

=

30

80

130

180

230

280

330

0 200 400 600 800 1000

Frame rate [fps]

Height [pixels]

Mako Technical Manual V3.0.0

72

Resolution and ROI frame rates

Mako G-131B/C: ROI frame rates

*There will be an increase in frame rate with reduced width for color camera if it is bandwidth lim­ited.

Figure 55: Frame rates Mako G-131 as function of ROI height [width=1280]

ROI height Width* Frame rate

1024 1280 62

960 1280 66
768 1280 82
720 1280 87
512 1280 121
480 1280 129
360 1280 170
240 1280 249
120 1280 462

60 1280 809
30 1280 1295
15 1280 1798

Table 35: Frame rates (fps) of Mako G-131 as function of ROI height (pixel) [width=1280]

20

200

2000

0 150 300 450 600 750 900 1050

Frame rate [fps]

Height [pixels]

Mako Technical Manual V3.0.0

73

Resolution and ROI frame rates

Mako G-192B/C: ROI frame rates

*There will be an increase in frame rate with reduced width if the camera is bandwidth limited.

Figure 56: Frame rates Mako G-192 as function of ROI height [width=1600]

ROI height Width* Frame rate

1200 1600 60
1024 1600 70

960 1600 75
768 1600 93
720 1600 99
512 1600 138
480 1600 147
360 1600 193
240 1600 282
120 1600 525

60 1600 919
30 1600 1470
16 1600 2042

Table 36: Frame rates (fps) of Mako G-192 as function of ROI height (pixel) [width=1600]

20

200

2000

0 200 400 600 800 1000 1200

Frame rate [fps]

Height [pixels]

Mako Technical Manual V3.0.0

74

Resolution and ROI frame rates

Mako G-223B/C: ROI frame rates

*There will be an increase in frame rate with reduced width if the camera is bandwidth limited.

Figure 57: Frame rates Mako G-223 as function of ROI height

ROI height Width* Frame rate

1088

2048 49.5

1000

2048 53.8

900

2048 59.7

800

2048 67.1

700

2048 76.6

600

2048 89.2

500

2048 106.8

400

2048 132.9

300

2048 176.1

200

2048 260.8

100

2048 502.1

50

2048 934.6

20

2048 1933.8

10

2048 2847.3

5

2048 3624.5

2

2048 4906.7

1

2048 4926.1

Table 37: Frame rates (fps) of Mako G-223 as function of ROI height (pixel)

5

50

500

5000

0 100 200 300 400 500 600 700 800 900 1000 1100

Frame rate [fps]

Height [pixels]

Mako Technical Manual V3.0.0

75

Resolution and ROI frame rates

Mako G-419B/C: ROI frame rates

*There will be an increase in frame rate with reduced width if the camera is bandwidth limited.

Figure 58: Frame rates Mako G-419 as function of ROI height

ROI height Width* Frame rate

2048 2048 26.3
2000

2048 26.9

1800

2048 29.9

1600

2048 33.6

1400

2048 38.4

1200

2048 44.8

1000

2048 53.7

800

2048 66.9

600

2048 88.8

400

2048 132.1

200

2048 257.7

100

2048 490.8

50

2048 895.9

20

2048 1775.5

10

2048 2639.2

5

2048 3486.7

2

2048 4342.1

Table 38: Frame rates (fps) of Mako G-419 as function of ROI height (pixel)

5

50

500

5000

0 300 600 900 1200 1500 1800 2100

Frame rate [fps]

Height [pixels]

Mako Technical Manual V3.0.0

76

Appendix

Sensor position accuracy of Mako cameras

Method of positioning

Optical alignment of the photo sensitive sensor area into the camera front mod­ule (lens mount front flange).

Reference points

Sensor: center of the pixel area (photo sensitive cells).
Camera: Center of the camera front flange (outer case edges).

Accuracy

x/y: ±150 µm (sensor shift)

z: 0 µm to -150 µm (optical back focal length)

α: ±0.5° (sensor rotation)

Figure 59: Allied Vision sensor position accuracy

Note



x/y - tolerances between the C-Mount hole and the
pixel area may be higher.

x

y

Sensor case

D

Camera body

Pixel area

Sensor case

Camera body

Pixel area

Mako Technical Manual V3.0.0

77

Index

Index

A

acquiring (signal) .................................... 50

acquisition stream ................................... 50

AcquisitionTriggerReady (signal) ................ 49

B

Block diagram

Mako color cameras with CCD sensors ..... 55

Mako color cameras with CMOS sensors .. 55,

56

Mako mono cameras with CCD sensors ..... 53

Mako mono cameras with CMOS sensors . 53,

54

C

camera lenses ......................................... 36

Camera rear view ..................................... 44

Camera standard housing .......................... 43

CE ......................................................... 15

Cleaning instructions ........................... 10, 12

Compressed air ........................................ 13

Cross section

C-Mount ........................................... 41

CS-Mount .......................................... 42

D

declaration of conformity .......................... 15

Description of the data path ....................... 53

document history ....................................... 6

duration of sensor exposure ....................... 49

Dust-free clean-room ................................ 12

E

exposing (signal) ..................................... 49

exposing (trigger) .................................... 52

exposure (definition) ............................... 51

exposure cycle (trigger) ............................ 52

exposure start delay (signal) ...................... 52

exposure time value (trigger) ..................... 52

external trigger ....................................... 49

external trigger at SyncIn1 ........................ 50

F

FCC Class B ............................................. 15

focal length ............................................ 37

frame readout ......................................... 49

frame trigger .......................................... 49

FrameReadout (signal) ............................. 49

FrameTrigger (signal) ............................... 49

FrameTriggerReady (signal) ....................... 49

G

GenICam ................................................ 14

Gigabit Ethernet ...................................... 14

Gigabit Ethernet interface ......................... 14

GigE ...................................................... 14

GigE cameras

Mako ............................................... 14

GigE Vision ............................................. 14

GPO (general purpose output) .................... 49

I

Identifying impurities ............................... 11

idle (signal) ............................................ 52

imaging (signal) ................................. 50, 52

Input block diagram ................................. 49

inputs

in detail ........................................... 49

integrating light (trigger) ......................... 51

interline boundary ................................... 52

interline time (signal) .............................. 52

L

legal notice .............................................. 2

Locating impurities .................................. 11

logic trigger ........................................... 49

logic trigger (definition) ........................... 51

M

Mako GigE cameras ................................... 14

Minimum pulse width ................................ 46

Mako Technical Manual V3.0.0

78

Index

O

Output block diagram ............................... 50

Output signals ......................................... 49

Output switching times ............................. 48

outputs .................................................. 49

OutVCC ................................................... 47

P

PoE ....................................................... 45

propagation delay (trigger) ....................... 51

R

reading out data (trigger) .......................... 52

readout (definition) ................................. 51

readout data (trigger) ............................... 51

registered exposure time (signal) ................ 52

RoHS (2002/95/EC) ................................. 15

S

Sensor position accuracy ........................... 76

sensor row readout cycles .......................... 52

software trigger ....................................... 49

specifications .......................................... 16

Spectral sensitivity

Mako G-030B ..................................... 18

Mako G-030C ..................................... 18

Mako G-032B ..................................... 20

Mako G-032C ..................................... 20

Mako G-050B ..................................... 22

Mako G-050C ..................................... 22

Mako G-095B ..................................... 24

Mako G-095C ..................................... 24

Mako G-125B ..................................... 26

Mako G-125C ..................................... 26

Mako G-131B ..................................... 28

Mako G-131C ..................................... 28

Mako G-192B ..................................... 30

Mako G-192C ..................................... 30

Mako G-223B (NIR) ............................. 32

Mako G-223C ..................................... 32

Mako G-419B (NIR) ............................. 34

Mako G-419C ..................................... 34

spectral transmission

IR cut filter ....................................... 36

type Hoya C5000 ................................ 36

start acquisition ...................................... 49

Strobe1 (signal) ...................................... 50

styles ...................................................... 8

symbols ................................................... 8

SyncIn1 (signal) ...................................... 50

SyncOutGpoLevels .................................... 49

system components .................................. 36

T

time delay (trigger) .................................. 52

timing diagram

trigger ............................................. 51

Tpd (definition) ....................................... 51

trigger

timing diagram .................................. 51

trigger definitions .................................... 51

trigger jitter (definition) ........................... 52

trigger latency (definition) ........................ 52

trigger latency time .................................. 52

trigger ready (signal) ............................... 52

trigger rules ........................................... 52

Tripod dimensions .................................... 40

types

Mako GigE cameras ............................. 14

U

user trigger (definition) ............................ 51

W

Warranty ................................................ 10

Warranty precautions ............................... 10
