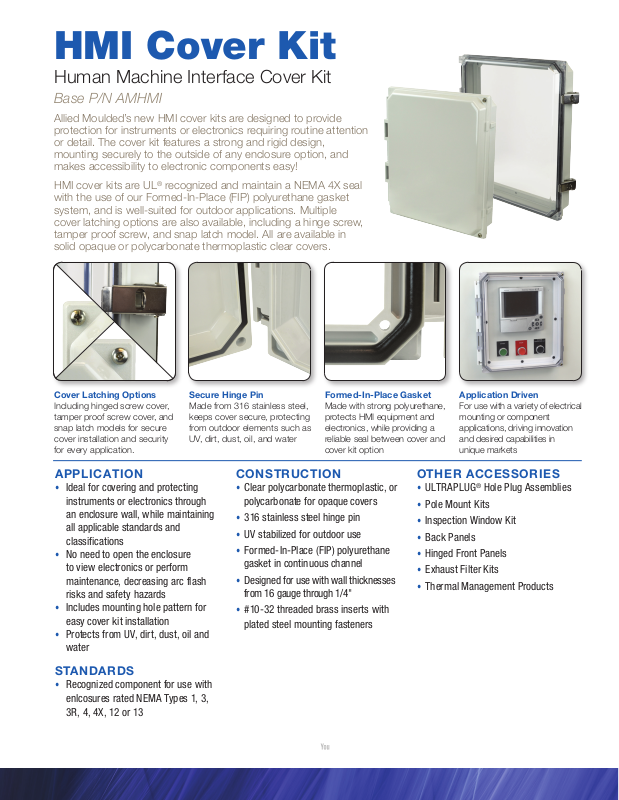

HMI Cover Kit
Human Machine Interface Cover Kit
Base P/N AMHMI
Allied Moulded’s new HMI cover kits are designed to provide
protection for instruments or electronics requiring routine attention
or detail. The cover kit features a strong and rigid design,
mounting securely to the outside of any enclosure option, and
makes accessibility to electronic components easy!
HMI cover kits are UL® recognized and maintain a NEMA 4X seal
with the use of our Formed-In-Place (FIP) polyurethane gasket
system, and is well-suited for outdoor applications. Multiple
cover latching options are also available, including a hinge screw,
tamper proof screw, and snap latch model. All are available in
solid opaque or polycarbonate thermoplastic clear covers.
Cover Latching Options
Including hinged screw cover,
tamper proof screw cover, and
snap latch models for secure
cover installation and security
for every application.
APPLICATION
Ideal for covering and protecting
•
instruments or electronics through
an enclosure wall, while maintaining
all applicable standards and
classifications
No need to open the enclosure
•
to view electronics or perform
maintenance, decreasing arc flash
risks and safety hazards
Includes mounting hole pattern for
•
easy cover kit installation
Protects from UV, dirt, dust, oil and
•
water
STANDARDS
Recognized component for use with
•
enlcosures rated NEMA Types 1, 3,
3R, 4, 4X, 12 or 13
Secure Hinge Pin
Made from 316 stainless steel,
keeps cover secure, protecting
from outdoor elements such as
UV, dirt, dust, oil, and water
CONSTRUCTION
Clear polycarbonate thermoplastic, or
•
polycarbonate for opaque covers
316 stainless steel hinge pin
•
UV stabilized for outdoor use
•
•
Formed-In-Place (FIP) polyurethane
gasket in continuous channel
•
Designed for use with wall thicknesses
from 16 gauge through 1/4"
#10-32 threaded brass inserts with
•
plated steel mounting fasteners
Formed-In-Place Gasket
Made with strong polyurethane,
protects HMI equipment and
electronics, while providing a
reliable seal between cover and
cover kit option
OTHER ACCESSORIES
ULT R APLUG® Hole Plug Assemblies
•
Pole Mount Kits
•
Inspection Window Kit
•
•
Back Panels
•
Hinged Front Panels
Exhaust Filter Kits
•
Thermal Management Products
•
Application Driven
For use with a variety of electrical
mounting or component
applications, driving innovation
and desired capabilities in
unique markets
B
U
A M
F
10.47
8.69
.56
W
K
Part No. Configuration Options
Part No. Suffix Description
CCH Clear Cover Hinge
CCHTP
CCL
H
HTP
L
Base
Part No.
*AMHMI120
Clear Cover Tamper Proof Screw
Clear Cover Snap Latch
Opaque Cover Hinge
Opaque Cover Hinge Tamper Proof Screw
Opaque Cover Snap Latch
Frame Size
Inside Dimensions
A B C F K M W U Width Height
11.93 10.15 0.96 2.27 9.89 11.67 10.72 12.5 8.69 10.47 0.14
303mm 258mm 24mm 58mm 251mm 296mm 272mm 318mm
.88
C
.44
LATCH LOCATIONS
7.500
All dimensions in inches unless otherwise noted
Usable
Depth
Cover Size
5.507
2x 5.267
2x 5.267
5.507
0
OPENING SIZE
4.377
4.617
MOUNTING HOLE
4.377
PATTERN
*Base model number only. Add suffix for complete HMI Cover Kit assembly (Ex. AMHMI120CCH).
B
F
10.71
HMI120
0
HMI120
Max Viewing
221
mm
4.377
Area
4.617
4.377
.321 x 45
TYP. 4x
266
Nom. Wall
Thickness
mm 4mm
U
Base
Part No.
*AMHMI142
A
M
Note: Cover removed for clarity
.56 W
K
LATCH LOCATIONS
.81
C
C
L
8.000
All dimensions in inches unless otherwise noted
Frame Size
Inside Dimensions
Usable
Depth
Cover Size
A B C F K M W U Width Height
13.95 12.07 0.96 2.2 11.89 13.67 12.72 14.5 10.71 12.49 0.19
354mm 307mm 24mm 56mm 302mm 347mm 323mm 368mm
.44
2x .241
2x 4.389
2x 8.639
2x 12.788
13.029
12.49
0
OPENING SIZE
5.384
2x 5.625
MOUNTING HOLE
PATTERN
5.384
HMI142
0
HMI142
*Base model number only. Add suffix for complete HMI Cover Kit assembly (Ex. AMHMI142CCHTP).
.324 x 45
TYP. 4x
5.384
2x 5.625
5.384
Max Viewing
Area
272mm 317mm
Nom. Wall
Thickness
5mm
