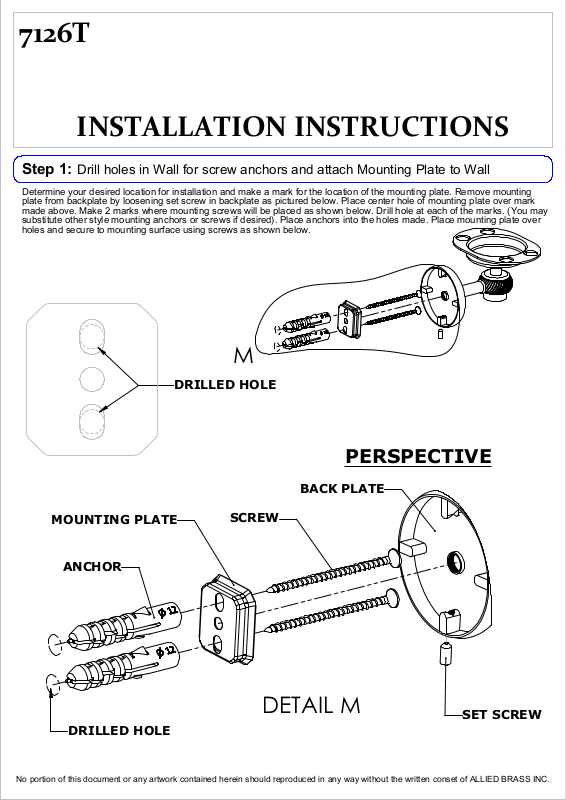

7126T
INSTALLATION INSTRUCTIONS
Step 1:
Determine your desired location for installation and make a mark for the location of the mounting plate. Remove mounting
plate from backplate by loosening set screw in backplate as pictured below. Place center hole of mounting plate over mark
made above. Make 2 marks where mounting screws will be placed as shown below. Drill hole at each of the marks. (You may
substitute other style mounting anchors or screws if desired). Place anchors into the holes made. Place mounting plate over
holes and secure to mounting surface using screws as shown below.
Drill holes in Wall for screw anchors and attach Mounting Plate to Wall
M
DRILLED HOLE
MOUNTING PLATE
ANCHOR
DRILLED HOLE
SCREW
DETAIL M
PERSPECTIVE
BACK PLATE
SET SCREW
No portion of this document or any artwork contained herein should reproduced in any way without the written conset of ALLIED BRASS INC.
7126T
INSTALLATION INSTRUCTIONS

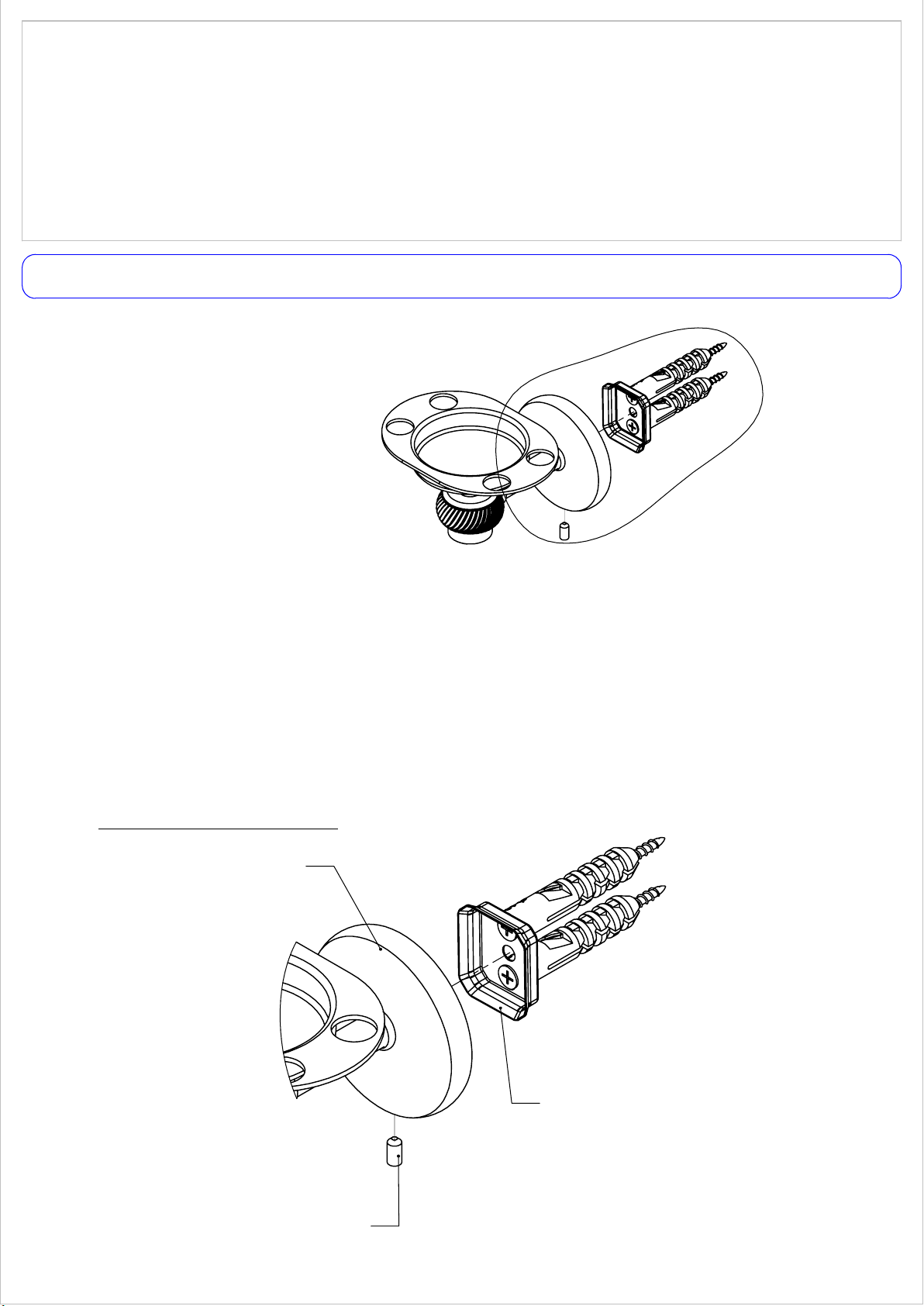

Step 2:
Place bracket on mounting plate and secure by tightening set screw as shown below.
Attach Bracket to Mounting Plate.
N
PERSPECTIVE
BACK PLATE
MOUNTING PLATE
DETAIL N
SET SCREW
