Automatic

W446I

Washers

Metered and Nonmetered

Installation/Operation

Para bajar una copia de estas instrucciones en español, visite www.comlaundry.com.

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

www.comlaundry.com

Part No. 201932R4

September 2010

Page 2

Page 3

IMPORTANT: Read the complete

For your safety and to reduce the risk of fire or an explosion, do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

W022

WARNING

INSTALLATION/OPERATION INSTRUCTIONS before using the washer.

201932

Page 4

Table of

Contents

Safety Information .............................................................................. 4

Explanation of Safety Messages........................................................... 4

Important Safety Instructions ............................................................... 4

Installation........................................................................................... 6

Dimensions and Specifications............................................................. 6

Before You Start................................................................................... 7

Tools ................................................................................................ 7

Installing the Washer ............................................................................ 7

Step 1: Remove the Shipping Brace and Shipping Plug.................. 7

Step 2: Wipe Out Inside of Washtub ............................................... 8

Step 3: Connect Fill Hoses............................................................... 8

Step 4: Connect Drain Hose to Drain Receptacle............................ 10

Step 5: Position and Level the Washer ............................................ 11

Step 6: Plug In the Washer............................................................... 12

Step 7: Add Water to the Washer .................................................... 13

Step 8: Check Lid Switch ................................................................ 13

Step 9: Check Installation ................................................................ 13

Vending................................................................................................. 14

Meter Case ....................................................................................... 14

Slide Extension ................................................................................ 14

Models Prepped for Card Reader..................................................... 15

Additional Washer Security............................................................. 16

Operation............................................................................................. 17

Operation Instructions for Coin Slide Operated and

Nonmetered Washers ......................................................................... 17

Step 1: Add Detergent...................................................................... 17

Step 2: Load Laundry....................................................................... 17

Step 3: Close Lid.............................................................................. 17

Step 4: Set Wash Temperature and Fabric/Cycle Selector .............. 18

Step 5: Start Washer......................................................................... 19

Indicator Lights................................................................................ 19

Control Modes ................................................................................. 20

Rapid Advance................................................................................. 21

Setting Dipswitch............................................................................. 21

Operation Instructions for Electronic Display Control Washers.......... 22

Step 1: Add Detergent...................................................................... 22

Step 2: Load Laundry....................................................................... 22

Step 3: Close Lid.............................................................................. 22

Step 4: Choose Small Load, if Desired............................................ 23

Step 5: Set Fabric Selector............................................................... 23

Step 6: Set Wash Temperature......................................................... 23

Step 7: Insert Money........................................................................ 23

Indicator Lights................................................................................ 24

Operation Instructions for MDC Washers............................................ 25

Step 1: Add Detergent...................................................................... 25

Step 2: Load Laundry....................................................................... 25

Step 3: Close Lid.............................................................................. 25

Step 4: Choose Small Load, if Desired............................................ 26

means without the expressed written consent of the publisher.

201932

Page 5

Step 5: Set Fabric Selector and Wash Temperature......................... 26

Step 6: Insert Money or Card........................................................... 26

Step 7: Start Washer......................................................................... 27

Indicator Lights................................................................................ 27

Operation Instructions for NetMaster Washers .................................... 28

Step 1: Add Detergent...................................................................... 28

Step 2: Load Laundry....................................................................... 28

Step 3: Close Lid.............................................................................. 28

Step 4: Choose Small Load, if Desired............................................ 29

Step 5: Set Fabric Selector............................................................... 29

Step 6: Set Wash Temperature......................................................... 29

Step 7: Insert Money or Card........................................................... 30

Step 8: Start Washer......................................................................... 30

Indicator Lights................................................................................ 30

Maintenance ........................................................................................ 31

User-Maintenance Instructions............................................................. 31

Cold Weather Care........................................................................... 31

Care of Your Washer ....................................................................... 31

Replacing Hoses............................................................................... 31

Filter Screens ................................................................................... 31

Reinstallation of Shipping Materials ............................................... 31

Motor Overload Protector..................................................................... 31

Troubleshooting.................................................................................. 32

Contact Information........................................................................... 34

Installer Checklist ............................................................... Back Cover

201932

Page 6

Safety Information

Indicates an imminently hazardous situation that, if not avoided, will cause severe personal injury or death.

DANGER

Indicates a hazardous situation that, if not avoided, could cause severe personal injury or death.

WARNING

Indicates a hazardous situation that, if not avoided, may cause minor or moderate personal injury or property damage.

CAUTION

To reduce the risk of fire, electric shock, serious injury or death to persons when using your washer, follow these basic precautions:

W023

WARNING

Explanation of Safety Messages

Throughout this manual and on machine decals, you will find precautionary statements (“DANGER,” “WARNING,” and “CAUTION”) followed by specific instructions. These precautions are intended for the personal safety of the operator, user, servicer, and those maintaining the machine.

Important Safety Instructions

Save These Instructions

1. Read all instructions before using the washer.

2. Refer to the GROUNDING INSTRUCTIONS in the INSTALLATION manual for the proper grounding of the washer.

3. Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances as they give off vapors that could ignite or explode.

4. Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.

Additional precautionary statements (“IMPORTANT” and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used to inform the reader of specific procedures where minor machine damage will occur if the procedure is not followed.

NOTE: The word “NOTE” is used to communicate installation, operation, maintenance or servicing information that is important but not hazard related.

5. Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using a washing machine or combination washer-dryer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. THE GAS IS FLAMMABLE, DO NOT SMOKE OR USE AN OPEN FLAME DURING THIS TIME.

6. Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children. This is a safety rule for all appliances.

7. Before the washer is removed from service or discarded, remove the lid to the washing compartment.

8. Do not reach into the washer if the washtub or agitator is moving.

9. Do not install or store the washer where it will be exposed to water and/or weather.

201932

Page 7

Safety Information

10. Do not tamper with the controls.

11. Do not repair or replace any part of the washer, or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.

12. To reduce the risk of an electric shock or fire, DO NOT use an extension cord or an adapter to connect the washer to the electrical power source.

13. Use your washer only for its intended purpose, washing clothes.

14. ALWAYS disconnect the washer from electrical supply before attempting any service. Disconnect the power cord by grasping the plug, not the cord.

15. Install the washer according to the INSTALLATION INSTRUCTIONS. All connections for water, drain, electrical power and grounding must comply with local codes and be made by licensed personnel when required. Do not do it yourself unless you know how!

16. To reduce the risk of fire, clothes which have traces of any flammable substances such as vegetable oil, cooking oil, machine oil, flammable chemicals, thinner, etc. or anything containing wax or chemicals such as in mops and cleaning cloths, must not be put into the washer. These flammable substances may cause the fabric to catch on fire by itself.

17. Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.

18. Keep your washer in good condition. Bumping or dropping the washer can damage safety features. If this occurs, have your washer checked by a qualified service person.

21. Lid MUST BE CLOSED any time the washer is to agitate or spin. DO NOT bypass the lid switch by permitting the washer to agitate or spin with the lid open. A brake will stop the washtub within seconds if the lid is opened during spinning. If the washtub does not stop when the lid is opened, remove the washer from use and call the service person.

22. Always read and follow manufacturer’s instructions on packages of laundry and cleaning aids. To reduce the risk of poisoning or chemical burns, keep them out of the reach of children at all times (preferably in a locked cabinet). Heed all warnings or precautions.

23. Always follow the fabric care instructions supplied by the garment manufacturer.

24. Never operate the washer with any guards and/or panels removed.

25. DO NOT operate the washer with missing or broken parts.

26. DO NOT bypass any safety devices.

27. Failure to install, maintain, and/or operate this washer according to the manufacturer’s instructions may result in conditions which can produce bodily injury and/or property damage.

NOTE: The WARNING and IMPORTANT SAFETY INSTRUCTIONS appearing in this manual are not meant to cover all possible conditions and situations that may occur. Common sense, caution and care must be exercised when installing, maintaining, or operating the washer.

Always contact your dealer, distributor, service agent or the manufacturer about any problems or conditions you do not understand.

19. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

20. Be sure water connections have a shut-off valve and that fill hose connections are tight. CLOSE the shut-off valves at the end of each wash day.

201932

Page 8

Installation

TLW2051N

25.63 in. (65.1 cm)

30.5 in. (74.47 cm)

Standard Capacity Meter Case

43 in. (109.2 cm)

High Capacity Meter Case

43.875 in. (111.44 cm)

0.44 in.

(1.12 cm)

26 in. (66.04 cm)

28.75 in. (73.02 cm)

41.25 in. (104.78 cm) 36 in. (91.44 cm)

51 in. (129.54 cm)

28 in. (71.12 cm)

Coin Slide Models

40.38 in. (102.56 cm) Electronic Control Models

38.19 in. (97 cm)

Coin Slide Models

21.56 in. (54.76 cm)

Electronic Control Models

22.44 in. (57 cm)

METERED MODELS

25.63 in. (65.1 cm)

30.5 in. (74.47 cm)

28 in. (71.12 cm)

0.44 in.

(1.12 cm)

26 in. (66.04 cm)

NONMETERED MODELS

41.25 in. (104.78 cm) 36 in. (91.44 cm)

51 in. (129.54 cm)

28.75 in. (73.02 cm)

40.38 in. (102.56 cm)

21.56 in. (54.76 cm)

Dimensions and Specifications

1 Pilot Hole

TLW2051N

TLW2050N

201932

Page 9

Installation

D074I

Before You Start

Tool s

For most installations, the basic tools you will need are:

D074I

1 Wrench 2 Screwdriver 3 Pliers 4 Level

Installing the Washer

Step 1: Remove the Shipping Brace and Shipping Plug

Remove the shipping brace from under the lid.

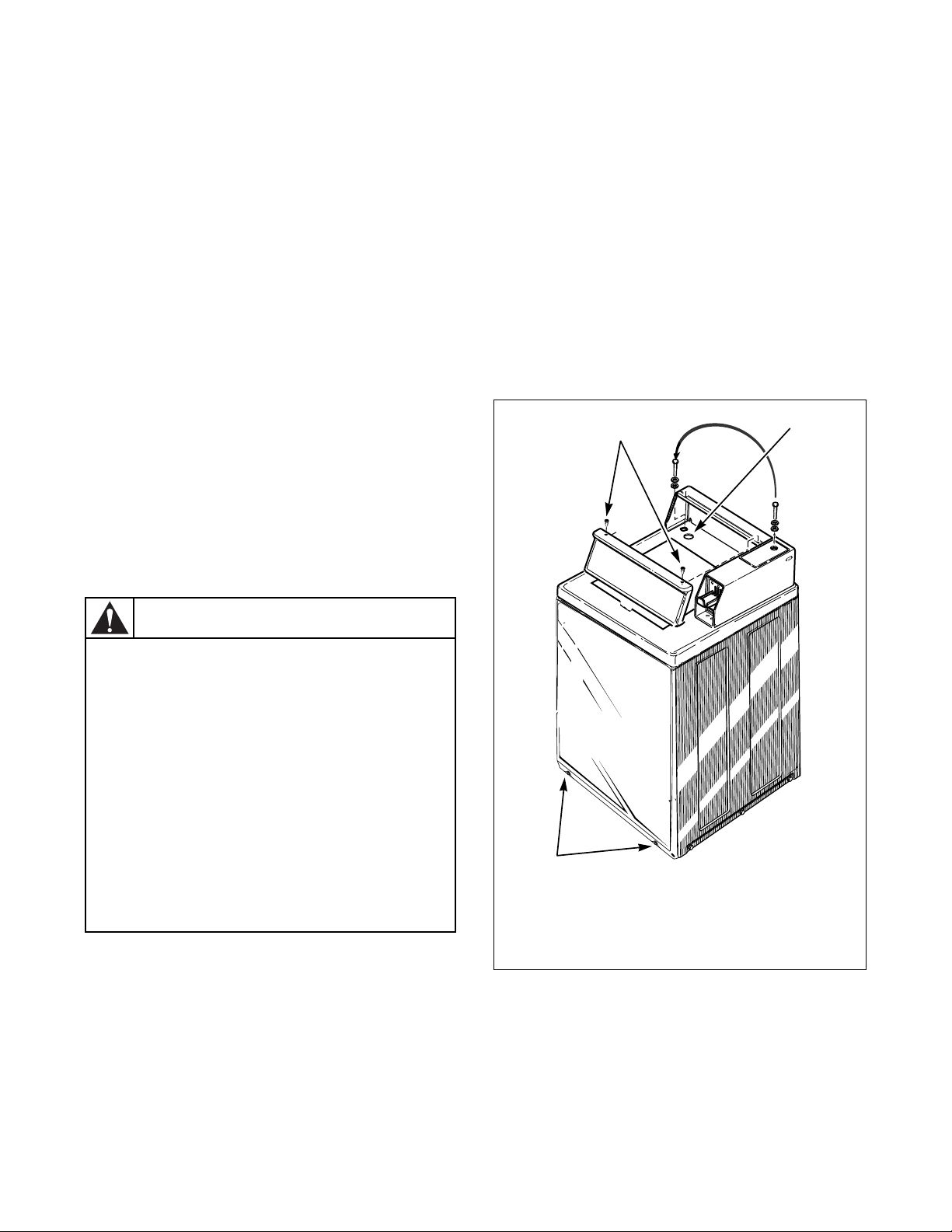

The shipping plug will be released from the base of the washer when removing the cardboard base from the washer. Refer to Figure 2.

The shipping brace and plug should be saved and must be reinstalled whenever washer is moved or transported to a new location. This will prevent damage to washer components.

Do not tilt washer to front or sides when moving.

Refer to User-Maintenance section for instructions on reinstalling shipping brace and shipping plug.

Figure 1

NOTE: If the washer is delivered on a cold day (below freezing), or is stored in an unheated room or area during the cold months, do not attempt to operate it until the washer has had a chance to warm up.

IMPORTANT: Install dryer before washer. This allows room for attaching exhaust duct.

TLW2052N

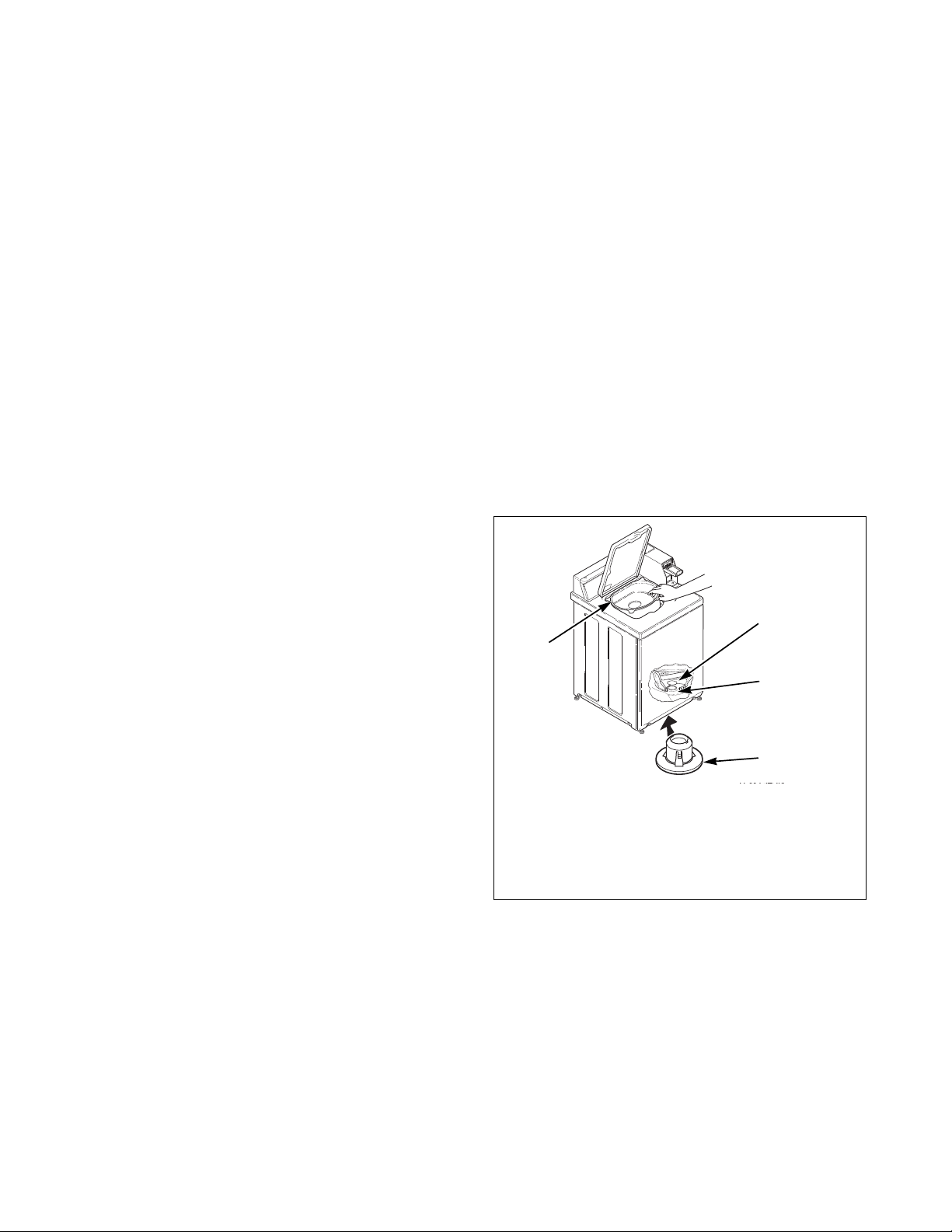

1 Shipping Brace 2 Shipping Plug 3 Cardboard Base

Figure 2

201932

Page 10

Installation

W396I

Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period and before using the washer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. The gas is flammable. Do not smoke or use an open flame during this time.

W029

WARNING

To prevent personal injury, avoid contact with inlet water temperatures higher than 125° Fahrenheit (51° Celsius) and hot surfaces.

W748

WARNING

Step 2: Wipe Out Inside of Washtub

Prior to first wash, use an all purpose cleaner or a detergent and water solution and a damp cloth to remove shipping dust from inside of washtub.

Figure 3

Step 3: Connect Fill Hoses

Water Supply Requirements

Water supply faucets must fit standard 3/4 inch (19.1 mm) female garden hose couplings. DO NOT USE SLIP-ON OR CLAMP-ON CONNECTIONS.

NOTE: Water supply faucets should be readily accessible to permit turning them off when washer is not being used.

Recommended cold water temperature is 50° to 75° Fahrenheit (10° to 24° Celsius). Recommended maximum hot water temperature is 125° Fahrenheit (51° Celsius). Warm water is a mixture of hot and cold water. Warm water temperature is dependent upon the water temperature and the pressure of both the hot and cold water supply lines.

W396I

Pressure must be a minimum of 20 to a maximum of 120 pounds per square inch (138 to 827 kPa) static pressure measured at the faucet.

NOTE: Water pressure under 20 pounds per square inch (138 kPa) will cause an extended fill time in the washer.

Turn on the water supply faucets and flush the lines for approximately two minutes to remove any foreign materials that could clog the screens in the water mixing valve. (This is especially important when installing your washer in a newly constructed or renovated building.)

201932

Page 11

Installation

TLW1988N

HOT

COLD

Connecting Hoses

Insert rubber washers and filter screens (from accessories bag) in water fill hose couplings (two hoses supplied with washer). Connect fill hoses to water supply faucets. Then connect the hoses to the hot and cold valve connections at the rear of the washer. Refer to Figure 4. Thread hose couplings onto valve connections finger tight. Then turn 1/4 turn with pliers.

IMPORTANT: DO NOT cross thread or overtighten couplings.

IMPORTANT: Turn off water supply faucets after check-out and demonstration. Owner should turn off water supply whenever there will be an extended period of non-use.

NOTE: Longer fill hoses are available (as optional equipment at extra cost) if the hoses (supplied with the washer) are not long enough for the installation. Order hoses as follows:

No. 20617 Fill Hose (8 feet) (2.44 m) No. 20618 Fill Hose (10 feet) (3.05 m)

Risers

Risers (or air cushions) may have to be installed if the pipes knock or pound when flow of water stops. The risers are more efficient when installed as close as possible to the water supply faucets. Refer to Figure 5.

1 Filter Screen (Screen must be facing

outward)

2 Fill Hose 3 Rubber Washer (Plain) 4 Cold Water Connection 5 Hot Water Connection 6 Hose Coupling 7 Faucet

Figure 4

IMPORTANT: Hoses and other natural rubber parts deteriorate after extended use. Hoses may develop cracks, blisters or material wear from the temperature and constant high pressure they are subjected to.

All hoses should be checked on a monthly basis for any visible signs of deterioration. Any hose showing the signs of deterioration listed above should be replaced immediately. All hoses should be replaced every five years.

TLW1988N

W005I

1 Risers (Air cushions) 2 Water Supply Faucets

Figure 5

201932

Page 12

Installation

W294I

RECOMMENDED

STANDPIPE

HEIGHT 36 inches MINIMUM

(91.44 cm)

{

MAXIMUM

STANDPIPE

HEIGHT NOT TO

EXCEED 5 feet

(1.5 m)

Step 4: Connect Drain Hose to Drain Receptacle

Drain Facilities

IMPORTANT: The drain hose installation is a very important factor in the washer installation. If care is not taken when the drain hose is installed, a siphoning action can be started which will cause water to be siphoned from the washer during the cycle.

End of drain hose should never be in water as siphoning action can be started that will cause water to be siphoned back into the washer.

The curved end of drain hose MUST be installed even with or above the height of the cabinet top of the washer to prevent siphoning. Refer to Figure 6.

If necessary, follow the instructions for your type of drain receptacle (high standpipe or low standpipe) to properly install the drain hose.

High Standpipe Installation

NOTE: No. 562P3 Siphon Break Kit and No. 25863 Hose Coupling are not required for this type of installation.

The standpipe or drain receptacle must be capable of handling a minimum of 1-1/2 inches (3.8 cm) outside diameter drain hose. The drain hose should fit loose within the standpipe (it should not be snug fit). Never install the drain hose into a “sealed” drain system as air cannot escape and will restrict the water from being drained from the washer. A sealed drain system may also allow water to be pumped back into the washer during agitation. Both of these conditions may result in flooding of the washer.

Remove the drain hose from its shipping position on the rear of the washer by unhooking the hose from the retainer clamp.

1 Drain Hose 2 Standpipe

Figure 6

W294I

W296I

1 Drain Hose 2 Cut Drain Hose off at This End to Fit the

Washer Installation

3 Standpipe

Figure 7

IMPORTANT: Drain receptacle must be capable of handling a minimum of 1-1/2 inch (3.8 cm) outside diameter drain hose.

201932

Page 13

Installation

{

Low Standpipe Installation

If the drain facility is lower than the cabinet top, a siphon break kit, Part No. 562P3, must be installed in the drain hose to prevent siphoning action and drain hose MUST be cut to fit the washer installation. Refer to Figure 8. Use one No. 25863 Hose Coupling to splice hose. The No. 562P3 Siphon Break Kit and No. 25863 Hose Coupling are available as optional equipment at extra cost through an authorized dealer or parts distributor. Installation instructions are supplied with the kit.

OPTIONAL: Raise the standpipe to the recommended height of 36 inches (91.44 cm).

IMPORTANT: Drain receptacle must be capable of handling a minimum of 1-1/2 inch (3.8 cm) outside diameter drain hose.

If washer is not level, tilt washer back to access the front leveling legs. Loosen the locknuts and adjust legs by screwing into or out of washer base.

Once adjusted, tilt the washer forward on front legs and lower back down into position to set the rear selfleveling legs.

Washer must not rock. After washer is at desired height, tighten locknuts securely against bottom of washer base. If these locknuts are not tight, washer will not remain stationary during operation.

Improper installation or flexing of weak floor will cause excessive vibration.

Do not slide washer across floor once the leveling legs have been extended, as legs and base could become damaged.

NOTE: For areas with uneven floors, a No. 566P3 Adjustable Rear Leg Extension Kit is available as optional equipment at extra cost.

Verify that unit does not rock.

W295I

1 Drain Hose Elbow 2 562P3 Siphon Break Kit 3 Standpipe 4 Cut Hose in This Area and Install No. 25863

Hose Coupling

5 25863 Hose Coupling

Figure 8

Step 5: Position and Level the Washer

Position washer so it has sufficient clearance for installation and servicing.

1 Washer Base 2 Locknut 3 Leveling Leg 4 Rubber Cup 5 1/2 inch (12.7 mm) Clearance Between

Washers

6 Level

Figure 9

TLW2100N

TLW2053N

Place washer in position on a clean, dry, and reasonably firm floor. Installing the washer on any type of carpeting is not recommended.

Place rubber cups on all four leveling legs.

Place a level on the cabinet top and check if the washer is level from side to side and front to back.

201932

Page 14

Installation

To reduce the risk of fire, electric shock, serious injury or death, all wiring and grounding MUST conform with the latest edition of the National Electrical Code, ANSI/NFPA No. 70, and such local regulations as might apply. It is the customer’s responsibility to have the wiring, fuses and circuit breakers installed by a qualified electrician to make sure adequate electrical power is available to the washer.

W518

WARNING

Standard 120 Volt, 60 Hertz

3-Wire Effectively

Grounded Circuit

0 V.A.C.

120±12

V.A.C.

120±12

V.A.C.

To reduce the risk of an electric shock or fire, DO NOT use an extension cord or an adapter to connect the washer to the electric power source.

W082

WARNING

Step 6: Plug In the Washer

Electrical Requirements

(120 Volt, 60 Hertz with 3-Prong Grounding Plug)

NOTE: The wiring diagram is located in the control hood.

When plugging in the washer:

 DO NOT overload circuits.

DRY2022N

1 L1 2 Ground 3 Neutral Side 4 Round Grounding Prong 5 Neutral

 DO NOT use an extension cord.

 DO NOT use an adapter.

 DO NOT operate other appliances on the same

circuit. Use separately fused 15 Amp circuits.

The washer is designed to be operated on a separate branch, polarized, three-wire, effectively grounded, 120 Volt, 60 Hertz, AC (alternating current), circuit protected by a 15 ampere fuse, equivalent fusetron or circuit breaker.

The three-prong grounding plug on the power cord should be plugged directly into a polarized three-slot effectively grounded receptacle rated 110/120 Volts AC (alternating current) 15 Amps. Refer to Figure 10 to determine correct polarity of the wall receptacle.

Figure 10

201932

Page 15

Grounding Instructions

Improper connection of the equipmentgrounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the washer is properly grounded.

W327

WARNING

Any disassembly requiring the use of tools must be performed by a suitably qualified service person.

W299

WARNING

The washer must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.

The washer is equipped with a cord having an equipment-grounding conductor and a three-prong grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Installation

TLW2056N

Figure 11

Step 8: Check Lid Switch

Washer should stop filling, agitating and spinning when lid is opened.

 DO NOT modify the plug provided with the

washer – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

 If the laundry room’s electrical supply does not

meet the above specifications and/or if you are not sure the laundry room has an effective ground, have a qualified electrician or your local electrical utility company check it and correct any problems.

Step 7: Add Water to the Washer

To prevent damage to pump, do not run washer before adding at least one quart water to the tub. If the washer is run before any water is added, the pump seal may overheat, causing the pump to leak. Once installed, the water retained in the drain system from the previous cycle will provide sufficient cooling to prevent pump seal damage.

TLW1974N

Figure 12

Step 9: Check Installation

Refer to Installer Checklist on the back cover of this manual and make sure that washer is installed correctly.

Run washer through one complete cycle to make sure it is operating properly.

NOTE: The agitator should not be removed except for service. The washtub is designed to be selfcleaning.

201932

Page 16

Installation

Greenwald

Coin Slide

Monarch or

ESD Coin Slide

One Star

Two Stars

TLW2089N

Extension Bracket

Spring

Bolt

One or Two

Flat Washers (Shims)

Nut

Extension Lever

Star(s) Facing Down

Loops

Rounded Corner

Vending

Meter Case

The factory mounted coin meter case does not include the service door lock, coin slide, coin drawer, coin drawer lock or keys. These parts must be ordered (at extra cost) according to the purchaser’s requirements direct from the manufacturer of your choice.

NOTE: On models with standard capacity meter case and high capacity meter case models starting with Serial Nos. beginning 1010, you have the option of using a screw type lock or a 1/4 turn lock on the meter case service door. If you choose to use a screw lock, then the special bracket (located inside the meter case) must be used. DO NOT use the special bracket if a 1/4 turn lock is used. High capacity meter case models with Serial Nos. beginning 0910 through 1010 use 1/4 turn lock only.

Coin Drawer Security (Models with Standard Capacity Meter Case and High Capacity Meter Case models starting with Serial Nos. beginning 1010 Only) – For additional security, drill out the two

pilot holes on each side of the front of the meter case to 1/4 or 5/16 inch (6.4 or 7.9 mm) holes and install a bicycle lock through these holes.

NOTE: An 8 in. (20.32 cm) coin drawer is required for coin operated electronic control models with standard capacity meter case and high capacity meter case models starting with Serial Nos. beginning 1010. High capacity meter case models with Serial Nos. beginning 0910 through 1010 require a 7.21 in. (18.31 cm) coin drawer.

2. If installing a Greenwald coin slide, position extension lever (to be installed on extension bracket) with arm that has one star facing down. Refer to Figure 13.

TLW2088N

Figure 13

3. If installing a Monarch or ESD coin slide, position lever with arm that has two stars facing down. Refer to Figure 13.

4. Install extension lever with rounded corner facing away from extension bracket using bolt, one or two flat washers (shims) (use number of washers included in kit) and nut. Refer to Figure 14. Make sure washers are flat against bracket.

Slide Extension

(Coin Slide Models with Standard Capacity Meter Case and High Capacity Meter Case models starting with Serial Nos. beginning 1010 Only)

NOTE: High capacity meter case models with Serial Nos. beginning 0910 through 1010 require a coin slide with a switch installed on it.

1. Remove slide extension parts from parts accessories bag included in unit.

TLW2089N

Figure 14

5. Torque nut between 2 and 2.26 Nm (18 and 20 inch-pounds), or tighten nut firmly.

6. Install extension spring in bracket hole and hole in upper arm of lever. Refer to Figure 14.

7. Bend loops closed after installation.

8. Check to make sure the lever swings freely.

201932

Page 17

Installation

Coin Slide

Slide

Extension

Attaching

Screws

Lockwashers

TLW1564K

TLW2090N

Installing Extension Onto Coin Slide: Option 1

1. Install slide extension onto top of coin slide using two remaining screws and lockwashers. Refer to Figure 15.

Figure 15

2. Insert coins and partially extend coin slide.

3. Insert coin slide on its side through meter case opening. Then rotate 90 degrees to its proper orientation.

4. Return coin slide and hook slide pins onto meter case.

6. Check to make sure coin slide is operating properly by inserting coins and starting a cycle. The IN USE light will turn on, or flash if it is already on, to indicate proper operation.

Installing Extension Onto Coin Slide: Option 2

1. Install coin slide according to manufacturer’s instructions.

2. Insert coins into coin slide and slowly push slide in. Stop before coins fall into coin box. This will allow installing extension through meter case service door opening.

3. Install slide extension onto top of coin slide using two screws and lockwashers. Refer to Figure 15.

NOTE: Make sure extension lever is above switch activation lever.

4. Check to make sure coin slide is operating properly by inserting coins and starting a cycle. The IN USE light will turn on, or flash if it is already on, to indicate proper operation.

Models Prepped for Card Reader

The machine is shipped from the factory with the Electronic Control Diagnostic Harness Assembly unplugged. To avoid unauthorized manual programming or vending, perform the following steps.

NOTE: During coin slide installation, make sure activation lever is up and off the switch. Refer to Figure 16.

5. Continue coin slide installation according to manufacturer’s instructions.

1 Lever Off Switch

Figure 16

TLW2090N

1. Open control panel. Refer to Figure 17.

2. Locate diagnostic harness on electronic control.

3. Plug connectors for “white/black” wire and “red/ blue” wire together.

FLW6R

1 Control Panel

Figure 17

201932

Page 18

Installation

To reduce the risk of electric shock, fire, explosion, serious injury or death:

• Disconnect electric power to the washer before servicing.

• Never start the washer with any guards/ panels removed.

• Whenever ground wires are removed during servicing, these ground wires must be reconnected to ensure that the washer is properly grounded.

W003

WARNING

Any disassembly requiring the use of tools must be performed by a suitably qualified service person.

W299

W276I

Additional Washer Security

(Coin Models Only)

Located on the service door of the washer is a flat Phillips head screw. During shipment, this screw is used to attach the service door to the meter case. For additional security, this screw can be reinstalled inside the control hood of your washer. Refer to instructions below for installation.

Tamper-resistant screws also can be installed for additional security. Tamper-resistant screws, bits and bit holder are available as optional equipment at extra cost. Part numbers are:

 Bit (No. 8 screws) Part No. 281P4

 Bit (No. 12 screws) Part No. 282P4

 Bit Holder (3/8 drive) Part No. 24161

 Control panel tamper-resistant screw Part No.

35528

 Front panel tamper-resistant screw Part No.

35527

The following list is the procedure required to install the Phillips head screw and tamper-resistant screws:

4. Insert Phillips head screw down through double “D” hole in left rear corner of cabinet top (inside control hood) until it engages retainer nut located on left rear corner gusset of cabinet.

5. Finger tighten screw.

IMPORTANT: Do not use a power driver to tighten screw. Torque of a power driver could over-tighten screw causing damage to cabinet assembly.

6. Secure control panel to control hood using two No. 8 tamper-resistant screws, Part No. 35528.

7. Remove two screws holding front panel to base of washer and install two No. 12 tamper-resistant screws, Part No. 35527.

1. Remove the Phillips head screw from service door (refer to Figure 18).

2. Remove two screws holding control panel to control hood.

3. Tilt control panel forward and lay on a protective pad to prevent scratching of cabinet top.

W276I

1 35528 No. 8 Screws 2 Double “D” Hole 3 35527 No. 12 Screws

Figure 18

201932

Page 19

Operation

Operation Instructions for Coin Slide Operated and Nonmetered Washers

IMPORTANT: Prior to first wash, use an allpurpose cleaner or a detergent and water solution and a damp cloth to remove shipping dust from inside of washtub.

IMPORTANT: Remove all sharp objects from laundry to avoid tears and rips to items during normal machine operation.

Step 1: Add Detergent

Pour measured amount of detergent into washtub. Refer to package directions.

NEVER POUR UNDILUTED BLEACH DIRECTLY ON LAUNDRY. Follow package directions when using bleach.

If desired, fabric softener may be added to rinse water when RINSE light comes on.

Step 2: Load Laundry

Load dry clothes loosely into washtub – DO NOT overload!

When washing large items such as shag rugs and bedspreads, add several small items to balance wash load.

W392I

Figure 20

Step 3: Close Lid

Figure 19

W395I

Washer will not operate with lid open.

W394I

Figure 21

201932

Page 20

Operation

HOT

NORMAL

HOT

NORMAL

COLD

SPECIAL

WARM

PERM PRESS

WARM PERM PRESS

COLD

SPECIAL

ONE SPEED

WASHERS

TWO SPEED

WASHERS

WARM

HOT

COLD

WASH TEMPERATURE

FABRIC SELECTOR

NORMAL

PERM PRESS

DELICATE

TLW2083N

TWO SPEED

WASHERS

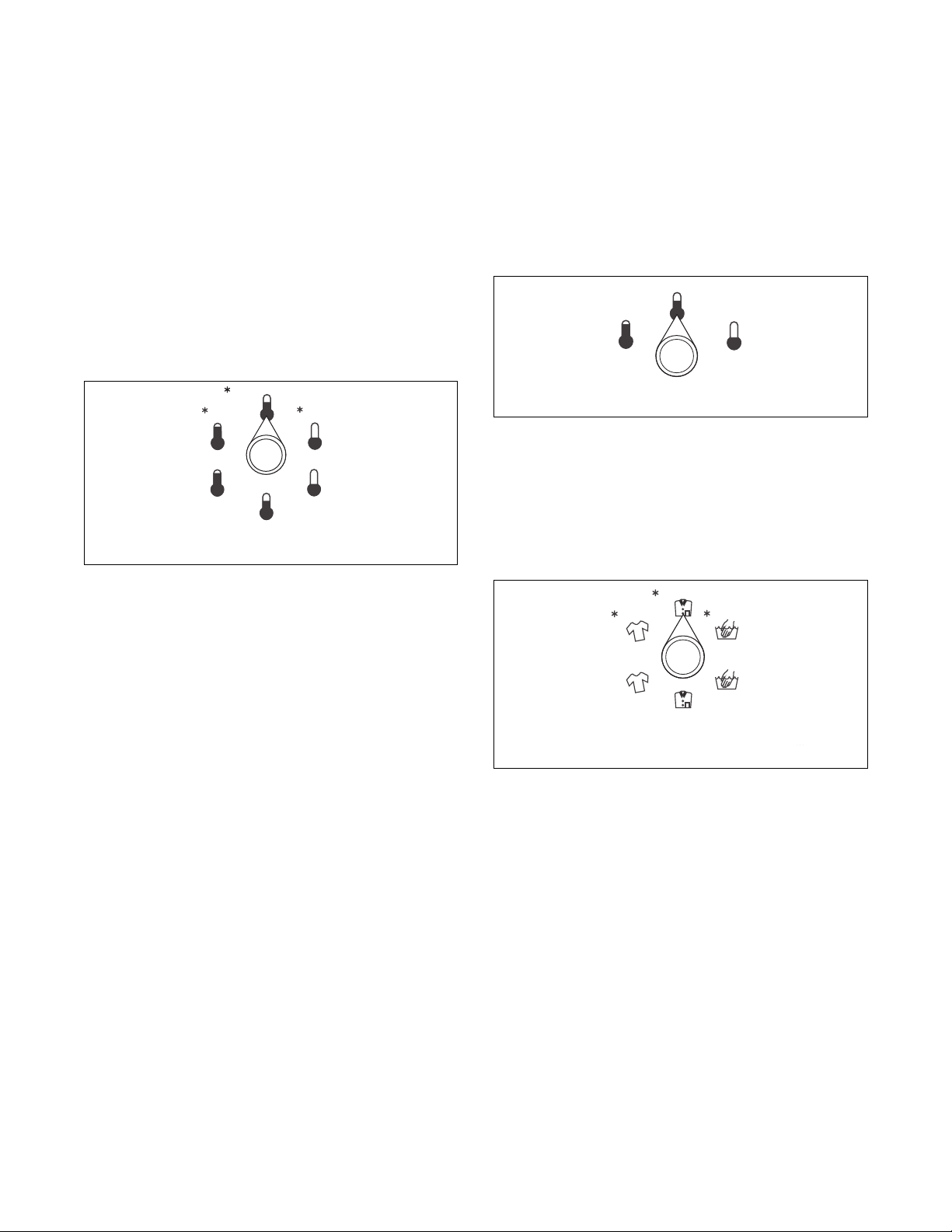

Step 4: Set Wash Temperature and Fabric/ Cycle Selector

One Speed Washers

NOTE: Wash temperature and cycle settings may be changed any time before first wash fill is complete.

Setting Wash Temperature/Cycle

Set at either *HOT/NORMAL, *WARM/PERM PRESS, *COLD/SPECIAL, or HOT/NORMAL, WARM/PERM PRESS, COLD/SPECIAL.

Settings with asterisk (*) are Energy Saving Cycles.

TLW2045N

Figure 22

Two Speed Washers

NOTE: Wash temperature and fabric selector settings may be changed any time before first wash fill is complete.

Setting Wash Temperature

Set at HOT (COLD rinse), WARM (COLD rinse) or COLD (COLD rinse).

TLW2046N

Figure 23

Setting Fabric Selector

Set Regular loads at *NORMAL, *PERM PRESS, NORMAL or PERM PRESS. Set Delicate loads at *DELICATE or DELICATE.

Settings with asterisk (*) are Energy Saving Cycles.

Figure 24

TLW2083N

201932

Page 21

Operation

To reduce the risk of bodily injury, do not remove laundry from washer until all lights are out, and all moving parts have stopped.

W092

WARNING

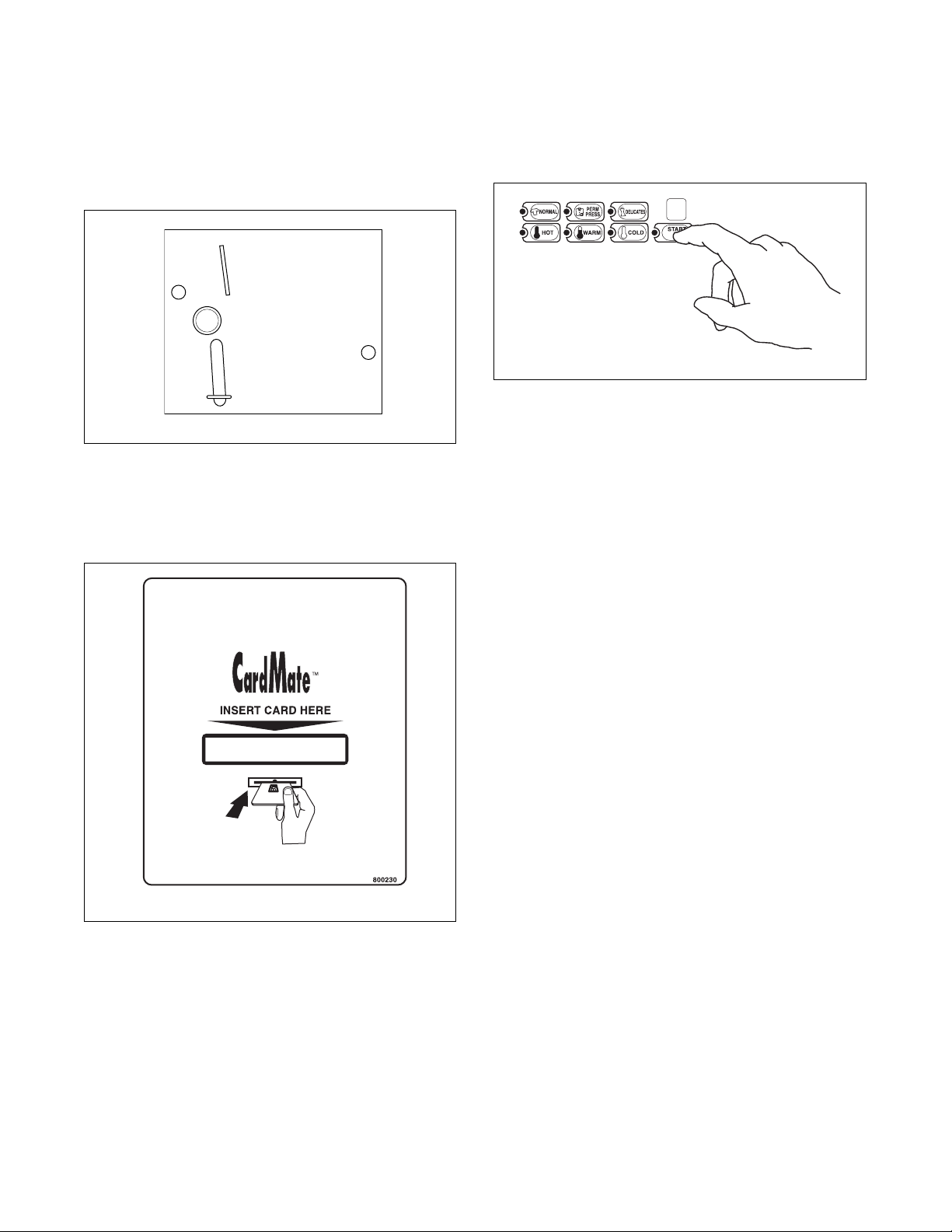

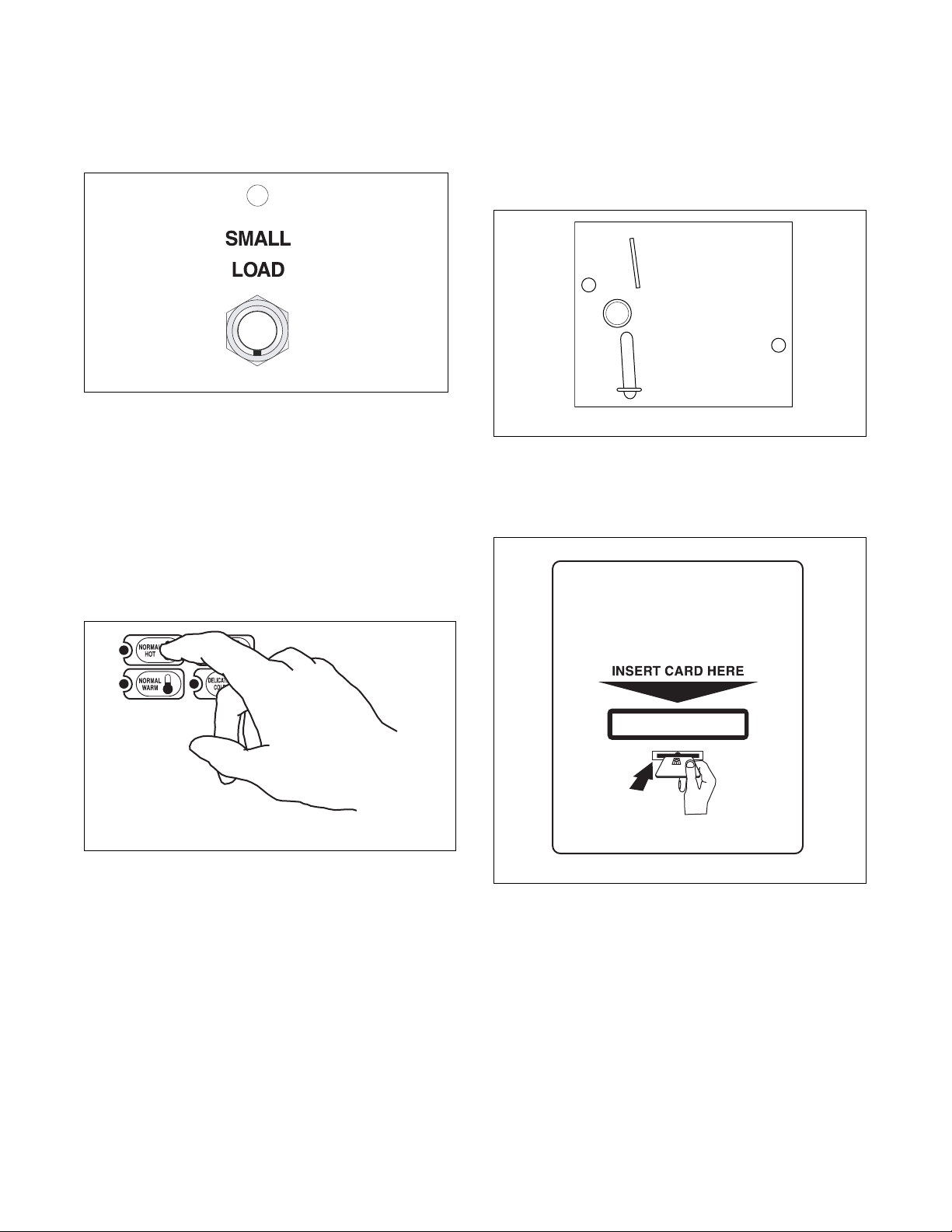

Step 5: Start Washer

Metered Models

Insert money. Place coin(s) in slide and carefully push in as far as possible and then pull slide out as far as possible. (IN USE light will come on indicating start of cycle.)

W297I

Figure 25

Nonmetered Models

Push start switch (IN USE light will come on indicating start of cycle.)

Indicator Lights

IN USE

This light will remain on while washer is in use.

RINSE

This light will be on during the rinse portion of the cycle.

SPIN

This light will be on during the rinse/final spin only. Washer will stop automatically at end of cycle. (SPIN and IN USE lights will go out indicating end of cycle.) Leave lid open after removing laundry.

IMPORTANT: If washer fails to operate properly after installation, make sure electrical service and water supply faucets are turned on. Are all the controls properly set? Have a qualified service person refer to the wiring diagram (located inside of washer control hood), check for broken, loose or incorrect wiring.

Should washer stop, but IN USE, RINSE or SPIN light remain on, the motor overload protector may have cycled. Refer to Maintenance section.

Figure 26

201932

TLW2048N

The washer will stop (pause) shortly before the first spin and final spin.

Page 22

Operation

Control Modes

Power-Up Mode

The control enters this mode after power is applied to the washer. In Power-Up Mode, the control will detect the state it was in at power-down to determine what mode to enter. After the control completes operation in the Power-Up Mode, it will enter either the Ready, Test or Run Modes.

Ready Mode

In Ready Mode, the control will wait for the vend to be satisfied before entering Run Mode.

Run Mode

In Run Mode, the control is running a cycle. The IN USE LED will be lit. For metered models, any time the

control receives a coin slide pulse during a cycle, the IN USE LED will flash briefly to indicate the coin input. For nonmetered models, any time the control receives a pulse from the push-to-start switch during a cycle, the IN USE LED will flash briefly to indicate the push-to-start input.

Lid Open Mode

The control enters Lid Open Mode when the lid is opened during Run Mode. All cycle activity is stopped. The cycle time count down stops unless the lid is opened during the last three minutes of the final spin step. In this case the time will continue to count down.

Error Mode

In Error Mode, the IN USE LED flashes to display fill and drain errors (refer to paragraphs below). Error Mode can only be exited by powering down washer. The Error Mode can be turned off by setting dipswitch 2 to the CLOSED position. Refer to Ta ble 1.

Fill Error

A Fill Error will occur if the tub does not fill within 62 minutes of the start of the cycle. A Fill Error is indicated by the control flashing the IN USE LED twice separated by a one and a half second pause until the control is powered down. If Error Mode is turned off (refer to Tabl e 1 ), the fill error will not occur and the control will continue to wait for the fill level to be reached.

Drain Error

A Drain Error will occur if the tub is not empty after a spin cycle. A Drain Error is indicated by the control flashing the IN USE LED three times separated by a one and a half second pause until the control is powered down. If Error Mode is turned off (refer to Tab le 1 ), the drain error will not occur and the machine cycle will advance to the next cycle step as though the water had been pumped out.

End of Cycle Mode

The control enters End of Cycle Mode when a cycle is complete. The IN USE LED will be off. The control will remain in this mode until the lid is opened or vend has been satisfied.

201932

Page 23

Operation

Rapid Advance

The Rapid Advance feature allows the owner to quickly advance into a cycle and advance an active cycle to a specific cycle step.

To enter Rapid Advance and advance through each cycle step, open the meter case service door (on metered models) or the control hood (on nonmetered models), unplug the white bullet connector with the black/white and gray/yellow wires on the hood wire harness for at least one second, and then reconnect it. Each time the connector is unplugged and reconnected, the control will advance through the following steps:

 From Ready Mode, cycle will advance to wash

fill (start of cycle).

 From wash fill or agitate, cycle will advance to

wash spin following a short pause. Wait for pause and washer to spin before advancing to next step.

 From wash spin, cycle will advance to rinse fill.

 From rinse fill or agitate, cycle will advance to

final spin following a short pause. Wait for pause and washer to spin before advancing to next step.

Setting Dipswitch

Cycle settings can be changed using the 8-Position dipswitch mounted on the control. The control reads the dipswitch settings at power-up. The control must be powered down to change the dipswitch settings. The control is shipped from the factory with all the switches in the OPEN position. Refer to the table below for dipswitch settings.

Switch 1 is used to select whether a long or short cycle will be used. Switch 2 is used to turn Error Mode on or off. Switches 3 through 8 are not used at this time.

Switch

No.

1 Long Cycle Short Cycle

2 Error Mode On Error Mode Off

3-8 Not Used

Open (Default) Closed

Table 1

 From final spin, cycle will advance to End of

Cycle Mode.

 Open lid to clear End of Cycle Mode and return

to Ready Mode.

201932

Page 24

Operation

Operation Instructions for Electronic Display Control Washers

IMPORTANT: Prior to first wash, use an allpurpose cleaner or a detergent and water solution and a damp cloth to remove shipping dust from inside of washer.

IMPORTANT: Remove all sharp objects from laundry to avoid tears and rips to items during normal machine operation.

Step 1: Add Detergent

Pour measured amount of detergent into washtub. Refer to package directions.

NEVER POUR UNDILUTED BLEACH DIRECTLY ON LAUNDRY. Follow package directions when using bleach.

If desired, fabric softener may be added to rinse water when RINSE light comes on.

Step 2: Load Laundry

Load dry clothes loosely into washtub – DO NOT overload!

When washing large items such as shag rugs and bedspreads, add several small items to balance wash load.

W392I

Figure 28

Step 3: Close Lid

Figure 27

Washer will not operate with lid open.

W395I

H338I

Figure 29

201932

Page 25

Operation

Step 4: Choose Small Load, if Desired

Press SMALL LOAD button. SMALL LOAD indicator light will be lit.

TLW2049N

Figure 30

Any time the lid is opened, the SMALL LOAD option will turn off and the washer will fill to the normal level. The SMALL LOAD indicator light will be off.

Step 5: Set Fabric Selector

Push touchpad for NORMAL, PERM PRESS or DELICATES. Light indicates selection.

Step 6: Set Wash Temperature

Push touchpad for HOT, WARM or COLD. Light indicates selection.

W338IE1C

Figure 32

Step 7: Insert Money

Insert coin(s) in coin slot. Check pricing as seen on digital display. LID MUST BE CLOSED TO START WA S HE R .

201932

W338IE0B

Figure 31

W387I

Figure 33

Page 26

Operation

To reduce the risk of bodily injury, do not remove laundry from washer until all lights are out, and all moving parts have stopped.

W092

WARNING

Indicator Lights

WA S H

WASH is lit at the beginning of a Wash cycle and will remain lit until the Wash cycle is complete.

RINSE

RINSE is lit at the beginning of the Rinse or Extra Rinse cycle and will remain lit until the cycle is complete.

SOAK

SOAK is lit at the beginning of all Pause cycles. During a Wash Pause cycle, the display will light “WASH SOAK” and during a Rinse or Extra Rinse Pause cycle, the display will light “RINSE SOAK.”

SPIN

SPIN is lit for all Spin cycles. During a Wash Spin cycle, the display will light “WASH SPIN” and during an Extra Rinse Spin Cycle, the display will light “RINSE SPIN”. At the beginning of Final Spin, the display will light “SPIN.”

PRICE

INSERT COINS

INSERT COINS is lit to prompt the user for coins to satisfy the vend price. When INSERT COINS is lit, the three digits and decimal point show the vend price remaining to be satisfied.

UNBALANCE

UNBALANCE is lit and will flash when the washer is in a Spin mode and the lid is opened.

Should washer stop, but IN USE, RINSE or SPIN light remain on, the motor overload protector may have cycled. Refer to Maintenance section.

PRICE is lit to indicate that value displayed is the vend price remaining to be satisfied. Once the vend price is satisfied, the word “PRICE” will go off.

TIME REMAINING

TIME REMAINING is lit to indicate that the number displayed by two digits and the colon is the time remaining in the current cycle. It will light at the start of the cycle and remain lit until the cycle is completed.

The washer will stop (pause) shortly before the first spin and final spin.

201932

Page 27

Operation

Operation Instructions for MDC Washers

IMPORTANT: Prior to first wash, use an allpurpose cleaner, or a detergent and water solution, and a damp cloth to remove shipping dust from inside of washer.

IMPORTANT: Remove all sharp objects from laundry to avoid tears and rips to items during normal machine operation.

Step 1: Add Detergent

Pour measured amount of detergent into washtub. Refer to package directions.

NEVER POUR UNDILUTED BLEACH DIRECTLY ON LAUNDRY. Follow package directions when using dry bleach.

If desired, fabric softener may be added to rinse water when RINSE light comes on.

Step 2: Load Laundry

Load dry clothes loosely into washtub – DO NOT overload!

When washing large items such as shag rugs and bedspreads, add several small items to balance wash load.

W392I

Figure 35

Step 3: Close Lid

Figure 34

Washer will not operate with lid open.

W395I

H338I

Figure 36

201932

Page 28

Operation

Step 4: Choose Small Load, if Desired

If available, press SMALL LOAD button. SMALL LOAD indicator light will be lit.

TLW2049N

Figure 37

Any time the lid is opened, the SMALL LOAD option will turn off and the washer will fill to the normal level. The SMALL LOAD indicator light will be off.

Step 5: Set Fabric Selector and Wash Temperature

Step 6: Insert Money or Card

To Insert Money

Insert coin(s) in coin slot. Check pricing as seen on digital display.

W387I

Figure 39

To Insert Card

Insert card into opening.

Push touchpad for NORMAL/HOT, NORMAL/ WARM, PERM PRESS/WARM or DELICATES/ COLD. Light indicates selection.

FLW1

920N

FLW1920N

Figure 38

DRY1927N

Figure 40

201932

Page 29

Operation

Step 7: Start Washer

After vend price has been satisfied, push the START pad. LID MUST BE CLOSED TO START WASHER.

FLW1923N

Figure 41

Indicator Lights

WA S H

WASH is lit at the beginning of a Wash cycle and will remain lit until the Wash cycle is complete.

RINSE

RINSE is lit at the beginning of the Rinse cycle and will remain lit until the cycle is complete.

SPIN

SPIN is lit for all Spin cycles.

201932

Page 30

Operation

Operation Instructions for NetMaster Washers

IMPORTANT: Prior to first wash, use an allpurpose cleaner, or a detergent and water solution, and a damp cloth to remove shipping dust from inside of washer.

IMPORTANT: Remove all sharp objects from laundry to avoid tears and rips to items during normal machine operation.

Step 1: Add Detergent

Pour measured amount of detergent into washtub. Refer to package directions.

NEVER POUR UNDILUTED BLEACH DIRECTLY ON LAUNDRY. Follow package directions when using dry bleach.

If desired, fabric softener may be added to rinse water when RINSE light comes on.

Step 2: Load Laundry

Load dry clothes loosely into washtub – DO NOT overload!

When washing large items such as shag rugs and bedspreads, add several small items to balance wash load.

W392I

Figure 43

Step 3: Close Lid

Figure 42

Washer will not operate with lid open.

W395I

H338I

Figure 44

201932

Page 31

Operation

Step 4: Choose Small Load, if Desired

Press SMALL LOAD button. SMALL LOAD indicator light will be lit.

TLW2049N

Figure 45

Any time the lid is opened, the SMALL LOAD option will turn off and the washer will fill to the normal level. The SMALL LOAD indicator light will be off.

Step 5: Set Fabric Selector

Push touchpad for NORMAL, PERM PRESS or DELICATES. Light indicates selection.

W524I

Figure 46

Step 6: Set Wash Temperature

Push touchpad for HOT, WARM or COLD. Light indicates selection.

201932

Figure 47

W525I

Page 32

Operation

Step 7: Insert Money or Card

To Insert Money

Insert coin(s) in coin slot. Check pricing as seen on digital display.

W387I

Figure 48

To Insert Card

Insert card into opening. DO NOT REMOVE THE CARD UNTIL REMOVE CARD LED is lit.

Step 8: Start Washer

After vend price has been satisfied, push the START pad. LID MUST BE CLOSED TO START WASHER.

W526I

Figure 50

Indicator Lights

WA S H

WASH is lit at the beginning of a Wash cycle and will remain lit until the Wash cycle is complete.

RINSE

RINSE is lit at the beginning of the Rinse or Extra Rinse cycle and will remain lit until the cycle is complete.

Figure 49

SPIN

SPIN is lit for all Spin cycles.

INSERT COINS/INSERT CARD

INSERT COINS/INSERT CARD is lit to prompt the user to insert coins or a card to satisfy the vend price. When INSERT COINS/INSERT CARD is lit, the digits and decimal point show the vend price remaining to be satisfied.

REMOVE CARD (Card Models Only)

REMOVE CARD flashes after the START pad has been pressed and the vend has been deducted from the card.

M343I

201932

Page 33

Maintenance

User-Maintenance Instructions

Cold Weather Care

If the washer is delivered on a cold day (below freezing), or is stored in an unheated room or area during the cold months, do not attempt to operate the washer until it has had a chance to warm up.

Care of Your Washer

Use only a damp or sudsy cloth for cleaning the control panel. Some cleaning products may harm the finish on the control panel. Wipe the panel dry after cleaning.

Wipe the washer cabinet as needed. If detergent, bleach or other washing products are spilled on the cabinet, wipe immediately. Some products will cause permanent damage if spilled on the cabinet.

Do not use scouring pads or abrasive cleansers.

The washtub will need no particular care though it may need rinsing or wiping after some unusual loads have been washed. This also may be necessary if too little detergent has been used.

Reinstallation of Shipping Materials

Shipping Brace

The shipping brace in the lid opening should be saved and reinstalled whenever the washer is moved. To reinstall the brace, open the washer lid and place the brace over the washer agitator, placing the back of the brace into the lid opening first.

Shipping Plug

The plastic shipping plug should be saved and reinstalled any time the washer is moved. The plug fits into two openings: The base opening and the shipping plug opening on the bottom of the movable pivot dome. The plug MUST be inserted into both openings to prevent damage to the washer. In order to accomplish this, the shipping plug opening must be directly lined up with the base opening. Refer to Figure 51.

Leave the lid open to allow the inside of the washer to dry out after use. This helps prevent musty odors from developing.

The agitator should not be removed except for service. The washtub is designed to be self cleaning.

Replacing Hoses

Hoses and other natural rubber parts deteriorate after extended use. Hoses may develop cracks, blisters or material wear from the temperature and constant high pressure they are subjected to.

All hoses should be checked on a monthly basis for any visible signs of deterioration. Any hose showing the signs of deterioration listed above should be

1 Shipping Plug Opening 2 Base Opening 3 Shipping Plug 4 Shipping Brace

replaced immediately. All hoses should be replaced every five years.

Filter Screens

Check the filter screens in the fill hoses for debris or damage annually. Clean or replace them if necessary.

If the washer is filling with water slower than normal, check the filter screens. Clean or replace them if necessary.

Motor Overload Protector

The internal overload protector will stop the motor automatically in the event of an overload.

The overload protector will reset itself in two or three minutes and the motor will restart automatically.

Figure 51

If the overload protector stops motor again, remove

Order filter screen Part No. F270300 from the nearest authorized parts distributor.

the washer from use and call the service person to correct the problem.

TLW1945N

201932

Page 34

Troubleshooting

Try these troubleshooting tips before making a service call. They may save you time and money.

Washer Symptom Possible Cause/Solution



Won’t Fill

Won’t Start

Make sure lid is closed.



Make sure power cord is plugged all the way into the electrical outlet.



Make sure hot and cold water faucets are turned on.



Make sure that the fill hoses are not kinked or twisted.



Place coin(s) in slide or drop (metered models only).



Push START switch to start the washer (nonmetered models only).



Make sure that the controls are properly set.



Make sure that the last spin has been completed.



Check the laundry room fuse or circuit breaker.



Clean the screens in the water mixing valve and the filter screens located at the faucet end of the fill hoses.



Water is being siphoned from the washer during the cycle. Refer to the Installation section to make sure that the drain hose has been properly installed.



The motor overload protector may have stopped the cycle. It will reset itself in two or three minutes and restart the washer automatically.



Make sure lid is closed.



Place coin(s) in slide or drop (metered models only).



Push START switch to start the washer (nonmetered models only).



Make sure power cord is plugged all the way into the electrical outlet.



Make sure that the controls are properly set.



Check the laundry room fuse or circuit breaker.



The motor overload protector may have stopped the cycle. It will reset itself in two or three minutes and restart the washer automatically.

Won’t Agitate

Won’t Spin

Stops/Pauses During Cycle



Make sure lid is closed.



Place coin(s) in slide or drop (metered models only).



Push START switch to start the washer (nonmetered models only).



Make sure power cord is plugged all the way into the electrical outlet.



Check the laundry room fuse or circuit breaker.



The motor overload protector may have stopped the cycle. It will reset itself in two or three minutes and restart the washer automatically.



Broken drive belt. Call the service person.



Have a qualified electrician check polarity and grounding. Refer to Electrical Requirements section.



Make sure lid is closed.



Place coin(s) in slide or drop (metered models only).



Push START switch to start the washer (nonmetered models only).



Make sure power cord is plugged all the way into the electrical outlet.



Check the laundry room fuse or circuit breaker.



The motor overload protector may have stopped the cycle. It will reset itself in two or three minutes and restart the washer automatically.



Broken drive belt. Call the service person.



Have a qualified electrician check polarity and grounding. Refer to Electrical Requirements section.



Pauses are part of the washer’s normal operation. The washer will stop (pause) shortly before the wash and rinse spins.



Check the laundry room fuse or circuit breaker.



The motor overload protector may have stopped the cycle. It will reset itself in two or three minutes and restart the washer automatically.

201932

Page 35

Washer Symptom Possible Cause/Solution



Won’t Drain

Water Leaks

Is Noisy

Load is too Wet

Make sure drain hose is not kinked or twisted.



Make sure drain hose is not clogged.



Make sure drain receptacle is not clogged.



Refer to the Installation section to make sure that the drain hose has been properly installed.



Check that fill hoses are properly installed on the faucets and the washer’s water mixing valve.



Replace the fill hoses every five years.



Make sure drain receptacle is not clogged.



Check laundry room plumbing.



Laundry load may be oversudsing or overloaded. Use less detergent (or low-sudsing detergent) and proper load sizes.



Wash load may be unbalanced. Open lid and redistribute the load.



Make sure washer is level. Uneven leveling can cause vibration.



A newly installed washer may make a knocking sound if the machine has been in storage. The belt may have settled. Run washer through 4-5 cycles to loosen belt. Washer operation will not be affected.



Wash load may be unbalanced. Open lid and redistribute the load.



Load is too small. Add items to make full load.

Troubleshooting

Wrong Water Temperature



Make sure that the controls are properly set.



Check fill hoses. Make sure hot faucet hose is connected to hot mixing valve (indicated with “H” on the valve bracket) and cold faucet is connected to cold mixing valve (indicated with “C” on the valve bracket).



Make sure laundry room water heater is adjusted properly.

201932

Page 36

Contact Information

W138P

To reduce the risk of serious injury or death, DO NOT repair or replace any part of the unit or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.

W329

WARNING

If service is required, contact the nearest Factory Authorized Service Center.

If you are unable to locate an authorized service center or are unsatisfied with the service performed on your unit, contact:

Alliance Laundry Systems Shepard Street P.O. Box 990 Ripon, WI 54971-0990 U.S.A. www.comlaundry.com Phone: (920) 748-3121

When calling or writing about your unit, PLEASE GIVE THE MODEL AND SERIAL NUMBERS. The model and serial numbers are located on the nameplate. The nameplate will be in the location shown in Figure 52.

Date Purchased___________________________

Model Number ___________________________

Serial Number ___________________________

Please include a copy of your bill of sale and any service receipts you have.

If replacement parts are required, contact the source from where you purchased your washer or call (920) 748-3950 for the name and address of the nearest authorized parts distributor.

1 Nameplate

Figure 52

W138P

201932

Page 37

Page 38

Installer Checklist

CHECK

• Remove the Shipping Brace and Shipping Plug.



•Wipe Out Inside of Washtub.

• Add Water to the Washer.

• Check Lid Switch.







• Connect Fill Hoses.

• Connect Drain Hose to Drain Receptacle.

:,($

•Plug In the Washer.

D254IE0A

W316IE0A

CHECK

:,($

• Position and Level the Washer.





LEVEL

D255I

TLW1988N

W294IE0A





TLW2056N

TLW1974N

TLW520N

Fast Track for Installing the Washer

(Refer to the manual for more detailed information)

TLW520N

COLD

HOT

TLW1988N

TLW2056N

TLW1974N
