Alliance Laundry Systems SC25SN, SC35SN, HC25SN, SC80SN, SC18SN User Manual

...

Washer-Extractor

Cabinet Hardmount

Instructions for

Operating and Programming

the S-Series Microcomputer

Model Numbers

HC25SN SC18SN UC25PN

HC80SN SC25SN UC80PN

SC27SN

SC35SN

Operation/Programming

NOTA: El manual en español aparece después del manual en inglés.

SC50SN

SC80SN

www.comlaundry.com

Part No. F232073R4

March 2001

Table of Contents

Operation/Programming

Safety

Key to Symbols . . . . . . . . . . . . . . . . . . . . . . . . 4

Safety Decal Location . . . . . . . . . . . . . . . . . . . 5

Operator Safety . . . . . . . . . . . . . . . . . . . . . . . . 6

Safe Operating Environment . . . . . . . . . . . . . . 7

Environmental Conditions . . . . . . . . . . . . . 7

Machine Location . . . . . . . . . . . . . . . . . . . . 8

Input and Output Services . . . . . . . . . . . . . 8

Misuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Operation

Customer Service . . . . . . . . . . . . . . . . . . . . . . . 11

Machine Familiarization Guide . . . . . . . . . . . . 11

Theory of Operation . . . . . . . . . . . . . . . . . . . . . 13

S-Computer . . . . . . . . . . . . . . . . . . . . . . . . . 14

Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Display Indications . . . . . . . . . . . . . . . . . . . 15

Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Programming

Key Functions in Programming Mode . . . . . . 21

Setup Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Cycle Count . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Cycle Programming . . . . . . . . . . . . . . . . . . . . 22

Chemical Injection Supply System . . . . . . . . . 24

Cycle Segment Charts . . . . . . . . . . . . . . . . . . . 25

Cycle Programming Worksheet . . . . . . . . . . . 29

S-Computer Cycle Charts . . . . . . . . . . . . . . . . 30

Opening Door . . . . . . . . . . . . . . . . . . . . . . . . . 16

Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Supply Dispenser . . . . . . . . . . . . . . . . . . . . . . . 17

Cycle Selection . . . . . . . . . . . . . . . . . . . . . . . . 17

Cycle Execution . . . . . . . . . . . . . . . . . . . . . . . . 17

Fill . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Spin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Stop Routine . . . . . . . . . . . . . . . . . . . . . . . . 19

F232073 1

2 F232073

Section 1

Safety

Anyone operating or servicing this machine must follow the safety rules in this manual. Particular attention must be paid to the DANGER, WARNING, and CAUTION blocks which appear throughout the manual.

&$87,21

Be careful around the open door, particularly when loading from a level below the door. Impact with door edges can cause personal injury.

SW025

The following warnings are general examples that apply to this machine. Warnings specific to a particular installation or maintenance procedure will appear in the manual with the discussion of that procedure.

F232073 3

Safety

&$87,21

Ensure that the machine is installed on a level floor of sufficient strength and that the recommended clearances for inspection and maintenance are provided. Never allow the inspection and maintenance space to be blocked.

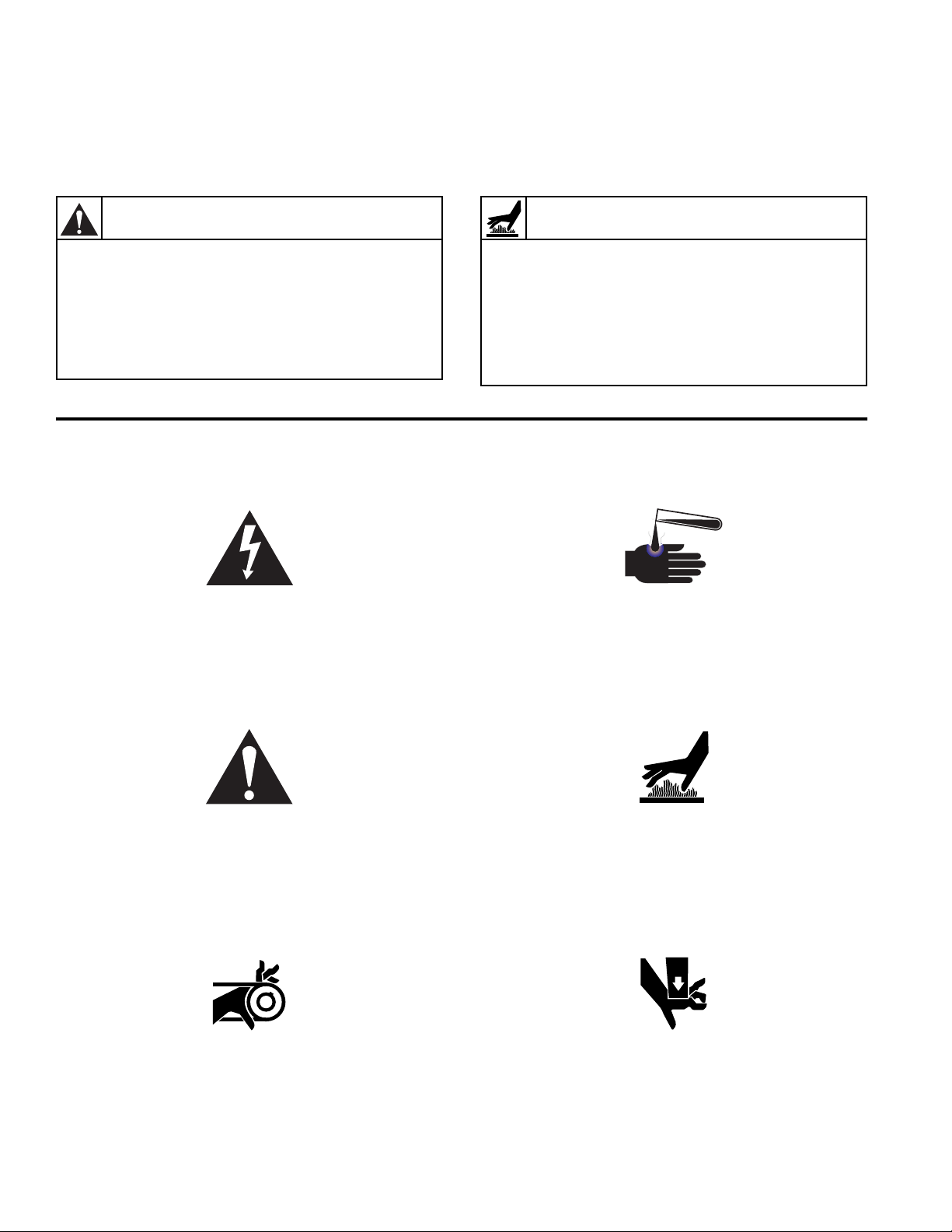

Key To Symbols

The lightning flash and arrowhead within the triangle is a warning sign indicating the presence of dangerous voltage.

SW020

:$51,1*

Never touch internal or external steam pipes, connections, or components. These surfaces can be extremely hot and will cause severe burns. The steam must be turned off and the pipe, connections, and components allowed to cool before the pipe can be touched.

This warning symbol indicates the presence of possibly dangerous chemicals. Proper precautions should be taken when handling corrosive or caustic materials.

SW014

The exclamation point within the triangle is a warning sign indicating important instructions concerning the machine and possibly dangerous conditions.

This warning symbol indicates the presence of potentially dangerous drive mechanisms within the machine. Guards should always be in place when

This warning symbol indicates the presence of hot surfaces that could cause serious burns. Stainless steel and steam lines can become extremely hot and should not be touched.

This warning symbol indicates the presence of possibly dangerous pinch-points. Moving mechanical parts can crush and/or sever body parts.

the machine is in operation.

4 F232073

Safety

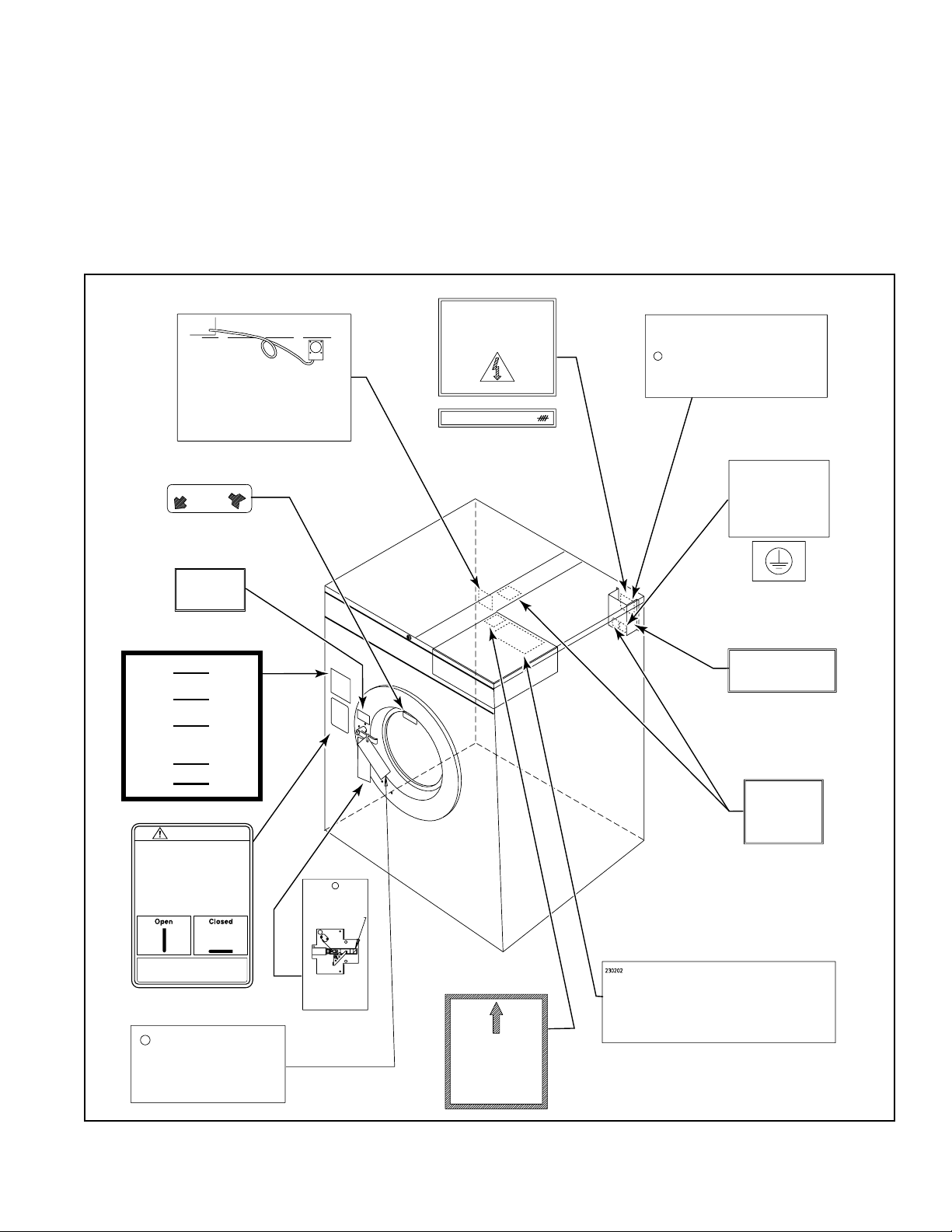

Safety decals appear at crucial locations on the machine. Failure to maintain legible safety decals

could result in injury to the operator or service technician.

81968R1

81 9 68

R 1

B005RE3A

Figure 1

F232073 5

Safety

To provide personal safety and keep the machine in proper working order, follow all maintenance and safety procedures presented in this manual. If questions regarding safety arise, contact the factory immediately.

Use factory-authorized spare parts to avoid safety hazards.

Operator Safety

:$51,1*

NEVER insert hands or objects into basket until it has completely stopped. Doing so could result in serious injury.

To ensure the safety of machine operators, the following maintenance checks must be performed daily:

1. Prior to operating the machine, verify that all warning signs are present and legible. Missing or illegible signs must be replaced immediately. Make certain that spares are available.

SW012

3. Do not attempt to operate the machine if any of the following conditions are present:

a. The door does not remain securely locked

during the entire cycle.

b. Excessively high water level is evident.

c. Machine is not connected to a properly

grounded circuit.

Do not bypass any safety devices in the machine.

2. Check door interlock before starting operation of the machine:

a. Attempt to start the machine with the door

open. The machine should not start with the door open.

b. Close the door without locking it and

attempt to start the machine. The machine should not start with the door unlocked.

c. Close and lock the door and start a cycle.

Attempt to open the door while the cycle is in progress. The door should not open.

If the door lock and interlock are not functioning properly, call a service technician.

6 F232073

Safe Operating Environment

Safe operation requires an appropriate operating environment for both the operator and the machine. If questions regarding safety arise, contact the factory immediately.

Environmental Conditions

Ambient Temperature. Water in the machine

will freeze at temperatures of 32° F (0° C) or below.

Temperatures above 120° F (50° C) will result in more frequent motor overheating and, in some cases, malfunction or premature damage to solid state devices that are used in some models. Special cooling devices may be necessary.

Water pressure switches are affected by increases and decreases in temperature. Every 25° F (10° C) change in temperature will have a 1% effect on the water level.

Humidity. Relative humidity above 90% may

cause the machine’s electronics or motors to malfunction or may trip the ground fault interrupter. Corrosion problems may occur on some metal components in the machine.

If the relative humidity is below 30%, belts and rubber hoses may eventually develop dry rot. This condition can result in hose leaks, which may cause safety hazards external to the machine in conjunction with adjacent electrical equipment.

Ventilation. The need for make-up air openings

for such laundry room accessories as dryers, ironers, water heaters, etc., must be evaluated periodically. Louvers, screens, or other separating devices may reduce the available air opening significantly.

Safety

Radio Frequency Emissions. A filter is

available for machines in installations where floor space is shared with equipment sensitive to radio frequency emissions.

Elevation. If the machine is to be operated at

elevations of over 3,280 feet (1,000 meters) above sea level, pay special attention to water levels and electronic settings (particularly temperature) or desired results may not be achieved.

Chemicals. Keep stainless steel surfaces free of

chemical residues.

'$1*(5

Do not place volatile or flammable fluids in any machine. Do not clean the machine with volatile or flammable fluids such as acetone, lacquer thinners, enamel reducers, carbon tetrachloride, gasoline, benzene, naptha, etc. Doing so could result in serious personal injury and/or damage to the machine.

Water Damage. Do not spray the machine with

water. Short circuiting and serious damage may result. Repair immediately all seepage due to worn or damaged gaskets, etc.

SW002

F232073 7

Safety

Safe Operating Environment

(Continued)

Machine Location

Foundation. The concrete floor must be of

sufficient strength and thickness to handle the floor loads generated by the high extract speeds of the machine.

Service/Maintenance Space. Provide sufficient

space to allow comfortable performance of service procedures and routine preventive maintenance.

This is especially important in connection with machines equipped with an AC inverter drive.

Consult installation instructions for specific details.

&$87,21

Replace all panels that are removed to perform service and maintenance procedures. Do not operate the machine with missing guards or with broken or missing parts. Do not bypass any safety devices.

Input and Output Services

Water Pressure. Best performance will be

realized if water is provided at a pressure of

30 – 85 psi (2.0 – 5.7 bar). Although the machine will function properly at lower pressure, increased fill times will occur. Water pressure higher than 100 psi (6.7 bar) may result in damage to machine plumbing. Component failure(s) and personal injury could result.

Steam Heat (Optional) Pressure. Best

performance will be realized if steam is provided at a pressure of 30 – 80 psi (2.0 – 5.4 bar). Steam pressure higher than 125 psi (8.5 bar) may result in damage to steam components and may cause personal injury.

SW019

For machines equipped with optional steam heat, install piping in accordance with approved commercial steam practices. Failure to install the supplied steam filter may void the warranty.

Drainage System. Provide drain lines or

troughs large enough to accommodate the total number of gallons that could be dumped if all machines on the site drained at the same time from the highest attainable level. If troughs are used, they should be covered to support light foot traffic.

Power. For personal safety and for proper

operation, the machine must be grounded in accordance with state and local codes. The ground connection must be to a proven earth ground, not to conduit or water pipes. Do not use fuses in place of the circuit breaker. An easy-access cutoff switch should also be provided.

:$51,1*

Ensure that a ground wire from a proven earth ground is connected to the ground lug near the input power block on this machine. Without proper grounding, personal injury from electric shock could occur and machine malfunctions may be evident.

Always disconnect power and water supplies before a service technician performs any service procedure. Where applicable, steam and/or compressed air supplies should also be disconnected before service is performed.

SW008

8 F232073

Misuse

Never use this machine for any purpose other than washing fabric.

Never wash petroleum-soaked rags in the machine. This could result in an explosion.

Never wash machine parts or automotive parts in the machine. This could result in serious damage to the basket.

Never allow children to play on or around this machine. Death or serious injury can result if children become trapped in the machine. Do not leave children unattended while the machine door is open. These cautions apply to animals as well.

Safety

F232073 9

Safety

Notes

10 F232073

Section 2

Operation

This manual is designed as a guide to operating and programming the cabinet hardmount washerextractor equipped with the S-Series microcomputer control.

Keep the manuals, installation instructions, and the wiring diagrams which accompany the machine in a safe place for ready reference. They have been included with the machine at no charge. Additional copies are available at a nominal charge.

Note: Read this manual thoroughly before

attempting to operate the machine or program the microcomputer.

Note: Do not use this manual in conjunction with

earlier model computer-controlled machines. Do not use technical literature intended for earlier models when operating this machine.

Customer Service

If literature or replacement parts are required, contact the source from whom the machine was purchased or contact Alliance Laundry Systems LLC at (920) 748-3950 for the name and address of the nearest authorized parts distributor.

For technical assistance, call any of the following numbers:

(850) 718-1025 (850) 718-1026

Marianna, Florida

(920) 748-3121

Ripon, Wisconsin

A record of each machine is on file with the manufacturer. Always provide the machine’s serial number and model number when ordering parts or when seeking technical assistance.

Machine Familiarization Guide

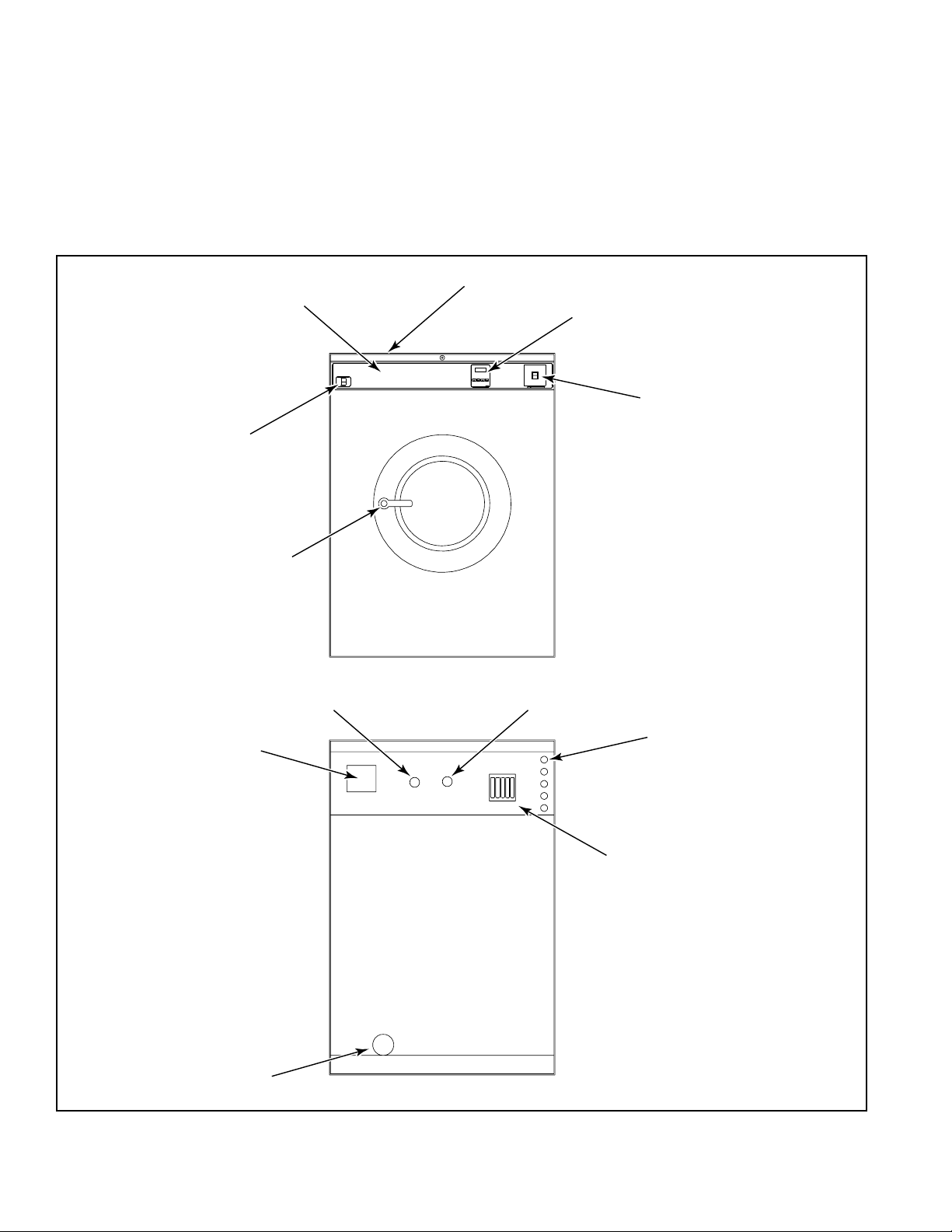

The machine familiarization guide in Figure 2 provides front and rear views of the washer-

Note: All information, illustrations, and

specifications contained in this manual are based on the latest product information available at the time of printing. We reserve the right to make changes at any time without notice.

F232073 11

extractor and identify the major operational features of the machine.

Safety

Machine Familiarization

Operating Instructions

Door Unlock Button

Door Handle Button

Supply Dispenser

S-Series Microcomputer Control

On/Off Switch

Cold Water Inlet Hot Water Inlet

Input Power Junction Box

Drain

Figure 2

External Chemical Supply System Inlets

Vacuum Breaker

B011RE3A

12 F232073

Safety

Theory of Operation

The design of the machine emphasizes performance reliability and long service life. The cylinder, shell, and main body panels are fabricated of stainless steel.

The cylinder on 50-pound capacity machines and smaller is supported with two sealed bearings mounted in a machined cast iron trunnion bolted to a heavy gamma frame.

On 80-pound capacity machines, the cylinder and shaft assembly is supported by two flange roller bearing assemblies. The bearing housings are bolted to the frame.

The 2-speed machines use one dual-speed motor to drive the cylinder via a V-belt drive in wash speed and extract speed.

The 3-speed 18-pound capacity models use one triple-speed motor, while all other 3-speed models use one single-speed and one dual-speed motor to drive the cylinder at wash speed, medium extract speed, and high extract speed.

A door-lock system prevents opening of the stainless steel door when water is in the machine. It also prevents operation of the machine when the door is open.

An electrically operated drain valve is used to retain the water and wash solution in the machine during the wash and rinse steps. The drain valve closes when power is applied and opens when power is removed, allowing the machine to drain in the event of a power failure.

The cylinder is designed with lifters or ribs that lift the garments from the wash solution when the cylinder rotates at slow speed and allow the garments to tumble back into the solution. The cylinder is perforated, allowing the water to pass through and drain from within during the wash process and extract.

Electrical controls for the machine are housed in a separate enclosure located underneath the top cover of the machine.

The operator can select from among 30 cycles, 12 of which are preprogrammed at the factory. A special permanent test cycle can be selected to verify proper operation of the machine.

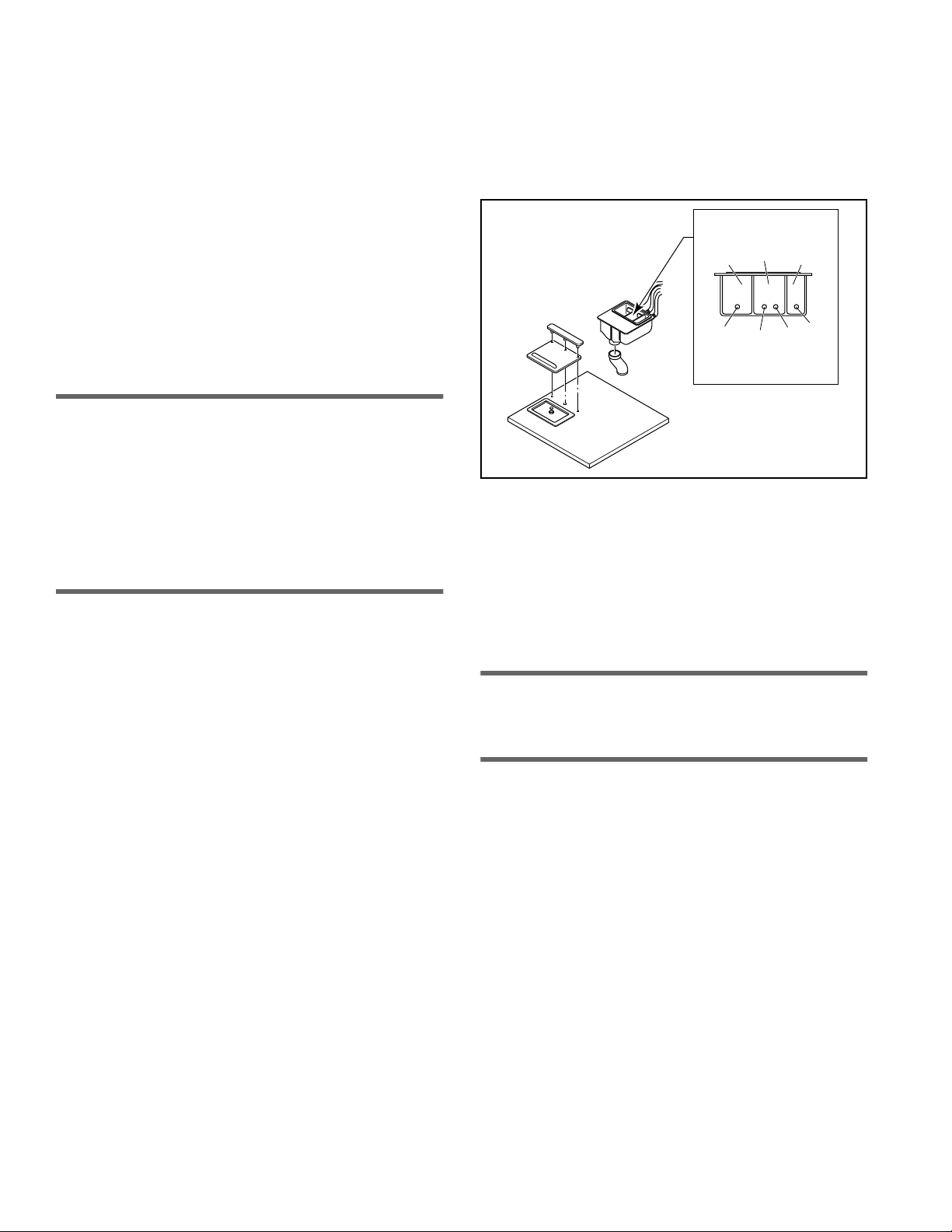

The polypropylene supply dispenser is located under a flexible cover on the left side of the machine, viewed from the front. The compartments are numbered 1 – 3, starting from the left side of the machine. A nozzle flushes dry supplies from the compartment with water at the appropriate time in the cycle.

Liquid supplies can be injected directly into the dispenser compartments by a customer-supplied external chemical supply system. Four hose barbs on the rear of the machine facilitate connection to an external chemical supply system. A terminal strip in the input power junction box provides control signals.

F232073 13

Safety

Theory Of Operation (Continued)

S-Computer

The S-computer control is a programmable solidstate control capable of storing and running up to 30 cycles. A detailed description of these cycles can be found in the Programming section of this manual under S-computer Standard OPL Cycles.

If this machine’s computer has been equipped with special preprogrammed cycles, a separate insert listing these cycles has been included in the resealable plastic bag which contained this manual.

Note: Never turn the power off while the computer

mode switch is in the PROGRAM position. Such action will disorder portions of the programmed data, necessitating reprogramming of some or all of the existing cycles. Always return the mode switch to RUN position before turning the power off.

Keypad

Key Description

Down

Start Used to start a cycle.

Stop Used to stop a cycle.

Used in cycle selection; pressing this key moves among cycles from smaller to greater.

Used in cycle selection; pressing this key moves among cycles from greater to smaller.

LED Display

Keypad

Operation of the S-computer control is performed with a 4-key touch keypad and LED display located on the front of the machine. See Figure 3. The following table describes the function of the individual keys when the machine is in RUN mode.

Up Down Start Stop

B008RE3A

Figure 3

14 F232073

The following table lists the various displays and what they mean. The operator should become familiar with these computer displays.

Display Indications

Display Meaning Display Meaning

S-05

Hold Wait...power has just been turned on. HFIL Hot fill

CY Cycle (followed by two-digit number) LOLE Low water level

CHEC/CYC* Test cycle selected. HILE High water level

FAr Degrees Fahrenheit SUP1 Supply 1

CEL Degrees Celsius SUP2 Supply 2

PrE Prewash segment (1st of 8 segments) SUP3 Supply 3

UASH Wash segment (2nd of 8 segments) SUP4 Supply 4

FIL1 First rinse (3rd of 8 segments) SUP5 Supply 5 (supply 1 and 2)

FIL2 Second rinse (4th of 8 segments) SUP6 Supply 6 (supply 2 and 3)

FIL3 Third rinse (5th of 8 segments) SUP7 Supply 7 (supply 3 and 4)

FIL4 Fourth rinse (6th of 8 segments) STOP Stop routine

FIL5 Fifth rinse (7th of 8 segments) SdLY Spin coast delay

FIL6 Sixth rinse (8th of 8 segments) donE Cycle and stop routine have ended.

CFIL Cold fill door Door not properly closed.

SPIn/tIME*

tSFL

*Display indications separated by a slash represent an alternating display.

Program identification code (ROM) This is an example only.

Reads “SPIn” for one second, then “tIME” followed by time for spin.

Temperature sensor failure or temperature out of range.

bFIL Warm fill (both hot and cold)

FILL/STOP*

FULL

Programmed water level not reached after 30 minutes.

The computer detects low water level or higher when none should be present.

Safety

F232073 15

Safety

Start-Up

Turn on the main power source (circuit breaker or cut-off switch on the wall).

An identification code will appear for approximately five seconds. Then the display will flash “hold” for thirty seconds.

The display will then read “CY” followed by a twodigit cycle number (01 – 30) to indicate that a cycle can be selected. This display will be shown at all times that power is on between cycles, indicating that the door-unlock solenoid will function if the door-unlock button is pressed. The machine is then ready for loading and unloading.

Opening Door

:$51,1*

Never operate the machine with a bypassed or disconnected out-of-balance switch. Operating the machine with severe out-of-balance loads could result in personal injury and serious equipment damage.

SW010

When loading is complete, ensure that all fabric is inside the basket. Then close and lock the door by rotating the door handle counterclockwise until the door handle pushbutton pops out. The machine should not start or run unless the door is both closed and locked.

Press and hold the door-unlock button on the left side of the control panel. Press the round button on the door handle and turn the door handle downward.

&$87,21

Be careful around the open door, particularly when loading from a level below the door. Impact with door edges can cause personal injury.

Load the machine to full capacity whenever possible, but do not exceed the rated dry-weight capacity of the machine if the fabric to be washed is quite dense, closely woven, and heavily soiled. Overloading can result in an inferior wash. The operator may need to experiment to determine load size based on fabric content, soil content, and level of cleanliness required.

SW025

&$87,21

Check the door safety interlock daily before the machine is placed in operation.

Note: When washing items which may disintegrate,

such as mop heads or sponges, use laundry net bags to prevent drain blockage.

SW024

Partial loads are a waste of energy, water, and chemicals, and cause greater machine wear than full loads. Partial loads also increase the possibility of a severe out-of-balance condition.

16 F232073

Safety

Supply Dispenser

Both liquid and powder supplies may be added by raising the flexible cover of the dispenser. Liquid supplies may also be injected directly into the supply dispenser by an external chemical supply system.

Note: When a liquid supply is manually added to

the machine through supply compartments 1 or 2, that liquid is immediately dispensed to the laundry load. Therefore, when adding supplies such as liquid detergent and bleach to the machine, coordinate the addition of the supply with the appropriate cycle segment. Add softener to compartment 3 at the beginning of the cycle. The machine automatically dispenses softener at the appropriate time.

Cycle Selection

Note: Press keys at their centers just hard enough to

activate them.

Press the Up or Down key until the desired cycle number is displayed. Press the Start key to start the cycle. For a more detailed description of the preprogrammed cycles, see the cycle charts at the end of the Programming section.

Cycle Execution

A cycle can be stopped at any time by pressing the Stop key. The machine will go to the stop routine. When the routine is complete, the door may be unlocked.

To display the temperature of the water while a cycle is running, press the Up key. To display the number of the cycle in progress, press the Start key.

Note: The display pauses the cycle time countdown

during the fill, heat, and drain steps.

Each of the 30 cycles consists of 8 segments: Prewash, Wash, and Fills 1 – 6. A description of the various steps in a cycle segment follows:

Fill

After the Start key is pressed, the door locks, the drain closes, and the machine begins filling to the programmed level; each programmed segment begins with a fill. The display counts down the remaining cycle time in minutes and seconds while the cycle is running.

If a supply is programmed in a step, the supply dispenser will flush during the fill of that segment.

If the computer detects that the door is not properly closed when the Start key is pressed, the display will read “door” until the door is closed and locked. Press the Start key again to begin the desired cycle.

F232073 17

Safety

Cycle Execution (Continued)

If the machine is connected to an external chemical supply system, the programmed supply will begin 10 seconds into the fill. The supply will remain on until the programmed water level is reached, or until 60 seconds have elapsed, whichever happens first.

If the computer does not receive a signal that water level has been attained within 30 minutes, it will alternately flash “STOP” and “FILL” and sound the on-board beeper for ten seconds; it will then initiate the stop routine.

Wash

Standard Wash

As soon as water level is reached (and any programmed temperature is reached), the displayed time begins counting down at one-second intervals.

All but three cycles use the standard wash agitation. This agitation repeats for the first programmed time duration in the prewash, wash, and fill segments.

Gentle Wash

Cycles 8, 16, and 24 use a gentle wash agitation in place of the standard wash agitation. This agitation repeats for the programmed segment time duration in the prewash, wash, and fill segments.

The gentle wash agitation sequence:

3 seconds counterclockwise at wash speed

A 12-second pause

3 seconds clockwise at wash speed

A 12-second pause

Heat

If the segment contains a heat step, the machine begins heating after the water has reached the programmed level.

Note: If the water does not reach the programmed

temperature in 30 minutes, the computer progresses to the wash step.

The standard wash agitation sequence:

12 seconds counterclockwise at wash speed

A 3-second pause

12 seconds clockwise at wash speed

A 3-second pause

Note: While a cycle is in progress, pressing and

holding the Start key will cause the current cycle number to be displayed. Pressing and holding the Up key while a cycle is running will display the temperature inside the sump.

18 F232073

Safety

Drain

At the conclusion of a spin, the drain valve opens, and the cylinder turns counterclockwise (forward) at wash speed. This counterclockwise direction mirrors the spin rotation direction and is, therefore, considered forward.

Note: The machine should drain in 30 seconds. If

the machine fails to drain, contact a qualified service technician.

When the water level falls below the low level, there is a 15-second delay, during which the computer continues to monitor water level. If a water level input is sensed, the computer waits until both high and low level inputs indicate the machine is empty. Assuming the computer detects no water level during the 15-second period, the drain sequence concludes.

Stop Routine

When the programmed duration for the machine’s final spin expires, the computer begins the stop routine.

The stop routine sequence:

All inputs are turned off.

A 40-second coast-down (if stop routine is preceded by a spin)

12 seconds counterclockwise at wash speed (if stop routine is not preceded by a spin)

A 3-second pause (if stop routine is not preceded by a spin)

12 seconds clockwise at wash speed

A 5-second pause

The display shows “donE.”

The door interlock is energized, allowing the door to be opened

Spin

After the drain sequence ends, the speed of the cylinder increases to the extract speed if the programmed spin time is not zero. The displayed time resumes counting down at one-second intervals.

After the programmed spin time has elapsed, the computer moves on to the fill step in the next segment of the cycle. If the spin is at the end of the cycle, the computer begins the stop routine.

:$51,1*

NEVER insert hands or objects into basket until it has completely stopped. Doing so could result in serious injury.

Once “donE” is displayed, open the door by pressing and holding the door unlock button as described earlier. Once the door is opened, the computer display will show the most recent cycle number.

The machine is now ready to begin another wash cycle.

F232073 19

Safety

Notes

20 F232073

Section 3

Programming

The computer board is inside the control module. Near the center of the board is a small toggle switch: this is the RUN/PROGRAM mode switch.

:$51,1*

Dangerous voltages are present in the electrical control box(es) and at the motor terminals. Only qualified personnel familiar with electrical test procedures, test equipment, and safety precautions should attempt adjustments and troubleshooting. Disconnect power from the machine before removing the control box cover, and before attempting any service procedures.

The RUN/PROGRAM switch is normally in the up (RUN mode) position. To enter PROGRAM mode, flip the switch to the down position. The display will now show the current temperature in the sump.

Since the keypad operates in a slightly different fashion when in PROGRAM mode, pay careful attention to the programming instructions provided in this manual.

SW005

Start – The Start key acts as an enter key in program mode. Use this key to enter data and move to the next function in the cycle.

Stop – The Stop key saves all data and terminates the programming procedure. If it is the first key pressed in PROGRAM mode, the computer enters SETUP mode. The Stop key can be pressed again to exit SETUP mode and return to PROGRAM mode.

Setup Mode

SETUP mode allows the selection of degrees Fahrenheit or degrees Celsius for the temperature display.

To enter SETUP mode, press the Stop key while the display is showing the temperature in the sump. Once in SETUP mode, use the Up or Down key to change the selected option. Use the Start key to accept the selected option, either “FAr” or “CEL.” Press the Stop key to exit SETUP mode.

Key Functions In Programming Mode

Up – The Up key is used to increase cycle numbers (1 through 30) and other numerical values such as times or temperatures (when creating wash formulas).

Down – The Down key is used to decrease cycle numbers (1 through 30) and other numerical values such as times or temperatures (when creating wash formulas).

F232073 21

Safety

Cycle Count

To display the current cycle count, press the Start key while the display is showing the temperature in the sump. The display will show a 2-digit number indicating how many cycles have been run to completion (cycles which were stopped in progress are not counted). Press the Start key to return to PROGRAM mode without resetting the count. Press the Up or Down key to reset the count to zero and return to PROGRAM mode.

Cycle Programming

To edit an existing cycle or create a new cycle, press the Up key while the display is showing the temperature in the sump. The display will show “CY01.” Press the Up or Down key until the desired cycle number is displayed. Press the Start key to begin editing the selected cycle.

All cycle programs (“CY01” – “CY30”) can be customized within a preset program structure. Each cycle program consists of eight program segments. See the table below.

Cycle Program Segments

Segment Display Segment Display

Prewash PrE Fill 3 FIL3

Wash UASH Fill 4 FIL4

Fill 1FIL1Fill 5FIL5

Fill 2FIL2Fill 6FIL6

When modifying a cycle, a time must be entered for each segment. To skip a segment or spin, set the time to “00” and press the Start key. The following table gives the time parameters for each segment and spin, as well as the allowable temperature range.

Time And Temperature Parameters

Function Minimum Maximum

Prewash 2 minutes 30 minutes

Wash 2 minutes 20 minutes

Fill 1 2 minutes 15 minutes

Fill 2 2 minutes 15 minutes

Fill 3 2 minutes 15 minutes

Fill 4 2 minutes 15 minutes

Fill 5 2 minutes 15 minutes

Fill 6 2 minutes 15 minutes

Intermediate Spin 30 seconds 120 seconds

Final Spin 1 minute 10 minutes

Temperature 75°F (25°C) 200°F (93°C)

Note: Spin times in cycle segments 1 – 8 are

entered in seconds (30 to 120), and time for final spin in segment 11 is entered in minutes (1 to 10).

1. Press the Up key until the computer display shows the segment to be edited. Press the Start key.

2. Use the Up or Down key to select the desired segment time. Set this value to zero to skip the segment. Press the Start key.

Note: The computer does not count down the

remaining cycle time during fills, drains, or prior to first achieving the programmed heat temperature when heating. The computer resumes counting down cycle time once the programmed fill level is reached, when the machine has drained, and after a programmed heat temperature is reached.

22 F232073

Safety

3. Use the Up or Down key to select the desired

fill temperature. See the following table for fill options.

Fill Temperature Options

Display Fill Type

CFIL Cold fill

HFIL Hot fill

bFIL Warm fill

4. Press the Start key.

5. Use the Up or Down key to select the desired

fill level. See the following table.

Water Level Options

Display Fill Level

8. Press the Start key.

9. If the machine is equipped with an auxiliary

heating system, use the Up or Down key to select the desired segment temperature. To disable auxiliary heat for this segment, set this value to zero.

Note: Do not program heat steps for machines not

equipped with auxiliary heat. The machine will pause for 30 minutes during any step in which the fill water temperature does not already equal or exceed the programmed value of the heat step.

10. Press the Start key.

LOLE Low Level

HILE High Level

6. Press the Start key.

7. Use the Up or Down key to select the desired

supply option. See the table below.

Supply Options

Display Supply

SUP0 No Supply

SUP1 Supply 1

SUP2 Supply 2

SUP3 Supply 3

SUP4 Supply 4

SUP5 Supply 1 and 2

SUP6 Supply 2 and 3

SUP7 Supply 3 and 4

F232073 23

Safety

Cycle Programming (Continued)

11. Use the Up or Down key to select the desired

spin time. Set this value to zero to skip the spin step. Press the Start key. The display will now show the identifier for next program segment.

Note: An automatic 40-second coast-down follows

every high-speed spin. For all spins except the final spin, this coast-down occurs during the fill for the following segment. Therefore, cycle time is not increased for coast-downs following all but the final spin.

12. Press the Stop key at any time to complete the

cycle programming procedure.

Chemical Injection Supply System

The external supply connection ports are designated 1, 2, 3, and 4, in that order, viewed from the rear of the machine, top to bottom. The supply dispenser compartments are designated 1, 2, and 3, in that order, viewed from the front of the machine, left to right.

Supply Dispenser

Compartments

Chemical Injection

Supply Nozzles

B009RE3A

Figure 4

Compartment 1 flushes with each fill. Compartment 2 flushes when the program calls for supply 2 during a fill. Compartment 3 flushes when the program calls for supply 3 during a fill.

Note: Compartment 2 does not flush when supply 4

is called for in a program.

The chemical injection supply nozzles located in their respective supply compartments function as follows: supply nozzle 1 empties into compartment 1, supply nozzles 2 and 4 empty into compartment 2, and supply nozzle 3 empties into compartment 3. See Figure 4.

24 F232073

+ 58 hidden pages
