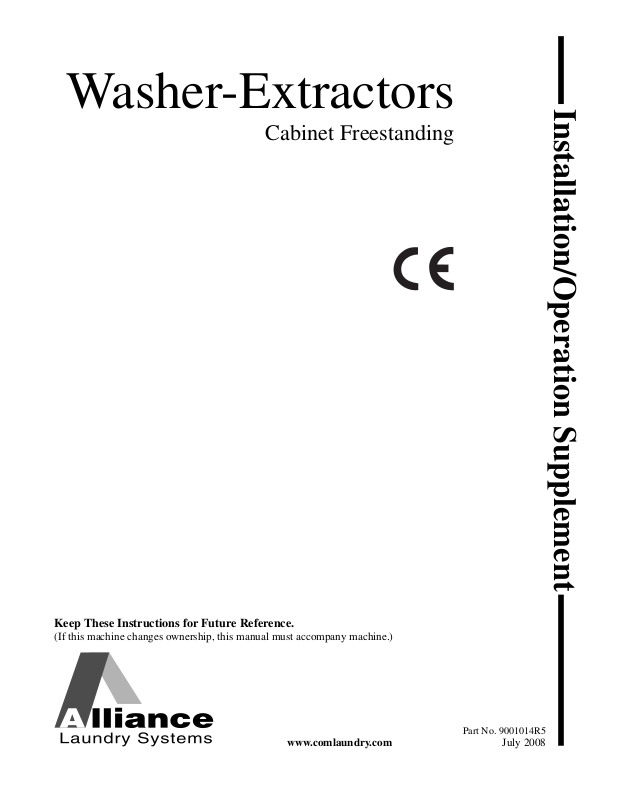

Alliance Laundry Systems SW039 User Manual

Washer-Extractors

Cabinet Freestanding

Installation/Operation Supplement

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

www.comlaundry.com

Part No. 9001014R5

July 2008

Installation/Operation Supplement

Table of

Contents

Introduction......................................................................................... 2

Model Identification ............................................................................. 2

Safety Information.............................................................................. 3

Explanation of Safety Messages........................................................... 3

Important Safety Instructions ............................................................... 3

Safety Decals ........................................................................................ 5

Operator Safety..................................................................................... 6

Specifications and Dimensions........................................................... 7

Installation........................................................................................... 21

Dimensional Clearances................................................................... 21

Machine Foundation ........................................................................ 22

Mechanical Installation......................................................................... 23

Frame Dimensions and Mounting Bolt Location for 18, 25,

35, 55, 75, 100, 135 and 165 Models ............................................. 23

Mounting Bolt Installation (If Required).............................................. 25

Electrical Specifications ....................................................................... 26

Operation............................................................................................. 27

Control Identification............................................................................ 27

Load the Machine ................................................................................. 28

Disposal of Unit................................................................................... 29

means without the expressed written consent of the publisher.

9001014

1

Installation/Operation Supplement

Introduction

Model Identification

Information in this manual is applicable to these models:

HX18PV HX75PV SX18PV SX75PV UX18PV UX75PV

HX25PV HX100PV SX25PV SX100PV UX25PV UX100PV

HX35PV HX135PV SX35PV SX135PV UX35PV UX135PV

HX55PV HX165PV SX55PV SX165PV UX55PV UX165PV

2

9001014

Installation/Operation Supplement

Safety Information

Explanation of Safety Messages

Precautionary statements (“DANGER,” “WARNING,” and “CAUTION”), followed by specific instructions, are found in this manual and on machine decals. These precautions are intended for the personal safety of the operator, user, servicer, and those maintaining the machine.

DANGER

DANGER indicates the presence of a hazard that will cause severe personal injury, death, or substantial property damage if the danger is ignored.

WARNING

WARNING indicates the presence of a hazard that can cause severe personal injury, death, or substantial property damage if the warning is ignored.

Important Safety Instructions

WARNING

To reduce the risk of fire, electric shock, serious injury or death to persons when using your washer, follow these basic precautions:

W023

1. Read all instructions before using the washer.

2. Refer to the GROUNDING INSTRUCTIONS in the INSTALLATION manual for the proper grounding of the washer.

3. Do not wash textiles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, kerosene, waxes, cooking oils, drycleaning solvents, or other flammable or explosive substances as they give off vapors that could ignite or explode.

4. Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.

CAUTION

CAUTION indicates the presence of a hazard that will or can cause minor personal injury or property damage if the caution is ignored.

Additional precautionary statements (“IMPORTANT” and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used to inform the reader of specific procedures where minor machine damage will occur if the procedure is not followed.

NOTE: The word “NOTE” is used to communicate installation, operation, maintenance or servicing information that is important but not hazard related.

5. Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using a washing machine or combination washer-dryer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. The gas is flammable, do not smoke or use an open flame during this time.

6. Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children. This is a safety rule for all appliances.

7. Before the washer is removed from service or discarded, remove the door to the washing compartment.

8. Do not reach into the washer if the wash drum is moving.

9001014

3

Installation/Operation Supplement

9. Do not install or store the washer where it will be exposed to water and/or weather.

10. Do not tamper with the controls.

11. Do not repair or replace any part of the washer, or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that the user understands and has the skills to carry out.

12. To reduce the risk of an electric shock or fire, DO NOT use an extension cord or an adapter to connect the washer to the electrical power source.

13. Use washer only for its intended purpose, washing textiles.

14. Never wash machine parts or automotive parts in the machine. This could result in serious damage to the basket.

15. ALWAYS disconnect the washer from electrical supply before attempting any service. Disconnect the power cord by grasping the plug, not the cord.

16. Install the washer according to the INSTALLATION INSTRUCTIONS. All connections for water, drain, electrical power and grounding must comply with local codes and be made by licensed personnel when required.

17. To reduce the risk of fire, textiles which have traces of any flammable substances such as vegetable oil, cooking oil, machine oil, flammable chemicals, thinner, etc., or anything containing wax or chemicals such as in mops and cleaning cloths, must not be put into the washer. These flammable substances may cause the fabric to catch on fire by itself.

18. Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.

19. Keep washer in good condition. Bumping or dropping the washer can damage safety features. If this occurs, have washer checked by a qualified service person.

20. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

21. Be sure water connections have a shut-off valve and that fill hose connections are tight. CLOSE the shut-off valves at the end of each wash day.

22. Loading door MUST BE CLOSED any time the washer is to fill, tumble or spin. DO NOT bypass the loading door switch by permitting the washer to operate with the loading door open.

23. Always read and follow manufacturer’s instructions on packages of laundry and cleaning aids. Heed all warnings or precautions. To reduce the risk of poisoning or chemical burns, keep them out of the reach of children at all times (preferably in a locked cabinet).

24. Always follow the fabric care instructions supplied by the textile manufacturer.

25. Never operate the washer with any guards and/or panels removed.

26. DO NOT operate the washer with missing or broken parts.

27. DO NOT bypass any safety devices.

28. Failure to install, maintain, and/or operate this washer according to the manufacturer’s instructions may result in conditions which can produce bodily injury and/or property damage.

NOTE: The WARNINGS and IMPORTANT SAFETY INSTRUCTIONS appearing in this manual are not meant to cover all possible conditions and situations that may occur. Common sense, caution and care must be exercised when installing, maintaining, or operating the washer.

Any problems or conditions not understood should be reported to the dealer, distributor, service agent or the manufacturer.

4

9001014

Installation/Operation Supplement

WARNING

This machine must be installed, adjusted, and serviced by qualified electrical maintenance personnel familiar with the construction and operation of this type of machinery. They must also be familiar with the potential hazards involved. Failure to observe this warning may result in personal injury and/or equipment damage, and may void the warranty.

SW004

IMPORTANT: Ensure that the recommended clearances for inspection and maintenance are provided. Never allow the inspection and maintenance space to be blocked.

WARNING

Install the machine on a level floor of sufficient strength. Failure to do so may result in conditions which can produce serious injury, death and/or property damage.

W703

CAUTION

Be careful around the open door, particularly when loading from a level below the door. Impact with door edges can cause personal injury.

SW025

WARNING

Never touch internal or external steam pipes, connections, or components. These surfaces can be extremely hot and will cause severe burns. The steam must be turned off and the pipe, connections, and components allowed to cool before the pipe can be touched.

SW014

Safety Decals

Safety decals appear at crucial locations on the machine. Failure to maintain legible safety decals could result in injury to the operator or service technician.

To provide personal safety and keep the machine in proper working order, follow all maintenance and safety procedures presented in this manual. If questions regarding safety arise, contact the manufacturer immediately.

Use manufacturer-authorized spare parts to avoid safety hazards.

9001014

5

Installation/Operation Supplement

Operator Safety

WARNING

NEVER insert hands or objects into basket until it has completely stopped. Doing so could result in serious injury.

SW012

To ensure the safety of machine operators, the following maintenance checks must be performed daily:

1. Prior to operating the machine, verify that all warning signs are present and legible. Missing or illegible signs must be replaced immediately. Make certain that spares are available.

2. Check door interlock before starting operation of the machine:

a.Attempt to start the machine with the door

open. The machine should not start with the door open.

b.Close the door without locking it and attempt to

start the machine. The machine should not start with the door unlocked.

Do not bypass any safety devices in the machine.

WARNING

Never operate the machine with a bypassed or disconnected balance system. Operating the machine with severe out-of-balance loads could result in personal injury and serious equipment damage.

SW039

c.Close and lock the door and start a cycle.

Attempt to open the door while the cycle is in progress. The door should not open.

If the door lock and interlock are not functioning properly, call a service technician.

3. Do not attempt to operate the machine if any of the following conditions are present:

a.The door does not remain securely locked

during the entire cycle.

b.Excessively high water level is evident.

c.Machine is not connected to a properly

grounded circuit.

6

9001014

Installation/Operation Supplement

Specifications and Dimensions

General Specifications

Model 18 25 35

Overall Dimensions

Overall width 660 mm (26 in.) 660 mm (26 in.) 783 mm (30.8 in.)

Overall height 1031 mm (40.6 in.) 1031 mm (40.6 in.) 1194 mm (47 in.)

Overall depth 780 mm (30.7 in.) 870 mm (34.3 in.) 960 mm (37.8 in.)

Weight and Shipping Information

Net weight 236 kg (520 lb.) 241 kg (531 lb.) 347 kg (765 lb.)

Shipping weight 283 kg (624 lb.) 290 kg (639.5 lb.) 467 kg (1030 lb.)

Shipping volume 0.8 m

Wash Cylinder Information

Cylinder diameter 530 mm (20.9 in.) 530 mm (20.9 in.) 650 mm (25.6 in.)

3

(22.5 ft3) 0.9 m3 (24.5 ft3)1.3 m3 (34.7 ft3)

Cylinder depth 345 mm (13.6 in.) 440 mm (17.3 in.) 500 mm (19.7 in.)

Cylinder volume 76 l (2.7 ft

Perforation size 3 mm (0.1 in.) 3 mm (0.1 in.) 3 mm (0.1 in.)

Door Opening Information

Door opening size 300 mm (11.8 in.) 300 mm (11.8 in.) 300 mm (11.8 in.)

Height of door bottom above floor 279 mm (11 in.) 279 mm (11 in.) 395 mm (15.6 in.)

Water Consumption

Average water consumption per cycle

Power Consumption

Average power used per cycle

HOT

COLD

Motor

Heating

90 l (24 gal.) 110 l (29 gal.) 178 l (47 gal.)

42 l (11 gal.) 49 l (13 gal.) 79 l (21 gal.)

0.15 kW/hr 0.15 kW/hr 0.2 kW/hr

1.5 kW/hr 2.25 kW/hr 3.75 kW/hr

3

) 97 l (3.43 ft3) 167 l (5.9 ft3)

9001014

7

Installation/Operation Supplement

General Specifications

Model 18 25 35

Drive Train Information

Number of motors in drive train 1 1 1

Drive motor power 0.75 kW (1 hp) 0.75 kW (1 hp) 1.5 kW (2 hp)

Cylinder Speeds

Wash/reverse speed 10-50 rpm 10-50 rpm 10-50 rpm

Distribution/drain speed 82 rpm 82 rpm 74 rpm

Extract speed 250-1000 rpm 250-1000 rpm 250-1000 rpm

Centrifugal Force Data

Wash/reverse centrifugal force 0.03-0.74 Gs 0.03-0.74 Gs 0.04-0.91 Gs

Extract centrifugal force 19-296 Gs 19-296 Gs 23-363 Gs

Balance Detection

Vibration safety switch installed Standard Standard Standard

Direct Steam Heating (Optional)

Steam inlet connection size 10 mm (0.38 in.) 10 mm (0.38 in.) 10 mm (0.38 in.)

Number of steam inlets 1 1 1

Steam required to raise bath temperature 10°C, kg (10°F, lb.)

Average steam use per cycle 7.6 kg (0.48 bhp) 9.5 kg (0.60 bhp) 16.5 kg (1.05 bhp)

Electrical Heating (Optional)

Total electrical heating capacity 9 kW 9 kW 18 kW

Electrical heating elements 3 3 6

Electrical heat element size 3 kW 3 kW 3 kW

Time required to raise bath temperature

LOW 0.83 kg (1.15 lb.) 1.15 kg (1.6 lb.) 1.6 kg (2.22 lb.)

HIGH 0.94 kg (1.3 lb.) 1.3 kg (1.8 lb.) 1.8 kg (2.52 lb.)

LOW 10°C

50°F

MED 10°C

50°F

3 minutes 5 minutes 5 minutes

6 minutes 8 minutes 8 minutes

4 minutes 6 minutes 6 minutes

7 minutes 9 minutes 9 minutes

8

9001014

Model 55 75 100 135 165

Overall Dimensions

Installation/Operation Supplement

General Specifications

Overall width 900 mm

(35.4 in.)

Overall height 1544 mm

(60.8 in.)

Overall depth 1016 mm

(40 in.)

Weight and Shipping Information

Net weight 570 kg

(1247 lb.)

Shipping weight 630 kg

(1380 lb.)

(54.9 ft

3

Shipping volume 1.5 m

Wash Cylinder Information

Cylinder diameter 750 mm

(29.5 in.)

Cylinder depth 530 mm

(20.9 in.)

Cylinder volume 234 l

(8.27 ft

3

1060 mm (41.8 in.)

1560 mm

(61.4 in.)

1168 mm

(46 in.)

865 kg

(1907 lb.)

995 kg

(2194 lb.)

)

2.1 m

(74 ft

3

)

850 mm

(33.5 in.)

537 mm

(21.1 in.)

305 l

)

(10.76 ft3)

1200 mm (47.3 in.)

1920 mm

(75.6 in.)

1330 mm

(52.4 in.)

1520 kg

(3351 lb.)

1697 kg

(3741 lb.)

3

3.3 m

3

(115 ft

980 mm

(38.6 in.)

597 mm

(23.5 in.)

451 l

(15.92 ft3)

1200 mm

(47.3 in.)

1920 mm

(75.6 in.)

1500 mm (59.1 in.)

1645 kg

(3626 lb.)

1822 kg

(4017 lb.)

)

3.7 m

(131 ft

3

)

980 mm (38.6 in.)

775 mm (30.5 in.)

585 l

(20.66 ft3)

1300 mm (51.8 in.)

2100 mm (82.7 in.)

1620 mm (63.8 in.)

2100 kg

(4630 lb.)

2319 kg

(5113 lb.)

3

4.4 m

(162 ft3)

1095 mm (43.1 in.)

775 mm

(30.5 in.)

730 l

(25.8 ft3)

Perforation size 3 mm

(0.1 in.)

Door Opening Information

Door opening size

395 mm (15.6 in.)

Height of door bottom above floor

559 mm

(22 in.)

Water Consumption

Average water consumption per cycle

HOT

COLD

216 l

(57 gal.)

98 l

(26 gal.)

3 mm

(0.1 in.)

395 mm

(15.6 in.)

559 mm

(22 in.)

326 l

(86 gal.)

136 l

(36 gal.)

3 mm

(0.1 in.)

500 mm

(19.7 in.)

648 mm

(25.5 in.)

401 l

(106 gal.)

178 l

(47 gal.)

3 mm

(0.1 in.)

500 mm

(19.7 in.)

648 mm (25.5 in.)

591 l

(156 gal.)

265 l

(70 gal.)

3 mm

(0.1 in.)

622 mm

(24.5 in.)

710 mm

(28 in.)

719 l

(190 gal.)

322 l

(85 gal.)

9001014

9

Installation/Operation Supplement

Model 55 75 100 135 165

Power Consumption

General Specifications

Average power used per cycle

Motor

Heat

0.75 kW/hr 0.95 kW/hr 1.1 kW/hr 1.3 kW/hr 1.6 kW/hr

3.75 kW/hr 4.5 kW/hr 5.22 kW/hr 6.5 kW/hr N/A

Drive Train Information

Number of motors in drive train 1 1 1 1 1

Drive motor power 4 kW

(5.4 hp)

4 kW

(5.4 hp)

5.5 kW (7.4 hp)

7.5 kW (10 hp)

11.5 kW (15 hp)

Cylinder Speeds

Wash/reverse speed 10-50 10-50 10-50 10-50 10-50

Distribution/drain speed 69 rpm 65 rpm 61 rpm 61 rpm 100 rpm

Extract speed 250-1000

rpm

250-1000

rpm

250-800

rpm

250-800

rpm

250-750

rpm

Centrifugal Force Data

Wash/reverse centrifugal force 0.04-1.05 Gs 0.05-1.19 Gs 0.06-1.37 Gs 0.06-1.37 Gs 0.06-1.52 Gs

Extract centrifugal force 26-418 Gs 30-475 Gs 34-350 Gs 34-350 Gs 34-344 Gs

Balance Detection

Vibration safety switch installed Standard Standard Standard Standard Standard

Direct Steam Heating (Optional)

Steam inlet connection size 10 mm

(0.38 in.)

10 mm

(0.38 in.)

10 mm

(0.38 in.)

10 mm

(0.38 in.)

19 mm

(0.75 in.)

Number of steam inlets 1 1 1 1 1

Steam required to raise bath temperature 10°C, kg (10°F, lb. )

Average steam use per cycle 23.4 kg

LOW 2.5 kg (3.4 lb.) 3.4 kg (4.6 lb.) 4.5 kg (6.2 lb.) 6.1 kg (8.4 lb.) 7.8 kg (10.3 lb.)

MED 2.8 kg (4 lb.) 3.8 kg (5.5 lb.) 5 kg (6.9 lb.) 6.8 kg (9.3 lb.) 8.4 kg (11.4 lb.)

(1.49 bhp)

30.4 kg

(1.94 bhp)

45 kg

(2.87 bhp)

57 kg

(3.63 bhp)

70 kg

(4.4 bhp)

Electrical Heating (Optional)

Total electrical heating capacity 18 kW 18 kW 27 kW 27 kW N/A

Electrical heating elements 6 6 9 9 N/A

Electrical heat element size 3 kW 3 kW 3 kW 3 kW N/A

10

9001014

Installation/Operation Supplement

General Specifications

Model 55 75 100 135 165

Time required to raise bath temperature

LOW10°

C

50°

F

MED10°

C

50°

F

6 minutes 6 minutes 11 minutes 13 minutes N/A

8 minutes 6 minutes 11 minutes 13 minutes N/A

5 minutes 5 minutes 12 minutes 14 minutes N/A

10 minutes 5 minutes 12 minutes 14 minutes N/A

9001014

11

Installation/Operation Supplement

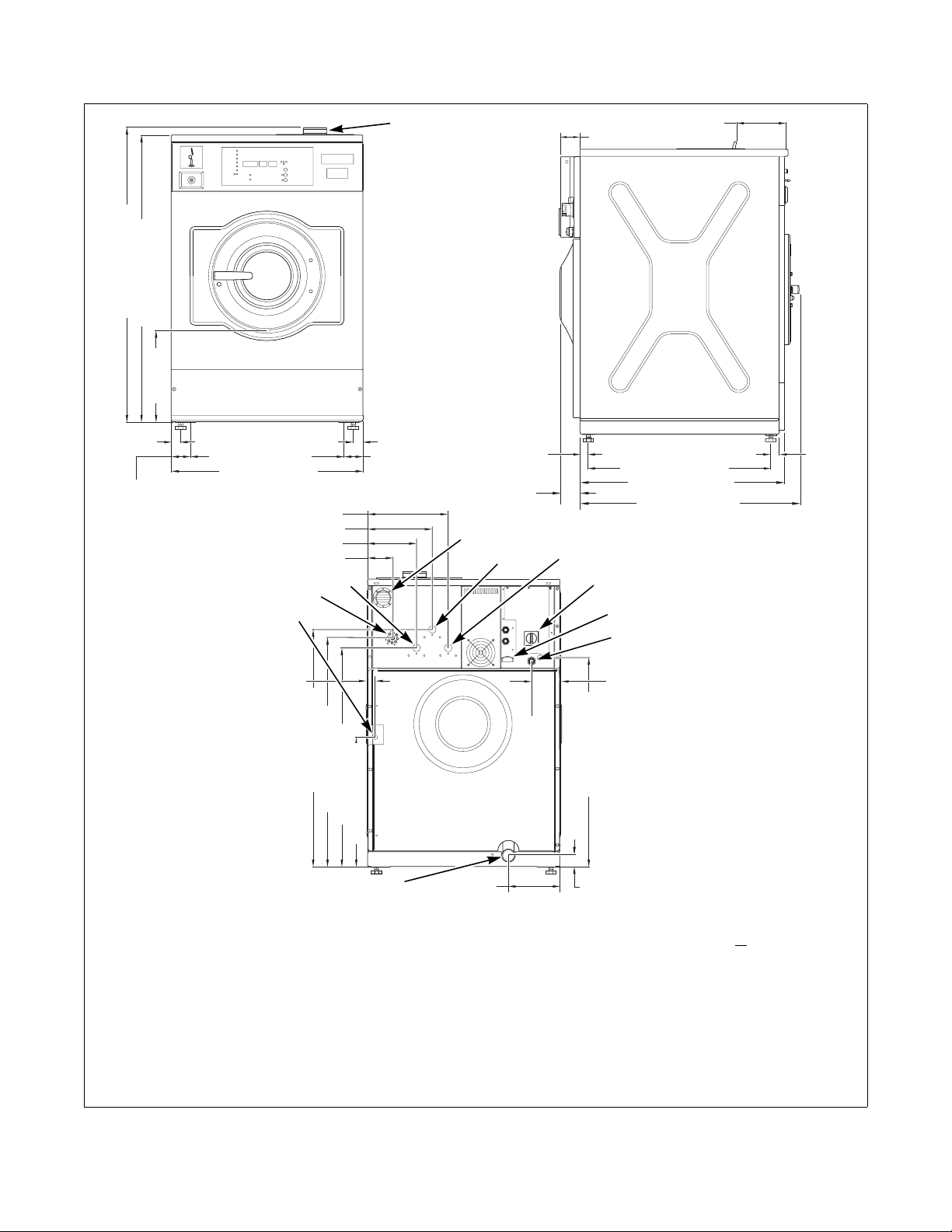

1031 mm

(40.6 in.)

1011 mm

(39.8 in.)

518 mm

(20.4 in.)

486 mm

(19.13 in.)

660 mm

(26 in.)

229 mm

(9 in.)

74 mm

(2.9 in.)

4

5

279 mm

(11 in.)

CFD530N

CFD530 N

152 mm

(6 in.)

1

2

3

8

140 mm (5.5 in.)

6

18: 787 mm (31 in.)

25: 884 mm (34.8 in.)

18: 560 mm

(22.05 in.)

25: 660 mm

(25.98 in.)

7

CFS464N

158 mm

(6.2 in.)

780 mm

(30.7 in.)

881 mm

(34.7 in.)

742 mm

(29.2 in.)

10

41 mm

(1.6 in.)

389 mm

(15.3 in.)

181 mm

(7.1 in.)

9

51 mm

(2 in.)

CFS465N

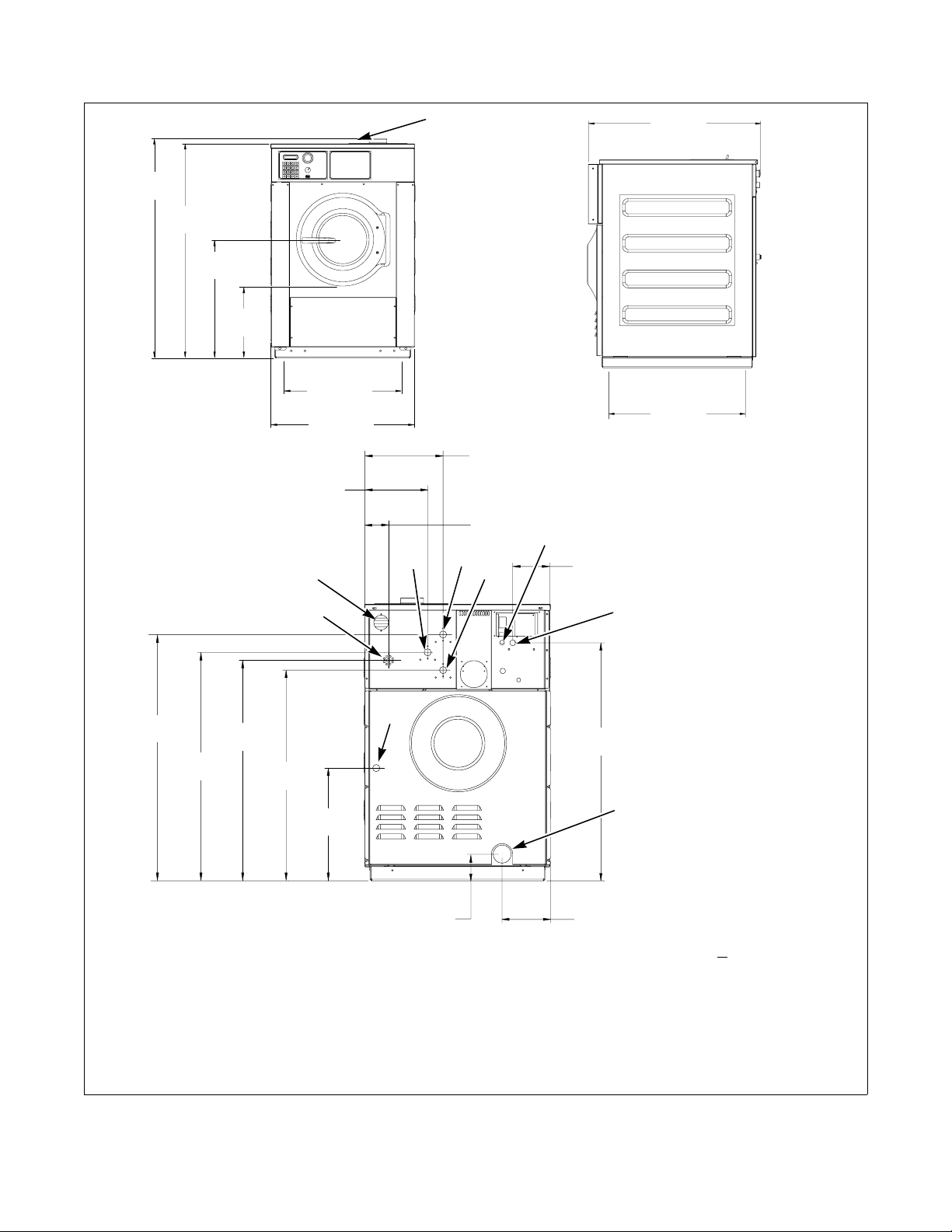

18 AND 25 POUND CAPACITY MODELS WITH U IN THE 8TH POSITION (E.G. *X18PVXU6)

1 Fill and Supply Ventilation 6 External Liquid Supply Inlets 2 Cold Water Inlet (Required) 7 Electrical Power Input 3 Hot Water Inlet (Required) 8 External Supply Signal Input 4 Cold Water Inlet (Required) 9 Drain Outlet 5 Flushing Supply Dispenser 10 Steam Connection Input (Optional)

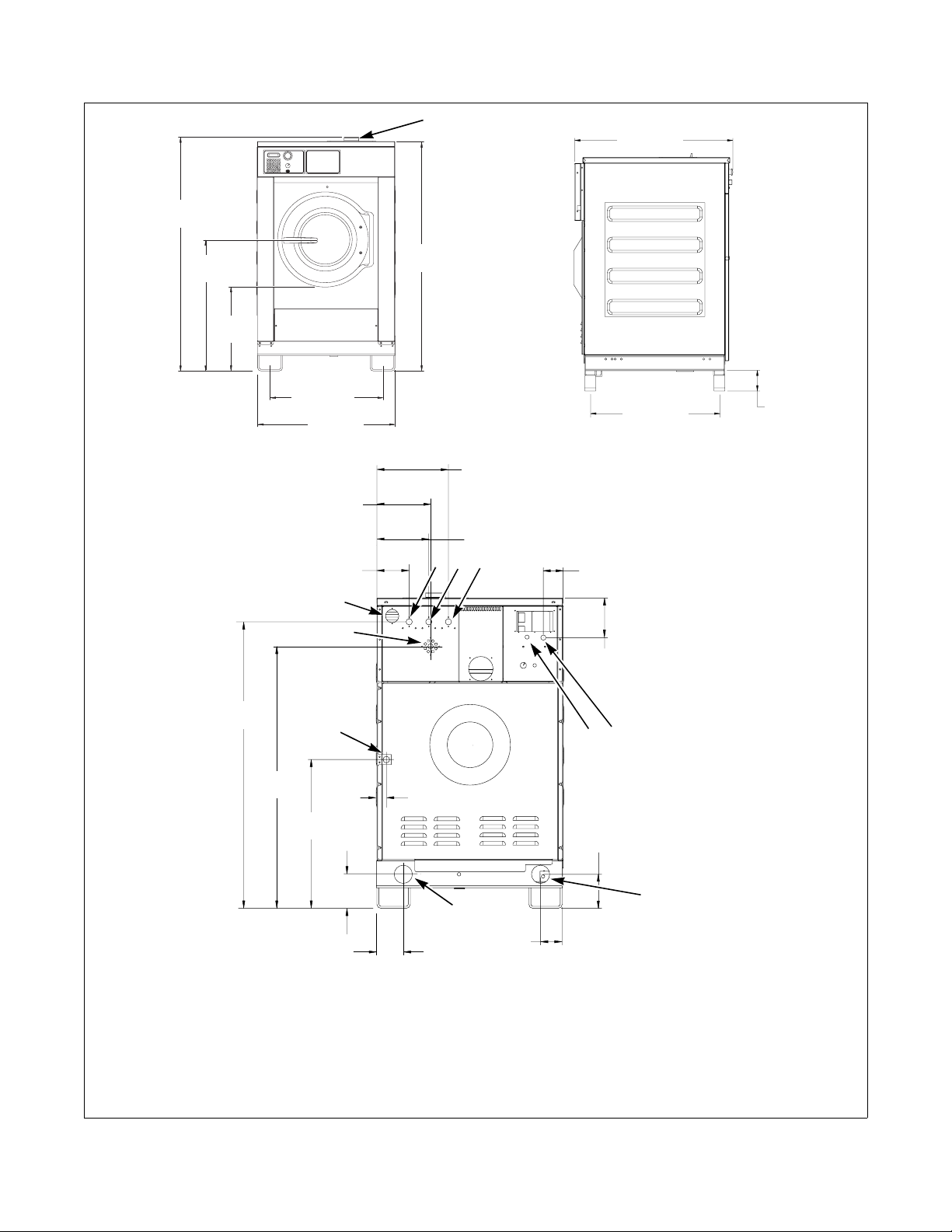

Figure 1

12

9001014

Installation/Operation Supplement

40.87 in. (1038 mm)

39.8 in. (1011 mm)

10.98 in.

(279 mm)

1.3 in.

(33 mm)

2.56 in.

(65 mm)

8.9 in. (226 mm)

5.94 in. (151 mm)

2.95 in. (75 mm)

10

9

20.87 in. (530 mm)

25.98 in. (660 mm)

11

1.3 in.

(33 mm)

2.56 in.

(65 mm)

CFD521N

1

3

2

4

5

1.18 in.

(30 mm)

2.72 in.

(69 mm)

18: 23.23 in. (590 mm) 25: 27.16 in. (690 mm)

18: 26.38 in. (670 mm) 25: 30.31 in. (770 mm)

18: 28.62 in. (727 mm) 25: 32.56 in. (827 mm)

8.66 in.

(220 mm)

1.18 in.

(30 mm)

CFD522N

6

7

4.3 in.

(109 mm)

34.92 in. (887 mm)

31.14in. (791 mm)

29.41 in. (747 mm)

19.1 in. (485 mm)

8

7.09 in. (180 mm)

25.98 in. (660 mm)

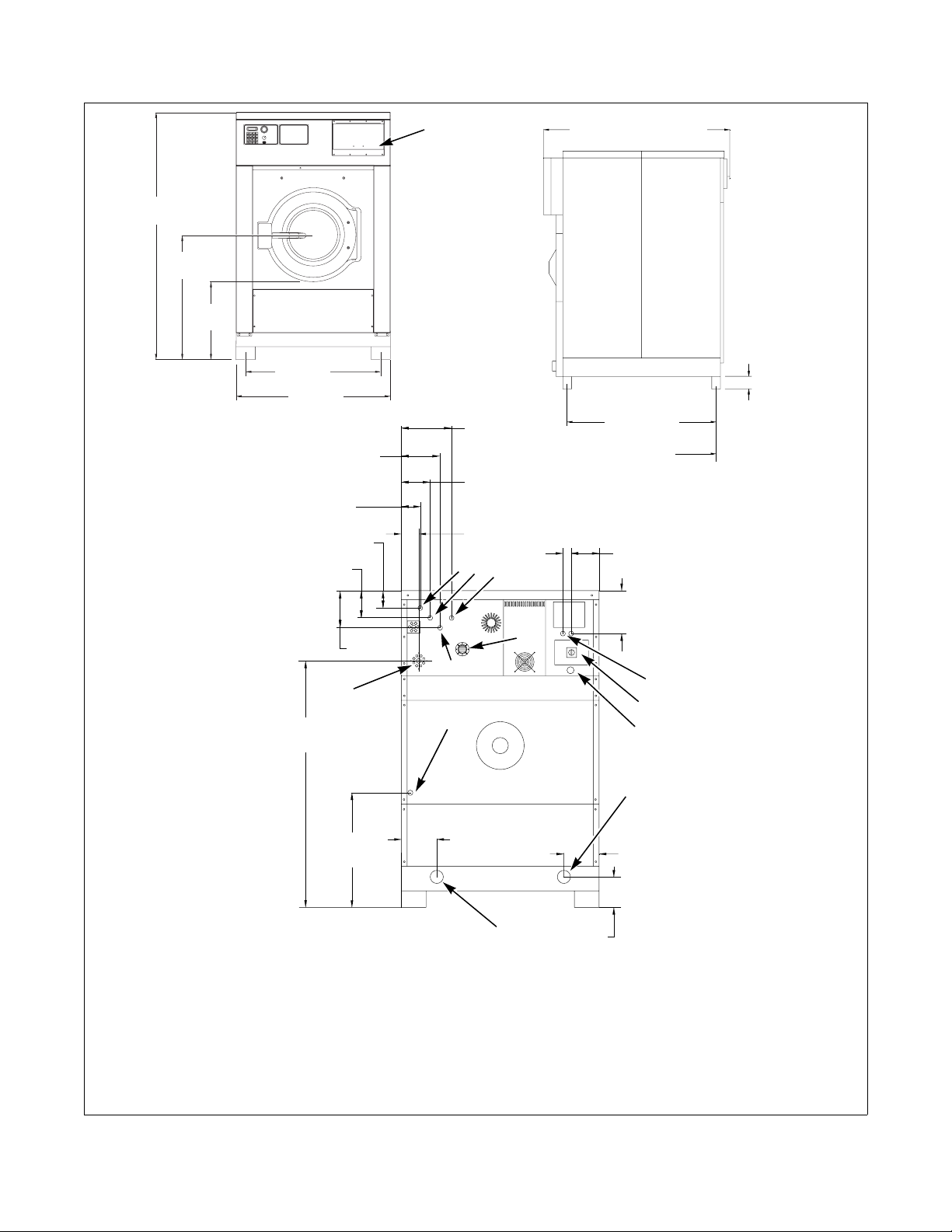

18 AND 25 POUND CAPACITY MODELS WITH A OR M IN THE 8

2.76 in. (70 mm)

27.41 in. (696.2 mm)

1.73 in.

(44 mm)

CFD528N

TH

POSITION (E.G. *X18PVXM6)

1 Fill and Supply Ventilation 7 Electrical Power Input 2 Cold Water Inlet (Required) 8 Drain Outlet 3 External Liquid Supply Inlets 9 Steam Connection Input (Optional) 4 Hot Water Inlet (Required) 10 Cold Water Inlet (Required) 5 Ventilation Tub 11 Flushing Supply Dispenser 6 Main Switch

9001014

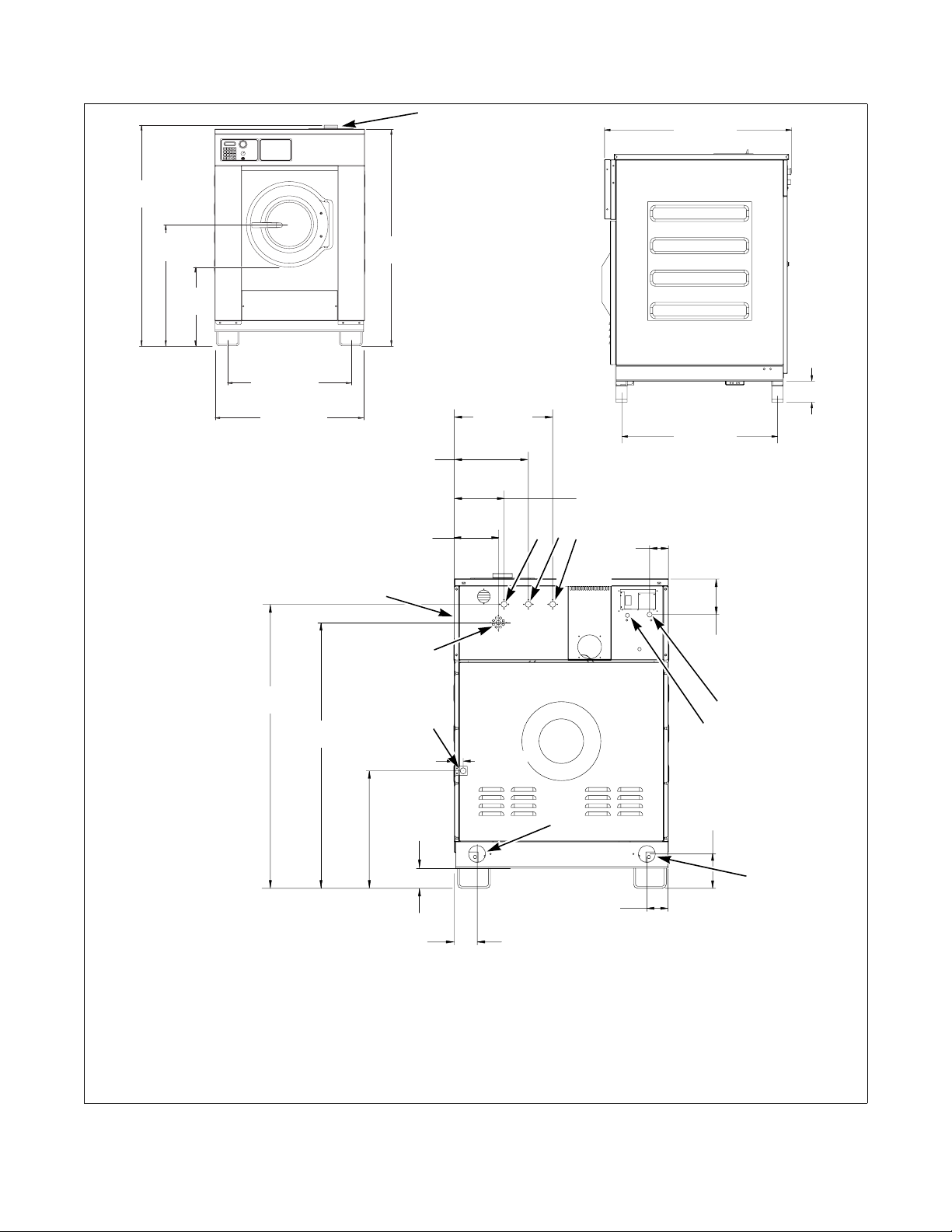

Figure 2

13

Installation/Operation Supplement

1194 mm

(47 in.)

1176 mm (46.3 in.)

620 mm

(24.4 in.)

394 mm

(15.5 in.)

639 mm

(25.16 in.)

782 mm

(30.8 in.)

264 mm

(10.4 in.)

1

CFD531N

3

5

CFD531N

2

328 mm

(12.9 in.)

89 mm (3.5 in.)

4

960 mm

(37.8 in.)

770 mm

(30.31 in.)

CFS467N

8

155 mm

(6.1 in.)

1041 mm

(41 in.)

965 mm

(38 in.)

934 mm

(36.75 in.)

889 mm

(35 in.)

6

508 mm

(20 in.)

10

112 mm

(4.4 in.)

1001 mm

(39.4 in.)

203 mm

(8 in.)

7

9

CFS468N

35 POUND CAPACITY MODELS WITH U IN THE 8TH POSITION (E.G. *X35PVXU6)

1 Fill and Supply Ventilation 6 External Liquid Supply Inlets 2 Cold Water Inlet (Required) 7 Electrical Supply Signal Input 3 Hot Water Inlet (Required) 8 External Supply Signal Input 4 Cold Water Inlet (Required) 9 Drain Outlet 5 Flushing Supply Dispenser 10 Steam Connection Input (Optional)

14

Figure 3

9001014

Installation/Operation Supplement

47.32 in. (1202 mm)

1.34 in.

(34 mm)

2.6 in.

(66 mm)

11

46.3 in. (1176 mm)

14.78 in.

(376 mm)

1.34 in.

25.51 in. (648 mm)

30.71 in.(780 mm)

13.05 in. (332 mm)

10.49 in. (267 mm)

7.93 in. (202 mm)

4.13 in. (105 mm)

CFD524N

(34 mm)

2.6 in.

(66 mm)

CFD524N

1

1.44 in.

(36.5 mm)

3.23 in. 82 mm)

2

10

9

8

3.47 in.

(88 mm)

30.12 in. (765 mm)

33.86 in. (860 mm)

3

4

5

8.66 in.

(220 mm)

36.06 in. (916 mm)

1.44 in.

(36.5 mm)

CFD525N

6

1.38 in (35 mm)

38.11 in. (968 mm)

36.81 in. (935 mm)

35.16 in. (893 mm)

20.87 in. (530 mm)

7

7.87 in.

(200 mm)

2.76 in. (70 mm)

(109.2 mm)

33.17 in. (843 mm)

2.36 in.

(60 mm)

4.3 in.

CFD529N

35 POUND CAPACITY MODELS WITH A OR M IN THE 8TH POSITION (E.G. *X35PVXM6)

1 Fill and Supply Ventilation 7 Drain Outlet 2 Hot Water Inlet (Required) 8 Steam Connection Input (Optional) 3 Cold Water Inlet (Required) 9 External Liquid Supply Inlets 4 Main Switch 10 Cold Water Inlet (Required) 5 Ventilation Tub 11 Flushing Supply Dispenser 6 Electrical Power Input

9001014

Figure 4

15

Installation/Operation Supplement

1544 mm (60.8 in.)

859 mm

(33.8 in.)

559 mm

(22 in.)

740 mm

(29.13 in.)

900 mm

(35.43 in.)

254 mm

(10 in.)

158 mm

(6.2 in.)

1

5

1499 mm

(59 in.)

CFD509N

2

91 mm

(13.6 in.)

252 mm

(9.9 in.)

3

1016 mm

(40 in.)

830 mm

(32.68 in.)

4

99 mm

(3.9 in.)

102 mm

CFS470N

(4 in.)

6

191 mm

(7.5 in.)

1389 mm

(54.7 in.)

1283 mm

(50.5 in.)

11

721 mm

(28.4 in.)

165 mm

(6.5 in.)

36 mm

(1.4 in.)

8

165 mm

(6.5 in.)

7

9

10

104 mm

(4.1 in.)

104 mm

(4.1 in.)

CFS471N

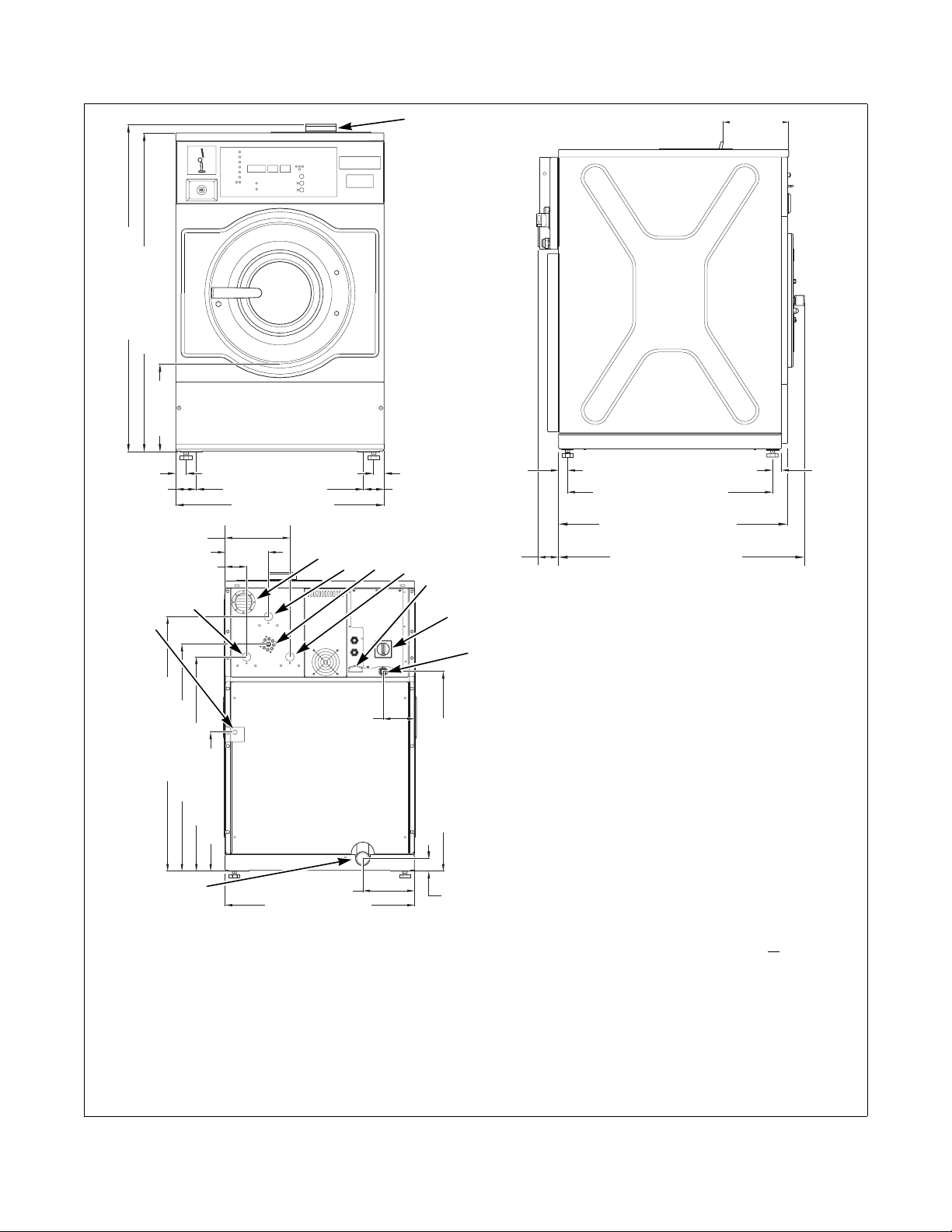

55 MODEL

1 Fill and Supply Ventilation 7 Electrical Power Input 2 Cold Water Inlet (Required) 8 External Supply Signal Input 3 Hot Water Inlet (Required) 9 Drain Outlet 4 Cold Water Inlet (Required) 10 Reuse Drain Outlet (Optional) 5 Flushing Supply Dispenser 11 Steam Connection Input (Optional) 6 External Liquid Supply Inlets

16

Figure 5

9001014

1575 mm

5

(62 in.)

Installation/Operation Supplement

1168 mm

(46 in.)

853 mm

(33.6 in.)

559 mm

(22 in.)

870 mm

(34.25 in.)

1060 mm

(41.73 in.)

1532 mm (60.3 in.)

102 mm

(4 in.)

CFD510N

(14.4 in.)

229 mm

366 mm

(9 in.)

1

6

488 mm

(19.2 in.)

960 mm

(37.8 in.)

246 mm

(9.7 in.)

3

4

2

94 mm (3.7 in.)

175 mm (6.9 in.)

CFS473N

1407 mm

(55.4 in.)

1315 mm

(51.75 in.)

11

582 mm

(22.9 in.)

43 mm

(1.7 in.)

10

7

8

170 mm

(6.7 in.)

9

104 mm

(4.1 in.)

CFS474N

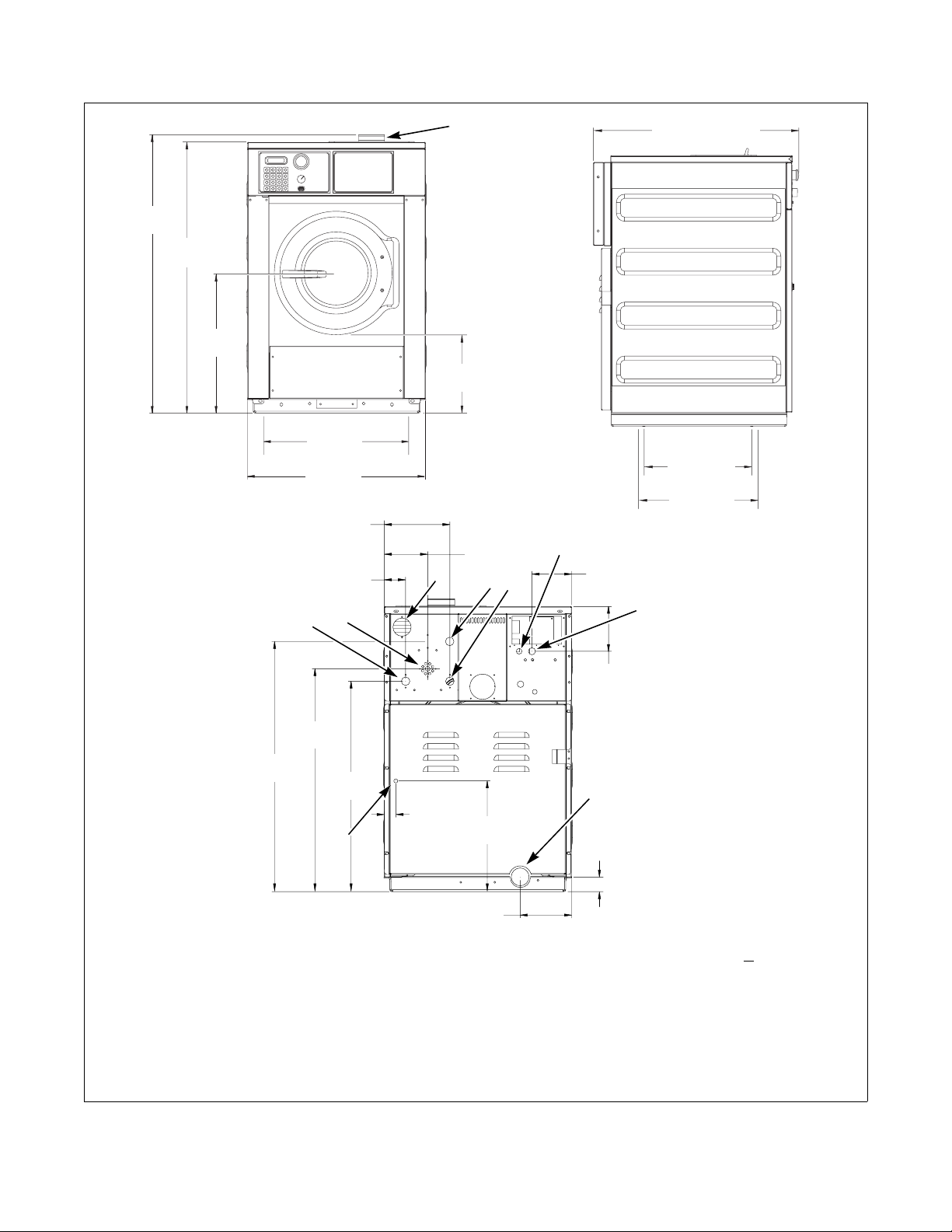

75 MODEL

1 Fill and Supply Ventilation 7 Electrical Power Input 2 Cold Water Inlet (Required) 8 External Supply Signal Input 3 Hot Water Inlet (Required) 9 Drain Outlet 4 Cold Water Inlet (Required) 10 Reuse Drain Outlet (Optional) 5 Flushing Supply Dispenser 11 Steam Connection Input (Optional) 6 External Liquid Supply Inlets

Figure 6

9001014

17

Installation/Operation Supplement

1951 mm

(76.8 in.)

960 mm

(37.8 in.)

648 mm

(25.5 in.)

1040 mm

(40.94 in.)

1200 mm (47.24 in.)

165 mm

(6.5 in.)

1575 mm

(62 in.)

2362 mm

(9.3 in.)

89 mm

(3.5 in.)

104 mm (4.1 in.)

7

221 mm

(8.7 in.)

CFD511N

6

305 mm

(12 in.)

175 mm

(6.9 in.)

114 mm

(4.5 in.)

2

51 mm

(2 in.)

3

5

100: 1331 mm (52.4 in.) 135: 1506 mm (59.3 in.)

100: 1010 mm

(39.76 in.)

135: 1185 mm

(46.65 in)

170 mm

(6.7 in.)

249 mm

(9.8 in.)

102 mm

(4 in.)

CFS476N

1

4

9

12

13

8

10

696 mm

(27.4 in.)

216 mm (8.5 in.)

11

185 mm

(7.3 in.)

216 mm (8.5 in.)

CFS477N

100 AND 135 MODELS 1 Fill and Supply Ventilation 8 Electrical Power Input 2 Cold Water Inlet (Required) 9 External Supply Signal Input 3 Hot Water Inlet (Required) 10 Drain Outlet 4 Cold Water Inlet (Required) 11 Reuse Drain Outlet (Optional) 5 Cold Water Inlet (Required) 12 Steam Connection Input (Optional) 6 Flushing Supply Dispenser 13 Service Power Disconnect 7 External Liquid Supply Inlets

Figure 7

18

9001014

Installation/Operation Supplement

2100 mm

(82.7 in.)

1020 mm

(40.2 in.)

641 mm

(25.25 in.)

1140 mm

(44.9 in.)

1300 mm (51.2 in.)

122 mm (4.8 in.)

172 mm

(6.75 in.)

1854 mm

(73 in.)

273 mm

(10.75 in.)

114 mm (4.5 in.)

221 mm (8.7 in.)

7

CFD511N

6

4

12

360 mm

(14.25 in.)

198 mm (7.8 in.)

114 mm

(4.5 in.)

2

3

5

51 mm

(2 in.)

1

197 mm

(7.75 in.)

260 mm

(10.24 in.)

9

13

8

1620 mm

(63.8 in.)

1185 mm

(46.7 in.)

102 mm

(4 in.)

CFD15N

10

696 mm

(27.4 in.)

254 mm

(10 in.)

11

236 mm

(9.3 in.)

254 mm

(10 in.)

CFS477N

165 MODEL 1 Fill and Supply Ventilation 8 Electrical Power Input 2 Cold Water Inlet (Required) 9 External Supply Signal Input 3 Hot Water Inlet (Required) 10 Drain Outlet 4 Cold Water Inlet (Required) 11 Reuse Drain Outlet (Optional) 5 Cold Water Inlet (Required) 12 Steam Connection Input (Optional) 6 Flushing Supply Dispenser 13 Service Power Disconnect 7 External Liquid Supply Inlets

Figure 8

9001014

19

Installation/Operation Supplement

Installation

Dimensional Clearances

Tab l e 1 shows recommended minimum clearances on all sides of the washer-extractor.

Recommended Minimum Clearances

Model 18 25 35 55 75 100 135 165

Minimum rear clearance 600 mm

(24 in.)

Minimum clearance between machine and wall

Minimum clearance between machines (side)

Minimum front clearance (door swing)

150 mm

(6 in.)

25.4 mm (1 in.)

419 mm

(16.5 in.)

600 mm

(24 in.)

150 mm

(6 in.)

25.4 mm (1 in.)

419 mm

(16.5 in.)

600 mm

(24 in.)

150 mm

(6 in.)

25.4 mm (1 in.)

419 mm

(16.5 in.)

Tab le 1

600 mm

(24 in.)

150 mm

(6 in.)

30 mm

(1.2 in.)

533 mm

(21 in.)

600 mm

(24 in.)

150 mm

(6 in.)

30 mm

(1.2 in.)

533 mm

(21 in.)

600 mm

(24 in.)

150 mm

(6 in.)

30 mm

(1.2 in.)

660 mm

(26 in.)

600 mm

(24 in.)

150 mm

(6 in.)

30 mm

(1.2 in.)

660 mm

(26 in.)

600 mm

(24 in.)

150 mm

(6 in.)

30 mm

(1.2 in.)

660 mm

(26 in.)

20

9001014

Installation/Operation Supplement

Machine Foundation

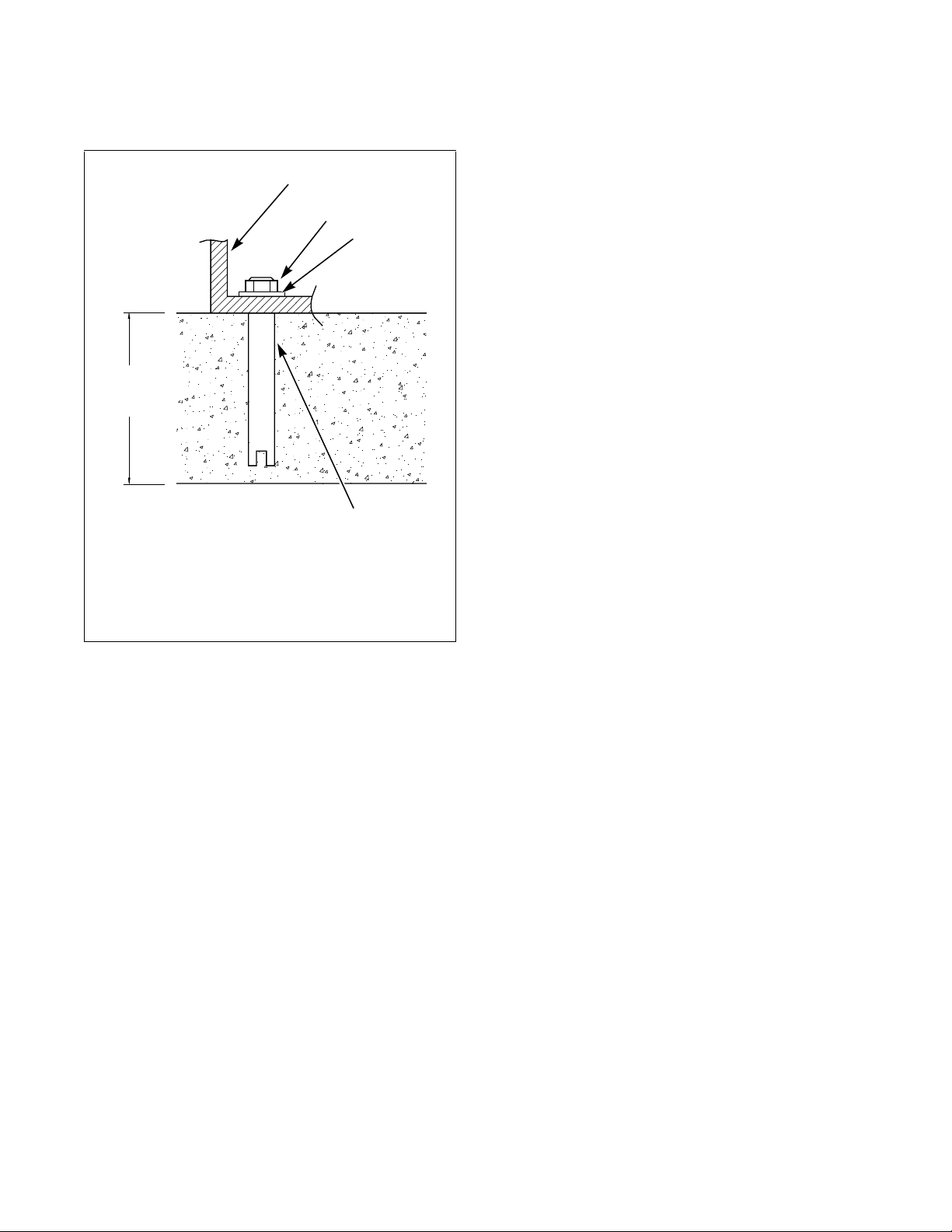

Thoroughness of detail must be stressed with all foundation work to ensure a stable unit installation, eliminating possibilities of excessive vibration during extract.

The washer-extractor must be placed on a smooth level surface so that the entire base of the machine is supported and rests on the mounting surface.

The standard installation does not require anchoring unless mandated by state or local codes.

Static and dynamic loads on the floor or foundation are

CAUTION

Ensure that the machine is installed on a level floor of sufficient strength and that

shown in Table 2.

Tab l e 2 can be used as a reference when designing

floors and foundations.

the recommended clearances for inspection and maintenance are pro vided. Never allow the inspection and maintenance space to be blocked.

W488

Floor Load Data

Model 18 25 35 55 75 100 135 165

Static floor load

Static pressure

Dynamic floor load

Maximum dynamic load

Dynamic pressure

2.51 kN

(546 lb.)

6.79 kN-m

(137 lbs-ft2)

0.7 kN

(157 lb.)

0.7 kN

(157 lb.)

1.89 kN-m

(39.4 lbs-ft2)

2.63 kN

(592 lb.)

2

5.17 kN-m

(109 lbs-ft2)

0.75 kN

(169 lb.)

0.75 kN

(169 lb.)

2

1.47 kN-m

(31.1 lbs-ft2)

4.38 kN

(983 lb.)

2

6.53 kN-m

(137 lbs-ft2)

1.2 kN

(270 lb.)

1.2 kN

(270 lb.)

2

1.79 kN-m

(37.6 lbs-ft2)

6.97 kN

(1566 lb.)

2

8.33 kN-m

(175 lbs-ft2)

1.7 kN

(382 lb.)

1.7 kN

(382 lb.)

2

2.03 kN-m

(42.7 lbs-ft2)

10.3 kN

(2310 lb.)

2

8.97 kN-m

(188 lbs-ft2)

2.0 kN

(450 lb.)

2.0 kN

(450 lb.)

2

7.75 kN-m

(36.6 lbs-ft2)

16.4 kN

(3682 lb.)

2

11.5 kN-m

(240 lbs-ft2)

2.96 kN

(665 lb.)

2.96 kN

(665 lb.)

2

2.07 kN-m

(43.3 lbs-ft2)

19.1 kN

(4282 lb.)

2

12.5 kN-m (261 lbs-ft2)

3.75 kN

(883 lb.)

3.75 kN

(883 lb.)

2

2.46 kN-m

(53.8 lbs-ft2)

2

14.84 kN-m (310 lbs-ft2)

2

3.05 kN-m

(63.7 lbs-ft2)

24.49 kN

(5509 lb.)

2

4.86 kN

(1093 lb.)

5.78 kN

(1301 lb.)

2

Table 2

9001014

21

Installation/Operation Supplement

Mechanical Installation

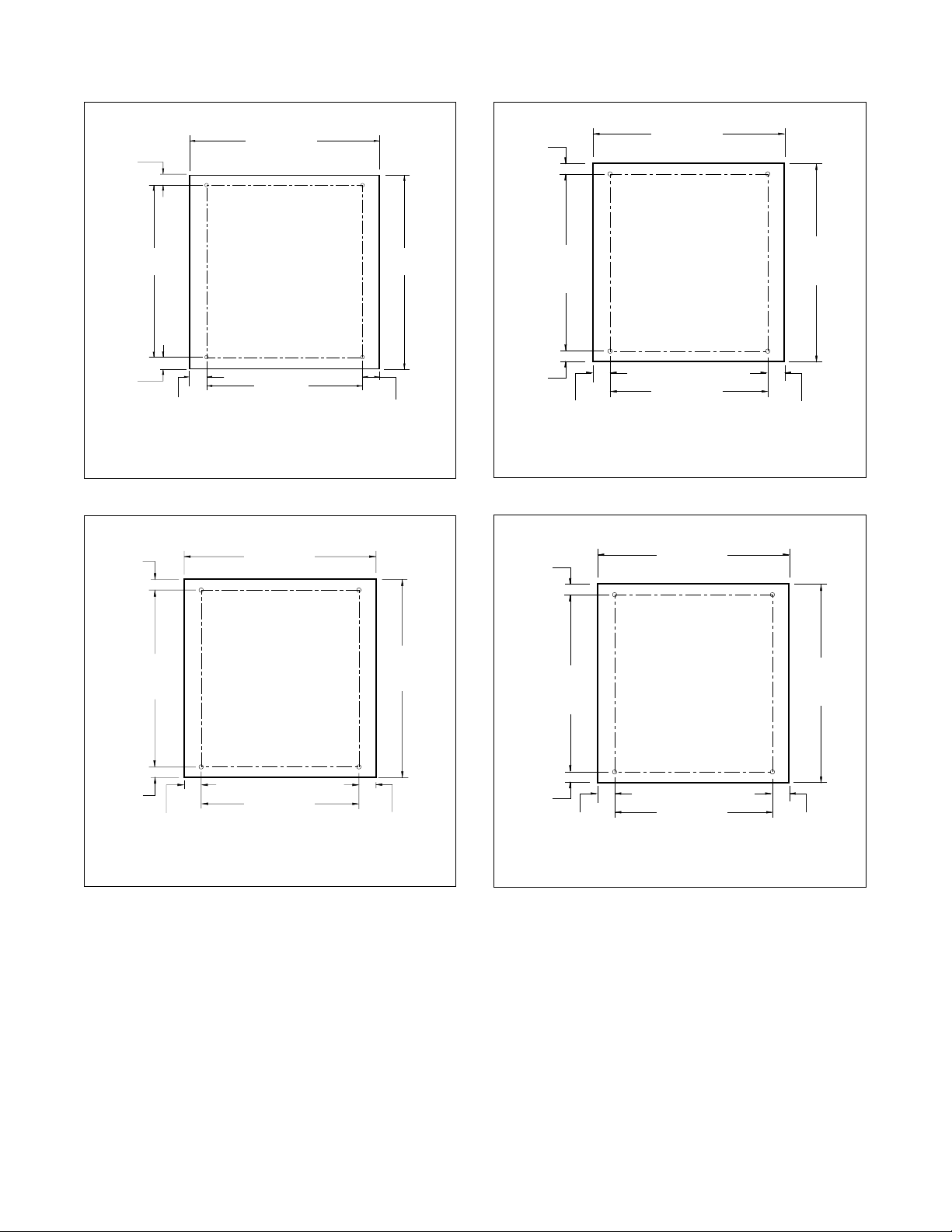

Frame Dimensions and Mounting Bolt

Location for 18, 25, 35, 55, 75, 100, 135 and 165 Models

55 mm

(2.17 in.)

560 mm

(22.05 in.)

55 mm

(2.17 in.)

87 mm

(3.43 in.)

660 mm

(26 in.)

486 mm

(19.13 in.)

18 MODEL

Figure 9

670 mm

(26.38 in.)

87 mm

CFS479N

(3.43 in.)

CFS479N

45 mm

(1.77 in.)

770 mm

(30.31 in.)

45 mm

(1.77 in.)

50 mm

(1.97 in.)

71 mm

(2.78 in.)

782 mm

(30.8 in.)

639 mm

(25.16 in.)

35 MODEL

Figure 11

898 mm

(35.35 in.)

860 mm

(33.85 in.)

71 mm

(2.78 in.)

CFS480N

55 mm

(2.17 in.)

660 mm

(25.98 in.)

55 mm

(2.17 in.)

87 mm

(3.43 in.)

660 mm

(26 in.)

486 mm

(19.13 in.)

25 MODEL

Figure 10

770 mm

(30.31 in.)

87 mm

(3.43 in.)

CFS478N

830 mm

(32.68 in.)

50 mm

(1.97 in.)

80 mm

(3.15 in.)

740 mm

(29.13 in.)

55 MODEL

Figure 12

930 mm

(36.61 in.)

80 mm

(3.15 in.)

CFS481N

22

9001014

Installation/Operation Supplement

60 mm

(2.36 in.)

60 mm

(2.36 in.)

40 mm

(1.57 in.)

960 mm

(37.8 in.)

(3.74 in.)

95 mm

1060 mm

(41.73 in.)

870 mm

(34.25 in.)

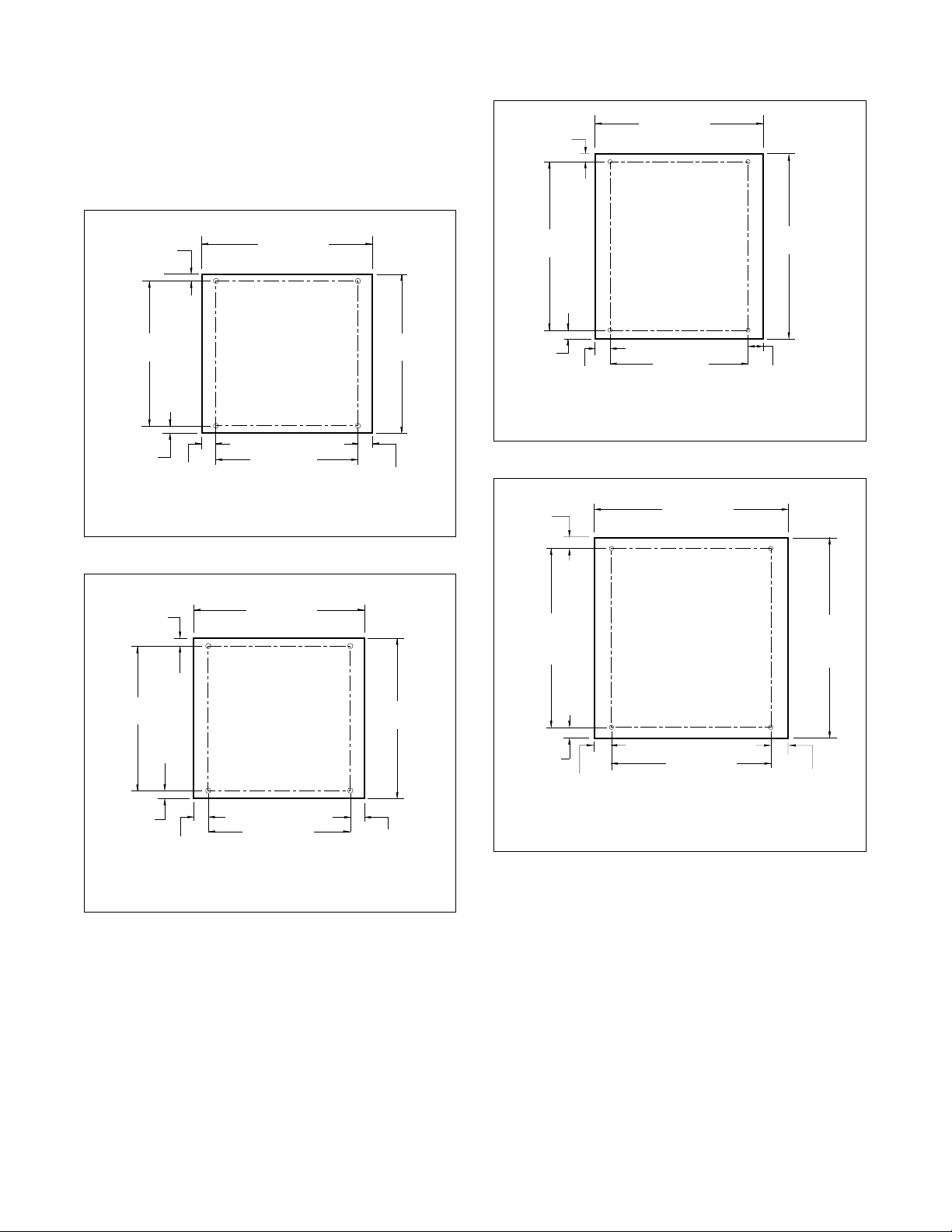

75 MODEL

Figure 13

1200 mm

(47.24 in.)

1080 mm

(42.52 in.)

95 mm

(3.74 in.)

CFS483N

42,5 mm (1.67 in.)

(46.65 in.)

42,5 mm (1.67 in.)

33 mm

(1.3 in.)

1185 mm

80 mm

(3.15 in.)

1200 mm

(47.24 in.)

1040 mm

(40.94 in.)

135 MODEL

Figure 15

1300 mm

(51.2 in.)

1270 mm

(50 in.)

80 mm

(3.15 in.)

CFS484N

1010 mm

(39.76 in.)

40 mm

(1.57 in.)

80 mm

(3.15 in.)

1040 mm

(40.94 in.)

100 MODEL

Figure 14

1090 mm

(42.91 in.)

80 mm

(3.15 in.)

CFS482N

1185 mm

(46.7 in.)

33 mm

(1.3 in.)

80 mm

(3.15 in.)

1140 mm

(44.9 in.)

165 MODEL

Figure 16

1251 mm

(49.25 in.)

80 mm

(3.15 in.)

CFS484N

9001014

23

Installation/Operation Supplement

Mounting Bolt Installation (If Required)

1

2

152 mm

(6 in.)

1 Base Frame 2 Bolt 3 Washer 4 Anchor Bolt/Plug

4. To level machine, fill the spaces between the machine base and floor with machinery grout. Grout completely under all frame members. Remove front and rear panels to gain access to all frame members. Force grout under the machine base until all voids are filled.

3

5. Remove the spacers carefully, allowing the machine to settle into the wet grout.

6. Position washers and locknuts on machinery anchor bolts and finger-tighten to machine base.

7. After the grout is completely dry, tighten the locknuts by even increments – one after the other – until all are tightened evenly and the machine is fastened securely to the floor.

8. Remove the four red transport brackets which secure the moving components of the machine during shipping. Refer to Installation manual for typical transport bracket locations.

4

CFS485N

Figure 17

After the concrete has cured and the anchors are installed, proceed as follows:

1. Place the washer-extractor adjacent to the foundation. Do not attempt to move it by pushing on the sides. Always insert a pry bar or other device under the bottom of the frame of the washer-extractor to move it.

2. Place the washer-extractor carefully over the anchors.

3. Put bolts through the machine in the anchors and fasten them. (For the 18-25 and 35 models, the diameter of the bolt must be minimum 1/2-13 or 12 mm; for the 55-75-100-135-165 models, the diameter of the bolt must be minimum 5/8-11 or 16 mm.)

24

9001014

Electrical Specifications

Installation/Operation Supplement

Electrical Specifications

Voltage Designation Standard Electric Heat

Model

Code

Voltage

Cycle

Phase

Wire

Full Load

Amps

Breaker

Circuit

AWG/mm

Full Load

Amps

2

Breaker

Circuit

AWG/mm

2

18 N 440-480 50/60 3 3+PE 6 15 14/2.5 20 25 10/6.0

P 380-415 50/60 3 3+N+PE Not available 17 20 12/4.0

Q 200-240 50/60 3 3+PE Not available 28 30 10/6.0

X 200-240 50/60 1/3 2/3+PE 6 15 14/2.5 Not available

25 N 440-480 50/60 3 3+PE 6 15 14/2.5 21 25 10/6.0

P 380-415 50/60 3 3+N+PE Not available 18 20 12/4.0

Q 200-240 50/60 3 3+PE Not available 29 30 10/6.0

X 200-240 50/60 1/3 2/3+PE 6 15 14/2.5 Not available

N 440-480 50/60 3 3+PE 12 15 14/2.5 41 50 8/10.0

P 380-415 50/60 3 3+N+PE Not available 36 40 8/10.0

35

Q 200-240 50/60 3 3+PE Not available 58 60 6/16.0

X 200-240 50/60 1/3 2/3+PE 12 15 14/2.5 Not available

N 440-480 50/60 3 3+PE 12 15 14/2.5 41 50 8/10.0

P 380-415 50/60 3 3+N+PE Not available 36 40 8/10.0

55

Q 200-240 50/60 3 3+PE Not available 58 60 6/16.0

X 200-240 50/60 1/3 2/3+PE 12 15 14/2.5 Not available

N 440-480 50/60 3 3+PE 12 15 14/2.5 41 50 8/10.0

75

P 380-415 50/60 3 3+N+PE 12 15 14/2.5 36 40 8/10.0

Q 200-240 50/60 3 3+PE 12 20 12/4.0 58 60 6/16.0

N 440-480 50/60 3 3+PE 17 20 12/4.0 62 70 4/25.0

100

P 380-415 50/60 3 3+N+PE 17 20 12/4.0 55 60 6/16.0

Q 200-240 50/60 3 3+PE 17 25 10/6.0 88 90 3/35.0

N 440-480 50/60 3 3+PE 17 25 10/6.0 62 70 4/25.0

135

P 380-415 50/60 3 3+N+PE 17 25 10/6.0 55 60 6/16.0

Q 200-240 50/60 3 3+PE 17 30 10/6.0 88 90 3/35.0

N 440-480 50/60 3 3+PE 20 25 10/6.0 Not available

165

P 380-415 50/60 3 3+N+PE 20 25 10/6.0 Not available

Q 200-240 50/60 3 3+PE 25 40 8/10.0 Not available

9001014

Tab le 3

25

Installation/Operation Supplement

Control Identification

2

Operation

3

1

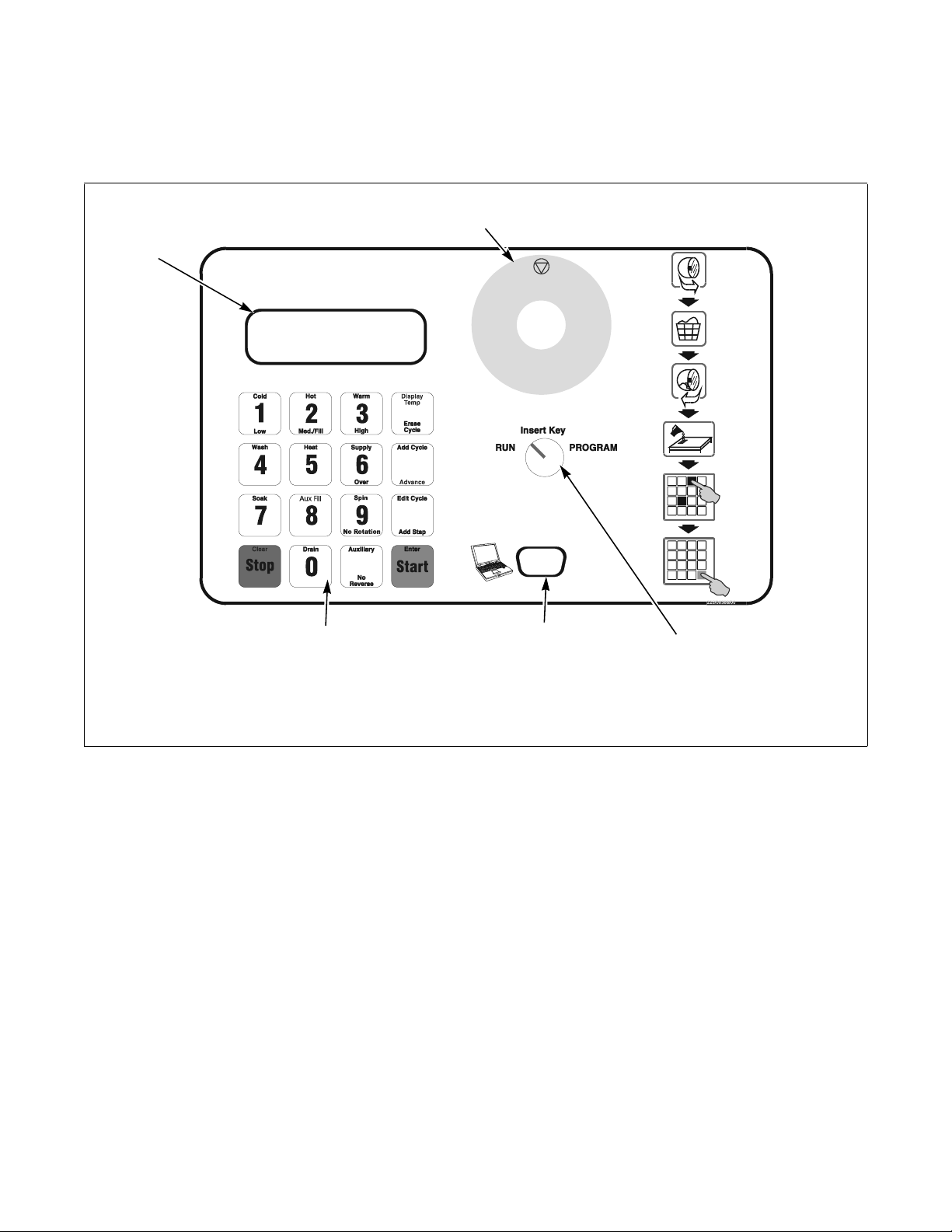

1 Keypad 4 Key Switch 2 Display 5 Serial Port 3 Emergency Stop Button

Figure 18

5

4

26

9001014

Installation/Operation Supplement

Load the Machine

For models: 18PV-55PV

SX18PV SX25PV UX18PV UX25PV

SX35PV SX55PV UX35PV UX55PV

SX75PV UX75PV

1. Pull the door handle towards you to open the door.

Some models may have a door handle with a button that must be pressed.

2. Load the drum to the specified capacity.

3. Close the door by pushing the door handle towards the machine.

For models: 100PV-165PV

SX100PV UX100PV

SX135PV UX135PV

SX165PV UX165PV

1. Push on the doorlock system to open the door.

2. Load the drum to the specified capacity.

3. Close the door by pushing the door handle towards the machine.

9001014

27

Installation/Operation Supplement

Disposal of Unit

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

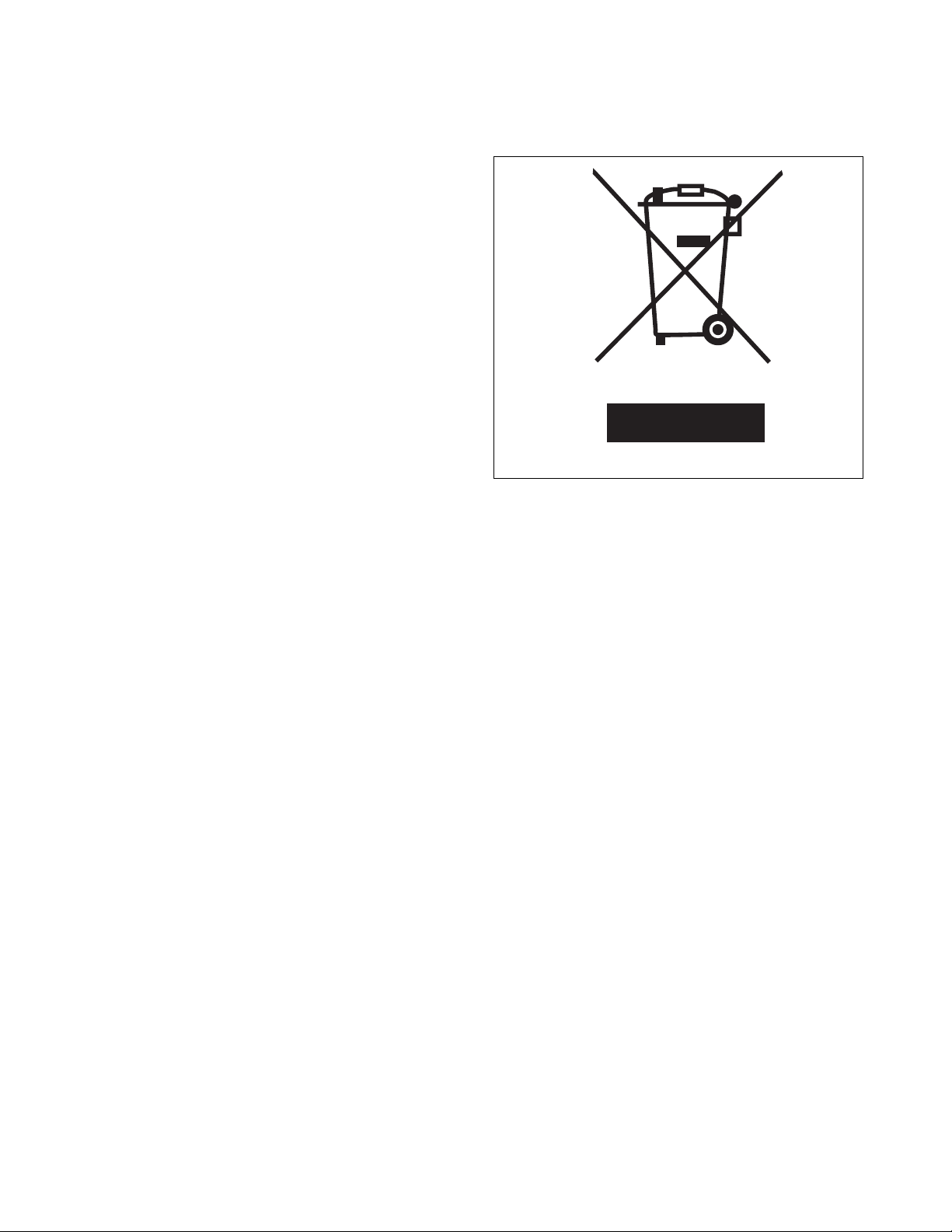

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Refer to Figure 19. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Ensuring this product is disposed of correctly will help prevent potential negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact the local city office, household waste disposal service, or the source from which the product was purchased.

MIX1N

Figure 19

28

9001014
