Alliance Laundry Systems HC25NX2, HC18NC2, HC25NC2, HC27NR2, HC18NX2 Programming Manual

NetMaster

Washer-Extractor

Cabinet Hard Mount Enhanced Programming Guide

Refer to Page 5 for Model Numbers

Programming

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

www.comlaundry.com

C872I

Part No. F232152R1

September 2004

WARNING

Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodil y injury and/or property damage.

W030

NOTE: The WARNINGS and IMPORTANT instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution, and carefulness are factors which cannot be built into these washer-extractors. These factors MUST BE supplied by the person(s) installing, maintaining, or operating the washerextractor.

Always contact the distributor, service agent, or the manufacturer about any problems or conditions you do not understand.

800767

1

Notes

2

800767

Table of

Contents

Introduction......................................................................................... 5

Model Identification ............................................................................. 5

Entering the Manual Mode................................................................ 7

Programming NetMaster................................................................... 9

What Can Be Programmed? ................................................................. 9

Programmable Options Available......................................................... 10

1. Site Code #1 Hot Regular Wash Vend Price “+008” .................. 11

2. Site Code #1 Warm Regular Wash Vend Price “+009” .............. 13

3. Site Code #1 Cold Regular Wash Vend Price “+010”................. 15

4. Site Code #1 Hot Special Wash Vend Price “+011” ................... 17

5. Site Code #1 Warm Special Wash Vend Price “+012” ............... 19

6. Site Code #1 Cold Special Wash Vend Price “+013”.................. 21

7. Special Cycle Vend Price “+014”................................................ 23

8. Special Vend A Site Code #1 “+022” .......................................... 25

9. Start Pulse Value “+032”............................................................. 27

10. Power Fail Reset “+034” ............................................................. 29

11. Normal PreWash #2 Fill/Tumble Time “+043”........................... 31

12. Normal Rinse Extra Fill/Tumble Time “+046”........................... 32

13. Normal Spin Extract Speed “+049”............................................. 33

14. Normal Extracts On/Off “+050”.................................................. 34

15. Permanent Press PreWash #2 Fill/Tumble Time “+052”............ 37

16. Permanent Press Rinse Extra Fill/Tumble Time “+055”............. 38

17. Permanent Press Spin Extract Speed “+058”............................... 39

18. Permanent Press Extracts

On/Off “+059”............................................................................. 40

19. Delicates PreWash #1

Fill/Tumble Time “+060”............................................................ 43

20. Delicates PreWash #2

Fill/Tumble Time “+061”............................................................ 44

21. Delicates Rinse Extra Fill/Tumble Time “+064”......................... 45

22. Delicates Spin Extract Speed “+067”.......................................... 46

23. Delicates Extracts On/Off “+068”............................................... 47

24. Special Wash PreWash #2 Fill/Tumble Time “+070”................. 50

25. Special Wash Rinse Extra Fill/Tumble Time “+073”.................. 51

26. Special Wash Spin Extract Speed “+076”................................... 52

27. Special Wash Extracts On/Off “+077”........................................ 53

28. PreWash #1/PreWash #2/Rinses Water Temperature “+078”..... 56

29. Fill/Tumbles Water Levels #1 “+079”......................................... 58

30. Fill/Tumbles Water Levels #2 “+080”......................................... 60

31. Control Configuration Data #2 “+082”........................................ 62

32. Control Configuration Data #3 “+083”........................................ 66

33. Hot Water Temperature “+084”................................................... 68

34. Warm Water Temperature “+085”............................................... 70

35. Cold Water Temperature “+086”................................................. 72

36. PreWash #1 Fill/Tumble Dispenser “+087”................................ 74

37. PreWash #2 Fill/Tumble Dispenser “+088”................................ 76

38. Wash Fill/Tumble Dispenser “+089”........................................... 78

39. Rinse #1 Fill/Tumble Dispenser “+090”...................................... 80

40. Rinse Extra Fill/Tumble Dispenser “+091”................................. 82

means without the expressed written consent of the publisher.

800767

3

41. Rinse Final Fill/Tumble Dispenser “+092” ................................. 84

42. PreWash #1 Fill/Tumble Drain “+093”....................................... 86

43. PreWash #1 Drain/Tumble Drain “+094”.................................... 88

44. PreWash #1 Extract Drain “+095”............................................... 90

45. PreWash #2 Fill/Tumble Drain “+096”....................................... 92

46. PreWash #2 Drain/Tumble Drain “+097”.................................... 94

47. PreWash #2 Extract Drain “+098”............................................... 96

48. Wash Fill/Tumble Drain “+099” ................................................. 98

49. Wash Drain/Tumble Drain “+100”.............................................. 100

50. Wash Extract Drain “+101”......................................................... 102

51. Rinse #1 Fill/Tumble Drain “+102” ............................................ 104

52. Rinse #1 Drain/Tumble Drain “+103”......................................... 106

53. Rinse #1 Extract Drain “+104”.................................................... 108

54. Rinse Extra Fill/Tumble Drain “+105” ........................................ 110

55. Rinse Extra Drain/Tumble Drain “+106”.................................... 112

56. Rinse Extra Extract Drain “+107” ............................................... 114

57. Rinse Final Fill/Tumble Drain “+108”........................................ 116

58. Rinse Final Drain/Tumble Drain “+109”..................................... 118

59. Rinse Final Extract Drain “+110”................................................ 120

60. Spin Extract Drain “+111”........................................................... 122

61. Spin Shakeout Drain “+112” ....................................................... 124

62. Water Inlet “+113”....................................................................... 126

63. Special Cycle Option “+115”....................................................... 129

64. Special Cycle Extra Wash Fill/Agitate Time “+116”.................. 131

65. Special Cycle Extra Rinse Extra Fill/Agitate Time “+117” ........ 132

66. Site Code #1 “+122”.................................................................... 133

67. Error Code Programming Parameter “+123”............................... 135

68. Start Pulse Mode “+124”............................................................. 143

4

800767

Introduction

Model Identification

Information in this manual is applicable to these models:

HC18NC2 HC60NX2 NC40NX2 SC30NR2 HC18NR2 HC80NCV NC50NC2 SC30NX2 HC18NX2 HC80NRV NC50NP2 SC35NC2 HC25NC2 HC80NXV NC50NR2 SC35N R2 HC25NR2 NC18NC2 NC50NX2 SC35NX2 HC25NX2 NC18NP2 NC80NCV SC40NC2 HC27NC2 NC18NR2 NC80NPV SC40NR2 HC27NR2 NC18NX2 NC80NRV SC40NX2 HC27NX2 NC25NC2 NC80NXV SC50NC2 HC30NC2 NC25NP2 SC18NC2 SC50NR2 HC35NC2 NC25NR2 SC18NR2 SC50NX2 HC35NR2 NC25NX2 SC18NX2 SC60NC2 HC35NX2 NC27NC2 SC20NC2 SC60NCF HC40NC2 NC27NP2 SC20NR2 SC60NR2 HC40NR2 NC27NR2 SC20NX2 SC60NRF HC40NX2 NC27NX2 SC25NC2 SC60NX2 HC50NC2 NC35NC2 SC25NR2 SC80NCV HC50NR2 NC35NP2 SC25NX2 SC80NRV HC50NX2 NC35NR2 SC27NC2 SC80NXV HC60NC2 NC35NX2 SC27NR2 HC60NCF NC40NC2 SC27NX2 HC60NR2 NC40NR2 SC30NC2

F232152

5

Notes

6

F232152

Entering the Manual Mode

For programming, testing, and retrieving information from NetMaster, it is often necessary to enter the Manual Mode by following the four simple step s below.

How to Enter the Manual Mode

1. Be sure the washer-extractor is in the Ready Mode before continuing to step 2. Refer to Figure 1. If the washer-extractor is in an acti v e c ycle, rapid advance through the cycle. Refer to Rapid Advance Feature section of the Basic Programming Guide. If coins have been entered, refer to Clear Vend Fe ature section of the Basic Programming Guide.

3. While pressing and holding the NORMAL keypad with one hand, press the HOT keypad with the other hand.

4. The VFD display will show “rAPd”. Refer to Figure 2.

B30R

Figure 2

5. Press the DELICATES (+) or the COLD (-) keypad to scroll through the options until the desired option appears in the VFD.

6. Press the START (enter) keypad.

Figure 1

2. Open the access panel. Refer to Opening the Access Panel section of the Basic Programming

Guide.

C854I

For additional information on the Manual Mode, refer to Entering Manual Mode section of the Basic Programming Guide.

F232152

7

Notes

8

F232152

Programming NetMaster

What Can Be Programmed?

This feature allows the owner to program cycle information, standard vend pricing, special vends and otherfeatures by using the keypads. The control must have the Manual Programming Mode enabled, which is the factory default. This mode can only be turned OFF and ON by using the Micro-Wand IIIE, the Smart Card Reader, or the Network. Refer to this section when programming NetMaster.

This section offers a detailed description of options available to program. Additional options can be found in the Basic Programming Guide.

Each description includes instructions on when and why the option might be used and, more importantly, how to program the option.

For more advanced users, a quick reference list of the options available through the programming mode is located on the following page.

NOTE: The thr ee numbers in the Option column of the Programmable Options List are what will be shown in the VFD display when that option is selected.

F232152

9

Programming NetMaster

Programmable Options Available

OPTION DESCRIPTION

008 Site Code #1 Hot Regular Wash Vend Price 009 Site Code #1 Warm Regular Wash Vend Price 010 Site Code #1 Cold Regular Wash Vend Price 011 Site Code #1 Hot Special Wash Vend Price 012 Site Code #1 Warm Special Wash Vend Price 013 Site Code #1 Cold Special Wash Vend Price 014 Special Cycle Vend Price 022 Special Vend A Site Code #1 032 Start Pulse Value 034 Power Fail Reset 043 Normal PreWash #2 Fill/Tumble Time 046 Normal Rinse Extra Fill/Tumble Time 049 Normal Spin Extract Speed 050 Normal Extracts On/Off 052 Permanent Press PreWash #2 Fill/Tumble

Time

055 Permanent Press Rinse Extra Fill/Tumble

Time 058 Permanent Press Spin Extract Speed 059 Permanent Press Extracts On/Off 060 Delicates PreWash #1 Fill/Tumble Time 061 Delicates PreWash #2 Fill/Tumble Time 064 Delicates Rinse Extra Fill/Tumble Time 067 Delicates Spin Extract Speed 068 Delicates Extracts On/Off 070 Special Wash PreWash #2 Fill/Tumble Time 073 Special Wash Rinse Extra Fill/Tumble Time 076 Special Wash Spin Extract Speed 077 Special Wash Extracts On/Off 078 PreWash #1/PreWash #2/Rinses Water

Temperature 079 Fill/Tumbles Water Levels #1 080 Fill/Tumbles Water Levels #2 082 Control Configuration Data #2 083 Control Configuration Data #3 084 Hot Water Temperature 085 Warm Water Temperature 086 Cold Water Temperature 087 PreWash #1 Fill/Tumble Dispenser 088 PreWash #2 Fill/Tumble Dispenser

OPTION DESCRIPTION

089 Wash Fill/Tumble Dispenser 090 Rinse #1 Fill/Tumble Dispenser 091 Rinse Extra Fill/Tumble Dispenser 092 Rinse Final Fill/Tumble Dispenser 093 PreWash #1 Fill/Tumble Drain 094 PreWash #1 Drain/Tumble Drain 095 PreWash #1 Extract Drain 096 PreWash #2 Fill/Tumble Drain 097 PreWash #2 Drain/Tumble Drain 098 PreWash #2 Extract Drain 099 Wash Fill/Tumble Drain 100 Wash Drain/Tumble Drain 101 Wash Extract Drain 102 Rinse #1 Fill/Tumble Drain 103 Rinse #1 Drain/Tumble Drain 104 Rinse #1 Extract Drain 105 Rinse Extra Fill/Tumble Drain 106 Rinse Extra Drain/Tumble Drain 107 Rinse Extra Extract Drain 108 Rinse Final Fill/Tumble Drain 109 Rinse Final Drain/Tumble Drain 110 Rinse Final Extract Drain 111 Spin Extract Drain 112 Spin Shakeout Drain 113 Water Inlet 115 Special Cycle Option 116 Special Cycle Extra Wash Fill/Agitate Time 117 Special Cycle Extra Rinse Extra Fill/Agitate

Time 122 Site Code #1 123 Error Code Programming Parameter 124 Start Pulse Mode

10

F232152

Programming NetMaster

8. Site Code #1 Hot Regular Wash Vend Price “+008”

This option allows the owner to set the vend price for a hot regular wash when cards with a special site code are used by specific groups or individuals.

How to Program the Site Code #1 Hot Regular Wash Vend Price

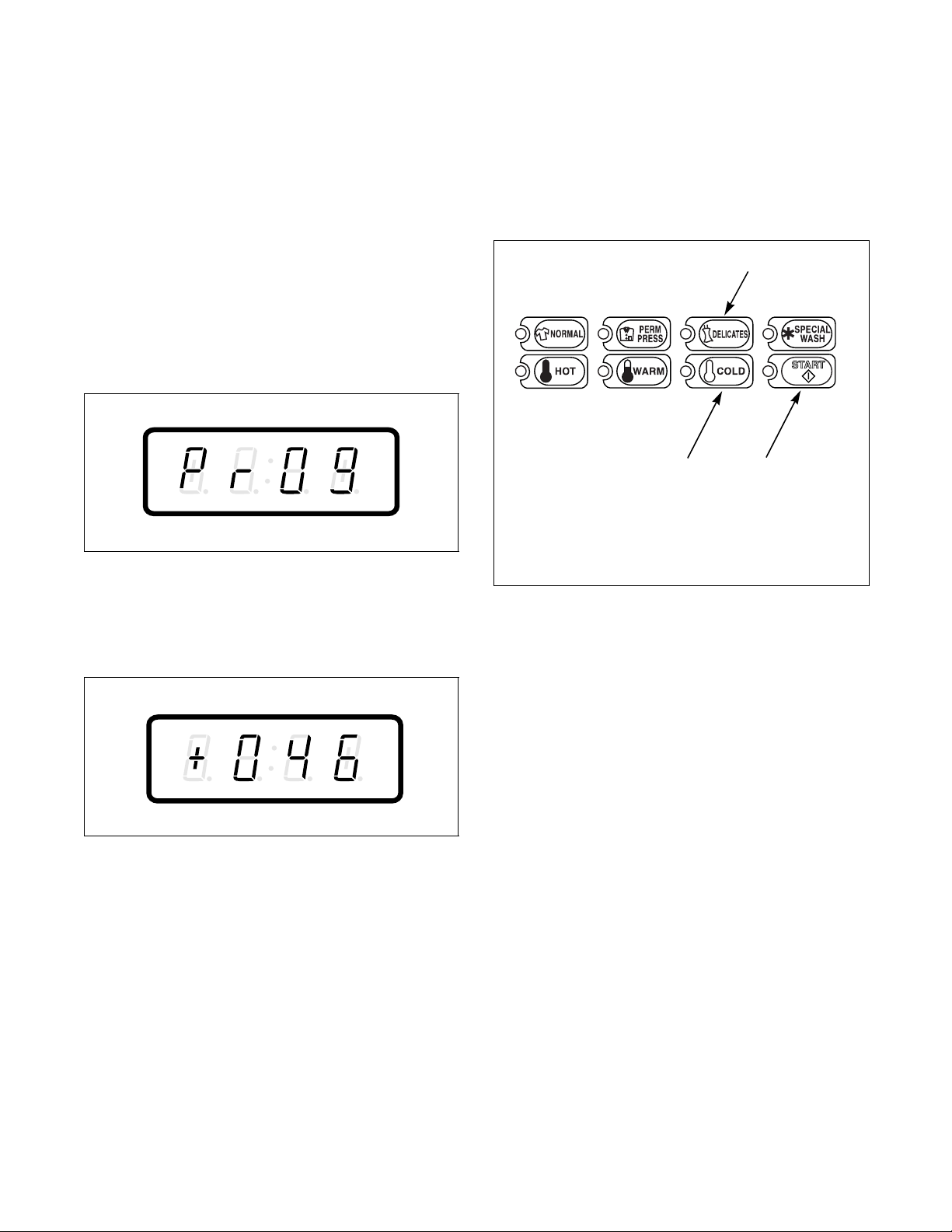

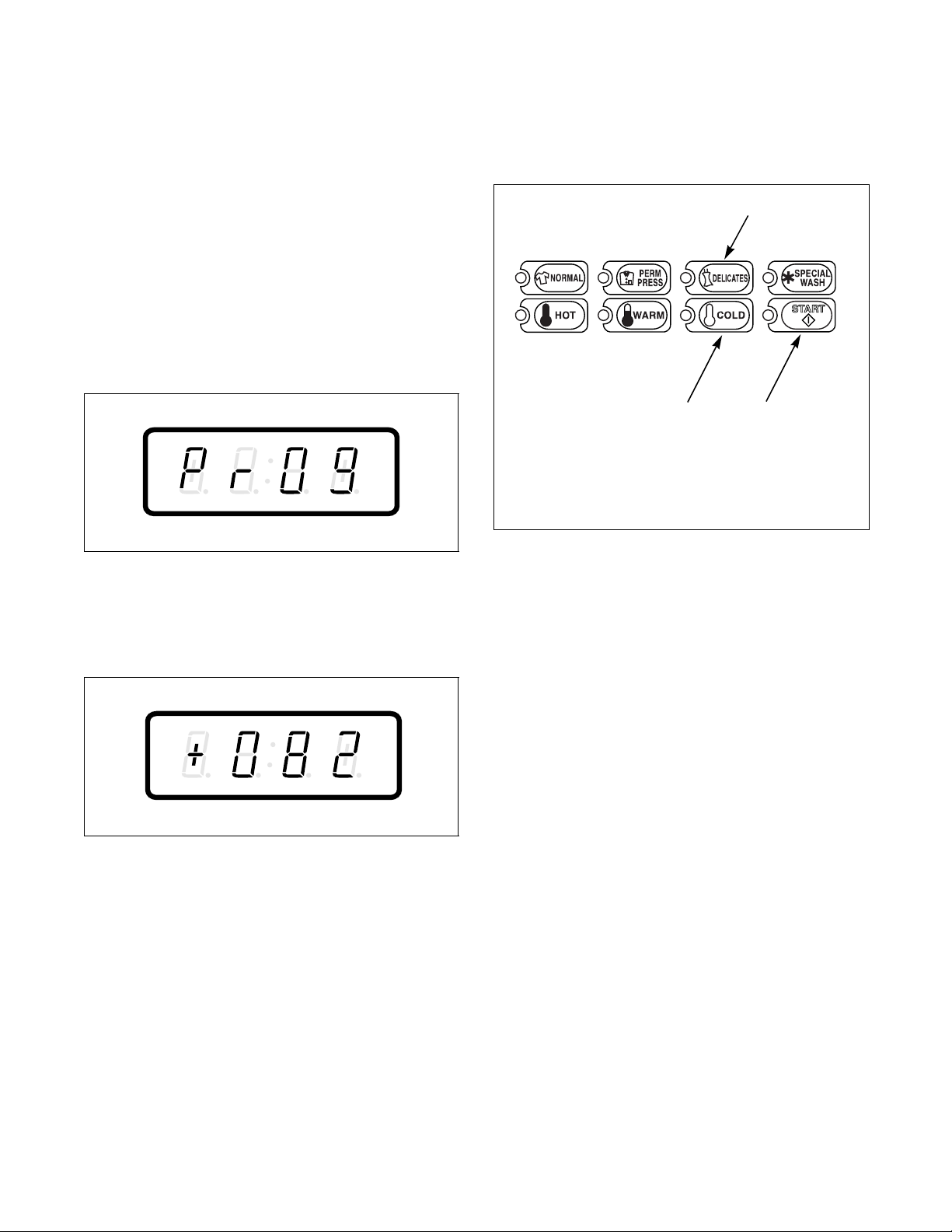

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

4. When “+008” appears in the VFD, press the

START (enter) keypad. There are five digits in the Site Code #1 Hot Regular Wash Vend Price. The fifth digit will appear in the VFD and will flash one second on, one second off. Refer to Figure 5.

C826I

Figure 5

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 6.

1

C762I

Figure 3

3. Press the DELICA TES (+) or the COLD (-) keypad to scroll through the programmable options until “+008” appears in the VFD. Refer to Figure 4.

C770I

Figure 4

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 6

neednew#2

B029R

F232152

11

Programming NetMaster

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 7.

C827I

Figure 7

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The ne xt option, “+009”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

NOTE: To program “+009” (Site Code #1 Warm Regular Wash Vend Price), refer to option 9. To program other options, refer to the appropriate section.

12

F232152

Programming NetMaster

9. Site Code #1 Warm Regular Wash Vend Price “+009”

This option allows the owner to set the vend price for a warm regular wash when cards with a special site code are used by specific groups or individuals.

How to Program the Site Code #1 Warm Regular Wash Vend Price

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

4. When “+009” appears in the VFD, press the

START (enter) keypad. There are five digits in the Site Code #1 Warm Regular Wash Vend Price. The fifth digit will appear in the VFD and will flash one second on, one se cond o ff. Refer to Figure 10.

C826I

Figure 10

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 11.

1

C762I

Figure 8

3. Press the DELICA TES (+) or the COLD (-) keypad to scroll through the programmable options until “+009” appears in the VFD. Refer to Figure 9.

C771I

Figure 9

C771I

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 11

neednew#2

B029R

F232152

13

Programming NetMaster

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 12.

C827I

Figure 12

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The ne xt option, “+010”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

NOTE: To program “+010” (Site Code #1 Cold Regular Wash Vend Price), refer to option 10. To program other options, refer to the appropriate section.

14

F232152

Programming NetMaster

10. Site Code #1 Cold Regular Wash Vend Price “+010”

This option allows the owner to set the vend price for a cold regular wash when cards with a special site code are used by specific groups or individuals.

How to Program the Site Code #1 Cold Regular Wash Vend Price

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

4. When “+010” appears in the VFD, press the

ST ART (enter) keypad. There are five digits in the Site Code #1 Cold Regular Wash Vend Price. The fifth digit will appear in the VFD and will flash one second on, one second off. Refer to F i gur e 15 .

C826I

Figure 15

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 16.

1

Figure 13

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+010” appears in the VFD. Refer to Figure 14.

C772I

Figure 14

C762I

C772I

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 16

neednew#2

B029R

F232152

15

Programming NetMaster

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 17.

C827I

Figure 17

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The ne xt option, “+011”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

NOTE: To program “+011” (Site Code #1 Hot Special Wash Vend Price), refer to option 11. To program other options, refer to the appropriate section.

16

F232152

Programming NetMaster

11. Site Code #1 Hot Special Wash Vend Price “+011”

This option allows the owner to set the vend price for a hot special wash when cards with a special site code are used by specific groups or individuals.

How to Program the Site Code #1 Hot Special Wash Vend Price

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

4. When “+011” appears in the VFD, press the

START (enter) keypad. There are five digits in the Site Code #1 Hot Special Wash Vend Price. The fifth digit will appear in the VFD and will flash one second on, one second off. Refer to Figure 20.

C826I

Figure 20

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 21.

1

C762I

Figure 18

3. Press the DELICA TES (+) or the COLD (-) keypad to scroll through the programmable options until “+011” appears in the VFD. Refer to Figure 19.

C773I

Figure 19

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 21

neednew#2

B029R

F232152

17

Programming NetMaster

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 22.

C827I

Figure 22

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The ne xt option, “+012”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

NOTE: To program “+012” (Site Code #1 Warm Special Wash Vend Price), refer to option 12. To program other options, refer to the appropriate section.

18

F232152

Programming NetMaster

12. Site Code #1 Warm Special Wash Vend Price “+012”

This option allows the owner to set the vend price for a warm special wash when cards with a special site code are used by specific groups or individuals.

How to Program the Site Code #1 Warm Special Wash Vend Price

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

4. When “+012” appears in the VFD, press the

START (enter) keypad. There are five digits in the Site Code #1 Warm Special Wash Vend Price. The fifth digit will appear in the VFD and will flash one second on, one se cond o ff. Refer to Figure 25.

C826I

Figure 25

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 26.

1

C762I

Figure 23

3. Press the DELICA TES (+) or the COLD (-) keypad to scroll through the programmable options until “+012” appears in the VFD. Refer to Figure 24.

C774I

Figure 24

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 26

neednew#2

B029R

F232152

19

Programming NetMaster

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 27.

C827I

Figure 27

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The ne xt option, “+013”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

NOTE: To program “+013” (Site Code #1 Cold Special Wash Vend Price), refer to option 13. To program other options, refer to the appropriate section.

20

F232152

Programming NetMaster

13. Site Code #1 Cold Special Wash Vend Price “+013”

This option allows the owner to set the vend price for a cold special wash when cards with a special site code are used by specific groups or individuals.

How to Program the Site Code #1 Cold Special Wash Vend Price

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

4. When “+013” appears in the VFD, press the

ST ART (enter) keypad. There are five digits in the Site Code #1 Cold Special Wash Vend Price. The fifth digit will appear in the VFD and will flash one second on, one second off. Refer to F i gur e 30 .

C826I

Figure 30

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 31.

1

Figure 28

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+013” appears in the VFD. Refer to Figure 29.

Figure 29

C762I

C775I

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 31

neednew#2

B029R

F232152

21

Programming NetMaster

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 32.

C827I

Figure 32

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The ne xt option, “+014”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

NOTE: To program “+014” (Special Cycle Vend Price), refer to option 14. To program other options, refer to the appropriate section.

22

F232152

Programming NetMaster

14. Special Cycle Vend Price “+014”

This option allows the owner to program the machines to offer extra features to the customers for an added vend price. This vend price will be displayed in the VFD during the first 30 seconds of the fi rst f ill/agitate. Refer to options 115, 116 and 117 for programming these features.

How to Program Special Cycle Vend Price

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

4. When “+014” appears in the VFD, press the

START (enter) keypad. There are five digits in the Special Cycle Vend Price. The fifth digit will appear in the VFD and will flash one second on, one second off. Refer to Figure 35.

C826I

Figure 35

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number until correct. Refer to Figure 36.

1

Figure 33

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+014” appears in the VFD. Refer to Figure 34.

C776I

Figure 34

C762I

C776I

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 36

neednew#2

B029R

F232152

23

Programming NetMaster

6. Press the START (enter) keypad to enter the fifth digit and display the remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 37.

C827I

Figure 37

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The ne xt option, “+015”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

NOTE: To program “+015” (Special Vend A Days Enable), refer to option 15 in Programming NetMaster in the Basic Programming Guide. To program other options, refer to the appropriate section.

24

F232152

Programming NetMaster

22. Special Vend A Site Code #1 “+022”

This option allows the owner to program the machines to accept site codes for Special Vend A that are specific to select groups or individuals when using cards. It allows the owner to only give Special Vend A pricing for a card with this site code. If Special Vend A Site Code is zero, then Special Vend A pricing will apply to all cards.

How to Program the Special Vend A Site Code #1

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

4. When “+022” appears in the VFD, press the

START (enter) keypad. There are five digits in the Special Vend A Site Code #1. The fifth digit will appear in the VFD and will flash one second on, one second off. Refer to Figure 40.

C826I

Figure 40

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 41.

1

Figure 38

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+022” appears in the VFD. Refer to Figure 39.

C790I

Figure 39

C762I

C790I

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 41

neednew#2

B029R

F232152

25

Programming NetMaster

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 42.

C828I

Figure 42

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The ne xt option, “+023”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

NOTE: To program “+023” (Special Vend A Regular Hot W ash Vend Price), refer to option 23 in Programming NetMaster in the Basic Programming Guide. To program other options, refer to the appropriate section.

26

F232152

Programming NetMaster

32. Start Pulse Value “+032”

This option allows the owner to program the value of the Start Pulse if used for multiple pulses with an aftermarket central card reader or pay system. Refer to option 124 for additional information.

How to Program Start Pulse Value

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

4. When “+032” appears in the VFD, press the START (enter) keypad. There are five digits in the Start Pulse Value. The fifth digit will appear in the VFD and will flash one second on and one second off. Refer to Figure 45.

C826I

Figure 45

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 46.

1

Figure 43

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+032” appears in the VFD. Refer to Figure 44.

C780I

Figure 44

C780I

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

neednew#2

B029R

Figure 46

F232152

27

Programming NetMaster

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 47.

C827I

Figure 47

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The ne xt option, “+033”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

NOTE: To program “+033” (Default Cycle/ Temperature), refer to option 33 in Programming NetMaster in the Basic Programming Guide. To program other options, refer to the appropriate section.

28

F232152

Programming NetMaster

34. Power Fail Reset “+034”

This option allows the owner to set the amount of time NetMaster will store active cycle information in the event of a po wer failure. The default settings for Po wer Fail Reset are fiv e minutes and turned “OFF.” If Power Fail Reset is turned “OFF,” the cycle will be saved for up to six years.

How to Program Power Fail Reset

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 48

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+034” appears in the VFD. Refer to Figure 49.

5. Press the DELICA TES (+) or the COLD (-) ke ypad to increase or decrease the current number to the desired number selected from Table 1. Refer to Figure 50.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 50

neednew#2

B029R

6. Press the ST ART (enter) keypad when the correct number appears in the VFD. The next option, “+035”, will appear in the VFD.

NOTE: To program “+035” (Set Real-Time Clock Minutes), refer to option 35 in Programming NetMaster in the Basic Programming Guide. To program other options, refer to the appropriate section.

C778I

Figure 49

4. When “+034” appears in the VFD, press the

START (enter) keypad. A number will appear in the VFD. This number corresponds to the current Power Fail Reset setting.

F232152

C778I

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

29

Programming NetMaster

Reading Table 1

Use this table to set the amount of time for Power Fail Reset.

The table range begins at 0 and ends at 255. Numbers

If 133 is entered, the current cycle will be sav ed for up to five minutes. If power is not restored within five minutes, the control will erase the cycle status. The minimum power failure time is five minutes. The

maximum power fail reset time is 127 minutes. entered between 0 and 127 turn the option “OFF.” If a number in this range is entered, the current cycle status will be saved for up to six years. When power is restored, the cycle will begin where it was interrupted.

“+034”

Power Fail Reset Value Power Fail Reset ON/OFF Power Fail Reset Time

0 – 127 OFF 0

133 – 255 ON 5 – 127 min.

Table 1

30

F232152

Programming NetMaster

43. Normal PreWash #2 Fill/Tumble

Time “+043”

This option allows the owner to set the amount of time for PreWash #2 during fill and tumble of the Normal cycle.

How to Program Normal PreWash #2 Fill/Tumble Time

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 51

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+043” appears in the VFD. Refer to Figure 52.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 53.

NOTE: The Normal PreWash #2 Fill/Tumble Time can be set from zero (0) to 15 minutes.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 53

neednew#2

B029R

6. Press the ST ART (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+044”, will appear in the VFD.

Figure 52

4. When “+043” appears in the VFD, press the

START (enter) keypad. The current number of minutes set for the Normal PreWash #2 Fill/ Tumble Time will appear in the VFD.

C804I

NOTE: To program “+044” (Normal Wash Fill/ Tumble Time), refer to option 44 in Programming NetMaster in the Basic Programming Guide. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

F232152

31

Programming NetMaster

46. Normal Rinse Extra Fill/Tumble Time “+046”

This option allows the owner to set the amount of ex tra rinse fill/tumble time for the Normal cycle.

How to Program Normal Rinse Extra Fill/Tumble Time

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 54

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 56.

NOTE: The Normal Rinse Extra Fill/Tumble Time can be set from zero (0) to 15 minutes.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

neednew#2

B029R

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+046” appears in the VFD. Refer to Figure 55.

Figure 55

4. When “+046” appears in the VFD, press the START (enter) keypad. The current number of minutes set for the Normal Rinse Extra Fill/ Tumble Time will appear in the VFD.

Figure 56

6. Press the ST ART (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+047”, will appear in the VFD.

NOTE: To program “+047” (Normal Rinse Final Fill/Tumble Time), refer to option 47 in Programming NetMaster in the Basic Programming Guide. To program other options, refer to the appropriate section.

How to Exit Programming Feature

C807I

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

32

F232152

Programming NetMaster

49. Normal Spin Extract Speed “+049”

This option allows the owner to program the speed of extraction during the Normal cycle on Variable Frequency Drive models (NCV, NRV, or NXV) only.

How to Program Normal Spin Extract Speed

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 57

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+049” appears in the VFD. Refer to Figure 58.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current extraction speed displayed in the VFD to the desired extraction speed. Refer to Figure 59.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 59

neednew#2

B029R

6. Press the ST ART (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+050”, will appear in the VFD.

NOTE: To program “+050” (Normal Extracts On/ Off), refer to option 50. To program other options, refer to the appropriate section.

C810I

Figure 58

4. When “+049” appears in the VFD, press the

START (enter) keypad. The current number set for the Normal Spin Extract Speed will appear in the VFD.

Value of 0 = High Sp eed Value of 1 = Very High Speed

NOTE: Very High Speed is available on Variable Frequency Drive models (NRV) only.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

F232152

33

Programming NetMaster

50. Normal Extracts On/Off “+050”

This option allows the owner to turn on and off intermediate extractions during the Normal cycle.

How to Program Normal Extracts On/Off

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 60

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+050” appears in the VFD. Refer to Figure 61.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current extract value displayed in the VFD to the desired extract value as found in Table 2. Refer to Figure 62.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 62

neednew#2

B029R

6. Press the ST ART (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+051”, will appear in the VFD.

Figure 61

4. When “+050” appears in the VFD, press the

START (enter) keypad. The current number set for the Normal Extracts On/Off will appear in the VFD.

C811I

NOTE: To program “+051” (Permanent Press PreW ash #1 Fill/Tumble Time), refer to option 51 in Programming NetMaster in the Basic Programming Guide. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

34

F232152

Programming NetMaster

Reading Table 2

To determine correct extract value required, review table below. Read each row from left to right. Starting number of row indicates required extract value number

Extract value number is followed by six option columns. Option columns state whether an action is ON or OFF (ON indicates option is turned on, OFF indicates option is turned off).

to be entered into electronic control.

Extract Value PreWash #1 PreWash #2 Wash Initial Rinse Extra Rinse Final Rinse

000 OFF OFF OFF OFF OFF OFF 001 ON OFFOFFOFFOFFOFF 002 OFF ON OFF OFF OFF OFF 003 ON ON OFF OFF OFF OFF 004 OFF OFF ON OFF OFF OFF 005 ON OFF ON OFF OFF OFF 006 OFF ON ON OFF OFF OFF 007 ON ON ON OFF OFF OFF 008 OFF OFF OFF ON OFF OFF 009 ON OFF OFF ON OFF OFF 010 OFF ON OFF ON OFF OFF 011 ON ON OFF ON OFF OFF 012 OFF OFF ON ON OFF OFF 013 ON OFF ON ON OFF OFF 014 OFF ON ON ON OFF OFF 015 ON ON ON ON OFF OFF 016 OFF OFF OFF OFF ON OFF 017 ON OFF OFF OFF ON OFF 018 OFF ON OFF OFF ON OFF 019 ON ON OFF OFF ON OFF 020 OFF OFF ON OFF ON OFF 021 ON OFF ON OFF ON OFF 022 OFF ON ON OFF ON OFF 023 ON ON ON OFF ON OFF 024 OFF OFF OFF ON ON OFF 025 ON OFF OFF ON ON OFF 026 OFF ON OFF ON ON OFF 027 ON ON OFF ON ON OFF 028 OFF OFF ON ON ON OFF 029 ON OFF ON ON ON OFF 030 OFF ON ON ON ON OFF 031 ON ON ON ON ON OFF 032 OFF OFF OFF OFF OFF ON 033 ON OFFOFFOFFOFF ON

F232152

Table 2 (Continued)

35

Programming NetMaster

Table 2 (Continued)

Extract Value PreWash #1 PreWash #2 Wash Initial Rinse Extra Rinse Final Rinse

034 OFF ON OFF OFF OFF ON 035 ON ON OFF OFF OFF ON 036 OFF OFF ON OFF OFF ON 037 ON OFF ON OFF OFF ON 038 OFF ON ON OFF OFF ON 039 ON ON ON OFF OFF ON 040 OFF OFF OFF ON OFF ON 041 ON OFF OFF ON OFF ON 042 OFF ON OFF ON OFF ON 043 ON ON OFF ON OFF ON 044 OFF OFF ON ON OFF ON 045 ON OFF ON ON OFF ON 046 OFF ON ON ON OFF ON 047 ON ON ON ON OFF ON 048 OFF OFF OFF OFF ON ON 049 ON OFF OFF OFF ON ON 050 OFF ON OFF OFF ON ON 051 ON ON OFF OFF ON ON 052 OFF OFF ON OFF ON ON 053 ON OFF ON OFF ON ON 054 OFF ON ON OFF ON ON 055 ON ON ON OFF ON ON 056 OFF OFF OFF ON ON ON 057 ON OFF OFF ON ON ON 058 OFF ON OFF ON ON ON 059 ON ON OFF ON ON ON 060 OFF OFF ON ON ON ON 061 ON OFF ON ON ON ON 062 OFF ON ON ON ON ON 063 ON ON ON ON ON ON

36

F232152

Programming NetMaster

52. Permanent Press PreWash #2 Fill/Tumble Time “+052”

This option allows the owner to set the amount of PreWash #2 fill/tumble time for the Permanent Press cycle.

How to Program Permanent Press PreWash #2 Fill/Tumble Time

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 63

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 65.

NOTE: The Permanent Press PreW ash #2 Fill/Tumble Time can be set from zero (0) to 15 minutes.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

neednew#2

B029R

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+052” appears in the VFD. Refer to Figure 64.

Figure 64

4. When “+052” appears in the VFD, press the START (enter) keypad. The current number of minutes set for the Permanent Press PreWash #2 Fill/Tumble Time will appear in the VFD.

Figure 65

6. Press the ST ART (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+053”, will appear in the VFD.

NOTE: To program “+053” (Permanent Press Wash Fill/Tumble Time), refer to option 53 in Programming NetMaster in the Basic Programming Guide. To program other options, refer to the appropriate section.

How to Exit Programming Feature

C813I

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

F232152

37

Programming NetMaster

55. Permanent Press Rinse Extra Fill/Tumble Time “+055”

This option allows the owner to set the amount of ex tra rinse fill/tumble time for the Permanent Press cycle.

How to Program Permanent Press Rinse Extra Fill/Tumble Time

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 66

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+055” appears in the VFD. Refer to Figure 67.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 68.

NOTE: The Permanent Press Rinse Extra Fill/Tumble Time can be set from zero (0) to 15 minutes.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 68

neednew#2

6. Press the ST ART (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+056”, will appear in the VFD.

B029R

Figure 67

4. When “+055” appears in the VFD, press the

START (enter) keypad. The current number of minutes set for the Permanent Press Rinse Extra Fill/Tumble Time will appear in the VFD.

C816I

NOTE: To program “+056” (Permanent Press Rinse Final Fill/Tumble Time), r efer to option 56 in Programming NetMaster in the Basic Programming Guide. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

38

F232152

Programming NetMaster

58. Permanent Press Spin Extract Speed “+058”

This option allows the owner to program the speed of extraction during the Permanent Press cycle on Variable Frequency Drive models (NCV, NRV, or NXV) only.

How to Program Permanent Press Spin Extract Speed

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current extraction speed displayed in the VFD to the desired extraction speed. Refer to Figure 71.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 71

neednew#2

B029R

Figure 69

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+058” appears in the VFD. Refer to Figure 70.

Figure 70

4. When “+058” appears in the VFD, press the START (enter) keypad. The current number set for the Permanent Press Spin Extract Speed will appear in the VFD.

Value of 0 = High Sp eed

C762I

C819I

6. Press the ST ART (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+059”, will appear in the VFD.

NOTE: To program “+059” (Permanent Press Extracts On/Off), refer to option 59. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

Value of 1 = Very High Speed

NOTE: Very High Speed is available on Variable Frequency Drive models (NRV) only.

F232152

39

Programming NetMaster

59. Permanent Press Extracts On/Off “+059”

This option allows the owner to turn on and off intermediate extractions during the Permanent Press cycle.

How to Program Permanent Press Extracts On/Off

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 72

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+059” appears in the VFD. Refer to Figure 73.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current extract value displayed in the VFD to the desired extract value. Refer to Figure 74.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 74

neednew#2

B029R

6. Press the ST ART (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+060”, will appear in the VFD.

NOTE: To program “+060” (Delicates PreWash #1 Fill/Tumble Time), refer to option 60. To program other options, refer to the appropriate section.

Figure 73

4. When “+059” appears in the VFD, press the

START (enter) keypad. The current number set for the Permanent Press Extracts On/Off will appear in the VFD.

C820I

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

40

F232152

Programming NetMaster

Reading Table 3

To determine correct extract value required, review table below. Read each row from left to right. Starting number of row indicates required extract value number

Extract value number is followed by six option columns. Option columns state whether an action is ON or OFF (ON indicates option is turned on, OFF indicates option is turned off).

to be entered into electronic control.

Extract Value PreWash #1 PreWash #2 Wash Initial Rinse Extra Rinse Final Rinse

000 OFF OFF OFF OFF OFF OFF 001 ON OFFOFFOFFOFFOFF 002 OFF ON OFF OFF OFF OFF 003 ON ON OFF OFF OFF OFF 004 OFF OFF ON OFF OFF OFF 005 ON OFF ON OFF OFF OFF 006 OFF ON ON OFF OFF OFF 007 ON ON ON OFF OFF OFF 008 OFF OFF OFF ON OFF OFF 009 ON OFF OFF ON OFF OFF 010 OFF ON OFF ON OFF OFF 011 ON ON OFF ON OFF OFF 012 OFF OFF ON ON OFF OFF 013 ON OFF ON ON OFF OFF 014 OFF ON ON ON OFF OFF 015 ON ON ON ON OFF OFF 016 OFF OFF OFF OFF ON OFF 017 ON OFF OFF OFF ON OFF 018 OFF ON OFF OFF ON OFF 019 ON ON OFF OFF ON OFF 020 OFF OFF ON OFF ON OFF 021 ON OFF ON OFF ON OFF 022 OFF ON ON OFF ON OFF 023 ON ON ON OFF ON OFF 024 OFF OFF OFF ON ON OFF 025 ON OFF OFF ON ON OFF 026 OFF ON OFF ON ON OFF 027 ON ON OFF ON ON OFF 028 OFF OFF ON ON ON OFF 029 ON OFF ON ON ON OFF 030 OFF ON ON ON ON OFF 031 ON ON ON ON ON OFF 032 OFF OFF OFF OFF OFF ON 033 ON OFFOFFOFFOFF ON

F232152

Table 3 (Continued)

41

Programming NetMaster

Table 3 (Continued)

Extract Value PreWash #1 PreWash #2 Wash Initial Rinse Extra Rinse Final Rinse

034 OFF ON OFF OFF OFF ON 035 ON ON OFF OFF OFF ON 036 OFF OFF ON OFF OFF ON 037 ON OFF ON OFF OFF ON 038 OFF ON ON OFF OFF ON 039 ON ON ON OFF OFF ON 040 OFF OFF OFF ON OFF ON 041 ON OFF OFF ON OFF ON 042 OFF ON OFF ON OFF ON 043 ON ON OFF ON OFF ON 044 OFF OFF ON ON OFF ON 045 ON OFF ON ON OFF ON 046 OFF ON ON ON OFF ON 047 ON ON ON ON OFF ON 048 OFF OFF OFF OFF ON ON 049 ON OFF OFF OFF ON ON 050 OFF ON OFF OFF ON ON 051 ON ON OFF OFF ON ON 052 OFF OFF ON OFF ON ON 053 ON OFF ON OFF ON ON 054 OFF ON ON OFF ON ON 055 ON ON ON OFF ON ON 056 OFF OFF OFF ON ON ON 057 ON OFF OFF ON ON ON 058 OFF ON OFF ON ON ON 059 ON ON OFF ON ON ON 060 OFF OFF ON ON ON ON 061 ON OFF ON ON ON ON 062 OFF ON ON ON ON ON 063 ON ON ON ON ON ON

42

F232152

Programming NetMaster

60. Delicates PreWash #1 Fill/Tumble Time “+060”

This option allows the owner to set the amount of PreWash #1 fill/tumble time for the Delicates cycle.

How to Program Delicates PreWash #1 Fill/Tumble Time

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

Figure 75

C762I

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 77.

NOTE: The Delicates PreWash #1 Fill/Tumble Time can be set from zero (0) to 15 minutes.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

neednew#2

B029R

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+060” appears in the VFD. Refer to Figure 76.

Figure 76

4. When “+060” appears in the VFD, press the START (enter) keypad. The current number of minutes set for the Delicates PreWash #1 Fill/Tumble Time will appear in the VFD.

C860I

Figure 77

6. Press the ST ART (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+061”, will appear in the VFD.

NOTE: To program “+061” (Delicates PreWash #2 Fill/Tumble Time), refer to option 61. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

F232152

43

Programming NetMaster

61. Delicates PreWash #2 Fill/Tumble Time “+061”

This option allows the owner to set the amount of PreWash #2 fill/tumble time for the Delicates cycle.

How to Program Delicates PreWash #2 Fill/Tumble Time

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

Figure 78

C762I

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 80.

NOTE: The Delicates PreWash #2 Fill/Tumble Time can be set from zero (0) to 15 minutes.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

neednew#2

B029R

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+061” appears in the VFD. Refer to Figure 79.

Figure 79

4. When “+061” appears in the VFD, press the START (enter) keypad. The current number of minutes set for the Delicates PreWash #2 Fill/Tumble Time will appear in the VFD.

Figure 80

6. Press the ST ART (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+062”, will appear in the VFD.

NOTE: To program “+062” (Delicates Wash Fill/ Tumble Time), refer to option 62 in Programming NetMaster in the Basic Programming Guide. To program other options, refer to the appropriate section.

How to Exit Programming Feature

C861I

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

44

F232152

Programming NetMaster

64. Delicates Rinse Extra Fill/ Tumble Time “+064”

This option allows the owner to set the amount of ex tra rinse fill/tumble time for the Delicates cycle.

How to Program Delicates Rinse Extra Fill/ Tumble Time

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 81

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 83.

NOTE: The Delicates Rinse Extra Fill/Tumble Time can be set from zero (0) to 15 minutes.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

neednew#2

B029R

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+064” appears in the VFD. Refer to Figure 82.

C864I

Figure 82

4. When “+064” appears in the VFD, press the START (enter) keypad. The current number of minutes set for the Delicates Rinse Extra Fill/ Tumble Time will appear in the VFD.

Figure 83

6. Press the ST ART (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+065”, will appear in the VFD.

NOTE: To program “+065” (Delicates Rinse Final Fill/Tumble Time), refer to option 65 in Programming NetMaster in the Basic Programming Guide. To program other options, refer to the appropriate section.

How to Exit Programming Feature

C864I

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

F232152

45

Programming NetMaster

67. Delicates Spin Extract Speed “+067”

This option allows the owner to program the speed of extraction during the Delicates cycle on Variable Frequency Drive models (NCV, NRV, or NXV) only.

How to Program Delicates Spin Extract Speed

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 84

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+067” appears in the VFD. Refer to Figure 85.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current extraction speed displayed in the VFD to the desired extraction speed. Refer to Figure 86.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 86

neednew#2

6. Press the ST ART (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+068”, will appear in the VFD.

NOTE: To program “+068” (Delicates Extracts On/Off), refer to option 68. To program other options, refer to the appropriate section.

B029R

COM118N

Figure 85

4. When “+067” appears in the VFD, press the

START (enter) keypad. The current number set for the Delicates Spin Extract Speed will appear in the VFD.

Value of 0 = High Sp eed Value of 1 = Very High Speed

NOTE: Very High Speed is available on Variable Frequency Drive models (NRV) only.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

46

F232152

Programming NetMaster

68. Delicates Extracts On/Off “+068”

This option allows the owner to turn on and off intermediate extractions during the Delicates cycle.

How to Program Delicates Extracts On/Off

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 87

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current extract value displayed in the VFD to the desired extract value. Refer to Figure 89.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 89

neednew#2

B029R

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+068” appears in the VFD. Refer to Figure 88.

COM119N

Figure 88

4. When “+068” appears in the VFD, press the START (enter) keypad. The current number set for the Delicates Extracts On/Off will appear in the VFD.

6. Press the ST ART (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+069”, will appear in the VFD.

NOTE: To program “+069” (Special Wa sh PreW ash #1 Fill/Tumble Time), refer to option 69 in Programming NetMaster in the Basic Programming Guide. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

F232152

47

Programming NetMaster

Reading Table 4

To determine correct extract value required, review table below. Read each row from left to right. Starting number of row indicates required extract value number

Extract value number is followed by six option columns. Option columns state whether an action is ON or OFF (ON indicates option is turned on, OFF indicates option is turned off).

to be entered into electronic control.

Extract Value PreWash #1 PreWash #2 Wash Initial Rinse Extra Rinse Final Rinse

000 OFF OFF OFF OFF OFF OFF 001 ON OFFOFFOFFOFFOFF 002 OFF ON OFF OFF OFF OFF 003 ON ON OFF OFF OFF OFF 004 OFF OFF ON OFF OFF OFF 005 ON OFF ON OFF OFF OFF 006 OFF ON ON OFF OFF OFF 007 ON ON ON OFF OFF OFF 008 OFF OFF OFF ON OFF OFF 009 ON OFF OFF ON OFF OFF 010 OFF ON OFF ON OFF OFF 011 ON ON OFF ON OFF OFF 012 OFF OFF ON ON OFF OFF 013 ON OFF ON ON OFF OFF 014 OFF ON ON ON OFF OFF 015 ON ON ON ON OFF OFF 016 OFF OFF OFF OFF ON OFF 017 ON OFF OFF OFF ON OFF 018 OFF ON OFF OFF ON OFF 019 ON ON OFF OFF ON OFF 020 OFF OFF ON OFF ON OFF 021 ON OFF ON OFF ON OFF 022 OFF ON ON OFF ON OFF 023 ON ON ON OFF ON OFF 024 OFF OFF OFF ON ON OFF 025 ON OFF OFF ON ON OFF 026 OFF ON OFF ON ON OFF 027 ON ON OFF ON ON OFF 028 OFF OFF ON ON ON OFF 029 ON OFF ON ON ON OFF 030 OFF ON ON ON ON OFF 031 ON ON ON ON ON OFF 032 OFF OFF OFF OFF OFF ON 033 ON OFFOFFOFFOFF ON

48

Table 4 (Continued)

F232152

Programming NetMaster

Table 4 (Continued)

Extract Value PreWash #1 PreWash #2 Wash Initial Rinse Extra Rinse Final Rinse

034 OFF ON OFF OFF OFF ON 035 ON ON OFF OFF OFF ON 036 OFF OFF ON OFF OFF ON 037 ON OFF ON OFF OFF ON 038 OFF ON ON OFF OFF ON 039 ON ON ON OFF OFF ON 040 OFF OFF OFF ON OFF ON 041 ON OFF OFF ON OFF ON 042 OFF ON OFF ON OFF ON 043 ON ON OFF ON OFF ON 044 OFF OFF ON ON OFF ON 045 ON OFF ON ON OFF ON 046 OFF ON ON ON OFF ON 047 ON ON ON ON OFF ON 048 OFF OFF OFF OFF ON ON 049 ON OFF OFF OFF ON ON 050 OFF ON OFF OFF ON ON 051 ON ON OFF OFF ON ON 052 OFF OFF ON OFF ON ON 053 ON OFF ON OFF ON ON 054 OFF ON ON OFF ON ON 055 ON ON ON OFF ON ON 056 OFF OFF OFF ON ON ON 057 ON OFF OFF ON ON ON 058 OFF ON OFF ON ON ON 059 ON ON OFF ON ON ON 060 OFF OFF ON ON ON ON 061 ON OFF ON ON ON ON 062 OFF ON ON ON ON ON 063 ON ON ON ON ON ON

F232152

49

Programming NetMaster

70. Special Wash PreWash #2 Fill/ Tumble Time “+070”

This option allows the owner to set the amount of time for PreWash #2 during fill and tumble of the Special Wash cycle.

How to Program Special Wash PreWash #2 Fill/Tumble Time

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 92.

NOTE: The Special Wash PreWash #2 Fill/Tumble Time can be set from zero (0) to 15 minutes.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

neednew#2

B029R

Figure 90

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+070” appears in the VFD. Refer to Figure 91.

COM120N

Figure 91

4. When “+070” appears in the VFD, press the START (enter) keypad. The current number of minutes set for the Special Wash PreWash #2 Fill/Tumble Time will appear in the VFD.

Figure 92

6. Press the ST ART (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+071”, will appear in the VFD.

NOTE: To program “+071” (Special Wash Wash Fill/Tumble Time), refer to option 71 in Programming NetMaster in the Basic Programming Guide. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

50

F232152

Programming NetMaster

73. Special Wash Rinse Extra Fill/ Tumble Time “+073”

This option allows the owner to set the amount of time for an extra rinse fill/tumble in the Special Wash cycle.

How to Program Special W ash Rinse Extra Fill/Tumble Time

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 93

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 95.

NOTE: The Special Wash Rinse Extra Fill/Tumble Time can be set from zero (0) to 15 minutes.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

neednew#2

B029R

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+073” appears in the VFD. Refer to Figure 94.

COM121N

Figure 94

4. When “+073” appears in the VFD, press the START (enter) keypad. The current number of minutes set for the Special Wash Rinse Extra Fill/ Tumble Time will appear in the VFD.

Figure 95

6. Press the ST ART (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+074”, will appear in the VFD.

NOTE: To program “+074” (Special Wash Rinse Final Fill/Tumble Time), refer to option 74 in Programming NetMaster in the Basic Programming Guide. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

F232152

51

Programming NetMaster

76. Special Wash Spin Extract Speed “+076”

This option allows the owner to program the speed of extraction during the Special Wash cycle on Variable Frequency Drive models (NCV, NRV, or NXV) only.

How to Program Special Wash Spin Extract Speed

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 96

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+076” appears in the VFD. Refer to Figure 97.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current extraction speed displayed in the VFD to the desired extraction speed. Refer to Figure 98.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 98

neednew#2

B029R

6. Press the ST ART (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+077”, will appear in the VFD.

NOTE: To program “+077” (Special Wa sh Extracts On/Off), refer to option 77. To program other options, refer to the appropriate section.

COM122N

Figure 97

4. When “+076” appears in the VFD, press the

START (enter) keypad. The current number set for the Special Wash Spin Extract Speed will appear in the VFD.

Value of 0 = High Sp eed Value of 1 = Very High Speed

NOTE: Very High Speed is available on Variable Frequency Drive models (NRV) only.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

52

F232152

Programming NetMaster

77. Special Wash Extracts On/Off “+077”

This option allows the owner to turn on and off intermediate extractions during the Special Wash cycle.

How to Program Special Wash Extracts On/Off

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

Figure 99

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+077” appears in the VFD. Refer to Figure 100.

C762I

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current extract value displayed in the VFD to the desired extract value. Refer to Figur e 101 .

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 101

neednew#2

B029R

6. Press the ST ART (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+078”, will appear in the VFD.

NOTE: To program “+078” (PreWash #1/PreWash #2/Rinses Wa ter Temperature), refer to option 78. To program other options, refer to the appropriate section.

COM123N

Figure 100

4. When “+077” appears in the VFD, press the

START (enter) keypad. The current number set for the Special Wash Extracts On/Off will appear in the VFD.

F232152

COM123N

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

53

Programming NetMaster

Reading Table 5

To determine correct extract value required, review table below. Read each row from left to right. Starting number of row indicates required extract value number

Extract value number is followed by six option columns. Option columns state whether an action is ON or OFF (ON indicates option is turned on, OFF indicates option is turned off).

to be entered into electronic control.

Extract Value PreWash #1 PreWash #2 Wash Initial Rinse Extra Rinse Final Rinse

000 OFF OFF OFF OFF OFF OFF 001 ON OFFOFFOFFOFFOFF 002 OFF ON OFF OFF OFF OFF 003 ON ON OFF OFF OFF OFF 004 OFF OFF ON OFF OFF OFF 005 ON OFF ON OFF OFF OFF 006 OFF ON ON OFF OFF OFF 007 ON ON ON OFF OFF OFF 008 OFF OFF OFF ON OFF OFF 009 ON OFF OFF ON OFF OFF 010 OFF ON OFF ON OFF OFF 011 ON ON OFF ON OFF OFF 012 OFF OFF ON ON OFF OFF 013 ON OFF ON ON OFF OFF 014 OFF ON ON ON OFF OFF 015 ON ON ON ON OFF OFF 016 OFF OFF OFF OFF ON OFF 017 ON OFF OFF OFF ON OFF 018 OFF ON OFF OFF ON OFF 019 ON ON OFF OFF ON OFF 020 OFF OFF ON OFF ON OFF 021 ON OFF ON OFF ON OFF 022 OFF ON ON OFF ON OFF 023 ON ON ON OFF ON OFF 024 OFF OFF OFF ON ON OFF 025 ON OFF OFF ON ON OFF 026 OFF ON OFF ON ON OFF 027 ON ON OFF ON ON OFF 028 OFF OFF ON ON ON OFF 029 ON OFF ON ON ON OFF 030 OFF ON ON ON ON OFF 031 ON ON ON ON ON OFF 032 OFF OFF OFF OFF OFF ON 033 ON OFFOFFOFFOFF ON

54

Table 5 (Continued)

F232152

Programming NetMaster

Table 5 (Continued)

Extract Value PreWash #1 PreWash #2 Wash Initial Rinse Extra Rinse Final Rinse

034 OFF ON OFF OFF OFF ON 035 ON ON OFF OFF OFF ON 036 OFF OFF ON OFF OFF ON 037 ON OFF ON OFF OFF ON 038 OFF ON ON OFF OFF ON 039 ON ON ON OFF OFF ON 040 OFF OFF OFF ON OFF ON 041 ON OFF OFF ON OFF ON 042 OFF ON OFF ON OFF ON 043 ON ON OFF ON OFF ON 044 OFF OFF ON ON OFF ON 045 ON OFF ON ON OFF ON 046 OFF ON ON ON OFF ON 047 ON ON ON ON OFF ON 048 OFF OFF OFF OFF ON ON 049 ON OFF OFF OFF ON ON 050 OFF ON OFF OFF ON ON 051 ON ON OFF OFF ON ON 052 OFF OFF ON OFF ON ON 053 ON OFF ON OFF ON ON 054 OFF ON ON OFF ON ON 055 ON ON ON OFF ON ON 056 OFF OFF OFF ON ON ON 057 ON OFF OFF ON ON ON 058 OFF ON OFF ON ON ON 059 ON ON OFF ON ON ON 060 OFF OFF ON ON ON ON 061 ON OFF ON ON ON ON 062 OFF ON ON ON ON ON 063 ON ON ON ON ON ON

F232152

55

Programming NetMaster

78. PreWash #1/PreW ash #2/Rinses Water Temperature “+078”

This option allows the owner to program warm or cold water temperature for PreWash #1, PreWash #2, Initial Rinse, Extra Rinse and Final Rinse.

How to Program PreWash #1/PreWash #2/ Rinses Water Temperature

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 102

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+078” appears in the VFD. Refer to Figure 103.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current value to the desired value selected from Table 6 on the following page. Refer to Figure 104.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 104

neednew#2

B029R

6. Press the ST ART (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+079”, will appear in the VFD.

NOTE: To program “+079” (Fill/Tumbles Water Levels #1), refer to option 79. To program other options, refer to the appropriate section.

COM124N

Figure 103

4. When “+078” appears in the VFD, press the

START (enter) keypad. A number will appear in the VFD. This number corresponds to the curre nt water temperature value for PreW ash #1, PreWash #2, Initial Rinse, Extra Rinse and Final Rinse.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

56

F232152

Programming NetMaster

Reading Table 6

To determine correct temperature value required, review table below. Read each row from left to right.

Temperature value number is followed by five option columns. Option columns state whether an action is HOT, WARM or COLD.

Starting number of row indicates required temperature value number to be entered into electronic control.

Temperature Value Final Rinse Extra Rinse Initial Rinse PreWash #2 PreWash #1

000 CO LD COLD COLD WARM COLD 001 COLD COLD COLD WARM WARM 002 COLD COLD COLD HOT COLD 003 COLD COLD COLD HOT WARM 008 COLD COLD WARM WARM COLD 009 COLD COLD WARM WARM WARM 010 COLD COLD WARM HOT COLD 011 COLD COLD WARM HOT WARM 016 CO LD WARM COLD WARM COLD 017 COLD WARM COLD WARM WARM 018 COLD WARM COLD HOT COLD 019 COLD WARM COLD HOT WARM 024 COLD WARM WARM WARM COLD 025 COLD WARM WARM WARM WARM 026 COLD WARM WARM HOT COLD 027 COLD COLD WARM HOT WARM 032 WARM COLD COLD WARM COLD 033 WARM COLD COLD WARM WARM 034 WARM COLD COLD HOT COLD 035 WARM COLD COLD HOT WARM 040 WARM COLD WARM WARM COLD 041 WARM COLD WARM WARM WARM 042 WARM COLD WARM HOT COLD 043 WARM COLD WARM HOT WARM 048 WARM WARM COLD WARM COLD 049 WARM WARM COLD WARM WARM 050 WARM WARM COLD HOT COLD 051 WARM WARM COLD HOT WARM 056 WARM WARM WARM WARM COLD 057 WARM WARM WARM WARM WARM 058 WARM WARM WARM HOT COLD 059 WARM WARM WARM HOT WARM

F232152

Table 6

57

Programming NetMaster

79. Fill/Tumbles Water Levels #1 “+079”

This option allows the owner to program the water level for PreWash #1, PreWash #2 and Wash during fill and tumble of all cycles.

How to Program Fill/Tumbles Water Levels #1

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current water level value to the desired water level value selected from Table 7 on the following page. Refer to Figure 107.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

neednew#2

B029R

Figure 105

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+079” appears in the VFD. Refer to Figure 106.

COM125N

Figure 106

4. When “+079” appears in the VFD, press the START (enter) keypad. A number will appear in the VFD. This number corresponds to the current PreWash #1, PreWash #2 and Wash water levels during tumble and fill of all cycles.

C762I

Figure 107

6. Press the ST ART (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+080”, will appear in the VFD.

NOTE: To program “+080” (Fill/Tumbles Water Levels #2), refer to option 80. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

58

F232152

Programming NetMaster

Reading Table 7

To determine correct water level value required, review table below. Read each row from left to right. Starting number of row indicates required water level value number to be entered into electronic control.

Water Level Value PreWash #1 PreWash #2 Wash

000 LOW LOW LOW 001 MED LOW LOW 002 HIGH LOW LOW 004 LOW MED LOW 005 MED MED LOW 006 HIGH MED LOW 008 LOW HIGH LOW 009 MED HIGH LOW 010 HIGH HIGH LOW 016 LOW LOW MED 017 MED LOW MED 018 HIGH LOW MED 020 LOW MED MED 021 MED MED MED 022 HIGH MED MED 024 LOW HIGH MED 025 MED HIGH MED 026 HIGH HIGH MED 032 LOW LOW HIGH 033 MED LOW HIGH 034 HIGH LOW HIGH 036 LOW MED HIGH 037 MED MED HIGH 038 HIGH MED HIGH 040 LOW HIGH HIGH 041 MED HIGH HIGH 042 HIGH HIGH HIGH

Water level value number is followed by three option columns. Option columns state whether an action is LOW, MEDIUM or HIGH.

F232152

Table 7

59

Programming NetMaster

80. Fill/Tumbles Water Levels #2 “+080”

This option allows the owner to program the water levels for Initial, Extra and Final Rinses during f ill and tumble of all cycles.

How to Program Fill/Tumbles Water Levels #2

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current water level value to the desired water level value selected from Table 8 on the following page. Refer to Figure 110.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

neednew#2

B029R

Figure 108

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+080” appears in the VFD. Refer to Figure 109.

COM126N

Figure 109

4. When “+080” appears in the VFD, press the START (enter) keypad. A number will appear in the VFD. This number corresponds to the current Initial, Extra and Final Rinse water levels during tumble and fill of all cycles.

C762I

Figure 110

6. Press the ST ART (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+081”, will appear in the VFD.

NOTE: To program “+081” (Configuration Data #1), refer to option 81 in Programming NetMaster in the Basic Programming Guide. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

60

F232152

Programming NetMaster

Reading Table 8

To determine correct water level value required, review table below. Read each row from left to right. Starting number of row indicates required water level value number to be entered into electronic control.

Water Level Value Initial Rinse Extra Rinse Final Rinse

000 LOW LOW LOW 001 MED LOW LOW 002 HIGH LOW LOW 004 LOW MED LOW 005 MED MED LOW 006 HIGH MED LOW 008 LOW HIGH LOW 009 MED HIGH LOW 010 HIGH HIGH LOW 016 LOW LOW MED 017 MED LOW MED 018 HIGH LOW MED 020 LOW MED MED 021 MED MED MED 022 HIGH MED MED 024 LOW HIGH MED 025 MED HIGH MED 026 HIGH HIGH MED 032 LOW LOW HIGH 033 MED LOW HIGH 034 HIGH LOW HIGH 036 LOW MED HIGH 037 MED MED HIGH 038 HIGH MED HIGH 040 LOW HIGH HIGH 041 MED HIGH HIGH 042 HIGH HIGH HIGH

Water level value number is followed by three option columns. Option columns state whether an action is LOW, MEDIUM or HIGH.

F232152

Table 8

61

Programming NetMaster

82. Control Configuration Data #2 “+082”

This option allows the owner to turn “ON” or turn “OFF” preprogrammed capabilities within NetMaster.

How to Program the Control Configuration Data #2

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 111

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+082” appears in the VFD. Refer to Figure 112.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number to the desired number selected from Table 9. Refer to Figure 113.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 113

neednew#2

6. Press the ST ART (enter) keypad when the correct number appears in the VFD. The next option, “+083”, will appear in the VFD.

NOTE: To program “+083” (Control Configuration Data #3), refer to option 83. To program other options, refer to the appropriate section.

B029R

COM127N

Figure 112

4. When “+082” appears in the VFD, press the

START (enter) keypad. A number will appear in the VFD. This number corresponds to the current Control Configuration Data #2 Value.

62

COM127N

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

F232152

Programming NetMaster

Reading Table 9

To determine correct data value required, review Table 9. Read each row from left to right. Starting number of row indicates required data value number to be entered into electronic control.

Data value number is followed by six option columns. Option columns state whether an action is ON or OFF (ON indicates option is turned on, OFF indicates option is turned off).

Table Options

1. Bleach Cycle Programs cycle period (WASH or INITIAL

RINSE) when ADD BLEACH display is lit. Default WASH.

2. Hot Water Temperature Regulation Programs electronic control to regulate (if

equipped) hot water temperature. Refer to option 84 to program hot water temperature. Default ON.

3. Warm Water Temperature Regulation Programs electronic control to regulate (if

equipped) warm water temperature. Refer to option 85 to program warm water temperature. Default OFF.

4. Cold Water Temperature Regulation Programs electronic control to regulate (if

equipped) cold water temperature. Refer to option 86 to program cold water temperature. Default OFF.

5. Fahrenheit/Celsius Programs electronic control to display Fahrenheit

or Celsius temperatures when programing water temperatures. Default CELSIUS.

6. ADD BLEACH Display Programs electronic control to illuminate ADD

BLEACH indicator when chosen period occurs in cycle. Default ON.

F232152

63

Programming NetMaster

NOTE: Fahrenheit or Celsius, Hot Water, Warm Water, and Cold Water Temperature Regulation are for heater equipped models only.

Data

Values

Bleach

Cycle

Hot Water

Temperature

Regulation

Warm Water

Temperature

Regulation

Cold Water

Temperature

Regulation

Fahrenheit or

Celsius

Add Bleach

Display

000 WASH OFF OFF OFF F OFF 001 WASH OFF OFF OFF F ON 002 WASH OFF OFF OFF C OFF 003 WASH OFF OFF OFF C ON 004 WASH ON OFF OFF F OFF 005 WASH ON OFF OFF F ON 006 WASH ON OFF OFF C OFF 007 WASH ON OFF OFF C ON 008 WASH OFF ON OFF F OFF 009 WASH OFF ON OFF F ON 010 WASH OFF ON OFF C OFF 011 WASH OFF ON OFF C ON 012 WASH ON ON OFF F OFF 013 WASH ON ON OFF F ON 014 WASH ON ON OFF C OFF 015 WASH ON ON OFF C ON 016 WASH OFF OFF ON FOFF 017 WASH OFF OFF ON F ON 018 WASH OFF OFF ON COFF 019 WASH OFF OFF ON C ON 020 WASH ON OFF ON FOFF 021 WASH ON OFF ON F ON 022 WASH ON OFF ON COFF 023 WASH ON OFF ON C ON 024 WASH OFF ON ON FOFF 025 WASH OFF ON ON F ON 026 WASH OFF ON ON COFF 027 WASH OFF ON ON C ON 028 WASH ON ON ON FOFF 029 WASH ON ON ON F ON 030 WASH ON ON ON COFF 031 WASH ON ON ON C ON 064 RINSE OFF OFF OFF F OFF 065 RINSE OFF OFF OFF F ON 066 RINSE OFF OFF OFF C OFF

64

Table 9 (Continued)

F232152

Table 9 (Continued)

Programming NetMaster

Data

Values

Bleach

Cycle

Hot Water

Temperature

Regulation

Warm Water

Temperature

Regulation

Cold Water

Temperature

Regulation

Fahrenheit or

Celsius

Add Bleach

Display

067 RINSE OFF OFF OFF C ON 068 RINSE ON OFF OFF F OFF 069 RINSE ON OFF OFF F ON 070 RINSE ON OFF OFF C OFF 071 RINSE ON OFF OFF C ON 072 RINSE OFF ON OFF F OFF 073 RINSE OFF ON OFF F ON 074 RINSE OFF ON OFF C O FF 075 RINSE OFF ON OFF C ON 076 RINSE ON ON OFF F OFF 077 RINSE ON ON OFF F ON 078 RINSE ON ON OFF C OFF 079 RINSE ON ON OFF C ON 080 RINSE OFF OFF ON FOFF 081 RINSE OFF OFF ON F ON 082 RINSE OFF OFF ON COFF 083 RINSE OFF OFF ON C ON 084 RINSE ON OFF ON FOFF 085 RINSE ON OFF ON F ON 086 RINSE ON OFF ON COFF 087 RINSE ON OFF ON C ON 088 RINSE OFF ON ON FOFF 089 RINSE OFF ON ON F ON 090 RINSE OFF ON ON COFF 091 RINSE OFF ON ON C ON 092 RINSE ON ON ON FOFF 093 RINSE ON ON ON F ON 094 RINSE ON ON ON COFF 095 RINSE ON ON ON C ON 096 RINSE OFF OFF OFF F OFF

F232152

65

Programming NetMaster

83. Control Configuration Data #3 “+083”

This option allows the owner to turn “ON” or turn “OFF” preprogrammed capabilities within NetMaster.

How to Program the Control Configuration Data #3

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 114

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+083” appears in the VFD. Refer to Figure 115.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number to the desired number selected from Table 10. Refer to Figure 116.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 116

neednew#2

B029R

6. Press the ST ART (enter) keypad when the correct number appears in the VFD. The next option, “+084”, will appear in the VFD.

NOTE: To program “+084” (Hot Water Temperature), refer to option 84. To program other options, refer to the appropriate section.

COM128N

Figure 115

4. When “+083” appears in the VFD, press the

START (enter) keypad. A number will appear in the VFD. This number corresponds to the current Control Configuration Data #3 Value.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

66

F232152

Programming NetMaster

Reading Table 10

Use the table below (Table 10) to turn “ON” or turn

NOTE: Cool Down is f or specially equipped models only.

“OFF” access for Manual Rapid Advance and Diagnostics, Cool Down, and to change the Available Output Mode.

Config. #3 Value Cool Down RADV/DIAG Access Available

0 Disabled OFF Ready Mode 1 Disabled OFF Until Start Mode 2Disabled ON Ready Mode 3Disabled ON Until Start Mode 4 Enabled OFF Ready Mode 5 Enabled OFF Until Start Mode 6 Enabled ON Ready Mode 7 Enabled ON Until Start Mode

Table 10

F232152

67

Programming NetMaster

84. Hot Water Temperature “+084”

This option allows the owner to program the hot water temperature for models equipped with temperature sensing capabilities.

How to Program Hot Water Temperature

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 117

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+084” appears in the VFD. Refer to Figure 118.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current Hot Water Temperature value to the desired Hot Water Temperature value selected from Table 11 on the following page. Refer to Figure 119.

NOTE: Hot Wa ter Temperature is selectable between 60° and 190° Fahrenheit (16° and 87° Celsius). Default temperature value is 17 (120°F).

NOTE: Refer to option 82 to select Celsius or Fahrenheit display.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

neednew#2

B029R

COM129N

Figure 118

4. When “+084” appears in the VFD, press the

START (enter) keypad. A number will appear in the VFD. This number corresponds to the current Hot Water Temperature value.

Figure 119

6. Press the ST ART (enter) keypad when the correct number appears in the VFD. The next option, “+085”, will appear in the VFD.

NOTE: To program “+085” (Warm Water Temperature), refer to option 85. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

68

F232152

Programming NetMaster

Reading Table 11

To determine correct temperature value required, review table below. Read each row from left to right.

Temperature Value Fahrenheit (°F) Celsius (°C)

56016 66519 77022 87524

98027 10 85 30 11 90 33 12 95 35 13 100 38 14 105 41 15 110 44 16 115 46 17 120 49 18 125 52 19 130 54 20 135 57 21 140 60 22 145 63 23 150 65 24 155 68 25 160 71 26 165 73 27 170 76 28 175 79 29 180 82 30 185 84 31 190 87

Starting number of row indicates required temperature value number to be entered into electronic control.

T emperature v alue is follo wed by tw o option columns. Option columns state the temperature of the water.

F232152

Table 11

69

Programming NetMaster

85. Warm Water Temperature “+085”

This option allows the owner to program the warm water temperature for models equipped with temperature sensing capabilities.

How to Program Warm Water Temperature

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 120

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+085” appears in the VFD. Refer to Figure 121.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current Warm Water Temperature value to the desired Warm Water Temperature value selected from Table 12 on the following page. Refer to Figure 122.

NOTE: Warm Water Temperature is selectable between 60° and 190° Fahrenheit (16° and 87° Celsius). Default temperature value is 13 (100°F).

NOTE: Refer to option 82 to select Celsius or Fahrenheit display.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

neednew#2

B029R

COM130N

Figure 121

4. When “+085” appears in the VFD, press the

START (enter) keypad. A number will appear in the VFD. This number corresponds to the current Warm Water Temperature value.

Figure 122

6. Press the ST ART (enter) keypad when the correct number appears in the VFD. The next option, “+086”, will appear in the VFD.

NOTE: To program “+086” (Cold Water Temperature), refer to option 86. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

70

F232152

Programming NetMaster

Reading Table 12

To determine correct temperature value required, review table below. Read each row from left to right.

Te mperature Value Fahrenheit (°F) Celsius (°C)

56016 66519 77022 87524

98027 10 85 30 11 90 33 12 95 35 13 100 38 14 105 41 15 110 44 16 115 46 17 120 49 18 125 52 19 130 54 20 135 57 21 140 60 22 145 63 23 150 65 24 155 68 25 160 71 26 165 73 27 170 76 28 175 79 29 180 82 30 185 84 31 190 87

Starting number of row indicates required temperature value number to be entered into electronic control.

T emperature v alue is follo wed by tw o option columns. Option columns state the temperature of the water.

F232152

Table 12

71

Programming NetMaster

86. Cold Water Temperature “+086”

This option allows the owner to program the cold water temperature for models equipped with temperature sensing capabilities.

How to Program Cold Water Temperature

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 123

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+086” appears in the VFD. Refer to Figure 124.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current Cold Water Temperature value to the desired Cold Water Temperature value selected from Table 13 on the following page. Refer to Figure 125.

NOTE: Cold Water Temperature is selectable between 60° and 190° Fahrenheit (16° and 87° Celsius). Default temperature value is 7 (70°F).

NOTE: Refer to option 82 to select Celsius or Fahrenheit display.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

neednew#2

B029R

COM158N

Figure 124

4. When “+086” appears in the VFD, press the

START (enter) keypad. A number will appear in the VFD. This number corresponds to the current Cold Water Temperature value.

Figure 125

6. Press the ST ART (enter) keypad when the correct number appears in the VFD. The next option, “+087”, will appear in the VFD.

NOTE: To program “+087” (PreWash #1 Fill/ Tumble Dispenser), refer to option 87. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

72

F232152

Programming NetMaster

Reading Table 13

To determine correct temperature value required, review table below. Read each row from left to right.

Temperature Value Fahrenheit (°F) Celsius (°C)

56016 66519 77022 87524

98027 10 85 30 11 90 33 12 95 35 13 100 38 14 105 41 15 110 44 16 115 46 17 120 49 18 125 52 19 130 54 20 135 57 21 140 60 22 145 63 23 150 65 24 155 68 25 160 71 26 165 73 27 170 76 28 175 79 29 180 82 30 185 84 31 190 87

Starting number of row indicates required temperature value number to be entered into electronic control.

T emperature v alue is follo wed by tw o option columns. Option columns state the temperature of the water.

F232152

Table 13

73

Programming NetMaster

87. PreWash #1 Fill/Tumble Dispenser “+087”

This option allows the owner t o select which dispenser will be used for PreWash #1 on all cycles.

How to Program PreWash #1 Fill/Tumble Dispenser

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-) keypad

until “PrOg” appears in the VFD. Press the ST AR T (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 126

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+087” appears in the VFD. Refer to Figure 127.

5. Locate the desired number in the first column of Table 14 on the following page.

NOTE: Default PreWash #1 Fill/Tumble Dispenser value is 001.

6. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number until correct. Refer to Figure 128.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 128

neednew#2

B029R

COM159N

Figure 127

4. When “+087” appears in the VFD, press the

START (enter) keypad. A number will appear in the VFD. This number corresponds to the current PreW ash #1 Fill/T umble Dispenser Programming Value.

NOTE: The number appearing in the VFD is the current number that was selected from Table 14 on the following page.

7. Press the ST ART (enter) keypad when the correct number appears in the VFD. The next option, “+088”, will appear in the VFD.

NOTE: To program “+088” (PreWash #2 Fill/ Tumble Dispenser), refer to option 88. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

74

F232152

Programming NetMaster

Reading Table 14

To determine correct dispenser value required, review table below. Read each row from left to right. Starting number of row indicates required dispenser value

Dispenser value is followed by four option columns. Option columns state whether an action is ON or OFF (ON indicates option is turned on, OFF indicates option is turned off).

number to be entered into electronic control.

Dispenser Value Dispenser One Dispenser Two Dispenser Three Dispenser Four

000OFFOFFOFFOFF 001 ON OFF OFF OFF 002 OFF ON OFF OFF 003 ON ON OFF OFF 004 OFF OFF ON OFF 005 ON OFF ON OFF 006 OFF ON ON OFF 007 ON ON ON OFF 008 OFF OFF OFF ON 009 ON OFF OFF ON 010 OFF ON OFF ON 011 ON ON OFF ON 012 OFF OFF ON ON 013 ON OFF ON ON 014 OFF ON ON ON 015 ON ON ON ON

Table 14

F232152

75

Programming NetMaster

88. PreWash #2 Fill/Tumble Dispenser “+088”

This option allows the owner t o select which dispenser will be used for PreWash #2 on all cycles.

How to Program PreWash #2 Fill/Tumble Dispenser

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-) keypad

until “PrOg” appears in the VFD. Press the ST AR T (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 129

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+088” appears in the VFD. Refer to Figure 130.

5. Locate the desired number in the first column of Table 15 on the following page.

NOTE: Default PreWash #2 Fill/Tumble Dispenser value is 001.

6. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number until correct. Refer to Figure 131.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 131

neednew#2

B029R

COM131N

Figure 130

4. When “+088” appears in the VFD, press the

START (enter) keypad. A number will appear in the VFD. This number corresponds to the current PreW ash #2 Fill/T umble Dispenser Programming Value.

NOTE: The number appearing in the VFD is the current number that was selected from Table 15 on the following page.

7. Press the ST ART (enter) keypad when the correct number appears in the VFD. The next option, “+089”, will appear in the VFD.

NOTE: To program “+089” (Wash Fill/Tumble Dispenser), refer to option 89. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

76

F232152

Programming NetMaster

Reading Table 15

To determine correct dispenser value required, review table below. Read each row from left to right. Starting number of row indicates required dispenser value

Dispenser value is followed by four option columns. Option columns state whether an action is ON or OFF (ON indicates option is turned on, OFF indicates option is turned off).

number to be entered into electronic control.

Dispenser Value Dispenser One Dispenser Two Dispenser Three Dispenser Four

000 OFF OFF OFF OFF 001 ON OFF OFF OFF 002 OFF ON OFF OFF 003 ON ON OFF OFF 004 OFF OFF ON OFF 005 ON OFF ON OFF 006 OFF ON ON OFF 007 ON ON ON OFF 008 OFF OFF OFF ON 009 ON OFF OFF ON 010 OFF ON OFF ON 011 ON ON OFF ON 012 OFF OFF ON ON 013 ON OFF ON ON 014 OFF ON ON ON 015 ON ON ON ON

Table 15

F232152

77

Programming NetMaster

89. Wash Fill/Tumble Dispenser “+089”

This option allows the owner t o select which dispenser will be used for Wash on all cycles.

How to Program Wash Fill/Tumble Dispenser

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-) keypad

until “PrOg” appears in the VFD. Press the ST AR T (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 132

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+089” appears in the VFD. Refer to Figure 133.

5. Locate the desired number in the first column of Table 16 on the following page.

NOTE: Default Wash Fill/Tumble Dispenser value is 003.

6. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number until correct. Refer to Figure 134.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

neednew#2

B029R

COM132N

Figure 133

4. When “+089” appears in the VFD, press the

START (enter) keypad. A number will appear in the VFD. This number corresponds to the current Wash Fill/Tumble Dispenser Programming Value.

NOTE: The number appearing in the VFD is the current number that was selected from Table 16 on the following page.

Figure 134

7. Press the ST ART (enter) keypad when the correct number appears in the VFD. The next option, “+090”, will appear in the VFD.

NOTE: To program “+090” (Rinse #1 Fill/Tumble Dispenser), refer to option 90. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

78

F232152

Programming NetMaster

Reading Table 16

To determine correct dispenser value required, review table below. Read each row from left to right. Starting number of row indicates required dispenser value

Dispenser value is followed by four option columns. Option columns state whether an action is ON or OFF (ON indicates option is turned on, OFF indicates option is turned off).

number to be entered into electronic control.

Dispenser Value Dispenser One Dispenser Two Dispenser Three Dispenser Four

000OFFOFFOFFOFF 001 ON OFF OFF OFF 002 OFF ON OFF OFF 003 ON ON OFF OFF 004 OFF OFF ON OFF 005 ON OFF ON OFF 006 OFF ON ON OFF 007 ON ON ON OFF 008 OFF OFF OFF ON 009 ON OFF OFF ON 010 OFF ON OFF ON 011 ON ON OFF ON 012 OFF OFF ON ON 013 ON OFF ON ON 014 OFF ON ON ON 015 ON ON ON ON

Table 16

F232152

79

Programming NetMaster

90. Rinse #1 Fill/Tumble Dispenser “+090”

This option allows the owner t o select which dispenser will be used for the Initial Rinse on all cycles.

How to Program Rinse #1 Fill/Tumble Dispenser

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-) keypad

until “PrOg” appears in the VFD. Press the ST AR T (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 135

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+090” appears in the VFD. Refer to Figure 136.

5. Locate the desired number in the first column of Table 17 on the following page.

NOTE: Default Rinse #1 Fill/Tumble Dispenser value is 003.

6. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number until correct. Refer to Figure 137.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 137

neednew#2

B029R

COM133N

Figure 136

4. When “+090” appears in the VFD, press the

START (enter) keypad. A number will appear in the VFD. This number corresponds to the current Rinse #1 Fill/Tumble Dispenser Programming Value.

NOTE: The number appearing in the VFD is the current number that was selected from Table 17 on the following page.

7. Press the ST ART (enter) keypad when the correct number appears in the VFD. The next option, “+091”, will appear in the VFD.

NOTE: To program “+091” (Rinse Extra Fill/ Tumble Dispenser), refer to option 91. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

80

F232152

Programming NetMaster

Reading Table 17

To determine correct dispenser value required, review table below. Read each row from left to right. Starting number of row indicates required dispenser value

Dispenser value is followed by four option columns. Option columns state whether an action is ON or OFF (ON indicates option is turned on, OFF indicates option is turned off).

number to be entered into electronic control.

Dispenser Value Dispenser One Dispenser Two Dispenser Three Dispenser Four

000 OFFOFFOFFOFF 001 ON OFF OFF OFF 002 OFF ON OFF OFF 003 ON ON OFF OFF 004 OFF OFF ON OFF 005 ON OFF ON OFF 006 OFF ON ON OFF 007 ON ON ON OFF 008 OFF OFF OFF ON 009 ON OFF OFF ON 010 OFF ON OFF ON 011 ON ON OFF ON 012 OFF OFF ON ON 013 ON OFF ON ON 014 OFF ON ON ON 015 ON ON ON ON

Table 17

F232152

81

Programming NetMaster

91. Rinse Extra Fill/Tumble Dispenser “+091”

This option allows the owner t o select which dispenser will be used for Extra Rinse on all cycles.

How to Program Rinse Extra Fill/Tumble Dispenser

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-) keypad

until “PrOg” appears in the VFD. Press the ST AR T (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 138

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+091” appears in the VFD. Refer to Figure 139.

5. Locate the desired number in the first column of Table 18 on the following page.

NOTE: Default Rinse Extra Fill/Tumble Dispenser value is 003.

6. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number until correct. Refer to Figure 140.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 140

neednew#2

B029R

COM134N

Figure 139

4. When “+091” appears in the VFD, press the

START (enter) keypad. A number will appear in the VFD. This number corresponds to the current Rinse Extra Fill/Tumble Dispenser Programming Value.

NOTE: The number appearing in the VFD is the current number that was selected from Table 18 on the following page.

7. Press the ST ART (enter) keypad when the correct number appears in the VFD. The next option, “+092”, will appear in the VFD.

NOTE: To program “+092” (Rinse Final Fill/ Tumble Dispenser), refer to option 92. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

82

F232152

Programming NetMaster

Reading Table 18

To determine correct dispenser value required, review table below. Read each row from left to right. Starting number of row indicates required dispenser value

Dispenser value is followed by four option columns. Option columns state whether an action is ON or OFF (ON indicates option is turned on, OFF indicates option is turned off).

number to be entered into electronic control.

Dispenser Value Dispenser One Dispenser Two Dispenser Three Dispenser Four

000 OFFOFFOFFOFF 001 ON OFF OFF OFF 002 OFF ON OFF OFF 003 ON ON OFF OFF 004 OFF OFF ON OFF 005 ON OFF ON OFF 006 OFF ON ON OFF 007 ON ON ON OFF 008 OFF OFF OFF ON 009 ON OFF OFF ON 010 OFF ON OFF ON 011 ON ON OFF ON 012 OFF OFF ON ON 013 ON OFF ON ON 014 OFF ON ON ON 015 ON ON ON ON

Table 18

F232152

83

Programming NetMaster

92. Rinse Final Fill/Tumble Dispenser “+092”

This option allows the owner t o select which dispenser will be used for Final Rinse on all cycles.

How to Program Rinse Final Fill/Tumble Dispenser

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-) keypad

until “PrOg” appears in the VFD. Press the ST AR T (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 141

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+092” appears in the VFD. Refer to Figure 142.

5. Locate the desired number in the first column of Table 19 on the following page.

NOTE: Default Rinse Final Fill/Tumble Dispenser value is 006.

6. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number until correct. Refer to Figure 143.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 143

neednew#2

B029R

COM135N

Figure 142

4. When “+092” appears in the VFD, press the

START (enter) keypad. A number will appear in the VFD. This number corresponds to the current Rinse Final Fill/Tumble Dispenser Programming Value.

NOTE: The number appearing in the VFD is the current number that was selected from Table 19 on the following page.

7. Press the ST ART (enter) keypad when the correct number appears in the VFD. The next option, “+093”, will appear in the VFD.

NOTE: To program “+093” (PreWash #1 Fill/ Tumble Drain), refer to option 93. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

84

F232152

Programming NetMaster

Reading Table 19

To determine correct dispenser value required, review table below. Read each row from left to right. Starting number of row indicates required dispenser value

Dispenser value is followed by four option columns. Option columns state whether an action is ON or OFF (ON indicates option is turned on, OFF indicates option is turned off).

number to be entered into electronic control.

Dispenser Value Dispenser One Dispenser Two Dispenser Three Dispenser Four

000 OFFOFFOFFOFF 001 ON OFF OFF OFF 002 OFF ON OFF OFF 003 ON ON OFF OFF 004 OFF OFF ON OFF 005 ON OFF ON OFF 006 OFF ON ON OFF 007 ON ON ON OFF 008 OFF OFF OFF ON 009 ON OFF OFF ON 010 OFF ON OFF ON 011 ON ON OFF ON 012 OFF OFF ON ON 013 ON OFF ON ON 014 OFF ON ON ON 015 ON ON ON ON

Table 19

F232152

85

Programming NetMaster

93. PreWash #1 Fill/Tumble Drain “+093”

This option allows the owner to program which drain option will be used during PreWash #1 Fill and Tumble for all cycles.

How to Program PreWash #1 Fill/Tumble Drain

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 144

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+093” appears in the VFD. Refer to Figure 145.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current output value displayed in the VFD to the desired output value. Refer to Figur e 146 .

NOTE: Default output value is 001.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 146

neednew#2

B029R

6. Press the ST ART (enter) keypad when the correct value appears in the VFD. The next option, “+094”, will appear in the VFD.

NOTE: To program “+094” (PreWash #1 Drain/ Tumble Drain), refer to option 94. To program other options, refer to the appropriate section.

COM136N

Figure 145

4. When “+093” appears in the VFD, press the

START (enter) keypad. The current drain output value for the PreWash #1 Fill and Tumble will appear in the VFD.

86

COM136N

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

F232152

Programming NetMaster

Reading Table 20

To determine correct output value required, review table below. Read each row from left to right. Starting number of row indicates required output value number

Output value is followed by three option columns. Option columns state whether an action is ON or OFF (ON indicates option is turned on, OFF indicates option is turned off).

to be entered into electronic control.

Table Options

All options “OFF” = Water will not be drained from cylinder and water will be used for next period of cycle (for pump models only).

Auxiliary Drain = Sends signal to an optional auxiliary drain control. Electric Pump = Water will be pumped from cylinder to increase removal time. Dump Valve = Water will be drained through an electronically operated valve, if open (OFF). Water will not be drained if

closed (ON).

Output Value Auxiliary Drain Electric Pump Dump Valve

000 OFF OFF OFF 001 OFF OFF ON 002 OFF ON OFF 003 OFF ON ON 004 ON OFF OFF 005 ON OFF ON 006 ON ON OFF 007 ON ON ON

Table 20

F232152

87

Programming NetMaster

94. PreWash #1 Drain/Tumble Drain “+094”

This option allows the owner to program which drain option will be used during PreWash #1 Tumble and Drain for all cycles.

How to Program PreW ash #1 Drain/Tumble Drain

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 147

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+094” appears in the VFD. Refer to Figure 148.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current output value displayed in the VFD to the desired output value. Refer to Figur e 149 .

NOTE: Default output value is 002.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 149

neednew#2

B029R

6. Press the ST ART (enter) keypad when the correct value appears in the VFD. The next option, “+095”, will appear in the VFD.

NOTE: To program “+095” (PreWash #1 Extract Drain), refer to option 95. To program other options, refer to the appropriate section.

Figure 148

4. When “+094” appears in the VFD, press the

START (enter) keypad. The current drain output value for the PreWash #1 Drain/Tumble Drain will appear in the VFD.

88

COM137N

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

F232152

Programming NetMaster

Reading Table 21

To determine correct output value required, review table below. Read each row from left to right. Starting number of row indicates required output value number

Output value is followed by three option columns. Option columns state whether an action is ON or OFF (ON indicates option is turned on, OFF indicates option is turned off).

to be entered into electronic control.

Table Options

All options “OFF” = Water will not be drained from cylinder and water will be used for next period of cycle (for pump models only).

Auxiliary Drain = Sends signal to an optional auxiliary drain control. Electric Pump = Water will be pumped from cylinder to increase removal time. Dump Valve = Water will be drained through an electronically operated valve, if open (OFF). Water will not be drained if

closed (ON).

Output Value Auxiliary Drain Electric Pump Dump Valve

000 OFF OFF OFF 001 OFF OFF ON 002 OFF ON OFF 003 OFF ON ON 004 ON OFF OFF 005 ON OFF ON 006 ON ON OFF 007 ON ON ON

Table 21

F232152

89

Programming NetMaster

95. PreWash #1 Extract Drain “+095”

This option allows the owner to program which drain option will be used during PreWash #1 Extraction for all cycles.

How to Program PreWash #1 Extract Drain

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 150

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+095” appears in the VFD. Refer to Figure 151.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current output value displayed in the VFD to the desired output value. Refer to Figur e 152 .

NOTE: Default output value is 002.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 152

neednew#2

6. Press the ST ART (enter) keypad when the correct value appears in the VFD. The next option, “+096”, will appear in the VFD.

B029R

COM138N

Figure 151

4. When “+095” appears in the VFD, press the

START (enter) keypad. The current drain output value for the PreWash #1 Extract Drain will appear in the VFD.

NOTE: To program “+096” (PreWash #2 Fill/ Tumble Drain), refer to option 96. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

90

F232152

Programming NetMaster

Reading Table 22

To determine correct output value required, review table below. Read each row from left to right. Starting number of row indicates required output value number

Output value is followed by three option columns. Option columns state whether an action is ON or OFF (ON indicates option is turned on, OFF indicates option is turned off).

to be entered into electronic control.

Table Options

All options “OFF” = Water will not be drained from cylinder and water will be used for next period of cycle (for pump models only).

Auxiliary Drain = Sends signal to an optional auxiliary drain control. Electric Pump = Water will be pumped from cylinder to increase removal time. Dump Valve = Water will be drained through an electronically operated valve, if open (OFF). Water will not be drained if

closed (ON).

Output Value Auxiliary Drain Electric Pump Dump Valve

000 OFF OFF OFF 001 OFF OFF ON 002 OFF ON OFF 003 OFF ON ON 004 ON OFF OFF 005 ON OFF ON 006 ON ON OFF 007 ON ON ON

Table 22

F232152

91

Programming NetMaster

96. PreWash #2 Fill/Tumble Drain “+096”

This option allows the owner to program which drain option will be used during PreWash #2 Fill and Tumble for all cycles.

How to Program PreWash #2 Fill/Tumble Drain

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 153

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+096” appears in the VFD. Refer to Figure 154.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current output value displayed in the VFD to the desired output value. Refer to Figur e 155 .

NOTE: Default output value is 001.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 155

neednew#2

B029R

6. Press the ST ART (enter) keypad when the correct value appears in the VFD. The next option, “+097”, will appear in the VFD.

NOTE: To program “+097” (PreWash #2 Drain/ Tumble Drain), refer to option 97. To program other options, refer to the appropriate section.

Figure 154

4. When “+096” appears in the VFD, press the

START (enter) keypad. The current drain output value for the PreWash #2 Fill/Tumble Drain will appear in the VFD.

92

COM139N

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

F232152

Programming NetMaster

Reading Table 23

To determine correct output value required, review table below. Read each row from left to right. Starting number of row indicates required output value number

Output value is followed by three option columns. Option columns state whether an action is ON or OFF (ON indicates option is turned on, OFF indicates option is turned off).

to be entered into electronic control.

Table Options

All options “OFF” = Water will not be drained from cylinder and water will be used for next period of cycle (for pump models only).

Auxiliary Drain = Sends signal to an optional auxiliary drain control. Electric Pump = Water will be pumped from cylinder to increase removal time. Dump Valve = Water will be drained through an electronically operated valve, if open (OFF). Water will not be drained if

closed (ON).

Output Value Auxiliary Drain Electric Pump Dump Valve

000 OFF OFF OFF 001 OFF OFF ON 002 OFF ON OFF 003 OFF ON ON 004 ON OFF OFF 005 ON OFF ON 006 ON ON OFF 007 ON ON ON

Table 23

F232152

93

Programming NetMaster

97. PreWash #2 Drain/Tumble Drain “+097”

This option allows the owner to program which drain option will be used during PreWash #2 Tumble and Drain for all cycles.

How to Program PreWash #2 Drain/ Tumble Drain

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 156

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+097” appears in the VFD. Refer to Figure 157.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current output value displayed in the VFD to the desired output value. Refer to Figur e 158 .

NOTE: Default output value is 002.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 158

neednew#2

B029R

6. Press the ST ART (enter) keypad when the correct value appears in the VFD. The next option, “+098”, will appear in the VFD.

NOTE: To program “+098” (PreWash #2 Extract Drain), refer to option 98. To program other options, refer to the appropriate section.

Figure 157

4. When “+097” appears in the VFD, press the

START (enter) keypad. The current drain output value for the PreWash #2 Drain/Tumble Drain will appear in the VFD.

94

COM140N

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

F232152

Programming NetMaster

Reading Table 24

To determine correct output value required, review table below. Read each row from left to right. Starting number of row indicates required output value number

Output value is followed by three option columns. Option columns state whether an action is ON or OFF (ON indicates option is turned on, OFF indicates option is turned off).

to be entered into electronic control.

Table Options

All options “OFF” = Water will not be drained from cylinder and water will be used for next period of cycle (for pump models only).

Auxiliary Drain = Sends signal to an optional auxiliary drain control. Electric Pump = Water will be pumped from cylinder to increase removal time. Dump Valve = Water will be drained through an electronically operated valve, if open (OFF). Water will not be drained if

closed (ON).

Output Value Auxiliary Drain Electric Pump Dump Valve

000 OFF OFF OFF 001 OFF OFF ON 002 OFF ON OFF 003 OFF ON ON 004 ON OFF OFF 005 ON OFF ON 006 ON ON OFF 007 ON ON ON

Table 24

F232152

95

Programming NetMaster

98. PreWash #2 Extract Drain “+098”

This option allows the owner to program which drain option will be used during PreWash #2 Extraction for all cycles.

How to Program PreWash #2 Extract Drain

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 159

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+098” appears in the VFD. Refer to Figure 160.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current output value displayed in the VFD to the desired output value. Refer to Figur e 161 .

NOTE: Default output value is 002.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 161

neednew#2

6. Press the ST ART (enter) keypad when the correct value appears in the VFD. The next option, “+099”, will appear in the VFD.

B029R

COM141N

Figure 160

4. When “+098” appears in the VFD, press the

START (enter) keypad. The current drain output value for the PreWash #2 Extract Drain will appear in the VFD.

NOTE: To program “+099” (Wash Fill/Tumble Drain), refer to option 99. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

96

F232152

Programming NetMaster

Reading Table 25

To determine correct output value required, review table below. Read each row from left to right. Starting number of row indicates required output value number

Output value is followed by three option columns. Option columns state whether an action is ON or OFF (ON indicates option is turned on, OFF indicates option is turned off).

to be entered into electronic control.

Table Options

All options “OFF” = Water will not be drained from cylinder and water will be used for next period of cycle (for pump models only).

Auxiliary Drain = Sends signal to an optional auxiliary drain control. Electric Pump = Water will be pumped from cylinder to increase removal time. Dump Valve = Water will be drained through an electronically operated valve, if open (OFF). Water will not be drained if

closed (ON).

Output Value Auxiliary Drain Electric Pump Dump Valve

000 OFF OFF OFF 001 OFF OFF ON 002 OFF ON OFF 003 OFF ON ON 004 ON OFF OFF 005 ON OFF ON 006 ON ON OFF 007 ON ON ON

Table 25

F232152

97

Programming NetMaster

99. Wash Fill/Tumble Drain “+099”

This option allows the owner to program which drain option will be used during Wash Fill and Tumble for all cycles.

How to Program Wash Fill/Tumble Drain

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 162

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current output value displayed in the VFD to the desired output value. Refer to Figur e 164 .

NOTE: Default output value is 001.

1

32

1 Press this pad (+) to scroll forward or increase a va lue 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

neednew#2

B029R

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+099” appears in the VFD. Refer to Figure 163.

COM142N

Figure 163

4. When “+099” appears in the VFD, press the START (enter) keypad. The current drain output value for the Wash Fill/Tumble Drain will appear in the VFD.

Figure 164

6. Press the ST ART (enter) keypad when the correct value appears in the VFD. The next option, “+100”, will appear in the VFD.

NOTE: To program “+100” (Wash Drain/Tumble Drain), refer to option 100. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

98

F232152

Alliance Laundry Systems HC25NX2, HC18NC2, HC25NC2, HC27NR2, HC18NX2 Programming Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

NetMaster

Washer-Extractor

Cabinet Hard Mount Enhanced Programming Guide

Refer to Page 5 for Model Numbers

Notes

Introduction

Model Identification

Notes

Entering the Manual Mode

How to Enter the Manual Mode

3. While pressing and holding the NORMAL keypad with one hand, press the HOT keypad with the other hand.

4. The VFD display will show “rAPd”. Refer to Figure 2.

Figure 2

5. Press the DELICATES (+) or the COLD (-) keypad to scroll through the options until the desired option appears in the VFD.

6. Press the START (enter) keypad.

Figure 1

Notes

Programming NetMaster

What Can Be Programmed?

Programmable Options Available

8. Site Code #1 Hot Regular Wash Vend Price “+008”

How to Program the Site Code #1 Hot Regular Wash Vend Price

Figure 5

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 6.

Figure 3

3. Press the DELICA TES (+) or the COLD (-) keypad to scroll through the programmable options until “+008” appears in the VFD. Refer to Figure 4.

Figure 4

Figure 6

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 7.

Figure 7

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The ne xt option, “+009”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

9. Site Code #1 Warm Regular Wash Vend Price “+009”

How to Program the Site Code #1 Warm Regular Wash Vend Price

Figure 10

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 11.

Figure 8

3. Press the DELICA TES (+) or the COLD (-) keypad to scroll through the programmable options until “+009” appears in the VFD. Refer to Figure 9.

Figure 9

Figure 11

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 12.

Figure 12

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The ne xt option, “+010”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

10. Site Code #1 Cold Regular Wash Vend Price “+010”

How to Program the Site Code #1 Cold Regular Wash Vend Price

Figure 15

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 16.

Figure 13

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+010” appears in the VFD. Refer to Figure 14.

Figure 14

Figure 16

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 17.

Figure 17

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The ne xt option, “+011”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the Ready Mode.

11. Site Code #1 Hot Special Wash Vend Price “+011”

How to Program the Site Code #1 Hot Special Wash Vend Price

Figure 20

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 21.

Figure 18

3. Press the DELICA TES (+) or the COLD (-) keypad to scroll through the programmable options until “+011” appears in the VFD. Refer to Figure 19.

Figure 19

Figure 21

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 22.

Figure 22

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.
