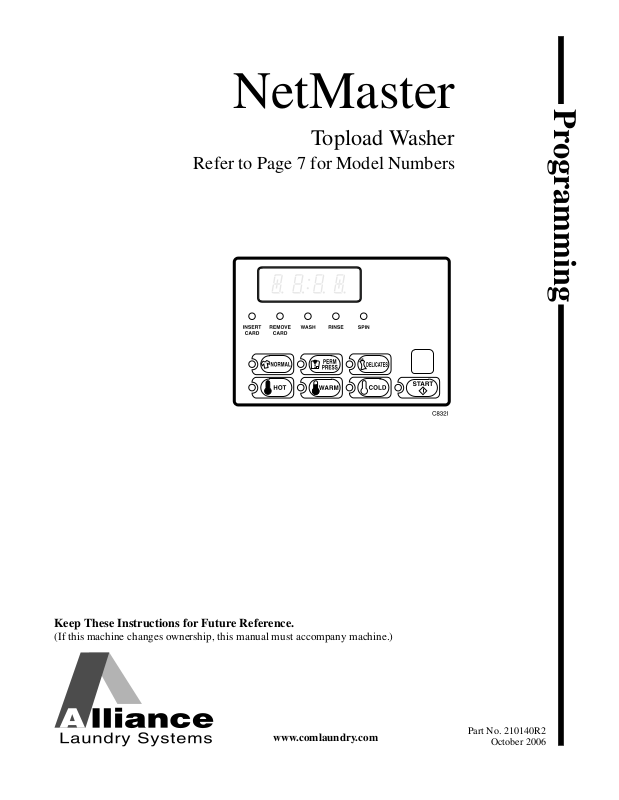

Alliance Laundry Systems HWTB21 User Manual

Download

NetMaster

Topload Washer

Refer to Page 7 for Model Numbers

Programming

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

www.comlaundry.com

Part No. 210140R2

October 2006

WARNING

Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage.

W030

NOTE: The WARNING and IMPORTANT instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution, and carefulness are factors which cannot be built into these washers. These factors MUST BE supplied by the person(s) installing, maintaining, or operating the washer.

Always contact the distributor, service agent, or the manufacturer about any problems or conditions you do not understand.

210140

Notes

210140

Table of

Contents

Model Identification ........................................................................... 7

Preliminary Information.................................................................... 9

About the Control ................................................................................. 9

Glossary of Terms................................................................................. 9

Power Failure Recovery ....................................................................... 9

Communications................................................................................... 9

Infra-red Communications (Optional) .................................................. 9

NetMaster Identification .................................................................... 11

Select Cycle Pads.................................................................................. 11

Select Wash Temp Pads........................................................................ 11

VFD Display Identification................................................................ 13

Light Emitting Diodes (LEDs) ............................................................. 13

Washer Operation .............................................................................. 15

Start Up................................................................................................. 15

Ready Mode.......................................................................................... 15

Cycle Sequence..................................................................................... 15

Opening the Washer Lid....................................................................... 15

Signals................................................................................................... 15

Changing Cycles................................................................................... 15

NetMaster Special Features ............................................................... 17

Programming NetMaster ...................................................................... 17

Collecting Audit Information ............................................................... 17

Testing Machine and NetMaster Functions.......................................... 17

Sales Floor Feature ............................................................................... 17

Rapid Advance Feature......................................................................... 17

Clearing the NetMaster Vend Feature .................................................. 17

Communications Mode......................................................................... 17

Coin Drop ............................................................................................. 17

Start Pulse Operation............................................................................ 18

Service Door and Coin Vault Openings ............................................... 18

Break-In Alarm..................................................................................... 18

Special Vend......................................................................................... 18

Lucky Cycle.......................................................................................... 18

Site Code Pricing .................................................................................. 18

Special Cycle ........................................................................................ 18

Opening the Service Door

(Coin Models Only)............................................................................. 19

Entering the Manual Mode................................................................ 21

How to Enter the Manual Mode ........................................................... 21

Programming NetMaster................................................................... 23

What Can Be Programmed? ................................................................. 23

Programmable Options Available......................................................... 23

1. Audio Signal “+001” ................................................................... 24

2. Reg. Hot Wash Vend Price “+002” ............................................ 26

3. Reg. Warm Wash Vend Price “+003” ........................................ 28

4. Reg. Cold Wash Vend Price “+004” ........................................... 30

5. Site Code #1 Hot Wash Vend Price “+005” ............................... 32

6. Site Code #1 Warm Wash Vend Price “+006” ........................... 34

7. Site Code #1 Cold Wash Vend Price “+007” ............................. 36

8. Special Cycle Vend Price “+008” ............................................... 38

9. Special Vend A Days Enable “+009” ......................................... 40

10. Special Vend A Start Hour “+010” ............................................. 45

11. Special Vend A Length in Hours “+011” ................................... 46

12. Special Vend A Start Month “+012” .......................................... 47

13. Special Vend A Start Date “+013” ............................................. 48

14. Special Vend A End Month “+014” ........................................... 49

15. Special Vend A End Date “+015” .............................................. 50

means without the expressed written consent of the publisher.

210140

16. Special Vend A Site Code #1 “+016” ......................................... 51

17. Special Vend A Reg. Hot Wash Vend Price “+017” .................. 53

18. Special Vend A Reg. Warm Wash Vend Price “+018” .............. 55

19. Special Vend A Reg. Cold Wash Vend Price “+019” ................ 57

20. Special Vend A Auto-Shutdown Enable “+020” ........................ 59

21. Coin #1 Value “+021” ................................................................ 60

22. Coin #2 Value “+022” ................................................................ 62

23. Start Pulse Value “+023” ............................................................ 64

24. Default Cycle/Temperature “+024” ............................................ 66

25. Power Fail Reset “+025” ............................................................ 68

26. Set Real-Time Clock Minutes “+026” ........................................ 70

27. Set Real-Time Clock Hours “+027” ........................................... 71

28. Set Real-Time Clock Day “+028” .............................................. 72

29. Set Real-Time Clock Date “+029” ............................................. 73

30. Set Real-Time Clock Month “+030” .......................................... 74

31. Set Real-Time Clock Year “+031” ............................................. 75

32. Set Real-Time Clock Century “+032” ........................................ 76

33. Normal Wash Agitate Time “+033” ........................................... 77

34. Normal Extra Rinse Agitate Time “+034” .................................. 78

35. Normal Rinse Agitate Time “+035” ........................................... 79

36. Normal Final Spin Time “+036” ................................................. 80

37. Permanent Press Wash Agitate Time “+037” ............................. 81

38. Permanent Press Extra Rinse Agitate Time “+038” ................... 82

39. Permanent Press Rinse Agitate Time “+039” ............................. 83

40. Permanent Press Final Spin Time “+040” .................................. 84

41. Delicate Wash Agitate Time “+041” .......................................... 85

42. Delicate Extra Rinse Agitate Time “+042” ................................ 86

43. Delicate Rinse Agitate Time “+043” .......................................... 87

44. Delicate Final Spin Time “+044” ............................................... 88

45. Warm Rinse Enable/Disable “+045” .......................................... 89

46. Control Configuration Data #1 “+046” ....................................... 90

47. Control Configuration Data #3 “+047” ....................................... 94

48. Lucky Option “+048” ................................................................. 96

49. Special Cycle Option “+049” ...................................................... 97

50. Special Cycle Extra Wash Time “+050” .................................... 99

51. Special Cycle Extra Extra-Rinse Time “+051” .......................... 100

52. Smart Card Maximum Value “+052” ......................................... 101

53. Site Code #1 “+053” ................................................................... 103

54. Error Code Programming Parameter “+054” .............................. 105

55. Start Pulse Mode “+055” ............................................................ 107

Collecting Audit Information ............................................................ 109

Manual Reset....................................................................................... 111

Testing Machine and

Electronic Control Functions............................................................. 113

Diagnostic Test Descriptions................................................................ 114

Error Codes......................................................................................... 117

Sales Floor Feature............................................................................. 121

Rapid Advance Feature...................................................................... 123

Clear Vend Feature ............................................................................ 125

Power Fail Recovery........................................................................... 127

Power Fail Reset Disabled.................................................................... 127

Power Fail Reset Enabled..................................................................... 127

Communications Mode ...................................................................... 129

Infra-red Communications.................................................................... 129

210140

Card Reader Communications

(Card Models Only)............................................................................ 129

Network Communications.................................................................... 129

Default Washer Settings..................................................................... 131

Default Settings .................................................................................... 131

Default Cycle........................................................................................ 131

210140 5

Notes

210140

Model Identification

Information in this manual is applicable to these washer models:

HWTB21 SWTB20

HWTF21 SWTB21

NWTF21 SWTC20

SWLB20 SWTC21

SWLB21 SWTF20

SWLF20 SWTF21

SWLF21 SWTH20

SWTA21 SWTH21

SWTBA0 SWTJ21

SWTBA1

210140

Notes

210140

Preliminary Information

About the Control

NetMaster on the commercial washer is an advanced, programmable computer that lets the owner control most machine features by pressing a sequence of SELECT CYCLE and SELECT WASH TEMP pads. Refer to Figure 1.

NetMaster allows the owner to program custom cycles, set vend prices, retrieve audit information, program and run diagnostic cycles, and program special vend features. Washers shipped from the factory have a default cycle and wash temperature setting of PERM PRESS, WARM built in. However, the owner can change the default cycle, or any cycle, as needs permit.

IMPORTANT: In the event of a power failure, NetMaster will not have to be reprogrammed. It is designed with a memory system that will remember how it was programmed (for a minimum of six years) until the electrical power is restored.

IMPORTANT: It is extremely important that the washer has a positive ground and that all mechanical and electrical connections to NetMaster are made before applying power to or operating the washer.

Glossary of Terms

The following are a few terms and abbreviations to learn. These are referred to throughout the instructions.

VFD - Vacuum Fluorescent Display.

This term refers to the window area of the control that displays words and values.

LED - Light Emitting Diode.

This term refers to the lights on the keypads and status words of the control.

Power Failure Recovery

If a cycle is in progress and the power fails, the cycle status is saved in memory for a minimum of six years without power. When the power recovers, the washer will resume into the previously active cycle if so programmed by the owner.

move to the Rinse Spin cycle and prompt the user to press the START pad. Once the START pad is pressed, the control will spin out the cycle.

Communications

NetMaster may be programmed manually, by the Micro-Wand IIIE™, by the Network, or by a Smart Card.

Infra-red Communications (Optional)

The Micro-Wand allows the owner to program and retrieve information from NetMaster without touching the keypad. The Micro-Wand greatly expands the programming options available to the owner. However, the Micro-Wand is not required to program and operate the washer. The operation of the Micro-Wand and the advanced features available are covered separately in the Micro-Wand IIIE

Smart Card Reader Communications (Card Models Only)

The control will accept communication with a Card Reader in order to perform vending transactions when a card is inserted to pay for cycles. The card reader can also allow the owner to program and collect audit information.

For detailed information on Smart Card Reader Communications, refer to the Smart Card Setup Module in the NetMaster Smart Card Suite software package.

Network Communications

The control will also accept communication with a Network Interface Board which allows the control to be linked to a personal computer. This network link allows an owner to program, collect data and run diagnostics on any machine.

For detailed information on Network Communications, refer to the Network instruction manual.

™

instruction manual.

The owner may program a special feature called POWER FAIL RESET which sets a maximum power failure duration. To program this feature, refer to Programming NetMaster, option 25.

If the length of the power failure is greater than the POWER FAIL RESET time, the control will end the cycle and the display will revert back to the ready mode. If the washtub is full of water, the control will

210140

Notes

210140

NetMaster Identification

Select Cycle Pads (Refer to

Figure 1

SELECT CYCLE pads are used to select the specific washer cycle. These pads include NORMAL, PERM PRESS, and DELICATES. These pads allow the user to select a cycle other than the default cycle (PERM PRESS). The SELECT CYCLE keypads are not active after the first fill cycle of the washer. The selected cycle is indicated by the light (LED) on the pad. Pressing the START pad will confirm the selection and the cycle will begin. When the Smart Card is used, the START pad flashes. Pressing the START pad will start the cycle and deduct the vend price from the card.

)

Electronic Display Control

Select Wash Temp Pads (Refer to

Figure 1

SELECT WASH TEMP pads are used to select the temperature of the water used for the wash fill. These pads include HOT, WARM, and COLD. These pads allow the user to select a water temperature other than the default setting (WARM). The SELECT WASH TEMP pads are active only during the first fill cycle of the washer. The selected temperature is indicated by the light (LED) on the pad.

Both the SELECT WASH TEMP pads and the SELECT CYCLE pads are used in various combinations for programming cycles, retrieving audit information, running diagnostic tests, and other hidden operations. These instructions cover the manual programming and data retrieval options.

)

1 LED Light 2 SELECT CYCLE pads (top row) 3 Four 7-Segment Digits 4 VFD Display 5 LED Status Lights 6 START pad 7 SELECT WASH TEMP pads (bottom row)

C832I

Figure 1

210140

Notes

210140

VFD Display Identification

Light Emitting Diodes (LEDs) (Refer to

LIGHT EMITTING DIODES (LEDs) are used to indicate the chosen cycle, wash temperature and cycle status. See below for information on each LED.

Figure 1

CYCLE LED (NORMAL, PERM PRESS or DELICATES)

CYCLE LED will remain lit the entire cycle.

WASH TEMP LED (HOT, WARM or COLD)

WASH TEMP LED will remain on until the end of the cycle or will change to a rinse temperature if programmed to do so.

WASH LED

WASH LED is lit at the beginning of a Wash cycle and will remain lit until the wash cycle is complete.

RINSE LED

RINSE LED is lit at the beginning of the Rinse or Extra Rinse cycle and will remain lit until the cycle is complete.

SPIN LED

SPIN LED is lit for all Spin cycles.

)

INSERT COINS/CARD LED

INSERT COINS/CARD LED prompts the user for coins or a card to satisfy the vend price. Four digits and decimal point show the vend price remaining to be satisfied. The vend price displayed will decrease with each coin inserted. If a new wash temp is selected during the first fill of the wash cycle and it requires additional vend, the INSERT COINS/CARD light will flash one (1) second on and one (1) second off, and the display will show the vend price remaining to be satisfied.

REMOVE CARD LED (Card Models Only)

REMOVE CARD LED flashes one second on and one second off after the START pad has been pressed and the vend has been deducted from the card. It will also flash when a card is inserted and no vend amount is required.

Four 7-Segment Digits

The 7-SEGMENT DIGITS are used to display the time remaining in a cycle, vend price, error messages and descriptive codes. When displaying the time remaining the colon will flash, and when displaying the vend price the decimal point may be lit. During diagnostic testing or manual programming of the control, these digits will display descriptive codes and values (as described in Entering the Manual Mode).

210140

Notes

210140

Washer Operation

Start Up

When power is applied to the washer, the control will display INSERT COINS/CARD, the decimal point, and the vend price. The INSERT COINS/CARD light will remain lit until the vend price has been satisfied. The default cycle setting is PERM PRESS, the default wash water fill temperature is WARM, and the default rinse water temperature is COLD. The LEDs will be lit on PERM PRESS and WARM at the start of the cycle. Refer to Figure 2. These default settings are owner programmable. Refer to Programming NetMaster.

Ready Mode

C833I

Figure 2

To start the cycle, the user must press the START keypad.

The user will be able to select a different cycle or wash water temperature by pressing a cycle pad when the machine is in the ready mode or in the first fill cycle. If not enough vend is entered to satisfy the vend price, the control will display the remaining vend price needed to start the cycle. If the first fill was interrupted to change the temperature (which requires more money), and the vend price is not satisfied within 1 minute, the washer control will go back to the first selection and the cycle will restart. After the first fill, all key presses will be ignored, allowing the washer to go through the complete cycle.

When a cycle is complete, the control will display “:00” until the lid is opened, a key is pressed, or a coin/card is entered. When one of these three options occur, the display will revert back to the ready mode. Refer to Figure 2.

Cycle Sequence

Upon the start of a cycle, NetMaster will display the total cycle time. The appropriate LEDs will light while the machine passes through different cycle steps. Any

coin entered after the first fill cycle will be added to the total coin counter, but the user will not be able to change cycles or water temperature.

Opening the Washer Lid

If the washer lid is opened anytime except the last three minutes of a cycle, the VFD will display “LId” and the timer will stop. Once the lid is closed, the cycle will restart from the point of interruption. If the lid is opened in the final three minutes of the final spin cycle, the timer will continue to count down to the end of the cycle. The cycle operation will stop and the VFD will display “LId”. When the timer reaches 0 minutes, the control will return to the “Ready” mode. Refer to Figure 2.

Signals

There are four options when a signal can be used during the washer operation. These four options are listed below:

1. End of Cycle Signal

By default, this signal is turned off. If turned on, the signal sounds for three (3) seconds at the end of a cycle.

2. Signal On Keypad Depression

By default, this signal is turned on and sounds for a quarter of a second each time a keypad is pressed.

3. Signal On Coin Drop/Card Insertion

By default, this signal is turned on and will sound for a quarter of a second each time a coin or card is entered.

4. Signal for Card Removal (Card Models Only)

By default, this signal is turned on and will sound one second on and one second off when the REMOVE CARD LED is flashing.

NOTE: Refer to Programming NetMaster to program signal options.

Changing Cycles

Cycles and wash temperatures can be changed anytime during the first fill cycle. After the first fill cycle, all key presses are ignored.

Selecting a higher priced wash temperature will stop the first fill cycle, and INSERT COINS/CARD will flash one (1) second on and one (1) second off until the vend price has been satisfied. After the vend price has been satisfied, the cycle will restart with the new wash temperature. If the vend price is not satisfied within 1 minute, the washer control will go back to the previously set wash temperature.

210140

Notes

210140

NetMaster Special Features

Programming NetMaster

NetMaster allows the washer owner to program the control with the use of the keypad. Audit, diagnostic, cycle and vend information may be programmed and retrieved by pressing combinations of the Select Cycle and Select Wash Temp pads.

For details on programming cycle and vend information, refer to Programming NetMaster.

Collecting Audit Information

The control will store audit information in its memory that can be retrieved by pressing various combinations of Select Cycle and Select Wash Temp pads. NetMaster will record coins entered, total wash cycles, and total start pulses.

For more information on the audit features, refer to Collecting Audit Information.

NOTE: Additional audit information is retrievable with the Micro-Wand IIIE, the Card Reader or the Network. Refer to the appropriate instruction manual.

Testing Machine and NetMaster Functions

Special programmable diagnostic features built into NetMaster allow the owner to run specific diagnostic tests. By opening and closing the service door and then pressing various sequences of Select Cycle and Select Wash Temp pads, the owner may perform the following tests:

● Control Software Version Number

● Service Door Opening Test

● Coin Vault Opening Test

● Coin Drop #1 Input Test

● Coin Drop #2 Input Test

● Lid Switch Input Test

● Pressure Switch Opening Test

● Show Fill Time Test

● Show Drain Time Test

● Start Pulse Test

● Configuration Display Tests

For detailed information on running diagnostic tests, refer to Testing Machine and NetMaster Functions.

Sales Floor Feature

NetMaster washer has a built-in sales floor routine used to display all LED lights and the four digits with the colon and decimal point. This function is designed to show potential customers the high-tech features of NetMaster and to verify that all segments of the VFD work.

For detailed information on using the Sales Floor feature, refer to Sales Floor Feature.

Rapid Advance Feature

This feature allows the user to quickly advance through active cycles or advance into a cycle from the ready mode. This feature is useful when tests must be performed immediately on a washer currently in an active cycle. In this case, the user can quickly advance through the cycles to the ready mode. At this point, the user can perform the required tests and then return the washer to the point it was interrupted.

For detailed information on using the Rapid Advance feature, refer to Rapid Advance Feature.

Clearing the NetMaster Vend Feature

This feature allows the user to return NetMaster back to the ready mode if coins have been entered but the full vend price has not yet been satisfied. Refer to Figure 2.

For more information on using the Clear Vend feature, refer to Clear Vend Feature.

Communications Mode

This feature allows the washer control to communicate with the Micro-Wand IIIE, the Card Reader or the Network. This allows the washer control to be programmed and have its data read without using the keypad.

For more detailed information on using the Communications Mode feature, refer to Communications Mode.

Coin Drop

The control will accept pulses from a single or dual coin drop to satisfy vend price. Each coin drop will have the ability to start or run a cycle.

210140

NetMaster Special Features

Start Pulse Operation

The control will accept pulses from a central card reader system. The machine can be programmed to receive a single start pulse or multiple start pulses, or the Start Pulse Option can be turned off. The Start Pulse Mode allows the machine to go from the “Ready” mode to the “START” mode after single or multiple pulses are received.

Service Door and Coin Vault Openings

The control will capture the times and dates of the openings of the Coin Vault and the Service Door. The information is saved in memory. An open service door combined with various keypad presses allows the control to enter manual modes of operation if the Break-In Alarm is not on. These modes include Manual Programming, Audit Collection and Diagnostics.

Break-In Alarm

This feature allows the owner to program the machine to signal a network alarm if the service door or coin vault is opened without disabling the alarm first. To avoid the alarm during coin collections, the alarm must be disabled.

Lucky Cycle

This feature allows the owner to program the machine to provide a free vend cycle to customers after a certain number of cycles have occurred.

For details on programming the Lucky Cycle Option, refer to Programming NetMaster.

Site Code Pricing

This feature allows owners to program the control to accept site codes for special vending that are specific to select groups or individuals when using cards.

For details on programming the site code options, refer to Programming NetMaster.

Special Cycle

This feature allows the owner to offer extra features to customers for an added vend price. Features available include extra wash time, extra rinse time, and a warm rinse temperature.

For details on programming the Special Cycle option, refer to Programming NetMaster.

Special Vend

This feature allows the owner to program the control to allow programmable vend prices for specific hours and dates.

For details on programming Special Vend, refer to Programming NetMaster.

210140

Opening the Service Door

(Coin Models Only)

Manually programming NetMaster requires the user to open and close the service door. Opening and closing the service door trips a switch allowing access to various programming options, diagnostics and audit capabilities.

The service door is located on the top of the meter case. Refer to Figure 3.

NOTE: For card models, the manual programming option is accessed by disconnecting and reconnecting a plug behind the control panel, or by inserting the appropriate card into the card reader.

WARNING

Any disassembly requiring the use of tools must be performed by a suitably qualified service person.

W299

SERVICE DOOR

Figure 3

W521IE1A

210140

Notes

210140

Entering the Manual Mode

For programming, testing, and retrieving information from NetMaster, it is often necessary to enter the Manual Mode by following the four simple steps below.

How to Enter the Manual Mode

1. Be sure the washer is in the ready mode before continuing to step 2. Refer to Figure 2. If the washer is in an active cycle, rapid advance through the cycle. Refer to Rapid Advance Fea tu re . If coins or a card has been entered, refer to Clear Vend Feature.

2. Open the service door. Refer to Opening the Service Door.

3. While pressing and holding the NORMAL keypad with one hand, press the HOT keypad with the other hand.

4. The VFD display will show “rAPd”. Refer to Figure 4.

Manual Mode is broken into two groups: Manual Programming and Manual Rapid Advance/Diagnostics. Manual Programming can only be turned on or off with the Micro-Wand IIIE, the Smart Card Reader or the Network. Refer to the appropriate instruction manual. Manual Rapid Advance/Diagnostics can be turned on and off using the Micro-Wand IIIE, by manual programming (refer to option 47 of Programming NetMaster), with the Smart Card Reader, or with the Network.

By default, both groups are turned “ON”.

The manual features available in each group are as follows (the menu displayed on the VFD in this mode is in parenthesis).

Manual Programming

Manual Programming (PrOg)

Manual Read Audit (AudT)

Manual Reset (rSET)

Rapid Advance/Diagnostics

Rapid Advance (rAPd)

Figure 4

5. Press the DELICATES (+) or the COLD (-) keypad to scroll through the options until the desired option appears in the VFD.

6. Press the START (enter) keypad.

Show Mode (SHOW)

Diagnostic Tests (dIAg)

If a group is turned “OFF”, the feature menu will still appear, but the features in the group cannot be entered.

C834I

210140

Notes

210140

Programming NetMaster

What Can Be Programmed?

This feature allows the owner to program cycle parameters, standard vend pricing, special vends and other features by using the keypads. The control must have the Manual Programming Mode enabled, which is the factory default. This mode can only be turned OFF and ON by using the Micro-Wand IIIE, the Smart Card Reader or the Network. Refer to this section when programming NetMaster.

This section offers a detailed description of all 55 options available to program.

Each description includes instructions on when and why the option might be used and, more importantly, how to program the option.

For more advanced users, a quick reference list of the options available through the programming mode is located on this page.

NOTE: The three numbers in the Option column of the Programmable Options list are what will be shown in the VFD display when that option is selected.

Programmable Options Available

OPTION DESCRIPTION

001 Audio Signal

002 Reg. Hot Wash Vend Price

003 Reg. Warm Wash Vend Price

004 Reg. Cold Wash Vend Price

005 Site Code #1 Reg. Hot Wash Vend Price

006 Site Code #1 Reg. Warm Wash Vend Price

007 Site Code #1 Reg. Cold Wash Vend Price

008 Special Cycle Vend Price

009 Special Vend A Days Enable

010 Special Vend A Start Hour

011 Special Vend A Length in Hours

012 Special Vend A Start Month

013 Special Vend A Start Date

014 Special Vend A End Month

015 Special Vend A End Date

016 Special Vend A Site Code #1

017 Special Vend A Reg. Hot Wash Vend Price

018 Special Vend A Reg. Warm Wash Vend Price

OPTION DESCRIPTION

019 Special Vend A Reg. Cold Wash Vend Price

020 Special Vend A Auto-Shutdown Enable

021 Coin #1 Value

022 Coin #2 Value

023 Start Pulse Value

024 Default Cycle/Temperature

025 Power Fail Reset

026 Set Real-Time Clock Minutes

027 Set Real-Time Clock Hours

028 Set Real-Time Clock Day

029 Set Real-Time Clock Date

030 Set Real-Time Clock Month

031 Set Real-Time Clock Year

032 Set Real-Time Clock Century

033 Normal Wash Agitate Time

034 Normal Extra Rinse Agitate Time

035 Normal Rinse Agitate Time

036 Normal Final Spin Time

037 Perm Press Wash Agitate Time

038 Perm Press Extra Rinse Agitate Time

039 Perm Press Rinse Agitate Time

040 Perm Press Final Spin Time

041 Delicate Wash Agitate Time

042 Delicate Extra Rinse Agitate Time

043 Delicate Rinse Agitate Time

044 Delicate Final Spin Time

045 Warm Rinse Enable/Disable

046 Control Configuration Data #1

047 Control Configuration Data #3

048 Lucky Option

049 Special Cycle Option

050 Special Cycle Extra Wash Time

051 Special Cycle Extra Extra-Rinse Time

052 Smart Card Maximum Value

053 Site Code #1

054 Error Code Programming Parameter

055 Start Pulse Mode

210140

Programming NetMaster

1. Audio Signal “+001”

This option allows the owner to program when the signal will sound.

There are four occasions when a signal may sound during the washer operation. These four occasions are listed below:

1. End of Cycle Signal By default, the signal is turned off. If turned on, the signal will sound for three seconds at the end of a cycle.

2. Keypad Depression Signal By default, this signal is turned on and will sound for a quarter of a second. This signal will sound each time a keypad is pressed.

3. Coin Input/Card Insertion Signal By default, this signal is turned on and will sound for a quarter of a second each time a coin or card is entered.

4. Remove Card Signal (Card Models Only) By default, this signal is turned on and will sound one second on and one second off when the REMOVE CARD LED is flashing.

How to Program the Audio Signal

1. Control must be in Manual Mode. Refer to Entering the Manual Mode.

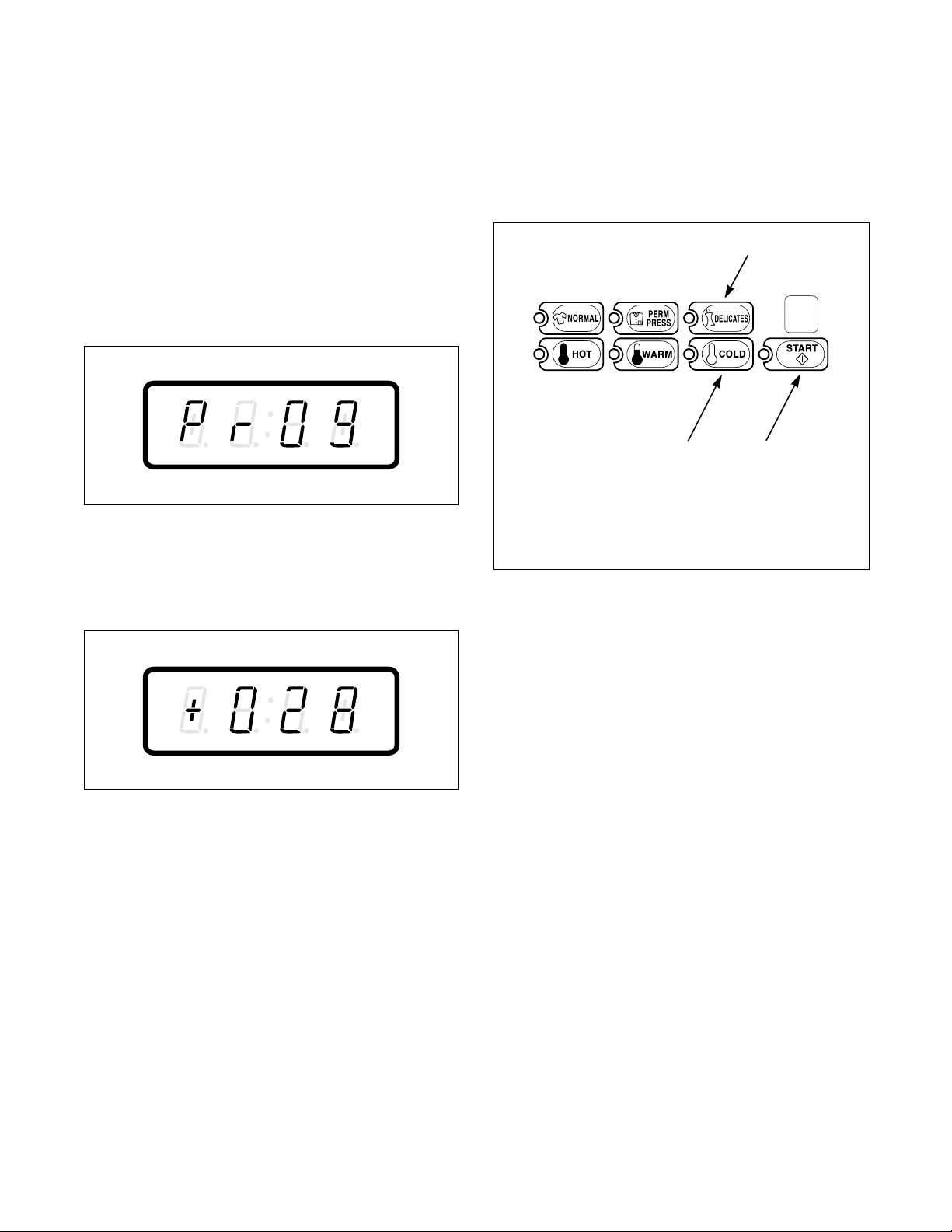

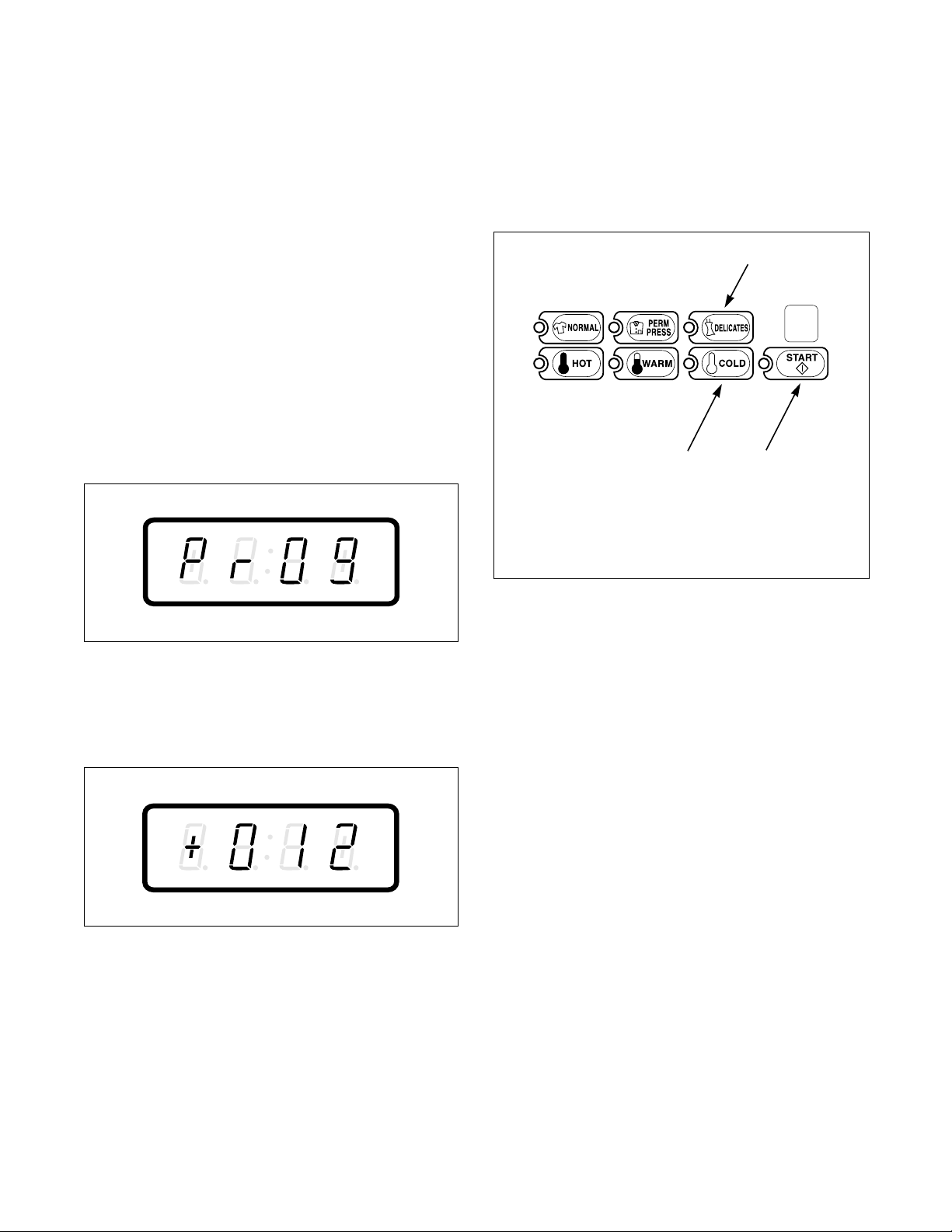

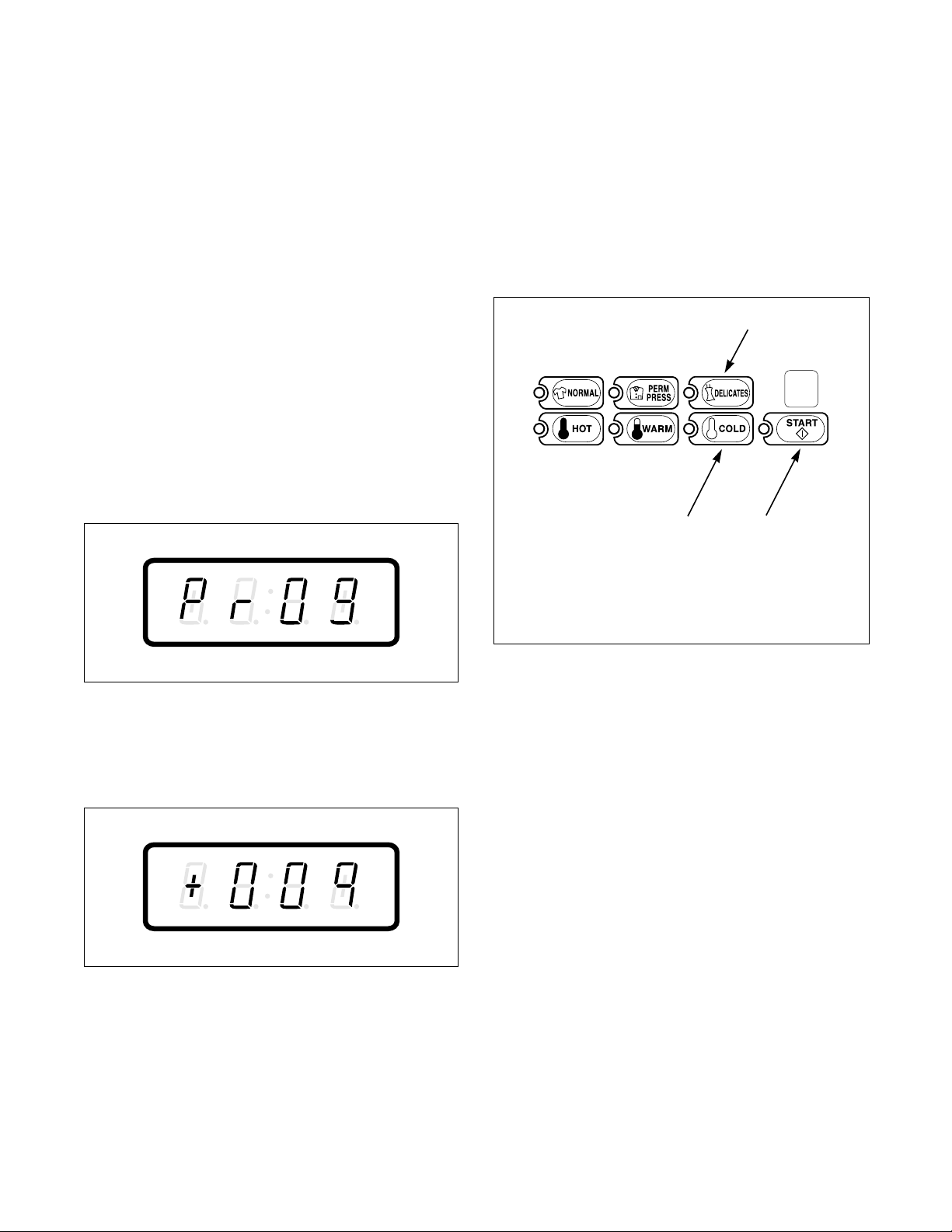

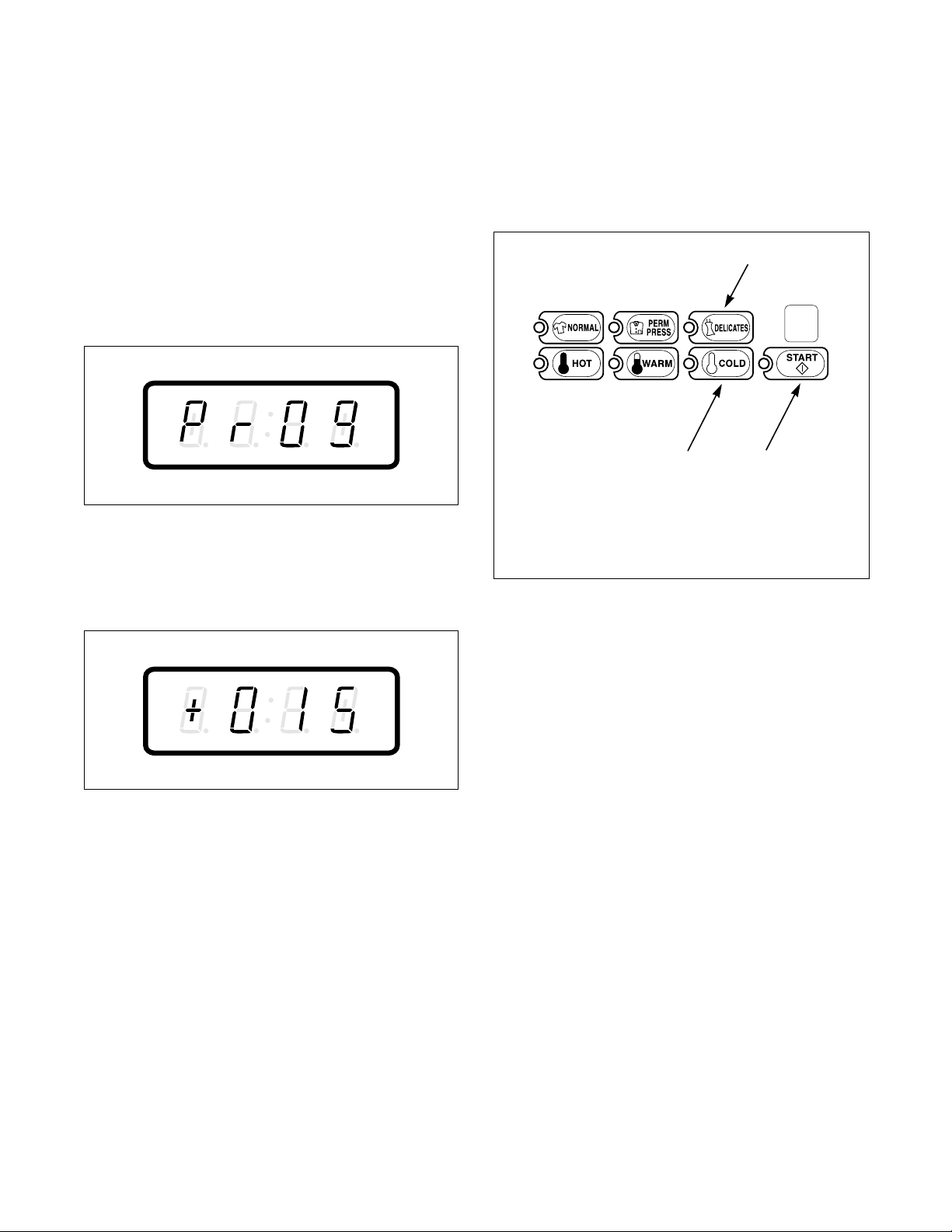

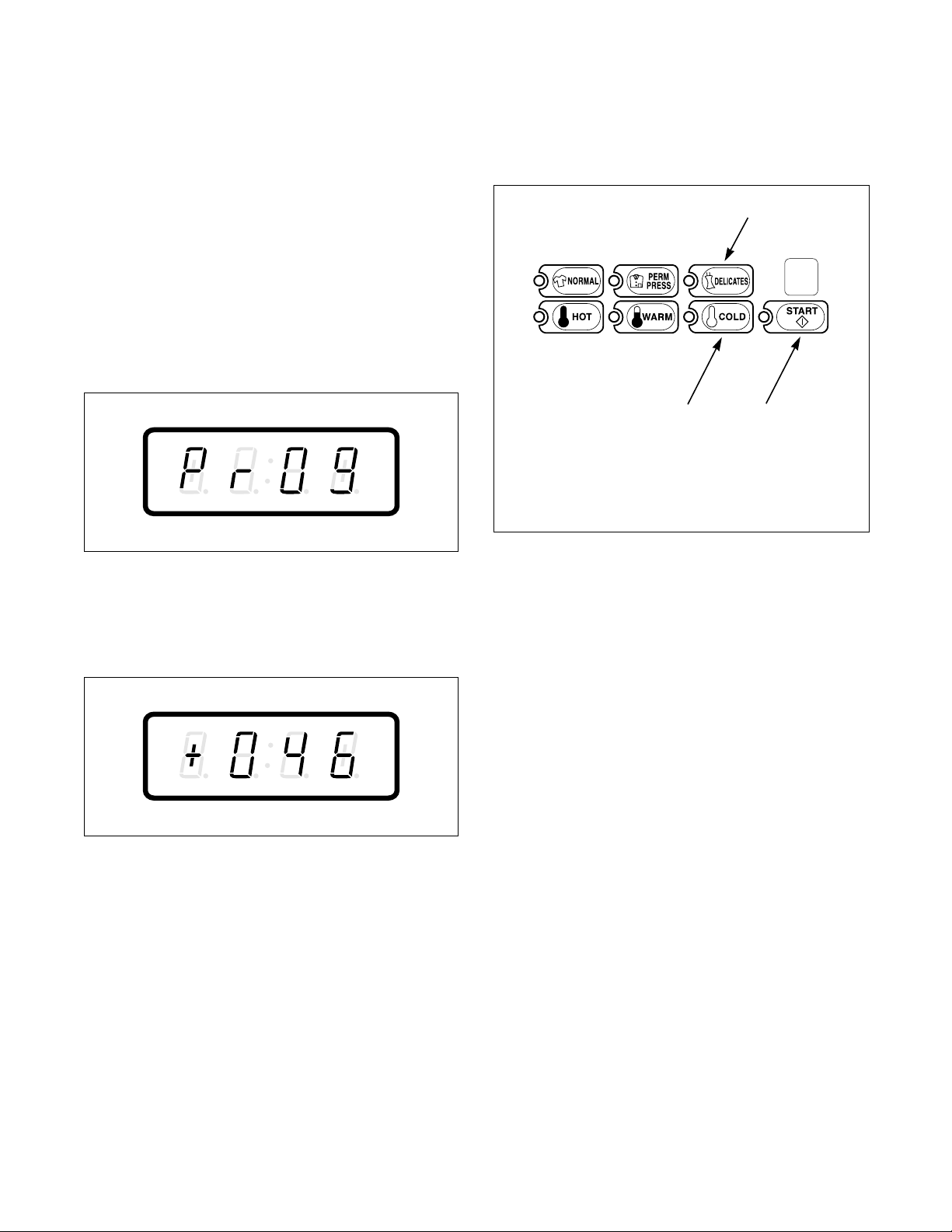

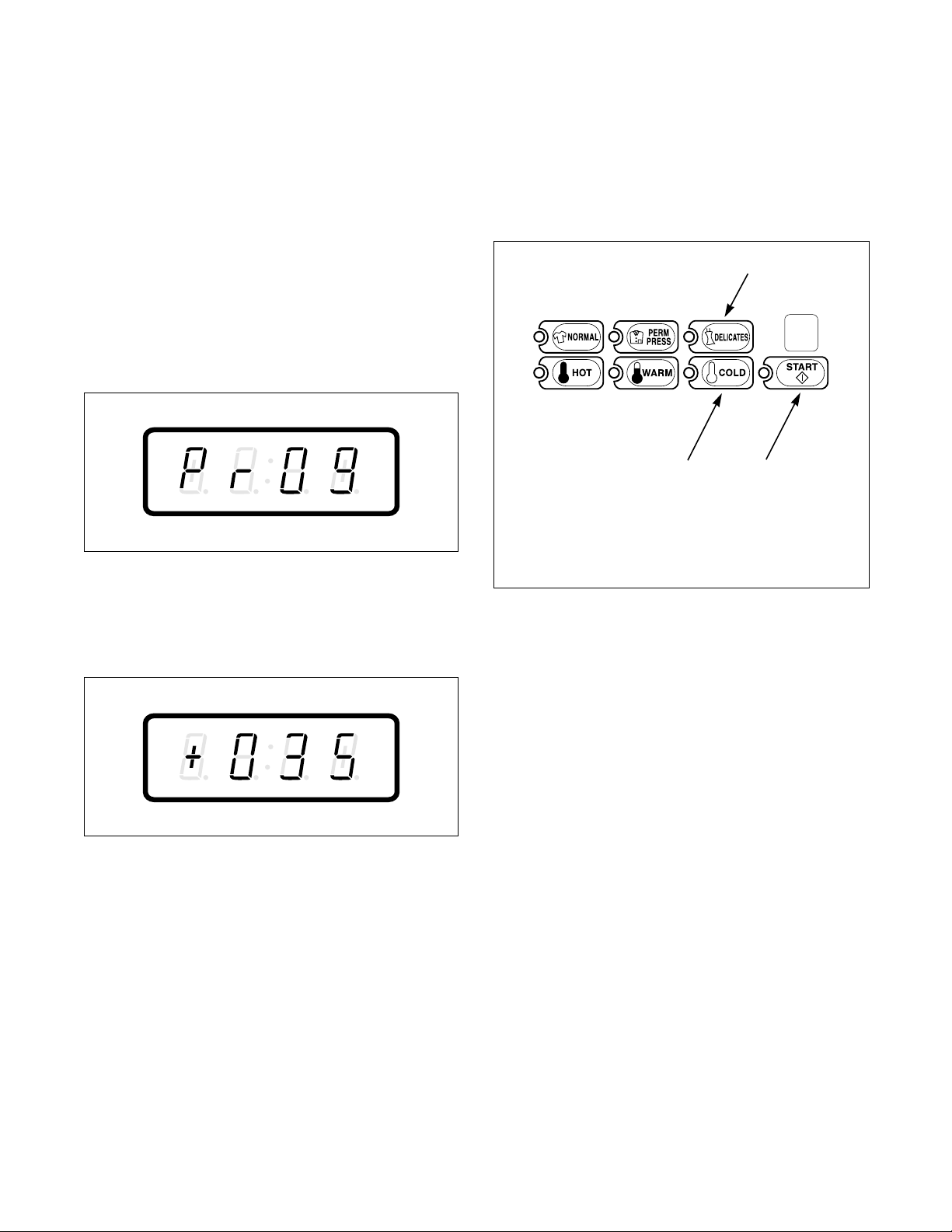

2. Press the DELICATES (+) or the COLD (-) keypad until “PrOg” appears in the VFD. Press the START (enter) keypad.

4. Locate the desired number in the first column of Table 1 on the following page.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number until correct. Refer to Figure 7.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 7

For Example: A user might wish to have the signal sound only when a keypad is pressed. Entering the number “1” in step 5 would turn off all the options except KEYPAD. In this instance, the signal would sound only when a keypad is pressed.

6. Press the START (enter) keypad when the correct number appears in the VFD. The next option, “+002”, will appear in the VFD.

Figure 5

3. “+001” will appear in the VFD. Press the

START (enter) keypad. A number will appear in the VFD. This number corresponds to the current Audio Signal Programming Value.

Figure 6

NOTE: To program “+002” (Reg. Hot Wash Vend Price), refer to option 2. To program other options, refer to the appropriate section.

C762I

C821I

210140

Programming NetMaster

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

How to Read

To determine the correct number required to program the Audio Signal, use the following chart. The Signal Value column contains the number required in step 5. The other columns correspond to individual options.

Each column of options contains a unique combination of the words “ON” and “OFF” that indicates if that column’s option is turned on or off when the Signal Value is entered. Select the desired combination of options and enter the number found in the Signal Val u e c o l u m n.

Table 1

Signal

Valu e

10 ON OFF ON OFF

11 ON OFF ON ON

12 ON ON OFF OFF

13 ON ON OFF ON

Remove

Card

0 OFF OFF OFF OFF

1 OFF OFF OFF ON

2OFFOFFON OFF

3OFFOFFON ON

4OFFON OFF OFF

5OFFON OFF ON

6OFFON ON OFF

7OFFON ON ON

8 ON OFF OFF OFF

9 ON OFF OFF ON

Coin/Card

Input

End of

Cycle

Pressed

Key

14 ON ON ON OFF

15 ON ON ON ON

Ta b le 1

210140

Programming NetMaster

2. Reg. Hot Wash Vend Price “+002”

This option allows the owner to set the vend price for a hot wash. This vend price will be displayed in the VFD when HOT is selected.

How to Program the Reg. Hot Wash Vend Price

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

4. When “+002” appears in the VFD, press the

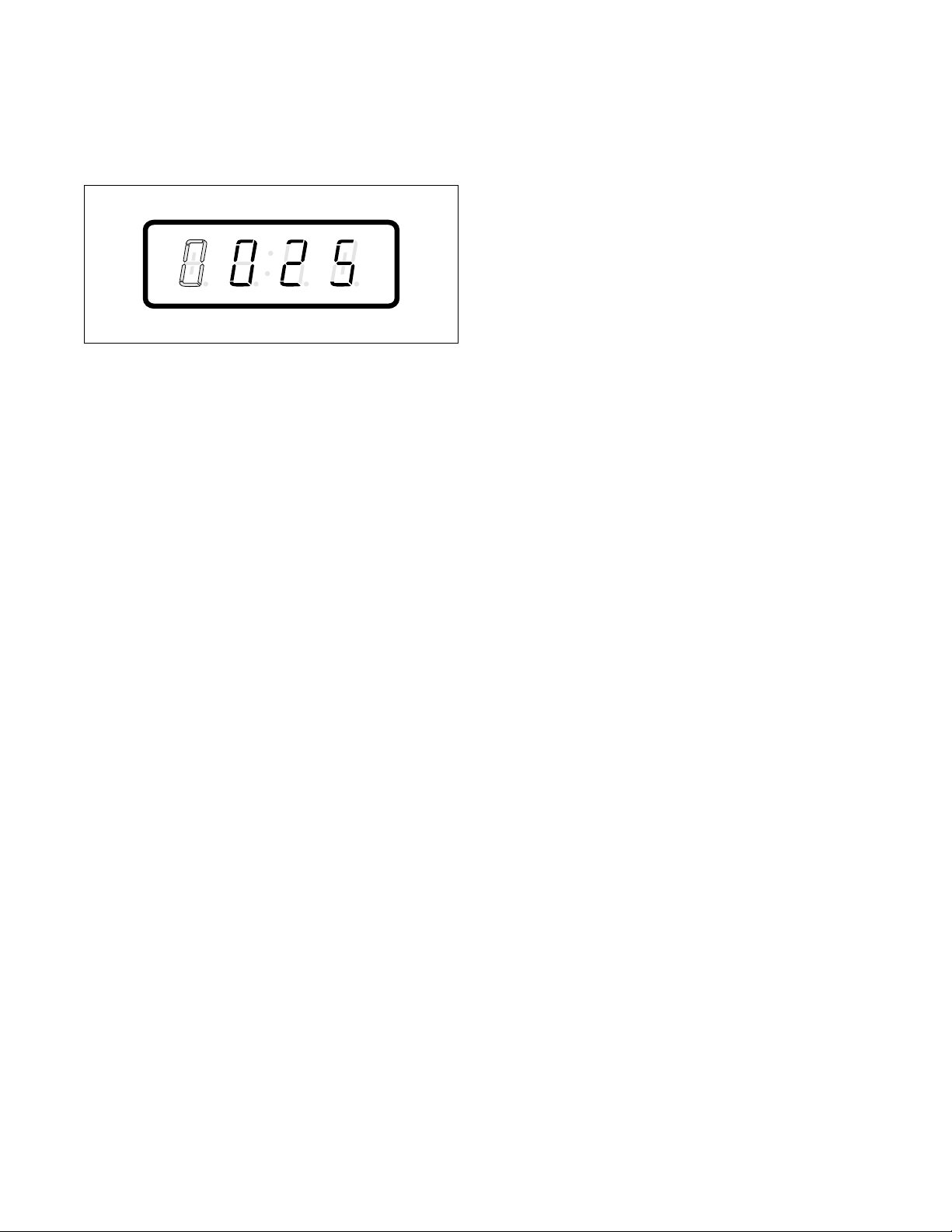

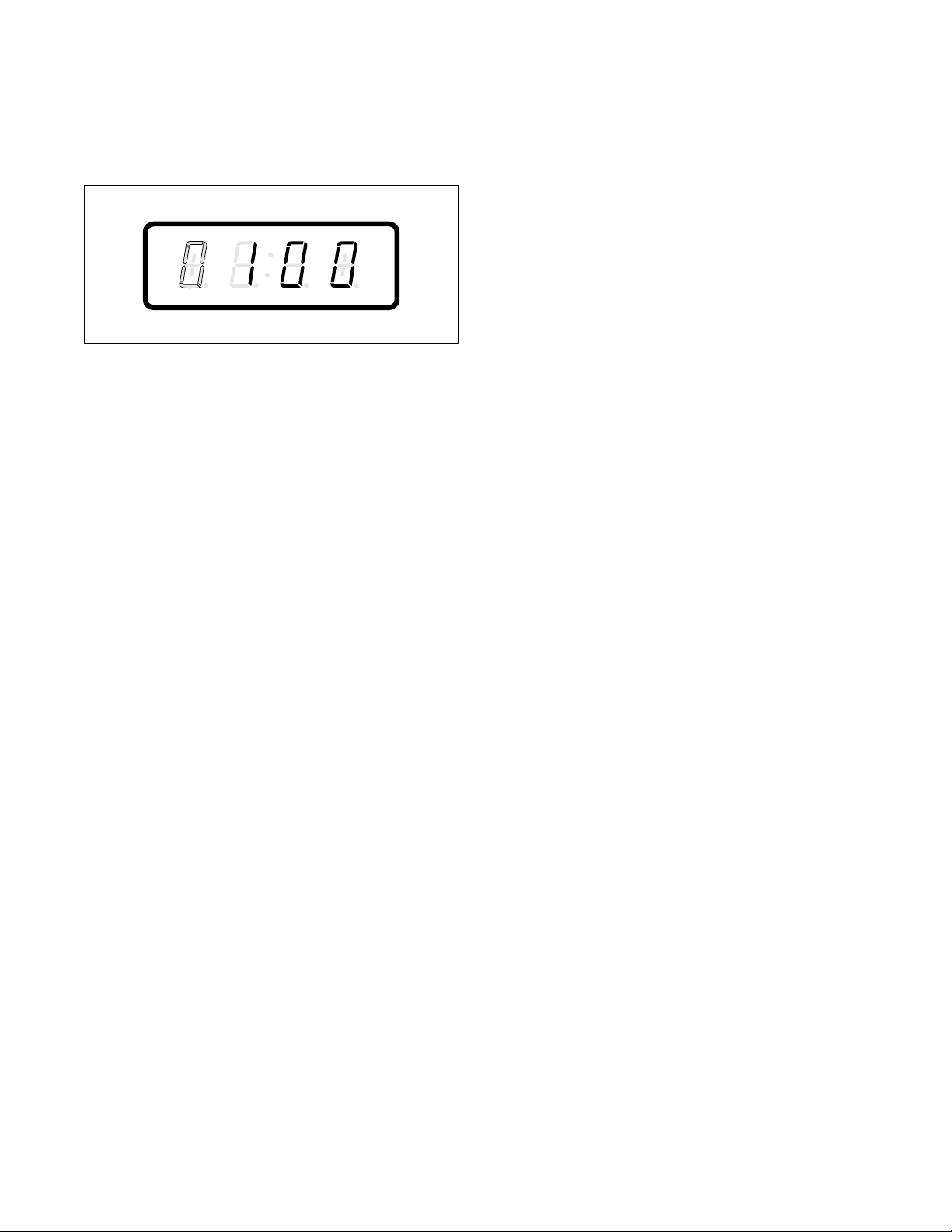

START (enter) keypad. There are five digits in the Reg. Hot Wash Vend Price. The fifth digit will appear in the VFD and will flash one second on, one second off. Refer to Figure 10.

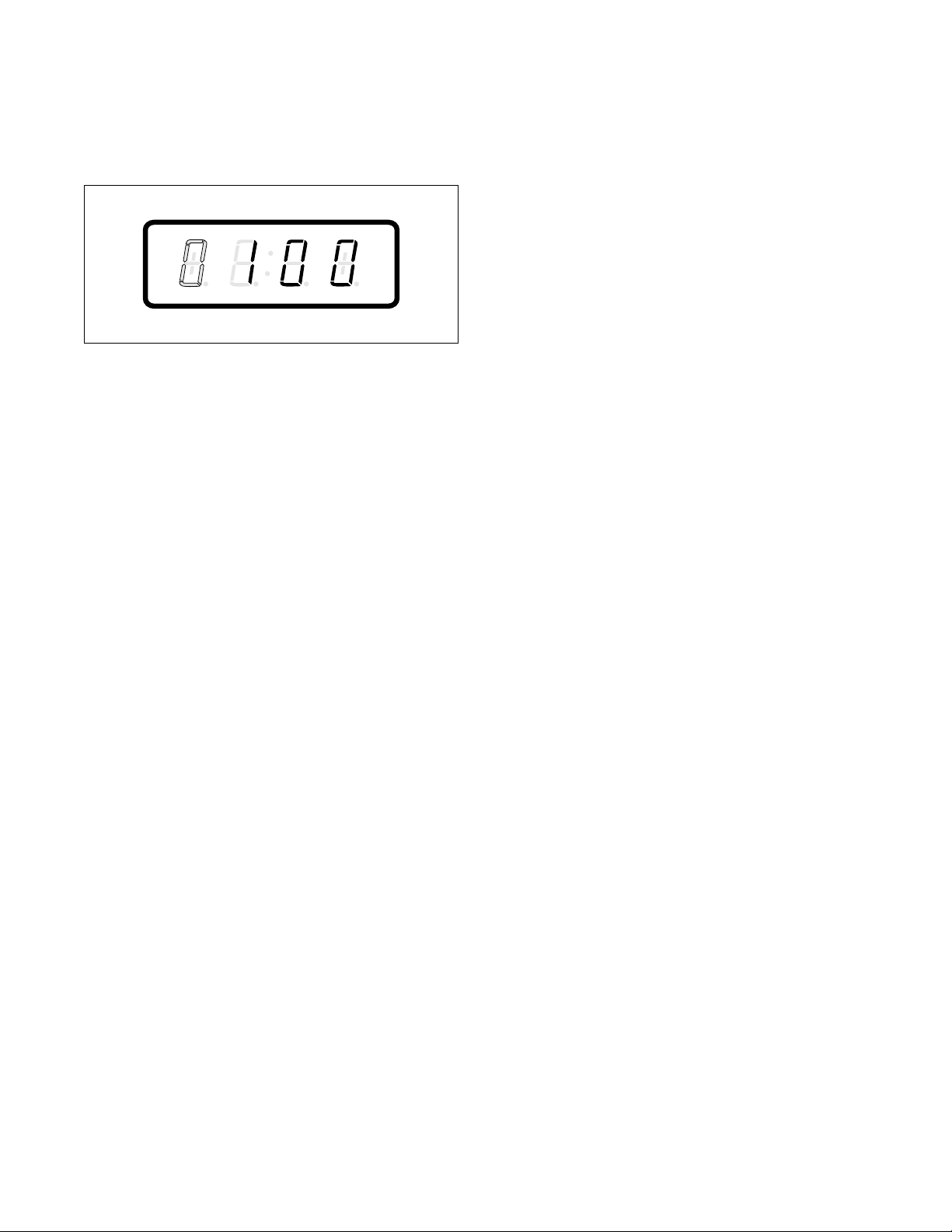

NOTE: If the vend price is $100.00 or more, the fifth digit is “1”. If the vend price is $99.99 or less, the fifth digit is “0”.

C826I

Figure 10

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 11.

NOTE: The vend price can be set from 1 to 65,535.

Figure 8

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+002” appears in the VFD. Refer to Figure 9.

Figure 9

C764I

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 11

210140

Programming NetMaster

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 12.

C827I

Figure 12

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The next option, “+003”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

NOTE: To program “+003” (Reg. Warm Wash Vend Price), refer to option 3. To program other options, refer to the appropriate section.

210140

Programming NetMaster

3. Reg. Warm Wash Vend Price “+003”

This option allows the owner to set the vend price for a warm wash. This vend price will be displayed in the VFD when WARM is selected.

How to Program the Reg. Warm Wash Vend Price

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

4. When “+003” appears in the VFD, press the

START (enter) keypad. There are five digits in the Reg. Warm Wash Vend Price. The fifth digit will appear in the VFD and will flash one second on, one second off. Refer to Figure 15.

NOTE: If the vend price is $100.00 or more, the fifth digit is “1”. If the vend price is $99.99 or less, the fifth digit is “0”.

C826I

Figure 15

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 16.

NOTE: The vend price can be set from 1 to 65,535.

Figure 13

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+003” appears in the VFD. Refer to Figure 14.

Figure 14

C765I

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 16

210140

Programming NetMaster

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 17.

C827I

Figure 17

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The next option, “+004”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

NOTE: To program “+004” (Reg. Cold Wash Vend Price), refer to option 4. To program other options, refer to the appropriate section.

210140

Programming NetMaster

4. Reg. Cold Wash Vend Price “+004”

This option allows the owner to set the vend price for a cold wash. This vend price will be displayed in the VFD when COLD is selected.

How to Program the Reg. Cold Wash Vend Price

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

4. When “+004” appears in the VFD, press the

START (enter) keypad. There are five digits in the Reg. Cold Wash Vend Price. The fifth digit will appear in the VFD and will flash one second on, one second off. Refer to Figure 20.

NOTE: If the vend price is $100.00 or more, the fifth digit is “1”. If the vend price is $99.99 or less, the fifth digit is “0”.

C826I

Figure 20

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 21.

NOTE: The vend price can be set from 1 to 65,535.

Figure 18

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+004” appears in the VFD. Refer to Figure 19.

Figure 19

C766I

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 21

210140

Programming NetMaster

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 22.

C827I

Figure 22

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The next option, “+005”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

NOTE: To program “+005” (Site Code #1 Reg. Hot Wash Vend Price), refer to option 5. To program other options, refer to the appropriate section.

210140

Programming NetMaster

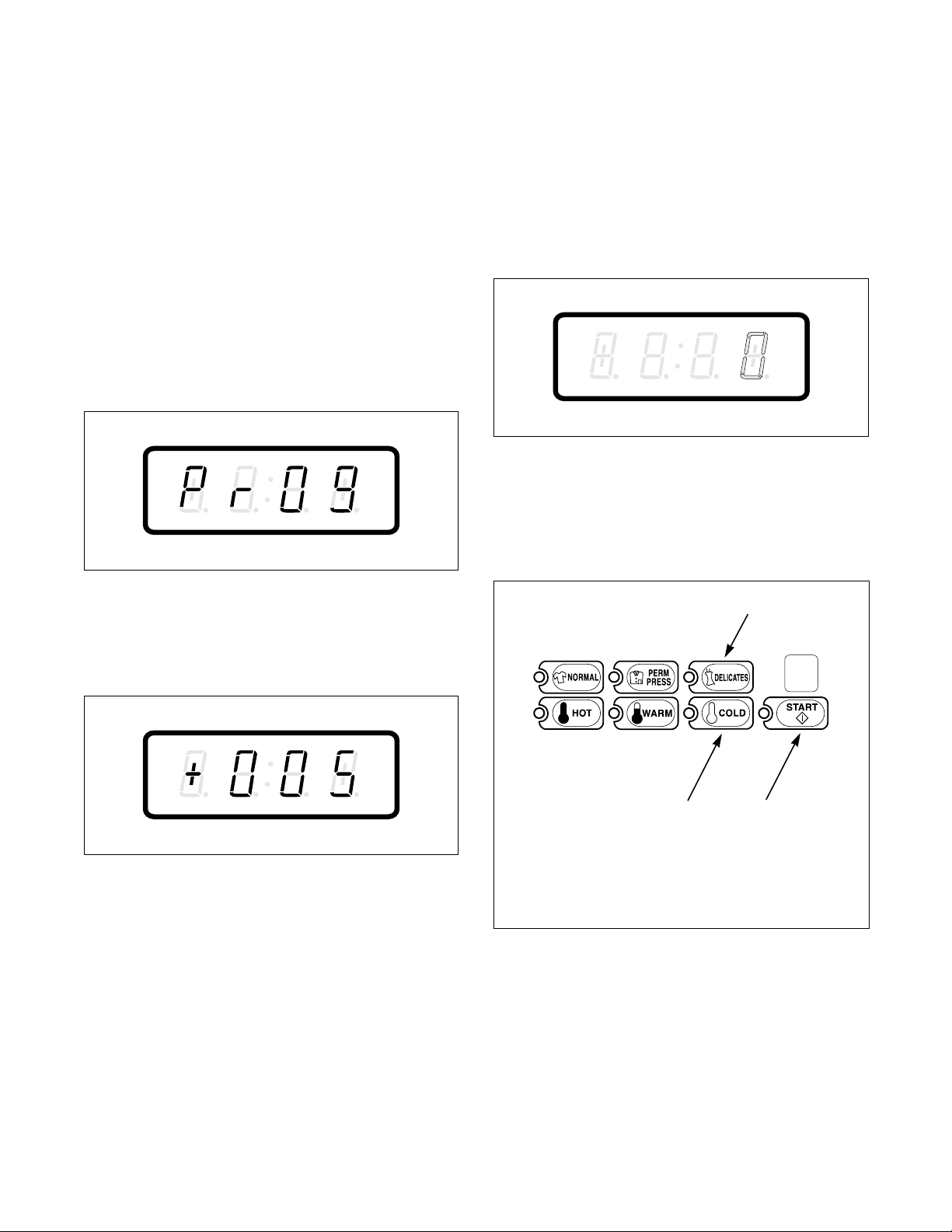

5. Site Code #1 Hot Wash Vend Price “+005”

This option allows the owner to set the vend price for a hot wash when cards with a special site code are used by specific groups or individuals.

How to Program the Site Code #1 Hot Wash Vend Price

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

4. When “+005” appears in the VFD, press the

START (enter) keypad. There are five digits in the Site Code #1 Hot Wash Vend Price. The fifth digit will appear in the VFD and will flash one second on, one second off. Refer to Figure 25.

NOTE: If the vend price is $100.00 or more, the fifth digit is “1”. If the vend price is $99.99 or less, the fifth digit is “0”.

C826I

Figure 25

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 26.

NOTE: The vend price can be set from 0 to 65,535.

Figure 23

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+005” appears in the VFD. Refer to Figure 24.

Figure 24

C835I

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 26

210140

Programming NetMaster

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 27.

C827I

Figure 27

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The next option, “+006”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

NOTE: To program “+006” (Site Code #1 Warm Wash Vend Price), refer to option 6. To program other options, refer to the appropriate section.

210140

Programming NetMaster

6. Site Code #1 Warm Wash Vend Price “+006”

This option allows the owner to set the vend price for a warm wash when cards with a special site code are used by specific groups or individuals.

How to Program the Site Code #1 Warm Wash Vend Price

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

4. When “+006” appears in the VFD, press the

START (enter) keypad. There are five digits in the Site Code #1 Warm Wash Vend Price. The fifth digit will appear in the VFD and will flash one second on, one second off. Refer to Figure 30.

NOTE: If the vend price is $100.00 or more, the fifth digit is “1”. If the vend price is $99.99 or less, the fifth digit is “0”.

C826I

Figure 30

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 31.

NOTE: The vend price can be set from 0 to 65,535.

Figure 28

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+006” appears in the VFD. Refer to Figure 29.

Figure 29

C836I

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 31

210140

Programming NetMaster

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 32.

C827I

Figure 32

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The next option, “+007”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

NOTE: To program “+007” (Site Code #1 Cold Wash Vend Price), refer to option 7. To program other options, refer to the appropriate section.

210140

Programming NetMaster

7. Site Code #1 Cold Wash Vend Price “+007”

This option allows the owner to set the vend price for a cold wash when cards with a special site code are used by specific groups or individuals.

How to Program the Site Code #1 Cold Wash Vend Price

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 33

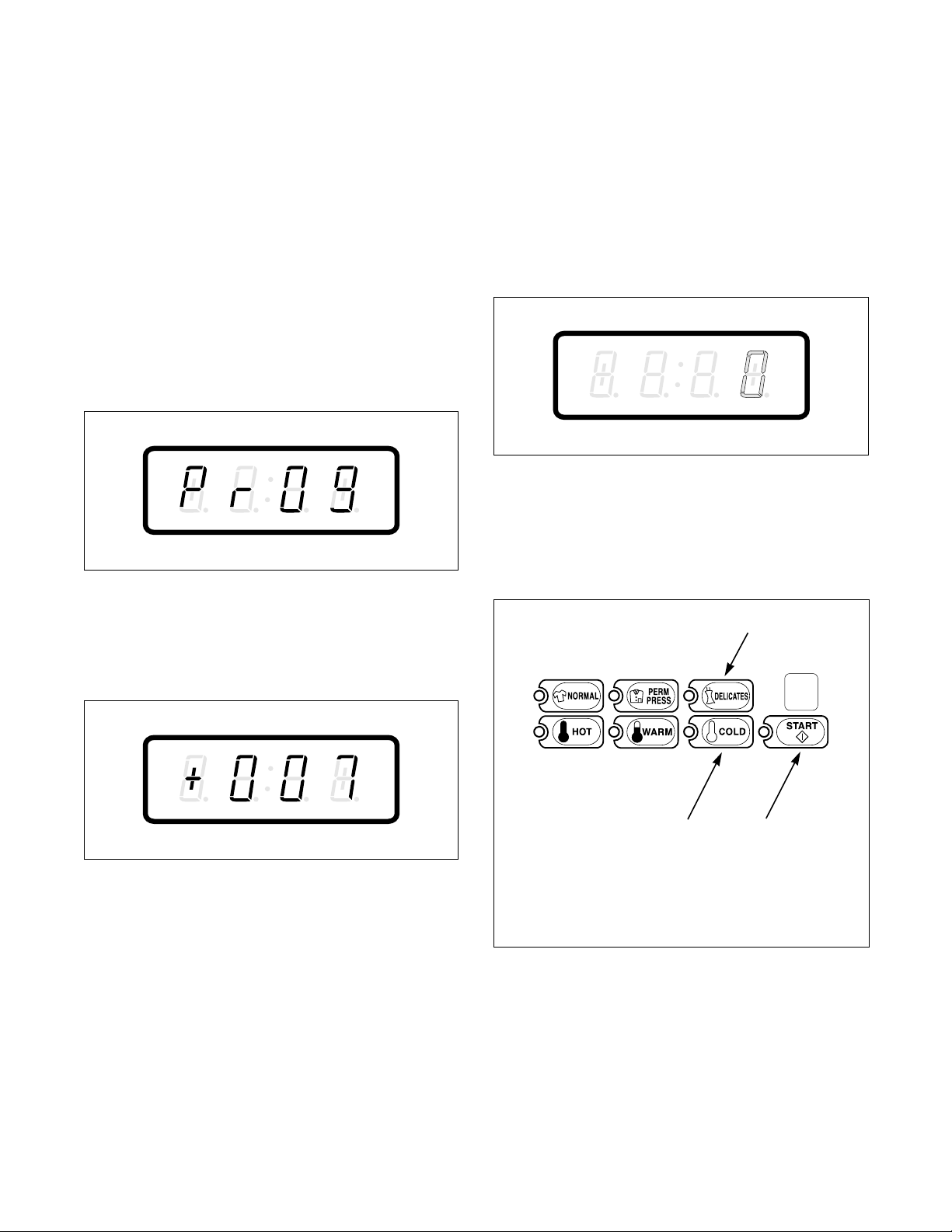

4. When “+007” appears in the VFD, press the

START (enter) keypad. There are five digits in the Site Code #1 Cold Wash Vend Price. The fifth digit will appear in the VFD and will flash one second on, one second off. Refer to Figure

35.

NOTE: If the vend price is $100.00 or more, the fifth digit is “1”. If the vend price is $99.99 or less, the fifth digit is “0”.

C826I

Figure 35

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 36.

NOTE: The vend price can be set from 0 to 65,535.

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+007” appears in the VFD. Refer to Figure 34.

Figure 34

C837I

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 36

210140

Programming NetMaster

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 37.

C827I

Figure 37

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The next option, “+008”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

NOTE: To program “+008” (Special Cycle Vend Price), refer to option 8. To program other options, refer to the appropriate section.

210140

Programming NetMaster

8. Special Cycle Vend Price “+008”

This option allows the owner to program the machines to offer extra features to the customers for an added vend price. This vend price will be displayed in the VFD for 30 seconds starting 5 seconds after the start (refer to option 49) of the first fill/agitate. Refer to option 49, 50 and 51 for programming these features.

How to Program Special Cycle Vend Price

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

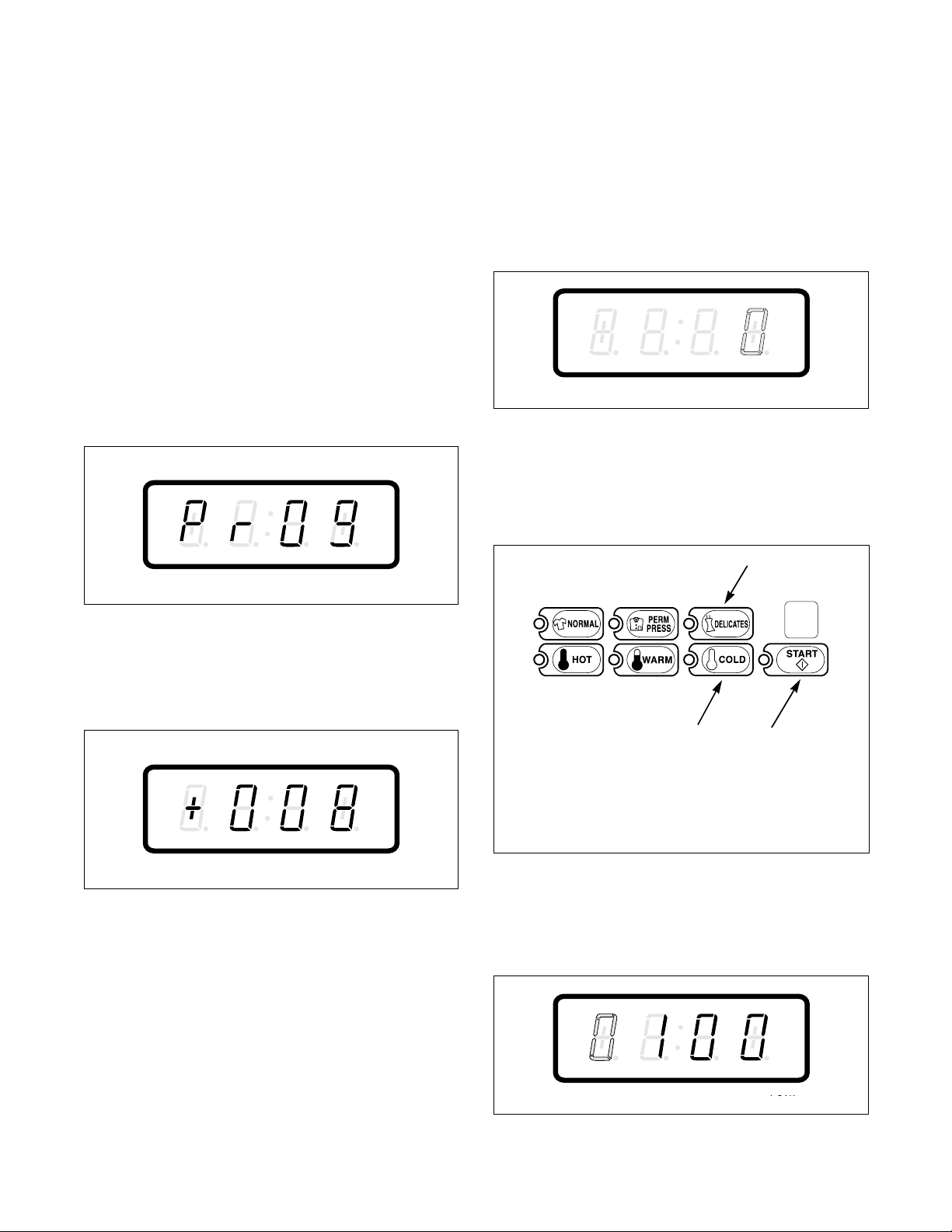

4. When “+008” appears in the VFD, press the

START (enter) keypad. There are five digits in the Special Cycle Vend Price. The fifth digit will appear in the VFD and will flash one second on, one second off. Refer to Figure 40.

NOTE: If the vend price is $100.00 or more, the fifth digit is “1”. If the vend price is $99.99 or less, the fifth digit is “0”.

C826I

Figure 40

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number until correct. Refer to Figure 41.

NOTE: The vend price can be set from 1 to 65,535.

Figure 38

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+008” appears in the VFD. Refer to Figure 39.

Figure 39

C762I

C770I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 41

C860I

6. Press the START (enter) keypad to enter the fifth digit and display the remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 42.

Figure 42

C827I

210140

Programming NetMaster

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The next option, “+009”, will appear in the VFD.

NOTE: To program “+009” (Special Vend A Days Enable), refer to option 9. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

9. Special Vend A Days Enable “+009”

This option allows the owner to set the day or days of a special vend.

Special Vend A is used to change the standard vend prices for special occasions or to turn the machine off. The special vend can be programmed to start and end on a specific day or days of the week.

The owner may also turn the Special Vend A option on or off if desired.

How to Program Special Vend A Days Enable

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

4. When “+009” appears in the VFD, press the

START (enter) keypad. A number will appear in the VFD that corresponds to the current Special Vend A Days Enable Programming Value.

5. Locate the desired number in the first column of Table 2 on the following pages.

6. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number until correct. Refer to Figure 45.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 43

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+009” appears in the VFD. Refer to Figure 44.

Figure 44

C762I

C771I

Figure 45

7. Press the START (enter) keypad when the correct number appears in the VFD. The next option, “+010”, will appear in the VFD.

NOTE: To program “+010” (Special Vend A Start Hour), refer to option 10. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

How to Read

To determine the correct number required to program the Special Vend A Days Enable, use the following table. The “SPA” Value column contains the number required in step 6. The other columns correspond to individual days.

Table 2

Each column of days contains a unique combination of the words “ON” and “OFF” that indicates if that column’s day is turned on or off when the “SPA” value is entered. Select the desired combination of days and enter the number found in the “SPA” value column.

“+009”

“SPA” VALUE SAT FRI THUR WED TUE MON SUN ON/OFF

0 OFF OFF OFF OFF OFF OFF OFF OFF

3 OFF OFF OFF OFF OFF OFF ON ON

5 OFF OFF OFF OFF OFF ON OFF ON

7 OFF OFF OFF OFF OFF ON ON ON

9 OFF OFF OFF OFF ON OFF OFF ON

11 OFF OFF OFF OFF ON OFF ON ON

13 OFF OFF OFF OFF ON ON OFF ON

15 OFF OFF OFF OFF ON ON ON ON

17 OFF OFF OFF ON OFF OFF OFF ON

19 OFF OFF OFF ON OFF OFF ON ON

21 OFF OFF OFF ON OFF ON OFF ON

23 OFF OFF OFF ON OFF ON ON ON

25 OFF OFF OFF ON ON OFF OFF ON

27 OFF OFF OFF ON ON OFF ON ON

29 OFF OFF OFF ON ON ON OFF ON

31 OFF OFF OFF ON ON ON ON ON

33 OFF OFF ON OFF OFF OFF OFF ON

35 OFF OFF ON OFF OFF OFF ON ON

37 OFF OFF ON OFF OFF ON OFF ON

39 OFF OFF ON OFF OFF ON ON ON

41 OFF OFF ON OFF ON OFF OFF ON

43 OFF OFF ON OFF ON OFF ON ON

45 OFF OFF ON OFF ON ON OFF ON

47 OFF OFF ON OFF ON ON ON ON

49 OFF OFF ON ON OFF OFF OFF ON

51 OFF OFF

53 OFF OFF ON ON OFF ON OFF ON

55 OFF OFF ON ON OFF ON ON ON

57 OFF OFF ON ON ON OFF OFF ON

59 OFF OFF ON ON ON OFF ON ON

61 OFF OFF ON ON ON ON OFF ON

63 OFF OFF ON ON ON ON ON ON

65 OFF ON OFF OFF OFF OFF OFF ON

67 OFF ON OFF OFF OFF OFF ON ON

69 OFF ON OFF OFF OFF ON OFF ON

ON ON OFF OFF ON ON

210140

Tab le 2

Programming NetMaster

“+009” (continued)

“SPA” VALUE SAT FRI THUR WED TUE MON SUN ON/OFF

71 OFF ON OFF OFF OFF ON ON ON 73 OFF ON OFF OFF ON OFF OFF ON 75 OFF ON OFF OFF ON OFF ON ON 77 OFF ON OFF OFF ON ON OFF ON 79 OFF ON OFF OFF ON ON ON ON 81 OFF ON OFF ON OFF OFF OFF ON 83 OFF ON OFF ON OFF OFF ON ON 85 OFF ON OFF ON OFF ON OFF ON 87 OFF ON OFF ON OFF ON ON ON 89 OFF ON OFF ON ON OFF OFF ON 91 OFF ON OFF ON ON OFF ON ON 93 OFF ON OFF ON ON ON OFF ON 95 OFF ON OFF ON ON ON ON ON 97 OFF ON ON OFF OFF OFF OFF ON

99 OFF ON ON OFF OFF OFF ON ON 101 OFF ON ON OFF OFF ON OFF ON 103 OFF ON ON OFF OFF ON ON ON 105 OFF ON ON OFF ON OFF OFF ON 107 OFF ON ON OFF

ON OFF ON ON 109 OFF ON ON OFF ON ON OFF ON 111 OFF ON ON OFF ON ON ON ON 113 OFF ON ON ON OFF OFF OFF ON 115 OFF ON ON ON OFF OFF ON ON 117 OFF ON ON ON OFF ON OFF ON 119 OFF ON ON ON OFF ON ON ON 121 OFF ON ON ON ON OFF OFF ON 123 OFF ON ON ON ON OFF ON ON 125 OFF ON ON ON ON ON OFF ON 127 OFF ON ON ON ON ON ON ON 129 ON OFF OFF OFF OFF OFF OFF ON 131 ON OFF OFF OFF OFF OFF ON ON 133 ON OFF OFF OFF OFF ON OFF ON 135 ON OFF OFF OFF OFF ON ON ON 137 ON OFF OFF OFF ON OFF OFF ON 139 ON OFF OFF OFF ON OFF ON ON 141 ON OFF OFF OFF ON ON OFF ON 143 ON OFF OFF OFF ON ON ON ON 145 ON OFF OFF ON OFF OFF OFF ON 147 ON OFF OFF ON OFF OFF ON ON 149 ON OFF OFF ON

OFF ON OFF ON 151 ON OFF OFF ON OFF ON ON ON 153 ON OFF OFF ON ON OFF OFF ON 155 ON OFF OFF ON ON OFF ON ON 157 ON OFF OFF ON ON ON OFF ON 159 ON OFF OFF ON ON ON ON ON 161 ON OFF ON OFF OFF OFF OFF ON

Tab le 2

210140

Programming NetMaster

“+009” (continued)

“SPA” VALUE SAT FRI THUR WED TUE MON SUN ON/OFF

163 ON OFF ON OFF OFF OFF ON ON 165 ON OFF ON OFF OFF ON OFF ON 167 ON OFF ON OFF OFF ON ON ON 169 ON OFF ON OFF ON OFF OFF ON 171 ON OFF ON OFF ON OFF ON ON 173 ON OFF ON OFF ON ON OFF ON 175 ON OFF ON OFF ON ON ON ON 177 ON OFF ON ON OFF OFF OFF ON 179 ON OFF ON ON OFF OFF ON ON 181 ON OFF ON ON OFF ON OFF ON 183 ON OFF ON ON OFF ON ON ON 185 ON OFF ON ON ON OFF OFF ON 187 ON OFF ON ON ON OFF ON ON 189 ON OFF ON ON ON ON OFF ON 191 ON OFF ON ON ON ON ON ON 193 ON ON OFF OFF OFF OFF OFF

195 ON ON OFF OFF OFF OFF ON ON 197 ON ON OFF OFF OFF ON OFF ON 199 ON ON OFF OFF OFF ON ON ON 201 ON ON OFF OFF ON OFF OFF ON 203 ON ON OFF OFF ON OFF ON ON 205 ON ON OFF OFF ON ON OFF ON 207 ON ON OFF OFF ON ON ON ON 209 ON ON OFF ON OFF OFF OFF ON 211 ON ON OFF ON OFF OFF ON ON 213 ON ON OFF ON OFF ON OFF ON 215 ON ON OFF ON OFF ON ON ON 217 ON ON OFF ON ON OFF OFF ON 219 ON ON OFF ON ON OFF ON ON 221 ON ON OFF ON ON ON OFF ON 223 ON ON OFF ON ON ON ON ON 225 ON ON ON OFF OFF OFF OFF ON 227 ON ON ON OFF OFF OFF ON ON 229 ON ON ON OFF OFF ON OFF ON 231 ON ON ON

OFF OFF ON ON ON 233 ON ON ON OFF ON OFF OFF ON 235 ON ON ON OFF ON OFF ON ON 237 ON ON ON OFF ON ON OFF ON 239 ON ON ON OFF ON ON ON ON 241 ON ON ON ON OFF OFF OFF ON 243 ON ON ON ON OFF OFF ON ON 245 ON ON ON ON OFF ON OFF ON 247 ON ON ON ON OFF ON ON ON 249 ON ON ON ON ON OFF OFF ON 251 ON ON ON ON ON OFF ON ON 253 ON ON ON ON ON ON OFF ON

Tab le 2

210140

Programming NetMaster

“+009” (continued)

“SPA” VALUE SAT FRI THUR WED TUE MON SUN ON/OFF

255 ON ON ON ON ON ON ON ON

Tab le 2

210140

Programming NetMaster

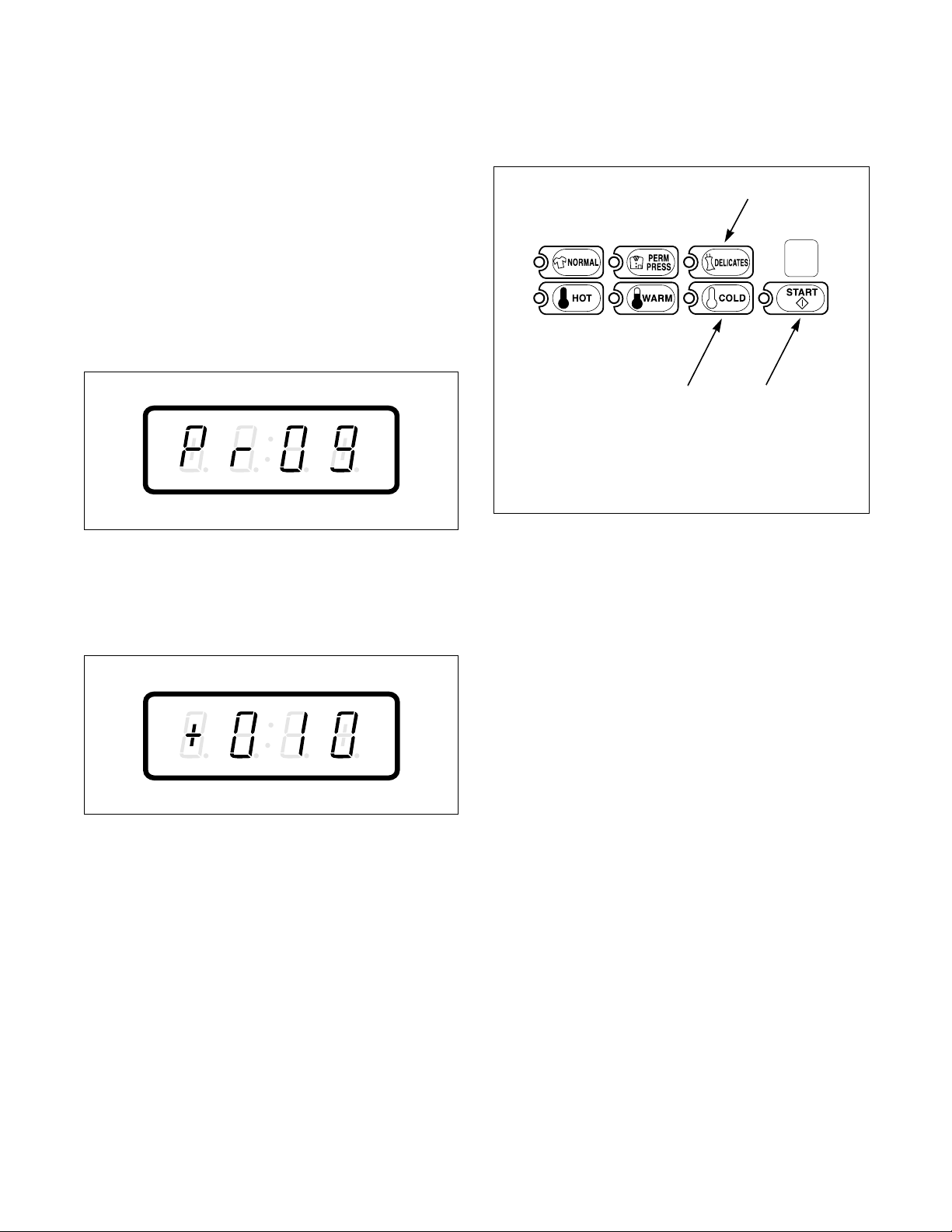

10. Special Vend A Start Hour “+010”

This option allows the owner to set the hour that Special Vend A will begin.

How to Program Special Vend A Hour

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

Figure 46

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+010” appears in the VFD. Refer to Figure 47.

C762I

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the start hour to the desired hour. Refer to Figure 48.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 48

6. Press the START (enter) keypad when the correct hour appears in the VFD. The next option, “+011”, will appear in the VFD.

NOTE: To program “+011” (Special Vend A Length in Hours), refer to option 11. To program other options, refer to the appropriate section.

C772I

Figure 47

4. When “+010” appears in the VFD, press the

START (enter) keypad. The current start time (in military time) will appear in the VFD.

NOTE: The hours will be displayed in military time.

C772I

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

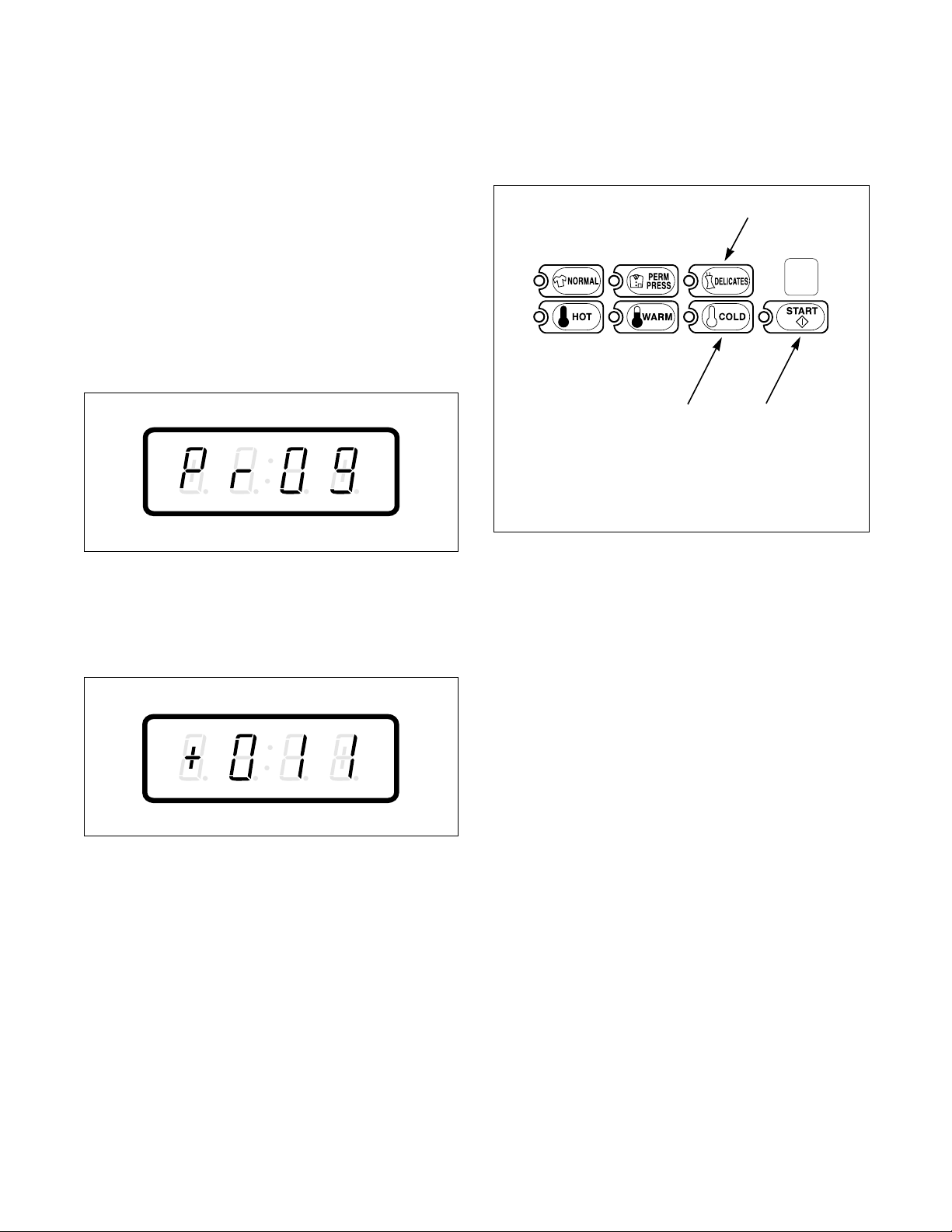

11. Special Vend A Length in Hours “+011”

This option allows the owner to set the length in hours for Special Vend A.

How to Program Special Vend A Length in Hours

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 49

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+011” appears in the VFD. Refer to Figure 50.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current length of hours to the desired number of hours. Refer to Figure 51.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 51

6. Press the START (enter) keypad when the correct hour appears in the VFD. The next option, “+012”, will appear in the VFD.

NOTE: To program “+012” (Special Vend A Start Month), refer to option 12. To program other options, refer to the appropriate section.

Figure 50

4. When “+011” appears in the VFD, press the

START (enter) keypad. The current length in hours will appear in the VFD.

C773I

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

12. Special Vend A Start Month “+012”

This option allows the owner to set the month that Special Vend A will begin.

NOTE: If Special Vend A Start Month, Start Date, End Month, or End Date are programmed to zero (default is zero), the special Vend A will be active every week on the days programmed in option 9.

How to Program Special Vend A Start Month

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the start month to the desired month. Refer to Figure 54.

If “0” is selected and Special Vend A is on, Special Vend A will occur at the time and days of week selected, regardless of the month.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 52

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+012” appears in the VFD. Refer to Figure 53.

C774I

Figure 53

4. When “+012” appears in the VFD, press the START (enter) keypad. The current start month will appear in the VFD.

C762I

C774I

Figure 54

6. Press the START (enter) keypad when the correct month appears in the VFD. The next option, “+013”, will appear in the VFD.

NOTE: To program “+013” (Special Vend A Start Date), refer to option 13. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

1. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

13. Special Vend A Start Date “+013”

This option allows the owner to set the date that Special Vend A will begin.

How to Program Special Vend A Start Date

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

Figure 55

C762I

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the start date to the desired date. Refer to Figure 57.

If “0” is selected and Special Vend A is on, Special Vend A will occur at the time or days of week selected, regardless of the date.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+013” appears in the VFD. Refer to Figure 56.

Figure 56

4. When “+013” appears in the VFD, press the START (enter) keypad. The current start date will appear in the VFD.

C775I

Figure 57

6. Press the START (enter) keypad when the correct date appears in the VFD. The next option, “+014”, will appear in the VFD.

NOTE: To program “+014” (Special Vend A End Month), refer to option 14. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

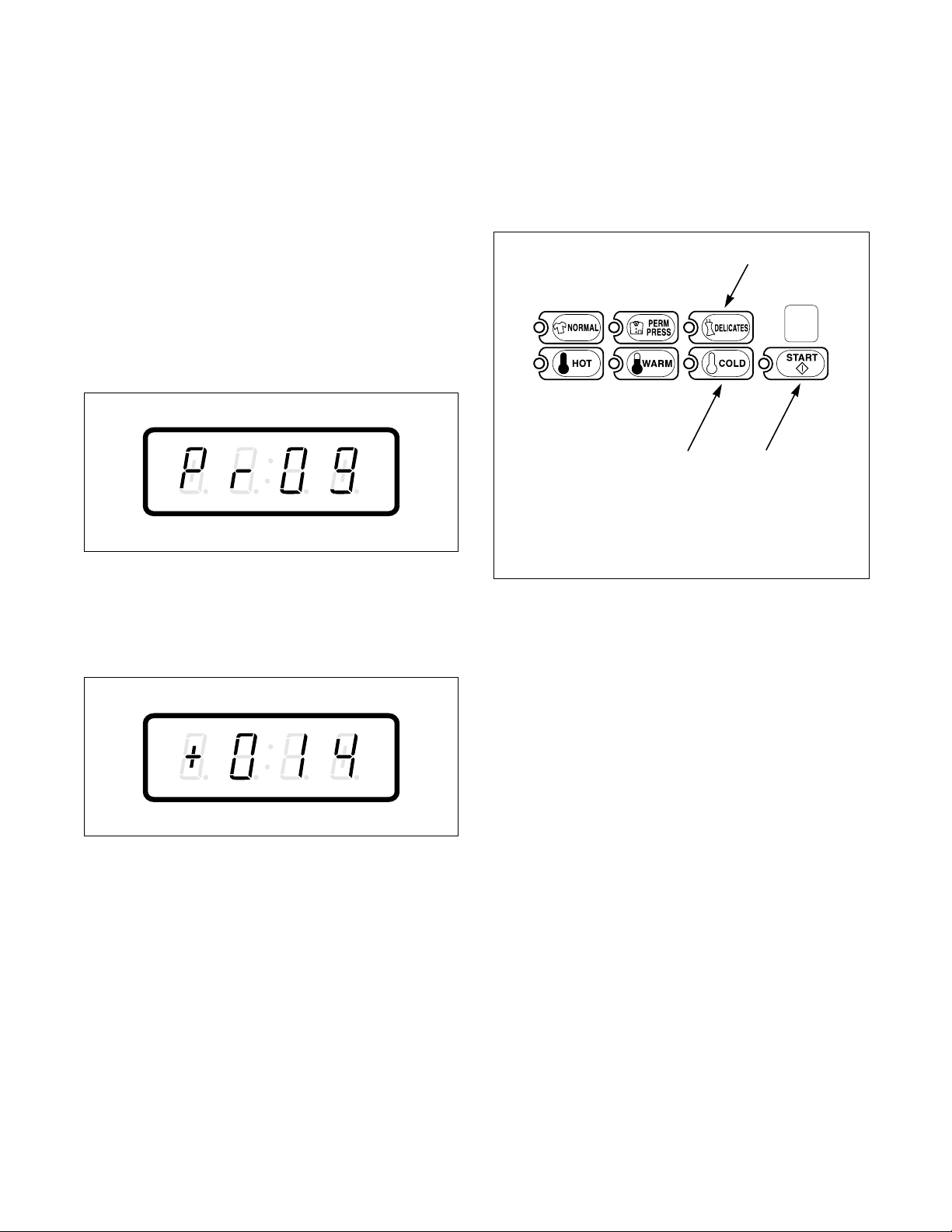

14. Special Vend A End Month “+014”

This option allows the owner to set the month that Special Vend A will end.

How to Program Special Vend A End Month

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

Figure 58

C762I

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the end month to the desired month. Refer to Figure 60.

If “0” is selected and Special Vend A is on, Special Vend A will occur at the time or day of week selected, regardless of the month.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+014” appears in the VFD. Refer to Figure 59.

C776I

Figure 59

4. When “+014” appears in the VFD, press the START (enter) keypad. The current end month will appear in the VFD.

C776I

Figure 60

6. Press the START (enter) keypad when the correct month appears in the VFD. The next option, “+015”, will appear in the VFD.

NOTE: To program “+015” (Special Vend A End Date), refer to option 15. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

15. Special Vend A End Date “+015”

This option allows the owner to set the date that Special Vend A will end.

How to Program Special Vend A End Date

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 61

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+015” appears in the VFD. Refer to Figure 62.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the end date to the desired date. Refer to Figure 63.

If “0” is selected and Special Vend A is on, Special Vend A will occur at the time or days of week selected, regardless of the date.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 63

6. Press the START (enter) keypad when the correct date appears in the VFD. The next option, “+016”, will appear in the VFD.

C777I

Figure 62

4. When “+015” appears in the VFD, press the

START (enter) keypad. The current end date will appear in the VFD.

C777I

NOTE: To program “+016” (Special Vend A Site Code #1), refer to option 16. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

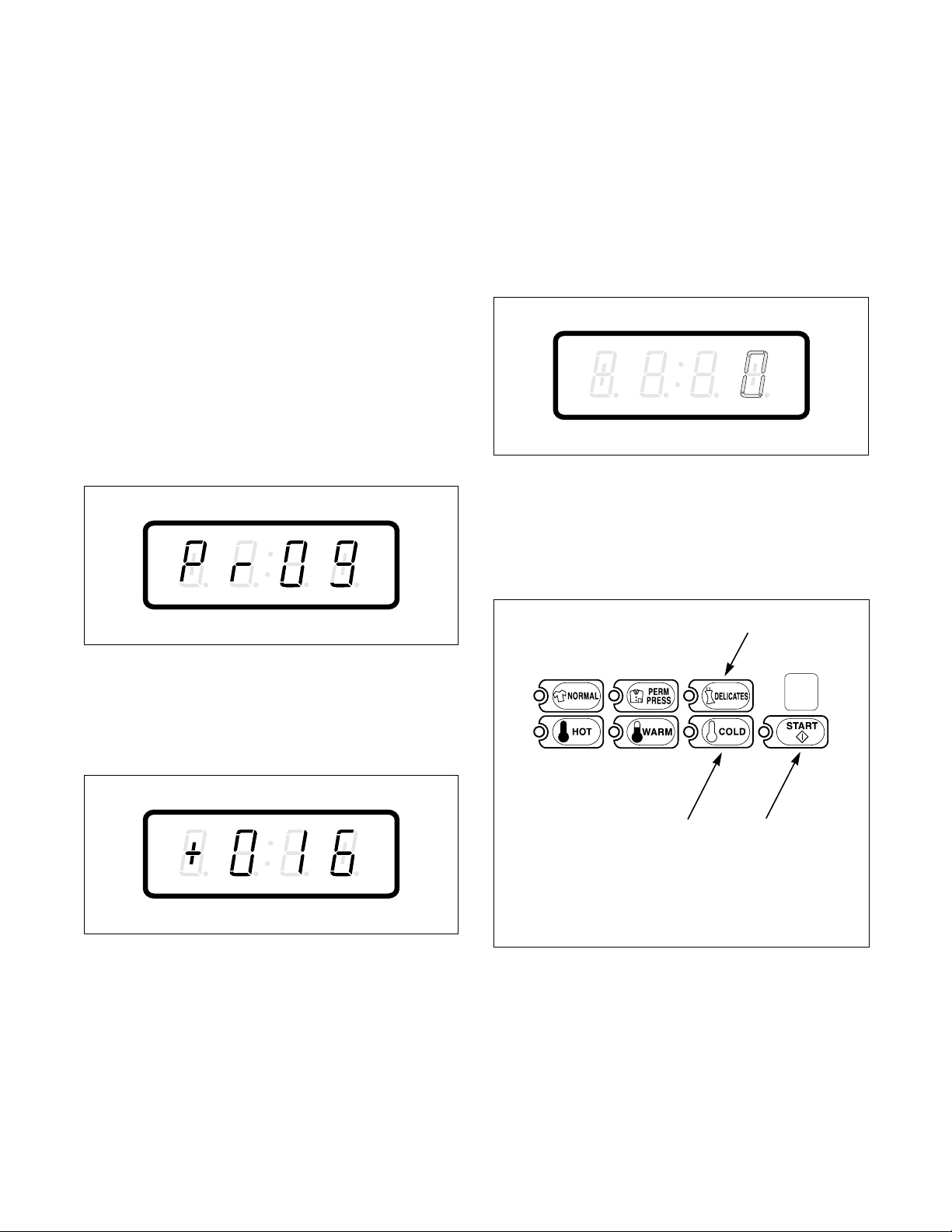

16. Special Vend A Site Code #1 “+016”

This option allows the owner to program the machines to accept site codes for Special Vend A that are specific to select groups or individuals when using cards. It also allows the owner to only give Special Vend A pricing for a card with this site code. If Special Vend A site code is zero, then Special Vend A pricing will apply to all cards.

How to Program the Special Vend A Site Code #1

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

4. When “+016” appears in the VFD, press the

START (enter) keypad. There are five digits in the Special Vend A Site Code #1. The fifth digit will appear in the VFD and will flash one second on, one second off. Refer to Figure 66.

NOTE: If the Special Vend A Site Code #1 price is 10000 or more, the fifth digit is “1”. If the Special Vend A Site Code #1 price is 9999 or less, the fifth digit is “0”.

C826I

Figure 66

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 67.

Figure 64

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+016” appears in the VFD. Refer to Figure 65.

Figure 65

C762I

C838I

NOTE: The coin value can be set from 1 to 65,535.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 67

210140

Programming NetMaster

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 68.

C827I

Figure 68

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The next option, “+017”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

NOTE: To program “+017” (Special Vend A Reg. Hot Wash Vend Price), refer to option 17. To program other options, refer to the appropriate section.

210140

Programming NetMaster

17. Special Vend A Reg. Hot Wash Vend Price “+017”

This option allows the owner to set the vend price for a Hot Wash in Special Vend A.

How to Program Special Vend A Reg. Hot Wash Vend Price

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

4. When “+017” appears in the VFD, press the

START (enter) keypad. There are five digits in the Special Vend A Reg. Hot Wash Vend Price. The fifth digit will appear in the VFD and will flash one second on and one second off. Refer to Figure 71.

NOTE: If the vend price is $100.00 or more, the fifth digit is “1”. If the vend price is $99.99 or less, the fifth digit is “0”.

C826I

Figure 71

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 72.

Figure 69

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+017” appears in the VFD. Refer to Figure 70.

C795I

Figure 70

C795I

NOTE: The vend price can be set from 0 to 65,535.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 72

210140

Programming NetMaster

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 73.

C828I

Figure 73

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The next option, “+018”, will appear in the VFD.

NOTE: To program “+018” (Special Vend A Reg. Warm Wash Vend Price), refer to option 18. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

18. Special Vend A Reg. Warm Wash Vend Price “+018”

This option allows the owner to set the vend price for a Warm Wash in Special Vend A.

How to Program Special Vend A Reg. Warm Wash Vend Price

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

4. When “+018” appears in the VFD, press the

START (enter) keypad. There are five digits in the Special Vend A Reg. Warm Wash Vend Price. The fifth digit will appear in the VFD and will flash one second on and one second off. Refer to Figure 76.

NOTE: If the vend price is $100.00 or more, the fifth digit is “1”. If the vend price is $99.99 or less, the fifth digit is “0”.

C826I

Figure 76

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 77.

Figure 74

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+018” appears in the VFD. Refer to Figure 75.

Figure 75

C794I

NOTE: The vend price can be set from 0 to 65,535.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 77

210140

Programming NetMaster

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 78.

C828I

Figure 78

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The next option, “+019”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

NOTE: To program “+019” (Special Vend A Reg. Cold Wash Vend Price), refer to option 19. To program other options, refer to the appropriate section.

210140

Programming NetMaster

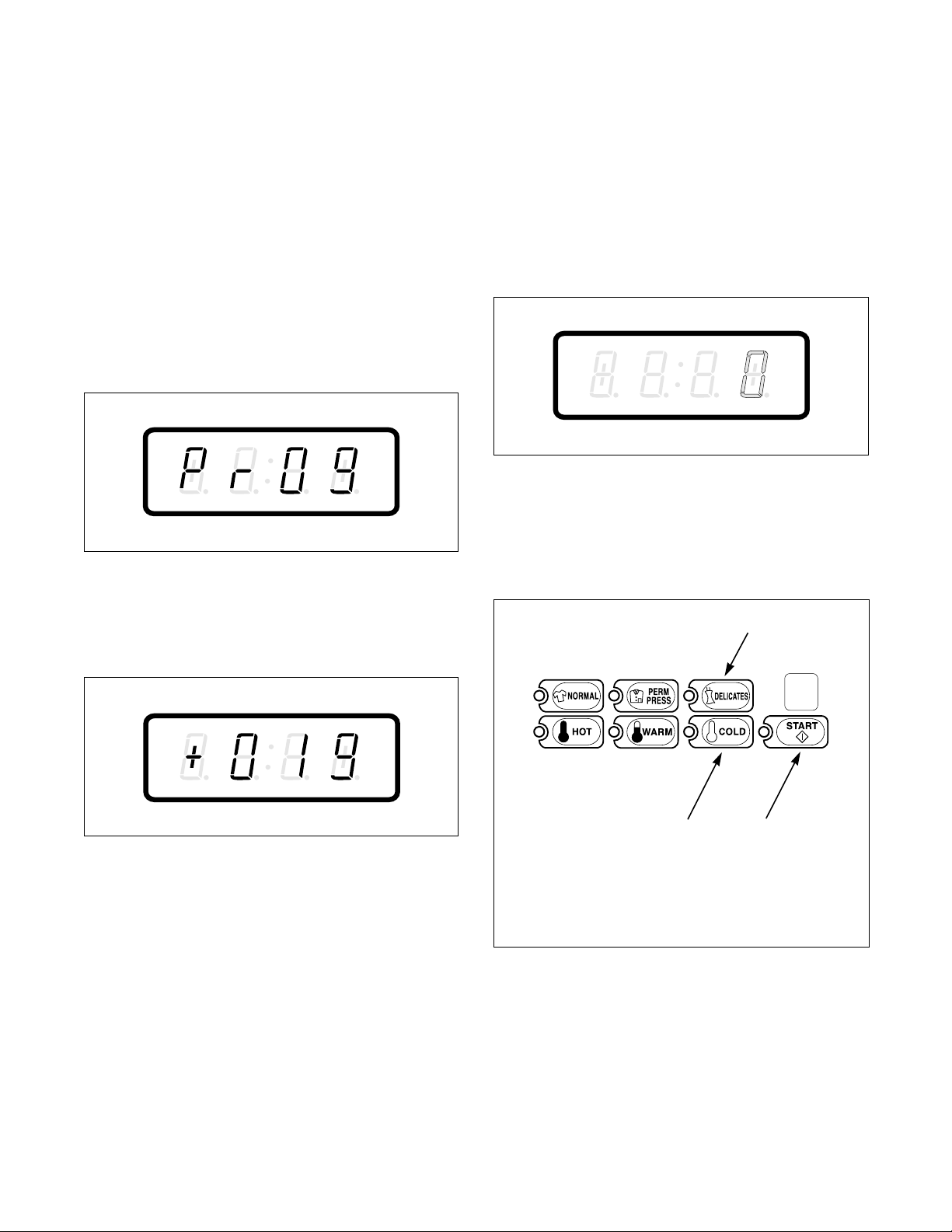

19. Special Vend A Reg. Cold Wash Vend Price “+019”

This option allows the owner to set the vend price for a Cold Wash in Special Vend A.

How to Program Special Vend A Reg. Cold Wash Vend Price

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

4. When “+019” appears in the VFD, press the

START (enter) keypad. There are five digits in the Special Vend A Reg. Cold Wash Vend Price. The fifth digit will appear in the VFD and will flash one second on and one second off. Refer to Figure 81.

NOTE: If the vend price is $100.00 or more, the fifth digit is “1”. If the vend price is $99.99 or less, the fifth digit is “0”.

C826I

Figure 81

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 82.

Figure 79

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+019” appears in the VFD. Refer to Figure 80.

C793I

Figure 80

C793I

NOTE: The vend price can be set from 0 to 65,535.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 82

210140

Programming NetMaster

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 83.

Figure 83

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The next option, “+020”, will appear in the VFD.

NOTE: To program “+020” (Special Vend A Auto-Shutdown Enable), refer to option 20. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

C828I

210140

Programming NetMaster

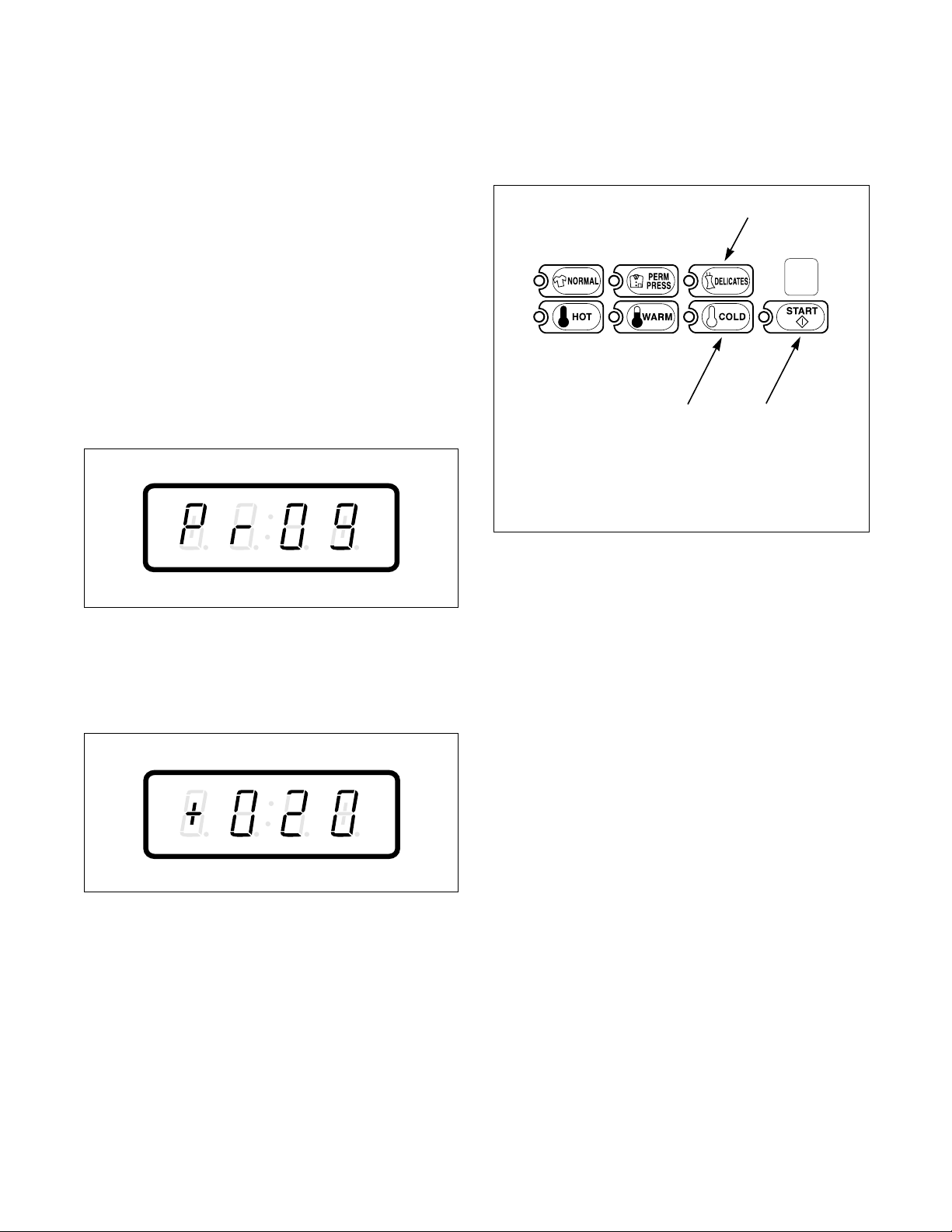

20. Special Vend A Auto-Shutdown Enable “+020”

This option, when turned on, will force the control to shutdown during the Programmed Special Vend A time period, preventing customers from starting a new cycle after a selected time. “OFF” is displayed on the VFD when Auto-Shutdown is active.

How to Program Special Vend A AutoShutdown Enable

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current value displayed in the VFD to the desired value. Refer to Figure 86.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 86

Figure 84

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+020” appears in the VFD. Refer to Figure 85.

Figure 85

4. When “+020” appears in the VFD, press the START (enter) keypad. The current Special Vend A Auto-Shutdown Enable parameter value will appear in the VFD. “0” will be displayed when Auto-Shutdown is disabled and “255” will be displayed when Auto-Shutdown is enabled.

C762I

C792I

6. Press the START (enter) keypad when the correct value appears in the VFD. The next option, “+021”, will appear in the VFD.

NOTE: To program “+021” (Coin #1 Value), refer to option 21. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

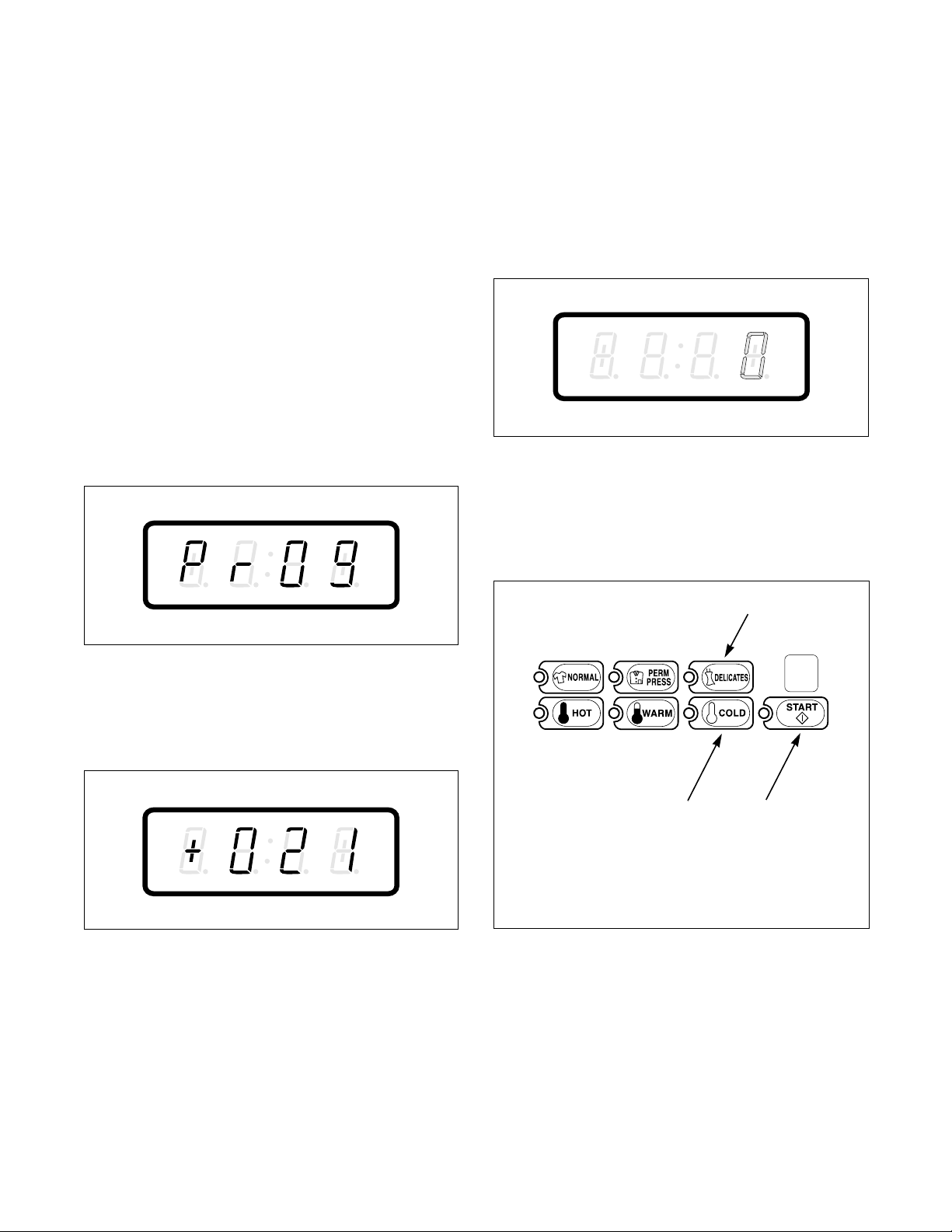

21. Coin #1 Value “+021”

This option allows the owner to set a specific numerical value for a coin entered. For example, in the United States the coin value for one quarter would be measured in cents (25). Therefore, the coin value entered for one quarter would be 00025.

If the Reg. Hot Wash Vend Price (option 2) is set for “.75”, and the Coin Value is set for “00025”, the vend price displayed will decrease by .25 for each coin entered.

How to Program Coin #1 Value

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

4. When “+021” appears in the VFD, press the START (enter) keypad.There are five digits in the Coin #1 Value. The fifth digit will appear in the VFD and will flash one second on and one second off. Refer to Figure 89.

NOTE: If the coin value is $100.00 or more, the fifth digit is “1”. If the coin value is $99.99 or less, the fifth digit is “0”.

C826I

Figure 89

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 90.

NOTE: The coin value can be set from 1 to 65,535.

Figure 87

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+021” appears in the VFD. Refer to Figure 88.

Figure 88

C762I

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

C791I

Figure 90

210140

Programming NetMaster

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 91.

C829I

Figure 91

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The next option, “+022”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

NOTE: To program “+022” (Coin #2 Value), refer to option 22. To program other options, refer to the appropriate section.

210140

Programming NetMaster

22. Coin #2 Value “+022”

This option allows the owner to set a specific numerical value for a coin entered when using the dual coin drop. For example, the coin value for a dollar coin would be measured in cents (1.00). Therefore, the coin value entered for one dollar coin would be 00100.

If the Reg. Hot Wash Vend Price (option 2) is set for “2.00”, and the Coin Value is set for “00100”, the vend price displayed will decrease by 1.00 for each dollar coin entered.

How to Program Coin #2 Value

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

4. When “+022” appears in the VFD, press the START (enter) keypad. There are five digits in the Coin #2 Value. The fifth digit will appear in the VFD and will flash one second on and one second off. Refer to Figure 94.

NOTE: If the coin value is $100.00 or more, the fifth digit is “1”. If the coin value is $99.99 or less, the fifth digit is “0”.

C826I

Figure 94

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 95.

NOTE: The coin value can be set from 1 to 65,535.

Figure 92

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+022” appears in the VFD. Refer to Figure 93.

C790I

Figure 93

C762I

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

C790I

Figure 95

210140

Programming NetMaster

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 96.

C827I

Figure 96

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The next option, “+023”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

NOTE: To program “+023” (Start Pulse Value), refer to option 23. To program other options, refer to the appropriate section.

210140

Programming NetMaster

23. Start Pulse Value “+023”

This option allows the owner to program the value of the Start Pulse if used for multiple pulses with an after-market central card reader or pay system. Refer to option 55 for additional information.

How to Program Start Pulse Value

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 97

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+023” appears in the VFD. Refer to Figure 98.

4. When “+023” appears in the VFD, press the

START (enter) keypad. There are five digits in the Start Pulse Value. The fifth digit will appear in the VFD and will flash one second on and one second off. Refer to Figure 99.

NOTE: If the Start Pulse Value is $100.00 or more, the fifth digit is “1”. If the Start Pulse Value is $99.99 or less, the fifth digit is “0”.

C826I

Figure 99

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the fifth digit. Refer to Figure 100.

NOTE: The Start Pulse Value can be set from 1 to 65,535.

C789I

Figure 98

C789I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

C860I

Figure 100

210140

Programming NetMaster

6. Press the START (enter) keypad to enter the fifth digit and display remaining four digits. The active digit will flash one second on and one second off. Refer to Figure 101.

C827I

Figure 101

7. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the value of the active digit and the START (enter) keypad to enter the value of the digit and advance to the next digit.

8. Press the START (enter) keypad with the last active digit. The next option, “+024”, will appear in the VFD.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

NOTE: To program “+024” (Default Cycle/Temperature), refer to option 24. To program other options, refer to the appropriate section.

210140

Programming NetMaster

24. Default Cycle/Temperature “+024”

This option allows the owner to set the default cycle and temperature the machine will enter when in the ready mode. When programming the default cycle, refer to Table 3 on the following page.

How to Program Default Cycle/Temperature

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 102

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+024” appears in the VFD. Refer to Figure 103.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number to the desired number selected from Tab l e 3 on the following page. Refer to Figure 104.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 104

6. Press the START (enter) keypad when the correct number appears in the VFD. The next option, “+025”, will appear in the VFD.

NOTE: To program “+025” (Power Fail Reset), refer to option 25. To program other options, refer to the appropriate section.

C788I

Figure 103

4. When “+024” appears in the VFD, press the

START (enter) keypad. A number will appear in the VFD. This number corresponds to the current default cycle value.

C788I

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

How to Read

Table 3

To determine the correct number required to program Default Cycle/Temperature, use the following table. The Default Value column contains the number required in step 5. The other columns correspond to individual options.

Each column of options contains a unique combination of the words “ON” and “OFF” that indicates if that

Default

Value

9OFFOFFON OFF OFF ON

10 OFF OFF ON OFF ON OFF

12 OFF OFF ON ON OFF OFF

17 OFF ON OFF OFF OFF ON

18 OFF ON OFF OFF ON OFF

20 OFF ON OFF ON OFF OFF

33 ON OFF OFF OFF OFF ON

34 ON OFF OFF OFF ON OFF

36 ON OFF OFF ON OFF OFF

Normal Cycle

Perm Press

Cycle

column’s option is turned on or off when the Default Value is entered. Select the desired combination of options and enter the number found in the Default Value column.

“+024”

Delicate

Cycle

Hot Wash Warm Wash Cold Wash

Tab le 3

210140

Programming NetMaster

25. Power Fail Reset “+025”

This option allows the owner to set the amount of time NetMaster will store active cycle information in the event of a power failure. The default setting for Power Fail Reset is OFF. If Power Fail Reset is turned OFF, the cycle will be saved for up to six years.

How to Program Power Fail Reset

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number to the desired number selected from Table 4. Refer to Figure 107.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 107

Figure 105

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+025” appears in the VFD. Refer to Figure 106.

Figure 106

4. When “+025” appears in the VFD, press the START (enter) keypad. A number will appear in the VFD. This number corresponds to the current Power Fail Reset setting.

C787I

6. Press the START (enter) keypad when the correct number appears in the VFD. The next option, “+026”, will appear in the VFD.

NOTE: To program “+026” (Set Real-Time Clock Minutes), refer to option 26. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

How to Read

Table 4

Use this table to set the amount of time for Power Fail Reset.

The table range begins at 0 and ends at 255. Numbers entered between 0 and 127 turn the option OFF. If a number in this range is entered, the current cycle status will be saved for up to six years. When power is restored, the cycle will begin where it was interrupted.

NUMBER TO ENTER IN STEP 6 POWER FAIL RESET TIME

000 – 127 Turned OFF

133 5 minutes without power before cycle is lost

. . . add one minute for every number up to

255 127 minutes without power before cycle is lost

If 133 is entered, the current cycle will be saved for up to five minutes. If power is not restored within five minutes, the control will erase the cycle status. The minimum power failure time is five minutes. The maximum power fail reset time is 127 minutes.

“+025”

Cycle will be saved for a minimum of 6 years

Tab le 4

210140

Programming NetMaster

26. Set Real-Time Clock Minutes “+026”

This option allows the owner to set NetMaster’s internal clock to the correct time in minutes.

How to Program the Clock Minutes

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

Figure 108

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+026” appears in the VFD. Refer to Figure 109.

C762I

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the minutes to the correct time. Refer to Figure 110.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 110

6. Press the START (enter) keypad when the correct time in minutes appears in the VFD. The next option, “+027”, will appear in the VFD.

NOTE: To program “+027” (Set Real-Time Clock Hours), refer to option 27. To program other options, refer to the appropriate section.

Figure 109

4. When “+026” appears in the VFD, press the

START (enter) keypad. The current time in minutes will appear in the VFD.

C786I

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

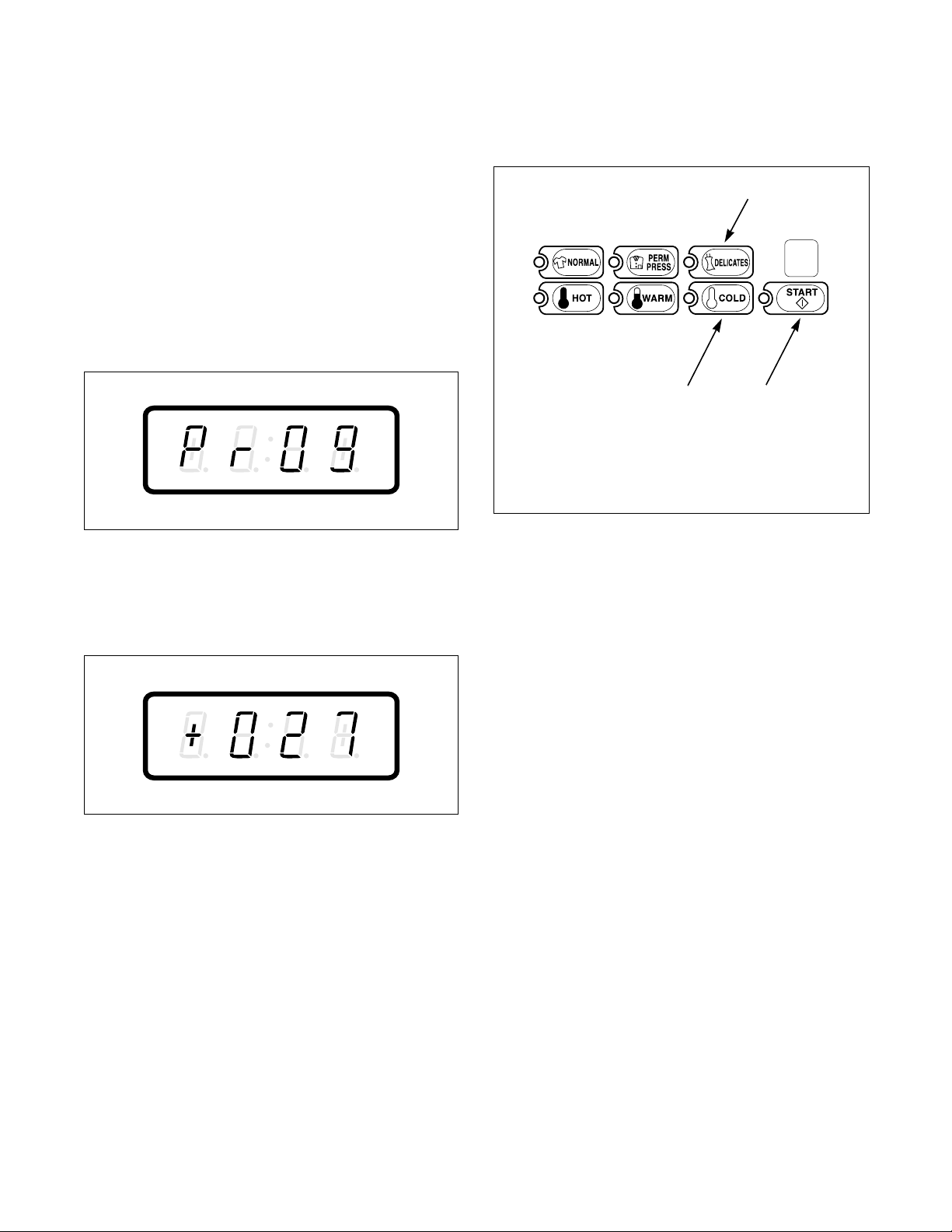

27. Set Real-Time Clock Hours “+027”

This option allows the owner to set NetMaster’s internal clock to the correct time in hours.

How to Program the Clock Hours

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

Figure 111

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+027” appears in the VFD. Refer to Figure 112.

C762I

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the hours to the correct time. Refer to Figure 113.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 113

6. Press the START (enter) keypad when the correct time in hours appears in the VFD. The next option, “+028”, will appear in the VFD.

NOTE: To program “+028” (Set Real-Time Clock Day), refer to option 28. To program other options, refer to the appropriate section.

C785I

Figure 112

C785I

4. When “+027” appears in the VFD, press the

START (enter) keypad. The current time in hours will appear in the VFD.

NOTE: The hours will be displayed in military time.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

28. Set Real-Time Clock Day “+028”

This option allows the owner to set NetMaster’s internal clock to the correct day of the week.

How to Program the Clock Day

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 114

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+028” appears in the VFD. Refer to Figure 115.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the day until correct. Refer to Figure 116.

NOTE: Sunday is considered day one (001), Monday is day two (002) and so on.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 116

6. Press the START (enter) keypad when the correct day appears in the VFD. The next option, “+029”, will appear in the VFD.

C784I

Figure 115

4. When “+028” appears in the VFD, press the

START (enter) keypad. The current day of the week will appear in the VFD.

C784I

NOTE: To program “+029” (Set Real-Time Clock Date), refer to option 29. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

29. Set Real-Time Clock Date “+029”

This option allows the owner to set NetMaster’s internal clock to the correct day of the month.

How to Program the Clock Date

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

Figure 117

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+029” appears in the VFD. Refer to Figure 118.

C762I

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the day of the month until correct. Refer to Figure 119.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 119

6. Press the START (enter) keypad when the correct day of the month appears in the VFD. The next option, “+030”, will appear in the VFD.

NOTE: To program “+030” (Set Real-Time Clock Month), refer to option 30. To program other options, refer to the appropriate section.

Figure 118

4. When “+029” appears in the VFD, press the

START (enter) keypad. The current day of the month will appear in the VFD.

C783I

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

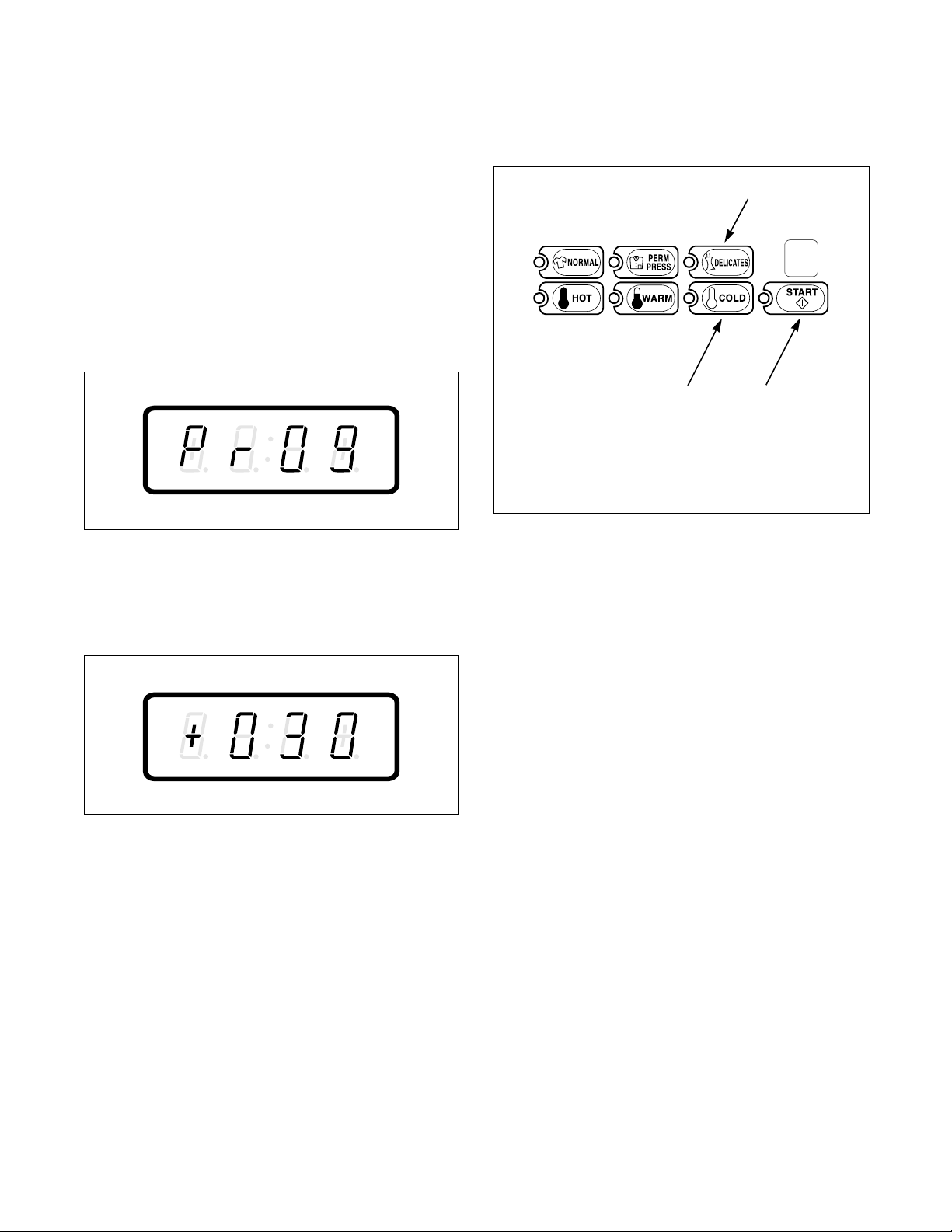

30. Set Real-Time Clock Month “+030”

This option allows the owner to set NetMaster’s internal clock to the correct month.

How to Program the Clock Month

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

Figure 120

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+030” appears in the VFD. Refer to Figure 121.

C762I

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the month until correct. Refer to Figure 122.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 122

6. Press the START (enter) keypad when the correct month appears in the VFD. The next option, “+031”, will appear in the VFD.

NOTE: To program “+031” (Set Real-Time Clock Year), refer to option 31. To program other options, refer to the appropriate section.

Figure 121

4. When “+030” appears in the VFD, press the

START (enter) keypad. The current month will appear in the VFD.

C782I

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

31. Set Real-Time Clock Year “+031”

This option allows the owner to set NetMaster’s internal clock to the correct year.

How to Program the Clock Year

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

Figure 123

C762I

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the year until correct. Refer to Figure 125.

NOTE: The year 2000 is “00”, the year 2001 is “01” and so on.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+031” appears in the VFD. Refer to Figure 124.

Figure 124

4. When “+031” appears in the VFD, press the START (enter) keypad. The current year will appear in the VFD.

C781I

Figure 125

6. Press the START (enter) keypad when the correct year appears in the VFD. The next option, “+032”, will appear in the VFD.

NOTE: To program “+032” (Set Real-Time Clock Century), refer to option 32. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

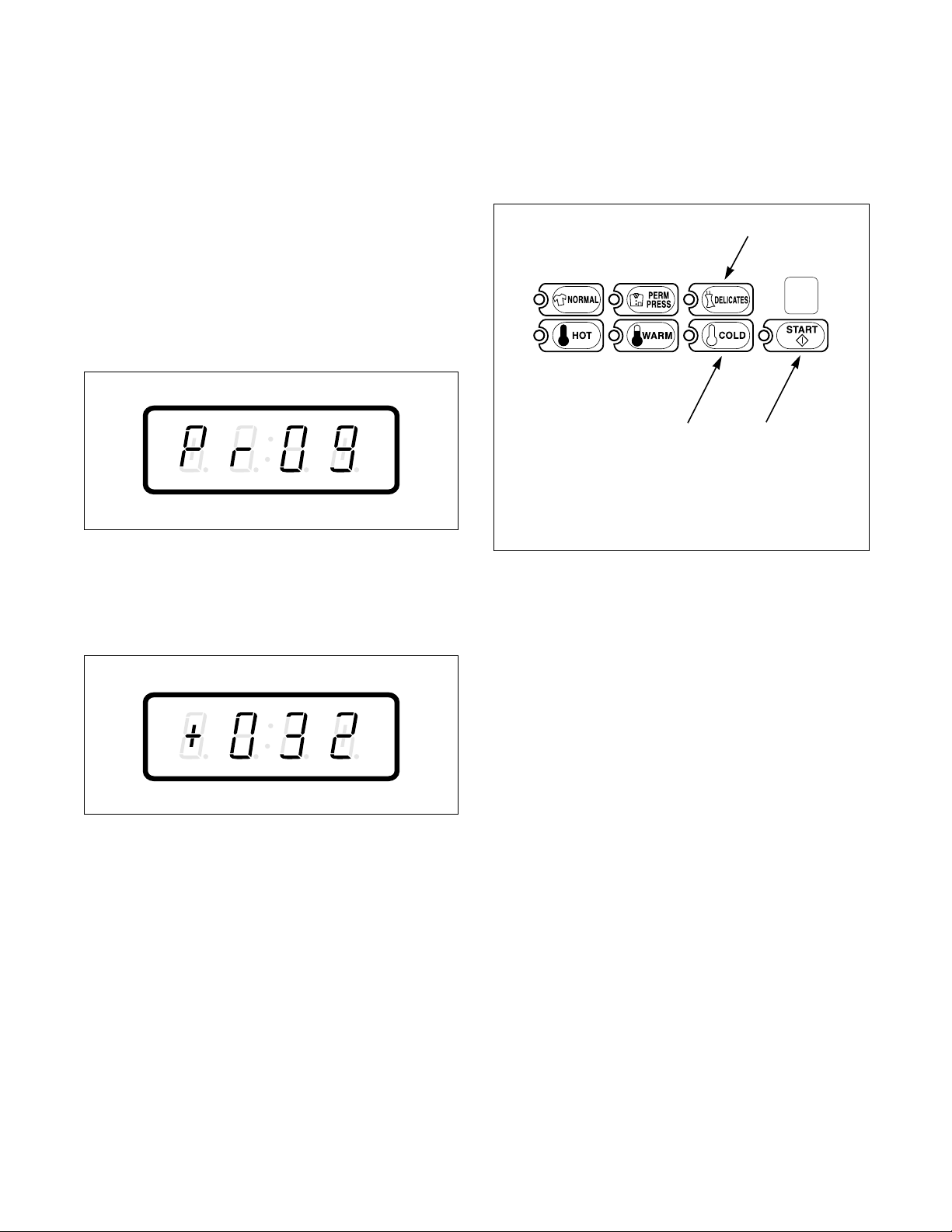

32. Set Real-Time Clock Century “+032”

This option allows the owner to set NetMaster’s internal clock to the correct century.

How to Program the Clock Century

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

Figure 126

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+032” appears in the VFD. Refer to Figure 127.

C762I

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the century until correct. Refer to Figure 128.

NOTE: The digits “20” are used for century.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 128

6. Press the START (enter) keypad when the correct century appears in the VFD. The next option, “+033”, will appear in the VFD.

Figure 127

4. When “+032” appears in the VFD, press the

START (enter) keypad. The current century will appear in the VFD.

C780I

NOTE: To program “+033” (Normal Wash Agitate Time), refer to option 33. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

33. Normal Wash Agitate Time “+033”

This option allows the owner to set the amount of wash agitate time for the Normal cycle.

How to Program Normal Wash Agitate Time

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

Figure 129

C762I

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 131.

NOTE: The Normal Wash Agitate Time can be set from zero (0) to 15 minutes.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+033” appears in the VFD. Refer to Figure 130.

Figure 130

4. When “+033” appears in the VFD, press the START (enter) keypad. The current number of minutes set for the Normal Wash Agitate Time will appear in the VFD.

C779I

Figure 131

6. Press the START (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+034”, will appear in the VFD.

NOTE: To program “+034” (Normal Extra Rinse Agitate Time), refer to option 34. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

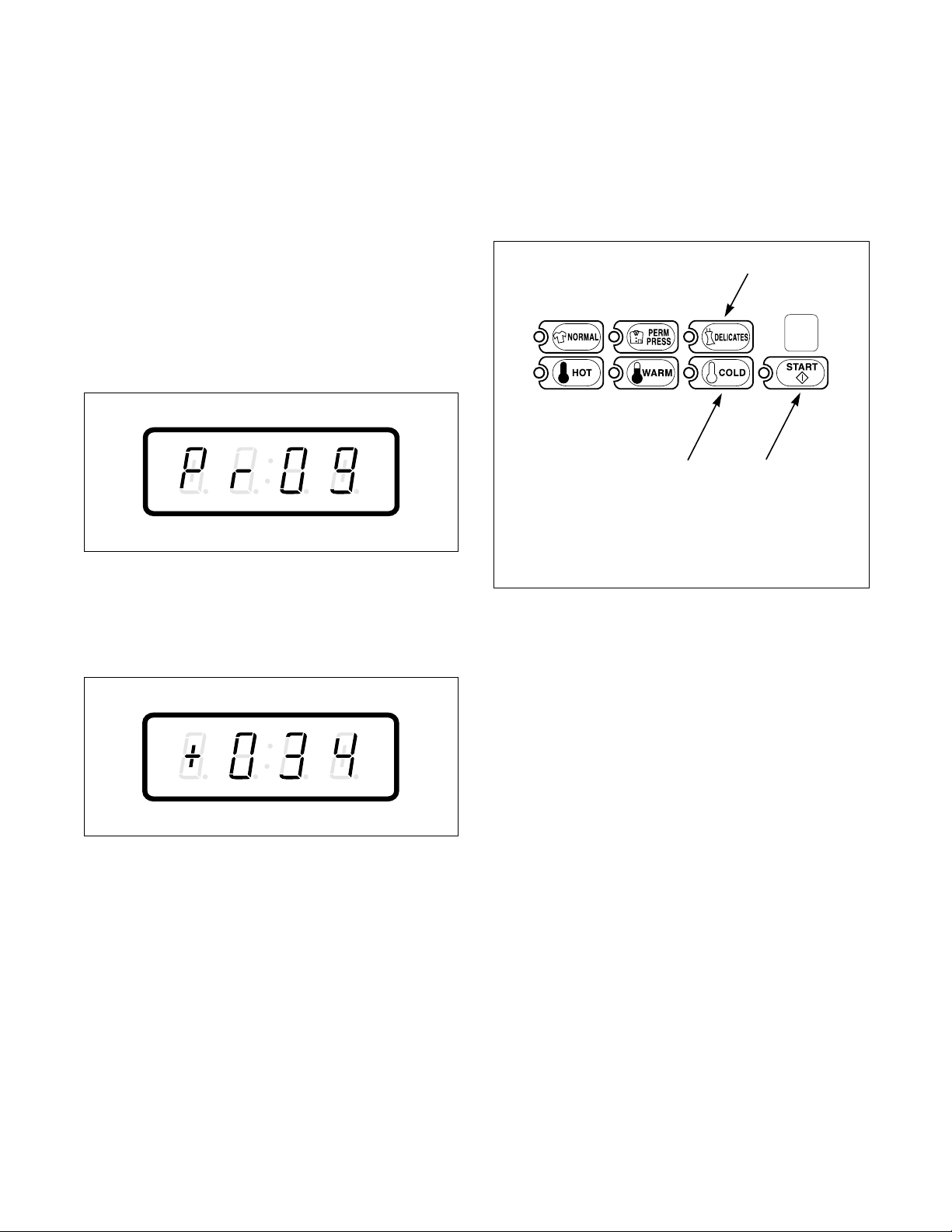

34. Normal Extra Rinse Agitate Time “+034”

This option allows the owner to set the amount of extra rinse agitate time for the Normal cycle.

How to Program Normal Extra Rinse Agitate Time

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

Figure 132

C762I

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 134.

NOTE: The Normal Extra Rinse Agitate Time can be set from zero (0) to 15 minutes.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+034” appears in the VFD. Refer to Figure 133.

Figure 133

4. When “+034” appears in the VFD, press the START (enter) keypad. The current number of minutes set for the Normal Extra Rinse Agitate Time will appear in the VFD.

C778I

Figure 134

6. Press the START (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+035”, will appear in the VFD.

NOTE: To program “+035” (Normal Rinse Agitate Time), refer to option 35. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

35. Normal Rinse Agitate Time “+035”

This option allows the owner to set the amount of time for a rinse agitate in the Normal cycle.

How to Program Normal Rinse Agitate Time

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 135

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 137.

NOTE: The Normal Rinse Agitate Time can be set from zero (0) to 15 minutes.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+035” appears in the VFD. Refer to Figure 136.

C796I

Figure 136

4. When “+035” appears in the VFD, press the START (enter) keypad. The current number of minutes set for the Normal Rinse Agitate Time will appear in the VFD.

C796I

Figure 137

6. Press the START (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+036”, will appear in the VFD.

NOTE: To program “+036” (Normal Final Spin Time), refer to option 36. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

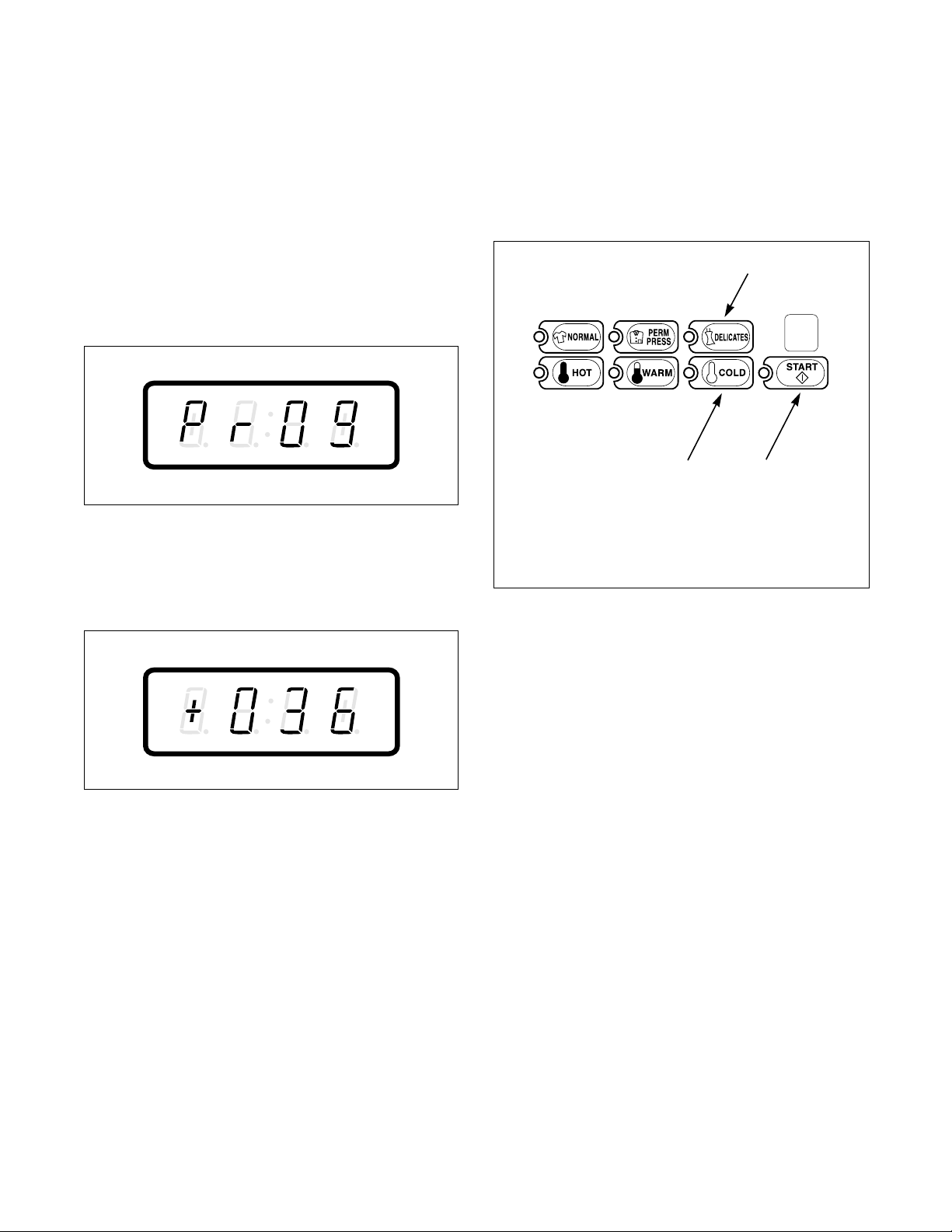

36. Normal Final Spin Time “+036”

This option allows the owner to set the amount of time for a final spin in the Normal cycle.

How to Program Normal Final Spin Time

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 138

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+036” appears in the VFD. Refer to Figure 139.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 140.

NOTE: The Normal Final Spin Time can be set from zero (0) to 15 minutes.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 140

Figure 139

4. When “+036” appears in the VFD, press the

START (enter) keypad. The current number of minutes set for the Normal Final Spin Time will appear in the VFD.

C797I

6. Press the START (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+037”, will appear in the VFD.

NOTE: To program “+037” (Permanent Press Wash Agitate Time), refer to option 37. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

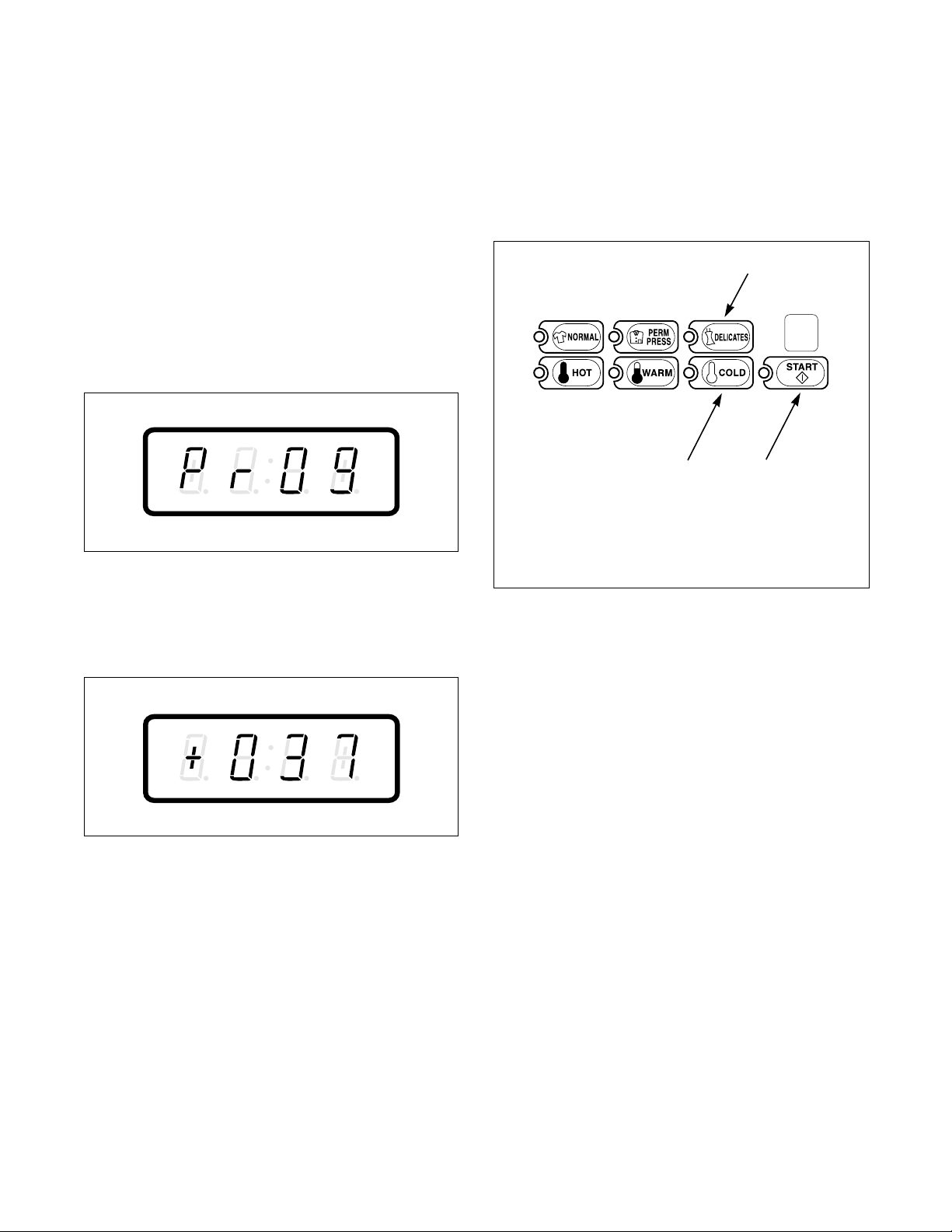

37. Permanent Press Wash Agitate Time “+037”

This option allows the owner to set the amount of wash agitate time for the Permanent Press cycle.

How to Program Permanent Press Wash Agitate Time

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 141

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 143.

NOTE: The Permanent Press Wash Agitate Time can be set from zero (0) to 15 minutes.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+037” appears in the VFD. Refer to Figure 142.

Figure 142

4. When “+037” appears in the VFD, press the START (enter) keypad. The current number of minutes set for the Permanent Press Wash Agitate Time will appear in the VFD.

C798I

Figure 143

6. Press the START (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+038”, will appear in the VFD.

NOTE: To program “+038” (Permanent Press Extra Rinse Agitate Time), refer to option 38. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

38. Permanent Press Extra Rinse Agitate Time “+038”

This option allows the owner to set the amount of extra rinse agitate time for the Permanent Press cycle.

How to Program Permanent Press Extra Rinse Agitate Time

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 144

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 146.

NOTE: The Permanent Press Extra Rinse Agitate Time can be set from zero (0) to 15 minutes.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+038” appears in the VFD. Refer to Figure 145.

Figure 145

4. When “+038” appears in the VFD, press the START (enter) keypad. The current number of minutes set for the Permanent Press Extra Rinse Agitate Time will appear in the VFD.

C799I

Figure 146

6. Press the START (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+039”, will appear in the VFD.

NOTE: To program “+039” (Permanent Press Rinse Agitate Time), refer to option 39. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

39. Permanent Press Rinse Agitate Time “+039”

This option allows the owner to set the amount of rinse agitate time for the Permanent Press cycle.

How to Program Permanent Press Rinse Agitate Time

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 147

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 149.

NOTE: The Permanent Press Rinse Agitate Time can be set from zero (0) to 15 minutes.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+039” appears in the VFD. Refer to Figure 148.

Figure 148

4. When “+039” appears in the VFD, press the START (enter) keypad. The current number of minutes set for the Permanent Press Rinse Agitate Time will appear in the VFD.

C800I

Figure 149

6. Press the START (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+040”, will appear in the VFD.

NOTE: To program “+040” (Permanent Press Final Spin Time), refer to option 40. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

40. Permanent Press Final Spin Time “+040”

This option allows the owner to set the amount of final spin time for the Permanent Press cycle.

How to Program Permanent Press Final Spin Time

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 150

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 152.

NOTE: The Permanent Press Final Spin Time can be set from zero (0) to 15 minutes.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+040” appears in the VFD. Refer to Figure 151.

Figure 151

4. When “+040” appears in the VFD, press the START (enter) keypad. The current number of minutes set for the Permanent Press Final Spin Time will appear in the VFD.

C801I

Figure 152

6. Press the START (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+041”, will appear in the VFD.

NOTE: To program “+041” (Delicate Wash Agitate Time), refer to option 41. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

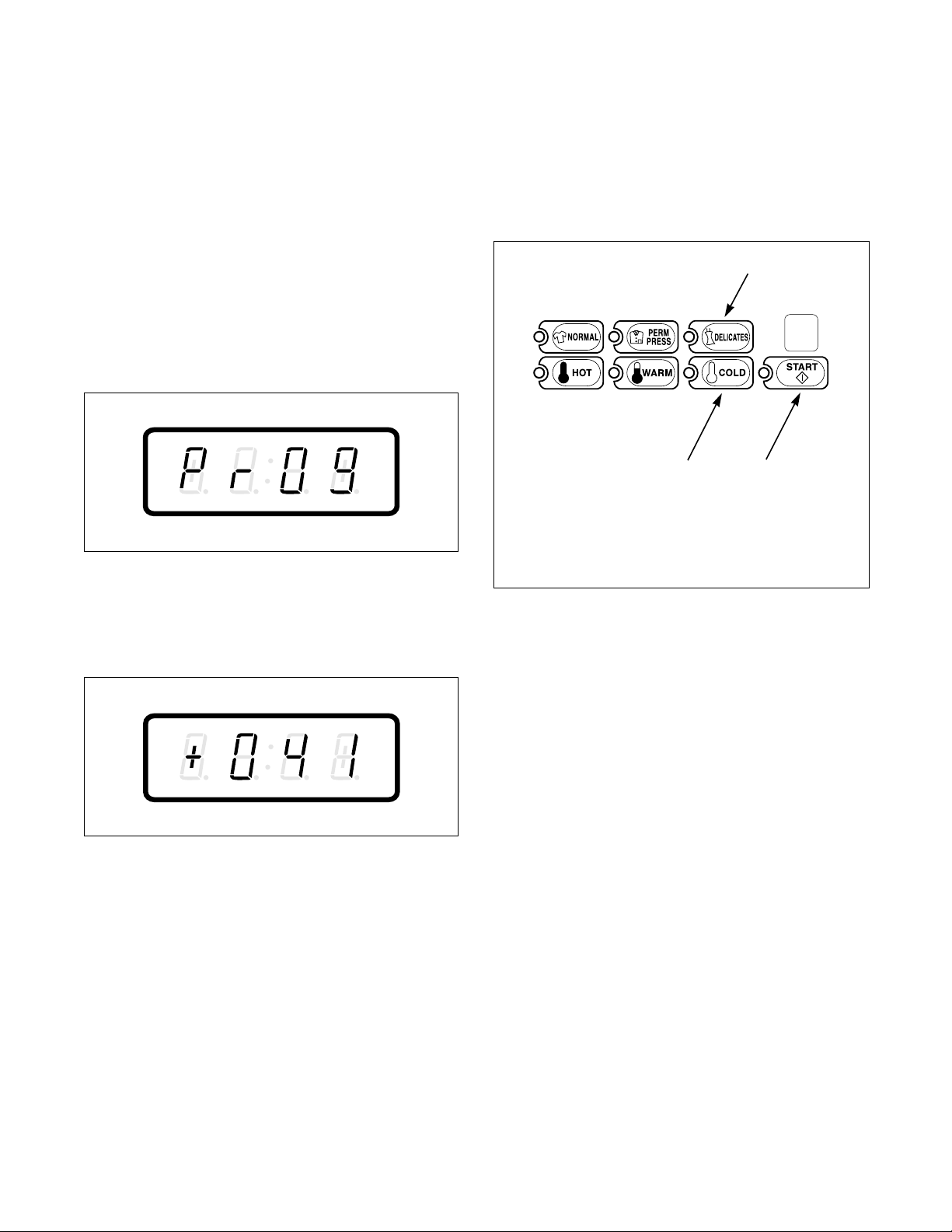

41. Delicate Wash Agitate Time “+041”

This option allows the owner to set the amount of wash agitate time for the Delicate cycle.

How to Program Delicate Wash Agitate Time

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

Figure 153

C762I

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 155.

NOTE: The Delicate Wash Agitate Time can be set from zero (0) to 15 minutes.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+041” appears in the VFD. Refer to Figure 154.

Figure 154

4. When “+041” appears in the VFD, press the START (enter) keypad. The current number of minutes set for the Delicate Wash Agitate Time will appear in the VFD.

C802I

Figure 155

6. Press the START (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+042”, will appear in the VFD.

NOTE: To program “+042” (Delicate Extra Rinse Agitate Time), refer to option 42. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

42. Delicate Extra Rinse Agitate Time “+042”

This option allows the owner to set the amount of extra rinse agitate time for the Delicate cycle.

How to Program Delicate Extra Rinse Agitate Time

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

Figure 156

C762I

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 158.

NOTE: The Delicate Extra Rinse Agitate Time can be set from zero (0) to 15 minutes.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+042” appears in the VFD. Refer to Figure 157.

Figure 157

4. When “+042” appears in the VFD, press the START (enter) keypad. The current number of minutes set for the Delicate Extra Rinse Agitate Time will appear in the VFD.

C803I

Figure 158

6. Press the START (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+043”, will appear in the VFD.

NOTE: To program “+043” (Delicate Rinse Agitate Time), refer to option 43. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

43. Delicate Rinse Agitate Time “+043”

This option allows the owner to set the amount of rinse agitate time for the Delicate cycle.

How to Program Delicate Rinse Agitate Time

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 159

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 161.

NOTE: The Delicate Rinse Agitate Time can be set from zero (0) to 15 minutes.

C860

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+043” appears in the VFD. Refer to Figure 160.

C804I

Figure 160

4. When “+043” appears in the VFD, press the START (enter) keypad. The current number of minutes set for the Delicate Rinse Agitate time will appear in the VFD.

C804I

Figure 161

6. Press the START (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+044”, will appear in the VFD.

NOTE: To program “+044” (Delicate Final Spin Time), refer to option 44. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

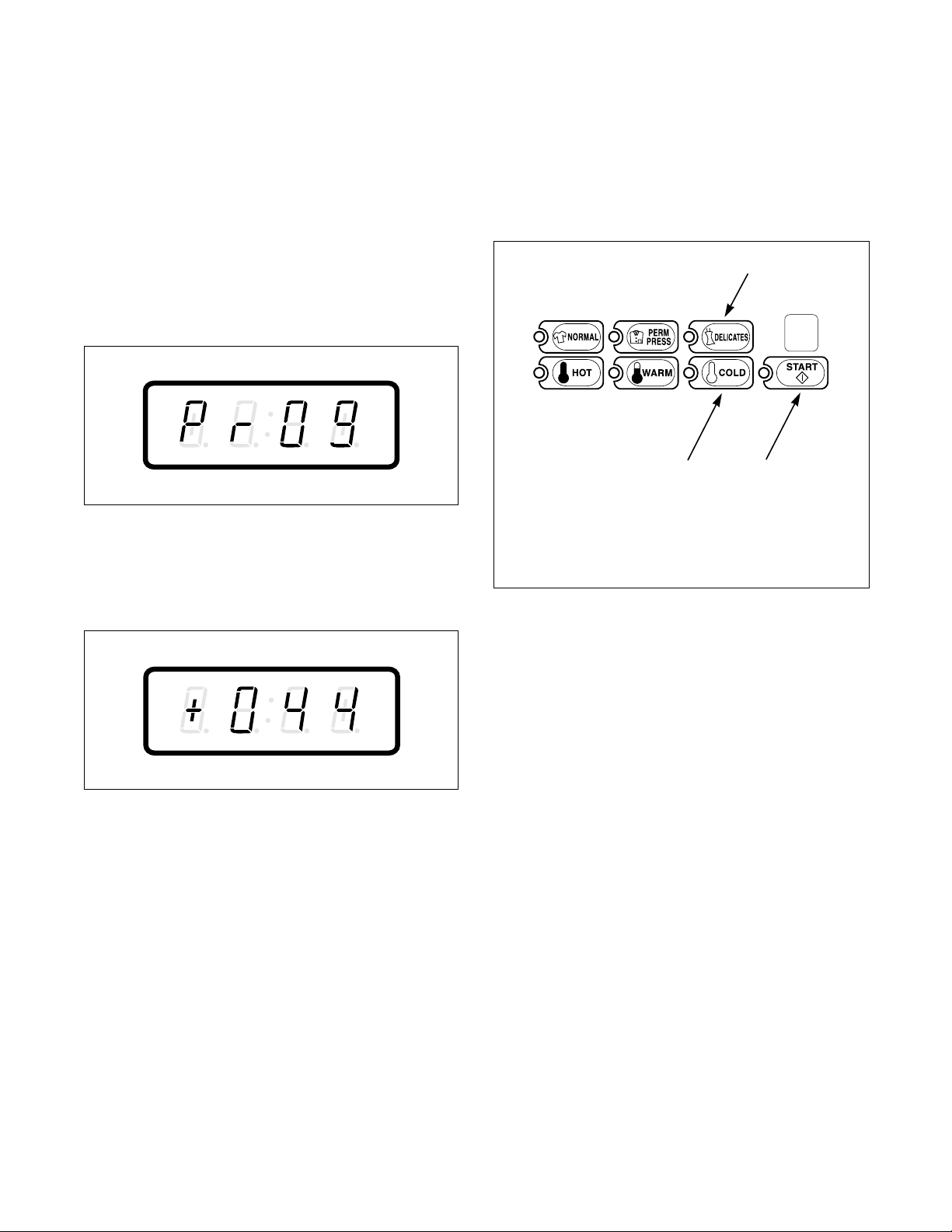

44. Delicate Final Spin Time “+044”

This option allows the owner to set the amount of final spin time for the Delicate cycle.

How to Program Delicate Final Spin Time

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 162

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+044” appears in the VFD. Refer to Figure 163.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number of minutes displayed in the VFD to the desired number of minutes. Refer to Figure 164.

NOTE: The Delicate Final Spin Time can be set from zero (0) to 15 minutes.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 164

Figure 163

4. When “+044” appears in the VFD, press the

START (enter) keypad. The current number of minutes set for the Delicate Final Spin Time will appear in the VFD.

C805I

6. Press the START (enter) keypad when the correct number of minutes appears in the VFD. The next option, “+045”, will appear in the VFD.

NOTE: To program “+045” (Warm Rinse Enable/ Disable), refer to option 45. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

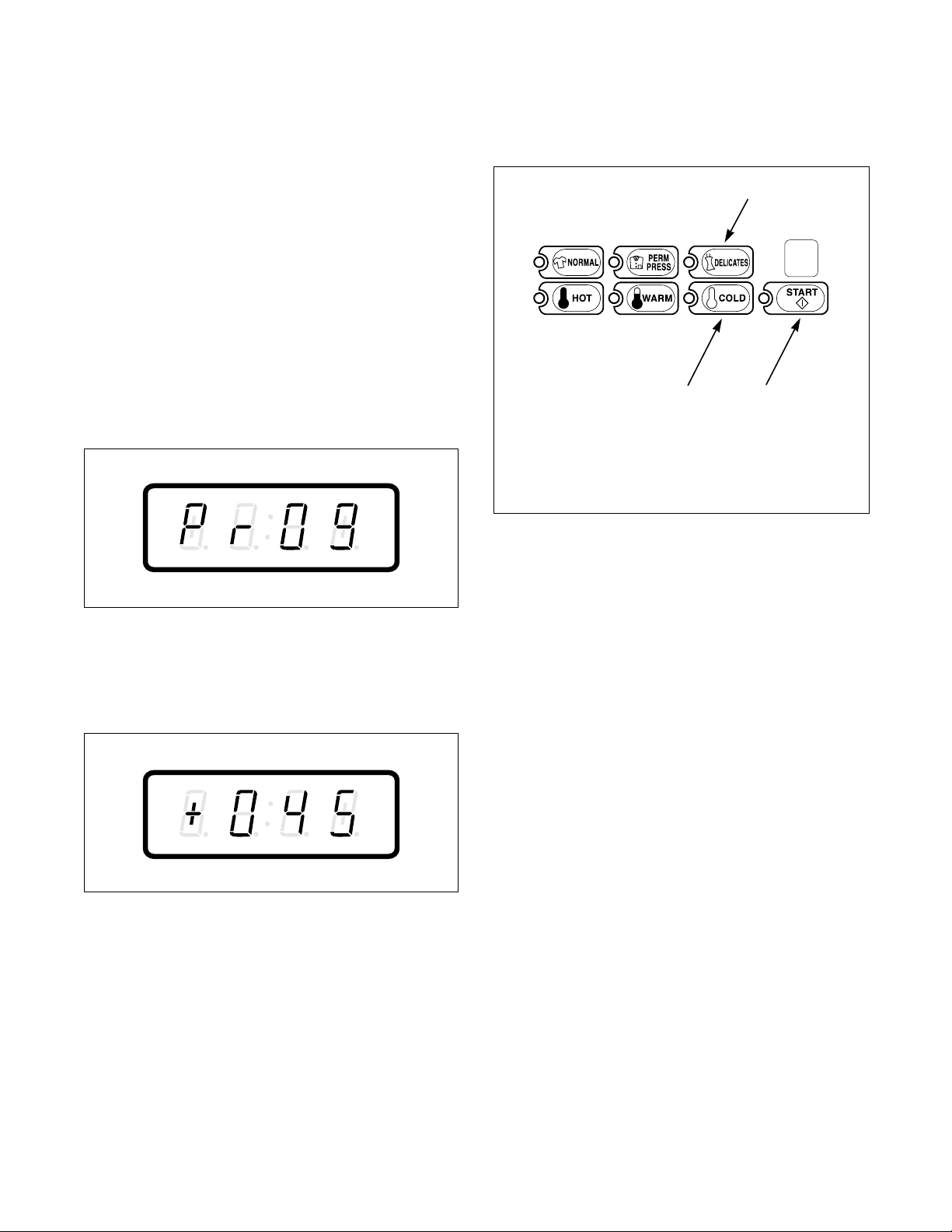

45. Warm Rinse Enable/Disable “+045”

This option allows the owner to program an optional warm fill temperature for the final rinse fill. If this option is enabled and HOT or WARM water is selected for the wash fill, warm water will be used for the final rinse fill.

How to Program the Warm Rinse Enable/ Disable

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number to the desired number. Refer to Figure 167.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 167

Figure 165

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+045” appears in the VFD. Refer to Figure 166.

Figure 166

4. When “+045” appears in the VFD, press the START (enter) keypad. A number will appear in the VFD. This number (found below) corresponds to the current Warm Rinse Enable/Disable Value. One (1) = Option Enabled Zero (0) = Option Disabled

C762I

C806I

6. Press the START (enter) keypad when the correct number appears in the VFD. The next option, “+046”, will appear in the VFD.

NOTE: To program “+046” (Control Configuration Data #1), refer to option 46. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

46. Control Configuration Data #1 “+046”

This option allows the owner to turn ON or turn OFF preprogrammed capabilities within NetMaster.

How to Program the Control Configuration Data #1

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 168

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+046” appears in the VFD. Refer to Figure 169.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number to the desired number selected from Table 5. Refer to Figure 170.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 170

6. Press the START (enter) keypad when the correct number appears in the VFD. The next option, “+047”, will appear in the VFD.

NOTE: To program “+047” (Control Configuration Data #3), refer to option 47. To program other options, refer to the appropriate section.

Figure 169

4. When “+046” appears in the VFD, press the

START (enter) keypad. A number will appear in the VFD. This number corresponds to the current Control Configuration Data #1 Value.

C807I

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Configuration #1 Programming

Programming NetMaster

Use the table on the following page (Table 5) to turn on or turn off the preprogrammed daylight savings option, wash temperature display option, infra-red access option, decimal point option, EC Power Fail, and the automatic collect option in NetMaster.

Daylight Savings This option automatically sets the clock in NetMaster to account for the time change during

Daylight Savings. OFF = Turns off the automatic daylight savings option programmed in NetMaster. ON = Turns on the automatic daylight savings option programmed in NetMaster.

Wash Temperature This option determines if the temperature LEDs indicate the selected wash temperature during the

entire cycle or indicates fill temperature during each rinse. OFF = Selected wash temperature remains on for entire cycle. ON = LEDs indicate actual water temperature during every fill step. LEDs will be off during steps when water is not filling in the wash drum.

Infra-red Access This option determines if a Micro-Wand can access or program NetMaster.

OFF = Turns off the infra-red access by the Micro-Wand. ON = Turns on the infra-red access by the Micro-Wand.

Decimal Point This option determines if a decimal point is used when displaying the vend price (i.e. machines

using token currency may choose to remove the decimal point). OFF = Turns off the decimal point from appearing in the VFD. ON = Turns on the decimal point to appear in the VFD.

To change any or all of these configuration options, review the following descriptions carefully and choose the appropriate configuration value from Table 5. Enter the appropriate value in step 5 on the previous page.

Automatic Collect This option automatically collects all audit data information whenever the Micro-Wand

communicates with the control. OFF = Turns off the automatic collect with the Micro-Wand. ON = Turns on the automatic collect with the Micro-Wand.

EC Power Fail This option determines if the European Community Power Fail feature is enabled. If enabled and a

power failure lasts at least two seconds, the control will require the user to press the START pad to resume the cycle that was in operation at the time of the power failure. OFF = Turns off the European Community Power Fail feature. ON = Turns on the European Community Power Fail feature.

210140

Programming NetMaster

“+046”

Config #1

Value

EC Power

Fail

Auto

Collect

Decimal

Point

Infra-red

Access

Wash Temp

Indicate

16 OFF OFF OFF OFF OFF OFF

17 OFF OFF OFF OFF OFF ON

18 OFF OFF OFF OFF ON OFF

19 OFF OFF OFF OFF ON ON

20 OFF OFF OFF ON OFF OFF

21 OFF OFF OFF ON OFF ON

22 OFF OFF OFF ON ON OFF

23 OFF OFF OFF ON ON ON

24 OFF OFF ON OFF OFF OFF

25 OFF OFF ON OFF OFF ON

26 OFF OFF ON OFF ON OFF

27 OFF OFF ON OFF ON ON

28 OFF OFF ON ON OFF OFF

29 OFF OFF ON ON OFF ON

30 OFF OFF ON ON ON OFF

31 OFF OFF ON ON ON ON

48 OFF ON OFF OFF OFF OFF

49 OFF ON OFF OFF OFF ON

50 OFF ON OFF OFF ON OFF

51 OFF ON OFF OFF ON ON

52 OFF ON OFF ON OFF OFF

53 OFF ON OFF ON OFF ON

54 OFF ON OFF ON ON OFF

55 OFF ON OFF ON ON ON

56 OFF ON ON

OFF OFF OFF

57 OFF ON ON OFF OFF ON

58 OFF ON ON OFF ON OFF

59 OFF ON ON OFF ON ON

60 OFF ON ON ON OFF OFF

61 OFF ON ON ON OFF ON

62 OFF ON ON ON ON OFF

63 OFF ON ON ON ON ON

144 ON OFF OFF OFF OFF OFF

145 ON OFF OFF OFF OFF ON

146 ON OFF OFF OFF ON OFF

147 ON OFF OFF OFF ON ON

Daylight Savings

Tab le 5

210140

“+046” (continued)

Programming NetMaster

Config #1

Value

EC Power

Fail

Auto

Collect

Decimal

Point

Infra-red

Access

Wash Temp

Indicate

148 ON OFF OFF ON OFF OFF

149 ON OFF OFF ON OFF ON

150 ON OFF OFF ON ON OFF

151 ON OFF OFF ON ON ON

152 ON OFF ON OFF OFF OFF

153 ON OFF ON OFF OFF ON

154 ON OFF ON OFF ON OFF

155 ON OFF ON OFF ON ON

156 ON OFF ON ON OFF OFF

157 ON OFF ON ON OFF ON

158 ON OFF ON ON ON OFF

159 ON OFF ON ON ON ON

176 ON ON OFF OFF OFF OFF

177 ON ON OFF OFF OFF ON

178 ON ON OFF OFF ON OFF

179 ON ON OFF OFF ON ON

180 ON ON OFF ON OFF OFF

181 ON ON OFF ON OFF ON

182 ON ON OFF ON ON OFF

183 ON ON OFF ON ON ON

184

ON ON ON OFF OFF OFF

185 ON ON ON OFF OFF ON

186 ON ON ON OFF ON OFF

187 ON ON ON OFF ON ON

188 ON ON ON ON OFF OFF

189 ON ON ON ON OFF ON

190 ON ON ON ON ON OFF

191 ON ON ON ON ON ON

Daylight Savings

210140

Tab le 5

Programming NetMaster

47. Control Configuration Data #3 “+047”

This option allows the owner to turn ON or turn OFF preprogrammed capabilities within NetMaster.

How to Program the Control Configuration Data #3

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 171

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+047” appears in the VFD. Refer to Figure 172.

5. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number to the desired number selected from Table 6. Refer to Figure 173.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 173

6. Press the START (enter) keypad when the correct number appears in the VFD. The next option, “+048”, will appear in the VFD.

NOTE: To program “+048” (Lucky Option), refer to option 48. To program other options, refer to the appropriate section.

Figure 172

4. When “+047” appears in the VFD, press the

START (enter) keypad. A number will appear in the VFD. This number corresponds to the current Control Configuration Data #3 Value.

c808i

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

Configuration #3 Programming

Use the table below (Table 6) to turn on or turn off access for Manual Rapid Advance and Diagnostics, and to change the Available Output Mode.

Config #3 Value RADV/DIAG Access Available

0 OFF Ready Mode

1 OFF Until Start Mode

2 ON Ready Mode

3 ON Until Start Mode

NOTE: Selecting “Ready Mode” for the available output will turn off the available output after the first pulse is received. Selecting “Until Start Mode” will keep the available output on until the vend price is satisfied. This feature is used for aftermarket card read or central pay systems.

“+047”

Tab le 6

210140

Programming NetMaster

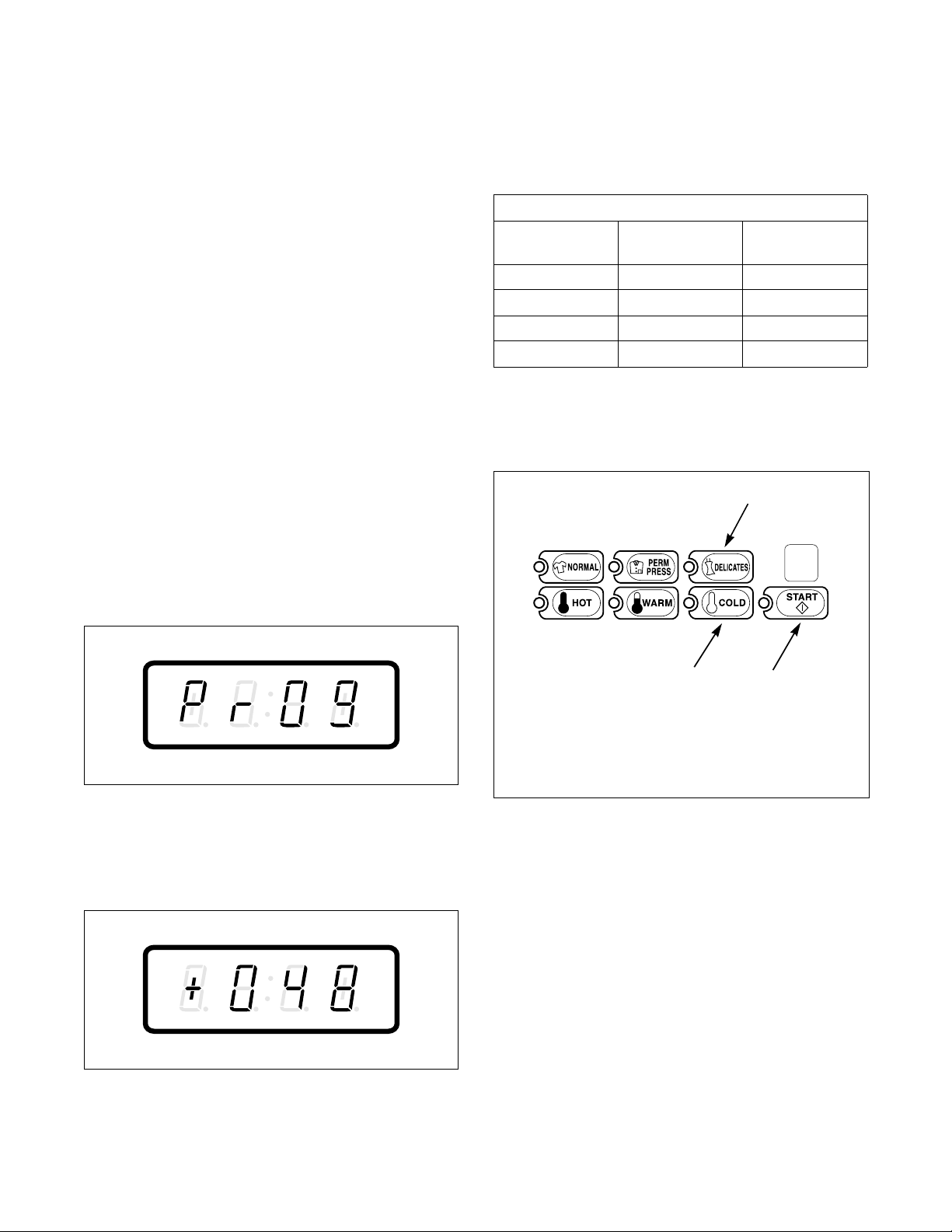

48. Lucky Option “+048”

This option allows the owner to program the machine to provide a free vend cycle to customers after a certain number of machine cycles have occurred.

For coin models, “FrEE” will be displayed five minutes after the completion of the programmed number of cycles has occurred. The cycle can then be started by pressing the START (enter) pad.

For card models, when a card is inserted, the VFD will display “bAL” followed by the card balance. When the user presses the START pad, a zero vend will be deducted from the card. The VFD will display “WAIT”. The VFD will then display “FrEE” for five seconds and then the cycle time will be displayed. When the card is removed, the VFD will flash the remaining balance for three seconds and will then revert back to the cycle time.

How to Program Lucky Option

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

the VFD. This number corresponds to the current Lucky Option Programming Value.

5. Locate the desired number in the first column of Table 7 below.

“+048”

Lucky Option

Valu e

1 – 127 OFF 1 – 127

129 ON 1

130 ON 2

131 – 255 ON 3 – 127

Lucky Cycle

ON/OFF

Ta b le 7

Number of

Cycles

6. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number until correct. Refer to Figure 176.

Figure 174

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+048” appears in the VFD. Refer to Figure 175.

Figure 175

4. When “+048” appears in the VFD, press the START (enter) keypad. A number will appear in

C762I

C809I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 176

7. Press the START (enter) keypad when the correct number appears in the VFD. The next option, “+049”, will appear in the VFD.

NOTE: To program “+049” (Special Cycle Option), refer to option 49. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

C860I

210140

Programming NetMaster

49. Special Cycle Option “+049”

This option allows the owner to program the machine to offer extra wash time, extra rinse time, warm rinse, or any combination of the above to the customers for an added vend price.

How to Program Special Cycle Option

1. Control must be in Manual Mode. Refer to

Entering the Manual Mode.

2. Press the DELICATES (+) or the COLD (-)

keypad until “PrOg” appears in the VFD. Press the START (enter) keypad and “+001” will appear in the VFD.

C762I

Figure 177

3. Press the DELICATES (+) or the COLD (-) keypad to scroll through the programmable options until “+049” appears in the VFD. Refer to Figure 178.

5. Locate the desired number in the first column of Table 8 on the following page.

6. Press the DELICATES (+) or the COLD (-) keypad to increase or decrease the current number until correct. Refer to Figure 179.

C860I

1 Press this pad (+) to scroll forward or increase a value 2 Press this pad (enter) to choose a selected value or

option

3 Press this pad (-) to scroll back or decrease a value

Figure 179

7. Press the START (enter) keypad when the correct number appears in the VFD. The next option, “+050”, will appear in the VFD.

Figure 178

4. When “+049” appears in the VFD, press the

START (enter) keypad. A number will appear in the VFD. This number corresponds to the current Special Cycle Option Programming Value.

C812I

NOTE: To program “+050” (Special Cycle Extra Wash Time), refer to option 50. To program other options, refer to the appropriate section.

How to Exit Programming Feature

1. Be sure the control shows a programmable option, not a value.

2. While pressing and holding the NORMAL keypad with one hand, press the PERM PRESS keypad with the other hand. The control will revert back to the ready mode. Refer to Figure 2.

210140

Programming NetMaster

How to Read

Table 8

To determine the correct number required to program Special Cycle Option, use the following table. The Special Cycle Option Value column contains the number required in step 6. The other columns correspond to individual options.

Special Cycle

Option Value

0OFFOFF

128 ON OFF

129 ON ON

Special Cycle

“+049”

ON/OFF

Tab le 8

Each column of options contains a unique combination of the words “ON” and “OFF” that indicates if that column’s option is turned on or off when the Special Cycle Option Value is entered. Select the desired combination of options and enter the number found in the Special Cycle Option Value column.

Warm Rinse ON/OFF

210140

Alliance Laundry Systems HWTB21 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
