Page 1

Frontload Washers

Metered Commercial

Installation/Operation

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

www.comlaundry.com

FLW1527

Part No. 803447R1

January 2010

Page 2

Page 3

NOTE: The WARNING and IMPORTANT instructions appearing in this manual are not meant to cover all

Failure to install, maintain, and/or operate this machine according to the manufacturer's instructions may result in conditions which can produce bodily injury and/or property damage.

W030

WARNING

possible conditions and situations that may occur. It must be understood that common sense, caution, and carefulness are factors which cannot be built into these washers. These factors MUST BE supplied by the person(s) installing, maintaining, or operating the washer.

Always contact the distributor, service agent, or the manufacturer about any problems or conditions you do not understand.

803447

Page 4

Table of

Content s

Safety Information.............................................................................. 3

Explanation of Safety Messages........................................................... 3

Important Safety Instructions ............................................................... 3

Installation........................................................................................... 5

Dimensions and Specifications............................................................. 5

Before You Start................................................................................... 6

Tools ................................................................................................ 6

Central Pay Models.......................................................................... 6

Installing the Washer..................................................... .... ................... 7

Step 1: Position Washer Near Installation Area .............................. 7

Step 2: Connect Fill Hoses............................................................... 7

Step 3: Connect Drain Hose to Drain Receptacle............................ 9

Step 4: Position and Level the Washer............................................ 10

Step 5: Remove the Shock Sleeves and Shipping Brace ................. 11

Step 6: Wipe Out Inside of Wash Drum.......................................... 11

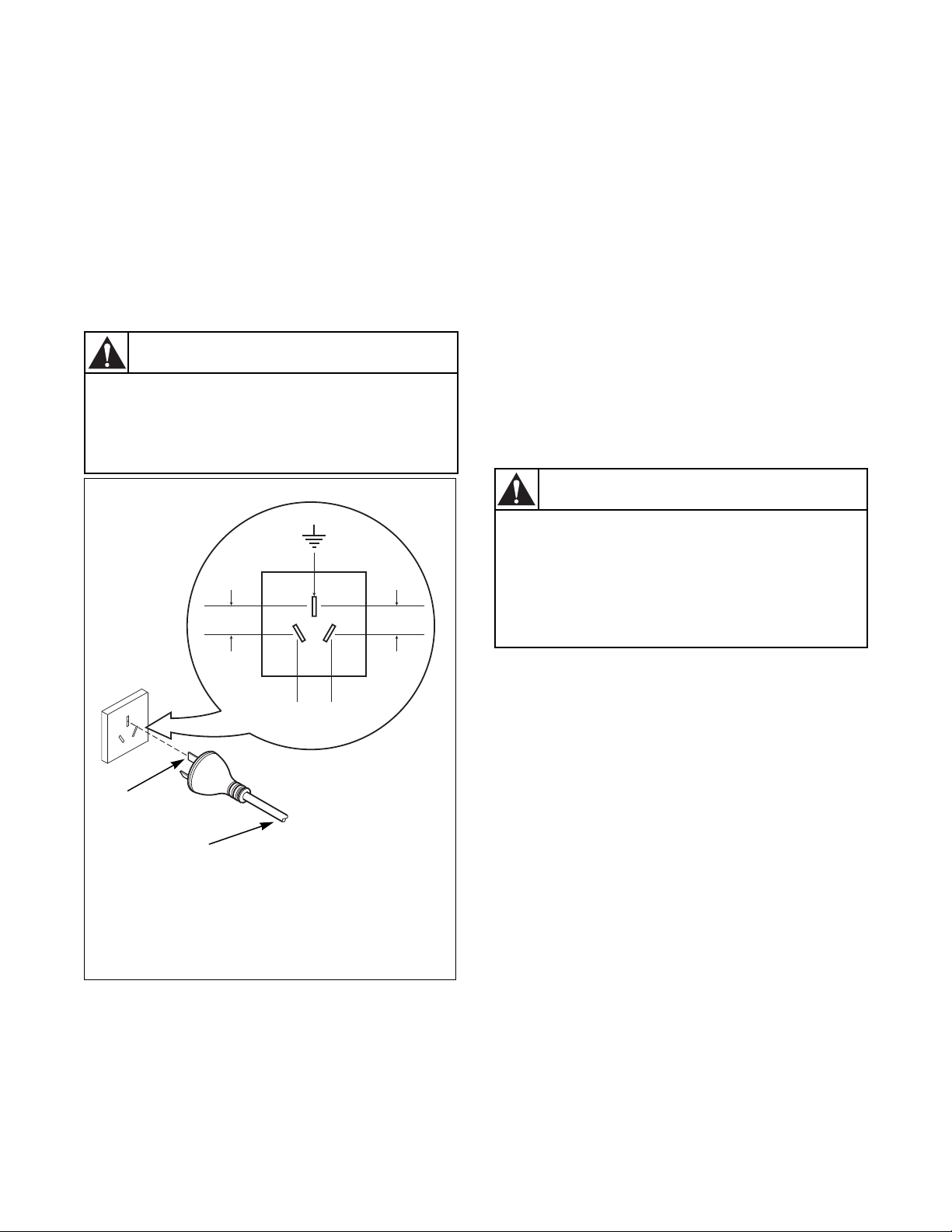

Step 7: Connect the Washer to Electrical Power............................. 12

Step 8: Check Installation................................................................ 14

Operation............................................................................................. 15

Operation Instructions .......................................................................... 15

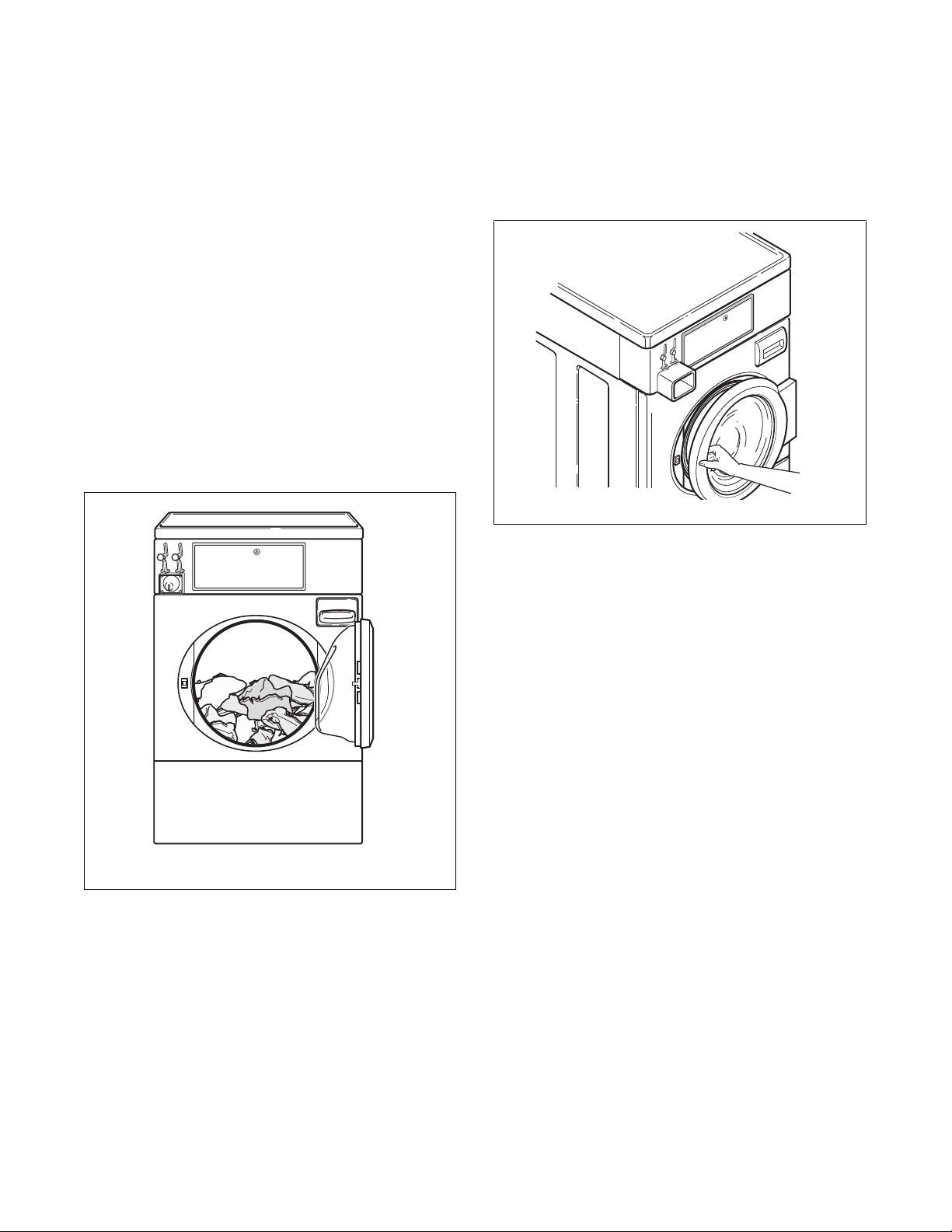

Step 1: Load Laundry....................................................................... 15

Step 2: Close Loading Door............................................................. 15

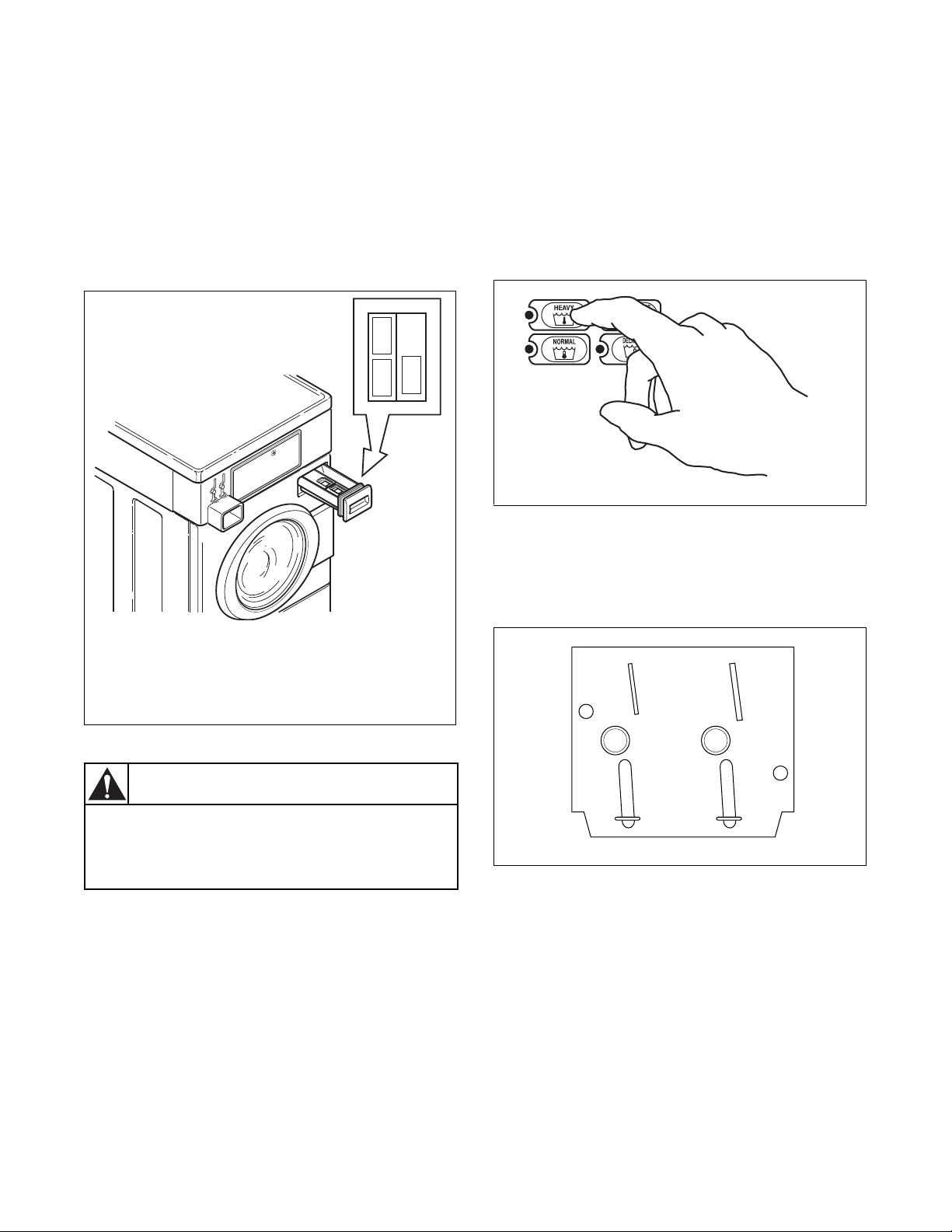

Step 3: Add Laundry Supplies......................................................... 16

Step 4: Set Fabric Selector/Wash Temperature............................... 16

Step 5: Insert Coin(s), if Necessary ................................................. 16

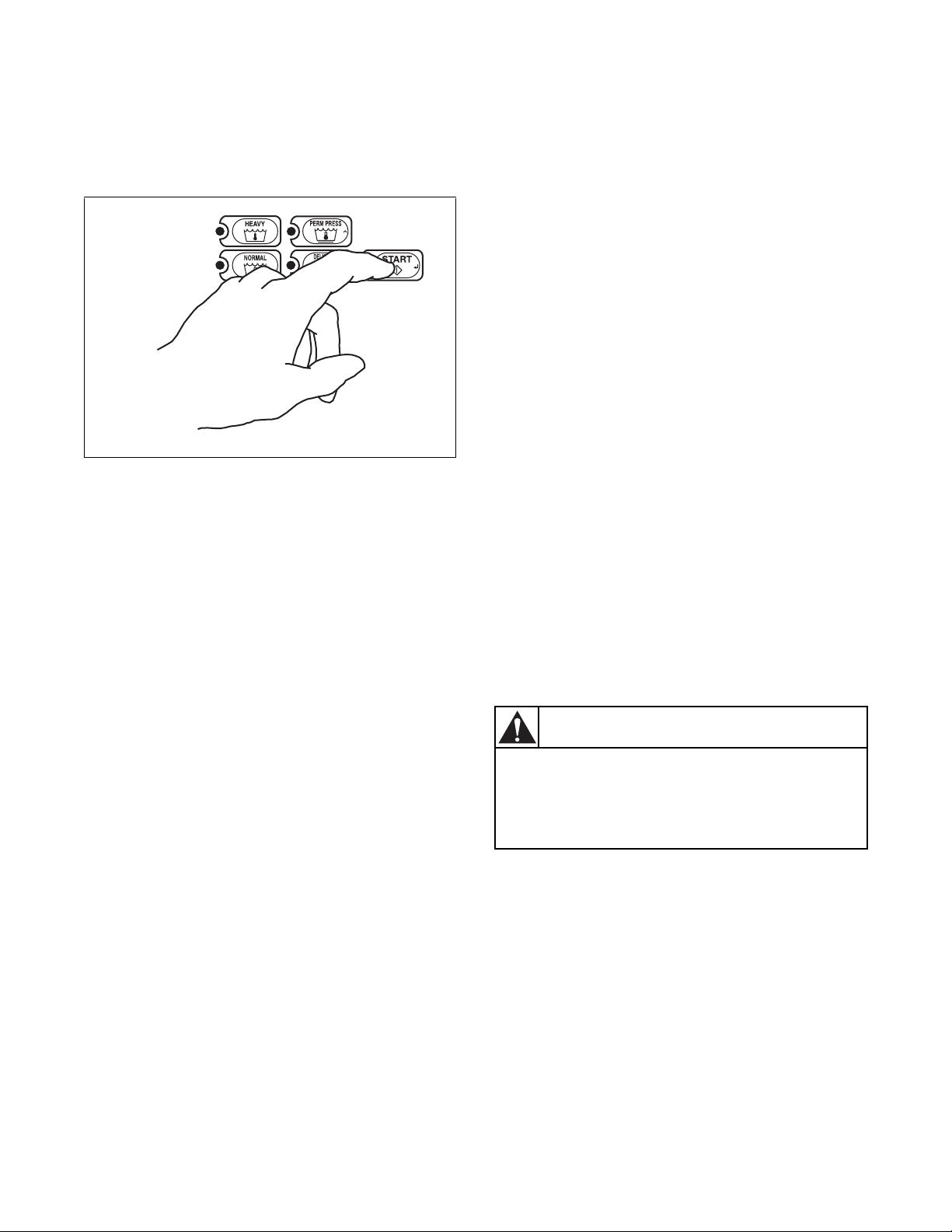

Step 6: Start Washer......................................................................... 17

Indicator Lights................................................................................ 17

Maintenance........................................................................................ 18

User-Maintenance Instructions............................................................. 18

Lubrication....................................................................................... 18

Cold Weather Care........................................................................... 18

Care of Your Washer ....................................................................... 18

Cleaning Glass Sealing Area ........................................................... 18

Replacing Hoses............................................................................... 18

Filter Screens ................................................................................... 18

Vacations and Extended Non-Use ................................................... 18

Reinstallation of Shipping Materials ............................................... 19

Cleaning Foreign Object Trap ......................................................... 19

Troubleshooting.................................................................................. 20

Contact Information........................................................................... 22

Installer Checklist................................................................ Back Cover

means without the expressed written consent of the publisher.

803447© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Page 5

Safety Information

Indicates an imminently hazardous situation that, if not avoided, will cause severe personal injury or death.

DANGER

Indicates a hazardous situation that, if not avoided, could cause severe personal injury or death.

WARNING

Indicates a hazardous situation that, if not avoided, may cause minor or moderate personal injury or property damage.

CAUTION

To reduce the risk of fire, electric shock, serious injury or death to persons when using your washer, follow these basic precautions:

W023

WARNING

Explanation of Safety Messages

Throughout this manual and on machine decals, you will find precautionary statements (“DANGER,” “WARNING,” and “CAUTION”) followed by specific instructions. These precautions are intended for the personal safety of the operator, user, servicer, and those maintaining the machine.

Important Safety Instructions

(Save These Instructions)

1. Read all instructions before using the washer.

2. Refer to the EARTHING INSTRUCTIONS in the INSTALLATION manual for the proper earthing of the washer.

3. Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances as they give off vapors that could ignite or explode.

4. Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.

Additional precautionary statements (“IMPORTANT” and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORT ANT” is used to inform the reader of specific procedures where minor machine damage will occur if the procedure is not followed.

NOTE: The word “NOTE” is used to communicate installation, operation, maintenance or servicing information that is important but not hazard related.

803447

5. Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using a washing machine or combination washer-dryer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. The gas is flammable, do not smoke or use an open flame during this time.

6. Do not allow children to play on or in the washer . This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

7. Before the washer is removed from service or discarded, remove the door to the washing compartment.

8. Do not reach into the washer if the wash drum is moving.

9. Do not install or store the washer where it will be exposed to water and/or weather.

10. Do not tamper with the controls.

Page 6

Safety Information

11. Do not repair or replace any part of the washer , or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.

12. T o reduce the risk of an electric shock or fire, DO NOT use an extension cord or an adapter to connect the washer to the electrical power source.

13. Use your washer only for its intended purpose, washing clothes.

14. ALWAYS disconnect the washer from electrical supply before attempting any service. Disconnect the power cord by grasping the plug, not the cord.

15. Install the washer according to the INSTALLATION INSTRUCTIONS. All connections for water, drain, electrical power and earthing must comply with local codes and be made by licensed personnel when required. Do not do it yourself unless you know how!

16. To reduce the ris k of fire, clothes which have traces of any flammable substances such as vegetable oil, cooking oil, machine oil, flammable chemicals, thinner, etc. or anything containing wax or chemicals such as in mops and cleaning cloths, must not be put into the washer. These flammable substances may cause the fabric to catch on fire by itself.

17. Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.

18. Keep your washer in good condition. Bumping or dropping the washer can damage safety features. If this occurs, have your washer checked by a qualified service person.

20. Be sure water connections have a shut-off valve and that fill hose connections are tight. CLOSE the shut-off valves at the end of each wash day.

21. Loading door MUST BE CLOSED any time the washer is to fill, tumble or spin. DO NOT bypass the loading door switch by permitting the washer to operate with the loading door open.

22. Always read and follow manufacturer’s instructions on packages of laundry and cleaning aids. Heed all warnings or precautions. T o reduce the risk of poisoning or chemical burns, keep them out of the reach of children at all times (preferably in a locked cabinet).

23. Always follow the fabric care instructions supplied by the garment manufacturer.

24. Never operate the washer with any guards and/or panels removed.

25. DO NOT operate the washer with missing or broken parts.

26. DO NOT bypass any safety devices.

27. Failure to install, maintain, and/or operate this washer according to the manufacturer’s instructions may result in conditions which can produce bodily injury and/or property damage.

NOTE: The WARNING and IMPORTANT SAFETY INSTRUCTIONS appearing in this manual are not meant to cover all possible conditions and situations that may occur. Common sense, caution and care must be exercised when installing, maintaining, or operating the washer.

Always contact your dealer, distributor, service agent or the manufacturer about any problems or conditions you do not understand.

19. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

803447

Page 7

Installation

5.1 cm (2 in.)

110.7 cm (43.6 in.)

75.1 cm (29.6 in.)

71.1 cm (28 in.)

61.0 cm (24 in.)

68.3 cm (26.9 in.)

79 cm (31.1 in.)

5.1 cm (2 in.)

93.83 cm (36.94 in.)

37.08 cm

(14.6 in.)

33.3 cm

(13.1 in.)

3.8 cm

(1.5 in.)

COIN MODELS

104.6 cm (41.2 in.)

75.1 cm (29.6 in.)

71.1 cm (28 in.)

61.0 cm (24 in.)

68.3 cm (26.9 in.)

79 cm (31.1 in.)

5.1 cm (2 in.)

93.8 cm (36.94 in.)

37.1 cm

(14.6 in.)

33.3 cm

(13.1 in.)

3.8 cm

(1.5 in.)

CENTRAL PAY MODELS

Dimensions and Specifications

FLW2192N

803447

FLW2249N

Page 8

Installation

Before You Start

Tools

For most installations, the basic tools you will need are:

D074I

1 Wrench 2 Screwdriver 3 Pliers 4 Socket Wrench 5 Level

Figure 1

Central Pay Models

The machine is shipped from the factory with the Electronic Control Diagnostic Harness Assembly unplugged. To avoid unauthorized manual programming or vending perform the following steps.

1. Open service door. Refer to Figure 2.

2. Locate diagnostic harness on electronic control.

3. Plug connectors for “white/black” wire and “red/ blue” wire together.

DRY2074N

1 Service Door

Figure 2

NOTE: A 20.32 cm (8 in.) coin drawer is required for coin operated models.

NOTE: If the washer is delivered on a cold day (below freezing), or is stored in an unheated room or area during the cold months, do not attempt to operate it until the washer has had a chance to warm up.

NOTE: Install dryer before washer. This allows room for attaching exhaust duct.

NOTE: Some moisture in the wash drum is normal. Water is used during testing at the manufacturer.

803447

Page 9

Installation

H054I

Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period and before using the washer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. The gas is flammable. Do not smoke or use an open flame during this time.

W029

WARNING

To prevent personal injury, avoid contact with inlet water temperatures higher than

Celsius (125o Fahrenheit) and hot

surfaces.

W750

WARNING

Installing the Washer

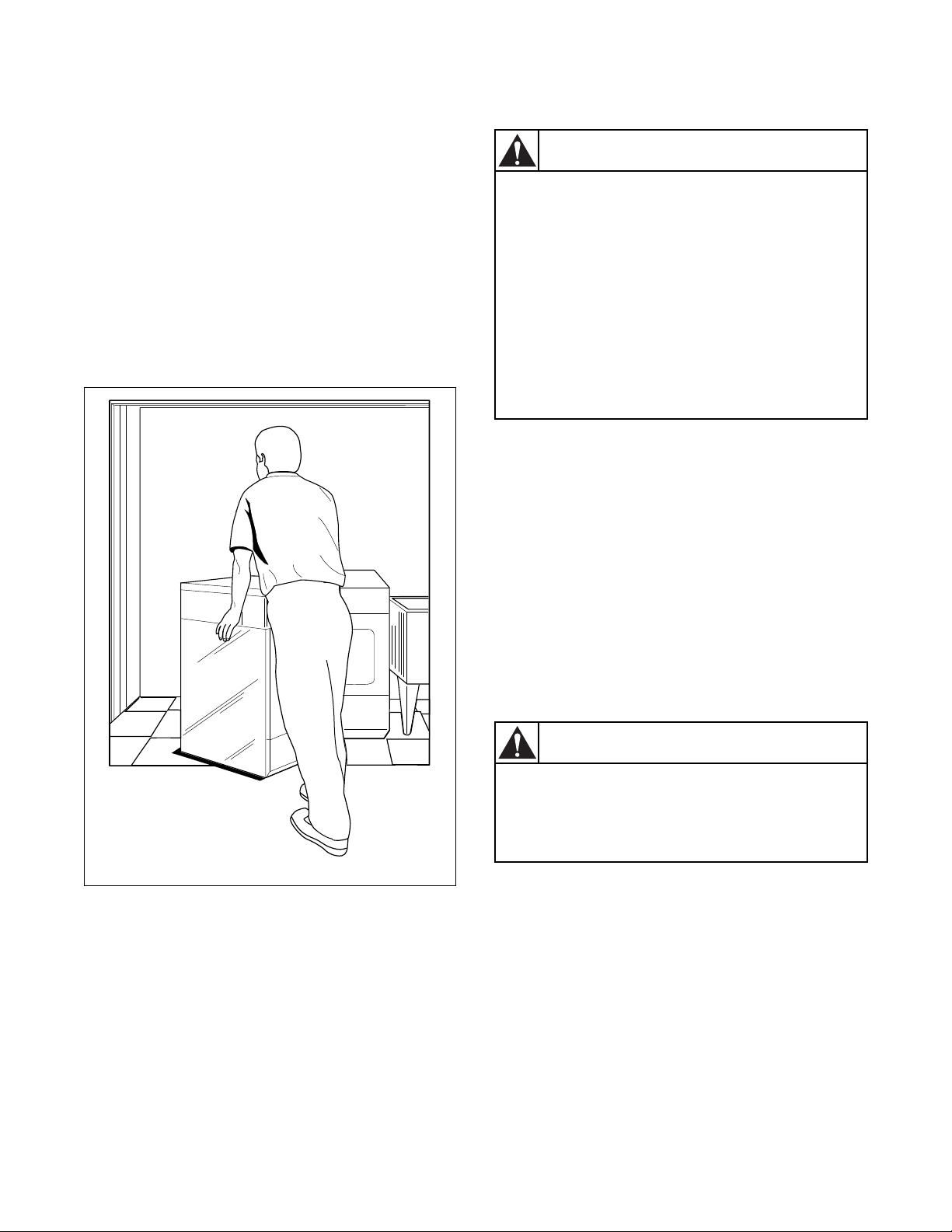

Step 1: Position Washer Near Installation Area

Move washer so that it is within 1.2 meters (4 feet) of the desired area of installation.

NOTE: For best performance and to minimize vibration or movement, install washer on a solid, sturdy and level floor. Some floors may need to be reinforced, especially on a second floor or over a basement. Do not install the washer on carpeting, soft tile, a platform or other weakly supported structures.

Step 2: Connect Fill Hoses

Water Supply

Water supply faucets must fit standard 19.1 mm (3/4 inch) female garden hose couplings. DO NOT USE SLIP-ON OR CLAMP-ON CONNECTIONS.

Water supply faucets should be readily accessible to permit turning them off when washer is not being used.

Recommended cold water temperature is 16° to 27° Celsius (60° to 80° Fahrenheit). Recommended maximum hot water temperature is 51° Celsius (125° Fahrenheit). W arm water is a mixture of hot and cold water. Warm water temperature is dependent upon water temperature and pressure of both the hot and cold water supply lines.

Figure 3

803447

H054I

Water pressure must be a minimum of 138 to a maximum of 827 kPa (20 to 120 psi) static pressure measured at the faucet.

NOTE: Water pressure under 138 kPa (20 psi) will cause an extended fill time in the washer and may not properly flush out the detergent dispenser.

The appliance is to be connected to the water mains using new hose-sets and old hose-sets should not be reused.

Page 10

Installation

HOT

COLD

FLW1981N

WATER MIXING

VALVE

Turn on the water supply faucets and flush the lines for approximately two minutes to remove any foreign materials that could clog the screens in the water mixing valve.

NOTE: When installing in newly constructed or renovated building, it is very important to flush the lines since build-up may have occurred during construction.

Connecting Hoses

Insert each filter screen into the end of each fill hose that will connect to the water supply faucet. The screen must be facing outward. Refer to Figure 4.

Insert each plain rubber washer into the other end of each fill hose that will connect to the water mixing valve at the rear of the washer. Refer to Figur e 4.

For hoses with metric couplings, connect black hose coupling to water supply faucet. Connect brass hose coupling to water mixing valve connection at rear of washer.

Thread hose couplings onto valve connections fingertight, then approximately 1/4 turn with pliers.

IMPORTANT: Hoses and other natural rubber parts deteriorate after extended use. Hoses may develop cracks, blisters or material wear from the temperature and constant high pressure they are subjected to.

All hoses should be checked on a monthly basis for any visible signs of deterioration. Any hose showing the signs of deterioration listed above should be replaced immediately . All hoses should be r e placed every five years.

IMPORTANT: DO NOT cross thread or overtighten couplings.

Turn water on and check for leaks. If leaks are found, retighten the hose couplings. Continue tightening and rechecking until no leaks are found.

1 Water Supply Faucets 2 Hot Water Connection 3 Cold Water Connection 4 Fill Hoses

Figure 5

FLW1981N

IMPORTANT: Turn off water supply faucets after check-out and demonstration. Owner should turn off water supply whenever there will be an extended period of non-use.

NOTE: Longer fill hoses are available (as optional equipment at extra cost) if the hoses supplied with the washer are not long enough for the installation. Order hoses as follows:

No. 37380 Fill Hose 2.44 m (8 feet - 1 standard, 1

TLW1976N

1 Faucet 2 Fill Hoses 3 Plain Rubber Washer 4 Install this end of hose to valve connections

at rear of washer

5 Install this end of hose to water supply faucet

(Black colored coupling for metric)

6 Filter Screens

metric hose coupling) No. 37381 Fill Hose 3.05 m (10 feet - 1 standard, 1 metric hose coupling) No. 20617 Fill Hose 2.44 m (8 feet - 2 standard hose couplings) No. 20618 Fill Hose 3.05 m (10 feet - 2 standard hose couplings)

Figure 4

803447

Page 11

Risers

61 TO 91.44 cm

(24 TO 36 in.)

RECOMMENDED

HEIGHT

Risers (or air cushions) may have to be installed if the pipes knock or pound when flow of water stops. The risers are more efficient when installed as close as possible to the water supply faucets (refer to Figure 6).

W005I

1 Risers (Air Cushions) 2 Water Supply Faucets

Installation

FLW1982N

1 Shipping Tape

Figure 7

Figure 6

Step 3: Connect Drain Hose to Drain Receptacle

Remove the drain hose from its shipping position on the rear of the washer by removing the shipping tape.

IMPORTANT : Drain receptacle must be capab le of handling a minimum of 3.5 cm (1-3/8 inch) outside diameter drain hose.

Standpipe Installation

Place the drain hose into the standpipe. Remove the beaded tie-down strap from accessories

bag and place around standpipe and drain hose and tighten strap to hold hose to standpipe. Refer to Figure 8. This will prevent the drain hose from dislodging from drain receptacle during use.

FLW1983N

1 Standpipe 5.08 cm (2 in.) or 4 cm (1-1/2 in.)

Figure 8

803447

Page 12

Installation

Washers elevated above floor level must be anchored to that elevated surface, base or platform. The material used to elevate the washer should also be anchored to the floor to ensure that the washer will not walk or that the washer can not be physically pulled, tipped or slid from its installed position. Failure to do so may result in conditions which can produce serious injury, death and/or property damage.

W306

WARNING

FLW2134N

Step 4: Position and Level the Washer

Position washer so it has sufficient clearance for installation and servicing.

NOTE: Use of the dispenser drawer or washer door as a handle in the transportation of the washer may cause damage to the dispenser or door.

Place washer in position on a solid, sturdy and level floor. Installing the washer on any type of carpeting, soft tile, a platform or other weakly supported structures is not recommended.

Place a level on the cabinet top and check if the washer is level from side to side and front to back.

NOTE: Level must rest on raised portion of top panel. Refer to Figure 9.

If washer is not level, tilt washer to access the front and rear leveling legs. For easier access to leveling legs, prop up washer with a wooden block. Refer to Figure 9. Loosen locknut and adjust legs until the washer is level from side to side and front to back (using a level). Washer should not rock.

Tighten the locknuts securely against the washer base. If the locknuts are not tight, washer will move

out of position during operation.

NOTE: DO NOT slide washer across floor if the leveling legs have been extended, as legs and base could become damaged.

Remove rubber feet from accessories bag and place on all four leveling legs.

Verify that unit doesn’t rock.

FLW2134N

1 Leveling Leg 2 Washer Base 3 Level 4 Wood Block 5 Locknut 6 Rubber Foot

Figure 9

803447

Page 13

Installation

FLW2124N

FLW2135N

Step 5: Remove the Shock Sleeves and Shipping Brace

Remove front access panel by removing the two screws at the bottom of the panel.

Remove the five bolts and lockwashers from shipping brace with a wrench and remove brace. Refer to Figure 10. Four bolts are located on the washer base and one is holding the brace to the weight. Remove all four shock sleeves by pulling on the yellow rope. Remove label from front side of front access panel and place on backside of front access panel for future reference.

NOTE: The shipping brace, bolts, washers and shock sleeves should be saved and MUST be reinstalled whenever the washer is moved more than 1.22 m (4 feet). Refer to User-Maintenance section for instructions. Do not lift or transport washer from front or without shipping materials installed.

Store the shipping materials in the bag provided in the accessories bag. Save materials for use whenever the washer is moved.

Step 6: Wipe Out Inside of Wash Drum

Before using washer for the first time, use an all-purpose cleaner, or a detergent and water solution, and a damp cloth to remove shipping dust from inside wash drum.

FLW2135N

Figure 11

Reinstall front access panel.

IMPORTANT: DO NOT tip washer more than

152.4 mm (6 inches) in any direction after shipping brace has been removed. Shock absorbers may separate and damage to washer may result. For leveling purposes, the washer may be tilted a maximum of 152.4 mm (6 inches) in any direction.

1 Shock Sleeves 2 Motor Mount 3 Hooked End of Shipping Brace 4 Bolts and Lockwashers

FLW2124N

803447

Figure 10

Page 14

Installation

To reduce the risk of fire, electric shock, serious injury or death, all wiring and grounding MUST conform with the latest edition of the National Electrical Code, ANSI/NFPA No. 70, and such local regulations as might apply. It is the customer’s responsibility to have the wiring, fuses and circuit breakers installed by a qualified electrician to make sure adequate electrical power is available to the washer.

W518

WARNING

Standard 120 Volt, 60 Hertz

3-Wire Effectively

Earthed Circuit

0 V.A.C.

120±12

V.A.C.

120±12

V.A.C.

To reduce the risk of an electric shock or fire, DO NOT use an extension cord or an adapter to connect the washer to the electric power source.

W082

WARNING

To reduce the risk of an electric shock or fire, DO NOT use an extension cord or an adapter to connect the washer to the electric power source.

W082

WARNING

Step 7: Connect the Washer to Electrical Power

Electrical Requirements

NOTE: The wiring diagram is located in the control cabinet.

NOTE: Refer to the washer nameplate on the rear cabinet panel for proper voltage and Hertz the washer is designed to operate on.

DRY2022N

1 L1 2 Ground 3 Neutral Side 4 Round Earthing Prong 5 Neutral

When plugging in the washer:

• DO NOT overload circuits.

• DO NOT use an extension cord.

• DO NOT use an adapter.

• DO NOT operate other appliances on the same

circuit.

120 Volt, 60 Hertz with 3-Prong Earthing Plug

The washer is designed to be operated on a separate branch, polarized, three-wire, effectively earthed, 120 Volt, 60 Hertz, AC (alternating current) circuit protected by a 15 ampere fuse, equivalent fusetron or circuit breaker.

The three-prong earthing plug on the power cord should be plugged directly into a polarized three-slot effectively earthed receptacle rated 110/120 Volts AC (alternating current) 15 Amps. Refer to Figure 12 to determine correct polarity of the wall receptacle.

Figure 12

240 Volt, 50 Hertz without plug

The washer is designed to be operated on a separate branch, polarized, three-wire, effectively earthed, 240 Volt, 50 Hertz, AC (alternating current) circuit protected by a 15 ampere fuse, equivalent fusetron or circuit breaker.

803447

Page 15

Installation

To reduce the risk of an electric shock or fire, DO NOT use an extension cord or an adapter to connect the washer to the electric power source.

W082

WARNING

FLW2005N

240 VOLT 50 HERTZ

0 VOLT

240 VOLT 50 HERTZ

STANDARD 240 VOLT, 50 HERTZ, 3-WIRE

EFFECTIVELY EARTHED CIRCUIT

Improper connection of the equipmentearthing conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the washer is properly earthed.

W032

WARNING

240 Volt, 50 Hertz with 3-Prong Earthing Plug

The 3-prong earthing plug on the power cord should be plugged directly into a polarized three-slot effectively earthed receptacle rated 240 Volts AC (alternating current) 15 Amps. Refer to Figure 13 to determine correct polarity of the wall receptacle.

220 Volt, 60 Hertz without Plug

The washer is designed to be operated on a separate branch, polarized, three-wire effectively earthed, 220 Volt, 60 Hertz, AC (alternating current) circuit protected by a 15 ampere fuse, equivalent fusetron or circuit breaker.

Earthing Instructions

The washer must be earthed. In the event of malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for electric current.

The washer is equipped with a cord having an equipment-earthing conductor. Some models are also equipped with a three-prong earthing plug. The washer must be plugged into an appropriate power source that is properly installed and earthed in accordance with all local codes and ordinances.

1 Power Cord 2 Earth (Ground) Prong

Figure 13

803447

DO NOT modify the plug provided with the washer – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

NOTE: Have a qualified electrician check the polarity of the power source.

FLW2005N

Page 16

Installation

Connecting to Central Pay System

IMPORTANT: Any central pay device and related installation wiring that is connected to the washer must maintain the Electromagnetic Compatibility (EMC) of the washer in order to comply with the appropriate national EMC regulatory requirements. The central pay device and related wiring, as a minimum, must meet the emission requirements of EN55014-1 and the immunity requirements of EN55014-2.

Start Pulse Input Wiring Connections

Use 511478 Remote Vend Wire Harness, supplied in accessories bag, to connect input to control (pin 1 – black; pin 2 – red).

The start pulse is an open collector input to the control. The start pulse input is active when the input of the H11L1 optocoupler is energized. The start pulse is considered valid if it is at least 15 msec. in length with a maximum length of 1 sec. The minimum time between start pulses is 25 msec. The minimum active input current for a start pulse is 3 mA and the maximum active input current is 30 mA. Refer to wiring diagram for connections to control.

FLW2250N

1 Run wiring from central pay system through

here.

Figure 14

Available Output Wiring Connections

Use 511478 Remote Vend Wire Harness, supplied in accessories bag, to connect output to control (pin 3 – white/red; pin 4 – orange/black).

The available output is opto-isolated with an open collector device (4N25) that provides a signal to an external vending device such as a central pay system. When active it indicates that the washer is not currently in use and is available to use. The available output is limited to 5 mA maximum at 28 VDC maximum. Refer to wiring diagram for connections to control.

NOTE: Wiring to the central pay system should exit machine through hole in rear of control cabinet. Refer to Figure 14.

Step 8: Check Installation

Refer to Installer Checklist on the back cover of this manual and make sure that washer is installed correctly.

Run washer through one complete cycle to make sure it is operating properly.

803447

Page 17

Operation

Operation Instructions

IMPORTANT: Prior to first wash, use an allpurpose cleaner, or a detergent and w ate r solution, and a damp cloth to remove shipping dust from inside of washtub.

IMPORTANT: Remove all sharp objects from laundry to avoid tears and rips to items during normal machine operation.

Step 1: Load Laundry

Load items loosely into wash drum (8.1 Kg maximum dry clothes load).

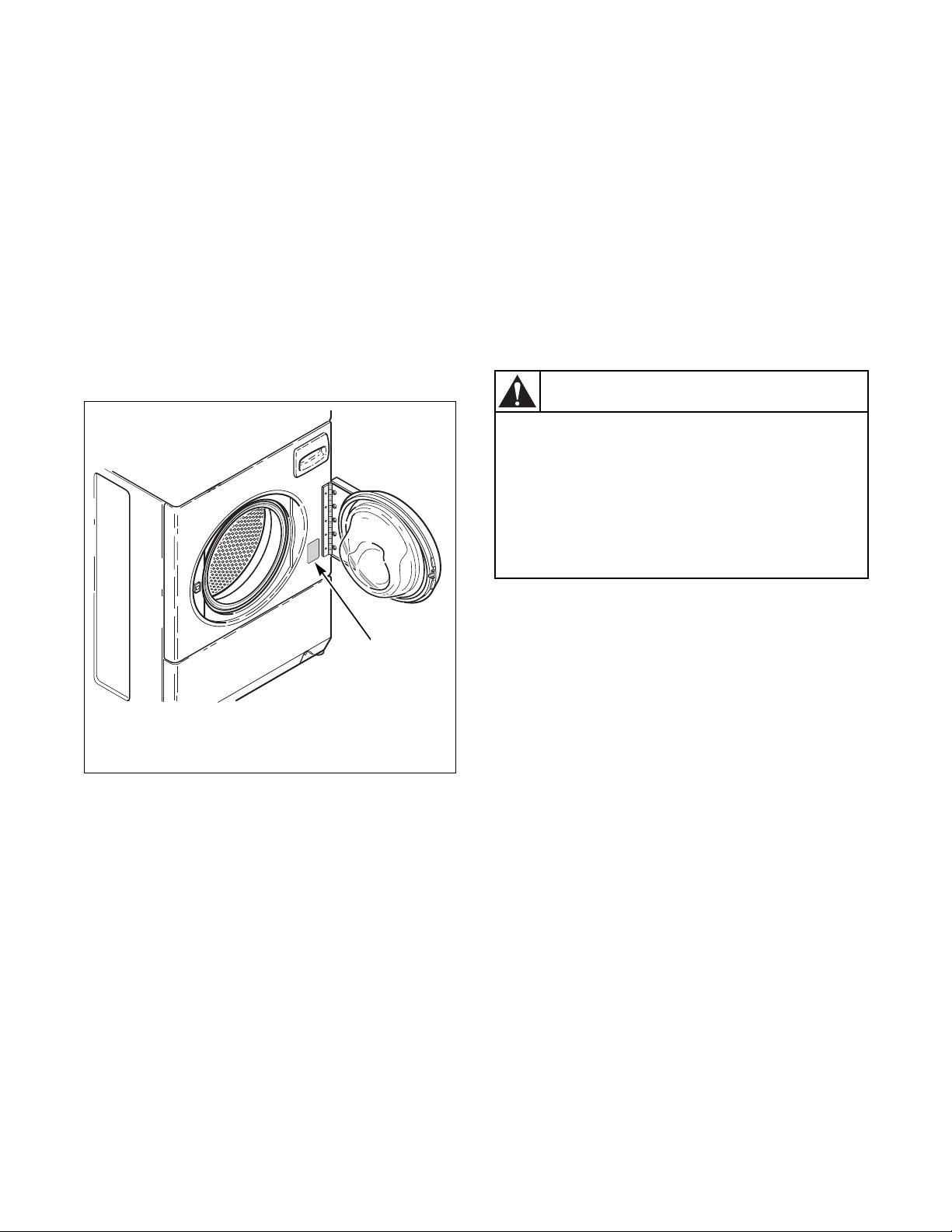

NOTE: Small items such as baby socks may get caught around the door. Place these articles inside a mesh garment bag.

Step 2: Close Loading Door

Close loading door tightly. The washer will not operate with the loading door open.

FLW2233N

Figure 16

FLW2232N

Figure 15

When washing bulky items such as blankets and comforters, use the DELICATES cycle. The cycle includes agitation and final spin speeds that maintain the load’s balance and minimize wear to the articles.

803447

Page 18

Operation

FLW2234N

Dispenser drawer requires a special tool for removal. Contact a service person if removal is necessary.

W236

CAUTION

FLW2242N

Step 3: Add Laundry Supplies

Open dispenser drawer. Measure and add low sudsing, high efficiency (HE) detergent (1), bleach (2) and fabric softener (3) to the dispenser drawer (refer to Figure 17). Close dispenser drawer.

IMPORTANT: If using non-HE detergent, avoid oversudsing by using 1/2 of the detergent manufacturer's recommended amount.

Step 4: Set Fabric Selector/Wash Temperature

Push touchpad for HEAVY, NORMAL, PERM PRESS or DELICATES cycle. Light indicates

selection.

NOTE: Changes can be made to Fabric Selector setting up until the first fill is complete.

FLW2242N

Figure 18

Step 5: Insert Coin(s), if Necessary

1 Detergent 2 Bleach 3 Fabric Softener

Figure 17

Insert coin(s) in coin slot. Check pricing as seen on digital display.

FLW2234N

W388I

Figure 19

803447

Page 19

Operation

To reduce the risk of bodily injury, do not remove laundry from washer until all lights are out, and all moving parts have stopped.

W092

WARNING

Step 6: St art Washer

After vend price has been satisfied, push the START pad. DOOR MUST BE CLOSED TO START WASHER.

FLW2243N

Figure 20

Indicator Lights

WASH

WASH is lit at the beginning of a wash cycle and will remain lit until the wash cycle is complete.

RINSE

RINSE is lit at the beginning of all RINSE cycles and will remain lit until the rinse cycle is complete.

SPIN

SPIN is lit for all spin cycles.

DOOR LOCKED

DOOR LOCKED is lit whenever the door is locked. The door cannot be opened when this light is on.

START

START flashes one second on and one second off when the full vend price has been satisfied.

IMPORTANT: If washer fails to operate properly after installation, make sure electrical service and water supply faucets are turned on. Are all the controls properly set? Have a qualified service person refer to the wiring diagram (located inside of washer control cabinet) and check for broken, loose or incorrect wiring.

NOTE: Once a cycle has started, the door can only be opened by first unplugging the power cord and waiting one minute.

803447

Page 20

Maintenance

User-Maintenance Instructions

Lubrication

All moving parts are sealed in a permanent supply of lubricant or are equipped with oilless bearings. Additional lubrication will not be necessary.

Do not lubricate the door hinge. If the hinge makes noise, replace the hinge.

Cold Weather Care

If the washer is delivered on a cold day (below freezing), or is stored in an unheated room or area during the cold months, do not attempt to operate it until the washer has had a chance to warm up.

Care of Your Washer

Use only a damp or sudsy cloth for cleaning the control panel. Some cleaning product sprays may harm the finish on the control panel or damage the interior.

Wipe the washer cabinet as needed. If detergent, bleach or other washing products are spilled on the cabinet, wipe immediately. Some products will cause permanent damage if spilled on the cabinet.

Do not use scouring pads or abrasive cleansers. The wash drum will need no particular care although it

may need rinsing or wiping after an unusual load has been washed.

The outside of the door window can be cleaned with household window cleaner.

Replacing Hoses

Hoses and other natural rubber parts deteriorate after extended use. Hoses may develop cracks, blisters or material wear from the temperature and constant high pressure they are subjected to.

Filter Screens

Check the filter screens in the fill hoses for debris or damage annually. Clean or replace them if necessary.

If the washer is filling with water slower than normal, check the filter screens. Clean or replace them if necessary.

Order filter screen Part No. F270300 from the nearest authorized parts distributor.

Vacations and Extended Non-Use

IMPORTANT: To avoid possible property damage due to flooding, turn off the water supply to the washer whenever there will be an extended period of non-use.

Leave the loading door open during extended periods of non-use to allow the wash drum to dry out and avoid a musty smell.

Running an occasional rinse cycle with bleach will help to avoid a musty smell in the wash drum.

Cleaning Glass Sealing Area

In order to assure that the door properly seals against water leaks, the following surfaces should be wiped off periodically:

• The outside perimeter of the door glass where the seal contacts the glass

• The front surface of the door seal lip

Usually a mild soap solution will work. If there is an extreme build-up of minerals from a hard water supply, the surfaces may need to be cleaned wi th a lime removal chemical.

803447

Page 21

Maintenance

FLW2124N

Reinstallation of Shipping Materials

To prevent damage while moving the washer, the shipping materials MUST be reinstalled.

• Disconnect washer from electrical supply.

• While supporting the front access panel, remove

two screws from the bottom edge of the panel.

• Gently lower the panel to remove it from the washer.

• Place the shock sleeves on all four shock absorbers. Refer to Figure 21.

• Insert hooked end of shipping brace into the open slot of the motor mount. Refer to Figure 21.

• Attach the brace with the five bolts and washers. Refer to Figure 21.

• Reinstall front access panel.

Cleaning Foreign Object Trap

The washer’s pump has a trap that may collect foreign objects. The trap may need to be cleaned if water is draining slower than usual. To clean:

• Disconnect washer from electrical supply.

• While supporting the front access panel, remove

two screws from the bottom edge of the panel.

• Gently lower the panel to remove it from the washer.

NOTE: The pump may have some water in it. Use a rag or a container to catch water. If the wash drum is full of water, use a wet/dry shop vacuum to catch the water.

• With rag or vacuum ready, unscrew the cap on the left side of the pump and remove trap.

• Clean the debris from the trap.

• Reinstall the trap and access panel.

• Reconnect washer to electrical supply.

FLW2124N

1 Shock Sleeves 2 Motor Mount 3 Hooked End of Shipping Brace 4 Bolts and Lockwashers

Figure 21

Refer to Installation section, step 5 for proper procedures whenever the washer is moved.

803447

Page 22

Troubleshooting

Try these troubleshooting tips before making a service call. They may save you time and money.

Washer Symptom Possible Cause/Solution

Won’t Fill

Won’t Start

Won’t Spin/Tumble

Stops/Pauses During Cycle

• Make sure washer is connected to electrical power.

• Make sure hot and cold water faucets are turned on.

• Make sure that the fill hoses are not kinked or twisted.

• Press START keypad.

• Make sure that the controls are properly set.

• Make sure that the loading door is closed tightly.

• Check the laundry room fuse or circuit breaker.

• Clean the screens in the water mixing valve and the filter screens located at the faucet end

of the fill hoses.

• Make sure loading door is closed tightly.

• Press START keypad.

• Make sure washer is connected to electrical power.

• Check the laundry room fuse or circuit breaker.

• Insert coin(s) or card.

• Make sure door latch is properly adjusted relative to door lock.

• Make sure loading door is closed tightly.

• Press START keypad.

• Make sure washer is connected to electrical power.

• Make sure controls are properly set.

• Check the laundry room fuse or circuit breaker.

• Broken drive belt. Call th e serv ice person.

• Foreign object trap in pump may be clogged. Clean the trap. Refer to

Maintenance section.

• Pauses are part of the washer’s normal operation.

• Wash load may be unbalanced. Washer will stop and then restart spin automatically.

• Check the laundry room fuse or circuit breaker.

Won’t Drain

Water Leaks

Too Many Soap Suds

• Make sure drain hose is not kinked or twisted.

• Make sure drain hose is not clogged.

• Make sure drain receptacle is not clogged.

• Refer to the Installation section to make sure that the drain hose has been properly

installed.

• Foreign object trap in pump may be clogged. Clean the trap. Refer to Maintenance

section.

• Check that fill hoses are properly installed on the faucets and the washer’s water mixing

valve.

• Check the condition of the fill hoses. Replace fill hoses every five years.

• Check the condition of the rubber door gasket for tears or holes.

• Make sure drain receptacle is not clogged.

• Check building plumbing.

• Laundry load may be oversudsing or overloaded. Make sure you are using low-sudsing,

high efficiency (HE) detergent and proper load sizes.

• Make sure outside perimeter of the do or glass where seal contacts glass is clean.

• Laundry load may be oversudsing. Make sure you are using low sudsing, high efficiency

(HE) detergent.

• Make sure you are using the amount of detergent recommended on the detergent’s label.

If using non-HE detergent, use only 1/2 of the detergent manufacturer's recommended amount.

• Laundry load may be overloaded. Make sure you are using proper load sizes.

803447

Page 23

Washer Symptom Possible Cause/Solution

Troubleshooting

Vibrates/Moves Slightly

Is Noisy

Load is too Wet

Wrong Water Temperature

• Make sure washer is level. Uneven leveling can cause vibration.

• Make sure washer is installed on a solid, sturdy and level floor. The washer should not be

installed on carpeting, soft tile, a platform or other weakly supported structures.

• Make sure rubber feet are installed on all four leveling legs. Refer to Installation section,

step 4.

• Make sure washer is level. Uneven leveling can cause vibration.

• Some sounds may be a part of normal operation for a frontload washer.

• Wash load may be unbalanced. The washer may have limited the spin speed to prevent

damage to the machine. Redistribute the load.

• Load is too small. Add items to make full load.

• Make sure that the controls are properly set.

• Check fill hoses. Make sure hot faucet hose is connected to hot mixing valve (indicated

with “H” on the valve bracket) and cold faucet is connected to cold mixing valve (indicated with “C” on the valve bracket).

• Make sure laundry room water heater is adjusted properly.

803447

Page 24

Contact Information

FLW2123N

T o reduce the risk of serious injury or death, DO NOT repair or replace any p art of the unit or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.

W329

WARNING

If service is required, contact the nearest Factory Authorized Service Center.

If you are unable to locate an authorized service center or are unsatisfied with the service performed on your unit, contact:

Alliance Laundry Systems Shepard Street P.O. Box 990 Ripon, WI 54971-0990 U.S.A. www.comlaundry.com Phone: +1 (920) 748-3121

When calling or writing about your unit, PLEASE GIVE THE MODEL AND SERIAL NUMBERS. The model and serial numbers are located on the nameplate. The nameplate will be in the location shown in Figure 22.

Date Purchased ____________________________ Model Number ____________________________ Serial Number ____________________________

Please include a copy of your bill of sale and any service receipts you have.

If replacement parts are required, contact the source from where you purchased your washer or call +1 (920) 748-3950 for the name and address of the nearest authorized parts distributor.

1 Nameplate

Figure 22

FLW2123N

803447

Page 25

Page 26

Installer Checklist

• Position Washer Near Installation Area.

CHECK

H054IE0A

CHECK

• Connect Fill Hoses.

TLW1976N

CHECK

• Connect Drain Hose to Drain Receptacle.

FLW1983N

CHECK

FLW2134N

• Position and Level the Washer.

• Remove the Shock Sleeves and Shipping Brace.

CHECK

FLW2124N

• Wipe Out Inside of Wash Drum.

CHECK

FLW2135N

CHECK

• Connect the Washer to Electrical Power Source.

W504SE3B

Fast Track for Installing the Washer

(Refer to the manual for more detailed information)

COLD

HOT

TLW1976N

FLW1983N

FLW2134N
