Alliance Laundry Systems F232148, F232148R2EN User Manual

Washer-Extractors

Cabinet Freestanding Installation and Operating Instructions

Installation/Operation Supplement

www.comlaundry.com

Part No. F232148R2EN

December 2007

Installation/Operation Supplement

Table of

Contents

Safety Information.............................................................................. 2

Important Safety Instructions ............................................................... 2

Installation........................................................................................... 4

General Specifications.......................................................................... 4

V-Computer ..................................................................................... 4

WE-6 Computer ............................................................................... 6

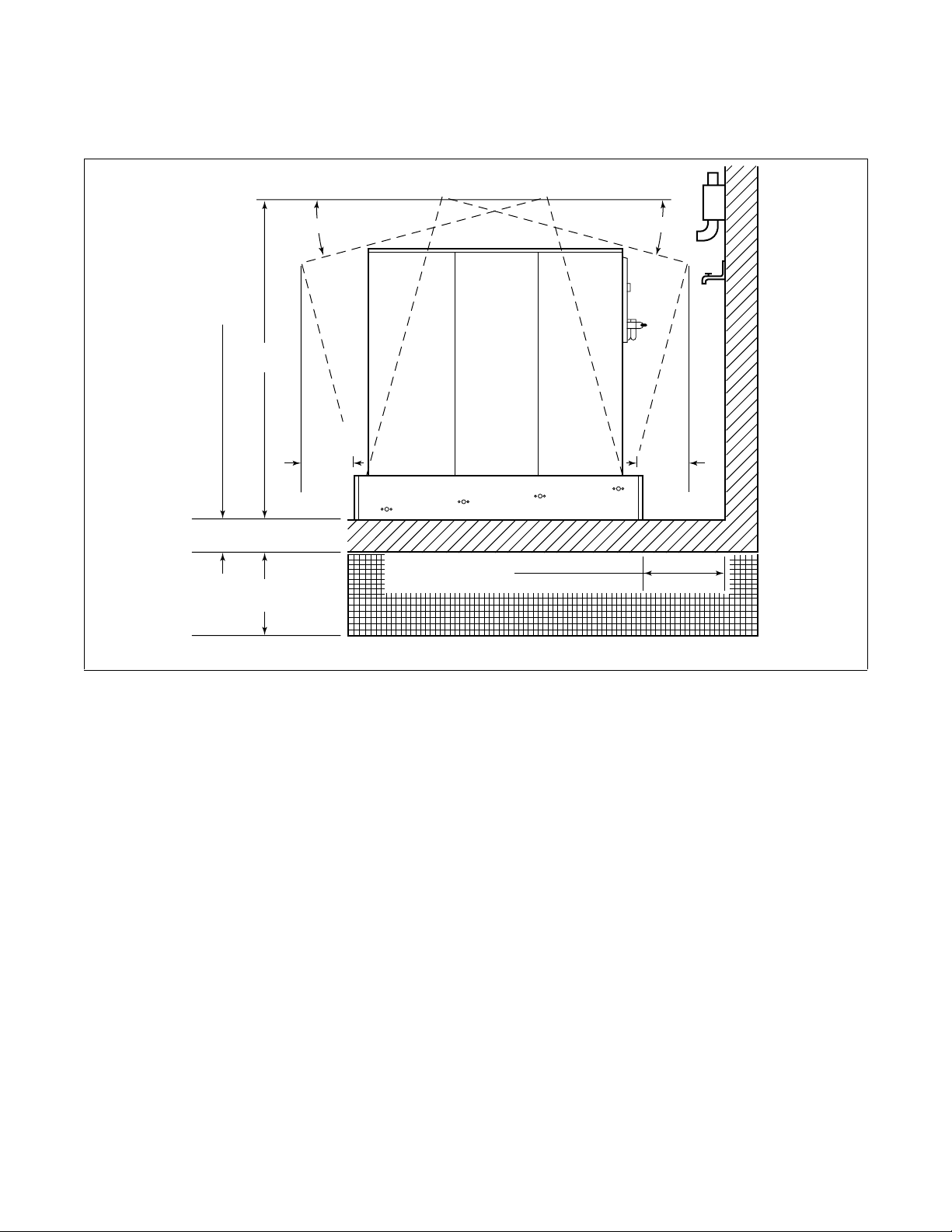

Dimensional Clearances ....................................................................... 10

V-Computer ..................................................................................... 10

WE-6 Computer ............................................................................... 10

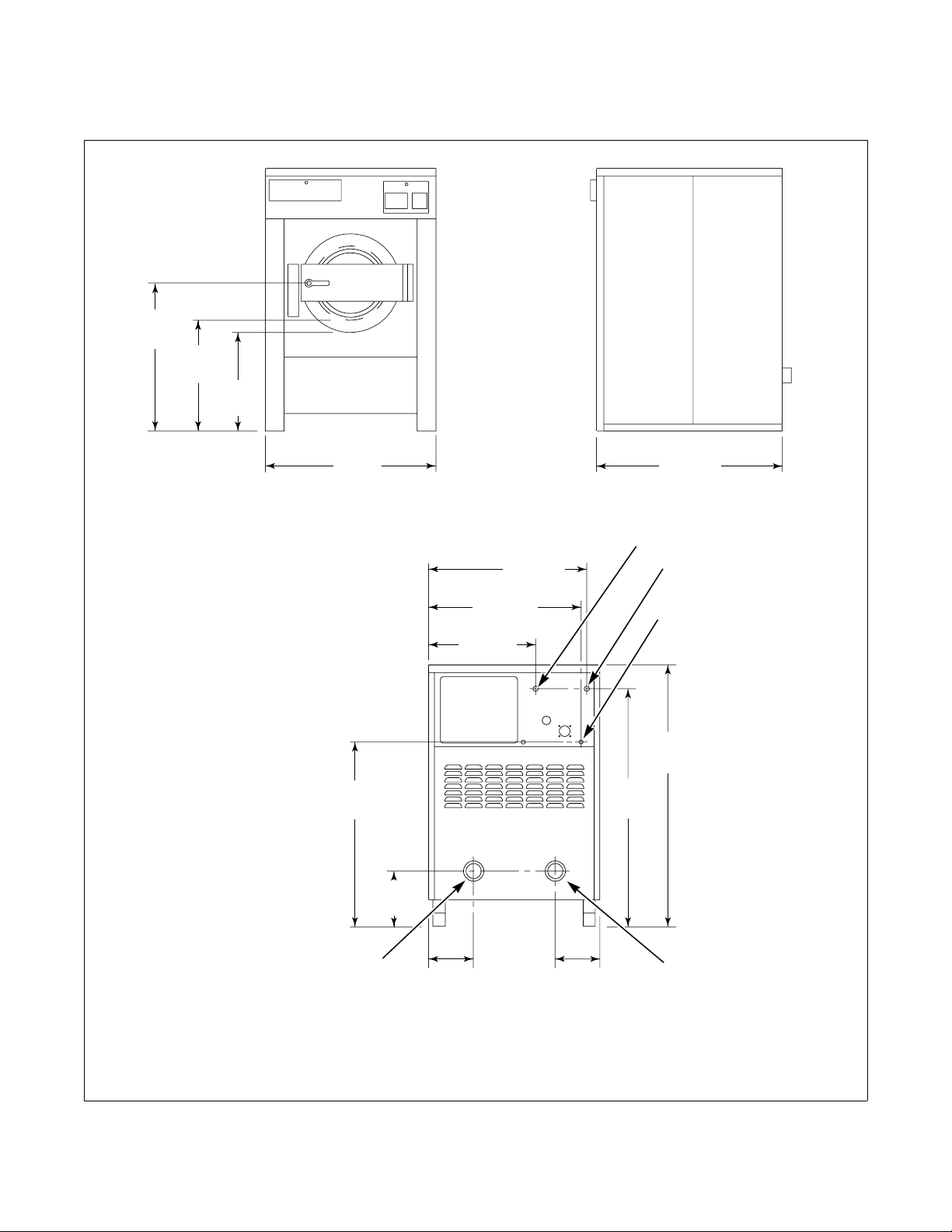

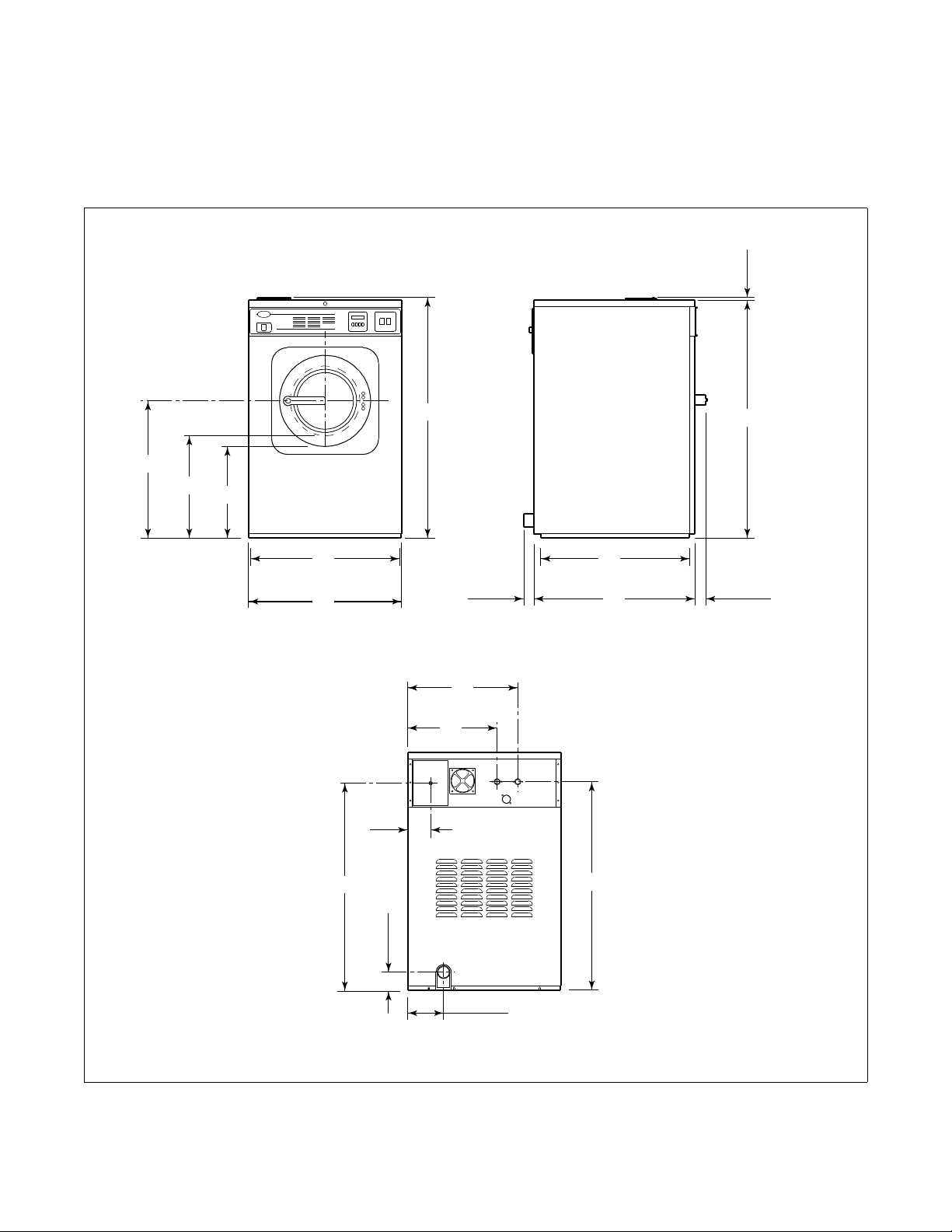

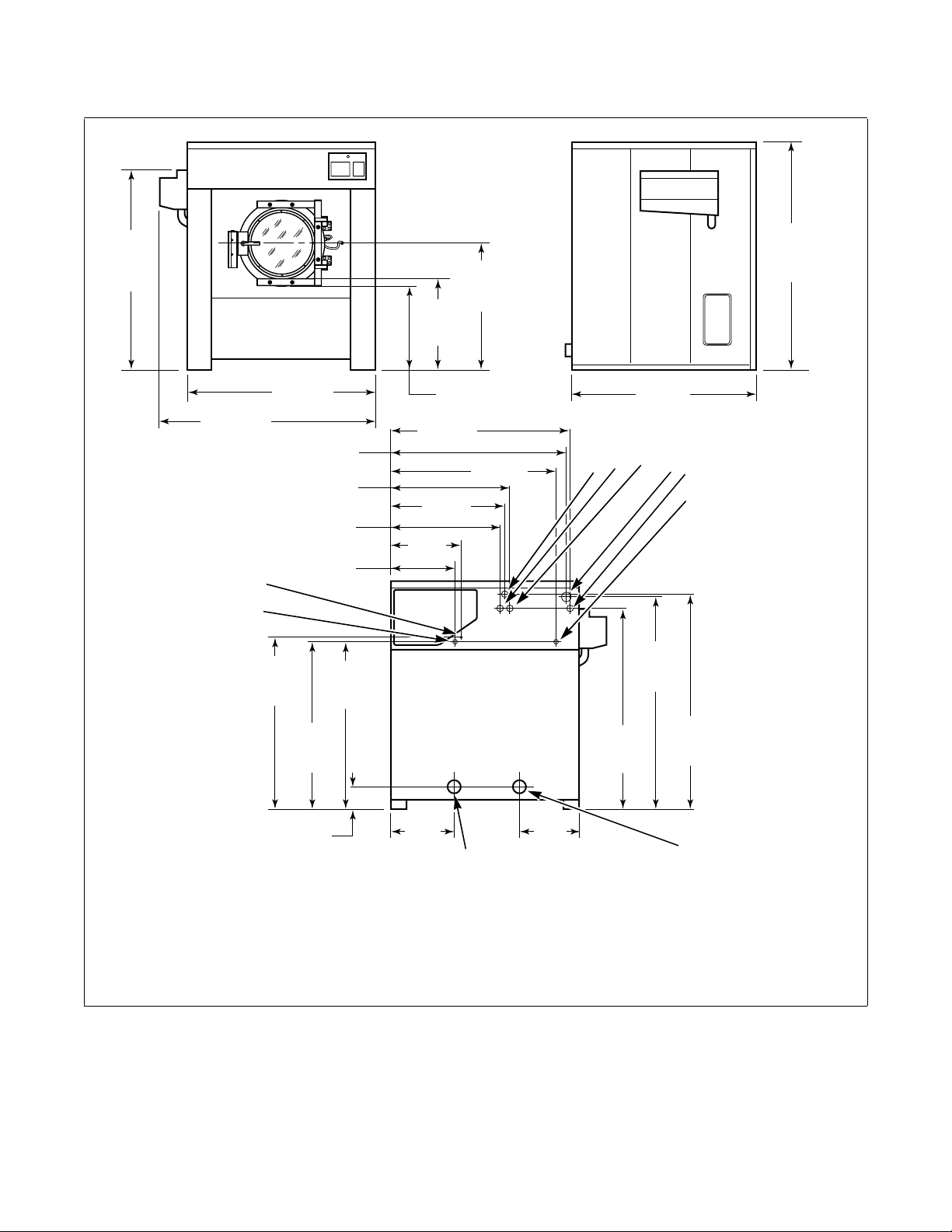

Dimensions ........................................................................................... 11

V-Computer ..................................................................................... 11

WE-6 Computer ............................................................................... 13

Operation............................................................................................. 21

V-Computer .......................................................................................... 21

WE-6 Computer.................................................................................... 23

Loading Using Tilt Option............................................................... 24

Unloading Using Tilt Option ........................................................... 24

Disposal of Unit................................................................................... 25

means without the expressed written consent of the publisher.

F232148 (EN)

1

Installation/Operation Supplement

Safety Information

Precautionary statements (“DANGER,” “WARNING,” and “CAUTION”), followed by specific instructions, are found in this manual and on machine decals. These precautions are intended for the personal safety of the operator, user, servicer and those maintaining the machine.

DANGER

DANGER indicates the presence of a hazard that will cause severe personal injury, death, or substantial property damage if the danger is ignored.

WARNING

WARNING indicates the presence of a hazard that can cause severe personal injury, death, or substantial property damage if the warning is ignored.

CAUTION

CAUTION indicates the presence of a hazard that will or can cause minor personal injury or property damage if the caution is ignored.

Additional precautionary statements (“IMPORTANT” and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used to inform the reader of specific procedures where minor machine damage will occur if the procedure is not followed.

NOTE: The word “NOTE” is used to communicate installation, operation, maintenance or servicing information that is important but not hazard related.

Important Safety Instructions

WARNING

To reduce the risk of fire, electric shock, serious injury or death to persons when using your washer, follow these basic precautions:

W023

1. Read all instructions before using the washer.

2. Refer to the GROUNDING INSTRUCTIONS in the INSTALLATION manual for the proper grounding of the washer.

3. Do not wash textiles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances as they give off vapors that could ignite or explode.

4. Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.

5. Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using a washing machine or combination washer-dryer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. The gas is flammable; do not smoke or use an open flame during this time.

6. Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children. This is a safety rule for all appliances.

7. Before the washer is removed from service or discarded, remove the door to the washing compartment.

8. Do not reach into the washer if the wash drum is moving.

2

F232148 (EN)

Installation/Operation Supplement

9. Do not install or store the washer where it will be exposed to water and/or weather.

10. Do not tamper with the controls.

11. Do not repair or replace any part of the washer, or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that the user understands and has the skills to carry out.

12. To reduce the risk of an electric shock or fire, DO NOT use an extension cord or an adapter to connect the washer to the electrical power source.

13. Use washer only for its intended purpose, washing textiles.

14. ALWAYS disconnect the washer from electrical supply before attempting any service. Disconnect the power cord by grasping the plug, not the cord.

15. Install the washer according to the INSTALLATION INSTRUCTIONS. All connections for water, drain, electrical power and grounding must comply with local codes and be made by licensed personnel when required.

16. To reduce the risk of fire, textiles which have traces of any flammable substances such as vegetable oil, cooking oil, machine oil, flammable chemicals, thinner, etc. or anything containing wax or chemicals such as in mops and cleaning cloths, must not be put into the washer. These flammable substances may cause the fabric to catch on fire by itself.

17. Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.

19. Replace worn power cords and/or loose plugs.

20. Be sure water connections have a shut-off valve and that fill hose connections are tight. CLOSE the shut-off valves at the end of each wash day.

21. Loading door MUST BE CLOSED anytime the washer is to fill, tumble or spin. DO NOT bypass the loading door switch by permitting the washer to operate with the loading door open.

22. Always read and follow manufacturer’s instructions on packages of laundry and cleaning aids. Heed all warnings or precautions. To reduce the risk of poisoning or chemical burns, keep them out of the reach of children at all times (preferably in a locked cabinet).

23. Always follow the fabric care instructions supplied by the textile manufacturer.

24. Never operate the washer with any guards and/or panels removed.

25. DO NOT operate the washer with missing or broken parts.

26. DO NOT bypass any safety devices.

27. Failure to install, maintain, and/or operate this washer according to the manufacturer’s instructions may result in conditions which can produce bodily injury and/or property damage.

NOTE: The WARNING and IMPORTANT SAFETY INSTRUCTIONS appearing in this manual are not meant to cover all possible conditions and situations that may occur. Common sense, caution and care must be exercised when installing, maintaining, or operating the washer.

18. Keep washer in good condition. Bumping or dropping the washer can damage safety features. If this occurs, have washer checked by a qualified service person.

F232148 (EN)

Any problems or conditions not understood should be reported to the dealer, distributor, service agent or the manufacturer.

3

Installation/Operation Supplement

Installation

General Specifications

V-Computer

SF18VNV, SF25VNV, UF18VNV, and UF25VNV Models

Refer to Table 1.

18 Pound 25 Pound

Overall Dimensions

Overall width, mm (in.) 737 (29.0) 813 (32.0)

Overall height, mm (in.) 1168 (46.0) 1232 (48.5)

Overall depth, mm (in.) 833 (32.8) 940 (37.0)

Weight and Shipping Information

Net weight, kg (lbs.) 250 (550) 318 (700)

Domestic shipping weight, kg (lbs.) 250 (550) 341 (750)

Domestic shipping volume, m

Export shipping weight, kg (lbs.) 272 (600) 363 (800)

Export shipping volume, m

Cylinder diameter, mm (in.) 533 (21.0) 610 (24.0)

Cylinder depth, mm (in.) 349 (13.75) 406 (16.0)

Cylinder volume, l (ft

Perforation size, mm (in.) 4.77 (0.188) 4,77 (0.188)

Perforation open area, % 23 23

Load capacity (dry cloth weight), kg (lbs.) 8.16 (18) 11.34 (25)

Door opening size, mm (in.) 305 (12.0) 364 (14.345)

Height of door bottom above floor, mm (in.) 518 (20.4) 511 (20.1)

3

(ft3) 0.98 (34.6) N/A

3

(ft3) 1.17 (41.44) N/A

Wash Cylinder Information

) 78 (2.76) 119 (4.19)

Door Opening Information

Water Consumption

Average water consumption per cycle, l (gal.)

4

HOT 87 (23) 106 (28)

COLD 42 (11) 49 (13)

Table 1 (Continued)

F232148 (EN)

Installation/Operation Supplement

Table 1 (Continued)

18 Pound 25 Pound

Power Consumption

Average power used per cycle, kWh 0.2 0.3

Nominal sound emission, dBA 58 Data not available

Average HVAC load, kcal/hr (Btu/hr) 101 (400) 113 (450)

Drive Train Information

Number of motors in drive train 1 1

Drive motor power, kW (HP) 0.75 (1.0) 1.50 (2.0)

Cylinder Speeds

Low wash/reverse speed, RPM 29 27

Normal wash/reverse speed, RPM 52 49

Distribution speed, RPM 86 73

Extract l, RPM 534 500

Extract 2, RPM 685 641

Extract 3, RPM 1080 1011

Centrifugal Force Data

Low wash/reverse centrifugal force, Gs 0.25 0.80

Normal wash/reverse centrifugal force, Gs 0.80 0.80

Distribution centrifugal force, Gs 2.20 1.80

Extract 1 centrifugal force, Gs 85 85

Extract 2 centrifugal force, Gs 140 140

Extract 3 centrifugal force, Gs 348 348

Load Balancing

Balance detection system AC drive AC drive

Direct Steam Heating (Optional)

Steam inlet connection size, mm (in.) DN15 (1/2 NPT) DN15 (1/2 NPT)

Number of steam inlets 1 1

Steam required to raise bath temperature 10 ° C, kg (10 ° F, lb.)

LOW 0.81 (1.13) 1.05 (1.46)

MED 0.90 (1.25) 1.16 (1.61)

HIGH 1.04 (1.45) 1.33 (1.85)

Average steam use per cycle, kg (bhp) 11.7 (0.75) 15 (0.96)

F232148 (EN)

5

Installation/Operation Supplement

WE-6 Computer

SF35PV, SF50PV, SF85PV, UF35PV, UF50PV, and UF85PV Models

Refer to Table 2.

35 Pound 50 Pound 85 Pound

Overall Dimensions

Overall width, mm (in.) 889 (35) 990 (39) 1181 (46.5)

Overall height, mm (in.) 1407 (55.4) 1514 (59.6Z) 1781 (70.1)

Overall depth, mm (in.) 992 (39) 1049 (41.3) 1270 (50)

Weight and Shipping Information

Net weight, kg (lbs.) 550 (1212) 726 (1600) 1362 (3000)

Domestic shipping weight, kg (lbs.) 572 (1260) 749(1650) 1407 (3100)

Domestic shipping volume, m

Export shipping weight, kg (lbs.) 580 (1275) 1750 (795) 3200 (1453)

Export shipping volume, m

3

(ft3) 1.80 (63.6) 2.26 (80) 3.46 (123)

3

(ft3) 1.85 (65.3) 2.36 (83.5) 3.86 (137)

Wash Cylinder Information

Cylinder diameter, mm (in.) 668 (26.25) 762 (30) 914 (36)

Cylinder depth, mm (in.) 467 (18.375) 508 (20) 61 (240)

Cylinder volume, l (ft

3

) 164 (5.79) 232 (8.19) 400 (14.1)

Perforation size, mm (in.) 0.188 (4.77) 0.188 (4.77) 4.77 (0.188)

Perforation open area, % 23 23 23

Door Opening Information

Door opening size, mm (in.) 354 (13.9) 413 (16.25) 445 (17.5)

Height of door bottom above floor, mm (in.) 636 (25) 23 (585) 32.7 (831)

Water Consumption

Average water consumption per cycle, l (gal.) HOT 47 (178) 216 (57) 407 (108)

COLD

79 (21) 98 (26) 190 (50)

Average hot water consumed per hour, l (gal.) 276 (73) 322 (85) 579 (153)

Power Consumption

Average power used per cycle, kWh 0.4 0.6 0.9

Average HVAC load, kcal/hr (Btu/hr) 125 (500) 213 (850) 300 (1200)

Nominal sound emission, dBA 70 76 75

Background noise level, dBA 54 49 55

Drive Train Information

Number of motors in drive train 1 1 1

Drive motor power, kW (HP) 2.2 (3) 3.7 (5.0) 5.6 (7.5)

Table 2 (Continued)

6

F232148 (EN)

Installation/Operation Supplement

Table 2 (Continued)

35 Pound 50 Pound 85 Pound

Cylinder Speeds

Gentle wash/reverse speed, RPM 26 26 26

Wash/reverse speed, RPM 43 40 41

Distribution/drain speed, RPM 77 73 65

Medium extract speed, RPM 325 305 280

High extract speed l, RPM 475 445 410

High extract speed 2, RPM 610 575 525

High extract speed 3, RPM 960 900 825

Centrifugal Force Data

Gentle wash/reverse centrifugal force, Gs 0.25 0.29 0.345

Wash/reverse centrifugal force, Gs 0.69 0.68 0.858

Distribution/drain centrifugal force, Gs 2.2 2.3 2.16

Medium extract centrifugal force, Gs 40 40 40

High extract 1 centrifugal force, Gs 85 84 85.8

High extract 2 centrifugal force, Gs 140 141 141

High extract 3 centrifugal force, Gs 345 345 348

Balance Detection

Vibration safety switch installed Standard Standard Standard

Direct Steam Heating (Optional)

Steam inlet connection size, mm (in.) DN15 DN15 (0.5) DN15 (0.5) DN15 (0.5)

Number of steam inlets 1 1 1

Steam required to raise bath temperature 10° C, kg (10° F, l b.)

LOW 2.22 (1.6) 2.91 (2.42) 3.8 (5.2)

MED 2.52 (1.81) 2.42 (3.46) 4.3 (5.9)

HIGH 2.84 (2.04) 2.73 (3.80) 4.9 (6.9)

Average steam use per cycle, kg (bhp) 1.47 (23) 1.95 (30.6) 54.9 (3.5)

Electric Heating (Optional)

Total electric heating capacity, kW 15.6 23.4 31.2

Number of electrical heat elements 6 9 12

Electrical heat element size, kW 2.6 2.6 2.6

Time required to raise bath temperature 10°C, min. (10°F, min.)

LOW 3.9 (2.6) 3.6 (2.4) 3.1 (4.8)

MED 4.5 (2.9) 4.2 (2.7) 3.5 (5.4)

F232148 (EN)

HIGH 5.0 (3.3) 4.7 (3.1) 6.4 (4.1)

7

Installation/Operation Supplement

SF135PV, SF250PV, UF135PV, and UF250PV Models

Refer to Table 3.

135 Pound 250 Pound

Standard Standard

Forward Tilt

Option

Two-Way

Tilt Option

Overall Dimensions

Overall width, mm (in.) 1803 (71) 1957 (77) 2006 (79) 2006 (79)

Overall height, mm (in.) 1829 (75) 2083 (82) 2235 (88) 2235 (88)

Overall depth, mm (in.) 1537 (60.5) 2235 (88) 2243 (88.3) 2311 91()

Weight and Shipping Information

Net weight, kg (lbs.) 1818 (4000) 3661 (8070) 4000 (8800) 4355 (9600)

Domestic shipping weight, kg (lbs.) 1909 (4200) 3951 (8270) 4000 (8800) 4445 (9800)

Domestic shipping volume, m

3

(ft3) 6.35 (227) 11.5 (409) 11.5 (409) 11.5 (409)

Export shipping weight, kg (lbs.) 2045 (4500) 3860 (8500) 4227 (9300) 4581 (10,100)

Export shipping volume, m

3

(ft3) 6.39 (248) 11.5 (409) 11.5 (409) 11.5 (409)

Wash Cylinder Information

Cylinder diameter, mm (in.) 1092 (43) 1321 (52) 1321 (52) 1321 (52)

Cylinder depth, mm (in.) 635 (25) 813 (32) 813 (32) 813 (32)

Cylinder volume, l (ft

3

) 596 (21.0) 1114 (39.3) 1114 (39.3) 1114 (39.3)

Perforation size, mm (in.) 4.77 (0.188) 4.76 (0.188) 4.76 (0.188) 4.76 (0.188)

Perforation open area, % 23 20 20 20

Door Opening Information

Door opening size, mm (in.) 584 (23) 724 (28.5) 724 (28.5) 724 (28.5)

Height of door bottom above floor, mm (in.) 718 (28.25) 784 (30.9) 937 (36.9) 937 (36.9)

Water Consumption

Average water consumption per cycle, l (gal.) HOT 590 (156) 905 (239) 905 (239) 905 (239)

COLD

437 (116) 424 (112) 424 (112) 424 (112)

Average hot water consumed per hour, l (gal.) 1023 (270) 1355 (358) 1355 (358) 1355 (358)

Power Consumption

Average power used per cycle, kWh 0.9 1.5 (Est.) 1.5 (Est.) 1.5 (Est.)

Average HVAC load, kcal/hr (Btu/hr) 375 (1500) 550 (2200) 550 (2200) 550 (2200)

Nominal sound emission,

dBA

75

75 N/A N/A

Drive Train Information

Number of motors in drive train 1 1 1 1

Drive motor power, kW (HP) 7.5 (10) 18.5 (25) 18.5 (25) 18.5 (25)

Table 3 (Continued)

8

F232148 (EN)

Table 3 (Continued)

135 Pound 250 Pound

Installation/Operation Supplement

Standard Standard

Forward Tilt

Option

Two-Way

Tilt Option

Cylinder Speeds

1/2 Wash/reverse speed, RPM 26 21 21 21

Wash/reverse speed, RPM 36 31 31 31

Distribution speed, RPM 62545454

Medium extract speed, RPM 170 140 140 140

High extract speed l, RPM 375 340 340 340

High extract speed 2, RPM 480 435 435 435

High extract speed 3, RPM 715 650 650 650

Centrifugal Force Data

1/2 Wash/reverse centrifugal force, Gs 0.412 0.325 0.325 0.325

Wash/reverse centrifugal force, Gs 0.790 0.708 0.708 0.708

Distribution centrifugal force, Gs 2.34 2.15 2.15 2.15

Medium extract centrifugal force, Gs 17.6 14.7 14.7 14.7

High extract 1 centrifugal force, Gs 85.8 86.9 86.9 86.9

High extract 2 centrifugal force, Gs 141 142 142 142

High extract 3 centrifugal force, Gs 312 318 318 318

Balance Detection

Vibration safety switch installed Standard Standard Standard Standard

Direct Steam Heating (Optional)

Steam inlet connection size, mm (in.) DN19 (0.75) DN25 (1.0) DN25 (1.0) DN25 (1.0)

Number of steam inlets 1 1 1 1

Steam required to raise bath temperature 10 °C, kg (10 ° F, l b.)

LOW 3.11 (6.84) 5.23 (11.5) 5.23 (11.5) 5.23 (11.5)

HIGH 4.40 (9.67) 7.91 (17.4) 17.4 (7.91) 17.4 (7.91)

Average steam use per cycle, bhp 4.78 9.0 9.0 9.0

Electric Heating (Optional)

Total electric heating capacity, kW 45 N/A N/A N/A

Number of electrical heat elements 18 N/A N/A N/A

Electrical heat element size, kW 2.5 N/A N/A N/A

Time required to raise bath temperature 10°C, min. (10°F, min.)

LOW 5.0 (3.2) N/A N/A N/A

HIGH 6.4 (4.2) N/A N/A N/A

F232148 (EN)

9

Installation/Operation Supplement

Dimensional Clearances

NOTE: The dimensions shown here are for planning purposes only. They are approximate and subject to normal manufacturing tolerances. If exact dimensions are required for construction purposes, contact the distributor or manufacturer. We reserve the right to make changes at any time without notice.

V-Computer

SF18VNV, SF25VNV, UF18VNV, and UF25VNV Models

Both single and multiple machine installations require specified minimum clearances on all sides of each machine. Tables below show these clearances.

Recommended Minimum Clearances

18 Pound 25 Pound

Minimum rear clearance, mm (in.) 305 (12) 305 (12)

Minimum clearance between machine and wall, mm (in.) 50 (2) 50 (2)

Minimum clearance between machines (side), mm (in.) 25 (1) 25 (1)

Minimum front clearance, mm (in.) 406 (16) 445 (17.5)

Tab le 4

WE-6 Computer

SF35-85PV, UF35-85PV, SF135-250PV, and UF135-250PV Models

Recommended Minimum Clearances

Minimum rear clearance, mm (in.)

Minimum clearance between machine and wall, mm (in.)

Minimum clearance between machines (side), mm (in.)

135

35

Pound

450 (18) 450 (18) 450 (18) 610 (24) 610 (24) 914 (36) 914 (36)

150 (6) 150 (6) 150 (6) 457 (18) 457 (18) 457 (18) 457 (18)

25.4 (1) 25.4 (1) 25.4 (1) 457 (18) 457 (18) 457 (18) 457 (18)

50

Pound

85

Pound

Standard Standard

250 Pound

Forward

Tilt

Option*

Two-Way

Tilt

Option*

Minimum front clearance, mm (in.)

* Machines equipped with the tilt option require a minimum overhead clearance as well. Refer to

overhead clearance for the 250 pound capacity model with tilt option.

10

533 (21) 584 (23) 584 (23) 584 (23) 914 (36) 914 (36) 914 (36)

Table 5

Figure 7 for the minimum

F232148 (EN)

Dimensions

V-Computer

SF18VNV, UF18VNV, SF25VNV, and UF25VNV Models

Installation/Operation Supplement

G

D

A

B

C

E

F

Front

L

M

N

S

K

J

Left Side

H

I

F232148 (EN)

R

Q

P

O

Rear

Figure 1

CFS425N

11

Installation/Operation Supplement

18 Pound 25 Pound

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

659 mm (26 in.) 686 mm (27 in.)

492 mm (19-13/32 in.) 508 mm (20 in.)

440 mm (17-5/16 in.) 432 mm (17 in.)

1161 mm (45-23/32 in.) 1232 mm (48-1/2 in.)

686 mm (27 in.) 762 mm (30 in.)

737 mm (29 in.) 813 mm (32 in.)

18 mm (23/32 in.) 18 mm (23/32 in.)

1143 mm (45 in.) 1214 mm (47-13/16 in.)

25 mm (1 in.) 25 mm (1 in.)

774 mm (30-1/2 in.) 876 mm (34-1/2 in.)

709 mm (27-15/16 in.) 816 mm (32-1/8 in.)

33 mm (1-5/16 in.) 38 mm (1-1/2 in.)

530 mm (20-29/32 in.) 597 mm (23-1/2 in.)

430 mm (16-29/32 in.) 495 mm (19-1/2 in.)

1074 mm (42-5/16 in.) 1074 mm (42-5/16 in.)

173 mm (6-13/16 in.) 211 mm (8-5/16 in.)

P

Q

R

S

86 mm (3-13/32 in.) 86 mm (3-13/32 in.)

1029 mm (40-1/2 in.) 1067 mm (42 in.)

114 mm (4-1/2 in.) 4-13/16 in. (122 mm)

12

F232148 (EN)

WE-6 Computer

SF35PV and UF35PV Models

814 mm

(32")

638 mm

(25 1/10")

559 mm

(22")

Installation/Operation Supplement

889 mm

(35")

Front Side

828 mm (32 3/5")

813 mm

(32")

606 mm

(23 9/10")

1255 mm

(49 2/5")

1031 mm

(40 3/5")

300 mm

(11 4/5")

1

1323 mm

(52 1/10")

992 mm

(39")

2

3

1408 mm

(55 2/5")

209 mm

5

(8 1/5")

279 mm

(11")

Rear

1 Cold Water 4 76 mm (3 in.) Reuse Drain Outlet 2 Hot Water 5 76 mm (3 in.) Drain Outlet 3 Steam Inlet

Figure 2

F232148 (EN)

4

B145I

13

Installation/Operation Supplement

SF50PV, UF50PV, SF85PV, and UF85PV Models

A

B

C

D E

Front

N

Side

1

F

G

H

M

2

3

I

J

5

1 Cold Water 4 76 mm (3 in.) Reuse Drain Outlet 2 Hot Water 5 76 mm (3 in.) Drain Outlet 3 Steam Inlet

L

Rear

K

4

Figure 3

14

B146I

F232148 (EN)

50 Pound 85 Pound

872 mm (34-3/10 in.) 1054 mm (41-1/2 in.)

A

Installation/Operation Supplement

B

C

D

E

F

G

H

J

K

L

M

N

26-1/5 in. (666 mm) 831 mm (32-7/10 in.)

582 mm (22-9/10 in.) 765 mm (30-1/10 in.)

991 mm (39 in.) 1181 mm (46-1/2 in.)

1049 mm (41-3/10 in.) 1270 mm (50 in.)

930 mm (36-3/5 in.) 1107 mm (43-3/5 in.)

889 mm (35 in.) 1083 mm (42-3/5 in.)

619 mm (24-2/5 in.) 758 mm (29-9/10 in.)

1513 mm (59-3/5 in.) 1781 mm (70-1/10 in.)

I

1399 mm (55-1/10 in.) 1685 mm (66-2/5 in.)

260 mm (10-1/5 in.) 254 mm (10 in.)

260 mm (10-1/5 in.) 197 mm (7-3/4 in.)

300 mm (11-4/5 in.) 281 mm (11-1/10 in.)

1136 mm (44-7/10 in.) 1328 mm (52-3/8 in.)

F232148 (EN)

15

Installation/Operation Supplement

135 Pound Capacity Models

1664 mm (65 1/2")

1060 mm

(41 3/4")

768 mm

(30 1/4")

1575 mm

(62")

1803 mm

(71")

Front Side

10

1457 mm

(57 5/16")

992 mm

(39 3/32")

913 mm

(35 29/32")

529 mm

(20 13/16")

1491 mm

(58 11/16")

952 mm (37 1/2")

584 mm

(23")

718 mm (28 1/4")

1376 mm

(54 3/16")

1549 mm

(61")

3

2

1

4

5

6

9

1803 mm

1468 mm

(57 13/16")

1430 mm (56 5/16")

(71")

1905 mm

(75")

1435 mm

(56 1/2")

171 mm

(6 3/4")

521 mm (20 1/2")

509 mm

(20 1/16")

8

Rear

1715 mm

(67 1/2")

1 Recirculation Port 6 Steam Inlet 2 Extra Fill Valve 7 Drain Outlet 3 Cold Water Inlet 8 Reuse Drain Outlet 4 Vent 9 Main Power 5 Hot Water Inlet 10 External Supply Signal

Figure 4

16

1829 mm

(72")

7

R012I

F232148 (EN)

250 Pound Capacity Models

Installation/Operation Supplement

2083 mm

(82")

1740 mm

(68 1/2")

292 mm (11 1/2")

721 mm

(28 3/8")

1207 mm

(47 1/2")

829 mm (32 5/8")

483 mm

(19")

2037 mm (80 3/16")

1

2

1096 mm

(43 3/16")

712 mm

(28")

784 mm

(30 7/8")

1744 mm

(68 11/16")

1615 mm

(63 5/8")

1829 mm

1957 mm (77 1/16")

Front Side

10

(72")

1639 mm

(64 1/2")

1198 mm

(47 3/16")

912 mm

(35 29/32")

1034 mm

(40 11/16")

3

4

5

6

9

559 mm

(22")

483 mm

(19")

1997 mm

(78 5/8")

1584 mm

(62 3/8")

1530 mm

(60 1/4")

218 mm

8

(8 5/8")

572 mm (22 1/2")

Rear

572 mm (22 1/2")

1446 mm

(59 29/32")

1763 mm

(69 13/32")

1960 mm

(77 3/16")

1 Recirculation Port 6 Steam Inlet 2 Extra Fill Valve 7 Drain Outlet 3 Hot Water Inlet 8 Reuse Drain Outlet 4 Vent 9 External Supply Signal 5 Cold Water Inlet 10 Main Power

Figure 5

7

R070I

F232148 (EN)

17

Installation/Operation Supplement

250 Pound Capacity Models with Forward Tilt or Two-Way Tilt Option

A

H

I J

B

E

C

D

Front

9

8

AA

Z

Y

X

Q

R

G

F

K

3

2

L

M

N

O

P

1

U

Side

4

5

S

T

7

W

V

Rear

1 Recirculation Port 6 Drain Outlet 2 Extra Fill Valve 7 Reuse Drain Outlet 3 Hot Water Inlet 8 External Supply Signal 4 Vent 9 Main Power 5 Cold Water Inlet

Figure 6

18

6

CFS456N

R074IE3A

F232148 (EN)

Forward Tilt Two-Way Tilt

Installation/Operation Supplement

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

2235 mm (88 in.) 2235 mm (88 in.)

1736 mm (74-13/32 in.) 1736 mm (74-13/32 in.)

1930 mm (76 in.) 1930 mm (76 in.)

2057 mm (81 in.) 2006 mm (79 in.)

936 mm (36-7/8 in.) 936 mm (36-7/8 in.)

981 mm (38-19/32 in.) 981 mm (38-5/8 in.)

1359 mm (53-1/2 in.) 1359 mm (53-1/2 in.)

2037 mm (80-3/16 in.) 2037 mm (80-3/16 in.)

721 mm (28-3/8 in.) 721 mm (28-3/8 in.)

559 mm (22 in.) 559 mm (22 in.)

2254 mm (88-3/4 in.) 2311 mm (91 in.)

1174 mm (68-11/16 in.) 1174 mm (68-11/16 in.)

1639 mm (64-1/2 in.) 1639 mm (64-1/2 in.)

1615 mm (63-5/8 in.) 1615 mm (63-5/8 in.)

1198 mm (47-3/16 in.) 1198 mm (47-3/16 in.)

1096 mm (43-3/16 in.) 1096 mm (43-3/16 in.)

P

912 mm (35-29/32 in.) 912 mm (35-29/32 in.)

Q

R

S

T

U

V

W

X

Y

Z

AA

712 mm (28 in.) 712 mm (28 in.)

2121 mm (83-1/2 in.) 2121 mm (83-1/2 in.)

1930 mm (76 in.) 1930 mm (76 in.)

1613 mm (63-1/2 in.) 1613 mm (63-1/2 in.)

620 mm (24-13/32 in.) 620 mm (24-13/32 in.)

370 mm (14-5/8 in.) 370 mm (14-5/8 in.)

1683 mm (66-1/4 in.) 1683 mm (66-1/4 in.)

1737 mm (68-3/8 in.) 1737 mm (68-3/8 in.)

2149 mm (84-5/8 in.) 2149 mm (84-5/8 in.)

F232148 (EN)

19

Installation/Operation Supplement

250 Pound Capacity Models with Forward and Two-Way Tilt Option

2622 mm (103 1/4")

Floor Thickness

152 mm (6") Minimum

475 mm (18")

Compacted fill dirt

13°

330 mm

(13")

914 mm (36") Recommended

762 mm (30") Allowable

13°

330 mm

(13")

CFS219N

Figure 7

20

F232148 (EN)

Operation

Installation/Operation Supplement

V-Computer

1. Turn on main power source (circuit breaker).

2. Turn on the ON/OFF switch on the front panel to the ON position. Refer to Figure 9.

3. Push button and turn handle clockwise. Refer to Figure 8.

U001IE1B

Figure 8

5. Load to capacity whenever possible. DO NOT OVERLOAD. Refer to Figure 10.

U003IE1A

Figure 10

6. Close door and turn handle counterclockwise until button pops out. Refer to Figure 11.

4. Press and hold the DOOR UNLOCK button on the left side of the control panel while performing the above step. Refer to Figure 8 and Figure 9.

1

1 DOOR UNLOCK Button 2 ON/OFF Switch

Figure 9

2

CFS1N

U005IE1B

Figure 11

F232148 (EN)

21

Installation/Operation Supplement

7. Add liquid and/or powder supplies to supply dispenser. Refer to Figure 12.

a. Add detergent to container 1.

b. Add detergent or bleach to container 2.

c. Add softener to container 3.

NOTE: Liquid supplies may be injected directly into the supply dispenser by an external chemical supply dispenser. Refer to Installation and Programming manuals.

8. Press the START key. Refer to Figure 13.

3

1

2

1

CYCLE SELECTION

B159R

1 Up 2 Down 3 Start 4 Stop

3

4

B159R

Figure 13

10. When applicable, add bleach when the display

reads “bLCH”. Refer to Figure 14.

2

1 Detergent Container 2 Detergent or Bleach Container 3 Softener Container

Figure 12

9. Press the UP and DOWN keys to select wash cycle. Press the START key. Refer to Figure 13.

B163R

CYCLE SELECTION

B160R

Figure 14

NOTE: To stop a cycle at any time, press the STOP key.

NOTE: To display the temperature of the water while a cycle is running, press the UP key. To display the number of the cycle in progress, press the START key.

22

F232148 (EN)

Installation/Operation Supplement

A

U

WE-6 Computer

1. Turn on main power source (circuit breaker).

2. Use left hand to press and hold the door unlock button on top of the door box cover. Use right hand to turn door handle counterclockwise and open door. Refer to Figure 15.

U153R

Figure 15

3. Load to capacity whenever possible. DO NOT OVERLOAD. Refer to Figure 16.

U153R

NOTE: For models with tilt, refer to “Loading Using Tilt Option” at the end of this section.

4. Close door and turn handle clockwise until it locks.

5. Add powder supplies to supply dispenser.

NOTE: Liquid supplies may be injected directly into the supply dispenser by an external chemical supply dispenser. Refer to Installation and Programming manuals.

6. Select wash cycle from cycle charts located in the Programming section of the Programming Manual.

7. Enter the cycle number, 01-39, on the keypad. Refer to Figure 17.

Output Indicators

Supply 1

Supply 2

Supply 3

Supply 4

Supply 5

Cold Fill

Hot Fill

Spare

Signal

Heat

Forward

Reverse

Dist. Speed

Med. Speed

High Speed

Unlock Door

Drain Closed

Auxiliary 1

Auxiliary 2

F232148 (EN)

8. Press the START key. Refer to Figure 17.

9. When cycle is complete and the display reads “DONE”, open door by pressing and holding the door unlock button.

U003IE1

U003IE1A

Figure 16

10. Unload.

U152R

Figure 17

23

Installation/Operation Supplement

Loading Using Tilt Option

Two-Way Tilt Machines

1. Open loading door and secure it to the door latch on the right side of the machine.

2. Turn the selector on the pendant switch left to the REVERSE position. Refer to Figure 18.

1

ENABLE

FORWARD

REVERSE

Forward Tilt Machines

1. Open loading door and secure it to the door latch on the right side of the machine.

2. Check that selector on the pendant switch is in the CENTER position. If machine is in the FORWARD position, turn the selector to the CENTER position. While holding down the ENABLE button, press the REVERSE button to center the machine.

3. Load the machine.

4. Unlatch and close loading door.

Unloading Using Tilt Option

Forward and Two-Way Tilt Machines

1. Open loading door and secure it to the door latch on the right side of the machine.

2. Turn the selector on the pendant switch right to the FORWARD position. Refer to Figure 18.

3. While holding down the ENABLE button, press the FORWARD button to tilt forward.

U150R3

U150R

1 Selector Dial

Figure 18

3. While holding down the ENABLE button, press the REVERSE button to tilt backward.

4. Load the machine.

5. Turn the selector back to the CENTER position to lower the machine.

6. Unlatch and close loading door.

4. Unload the machine.

5. Turn the selector back to the CENTER position to lower the machine.

6. Unlatch and close loading door.

24

F232148 (EN)

Disposal of Unit

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Refer to Figure 19. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Ensuring this product is disposed of correctly will help prevent potential negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact the local city office, household waste disposal service, or the source from which the product was purchased.

Installation/Operation Supplement

MIX1N

Figure 19

F232148 (EN)

25
