Alliance WFF165_SIGMA_OPL-Extractor Parts Diagram

Washer-Extractor

CHM2097N_D0884

Pocket Hardmount

Refer to Page 5 for Model Numbers

Parts

www.alliancelaundry.com

Part No. D0884R9

July 2015

Model Identification

Information in this manual is applicable to these washer-extractor models:

CWF035ANM CWF035AN2 CWF035MNM CWF035MN2 IWF030ANM IWF030AN2 IWF030MCM IWF030MC2 IWF030MDM IWF030MD2 IWF030MEM IWF030ME2 IWF030MLM IWF030ML2 IWF030MNM IWF030MN2 IWF030MXM IWF030MX2 IWF030MYM IWF030MY2 IWF030SCM IWF030SC2 IWF030SDM IWF030SD2 IWF030SEM IWF030SE2 IWF030SLM IWF030SL2 IWF030SRM IWF030SR2 IWF030SXM IWF030SX2 IWF030SYM IWF030SY2 IWF035MXM IWF135ANM IWF135AN2 IWF135MCM IWF135MC2 IWF135MDM IWF135MD2 IWF135MEM IWF135ME2 IWF135MLM IWF135ML2 IWF135MNM IWF135MN2 IWF135MXM IWF135MX2

IWF135MYM IWF135MY2 IWF135SCM IWF135SC2 IWF135SDM IWF135SD2 IWF135SEM IWF135SE2 IWF135SLM IWF135SL2 IWF135SRM IWF135SR2 IWF135SXM IWF135SX2 IWF135SYM IWF135SY2 IWF135ZNM IWF135ZN2 IWF165ANM IWF165AN2 IWF165MCM IWF165MC2 IWF165MDM IWF165MD2 IWF165MEM IWF165ME2 IWF165MLM IWF165ML2 IWF165MNM IWF165MN2 IWF165MXM IWF165MX2 IWF165MYM IWF165MY2 IWF165SCM IWF165SC2 IWF165SDM IWF165SD2 IWF165SEM IWF165SE2 IWF165SLM IWF165SL2 IWF165SRM IWF165SR2 IWF165SXM IWF165SX2 IWF165SYM IWF165SY2 IWF165ZNM IWF165ZN2

WFF135_CYGNUS-COMM_COIN WFF135_CYGNUS-COMM_OPL WFF135_CYGNUS-PREM_COIN WFF135_CYGNUS-PREM_OPL WFF135_CYGNUS-PRO WFF135_CYGNUS-STANDARD_COIN WFF135_CYGNUS-STANDARD_OPL WFF135_MICRO-20_COIN WFF135_MICRO-20_OPL WFF135_PS40F WFF135_SIGMA_COIN WFF135_SIGMA_OPL WFF165_CYGNUS-COMM_COIN WFF165_CYGNUS-COMM_OPL WFF165_CYGNUS-PREM_COIN WFF165_CYGNUS-PREM_OPL WFF165_CYGNUS-PRO WFF165_CYGNUS-STANDARD_COIN WFF165_CYGNUS-STANDARD_OPL WFF165_MICRO-20_COIN WFF165_MICRO-20_OPL WFF165_PS40F WFF165_SIGMA_COIN WFF165_SIGMA_OPL WF135_CYGNUS-COMM_COIN WF135_CYGNUS-COMM_OPL WF135_CYGNUS-PREM_COIN WF135_CYGNUS-PREM_OPL WF135_CYGNUS-PRO WF135_CYGNUS-STANDARD_COIN WF135_CYGNUS-STANDARD_OPL WF135_MICRO-20_COIN WF135_MICRO-20_OPL WF135_PS40F WF135_SIGMA_COIN WF135_SIGMA_OPL WF165_CYGNUS-COMM_COIN WF165_CYGNUS-COMM_OPL WF165_CYGNUS-PREM_COIN WF165_CYGNUS-PREM_OPL WF165_CYGNUS-PRO WF165_CYGNUS-STANDARD_COIN WF165_CYGNUS-STANDARD_OPL WF165_MICRO-20_COIN WF165_MICRO-20_OPL WF165_PS40F WF165_SIGMA_COIN WF165_SIGMA_OPL

D0884 5

Pocket Hardmount Washer-Extractor Product Overview

CHM3066P_D0884

Cygnus Professional

CYGNUS

PROFESSIONAL

Normal wa sh 40º-40ºC Warm wa sh 40º-60ºC Hot wa sh 40º-90ºC Delicate 1 90ºC Synthetic 1

1000

40ºC

1h03

Micro 20

Micro20 Controlled

1

2

3

4

5

6

7

8

9

SELECT

START

ECO.

P

I

E

Sigma

Sigma Controlled

SELECT

ABDC

START

ECO.

P

I

E

1

2

3

4

5

6

7

8

9

PS40

1 2 3

PS40

4 5 6O

7 8 9NO

PROG

+ 0

_

Alliance International BVBA

Nieuwstraat 146 8560 Wevelgem Belgium Tel: +32 56 41 20 54 Fax: +32 56 41 86 74

www.ipso.be

WFF75C

3 ~ 400V 50Hz

0.55kW 2.5A

9kW 16A

9.55 kW

592 Nm

2007

Type:

Voltage:

Motor:

Heating:

Total:

Kinetic energy:

Manufactured in:

sfc 741837

Water Pressure:

min. 2.07 max. 5.86 Kg/cm² min. 20.7 max. 58.6 N/cm²

IPX4

07110WD0339

181 kg

73 L

7,3 kg

530 mm

700 rpm

Nr:

Weight:

Capacity:

Dry Load:

Drum:

Speed:

Alliance International BVBA

Made in Belgium

TEL 1-920-748-3121

www.comlaundry.com

100740

CONFORMS TO ANSI/UL

STD 2157

CERTIFIED TO CAN/CSA

STD C22.2 NO.169-94

IPX4

Model No: IW F 01 8 MN M X10U01

Volts Hertz:

Phase:

Amps:

Recommended Circuit Breaker:

Interrupt Current:

Motor:

Elec Heat:

Steam heat:

Serial No:0710WD0152

208-240 50/60

1 - 3

6 amps

15 amps 10 kA

1 hp 0,75 kW

N/A kW

N/A psi N/A bar

Typ e:

Capacity:

Water Pressure:

Max Speed:

Net Weight:

WFF75

18/ 7 lbs/kg

30-85 psi

2.07-5.86 bar 700 rpm

400 lbs 181 kg

6 D0884

Pocket Hardmount Washer-Extractor Product Overview

REF PART NO. DESCRIPTION COMMENTS

1 - Product Family CWF

IWF WFF

2 - Capacity 030

035 135 165

3 - Control A (PS40F)

Cygnus-Comm Cygnus-Prem Cygnus-Standard M (Micro-20) S (Sigma) Z (Cygnus-Pro)

4 - Actuation C (Coin Drop Meter)

D (Dual Coin Drop) E (Electronic Drop) L (Prep for Remote or Central Pay) N (Non-Coin) R (Smart Card Ready) X (Prep for Coin) Y (Card Ready)

5 - Speed M (Medium Spin) 6 - Voltage N (440-480/50-60/3/3)

P (380-415/50-60/3/3) Q (208-240/50-60/3/3) X (200-240/50-60/1/3)

7 -Design 1

D0884 7

Frame

BE000805P_D0884

8 D0884

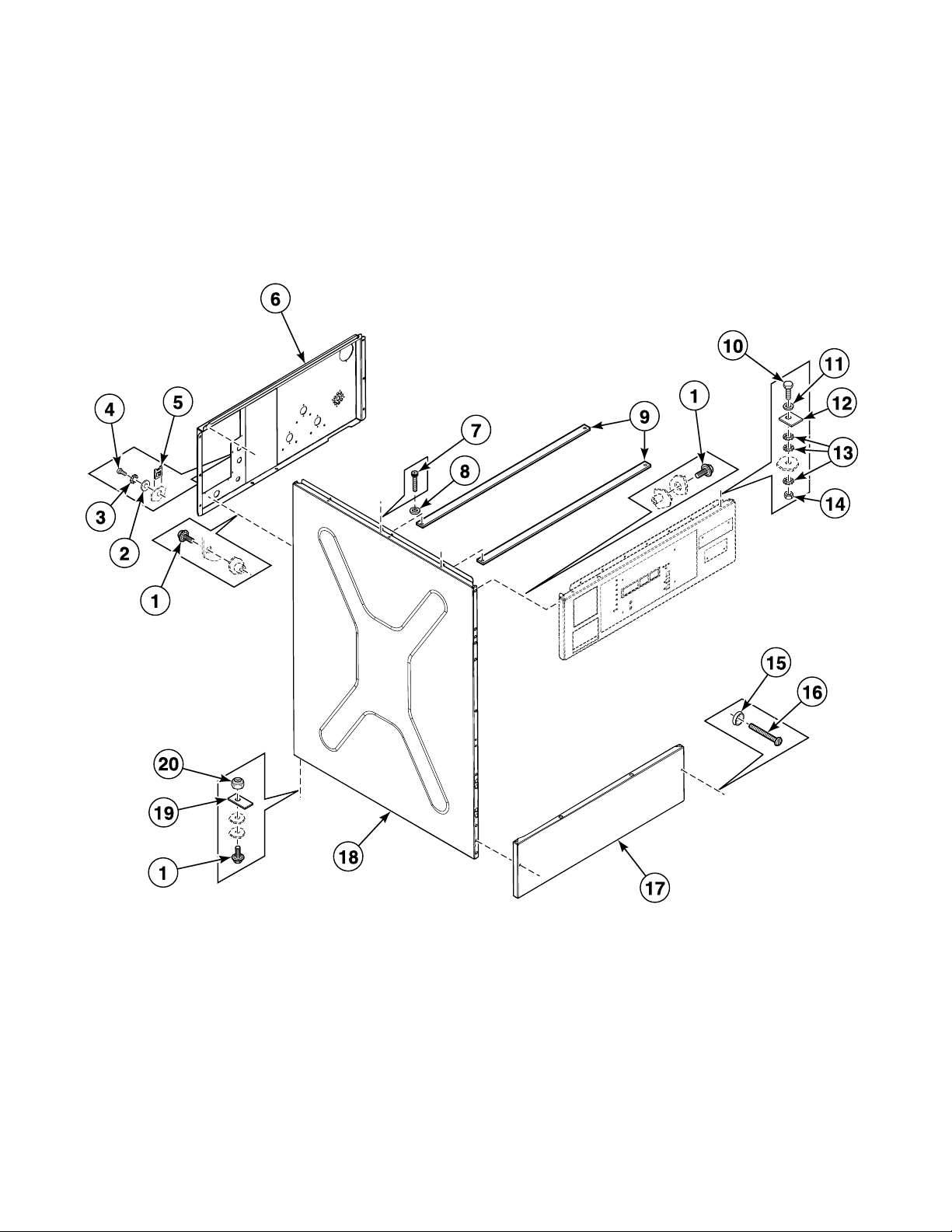

Frame

REF PART NO. DESCRIPTION COMMENTS

1 204/00004/00 Nut 2 203/00003/00 Washer 3 206/00007/00 Screw 4 212/00114/00 Tub Fastening Ring 5 204/00002/00 Nut 6 201/00005/00 Washer 7 203/00001/00 Washer 8 206/00079/00 Bolt

9 206/00099/00 Bolt 10 212/00107/50 Chassis *030 and *135 models

10 212/00108/50 Chassis *035 and *165 models

D0884 9

Bearing Housing - Models Through January 30, 2011

BE000806AP_D0884

10 D0884

Bearing Housing - Models Through January 30, 2011

REF PART NO. DESCRIPTION COMMENTS

NA 381P3 Bearing Replacement Tool Kit NA 388P4 Bearing Replacement Kit Includes items 1, 4, 5, 11, 13, 219/00004/00 Counter

Ring, 223/00242/20 Tub Gasket and F8382001P Deflector Inlet

1 212/00024/00 Ball Bearing

2 212/00037/00 Retainer Ring

3 212/00101/00 Bearing Housing Assembly Includes bearings

3 212/00101/01 Bearing Housing Assembly

4 201/00201/00 Washer

5 205/00102/00 Bolt

6 203/00004/00 Washer

7 205/00104/00 Bolt

8 152/00055/00 Speed Detector Bracket

9 210/00074/00 Speed Detector Includes items 8 and 10 10 209/00400/00 Speed Detector 11 212/00004/00 Ball Bearing 12 212/00006/00 Retainer Ring 13 119/00001/01 Seal Holder Assembly Includes items 14-16; Used with 111/01809/00 Cylinder

and Shaft Assembly and 111/01810/00 Drum and Axle Assembly

14 217/00002/00 O-Ring Used with 111/01809/00 Cylinder and Shaft Assembly

and 111/01810/00 Drum and Axle Assembly

15 219/00001/00 Seal Cover Used with 111/01809/00 Cylinder and Shaft Assembly

and 111/01810/00 Drum and Axle Assembly

16 219/00003/00 Shaft Seal Used with 111/01809/00 Cylinder and Shaft Assembly

and 111/01810/00 Drum and Axle Assembly

17 206/00093/00 Bolt 18 113/00066/00 U-Piece Assembly 19 113/00019/01 Bearing Housing Plate 1 mm

19 113/00019/02 Bearing Housing Plate 2 mm

20 201/00001/00 Washer 21 204/00010/00 Nut

D0884 11

Bearing Housing - Models Starting January 31, 2011

CFD641P_D0884

12 D0884

Bearing Housing - Models Starting January 31, 2011

REF PART NO. DESCRIPTION COMMENTS

NA 381P3 Bearing Replacement Tool Kit NA 3882P Bearing Kit Includes items 1, 4, 5, 11, 13, 14, 219/00004/00 Counter

Ring and 223/00242/20 Tub Gasket

1 212/00024/00 Ball Bearing

2 212/00037/00 Retainer Ring

3 212/00101/00 Bearing Housing Assembly Includes bearings

3 212/00101/01 Bearing Housing Assembly

4 201/00201/00 Washer

5 205/00102/00 Bolt

6 203/00004/00 Washer

7 205/00104/00 Bolt

8 152/00055/00 Speed Detector Bracket

9 210/00074/00 Speed Detector Includes items 8 and 10 10 209/00400/00 Speed Detector 11 212/00004/00 Ball Bearing 12 212/00006/00 Retainer Ring 13 B12332301 Lip Seal 14 B12333701 Seal Plate Assembly Used with B12380101 Basket, B12380201 Basket,

B12380301 Drum and B12380601 Basket

15 206/00093/00 Bolt 16 113/00066/00 U-Piece Assembly 17 113/00019/01 Bearing Housing Plate 1 mm

17 113/00019/02 Bearing Housing Plate 2 mm

18 201/00001/00 Washer 19 204/00010/00 Nut

D0884 13

Pulley and Belt - Models Through April 22, 2007

CFD642P_D0884

14 D0884

Pulley and Belt - Models Through April 22, 2007

REF PART NO. DESCRIPTION COMMENTS

1 217/00101/00 Bearing Spacer

2 219/00004/00 Counter Ring

3 215/00004/00 Tolerance Ring

4 226/00132/00 Belt Medium speed models

4 226/00138/00 Belt 2 speed models

5 201/00015/00 Washer

6 203/00002/00 Washer

7 206/00005/00 Bolt

8 226/00126/00 Pulley Medium speed models

8 226/00141/00 Drum Pulley 2 speed models

D0884 15

Pulley and Belt - Models Starting April 23, 2007

CFD643P_D0884

16 D0884

Pulley and Belt - Models Starting April 23, 2007

REF PART NO. DESCRIPTION COMMENTS

1 219/00004/00 Counter Ring

2 215/00004/00 Tolerance Ring

3 226/00132/00 Belt Medium speed models

3 226/00138/00 Belt 2 speed models

4 201/00015/00 Washer

5 203/00002/00 Washer

6 206/00005/00 Bolt

7 226/00126/00 Pulley Medium speed models

7 226/00141/00 Drum Pulley 2 speed models

D0884 17

Shell and Basket

BE000807AP_D0884

18 D0884

Shell and Basket

REF PART NO. DESCRIPTION COMMENTS

1 117/00220/00 Tub *030 and *135 2 speed models before Serial No.

10080FW0149; *030 and *135 M speed models before Serial No. 10080WF0072; *035 and *165 2 speed models before Serial No. 10080HW0127; *035 and *165 M speed models before Serial No. 10080WH0021; Standard

1 B12300902 Tub *030 and *135 2 speed models starting Serial No.

10080FW0149; *030 and *135 M speed models starting Serial No. 10080WF0072; *035 and *165 2 speed models starting Serial No. 10080HW0127; *035 and *165 M speed models starting Serial No. 10080WH0021; Standard

1 117/00221/00 Tub *030 and *135 2 speed models before Serial No.

10080FW0149; *030 and *135 M speed models before Serial No. 10080WF0072; *035 and *165 2 speed models before Serial No. 10080HW0127; *035 and *165 M speed models before Serial No. 10080WH0021; Electric heat

1 B12300901 Tub *030 and *135 2 speed models starting Serial No.

10080FW0149; *030 and *135 M speed models starting Serial No. 10080WF0072; *035 and *165 2 speed models starting Serial No. 10080HW0127; *035 and *165 M speed models starting Serial No. 10080WH0021; Electric heat

2 204/00009/00 Nut

3 201/00007/00 Washer

4 206/00032/00 Bolt

5 217/00008/00 Tub Front Panel Clip

6 135/00033/00 Tub Front

7 B12351601 Tub Front Gasket

8 111/01809/00 Cylinder and Shaft Assembly *030 and *135 models through 1/30/2011; Used with

119/00001/01 Seal Holder Assembly

8 B12542901 Basket Kit *030 and *135 models through 1/30/2011; Includes

B12380101 Basket and Shaft Assembly and 3882P Bearing Kit

8 B12380101 Basket and Shaft Assembly *030 and *135 models starting 1/31/2011; 3 mm; Used

with B12333701 Seal Plate Assembly

8 B12380201 Basket and Shaft Assembly *030 and *135 models starting 1/31/2011; 9 mm; Used

with B12333701 Seal Plate Assembly

8 111/01810/00 Drum and Axle Assembly *035 and *165 models through 1/30/2011; Used with

119/00001/01 Seal Holder Assembly

8 B12543001 Basket Kit *035 and *165 models through 1/30/2011; Includes

B12380501 Basket and Shaft Assembly and 3882P Bearing Kit

8 B12380501 Basket and Shaft Assembly *035 and *165 models starting 1/31/2011; 3 mm; Used

with B12333701 Seal Plate Assembly

8 B12380601 Basket and Shaft Assembly *035 and *165 models starting 1/31/2011; 9 mm; Used

with B12333701 Seal Plate Assembly

9 217/00007/00 Tub Front Ring Clamp

D0884 19

Motor and Belt - Medium Speed Models Through April 1, 2007

BE000793P_D0884

20 D0884

Motor and Belt - Medium Speed Models Through April 1, 2007

REF PART NO. DESCRIPTION COMMENTS

1 209/00465/00 Fan

2 152/00044/03 Fan Plate Assembly

3 207/00117/00 Screw

4 227/00193/00 Motor Order replacement motor pulley when replacing motor

5 211/00168/00 Cordlock

6 226/00130/00 Motor Pulley

7 226/00132/00 Belt

8 201/00015/00 Washer

9 206/00042/00 Bolt 10 206/00056/00 Screw 11 206/00007/00 Screw 12 223/00314/00 Guide 13 204/00109/00 Nut 14 204/00115/00 Nut 15 117/00042/00 Retaining Ring 16 206/00054/00 Bolt

D0884 21

Motor and Belt - Medium Speed Models Starting April 2, 2007

BE000793AP_D0884

and All 2 Speed Models

22 D0884

Motor and Belt - Medium Speed Models Starting April 2, 2007

and All 2 Speed Models

REF PART NO. DESCRIPTION COMMENTS

1 209/00465/00 Fan

2 152/00044/03 Fan Plate Assembly

3 207/00117/00 Screw

4 227/00193/00 Motor Medium speed models; Order replacement motor pulley

when replacing motor

4 B12510501 Motor 2 speed models; Order replacement motor pulley when

replacing motor

5 211/00168/00 Cordlock Medium speed models

5 211/00167/00 Cordlock 2 speed models

6 226/00130/00 Motor Pulley Medium speed models

6 226/00144/00 Motor Pulley 2 speed models

7 226/00132/00 Belt Medium speed models

7 226/00138/00 Belt 2 speed models

8 206/00042/00 Bolt

9 201/00015/00 Washer 10 206/00056/00 Screw Medium speed models

10 206/00058/00 Screw 2 speed models

11 206/00119/00 Bolt 12 201/00010/00 Washer 13 206/00006/00 Bolt 14 206/00009/00 Bolt 15 202/00002/00 Washer 16 115/10165/00 Motor Plate Medium speed models

16 115/11165/00 Motor Mounting Plate 2 speed models

17 204/00109/00 Nut 18 204/00115/00 Nut 19 117/00042/00 Retaining Ring 20 206/00054/00 Bolt

D0884 23

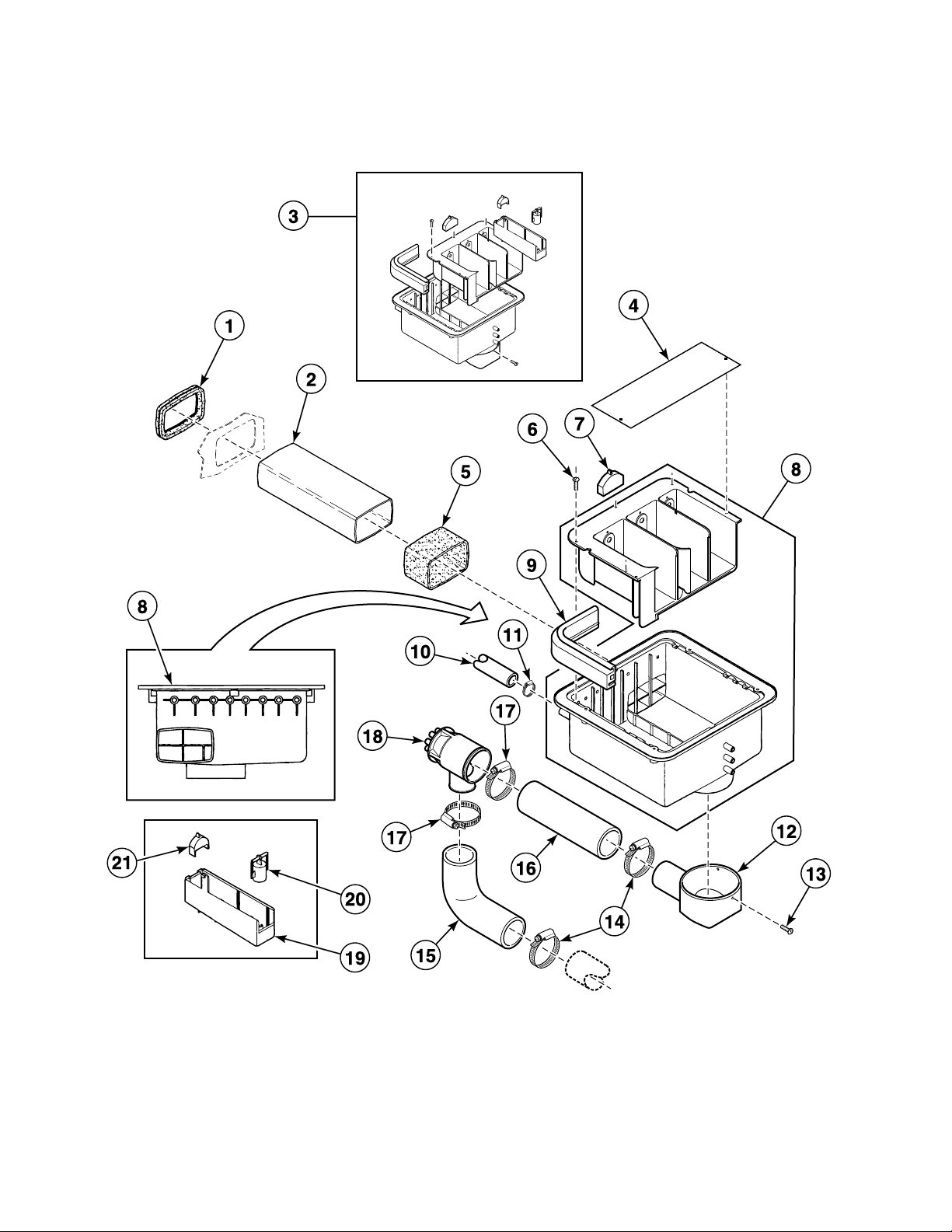

Drain Plumbing - Models with 2 Inch Drain Valve

BE000794BP_D0884

Through August 11, 2010

24 D0884

Drain Plumbing - Models with 2 Inch Drain Valve

Through August 11, 2010

REF PART NO. DESCRIPTION COMMENTS

1 223/00013/00 Hose Clamp

2 223/00150/00 Overflow Hose

2 223/00100/00 Overflow Hose

3 223/00001/04 Prewash and Mainwash Nozzle

4 201/00002/00 Washer

5 204/00201/00 Nut

6 223/00010/00 Hose Clamp

7 223/00044/00 Water Hose

8 209/00643/11 Motor

9 223/00014/00 Hose Clamp 10 223/00382/00 Tub Exhaust 11 223/00173/10 Pressure Switch Hose Tee 12 223/00333/00 Pressure Hose 13 223/00011/00 Hose Clamp 14 223/00016/00 Hose Barb 15 223/00210/00 Pressure Switch Elbow 16 209/00643/00 Drain Valve 17 223/00190/00 Drain Valve Hose

17 223/00303/00 Drain Valve Hose

18 206/00101/00 Nut 19 101/00007/00 Outlet Pipe Plate Assembly 20 201/00007/00 Washer 21 206/00033/00 Bolt 22 223/00146/00 Drain Piece

D0884 25

Drain Plumbing - Models with 2 Inch Drain Valve

CFD462P_D0884

Starting August 12, 2010

26 D0884

Drain Plumbing - Models with 2 Inch Drain Valve

Starting August 12, 2010

REF PART NO. DESCRIPTION COMMENTS

1 223/00013/00 Hose Clamp

2 223/00173/10 Pressure Switch Hose Tee

3 223/00333/00 Pressure Hose

4 223/00035/02 Pressure Switch Cap

5 255/00010/00 Tub to Drain Valve Hose

6 223/00014/00 Hose Clamp

7 209/00463/00 Drain Valve

8 223/00225/00 Drain Valve Cover

9 223/00190/00 Drain Valve Hose

9 223/00303/00 Drain Valve Hose

10 223/00146/00 Drain Piece 11 206/00101/00 Nut 12 101/00007/00 Outlet Pipe Plate Assembly 13 201/00007/00 Washer 14 206/00033/00 Bolt 15 223/00150/00 Overflow Hose 16 223/00001/04 Prewash and Mainwash Nozzle 17 201/00002/00 Washer 18 204/00201/00 Nut 19 223/00010/00 Hose Clamp 20 223/00044/00 Water Hose

D0884 27

Drain Plumbing - 030 and 135 Models with 3 Inch Drain Valve

BE000833AP_D0884

28 D0884

Drain Plumbing - *030 and *135 Models with 3 Inch Drain Valve

REF PART NO. DESCRIPTION COMMENTS

1 223/00013/00 Hose Clamp

2 223/00150/00 Overflow Hose

3 223/00001/04 Prewash and Mainwash Nozzle

4 201/00002/00 Washer

5 204/00201/00 Nut

6 223/00010/00 Hose Clamp

7 223/00044/00 Water Hose

8 223/00173/10 Pressure Switch Hose Tee

9 223/00333/00 Pressure Hose 10 223/00016/00 Hose Barb 11 223/00071/00 Hose Clamp 12 209/00644/00 Drain Valve 13 209/00644/11 Motor 14 206/00099/00 Bolt 15 206/00101/00 Nut 16 223/00014/00 Hose Clamp 17 223/00072/00 Drain Hose 18 114/00010/00 Drain Valve Plate Assembly 19 223/00011/00 Hose Clamp 20 223/00210/00 Pressure Switch Elbow 21 223/00263/00 Siphon Break Dispenser Hose 22 101/00007/00 Outlet Pipe Plate Assembly 23 201/00007/00 Washer 24 206/00033/00 Bolt 25 223/00106/00 Drain Pipe

D0884 29

Drain Plumbing - 035 and 165 Models with 3 Inch Drain Valve

BE000834AP_D0884

30 D0884

Drain Plumbing - *035 and *165 Models with 3 Inch Drain Valve

REF PART NO. DESCRIPTION COMMENTS

1 223/00013/00 Hose Clamp

2 223/00150/00 Overflow Hose

3 223/00001/04 Prewash and Mainwash Nozzle

4 201/00002/00 Washer

5 204/00201/00 Nut

6 223/00010/00 Hose Clamp

7 223/00044/00 Water Hose

8 223/00173/10 Pressure Switch Hose Tee

9 223/00333/00 Pressure Hose 10 223/00016/00 Hose Barb 11 223/00071/00 Hose Clamp 12 209/00644/00 Drain Valve 13 206/00099/00 Bolt 14 206/00101/00 Nut 15 209/00644/11 Motor 16 223/00014/00 Hose Clamp 17 223/00072/00 Drain Hose 18 153/00058/00 Tube Medium speed models

18 153/00028/00 Tube 2 speed models

19 223/00263/00 Siphon Break Dispenser Hose 20 114/00010/00 Drain Valve Plate Assembly 21 223/00011/00 Hose Clamp 22 223/00210/00 Pressure Switch Elbow 23 101/00007/00 Outlet Pipe Plate Assembly 24 201/00007/00 Washer 25 206/00033/00 Bolt 26 223/00106/00 Drain Pipe

D0884 31

Door Lock

BE000059BP_D0884

32 D0884

Door Lock

REF PART NO. DESCRIPTION COMMENTS

1 217/00052/03 Door Lock Spacer

2 207/00135/00 Screw

3 202/00124/00 Washer

4 201/00017/00 Washer

5 217/00052/05 Switch Lever

6 217/00052/04 Interlock Lever

7 224/00040/00 Lever Spring

8 210/10015/00 Ground Terminal

9 203/00007/00 Washer 10 204/00008/00 Nut 11 217/00021/00 O-Ring 12 203/00010/00 Washer 13 207/00103/00 Screw 14 209/00272/00 Door Lock Microswitch 15 201/00018/00 Washer 16 207/00009/00 Screw 17 217/00052/11 Door Lock Bracket 18 207/00102/00 Screw 19 217/00017/03 Lock Shaft 20 209/00273/00 Microswitch 21 B12517701 Door Lock Assembly 22 B12495102 Door Solenoid Assembly 23 224/00049/00 Door Lock Spring 24 217/00052/07 Door Release Wire 25 224/00043/00 Interlock Coil Spring

D0884 33

Door

BE000815P_D0884

34 D0884

Door

REF PART NO. DESCRIPTION COMMENTS

1 B12449701 Door Glass

2 217/00015/00 Door Glass Seal

3 118/00046/10 Door Frame

4 205/00107/00 Bolt

5 202/00104/00 Washer

6 204/00106/00 Nut

7 202/00108/00 Washer

8 217/00009/02 Door Hinge Assembly

9 117/00010/00 Door Hinge Spacer 10 207/00126/00 Screw 11 221/00003/00 Hinge 12 B12500801 Screw 13 217/00016/00 Door Handle Stop 14 217/00059/00 Door Handle Black; IWF, WF and WFF models

14 217/00065/00 Door Handle Gray; CWF, WF and WFF models

15 204/00103/00 Nut 16 202/00111/00 Washer 17 211/00109/02 Door Lock Pin Kit

D0884 35

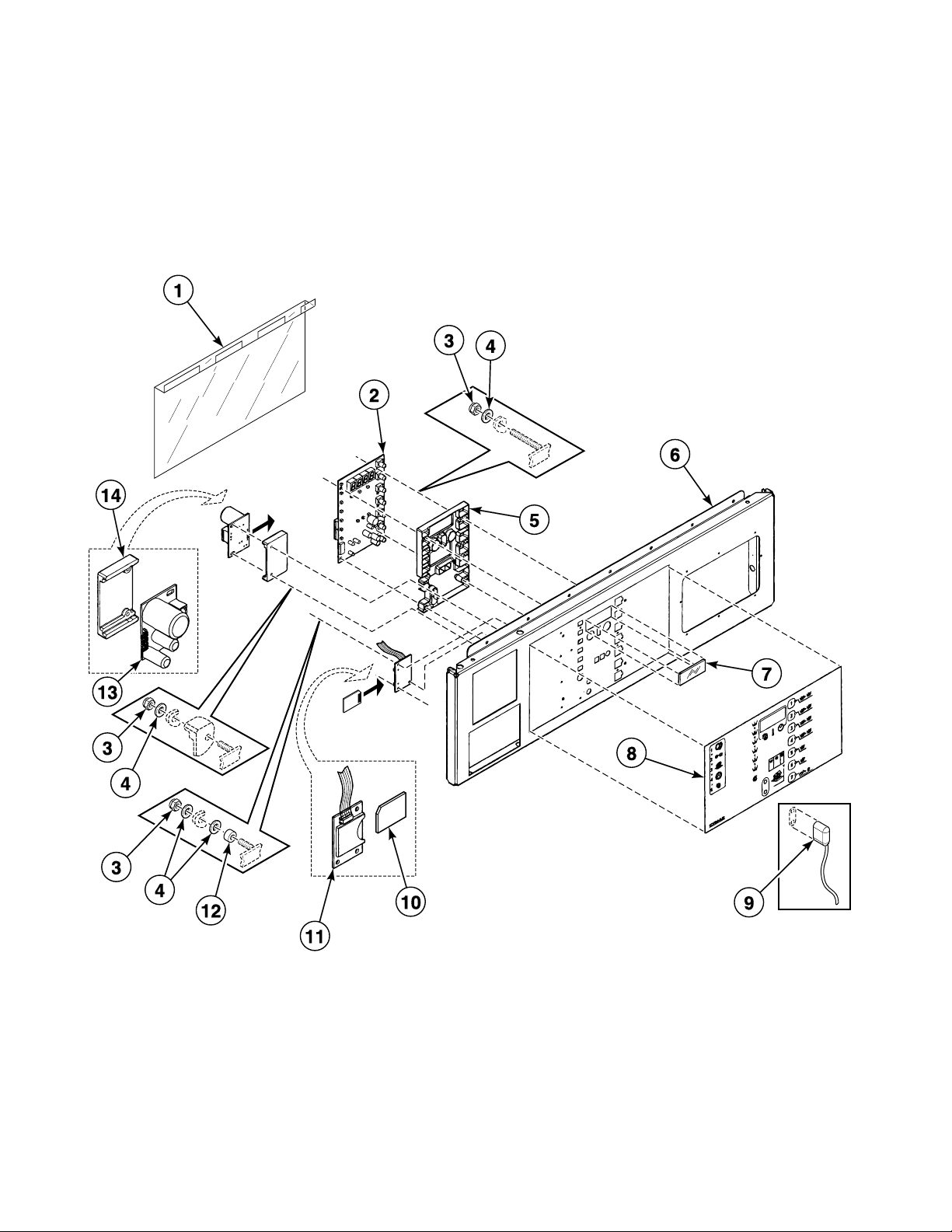

Control Panel - Cygnus Professional

BE000804CP_D0884

36 D0884

Control Panel - Cygnus Professional

REF PART NO. DESCRIPTION COMMENTS

1 229/00289/00 Circuit Board Cover

2 209/02002/00 Display PC-Board

3 204/00116/00 Nut

4 223/00123/00 Washer

5 211/00128/00 Printboard Separator

6 211/00122/00 Standoff

7 229/00268/00 Insulating Sticker

8 111/01893/00 Printboard Support Card

9 211/00145/00 Standoff 10 B12305201 Memory Card PC-Board Models prior to 4/5/2011 require a firmware upgrade

10 B12538301 Data Card Ribbon Assembly

11 111/01845/00 Upper Front Panel 12 225/00321/00 Plexi Frame 13 209/02022/00 Datacard 14 210/00901/00 Optic Cable 15 225/10313/00 Operating Sticker 16 223/00348/00 Datacard Cover 17 209/00248/20 Mushroom Pushbutton 18 209/00520/00 Telem Sticker 19 209/00099/26 Contact Switch 20 223/00374/00 Mounting Plate 21 209/02010/00 Door Lock PC-Board

D0884 37

Control Panel - Cygnus Premium OPL

BE000871AP_D0884

38 D0884

Control Panel - Cygnus Premium OPL

REF PART NO. DESCRIPTION COMMENTS

1 229/00289/00 Circuit Board Cover

2 209/02015/02 Printboard

3 204/00116/00 Nut

4 223/00123/00 Washer

5 211/00128/00 Printboard Separator

6 211/00122/00 Standoff

7 229/00291/00 Insulating Sticker

8 111/01893/00 Printboard Support Card

9 211/00145/00 Standoff 10 B12305201 Memory Card PC-Board Models prior to 4/5/2011 require a firmware upgrade

10 B12538301 Data Card Ribbon Assembly

11 111/01900/00 Operating Panel 12 225/00323/00 Plexi Frame 13 225/10404/00 Operating Sticker With datacard opening

13 225/10427/00 Operating Sticker Without datacard opening

14 210/00901/00 Optic Cable 15 223/00348/00 Datacard Cover 16 209/02022/00 Datacard 17 209/00099/20 Emergency Switch Pushbutton 18 209/00520/00 Telem Sticker 19 209/00099/26 Contact Switch 20 223/00374/00 Mounting Plate 21 209/02010/00 Door Lock PC-Board

D0884 39

Control Panel - Cygnus Premium OPL

BE000870AP_D0884

with Frontal Supply Dispenser

40 D0884

Control Panel - Cygnus Premium OPL

with Frontal Supply Dispenser

REF PART NO. DESCRIPTION COMMENTS

1 229/00289/00 Circuit Board Cover

2 209/02015/02 Printboard

3 204/00116/00 Nut

4 223/00123/00 Washer

5 211/00128/00 Printboard Separator

6 211/00122/00 Standoff

7 229/00291/00 Insulating Sticker

8 111/01906/00 Operating Panel

9 225/00323/00 Plexi Frame 10 225/10404/00 Operating Sticker With datacard opening

10 225/10427/00 Operating Sticker Without datacard opening

11 210/00901/00 Optic Cable 12 209/00099/20 Emergency Switch Pushbutton 13 209/00520/00 Telem Sticker 14 209/00099/26 Contact Switch 15 209/02022/00 Datacard 16 B12305201 Memory Card PC-Board Models prior to 4/5/2011 require a firmware upgrade

16 B12538301 Data Card Ribbon Assembly

17 209/02010/00 Door Lock PC-Board 18 223/00374/00 Mounting Plate

D0884 41

Control Panel - Cygnus Premium Coin

BE000872AP_D0884

42 D0884

Control Panel - Cygnus Premium Coin

REF PART NO. DESCRIPTION COMMENTS

1 229/00289/00 Circuit Board Cover

2 209/02015/02 Printboard

3 204/00116/00 Nut

4 223/00123/00 Washer

5 211/00128/00 Printboard Separator

6 211/00122/00 Standoff

7 229/00291/00 Insulating Sticker

8 111/01903/00 Operating Panel

9 225/00323/00 Plexi Frame 10 225/10403/00 Operating Sticker 11 210/00901/00 Optic Cable 12 209/02022/00 Datacard 13 B12305201 Memory Card PC-Board Models prior to 4/5/2011 require a firmware upgrade

13 B12538301 Data Card Ribbon Assembly

14 209/02010/00 Door Lock PC-Board 15 223/00374/00 Mounting Plate

D0884 43

Control Panel - Cygnus Premium Coin

BE000873AP_D0884

with Frontal Supply Dispenser

44 D0884

Control Panel - Cygnus Premium Coin

with Frontal Supply Dispenser

REF PART NO. DESCRIPTION COMMENTS

1 229/00289/00 Circuit Board Cover

2 209/02015/02 Printboard

3 204/00116/00 Nut

4 223/00123/00 Washer

5 211/00128/00 Printboard Separator

6 211/00122/00 Standoff

7 229/00291/00 Insulating Sticker

8 111/01907/00 Operating Panel

9 225/00323/00 Plexi Frame 10 225/10403/00 Operating Sticker 11 210/00901/00 Optic Cable 12 209/02022/00 Datacard 13 B12305201 Memory Card PC-Board Models prior to 4/5/2011 require a firmware upgrade

13 B12538301 Data Card Ribbon Assembly

14 209/02010/00 Door Lock PC-Board 15 223/00374/00 Mounting Plate

D0884 45

Control Panel - Cygnus Standard/Commercial OPL

BE000867AP_D0884

46 D0884

Control Panel - Cygnus Standard/Commercial OPL

REF PART NO. DESCRIPTION COMMENTS

1 229/00289/00 Circuit Board Cover

2 209/02001/02 Printboard

3 204/00116/00 Nut

4 223/00123/00 Washer

5 223/00330/00 Protection LED

6 111/01828/00 Operating Panel

7 225/00322/00 Plexi Frame

8 225/10307/00 Operating Sticker Models WFF135_CYGNUS-STANDARD_OPL,

WFF165_CYGNUS-STANDARD_OPL, WF135_CYGNUS-STANDARD_OPL and WF165_CYGNUS-STANDARD_OPL

8 225/10308/00 Operating Sticker Models WFF135_CYGNUS-COMM_OPL,

WFF165_CYGNUS-COMM_OPL, WF135_CYGNUS-COMM_OPL and WF165_CYGNUS-COMM_OPL

9 210/00901/00 Optic Cable 10 209/00248/20 Mushroom Pushbutton 11 209/00520/00 Telem Sticker 12 209/00099/26 Contact Switch 13 209/02022/00 Datacard 14 B12305201 Memory Card PC-Board Models prior to 4/5/2011 require a firmware upgrade

14 B12538301 Data Card Ribbon Assembly

15 211/00128/00 Printboard Separator 16 209/02010/00 Door Lock PC-Board 17 223/00374/00 Mounting Plate

D0884 47

Control Panel - Cygnus Standard/Commercial OPL

BE000868AP_D0884

with Frontal Supply Dispenser

48 D0884

Control Panel - Cygnus Standard/Commercial OPL

with Frontal Supply Dispenser

REF PART NO. DESCRIPTION COMMENTS

1 229/00289/00 Circuit Board Cover

2 209/02001/02 Printboard

3 204/00116/00 Nut

4 223/00123/00 Washer

5 223/00330/00 Protection LED

6 111/01829/00 Operating Panel

7 225/00322/00 Plexi Frame

8 225/10307/00 Operating Sticker Models WFF135_CYGNUS-STANDARD_OPL,

WFF165_CYGNUS-STANDARD_OPL, WF135_CYGNUS-STANDARD_OPL and WF165_CYGNUS-STANDARD_OPL

8 225/10308/00 Operating Sticker Models WFF135_CYGNUS-COMM_OPL,

WFF165_CYGNUS-COMM_OPL, WF135_CYGNUS-COMM_OPL and WF165_CYGNUS-COMM_OPL

9 210/00901/00 Optic Cable 10 209/00248/20 Mushroom Pushbutton 11 209/00520/00 Telem Sticker 12 209/00099/26 Contact Switch 13 209/02022/00 Datacard 14 B12305201 Memory Card PC-Board Models prior to 4/5/2011 require a firmware upgrade

14 B12538301 Data Card Ribbon Assembly

15 211/00128/00 Printboard Separator 16 209/02010/00 Door Lock PC-Board 17 223/00374/00 Mounting Plate

D0884 49

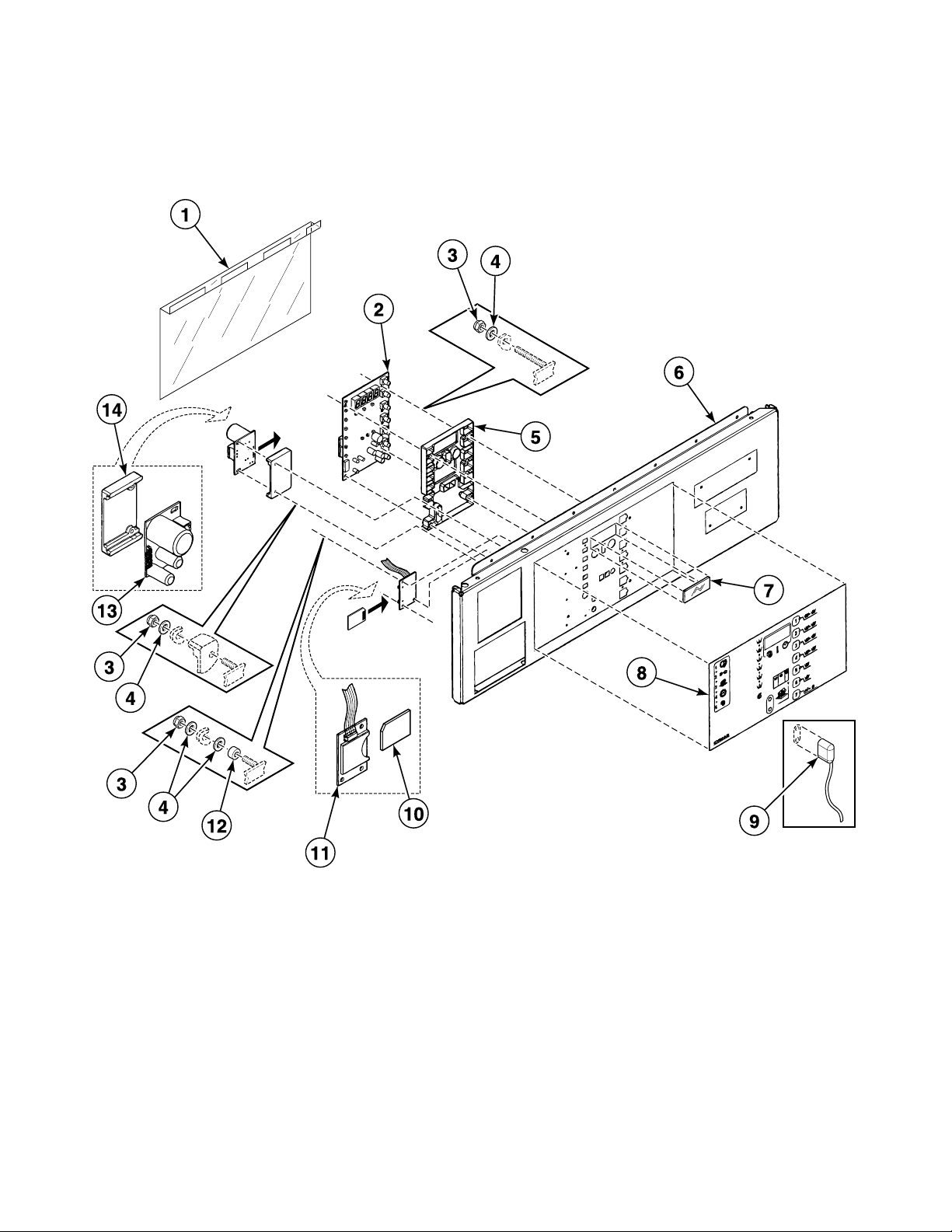

Control Panel - Cygnus Standard/Commercial Coin

BE000874AP_D0884

50 D0884

Control Panel - Cygnus Standard/Commercial Coin

REF PART NO. DESCRIPTION COMMENTS

1 229/00289/00 Circuit Board Cover

2 209/02001/02 Printboard

3 204/00116/00 Nut

4 223/00123/00 Washer

5 223/00330/00 Protection LED

6 111/01819/00 Operating Panel

7 225/00322/00 Plexi Frame

8 225/10305/00 Operating Sticker Models WFF135_CYGNUS-STANDARD_COIN,

WFF165_CYGNUS-STANDARD_COIN, WF135_CYGNUS-STANDARD_COIN and WF165_CYGNUS-STANDARD_COIN

8 225/10306/00 Operating Sticker Models WFF135_CYGNUS-COMM_COIN,

WFF165_CYGNUS-COMM_COIN, WF135_CYGNUS-COMM_COIN and WF165_CYGNUS-COMM_COIN

9 210/00901/00 Optic Cable 10 209/02022/00 Datacard 11 B12305201 Memory Card PC-Board Models prior to 4/5/2011 require a firmware upgrade

11 B12538301 Data Card Ribbon Assembly

12 211/00128/00 Printboard Separator 13 209/02010/00 Door Lock PC-Board 14 223/00374/00 Mounting Plate

D0884 51

Control Panel - Cygnus Standard/Commercial Coin

BE000869AP_D0884

with Frontal Supply Dispenser

52 D0884

Control Panel - Cygnus Standard/Commercial Coin

with Frontal Supply Dispenser

REF PART NO. DESCRIPTION COMMENTS

1 229/00289/00 Circuit Board Cover

2 209/02001/02 Printboard

3 204/00116/00 Nut

4 223/00123/00 Washer

5 223/00330/00 Protection LED

6 111/01829/00 Operating Panel

7 225/00322/00 Plexi Frame

8 225/10305/00 Operating Sticker Models WFF135_CYGNUS-STANDARD_COIN,

WFF165_CYGNUS-STANDARD_COIN, WF135_CYGNUS-STANDARD_COIN and WF165_CYGNUS-STANDARD_COIN

8 225/10306/00 Operating Sticker Models WFF135_CYGNUS-COMM_COIN,

WFF165_CYGNUS-COMM_COIN, WF135_CYGNUS-COMM_COIN and WF165_CYGNUS-COMM_COIN

9 210/00901/00 Optic Cable 10 209/02022/00 Datacard 11 B12305201 Memory Card PC-Board Models prior to 4/5/2011 require a firmware upgrade

11 B12538301 Data Card Ribbon Assembly

12 211/00128/00 Printboard Separator 13 209/02010/00 Door Lock PC-Board 14 223/00374/00 Mounting Plate

D0884 53

Control Panel - Micro-20 OPL

BE000620P_D0884

54 D0884

Control Panel - Micro-20 OPL

REF PART NO. DESCRIPTION COMMENTS

1 229/00289/00 Circuit Board Cover

2 209/00440/70 Printboard 220 Volt

2 209/00440/80 Printboard 115 Volt

3 204/00116/00 Nut

4 211/00122/00 Standoff

5 203/00006/00 Washer

6 111/01816/00 Upper Front Panel

7 225/00316/00 Plexi Frame

8 225/00407/00 Keypad Sticker

9 209/00248/20 Mushroom Pushbutton 10 209/00520/00 Telem Sticker 11 209/00099/26 Contact Switch 12 209/00266/01 Eprom Standard software 13 209/00439/00 Fuse 500 mA 14 229/00255/00 Insulating Sticker

D0884 55

Control Panel - Micro-20 OPL with Frontal Supply Dispenser

BE000818P_D0884

56 D0884

Control Panel - Micro-20 OPL with Frontal Supply Dispenser

REF PART NO. DESCRIPTION COMMENTS

1 229/00289/00 Circuit Board Cover

2 209/00440/70 Printboard 220 Volt

2 209/00440/80 Printboard 115 Volt

3 204/00116/00 Nut

4 211/00122/00 Standoff

5 203/00006/00 Washer

6 111/01825/00 Upper Front Panel

7 225/00316/00 Plexi Frame

8 225/00409/00 Operating Sticker

9 209/00248/20 Mushroom Pushbutton 10 209/00520/00 Telem Sticker 11 209/00099/26 Contact Switch 12 209/00266/01 Eprom Standard software 13 209/00439/00 Fuse 500 mA 14 229/00255/00 Insulating Sticker

D0884 57

Control Panel - Micro-20 Coin

BE000819P_D0884

58 D0884

Control Panel - Micro-20 Coin

REF PART NO. DESCRIPTION COMMENTS

1 229/00289/00 Circuit Board Cover

2 209/00440/70 Printboard 220 Volt

2 209/00440/80 Printboard 115 Volt

3 204/00116/00 Nut

4 211/00122/00 Standoff

5 203/00006/00 Washer

6 111/01824/00 Upper Front Panel Models with front mount supply dispenser

6 111/01811/01 Upper Front Panel Models without front mount supply dispenser

7 225/00316/00 Plexi Frame

8 225/00410/00 Operating Sticker

9 209/00266/01 Eprom Standard software 10 209/00439/00 Fuse 500 mA 11 229/00255/00 Insulating Sticker

D0884 59

Control Panel - Sigma OPL

BE000621P_D0884

60 D0884

Control Panel - Sigma OPL

REF PART NO. DESCRIPTION COMMENTS

1 229/00262/00 Circuit Board Cover

2 209/00547/00 Control Board

3 204/00116/00 Nut

4 211/00122/00 Standoff

5 111/01816/00 Upper Front Panel

6 225/00316/00 Plexi Frame

7 225/00404/00 Operating Sticker

8 210/00902/00 Infrared Cable

9 209/00248/20 Mushroom Pushbutton 10 209/00520/00 Telem Sticker 11 209/00099/26 Contact Switch 12 209/00439/00 Fuse 500 mA 13 229/00255/00 Insulating Sticker

D0884 61

Control Panel - Sigma OPL with Frontal Supply Dispenser

BE000816P_D0884

62 D0884

Control Panel - Sigma OPL with Frontal Supply Dispenser

REF PART NO. DESCRIPTION COMMENTS

1 229/00262/00 Circuit Board Cover

2 209/00547/00 Control Board

3 204/00114/00 Nut

4 211/00122/00 Standoff

5 111/01825/00 Upper Front Panel

6 225/00316/00 Plexi Frame

7 225/10311/00 Operating Sticker

8 210/00902/00 Infrared Cable

9 209/00248/20 Mushroom Pushbutton 10 209/00520/00 Telem Sticker 11 209/00099/26 Contact Switch 12 209/00439/00 Fuse 500 mA 13 229/00255/00 Insulating Sticker

D0884 63

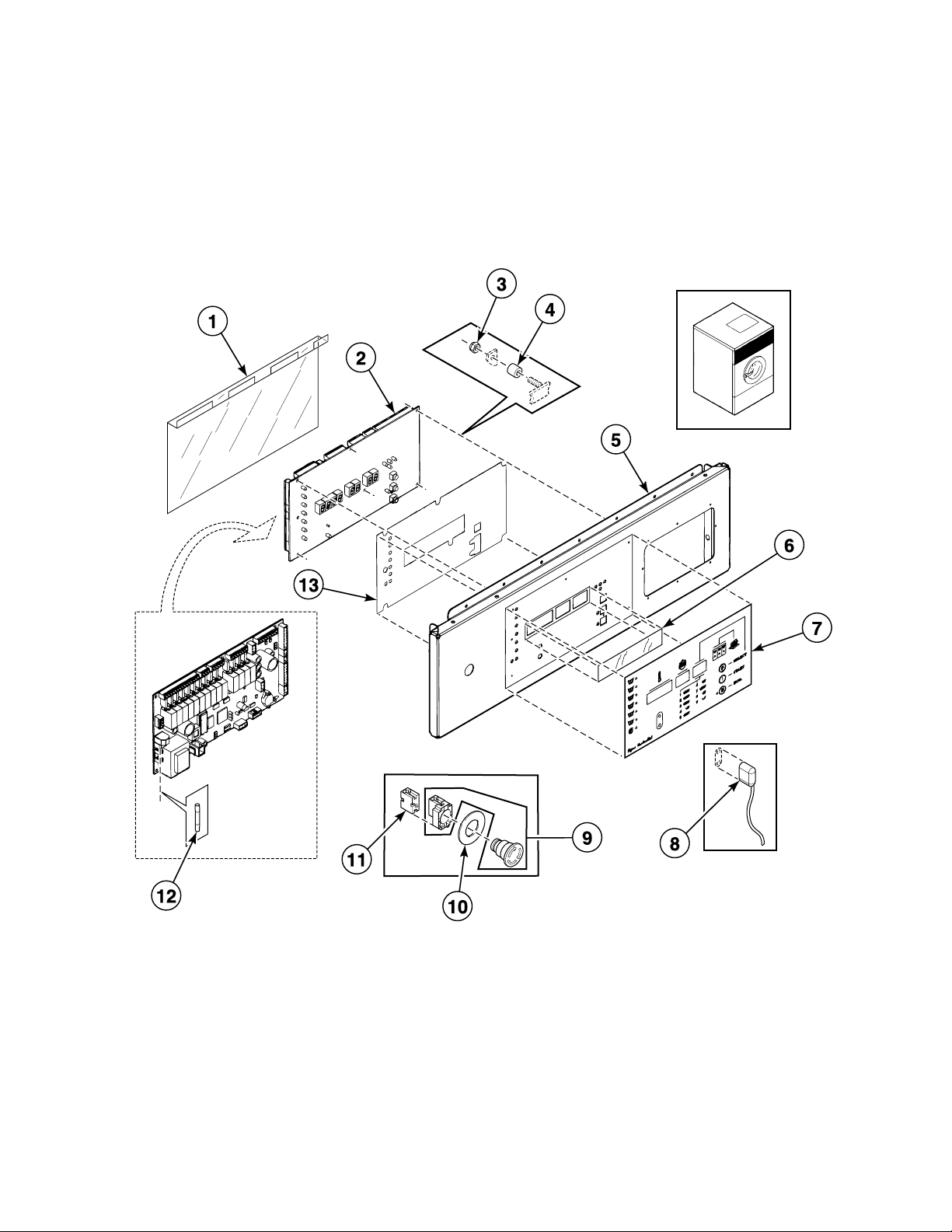

Control Panel - Sigma Coin

BE000629P_D0884

64 D0884

Control Panel - Sigma Coin

REF PART NO. DESCRIPTION COMMENTS

1 229/00262/00 Circuit Board Cover

2 209/00547/00 Control Board

3 204/00114/00 Nut

4 211/00122/00 Standoff

5 111/01811/01 Upper Front Panel

6 225/00316/00 Plexi Frame

7 225/00403/00 Decal

8 210/00902/00 Infrared Cable

9 209/00248/20 Mushroom Pushbutton 10 209/00520/00 Telem Sticker 11 209/00099/26 Contact Switch 500 mA 12 209/00439/00 Fuse 13 229/00255/00 Insulating Sticker

D0884 65

Control Panel - Sigma Coin with Frontal Supply Dispenser

BE000817P_D0884

66 D0884

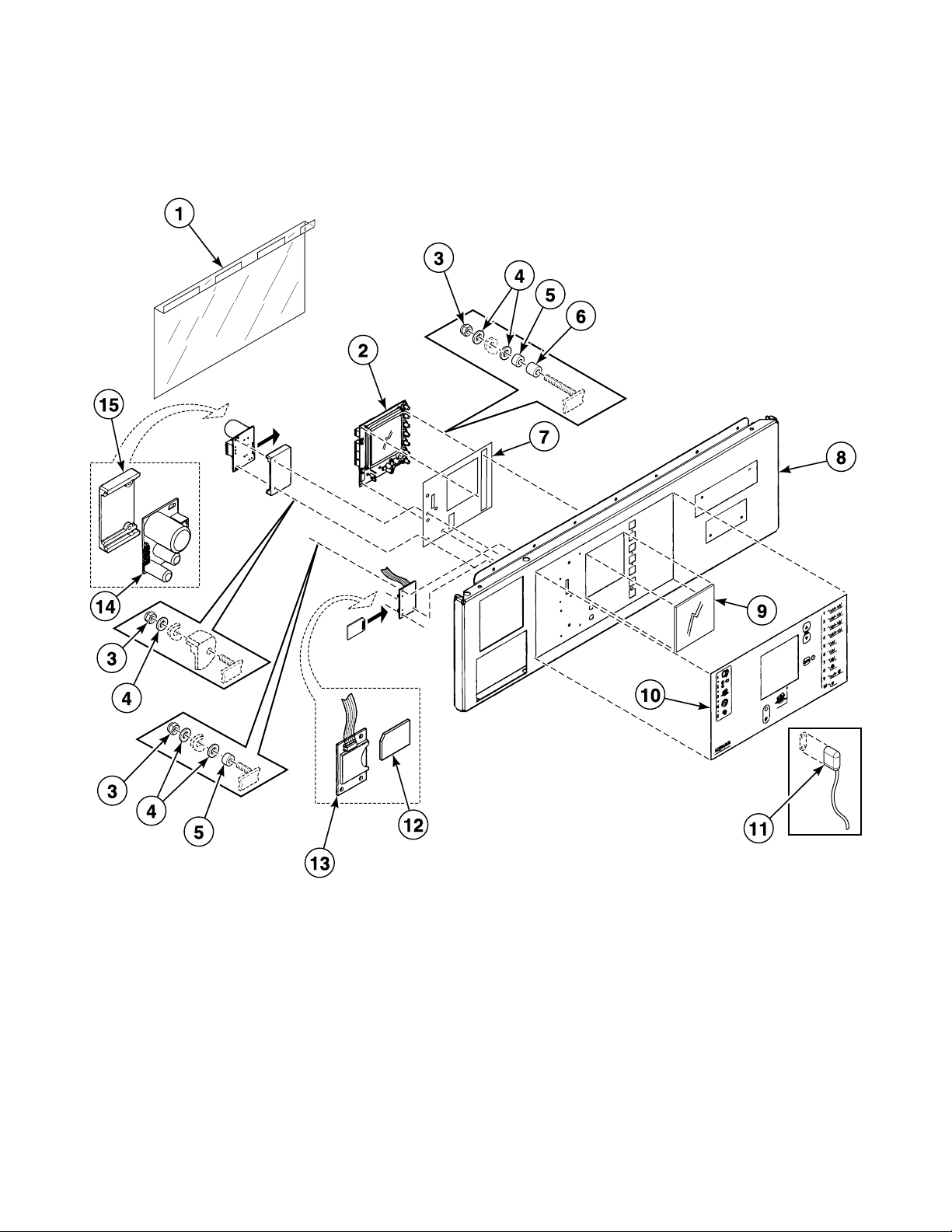

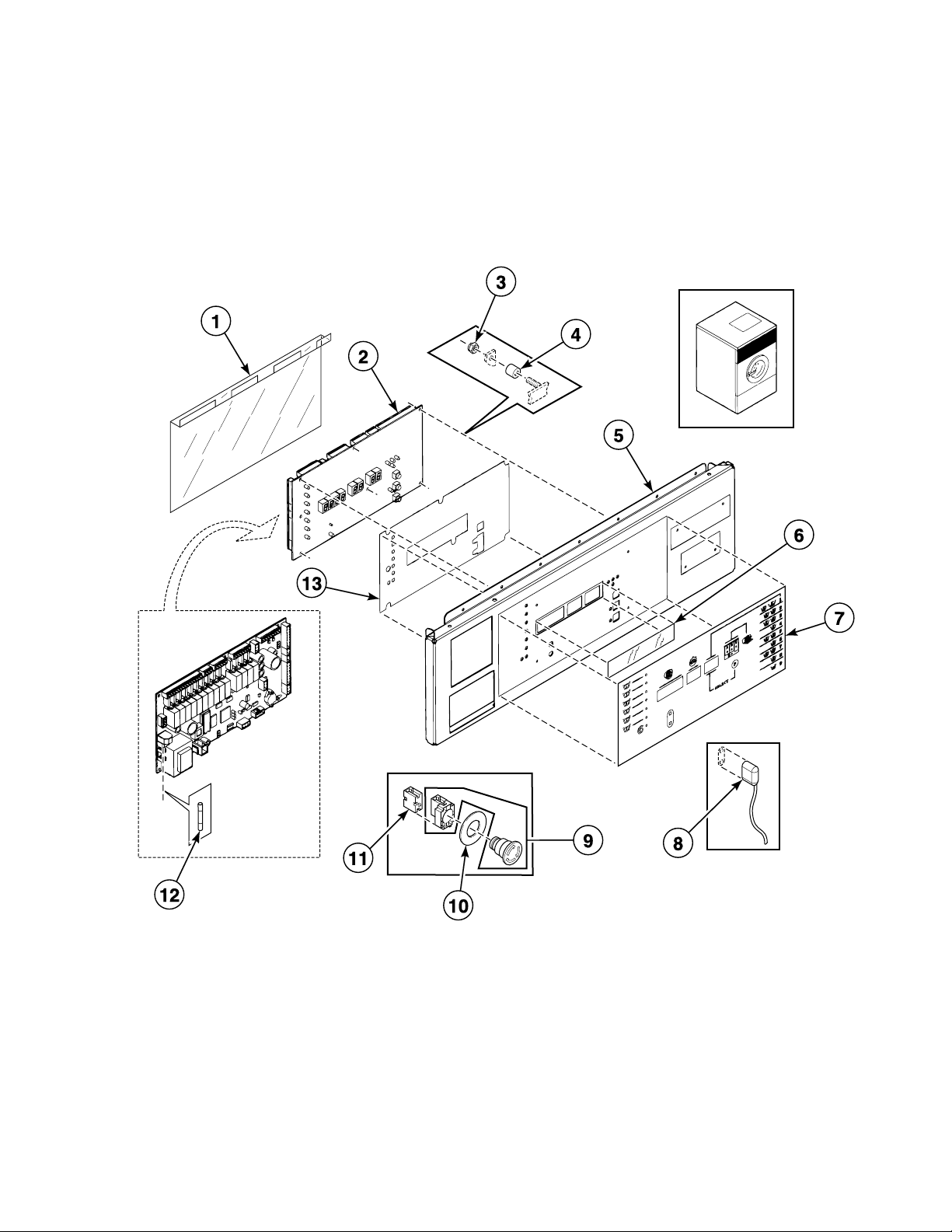

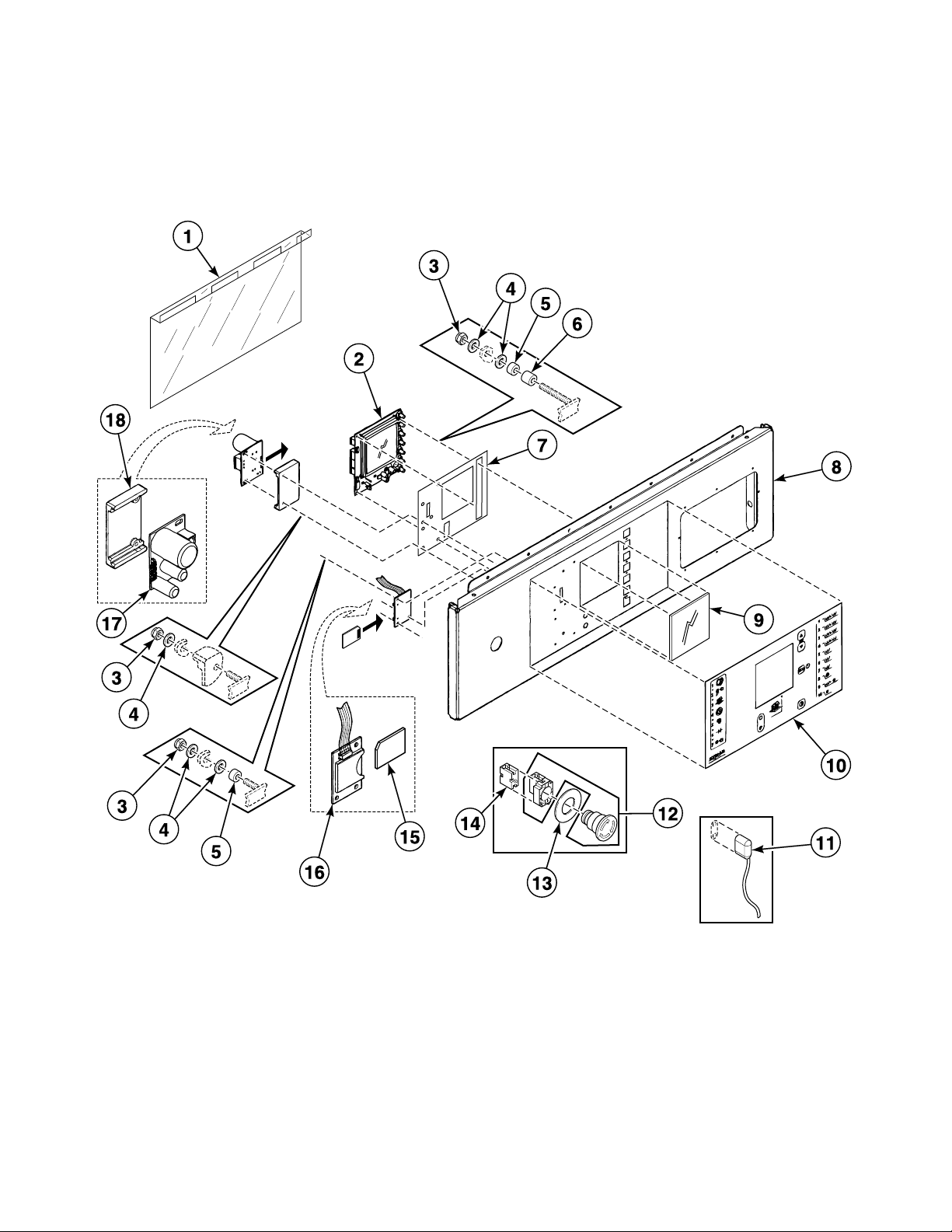

Control Panel - Sigma Coin with Frontal Supply Dispenser

REF PART NO. DESCRIPTION COMMENTS

1 229/00262/00 Circuit Board Cover

2 209/00547/00 Control Board

3 204/00114/00 Nut

4 211/00122/00 Standoff

5 111/01824/00 Upper Front Panel

6 225/00316/00 Plexi Frame

7 225/10312/00 Operating Sticker

8 210/00902/00 Infrared Cable

9 209/00439/00 Fuse 500 mA 10 229/00255/00 Insulating Sticker

D0884 67

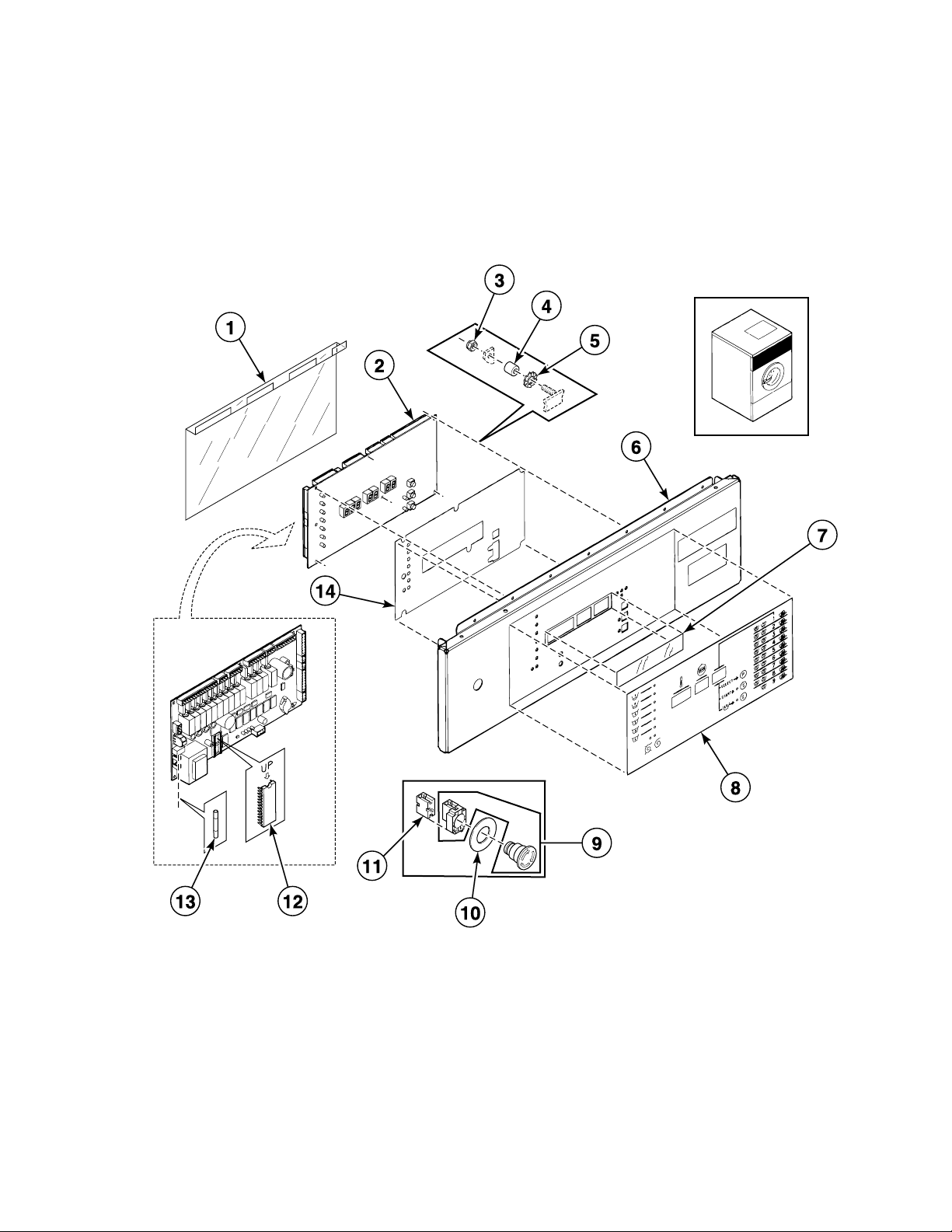

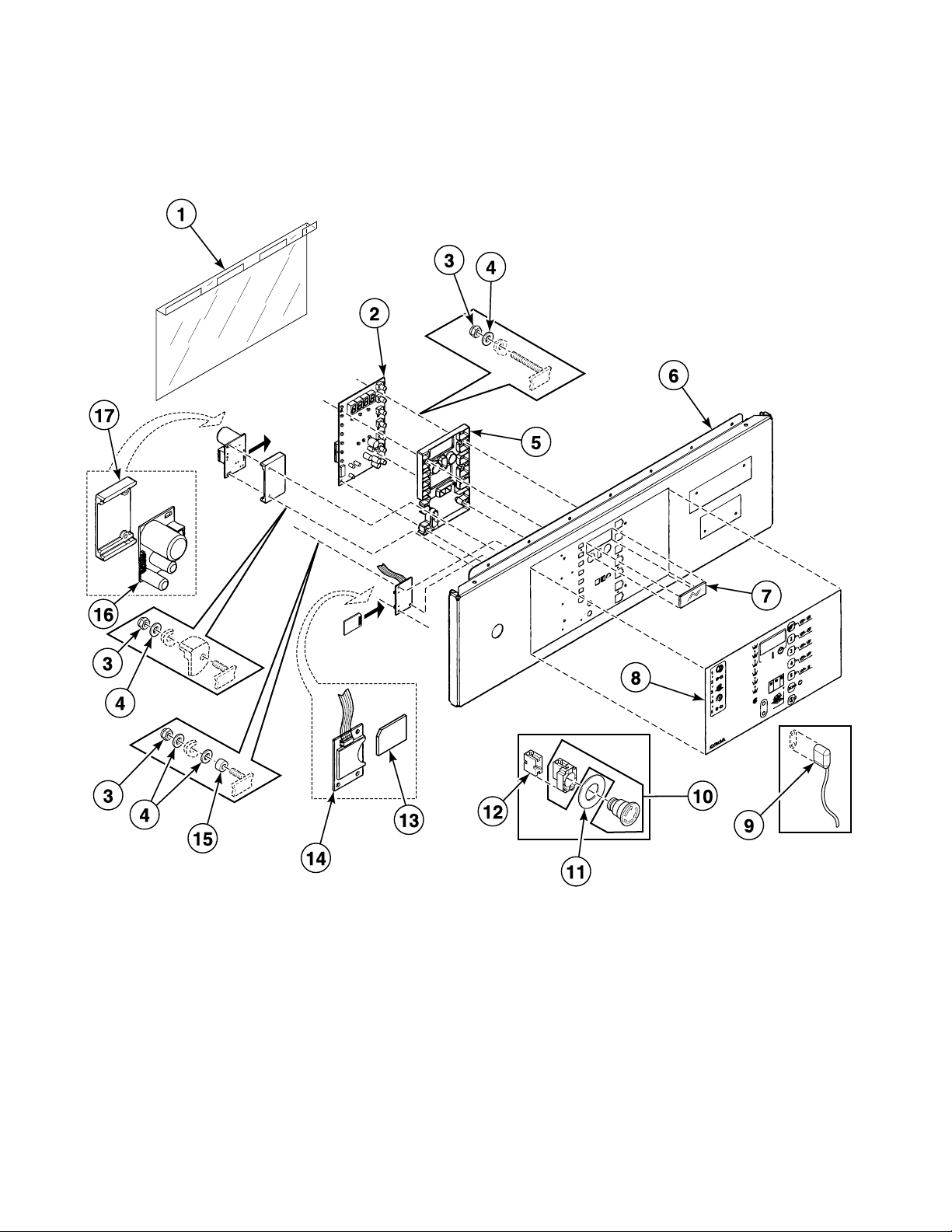

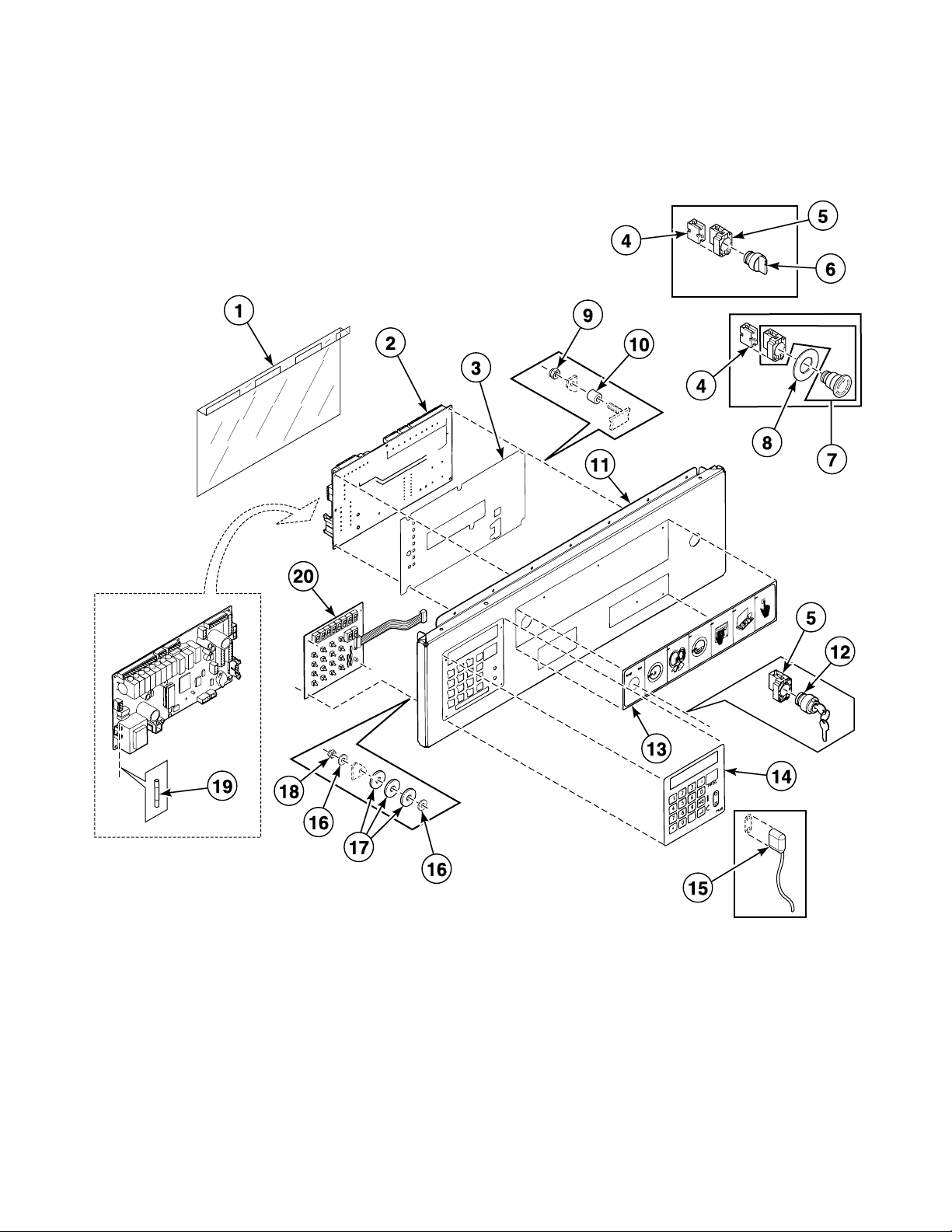

Control Panel - PS40F

BE000622P_D0884

68 D0884

Control Panel - PS40F

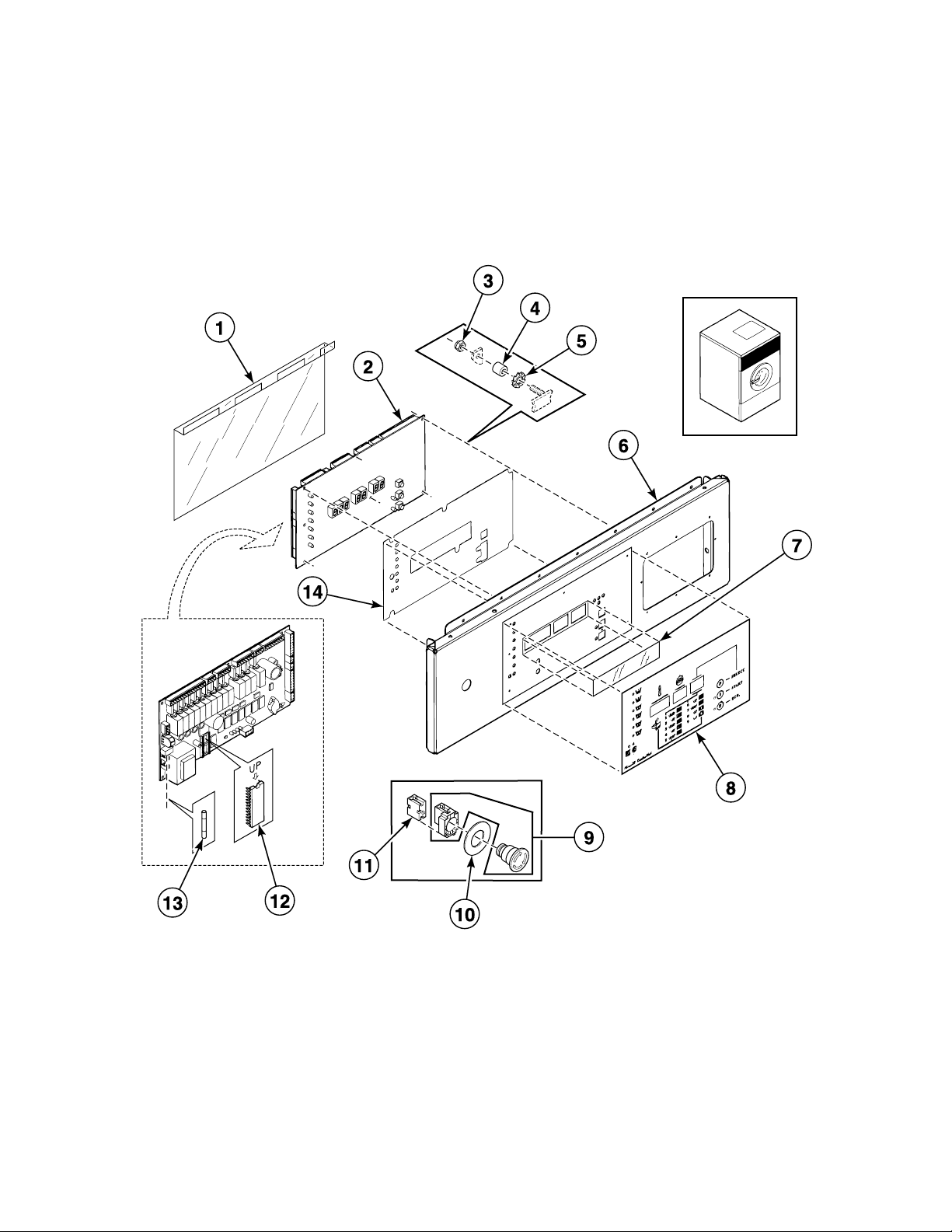

REF PART NO. DESCRIPTION COMMENTS

1 229/00262/00 Circuit Board Cover

2 B12351701 Main Board

3 229/00255/00 Insulating Sticker

4 209/00099/26 Contact Switch

5 209/00099/25 Switch Base

6 209/00099/29 Switch Knob

7 209/00248/20 Mushroom Pushbutton

8 209/00520/00 Telem Sticker

9 204/00116/00 Nut 10 211/00122/00 Standoff 11 111/01850/00 Facia Panel 12 209/00326/20 Programming Key Contact Switch 13 225/00400/00 Operating Sticker 14 225/00397/00 Label 15 210/00902/00 Infrared Cable 16 223/00123/00 Washer 17 223/00051/10 Washer 18 204/00116/00 Nut 19 209/00372/01 Fuse 20 209/00552/01 Keypad

D0884 69

Coin Drop - Mechanical Coin Meter

CFD512P_D0884

70 D0884

Coin Drop - Mechanical Coin Meter

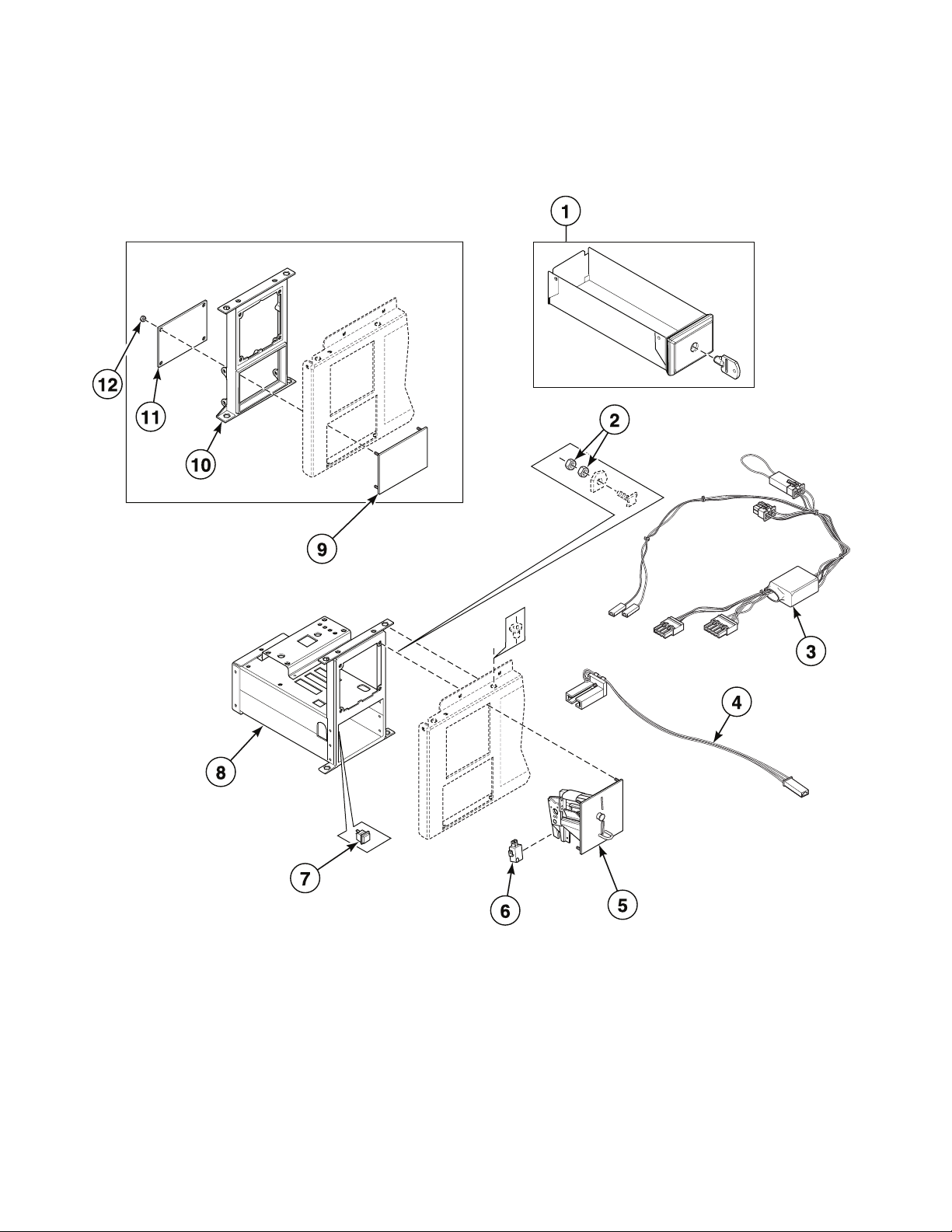

REF PART NO. DESCRIPTION COMMENTS

NA B12388101 Single Drop Optical Sensor Kit Includes items 3 and 4 NA B12388102 Dual Drop Optical Sensor Kit Includes items 3 and 4

1 254/00077/00 Coin Box

1 254/00077/02 Key

2 204/00008/00 Nut

3 B12359901 Wire Assembly Micro-20 and Sigma models

4 209/00781/00 Optical Switch Micro-20 and Sigma models

5 B12311224 Coin Drop Mechanical; Jeton 5K

5 B12311206 Coin Drop Mechanical; Jeton 7K

5 B12311201 Coin Drop Mechanical; Jeton 10K

5 B12311210 Coin Drop Mechanical; Jeton 12K

5 B12311252 Coin Drop Mechanical; Jeton10K and .5 euro

5 B12311211 Coin Drop Mechanical; Jeton 7K and 1 euro

5 B12323901 Coin Drop Mechanical; Jeton 15K and 7K

5 B12311204 Coin Drop Mechanical; Jeton gettone

5 B12311234 Coin Drop Mechanical; Jeton crouzet

5 B12311247 Coin Drop Mechanical; Jeton 118-1

5 B12311248 Coin Drop Mechanical; Jeton 118-5

5 B12311222 Coin Drop Mechanical; 1 euro

5 B12311214 Coin Drop Mechanical; .5 euro

5 B12311202 Coin Drop Mechanical; .5 and 1 euro

5 B12311239 Coin Drop Mechanical; .5 and 2 euro

5 B12311205 Coin Drop Mechanical; .2 and 1 euro

5 B12311218 Coin Drop Mechanical; 1 and 1 euro

5 B12311219 Coin Drop Mechanical; 1 and 2 euro

5 B12311203 Coin Drop Mechanical; 1 and 2 frank

5 B12311207 Coin Drop Mechanical; 1 Deense kroon

5 B12311225 Coin Drop Mechanical; 10 Deense kronen

5 B12311235 Coin Drop Mechanical; 10 Tsjechische kronen

5 B12311244 Coin Drop Mechanical; 10 Noorse kronen

5 B12311208 Coin Drop Mechanical; 100 and 500 yen

5 B12311212 Coin Drop Mechanical; 15K

5 B12311215 Coin Drop Mechanical; 1 kro

5 B12311226 Coin Drop Mechanical; Australia; 1.00

5 B12311216 Coin Drop Mechanical; Australia; .20 and 1.00

5 B12311220 Coin Drop Mechanical; New Zealand; 1.00

5 B12311221 Coin Drop Mechanical; .5 and 2 zwitsers

5 B12311241 Coin Drop Mechanical; Hong Kong; 1.00

5 B12311249 Coin Drop Mechanical; Hong Kong; 5.00

5 B12311301 Coin Drop Mechanical; U.S.;$.25

5 B12311302 Coin Drop Mechanical; U.S.; .$25 and $1.00

5 B12311304 Coin Drop Mechanical; Canada; 1.00

5 B12323401 Coin Drop Mechanical; Singapore; 1.00

6 209/00600/01P Switch

7 209/00396/00 Pushbutton

8 152/00112/00 Mechanical Coin Meter Housing

9 111/01001/00 Top Panel Gray

9 111/01000/00 Front Plate Black

10 217/00060/00 Fastening Piece 11 111/01002/00 Backplate 12 204/00116/00 Nut

D0884 71

Coin Drop - Electronic Coin Meter

CFD511P_D0884

72 D0884

Coin Drop - Electronic Coin Meter

REF PART NO. DESCRIPTION COMMENTS

1 254/00077/00 Coin Box

1 254/00077/02 Key

2 209/00682/00 Transformer

3 209/00683/00 Input Block

4 204/00008/00 Nut

5 B12311401 Coin Drop Cygnus control models

6 209/00396/00 Pushbutton

7 152/00112/50 Electronic Coin Meter Housing

8 208/00002/00 Nut

9 208/00014/00 Screw 10 111/01001/00 Top Panel Gray

10 111/01000/00 Front Plate Black

11 217/00060/00 Fastening Piece 12 111/01002/00 Backplate 13 204/00116/00 Nut

D0884 73

Left Side, Lower Front and Upper Back Panels

CFD488P_D0884

74 D0884

Left Side, Lower Front and Upper Back Panels

REF PART NO. DESCRIPTION COMMENTS

1 206/00099/00 Bolt

2 201/00006/00 Washer

3 203/00015/00 Washer

4 208/00014/00 Screw

5 208/00025/00 Nut

6 111/01833/00 Backbridge

7 206/00166/00 Screw

8 B12421401 Washer

9 111/00970/00 Crossbar 10 205/00106/00 Bolt 11 202/00003/00 Washer 12 117/00042/00 Retaining Ring 13 203/00005/00 Washer 14 204/00006/00 Nut 15 208/00009/00 Washer 16 207/00101/00 Screw 17 111/01803/00 Lower Front Panel 18 111/22723/10 Side Panel *030 and *135 models; Left; Stainless steel

18 111/22728/10 Side Panel *035 and *165 models; Left; Stainless steel 18 111/60035/00 Side Panel *030 and *135 models; Left; Black 18 111/60036/00 Side Panel *165 models; Left; Black 18 111/22723/60 Side Panel CWF and WFF models; Left; Gray

19 101/00007/00 Outlet Pipe Plate Assembly 20 204/00009/00 Nut

D0884 75

Right Side, Front, Rear and Top Panels

BE000812P_D0884

76 D0884

Right Side, Front, Rear and Top Panels

REF PART NO. DESCRIPTION COMMENTS

1 223/00103/50 Soap Dispenser Cover With symbols

2 111/22741/00 Top Panel *030 and *135 models; With dispenser opening

2 111/22741/01 Top Panel *030 and *135 models; Without dispenser opening

2 111/22743/00 Top Panel *035 and *165 models; With dispenser opening

2 111/22743/01 Top Panel *035 and *165 models; Without dispenser opening

3 223/00103/04 Soap Dispenser Cover Hinge Rod 2 required

4 223/00103/01 Soap Dispenser Cover

5 223/00103/03 Soap Dispenser Frame

6 207/00125/00 Bolt

7 208/00104/00 Nut

8 111/22723/10 Side Panel *030 and *135 models; Right; Stainless steel

8 111/22728/10 Side Panel *035 and *165 models; Right; Stainless steel

8 111/60035/00 Side Panel *030 and *135 models; Right; Black

8 111/60036/00 Side Panel *165 models; Right; Black

8 111/22723/60 Side Panel CWF and WFF models; Right; Gray

9 206/00099/00 Bolt 10 111/00291/00 Front Panel 11 111/10089/01 Reinforcement Plate 12 206/00114/00 Bolt 13 152/00053/02 Back Panel

D0884 77

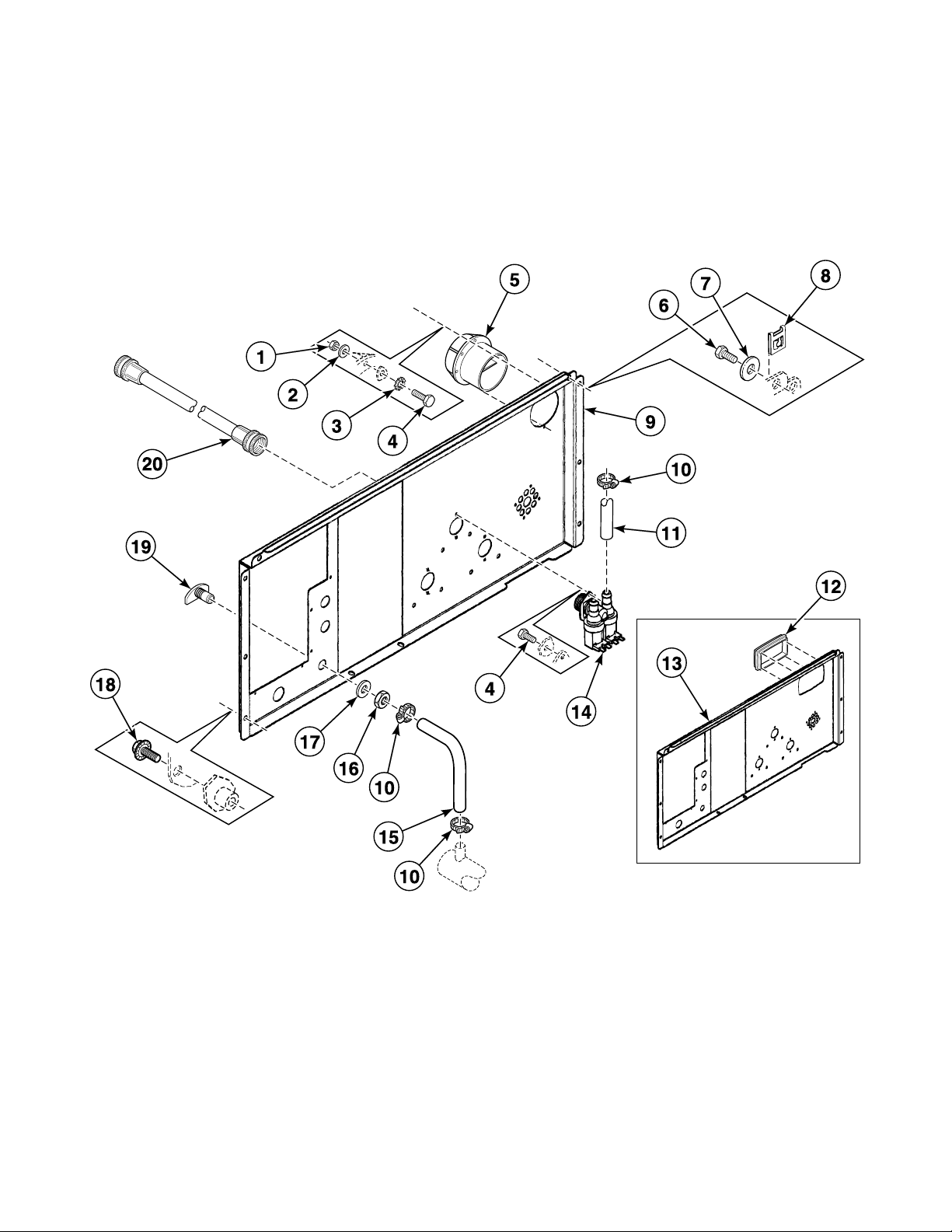

Water Inlet Valves

CFD341P_D0884

78 D0884

Water Inlet Valves

REF PART NO. DESCRIPTION COMMENTS

1 204/00007/00 Nut

2 202/00004/00 Washer

3 203/00006/00 Washer

4 206/00027/00 Bolt

5 223/00102/07 Hose Vent

6 208/00014/00 Screw

7 201/00006/00 Washer

8 208/00002/00 Nut

9 111/01833/00 Backbridge Circular ventilation 10 223/00010/00 Hose Clamp 11 223/00044/00 Water Hose 12 223/00226/00 Vent Tube 13 111/01833/10 Backbridge Rectangular ventilation 14 209/00110/00 2-Way Inlet Valve Metric thread

14 B12519501 2-Way Inlet Valve Standard thread; G581P3 Repair Kit

15 223/00044/01 Water Hose 16 204/00201/00 Nut 17 201/00002/00 Washer 18 206/00099/00 Bolt 19 223/00001/04 Prewash and Mainwash Nozzle 20 F200164 Water Hose Standard thread

20 F200166 Water Hose Metric thread

D0884 79

Inverter Drive (Drawing 1 of 2)

CFD463P_D0884

80 D0884

Inverter Drive (Drawing 1 of 2)

REF PART NO. DESCRIPTION COMMENTS

1 209/00287/01 Fan Grill

2 111/01174/01 Inverter Box Cover

3 207/00121/00 Screw

4 202/00004/00 Washer

5 204/00114/00 Nut

6 206/00099/00 Bolt

7 208/00130/00 Screw

8 111/01833/00 Backbridge

9 223/00174/00 Grommet 10 206/00088/00 Bolt 11 203/00006/00 Washer 12 204/00007/00 Nut 13 223/00250/00 Liquid Soap Manifold 14 227/00171/00 Parameter Unit Assembly Hand held

14 F8410901 Parameter Unit Assembly Inverter mounted; Used with 500 series drives

15 227/00171/10 Parameter Unit Program Cable 16 111/10425/00 Inverter Drive Box Used with FR-E520 and FR-E540 series drives

16 111/10425/50 Inverter Drive Box Used with FR-D720 and FR-D740 series drives

17 271/35946/00 Nut 18 271/35945/00 Nut 19 209/00287/00 Cooling Fan 20 B12355001 Voltage Discharge Decal 21 223/00179/10 Pressure Hose

D0884 81

Inverter Drive (Drawing 2 of 2)

CFD463PA_D0884

82 D0884

Inverter Drive (Drawing 2 of 2)

REF PART NO. DESCRIPTION COMMENTS

1 227/00228/00 Inverter Drive IWF135, IWF165, WFF135, WF135 and WF165 Cygnus control models;

FR-E520 series; 1x230 Volt

1 227/00236/00 Inverter Drive IWF135, IWF165, WFF135, WF135 and WF165 Cygnus control models;

FR-D740 series; 3x400 Volt

1 N/A Inverter Drive *165 medium speed models; FR-E520 series; 1x230 Volt

1 227/00168/00 Inverter Drive *165 medium speed models; FR-E540 series; 3x400 Volt

1 227/00229/00 Inverter Drive WFF165 Cygnus control models; FR-D720 series; 1x230 Volt

1 227/00237/00 Inverter Drive WFF165 Cygnus control models; FR-D740 series; 3x400 Volt

1 227/00167/00 Inverter Drive All other models; FR-E540 series; 3x400 Volt

1 F8420313 Drive 700 series; IWF030 and IWF135 2 speed models; WF135 Micro-20, PS40F and

Sigma control models; 200 Volt/1 Phase; Models with .75 kW motor

1 F8420314 Drive 700 series; IWF030 and IWF135 2 speed models; WF135 Micro-20, PS40F and

Sigma control models; 400 Volt/3 Phase; Models with .75 kW motor

1 F8420317 Drive 700 series; CWF035 and IWF165 2 speed models; WF165 Micro-20, PS40F

and Sigma control models; 200 Volt/1 Phase; Models with .75 kW motor

1 F8420318 Drive 700 series; CWF035 and IWF165 2 speed models; WF165 Micro-20, PS40F

and Sigma control models; 400 Volt/3 Phase; Models with .75 kW motor

1 F8420507 Drive 700 series; IWF030 and IWF135 medium speed models; WFF135 Micro-20,

PS40F and Sigma control models; 200 Volt/1 Phase; Models with 1.1 kW motor

1 F8420508 Drive 700 series; IWF030 and IWF135 medium speed models; WFF135 Micro-20,

PS40F and Sigma control models; 400 Volt/3 Phase; Models with 1.1 kW motor

1 F8420511 Drive 700 series; CWF035, IWF035 and IWF165 medium speed models; WFF165

Micro-20, PS40F and Sigma control models; 200 Volt/1 Phase; Models with 1.1 kW motor

1 F8420512 Drive 700 series; CWF035, IWF035 and IWF165 medium speed models; WFF165

Micro-20, PS40F and Sigma control models; 400 Volt/3 Phase; Models with 1.1 kW motor

1 F8420213 Inverter Kit 700 series; IWF030 and IWF135 2 speed models; WF135 Micro-20, PS40F and

Sigma control models; 200 Volt/1 Phase; Models with .75 kW motor; Includes F8420313 Drive, F8409501 Mounting Plate Assembly and F430903 Screw

1 F8420214 Inverter Kit 700 series; IWF030 and IWF135 2 speed models; WF135 Micro-20, PS40F and

Sigma control models; 400 Volt/3 Phase; Models with .75 kW motor; Includes F8420314 Drive, F8409501 Mounting Plate Assembly and F430903 Screw

1 F8420217 Inverter Kit 700 series; CWF035 and IWF165 2 speed models; WF165 Micro-20, PS40F

and Sigma control models; 200 Volt/1 Phase; Models with .75 kW motor; Includes F8420317 Drive, F8409501 Mounting Plate Assembly and F430903 Screw

1 F8420218 Inverter Kit 700 series; CWF035 and IWF135 2 speed models; WF165 Micro-20, PS40F

and Sigma control models; 400 Volt/3 Phase; Models with .75 kW motor; Includes F8420318 Drive, F8409501 Mounting Plate Assembly and F430903 Screw

1 F8420407 Inverter Kit 700 series; IWF030 and IWF135 medium speed models; WFF135 Micro-20,

PS40F and Sigma control models; 200 Volt/1 Phase; Models with 1.1 kW motor; Includes F8420507 Drive, F8409501 Mounting Plate Assembly and F430903 Screw

1 F8420408 Inverter Kit 700 series; IWF030 and IWF135 medium speed models; WFF135 Micro-20,

PS40F and Sigma control models; 400 Volt/3 Phase; Models with 1.1 kW motor; Includes F8420508 Drive, F8409501 Mounting Plate Assembly and F430903 Screw

1 F8420411 Inverter Kit 700 series; CWF035, IWF035 and IWF165 medium speed models; WFF165

Micro-20, PS40F and Sigma control models; 200 Volt/1 Phase; Models with 1.1 kW motor; Includes F8420511 Drive, F8409501 Mounting Plate Assembly and F430903 Screw

1 F8420412 Inverter Kit 700 series; CWF035, IWF035 and IWF165 medium speed models; WFF165

Micro-20, PS40F and Sigma control models; 400 Volt/3 Phase; Models with 1.1 kW motor; Includes F8420512 Drive, F8409501 Mounting Plate Assembly and F430903 Screw

N/A = Part no longer available

D0884 83

Main Switch and Noise Filter

BE000799P_D0884

84 D0884

Main Switch and Noise Filter

REF PART NO. DESCRIPTION COMMENTS

1 206/00027/00 Bolt

2 203/00006/00 Washer

3 209/00006/01 Ground Terminal

4 111/01834/00 Main Switch Cover

5 202/00004/00 Washer

6 208/00017/00 Rivet

7 209/00529/00 Main Switch 25A

7 209/00672/00 Main Switch 40A

7 209/00526/00 Main Switch 80A

8 209/00530/00 Terminal Block 25A

8 209/00527/00 Terminal Block 63/80A

9 227/00177/00 Filter 16A1

9 227/00242/00 Noise Filter 16A3

9 227/00179/00 Filter 40A3

9 227/00180/00 Filter 45A1

9 227/00183/00 Filter 53A3

10 111/01837/01 Filter Bracket

D0884 85

Central Operating Panel, Network Connection and

BE000800P_D0884

Soap Injection Printboards

86 D0884

Central Operating Panel, Network Connection and

Soap Injection Printboards

REF PART NO. DESCRIPTION COMMENTS

1 111/01838/10 Printboard Support

2 208/00017/00 Rivet

3 211/00146/00 Standoff

4 209/00218/13 Soap Injection PCB with Fuse

5 209/00540/01 Network Connection Printboard

6 209/00438/50 Central Control Board

7 209/00202/00 Fuse Holder

7 209/00202/01 Fuse Holder Includes item 8

8 209/00468/00 Fuse 3 Amp

D0884 87

Relay, Network Connection and Main Printboards - Cygnus Models

BE000801AP_D0884

88 D0884

Relay, Network Connection and Main Printboards - Cygnus Models

REF PART NO. DESCRIPTION COMMENTS

1 208/00017/00 Rivet

2 211/00146/00 Standoff

3 209/00202/00 Fuse Holder

3 209/00202/01 Fuse Holder Includes item 4

4 209/00468/00 Fuse 3 Amp

5 209/02016/00 Relay PC-Board 1-1

6 209/02005/00 Detergent PC-Board 1-5

7 209/02014/00 Relay PC-Board 5-5

8 209/02008/00 Detergent PC-Board 1-8

9 209/02020/00 ID Chip 10 209/02006/00 Inverter PC-Board 11 209/02025/00 Microprocessor 12 209/02007/00 Network Connection Printboard 13 204/00116/00 Nut 14 223/00123/00 Washer 15 211/00128/00 Printboard Separator 16 211/00122/00 Standoff

D0884 89

Electrical Component Mounting Plate

BE000802P_D0884

90 D0884

Electrical Component Mounting Plate

REF PART NO. DESCRIPTION COMMENTS

1 206/00099/00 Bolt

2 111/10003/40 Electrical Component Mounting Plate

3 210/01064/16 Thermostat

4 225/10004/00 Thermostat Seal

5 111/10003/30 Electrical Component Mounting Plate

6 208/00017/00 Rivet

7 111/10003/10 Support Connector

8 209/06148/02 Heating Contactor LC1D18P7

9 209/00641/04 Heating Contactor LC1D0901M7 10 209/00619/00 Overload Contactor 2 pole; 6 mm; Gray

10 209/00620/00 Overload Contactor 2 pole; 6 mm; Blue 10 209/00621/00 Overload Contactor 3 pole; 6 mm; Blue 10 209/00622/00 Overload Contactor 3 pole; 6 mm; Gray 10 209/00623/00 Overload Contactor 2 pole; 10 mm; Gray 10 209/00624/00 Overload Contactor 2 pole; 10 mm; Blue 10 209/00625/00 Overload Contactor 3 pole; 10 mm; Gray 10 209/00619/01 Connection Clamp 2 pole; 6 mm 10 209/00622/01 Connection Clamp 3 pole; 6 mm 10 209/00625/01 Connection Clamp 3 pole; 10 mm

11 223/00035/02 Pressure Switch Cap 12 223/00333/00 Pressure Hose 13 223/00173/10 Pressure Switch Hose Tee 14 209/00027/10 Pressure Switch

D0884 91

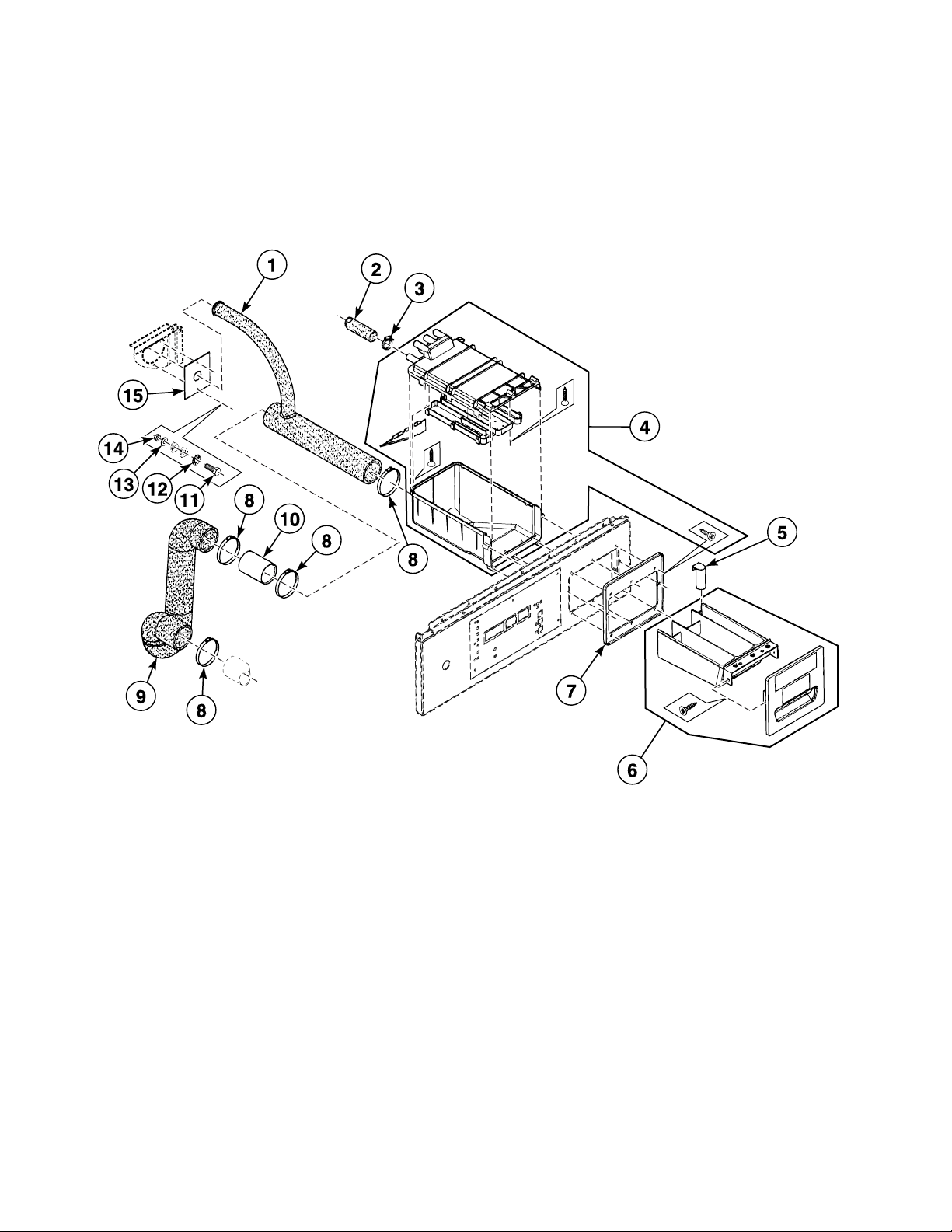

Supply Dispenser - Models with Frontal Supply Dispenser

BE000663AP_D0884

92 D0884

Supply Dispenser - Models with Frontal Supply Dispenser

REF PART NO. DESCRIPTION COMMENTS

1 223/00286/00 Hose

2 223/00044/01 Water Hose

3 223/00010/00 Hose Clamp

4 223/00280/00 Outer Soapbox

5 223/00280/03 Front Soapbox Siphon

6 223/00280/20 Inner Soapbox

7 223/00280/07 Soapbox Handle

8 223/00013/00 Hose Clamp

9 223/00298/00 Hose 10 118/00118/03 Tube 11 206/00027/00 Bolt 12 203/00006/00 Washer 13 202/00004/00 Washer 14 204/00007/00 Nut 15 155/00161/00 Pump Support

D0884 93

Supply Dispenser - Models with Round Ventilation Opening

CFD342P_D0884

94 D0884

Supply Dispenser - Models with Round Ventilation Opening

REF PART NO. DESCRIPTION COMMENTS

1 223/00014/00 Hose Clamp

2 223/00107/02 Vent Hose *030 and *135 models

2 223/00107/01 Ventilating Hose *035 and *165 models

3 223/00044/01 Water Hose

4 223/00109/00 Soap Dispenser Gasket

5 B12347501 Screw

6 123/00107/00 Anti-Splash Plate Sigma control models

6 123/00103/06 Soap Box Assembly Plate All other models

7 223/00102/06 Soap Spray Nozzle

8 223/00102/30 Soap Dispenser Assembly

9 223/00195/00 Dispenser Drain Funnel 10 B12350903 Screw 11 223/00102/50 Soap Dispenser Assembly 12 223/00102/08 Liquid Soap Dispenser Insert 13 223/00102/04 Soap Dispenser Rinse Siphon 14 223/00102/03 Rinse Insert 15 223/00102/05 Softener Spray Nozzle 16 B12310304 Siphon Break Hose 17 223/00013/00 Hose Clamp 18 223/00262/00 Siphon Break Dispenser Hose 19 223/00250/00 Liquid Soap Manifold 20 223/00010/00 Hose Clamp 21 223/00102/30 Soap Dispenser Assembly

D0884 95

Supply Dispenser - Models with Rectangular Ventilation Opening

CFD331P_D0884

96 D0884

Supply Dispenser - Models with Rectangular Ventilation Opening

REF PART NO. DESCRIPTION COMMENTS

1 223/00226/00 Vent Tube

2 223/00229/00 Vent Tube

3 223/00222/00 Soap Dispenser

4 123/00107/00 Anti-Splash Plate Sigma control models

4 123/00103/06 Soap Box Assembly Plate All other models

5 223/00245/00 Shrink Fit

6 B12347501 Screw

7 223/00102/06 Soap Spray Nozzle

8 223/00222/60 Outer and Inner Box Kit

9 223/00109/00 Soap Dispenser Gasket 10 223/00044/00 Water Hose 11 223/00010/00 Hose Clamp 12 223/00195/00 Dispenser Drain Funnel 13 B12350903 Screw 14 223/00013/00 Hose Clamp 15 B12310304 Siphon Break Hose 16 223/00262/00 Siphon Break Dispenser Hose 17 223/00013/00 Hose Clamp 18 223/00250/00 Liquid Soap Manifold 19 223/00222/05 Rinsing Box 20 223/00222/04 Siphon Break 21 223/00222/03 Softener Spray Nozzle

D0884 97

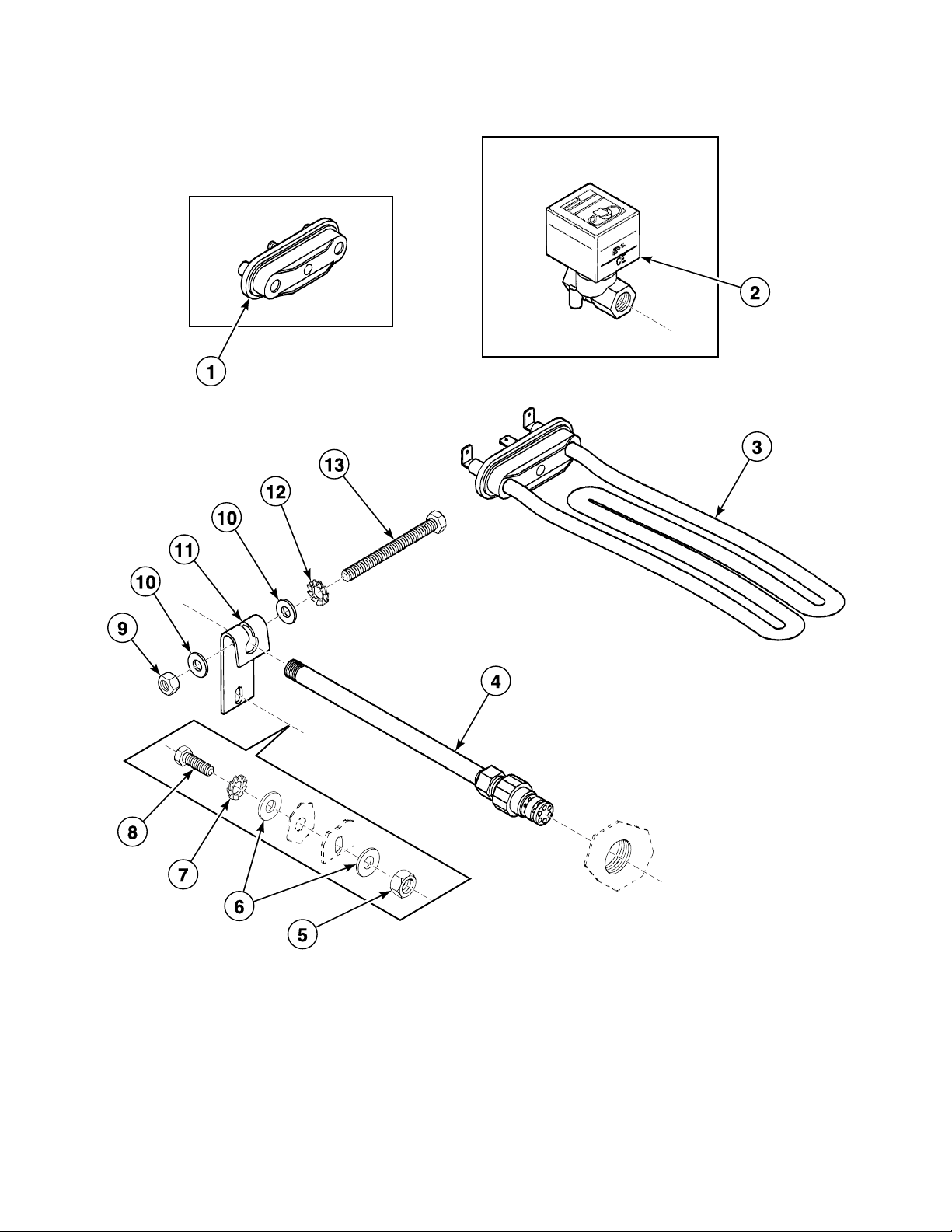

Steam and Electric Heating Options

BE000803P_D0884

98 D0884

Alliance WFF165_SIGMA_OPL-Extractor Parts Diagram

Table of Contents

Parts Ordering Information

Serial Plate Location

Model Identification

Pocket Hardmount Washer-Extractor Product Overview

Frame

Bearing Housing - Models Through January 30, 2011

Bearing Housing - Models Starting January 31, 2011

Pulley and Belt - Models Through April 22, 2007

Pulley and Belt - Models Starting April 23, 2007

Shell and Basket

Motor and Belt - Medium Speed Models Through April 1, 2007

Drain Plumbing - *030 and *135 Models with 3 Inch Drain Valve

Drain Plumbing - *035 and *165 Models with 3 Inch Drain Valve

Door Lock

Door

Control Panel - Cygnus Professional

Control Panel - Cygnus Premium OPL

Control Panel - Cygnus Premium Coin

Control Panel - Cygnus Standard/Commercial OPL

Control Panel - Cygnus Standard/Commercial Coin

Control Panel - Micro-20 OPL

Control Panel - Micro-20 OPL with Frontal Supply Dispenser

Control Panel - Micro-20 Coin

Control Panel - Sigma OPL

Control Panel - Sigma OPL with Frontal Supply Dispenser

Control Panel - Sigma Coin

Control Panel - Sigma Coin with Frontal Supply Dispenser

Control Panel - PS40F

Coin Drop - Mechanical Coin Meter

Coin Drop - Electronic Coin Meter

Left Side, Lower Front and Upper Back Panels

Right Side, Front, Rear and Top Panels

Water Inlet Valves

Inverter Drive (Drawing 1 of 2)

Inverter Drive (Drawing 2 of 2)

Main Switch and Noise Filter

Relay, Network Connection and Main Printboards - Cygnus Models

Electrical Component Mounting Plate

Supply Dispenser - Models with Frontal Supply Dispenser

Supply Dispenser - Models with Round Ventilation Opening

Supply Dispenser - Models with Rectangular Ventilation Opening

Steam and Electric Heating Options

Drain Plumbing - 030 and 135 Models with 3 Inch Drain Valve

Drain Plumbing - 035 and 165 Models with 3 Inch Drain Valve
