Micro-20

Part No. D0889R1

Code: 249/00190/00

April 97

Programming and changing wash programs

Contents

0 Hardware setting ................................................................................ 5

1 Installation hardware 'eprom programmer' ...................................... 6

General ........................................................................................... 6

Installation adapter card .................................................................. 6

Installation 'eprom programmer' ....................................................... 7

2 Installation software 'eprom programmer' ....................................... 8

General ........................................................................................... 8

Installation software ........................................................................ 8

3 Installation software 'to program wash programs' ........................... 12

General ........................................................................................... 12

Installation software ........................................................................ 12

4 Programmation wash programs ....................................................... 15

General ........................................................................................... 15

To start up the program ................................................................... 16

Configuration of the machine ........................................................... 17

Programmation of the wash programs ............................................. 25

5 To save and change data .................................................................. 38

Saving data ..................................................................................... 38

Creating a BIN-file ........................................................................... 39

Loading data ................................................................................... 40

Changing of directory ...................................................................... 40

Printing out data .............................................................................. 40

Splitting up 'systeemsoft' from 'datasoft' (decompose) ..................... 41

List with files under DIR "MICRO-20"............................................... 41

Converting to DOS .......................................................................... 42

Deleting BIN and DAT-files ............................................................. 42

Programming with mouse ................................................................ 42

6 Programmation eprom ...................................................................... 43

General ........................................................................................... 43

Programmation eprom ..................................................................... 43

To read in and change old eproms .................................................. 45

7 Deleting eproms ................................................................................ 47

Code: 249/00190/00

07/04/97

Hardware setting

Screen type VGA colour

Adapter card SAC 201: to be built in the PC

: necessary : option

Computer : PC 386 or larger

Control system : IBM compatible MS-DOS with hard disk

Keyboard

Eprom programmer Type eprom : 27C 256A 12.5V

Mouse

Drive 5 1/4" DISKS A Drive 3 1/2" DISKS B

Luminous source ultraviolet light : to delete the programmed eproms

Printer : to print out the programs

Installation hardware 'eprom programmer'

The computer has to be disconnected during the execution of the following acts. Ignoring this instruction can lead to physical injury (electrocution) ; damage of the SAC 201 card or damage of the eprom programmer.

General

The SAC 201 adapter card as well as the 'eprom programmer' have to be installed in order to program the desired wash programs on the eproms.

Installation of the adapter card

❺

Disconnect the computer, pull the plug out of the plug switch .

Remove the cover of the computer .

❺

Check the position of the DIP-switches on the adapter card :

❺

SW1: all switches 'OFF' SW2: switch 7 'ON'

other switches 'OFF'

SW3: switch 2 'ON'

other switches 'OFF'

Put the SAC 201 card carefully in the computer. Use the supplied screw to

❺

lock it.

Installation of the 'eprom programmer'

Close the cover of the computer .

❺

Make a connection between the port of the SAC 201 card and the 'eprom

❺

programmer' with the supplied cable.

Computer

Card port

Eprom programmer

Switch on the computer. When the connections are correct, the led 'ON' of

❺

the eprom programmer lights. The led 'BUSY' stays extinguished.

Installation software 'eprom programmer'

General

This software has to be installed in order to use the 'eprom programmer'.

Used symbols

: space bar

: return

Installation of the software

Create a directory on the hardware of the PC, named 'MICRO20':

❺

type

press

MICRO20

to confirm

Put supplied disks in the computer drive

❺

: cursor control keys

type

press

type

press

type

press

COPY

EPP8M1

❺

Copy the files of the supplied software to directory 'MICRO 20'

A: drive of supplied disks C: hard disk

The nomation of the drives (A or B) depends on the available drivestations of the computer.

A:\*.*

to confirm

❺

Start directory 'MICRO20' :

MICRO20

to confirm

the menu appears on the display

C:\MICRO20

❺

Check all data on the display. When everything corresponds with below data (in defined frame), go on with step 1. If the data are different, go to step 2.

File Edit Setup Mfr Type Quit

menubalk

Mfr: 27/27C General EPROM

TYPE: X256A VPP: 12.5 V SPEED: Intelligent

BUFF SIZE: 256K GANG SIZE: 1 BUFF START: 00000 I/O ADDR:2EOH

BUFF END: 07FFF PROM START:00000 COUNTER:00000 PROM END:01FFF

CHECK SUM: 48F7

EXTERNAL KEY:

COPY from master VERIFY with master BLANK check Yes

Help Blank Read Verify Program Auto Compare Display

Step 1:

press

to go to 'Quit' of the menu bar

press

to confirm

to leave the program

Step 2:

When Mfr. (manufacturer) is not equal to '27 / 27 C GENERAL

❺

EPROM':

to go to Mfr of the menu bar

the different Mfr. possibilities appear

press

(*) press

press

to go to '27 / 27 C General EPROM'

to confirm 'Type' of the menu bar is automatically activated.

the different eprom types appear

to select 'X256A 12.5V'

to confirm

When 'TYPE' is not equal to 'X256A12.5V':

❺

to go to 'Type' of the menu bar

Follow the instructions mentioned above (*).

press

type

press

When 'SPEED' (program speed) is not equal to 'Intelligent':

❺

to go to 'Setup' of the menu bar

the different speed possibilities appear

to go to 'Speed select'

the different speeds appear

to select 'Intelligent'

to confirm

When 'BUFFER START' is not equal to 00000

❺

'BUFFER END' is not equal to 07FFF

'CHIP START' is not equal to 00000:

to go to 'Setup' of the menu barpress

press

type

press

type

press

type

press

the different buffer possibilities appear

to go to 'Modify buffer'

'Buffer start address' appears on the display:

00000

to confirm

'Buffer end address' appears on the display:

07FFF

to confirm

'Chip start address' appears on the display:

00000

to confirm

press

If the SAC 201 card is programmed according to the instructions on pg. 2, then 'I/O ADDR'has to be equal to '2EOH'.

When 'I/O ADDR' is not equal to '2EOH':

❺

to go to 'Setup' of the menu barpress

the different setup possibilities appear

press

type

press

to go to 'I/O select'

the list of addresses appears on the display

which corresponds with '2EO'

to confirm

When the following message appears on the display:

❺

'error identification on hardware'

This means that in the computer a card has been put with the same I/O address as the SAC 201 card. Act as follows:

to go to 'Quit' of the menu bar

press

type

to confirm

to leave the program

Disconnect the computer, pull the plug out of the plug switch.

❺

Remove the cover of the computer.

❺

Remove the SAC 201 card from the computer.

❺

Change the position of the DIP-switches:

❺

SW1: select one switch 'ON'

other switches 'OFF'

SW2: switch 7 'OFF'

select one switch 'ON' when SW1 is completely 'OFF' others 'OFF'

SW3: switch 2 ALWAYS 'ON'

Read the I/O address next to the switch you just pressed.

❺

Repeat the acts as of pg. 2 Chapter 1.

❺

Change the I/O address in the computer.

❺

Example:

Suppose SW2: switch 8 is 'ON'

other switches are 'OFF' Then the I/O address is equal to 2FO In the computer you select '2FOH'

It is possible that these acts have to be repeated several times before a not-

❺

used I/O address is found.

Installation software ' to program wash programs'

General

Used symbols

This software has to be installed in order to progam the wash programs.

: space bar

: return

Installation of the software

type

press

❺

Create a directory on the hard disk of the PC, named 'MICRO 20' ( no longer necessary if this directory has been made earlier).

MICRO20

to confirm

Put the supplied disks in the drive of the computer. This disk contains 4 files:

type

press

1 - MICRO20.EXE:the program soft for the execution of the program-

mation.

2 - MICRO20.PRG: the system soft, which guarantees the operating

of the machine .

3 - xxxxxxxx.DAT: the standard wash programs (option).

❺

4 - xxxxxxxx.BIN: the standard file to program the eprom (option).

Copy the program soft to directory MICRO20

A : drive of supplied disk with the program soft C : hard disk

The nomation of the drives depends on the available drive-stations in the computer.

B:\MICRO20*.* C:\MICRO20COPY

to confirm

Programming the wash programs

General

Used symbols

: letters of keyboard

: numbers of keyboard

Used symbols at the programmation

Space bar

Each time the space bar is pressed, the fixed options appears on the display. Press the return button to confirm your selection.

Return button

When no certain options are available, a certain value needs to be filled in. By pressing return button, a white text block appears. Fill in the wished value through the keyboard. Press return button again to confirm the value, filled in.

: space bar - spatie

: return

: one line downwards

Cursor control keys

On the keyboard, there are 4 cursor control keys. By pressing them, the cursor moves in horizontal or vertical direction (depends on the used key).

Escape button

Esc

If your PC-system is equipped with a mouse : see pg. 36 “ To program with a mouse”.

❺

Press escape button when you want to return from the CONFIG.MENU to the general program card. This button is also used to leave the program.

Remark :

To start up a program

❺

Go to directory ‘MICRO 20’:

typ

type

CD MICRO20

Press

type

press

MICRO20

to confirm

Start the program:

❺

IPSO-logo appears on display.

Program card 0 appears on display.

Configuration of the machine

Here you have to configurate the machine according to its technical characteristics (s.a. type, heating, machine with valve or pump etc.) Also the choice of options such as level control, temperature indication during program, etc.needs to be made here.

Access to configuration menu

press

INLETS: 3 I2: W.S./M.W. I3: C.H./L.A. I4: COLD-SOFT I5: WARMSOFT

To configurate

80° 20L 15° 20L 15° 20L 80° 20L

In configuration menu, the cursor stands at inlets

INLET:

The water inlet system of the machine has to be programmed here.

Select through the space bar one of the following water inlet configurations.

For frequency controlled machines, four extra configurations can be selected.

Press 7 times

press

Press 6 times

press

MACHINE:

to select the type of machine (WE 55, WE 73 etc...)

The outputs in the water inlet chart (I2...I7) are automatically adjusted according to the type of machine. If the machine was not built in these standard types, the values in this chart can be modified.

Example:

I2: W.S./M.W. 80° 20L

This is the configuration of water inlet valve I2.

Output

to select the output values 20-25-50L

Temperature

Change this programmation if this value does not correspond with the real temperature of the supplied water.

press

type

press

a white space block appears

the new temperature

to confirm

Repeat the previous actions if the programmation of the other water inlets needs to be changed.

Then move the cursor to HEATING .

HEATING:

to select the type or the electrical capacity of the heating. 4,2 KW - 6 KW - 9 KW - ------- STEAM or NONE when no heating system is built in. By programming “0”, you start at “NONE”.

press

LIQUID SOAP OPTION:

N: if the machine will not be used with an electronic soap injection.

Y: if the machine is equipped with a professional soap control system with

electronic print board ( at the back next to the electrical connectors). INLETS: if the electronic soap injection will be connected directly to the water inlets.

Here you have to select which one of the inlets I7, I2 and I3 will be used for that purpose.

press

and - or

Selection : The selected water inlets will light up yellow in the soap dispenser.

and - or

press

FREQ. DRIVE OPTION:

Here has to be programmed if the machine is equipped with a frequency

controlled motor.

to select :

Y(yes) - N(no)

NO COIN:

Here has to be programmed whether the machine will start through a start

button or will be coin-operated.

to select :

NO COIN:

when the machine is not coin-operated (coin meter token, coin meter or

central operating panel).

TOKEN 1:

TOKEN 2:

if the machine is equipped with a coin meter token. See remarks.

COIN 1:

COIN 2:

if the machine is equipped with a coin meter. See remarks.

press

type

COIN 1 START BUTTON:

COIN 2 REMOTE START:

if the machine will be coin-operated with a central operating panel.

COIN 1 START BUTTON:

COIN 2 REMOTE START PAY:

idem as per the previous option but here “PAY” will appear when the

machine is available.

Remarks

When NO COIN.. was selected:

❺

to proceed to DATE: (see further).

When TOKEN 1...or COIN1... was selected:

❺

a white text block appears

the coin/coin token value in the white text block.

For machines equipped with a double coin meter token or coin meter, coin 1

(or token 1) is the left coin insertion and coin 2 (or token 2) is the right coin

insertion.

press

to confirm

repeat the previous actions for TOKEN 2 or COIN 2.

press

SAFETY_STOP_ENABLE:

You can stop the cycle by means of the middle push button.

press

to select :

Y(yes) - N(no)

F5 ENABLE:

Select here whether it has to be possible to use F5 (speed) and F7 (reading out speed) in the program.

to select :

Y(yes) - N(no)

DECIMAL:

Through this, you can work with decimal numbers

to select :

000. - 00.0 - 0.00

Voorbeeld:

In CONFIG.MENU

coin insertion 1 = 0.25 $ coin insertion 2 = 1$

you have to fill in :

COIN 1: 25 COIN 2: 100 DECIMAL: 0.00

press

COIN-COUNT:

For machines with coin operation, you can program whether if the number of coin insertions and labour hours have to be counted and saved.

to select :

Y(yes) - N(no)

DATE:

When programming new programs from the installation menu, the date is automatically given. When programming with another program as base, this can be adapted.

the date is adapted

DEGREES:

This is the degree system

press

to select :

Celcius: degree Celsius / also visible on display Fahrenheit: degree Fahrenheit / also visible on display C no display: degree Celsius / not visible on display F no display: degree Fahrenheit / not visible on display C selected: the programmed temperature (in bath 1 to 3) appears and

not the actually measured temperature. This in degree Celsius.

During bath 4 and 5, Cool down and spin, the actual temperature

is mentioned again.

F selected: Same as above but in degree Fahrenheit.

ECO:

Through this you can define the ECO-button.

to select :

Level:

By pressing ECO-button, all wash baths and rinses are executed with a lower water level of approximately 20 %.

No wash 1:

By pressing the ECO-button (before you start the program) the pre wash will be skipped.

Level/default:

The Eco-level-function will be activated automatically at the start and the led will light up. When the ECO-button is pressed, the function will appear and the led will extinguish.

No wash 1 / default :

The Eco-no wash 1-function will be activated automatically at the start and the led will light up. When the ECO-button is pressed, the function will appear and the led will extinguish.

Level /default/led:

The Eco-level-function will be activated automatically at the start but the led will not light up. When the ECO-button is pressed, the function

will appear and the led will light up.

No wash 1/default/led:

The Eco - no wash 1 - function will be activated automatically but the led will not light up. When the ECO-button is pressed, the function will

appear and the led will light up.

Remark:

The Eco-level and Eco-no wash 1-function can not be selected for coin-operated machines (see COIN

❺

or TOKEN). In these cases “No function” appears.

press

DRAIN:

Here you need to program the water drain system of the machine.

press

to select :

Drain: the machine is equipped with a drain valve Pump: the machine is equipped with a pump

DRAINS:

Insert the number of outlets.

to select :

Drain 1: the machine is equipped with one outlet Drain 1 + 2: the machine is equipped with two outlets

TIME CORRECTION:

Here you can adjust the program time taking into account the filling and heatup times of the previous cycle into account.

to select :

Y(yes) - N(no)

press

type

press

DEFAULT STARTUP:

Here you can a program program number, which will be automatically selected as soon as a program is finished This allows to automatically preselect a cold program as security.

a white text block appears

a program number

to confirm

CYCLUS:

press

❺

If END PULSE is used for example to activate a lamp or buzzer at the end of the cycle, this pulse can be

extended up to maximum 240 seconds.

press

CYCLUS:

The operation of the cycle contact can be programmed. to select :

FULL CYCLE:

The cycle contact will be shut during the complete wash cycle.

START PULSE:

The cycle contact will be shut for 1 second at the start of the cycle.

END PULSE:

The cycle contact will be shut for 1 second at the end of the cycle.

Remark

a white text block appears

type

press

type

the required time

to confirm

RETRY INTERM. SPIN:

For HF or HW machines, the spinning is interrupted in case the unbalance is too big. Afterwards the linen will be redistributed and spinning will start again. Here you can program how many times intermediary spin may be started before this spin cycle is left over.

a white text block appears.

a value

press

RETRY INTERM. SPIN: is only mentioned for HF and HW machines.

to confirm.

Remark

press

type

CUSTOMER:

The name of the customer can be programmed. a white text block appears

the name of the customer

press

ESC

to confirm

to return to main menu

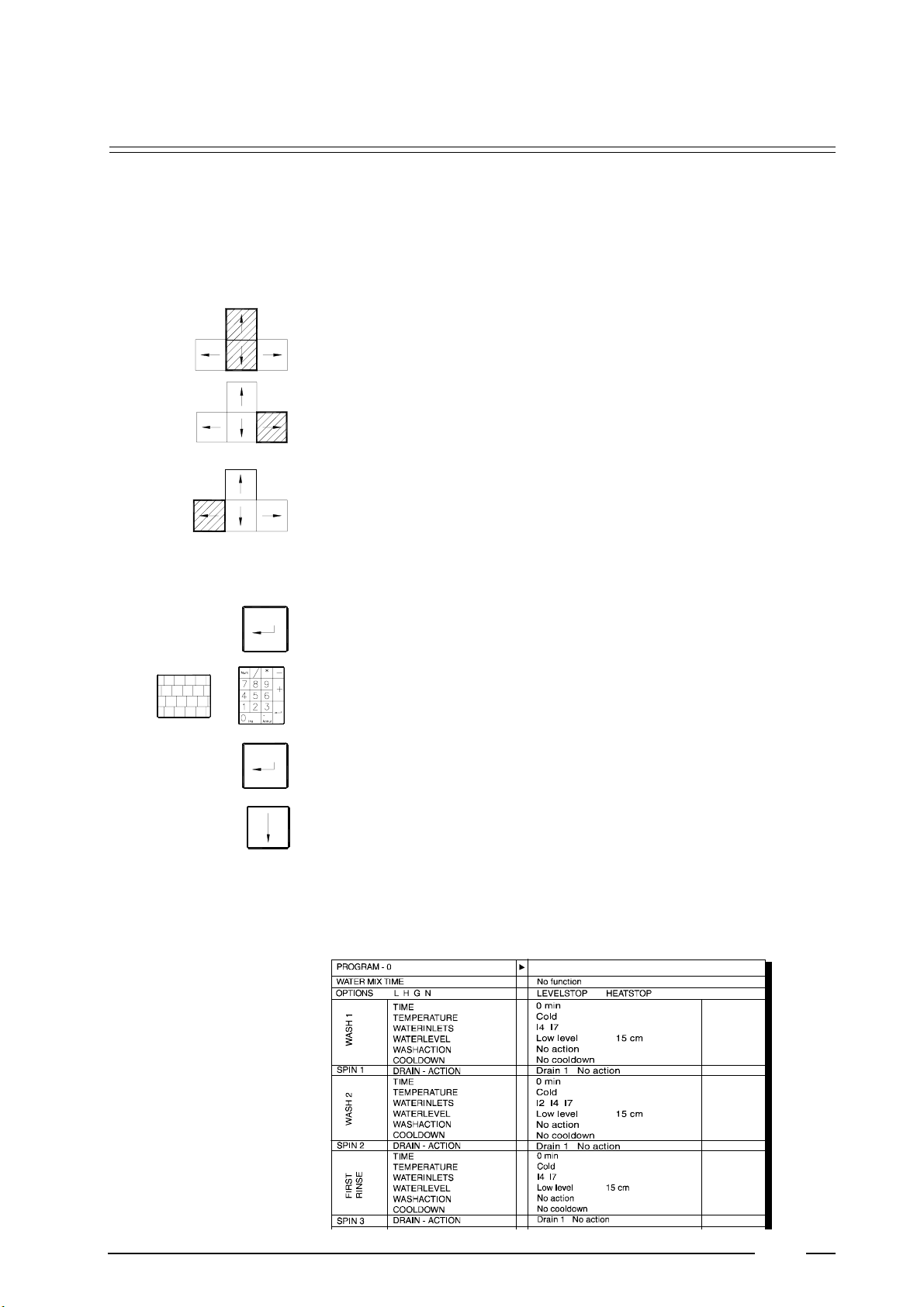

Programming the wash programs

Here you have to program the data in the program cards, which form a wash program. A wash program can consist of 2 wash baths and 4 rinses. Maximum 99 programs can be programmed.

Use the cursor control keys

to move in vertical direction in the program of a program card

to go to the next program card

to return to the previous program card

Fill in the name of the program :

Move the cursor to the top.

press

type

a white text block appears

the name of the program

press

Fill in the cours of the wash program :

A. Prewash / main wash / first rinse

To wash the linen

to confirm

WATER MIX TIME:

The 20 is equipped with a controlled water mix system through which the bath temperature is approached as much as possible. As a result, in most cases, no extra heating (or only a minimum) is necessary. The information to make this mix can be programmed here.

If you do not want to use this mix system : proceed by means of the cursor control keys to “OPTIONS”, if mix is wished :

press

type

press

type

press

type

T1 appears and behind it a white text block. This is the filling time. During this time the programmed water inlets will be opened.

the number of seconds of this action.

to confirm. T2 appears and behind it a white text block. Gedurende This is the mix time. During this time, no water is added. Through the movement of the drum, the water is well mixed. Here, “0” can as well be filled in.

the number of seconds of this action

to confirm. T3 appears and behind it a white text block. This is the correction time. During this time, after comparison with the required temperature, cold or warm water will be added.

the number of seconds of this action.

press

T1: 5 T2 : 3 T3: 10

First during 5 seconds, water will be taken through the programmed inlets.

Then during 3 seconds, no water will be added.

If the temperature is still lower than the programmed temperature, warm water will be added during 10 seconds.

If the temperature would be higher already, cold water will be added during 10 seconds.

Afterwards, again 3 seconds of mix and then again ten seconds of warm or cold water will be added etc...

Should “0” be filled in for T2, then after filling time T1, cold or warm water will be added if necessary continuously without stopping.

press

to confirm.

Example:

OPTIONS..................:

Certain parameters (level stop, heat stop, gentle action, no heat) can be selected here.

type

LEVEL STOP:

Here the program time can be stopped or not when the machine is being filled with water.

HEAT STOP:

Here the program time can be stopped or not when the wash bath is being warmed up.

Remark

When at HEATING “NONE” (no heating) was selected, it is not possible to program HEAT STOP.

GENTLE HEAT:

This is the change of action and stop time during the “HEATSTOP”.

Remark

These times will not be changed if the action time has been programmed shorter than the stop time (see further).

type

press

NO-HEAT:

Through this, a program can operate completely without heating. As a result,it is obvious that “HEATSTOP” and “GENTLEHEAT” are no longer possible here.

TIME:

The duration of the washing (without taking into account filling and heat-up

times)

to select :

0.......15 min.

If a value of more than 15 min. is wished (max. 99) :

a white text block appears

the number of minutes

type

to confirm

When “0” is filled in, the cursor will proceed automatically to the next program

part.

press

TEMPERATURE:

the temperature of the bath

press

type

press

to select :

Cold - 30 - 40 - 60 - 90

If the required temperature is not part of the fixed options :

a white text block appears

the required temperature (min. 25°C, otherwise : Cold)

to confirm

WATER INLETS:

Here has to be programmed which water inlets have to be activated for this

part.

A preferential programmation is automatically made in function of the water inlet configuration, the program part and the temperature at “TEMPERATURE”.

This programmation is also visible in the water inlet configuration by means of white bar lines.

Remarks :

Change the preferential programmation

If another than this preferential programmation is required, it can be changed.

❺

type

the number of water inlet, which has to be activated or not anymore.

Example :

press

to select " I2 " and " R " (water recovery)

to remove “I2”

Liquid soap injection

If “Y” was chosen in configuration at “LIQUID SOAP OPTION”.

❺

press

type

press

Time is programmable for 900 seconds maximum, but is limited by the value entered at “TIME”.

This can be programmed from 1 to 30 per second, from 31 to 180 per 2 seconds, from 180 to 900 per 5 seconds.

The soap outlets S1 to S5 are not activated during the mix (T2) or when the water level is reached. Soap outlet S6 remains active in these circumstances. Even when no water inlet was selected, S6 can be selected. This outlet is rather used as control for a impermeabilisation system. No soap is added during mix or when the water level is reached.

to select one of the soap inlets S1 to S6.

a white text block appears.

the number of seconds that soap has to be injected.

to confirm

If “INLETS” was programmed in configuration for “LIQUID SOAP OPTION”.

❺

press

type

press

Time is programmable for 900 seconds maximum, but is limited through the value entered at “TIME”.

This can be programmed from 1 to 30 second, from 31 to 180 per 2 seconds, from 180 to 900 per 5 seconds.

Program a second soap inlet.

❺

to select one of the soap inlets I2, I3 or I7 which were configurated.

a white text block appears

the number of seconds that soap has to be injected.

to confirm

Remark :

press

to return to “TEMPERATURE”.

Then repeat the previous actions to program a soap inlet

press

Overflow cannot be selected if “Pump” was entered at “DRAIN” in configuration menu.

❺

If the wished water level is not available in the fixed options, another value can be programmed.

❺

press

type

WATER LEVEL:

Here the water level has to be programmed.

to select :

No level: no water inlet

Low level: low level

High level: high level

Overflow: unlimited level

Remark :

a white text block appears

the wished water level

press

For machines without heating or when “Cold” was selected at TEMPERATURE, a minimum value of offsett + 4cm can be programmed.

In the other cases a minimum value of offset + 6cm can be programmed. This offset value is mentioned at the bottom on the right (per machine in mm). A value of 30cm maximum can be programmed.

to confirm

press

WASH ACTION:

The movement of the drum to wash the linen.

press

When the required wash pulse is not available in the fixed options :

❺

press

type

press

to select :

no action: no wash action gentle: reduced wash action (3 sec action - 12 sec stop) wash: normal wash action (12 sec. action - 3 sec stop)

Remarks

action time appears :

the required action time (1 - 99 sec.)

stop time appears :

type

For machines with frequency controlled motor, the wash speed can be changed also

❺

( default 40 rpm).

press

type

press

the required stoptime (1 - 99 sec.)

to confirm

a white text block appears

the wash speed of the drum (10 - 50 rpm)

to confirm

press

COOLDOWN:

The temperature controlled cooldown of the bath

press

type

press

to select

no cooldown-30-40-60-90

if the required cooldown temperature is not part of the fixed options :

a white text block appears

the required cooldown temperature (lower than the temperature of the bath)

to confirm

SPIN 1:

Here can be programmed what has to happen after the bath

to select :

drain 1 no action: the water drains away from the tub, the linen is not

spun and there is no wash action during one minute.

drain 1 gentle: the water drains away and there is a reduced wash action

(3/12) without spin during one minute.

drain 1 wash: the water drains away and there is a normal wash action

(12/3) without spin during one minute.

drain 1 low spin: in a cycle of 1 min. 30 sec. the water drains away

(about 30 sec.) and the linen is spun (about one minute) on low spin.

drain 1 gentle spin: in a cycle of 1 min. 30 sec. the water drains away

(about 30 sec.) the linen is spun on low spin (about 10 sec.) and the linen is tumbled (about 50 sec.). This is especially for delicate linen (as curtains)

No drain no action: the water stays in the tub, the linen is not spun and

there is no wash action during one minute.

No drain gentle: the water stays in the tub, there is a normal wash action

(12/3) without spin during one minute.

No drain wash: the water stays in the tub, there is a normal wash action

(12/3) without spin during one minute.

drain 1 distribut.: (not for WE machines) the water drains away from

the tub and there is a distribution action without spin for one minute.

Skip: this step is skipped, you can proceed immediately.

Remarks :

❺

For machines with frequency controlled motor at wash or gentle, the wash speed of this part is taken over. If “drain 1 low spin” is chosen, the rpm can be programmed between 250 and 500 rpm (default 500 rpm).

press

type the spin speed of the drum (between 250 and 500 rpm)

press

If a machine is equipped with 2 water outlets, the different actions can be done with drain 1 or with

❺

drain 2.

Repeat these actions (as of pg. 21) for WASH 2 (main wash) and FIRST RINSE (first rinse).

a white text block appears

to confirm

B. RINSE 2 / RINSE 3 / RINSE 4:

To rinse the linen

Idem as A. , only the programmation of the temperature and the cool-

down are missing.

this means that the wash bath cannot be warmed up or cooled down.

C. FINAL SPIN:

Final spin

Two variables should be programmed, namely the nature of the action that the drum has to execute and the duration of this action :

press

to select :

press

the time

press

no action: no wash action during the time filled in.

gentle: reduced wash action (3/12) during the time filled in.

wash: normal wash action (12/3) during the time filled in.

low: low spin during the time filled in. high: high spin during the time filled in.

High spin can only be programmed for high speed machines.

gentle spin: short spin during the time filled in.

every minute of ‘gentle spin’ consists of : 10 sec. spin + 50 sec. tumbling

a white text block appears.

type

duration of low spin (max. 9 min.)

to confirm

press

Remarks :

❺

If the machine is equipped with 2 water outlets, you can make a choice in the next step (see “TUMBLE”).

❺

For high speed machines, time of high spin can be programmed in the same way. Low spin, however, becomes automatically one minute minimum or two minutes maximum.

press

type

press

a white text block appears.

time of high spin (max. 9 min.)

to confirm

For machines with frequency controlled motor at wash or gentle, the wash speed of this part is taken over.

❺

If “low spin - high spin” is chosen, this rpm for “low spin” can be programmed between 250 and 500 rpm (default : 500).

press

type

press

For high speed machines at “high spin”, the speed of high spin can be programmed in the same way (from

❺

500 to 1000 rpm) (default : 1000).

This rpm can, however, can never amount more than twice the value programmed at low spin “low spin”.

a white text block appears

the low spin speed (from 250 to 500 rpm)

to confirm

press

type

press

a white text block appears

the high spin speed (from 500 to 1000 rpm)

to confirm

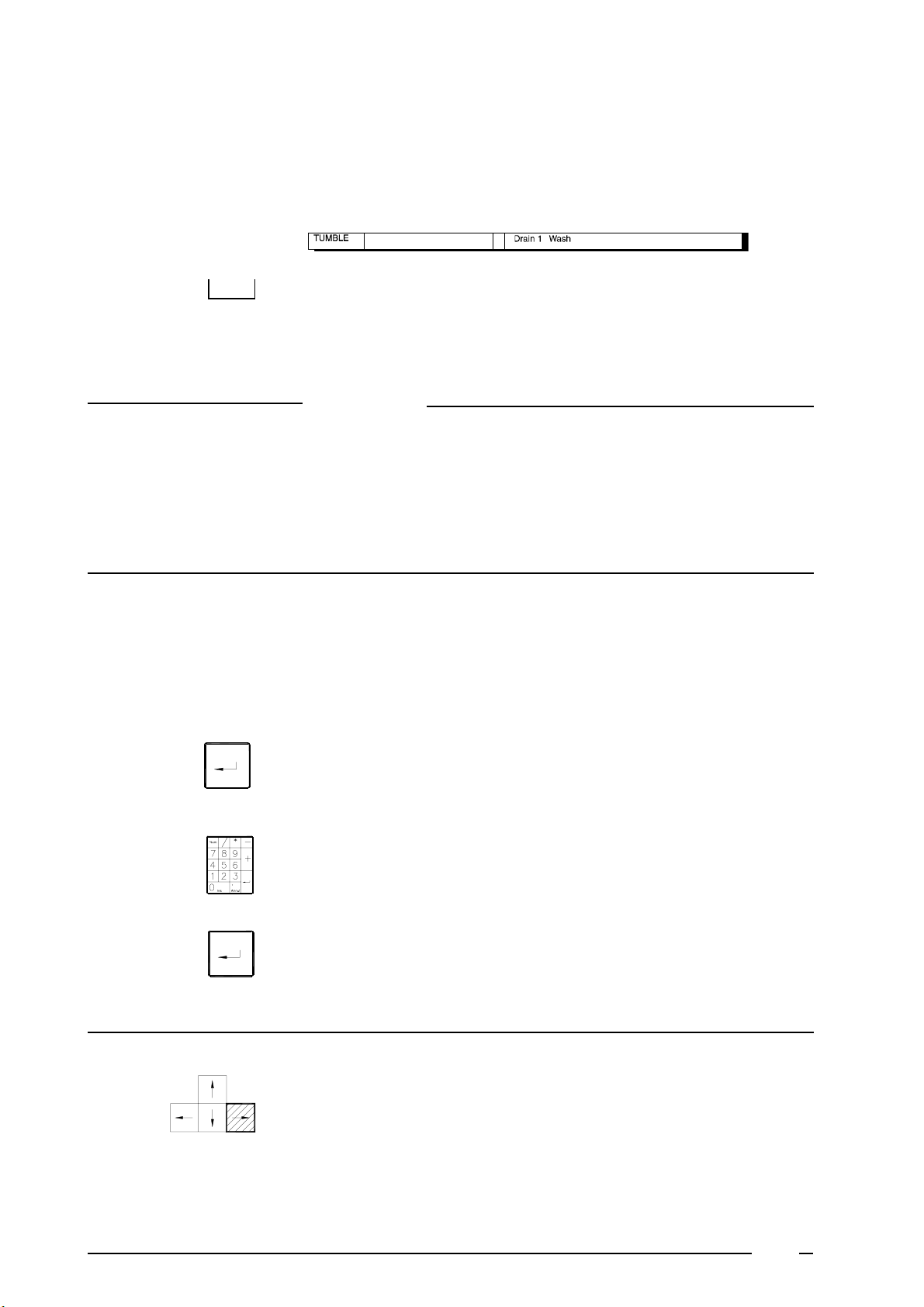

D. TUMBLE:

After spin, the linen is tumbled for one minute.

press

to select :

drain 1 wash: tumble with wash action (9/6). drain 1 gentle: tumble with reduced wash action (6/9).

Remarks :

❺

If the machine is equipped with 2 water outlets, you can choose between “drain 2 wash” and “drain 2 gentle”.

❺

The selection of “drain 1” or “drain 2” at “TUMBLE” determines also the water outlet at final spin (“FINAL SPIN”).

❺

For machines with frequency controlled motor, the highest programmed wash speed which appears in

the program is automatically given.

❺

Automatical transition to another program.

Should the existing structure of the program card be too limited, several program cards can be coupled to each other. This way, special wash programs (f.ex. programs with more than 3 warm baths) can be made.

The selection therefore has to be done at “TUMBLE”.

press

type

press

a white text block appears

the program number that has to be started.

to confirm

“GOTO” with the program number appear

press

This ends the programmation of the program card.

❺

If a new program to ressembles strongly to one of the existing programs, it can be useful to use copycommando.

press

Introduce the necessary changes to the new program card with the help of previously mentioned actions.

to go to the program card to be programmed

for the copy-commando

to go to the new program card

to confirm

Saving and changing programmed data

Saving programmed data

press

No “DAT-files” exist in the directory yet

❺

press

type

press

"DAT-files" are already existing in the directory

❺

Esc

a new display appears with in the middle the “PATH” of the directory (f.ex. C:\MICRO-20)

“no files found!” appears in the upper left corner

a white text block appears in the left bottom corner

the name under which the data are saved.

This name can consist of maximum 8 characters : numbers and/or letters.

to confirm

The data are saved in a file under the name which appears on the right upper corner of the display. Extension.DAT is automatically added to the name

f.ex. xxxxxxxx.DAT

press

A list with the existing files is given in the left upper corner.

❺

If a new “DAT-file” with new data should be made, repeat the above mentioned actions.

If an existing name has to be overwritten with new data.

❺

to select the name

to confirm A confirmation to overwrite is asked on the display.

to confirm The selected file will be overwritten by the data just programmed.

Composing a BIN-file

This is necessary to be able to put the programmed data in an eprom. A BIN-file is a composition of ‘systemsoft’ (PRG-file) and DAT-file with the programmed data.

press

To confirm a name

❺

press

‘systemsoft’ appears on the display (20_204.PRG)

to select the systemsoft

to confirm

Several DAT-files appear on the display.

to select DAT-file

to confirm the DAT-file selection. The name of the DAT-file is mentioned as BIN-file name in the left bottom corner.

the extension.BIN is automatically added to this name.

To create another name for the BIN-file :

❺

type

press

To cause as less confusion as possible, it is recommended to give the BIN-file the

F.ex.: 20_200.PRG + 01H000.DAT = 01H000.BIN

another name existing of 8 characters maximum.

Extension.BIN is automatically added to this name and this file is saved.

Remark

same name as the file (DAT-file).

Loading data

press

press to go to the required file

press

a list of the already saved files appears on the display

to load the selected file Program card 0 of the file appears on the display.

Changing directory

Files can be saved to or called from higher or lower located directories. If the “PATH-display” does not give the wished directory,

press

Through this, the list of subdirectories appears. If no subdirectories are available, a point with below two points will appear.

Select a subdirectory or the two points to go to the parent (higher) directory.

press

to confirm the directory selection.

Printing out data (printprogram-print all)

press

to print out the program card on the display ( 1 program card).

to print out all programmed program cards of the selected file.

Decomposing ‘systemsoft’ from ‘datasoft’

Through this, you can again obtain the DAT-file from a BIN-file.

press

press to select the required BIN-file

press

To confirm the name

press

To create another name for the DAT-file :

type

press

F10

all BIN-files appear on the display

to confirm the BIN-file selection

The name of the BIN-file appears as DAT-file name in the left bottom corner.

extension.DAT is automatically added to this name

another name existing of 8 characters maximum.

extension.BIN is automatically added to this name and this file is saved.

Example :

Suppose 01H000.DAT does no longer exist.

Select 01H000.BIN.

Typ 01H000 as missing DAT-file.

01H000.DAT is automatically composed and saved.

List with files under directory ‘MICRO-20’ (dir)

press

the first page with files appears on the display

for the following page with files (as long as there are other pages)

to return to program card

Converting to DOS (control system)

press

type

EXIT

to exit the program ‘C:\MICRO20>’ appears on the display

The computer is ready for other DOS-commandos

to return to program card

Deleting BIN and DAT-files

press ‘C:\MICRO20>’ appears on the display

DEL

type

DEL

press

the file is deleted from the directory.

Programming with mouse

If your PC-system is equipped with mouse, you can execute most of the actions with mouse instead of the keyboard. This is much easier to work with.

By moving the mous in forwards or backwards, the cursor goes up and down.

❺

The functions of the spare bar are executed with the left button. When the help display appears together

❺

with the directory structure, this button then replaces the return button.

With the right button, you can go to the configuration menu and return.

❺

Esc

Programming an eprom

General

Used symbols

: the letters of the keyboard : return

: the numbers of the keyboard : control cursor keys

: space bar

To start a program :

go to directory 'EPROMP':

❺

type

press

type

press

EPP8M1

EPROMPCD

to confirm

Start the program

❺

the menu appears on the display

Programmation of an eprom

Load the file with the required programs :

❺

press

to go to 'File' of the menu bar

several file possibilities appear

press

to go to ‘Load file to buffer’

to confirm

type the file name of the required programs :

The file can also be selected as follows : press the tab-button

press

type

C: \ MICRO20 \ xxxxxxxx.BIN

Remark :

to select a file. If necessary, a file can be searched in a higher or lower located directory.

to confirm the selection

‘Load address’ appears on the display

0000

press

Esc

to confirm The information is now loaded in the buffer. After loading, a beep sound

follows and there is mentioned ‘Press any key to continue.....’

to return to the main menu

Put the eprom in the ‘eprom programmer’

❺

Remark :

- Pay attention to the notch (!)

place

lock

unlock

remove

- right placing (—)

To program the eprom

❺

press

Esc

to select ‘programming automatically’

to confirm

'when there are still other eproms to be programmed : place a new eprom in

the ‘eprom programmer’

to confirm

to go to menu bar

to go to ‘Quit’ of menu bar

to confirm

to exit the program

Remark :

Protect the burned in programs against UV-rays by putting a sticker

on the sensitive place.

01H000 16/07/93

It is recommended to mention the name of the BIN-file and the date on the

sticker. This can be useful for the after sales service.

Reading and adapting old eproms

General

press

This is useful when you want to load or change programs of an existing

machine (with eprom), of which information is no longer available.

Remove the eprom from the programmer

❺

Then follow the instructions on pg.36, 37 (start program, place an eprom in

an ‘eprom programmer’).

Read in an eprom

❺

to read in an eprom

press

Esc

to confirm

the BIN-file is now saved in the buffer.

Writing the BIN-file to disk

❺

press

type

to go to ‘File’ of the menu bar

to confirm

to go to ‘Save buffer to file’

to confirm

the file name, under which the eprom has to be written to disk.

C: \ MICRO20 \ xxxxxxxx.BIN

Remark :

The letters ‘x’ represent the file name, this contains

maximum 8 characters : numbers and/or letters.

press

type

druk

type

press

0000

07FFF

Esc

to confirm

as 'Start address'

to confirm

as 'End address'

to confirm

now you can adapt the BIN-file, written to disk (see pg. 35 : decomposing systemsoft from datasoft).

To delete eproms

General

To delete

An eprom first has to be deleted before you can program it again.

Take an eprom

❺

Remove the sticker from the round opening.

Put the eprom with the opening upwards in the box with UV-light.

❺

Close the box and light the luminous source.

❺

Repeat this action several times (2-3) to be sure that the eproms are deleted.

Remark :

An eprom which is not completely deleted, will give the following notice at the programmation :

‘Blank error at xxxxx’ where ‘xxxxx’ is the part of the eprom that has not been deleted yet.

Howéver, when you have deleted the eprom 3 times, and ‘Blank error’ still appears on the

display, this means that the eprom is out of order.

The manufacturer keeps the right at any time to change the contents of this manual, without prior notice.

Alliance Laundry Systems

Shephard Street, PO BOX 990

Ripon, WI 54971-0990

United States

Tel: 001 920 748 3121 - Fax: 001 920 748 1645 www.comlaundry.com

Alliance International bvba Nieuwstraat 146 - B-8560 Wevelgem (Belgium)

Tel. +32 56 41 20 54 - Fax +32 56 41 86 74

info@alliancels.eu - www.alliancels.eu

Alliance Micro-20 Programming and changing wash programs

Specifications and Main Features

Frequently Asked Questions

User Manual
