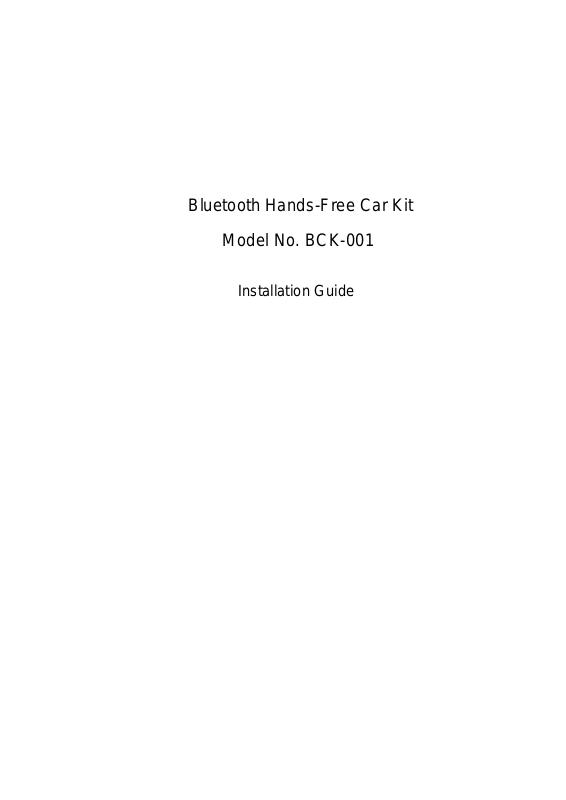

Alliance BCK 001 Users Manual

Bluetooth Hands-Free Car Kit

Model No. BCK-001

Installation Guide

Specification:

Product Bluetooth Hands-Free Car Kit

Bluetooth Compliance

Frequency Band

TX Output Power 0.36 mW
Receiver Sensitivity <-78dBm

Operating Range Up to 10 meters
Security Encrypted link
Maximum current 150mA
Input Voltage 12V

Bluetooth 1.1 specification
Bluetooth headset profiles

2.45 GHz ISM band
79 channels frequency hopping

Installation:

1. Insert the cigarette lighter plug of Bluetooth Car Kit into the cigarette lighter
socket in the car.

2. Insert the microphone plug into the microphone socket on Bluetooth Hands
Free Car kit, and place the microphone at appropriate.

Operation:

1. ON/OFF button

To control power on/off by pushing ON/OFF button.

2. Talk button

The Talk button is used for handset handling. Three different actions are
supported: send, end and pairing.

3. Push Bar

Adjustable angle by pressing Push-Bar button

4. Microphone socket

Connection to Microphone

5. Volume control

Adjustable volume by rolling Volume Control button

6. LED signaling

The LED is used to give an optical feedback to the user. It is connected to pin
RTS. There are two answering call modes you can choose as below,
basically
We set it in automatic mode:

manual mode: red LED lights up – answering call manually.

automatic mode: green LED lights up – answering call automatically.

7. Connection to a mobile phone

The first example describes the process with the Ericsson mobile phone
