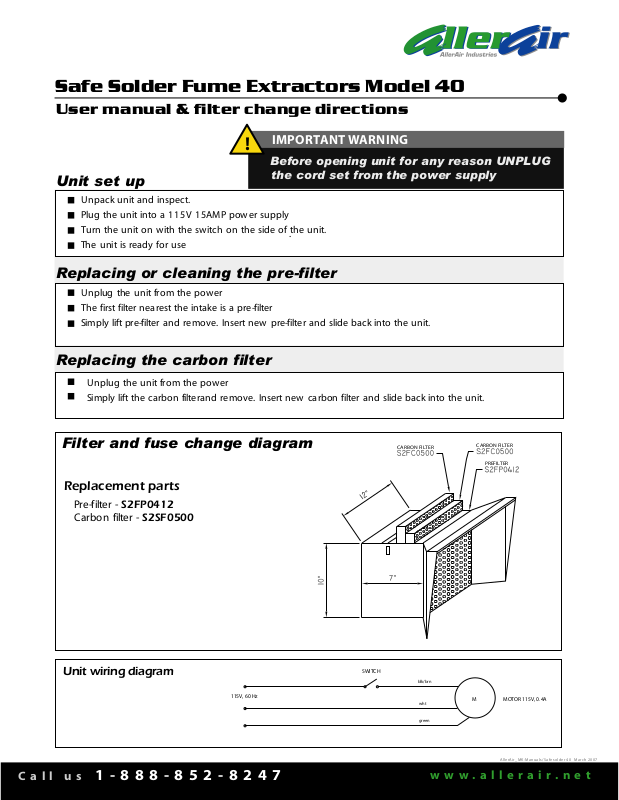

AllerAir 40 User Manual

Safe Solder Fume Extractors Model 40

User manual & filter change directions

IMPORTANT WARNING

!

Before opening unit for any reason UNPLUG

the cord set from the power supply

Unit set up

Unpack unit and inspect.

Plug the unit into a 115V 15AMP pow er supply

Turn the unit on w ith the switch on the side of the unit.

The unit is ready for use

Replacing or cleaning the pre-filter

Unplug the unit from the pow er

The first filter nearest the intake is a pre-filter

Simply lift pre-filter and remove. Insert new pre-filter and slide back into the unit.

Replacing the carbon filter

.

Unplug the unit from the pow er

Simply lift the carbon filterand remove. Insert new carbon filter and slide back into the unit.

Filter and fuse change diagram

CARBON FILTER

Replacement parts

Pre-filter - S2FP0412
Carbon filter - S2SF0500

Unit wiring diagram

115V, 60 Hz

SWITCH

blk/brn

wht

CARBON FILTER

PREFILTER

M

MOTOR 115V, 0.4A

Call us 1-888-852-8247

AllerAir Industries Inc

green

AllerAir_ MK:M anuals/S afes older 40 Marc h 2007

www.allerair.net
