Allen-Bradley PowerFlex 525 User guide

User Manual

PowerFlex 525 Embedded EtherNet/IP Adapter

Important User Information

IMPORTANT

Solid-state equipment has operational characteristics differing from those of electromechanical equipment. Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls (publication your local Rockwell Automation® sales office or online at

http://www.rockwellautomation.com/literature/

important differences between solid-state equipment and hard-wired electromechanical devices. Because of this difference, and also because of the wide variety of uses for solid-state equipment, all persons responsible for applying this equipment must satisfy themselves that each intended application of this equipment is acceptable.

In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.

The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for actual use based on the examples and diagrams.

No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software described in this manual.

Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is prohibited.

Throughout this manual, when necessary, we use notes to make you aware of safety considerations.

SGI-1.1 available from

) describes some

WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment, which may lead to personal injury or death, property damage, or economic loss.

ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.

SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous voltage may be present.

BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may reach dangerous temperatures.

Identifies information that is critical for successful application and understanding of the product.

Allen-Bradley, Rockwe ll Automation, Rockwell Soft ware, PowerFlex, Studio 5000 and Conne cted Components Workbench are trademarks of Rockwell Automation, Inc.

Trademarks not belonging to Rockwell Automation are property of their respective companies.

Overview

Getting Started

Setting Up the Adapter

Table of Contents

Important User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Preface

Recommended Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Manual Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Chapter 1

Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Compatible Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Required Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Chapter 2

Preparing for Set-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Setting the IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Connecting the Adapter to the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Applying Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Commissioning the Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Configuring the Adapter

Configuring the I/O

Using the I/O

Chapter 3

Configuration Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Using the Drive Keypad Interface to Access Parameters . . . . . . . . . . . . . 22

Using the PowerFlex 4-Class HIM to Access Parameters. . . . . . . . . . . . . 23

Using BOOTP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Setting the IP Address, Subnet Mask, and Gateway Address. . . . . . . . . . 27

Setting the Data Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Using Master-Slave Hierarchy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Setting a Fault Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Resetting the Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Viewing the Adapter Status Using Parameters . . . . . . . . . . . . . . . . . . . . . . 32

Chapter 4

Using RSLinx Classic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

CompactLogix Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Limitations in Using MicroLogix 1100/1400 . . . . . . . . . . . . . . . . . . . . . . . 58

Chapter 5

About I/O Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Understanding the I/O Image. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Using Logic Command/Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 3

Table of Contents

Using Explicit Messaging

Using Multi-Drive Mode

Using Reference/Feedback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Using Datalinks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Example Ladder Logic Program Information . . . . . . . . . . . . . . . . . . . . . . . 62

CompactLogix Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Chapter 6

About Explicit Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Performing Explicit Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

CompactLogix Examples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Chapter 7

Single-Drive Mode vs. Multi-Drive Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 81

System Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Understanding the I/O Image. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Configuring the RS-485 Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Using Multi-Drive Add-On Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Multi-Drive Ladder Logic Program for Generic Profile . . . . . . . . . . . . . . 95

CompactLogix Example Using Generic Profile . . . . . . . . . . . . . . . . . . . . . 97

Multi-Drive Mode Explicit Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Additional Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Troubleshooting

Specifications

Adapter Parameters

EtherNet/IP Objects

Chapter 8

Understanding the Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

ENET Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

LINK Status Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Viewing Adapter Diagnostic Items. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Viewing and Clearing Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Appendix A

Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Regulatory Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Appendix B

Parameter List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

Appendix C

Supported Data Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Identity Object. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Assembly Object . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Parameter Object . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

PCCC Object . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

DPI Device Object . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

DPI Parameter Object . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

4 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Logic Command/Status Words: PowerFlex 525 Drives

Index

Table of Contents

DPI Fault Object. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

TCP/IP Interface Object . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Ethernet Link Object. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Appendix D

Logic Command Word . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Logic Status Word . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Glossary

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 5

Table of Contents

Notes:

6 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Overview

For information on… See page…

Recommended Doc umentation Manual Conventions 7

Preface

Recommended Documentation

All the recommended documentation listed in this section is available online at

http://www.rockwellautomation.com/literature

The following publications provide additional information:

For... See... Publication

EtherNet/IP™ EtherNet/IP Media Planning and Installation Manual

EtherNet/IP Network Infrastructure Guidelines EtherNet/IP Network Configuration User Manual Troubleshoot EtherNet/IP Networks EtherNet/IP Design, Commissioning, and

Troubleshooting Quick Reference Drawings

Ethernet Design Considerations Reference Manual PowerFlex®520-Series Drives PowerFlex 525 Adjustable Frequency AC Drive User Manual HIM (Human Interface Module) PowerFlex 4-Class HIM (DSI) Quick Reference RSLinx® Classic RSLinx Classic Getting Results Guide RSLogix™ 5000 RSLogix 5000 online help CompactLogix™ 5370 CompactLogix 5370 Controllers User Manual (1769-L36ERM) MicroLogix™ 1100 MicroLogix 1100 Programmable Controllers User Manual MicroLogix™ 1400 MicroLogix 1400 Programmable Controllers User Manual

(1) For ODVA publications, see the ODVA Ethernet/IP library at

http://odva.org/Home/ODVATECHNOLOGIES/EtherNetIP/EtherNetIPLibrary/tabid/76/lng/en-US/Default.aspx

(2) The online help is installed with the software.

(2)

(1)

ODVA Pub. 148 ODVA Pub. 35

ENET-UM001 ENET-AT003 IASIMP-QR023

ENET-RM002 520-UM001 22HIM-QR001 LINX-GR001

–

1769-UM021 1763-UM001 1766-UM001

Manual Conventions

This manual provides information about the EtherNet/IP adapter embedded on the Main Control Board in PowerFlex 525 drives, and using it for network communication.

The following conventions are used throughout this manual:

• Parameter names are shown in the format axxx [*]. The a represents the parameter group. The xxx represents the parameter number. The * represents the parameter name— for example C141 [EN Rate Cfg].

• Menu commands are shown in bold type face and follow the format Menu > Command. For example, if you read “Select File > Open,” yo u s ho ul d click the File menu and then click the Open command.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 7

Preface Overview

• The Studio 5000™ Engineering and Design Environment combines engineering and design elements into a common environment. The first element in the Studio 5000 environment is the Logix Designer application. The Logix Designer application is the rebranding of RSLogix 5000 software and will continue to be the product to program Logix 5000 controllers for discrete, process, batch, motion, safety, and drive-based solutions. The Studio 5000 environment is the foundation for the future of Rockwell Automation engineering design tools and capabilities. It is the one place for design engineers to develop all the elements of their control system.

• RSLogix 5000 (version 20.0) was used for the screen captures in this manual. Different versions of the software may differ in appearance and procedures.

8 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Chapter 1

Esc

Sel

Item Part Description

➊ ENET status

indicator

Two LEDs that indicate the status of the embedded EtherNet/IP adapter and network communications.

LINK status indicator

➋ Ethernet port An RJ-45 connector for the

Ethernet cable. It is CAT-5 compliant to ensure reliable data transfer on 100Base-Tx Ethernet connections.

➌ DSI port An RS485 cable connection for

handheld and remote options.

Shown with control module cover removed

➊

➋➌

Getting Started

The EtherNet/IP adapter, embedded on the Main Control Board in PowerFlex 525 drives, is used for network communication.

Top ic Pa ge

Components Feature s 10 Compatible Products 10 Required Equipment 10 Safety Precautions 12 Quick Start 12 Status Indicators 13

Components

Components of the Embedded EtherNet/IP Adapter

FWD

ENET LINK

EtherNet/IP

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 9

Chapter 1 Getting Started

Features

The features of the embedded EtherNet/IP adapter include:

• Drive parameters to set an IP address – or you can use a BOOTP server to configure the IP address.

• Compatibility with various configuration tools to configure the embedded EtherNet/IP adapter and host drive. The tools include the PowerFlex 4/ 40-class HIM (Human Interface Module 22-HIM-A3 or 22-HIM-C2S), and drive-configuration software such as RSLogix 5000 (version 17.0 or greater), Logix Designer (version 21.0 or greater), and Connected Components Workbench (version 3.0 or greater).

• Status indicators on the drive’s LCD display that report the status of the embedded EtherNet/IP adapter and network communications.

• Parameter-configured 16-bit Datalinks in the I/O to meet application requirements (four Datalinks to write data from the network to the drive, and four Datalinks to read data to the network from the drive).

• Explicit Messaging support.

• Master-Slave hierarchy that can be config ured to transmit data to and from

a controller on the network.

• Multi-drive mode which allows up to five drives to share a single EtherNet/IP node.

• User-defined fault actions to determine how the embedded EtherNet/IP adapter and its host PowerFlex 525 drive respond to:

– I/O messaging communication disruptions (Comm Flt Action) – Controllers in idle mode (Idle Flt Action)

• Automatic Device Configuration (ADC) is an RSLogix 5000 (version

20.0 or greater), and Logix Designer (version 21.0 or greater) feature that supports the automatic download of configuration data upon the Logix controller establishing an EtherNet/IP network connection to a PowerFlex 525 drive and its associated peripherals.

Compatible Products

Required Equipment

10 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

At the time of publication, the embedded EtherNet/IP adapter is compatible with Allen-Bradley PowerFlex 525 drives.

Equipment Shipped with the Drive

Since the EtherNet/IP adapter is embedded on the Main Control Board in the PowerFlex 525 drive, it is always an integral part of the drive and, therefore, is not shipped with installation instructions.

Getting Started Chapter 1

User-Supplied Equipment

The embedded EtherNet/IP adapter can be configured using the built-in keypad interface on the drive. In addition, you must supply:

❑ Ethernet cable (see the EtherNet/IP Media Planning and Installation Manual, ODVA publication 148 available on the

ODVA web site at http://odva.org/Home/ODVATECHNOLOGIES/EtherNetIP/EtherNetIPLibrary/tabid/76/Default.aspx for details)

❑ Ethernet switch (see the Ethernet Design Considerations Reference Manual, Rockwell Automation publication

ENET-RM002 for details)

❑ Optional configuration tool, such as:

– PowerFlex 22-HIM-A3/-C2S HIM – DHCP/BOOTP Utilities

❑ Controller configuration software, such as:

– RSLinx Classic (version 2.60 or later) – RSLogix 5000 (version 17.0 or greater) and Logix Designer (version 21.0 or greater) when using drive-specific

Add-On Profile (AOP)

– Connected Components Workbench (version 3.0 or greater)

❑ A PC connection to the EtherNet/IP network

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 11

Chapter 1 Getting Started

Safety Precautions

Please read the following safety precautions carefully.

ATT EN TI ON : Risk of injury or equipment damage exists. Only personnel familiar with drive and power products and the associated machinery should plan or implement the installation, start up, configuration, and subsequent maintenance of the drive using this embedded adapter. Failure to comply may result in injury and/or equipment damage.

ATT EN TI ON : Risk of equipment damage exists. The embedded adapter contains ESD (Electrostatic Discharge) sensitive parts that can be damaged if you do not follow ESD control procedures. Static control precautions are required when handling the adapter. If you are unfamiliar with static control procedures, see Guarding Against Electrostatic Damage (publication 8000-

4.5.2)

ATT EN TI ON : Risk of injury or equipment damage exists. If the adapter is transmitting control I/O to the drive, the drive may fault when you reset the adapter. Determine how your drive will respond before resetting the adapter.

ATT EN TI ON : Risk of injury or equipment damage exists. Drive parameters C143 [EN Comm Flt Actn] and C144 [EN Idle Flt Actn] let you determine the

action of the embedded EtherNet/IP adapter and drive if I/O communication is disrupted, the controller is idle, or explicit messaging for drive control is disrupted. By default, these parameters fault the drive. You may configure these parameters so that the drive continues to run, however, precautions should be taken to ensure that the settings of these parameters do not create a risk of injury or equipment damage. When commissioning the drive, verify that your system responds correctly to various situations (for example, a disconnected cable or a controller in idle state).

ATT EN TI ON : Risk of injury or equipment damage exists. When a system is configured for the first time, there may be unintended or incorrect machine motion. Disconnect the motor from the machine or process during initial system testing.

ATT EN TI ON : Risk of injury or equipment damage exists. The examples in this publication are intended solely for purposes of example. There are many variables and requirements with any application. Rockwell Automation, Inc. does not assume responsibility or liability (to include intellectual property liability) for actual use of the examples shown in this publication.

Quick Start

This section is provided to help experienced users quickly start using the embedded EtherNet/IP adapter. If you are unsure how to complete a step, refer to the referenced chapter.

Step Action See... 1 Review the safety precautions for the adapter. Throughout this manual 2 Verify that the PowerFlex drive is properly installed. PowerFlex 525

3 Connect the drive to the EtherNet/IP network.

Verify that the PowerFlex drive is not powered. Then, connect the embedded EtherNet/ IP adapter to the network using an Ethernet cable.

12 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Adjusta ble Frequency AC Drive User Manual (publication

Chapter 2, Setting Up the Adapter

520-UM001

)

Getting Started Chapter 1

Esc

Sel

Item Name

➊ ENET indicator ➋ LINK indicator

➊➋

Step Action See...

4 Apply power to the drive.

a. Replace the control module cover. b. The embedded EtherNet/IP adapter receives power from the drive. Apply power

to the drive. The ENET/LINK status indicators on the drive’s LCD display should light up and remain steady or flash. If the drive’s Fault LED lights up, there is a problem. See

c. Configure/verify key drive parameters.

5 Configure the adapter for your application.

Set drive parameters for the following functions as required by your application:

– IP address, subnet mask, and gateway address – Data rate – I/O configuration – Master-Slave hierarchy – Fault actions

6 Configure the controller to communicate with the adapter.

Use a controller configuration tool such as RSLogix 5000/Logix Designer to configure the master on the EtherNet/IP network to recognize the embedded EtherNet/IP adapter and drive.

7 Create a ladder logic program.

Use a controller configuration tool such as RSLogix 5000/Logix Designer to create a ladder logic program that enables you to:

– Control the embedded EtherNet/IP adapter and drive using I/O. – Monitor or configure the drive usin g Explicit messages.

Chapter 8, Troubleshooting.

Chapter 2, Setting Up the Adapter

Chapter 3, Configuring the Adapter

Chapter 4, Configuring the I/O

Chapter 5, Using the I/O

Chapter 6, Using Explicit Messaging

Status Indicators

The embedded EtherNet/IP adapter uses two status indicators to report its operating status.

FWD

ENET LINK

EtherNet/IP

ENET LINK

EtherNet/IP

After connecting the embedded EtherNet/IP adapter to the network and applying power to the drive, see

Startup Status Indication

on page 17 for possible

start-up status indications and their descriptions.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 13

Chapter 1 Getting Started

Notes:

14 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Chapter 2

Setting Up the Adapter

Since the EtherNet/IP adapter is embedded on the Main Control Board in the PowerFlex 525 drive, the only required step is setting its IP address and connecting it to the network.

Top ic Pag e

Preparing for Set-Up 15 Setting the IP Address 16 Connecting the Adapter to the Network 16 Applying Power 17 Commissioning the Adapter 19

Preparing for Set-Up

Before setting up the embedded EtherNet/IP adapter:

• Make sure the Ethernet switch is the correct type. A “managed” switch that supports IGMP snooping is usually recommended. An “unmanaged” switch can be used instead if RSLogix 5000 (version 18.0 or greater) is used and all devices on the network are configured for “unicast” I/O. For more details, see the following documents:

– EtherNet/IP Media Planning and Installation Manual

(ODVA publication 148)

– EtherNet/IP Network Infrastructure Guidelines

(ODVA publication 35)

– Ethernet Design Considerations Reference Manual

(Rockwell Automation publication

• Understand IGMP Snooping/Ethernet Switches

The embedded EtherNet/IP adapter is a multicast device. In most situations, an IGMP snooping (managed) switch is required. If more than one or two embedded EtherNet/IP adapters are connected to the switch, a managed switch is required—otherwise the drive may fault on a Net I/O Timeout network loss. The embedded EtherNet/IP adapter, RSLogix 5000 (version 18.0 or greater), and a ControlLogix or CompactLogix controller will support unicast. Unicast setup is required when adding the drive to the I/O. When all embedded EtherNet/IP adapters are set up as unicast devices, then an IGMP snooping (managed) switch is not needed.

ENET-RM002

)

Much of EtherNet/IP implicit (I/O) messaging uses IP multicast to distribute I/O control data, which is consistent with the CIP producer/ consumer model. Historically, most switches have treated multicast packets the same as broadcast packets. That is, all multicast packets are retransmitted to all ports.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 15

Chapter 2 Setting Up the Adapter

IMPORTANT

IGMP snooping constrains the flooding of multicast traffic by dynamically configuring switch ports so that multicast traffic is forwarded only to ports associated with a particular IP multicast group.

Switches that support IGMP snooping (managed switches) “learn” which ports have devices that are part of a particular multicast group and only forward the multicast packets to the ports that are part of the multicast group.

Be careful as to what level of support a switch has of IGMP snooping. Some layer 2 switches that support IGMP snooping require a router (which could be a layer 3 switch) to send out IGMP polls to learn what devices are part of the multicast group. Some layer 2 switches can use IGMP snooping without a router sending polls. If your control system is a stand-alone network or is required to continue performing if the router is out of service, make sure the switch you are using supports IGMP snooping without a router being present.

Appendix A

• See embedded EtherNet/IP adapter.

• Verify that you have all required equipment. See

page 10.

for the number of CIP connections supported by the

Required Equipment

Setting the IP Address

Connecting the Adapter to the Network

There are two methods for configuring the embedded EtherNet/IP adapter’s IP address:

• BOOTP Server – Use BOOTP if you prefer to control the IP addresses of devices using a BOOTP server. The IP address, subnet mask, and gateway addresses will then be provided by the BOOTP server. This is enabled by default.

• Parameters – Use parameters when you want more flexibility in setting up the IP address, or need to communicate outside the control network using a gateway. The IP address, subnet mask, and gateway addresses will then come from the parameters you set.

Regardless of the method used to set the adapter’s IP address, each node on the network must have a unique IP address. To change an IP address, you must set the new value and then remove and reapply power to (or reset) the drive.

ATT EN TI ON : Risk of injury or death exists. The PowerFlex drive may contain high voltages that can cause injury or death. Remove power from the drive, and then verify power has been discharged before connecting the embedded EtherNet/IP adapter to the network.

1. Remove power from the drive.

2. Remove the drive control module cover.

16 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Setting Up the Adapter Chapter 2

1 (Front)1 (Front)1 (Front) 2 (Rear)

00:00:BC:2E:69:F6

Esc

Sel

Ethernet switch

1769-L36ERM CompactLogix controller

with embedded EtherNet/IP bridge

PowerFlex 525 drive with

embedded EtherNet/IP

adapter (Frame A shown)

3. Use static control precautions.

4. Connect one end of an Ethernet cable to the EtherNet/IP network.

5. Route the other end of the Ethernet cable through the bottom of the

PowerFlex 525 drive, and insert the cable’s plug into the embedded EtherNet/IP adapter’s mating socket (item 2 in

Components of the

Embedded EtherNet/IP Adapter on page 9).

Applying Power

Install the control module cover, and apply power to the drive. The embedded EtherNet/IP adapter receives its power from the drive. When you apply power to the embedded EtherNet/IP adapter for the first time, the “ENET” status indicator on the drive LCD display should remain steady after an initialization. If it does not light up or is flashing, there is a problem. See

Troubleshooting.

Startup Status Indication

After power has been applied, status indicators for the PowerFlex 525 drive and embedded EtherNet/IP adapter can be viewed on the drive LCD display. See

Drive and Adapter Status Indicators

status indications.

ATT EN TI ON : Risk of equipment damage, injury, or death exists. Unpredictable operation may occur if you fail to verify that parameter settings are compatible with your application. Verify that settings are compatible with your application before applying power to the drive.

Chapter 8,

on page 18 for their location and possible

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 17

Chapter 2 Setting Up the Adapter

TIP

Esc

Sel

Item Name State Description

➊ ENET Off Adapter is not connected to the network.

Steady Adapter is connected to the network and drive is controlled through Ethernet. Flashing Adapter is connected to the network but drive is not controlled through Ethernet.

➋ LINK Off Adapter is not connected to the network

Steady Adapter is connected to the network but not transmitting data. Flashing Adapter is connected to the network and transmitting data.

➌ FAULT Flashing Red Indicates drive is faulted.

➊➋

➌

Drive and Adapter Status Indicators

FWD

ENET LINK

EtherNet/IP

ENET LINK

EtherNet/IP

For more details on status indicator operation see

Indicators on page 109.

Configuring/Verifying Key Drive Parameters

The PowerFlex 525 drive can be separately configured for the control and Reference functions in various combinations. For example, you could set the drive to have its control come from a peripheral or terminal block with the Reference coming from the network. Or you could set the drive to have its control come from the network with the Reference coming from another peripheral or terminal block. Or you could set the drive to have both its control and Reference come from the network.

18 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Configuring the drive parameters can be done using the drive’s keypad, a HIM, RSLogix 5000/Logix Designer or Connected Components Workbench. In the following example, the drive will receive the Logic Command and Reference from the network.

1. Set the value of drive parameter P046 [Start Source 1] to 5 “EtherNet/IP”.

2. Set the value of drive parameter P047 [Speed Reference1] to 15 “EtherNet/IP”.

The PowerFlex 525 drive supports up to three control functions and three Reference functions.

Understanding the Status

Setting Up the Adapter Chapter 2

IMPORTANT

For more information on how to set different combinations of the control and Reference functions, see the PowerFlex 525 drive user manual, publication

520-UM001

Commissioning the Adapter

To commission the embedded EtherNet/IP adapter, you must set a unique IP address. See the server or parameters to set the IP address after connecting the adapter to the network and applying power to the drive.

By default, the adapter is configured to accept an IP address from a BOOTP server. For details, see parameters, see

page 27.

Glossary

Setting the IP Address, Subnet Mask, and Gateway Address

New settings for some parameters (for example, parameters C129 [EN IP Addr Cfg 1] through C132 [EN IP Addr Cfg 4]) are recognized only when

power is applied to the adapter. After you change parameter settings, cycle drive power.

for details about IP addresses. Use either a BOOTP

Using BO OTP

on page 24. To set the IP address using

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 19

Chapter 2 Setting Up the Adapter

Notes:

20 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Chapter 3

Configuring the Adapter

This chapter provides instructions and information for setting the parameters to configure the embedded EtherNet/IP adapter.

Top ic Pa ge

Confi guration Tool s 21 Using the Drive Keypad Interface to Access Parameters 22 Using the PowerFlex 4-Class HIM to Access Parameters 23 Using BOOTP 24 Setting the IP Address, Subnet Mask, and Gateway Address 27 Setting the Data Rate 28 Using Master-Slave Hierarchy 29 Setting a Fault Action 31 Resetting the Ad apter 32 Viewing the Adapter Status Using Parameters 32

Configuration Tools

For a list of parameters, see terms in this chapter, see the

Appendix B

Glossary

The parameters can be configured using the drive keypad interface (see or a PowerFlex 4-class HIM (Human Interface Module, see

, Adapter Parameters. For definitions of

page 22)

page 23

RSLogix 5000 (version 17.0 or greater), Logix Designer (version 21.0 or greater), and Connected Components Workbench (version 3.0 or greater) can also be used to access the parameters.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 21

Chapter 3 Configuring the Adapter

HERT

FWD

Esc

FWD

Esc

FWD

Sel

FWDorFWDFW

Sel

PROGRAM

FWD

PROGRAM

FWD

Sel

PROGRAM

FWD

Esc

FWDFW

Esc

FWD

Using the Drive Keypad Interface to Access Parameters

The following is an example of basic integral keypad and display functions. This example provides basic navigation instructions and illustrates how to program a parameter.

Step Key(s) Example Display

1. When power is applied, the last user-selected Basic Display Group parameter number is briefly displayed with flashing characters. The display then defaults to that parameter’s current value. (Example shows the value of b001 [O utput Freq] with the drive stopped.)

2. Press Esc to display the Basic Display Group parameter number shown on power-up. The parameter number will flash.

3. Press Esc to enter the parameter group list. The parameter group letter will flash.

4. Press t he Up Arrow or Down Arrow to scroll through the group list (b, P, t, C, L, d, A, f and Gx).

5. Press Enter or Sel to enter a group. The right digit of the last viewed parameter in that group will flash.

6. Press t he Up Arrow or Down Arrow to scroll through the parameter list.

7. Press Enter to view the value of the parameter. Or Press Esc to return to the para meter list.

8. Press Enter or Sel to enter Program Mode and edit the value. The right digit will flash and the word Program on the LCD display will light up.

9. Press the Up Arrow or D own Arrow to change the parameter value.

10. If desired, press Sel to move from digit to digit or bit to bit. The digit or bit that you can change will flash.

11. Press Esc to cancel a change and exit Program Mode.

Or Press Enter to save a change and exit Program

Mode. The digit will stop flashing and the word

Program on the LCD display will turn off.

12. Press Esc to return to the parameter list. Continue to press Esc to back out of the programming menu.

If pressing Esc does not change the display, then b001 [Output Freq] is displayed. Press Enter or Sel to enter the group list again.

22 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Configuring the Adapter Chapter 3

Param eters

Groups

Linear List Changed Params

DIAG

PAR A M DSEL MEM SEL

and

Basic Display

001 Output Freq

002 Commanded Freq 003 Output Current 004 Output Voltage 005 DC Bus Voltage

B PTCSEL

Sel

Communications

121 Comm Write Mode

122 Cmd Stat Select 123 RS485 Data Rate 124 RS485 Node Addr 125 Comm Loss Ac tion

BPTC SEL

and

Communications

121 Comm Write Mode 122 Cmd Stat Select

123 RS485 Data Rate

124 RS485 Node Addr 125 Comm Loss Ac tion

BPTC SEL

RS485 Data Rate

Param eter: # 123

9600

VALU E LIMITS SEL

Using the PowerFlex 4-Class HIM to Access Parameters

The PowerFlex 4-class HIM can be used to access parameters in the drive (see basic steps shown below). It is recommended that you read through the steps for your HIM before performing the sequence. For additional HIM information, refer to the HIM Quick Reference card, publication

Step Key(s) Example Display

1. Power up the drive. Then connect the HIM to the DSI port of the drive. The Parameters tab for the drive will be displayed.

2. Select Groups in the Parameters tab if it is not already selected using the Up Arrow or Down Arrow.

Press Enter to selec t Groups.

3. Press Sel repeatedly until the C tab (Communications parameters) is selected.

22HIM-QR001.

4. Press the Up Arrow or Down Arrow to scroll to the Communications parameter you wish to display or modify, then press Enter.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 23

Chapter 3 Configuring the Adapter

RS485 Data Rate

Param eter: # 123

9600

VALU E LIMITS SEL

RS485 Data Rate

Param eter: # 123

19,200

VALU E LIMITS SEL

RS485 Data Rate

Param eter: # 123

19,200

VALU E LIMITS SEL

and

Esc

TIP

Step Key(s) Example Display

5. Press Enter to select the current paramete r value and the numeric keys to enter a new value.

6 Press Enter to write the new value to the

parameter and the parameter number will be selected again.

Using BOOTP

7 While the parameter number is selected,

you may:

a. use the arrow keys to select

additional parameters you wish to modify.

b. press Enter to go to the parameter

number you have input using the keypad.

c. press Esc to return to the group

parameter list.

By default, the adapter is configured to accept an IP address, subnet mask, and gateway address from a BOOTP server. You can select from a variety of BOOTP utilities.

The instructions below use the DHCP/BOOTP Utility (version 2.3 or greater), a free stand-alone program from Rockwell Automation that incorporates the functionality of standard DHCP/BOOTP utilities with a graphical interface. It is available from

http://www.ab.com/networks/ethernet/bootp.html

. See the

Readme file and online Help for directions and more information.

If desired, you can disable BOOTP and configure the IP address, subnet mask, and gateway address using parameters. For details, see

Setting the IP Address,

Subnet Mask, and Gateway Address on page 27.

24 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Configuring the Adapter Chapter 3

Ethernet Address label example

Configuring the Adapter Using DHCP/BOOTP Utility

1. Verify and note the adapter’s hardware Ethernet Address (MAC), which will be used in Step 6. There are two ways to do this:

• Use the PowerFlex 525 drive’s keypad or a HIM to access the diagnostic

parameters of the drive. Scroll to parameters F687 [HW Addr 1] through F692 [HW Addr 6] to view the adapter’s hardware Ethernet Address (MAC). Finally, convert these decimal values to a hex value.

• Remove the PowerFlex 525 control module front cover and locate the

adapter’s hardware Ethernet Address (MAC) label.

2. On a computer connected to the EtherNet/IP network, start the BOOTP/DHCP software. The BOOTP/DHCP Server window appears.

3. To properly configure devices on your EtherNet/IP network, you must configure settings in the BOOTP/DHCP software to match the network. Select To o l s > Network Settings to display the Network Settings window.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 25

Chapter 3 Configuring the Adapter

4. Edit the following:

Box Type

Subnet Mask Gateway Primary DNS The address of the primary DNS server to be used on the local end of the link for

Secondary DNS Optional – the address of the secondary DNS server to be used on the local end of the

Domain Name The text name corresponding to the numeric IP address that was assigned to the server

(1) For definitions of these terms, see the

(1)

The subnet mask for the adapter’s network. The IP address of the gateway device on the adapter’s network.

negotiating with remote devices.

link for negotiating with remote devices when the primary DNS server is unavailable.

that controls the network.

Glossary.

5. Click OK to apply the settings. Devices on the network issuing BOOTP/ DHCP requests appear in the BOOTP/DHCP Request History list.

6. In the BOOTP/DHCP Request History list, either double-click the adapter’s Ethernet Address (MAC) noted in Step 1, or click Ne w in the Relation List. The New Entry window appears. In the first case, the Ethernet Address (MAC) is automatically entered. In the latter case, you must manually enter it.

7. Edit the following:

Box Type

(1)

IP Address Host Name Optional Description Optional

(1) For definitions of these terms, see the

A unique IP address for the adapter

Glossary.

8. Click OK to apply the settings. The adapter appears in the Relation List with the new settings.

26 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Configuring the Adapter Chapter 3

TIP

192.168.1.62

[EN IP Addr Cfg 1]

[EN IP Addr Cfg 2]

[EN IP Addr Cfg 3]

[EN IP Addr Cfg 4]

Default = 0.0.0.0

9. To assign this configuration to the adapter, select the device in the Relation List and click Disable BOOTP/DHCP. When power is cycled on the drive, the adapter will use the configuration you assigned it and not issue new BOOTP/DHCP requests.

To enable BOOTP for an embedded adapter that has had BOOTP disabled, first select the adapter in the Relation List. Then click Enable BOOTP and power cycle the drive.

10. To save the Relation List, select File > Save.

Setting the IP Address, Subnet Mask, and Gateway Address

By default, the adapter is configured to accept an IP address, subnet mask, and gateway address from a BOOTP server. If you want to set these attributes using parameters instead, you must first disable BOOTP and then set these network address parameters in the drive.

Disabling the BOOTP Feature

1. Set the value of parameter C128 [EN Addr Sel] to 1“Parameters”.

Options 1“Parameters”

2“BOOTP” (Default)

2. Reset the adapter by power cycling the drive.

After disabling the BOOTP feature, you can then configure the IP address, subnet mask, and gateway address using parameters.

Setting an IP Address Using Parameters

1. Verify that parameter C128 [EN Addr Sel] is set to 1“Parameters”. This parameter must be set to “Parameters” to configure the IP address using parameters.

2. Set the value of parameters C129 [EN IP Addr Cfg 1] through C132 [EN IP Addr Cfg 4] to a unique IP address.

3. Reset the adapter by power cycling the drive.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 27

Chapter 3 Configuring the Adapter

Default = 0.0.0.0 255.255.255.0

[EN Subnet Cfg 1]

[EN Subnet Cfg 2]

[EN Subnet Cfg 3]

[EN Subnet Cfg 4]

Default = 0.0.0.0 192.168.1.1

[EN Gateway Cfg 1]

[EN Gateway Cfg 2]

[EN Gateway Cfg 3]

[EN Gateway Cfg 4]

Setting a Subnet Mask Using Parameters

1. Verify that parameter C128 [EN EN Addr Sel] is set to 1“Parameters”. This parameter must be set to “Parameters” to configure the subnet mask using parameters.

2. Set the value of parameters C133 [EN Subnet Cfg 1] through C136 [EN Subnet Cfg 4] to the desired value for the subnet mask.

3. Reset the adapter by power cycling the drive.

Setting a Gateway Address Using Parameters

1. Verify that parameter C128 [EN EN Addr Sel] is set to 1“Parameters”. This parameter must be set to “Parameters” to configure the gateway address using parameters.

2. Set the value of parameters C137 [EN Gateway Cfg 1] through C140 [EN Gateway Cfg 4] to the desired value for the gateway address.

3. Reset the adapter by power cycling the drive.

Setting the Data Rate

By default, the adapter automatically detects the data (baud) rate and duplex setting used on the network. If you need to set a specific data rate and duplex setting, the value of parameter C141 [EN Rate Cfg] determines the Ethernet data rate and duplex setting that the adapter will use to communicate. For definitions of data rate and duplex, see the

1. Set the value of parameter C141 [EN Rate Cfg] to the data rate at which your network is operating.

Options 0 “Auto detect” (Default)

1 “10Mbps Full” 2 “10Mbps Half”

28 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

3 “100Mbps Full” 4 “100Mbps Half”

Glossary

TIP

Auto detection of data rate and duplex works properly only if the

IMPORTANT

TIP

device (usually a switch) on the other end of the cable is also set to automatically detect the data rate/duplex. If one device has the data rate/duplex hard-coded, the other device must be hard-coded to the same settings.

2. Reset the adapter by power cycling the drive.

Configuring the Adapter Chapter 3

Using Master-Slave Hierarchy

A hierarchy determines the type of device with which the adapter exchanges data. In a Master-Slave hierarchy, the adapter exchanges data with a master, such as a scanner or bridge.

For a Master-Slave hierarchy, the devices exchanging data must be on the same IP subnet. See “IP Addresses” in the

Glossary for information about IP subnets.

Configuring a Master-Slave Hierarchy

The controller I/O image can have anywhere from zero to eight (four In and four Out) additional 16-bit parameters called Datalinks. They are configured using parameters C153 [EN Data In 1] through C156 [EN Data In 4], and C157 [EN Data Out 1] through C160 [EN Data Out 4]. The number of Datalinks actively used is controlled by the connection size in the controller and the in/out parameters. See the respective controller example sections in information on setting the connection size.

The [EN Data In x] and [EN Data Out x] parameters are named with respect to the master (controller), not the drive. [EN Data In x] parameters are for data incoming to the master (controller) from the drive, and [EN Data Out x] parameters are for data outgoing from the master (controller) to the drive.

Chapter 4 for more

When using a ControlLogix or CompactLogix controller and the Generic Profile, or a MicroLogix 1100/1400 controller, configure the Datalink parameters now as described in this section.

When using a ControlLogix or CompactLogix controller and an RSLogix 5000 (version 17.0 or greater) or Logix Designer (version 21.0 or greater) drive AddOn Profile, there is no need to configure Datalink parameters at this time. They will be assigned when configuring the drive Add-On Profile (see

Drive to the I/O Configuration on page 38).

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 29

Adding the

Chapter 3 Configuring the Adapter

IMPORTANT

Enabling Datalinks To Write Data

Always use the Datalink parameters in consecutive numerical order, starting with the first parameter. For example, use Parameters C157, C158, and C159 to configure three Datalinks to write data. Otherwise, the network I/O connection will be larger than necessary, which needlessly increases controller response time and memory usage.

Parameters C157 [EN Data Out 1] through C160 [EN Data Out 4] control which parameters in the drive, adapter, or any other connected peripheral receive values from the network. To configure these parameters, set them to the drive parameter number you want to write them to.

The following steps are required to enable Datalinks to write data:

1. Set the values of only the required number of contiguous controller-todrive Datalinks needed to write data to the drive and that are to be included in the network I/O connection.

2. Reset the adapter by power cycling the drive.

After the above steps are complete, the adapter is ready to receive input data and transfer status data to the master (controller). Next, configure the controller to recognize and transmit I/O to the adapter. See

Chapter 4

, Configuring the I/O.

Enabling Datalinks To Read Data

Always use the Datalink parameters in consecutive numerical order, starting with the first parameter. For example, use Parameters C153, C154, and C155 to configure three Datalinks to read data. Otherwise, the network I/O connection will be larger than necessary, which needlessly increases controller response time and memory usage.

Parameters C153 [EN Data In 1] through C156 [EN Data In 4] configure which parameters in the drive, adapter, or any other connected peripheral send values to the network. To configure these parameters, set them to the parameter number you wish to read over the network.

The following steps are required to enable Datalinks to read data:

1. Set the values of only the required number of contiguous drive-tocontroller Datalinks needed to read data from the drive and that are to be included in the network I/O connection.

2. Reset the adapter by power cycling the drive.

After the above steps are complete, the adapter is ready to send output data to the master (controller). Next, configure the controller to recognize and transmit I/O to the adapter. See

30 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Chapter 4, Configuring the I/O.

Configuring the Adapter Chapter 3

Setting a Fault Action

By default, when communications are disrupted (the network cable is disconnected) and/or the controller is idle (in program mode or faulted), the drive responds by faulting if it is using I/O from the network. You can configure a different response to:

• Disrupted I/O communication by using parameter C143 [EN Comm Flt Actn].

• An idle controller by using parameter C144 [EN Idle Flt Actn].

ATT EN TI ON : Risk of injur y or equipment damage exists. Drive parameters C143 [EN Comm Flt Actn] and C144 [EN Idle Flt Actn] respectively let you determine the action of the embedded EtherNet/IP adapter and drive if communications are disrupted or the controller is idle. By default, these parameters fault the drive. You may configure these parameters so that the drive continues to run, however, precautions should be taken to ensure that the settings of these parameters do not create a risk of injury or equipment damage. When commissioning the drive, verify that your system responds correctly to various situations (a disconnected network cable or controller in idle state).

Changing the Fault Action

Set the values of parameters C143 [EN Comm Flt Actn] and C144 [EN Idle Flt Actn] to the desired responses:

Value Action Description

0 Fault The drive is faulted and stopped (Default). 1 Stop The drive is stopped as per P045 [Stop Mode] setting. 2 Zero Data The Reference and Datalink values transmitted to the drive will be set to “0”. 3 Hold Last The Reference and Datalink values transmitted to the drive will be held at their last value. 4 Send Flt Cfg The Logic, Reference, and Datalink values will be transmitted to the drive as configured in

C145 [EN Flt Cfg Logic], C146 [EN Flt Cfg Ref], and C157 [EN Data Out 1] through C160 [EN Data Out 4].

Changes to these parameters take effect immediately. A reset is not required. If communication is disrupted and then re-established, the drive will automatically receive commands over the network again.

Setting the Fault Configuration Parameters

When setting parameter C143 [EN Comm Flt Actn] and C144 [EN Idle Flt Actn] to 4 “Send Flt Cfg,” the values in the following parameters are sent to the

drive after a communications fault and/or idle fault for drive control fault occurs. You must set these parameters to values required by your application. Changes to these parameters take effect immediately. A reset is not required.

Parameter Description

C145 [EN Flt Cfg Logic] A 16-bit value sent to the drive for Logic Command. C146 [EN Flt Cfg Ref] A 16-bit REAL (floating point) value sent to the drive for Reference. C157 [EN Data Out 1] through

C160 [EN Data Out 4]

A 16-bit integer value sent to the drive for a Datalink.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 31

Chapter 3 Configuring the Adapter

Resetting the Adapter

Viewing the Adapter Status Using Parameters

Changes to some parameters require that you reset the adapter before the new settings take effect. You can reset the adapter by cycling power to the drive.

The following diagnostic parameters provide information about the status of the adapter. You can view these parameters at any time.

Embedded EtherNet/IP Adapter Diagnostic Parameters

Name Description

F681 [Comm Sts - DSI] Displays the status of the RS485 serial (DSI) port to the drive. F682 [Comm Sts - Opt] Displays the status of the internal communication to the drive. F683 [Com Sts-Emb Enet] Displays the status of the embedded EtherNet/IP interface to the drive. F684 [EN Addr Src] Displays the network configuration source currently used by the embedded

F685 [EN Rate Act] Displays the network data rate currently used by the embedded EtherNet/IP

F686 [DSI I/O Act] Displays the drives that are active in Multi-drive mode. F687 [HW Addr 1] through

F692 [HW Addr 6] F693 [EN IP Addr Act 1] through

F696 [EN IP Addr Act 4] F697 [EN Subnet Act 1] through

F700 [EN Subnet Act 4] F701 [EN Gateway Act 1] through

F704 [EN Gateway Act 4] F705 [Drive 0 Logic Cmd]

F709 [Drive 1 Logic Cmd] F713 [Drive 2 Logic Cmd] F717 [Drive 3 Logic Cmd] F721 [Drive 4 Logic Cmd]

F706 [Drv 0 Reference] F710 [Drv 1 Reference] F714 [Drv 2 Reference] F718 [Drv 3 Reference] F722 [Drv 4 Reference]

F707 [Drv 0 Logic Sts] F711 [Drv 1 Logic Sts] F715 [Drv 2 Logic Sts] F719 [Drv 3 Logic Sts] F723 [Drv 4 Logic Sts]

F708 [Drv 0 Feedback] F712 [Drv 1 Feedback] F716 [Drv 2 Feedback] F720 [Drv 3 Feedback] F724 [Drv 4 Feedback]

F725 [EN Rx Overruns] A count of the number of receive overrun errors reported by the embedded

F726 [EN Rx Packets] A count of the number of receive packets reported by the embedded EtherNet/IP

F727 [EN Rx Errors] A count of the number of receive errors reported by the embedded EtherNet/IP

EtherNet/IP interface.

interface.

Decimal value of each byte in the adapter’s Ethernet hardware address.

Value of each byte in the adapter’s present IP address. A value of “0” appears if the adapter does not currently have an IP address.

Value of each byte in the adapter’s present subnet mask. A value of “0” appears if the adapter does not currently have a subnet mask.

Value of each byte in the adapter’s present gateway address. A value of “0” appears if the adapter does not currently have a gateway address.

In Multi-drive mode, this is the logic command being transmitted to drive 0. In Single-drive mode, this is the logic command being used by the drive (whether

HS-DSI, EtherNet/IP, or DSI) at the time. If comms control is NOT being used, and the drive is in single-drive mode, then this parameter will show 0.

In Multi-drive mode, this is the reference being transmitted to drive 0/1/2/3/4. In Single-drive mode, this is the reference being used by the drive (whether HS-

DSI, EtherNet/IP, or DSI) at the time. If comms control is NOT being used, and the drive is in single-drive mode, then this parameter will show 0.

In Multi-drive mode, this is the logic status being received from drive 0/1/2/3/4. In Single-drive mode, this is the logic status of the drive at the time.

In Multi-drive mode, this is the feedback being received from drive 0/1/2/3/4. In Single-drive mode, this is the feedback of the drive at the time.

EtherNet/IP interface.

interface.

32 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Configuring the Adapter Chapter 3

Embedded EtherNet/IP Adapter Diagnostic Parameters

Name Description

F728 [EN Tx Packets] A count of the number of transmitted packets reported by the embedded EtherNet/

F729 [EN Tx Errors] A count of the number of transmit errors reported by the embedded EtherNet/IP

F730 [EN Missed IO Pkt] The number of I/O packets missed. F731 [DSI Errors] The number of total DSI errors.

IP interface.

interface.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 33

Chapter 3 Configuring the Adapter

Notes:

34 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Chapter 4

Configuring the I/O

This chapter provides instructions on how to configure a CompactLogix controller to communicate with the embedded EtherNet/IP adapter in the PowerFlex 525 drive.

Top ic Pag e

Using RSLinx Classic CompactLogix Example 36 Limitations in Using MicroLogix 1100/1400 58

Using RSLinx Classic

RSLinx Classic, in all its variations (Lite, Gateway, OEM, etc.), is used to provide a communication link between the computer, network, and controller. RSLinx Classic requires its network-specific driver to be configured before communications are established with network devices. To configure the RSLinx driver:

1. Start RSLinx and select Communications > Configure Drivers to display the Configure Drivers window.

2. From the Available Driver Types pull-down box, choose “EtherNet/IP Driver” and then click Add New… to display the Add New RSLinx Driver window.

3. Use the default name or type a name and click OK. The “Configure driver:” window appears.

4. Depending on your application, select either the browse local or remote subnet option, and click OK. The Configure Drivers window reappears with the new driver in the Configured Drivers list.

5. Click Close to close the Configure Drivers window. Keep RSLinx running.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 35

Chapter 4 Configuring the I/O

Esc

Sel

Ethernet switch

IP Address 192.168.1.3

1769-L36ERM CompactLogix controller

with embedded EtherNet/IP bridge

IP Address 192.168.1.4

PowerFlex 525 drive with embedded

EtherNet/IP adapter (Frame A shown)

Computer with Ethernet connection

6. Verify that your computer recognizes the drive. Select Communications > RSWho and, in the menu tree, click the “+” symbol next to the Ethernet

driver.

7. Note that two other RSLinx drivers (Ethernet devices or Remote Devices through Linx Gateway) may be used. Use one of these drivers if the “EtherNet/IP Driver” cannot see your drive.

CompactLogix Example

After the adapter is configured, the drive and adapter will be a single node on the network. This section provides the steps needed to configure a simple EtherNet/ IP network. In our example, we will configure a 1769-L36ERM CompactLogix controller with embedded EtherNet/IP capability to communicate with a drive using Logic Command/Status, Reference/Feedback, and eight Datalinks (four to read and four to write) over the network.

00:00:BC:2E:69:F6

1 (Front)1 (Front)1 (Front) 2 (Rear)

Adding the Controller to the I/O Configuration

To establish communications between the controller and drive over the network, you must first add the CompactLogix controller and its embedded EtherNet/IP bridge to the I/O configuration.

36 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Configuring the I/O Chapter 4

1. Start RSLogix 5000/Logix Designer. The application window appears. Select File > Ne w to display the New Controller window.

Select the appropriate choices for the fields in the window to match your application. Then click OK. The application window reappears with the treeview in the left pane.

Note : If you are using a controller without an embedded EtherNet/IP bridge, you will also need to add the bridge to the I/O configuration. See the user manual for your controller for details.

2. Configure the IP address/Network Settings on your controller or bridge. In this example, the Network Settings are set for a private network.

3. Click OK. The controller is now configured for the EtherNet/IP network. It appears in the I/O Configuration folder. In our example, a 1769-L36ERM controller appears under the I/O Configuration folder with its assigned name.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 37

Chapter 4 Configuring the I/O

There are two ways to add the embedded EtherNet/IP adapter into the I/O configuration:

• Drive Add-On Profiles (RSLogix 5000 version 17.0 or greater, Logix Designer version 21.0 or greater)

• Generic Profile (RSLogix 5000 or Logix Designer, all versions)

These are described in the following separate sections. If your version of RSLogix 5000/Logix Designer supports drive Add-On Profiles, we highly recommend using this method.

Using Drive Add-On Profiles with RSLogix 5000 (version 17.0 or greater) or Logix Designer (version 21.0 or greater)

When compared to using the Generic Profile (all versions), the drive Add-On Profiles provide these advantages:

• Profiles for specific drives that provide descriptive controller tags for basic control I/O words (Logic Command/Status and Reference/Feedback) and Datalinks. Additionally, Datalinks automatically take the name of the drive parameter to which they are assigned. These profiles virtually eliminate I/O mismatch errors and substantially reduce drive configuration time.

• New Drive tab eliminates the need for a separate drive software configuration tool.

• Drive configuration settings are saved as part of the RSLogix 5000/ Logix Designer project file (.ACD) and also downloaded to the controller.

• Unicast connection (RSLogix 5000 version 18.0 or greater, or Logix Designer version 21.0 or greater)

• Drive Add-On Profiles enable I/O to be added online while the controller is in the Run mode.

• Drive Add-On Profiles can be updated anytime. When a new drive is used or to benefit from new updates for Add-On Profiles, you will need the newest Add-On Profile update. Go to

webupdate to download the latest RSLogix 5000/Logix Designer drive

Add-On Profile.

www.ab.com/support/abdrives/

Adding the Drive to the I/O Configuration

To transmit data between the controller and the drive, you must add the drive as a child device to the parent controller. In this example, RSLogix 5000 version 20.0 is used with drive Add-On Profile version 1.01 or later.

38 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Configuring the I/O Chapter 4

TIP

1. In the treeview, right-click on the icon and select New Module… to display the Select Module window. Expand the Drives group

to display all of the available drives with their communication adapters.

If the PowerFlex drive is not shown, go to www.ab.com/support/

abdrives/webupdate and download the latest drive Add-On Profile.

2. In the Select Module Type window, select the drive and its connected adapter from the list. For this example, we selected “PowerFlex 525EENET.” Then click Create. The drive’s New Module window appears.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 39

Chapter 4 Configuring the I/O

3. On the General tab, edit the following data about the drive:

Box Setting

Name A name to identify the drive. Description Optional – description of the drive. IP Address The IP address of the adapter.

4. On the New Module window in the Module Definition section, click Change… to launch the Module Definition window and begin the drive

configuration process.

40 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Configuring the I/O Chapter 4

TIP

5. In the Module Definition window, edit the following information:

You may create a database from a network accessible drive using the

Create Database... button (Recommended).

Box Setting

Drive Rating The voltage and current rating of the drive. If the drive rating is not listed, the drive

Revision The major and minor revision of the firmware (database) in the drive. If the drive’s major

Electronic Keying Compatible Module. The “Compatible Module” setting for Elec tronic Keying ensures the

Input Data Assigns drive or connected peripheral parameters to be READ by the controlle r using

Output Data Assigns drive or connected peripheral parameters to be WRITTEN by the controller using

Mode Select Sets the I/O configuration to either Velocity or Position mode.

database is not installed on your computer. To get the drive rating, use the Create Database…, or Web Update… button described above.

and minor revision is not available, the drive database is not installed on your computer. To get the correct database revision, use one of the following buttons at the bottom left of the Module Definition window:

•Create Database… Creates a database from an online network drive. Clicking this button displays an RSLinx RSWho window. Browse to the online drive (PowerFlex 525), select it, and click OK. The database will be uploaded and stored on the computer. Thereafter, close the Module Definition window and then re-open it to display the new revisio n.

• Web Update… When a drive is not available online, opens the Allen-Bradley Drives Web Updates web site to download a specific database file. After downloading the file, close the Module Definition window and then re-open it to display the new revision.

physical module is consistent with the software configuration before the controller and bridge make a connection. Therefore, ensure that you have set the correct revision in this window. See the online Help for additional information on this and other Electronic Keying settings. If keying is not required, select “Disable Keying.” Drives do not require keying, and so “Disable Keying” is recommended.

When using RSLogix 5000 (version 20.0) or Logix Designer (version 21.0 or greater) and Automatic Device Configuration (ADC) with Firmware Supervisor flash support to store firmware for the drive, always choose “Exact Match.” See the table on details when using ADC.

Datalinks.

page 49

for full

On the Module Definition window, notice that the automatically-assigned controller tags Drive Status, Feedback, Logic Command, and Reference are always used.

When using Datalinks you must still assign parameters C153 [EN Data In 1] through C156 [EN Data In 4] and C157 [EN Data Out 1] through

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 41

Chapter 4 Configuring the I/O

IMPORTANT

C160 [EN Data Out 4] to point to the appropriate drive or connected peripheral parameters. The procedure to configure the Datalinks on the Module Definition window for the Input Data and Output Data is the same:

• Click the button to assign a parameter to each input and output Datalink you require.

Always use the Datalink parameters in consecutive numerical order, starting with the first parameter. (For example, use parameters C157, C158, and C159 to configure three Datalinks to write data and/or parameters C153, C154, C155, and C156 to configure four Datalinks to read data.) Otherwise, the network I/O connection will be larger than necessary, which needlessly increases controller response time and memory usage.

6. Click OK on the Module Definition window to save the drive configuration and close the window. The drive’s New Module window reappears.

7. On the New Module window, click the Connection tab.

8. In the “Requested Packet Interval (RPI)” box, set the value to 5.0

milliseconds or greater. This value determines the maximum interval that a controller should use to move data to and from the adapter. To conserve bandwidth, use higher values for communicating with low priority devices.

The “Inhibit Module” box, when checked, inhibits the module from communicating with the RSLogix 5000/Logix Designer project. When the “Major Fault on …” box is checked, a major controller fault will occur when the module’s connection fails while the controller is in the Run Mode. For this example, leave the “Inhibit Module” and “Major Fault On …” boxes unchecked.

42 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Configuring the I/O Chapter 4

9. Click OK on the New Module window. The new node (“PowerFlex 525-EENET PowerFlex_52X_Drive” in this

example) now appears under the icon in the I/O Configuration folder. If you double-click on the Input Controller Tag (

Controller Input Ta g s on page 43) and Output Controller Tag (Controller Output Tags on page 43), you will see that module-defined data types and tags have been

automatically created. Note that all tag names are defined and Datalinks include the assigned drive parameter name. After you save and download the configuration, these tags allow you to access the Input and Output data of the drive using the controller’s ladder logic.

Controller Input Tags

Controller Output Tags

Saving the I/O Configuration to the Controller

After adding the controller and drive to the I/O configuration, you must download the configuration to the controller. You should also save the configuration to a file on your computer.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 43

Chapter 4 Configuring the I/O

TIP

1. In the RSLogix 5000/Logix Designer window, select Communications > Download. The Download dialog box appears.

If a message box reports that RSLogix 5000/Logix Designer is unable to go online, select Communications > Who Active to find your controller in the Who Active screen. After finding and selecting the controller, click Set Project Path to establish the path. If your controller does not appear, you need to add or configure the EtherNet/ IP driver in RSLinx. See the RSLinx online help.

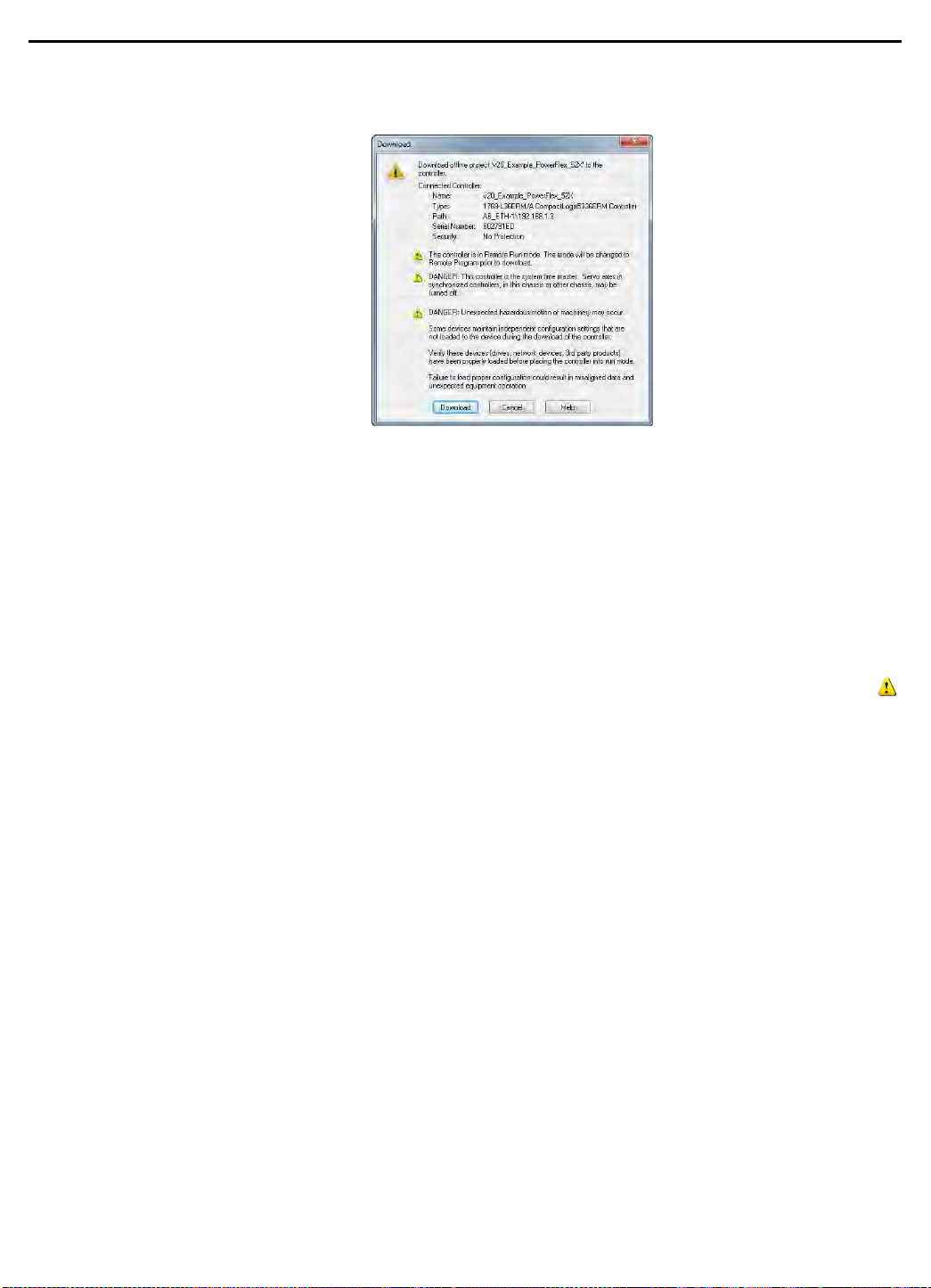

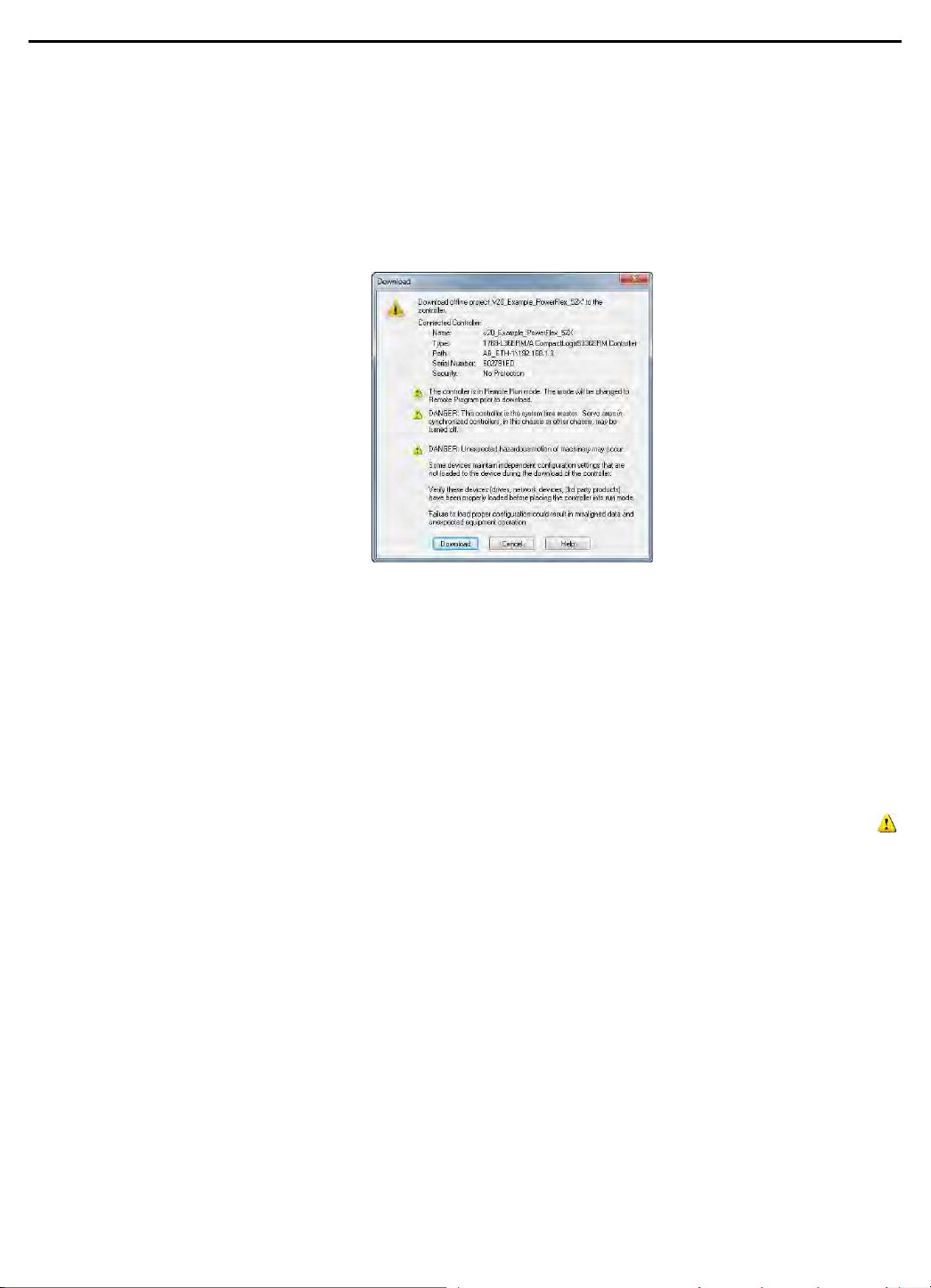

2. Click Download to download the configuration to the controller. When the download is successfully completed, RSLogix 5000/Logix Designer goes into Online Mode and the I/O Not Responding box in the upper-left

of the window should be flashing green. Also, a yellow warning symbol should be displayed on the I/O Configuration folder in the treeview and on the drive profile.

3. If the controller was in Run Mode before clicking Download, RSLogix 5000/Logix Designer prompts you to change the controller mode back to Remote Run. In this case, choose the appropriate mode for your application. If the controller was in Program Mode before clicking

Download, this prompt will not appear.

4. Select File > Save. If this is the first time you saved the project, the Save As

dialog box appears. Navigate to a folder, type a file name, and click Save to save the configuration to a file on your computer.

5. To ensure that the present project configuration values are saved, RSLogix 5000/Logix Designer prompts you to upload them. Click Ye s to upload and save them.

Correlating the Drive with the Controller

You must now correlate the drive settings to the RSLogix 5000/Logix Designer project I/O settings so that they match. This requires loading the project I/O settings into the drive.

44 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Configuring the I/O Chapter 4

TIP

1. In the treeview under I/O Configuration, right-click on the drive profile (for this example “PowerFlex 525-EENET PowerFlex_52X_Drive”) and select Properties.

2. Select the Drive tab to begin the correlation process.

After the drive configuration data has been verified, the Drive tab will display a request to synchronize the configuration with the drive. Click Accept.

Differences Found Screen on page 46 appears—which is typical,

If the click Download. This will download the project settings from the controller to the drive. If Up loa d is clicked, the drive settings are uploaded to the controller.

On subsequent connections to the drive (after the initial download), select Upload.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 45

Chapter 4 Configuring the I/O

Differences Found Screen

3. The Drive tab displays a screen of the drive.

If the download is successful, the Drive tab will show a green indicator in the upper right corner of the window. This tab is extremely useful for configuring drive parameters, accessing start-up wizards and troubleshooting.

4. Click OK to close the Module Properties window for the drive.

Using Automatic Device Configuration (ADC) with RSLogix 5000 (version 20.0) or Logix Designer (version 21.0 or greater)

Automatic Device Configuration (ADC) is an RSLogix 5000 (version 20.0) and Logix Designer (version 21.0 or greater) feature that supports the automatic download of configuration data upon the Logix controller establishing an EtherNet/IP network connection to a PowerFlex 525 drive and its associated peripherals.

46 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Configuring the I/O Chapter 4

IMPORTANT

TIP

IMPORTANT

• ADC is not available for DSI peripherals.

• ADC is not available in Multi-drive mode.

• ADC is only available when the drive is connected using the embedded

EtherNet/IP adapter or future EtherNet/IP DLR adapter to a compatible controller.

An RSLogix 5000 (version 20.0) or Logix Designer (version 21.0 or greater) project (.ACD file) contains the configuration settings for any PowerFlex drives in the project. When the project is downloaded to the Logix controller, these settings are also transferred and reside in the controller’s memory. Prior to ADC in RSLogix 5000 (version 20.0) or Logix Designer (version 21.0 or greater), downloading PowerFlex 525 configuration data was a manual process where the user would open the Drive tab in the respective drive Add-On Profile (AOP) in the application and click on the Download icon. ADC now automates the process and saves the user time. It is particularly beneficial in a drive replacement situation when a production line is down.

Use with Stratix switches (Stratix 5700) to provide dynamic IP address assignment by port. This eliminates the need for the user to manually enter the IP address, Subnet mask, and Gateway address prior to connecting a replacement drive to the Ethernet network.

ADC can also work in tandem with Firmware Super visor. If Firmware Supervisor is set up and enabled for a drive (“Exact Match” keying must be used), the drive/ peripheral will be automatically flashed (if necessary) prior to any ADC operation for that port.

Logix “owns” the configuration of the drive. ADC will be triggered any time the Logix controller detects a configuration signature mismatch when establishing an EtherNet/IP network I/O connection. The use of

other configuration tools, such as a HIM or Connected Components Workbench software should be minimized and restricted to monitor-only operation. Any configuration changes made by these tools will cause a configuration signature mismatch the next time the Logix controller connects to the device and ADC will write over any changes made by the other tool(s). Any drive configuration changes should be made with the drive Add-On Profile.

The drive AOP requires user action to enable ADC. This helps ensure that the user understands ADC operation prior to turning it on. The drive AOPs also have an ADC icon on the Drive tab to show general ADC enable/disable status for the drive:

Icon Meaning

No ports on the drive have ADC enabled.

At least one port on the drive has ADC enabled.

ADC is not supported.

Clicking on the ADC icon will launch the ADC configuration window. This provides a single, convenient location to enable/disable ADC on the drive.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 47

Chapter 4 Configuring the I/O

Configuring a PowerFlex 525 Drive for ADC

ADC is configured within the AOP of the PowerFlex 525 drive. Start by creating or opening a PowerFlex 525 drive in the RSLogix 5000/Logix Designer I/O Configuration folder.

1. In the Module Properties window, select the General tab and click Change… to open the Module Definition window.

2. Select the appropriate Electronic Keying for your application.

48 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Configuring the I/O Chapter 4

TIP

There are three Electronic Keying choices available in the Module Definition window in the drive AOP, but only two are recommended with ADC:

Keying Selection Recommendation

Exact Match This selection should only be used if:

Compatible Module This selection is the typical ADC selection when Firmware Supervisor is not used. A replacement

Disabled When using ADC, this selection should generally not be used. This selection allows a replacement

• Your system design specification requires that a replacement drive/peripheral be identical – down to the Minor revision of firmware (x.xxx).

• You will be implementing Firmware Super visor flash support in addition to ADC. ControlFlash firmware kits for the revision of firmware used for each drive/peripheral must be installed on the PC running RSLogix 5000/Logix Designer. Flash files can be downloaded from:

http://www.ab.com/support/abdrives/webupdate

drive (including peripherals) will need to have the same or hi gher firmware re vision as the original. Since drives with newer firmware are required to be compatible with older firmware, this allows ADC to work without compatibility concerns. Note that if a Series change accompanies a Major firmware change, the replacement drive may or may not be “compatible” with respect to keying.

drive to have any different Major ( x.xxx) and/or Minor (x.xxx) firmware revision. It is up to the user to provide a replacement that has a firmware revision later than or equal to the original drive. If a replacement drive with older firmware is used, the ADC download may fail.

Electronic Keying for HIMs and serial converters are disabled by default. These are typically temporary devices or used for monitoring purposes only and therefore “do not matter” if they are present or not. You still have the option to select these to other Keying selections if desired.

Electronic Keying settings for peripherals can be modified in the Drive tab of the AOP. Select the peripheral tab for the device you wish to modify, then click Properties.

Click OK when finished.

3. Select the Drive tab and click the ADC icon to open the ADC

Settings.

The ADC Settings window provides a single location for ADC configuration of the drive’s ports. Global checkboxes at the top of each column checks or unchecks the entire column. Ports can also be turned on/off individually. See the checkbox selection information in Step 3 for additional details.

Click OK when finished.

4. Perform the above steps for each additional PowerFlex 525 drive.

5. Save your project and download the project to the Logix controller.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 49

Chapter 4 Configuring the I/O

ADC and Logix Memory

Starting in RSLogix 5000 version 16.0, drive configuration settings have been stored in the project's ACD file which is downloaded and stored in the controller. The majority of Logix controllers have megabytes of memory available, so this typically should not be an issue. You can monitor Logix memory usage in the application in the Controller Properties > Memory tab.

Storing the Drive’s and Peripheral’s Firmware in the Logix Controller (Firmware Supervisor)

The Logix Firmware Supervisor function has been extended to provide firmware updates for the peripherals connected to the drive. To configure the controller to check and refresh the correct firmware for the drive and peripherals, perform the following steps:

1. Verify that “Exact Match” keying is selected in the drive’s and peripherals’ properties screens (the drive’s is in the General tab; the peripherals’ are under the Drive tab, after right-clicking on each peripheral and choosing

Proper ties).

2. Verify that ControlFlash firmware kits for each revision of firmware for

each device that should be stored in the controller have been installed on the PC running RSLogix 5000/Logix Designer.

3. Verify that a CompactFlash or other storage card has been installed in the controller.

4. Use RSLogix 5000/Logix Designer to go online with the controller in Program mode. Download your program if you have not done so already.

5. In the treeview, right-click on the controller folder at the top of the Controller Organizer and choose Prop erties. On the Controller Properties window, select the Nonvolatile Memory tab.

50 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Configuring the I/O Chapter 4

IMPORTANT

6. Click Load/Store…. The Nonvolatile Memory Load/Store window appears.

In the Controller section for the Automatic Firmware Update field, select “Enable and Store Files to Image,” and click the <-- Store button. You may see two different continue confirmation dialog boxes relating to communication disruptions and erasure of the current contents of the storage card. If okay, click Ye s on each dialog box.

7. The application will go to the Offline state, and the following dialog box will appear.

Wait a short period of time for the store operation to complete, and then attempt to go online with the controller again.

Monitoring the ADC Progress

The time it takes for the ADC process to complete will vary from seconds to several minutes depending on several factors:

• The number of peripherals enabled for ADC.

• If a configuration signature for the drive/peripheral indicates a

configuration download needs to be performed for the given port.

• Whether Firmware Supervisor is enabled and needs to flash the drive and/ or any peripherals.

ADC can automatically reset the drive as part of the configuration process. This is done because some parameters require a reset before they take effect. If a drive is being replaced with an out-of-the-box drive, you will typically see one or more resets during the ADC process.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 51

Chapter 4 Configuring the I/O

An operational drive in a running Logix system will have the following LED states:

Drive LED State Description

ENET Off Adapter is not connected to the network.

Steady Adapter is connected to the network and drive is controlled through Ethernet. Flashing Adapter is connected to the network but drive is not controlled through Ethernet.

LINK Off Adapter is not connected to the network.

Steady Adapter is conn ected to the network but not transmitting data. Flashing Adapter is connected to the network and transmitting data.

FAULT Flashing Red Indicates drive is faulted

Understanding the Status Indicators

See

on page 109 for more information.

Additional information may also be displayed on the HIM if it is present (flash status, etc.).

If ADC is unsuccessful, RSLogix 5000/Logix Designer can be used to get additional information. When online, the drive at issue should have a yellow

triangle next to it in the RSLogix 5000/Logix Designer project's I/O Configuration folder. Double-click on the drive to open the drive AOP. The Connection tab will show a Module Fault code and the Drive tab can help you identify issues.

ADC Status Field Description

Running Any desired configuration is complete, and the I/O connection is running. Configuring ADC is currently updating the configuration of the drive or one of its peripherals. Clicking

Firmware Updating ADC is currently updating the firmware of the drive or one of its peripherals. Clicking on

Inhibited The program has the connection inhibited. You can uninhibit the connection on the

Faulted A problem is preventing the controller from connecting to the drive (for example, the

on the Connection tab will show which device is being updated.

the Drive tab will show which device is being updated.

Connection tab.

device at the IP address provided is not a PowerFlex 525 drive). Clicking on the Connection tab will show the cause (Module Fault). Clicking on the D rive tab may also show the faulted ports.

Examples of potential issues/solutions are:

Issue Solution

“Compatible module” keying selected, but replacement drive or peripheral has an earlier firmware revision than the failed device.

Peripheral is required for connec tion (“Fail Drive Connection on Peripheral Error” was checked), but it is missing.

Parameter “out of range” error—ADC wrote a value to a parameter that was out of range (typically would only occur during initial commissioning of a drive system).

52 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Replace device with a revision that is later than or equal to the failed device. If necessar y, use ControlFLASH to fla sh replacement device first to an acceptable revision level.

Add required peripheral or remove peripheral from RSLogix 5000/Logix Designer project for the drive and download project to the controller.

Use any available drive software tool to view a linear list of changed parameters to see if the configured value is outside the minimum/maximum value. The drive AOPs are the preferred tool and will highlight any out of range parameter in the Linear List editor. Connected Components Workbench (version 3.0 or later) may also be used.

Configuring the I/O Chapter 4

Using the RSLogix 5000 (version 17.0 or greater) or Logix Designer (version 21.0 or greater) Generic Profile

The basic RSLogix 5000/Logix Designer Generic Profile is only recommended when:

• A specific drive profile in other versions of RSLogix 5000/Logix Designer is unavailable.

• Users are already familiar with a Generic Profile and do not want to convert an existing project to a drive Add-On Profile (RSLogix 5000 version 17.0 or greater and Logix Designer version 21.0 or greater).

• A project must maintain specific revision level control.

• The controller cannot be taken offline. RSLogix 5000 (version 17.0 or

greater) and Logix Designer (version 21.0 or greater) enables the drive Generic Profile to be added while the controller is online and in the Run mode.

Adding the Drive to the I/O Configuration

To transmit data between the bridge and the drive, you must add the drive as a child device to the parent bridge.

1. In the treeview, right-click on the icon and select New Module… to display the Select Module Type window. Expand the

Communications group to display all of the available communication modules or search for “ETHERNET-MODULE”.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 53

Chapter 4 Configuring the I/O

2. Select “ETHERNET-MODULE” from the list in the Select Module Type window to configure the drive’s embedded EtherNet/IP adapter, and then click Create. The drive’s New Module window appears.

3. Edit the following information about the drive:

Box Setting

Name A name to identify the drive. Description Optional – description of the drive. Comm Format Data – INT (This setting formats the data in 16-bit words.) IP Address The IP address of the drive. Open Module

Properties

When this box is checked, clicking OK opens additional module properties screens to further configure the drive. When unchecked, clicking OK closes the drive’s New Module screen. For this example, check this box.

4. Under Connection Parameters, edit the following:

Box Assembly Instance Size

Input 1 (This value is required.) The value will vary based on the total number of [ EN Data

Output 2 (This value is required.) The value will vary based on the total number of [EN Data

Confi guration 6 (This value is required.) 0 (This value is required.)

Out x] parameters used for your application, either in Single-drive mode (see details below) or Multi-drive mode (see

Enter the number of 16-bit words that are required for your I/O in the Input Size and Output Size boxes. Since the adapter always uses the 16-bit

54 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Using Multi-Drive Mode

on page 81).

Configuring the I/O Chapter 4

IMPORTANT

Adapter

Word and I/O

Logic CommandWord 0 ReferenceWord 1 Datalink 1Word 2 Datalink 2Word 3 Datalink 3Word 4 Datalink 4Word 5

Logic StatusWord 2 FeedbackWord 3

Required

Padword

(1)

Word 0

PadwordWord 1

Datalink 1Word 4 Datalink 2Word 5 Datalink 3Word 6 Datalink 4Word 7

Optional

Required

Optional

Output


(Write)

Input


(Read)

(1) Padwords only apply when using the generic profile. Padwords are not used when using the full-featured drive Add-

On-Profile.

Logic Status, 16-bit Feedback, and two 16-bit words dedicated for memory allocation of the Generic Ethernet module profile, at least four 16-bit words must be set for the Input Size. The adapter also uses the 16bit Logic Command and 16-bit Reference, requiring at least two 16-bit words for the Output Size. If any or all of the drive’s eight 16-bit Datalinks are used (see

Configuring a Master-Slave Hierarchy on page 29), the Input

and Output Size settings must be increased accordingly.

Generic Profile Example of I/O Image

For the example below, all four [EN Data Out x] and all four [EN Data In x] parameters are used, resulting in an Input Size of “8” and an Output Size

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 55

of “6.”

5. After setting the information in the drive’s New Module window, click OK. The Module Properties window appears.

The Datalink parameters [EN Data Out x] and [EN Data In x] do not actually contain data. These are user-configurable parameters that only contain the parameter number of the parameter whose data will be made available for write/read in the I/O image. See

Using Datalinks

on page 61.

Chapter 4 Configuring the I/O

6. Click the Connection tab.

7. In the “Requested Packet Interval (RPI)” box, set the value to 5.0

8. Click OK. The new node (“ETHERNET-MODULE_PowerFlex_52X_Drive” in this example) now appears under the icon in the I/O Configuration folder. If you double-click on the Input Controller Tag (

Input Image Controller Ta g s on page 56) and Output Controller Tag (Output Image Controller Ta g s on page 56), you will see that module-defined data types and tags

have been automatically created. After you save and download the configuration, these tags allow you to access the Input and Output data of the drive using the controller’s ladder logic.

Input Image Controller Tags

Output Image Controller Tags

56 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Configuring the I/O Chapter 4

TIP

Saving the I/O Configuration to the Controller

After adding the bridge and drive to the I/O configuration, you must download the configuration to the controller. You should also save the configuration to a file on your computer.

When using RSLogix 5000/Logix Designer, you can add the I/O configuration of a Generic Profile while the controller is online and in the Run mode.

1. In the RSLogix 5000/Logix Designer window, select Communications > Download. The Download dialog box appears.

Using RSLinx Classic

on page 35 for details.

2. Click Download to download the configuration to the controller. When the download is successfully completed, RSLogix 5000/Logix Designer goes into the Online mode and the I/O OK box in the upper-left of the screen should be steady green.

3. Select File > Save. If this is the first time you saved the project, the Save As dialog box appears. Navigate to a folder, type a file name, and click Save to save the configuration to a file on your computer.

4. Any Datalinks that were enabled in the controller and drive during I/O configuration must also be configured in the drive. Each Datalink being used must be assigned to a specific parameter in the drive or connected peripheral (see

Configuring a Master-Slave Hierarchy

on page 29). If this is

not done, the controller will receive or send placeholder data instead of actual drive or peripheral parameter values.

5. Place the controller in Remote Run or Run Mode.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 57

Chapter 4 Configuring the I/O

Limitations in Using MicroLogix 1100/1400

Controlling I/O with explicit messages is relatively complex compared to normal implicit I/O control.

ControlLogix and CompactLogix controllers with EtherNet/IP provide the easiest and most integrated form of implicit I/O control for a PowerFlex drive. RSLogix 5000/Logix Designer programming software for ControlLogix and CompactLogix controllers contains integrated profiles for PowerFlex drives that, with a few clicks of the mouse, automatically create all controller tags and an implicit connection at the specified Requested Packet Interval to control the drive. This connection is monitored at both ends to ensure that the controller and drive are communicating. A watchdog will cause a drive fault if the drive does not respond within approximately 100 milliseconds. Therefore, using a ControlLogix or CompactLogix controller is by far the much preferred method of controlling drives on EtherNet/IP.

If you are not using either of these type of controllers, then PowerFlex drives on EtherNet/IP can be controlled with explicit messages using MicroLogix 1100/1400 controllers with the following limitations:

• An explicit message is a much slower form of control and is nondeterministic. This means that you cannot guarantee how long the drive will take to start up or stop when the command is given. Therefore, all equipment used in this manner should be subject to a risk assessment, taking into account the mechanical and electrical implementation.

• A timeout value (in seconds) in the embedded EtherNet/IP adapter will issue a drive fault if a message is not received from the controller within the specified time. However, the controller has no way of detecting a loss of communications to the drive until the next cycle of explicit messages. This is another factor in the risk assessment.

• Any additional drives to be controlled will require additional explicit messages for their control, and they need to be carefully sequenced. Most controllers have small communication queues (see its User Manual), which need to be carefully managed if messages are not to be lost.

• Each controller has a limited number of communication connections (see its User Manual for maximum connections), which will limit the number of drives that can be connected.

In summary, unlike a ControlLogix or CompactLogix controller, programming a MicroLogix 1100/1400 controller using RSLogix 500 software with explicit messages is more difficult, and produces a more complex program.

58 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Chapter 5

Using the I/O

This chapter provides information and examples that explain how to control, configure, and monitor a PowerFlex 525 drive using the configured I/O.

Top ic Pa ge

About I/O Messaging Understanding the I/O Image 59 Using Logic Command/Status 60 Using Reference/Feedback 61 Using Datalinks 61 Example Ladder Logic Program Information 62 CompactLogix Example 62

About I/O Messaging

Understanding the I/O Image

On CIP-based networks, including EtherNet/IP, I/O connections are used to transfer the data which controls the PowerFlex drive and sets its Reference. I/O can also be used to transfer data to and from Datalinks in PowerFlex 525 drives.

The adapter includes the Logic Command, Logic Status, Reference, Feedback, and memory allocation for the Generic Ethernet module profile (all as 16-bit words) in the controller’s I/O image. This basic I/O must always be configured in the Ethernet bridge using RSLogix 5000/Logix Designer. Additional I/O, if needed, can be set using up to four Datalinks to write data and/or up to four Datalinks to read data. When using any combination of these Datalinks, add one 16-bit word for each Datalink to the basic I/O Input Size and/or Output Size.

Chapter 3

discuss how to configure the adapter and controller on the network for the required I/O. The Glossary defines the different options. This chapter discusses how to use I/O after you have configured the drive and controller.

The terms input and output are defined from the controller’s point of view. Therefore, output I/O is data that is produced by the controller and consumed by the adapter. Input I/O is data that is produced by the adapter and consumed as input by the controller. The I/O image will vary based on:

, Configuring the Adapter, and Chapter 4, Configuring the I/O,

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 59

Chapter 5 Using the I/O

• How many of the drive’s 16-bit Datalinks ([EN Data In 1...4] and [EN Data Out 1...4]) are used.

• ControlLogix/CompactLogix Controllers only—The drive Add-On

Profile (AOP) used in RSLogix 5000 (version 17.0 or greater) or Logix Designer (version 21.0 or greater), or the Generic Profile (all versions).

• If Multi-drive mode is enabled, and the number of daisy-chained drives that are present.

I/O Controller Image

Since the drive Add-On Profile in RSLogix 5000 (version 17.0 or greater) and Logix Designer (version 21.0 or greater) provides descriptive controller tags, the I/O image (tag size and location) is automatically configured based on the drive being used. When using the Generic Profile in RSLogix 5000/Logix Designer, however, controller tags are not descriptive.

I/O Image for PowerFlex 525 Drives on page 60 shows the I/O image when using

all of the 16-bit Datalinks.

Using Logic Command/Status

I/O Image for PowerFlex 525 Drives (16-bit Logic Command/Status, Reference/Feedback, and Datalinks)

INT Output Input Using...

INT Drive Add-On Profile INT Generic Profile

0Logic Command0Logic Status 0Padword 1 Reference 1 Feedback 1 Padword 2 EN Data Out 1 2 EN Data In 1 2 Logic Status 3 EN Data Out 2 3 EN Data In 2 3 Feedback 4 EN Data Out 3 4 EN Data In 3 4 EN Data In 1 5 EN Data Out 4 5 EN Data In 4 5 EN Data In 2

6 EN Data In 3 7 EN Data In 4

The Logic Command is a 16-bit word of control data produced by the controller and consumed by the adapter. The Logic Status is a 16-bit word of status data produced by the adapter and consumed by the controller.

When using a ControlLogix, CompactLogix, or MicroLogix 1100/1400 controller, the Logic Command word is always INT 0 in the output image and the Logic Status word is always:

• INT 0 in the input image when using the drive Add-On Profile.

• INT 2 when using the Generic Profile.

This manual contains the bit definitions for compatible products available at the time of publication in

Appendix D, Logic Command/Status Words: PowerFlex

525 Drives.

60 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Using the I/O Chapter 5

IMPORTANT

Using Reference/Feedback

The Reference is a 16-bit word that is produced by the controller and consumed by the adapter. The Feedback is a 16-bit word produced by the adapter and consumed by the controller.

When using a ControlLogix, CompactLogix, or MicroLogix 1100/1400 controller, the Reference is always INT 1 in the output image (see

PowerFlex 525 Drives on page 60) and the 16-bit Feedback is always:

• INT 1 in the input image when using the drive Add-On Profile.

• INT 3 when using the Generic Profile.

The Reference and Feedback are 16-bit values which represent drive speed in

0.01 Hz.

There are several parameters in the drive that will override the start source and speed reference command if enabled. For details on these parameters, see the PowerFlex 525 drive’s user manual, publication

Attempting to write a negative value to the Speed Reference will result in the drive ramping to maximum speed due to overflow, the direction of the drive can only be controlled programmatically with the appropriate bits (bits 4 and

5) in the Command Word.

520-UM001.

I/O Image for

Using Datalinks

A Datalink is a mechanism used by PowerFlex drives to transfer data to and from the controller. Datalinks allow a drive parameter value to be read or written to without using an Explicit Message. When enabled, each Datalink occupies one 16-bit word in a ControlLogix, CompactLogix, or MicroLogix controller.

The following rules apply when using PowerFlex 525 drive Datalinks:

• Datalinks cannot be used with Multi-drive mode.

• The target of a Datalink can be any parameter, including those of a

peripheral. For example, drive parameter P041 [Accel Time 1] can be the target of the embedded EtherNet/IP adapter and any or all Option Cards installed in the drive.

• The data passed through the drive’s Datalink mechanism is determined by the settings of parameters C157...C160 [EN Data Out 1...4] and parameters C153...C156 [EN Data In 1...4].

• When an I/O connection that includes Datalinks is active, those Datalinks being used are locked and cannot be changed until that I/O connection becomes idle or inactive.

• When you use a Datalink to change a value, the value is NOT written to the Non-Volatile Storage (NVS). The value is stored in volatile memory and lost when the drive loses power. Thus, use Datalinks when you need to change a value of a parameter frequently.

Datalinks for PowerFlex 525 drive peripherals (embedded EtherNet/IP adapter and Option Modules such as a communication module) are locked when the peripheral has an I/O connection with a controller. When a controller has an I/O connection to the drive, the drive does not allow a reset to defaults, configuration

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 61

Chapter 5 Using the I/O

download or anything else that could change the makeup of the I/O connection in a running system. The I/O connection with the controller must first be disabled to allow changes to the respective Datalinks.

Depending on the controller being used, the I/O connection can be disabled by:

• Inhibiting the module in RSLogix 5000/Logix Designer

• Putting the controller in Program mode

• Placing the scanner in idle mode

• Disconnecting the drive from the network

Example Ladder Logic Program Information

CompactLogix Example

The example ladder logic programs in the sections of this chapter are intended for PowerFlex 525 drives.

Functions of the Example Programs

The example programs enable you to:

• Receive Logic Status information from the drive.

• Send a Logic Command to control the drive (for example, start, stop).

• Send a Reference to the drive and receive Feedback from the drive.

• Send/receive Datalink data to/from the drive.

Logic Command/Status Words

These examples use the Logic Command word and Logic Status word for PowerFlex 525 drives. See

PowerFlex 525 Drives to view details.

Appendix D, Logic Command/Status Words:

Creating Ladder Logic Using the RSLogix 5000/Logix Designer Drive Add-On Profiles

Since the drive Add-On Profile automatically created descriptive controller tags (see

Controller Input Tags

I/O image in the drive without creating any ladder logic program. However, if you intend to use Human Machine Interface devices (PanelView, etc.) to operate the drive and view its status, you will need to create descriptive user-defined Program tags (see

CompactLogix Program Tags for Drive Add-On Profile Ladder Logic Program Example on page 63) and a ladder logic program that will pass the Controller tag

data to the Program tags.

62 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Chapter 4

and Controller Output Tags on page 43) for the entire

, you can use these tags to directly control and monitor

Using the I/O Chapter 5

Copy File Source Dest Length

PowerFlex_52X_Drive:I.OutputFreq

Speed_Feedback

COP

PowerFlex_52X_Drive:I.DriveStatus_Ready Status_Ready

PowerFlex_52X_Drive:I.DriveStatus_Active Status_Active

PowerFlex_52X_Drive:I.DriveStatus_ActualDir Status_Forward

PowerFlex_52X_Drive:I.DriveStatus_ActualDir Status_Reverse

PowerFlex_52X_Drive:I.DriveStatus_Faulted Status_Faulted

PowerFlex_52X_Drive:I.DriveStatus_AtReference Status_At_Speed

CompactLogix Program Tags for Drive Add-On Profile Ladder Logic Program Example

An example ladder logic program that uses the automatically-created descriptive Controller tags and passes their data to the user-defined Program tags is shown in

CompactLogix Example Ladder Logic Program Using a Drive Add-On Profile for Logic Status/Feedback on page 63 and CompactLogix Example Ladder Logic Program Using a Drive Add-On Profile for Logic Command/Reference on page 64. Note that the prefix for the drive Controller tags is determined by the

name assigned when configuring the I/O (see

CompactLogix Example Ladder Logic Program Using a Drive Add-On Profile for Logic Status/ Feedback

Chapter 4

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 63

Chapter 5 Using the I/O

Copy File Source Dest Length

Speed_Reference

PowerFlex_52X_Drive:O.FreqCommand

COP

Command_Stop PowerFlex_52X_Drive:O.DriveLogicRslt_Stop

Command_Start PowerFlex_52X_Drive:O.DriveLogicRslt_Star t

Command_Jog PowerFlex_52X_Drive:O.DriveLogicRslt_Jog

Command_Clear_Faults PowerFlex_52X_Drive:O.DriveLogicRslt_ClearFault

Command_Forward_Reverse PowerFlex_52X_Drive:O.DriveLogicRslt_Forward

Command_Forward_Reverse PowerFlex_52X_Drive:O.DriveLogicRslt_Reverse

CompactLogix Example Ladder Logic Program Using a Drive Add-On Profile for Logic Command/ Reference

Creating Ladder Logic Using the RSLogix 5000/Logix Designer Generic Profile

Controller Tags

When you add the drive to the I/O configuration (see RSLogix 5000/Logix Designer automatically creates generic (non-descriptive) controller tags. In this example program, the following controller tags are used.

CompactLogix Controller Tags for Drive Generic Profile Ladder Logic Program Example

Chapter 4),

64 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Using the I/O Chapter 5

Copy File Source Dest Length

PowerFlex_52X_Drive:I.Data[3]

Speed_Feedback

COP

PowerFlex_52X_Drive:I.Data[2].0 Status_Ready

PowerFlex_52X_Drive:I.Data[2].1 Status_Active

PowerFlex_52X_Drive:I.Data[2].3 Status_Forward

PowerFlex_52X_Drive:I.Data[2].3 Status_Reverse

PowerFlex_52X_Drive:I.Data[2].7 Status_Faulted

PowerFlex_52X_Drive:I.Data[2].8 Status_At_Speed

You can expand the Input and Output tags to reveal the input and output configuration (see

CompactLogix Controller Tags for Drive Generic Profile Ladder Logic Program Example on page 64). The Input tag for this example

requires eight16-bit words of data. The Output tag for this example program requires six 16-bit words of data.

Program Tags

To use the Controller tags that are automatically created, you need to create the following Program tags for this example program.

CompactLogix Program Tags for Drive Generic Profile Ladder Logic Program Example

CompactLogix Example Ladder Logic Program Using a Drive Generic Profile for Logic Status/ Feedback

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 65

Chapter 5 Using the I/O

Copy File Source Dest Length

Speed_Reference

PowerFlex_52X_Drive:O.Data[1]

COP

Command_Stop PowerFlex_52X_Drive:O.Data[0].0

Command_Start PowerFlex_52X_Drive:O.Data[0].0

Command_Jog PowerFlex_52X_Drive:O.Data[0].0

Command_Clear_Faults PowerFlex_52X_Drive:O.Data[0].0

Command_Forward_Reverse PowerFlex_52X_Drive:O.Data[0].0

CompactLogix Example Ladder Logic Program Using a Drive Generic Profile for Logic Command/ Reference

66 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Chapter 6

IMPORTANT

Using Explicit Messaging

This chapter provides information and examples that explain how to use Explicit Messaging to configure and monitor the PowerFlex 525 drive and embedded EtherNet/IP adapter.

Top ic Pa ge

About Explicit Messaging Performing Explicit Messaging 68 CompactLogix Examples 68

ATT EN TI ON : Risk of equipment damage exists. If Explicit Messages are programmed to write parameter data to Non-Volatile Storage (NVS) frequently, the NVS will quickly exceed its life cycle and cause the drive to malfunction. Do not create a program that frequently uses Explicit Messages to write parameter data to NVS. Datalinks do not write to NVS and should be used for frequently changed parameters.

ATT EN TI ON : If you need to make frequent parameter changes using Explicit Messages, set parameter C121 [Comm Write Mode] to 1 “RAM only”.

About Explicit Messaging

Chapter 5

See Command/Status, Reference/Feedback, and Datalinks.

Explicit Messaging is used to transfer data that does not require continuous updates. With Explicit Messaging, you can configure and monitor a device’s parameters on the network.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 67

, Using the I/O for information about the I/O Image, using Logic

When an explicit message is performed, by default no connection is made since it is an “unconnected” message. When timing of the message transaction is important, you can create a dedicated message connection between the controller and drive by checking the “Connected” box on the Communications tab message configuration screen during message setup. These message connections are in addition to the I/O connection. However, the trade off for more message connections is decreased network performance. If your application cannot tolerate this, do not check the “Connected” box, which is recommended.

Chapter 6 Using Explicit Messaging

IMPORTANT

➎

➊

➋

➌

➍

Esc

Sel

1 (Front)1 (Front)1 (Front) 2 (Rear)

00:00:BC:2E:69:F6

Complete Explicit Message

Retrieve Explicit Message Response

Set up and send Explicit Message Request

Network

Ethernet switch

TIP

PowerFlex 525 drives have explicit messaging limitations. See Explicit

Messaging Class Code Compatibility with PowerFlex 525 Drives on page 68 for

more information.

Explicit Messaging Class Code Compatibility with PowerFlex 525 Drives

EtherNet/IP Object Class Code Compatibility Explicit Messaging Function

Parameter Object 0x0F Yes Single parameter reads/write DPI Parameter Object 0x93 Yes Single and scattered parameter reads/write

Performing Explicit Messaging

There are five basic events in the Explicit Messaging process. The details of each step will vary depending on the type of controller being used. See the documentation for your controller.

There must be a request message and a response message for all Explicit Messages, whether you are reading or writing data.

Explicit Messaging Process

Event Description

➊ You format the required data and set up the ladder logic program to send an Explicit Message request to the

scanner or bridge module (download).

➋ The scanner or bridge module transmits the Explicit Message Request to the slave device over the network. ➌ The slave device transmits the Explicit Message Response back to the scanner. The data is stored in the

scanner buffer.

➍ The controller retrieves the Explicit Message Response from the scanner’s buffer (upload). ➎ The Explicit Message is complete.

For information on the maximum number of Explicit Messages that can be executed at a time, see the documentation for the bridge or scanner and/or controller that is being used.

CompactLogix Examples

To display the Message Configuration screen in RSLogix 5000/Logix Designer, add a message instruction (MSG), create a new tag for the message

68 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

(Properties: Base tag type, MESSAGE data type, controller scope), and click the

button in the message instruction.

Using Explicit Messaging Chapter 6

IMPORTANT

Execute_Scattered_Read_Message

Message Message Control Scattered_Read_Message

MSG

EN DN ER

For supported classes, instances, and attributes, see

Appendix C, EtherNet/IP

Objects.

The explicit messaging examples in this section can be performed using any firmware version of RSLogix 5000/Logix Designer.

The read and write messaging examples in this section are for Device parameters which use Class Code 0x93.

The Message Configuration has a Service Type of “Parameter Read” which is Class code 0x0F, Parameter Object.

CompactLogix Example Ladder Logic Program to Read a Single Parameter

A Get Attribute Single message is used to read a single parameter. This read message example reads the value of the 16-bit parameter b003 [Output Current] in a PowerFlex 525 drive.

Example Controller Tags to Read a Single Parameter

Operation Controller Tags for Single Read Message Data Types

XIC Execute_Single_Read_Message BOOL MSG Single_Read_Message MESSAGE

Example Ladder Logic to Read a Single Parameter

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 69

Chapter 6 Using Explicit Messaging

CompactLogix – Formatting a Message to Read a Single Parameter

Get Attribute Single Message Configuration Screens

The following table identifies the data that is required in each box to configure a message to read a single parameter.

Configuration Tab Example Value Description

Message Type Service Type Service Code Class Instance Attribute Source Element Source Length Destination

(1)

CIP Generic Get Attribute Single e (Hex.)

(3)

93 3 (Dec.) 9 (Hex.) – 0 bytes Output_Current

(4)

Communication Tab Example Value Description

Path

(2)

PowerFlex_52X_Drive The path is the route that the message will follow.

Tag Ta b Example Value Description

Name Single_Read_Message The name for the message.

(1) The default setting for Service Type is “Custom,” enabling entry of a Service Code not available from the Service Type pull-down

menu. When choosing a Service Type other than “Custom” from the pull- down menu, an appropriate Hex. value is automatically assigned to the Service Code box which is dimmed (unavailable).

(2) Click Browse to find the path, or type in the name of the device listed in the I/O Configuration folder (for this example,

PowerF lex_52 X_Driv e).

Explicit Messaging Class Code Compatibility with PowerFlex 525 Drives on page 68 for limitations of PowerFlex 525 drives when

(3) See

using DPI Parameter Object Class code 0x93 for explicit messaging.

(4) In this example, Output Current is a 16-bit parameter requiring the Data Type field to be set to “INT ” when creating the controller

tag. See the drive documentation to determine the size of the parameter and its data type.

Used to access the DPI Parameter Object in the adapter. This service is used to read a parameter value. Code for the requested service. Class ID for the DPI Parameter Object. Instance number is the same as parameter number. Attribute number for the Parameter Value att ribute. Leave blank (not applicable). Number of bytes of service data to be sent in the message. The tag where the data that is read is stored.

70 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Using Explicit Messaging Chapter 6

Execute_Single_Write_Message

Message Message Control Single_Write_Message

MSG

EN DN ER

CompactLogix Example Ladder Logic Program to Write a Single Parameter

A Set Attribute Single message is used to write to a single parameter. This write message example writes a value to the 16-bit parameter P041 [Accel Time 1] in a PowerFlex 525 drive.

Example Controller Tags to Write a Single Parameter

Operation Controller Tags for Single Write Message Data Types

XIC Execute_Single_Write_Message BOOL MSG Single_Write_Message MESSAGE

Example Ladder Logic to Write a Single Parameter

CompactLogix – Formatting a Messageto Write a Single Parameter

Set Attribute Single Message Configuration Screens

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 71

Chapter 6 Using Explicit Messaging

The following table identifies the data that is required in each box to configure a message to write a single parameter.

Configuration Tab Example Value Description

Message Type Service Type Service Code Class

(2)

Instance

(3)

Attribute Source Element Source Length Destination

(1)

CIP Generic Get Attribute Single 10 (Hex.)

(5)

93 41 (Dec.) 9 or A (Hex.) Accel_Time_1

(6)

2 bytes –

Communication Tab Example Value Description

Path

(4)

PowerFlex_52X_Drive The path is the route that the message will follow.

Tag Ta b Example Value Description

Name Single_Write_Message The name for the message.

(1) The default setting for Service Type is “Custom,” enabling entry of a Service Code not available from the Service Type pull-down

menu. When choosing a Service Type other than “Custom” from the pull- down menu, an appropriate Hex. value is automatically

assigned to the Service Code box which is dimmed (unavailable). (2) The instance is the parameter number in the drive. (3) Setting the Attribute value to “9” will write the parameter value to the drive’s Non-Volatile Storage (EEPROM) memory, so the

parameter value will remain even after the drive is power cycled. Impor tant: When set to “9,” be very cau tious as the EEPROM may

quickly exceed its life cycle and cause the drive to malfunction. Setting the Attribute value to “A” will write the parameter value to

temporary memory, so the parameter value will be lost after the drive is powe r cycled. It is recommended to use the “A” setting

when frequent write messages are required. Important: If you need to make frequent parameter changes using Explicit Messages,

set parameter C121 [Comm Write Mode] to 1 “RAM only”. (4) Click Browse to find the path, or type in the name of the device listed in the I/O Configuration folder (for this example,

PowerF lex_52 X_Driv e). (5) See

Explicit Messaging Class Code Compatibility with PowerFlex 525 Drives on page 68 for limitations of PowerFlex 525 drives when

using DPI Parameter Object Class code 0x93 for explicit messaging. (6) In this example, Accel Time 1 is a 16-bit parameter requiring the Data Type field to be set to “INT” when creating the controller tag.

Also, the Source Length field on the Message Configuration screen must correspond to the selected Data Type in bytes (for example,

2 bytes for an INT). See the drive documentation to determine the size of the parame ter and its data type.

Used to access the DPI Parameter Object in the adapter. This service is used to read a parameter value. Code for the requested service. Class ID for the DPI Parameter Object. Instance number is the same as parameter number. Attribute number for the Parameter Value att ribute. Name of the tag for any service data to be sent from the scanner

or bridge to the drive. Number of bytes of service data to be sent in the message. Leave blank (not applicable).

CompactLogix Example Ladder Logic Program to Read Multiple Parameters

A Scattered Read message is used to read the values of multiple parameters. This read message example reads the values of these five 16-bit parameters in a PowerFlex 525 drive:

• Parameter b001[Output Freq]

• Parameter b003 [Output Current]

• Parameter b004 [Output Voltage]

• Parameter b005 [DC Bus Voltage]

• Parameter b017 [Output Power]

Example Controller Tags to Read Multiple Parameters

Operation Controller Tags for Scattered Read Message Data Types

XIC Execute_Scattered_Read_Message BOOL MSG Scattered_Read_Message MESSAGE

72 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Using Explicit Messaging Chapter 6

Execute_Scattered_Read_Message

Message Message Control Scattered_Read_Message

MSG

EN DN ER

Example Ladder Logic to Read Multiple Parameters

CompactLogix – Formatting a Messageto Read Multiple Parameters

Scattered Read Message Configuration Screens

The following table identifies the data that is required in each box to configure a message to read multiple parameters.

Configuration Tab Example Value Description

Message Type Service Type Service Code Class Instance Attribute Source Element Source Length Destination

Communication Tab Example Value Description

Path

Tag Ta b Example Value Description

Name Scattered_Read_Message The name for the message.

(1) The default setting for Service Type is “Custom,” enabling entry of a Service Code not available from the Service Type pull-down

(2) Click Browse to find the path, or type in the name of the device listed in the I/O Configuration folder (for this example,

(3) See

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 73

(1)

(2)

menu. When choosing a Service Type other than “Custom” from the pull- down menu, an appropriate Hex. value is automatically

assigned to the Service Code box which is dimmed (unavailable).

PowerF lex_52 X_Driv e).

Explicit Messaging Class Code Compatibility with PowerFlex 525 Drives on page 68 for limitations of PowerFlex 525 drives when

using DPI Parameter Object Class code 0x93 for explicit messaging.

CIP Generic Custom 0x32 (Hex.)

(3)

93 0 (Dec.) 0 (Hex.) Scattered_Read_Request

(4)

20 bytes Scattered_Read_Response

Used to access the DPI Parameter Object in the adapter. Required for scattered messages. Code for the requested service. Class ID for the DPI Parameter Object. Required for scattered messages. Required for scattered messages.

(4)

Name of the tag for any service data to be sent from the scanner or bridge to the drive.

(5)

Number of bytes of service data to be sent in the message. The tag where the data that is read is stored.

PowerFlex_52X_Drive The path is the route that the message will follow.

Chapter 6 Using Explicit Messaging

(4) In this example, we are reading five 16-bit parameters. Each parameter being read requires two contiguous INT registers. Therefore,

a controller tag was created with its Data Type field set to “INT[10].” Also, the Source Length field on the Message Configuration

screen must correspond to the selected Data Type in bytes (for this example, 20 bytes for an INT[10] array). Scattered read messages

always assume that every parameter be ing read is a16-bit parameter, regardless of its actual size. Maximum message length is 25 6

bytes which can read up to 6 4 parameters, regardless of their size. (5) The controller tag for “Scattered_Read_Response” must be the same size as the controller tag for “Scattered_Read_Request” (for

this example, 20 bytes), but can be a different data type (for this example, a UDDT to handle conver sions to parameter values that

are a REAL data type).

CompactLogix Example Scattered Read Request Data

In this message example, we use the data structure in Figure 101 in the source tag named Scattered Read Request to read these five 16-bit parameters in a PowerFlex 525 drive:

• Parameter b001 [Output Freq]

• Parameter b003 [Output Current]

• Parameter b004 [Output Voltage]

• Parameter b005 [DC Bus Voltage]

• Parameter b017 [Output Power]

Example Scattered Read Request Data

CompactLogix Example Scattered Read Response Data

The Scattered Read Request message reads the multiple parameters and returns their values to the destination tag (Scattered_Read_Response).

Scattered Read Response Converted Data on page 74 shows the parameter

values.

Example Scattered Read Response Converted Data

In this message example, the parameters have the following values:

PowerFlex 525 Drive Parameters Read Value

b001 [Output Freq] 50.00 Hz b003 [Output Current] 0.01 Amp (No load) b004 [Output Voltage] 179.6V AC b005 [DC Bus Voltage] 349V DC b017 [Output Power] 0 kW (No load)

Example

74 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Using Explicit Messaging Chapter 6

IMPORTANT

Execute_Scattered_Write_Message

Message Message Control Scattered_Write_Message

MSG

EN DN ER

CompactLogix Example Ladder Logic Program to Write Multiple Parameters

A Scattered Write message is used to write to multiple parameters. This write message example writes the following values to these five 16-bit parameters in a PowerFlex 525 drive:

PowerFlex 525 Drive Parameters Write Value

A442 [Accel Time 2] 11.10 Sec A443 [Decel time 2] 22.20 Sec A415 [Preset Freq 5] 33.30 Hz A416 [Preset Freq 6] 44.40 Hz A417 [Preset Freq 7] 55.50 Hz

Example Controller Tags to Write Multiple Parameters

Operation Controller Tags for Scattered Write Message Data Types

XIC Execute_Scattered_Write_Message BOOL MSG Scattered_Write_Message MESSAGE

Example Ladder Logic to Write Multiple Parameters

If the explicit message scattered write must be written continuously, then use a separate explicit message single write for each parameter using DPI Parameter Object Class code 0x93 and attribute A (see

CompactLogix – Formatting a Messageto Write a Single Parameter on page 71). Attribute A

writes to RAM—not NVS (EEPROM) memory. This example scattered write message using attribute 0 writes to NVS. Over time, continuous writes will exceed the EEPROM life cycle and cause the drive to malfunction.

If you need to make frequent parameter changes using Explicit Messages, set parameter C121 [Comm Write Mode] to 1 “RAM only”.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 75

Chapter 6 Using Explicit Messaging

CompactLogix – Formatting a Message to Write Multiple Parameters

Scattered Write Multiple Message Configuration Screens

The following table identifies the data that is required in each box to configure a message to write multiple parameters.

Configuration Tab Example Value Description

Message Type Service Type Service Code

(1)

Class Instance

(2)

Attribute Source Element Source Length Destination

Communication Tab Example Value Description

(3)

Path

Tag Ta b Example Value Description

Name Scattered_Read_Message The name for the message.

(1) The default setting for Service Type is “Custom,” enabling entry of a Service Code not available from the Service Type pull-down

menu. When choosing a Service Type other than “Custom” from the pull- down menu, an appropriate Hex. value is automatically assigned to the Service Code box which is dimmed (unavailable).

(2) Scattered writes always write parameter values to the drive’s Non-Volatile Storage (EEPROM) memory, so these values will remain

even after the drive is power cycled. Important: Be very cautious as the EEPROM may quick ly exce ed its life cycle and cause the drive to malfunction. Important: If you need to make frequent parameter changes using Explicit Messages, set parameter C121 [Comm Write Mode] to 1 “RAM only”.

(3) Click Browse to find the path, or type in the name of the device listed in the I/O Configuration folder (for this example,

PowerF lex_52 X_Driv e).

Explicit Messaging Class Code Compatibility with PowerFlex 525 Drives on page 68 for limitations of PowerFlex 525 drives when

(4) See

using DPI Parameter Object Class code 0x93 for explicit messaging.

(5) In this example, we are writing to five 16-bit parameters. Each parameter being written to requires two contiguous INT registers.

Also, the Source Length field on the Message Configuration screen must correspond to the selected Data Type in bytes (for this example, 20 bytes for an array of ten INTs). Scattered write messages always assume that every parameter being written to is a 16bit parameter, regardless of its actual size. Maximum message length is 256 bytes which can write up to 64parameters, regardless of their size. For parameter numbering, see

CIP Generic Custom 0x34 (Hex.)

(4)

93 0 (Dec.) 0 (Hex.) Scattered_Write_Request

(5)

20 bytes Scattered_Write_Response

(5)

Name of the tag for any service data to be sent from the scanner or bridge to the drive.

(6)

Number of bytes of service data to be sent in the message. The tag where the data that is read is stored.

PowerFlex_52X_Drive The path is the route that the message will follow.

DPI Parameter Object

on page 138 (Class code 0x93).

76 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Using Explicit Messaging Chapter 6

(6) The controller tag for “Scattered_Write_Response” must be the same size as the controller tag for “Scattered_Write_Request” (for

this example, 20 bytes). An array of INTs is suggested to be able to read any error codes that are returned.

CompactLogix Example Scattered Write Request Data

In this message example, we use the source tag (Scattered_Write_Request) to write new values to these 16-bit parameters:

PowerFlex 525 Drive Parameters Write Value

A442 [Accel Time 2] 11.10 Sec A443 [Decel time 2] 22.20 Sec A415 [Preset Freq 5] 33.30 Hz A416 [Preset Freq 6] 44.40 Hz A417 [Preset Freq 7] 55.50 Hz

Example Scattered Write Request Converted Data on page 77 shows the

parameter values.

Example Scattered Write Request Converted Data

CompactLogix Example Scattered Write Response Data

The results of the message appear in the destination tag named Scattered_Write_Response (

Example Scattered Write Response Data

page 77). Values of “0” indicate no errors occurred.

Example Scattered Write Response Data

CompactLogix – Explanation of Request and Response Data for Read/ Write Multiple Messaging

The data structures in

Data Structures for Scattered Write Messages

and and can accommodate up to 64 parameters in a single message. In the Response Message, a parameter number with Bit 15 set indicates that the associated parameter value field contains an error code (parameter number in response data will be negative).

Data Structures for Scattered Read Messages on page 78

on page 79 use 16-bit words

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 77

Chapter 6 Using Explicit Messaging

The PowerFlex 525 Adjustable Frequency AC Drive User Manual, publication

520-UM001

Data Structures for Scattered Read Messages

INT 0 Parameter Number INT 0 Parameter Number 1Pad 1Parameter Value 2 Parameter Number 2 Parameter Number 3Pad 3Parameter Value 4 Parameter Number 4 Parameter Number 5Pad 5Parameter Value 6 Parameter Number 6 Parameter Number 7Pad 7Parameter Value 8 Parameter Number 8 Parameter Number 9Pad 9Parameter Value 10 Parameter Number 10 Parameter Number 11 Pad 11 Parameter Value 12 Parameter Number 12 Parameter Number 13 Pad 13 Parameter Value 14 Parameter Number 14 Parameter Number 15 Pad 15 Parameter Value 16 Parameter Number 16 Parameter Number 17 Pad 17 Parameter Value 18 Parameter Number 18 Parameter Number 19 Pad 19 Parameter Value 20 Parameter Number 20 Parameter Number 21 Pad 21 Parameter Value 22 Parameter Number 22 Parameter Number 23 Pad 23 Parameter Value 24 Parameter Number 24 Parameter Number 25 Pad 25 Parameter Value 26 Parameter Number 26 Parameter Number 27 Pad 27 Parameter Value 28 Parameter Number 28 Parameter Number 29 Pad 29 Parameter Value 30 Parameter Number 30 Parameter Number 31 Pad 31 Parameter Value 32 Parameter Number 32 Parameter Number 33 Pad 33 Parameter Value 34 Parameter Number 34 Parameter Number 35 Pad 35 Parameter Value

...

62 Parameter Number 62 Parameter Number 63 Pad 63 Parameter Value

lists the data type for each parameter.

Request (Source Data) Response (Destination Data)

...

78 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Using Explicit Messaging Chapter 6

Data Structures for Scattered Write Messages

Request (Source Data) Response (Destination Data)

INT 0 Parameter Number INT 0 Parameter Number 1 Parameter Value 1 Pad 2 Parameter Number 2 Parameter Number 3 Parameter Value 3 Pad 4 Parameter Number 4 Parameter Number 5 Parameter Value 5 Pad 6 Parameter Number 6 Parameter Number 7 Parameter Value 7 Pad 8 Parameter Number 8 Parameter Number 9 Parameter Value 9 Pad 10 Parameter Number 10 Parameter Number 11 Parameter Value 11 Pad 12 Parameter Number 12 Parameter Number 13 Parameter Value 13 Pad 14 Parameter Number 14 Parameter Number 15 Parameter Value 15 Pad 16 Parameter Number 16 Parameter Number 17 Parameter Value 17 Pad 18 Parameter Number 18 Parameter Number 19 Parameter Value 19 Pad 20 Parameter Number 20 Parameter Number 21 Parameter Value 21 Pad 22 Parameter Number 22 Parameter Number 23 Parameter Value 23 Pad 24 Parameter Number 24 Parameter Number 25 Parameter Value 25 Pad 26 Parameter Number 26 Parameter Number 27 Parameter Value 27 Pad 28 Parameter Number 28 Parameter Number 29 Parameter Value 29 Pad 30 Parameter Number 30 Parameter Number 31 Parameter Value 31 Pad 32 Parameter Number 32 Parameter Number 33 Parameter Value 33 Pad 34 Parameter Number 34 Parameter Number 35 Parameter Value 35 Pad

...

62 Parameter Number 62 Parameter Number 63 Parameter Value 63 Pad

...

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 79

Chapter 6 Using Explicit Messaging

Notes:

80 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Chapter 7

Esc

Sel

Esc

Sel

Esc

Sel

One drive per node

EtherNet/IP

PowerFlex 525 PowerFlex 525 PowerFlex 525

Using Multi-Drive Mode

This chapter provides instructions on how to configure a CompactLogix controller to use the PowerFlex 525 drive in Multi-drive mode.

Top ic Pag e

Single-Drive Mode vs. Multi-Drive Mode System Wiring 83 Understanding the I/O Image 83 Configuring the RS-485 Network 84 Using Multi-Drive Add-On Profile 85 Multi-Drive Ladder Logic Program for Generic Profile 95 CompactLogix Example Using Generic Profile 97 Multi-Drive Mode Explicit Messaging 105 Additional Information 106

Single-Drive Mode vs. MultiDrive Mode

ATT EN TI ON : Risk of injury or equipment damage exists. The examples in this

publication are intended solely for purposes of example. There are many variables and requirements with any application. Rockwell Automation, Inc. does not assume responsibility or liability (to include intellectual property liability) for actual use of the examples shown in this publication.

Single-drive mode is a typical network installation, where a single EtherNet/IP node consists of a single drive with an EtherNet/IP adapter.

Single-Drive Mode Example for Network

Multi-drive mode is an alternative to the typical network installation, where a single EtherNet/IP node can consist of one to five drives (see

Multi-Drive Mode

Example for Network on page 82). The first drive must be a PowerFlex 525 drive.

The remaining drives can be any PowerFlex drive which supports Multi-drive mode.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 81

Chapter 7 Using Multi-Drive Mode

IMPORTANT

Esc

Sel

Up to 5 drives per node

EtherNet/IP

Up to four daisy-chained PowerFlex drives (PowerFlex 4M s hown)

RS-485 cable

PowerFlex 525 as master drive

AK-U0-RJ45-TB2P connector with

terminating resistor (120 Ω)

AK-U0-RJ45-TB2P connector with

terminating resistor (120 Ω)

AK-U0-RJ45-TB2P

For the examples in the chapter, we will use the PowerFlex 525 as a master drive with four daisy-chained PowerFlex 4M drives.

Multi-Drive Mode Example for Network

Benefits of Multi-drive mode include:

• Lower hardware costs. No need to purchase additional communication adapters for daisy-chained drives.

• Reduces the network node count. For example, in Single-drive mode 30 drives would consume 30 nodes. In Multi-drive mode, 30 drives can be connected in 6 nodes.

• Controller can control, monitor, and read/write parameters for all five drives.

The trade-offs of Multi-drive mode include:

• If the PowerFlex 525 with embedded EtherNet/IP adapter is powered down, then communications with the daisy-chained drives is disrupted and the drives will take the appropriate communications loss action set in each drive.

• Communications throughput to the daisy-chained drives will be slower than if each drive was a separate node on EtherNet/IP (Single-drive mode). This is because the embedded EtherNet/IP adapter must take the EtherNet/IP data for the other drives and sequentially send the respective data to each drive over RS-485. The approximate additional throughput time for Logic Command/Reference to be transmitted and received by each drive is:

Drive Additional Throughput Time

PowerFlex 525 0 ms PowerFlex 525 plus 1 drive +24 ms PowerFlex 525 plus 2 drives +48 ms PowerFlex 525 plus 3 drives +72 ms PowerFlex 525 plus 4 drives +96 ms

versus Single-Drive Mode

82 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Using Multi-Drive Mode Chapter 7

To PowerFlex 525 with embedded EtherNet/IP

To Drive #2 To Drive #3 To Drive #4 To Drive #5

120 Ω, 1/4 W

resistor

120 Ω, 1/4 W

resisto r

• Since the RS-485 ports are used for daisy-chaining the drives, there is no connection for a peripheral device such as a HIM or USB converter module (1203-USB). DSI Splitter cables cannot be used to add a second connection for a peripheral device.

System Wiring

To daisy-chain the drives of the PowerFlex 525, the AK-U0-RJ45-TB2P terminal block connector can be used for easy installation.

The wiring diagram for using AK-U0-RJ45-TB2P terminal block connectors is shown below.

Understanding the I/O Image

The AK-U0-RJ45-TB2P comes with (5) terminal block connectors and (2) terminating resistors.

The terms input and output are defined from the scanner’s point of view. Therefore, Output I/O is data that is output from the scanner and consumed by the EtherNet/IP adapter. Input I/O is status data that is produced by the adapter and consumed as input by the scanner.

The I/O image table will vary based on the configuration of parameters C169 [MultiDrv Sel] and C175 [DSI I/O Cfg]. The image table always uses consecutive words starting at word 0.

Multi-Drive Example of I/O Image on page 84 is an illustration of the

The Multi-drive I/O image with 16-bit words.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 83

Chapter 7 Using Multi-Drive Mode

Multi-Drive Example of I/O Image

Controller

Scanner

Output Image (Write)

Input Image (Read)

EtherNet/IP

Drive 0

Drive 1

Drive 2

Drive 3

Drive 4

Drive 0

Drive 1

Drive 2

Drive 3

Drive 4

Adapter

Wor d and I /O

Word 0

Logic CommandWord 0 ReferenceWord 1 Logic CommandWord 2 ReferenceWord 3 Logic CommandWord 4 ReferenceWord 5

Logic CommandWord 6 ReferenceWord 7

Logic CommandWord 8 ReferenceWord 9

Padword PadwordWord 1

Logic StatusWord 2 FeedbackWord 3 Logic StatusWord 4 FeedbackWord 5 Logic StatusWord 6 FeedbackWord 7

Logic StatusWord 8 FeedbackWord 9

Logic StatusWord 10 FeedbackWord 11

DSI

PowerFlex Drive 0

PowerFlex Drive 1

PowerFlex Drive 2

PowerFlex Drive 3

PowerFlex Drive 4

(1)

PowerFlex Drive 0

PowerFlex Drive 1

PowerFlex Drive 2

PowerFlex Drive 3

PowerFlex Drive 4

Configuring the RS-485 Network

Message Handler

(1) Padwords only apply when using the generic profile. Padwords are not used when using the full-featured drive Add-On-Profile.

Message

Buﬀer

Note: If a daisy-chained drive is disconnected from the RS-485 (DSI) network or powered down, the Logic Status and Feedback words for the affected drive will be set to 0.

The following parameters must be set in the daisy-chained PowerFlex 4M drives and not in the master drive:

Parame ter Value

P106 [Start Source] 5 “Comm Port” P108 [Speed Reference] 5 “Comm Port” C302 [Comm Data Rate] 4 “19.2K” C303 [Comm Node Addr] 1...247 (must be unique) C306 [Comm Format] 0 “RTU-8-N-1”

Note : The RS-485 Multi-drive network is fixed at 19.2K baud rate, 8 data bits, no parity, and 1 stop bit.

84 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Using Multi-Drive Mode Chapter 7

IMPORTANT

Parameters C125 [Comm Loss Action] and C126 [Comm Loss Time] in the daisychained drives are still used in Multi-drive mode. If the RS-485 cable is disconnected or broken, the disconnected drive(s) will take the corresponding Comm Loss Action(s). On the EtherNet/ IP side, parameters C143 [EN Comm Flt Actn] and C144 [EN Idle Flt Actn] determine the action taken for ALL of the drives on the Multi-drive node.

The following Multi-drive parameters must be set in the master PowerFlex 525 drive:

Parame ter Value

P046 [Start Source 1] 5 “EtherNet/IP” P047 [Speed Reference1] 15 “EtherNet/IP” C169 [MultiDrv Sel] 0 “Disabled”

1 “Network Opt” 2 “EtherNet/IP” Note: Drive must be power cycled after setting this

parameter. C171 [Drv 1 Addr] C124 [RS485 Node Addr] in Drive 1 C172 [Drv 2 Addr] C124 [RS485 Node Addr] in Drive 2 C173 [Drv 3 Addr] C124 [RS485 Node Addr] in Drive 3 C174 [Drv 4 Addr] C124 [RS485 Node Addr] in Drive 4 C175 [DSI I/O Cfg] 0 “Drive 0”

1 “Drive 0-1”

2 “Drive 0-2”

3 “Drive 0-3”

4 “Drive 0-4”

Using Multi-Drive Add-On Profile

Parameters can be set using a DSI peripheral (22-HIM-A3 or 22-HIM-C2S) only when parameter C169 [MultiDrv Sel] is set to 0 “Disabled”.

Before using the Multi-drive Add-On Profile, ensure that you have completed the following steps:

• The master and daisy-chained drives are powered, networked, and configured. See

• The RS-485 network is configured. See

System Wiring on page 83.

Configuring the RS-485 Network

on page 84.

• The controller has been added to the I/O configuration. See

Adding the

Controller to the I/O Configuration on page 36.

Adding the Drive to the I/O Configuration

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 85

Chapter 7 Using Multi-Drive Mode

TIP

1. In the treeview, right-click on the icon and select New Module… to display the Select Module window. Expand the Drives group

to display all of the available drives with their communication adapters.

If the PowerFlex drive is not shown, go to www.ab.com/support/

abdrives/webupdate and download the latest drive Add-On Profile.

2. In the Select Module Type window, select the drive and its connected adapter from the list. For this example, we selected “PowerFlex 525EENET-Multi.” Then click Create. The drive’s New Module window appears.

86 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Using Multi-Drive Mode Chapter 7

3. On the General tab, edit the following data about the drive:

Box Setting

Name A name to identify the drive. Description Optional – description of the drive/adapter. IP Address The IP address of the adapter.

4. On the New Module window in the Module Definition section, click Change… to launch the Module Definition window and begin the drive

configuration process.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 87

Chapter 7 Using Multi-Drive Mode

TIP

IMPORTANT

5. In the Module Definition window, edit the following information for the master drive:

You may create a database from a network accessible drive using the

Create Database... button (Recommended).

Box Setting

Drive Rating The voltage and current rating of the drive. If the drive rating is not listed, the drive

Revision The major and minor revision of the firmware (database) in the drive. If the drive’s major

Electronic Keying Compatible Module. The “Compatible Module” setting for Elec tronic Keying ensures the

database is not installed on your computer. To get the drive rating, use the Create Database…, or Web Update… button described above.

•Create Database… Creates a database from an online network multi-drive. Clicking this button displays an RSLinx RSWho window. Browse to the online drive (PowerFlex

525), select it, and click OK. The database will be uploaded and stored on the computer. Thereafter, close the Module Definition window and then re-open it to display the new revisio n.

On the Module Definition window, notice that the automatically-assigned controller tags Drive Status, Feedback, Logic Command, and Reference are always used.

The Velocity/Positioning mode select is in the lower right of the window when the master PowerFlex 525 drive is selected.

88 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Using Multi-Drive Mode Chapter 7

TIP

6. Click Add to select and define each daisy-chained drive:

You may create a database from a network accessible drive using the

Create Database... button (Recommended).

Box Setting

Name A name to identify an individual drive. Description Optional – description of an individual drive. Drive Rating The voltage and current rating of the drive. If the drive rating is not listed, the drive

Revision The major and minor revision of the firmware (database) in the drive. If the drive’s major

Port Por t assig nment for each d rive Electronic Keying Compatible Module. The “Compatible Module” setting for Elec tronic Keying ensures the

Mode Select Sets the I/O configuration to either Velocity or Position mode.

database is not installed on your computer. To get the drive rating, use the Create Database…, or Web Update… button described above.

•Create Database… Creates a database from an online network multi-drive. Clicking this button displays an RSLinx RSWho window. Browse to the online drive (PowerFlex

525), select it, and click OK. The database will be uploaded and stored on the computer. Thereafter, close the Module Definition window and then re-open it to display the new revisio n.

7. Click OK on the Module Definition window to save the drive configuration and close the window. The drive’s New Module window reappears.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 89

Chapter 7 Using Multi-Drive Mode

8. On the New Module window, click the Connection tab.

9. In the “Requested Packet Interval (RPI)” box, set the value to 5.0

10. Click OK on the New Module window. The new node (“PowerFlex 525-EENET-Multi PowerFlex_52X_Drive-

Multi” in this example) now appears under the icon in the I/O Configuration folder. If you double-click on the Input Controller Tag

Controller Input Tags on page 91) and Output Controller Tag

(

Controller Output Tags on page 92), you will see that module-defined

( data types and tags have been automatically created. Note that all tag names are defined for each drive. After you save and download the configuration, these tags allow you to access the Input and Output data of the drives using the controller’s ladder logic.

90 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Controller Input Tags

Using Multi-Drive Mode Chapter 7

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 91

Chapter 7 Using Multi-Drive Mode

Controller Output Tags

92 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Using Multi-Drive Mode Chapter 7

TIP

Saving the I/O Configuration to the Controller

After adding the controller and drives to the I/O configuration, you must download the configuration to the controller. You should also save the configuration to a file on your computer.

1. In the RSLogix 5000/Logix Designer window, select Communications > Download. The Download dialog box appears.

of the window should be flashing green. Also, a yellow warning symbol should be displayed on the I/O Configuration folder in the treeview and on the drive profile.

Download, this prompt will not appear.

4. Select File > Save. If this is the first time you saved the project, the Save As

dialog box appears. Navigate to a folder, type a file name, and click Save to save the configuration to a file on your computer.

5. To ensure that the present project configuration values are saved, RSLogix 5000/Logix Designer prompts you to upload them. Click Ye s to upload and save them.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 93

Chapter 7 Using Multi-Drive Mode

TIP

Correlating the Drive with the Controller

You must now correlate the drive settings to the RSLogix 5000/Logix Designer project I/O settings so that they match. This requires loading the project I/O settings into the drive.

1. In the treeview under I/O Configuration, right-click on the drive profile (for this example “PowerFlex 525-EENET PowerFlex_52X_Drive”) and select Properties.

2. Select the Drive tab to begin the correlation process.

After the drive configuration data has been verified, the Drive tab will display a request to synchronize the configuration with the drive. Click Upl oad . The correlation process will continue. This may take several minutes depending on the number and type of daisy-chained drives.

Differences Found Screen on page 95 appears—which is typical,

If the click Download. This will download the project settings from the controller to the drives. If Upl oad is clicked, the drive settings are uploaded to the controller.

On subsequent connections to the drive (after the initial download), select Upload.

94 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Differences Found Screen

TIP

3. The Drive tab displays a screen of the drive.

Using Multi-Drive Mode Chapter 7

Multi-Drive Ladder Logic Program for Generic Profile

You may now use the automatically generated tags to create your controller logic.

4. Click OK to close the Module Properties window for the drive.

The following is an example of the ladder logic program for the Generic Profile and demonstrates using Multi-drive mode with five drives. See

Mode Example for Network on page 82 for an example of a system layout

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 95

Multi-Drive

Chapter 7 Using Multi-Drive Mode

diagram. If you have not set-up your drive using the Generic Profile, see

Using the RSLogix 5000 (version 17.0 or greater) or Logix Designer (version 21.0 or greater) Generic Profile on page 53 for instructions.

Multi-Drive Example of I/O Image

See

on page 84 for the number of 16-bit

input and output words to use for your application. In this example, the number of input words is 12 and the number of output words is 10.

Function of the Example Program

The example program provided is for the CompactLogix family, but other Logixbased controllers can also be used similarly. This example program enables you to:

• View status information from the drives such as Ready, Fault, At Speed, and Feedback.

• Control the drives using various Logic Command bits (Stop, Start, etc.) and Reference.

• Perform a single parameter read and write for each drive. The example uses PowerFlex 4M drive parameter P109 [Accel Time 1] for both so you can see (read) the change after a write is performed.

The same programming approach can be used with the tags generated by the Multi-drive Add-On Profile. Note that the tags used in this example will be different from those created by the Multi-drive Add-On Profile.

Drive 0 (PowerFlex 525) Settings for the Example Program

• Parameter C169 [MultiDrv Sel] is set to 2 “EtherNet/IP”.

• The following parameters are set:

Parameter Value Description

P046 [Start Source1] 5 “EtherNet/IP” P047 [Speed Reference1] 15 “EtherNet/IP ” C175 [DSI I/O Cfg] 4 “Drive 0-4” (5 drives on 1 node) C171 [Drv 1 Addr] C172 [Drv 2 Addr] 2 Modbus address of Drive 2 C173 [Drv 3 Addr] 3 Modbus address of Drive 3 C174 [Drv 4 Addr] 4 Modbus address of Drive 4

(1) The settings for these parameters must match the node address settings in the respective daisy-chained drives.

(1)

1 Modbus address of Drive 1

96 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Using Multi-Drive Mode Chapter 7

Drive 1...4 (PowerFlex 4M) Settings for the Example Program

The following parameters are set:

Value

Parameter Drive 1 Drive 2 Drive 3 Drive 4

P106 [Start Source] 5555 P108 [Speed Reference] 5 5 5 5 C302 [Comm D ata Rate] 4 4 4 4 C303 [Comm Node Addr] 1 2 3 4 C304 [Co mm Loss Acti on] 0 0 0 0 C305 [Comm Loss Time] 5.0 s 5.0 s 5.0 s 5.0 s C306 [Co mm Format] 0 0 0 0

CompactLogix Example Using Generic Profile

The following common Tags are used:

Tag Name Type Description

PowerFlex_52X_Drive_Multi_Generic:O AB:ETHERNET_MODULE_xxx:O:0 Generic EtherNet/IP PowerFlex_52X_Drive_Multi_Generic:I AB:ETHERNET_MODULE_xxx:I:0 PowerFlex_52X_Drive_Multi_Generic:C AB:ETHERNET_MODULE:C:0 Accel_Time_1 INT – Drive_Input_Image INT [12] Input Image Table Drive_Output_Image INT [10] O utput Image Table

module I/O tags and configuration

The following Tags are used for Drive 0:

Tag Name Type Description

Drive_0_Command_Stop BOOL Logic Command bit 0 (STOP) Drive_0_Command_Start BOOL Logic Command bit 1 (START) Drive_0_Command_Jog BOOL Logic Command bit 2 (JOG) Drive_0_Command_Clear_Faults BOOL Logic Command bit 3 (CLEAR FAULTS) Drive_0_Command_Forward BOOL Logic Command bit 4 (FORWARD) Drive_0_Reference INT Speed Reference Drive_0_Status_Ready B OOL Logic Status bit 0 (READY) Drive_0_Status_Active BOOL Logic Status bit 1 (ACTIVE) Drive_0_Status_Forward BOOL Logic Status bit 2 (FORWARD) Drive_0_S tatus_Faulted BOOL Logic Status bit 7 (FAULT) Drive_0_Status_At_Reference BOOL Logic Status bit 8 (AT SPEED) Drive_0_Feedback INT Speed Feedback Perform_Parameter_Read_0 BOOL Initiates the parameter read Parameter_RD_Value_0 INT Read value of the para meter Parameter_RD_Message_0 MESSAGE Get_Attribute_Single (Read) Perform_Parameter_Write_0 BOOL Initiates the parameter value Parameter_WR_Value_0 IN T Write value to the p arameter Parameter_WR_Message_0 MESSAGE Set_Attritbute_Single (Write)

The same type of Tags are also used for Drive 1 through Drive 4.

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 97

Chapter 7 Using Multi-Drive Mode

PowerFlex 525 EtherNet/IP Multi-Drive Demo

Main Routine

The Main Routine reads the network Input Image from the scanner, calls the various drive control subroutines, and writes the network Output Image to the scanner. See

Main Routine

Main Routine on page 98.

CompactLogix EtherNet/IP Multi-Drive example program with a PowerFlex 525 on EtherNet/IP. Four PowerFlex 4M drives are daisy-chained to the main PowerFlex 525 using their RJ45 ports (RS-485). I n this mode, up to ﬁve PowerFlex drives can exist on one EtherNet/IP node.

This rung retrieves the Logic Status and Feedback data for all ﬁve drives from the scanner (DINTs), and moves it to speciﬁc INT tags for use elsewhere in the ladder program. The input image is as follows:

Drive_Input_Image[2] and Drive_Input_Image[3] = Drive 0 Logic Status and Feedback Drive_Input_Image[4] and Drive_Input_Image[5] = Drive 1 Logic Status and Feedback Drive_Input_Image[6] and Drive_Input_Image[7] = Drive 2 Logic Status and Feedback Drive_Input_Image[8] and Drive_Input_Image[9] = Drive 3 Logic Status and Feedback Drive_Input_Image[10] and Drive_Input_Image[11] = Drive 4 Logic Status and Feedback

Copy File

PowerFlex_52X_Drive_Multi_Generic:I.Data [0]

Source Dest Length

COP

Drive_Input_Image[0]

Drive 0 control subroutine.

Drive 1 control subroutine.

Drive 2 control subroutine.

Drive 3 control subroutine.

Drive 4 control subroutine.

This rung writes the output image to the scanner. The output image is as follows:

Drive_Output_Image[0] and Drive_Output_Image[1] = Drive 0 Logic Command and Reference Drive_Output_Image[2] and Drive_Output_Image[3] = Drive 0 Logic Command and Reference Drive_Output_Image[4] and Drive_Output_Image[5] = Drive 0 Logic Command and Reference Drive_Output_Image[6] and Drive_Output_Image[7] = Drive 0 Logic Command and Reference Drive_Output_Image[8] and Drive_Output_Image[9] = Drive 0 Logic Command and Reference

Copy File Source

PowerFlex_52X_Drive_Multi_Generic:O.Data[0]

Dest Length

Jump To Subroutine Routine Name Drive0

Jump To Subroutine Routine Name Drive1

Jump To Subroutine Routine Name Drive2

Jump To Subroutine Routine Name Drive3

Jump To Subroutine Routine Name Drive4

COP

JSR

Drive_Output_Image[0]

(End)

98 Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013

Using Multi-Drive Mode Chapter 7

Drive 0...4 Control Routines

The following Drive Control routines provide status information (Logic Status and Feedback), control (Logic Command and Reference), and parameter read/ write for each of the respective drives:

Control Routine See page...

Drive 0 Drive 1 101 Drive 2 102 Drive 3 103 Drive 4 104

100

Rockwell Automation Publication 520COM-UM001A-EN-E - February 2013 99

Chapter 7 Using Multi-Drive Mode

Explicit Messaging Example

Drive 0 Control Subroutine

Drive 0 Control Routine

This section takes the data from the input area and moves it to speciﬁc tags (Logic Status bits and Feedback) for use elsewhere in the ladder program.

Drive_Input_Image[2].0 Drive_0_Status_Ready

Drive_Input_Image[2].1 Drive_0_Status_Active

Drive_Input_Image[2].3 Drive_0_Status_Forward

Drive_Input_Image[2].7 Drive_0_Status_Faulted

Drive_Input_Image[2].8 Drive_0_Status_At_Reference

This section takes the data from speciﬁc tags (Logic Command bits and Reference) and moves them to the output image area for transmission to the scanner.

Drive_0_Command_Stop Drive_Output_Image[0].0

Drive_0_Command_Start Drive_Output_Image[0].1

Drive_0_Command_Jog Drive_Output_Image[0].2

Drive_0_Command_Clear_Faults Drive_Output_Image[0].3

Drive_0_Command_Forward Drive_Output_Image[0].4

Drive_0_Command_Forward Drive_Output_Image[0].5

Copy File Source Dest Length

COP

Drive_Input_Image[1]

Drive_0_Feedback

Drive 0 parameters are accessed by referencing the desired parameter number. For example, to access parameter P041 an Instance of 41 is used.

Perform_Parameter_Read_0

Perform_Parameter_Write_0

(End)

Message Message Control Parameter_RD_Message_0

Message Message Control Parameter_WR_Message_0

100 Rockwell Automation Publication 520COM-U M001A-EN-E - February 2013

Copy File Source Dest Length

MSG

COP

Drive_0_Reference

Drive_Output_Image[1]

RET

Return from Subroutine

EN DN ER

Allen-Bradley PowerFlex 525 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
