Allen-Bradley 1734 User Manual

Download

User Manual

1734 POINT I/O EtherNet/IP Adapters

Catalog Number

1734-AENT, Series B

Important User Information

IMPORTANT

Solid-state equipment has operational characteristics differing from those of electromechanical equipment. Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls (publication SGI-1.1 your local Rockwell Automation sales office or online at http://www.rockwellautomation.com/literature/ important differences between solid-state equipment and hard-wired electromechanical devices. Because of this difference, and also because of the wide variety of uses for solid-state equipment, all persons responsible for applying this equipment must satisfy themselves that each intended application of this equipment is acceptable.

In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.

The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for actual use based on the examples and diagrams.

No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software described in this manual.

Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is prohibited.

Throughout this manual, when necessary, we use notes to make you aware of safety considerations.

WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment, which may lead to personal injury or death, property damage, or economic loss.

available from

) describes some

ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence

SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous voltage may be present.

BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may reach dangerous temperatures.

Identifies information that is critical for successful application and understanding of the product.

Allen-Bradley, Rockwell Automation, ArmorPOINT, ControlLogix, Log ix5000, PO INT I/O, R SLinx, RSLogix 5000, Studio 5000, Studio 5000 Automation Engineering & Design Environment, Studio 5000 Logix Designer, and TechConnect are trademarks of Rockwell Automation, Inc.

Trademarks not belonging to Rockwell Automation are property of their respective companies.

Summary of Changes

This manual contains new and updated information. Changes throughout this revision are marked by change bars, as shown to the right of this paragraph.

New and Updated Information

This table contains the changes made to this revision.

Top ic Pa ge

Added Thumbwheel Settings section. 4

Updated Set the Chassis Size section with a new example and information on the different ways you can set the chassis size.

Added Set the Chassis Size by Using the Thumbwheels section. 5

Updated Set the Network Address section with information about how to use a pen tip to set the thumbwheels.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 iii

Summary of Changes

Notes:

iv Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Summary of Changes

Preface

Overview of the 1734 POINT I/O EtherNet/IP Adapter

New and Updated Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

Who Should Use this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix

Purpose of this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix

About the Example Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix

System Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x

Related Documentation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi

Common Techniques Used in this Manual. . . . . . . . . . . . . . . . . . . . . . . . . xii

Studio 5000 Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii

Chapter 1

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Adapter Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

What the Adapter Does . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Physical Features of Your Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Hardware/Software Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Important Adapter Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Thumbwheel Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Set the Chassis Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Adapter Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Empty Slots and RIUP Situations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Power Up a System for the First Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Use of the Common Industrial Protocol (CIP) . . . . . . . . . . . . . . . . . . . . . . . 8

Understand the Producer/Consumer Model . . . . . . . . . . . . . . . . . . . . . . . . . 9

Specify the Requested Packet Interval (RPI) . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Support for Rack-optimization, Enhanced Rack-optimization, and Direct

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Mixing Rack-optimization, Enhanced Rack-optimization, and Direct

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Determine Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Understand Messaging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Configure Autobaud. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Chapter Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Chapter 2

Install Your 1734 POINT I/O EtherNet/IP Adapter

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 v

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Mount the POINT I/O Adapter on a DIN Rail. . . . . . . . . . . . . . . . . 14

Install POINT I/O Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Remove POINT I/O Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Replace An Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Wire the Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Wire a POINT I/O Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Table of Contents

Chapter Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Chapter 3

Configure the Adapter with RSLogix 5000 or Logix Designer

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Configuration Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Software

Set the Network Address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Use the Rockwell BootP/DHCP Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Use DHCP Software to Configure Your Adapter . . . . . . . . . . . . . . . . . . . 29

Chapter Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Chapter 4

Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Set Up the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Create the Example Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Configure the I/O Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Add the POINT I/O Adapter to the I/O Configuration. . . . . . . . . . . . . 38

Edit the Controller Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Create the Ladder Program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Download the Program to the Controller. . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Verify the Module Chassis Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Configure the Adapter with Fixed IP Address. . . . . . . . . . . . . . . . . . . . . . . 52

Recover From an Overloaded Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Chapter Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Gateway Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Subnet Mask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Set the Network Address for POINT I/O Adapters . . . . . . . . . . . . . 24

Save the Relation List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Add the Local EtherNet/IP Bridge to the I/O Configuration. . . . . 35

Add the POINT I/O Modules to the I/O Configuration . . . . . . . . 41

Chapter 5

Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software

vi Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Set Up the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Set Up the POINT I/O Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Create the Example Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Configure the I/O Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Add the Local EtherNet/IP Bridge to the I/O Configuration. . . . . 58

Add the POINT I/O Adapter to the I/O Configuration. . . . . . . . . . . . . 61

Add the POINT I/O Modules and Configure for Rack-optimization

Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Table of Contents

Add the POINT I/O Modules and Configure for Enhanced Rack-

optimization Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Add the POINT I/O Module and Configure For Direct Connection

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Download the Program to the Controller . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Verify the Module Chassis Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Access Module Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Chapter Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Chapter 6

Troubleshoot the Adapter

Specifications

Adapter Web Dialogs

Interpret the Status Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Status Indicators for POINT I/O Adapters. . . . . . . . . . . . . . . . . . . . . 82

Appendix A

General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

EtherNet Communication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Appendix B

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Work with the Home Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Work with the Diagnostics Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Use the Diagnostic Overview Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Use the Network Settings Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Use the Ethernet Statistics Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Use the I/O Connections Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Use the Advanced Diagnostics Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Work with the Configuration Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Use the Identity Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Use the Network Configuration Page . . . . . . . . . . . . . . . . . . . . . . . . . 103

Use the Services Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Work with the Browse Chassis Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Appendix C

Configure the RSLinx Ethernet Communication Driver

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 vii

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Install the RSLinx Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Configure the AB_ETH Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Configure the AB_ETHIP Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

Table of Contents

Index

viii Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Preface

Read this preface to familiarize yourself with the rest of the manual. It provides information concerning:

• who should use this manual

• the purpose of this manual

• related documentation

• conventions used in this manual

Who Should Use this Manual

Purpose of this Manual

Use this manual if you are responsible for designing, installing, programming, or

™

troubleshooting control systems that use series B 1734 POINT I/O EtherNet/IP Adapter modules.

This manual is a reference guide for the 1734-AENT/B POINT I/O EtherNet/IP Adapter, a communications adapter for POINT I/O modules. It describes the procedures you use to install, wire, configure, troubleshoot, and use your adapter module.

ATTENTION: You must only use series C and above POINT I/O modules with 1734-AENT EtherNet/IP Adapters. Series A or series B POINT I/O modules do not work with 1734-AENT EtherNet/IP Adapters (does not apply to POINTGuard modules).

About the Example Applications

This manual presents two example applications that demonstrate the procedures for configuring and communicating with POINT I/O modules using the 1734-AENT/B adapter. We intend the example applications as building blocks to help you get your own system up and running. We recommend that you set up and run the example applications and use them as guides.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 ix

Preface

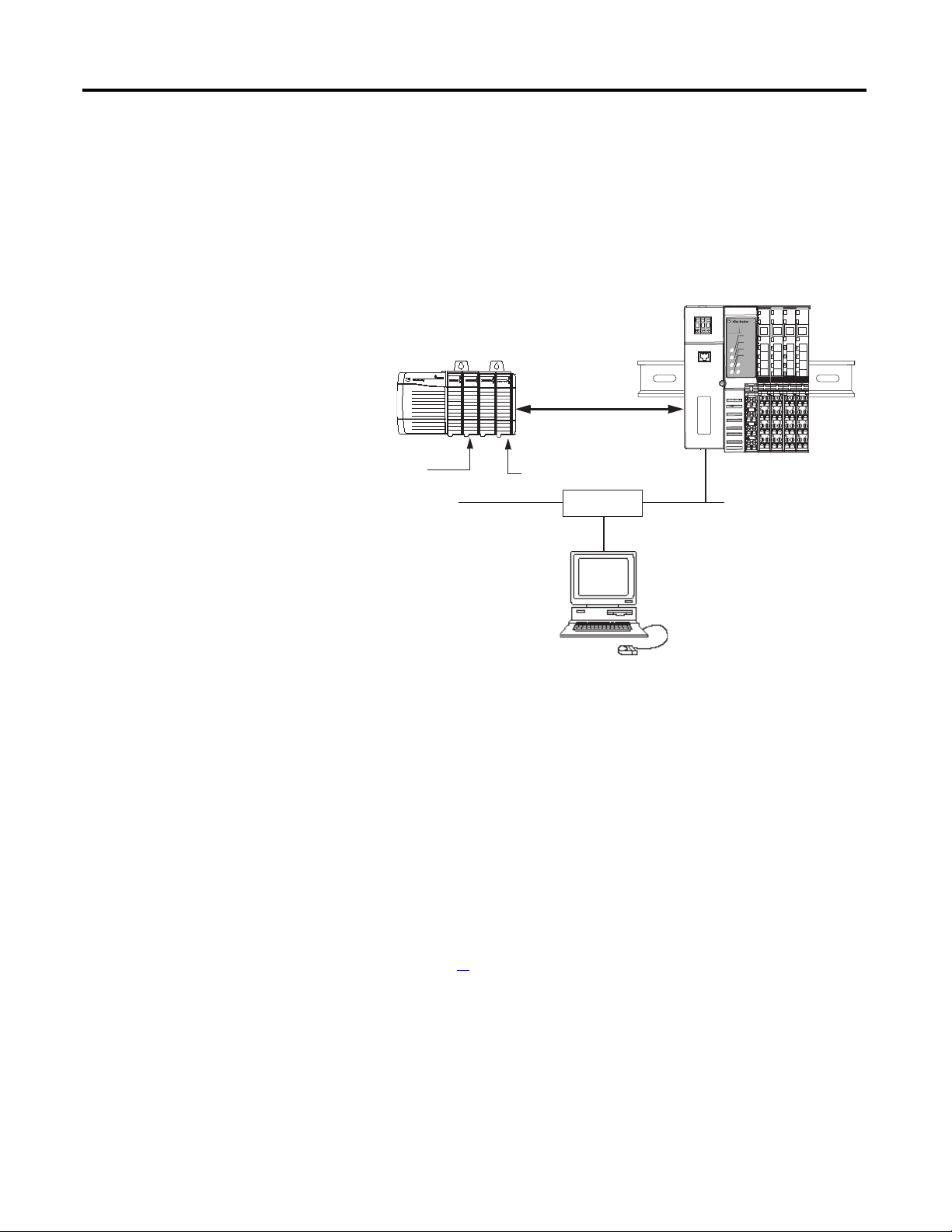

31393

Local chassis

POINT I/O

L63 controller (slot 1)

1756-ENBT

10.88.70.4 (slot 3)

Data

Switch

10.88.70.26

Programming terminal

Slot 0 1 2 3

1734-AENT

10.88.70.2

Slot 0 1 2 3 4

1734-AENT Series B

Module Status

Network Activity

Network Status

Point Bus Status

System Power

Field Power

POINT I O

IP ADDRESS

Here is the type of system you’ll be setting up.

System Components

We used the following components for the example applications. You need the same or similar components to set up your own control system using POINT I/O modules on an EtherNet/IP network.

Quantity Product Name Catalog Number

Hardware

1 POINT I/O EtherNet/IP adapter 1734-AENT

1 POINT I/O 24V DC sink output module 1734-OV4E/C

1 POINT I/O relay output module 1734-OW2/C

1 DIN rail 199-DR1 or equivalent

1 ControlLogix® chassis 1756-A4 (or 1756-A7, 1756-A13,1756-A17)

x Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

1 ControlLogix power supply 1756-PA72 (or 1756-PB72)

1 L63 controller 1756-L63

1 ControlLogix EtherNet/IP bridge module 1756-ENBT

1 Personal computer that supports

1 Ethernet switch Refer to manufacturer’s specifications

1 24V DC power supply 1734-EP24DC

RSLogix 5000® software

Any appropriate model running Windows NT

4.0, Service Pack 6A or higher

Associated media and connectors as needed

Software

RSLinx communications software,

version 2.31.00 or later

9355-WAB, 9355-WABOEM, 9355-WABC

Quantity Product Name Catalog Number

1 RSLogix 5000 programming

software, version 17 or later

Thumbwheel Settings

You can set the thumbwheels on the adapter to perform different functions. Refer to the following table to see the valid thumbwheel settings and the corresponding function.

Setting Function

001...254 Sets the network address.

801...864 Sets the chassis size.

888 Restores default factory settings.

Refer to Set the Network Address on page 24 for more information.

Refer to Set the Chassis Size by Using the Thumbwheels on page 5 information.

for more

If the thumbwheels are set to an invalid number, the adapter checks to see if DHCP is enabled. If DHCP is enabled, the adapter requests an address from a DHCP server. The DHCP server also assigns other Transport Control Protocol (TCP) parameters.

Set the Chassis Size

The I/O adapters for EtherNet/IP require configuration of their chassis size before you can make any I/O connections. The factory default setting for the chassis size is one slot, which represents the adapter by itself.

You must set the chassis size to a number equaling one slot for the adapter plus one slot for each I/O module present in the backplane of the adapter.

4 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Overview of the 1734 POINT I/O EtherNet/IP Adapter Chapter 1

1734-AENT Series B

Module Status

Network Activity

Network Status

Point Bus Status

System Power

Field Power

POINT I O

IP ADDRESS

Four I/O modules

One adapter

Chassis size = 5

For example, if your system consists of one adapter and four I/O modules, set the chassis size to 5.

The adapter stores this chassis size setting in non-volatile memory.

Each time the adapter is powered up, the adapter compares the number of I/O modules present on its backplane to the chassis size value from non-volatile memory. The adapter does not allow any I/O connection until the number of I/O modules present equals the chassis size value minus one for the adapter itself.

You can set the chassis size by using the following:

Tool Description

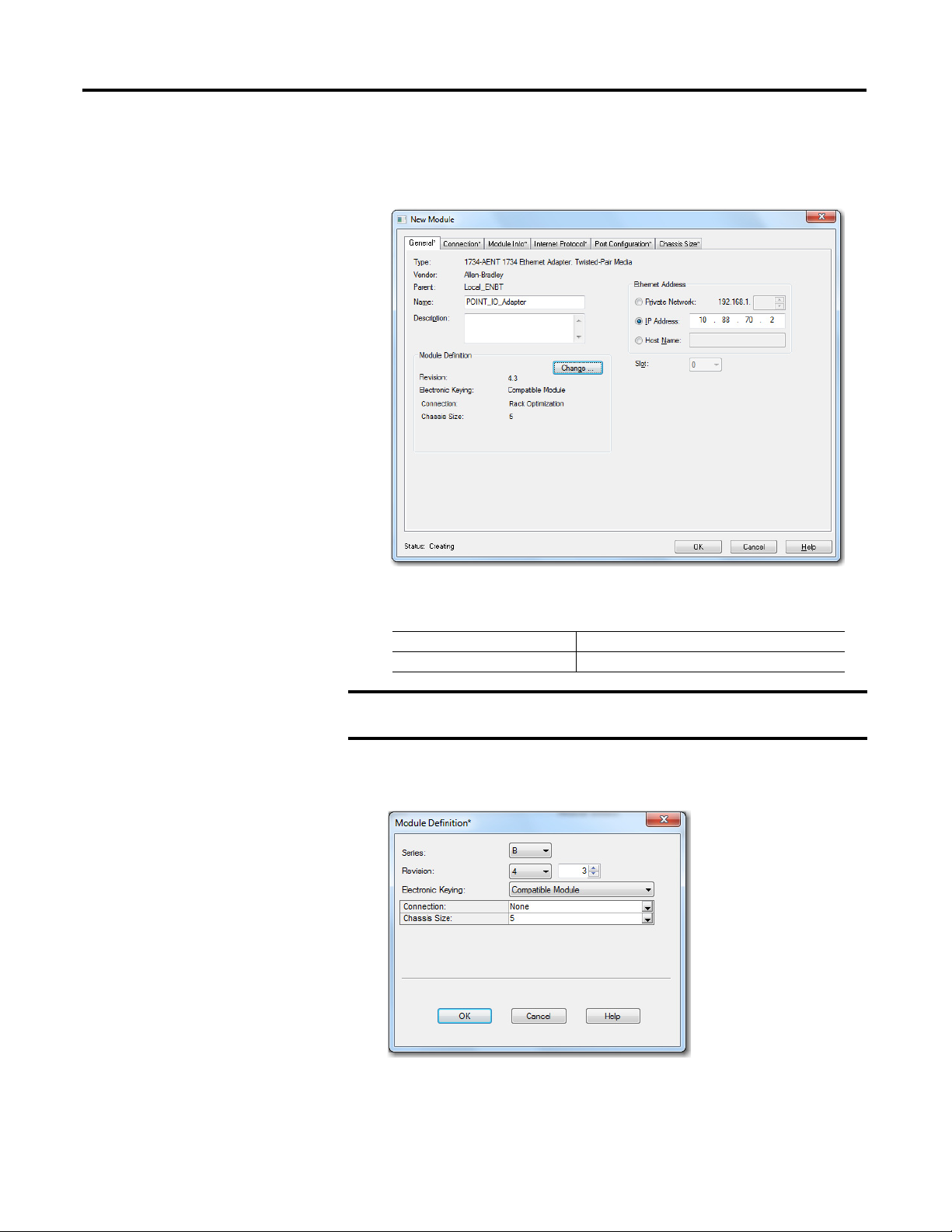

Studio 5000 Logix Designer application Addon Profile

Refer to Add the POINT I/O Adapter to the I/O

Configuration on page 38 and Verify the Module Chassis Size on page 49 for more information.

RSLinx Classic software, version 2.56 or later Log on to http://www.rockwellautomation.com/

knowledgebase and search for information on

changing or configuring the chassis size of POINT I/O adapters.

Web dialog Refer to for Use the Identity Page on page 102

information.

Thumbwheels (Firmware revision 5.015 or later)

Refer to Set the Chassis Size by Using the

Thumbwheels on page 5 for more information.

Set the Chassis Size by Using the Thumbwheels

For firmware revision 5.015 or later, you can set the chassis size without a computer by using the thumbwheels on the adapter.

1. Make sure that the adapter is not powered.

2. Set the thumbwheels to 8xx where xx is the chassis size value from 01...64.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 5

Chapter 1 Overview of the 1734 POINT I/O EtherNet/IP Adapter

TIP

For example, set the thumbwheels to 802 to set the chassis size to 2, 803 to set the chassis size to 3, and so on up to 864 to set the chassis size to 64.

3. Power up the adapter.

4. Observe the status indicators.

The following table describes the status indicators of the adapter when the adapter is powered up while the thumbwheels are set a value from

801...864:

Indicator Status

Module Status Flashing red Network Activity Off Network Status Off POINTBus Status The POINTBus Status indicator flashes red initially and then either

Press a pen tip into the center and perpendicular to the + or the - button to change the number. You only need a small amount of force to press the button (approximately 2N).

changes to solid green or continues to flash red depending on the connection result.

• Solid green – if the configured chassis size and number of physical

nodes present match

• Flashing red – if the configured chassis size and number of physical

nodes present do not match

Note: Communication on all Ethernet ports are disabled while the thumbwheels are set to 8xx.

5. If the POINTBus Status indicator changes to solid green, skip to Step 9.

6. If the POINTBus Status indicator continues to flash red, determine the

cause of the error.

The cause of error may be one of the following:

Error Action

Chassis size mismatch

Module fault Refer to the installation instructions publication for the affected module

Make sure that the chassis size value matches the total number of the adapter plus the I/O modules.

For example, if you have 1 adapter and 10 I/O modules, then the chassis size is 11. Therefore, the thumbwheels must be set to 811.

for information on how to interpret its status indicators.

7. Remove power from the adapter and then address the error accordingly.

8. Once you have addressed the error, repeat Steps 1...5.

9. Once you have set the chassis size by using the thumbwheels, remove power

from the adapter and then set the thumbwheels according to the IP address setting that you need.

6 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Overview of the 1734 POINT I/O EtherNet/IP Adapter Chapter 1

For more information, see Set the Network Address for POINT I/O

Adapters on page 24.

Adapter Replacement

Note that during a connection request from the controller, the chassis size setting is not communicated to the adapter. You must always set this chassis size using a separate operation. This includes situations when you are replacing an adapter. The adapter does not allow any I/O connections until it is configured with the appropriate chassis size and the proper number of POINT I/O modules are present.

Empty Slots and RIUP Situations

The POINT I/O system cannot detect an empty terminal base. For this reason, there are numerous situations in which you can potentially configure a system that is unusable or one that exercises unintended control.

In an attempt to address these situations, you must observe the following rules for I/O system construction and the

removal and reinsertion of modules.

• A correct I/O system does not have any empty terminal bases.

• After you cycle power, the adapter will not allow any I/O connections

until the number of modules comprising the chassis plus one for the adapter equals the stored chassis size.

– It cannot assume any safe operation until there is a match between the

number of modules indicating their presence in the chassis and what the adapter has saved in non-volatile memory because it cannot detect empty terminal bases.

– Actual module identification (such as, electronic keying) is done when

connection establishment requests are received from the controller or controllers.

• A POINT I/O module removed under power does not disrupt operation of the other I/O modules. On the other hand, ArmorPOINT I/O modules are not intended to be removed under power.

– When you remove a module, the adapter detects what changed. – Whenever you remove a module with an active connection from the

POINT I/O system, the adapter indicates this by flashing the POINTBus Status LED red and reports a minor recoverable fault.

• If more than one contiguous module is removed under power, connections to all modules in the contiguous missing module set are disallowed until all modules are replaced. Because the adapter cannot detect an empty base, it does not know the physical positioning of the modules until all the missing modules are replaced.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 7

Chapter 1 Overview of the 1734 POINT I/O EtherNet/IP Adapter

• If a module separating two sets of contiguous missing modules is removed, the two sets merge into a single set. All the modules must be replaced before connections are permitted to any module in the set.

• If modules of different types are removed and returned to the wrong locations, attempts to connect to these modules will fail during verification of the electronic ID (providing that keying has not been disabled).

• If modules of the same type are removed and returned to the wrong locations, they accept connections from the controller or controllers and reconfigure with the correct data once they pass their electronic keying check.

• These removal and return situations exist whether the system is under power or not. If the system is under power, the situation arises immediately. If the system is not under power, the situation arises in the next power cycle.

Power Up a System for the First Time

Use of the Common Industrial Protocol (CIP)

When you power the I/O for the first time, the adapter must assign slot addresses to every module in the backplane. All I/O modules ship configured at the same address.

When you first apply power, we expect that all but one module on the backplane exhibits a solid red Module Status LED.

One by one the adapter resets these modules and addresses them appropriately. The amount of time that this operation takes is proportional to the size of your I/ O system.

The adapter uses the Common Industrial Protocol (CIP). CIP is the application layer protocol specified for EtherNet/IP, the Ethernet Industrial Protocol, as well as for ControlNet and DeviceNet networks. It is a message-based protocol that implements a relative path to send a message from the producing device in a system to the consuming devices.

The producing device contains the path information that steers the message along the proper route to reach its consumers. Since the producing device holds this information, other devices along the path simply pass this information; they do not store it.

This has the following significant benefits:

• You do not need to configure routing tables in the bridging modules, which greatly simplifies maintenance and module replacement.

• You maintain full control over the route taken by each message, which enables you to select alternative paths for the same end device.

8 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Overview of the 1734 POINT I/O EtherNet/IP Adapter Chapter 1

Understand the Producer/ Consumer Model

Specify the Requested Packet Interval (RPI)

The CIP producer and consumer networking model replaces the old source and destination (master and slave) model. The producer and consumer model reduces network traffic and increases speed of transmission. In traditional I/O systems, controllers poll input modules to obtain their input status. In the CIP system, input modules are not polled by a controller. Instead, they produce (multicast or unicast) their data either upon a change of state (COS) or periodically.

Multicast is the default mode for version 17 Logix and earlier controllers and unicast is the default for version 18 with multicast as a selectable option.

The frequency of update depends upon the options chosen during configuration and where on the network the input module resides. The input module, therefore, is a producer of input data, and the controller is a consumer of the data.

The controller also produces data for other controllers to consume. The produced and consumed data is accessible by multiple controllers and other devices over the EtherNet/IP network. This data exchange conforms to the producer and consumer model.

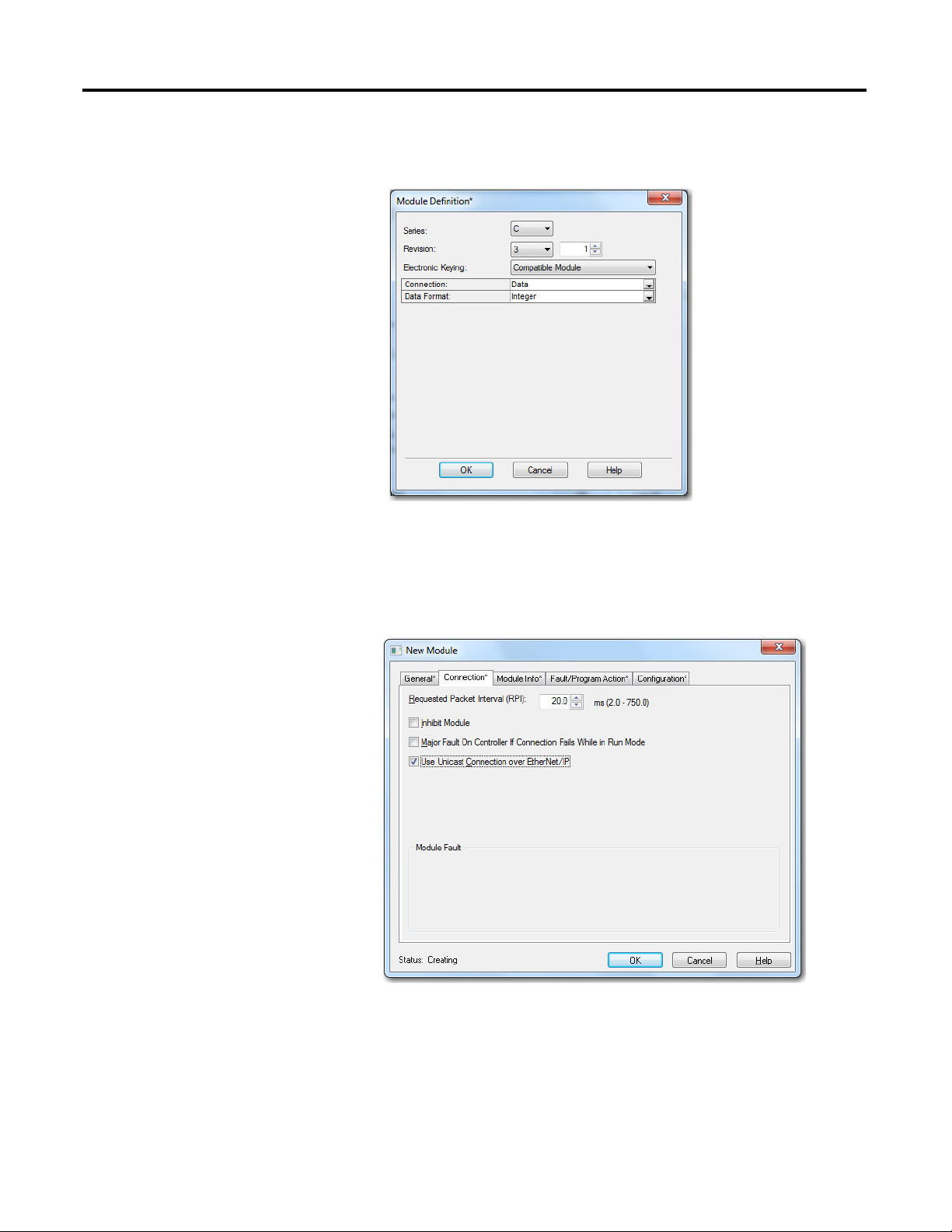

The Requested Packet Interval or RPI is the update rate specified for a particular piece of data on the network. The RPI can be specified for the adapter and include all of the I/O modules in the I/O system (using a rack-optimization or enhanced rack-optimization connection) or specified for a particular module (using direct connection).

Support for Rackoptimization, Enhanced Rack-optimization, and Direct Connections

When you add a module or an adapter to the I/O configuration of a controller, you must enter the RPI as a parameter. This value specifies how often to produce the data for that device. For example, if you specify an RPI of 50 ms, it means that every 50 ms the device should send its data to the controller and the controller should send the consumed (output) data to the device.

Use RPIs only for devices that exchange data. For example, a ControlLogix EtherNet/IP bridge module in the same chassis as the controller does not require an RPI, because it is not a data-producing member of the system. Its use is only as a bridge to remote racks.

The I/O adapters supports direct, rack-optimization, and enhanced rackoptimization connections. A direct connection is a real-time data transfer link between the controller and the module occupying the slot that the configuration data references.

Direct I/O connections occur at a cyclic rate specified by the RPI during configuration. A rack-optimization connection is a grouping of data from one or more digital I/O modules into a single block of data sent over a single connection at the same data rate.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 9

Chapter 1 Overview of the 1734 POINT I/O EtherNet/IP Adapter

IMPORTANT

Analog, safety, and specialty modules cannot participate in the rack-optimization connection; these modules require an enhanced rack-optimization or direct I/O connection.

Enhanced rack-optimization connections reduce the total number of connections needed to transfer data when using many digital and analog, or specialty modules in a system.

Rack-optimization connections reduce the total number of connections needed to transfer data when using many digital I/O modules in a system. The following example illustrates the benefit of rack-optimization connections.

Assume you set up a system that contains eight digital I/O modules interfaced to an adapter. If you use direct connections to transfer data to each of the these I/O modules, you need eight connections to transfer all of the data, one to each of the eight I/O modules. If you use a rack-optimization connection to transfer the data, you only need a single connection – the connection to the I/O adapter.

Although rack-optimization and enhanced rack-optimization connections offer an efficient way to use resources, there are a few limitations on their use:

• You can use only rack-optimization or enhanced rack-optimization connections to send data to and from digital I/O modules.

• Safety modules, IO link modules, and third-party I/O modules can not participate in enhanced rack-optimization connections.

• Enhanced rack-optimization does not support a listen only connection. Do not use enhanced rack-optimization if your application requires a connection for monitoring.

• All data is sent at the same time as the RPI rate of the I/O adapters. If the update rate required for a digital module is different from the RPI of the rack-optimization or enhanced rack-optimization connection, a direct connection to that I/O module is required.

See the EtherNet/IP Embedded Switch Technology Application Guide, publication ENET-AP005

, for more information on connections.

Mixing Rack-optimization, Enhanced Rack-optimization, and Direct Connections

You can mix communication formats for different I/O modules communicating through the same adapter. I/O modules set up to use rack optimization or enhanced rack-optimization communicate at the rate of the RPI configured for the adapter. I/O modules configured for direct communication communicate at their own individual RPIs and ignore the rack-optimization RPI.

10 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Overview of the 1734 POINT I/O EtherNet/IP Adapter Chapter 1

Before You Begin

To effectively use your adapter, note the following considerations.

Determine Compatibility

If using the adapter with a 1756-ENBT module or 1768-ENBT module, use the following required firmware revisions for these bridge modules:

• 1756-ENBT firmware revision 4.006 or later

• 1768-ENBT firmware revision 2.003 or later

Understand Messaging

Class 3 (Explicit Message) requests through the 1734-AENT adapter to a specific POINT I/O module may not always receive a response from the I/O modules. In the case where the I/O module does not reply to the request, the adapter responds with an error code indicating a timeout.

Configure Autobaud

Chapter Summary

The adapter cannot reconfigure an I/O module that you previously configured to operate at a fixed communication rate. When you reuse a POINT I/O module from another POINT I/O system, configure the module to autobaud before using it with the adapter.

In this chapter, you were introduced to the features of the POINT I/O Adapter, and considerations for its installation and usage.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 11

Chapter 1 Overview of the 1734 POINT I/O EtherNet/IP Adapter

Notes:

12 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Chapter

Install Your 1734 POINT I/O EtherNet/IP Adapter

Overview

This chapter describes how to physically install the POINT I/O Series B EtherNet/IP adapter; and how to connect the adapter to your EtherNet/IP network. The only tools you require are a flat or Phillips head screwdriver and a drill.

This chapter includes the following topics:

Topic Page

Mount the POINT I/O Adapter on a DIN Rail 14 Install POINT I/O Modules 15 Replace An Adapter 16 Wire a POINT I/O Adapter 17 Chapter Summary 18

ATTENTION: You must only use Series C and above POINT I/O modules with POINT I/O Adapters. Series A or Series B POINT I/O modules do not work with POINT I/O Adapters (does not apply to POINTGuard modules).

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 13

Chapter 2 Install Your 1734 POINT I/O EtherNet/IP Adapter

45174

A = DIN rail B = Secure DIN rail approximately every 200 mm (7.8 in.)

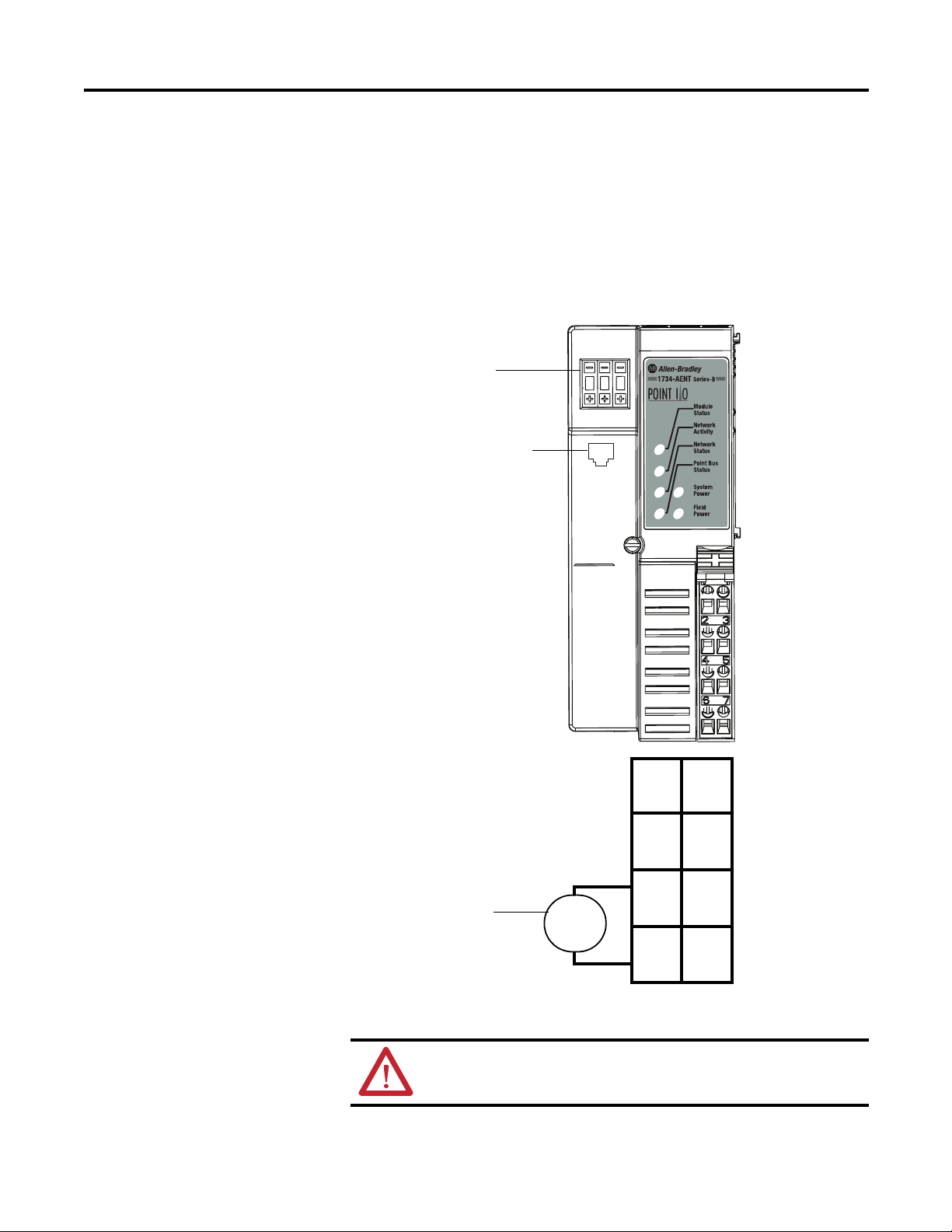

Mount the POINT I/O Adapter on a DIN Rail

1. Make sure the DIN rail locking screw (orange) is in horizontal position.

2. Position the adapter vertically above an IEC standard (35 x 7.5 x 1 mm)

top-hat DIN rail at a slight angle (DIN rail: Allen-Bradley part number

199-DR1; 46277-3).

3. Press down firmly to install the adapter on the DIN rail, noting that the

locking mechanism locks the adapter to the DIN rail.

4. Set the network address thumbwheel switches to the desired value. See Set

the Network Address in chapter 3 for details on setting the IP address.

5. Slide the safety end cap up to remove it, exposing the backplane and power interconnections.

ATTENTION: Allow 25.4 mm (1.0 in.) of space between adjacent equipment for adequate ventilation.

74.00

(2.91)

75.30 (2.96)

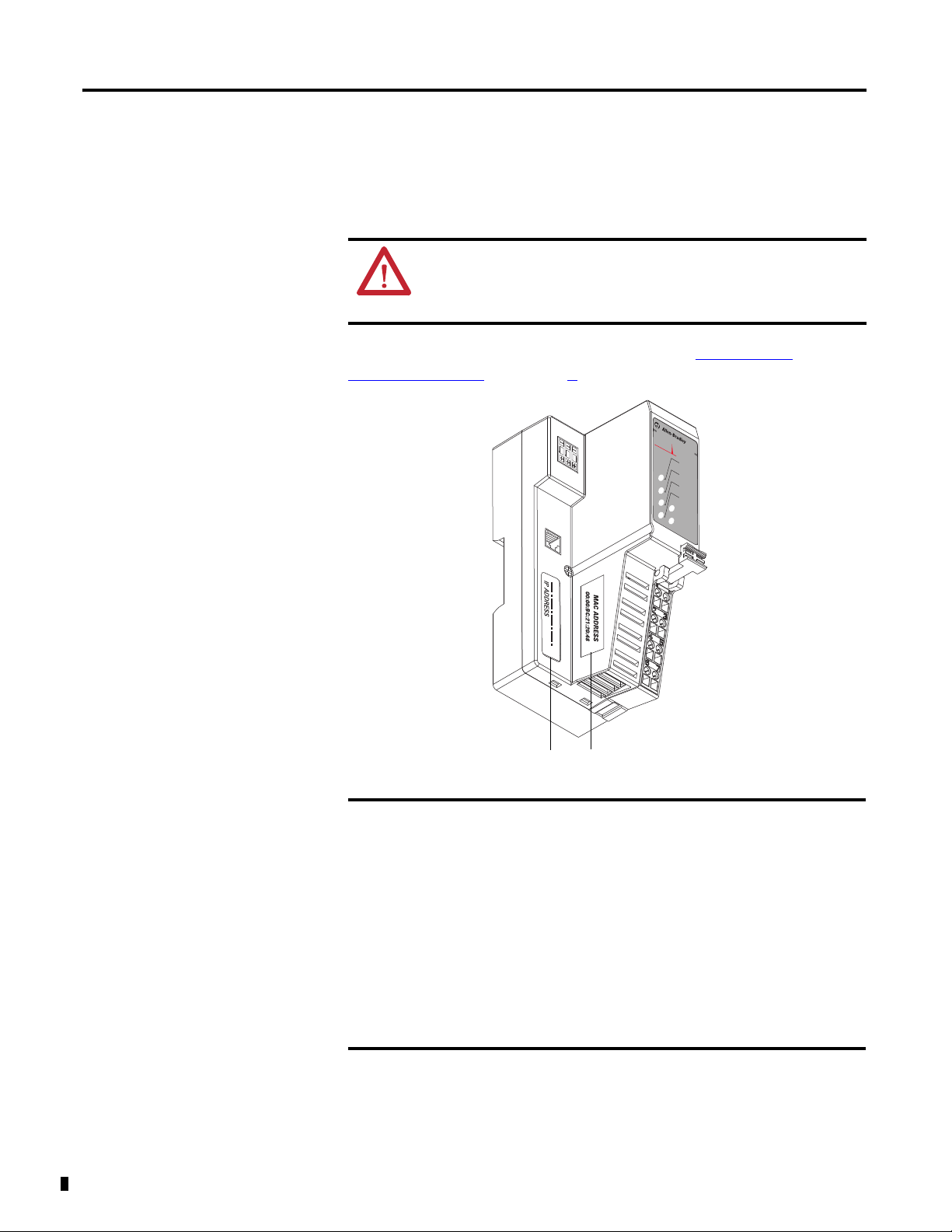

1734-AENT Series B

POINT I O

Module Status

Network Activity

Network Status

Point Bus Status

System Power

Field Po

52.23 (2.06)

35.55 (1.40)

132.72 (5.23)

WARNING: If you connect or disconnect the communications cable with power applied to this module or any device on the network, an electrical arc can occur. This could cause an explosion in hazardous location installations.

Be sure that power is removed or the area is nonhazardous before proceeding.

ATTENTION: Do not remove or replace an Adapter Module while power is applied. Interruption of the backplane can result in unintentional operation or machine motion.

14 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Install Your 1734 POINT I/O EtherNet/IP Adapter Chapter 2

Install POINT I/O Modules

The following instructions explain how to install your POINT I/O Modules onto the DIN rail.

1. Position the mounting base vertically above the DIN rail.

2. Make certain the adapter DIN rail locking screw (orange) is in the

horizontal position.

3. Slide the I/O module mounting base down, allowing the interlocking side pieces to engage the adjacent mounting base/adapter.

4. Press down firmly to install the I/O module mounting base on the DIN rail. A locking mechanism locks the mounting base to the DIN rail.

5. Rotate the keyswitch on the I/O module mounting base clockwise until the appropriate number for the module you are installing (listed on the module label) aligns with the correct notch in the base.

6. Position the I/O module vertically above its mounting base.

7. Slide the module down until it engages the latching mechanism. You will

hear a clicking sound when the I/O module is properly engaged. The locking mechanism locks the module to its mounting base.

Remove POINT I/O Modules

To remove a module from its mounting base:

1. Put a flat-blade screwdriver into the slot of the orange latching mechanism in the mounting base of the I/O module to be removed.

2. Push the screwdriver toward the I/O module to disengage the latch. The module lifts up off the mounting base.

3. Pull the module off the mounting base.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 15

Chapter 2 Install Your 1734 POINT I/O EtherNet/IP Adapter

Replace An Adapter

Use these procedures to install a replacement POINT I/O adapter to an existing system.

1. Disconnect the Ethernet connector(s) from the adapter.

2. Pull up on the Removable Terminal Block (RTB) handle to remove the

terminal block.

3. Remove the adjacent module from its mounting base.

4. Use a small bladed screwdriver to rotate the DIN rail locking screw

(orange) to a vertical position. This releases the locking mechanism.

5. Lift the adapter straight up to remove.

6. Slide the safety end cap up to remove it, which exposes the backplane and

power connections.

ATTENTION: Do not discard the end cap. Use this end cap to cover the exposed interconnections on the last mounting base on the DIN rail. Failure to do so could result in equipment damage or injury from electric shock.

WARNING: When you insert or remove the module while backplane power is on, an electrical arc can occur. This could cause an explosion in hazardous location installations.

Be sure that power is removed or the area is nonhazardous before proceeding. Repeated electrical arcing causes excessive wear to contacts on both the module and its mating connector. Worn contacts may create electrical resistance that can affect module operation.

7. Position the replacement adapter vertically above the DIN rail, making certain the DIN rail locking screw (orange) is in the horizontal position.

8. Slide the adapter down, allowing the interlocking side pieces to engage the adjacent module.

9. Press firmly to seat the adapter on the DIN rail, noting that the adapter locking mechanism will snap into place.

10. Set the network address on the network address thumbwheel.

11. Insert the end of the Removable Terminal Block opposite the handle into

the Removable Terminal Block base unit, noting that this end has a curved section that engages with the base unit.

12. Rotate the Removable Terminal Block into the wiring base until it locks into place.

13. Replace the adjacent module in its mounting base.

14. Reconnect the Ethernet cable(s) to the adapter.

15. Set the IP Address for this module (see Set the Network Address

chapter 3

16. Configure the adapter’s chassis size.

16 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Install Your 1734 POINT I/O EtherNet/IP Adapter Chapter 2

Chas

RJ45 EtherNet/IP Connector

43264

Network address thumbwheels

NC = No Connection Chas Gnd = Chassis Ground C = Common V = Supply

This DC supply connects to the internal power bus.

Chas Gnd

V DC

Wire the Adapter

The POINT I/O adapter uses RJ45 EtherNet/IP connectors for its EtherNet/ IP connection. Connect the cord set you selected for your module to the appropriate port.

Wire a POINT I/O Adapter

Refer to the following illustration to wire the adapter.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 17

ATTENTION: Do not connect 120/240V AC power to this supply. This

DC supply will be connected to the internal power bus.

Chapter 2 Install Your 1734 POINT I/O EtherNet/IP Adapter

ATT ENTI ON: Do not wire more than two conductors on any single

terminal.

WARNING: When you connect or disconnect the Removable Terminal Block (RTB) with field side power applied, an electrical arc can occur. This could cause an explosion in hazardous location installations.

Be sure that power is removed or the area is nonhazardous before proceeding.

WARNING: When used in a Class I, Division 2, hazardous location, this equipment must be mounted in a suitable enclosure with proper wiring method that complies with the governing electrical codes.

ATTENTION: This product is grounded through the DIN rail to chassis ground. Use zinc plated yellow-chromate steel DIN rail to assure proper grounding. The use of other DIN rail materials (for example, aluminum or plastic) that can corrode, oxidize, or are poor conductors, can result in improper or intermittent grounding. Secure DIN rail to mounting surface approximately every 200 mm (7.8 in.) and use end-anchors appropriately.

Chapter Summary

WARNING: To comply with the CE Low Voltage Directive (LVD), this

equipment must be powered from a source compliant with the following:

Safety Extra Low Voltage (SELV) or Protected Extra Low Voltage (PELV).

In this chapter, you learned how to install and wire your POINT I/O adapter module. The following chapter describes how to configure your POINT I/O adapter module to communicate on the EtherNet/IP network by providing an IP address, gateway address, and Subnet mask.

18 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Chapter

Configure the Adapter with RSLogix 5000 or Logix Designer Software

Introduction

This chapter guides you through the steps required to configure your modules

(1)

using the RSLogix 5000 or Logix Designer presented in this chapter can be configured using RSLogix 5000 software, version 17, or later.

Before using your adapter in an EtherNet/IP network, you need to configure it with an IP address, subnet mask, and optional Gateway address. This chapter describes these configuration requirements and the procedures for providing them. Here are ways you can do this:

• Use the Rockwell BootP/DHCP utility, version 2.3 or later, that ships with RSLogix 5000 or RSLinx software.

– You can also use this utility to reconfigure a device with an IP address

you must change.

• Use a

• Use the Network Address thumbwheel switches.

• Have your network administrator configure the adapter via the network

See the table for where to find information in this chapter.

Topic Page

Configuration Requirements IP Address 21 Gateway Address 22 Subnet Mask 23 Set the Network Address 24 Set the Network Address for POINT I/O Adapters 24 Use the Rockwell BootP/DHCP Utility 25 Save the Relation List 28 Use DHCP Software to Configure Your Adapter 29 Chapter Summary 29

third party DHCP server.

DHCP server.

software. Note that the modules

(1) From version 21 onwards, RSLogix 5000 is known as Logix Designer.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 19

Chapter 3 Configure the Adapter with RSLogix 5000 or Logix Designer Software

IMPORTANT

IP address

Ethernet address (MAC)

43519

Configuration Requirements

Before you can use your adapter, you must configure its IP address, its subnet mask, and, optionally, a gateway address. You can use the Rockwell BootP/ DHCP utility, version 2.3 or later, to perform the

configuration. You can also use

a DHCP server or the network address switches to configure these parameters.

If you need to reset the adapter to factory defaults, see Work with the

Configuration Pages in Appendix B.

1734-AENT Series B

POINT I O

Module Status

Network Activity

Network Status

Point Bus Status

System Power

Field Power

If you set the thumbwheels on the adapter to the value 888 and then power cycle the module, the following will occur.

· The DHCP Enabled function is enabled (set to True).

· The Ethernet link is negotiated automatically (the Auto Negotiate

function will be set to True).

· The web server is enabled (the Disabled Web Server function is

disabled).

· The password for this page resets to the factory default (the word

password is the factory default password).

Note the value of the switches before you enter the 888 value, because you return the adapter to those values once this process is complete.

20 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter with RSLogix 5000 or Logix Designer Software Chapter 3

IMPORTANT

Class A

Class B

Class C

Network ID

Host ID

0 0

0 10

0 110

15 16

3123 24

Network ID

EXAMPLE

If using the BootP/DHCP utility, you need to know the Ethernet hardware address of your adapter. Rockwell Automation assigns each 1734-AENT adapter a unique 48-bit hardware address at the factory. The address is printed on a label on the side of your 1734-AENT adapter as shown in the figure. It consists of six hexadecimal digits separated by colons. This address is fixed by the hardware and cannot be changed.

If you change or replace the 1734-AENT adapter, you must enter the new Ethernet hardware address of the adapter when you configure the new adapter.

IP Address

The IP address identifies each node on the IP network (or system of connected networks). Each TCP/IP node on a network (including the adapter) must have a unique IP address.

The IP address is 32 bits long and has a Network ID part and Host ID part. Networks are classified A, B, C, (or other). The class of the network determines how an IP address is formatted

You can distinguish the class of the IP address from the first integer in its dotteddecimal IP address as follows:

Range of first integer Class Range of first integer Class

0 1…127 A 192…223 C 128…191 B 224… 255 other

Each node on the same physical network must have an IP address of the same class and must have the same network ID. Each node on the same network must have a different Host ID thus giving it a unique IP address.

IP addresses are written as four decimal integers (0…255) separated by periods where each integer gives the value of one byte of the IP address

For example, the 32-bit IP address:

10000000 00000001 00000000 00000001 is written as

128.1.0.1

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 21

Chapter 3 Configure the Adapter with RSLogix 5000 or Logix Designer Software

Network 1

Network 2

128.1.0.1

128.2.0.1 128.2.0.2 128.2.0.3

128.1.0.2

Gateway Address

This section applies to multi-network systems. If you have a single network system, refer to the next section.

The Gateway Address is the default address of a network. It provides a single domain name and point of entry to the site. Gateways connect individual physical networks into a system of networks.

When a node needs to communicate with a node on another network, a gateway transfers the data between the two networks. The figure shows gateway G connecting Network 1 with Network 2.

When host B with IP address 128.2.0.1 communicates with host C, it knows from C’s IP address that C is on the same network. in an Ethernet environment, B can then resolve C’s IP address into a hardware address (MAC address) and communicate with C directly.

When host B communicates with host A, it knows from A’s IP address that A is on another network (the network IDs are different). In order to send data to A, B must use the IP address of the gateway connecting the two networks. In this example, the gateway’s IP address on Network 2 is 128.2.0.3.

The gateway has two IP addresses (128.1.0.2 and 128.2.0.3). The first must be used by hosts on Network 1 and the second must be used by hosts on Network 2. To be usable, a gateway of a host must be addressed using a network ID matching its own.

22 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter with RSLogix 5000 or Logix Designer Software Chapter 3

EXAMPLE

These two bits of the Host ID are used to extend the network ID.

Network 1

Network 2.1

Network 2.2

128.1.0.2

128.1.0.1

128.2.64.3

128.2.128.2

128.2.64.1 128.2.64.2

128.2.128.3

128.2.128.1

Subnet Mask

The subnet mask is used for splitting IP networks into a series of subgroups, or subnets. The mask is a binary pattern that is matched up with the IP address to turn part of the Host ID address field into a field for subnets

Take Network 2 (a Class B network) in the previous example and add another physical network. Selecting the following subnet mask would add two additional network ID bits, allowing for four physical networks: 11111111 11111111 11

000000 00000000 = 255.255.192.0

Two bits of the Class B host ID are used to extend the network ID. Each unique combination of bits in the part of the Host ID where subnet mask bits are 1 specifies a different physical network.

The new configuration is:

A second network with Hosts D and E was added. Gateway G2 connects Network 2.1 with Network 2.2.

Hosts D and E will use Gateway G2 to communicate with hosts not on Network 2.2.

Hosts B and C will use Gateway G to communicate with hosts not on Network 2.1.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 23

When B is communicating with D, G (the configured Gateway for B) will route the data from B to D through G2.

Chapter 3 Configure the Adapter with RSLogix 5000 or Logix Designer Software

43264

Network address thumbwheel Press either the + or - button with a pen tip to change the number.

Set the Network Address

The adapters ship DHCP-enabled and with the pen-push Network address thumbwheels set to 999. You can set the network Internet Protocol (IP) address as follows.

Set the Network Address for POINT I/O Adapters

• Use the pen-push thumbwheels located on the adapter. Press either the + or - button with a pen tip to change the number and assign the IP address.

• Use a Dynamic Host Configuration Protocol (DHCP) server, such as Rockwell Automation BootP/DHCP.

• Retrieve the IP address from non-volatile memory.

24 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

The adapter reads the thumbwheels first to determine if the thumbwheels are set to a valid number. You set the node address by using the 3-position pen-push thumbwheel using a pen tip.

Note: Press a pen tip into the center and perpendicular to the + or the - button to change the number. You only need a small amount of force to press the button (approximately 2N).

Valid settings range from 001…254. When you use the thumbwheel to assign an address and set it to 001, the adapter gateway address is set to 0.0.0.0. and the subnet mask is set to 255.255.255.0. When you use the thumbwheel to assign an IP address between 002...254, the adapter gateway address is set to 192.168.1.1.

The adapter does not have a host name assigned, or use any Domain Name System when using the thumbwheel settings.

If the thumbwheels are set to an invalid number (for example, 000 or a value greater than 254 excluding 888), the adapter checks to see if DHCP is enabled. If DHCP is enabled, the adapter requests an address from a DHCP server. The DHCP server also assigns other Transport Control Protocol (TCP) parameters.

Configure the Adapter with RSLogix 5000 or Logix Designer Software Chapter 3

If DHCP is not enabled, the adapter uses the IP address, along with other TCP configurable parameters, stored in non-volatile memory.

WARNING: When you change thumbwheels settings while power is on, an electrical arc can occur. This could cause an explosion in hazardous location installations.

Be sure that power is removed or the area is nonhazardous before proceeding.

Use the Rockwell BootP/ DHCP Utility

The 1734-AENT/B adapter should be configured using only DHCP. The Rockwell BootP/DHCP utility is a standalone program that incorporates the functionality of standard BootP software with a user-friendly graphical interface. It is located in the Util s directory on the RSLogix5000 software installation CD. The adapter must have DHCP enabled (factory default and the network address switches set to an invalid value) to use the utility.

To configure your adapter using the BootP utility, perform the following steps:

1. Run the BootP software.

In the BOOTP Request History panel you see the hardware addresses of devices issuing BootP requests.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 25

Chapter 3 Configure the Adapter with RSLogix 5000 or Logix Designer Software

2. Double-click the hardware address of the device you want to configure.

The New Entry dialog appears with the device’s Ethernet Address (MAC).

26 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter with RSLogix 5000 or Logix Designer Software Chapter 3

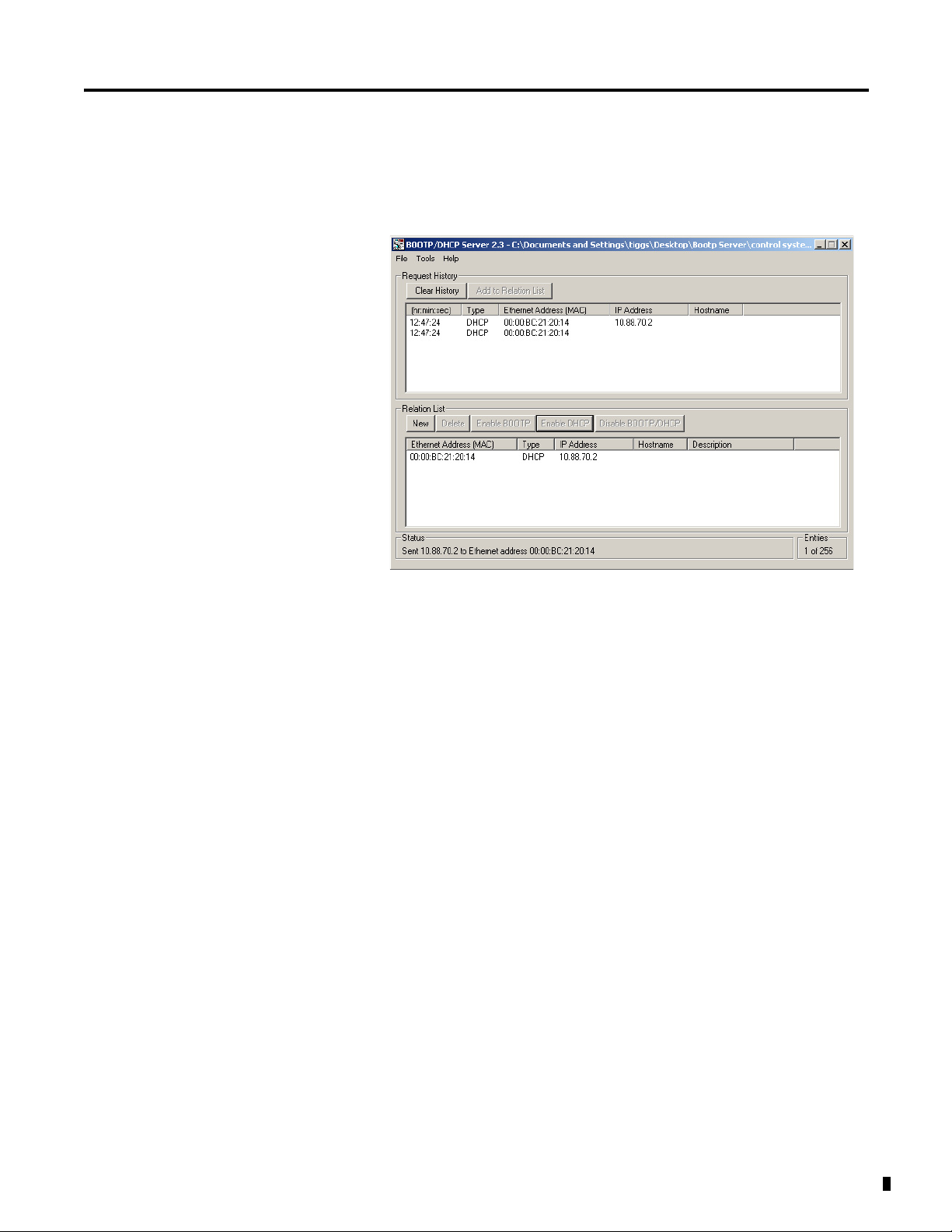

3. Enter the IP Address you want to assign to the device and click OK. The

device is added to the Relation List, displaying the Ethernet Address (MAC) and corresponding IP Address, Hostname, and Description (if applicable).

When the address displays in the IP Address column in the Request History section, the IP address assignment has been made.

4. To make this configuration static in the device, highlight the device in the

Relation List panel, and click the Disable BOOTP/DHCP button.

When power is cycled to the device, it uses the configuration saved in nonvolatile memory and will not issue a DHCP request.

5. To enable DHCP for a device with DHCP disabled, highlight the device

in the Relation List, and click the Enable DHCP button.

You must have an entry for the device in the Relation List panel to reenable DHCP.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 27

Chapter 3 Configure the Adapter with RSLogix 5000 or Logix Designer Software

Save the Relation List

You can save the Relation List for later use. To save the Relation List, perform the following steps:

1. Select Save As... from the File menu.

The Save As dialog appears.

2. Select the folder where you want to save the Relation List.

3. Enter a File name for the Relation List, for example, control system

configuration, and click Save.

You can leave the Save as type at the default setting: Bootp Config Files (*.bpc).

You now have the option to open the file containing the Relation List at a later session.

28 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter with RSLogix 5000 or Logix Designer Software Chapter 3

Use DHCP Software to Configure Your Adapter

DHCP (Dynamic Host Configuration Protocol) software automatically assigns IP addresses to client stations logging onto a TCP/IP network.

DHCP is based on BootP and maintains some backward compatibility. The main difference is that BootP was designed for manual configuration, while DHCP allows for dynamic allocation of network addresses and configurations to newly attached devices.

Be cautious about using DHCP software to configure your adapter. A DHCP server typically assigns a finite lease time to the offered IP address.

When 50% of the leased time has expired, the adapter attempts to renew its IP address with the DHCP server.

The possibility exists that the adapter will be assigned a different IP address, which would cause the adapter to cease communicating with the ControlLogix controller.

See Configure the Adapter with Fixed IP Address adapter with a fixed IP address.

ATTENTION: To avoid unintended control or loss of control, the I/O adapter must be assigned a fixed IP address. A dynamically provided IP address should be used only at initial configuration. If a DHCP server is used, it must be configured to assign the same IP address to your adapter.

Failure to observe this precaution may result in unintended machine motion or loss of process control.

in Chapter 4 to configure the

Chapter Summary

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 29

This chapter provided instructions on how to configure POINT I/O Adapter modules through the RSLogix 5000 software and included information on configuration requirements and setting the network address.

Chapter 3 Configure the Adapter with RSLogix 5000 or Logix Designer Software

Notes:

30 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Chapter

Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software

Overview

This chapter guides you through the steps required to configure your modules

(1)

using the RSLogix 5000 or Logix Designer

In this example, a ControlLogix controller communicates with I/O modules via the adapter using a direct connection.

The adapter makes a direct connection to each of the modules referenced by the data. The modules presented in this chapter use RSLogix 5000 software, version 17, or later.

Topic Page

Set Up the Hardware 32 Create the Example Application 33 Configure the I/O Modules 34 Add the Local EtherNet/IP Bridge to the I/O Configuration 35 Add the POINT I/O Adapter to the I/O Configuration 38 Add the POINT I/O Modules to the I/O Configuration 41 Edit the Controller Tags 47 Create the Ladder Program 48 Download the Program to the Controller 48 Verify the Module Chassis Size 49 Configure the Adapter with Fixed IP Address 52 Recover From an Overloaded Adapter 53 Chapter Summary 53

software.

(1) From version 21 onwards, RSLogix 5000 is known as Logix Designer.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 31

Chapter 4 Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software

31393

Set Up the Hardware

The following section describes how to set up the I/O Hardware.

In this example, a ControlLogix chassis contains the L63 controller in slot 1 and a 1756-ENBT bridge module in slot 3. The 1734-AENT adapter is mounted on a DIN rail in slot 0, with a 1734-OW2/C relay output module in slot 1, a 1734OV4E/C sink output module in slot 2, and a power supply (not shown).

To work along with this example, set up your system as shown in the figure.

Local chassis

Slot 0 1 2 3

L63 controller (slot 1)

1734-AENT

10.88.70.2

Data

1756-ENBT

10.88.70.4 (slot 3) Switch

10.88.70.26

Programming terminal

1734-AENT Series B

POINT I O

IP ADDRESS

Slot 0 1 2 3 4

Module Status

Network Activity

Network Status

Point Bus Status

System Power

Field Power

POINT I/O

• In the example application, we assume that the L63 controller and 1756-ENBT module (firmware revision 4.006, or later) are in the slots shown in the figure.

• Verify the IP addresses for your programming terminal, 1756-ENBT module, and adapter.

• Verify the position (slot) of the I/O modules on the DIN rail.

• Verify that you connected all wiring and cabling properly.

• Be sure you configured your communication driver (for example,

AB_ETH-1 or AB-ETHIP-1) in RSLinx software, as described in Appendix C

in this manual.

32 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software Chapter 4

Create the Example Application

Perform the following steps to create the example application:

1. Start RSLogix 5000 Enterprise Series software to open the RSLogix 5000

main dialog.

2. From the File menu, select New.

3. The New Controller dialog opens.

4. Enter an appropriate Name for the Controller, for example,

POINT_IO_Controller.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 33

Chapter 4 Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software

IMPORTANT

5. Select the correct Revision, Chassis Type, and Slot number of the L63 controller, and the folder where you want to save the RSLogix 5000 file (Create In). The Description is optional.

Note: RSLogix 5000 software Revision 18, and later, lets you enable redundancy. To use redundancy in your system, check the Redundancy Enabled checkbox in the Redundancy tab when using the said Revision or later.

6. Click OK.

Configure the I/O Modules

You now add the POINT I/O modules to the controller’s I/O configuration performing these procedures:

• Add the local 1756-ENBT Bridge module to the I/O configuration.

• Add the 1734-AENT/B adapter as a child of the 1756-ENBT module on

the Ethernet network.

• Add the POINT I/O modules as children of the AENT/B adapter.

Click the Help button on the configuration dialogs shown in this section if you need assistance in selecting and setting the parameters.

34 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software Chapter 4

Add the Local EtherNet/IP Bridge to the I/O Configuration

1. Right-click the I/O Configuration folder in the project dialog, and select New Module.

The Select Module Type dialog opens.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 35

Chapter 4 Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software

TIP

2. Select the appropriate Module Type filter Category (for the example we selected Communication), and Module Type Vendor (for the example we selected Allen-Bradley).

In the Select Module Type dialog, you have options to search for a specific module, add modules to a Favorites list, filter by Category and/or Vendor, Hide and Show Filters, use Module Discovery, sort by vendor, or access your Favorites list.

Note: to select only one category you will need to unselect those already selected.

3. From the list of adapters displayed, select the 1756-ENBT EtherNet/IP Bridge and click Create.

4. The New Module dialog opens.

5. Enter values for Name, IP Address, and Slot, noting that we used the

following values:

Name Local_ENBT IP Address 10.88.70.4 Slot 3

Note the module definition properties on the bottom left of the New Module dialog. You have the option to change these properties by clicking the Change button. Some of the properties cannot be modified while pending edits exists.

To change the default module properties,

36 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software Chapter 4

6. Click Change... The Module Definition dialog opens.

7. Enter or select values for Revision, Electronic Keying, Rack Connection, and Time Sync Connection, noting that we used the following values:

Series A Revision 5.1 Electronic Keying Compatible Module Rack Connection None Time Sync Connection None

8. Click OK to accept the configuration.

The module appears indented under the I/O Configuration folder.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 37

Chapter 4 Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software

TIP

Add the POINT I/O Adapter to the I/O Configuration

Next, you must add the POINT I/O adapter as a child of the local 1756-ENBT module.

1. In the Project dialog, right-click the local 1756-ENBT module under the I/O Configuration folder, and select New Module from the dialog.

The Select Module Type dialog opens.

2. Select the appropriate Module Type filter Category (for the example we selected Communication), and Module Type Vendor (for the example we selected Allen-Bradley). Note: to select only one category you will need to unselect those already selected.

38 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software Chapter 4

IMPORTANT

3. Select your adapter from the list and click Create. The New Module dialog opens.

4. Select the General Tab and enter the module details, noting that we used the following values.

Name POINT IO Adapter IP Address 10.88.70.2

Note that the slot field is disabled because the slot is automatically 0 for the 1734-AENT/B adapter.

5. Click Change... The Module Definition dialog opens.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 39

Chapter 4 Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software

IMPORTANT

6. Choose values for Series, Revision, Electronic Keying, Connection, and Chassis Size, noting that we used the following values:

Series B Connection None Chassis Size 5 Electronic Keying Compatible Module Revision 4.3

The chassis size value equals 1 for the adapter plus the number of I/O modules installed (physically present on the I/O backplane).

Connection choices are the following:

• None – the adapter only makes a direct connection to each of the

modules referenced by the data. RPI is disabled in this case.

• Rack optimization – digital I/O data is collected into a rack image. This

rack image does not include analog or specialty I/O modules.

• Enhanced rack optimization – digital, analog, and specialty I/O data is

collected into a rack image.

• Listen only - rack optimization – read or verify input data only, but does

not control the modules. When you have multiple controllers, one controller is used to control and the other controllers are used to monitor. When the owning controller of rack-optimization connection closes the connection, the Listen-Only data will also stop.

7. Choose None as Connection, because we are only making direct connections, then click OK. Note : There is no need to have a rack-optimization connection if all I/O connections to the POINT I/O modules are directly connected.

A dialog box opens.

8. Click Yes.

40 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software Chapter 4

TIP

9. In the New Module screen click OK to accept the new configuration. The 1734-AENT/B adapter appears indented under the local 1756-ENBT bridge module in the I/O Configuration folder.

Note: The requested packet interval (RPI) is disabled because you have chosen None as the Connection.

Add the POINT I/O Modules to the I/O Configuration

You now add POINT I/O modules to the I/O Configuration List under the adapter.

In this example, you add a 1734-OW2 relay output module and a 1734-OV4E sink output module with standard configurations. Use these steps as a guide when configuring different I/O modules for your system.

This example application uses I/O module default configurations. For more information, refer to the POINT I/O Selection Guide, publication

1734-SG001.

Add the Digital Relay Output Module

1. Highlight the 1734-AENT/B adapter under the I/O Configuration folder, right-click and select New Module.

The Select Module Type dialog opens.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 41

Chapter 4 Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software

2. Select the appropriate filter for Module Type Category (for the example we selected Digital) and Module Type Vendor (for the example we selected Allen-Bradley). Note: to select only one category you will need to unselect those already selected.

3. From the modules listed select the 1734-OW2 digital relay output module and click Create.

The New Module dialog opens.

4. Enter values for Name and Slot, noting that we used the following values.

Name POINT_Relay_Output Slot 1

42 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software Chapter 4

IMPORTANT

5. Choose the Connection tab to set the RPI value. RPI is selectable since it is a direct connection.

Note that the RPI is selectable on the screen and has a default value. Because we are making a direct connection to each I/O module, we must specify an RPI to determine how often the data is exchanged with the 1734-AENT adapter for each module.

6. Enter 50 for requested packet interval (RPI) to set how often you exchange data with the I/O adapters.

To avoid overloading the I/O adapters, we recommend that RPI be no less than 10 ms for rack-optimization and enhanced rackoptimization connections, and 50 ms for direct connections.

7. Click OK to save the configuration. The relay output module appears under Ethernet.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 43

Chapter 4 Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software

Add the Digital Output Module

1. Highlight the 1734-AENT/B adapter under the I/O Configuration folder, right-click and select New Module.

The Select Module Type dialog opens.

2. Select the appropriate Module Type Category Filter (for the example we selected Digital) and Module Type Vendor (for the example, we selected Allen-Bradley).

Note: to select only one category you will need to unselect those already selected.

3. From the modules listed select the 1734-OV4E sink output module and click Create.

44 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software Chapter 4

The New Module dialog opens.

4. Enter values for Name and Slot, noting that we used the following values.

Name POINT_Digital_Output Slot 2

5. Choose the Connection tab to set the RPI value. The RPI is selectable since it is a direct connection.

Note that the RPI is selectable and has a default value. Because we are making a direct connection to each I/O module, we must specify an RPI to determine how often the data is exchanged with the adapter for each module.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 45

Chapter 4 Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software

IMPORTANT

6. Enter 10 ms as the RPI for the 1734-OV4E module.

To avoid overloading the I/O adapters, we recommend that RPI be no less than 10 ms for rack-optimization and enhanced rackoptimization connections, and 50 ms for direct connections.

7. Click OK to save the configuration. The module appears in the I/O configuration folder indented under Ethernet.

46 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software Chapter 4

Tags created by the system

Enter the new tag here

Edit the Controller Tags

When you add modules to the I/O configuration the system creates tags for those modules to use in the application program.

For the example application you need to add one more controller tag.

1. Double-click the Controller Tags folder in the project dialog.

The Controller Tags dialog opens. You see the tags created for the 1734-AENT adapter and its digital I/O modules.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 47

2. Click the Edit Tags tab at the bottom of the Controller Tags dialog.

3. Create the following tag:

Ta g Type

Parts_Count Counter

4. Close the Controller Tags dialog.

Chapter 4 Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software

Create the Ladder Program

Create the example ladder program to test the I/O.

1. Under the Main Program folder, double-click Main Routine.

2. Enter the following ladder program using the tags previously created.

Download the Program to the Controller

3. Save the program.

Follow this procedure to download the program you just saved to the ControlLogix controller.

1. From the main menu, choose Communications>Who-Active. The Who Active dialog opens.

2. Navigate to select the slot where the controller is located in the chassis.

3. Choose Set Project Path.

48 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software Chapter 4

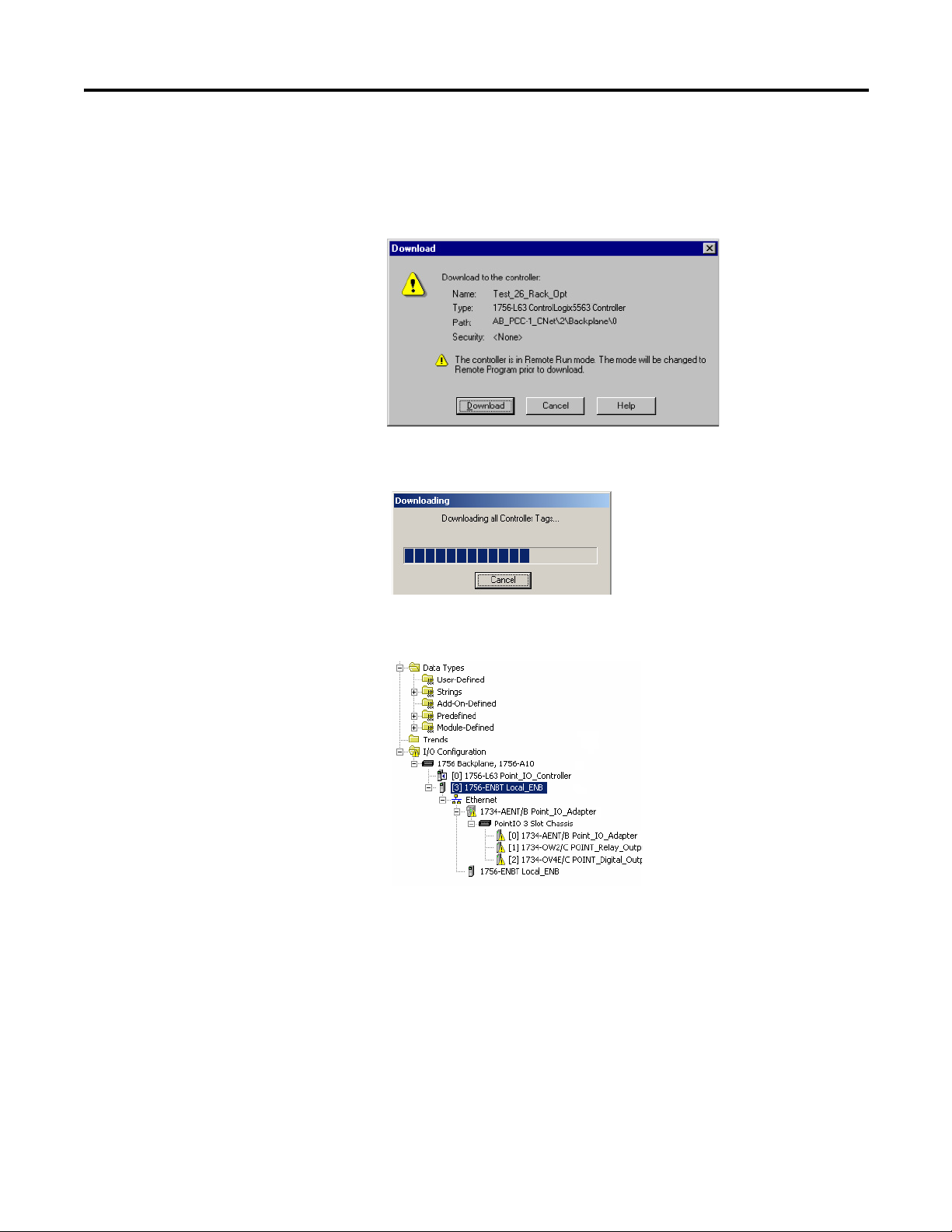

4. Choose Download. The Download dialog opens with a reminder of the following.

• The controller is in Remote Run mode.

• The mode changes to Remote Program prior to download.

5. From the Download dialog, choose Download The RSLogix 5000 software dialog opens.

Verify the Module Chassis Size

6. Notice that the 1756-ENBT Bridge is now online. If yellow triangles are present, see the following section.

You have now built the I/O tree in the RSLogix 5000 software, and the RSLogix 5000 software used the chassis size from the 1734-AENT General tab.

Now you need to download this new chassis size value into the 1734-AENT adapter hardware. This procedure synchronizes the chassis size value from the RSLogix 5000 software into the 1734-AENT adapter hardware.

1. Verify that the RSLogix 5000 software is online.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 49

Chapter 4 Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software

Value from Module Properties General Tab

Value currently stored in 1734AENT adapter

2. In the Project dialog, right-click the 1734-AENT adapter under I/O Configuration.

3. Select Properties.

4. Click the Connection tab.

The Module Fault error code displays.

5. Click the Chassis Size tab.

6. Click Set Chassis Size in Module.

50 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software Chapter 4

7. Read and acknowledge the warning dialog.

8. Click OK to continue.

Notice the chassis size stored in the module has been changed to 3.

At this point, your POINTBus status LED should be solid green. All the yellow triangles in your I/O configuration should be gone.

9. Click OK.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 51

Chapter 4 Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software

Configure the Adapter with Fixed IP Address

To configure the adapter with a fixed IP address to prevent the adapter from ceasing to communicate with the ControlLogix controller:

1. All controllers with I/O connections to the AENT and/or the modules in its backplane need to be in program mode.

2. In the Module Properties dialog, click the Internet Protocol tab.

3. If it is not selected, select Manually configure IP settings.

4. Enter values for Physical Module IP Address, and Subnet Mask, noting we

used the following values:

Physical Module IP Address 192.168.1.29 Subnet Mask 255.255.255.0

5. Click Set

6. Read and acknowledge the warning.

7. Click Yes.

8. Click the Refresh communication button to verify the changes.

52 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software Chapter 4

Recover From an Overloaded Adapter

Each I/O connection established with the I/O adapter consumes a portion of microprocessor bandwidth. The amount of bandwidth used by a connection depends on several variables, such as the requested packet interval (RPI), number of I/O modules involved in the connection, and rate of change of the I/O.

The AENT adapter continuously monitors this bandwidth and rejects requests for new I/O connections when there is insufficient bandwidth available to support the new connection.

The condition where the I/O adapters cannot support the connection due to a limit of the bandwidth of the microprocessor is shown on the Connection tab of the Module Properties dialog.

If you encounter this condition, the only action you can take is to alter the existing connections to reduce the amount of microprocessor bandwidth consumed. The most likely fixes for this condition include the following:

• Increase the RPI.

• Decrease the number of connections.

• Remove modules from the rack-optimization I/O connection.

• Remove the rack-optimization connection if there are no modules

participating in it.

Chapter Summary

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 53

This chapter provided instructions on how to configure the POINT I/O Adapter for Direct Connection through the RSLogix 5000 software. It included information about setting up the hardware and configuring the I/O, adding the adapter to the configuration, and configuring the adapter with a fixed IP address.

Chapter 4 Configure the Adapter for Direct Connection in RSLogix 5000 or Logix Designer Software

Notes:

54 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Chapter

Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software

Overview

This chapter guides you through the steps required to configure your AENT adapter with direct, rack-optimization, and enhanced rack-optimization I/O

(1)

connections using RSLogix 5000 or Logix Designer

You can mix I/O connection formats for different I/O modules communicating through the same adapter. I/O modules set up to use rack optimization or enhanced rack optimization communicate at the rate of the RPI configured for the adapter.

I/O modules controlled by a direct I/O connection communicate at their own set RPI. The RPI of the rack-optimization or enhanced rack-optimization I/O connection has no bearing on the direct I/O connections. The modules presented in this chapter have a configuration using RSLogix 5000 software, version 17 or later. The chapter contains the following main sections

Topic Page

Set Up the Hardware Create the Example Application 57 Configure the I/O Modules 58 Add the Local EtherNet/IP Bridge to the I/O Configuration 58 Add the POINT I/O Adapter to the I/O Configuration 61 Add the POINT I/O Modules and Configure for Rack-optimization Connection 65 Add the POINT I/O Modules and Configure for Enhanced Rack-optimization

Connection Add the POINT I/O Module and Configure For Direct Connection 72 Download the Program to the Controller 75 Verify the Module Chassis Size 76 Access Module Data 79 Chapter Summary 79

software.

(1) From version 21 onwards, RSLogix 5000 is known as Logix Designer.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 55

Chapter 5 Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software

31393

Set Up the Hardware

The following section describe how to set up the I/O Hardware.

Set Up the POINT I/O Hardware

In this example, a ControlLogix chassis contains the L63 controller in slot 1 and a 1756-ENBT bridge module in slot 3. In this example, we mounted the 1734-AENT adapter on a DIN rail in slot 0, with a 1734-OW2/C relay output module in slot 1, a 1734-OV4E/C sink output module in slot 3, and two other POINT I/O modules which will not be controlled by this Logix controller in slots 2 and 4.

Local chassis

Slot 0 1 2 3

L63 controller (slot 1)

1734-AENT

10.88.70.2

Data

1756-ENBT

10.88.70.4 (slot 3) Switch

1734-AENT Series B

POINT I O

IP ADDRESS

Slot 0 1 2 3 4

Module Status

Network Activity

Network Status

Point Bus Status

System Power

Field Power

POINT I/O

10.88.70.26

Programming terminal

To work along with this example, set up your system as shown in the figure.

• Note that in the example application, the Logix controller and 1756-ENBT module (firmware revision 4.006 or later) we assume are in the slots shown in the figure.

• Verify the IP addresses for your programming terminal, 1756-ENBT module, and I/O adapter.

• Verify the position (slot) of the I/O modules on the DIN rail.

• Verify that you properly connected all wiring and cabling.

• Make sure you configured your communication driver (such as

AB_ETH-1 or AB-ETHIP-1) in the RSLinx software. See Configure the

RSLinx Ethernet Communication Driver in Appendix C.

56 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software Chapter 5

Create the Example Application

Perform the following steps to create the example application:

1. Start the RSLogix 5000 Enterprise Series software.

The RSLogix 5000 software main dialog opens.

2. From the File menu, select New.

3. The New Controller dialog opens.

4. Enter an appropriate Name for the Controller, for example,

POINT_IO_Controller.

5. Select the following:

– Revision – Chassis Type – Slot number – Description (optional)

Note: RSLogix 5000 software, revision 18 and later includes enable redundancy. To use redundancy in your system, select the Redundancy Enabled checkbox. This example does not use redundancy.

6. Complete the Create In entry by selecting the folder where you want to

save the file.

7. Click OK.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 57

Chapter 5 Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software

IMPORTANT

Configure the I/O Modules

You now add the I/O modules to the controller I/O configuration. To do this, first add the local 1756-ENBT Bridge module to the I/O configuration. Next, add the I/O adapter as a child of the 1756-ENBT module, and then add the I/O modules as children of the adapter.

Click the Help button on the configuration dialog shown in this section if you need assistance in selecting and setting the parameters.

Add the Local EtherNet/IP Bridge to the I/O Configuration

1. Right-click the I/O Configuration folder in the project dialog and select New Module.

58 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software Chapter 5

TIP

The Select Module Type dialog opens.

2. Select the appropriate Module Type filter Category (for the example we selected Communication), and Module Type Vendor (for the example we selected Allen-Bradley).

Note: to select only one category you will need to unselect those already selected.

3. From the list of adapters displayed, select the 1756-ENBT EtherNet/IP Bridge and click Create.

The New Module dialog opens.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 59

Chapter 5 Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software

4. Enter values for Name, IP Address, and Slot, noting that we used the following values:

Name Local_ENBT IP Address 10.88.70.4 Slot 3

To change the default module properties,

5. Click Change... The Module Definition dialog opens.

6. Enter or select values for Series, Revision, Electronic Keying, Rack Connection, and Time Sync Connection, noting that we used the following values:

Series A Revision 5.1 Electronic Keying Compatible Module Rack Connection None Time Sync Connection None

7. Click OK to accept the configuration.

The module appears indented under the I/O Configuration folder.

60 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software Chapter 5

TIP

Add the POINT I/O Adapter to the I/O Configuration

Next, you must add the POINT I/O adapter as a child of the local 1756-ENBT module.

1. In the Project dialog, right-click the local 1756-ENBT module under the I/O Configuration folder, and select New Module from the dialog.

The Select Module Type dialog opens.

2. Select the appropriate Module Type filter Category (for the example we selected Communication), and Module Type Vendor (for the example we selected Allen-Bradley).

Note: to select only one category you will need to unselect those already selected.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 61

Chapter 5 Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software

IMPORTANT

3. Select your adapter (in this example, we use the 1734-AENT/B) from the list and click Create. The New Module dialog opens.

4. Select the General Tab and enter the module details, noting that we used the following values.

Name POINT_IO_Adapter IP Address 10.88.70.2

Note that the slot field is disabled because the slot is automatically 0 for the 1734-AENT/B adapter.

5. Click Change... The Module Definition dialog opens.

62 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software Chapter 5

IMPORTANT

6. Enter or select values for Series, Revision, Electronic Keying, Connection, and Chassis Size, noting that we used the following values:

Series B Connection Rack Optimization Chassis Size 5 Electronic Keying Compatible Module Revision 4.3

The chassis size value equals 1 for the adapter plus the number of I/O modules installed (physically present on the I/O backplane).

Connection choices include:

• None – the adapter makes a direct connection to each of the modules referenced by the data. RPI is disabled in this case.

• Rack optimization– digital I/O data is collected into a rack image. This does not include analog or specialty I/O modules.

• Enhanced rack optimization – digital, analog, and specialty I/O data is collected into a rack image.

• Listen only - rack optimization– read or verify data only, but does not control the modules. When you have multiple controllers - one controller is used to control and the other controllers are used to monitor.

7. Because we are making a mixed connection (both a direct connection and rack-optimization connection), choose Rack Optimization as the Connection for the 1734-AENT/B adapter and click OK.

A dialog box opens.

8. Click Yes.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 63

Chapter 5 Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software

IMPORTANT

9. In the New Module screen select the Connection Tab.

10. Verify that the Requested Packet Interval (RPI) used for the rack-

optimization connection to the I/O modules is appropriate for your system (20.0 ms for this example). If not, change it to the correct value.

To avoid overloading the adapter, it is recommended that the RPI be no less than 10.0 ms for rack-optimization and enhanced rackoptimization connections, and 50.0 ms for direct connections.

11. Click OK to accept the configuration. The 1734-AENT/B adapter appears indented under the local 1756-ENBT bridge module in the I/O Configuration folder.

64 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software Chapter 5

Add the POINT I/O Modules and Configure for Rack-optimization Connection

You must now add the POINT I/O modules to the I/O Configuration List under the adapter. In this example, the digital input and output modules are configured for rack optimization.

Add the Digital Relay Output Module

1. Right-click the POINT I/O Chassis in the I/O Configuration folder and select New Module

…

The Select Module Type dialog displays.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 65

Chapter 5 Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software

TIP

3. From the modules listed select the 1734-OW2 digital relay output module and click Create.

The New Module dialog opens.

4. Enter values for Name and Slot, noting that we used the following values.

Name POINT_Relay_Output Slot 1

66 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software Chapter 5

IMPORTANT

Note the module definition properties on the bottom left of the New Module dialog. You have the option to change these properties by clicking the Change... button. Some of the properties cannot be modified while pending edits exist.

5. Select Change... The Module Definition dialog displays.

6. Change the Connection from Data to Rack Optimization and click OK. Note that the requested packet interval (RPI) is the same as was chosen by the adapter. You use this value for the rack-optimization connection to the I/O modules.

To avoid overloading the I/O adapter, we recommend that the RPI be no less than 10 ms for rack-optimization and enhanced rackoptimization connections, and 50 ms for direct connections.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 67

Chapter 5 Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software

7. In the New Module screen select the Connection tab and verify that the Requested Packet Interval (RPI) used for the rack-optimization connection to the I/O modules is appropriate for your system (20.0 ms for this example). If not, change it to the correct value.

8. Click OK to accept the configuration. The digital output module appears indented under the local 1734-AENT/B adapter in the I/O Configuration folder.

68 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software Chapter 5

Add the POINT I/O Modules and Configure for Enhanced Rackoptimization Connection

You must now add the POINT I/O modules to the I/O Configuration List under the adapter. In this example, the digital input and output modules are configured for enhanced rack optimization.

Add the Digital Relay Output Module

1. Right-click the POINT I/O Chassis in the I/O Configuration folder and select New Module

…

The Select Module Type dialog displays.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 69

Chapter 5 Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software

TIP

3. From the modules listed select the 1734-OW2 digital relay output module and click Create.

The New Module dialog opens.

4. Enter values for Name and Slot, noting that we used the following values.

Name POINT_Relay_Output Slot 1

70 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software Chapter 5

IMPORTANT

5. Select Change... The Module Definition dialog displays.

6. Note that the requested packet interval (RPI) is the same as was chosen by the adapter. You use this value for the enhanced rack-optimization connection to the I/O modules.

To avoid overloading the I/O adapter, we recommend that the RPI be no less than 10 ms for rack-optimization and enhanced rackoptimization connections, and 50 ms for direct connections.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 71

Chapter 5 Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software

IMPORTANT

7. Click OK to accept the configuration. The digital input module appears indented under the local 1734-AENT/B adapter in the I/O Configuration folder.

Add the POINT I/O Module and Configure For Direct Connection

Add The Digital Sink Output Module

1. Right-click the POINT I/O Chassis in the I/O Configuration folder and select New Module

The Select Module Type dialog opens.

If you exceed the adapter chassis size trying to add more modules than you configured, the New Module selection appears dim and is

72 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

disabled. Increase the adapter chassis size to add more I/O modules.

Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software Chapter 5

TIP

3. From the modules listed select the 1734-OV4E/C Digital Sink Output module and click Create.

The New Module dialog opens.

4. From the New Module dialog, complete the following:

– Enter a value for Name. – Enter a value for Slot.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 73

Chapter 5 Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software

5. Select Change... The Module Definition dialog displays.

6. For Connection, select Data and click OK. This configures the controller to make a Direct I/O Connection to the module.

7. From the New Module dialog, select the Connection tab to set the RPI value. RPI is selectable since it is a direct connection.

74 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software Chapter 5

IMPORTANT

To avoid overloading the I/O adapter, we recommend that the RPI be no less than 10 ms for rack-optimization and enhanced rackoptimization connections, and 50 ms for direct connections.

8. From the New Module dialog, enter 50 for the Requested Packet Interval (RPI).

9. Keep the following unchecked. a. Inhibit Module b. Major Fault on Controller If Connection fails While in Run Mode

10. Click OK.

11. Choose File  Save and enter the name and location of the file.

Download the Program to the Controller

Follow this procedure to download the program we just saved to the ControlLogix controller.

1. From the main menu, choose Communications>Who Active.

2. From the Who Active dialog, navigate to select the slot where the

controller is located in the chassis.

3. Click Set Project Path.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 75

Chapter 5 Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software

4. Click Download. The Download dialog opens.

5. From the Download dialog, click Download. The Downloading dialog displays the download progress.

Verify the Module Chassis Size

Notice that the 1756-ENBT Bridge is now online.

If yellow triangles are present, see the following section.

You have now built the I/O tree and the RSLogix 5000 software uses the chassis size from the General tab of the adapter for the rack-optimization I/O connection. Now you need to configure this new chassis size value into the adapter non-volatile memory. This procedure synchronizes the chassis size value from the RSLogix 5000 software into the adapter hardware. You must be online to perform this procedure.

1. Verify that the RSLogix 5000 software is online.

2. Right-click the name of the adapter under I/O Configuration in the

Project dialog.

3. Select Properties.

76 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software Chapter 5

4. Click the Connection tab. The Module Fault error code displays at the bottom of the Connection tab.

5. Click the Chassis Size tab.

6. Click Set Chassis Size in Module.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 77

Chapter 5 Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software

7. Read and acknowledge the warning dialog.

8. Click OK to continue.

9. Notice the chassis size in the module is modified to 5.

10. Click OK.

At this point, your POINTBus status LED should be solid green. All the yellow triangles in your I/O configuration should be gone.

11. Click OK to close the dialog.

12. Click File  Save to save the project.

78 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software Chapter 5

Access Module Data

Use the following information to use the I/O adapter data in the ladder logic program:

• POINT_IO_Adapter — the name you gave to your EtherNet adapter

• # — slot number of POINT I/O module

• C — configuration, I = input, O = output

Use the controller tags in your ladder program to read input data or write output data.

• For ControlLogix controller information, refer to ControlLogix System User Manual, publication 1756-UM001

• Slot Status Bits: The Slot Status bits display the connection status for each of the POINT I/O modules that use a rack-optimization connection.

– Bit 0 is reserved for the adapter and always reports a value of 1. – Each of the other bits (1 to 63) correspond to a POINT I/O module

that you install in the POINT I/O backplane.

– In this example, we configured the 1734-AENT adapter for both rack-

optimization and direct connections. The slot status bits indicate that we installed the module in slot 2 with it operating correctly:

0 = module participating with no errors and 1 = module not participating or connection error (typically, module removed/missing)

Chapter Summary

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 79

This chapter provided instructions on configuring an AENT Adapter for Direct Connection, Rack-Optimization, and Enhanced Rack-Optimization in RSLogix 5000 Software. It included information about hardware setup; configuring the I/O Modules; adding an I/O adapter to the I/O configuration; configuring for rack-optimization connections; configuring for direct connections; and accessing module data.

Chapter 5 Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software

80 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Chapter

Troubleshoot the Adapter

This chapter describes the different status indicators available in the 1734 POINT I/O EtherNet/IP adapter and how to interpret these indicators to help troubleshoot the module.

The following table lists where to find specific information

Topic Page

Interpret the Status Indicators 81 Status Indicators for POINT I/O Adapters 82

Interpret the Status Indicators

ATTENTION: You must only use Series C and above POINT I/O modules

with 1734-AENT EtherNet/IP Adapters. Series A or Series B POINT I/O modules do not work with 1734-AENT EtherNet/IP Adapters (does not apply to POINTGuard modules).

The 1734 POINT I/O EtherNet/IP adapters have the following status indicators:

• Module Status,

• Network Activity,

• Network Status

• POINTBus Status

• System Power

• Field Power

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 81

Chapter 6 Troubleshoot the Adapter

43264

System Power Field Power

Module Status Network Activity

Network Status POINTBus Status

Status Indicators for POINT I/O Adapters

The following describes the status indicators on the 1734-AENT.

Status Indicators for 1734-AENT Adapter

Indicator Status Description

Module Status Off No power applied to device

Flashing green Device needs commissioning due to missing, incomplete, or incorrect configuration. Solid green Device is operating normally. Flashing Red Recoverable fault. Complete firmware update, verify address switches. Solid red Unrecoverable fault has occurred:

Network Activity Off No link established.

Flashing green/Off Transmit or receive activity present. Steady green Link established.

Network Status Off Device not initialized. The module does not have an IP address.

Flashing green No CIP connections present. Device has an IP address, but no CIP connections are

Green CIP connections present. Device online and has an IP address, and CIP connections are

Flashing red One or more CIP connections in timed-out state. Check for I/O module failure and controller

Solid red Duplicate IP address detected.

Flashing red/green The module is performing a self-test (only occurs during cycle power test).

• Self-test failure present (checksum failure, or RAMtest failure at cycle power).

• Firmware fatal error.

established.

operation. Note: This does not apply to POINTGuard I/O connection timeout.

Verify IP address setting and correct, as needed.

82 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Troubleshoot the Adapter Chapter 6

Status Indicators for 1734-AENT Adapter

Indicator Status Description

POINTBus Status Off Device not powered – check module status indicator.

Flashing red/green LED cycle power test present. Flashing red Recoverable fault occurred:

Solid red Unrecoverable fault occurred – the adapter is bus off. Flashing green Firmware (NVS) update in progress. Solid green Adapter online with connections established (normal operation,

System Power Off Not active; field power is off or DC-DC converter problem present.

Solid green System power is on; DC-DC converter is active (5V).

Field Power Off Not active; field power is off.

Solid green Power is on; 24V DC is present.

• At cycle power the number of expected modules does not equal the number of modules present

• A module is missing

• Node fault (I/O connection timeout) occurred.

Run mode).

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 83

Chapter 6 Troubleshoot the Adapter

Notes:

84 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Specifications

Appendix

General Specifications

The 1734-AENT adapters have the following general specifications.

General Specifications

Attributes Description

Expansion I/O capacity, max •63 modules

•Up to 5 rack-optimization (for digital modules only) and/or enhanced rack-optimization (for digital, analog, and specialty modules) connections

•31 direct connections

•Backplane current output = 1.0 A.

•Actual number of modules can vary.

•Add together the current requirements for the modules you want to use to make sure they do not exceed the amperage limit of 1.0 A for the adapter.

•Backplane current can be extended beyond 1.0 A by 1734-EP24DC or 1734-EPAC backplane extension power supplies.

•Add multiple 1734-EP24DC or 1734-EPAC modules to reach the 63 module max.

POINTBus current requirements, max

Module location Starter module – left side of the system.

•50 mA (Catalog number 1734-IB4D)

•75 mA (Catalog numbers 1734-IB2, 1734-IB4, 1734-IB8, 1734-IV2, 1734-IV4, 1734-OB2, 1734-OB4, 1734-OB8, 1734-OB2E, 1734-OB2EP, 1734-OB4E, 1734-OB8E, 1734-OV2E, 1734-OV4E, 1734-232ASC, 1734-485ASC, 1734-ARM, 1734-IV8, 1734-OV8E, 1734-IE4C, 1734-IE8C, 1734-OE4C, 1734-IA4, 1734-IM4, 1734-OA4, 1734-IR2E, 1734-IE2C, 1734-OE2C, 1734-IE2V, 1734-OE2V, 1734-IA2, 1734-IM2, 1734-OA2)

•80 mA (Catalog number 1734-OW2, 1734-OW4)

•100mA (Catalog numbers 1734-OX2, 1734-8CFG, 1734-4IOL)

•110mA (Catalog number 1734-SSI)

•160mA (Catalog numbers 1734-IJ2, 1734-IK2)

•175mA (Catalog number 1734-IT2I)

•180mA (Catalog numbers 1734-VHSC5, 1734-VHSC24)

•220 mA (Catalog number 1734-IR2, 1734-IR2E)

(1)

(1) Maximum 31 direct connections for standard I/O or maximum 20 direct connections if any safety I/O module

resides in the backplane.

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 85

Appendix A Specifications

General Specifications

Attributes Description

Status indicators 3 red/green status indicators (on CPU):

Wire Size Power connections:

Wiring category

Power consumption, max 4.5W @ 28.8V DC Power dissipation, max 15.5W @ 28.8V DC Input overvoltage protection Reverse polarity protected Thermal dissipation, max 9.5 BTU/hr @ 28.8V DC Isolation voltage 50V (continuous), Reinforced Insulation Type, between all circuits.

Field power supply 10...28.8V DC @ 10A Field power output 10...28.8V DC @ 9A Module input 10...28V DC @ 1000 mA Dimensions (HxWxD), approx. 76.2 x 54.9 x 133.4 mm

Enclosure type rating None (open-style) Terminal base screw torque 0.8 Nm (7 lb-in) Weight, approx. 255 g (0.56 lb)

(1)

• – Module status

• – Network status

• – POINTBus status

1 green status indicator on CPU:

• – Network activity

2 green power supply status indicators on DC-DC Converter:

• – System power (5V DC to POINTBus Out)

• – Field power (24V DC from Field In)

0.34... 2.1 mm @ 75 °C (167 °F) or greater, 1.2 mm (3/64 in.) insulation max or 90 °C (194 °F) for ControlLogix. Ethernet wiring:

RJ45 connector according to IEC 60603-7, 2 or 4 pair Category 5e min cable according to TIA 568-B.1 or Category 5 cable according to ISO/IEC 24702.

1 – on communications ports 1 – on power ports

Type tested @ 500V AC for 60 s

(3.0 x 2.16 x 5.25 in.)



(22...14 AWG) solid or stranded copper wire rated

(1) Use this Conductor Category information for planning conductor routing. Refer to the Industrial Automation

Power Supply

Wiring and Grounding Guidelines, publication 1770-IN041 Manual.

The 1734-AENT modules have the following power supply specifications:

and to the appropriate System Level Installation

Power Supply Specifications

Attributes Description

Input voltage rating 24V DC @ 10 A Input voltage, range 10...28.8V DC Field side power, max 24V DC @ 400mA Inrush current, max 6.0 A for 10 ms

86 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017

Specifications Appendix A

Power Supply Specifications

Attributes Description

Input overvoltage protection Reverse polarity protected POINTBus output, max 5V DC @ 1.0 A Interruption Output voltage stays within specifications when input drops

out for 10 ms @ 10V with max load

EtherNet Communication

Environmental Specifications

The 1734-AENT adapter modules have the following EtherNet communication specifications.

EtherNet Communication Specifications

Attributes Description

Ethernet communication rate 10/100 Mbits/s, half or full-duplex Ethernet port 1 Ethernet network topologies

supported Ethernet connectors RJ-45, Category 5 Ethernet cable Category 5:

Ethernet wire connections, max See Wire Size

Star, Tree

shielded or unshielded

on page 86

The 1734-AENT EtherNet/IP Adapter modules have the following environmental specifications.

Environmental Specifications

Attributes Description

Temperature, operating IEC 60068-2-1 (Test Ad, Operating Cold),

Temperature, nonoperating IEC60068-2-1 (Test Ab, Unpackaged Nonoperating Cold)

Temperature, surrounding air, max 55 °C (131 °F) Relative humidity IEC 60068-2-30 (Test Db, Unpackaged Damp Heat):

Vibration IEC 60068-2-6 (Test Fc, Operating):

Shock, operating IEC60068-2-27 (Test Ea, Unpackaged Shock):

Shock, nonoperating IEC60068-2-27 (Test Ea, Unpackaged Shock):

IEC 60068-2-2 (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock):

-20...55 °C (-4...131 °F)

IEC60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat) IEC60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock):

-40...85 °C (-40...185 °F)

5...95% non-condensing

5 g @ 10...500 Hz

30 g

50 g

Rockwell Automation Publication 1734-UM018D-EN-E - September 2017 87

Appendix A Specifications

Environmental Specifications

Attributes Description

Emissions CISPR 11:

Group 1, Class A

ESD immunity IEC61000-4-2:

6 kV contact discharges 8 kV air discharges

Radiated RF immunity IEC 61000-4-3:

10V/m with 1 kHz sine-wave 80% AM from 30...2000 MHz 10V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz 10V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz 10V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz

EFT/B immunity IEC 61000-4-4:

±4 kV @ 5 kHz on power ports ±3 kV @ 5 kHz on communications ports

Surge transient immunity IEC 61000-4-5:

±1 kV line-line (DM) and ±2 kV line-earth (CM) on power ports ±2 kV line-earth (CM) on communications ports

Conducted RF immunity IEC 61000-4-6:

10Vrms with 1kHz sine-wave 80% AM from 150kHz...80MHz North American temp code T4A IEC Temp Code T4
