Allen-Bradley 1732E-16CFGM12QCR, 1732E-12X4M12QCDR, 1732E ArmorBlock, 1732E-12X4M12P5QCDR, 1732E-16CFGM12P5QCR User Information

...

Installation Instructions

1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect

Catalog Numbers 1732E-12X4M12QCDR, 1732E-12X4M12P5QCDR, 1732E-16CFGM12QCR, 1732E-16CFGM12P5QCR, 1732E-16CFGM12QCWR, 1732E-16CFGM12P5QCWR

Table of Contents

Topic Page

Important User Information 2

Environment and Enclosure 3

Preventing Electrostatic Discharge 3

Overview 4

Catalog Number Explanation 5

Install the Module 6

Set the Network Address 6

Mount the Module 7

Product Dimensions 7

Connect the I/O, Network and Auxiliary Cables to the Module 9

Configure the Module 14

Interpret LED Indicators 16

Specifications 19

2 1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect

Important User Information

Solid-state equipment has operational characteristics differing from those of electromechanical equipment. Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls (Publication SGI-1.1

http://www.rockwellautomation.com/literature/

solid-state equipment and hard-wired electromechanical devices. Because of this difference, and also because of the wide variety of uses for solid-state equipment, all persons responsible for applying this equipment must satisfy themselves that each intended application of this equipment is acceptable.

In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.

The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for actual use based on the examples and diagrams.

No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software described in this manual.

Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is prohibited.

Throughout this manual, when necessary, we use notes to make you aware of safety considerations.

available from your local Rockwell Automation sales office or online at

WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment, which may lead to personal injury or death, property damage, or economic loss.

ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property damage, or economic loss. Attentions help you identify a hazard, avoid a hazard and recognize the consequences.

) describes some important differences between

SHOCK HAZARD: Labels may be on or inside the equipment (for example, drive or motor) to alert people that dangerous voltage may be present.

BURN HAZARD: Labels may be on or inside the equipment (for example, drive or motor) to alert people that surfaces may reach dangerous temperatures.

IMPORTANT Identifies information that is critical for successful application and understanding of the

product.

Publication 1732E-IN010C-EN-E - June 2013

1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect 3

Environment and Enclosure

ATTENTION: This equipment is intended for use in overvoltage Category II

applications (as defined in IEC 60664-1), at altitudes up to 2000 m (6562 ft) without derating. This equipment is considered Group 1, Class A industrial equipment according to IEC/CISPR 11. Without appropriate precautions, there may be difficulties with electromagnetic compatibility in residential and other environments due to conducted and radiated disturbances.

This equipment is supplied as enclosed equipment. It should not require additional system enclosure when used in locations consistent with the enclosure type ratings stated in the Specifications section of this publication. Subsequent sections of this publication may contain additional information regarding specific enclosure type ratings, beyond what this product provides, that are required to comply with certain product safety certifications. In addition to this publication, see:

• Industrial Automation Wiring and Grounding Guidelines, Rockwell Automation publication 1770-4.1

• NEMA Standard 250 and IEC 60529, as applicable, for explanations of the degrees of protection provided by different types of enclosure.

Preventing Electrostatic Discharge

ATTENTION: This equipment is sensitive to electrostatic discharge, which can

cause internal damage and affect normal operation. Follow these guidelines when you handle this equipment:

• Touch a grounded object to discharge potential static.

• Wear an approved grounding wriststrap.

• Do not touch connectors or pins on component boards.

• Do not touch circuit components inside the equipment.

• Use a static-safe workstation, if available.

• Store the equipment in appropriate static-safe packaging when not in use.

, for additional installation requirements.

Publication 1732E-IN010C-EN-E - June 2013

4 1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect

Additional Resources

Resource Description

ArmorBlock 2-Port EtherNet with Diagnostics and QuickConnect Wiring Diagrams, publication 1732E-WD004

ArmorBlock WeldBlock 2-Port Ethernet Self-configurable with QuickConnect Wiring Diagrams, publication 1732E-WD005

ArmorBlock 2-Port Ethernet Self-configurable with QuickConnect Wiring Diagrams, publication 1732E-WD006

Ethernet QuickConnect Application Technique, publication ENET-AT001

Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1

Detailed description of how to wire your 1732E-12X4M12QCDR or 1732E-12X4M12P5QCDR module.

Detailed description of how to wire your 1732E-16CFGM12QCWR or 1732E-16CFGM12P5QCWR module.

Detailed description of how to wire your 1732E-16CFGM12QCR or 1732E-16CFGM12P5QCR module.

Detailed explanation on how to set up and use QuickConnect ArmorBlock modules.

More information on proper wiring and grounding techniques.

If you would like a manual, you can:

• download a free electronic version from the internet:

http://www.rockwellautomation.com/literature/

• purchase a printed manual by contacting your local Allen-Bradley distributor or Rockwell Automation representative

Overview

The 1732E-12X4M12QCDR, 1732E-12X4M12P5QCDR, 1732E-16CFGM12QCR, 1732E-16CFGM12P5QCR, 1732E-16CFGM12QCWR, 1732E-16CFGM12P5QCWR ArmorBlock™ are I/O modules that communicate via EtherNet/IP. The sealed IP65, IP66, IP67 and IP69K housing of these modules requires no enclosure. The I/O modules have dual Ethernet ports and use an embedded Ethernet switch.

The modules have Auxiliary power In and Out connectors. There is no need to house these modules in a secondary enclosure. The I/O modules support the QuickConnect feature, onboard nonvolatile memory for storing block-specific data such as Tool ID and counter value, and provide basic distributed I/O functionality.

Publication 1732E-IN010C-EN-E - June 2013

1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect 5

LINK 1

LINK 2

MOD

NET

PORT 1

PORT 2

AUX POWER

45758

1732E-16CFGM12QCWR shown

LED status indicators

Function earth

(2)

EtherNet/IP D-code M12 connector

Node address switches

M12 style I/O connectors

Mini-style auxiliary power in

Mini-style auxiliary power out

M12 style I/O connectors

Protective earth

(1)

Module Identification

(1) Protective Earth is provided for t he grounding of field devices and is internally connected to each Pin 5 of t he M12 I/O

connectors. See I/O Connectors on page 9.

(2) Functional Earth grounds the I/O block’s EtherNet/IP co mmunication circuitry which is designed to mitigate the effect of

noise on the network. See EtherNet/ IP Connector on page 11.

Catalog Number Explanation

Refer to the table for a description of the module catalog numbers.

Catalog Number Description Network

1732E-12X4M12QCDR Diagnostic 12-input/4 output 24V DC digital

1732E-12X4M12P5QCDR Diagnostic 12-input/4 output 24V DC digital

1732E-16CFGM12QCR 16 channel 24V DC self-configurable digital

I/O dual-port Ethernet module with QuickConnect

Publication 1732E-IN010C-EN-E - June 2013

Connector

Dual D-code M12

Auxiliary Power

Dual 4-pin mini

Dual 5-pin mini

Dual 4-pin mini

6 1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect

Catalog Number Description Network

1732E-16CFGM12P5QCR 16 channel 24V DC self-configurable digital

1732E-16CFGM12QCWR 16 channel 24V DC self-configurable digital

1732E-16CFGM12P5QCWR 16 channel 24V DC self-configurable digital

I/O dual-port Ethernet module with QuickConnect

I/O dual-port Ethernet metal WeldBlock module with QuickConnect

Connector

Dual D-code M12

Auxiliary Power

Dual 5-pin mini

Dual 4-pin mini

Dual 5-pin mini

Install the Module

To install the module:

• Set the network address

•Mount the module

• Connect the I/O, Network and Auxiliary cables to the module.

Set the Network Address

The I/O block ships with the rotary switches set to 999 and DHCP enabled. To change the network address, you can do one of the following:

• adjust the switch on the front of the module.

• use a Dynamic Host Configuration Protocol (DHCP) server, such as Rockwell Automation BootP/DHCP.

• retrieve the IP address from nonvolatile memory.

The I/O block reads the switches first to determine if the switches are set to a valid number. To set the network address:

1. Rotate the three (3) switches on the front of the module using a small blade screwdriver.

2. Line up the small notch on the switch with the number setting you wish to use. Valid settings range from 001…254.

3. Cycle power.

Publication 1732E-IN010C-EN-E - June 2013

1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect 7

Example shows default node address set at 163.

45759

Set Network Address

When the switches are set to a valid number, the I/O block’s IP address is 192.168.1.xxx (where xxx represents the number set on the switches). The I/O block’s subnet mask is

255.255.255.0 and the gateway address is set to 0.0.0.0. When the I/O block uses the network address set on the switches, the I/O block does not have a host name assigned to it or use any Domain Name Server.

If the switches are set to an invalid number (for example, 000 or a value greater than 254 excluding 888), the I/O block checks to see if DHCP is enabled. If DHCP is enabled, the I/O block asks for an address from a DHCP server. The DHCP server also assigns other Transport Control Protocol (TCP) parameters.

If DHCP is not enabled, the I/O block uses the IP address (along with other TCP configurable parameters) stored in nonvolatile memory.

Mount the Module

Two sets of mounting holes are used to mount the module directly to a panel or machine. Mounting holes accommodate #8 (M4) pan head screws. The torque specification is

1.13 Nm (10 in-lb).

Product Dimensions

Refer to the mounting dimensions illustration to help you mount the module.

Publication 1732E-IN010C-EN-E - June 2013

8 1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect

LINK 1 LINK 2

MOD

NET

AUX POWER

PORT 1 PORT 2

45760

200 mm

(2.38 in.)

45 mm

28 mm

(7.87 in.)

189.6 mm (7.46 in.)

60.4 mm (1.77 in.)

(1.1 in.)

Front view Side view

Module Dimensions

Mount the Module in High Vibration Areas

If you mount the module in an area that is subject to shock or vibration, we recommend you use a flat and a lock washer to mount the module. Mount the flat and the lock washer as shown in the mounting illustration. Torque the mounting screws to 1.13 Nm (10 in-lb).

Publication 1732E-IN010C-EN-E - June 2013

1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect 9

44766

Lock washer

Flat washer

1 2

For 1732E-12X4M12QCDR and 1732E-12X4M12P5QCDR only

(View into connector) Pin 1 Sensor source voltage Pin 2 Input B Pin 3 Return Pin 4 Input A Pin 5 PE

44807

High Vibration Area Mounting

Connect the I/O, Network and Auxiliary Cables to the Module

The ArmorBlock EtherNet/IP family has 5-pin micro-style connectors. We provide caps to cover the unused connectors on your module. Connect the quick-disconnect cord sets you selected for your module to the appropriate ports.

I/O Connectors

Micro-style 5-Pin Input Female Connector

ATTENTION: To comply with the CE Low Voltage Directive (LVD), this

equipment and all connected I/O must be powered from a source compliant with the following: Safety Extra Low Voltage (SELV) or Protected Extra Low Voltage (PELV).

Publication 1732E-IN010C-EN-E - June 2013

10 1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect

For 1732E-12X4M12QCDR and 1732E-12X4M12P5QCDR only

(View into connector) Pin 1 Not used Pin 2 Output B Pin 3 Return Pin 4 Output A Pin 5 PE

44807

(View into connector) Pin 1 Sensor source voltage Pin 2 Input or Output B Pin 3 Return Pin 4 Input or Output A Pin 5 PE

44807

Micro-style 5-Pin Output Female Connector

1 2

Self-configuring Modules

The 1732E-16CFGM12QCR, 1732E-16CFGM12P5QCR, 1732E-16CFGM12QCWR, and 1732E-16CFGM12P5QCWR self-configuring modules contain both input and output functionality.

• If an I/O point is to be an output, dedicate that point as an output with a wired load and energize it through a control program.

• Energized outputs show an associated active input that can be used as a feedback mechanism to make certain that the output is on.

• If an I/O point is to be an input, wire the input device as normal and leave the associated output de-energized at all times.

Micro-style 5-Pin Selectable Point Connector

1 2

ATTENTION: Make sure all connectors and caps are securely tightened to properly seal the connections against leaks and maintain IP enclosure and NEMA type requirements.

ATTENTION: To comply with UL restrictions, this equipment must be powered from a source compliant with the following: Limited Voltage

Publication 1732E-IN010C-EN-E - June 2013

1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect 11

IMPORTANT

43601

(View into connector 1) Pin 1 M12_Tx+ Pin 2 M12_Rx+ Pin 3 M12_TxPin 4 M12_RxPin 5 Connector shell shield GND

45793

(View into connector 2) Pin 1 M12_Rx+ Pin 2 M12_Tx+ Pin 3 M12_RxPin 4 M12_TxPin 5 Connector shell shield GND

45794

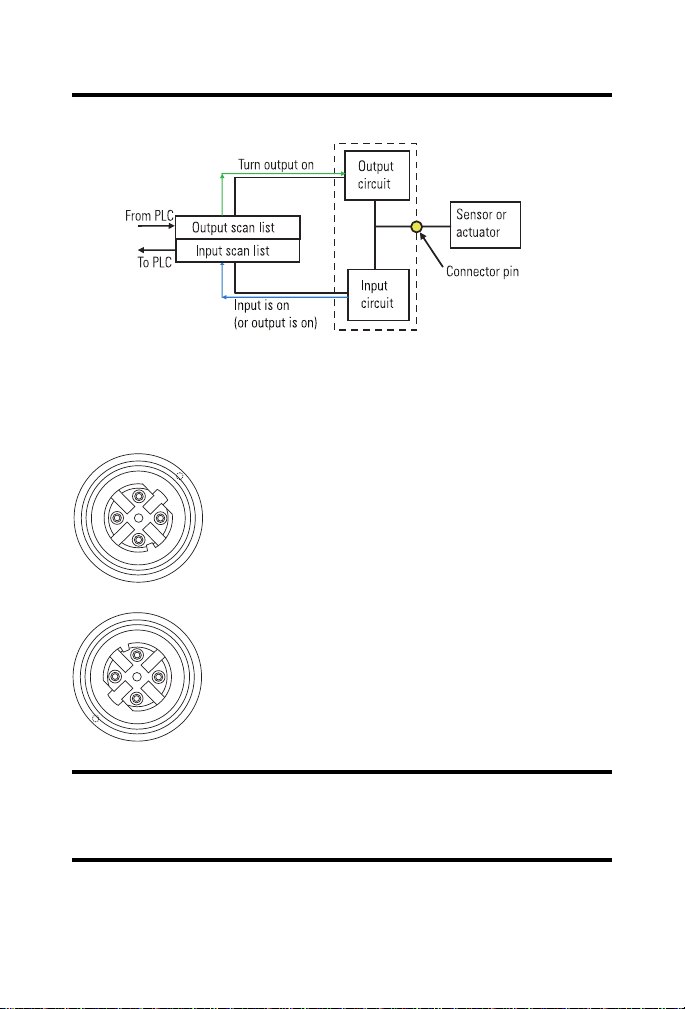

I/O Self-configure Circuitry

EtherNet/IP Connector

D-Code Micro Network Female Connector

Use the 1585D–M4DC–H: Polyamide small body unshielded or the 1585D–M4DC–SH: Zinc die-cast large body shielded mating connectors for the D-Code M12 female network connector.

Publication 1732E-IN010C-EN-E - June 2013

12 1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect

Enable QuickConnect

To enable QuickConnect for the Ethernet ports, use the RSLogix 5000 software Module QuickConnect tab and check the Enable QuickConnect option. For more information on the QuickConnect system set up, refer to Ethernet QuickConnect Application Technique, publication ENET-AT001

After the QuickConnect feature is set to "on", the module must be power cycled. QuickConnect is active during the next connection.

Once active, the QuickConnect feature automatically sets all Ethernet ports to:

• Speed = 100 Mbps

•Duplex = Full

•Auto-negotiate = Off

• Automatic Cross-over Cable Detection (Auto-MDIX) = Off

If you configure BootP or DHCP, QuickConnect changes the configuration to retain the current IP address. Disabling the QuickConnect feature automatically sets all Ethernet ports to Automatic Cross-over Cable Detection (Auto-MDIX) = On.

To reset the Ethernet ports to Auto-negotiate or the IP address to DHCP request, you can:

• change the setting on the module web page

• change the setting in the RSLogix 5000 software

• perform a factory reset

Publication 1732E-IN010C-EN-E - June 2013

1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect 13

TIP

4 2

3 1

44809

(View into receptacle) Pin 1 Output power+ Pin 2 Sensor/MDL power+ Pin 3 Sensor/MDL powerPin 4 Output power-

45677

Male Input Female Output

46199

(View into receptacle) Pin 1 Output powerPin 2 Sensor/MDL powerPin 3 Protective Earth Pin 4 Sensor/MDL power+

Pin 5 Output power+

46200

Male Input

Female Output

Auxiliary Power Connector

The 1732E-12X4M12QCDR, 1732E-16CFGM12QCR, and 1732E-16CFGM12QCWR modules use 4-pin auxiliary power connections. Attach the mini-style 4-pin connector to the mini-style 4-pin receptacle as shown below.

Mini-style 4-Pin Receptacle

The 1732E-12X4M12P5QCDR, 1732E-16CFGM12P5QCR, and 1732E-16CFGM12P5QCWR modules use 5-pin auxiliary power connections. Attach the mini-style 5-pin connector to the mini-style 5-pin receptacle as shown below.

Mini-style 5-Pin Receptacle

The ground for both module power and output power are shared.

ATTENTION: This equipment is considered Group 1, Class A industrial equipment according to IEC/CISPR 11. Without appropriate precautions, there may be difficulties with electromagnetic compatibility in residential and other environments due to conducted and radiated disturbance.

Publication 1732E-IN010C-EN-E - June 2013

14 1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect

LINK 1 LINK 2

MOD

NET

AUX POWER

PORT 1 PORT 2

45761

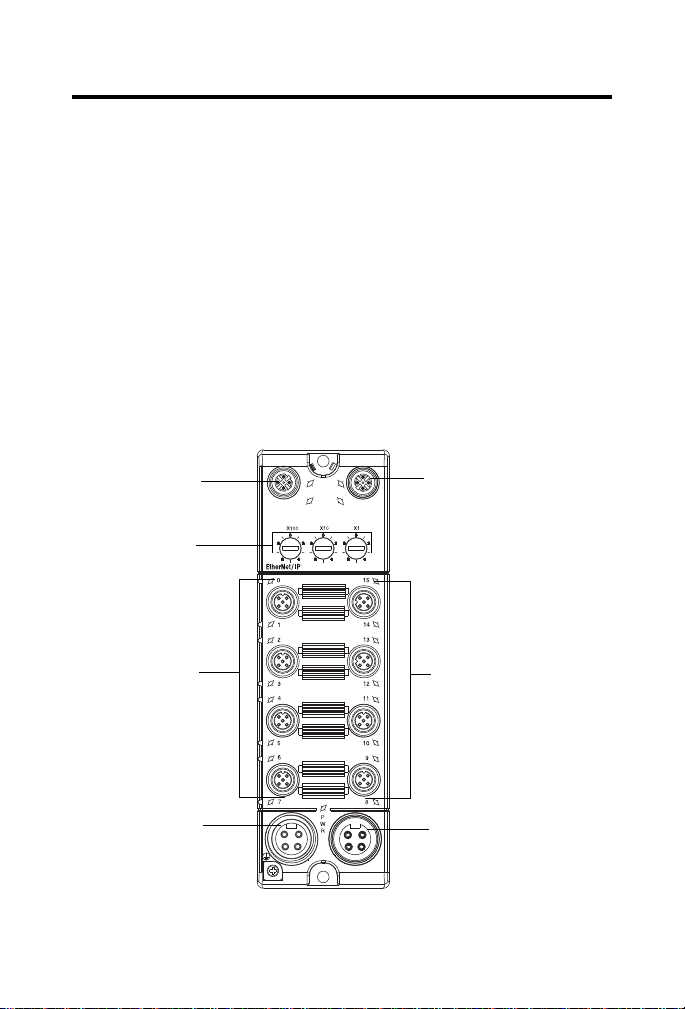

1732E-16CFGM12QCR shown

EtherNet/IP D-code M12 connector

Node address switches

Mini-style auxiliary power in

Mini-style auxiliary power out

M12 style I/O connectors

Auxiliary Power is based on a 4-pin and 5-pin connector system and is used to provide 24V DC power to I/O modules and other devices. Running separate power to these devices is most typically used for I/O devices with output connections to prevent power supply interruption due to switching of outputs. However, some devices require separate auxiliary power to power them regardless of the presence of outputs.

Depending on the devices used, it may be possible to provide power through only one pair of the four available pins, and in this case the other available pair may be used for single channel E-stop through the use of special E-stop drop or power T-ports and shorting plugs. Allen-Bradley E-stop T-ports and shorting plugs are red in color for easy identification.

Configure the Module

Refer to the illustration for configuration operations.

Configure Operations

Publication 1732E-IN010C-EN-E - June 2013

1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect 15

Refer to On-Machine Connectivity Catalog , publication M117-CA001, for Rockwell Automation cable and cord set offerings or use the configuration tools available at

www.rockwellautomation.com/en/e-tools/

External Repository for Random Data (ERRD)

The QuickConnect modules provide onboard nonvolatile memory, of up to 6 Kbytes, for storing block-specific data such as Tool ID and counter value. You can read from and write to the module memory.

To re a d f r om t he m od u le

1. Send an EtherNet/IP Explicit Message with the following information:

Service Code 4C (hex) Class ID 6E (hex) Instance ID 1 Attribute ID 1 Request Data Data Payload (total 8 bytes):

To wr i te t o t he mo d ul e

2. Send the following three EtherNet/IP Explicit Messages:

Start command

Service Code 06 (hex) Class ID 6E (hex) Instance ID 1 Attribute ID 1

Offset Description

0x00 Address to Read from 0x04 Number of bytes to read (max. 472 bytes)

Write command

Service Code 4D (hex) Class ID 6E (hex) Instance ID 1 Attribute ID 1 Request Data Data Payload (max 8+ 472 bytes):

Offset Description

0x00 Address to Write to 0x04 Number of bytes to write (max. 472 bytes) 0x08 User Data (Array of USINT)

Publication 1732E-IN010C-EN-E - June 2013

16 1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect

45762

1732E-16CFGM12QCR/ 1732E-16CFGM12QCWR

1732E-12X4M12QCDR

Link status indicator

Module status indicator

Network status indicator

Module status indicator

I/O status indicator

Input status indicator

Output status indicator

Power status indicator

Stop command

Service Code 07 (hex) Class ID 6E (hex) Instance ID 1 Attribute ID 1

Interpret LED Indicators

This module has the following indicators:

• Network, Module, and Link status indicators for EtherNet/IP

• Module Power indicator

• Individual I/O status indicators for inputs and outputs

LINK 1 LINK 2

PORT 1 PORT 2

MOD NET

Publication 1732E-IN010C-EN-E - June 2013

LINK 1 LINK 2

PORT 1 PORT 2

MOD NET

AUX POWERAUX POWER

1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect 17

46201

1732E-16CFGM12P5QCR/ 1732E-16CFGM12P5QCWR

1732E-12X4M12P5QCDR

Link status indicator

Module status indicator

Network status indicator

Module status indicator

I/O status indicator

Input status indicator

Output status indicator

Power status indicator

LINK 1 LINK 2

PORT 1 PORT 2

MOD NET

LINK 1 LINK 2

PORT 1 PORT 2

MOD NET

Indicator Status for Modules

Module status Off No power applied to device.

Status Description

Flashing red/green Device is in self-test. Green Device operating normally. Flashing red Recoverable fault. Red Unrecoverable fault — may require device

replacement.

Publication 1732E-IN010C-EN-E - June 2013

AUX POWERAUX POWER

18 1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect

IMPORTANT

Indicator Status for Modules

Status Description

Network status Off The device is not initialized or the module does not

Flashing green The device has no CIP connections.

Green The device is online, has an IP address, and CIP

Flashing red One or more connections have timed out. Red The module has detected that its IP address is already

Flashing red/green The module is performing a powerup self-test.

Network link status Off No link established.

Green Link established on indicated port at 100 Mbps. Flashing green Link activity present on indicated port at 100 Mbps. Yellow Link established on indicated port at 10 Mbps. Flashing yellow Link activity present on indicated port at 10 Mbps.

Power status Off No power to device or input not valid.

Green Power applied to device.

Digital output status Off Output not energized.

Yellow Output energized and output power applied. Flashing yellow Output energized and no output power.

(1)

Red Flashing red Output open load.

Digital input status Off No valid input.

Yellow Valid input.

(1)

Red Flashing red Sensor source open wire.

(1)

Only diagnostic modules 1732E-12X4M12QCDR and 1732 E-12X4M12P5QCDR have red I/O status LED indicators.

have an IP address.

The device has an IP address, but no CIP connections are established.

connections are established.

in use.

Output shorted.

Sensor source voltage shorted.

In non-QuickConnect mode, the Module Status LED indicator flashes red and green for a maximum 5 s while the module completes its POST (Power-On Self Test).

Publication 1732E-IN010C-EN-E - June 2013

1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect 19

Specifications

1732E ArmorBlock 2-Port EtherNet Module Input

Attribute Value

Number of inputs 12 – 1732E-12x4M12QCDR, 1732E-12x4M12P5QCDR

Input type Sink, 24V DC Voltage, off-state input, max 5V DC Voltage, on-state input, max 30V DC Voltage, on-state input, nom 24V DC Voltage, on-state input, min 12V DC Current, off-state input, max 1.5 mA @ 5V DC Current, on-state input, max 5 mA @ 30V DC Voltage, sensor source, max 30V DC Voltage, sensor source, min 10V DC Input delay time

ON to OFF OFF to ON

16 – all other modules

0, 1, 2, 4, 8, 16 ms

1732E ArmorBlock 2-Port EtherNet Module Output

Attribute Value

Number of outputs 4 – 1732E-12x4M12QCDR, 1732E-12X4M12P5QCDR

Output type Source, 24V DC Voltage drop, on-state output, max 0.5V DC Voltage off-peak blocking, min 30V DC Voltage, on-state output, max 30V DC Voltage, on-state output, min 12V DC Voltage, on-state output, nom 24V DC Current on-state output, max 0.5 A

16 – all other modules

Publication 1732E-IN010C-EN-E - June 2013

20 1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect

1732E ArmorBlock 2-Port EtherNet Module Output

Attribute Value

Current per module, max 2.0 A – 1732E-12X4M12QCDR, 1732E-12X4M12P5QCDR

Leakage current, off-state output, max

Surge current per output, min 1.2 A for 10 ms, repeatable every 2 s

8.0 A – all other modules

0.5 mA – 1732E-12X4M12QCDR, 1732E-12X4M12P5QCDR 50 μA – all other modules

General Specifications

Attribute Value

Voltage, auxiliary power, max 30V DC Voltage, auxiliary power, min 12V DC Current, Ethernet system power,

max (pins 2, 3 sensor source/module power)

Current, auxiliary power, max per output module (pins 2, 3 sensor source/module power plus pins 1, 4 for output loads)

Current, auxiliary power connector, max per module

Current, sensor source, per input, max

Current, sensor source, per connector, max

Communication rate EtherNet/IP

Isolation voltage 50V (continuous), Basic Insulation Type, I/O to Ethernet,

LED indicators Module Status - red/green

Dimensions (HxWxD), approx. 200 x 60.4 x 45 mm (7.87 x 2.38 x 1.77 in.) Weight, approx. 0.51 kg (1.12 lb) – 1732E-16CFGM12QCWR, 1732E-16CFGM12P5QCWR

1 A

2 A – 1732E-12X4M12QCDR, 1732E-12X4M12P5QCDR 8 A – all other modules

10 A

50 mA

100 mA

10/100 Mbps Full or half-duplex 100 meter per segment

Power to Ethernet Type tested at 707V DC for 60 s

Network Status - red/green Link Status - green/yellow Auxiliary Power - green I/O LED - yellow I/O LED - yellow/red – 1732E-12X4M12QCDR, 1732E-12X4M12P5QCDR

0.43kg (0.95 lb) – all other modules

Publication 1732E-IN010C-EN-E - June 2013

1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect 21

General Specifications

Attribute Value

Enclosure type rating Meets IP65/66/67/69K (when marked), and Type 4X Indoor Use Only,

Wiring category

Onboard memory type Ferroelectric Nonvolatile RAM (FRAM) Onboard memory, capacity, max 6 Kbytes

(1)

Use this Conductor Category information for planning conductor routing. Refer to Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1 .

with receptacle dust caps or cable termination 1 - on signal ports

1 - on power ports 1 - on communications port

Environmental Specifications

Attribute Value

Temperature, operating

Temperature, ambient, max.

Temperature, storage IEC 60068-2-1 (Test Ab, Unpackaged Non-operating Cold),

Relative humidity IEC 60068-2-30 (Test Db, Unpackaged Damp Heat):

Vibration IEC 60068-2-6 (Test Fc, Operating):

Shock, operating IEC 60068-2-27 (Test Ea, Unpackaged Shock):

Shock, non-operating IEC 60068-2-27 (Test Ea, Unpackaged Shock):

Emissions CISPR 11

ESD immunity IEC 61000-4-2:

IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock):

-20…60 °C (-4…140 °F) 60 °C (140 °F)

IEC 60068-2-2 (Test Bb, Unpackaged Non-operating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Non-operating Thermal Shock):

-40…85 °C (-40…185 °F)

5…95% noncondensing

5 g @ 10... 500 Hz

30 g

50 g

Group 1, Class A

6 kV contact discharges 8 kV air discharges

Publication 1732E-IN010C-EN-E - June 2013

22 1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect

Environmental Specifications

Attribute Value

Radiated RF immunity IEC 61000-4-3:

EFT/B immunity IEC 61000-4-4:

Surge transient immunity

Conducted RF immunity

10V/m with 1 kHz sine-wave 80% AM from 80…2000 MHz 10V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz 10V/m with 200 Hz 50% Pulse 100% AM @ 1890 Mhz 1V/m with 1 kHz sine-wave 80% AM from 2000…2700 MHz

±3 kV @ 5 kHz on power ports ±3 kV @ 5 kHz on signal ports ±3 kV @ 5 kHz on communications ports

IEC 61000-4-5: ±1 kV line-line(DM) and ±2 kV line-earth(CM) on power ports ±1 kV line-line(DM) and ±2 kV line-earth(CM) on signal ports ±2 kV line-earth(CM) on communications ports

IEC 61000-4-6: 10V rms with 1 kHz sine-wave 80% AM from 150 kHz…80 MHz

Certifications

Certification (when product is marked)

c-UR-us UL Recognized Component Industrial Control Equipment, certified for US and

CE European Union 2004/108/EC EMC Directive, compliant with:

C-Tick Australian Radiocommunications Act, compliant with:

EtherNet/IP ODVA conformance tested to EtherNet/IP specifications.

KC Korean Registration of Broadcasting and Communications Equipment,

(1)

See the Product Certification lin k at http://www.ab.com for Declaration of Conformity, Certificates, and other certification details.

Valu e

(1)

Canada. See UL File E322657.

EN 61326-1; Meas./Control/Lab., Industrial Requirements EN 61000-6-2; Industrial Immunity EN 61000-6-4; Industrial Emissions EN 61131-2; Programmable Controllers (Clause 8, Zone A & B)

AS/NZS CISPR 11; Industrial Emissions

compliant with: Article 58-2 of Radio Waves Act, Clause 3

Publication 1732E-IN010C-EN-E - June 2013

Notes:

1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect 23

Publication 1732E-IN010C-EN-E - June 2013

Rockwell Automation Support

Rockwell Automation provides technical information on the Web to assist you in using its products. At

http://www.rockwellautomation.com/support/

technical and application notes, sample code and links to software service packs, and a MySupport feature that you can customize to make the best use of these tools.

For an additional level of technical phone support for installation, configuration and troubleshooting, we offer TechConnect support programs. For more information, contact your local distributor or Rockwell Automation representative, or visit http://www.rockwellautomation.com/support/

, you can find technical manuals, a knowledge base of FAQs,

Installation Assistance

If you experience a problem within the first 24 hours of installation, please review the information that's contained in this manual. You can also contact a special Customer Support number for initial help in getting your product up and running.

United States or Canada 1.440.646.3434 Outside United States or

Canada

Use the Worldwide Locator at

http://www.rockwellautomation.com/support/americas/phone_en.html

contact your local Rockwell Automation representative.

, or

New Product Satisfaction Return

Rockwell Automation tests all of its products to ensure that they are fully operational when shipped from the manufacturing facility. However, if your product is not functioning and needs to be returned, follow these procedures.

United States Contact your distributor. You must provide a Customer Support case number

Outside United States Please contact your local Rockwell Automation representative for the return

(call the phone number above to obtain one) to your distributor to complete the return process.

procedure.

Documentation Feedback

Your comments will help us serve your documentation needs better. If you have any suggestions on how to improve this document, complete this form, publication RA-DU002

http://www.rockwellautomation.com/literature/

, available at

Allen-Bradley, Rockwell Automation, ArmorBlock, and TechConnect are trademarks of Rockwell Automation, Inc.

Trademarks not belonging to Rockwell Automation are property of their respective companies.

Publication 1732E-IN010C-EN-E - June 2013

Allen-Bradley 1732E-16CFGM12QCR, 1732E-12X4M12QCDR, 1732E ArmorBlock, 1732E-12X4M12P5QCDR, 1732E-16CFGM12P5QCR User Information

Specifications and Main Features

Frequently Asked Questions

User Manual

Important User Information

Environment and Enclosure

Preventing Electrostatic Discharge

Additional Resources

Overview

Catalog Number Explanation

Install the Module

Set the Network Address

Mount the Module

Product Dimensions

Connect the I/O, Network and Auxiliary Cables to the Module

Self-configuring Modules

Enable QuickConnect

Configure the Module

External Repository for Random Data (ERRD)

Interpret LED Indicators

Specifications
