Allen-Bradley 1420-V1A, 1420-V1-485, 1420-V1, 1420-V1-ENT, 1420-V1P-ENT User Manual

...

User Manual

Original Instructions

PowerMonitor 500 Unit

Catalog Numbers 1420-V1, 1420-V1P, 1420-V1A, 1420-V1-ENT, 1420-V1-485, 1420-V1P-ENT, 1420-V1P-485, 1420-V1AENT, 1420-V1A-485, 1420-V2, 1420-V2P, 1420-V2A, 1420-V2-ENT, 1420-V2-485, 1420-V2P-ENT, 1420-V2P-485, 1420V2A-ENT, 1420-V2A-485

Important User Information

Read this document and the documents listed in the additional resources section about installation, configuration, and operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.

Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to be carried out by suitably trained personnel in accordance with applicable code of practice.

If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.

In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.

The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for actual use based on the examples and diagrams.

No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software described in this manual.

Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is prohibited

Throughout this manual, when necessary, we use notes to make you aware of safety considerations.

WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment, which may lead to personal injury or death, property damage, or economic loss.

ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.

IMPORTANT Identifies information that is critical for successful application and understanding of the product.

Labels may also be on or inside the equipment to provide specific precautions.

SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous voltage may be present.

BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may reach dangerous temperatures.

ARC FLASH HAZARD: Labels may be on or inside the equipment, for example, a motor control center, to alert people to potential Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL Regulatory requirements for safe work practices and for Personal Protective Equipment (PPE).

Summary of Changes

This manual contains new and updated information as indicated in the following table

New and Updated Information

This table contains the changes made to this revision.

Top ic Pag e

Updated wiring diagrams in Chapter 2. 19…22

Added CIP message examples to Appendix C 75…82

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 3

Summary of Changes

Notes:

4 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

PowerMonitor 500 Unit Overview

Installation and Wiring

Preface

About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Catalog Number Explanation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Chapter 1

About the PowerMonitor 500 Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

PowerMonitor 500 Features and Functions . . . . . . . . . . . . . . . . . . . . . . . . 10

Front Panel Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Display Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Selecting Data to Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Chapter 2

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Wiring Diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Unit Configuration

Communication

PowerMonitor 500 Unit Data Tables

Technical Specifications

Chapter 3

Configure with the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

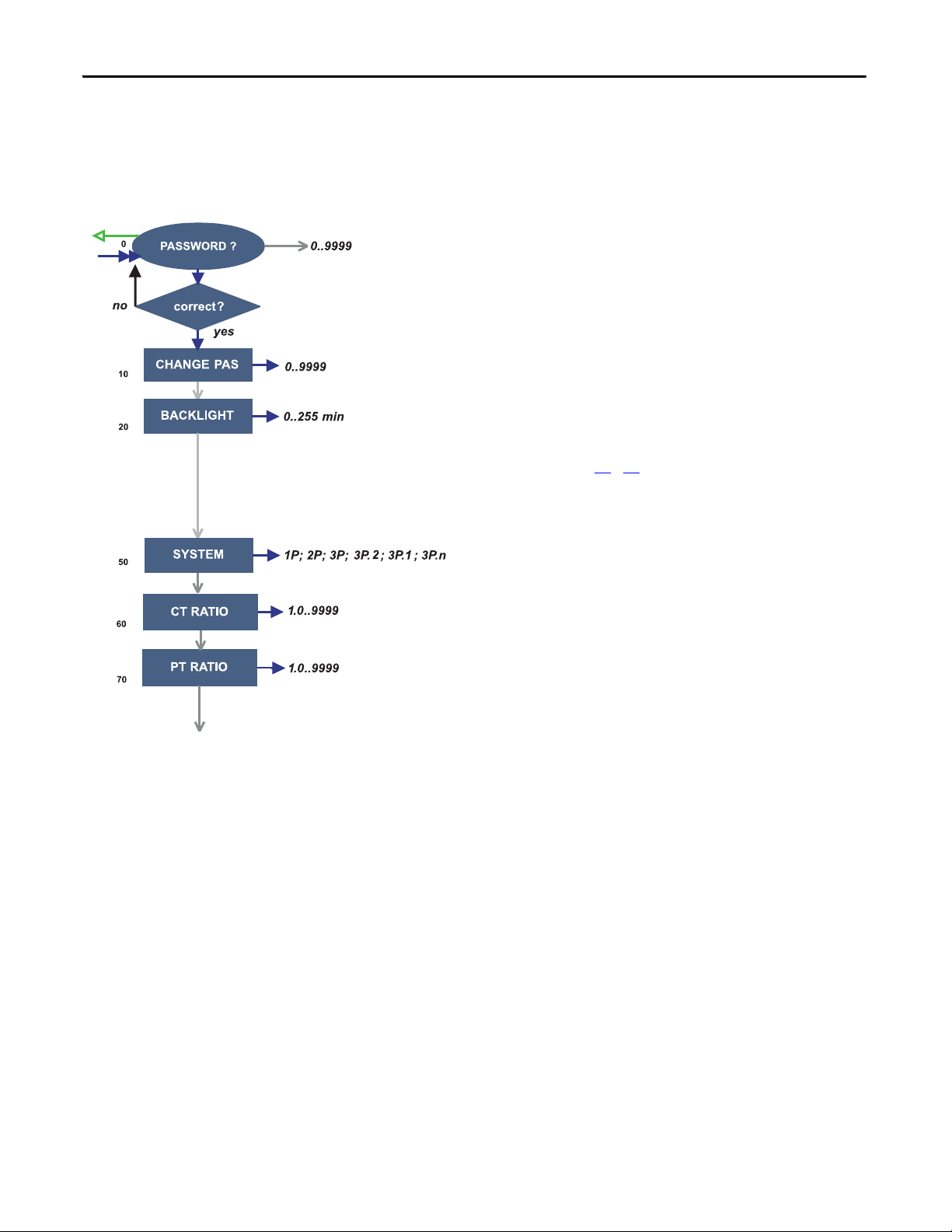

Configuration Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Digital Filtering Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Analog Output Configuration Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Alarm Configuration Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Chapter 4

EtherNet/IP Communication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Modbus Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Appendix A

Summary of Data Tables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Geometric Representation of Power and Power Factor . . . . . . . . . . . . . . 48

Data Tables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Appendix B

List of Connectable Variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

PowerMonitor 500 EtherNet/IP Device Profile

Appendix C

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Object Model and Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Identity Object - CLASS CODE 0x0001 . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Assembly Object - CLASS CODE 0x0004 . . . . . . . . . . . . . . . . . . . . . . . . . 80

Technical Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 5

Table of Contents

Index

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

6 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Preface

About This Manual

Intended Audience

Catalog Number Explanation

This manual contains detailed information on these topics:

• Mounting and wiring of the unit

• Wiring to native and optional communication port

• Set-up and use of the display module

• Information on metering functionality and measurements

• Use of the display module for configuration, monitoring, and commands

• Discussion of communication options, functionality, configuration, and

operation

• Alarm configuration and operation

• PowerMonitor™ 500 data tables

This manual is intended for qualified personnel. You need a basic understanding of electric power and energy theory and terminology, and alternating-current (AC) metering principles.

Bulletin Number

1420 - PowerMonitor 500

1420

Voltage

V1 - 240V AC V-LL

120V AC V-LN/208V AC V-LL

V2 - 400V AC V-LN and

690V AC V-LL

-V1 P -485

Auxiliary

P - Pulse (Digital) Output

A - Analog Output

Blank - No Output

Optional Comms

485 - Serial RS-232,

RS-485, Modbus RTU

ENT - EtherNet/IP

and Modbus TCP/IP

Blank - No Comm

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 7

Preface

Additional Resources

These documents contain additional information concerning related products from Rockwell Automation.

Resource Description

Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1

Product Certifications website, http://www.ab.com Provides declarations of conformity, certificates, and

Provides general guidelines for installing a Rockwell Automation industrial system.

other certification details.

You can view or download publications at

http://www.rockwellautomation.com/literature/

. To order paper copies of technical documentation, contact your local Allen-Bradley distributor or Rockwell Automation sales representative.

8 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

PowerMonitor 500 Unit Overview

Chapter 1

About the PowerMonitor 500 Unit

The PowerMonitor™ 500 unit is an AC power monitor with a built-in advanced configuration system and LCD data display. The unit is designed for measurement of electrical parameters in various three-phase, single-phase (2-wire European), and split-phase (3-wire North American single phase) circuits. The unit modular housing can be mounted in a panel that provides IP65 degree protection from the front. The power monitor can be provided with analog or digital (relay) outputs. These outputs can be selected to output a pulse proportional to the real and reactive energy that is measured, or to annunciate alarms. The instrument can also be equipped with a serial RS-485/RS-232 port or an EtherNet/IP port.

Equipped with an optional communication port, the unit communicates power and energy parameters to applications, such as FactoryTalk® EnergyMetrix™ software. The power monitor works with these software applications to address these key customer applications:

• Load profiling - log power parameters such as real energy, apparent power, and demand, for analysis of power usage by loads over time

• Cost allocation - report actual energy cost by department or process to integrate energy information into management decisions

• Billing and sub billing - charge users of energy the actual usage cost rather than allocating by square footage or other arbitrary methods

• Power system monitoring and control - display and control power flow and energy utilization

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 9

Chapter 1 PowerMonitor 500 Unit Overview

PowerMonitor 500 Features and Functions

The power monitor connects to your three-phase, split-phase (3-wire North American single phase), or single-phase (2-wire European) AC power system directly or through instrument transformers (PTs and CTs). It converts instantaneous voltage and current values to digital values, and uses the resulting digital values in calculations of voltage, current, power, energy, and demand.

The power monitor family includes several models that combine the following basic components:

• A panel-mounted power monitor in one of two AC voltage ranges: 120/208V or 400/600V

• An optional pair of digital (relay) outputs

• An optional pair of 0…20 mA analog outputs

• Optional serial RS-232/RS-485 communication supporting Modbus

RTU

• Optional Ethernet port supporting EtherNet/IP and Modbus TCP/IP

• Front protection degree: IP65, NEMA 4X, NEMA 12

• Up to four configurable virtual alarms

• Class 1 (kWh) according to EN62053-21

• Class B (kWh) according to EN50470-3

• Class 2 (kVARh) according to EN62053-23

• Accuracy ±0.5% of reading (current/voltage)

• Metering values display: Four rows x 4 digit

• Energy value display: Ten digit plus sign

• Three-phase (system) variables: V(L-L), V(L-N), A, VA, W, VAR, power

factor, frequency

• Single phase variables: V(L-L), V(L-N), A(L), An (calculated), VA, W, VAR , pow er f ac tor

• System and single phase average and maximum variables

• Energy measurements (imported/exported): kWh and kVARh

• Revenue grade energy measurements per ANSI C12.1 Class 1.0, ANSI

C12.1

• Run hours counter (8+2 digit)

• Real-time clock function

• Universal power supply: 120/240V AC 50/60 Hz, or 120/240V DC

• Front dimensions: 96 x 96 mm (3.78 x 3.78 in)

10 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

PowerMonitor 500 Unit Overview Chapter 1

PowerMonitor 500

Front Panel Features

This section describes the front panel of the unit.

Front Panel Indicators and Control Buttons

The buttons are enhanced touch buttons. The touch icon turns on each time a button is pressed. We recommend using your forefinger to activate the touch buttons.

In Metering mode, buttons 4 and 5 (shown in Figure 1 maximum and demand (average) values of the displayed measurements.

Figure 1 - Front Panel

) are used to display the

Display Item Description

1 Active Alarms AL1…AL4 status indicators.

2 Real Energy consumption rate status indicator. Faster flashing indicates higher rate of consumption. Maximum frequency 16 Hz per EN5047-1.

3 Exit Button - Press quickly to exit submenus, or to exit the programming menus in Programming mode.

When in the programming menu, press and hold Exit for at least 2 seconds to exit the programming menu. Press Program/select to confirm and return to the metering display and exit the programming menu without saving your changes.

To save changes, use the Up and Down arrows to go to the End menu, then press Program/Select. When not in the programming menu, press and hold for more than 2 seconds to view the information pages. In Metering mode, press quickly to scroll through the energy co unters.

4 Up Button - Press the Up button to browse menus and to increase values to be set.

5 Down Button - Press the Down button to browse menus and to decrease values to be set.

6 Program/select Button - Press and hold the Program/select button for at least 2 seconds to access the programming menu.

When in the programming menu, press Program/select to confirm the programmed values in the active page. Press Program/select to enter and exit edit mode on the active page.

When not in the programming menu, press Program/select to select measured values for display. Press quickly to scroll through the metering display pages. See Tab le 1

and Tab le 2 for a list of the measurement screens.

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 11

Chapter 1 PowerMonitor 500 Unit Overview

Additional Button Functions

Certain buttons have two functions. To access the second function, press and hold the button for more than 2 seconds.

Displays PowerMonitor 500 information screens, which provide reference standards, firmware revision, and year of manufacture.

Resets the max (maximum) of the displayed variables. You must press Program/ select to confirm the reset.

Resets the dmd (demand) of the displayed variables. You must press Program/ select to confirm the reset.

12 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

PowerMonitor 500 Unit Overview Chapter 1

ROW 1ROW 2ROW 3ROW 4ROW 5

Display Features

Display Item Description

1 Phase displacement indicator: inductive L, -L, or capacitive C, -C.

The sign is based on the direction of real power flow. Positive = consuming power, negative = generating power. See the Geometric Representation of Power and Power Factor In Programming mode, the indicator displays E when a parameter can be edited.

2 Indicates the measured value phase (line-to-neutral L1 or line-to-line L12).

3 Indicates the measured value phase (line-to-neutral L2 or line-to-line L23).

4 Indicates the measured value phase (line-to-neutral L3 or line-to-line L31).

5 Engineering unit and multiplier indicator (k, M, V, W, A, var, PF, Hz, An).

6 ALR: the alarm display function is active. PROG: the programming function is active.

7 Area set aside for energy counters (see Tabl e 1

8 Indicates that metering values are dmd (demand) or MAX (maximum) values.

Figure 2 - Features

in Appendix A for more information.

), text messages, date and time (format: dd.mm.yy/hh:mm).

Display Icons

Display Item Description

9 Indicates that the metering values displayed are system (three-phase) values.

10 Indicates a phase sequence error alarm for Voltage rotation.

11 Configuration lock switch is not active. Always indicates unlocked.

12 Indication of serial RS-485/RS-232 data transmission (TX) and reception (RX).

Alarm Icons

• Indicates a high value alarm

• Indicates a low value alarm

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 13

Chapter 1 PowerMonitor 500 Unit Overview

IMPORTANT

Selecting Data to Display

Ta b l e 1 and Ta b l e 2 provide a guide to navigation through the metering data

displays available on the front panel display. Row 1…Row 5 indicate the rows of the display (see Figure 2 on page 13

Press for <2 seconds to cycle through the data that is displayed in Row 1 of the display.

Selected data for Row 1 remains displayed until is pressed.

Table 1 - Row 1 Data

Parameters123456789 10

Row 1 Tot al kWh

(+)

Tot al kVARh (+)

Tot al kWh (-)Tot al kVARh

(-)

kWh (+) part.

kVARh (+) part.

kWh (-) part.

kVARh (-) part.

Run Hours (99999999.99)

RTC

Press for <2 seconds to cycle through the data that is displayed in Rows 2…5 of the display.

Selected data for Rows 2…5 displays momentarily and then returns to the default display.

Use and to cycle through the max, instantaneous, and demand

(dmd) values.

The appropriate data is displayed based on the configured system. For example, for delta (3P) systems, individual line data is not displayed for lineto-neutral voltage, VA, VAR, W, and power factor.

Table 2 - Rows 2…5 Data

Parameters Set01234567 Row 2 V LN Σ V LL Σ An Hz VA Σ VAR Σ W Σ PF Σ

Row 3 V L1 V L1-2 A L1 - VA L1 VAR L1 W L1 PF L1

Row 4 V L2 V L2-3 A L2 - VA L2 VAR L2 W L2 PF L2

Row 5 V L3 V L3-1 A L3 - VA L3 VAR L3 W L3 PF L3

14 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

PowerMonitor 500 Unit Overview Chapter 1

IMPORTANT

To access information pages, press and hold for more than 2 seconds,

then press and to select information items, as shown in Ta b l e 3

After a period of inactivity, the information pages close, and the display returns to the default screen.

Information items are not displayed for options that are not installed. For example, a module that does not have the analog output option does not display analog parameters (columns 11 and 12 in Tabl e 3

Table 3 - Rows 1…5 Information Pages

Page No.

Row 1 Serial

Row 2 Yr. xx CT.rA 0.001…

Row 3 rEL 1.0…9

Row 4 A.10 Pt.rA Out2 Set 2 Set 2 Set 2 Set 2 Hi.A

Row 5 1…60

123 456789101112131415

Number (9 digits)

Conn. xxx (3PN/ 3P/3P1/ 3P2/1P/

Status Indicator Pulse kWh

Pulse OUT1 kWh/ kVARh

(1)

Pulse OUT2 kWh/ kVARh

Remote out

(1)

AL1 AL2 AL3 AL4 Analog

(1)

2P)

1000 kWh per pulse

0.001 …1000 kWh/ kVARh per

xxxx kWh/ kVARh per pulse

Out 1 Variable Variable Variable Variable Hi.E

pulse

(min)

9.99k

1.0…9 999

+/- tot/ PAr

on/oFF Set 1 Set 1 Set 1 Set 1 0.0…

on/oFF (measur

ement)

(measur ement)

‘dmd’

(1)

(2)

9999k

(3)

0.0…

100.0%

Analog2

(1)

(2)

Hi.E

0.0… 9999k

(3)

Hi.A

0.0…

100.0%

COM port

Add XXX XXX dAtE

1…247 XXX tiME

bdr XXX

9.6/

19.2/

38.4/

115.2

(1)

Address

XX•XX•X X XX:XX (Realtime clock)

XXX

(1) If ap propriate option is selected.

(2) Hi.E corresponds to the configured Max Input for the analog output.

(3) Hi.A corresponds to the configured Max Output for the analog output.

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 15

Chapter 1 PowerMonitor 500 Unit Overview

PowerMonitor 500

Row 1

Row 2

Row 3

Row 4

Row 5

PowerMonitor 500

Row 5

Row 4

Row 3

Row 2

Row 1

Figure 3 and 4 are examples of how the information pages are displayed.

Figure 3 - Information Page 2

Figure 4 - Information Page 15

16 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Installation and Wiring

96.00 mm (3.78 in.)

93.00 mm (3.66 in.)

20.20 mm (0.80 in.)

29.70 mm (1.17 in.)

89.97 mm (3.54 in.)

91.00 mm (3.58 in.)

62.99 mm (2.48 in.)

89.49 mm (3.52 in.)

62.99 mm (2.48 in.)

89.49 mm (3.52 in.)

16.00 mm (0.63 in.)

20.00 mm (0.79 in.)

Digital and Analog Output Modules

Serial and Ethernet Communication Modules

Chapter 2

Installation

This section shows the dimensions of the unit for installation in a panel.

Figure 5 - Base Unit Dimensions

Figure 6 - Panel Cut-out

Figure 7 - Factory-installed Optional Modules

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 17

Chapter 2 Installation and Wiring

Power Supply

Figure 8 - Installation in Panel

Figure 9 - Rear View of Unit Showing Wiring Terminals

18 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Installation and Wiring Chapter 2

Wiring Diagrams

The PowerMonitor™ 500 unit can monitor various three-phase, single-phase, and split-phase circuits. Select the voltage connections, current wiring, and system metering mode to match the configuration of the circuit being monitored.

Ta b l e 4

provides a key for you to select the proper wiring diagrams and system

metering modes.

Table 4 - Wiring Diagram Explanation

Circuit type No. of CTs No. of PTs Wiring Diagram System

3-phase, 4-wire Wye Unbalanced load 3 - Figure 1 2

3-phase, 2-wire Wye Balanced load 1 - Fig ure 11 3P.2

3-phase, 3-wire Delta Unbalanced load 3 - Fig ure 13

Open Delta Unbalanced load 3 2 Figure 13

Open Delta Balanced load 1 2 Figure 14 3P.1

3-phase, Single CT Balanced load 1 - Fig ure 14

Split-phase 2 - Fi gure 15 2P

Single phase 1 - Fi gure 16

Configuration

3P.n

3P.1

The wiring diagrams in this manual are drawn with U.S. (NEMA) conventions. For convenience, a connection diagram is shown in IEC style on the left and in its corresponding NEMA style (used in the U.S.) on the right.

Figure 10 - Wiring Diagram Interpretation

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 19

Chapter 2 Installation and Wiring

IMPORTANT

Line

L1 N

Fuse

PT 1

(VT1)

Load

Ground

Shor ti ng

terminal block

Ground

PM 500

3-CT and 3-PT/VT Connec tions

Fuse

PT 2

(VT2)

Fuse

PT 3

(VT3)

Line

L1 N

Fuse

Load

Ground

Shorting

terminal block

PM 500

3-CT Connection

Fuse

Meter Conﬁguration: System = 3P.n

These diagrams are simplified. Wiring of the power monitor must comply with all applicable codes, standards, and regulations. Protect voltage and control power wiring with suitable overcurrent protection. Connect current transformer (CT) secondary wiring through a suitable shorting terminal block.

In these diagrams, ‘balanced load’ configurations permit 3-phase measurement by using only one phase connection. Unbalance in the measured circuit affects the accuracy of the measurements.

Figure 11 - 3-phase, 2-wire Wye, Balanced Load

Meter Conﬁguration: System = 3P.2

Line

L1 N

Load

Fuse

Shorting

terminal block

Ground

1-CT Connection

PM 500 PM 500

Line

L1 N

Fuse

Shorting

terminal block

Load

1-CT and 1-PT/VT Connections

Groun d

(VT)

Groun d

Figure 12 - 3-phase, 4-wire Wye, Unbalanced Load

20 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Figure 13 - 3-phase, 3-wire Delta, Unbalanced Load

Line

Fuse

PT 1

(VT1)

Load

Groun d

Shorting

terminal block

Ground

PM 500

3-CT and 2-PT/VT Connections (Open Delta)

Fuse

PT 3

(VT3)

Line

Fuse

Load

Groun d

Shorting

terminal block

PM 500

3-CT Connection

Fuse

Meter Conﬁguration: System = 3P

Line

Load

Groun d

PM 500

2-CT and 2-PT/VT Connections (ARON) (Open Delta)

Line

Fuse

Load

Ground

Shorting

terminal block

PM 500

2-CT Connection (ARON)

Fuse

Shor ti ng

terminal block

Fuse

PT 1

(VT1)

Groun d

Fuse

PT 3

(VT3)

Fuse

Line

L1 N

Fuse

PT 1

(VT1)

Groun d

PM 500

1-CT and 3-PT/VT Connec tions

Fuse

PT 2

(VT2)

Fuse

PT 3

(VT3)

Line

L1 N

Fuse

PM 500

1-CT Connection

Fuse

Line

PM 500

1-CT and 2-PT/VT Connec tions

(Open Delta with balanced load)

Load

Groun d

Shorting

terminal block

Load

Groun d

Shorting

terminal block

Load

Groun d

Shorting

terminal block

Fuse

PT 1

(VT1)

Groun d

Fuse

PT 3

(VT3)

Fuse

Meter Conﬁguration: System = 3P.1

Installation and Wiring Chapter 2

Figure 14 - 3-phase, Single CT, Balanced Load

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 21

Chapter 2 Installation and Wiring

Line

L1 N

Fuse

PT 1

(VT1)

Groun d

PM 500

2-CT and 2-PT/VT Conn ection s

Fuse

PT 2

(VT2)

Line

L1 N

Fuse

Load

Groun d

Shorting

terminal block

PM 500

2-CT Connection

Fuse

Load

Groun d

Shorting

terminal block

Meter Conﬁguration: System = 2P

Line

L1 N

Fuse

(VT)

Load

Groun d

Shorting

terminal block

Groun d

Line

L1 N

Fuse

Load

Groun d

Shorting

terminal block

PM 500 PM 500

1-CT Connection

1-CT and 1-PT/VT Connection s

Meter Conﬁguration: System = 1P

Figure 15 - Split-phase

Figure 16 - Single-phase

Supply Power

Connect the PowerMonitor™ 500 unit to a source of supply power through userprovided disconnecting means, such as a switch or circuit breaker close to the power monitor. Provide overcurrent protection that is sized to protect the wiring. Apply supply power only after all wiring connections are made to the unit.

Figure 17 - Supply Power

120/240V AC 50/60Hz, or 120/240V DC

22 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

F = 250V (T) 630 mA

PowerMonitor 500

+--

Factory Installed Option Wiring

1432

Out 1 Out 2

Out 1

Out 2

Analog 20 mA DC

RS-485 Port RS-232 Port

Mandatory Termination

T = Termination A- = Transmit minus B+ = Transmit plus

IMPORTANT

Figure 18 - Pulse (digital) Outputs (P option)

Installation and Wiring Chapter 2

2143

Out 1 Out 2

Figure 19 - Analog Outputs (A option)

Figure 20 - Serial RS-485 and RS-232 Communication Wiring (485 option)

6587

Additional devices that are provided with RS-485 are connected in parallel. The termination of the serial output is implemented only on the last instrument of the network, with a jumper between (B+) and (T). The jumper applies an internal termination resistance between (A-) and (B+). The RS-232 and RS-485 communication ports cannot be connected and used simultaneously.

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 23

Chapter 2 Installation and Wiring

Ethernet Network Switch Uplink to LAN

PowerMonitor 500 PowerMonitor 500

Figure 21 - Ethernet Communication (ENT option)

The PowerMonitor 500 unit connects to industry-standard Ethernet hubs and switches by using standard CAT-5 UTP (unshielded twisted-pair) cables with RJ45 connectors. Ta b l e 5

Table 5 - Ethernet Network Connections

Terminal Signal

1TX+

2TX-

3RX+

6RX-

shows the cable and connector pin assignments.

24 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Unit Configuration

Chapter 3

Configure with the Display

The PowerMonitor™ 500 unit provides menu-based configuration (programming) by using its front panel display. The programming menus let you select parameters to edit, select digits within parameters, and increase or decrease the value of each digit.

Place the unit in Programming mode by pressing Program/select (8) for about 2 seconds. The front panel displays the PASSWORD? menu page 0 in Editing mode. Enter the correct password by using the Up and Down arrows (the default password is 0) and press Program/select. The front panel then displays the CHANGE PAS menu page 10.

See the programming flowchart that begins on page 28 organization of programming menus and submenus. Each page is identified with a number, which is displayed in the top right corner. Menu page numbers end in zero, while submenu pages end in 1 through 9. For example, the Change Password page is menu 10. Likewise, the Dmd page is menu 80, and the demand interval Time page is menu 82.

While you are programming the power monitor, the display items and control buttons function one way when you are navigating between menu or submenu pages, and another way when you are editing a menu page.

for a view of the

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 25

Chapter 3 Unit Configuration

Figure 22 - Front Panel Display

Table 6 - Front Panel Display Descriptions

Display Item Description Navigating Menus Editing a Menu

1 Programming mode indicator Indicates programming mode.

2 Programming menu page Identifies the current programming menu page. See the programming flowchart that begins on page 28

3 Editing mode indicator Does not appear. Indicates the parameter being edited.

4 Cursor Does not appear. Appears beneath the digit currently being edited.

5 Permitted range Displays the permitted range of values for the selected parameter.

6 Exit button • When in a menu page, exits Programming mode

without saving changes. Program/select button confirms exit.

• When in a submenu page, exits to menu page.

7 Up button Selects the next higher-numbered menu or

submenu page.

Down button Selects the next lower-numbered menu of submenu

page.

8 Program/select button • Press and hold for 2 seconds to enter the Program

mode.

• Selects a menu page for editing.

• When in a menu page with submenus, displays

the first submenu page.

• After pressing the Exit button, confirms exit from Programming mode without saving changes.

• From End menu page 260, saves new configuration and exits Programming mode.

• Moves the cursor one digit to the left.

• When the leftmost digit is selected, dP is

indicated and you can change the decimal point and multiplier (see Edit Decimal Point and

Multiplier on page 27).

• When held for at least 2 seconds, cancels the edit and restores the previous value of the selected parameter.

• Increments the value of the digit indicated by the cursor.

• When dP is indicated, increments the decimal point and multiplier.

• Decrements the value of the digit indicated by the cursor.

• When dP is indicated, decrements the decimal point and multiplier.

Stores the new value of the selected parameter, but does not save the new configuration to the power monitor.

26 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Unit Configuration Chapter 3

IMPORTANT

TIP

To save programming changes, navigate to the End menu page 260 and press Program/select. To exit the Programming mode without saving any changes, press Exit and confirm by pressing Program/select. If no buttons have been pressed for 2 minutes, the power monitor exits Programming mode without saving any changes.

You can make programming changes by using the PowerMonitor 500 software.

Edit Decimal Point and Multiplier

When the cursor is beneath the last digit on the left, pressing Exit (6) lets you change the decimal point and the multiplier (9) (k or M). The blinking ‘dP’ (decimal point) text (10) indicates this capability.

To modify the decimal point position and the multiplier, use the Up and Down arrow (7) to select the desired value.

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 27

Chapter 3 Unit Configuration

Configuration Flowchart

The following flowchart shows the configuration menus and submenus that are accessed through the display. To navigate through the menu pages, use the up and down arrows. To enter Edit mode or to access a submenu, press the Program/ select button. The menu pages available depend on your module type.

• 0 PASSWORD?: enter password by using up and down arrows to change the digit. Use the Exit button to move the cursor between digits. Press the Program/select button to confirm password. The default password is 0.

• 10 CHANGE PAS: this function lets you modif y the PASS value with a new value (from 0…9999).

• 20 BACKLIGHT: adjusts backlight time from 0…255 minutes (0 = always on).

• 50 SYSTEM: this function lets you select the type of electrical system.

See pages 19 diagrams that correspond to the system type designations, such as, 3P and 3P.n.

• 60 CT RATIO: this function lets you select the value of the CT ratio (primary/secondary ratio of the current transformer being used). Example: if the CT primary (current transformer) has a current of 300 A and the secondary a current of 5 A, the CT ratio corresponds to 60 (300 divided by 5).

…22 for descriptions and wiring

• 70 PT RATIO: this function lets you select the value of the PT (VT) ratio (primary/secondary ratio of the potential/voltage transformer being used). Example: if the primary of the connected PT is 20 kV and the secondary is 100V, then the PT ratio corresponds to 200 (20,000 divided by 100). If the voltage level is such that PTs are not required and are not in place, configure the PT ratio to 1.0.

28 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Unit Configuration Chapter 3

Where:

Pmax is the maximum power Pc is the contractual power t1 is the selected time period for the calculation of the AVG/DMD value

Fixed

Slide

• 80 DMD: This function lets you select the calculation method of the DMD/AVG value of the selected variable.

– 81 TYPE: select the type of Calculation mode to be

used for the DMD/AVG calculation. FIXED: The instrument calculates the

AVG/DMD value of the measured variable over the selected interval, updates the AVG/DMD value at the end of the interval, then resets and starts a new calculation.

SLIDE: When first configured, the instrument calculates the AVG/DMD value and updates its value at the beginning after the first selected interval. After the first interval, the instrument calculates the AVG/DMD value every minute. After the calculation, the instrument generates a window whose width is the selected interval and that moves forward every minute.

– 82 TIME: select the time interval for the DMD/

AVG calculation. Default is 15 minutes.

– 83 SYNC: select the Synchronization mode. That

mode is the method that controls the calculation method of the average/demand according to the selected time.

• 110 FILTER: The digital filter makes it possible to stabilize the display of fluctuating measurements.

See Digital Filtering Operation

on page 32.

– 111 FILTER S: set the operating range (span) of the

digital filter. The value is expressed as a % (filter to

0.0 means filter excluded).

– 112 FILTER CO: set the filtering coefficient of the

instantaneous measures. By increasing the value, also the stability and the settling time of the measures are increased.

IMPORTANT: Some specific menus display only if the relevant modules are installed.

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 29

list of available variables

Same as DIG OUT 1

Same as VIRT ALARM 1

list of available variables

-IP ADDRESS

-SUBNET

-GATEWAY

-TCP IP PRT

-ACD

ETHERNET

www.xxx.yyy.zzz

1…9999 (default = 502)

yes/no (default = no)

Same as VIRT ALARM 1

Chapter 3 Unit Configuration

• 120 RS232-485: User settings for the RS-232 and RS-485 serial communication ports.

• 130 ETHERNET: User settings for the Ethernet communication port.

• 150 VIRT AL 1: This virtual alarm function lets you set the alarm parameters.

– 151 ENABLE: enable (YES) or disable (NO) the

alarm.

– 152 VARIABLES: set the variable to be linked to

the alarm.

– 153 SET 1: set the on alarm set point of the variable. – 154 SET 2: set the off alarm set point of the variable. – 155 ON DELAY: set a delay on activation of the

alarm.

• 190 DIG OUT 1: This function lets you link a virtual alarm to the digital relay output and to its working parameters.

– 191 FUNCTION:

Alarm - the digital output is enabled when the associated alarm status occurs.

Pulse - the measured energy is retransmitted by the digital output with pulses.

Remote - the digital output can be controlled through a command that is sent through the serial communication port.

– 192 AL LINK: select the virtual alarm that it has to

be associated.

– 193 AL STATUS: ‘ND’ (normally de-energized

relay) or ‘NE’ (normally energized relay).

– 195 PULSE WEIG: selects the pulse weight (kWh

per pulse).

– 196 OUT TEST: Tests the digital output. YES

enables the test, No disables the test.

– 197 POWER TEST: sets a simulated power value

(kW) to test the energy pulse output. The function remains active until you exit the programming menu.

30 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Save the set

parameters and come

back to the measuring

mode.

List of available variables

Same as AN OUT 1

Unit Configuration Chapter 3

• 210 AN OUT 1: User programming of the analog outputs (0…20 mA).

– 211 VARIABLES: selects the variable to be

retransmitted with the analog output.

– 212 MIN OUTPUT: sets the value that is expressed

as % of the output range (0…20 mA) that corresponds to the minimum measured value.

– 213 MAX OUTPUT: selects the value that is

expressed as % of the output range (0…20 mA) that corresponds to the maximum measured value.

– 214 MIN INPUT: minimum value of the variable

input range, corresponds to the ‘MIN OUTPUT’ value of the analog output.

– 215 MAX INPUT: maximum value of the variable

input range corresponds to the ‘MAX OUTPUT’ value of the analog output.

• 230 METERS: reset the ENERGY METERS. Choose among the following:

– 231 TOTAL, 222 PARTIAL: resets all energy

meters, total and partial.

– 233 TOTAL +: resets the total meters of imported

energy.

– 234 TOTAL -: resets the total meters of exported

energy.

– 235 PARTIAL +: resets the partial meters of

imported energy.

– 236 PARTIAL -: resets the partial meters of

exported energy.

• 240 RESET: Resets the MAX or dmd stored values.

• 250 CLOCK:

– 251 FORMAT: UE, sets the European time format

as 24h (00:00) or sets the time format as 12h (12:00 AM/PM).

– 252 YEAR: sets the current year. – 253 MONTH: sets the current month. – 254 DAY: sets the current day. – 255 HOUR: sets the current hour. – 256 MINUTE: sets the current minute. – 257 SECOND: sets the current second.

• 260 END:

– To save programming changes, press Program/select. – To exit the Programming mode without saving any

changes, press Exit and confirm by pressing Program/select.

– If no buttons are pressed for two minutes, the unit

exits Programming mode without saving changes.

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 31

Chapter 3 Unit Configuration

Digital Filtering Operation

Digital filtering smooths out the display of fluctuating values. The parameter FILTER S defines the operating range of the filter. This operating range is represented as a yellow band (each small square is one digit). While the measured value (red curve in Figure 23 value exceeds the operating range, the filter is deactivated and a new band is active around the new value. The range of fluctuation (in digits) is a good starting value for such parameters.

The parameter FILTER CO represents the filtering coefficient. The higher the FILTER CO, the smoother the curve of the displayed values (black in Figure 23 There is not a theoretical rule to define this parameter, it is set in the field. One rule is to start with the value of the FILTER S coefficient and then increase FILTER CO until the desired stability is reached.

The digital filter affects the values retransmitted both via serial communication and analog output.

Figure 23 - Digital Filter

) is within this band, the filter is active. Once the

No lter action

Digital Fluctuation

Digital Filter Programming Examples

This section gives digital filter programming examples.

Example 1

This example describes how to stabilize the displayed value of the VL-N variable, which fluctuates between 222V and 228V. The parameters of the digital filter have to be programmed as follows.

FILTER S: The variable fluctuates within the mean value whose amplitude is equal to ±0.75% of the full scale rated value of the variable itself, which is obtained by the following calculation:

(228 - 222)/ 2= ±3V, then ±3*100/400V= ±0.75% where 400V is the line-to-neutral rated value of a 1420-V2 unit input

32 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Unit Configuration Chapter 3

The FILTER S parameter, which represents the action range of the digital filter, is programmed to a value that must be slightly higher than the percentage amplitude of the fluctuation, for example, 1.0%.

FILTER CO: if the new value that is measured by the instrument is within the action range of the filter, the new displayed value is obtained by adding algebraically the previous value to the variation divided by the filtering coefficient. As a consequence, a value higher than this coefficient implies a longer settling time and therefore better stability. You generally obtain the best result by setting the filtering coefficient to a value equal to at least 10 times the range parameter value.

In the following example, 1.0*10=10, the stability of the filtering coefficient can be improved by increasing the filtering coefficient; the allowed values are included within 1 and 255.

Example 2

This example describes how to stabilize the value of the displayed System Real Power (W), which fluctuates 300...320 kW. In this example, the load is connected to the instrument with a 300/5 A CT and a direct measure of the voltage.

The parameters of the digital filter must be programmed as follows.

FILTER S: the variable fluctuates within the mean value whose amplitude is equal to ±2.78% of the full scale rated value of this variable. This value is obtained by the following calculation:

(320 - 300)/ 2= ±10 kW, then ±10*100/360 kW= ±2.78%,

where 360 kW is the rated value of the System Real Power of a 1420-V2 unit input, at the CT and VT ratios and obtained with the following formula:

VLN * VT * IN * CT * 3

Where:

VLN = rated input voltage (400V for the V1 input)

VT= primary/secondary ratio of the voltage transformer being used

IN = rated current (5 A)

CT = primary/secondary ratio of the voltage transformer being used (in this example 400*1*5*60*3=360 kW).

The FILTER S parameter, which represents the digital filtering coefficient action range, is programmed to a value that must be slightly higher than the percentage of the fluctuation: for example 3.0%.

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 33

Chapter 3 Unit Configuration

FILTER CO: if the new value that is acquired by the unit is within the filtering action range, the new displayed value is obtained by adding algebraically the previous value to the variation divided by the filtering coefficient. As a consequence, a value higher than this coefficient implies a higher settling time and therefore better stability. Therefore, the best result is obtained by setting the filtering coefficient to a value equal to at least 10 times the value of the range parameters. In the example, 3.0*10=30. To improve the stability, you can increase the filtering coefficient; the admitted values are included within 1 and 255.

Example 3

It is necessary to stabilize the value of the displayed variable A L1 (phase current 1), which fluctuates in the range 470 A and 486 A.

To be able to manage the alarm function and activation and deactivation of the relay, this value is not to be subject to continuous fluctuations. In this example, we have considered using a 500/5 A CT. Program the parameters of the digital filter as follows:

FILTER S: the variable fluctuates within the mean value whose amplitude is equal to ±1.60% of the full scale rated value of this variable (obtained with the calculation:

(486 - 470)/ 2= ±8 A, then ±8*100/500 A= ±1.60% where 500 A is the value referred to the primary of the transformer being used).

The FILTER S parameter, which represents the action range of the digital filter, is programmed to a value slightly higher than the percentage amplitude of the fluctuation, for example 2.0%.

FILTER CO: if the new value that is acquired by the instrument is within the filtering action range, the new displayed value is calculated algebraically adding to the previous value the variation divided by the filtering coefficient. As a consequence, a higher value of this coefficient implies a higher settling time and therefore better stability. Therefore, the best result is obtained setting the filtering coefficient at a value equal to at least 10 times the value of the range parameter. In the example, 2.0*10=20. To improve the stability, you can increase the filtering coefficient; the admitted values are within 1 and 255.

34 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Unit Configuration Chapter 3

Analog Output Configuration Examples

These examples apply to units with catalog numbers 1420-V1A and 1420-V2A.

Example 1: Power value retransmission with a 0…20 mA analog output.

This example describes how to retransmit measured power up to 100 kW with a 4…20 mA signal. Program the unit as follows:

• VAR IA BL E: W

• MIN OUT: 20.0% means 4 mA. The calculation that is used is the

following: (100*minimum output) / full scale output =100*4 mA/ 20 mA=20%

• MAX OUT: 100.0% means 20 mA. The calculation is the following: (100*maximum output)/full scale output = 100*20 mA/20 mA= 100

• MIN INPUT: 0.0 k; the multiplier k, M, G can be selected on the unit according to the chosen VT and CT values

• MAX INPUT: 100.0 k; the k, M, G multipliers can be selected on the unit according to the selected VT and CT values

Example 2: Retransmission of the power factor (PF) value with the 0…20 mA analog output.

In this example, the unit is configured to retransmit the whole range of the allowed values for the PF with a signal from 0…20 mA. The value of the PF variable can vary between C0.001 and L0.000 (for each phase); these values, when retransmitted, correspond to 0 mA and 20 mA. When the PF value is equal to 1, the analog output value corresponds to the middle of the scale, which is 10 mA. Program the instrument as follows:

• VARIABLE: PF L1 (or L2 or L3 or PF

• MIN OUT: 0.0%

• MAX OUT: 100.0%

• MIN INPUT: C0.001 (the C symbol shows a CAPACITIVE value)

• MAX INPUT: L0.001 (the L symbol shows an INDUCTIVE value).

L0.001 has been chosen as minimum value to be set to avoid undesirable rapid changes of the outputs

Σ (system real power)

Σ)

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 35

Chapter 3 Unit Configuration

IMPORTANT

300 kW

295 kW

Alarm Configuration Example

These examples apply to units with catalog numbers 1420-V1P and 1420-V2P.

This example describes an alarm when a measured real power value exceeds a programmed threshold. For example, when 300 kW are exceeded, the alarm occurs and the load that is controlled by the relay output is disconnected.

The PowerMonitor 500 unit is not intended to be applied as a protective device.

An ‘UP’ alarm is selected. The recommended programming is the following:

• ENABLE: YES

• VAR IA BLE S: W sys tem ( W·)

• SET POINT 1: 300 kW

• SET POINT 2: 295 kW

• ON DELAY: set the desired number of seconds, for example 5 seconds

To program a ‘DOWN’ alarm, configure SET POINT 1 to be a lower value than SET POINT 2.

36 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Communication

TIP

IMPORTANT

Chapter 4

EtherNet/IP Communication

EtherNet/IP communication is supported in PowerMonitor™ 500 units that are ordered with optional Ethernet communication. Communication parameters in the power monitor must be configured. See Unit Configuration Ethernet communication port supports 100 or 10 Mbps data rate, half-duplex, or full-duplex.

The Ethernet hardware address (MAC ID) is printed on the unit label.

The PowerMonitor 500 unit provides nine Assembly Instances that contain realtime, maximum, demand, energy, and status data that can be read by a client by using implicit messaging (Class 1) or Explicit Messaging (Class 3 or UCMM).

Appendix A

power monitor returns EtherNet/IP data as little-endian, the same byte order that is used in the Logix family of programmable controllers.

Figure 24 - Byte Order Example

lists the Assembly Instances, sizes, data types, and other details. The

on page 25. The

Word

Low Byte (LSB)

High Byte (MSB)

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

MSb (Most Signicant Bit) (Least Signicant Bit) LSb

The power monitor supports the following communication commands:

• CIP Generic Assembly Object (Class 04), Get_Attribute_Single (Service Code 0x0E) for Attribute 3 (data)

• CIP Generic Assembly Object (Class 04), Get_Attribute_Single (Service Code 0x0E) for Attribute 4 (size in bytes)

The power monitor does not support configuration or commands on

EtherNet/IP network. To write the configuration of command data, refer to the section on Modbus Communication

See Appendix C implementation in the PowerMonitor 500 unit.

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 37

for additional information on the EtherNet/IP communication

on page 43.

Chapter 4 Communication

Electronic Data Sheet (EDS)

The EDS file is used to convey device configuration data that is provided by the manufacturer. You can obtain EDS files for the PowerMonitor 500 unit by downloading the file from the following website:

http://www.rockwellautomation.com/rockwellautomation/support/networks/eds.page

You can install EDS files on your computer by using the EDS Hardware Installation Tool that comes with RSLinx® Classic software, RSNetWorx™ for EtherNet/IP software, or other tools.

Explicit Messaging - Message Setup with CIP Generic

The following example shows how to configure your message instruction to read from a data table in the power monitor by using a CIP Generic message type for the Studio 5000 Logix Designer® application. This setup applies to ControlLogix® and CompactLogix™ programmable logic controllers. The CIP Generic message type does not support single element reads or writes. In this example, we read the Real-time Metering Values (Voltage and Current) data table from the power monitor.

38 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Communication Chapter 4

We assume that you are familiar with basic message programming in a Logix controller. Once you configure the logic, message tag, destination tag, and message instruction, follow these steps to configure the message. This example uses a CompactLogix™ controller, revision 20.

1. Choose the appropriate parameters in the Message Configuration window.

Parameter Choice

Message Type Choose message type CIP Generic.

Service Type Read: Select service type Get Attribute Single (E hex)

Instance See Appendix A

monitor Real-time Metering Values (Voltage and Current) data table is instance 101 (decimal).

Class 4 hex

Attribute 3 hex

Destination Get Attribute Single - This element is the first element of the controller tag that stores the data

being read. The tag is an array of the applicable data type the same length as the Assembly Instance; in this example, 12 REAL elements.

Source Element Not applicable to a Read

Source Length Not applicable to a Read

for the CIP Instance of the data table to read. In this example, the power

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 39

Chapter 4 Communication

2. Click the Communication tab and enter the path and method.

3. Click OK to complete message setup.

Path Method

<Ethernet Module, Port (always 2 for Ethernet), Power Monitor IP Address> CIP

Implicit Messaging - Generic Ethernet Module Input Data Connection

The PowerMonitor 500 unit with EtherNet/IP communication supports Class 1 connections to its nine Assembly Instances. To configure a Class 1 connection to a selected Assembly Instance with a Logix controller, follow these steps.

1. Open the controller program offline in the Logix Designer application (or online in Program mode if you are using a ControlLogix® controller).

2. In the I/O configuration tree, right-click the Ethernet communication module (for example, 1756-EN2T), and choose New Module.

3. From the Communication pull-down menu, choose ETHERNETMODULE Generic Ethernet Module.

40 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Communication Chapter 4

4. Enter the setup parameters as listed in this dialog box and explained in

Ta b l e 7

Table 7 - Module Properties Setup Parameters

Item Choices

General Tab

Name Required; must be IEC 1131-3 compliant

Description Optional

Comm Format Depends on selected Assembly Instance

Address/Host Name IP Address IP address of target PowerMonitor 500 unit

Host Name Not applicable

Connection Parameters Assembly Instance Size Comm Format Data Table Description

Input (select one) 100 20 Input Data - SINT Product Information

101 12 Input Data - REAL Real-time Voltage and Current

102 18 Input Data - REAL Real-time Power, PF, Frequency

103 12 Input Data - REAL Max Voltage and Current

104 17 Input Data - REAL Max Power, PF, Frequency

105 12 Input Data - REAL Dmd Voltage and Current

106 17 Input Data - REAL Dmd Power, PF, Frequency

107 18 Input Data - REAL Energy Meters

108 2 Input Data - INT Alarm and Output Status

Output 98 N/A Inst. 98 used for Input Only connection

99 N/A Inst. 99 used for Listen Only connection

Configuration 3 0 Instance 3 is a placeholder only

Connection Tab

RPI 100 ms or greater

Inhibit Module Optional - unchecked by default

Major Fault Optional - unchecked by default

Unicast Connection Optional - checked by default

(1)

(1) Use the Listen Only connection only when an Input Only connection exists with another controller.

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 41

Chapter 4 Communication

5. When finished, click OK to save the new module.

The module updates its input tag <Name>.I.Data at the Requested Packet Interval (RPI).

You can use additional programming to show the data in another way. Instances 101…107 show data in the REAL, or floating point, format. However, Instance 100 combines ASCII characters with numeric byte (SINT) values.

This program displays the contents of Instance 100 in a more human-readable fashion:

• The XIC instruction on tag ‘bool_Convert_i100’ enables the conversion.

• The first CPS instruction copies the first 6 bytes of the module input data

tag.

• The MOV instruction sets the serial number string length to 13.

• The last CPS instruction copies the serial number from the module input

data tag that starts at element (byte) 6.

42 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Communication Chapter 4

IMPORTANT

The destinations of the CPS instructions are in a tag with a user-defined data type.

The destination tag shows the data in this way.

Modbus Communication

For a complete description of the MODBUS protocol refer to the following documents that can be downloaded from http://www.modbus.org

• Modbus_Application_Protocol_ V1_1a

• Modbus_Messaging_Implementation_Guide_V1_0a

Modbus Functions Supported

Modbus RTU is supported in PowerMonitor 500 units that are ordered with optional RS-485/RS-232 communication. In addition, Modbus TCP/IP is supported in units that are ordered with optional Ethernet communication. Communication parameters in the power monitor must be configured. See the

Unit Configuration

section of this manual.

We recommend that you use Modbus TCP/IP to configure or write to the PowerMonitor 500 unit and that you use Ethernet/IP to read the PowerMonitor 500 unit.

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 43

Chapter 4 Communication

The PowerMonitor 500 unit supports the following Modbus functions:

• 0x03 - Read n Holding Registers

• 0x04 - Read n Input Register

• 0x06 - Write one Holding Register

• 0x10 - Write multiple registers

• 0x08 - Diagnostic (with subfunction code 0x00)

• 0x42 - Read n Special Registers (vendor specific)

• Broadcast mode (write command on address 00h)

In this section, Modbus addresses are indicated in two ways. The ‘Modbus address’ is expressed as the 6-digit input register address (example: 300123), used with Modbus function code 0x04. The ‘Physical address’ is the hexadecimal representation of the word address that is included in the communication frame.

Modbus function 0x04 can be used with the Modbus address by substituting a 4 for the first digit (example: 400123). With that distinction, functions 0x03 and 0x04 return the same data.

To avoid errors due to signal reflections or line coupling, a termination resistor must be connected at the RS-485 ports of the master station and of the furthest power monitor from the master station. In the PowerMonitor 500, you can implement a jumper between (B+) and (T) to apply the required termination resistance between (A-) and (B+) internally. Termination on both ends is necessary even in case of point-to-point connection, with short distances.

The GND connection is optional if a shielded cable is used. For connections longer than 1000 m (3280 ft), a line amplifier is necessary.

Data Types Supported

Format Description Bits Range

INT Integer 16 -32768…32767

UNIT Unsigned Integer 16 0… 65535

DINT Double integer 32 -2

UDINT Unsigned Double Integer 32 0…2

ULINT Unsigned long Integer 64 0…2

REAL Single-precision Floating Point 32 -(1+[1-2

… 2

32-1

64-1

31-1

-23

])x2

127…2128

The IEEE754 representation of a 32-bit Floating Point number as an Integer is defined as follows.

Bits

31 30…23 22…0

Sign Exponent Mantissa

Va l u e = (-1)

44 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

sign*2(Exponent-127)

*1.Mantissa

Communication Chapter 4

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

MSb (Most Signicant Bit) (Least Signicant Bit) LSb

High Byte (MSB) Low Byte (LSB)

Holding Register (word)

Modbus Register Format

Modbus registers are 16-bit words that are organized as shown in the following diagram.

32-bit and 64-bit Data types that are presented as arrays of single registers in LSW (least significant word) to MSW (most significant word) order.

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 45

Chapter 4 Communication

Notes:

46 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

PowerMonitor 500 Unit Data Tables

Appendix A

Summary of Data Tables

The Data Table Summary Index table summarizes all data tables available and their general attributes.

Table 8 - Data Table Summary Index

Name of Data Table Read Write Modbus Starting

Product Information

Real-time Metering Values (voltage and current) X 300081 101 12 50

Real-time Metering Values (power, PF, frequenc y)

Maximum Metering Values (voltage and current) X 300337 103 12 52

Maximum Metering Values (power, PF, frequenc y)

DMD Metering Values (voltage and current) X 300849 105 12 54

DMD Metering Values (power, PF, frequency) X 300873 106 17 55

Total and Partial Energy Meters - EtherNet/IP Data Table

Configuration - Base Unit: Read and Write X X 304097 - 79 57

Configuration - Alarms X X Varies - 16 58

Configuration - RS-485/RS-232 Communication X X 304356 - 17 58

Configuration - Analog Outputs: Read and Write X X 304609 - 32 59

Analog Output Configuration Parameters X X Varies - 16 59

Configuration - Digital Relay Outputs: Read and Write

Commands: Write-only X 312369 - 45 61

Alarm and Output Status X 316385 108 2 63

X 300001

X 300105 102 18 51

X 300361 104 17 53

X 301281 107 9 56

X X 304865 - 12 60

Address

(1)

CIP Assy. Instance ID (decimal)

100 10 49

No. of Elements See Page

(1) To obtain the physical address, subtract 300001 from the Modbus address, and convert the result to hexadecimal. Example: Physical address 0x000B corresponds to Modbus address

300012.

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 47

Appendix A PowerMonitor 500 Unit Data Tables

- W = Exported real power

+ W = Imported real power

+ VAR = Imported reactive power

- VAR = Exported reactive power

Geometric Representation of Power and Power Factor

Power and power factor values are signed values in accordance with EN 62053 and as indicated in the diagram. Inductive or lagging power factor (Quadrant I and III) is indicated by a positive power factor value. Capacitive or leading power factor (Quadrant II and IV) is indicated by a negative power factor value. The PowerMonitor™ 500 unit indicates the quadrant by using +/- L or +/- C as shown in Figure 25

Figure 25 - Power and Power Factor Diagram

+VAR

-VAR

PF > 0, ‘-L’ PF < 0, ‘C’

-W +W

PF > 0, ‘L’PF < 0, ‘-C’

48 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

PowerMonitor 500 Unit Data Tables Appendix A

IMPORTANT

Data Tables

These tables detail each specific data table and its associated elements, such as address, length, description, and format.

In the data tables, the  symbol is used to indicate 3-phase or system values. The context determines whether the symbol indicates average (for example, voltage) or total (for example, power) values.

Product Information

Table 9 - Table Properties

CIP Assembly Instance 100

No. of Elements 10

Length in Words 10

Data Type UINT

Data Access Read Only

Table 10 - Product Information Data Table

Element Modbus

Address

1 300001 1 Base firmware revision UINT MSB: ASCII code for model (A = V2, B = V1)

2 300002 1 EtherNet/IP module firmware revision UINT MSB: ASCII code for model

3 300003 1 Analog output module firmware revision (if exists) UINT MSB: ASCII code for model

4 300033 1 Letter 1 (from SX)

5 300034 1 Letter 3 (from SX)

6 300035 1 Letter 5 (from SX)

7 300036 1 Letter 7 (from SX)

8 300037 1 Letter 9 (from SX)

9 300038 1 Letter 11 (from SX)

10 300039 1 Letter 13 (from SX) UINT MSB: ASCII code

Length (words)

Description / Units Data

Form at

UINT MSB: ASCII code

Letter 2 (from SX)

UINT MSB: ASCII code

Letter 4 (from SX)

UINT MSB: ASCII code

Letter 6 (from SX)

UINT MSB: ASCII code

Letter 8 (from SX)

UINT MSB: ASCII code

Letter 10 (from SX)

UINT MSB: ASCII code

Letter 12 (from SX)

Notes

LSB: numeric number for revision

LSB: ASCII code

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 49

Appendix A PowerMonitor 500 Unit Data Tables

Real-time Metering Values (voltage and current)

Table 11 - Table Properties

CIP Assembly Instance 101

No. of Elements 12

Length in Words 24

Data Type REAL

Data Access Read Only

Table 12 - Real-time Metering Values (voltage and current) Data Table

Element Modbus

Address

0 300081 2 V L1-N REAL

1 300083 2 V L2-N REAL

2 300085 2 V L3-N REAL

3 300087 2 V L-N  REAL

4 300089 2 V L1-L2 REAL

5 300091 2 V L2-L3 REAL

6 300093 2 V L3-L1 REAL

7 300095 2 V L-L  REAL

8 300097 2 A L1 REAL

9 300099 2 A L2 REAL

10 300101 2 A L3 REAL

11 300103 2 A N REAL Calculated by instrument base

Length (words)

Description / Units Data Format Notes

50 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Real-time Metering Values (power, PF, frequency)

Table 13 - Table Properties

CIP Assembly Instance 102

No. of Elements 18

Length in Words 36

Data Type REAL

Data Access Read Only

Table 14 - Real-time Metering Values (power, PF, frequency) Data Table

PowerMonitor 500 Unit Data Tables Appendix A

Element Modbus

Address

0 300105 2 W L1 REAL

1 300107 2 W L2 REAL

2 300109 2 W L3 REAL

3 300111 2 W  REAL

4 300113 2 VA L1 REAL

5 300115 2 VA L2 REAL

6 300117 2 VA L3 REAL

7 300119 2 VA  REAL

8 300121 2 VAR L1 REAL

9 300123 2 VAR L2 REAL

10 300125 2 VAR L3 REAL

11 300127 2 VAR  REAL

12 300129 2 PF L1 REAL Negative values correspond to lead (C), positive values correspond

13 300131 2 PF L2 REAL

14 300133 2 PF L3 REAL

15 300135 2 PF  REAL

16 300137 2 Hz REAL

17 300139 2 Voltage phase sequence REAL 1 = L1-L2-L3 voltage rotation

Length (words)

Description / Units Data Format Notes

to lag (L)

-1 = Not L1-L2-L3 voltage rotation

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 51

Appendix A PowerMonitor 500 Unit Data Tables

Maximum Metering Values (voltage and current)

Table 15 - Table Properties

CIP Assembly Instance 103

No. of Elements 12

Length in Words 24

Data Type REAL

Data Access Read Only

Table 16 - Maximum Metering Values (voltage and current) Data Table

Element Modbus

Address

0 300337 2 Max V L1-N REAL

1 300339 2 Max V L2-N REAL

2 300341 2 Max V L3-N REAL

3 300343 2 Max V L-N  REAL

4 300345 2 Max V L1-L2 REAL

5 300347 2 Max V L2-L3 REAL

6 300349 2 Max V L3-L1 REAL

7 300351 2 Max V L-L  REAL

8 300353 2 Max A L1 REAL

9 300355 2 Max A L2 REAL

10 300357 2 Max A L3 REAL

11 300359 2 Max A N REAL

Length (words)

Description / Units Data Format Notes

52 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Maximum Metering Values (power, PF, frequency)

Table 17 - Table Properties

CIP Assembly Instance 104

No. of Elements 17

Length in Words 34

Data Type REAL

Data Access Read Only

Table 18 - Maximum Metering Values (power, PF, frequency) Data Table

PowerMonitor 500 Unit Data Tables Appendix A

Element Modbus

Address

0 300361 2 Max W L1 REAL

1 300363 2 Max W L2 REAL

2 300365 2 Max W L3 REAL

3 300367 2 Max W  3REAL

4 300369 2 Max VA L1 REAL

5 300371 2 Max VA L2 REAL

6 300373 2 Max VA L3 REAL

7 300375 2 Max VA  REAL

8 300377 2 Max VAR L1 REAL Negative values correspond to lead (C), positive values correspond

9 300379 2 Max VAR L2 REAL

10 300381 2 Max VAR L3 REAL

11 300383 2 Max VAR  REAL

12 300385 2 Max PF L1 REAL The Max PF displayed corresponds to the PF value with the largest

13 300387 2 Max PF L2 REAL

14 300389 2 Max PF L3 REAL

15 300391 2 Max PF  REAL

16 300393 2 Max Hz REAL

Length (words)

Description / Units Data Format Notes

to lag (L)

phase angle.

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 53

Appendix A PowerMonitor 500 Unit Data Tables

DMD Metering Values (voltage and current)

Table 19 - Table Properties

CIP Assembly Instance 105

No. of Elements 12

Length in Words 24

Data Type REAL

Data Access Read Only

Table 20 - DMD Metering Values (voltage and current) Data Table

Element Modbus

Address

0 300849 2 DMD V L1-N REAL

1 300851 2 DMD V L2-N REAL

2 300853 2 DMD V L3-N REAL

3 300855 2 DMD V L-N  REAL

4 300857 2 DMD V L1-L2 REAL

5 300859 2 DMD V L2-L3 REAL

6 300861 2 DMD V L3-L1 REAL

7 300863 2 DMD V L-L  REAL

8 300865 2 DMD A L1 REAL

9 300867 2 DMD A L2 REAL

10 300869 2 DMD A L3 REAL

11 300871 2 DMD A N REAL

Length (words)

Description / Units Data Format Notes

54 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

DMD Metering Values (power, PF, frequency)

Table 21 - Table Properties

CIP Assembly Instance 106

No. of Elements 17

Length in Words 34

Data Type REAL

Data Access Read Only

Table 22 - DMD Metering Values (power, PF, frequency) Data Table

PowerMonitor 500 Unit Data Tables Appendix A

Element Modbus

Address

0 300873 2 DMD W L1 REAL

1 300875 2 DMD W L2 REAL

2 300877 2 DMD W L3 REAL

3 300879 2 DMD W  REAL

4 300881 2 DMD VA L1 REAL

5 300883 2 DMD VA L2 REAL

6 300885 2 DMD VA L3 REAL

7 300887 2 DMD VA  REAL

8 300889 2 DMD VAR L1 REAL Negative values correspond to lead (C), positive values correspond

9 300891 2 DMD VAR L2 REAL

10 300893 2 DMD VAR L3 REAL

11 300895 2 DMD VAR  REAL

12 300897 2 DMD PF L1 REAL

13 300899 2 DMD PF L2 REAL

14 300901 2 DMD PF L3 REAL

15 300903 2 DMD PF  REAL

16 300905 2 DMD Hz REAL

Length (words)

Description / Units Data Format Notes

to lag (L)

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 55

Appendix A PowerMonitor 500 Unit Data Tables

Total and Partial Energy Meters - EtherNet/IP Data Table

Table 23 - Table Properties

CIP Assembly Instance 107

No. of Elements 18

Length in Words 36

Data Type REAL

Data Access Read Only

Table 24 - Total and Partial Energy Meters - EtherNet/IP Data Table

Element Length

(words)

0 2 Total kWh+ REAL Range 0.0 … 999,999.999

1 2 Total GWh+ REAL Range 0 … 9,999,999

2 2 Total kVARh+ REAL Range 0.0 … 999,999.999

3 2 Total GVARh+ REAL Range 0 … 9,999,999

4 2 Total kWh- REAL Range 0.0 … 999,999.999

5 2 Total GWh- REAL Range 0 … 9,999,999

6 2 Total kVARh- REAL Range 0.0 … 999,999.999

7 2 Total GVARh- REAL Range 0 … 9,999,999

8 2 Partial kWh+ REAL Range 0.0 … 999,999.999

9 2 Partial GWh+ REAL Range 0 … 9,999,999

10 2 Partial kVARh+ REAL Range 0.0 … 999,999.999

11 2 Partial GVARh+ REAL Range 0 … 9,999,999

12 2 Partial kWh- REAL Range 0.0 … 999,999.999

13 2 Partial GWh- REAL Range 0 … 9,999,999

14 2 Partial kVARh- REAL Range 0.0 … 999,999.999

15 2 Partial kVARh- REAL Range 0 … 9,999,999

16 2 Hours counter REAL

17 2 Minutes counter REAL Range 0 … 59

Description / Units Data Format Notes

56 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Table 25 - Energy Metering Values Modbus - Read-only

PowerMonitor 500 Unit Data Tables Appendix A

Modbus Address

301281 4 Total kWh+ ULINT Values in Wh or varh

301285 4 Total kVARh+ ULINT

301289 4 Total kWh- ULINT

301293 4 Total kVARh- ULINT

301297 4 Partial kWh+ ULINT

301301 4 Partial kVARh+ ULINT

301305 4 Partial kWh- ULINT

301309 4 Partial kVARh- ULINT

301313 4 Hours counter ULINT Hours value: Integer part got from the division of the counter by

Length (words)

Description / Units Data Format Notes

100-Minutes value: rest of the previous computation (decimal part)

Table 26 - Configuration - Base Unit: Read and Write

Modbus Address

304097 1 Password UINT Minimum valid value: 0d Maximum valid value: 9999d

304098 1 Electrical system selection UINT Value =0: 1P (1-phase 2-wire) Value =1: 2P (2-phase 3-wire)

304099 1 Reserved UINT

304101 1 Backlight mode UINT The timing backlight is programmable from 0…255 minutes

304107 1 DMD - Calculation UINT Selection of the DMD calculation mode Value=0: Fixed Value=1:

304108 1 DMD - Time interval UINT Value=0: 1 min Value=1: 5 min Value=2: 10 min Value=3: 15 min

304110 1 DMD - Synchronization UINT Synchronization selection mode Value=0: OFF Value=1: Clock

304121 2 CT - Current transformer ratio REAL 1.0…9999.0

304123 2 VT(PT) - Voltage transformer ratio REAL 1.0…9999.0

304127 2 Filter Span parameter REAL Value min = 0.0

304129 2 Filter Coefficient REAL Value min = 1.0

304177 16 Virtual Alarm AL1 (LED 1) Customized See the Tab le 27

304193 16 Virtual Alarm AL2 (LED 2) Base Alarm data structure

304209 16 Virtual Alarm AL3 (LED 3)

304225 16 Virtual Alarm AL4 (LED 4)

Length (words)

Description / Units Data Format Notes

Value=2: 3P (3-phase 3-wire) Value=3: 3P2 (3-phase 2-wire) one current and 1-phase (L1) to neutral voltage measurement) Value=4: 3P1 (3-phase 4-wire one current and 3-phase to neutral voltage measurements) Value=5: 3PN (default =3PN)

(0 = always ON)

Slide - only for W and VA

Value=4: 20 min Value=5: 30 min Value=6: 60 min

Value max = 100.0 (Disabled = 0.0)

Value max = 256.0

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 57

Appendix A PowerMonitor 500 Unit Data Tables

Table 27 - Configuration - Alarms

Modbus Address

Block address +0

Block address +1

Block address +2

Block address +3

Length

Description / Units Data Format Notes

(words)

1 Alarm N - Enabling UINT Value=1: alarm N enabled Value=0: alarm N disabled All other

values are considered as value=0

1 Alarm N - Variable type to be linked

UINT See the Connected Variable List (Tabl e 4 5)

1 Alarm N - Delay ON activation (s) UINT Value min=0 Value max=3600 If the set value exceeds the allowed

range, the instrument automatically sets the value to 0

2 Alarm N – Set point 1 REAL Value min = -9999M Value max = 9999M If the set value exceeds

the allowed range, the instrument automatically sets the value to

0.000

Block address +5

2 Alarm N – Set point 2 REAL Value min = -9999M Value max = 9999M If the set value exceeds

the allowed range, the instrument automatically sets the value to

0.000

Block address

9Reserved

Table 28 - Configuration - RS-485/RS-232 Communication

Modbus Address

304356 1 Clock format UINT 0=24h/12h 1=AM-PM

304357 1 Clock daylight-saving UINT Value=0: NO Value=1: YES

304358 1 Clock calendar: Year

304359 1 Clock calendar: Month

304360 1 Clock calendar: Day

304361 1 Clock: Hour

304362 1 Clock: Minutes

304363 1 Clock: Seconds

304364 1 Daylight-saving: month in which to

304365 1 Daylight-saving: Sunday in which to

304366 1 Daylight-saving: hour in which to

304367 1 Daylight-saving: month in which to

304368 1 Daylight-saving: Sunday in which to

304369 1 Daylight-saving: hour in which to

304401 1 RS-485 instrument address

304402 1 RS-485 baud rate selection

304403 1 RS-485 parity selection

Length (words)

Description / Units Data Format Notes

(1)

UINT 2009…2099

UINT 1…12

UINT 1…31

UINT 0…23

UINT 0…59

UINT 1…12

increase the hour (+1H)

UINT 0…4 (0= last Sunday of the month)

increase the hour (+1H)

UINT 0…23 (24h format only)

increase the hour (+1H)

UINT 1…12

decrease the hour (-1H)

UINT 0…4 (0= last Sunday of the month)

decrease the hour (-1H)

UINT 0…23 (24h format only)

decrease the hour (-1H)

selection

(2)

UINT Value min = 1 Value max = 247 If the set value exceeds the allowed

range, the instrument automatically sets the value to 1

UINT Value=0: 9600 Value=1: 19200 Value=2: 38400 Value=3: 115200

All other values are considered as value=0

(2)

UINT Value=0: No parity Value=1: Odd parity Value=2: Even parity All

other values are considered as value=0

(1) The values are updated only after sending the ‘update clock’ command.

(2) The values are updated only after sending the ‘update serial communication setting’ command or switching off and on the instrument.

58 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Table 29 - Configuration - Analog Outputs: Read and Write

PowerMonitor 500 Unit Data Tables Appendix A

Modbus Address

304609 16 Analog output A0: parameters

304625 16 Analog output A1: parameters

Length (words)

Description / Units Data Format Notes

configuration

Table 30 - Analog Output Configuration Parameters

Modbus Address

Block address +0

Block address +1

Block address +3

Block address +5

Block address +7

Block address +9

Length (words)

1 Type of the variable that is linked to

2 Minimum electric value of the N

2 Maximum electric value of the N

2 Minimum output value of the N

2 Maximum output value of the N

7 Reserved

Description / Units Data Format Notes

the N analog output

analog output

CUSTOM See Tab le 28

CUSTOM

UINT

REAL Value min = 0

Value max = 9,999,000

REAL

REAL Value min = 0.0

Value max = 100.0

REAL

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 59

Appendix A PowerMonitor 500 Unit Data Tables

Table 31 - Configuration - Digital Relay Outputs: Read and Write

Modbus Address

304865 1 Digital output channel 1: enabling UINT 0=Remote

304866 1 Digital output channel 1: output

304867 1 Digital output channel 1: linked

304868 1 Channel 1: linked counter-variable UINT 0=Total kWh+

304869 2 Digital output channel 1: pulse REAL Pulse weight (kWh/pulse or kVARh/pulse)

304871 1 Digital output channel 2: enabling UINT 0=Remote

304872 1 Digital output channel 2: output

304873 1 Digital output channel 2: linked

304874 1 Channel 2: linked counter-variable UINT 0=Total kWh+

304875 2 Digital output channel 2: pulse REAL Pulse weight (kWh/pulse or kVARh/pulse)

Length (words)

Description / Units Data Format Notes

1=Alarm 2= Pulse

working mode

alarm

working mode

alarm

UINT 0=NO

1=NC (only if selected ‘Alarm’ type)

UINT 0=AL1

1=AL2 2=AL3 3=AL4 (only if selected ‘Alarm’ type)

1=Total kVARh+ 2=Total kWh3=Total kVARh4=Partial kWh+ 5= Partial kVARh+ 6= Partial kWh7= Partial kVARh-

Value min = 0.001 Value max = 9999.9

1=Alarm 2= Pulse

UINT 0=NO

1=NC (only if selected ‘Alarm’ type)

UINT 0=AL1

1=AL2 2=AL3 3=AL4 (only if selected ‘Alarm’ type)

1=Total kVARh+ 2=Total kWh3=Total kVARh4=Partial kWh+ 5= Partial kVARh+ 6= Partial kWh7= Partial kVARh-

Value min = 0.001 Value max = 9999.0

60 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Table 32 - Commands: Write-only

PowerMonitor 500 Unit Data Tables Appendix A

Modbus Address

312369 1 Get clock values UINT Value=1 - command executed; Value≠1 - no effect

312370 1 Set clock values UINT Value=1 - date and time set

312374 1 Enable optional pulse (digital) outputs UINT Value=1 - module enabled; Value=0 - module disabled

312376 1 Enable optional serial communication UINT Value=1 - module enabled; Value=0 - module disabled

312546 1 Reset all pulse (digital) outputs (digital

312547 1 Set pulse (digital) output 1 UINT Value=0 - reset output; Value=1 - set output; Other values - no

312548 1 Set pulse (digital) output 2 UINT Value=0 - reset output; Value=1 - set output; Other values - no

312549 1 Set all pulse (digital) outputs (digital

312802 1 Reset V L1-N UINT 16 Bit0 = 1: Reset Max Value

312803 1 Reset V L2-N UINT 16

312804 1 Reset V L3-N UINT 16

312805 1 Reset V L-N  UINT 16

312806 1 Reset V L1-L2 UINT 16

312807 1 Reset V L2-L3 UINT 16

312808 1 Reset V L3-L1 UINT 16

312809 1 Reset V L-L  UINT 16

312810 1 Reset A L1 UINT 16

312811 1 Reset A L2 UINT 16

312812 1 Reset A L3 UINT 16

312813 1 Reset A N UINT 16

Length (words)

Description / Units Data Format Notes

UINT Value=1 - command executed; Value≠1 - no effect

output 1 or 2)

effect

UINT Value=1 - command executed; Value≠1 - no effect

output 1 or 2)

Bit1 = 1: Reset DMD value Bits 2 … 15: Reserved

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 61

Appendix A PowerMonitor 500 Unit Data Tables

Table 32 - Commands: Write-only

Modbus Address

312814 1 Reset W L1 UINT 16 Bit0 = 1: Reset Max Value

312815 1 Reset W L2 UINT 16

312816 1 Reset W L3 UINT 16

312817 1 Reset W  UINT 16

312818 1 Reset VA L1 UINT 16

312819 1 Reset VA L2 UINT 16

312820 1 Reset VA L3 UINT 16

312821 1 Reset VA  UINT 16

312822 1 Reset VAR L1 UINT 16

312823 1 Reset VAR L2 UINT 16

312824 1 Reset VAR L3 UINT 16

312825 1 Reset VAR  UINT 16

312826 1 Reset PF L1 UINT 16

312827 1 Reset PF L2 UINT 16

312828 1 Reset PF L3 UINT 16

312829 1 Reset PF  UINT 16

312830 1 Reset Hz UINT 16

313569 1 Reset Total kWh+ UINT Value=1 - command executed

313570 1 Reset Total kVARh+ UINT Value=1 - command executed

313571 1 Reset Total kWh- UINT Value=1 - command executed

313572 1 Reset Total kVARh- UINT Value=1 - command executed

313573 1 Reset Partial kWh+ UINT 16 Value=1 - command executed

313574 1 Reset Partial kVARh+ UINT 16 Value=1 - command executed

313575 1 Reset Partial kWh- UINT 16 Value=1 - command executed

313576 1 Reset Partial kVARh- UINT 16 Value=1 - command executed

Length (words)

Description / Units Data Format Notes

Bit1 = 1: Reset DMD value Bits 2 … 15: Reserved

62 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Alarm and Output Status

IMPORTANT

Table 33 - Table Properties

CIP Assembly Instance 108

No. of Elements 2

Length in Words 2

Data Type INT

Data Access Read Only

Table 34 - Alarm and Output Status: read-only Mode Data Table

PowerMonitor 500 Unit Data Tables Appendix A

Element Modbus

0 316385 1 Virtual alarm UINT Bit value: 0 = OFF

1 316386 1 Output (port) UINT Bit value

2 (see Important)

Address

316387 1 HW modules configuration UINT Bit value:

Length (words)

Description / Units Data Format Notes

Bit value: 1 = ON Bit position: 0: Virtual alarm 1 1: Virtual alarm 2 2: Virtual alarm 3 3: Virtual alarm 4

0 = OFF Bit value 1 = ON (Important: only if the port is not linked to the counter) Bit position (LSB concept): 0: Port1 1: Port2

0 = module not present 1 = module present Bit position 0: Relay output 1: Reserved 2: RS-485/RS-232 port 3: Ethernet Modbus 4: Reserved 5: Analog output 6: Reserved 7: Reserved 8: EtherNet/IP 9…15: Reserved

A Get_Attribute_Single command returns only elements 0 and 1 of this table. The information in element 2 is accessible in the Identity Object, Class 0x01.

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 63

Appendix A PowerMonitor 500 Unit Data Tables

Notes:

64 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Technical Specifications

Table 35 - Input Specifications

Attribute Value

Rated inputs System type: 1, 2, or 3-phase

Current type Galvanic insulation with built-in CTs

Current range (by CT) 5 A nom (6 A max)

Voltage (by direct connection or VT/PT) V1: 120/208V LL; V2: 400/600V LL

Accuracy (Display and RS-485 ) (at 25 °C ±5 °C, R.H. ≤ 60%, 48…62 Hz)

V1 model I

V2 model I

Current all models From 0.01…0.25 A: ±(1.0% of reading (RDG) + 2 digits

Line-neutral voltage In the range V

Line-line voltage In the range V

Frequency ±0.1 Hz (45…65 Hz)

Real and apparent power From 0.05… 0.25 A, PF 1: ±(2% RDG +1 digit)

Power factor (PF) ±[0.001+0.5% (1.000 - ‘PF RDG’)]

Reactive power From 0.5… 6 A, sinφ 0.5L/C: ±(2.0% RDG +1 digit)

Real energy Class 1 according to EN62053-21, ANSI C12.1 Class B according to EN50470-3

Reactive energy Class 2 according to EN62053-23, ANSI C12.1

Start up current 5 mA

Energy additional errors According to EN62053-21 ANSI C12.1, Influence quantities Class B according to EN50470-3, EN62053-23 Temperature drift ≤ 200 ppm/°C

Sampling rate 3840 samples/second at 60 Hz, 3200 samples/second at 50 Hz

Measurements See List of Connectable Variables

Method True RMS measurements of distorted wave forms

Coupling type With CTs Crest factor ≤3 (15 A max peak)

Current, nom (I Vol tage , nom (V

: 5 A, Imax: 6A

nom

Line-neutral RMS: 40…144V AC Line-Line RMS: 70…250V AC

: 5 A, Imax: 6 A

nom

Line-neutral RMS: 160…480V AC Line-line RMS: 277…830V AC

From 0.25…6 A: ±(0.5% RDG +2 digits)

From 0.25…6A, PF 0.5L, PF1, PF 0.8C: ±(1.0% RDG+1 digit)

From 0.25… 0.5 A, sinφ 0.5L/C: ±(2.5% RDG +1 digit) From 0.25…6 A, sinφ 1.0: ±(2.0% RDG+1 digit) From 0.1… 0.25 A, sinφ 1: ±(2.5% RDG+1 digit) TI P: si nφ = VA R/VA

): 5 A

nom

): V1: 120V AC LN, 208V AC LL; V2: 400V AC LN, 600V AC LL

nom

: ±(0.5% RDG +1 digit)

nom

: ±(1.0% RDG +1 digit)

nom

on page 72

Appendix B

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 65

Appendix B Technical Specifications

Table 35 - Input Specifications

Attribute Value

Current overloads

Continuous 6 A, at 50/60 Hz

For 500 ms 120 A, at 50/60 Hz

Voltage overloads

Continuous 1.2 × V

For 500 ms 2 × V

nom

(where V

is the nominal voltage of the module)

nom

is the nominal voltage of the module)

nom

Input impedance

400VL-L (V2) > 1.6 MΩ 208VL-L (V1) > 1.6 MΩ

5(6)A < 0.2VA

Frequency 40…440 Hz

Table 36 - Pulse (digital) Output Specifications (P option)

Attribute Value

Physical outputs 2

Purpose For either alarm output or digital output

Type Relay, SPDT type:

• AC 1-5 A at 250V AC

• AC 15-1.5 A at 250V AC

• DC 12-5 A at 24V DC

• DC 13-1.5 A at 24V DC

Configuration Use the front keypad

Function The outputs can work as alarm outputs but also as digital outputs, communication controlled outputs, or in any other

Alarms Up alarm and down alarm that is linked to the virtual alarms, for other details, see Virtual alarms Response time, min ≤200 ms, filters excluded. Set-point on-time delay: ‘0 s’

Pulse

Signal retransmission Total: +kWh, -kWh, +kVARh, -kVARh. Partial: +kWh, -kWh, +kVARh, -kVARh

Pulse type The listed variables can be connected to any output Pulse duration Programmable from 0.001…10.00 kWh/kVARh per pulse. ≥100 ms <120 ms (ON), ≥120 ms (OFF),

Communication controlled outputs The activation of the outputs is managed through the serial communication port

Insulation See Tab le 44

combination

on page 70

according to EN62052-31

Isolation Between Inputs and Outputs (1 minute)

66 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Technical Specifications Appendix B

Table 37 - Analog Output Specifications (A option)

Attribute Value

Number of outputs 2 Accuracy (at 25 °C ±5 °C, R.H. ≤ 60%) ± 0.2% of full scale

Range 0…20 mA

Configuration By using the front keypad

Signal retransmission The signal output can be connected to any instantaneous variable. See List of Connectable Variables

Scaling factor Programmable within the whole range of retransmission; it allows the retransmission management of all values from

Response time ≤400 ms typical (filter excluded) Ripple ≤1% (according to IEC 60688-1, EN 60688-1) Total temperature drift ≤500 ppm/°C Load ≤ 600 Ω

Insulation See Tab le 44

0…20 mA DC

Isolation Between Inputs and Outputs (1 minute)

on page 72

Table 38 - Serial RS-485/RS-232 Communication Specifications (485 option)

Attribute Value

RS-485/RS-422 port

Type Multidrop, bidirectional (static and dynamic variables)

Connections 2-wire Max distance 1000 m, termination directly on the module

Addresses 247, selectable by usingthe front key-pad or through the software

Protocol Modbus RTU

Data (bidirectional)

Dynamic (reading only) System and phase variables: see the Modbus register maps in Appendix A

Static (reading and writing only) All configuration parameters; see the Modbus register maps in Appendix A

Data format One start bit, eight data bit, no/even/odd parity, 1 stop bit

Communication rate Selectable: 9.6, 19.2, 38.4, 115.2 Kbps

Driver input capability 1/5 unit load. Max 160 transceivers on the same bus

Insulation See Tab le 44

RS-232 port

Type Bidirectional (static and dynamic variables)

Connections Three wires. Max distance 15 m

Protocol Modbus RTU

Isolation Between Inputs and Outputs (1 minute)

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 67

Appendix B Technical Specifications

Table 38 - Serial RS-485/RS-232 Communication Specifications (485 option)

Attribute Value

Data (bidirectional)

Dynamic (reading only) System and phase variables: see the Modbus register tables in Appendix A

Static (reading and writing only) All configuration parameters; see the Modbus register tables in Appendix A

Data format One star t bit, eight data bit, no/even/odd parity, 1 stop bit

Communication rate Selectable: 9.6, 19.2, 38.4, 115.2 Kbps

Note With the rotary switch (on the back of the basic unit) in lock position, modific ation of programming parameters and reset

Insulation See Tab le 44

command with serial communication are not allowed. In this case, just the data reading is allowed

Isolation Between Inputs and Outputs (1 minute)

Table 39 - Energy Meters

Attribute Value

Meters

Total 4 (9+1 digit)

Partial 4 (9+1 digit)

Pulse output Connectable to total and/or partial meters

Energy meter recording Storage of total and par tial energy meters. Energy meter storage format (EEPROM)

Min. -9,999,999,999.9 kWh/kVARh Max. 9,999,999,999.9 kWh/kVARh

Energy meters

Total energy meters +kWh, +kVARh, -kWh, -kVARh

Partial energy meters +kWh, +kVARh, -kWh, -kVARh

Table 40 - Display, Status Indicators, and Commands

Attribute Value

Display refresh time ≤ 100 ms

Display Four Rows of display each with a max of four digits,

1 Row of display with a max of 10 digits

Type LCD, single color backlight

Digit dimensions Four digits: h 9.5 mm; 10 digits: h 6.0 mm

Instantaneous variables read-out Four digits

Energy variables read-out Imported Total/Partial: 9+1 digit or 10 digits;

Exported Total/Partial: 9+1 digit or 10 digits (with ‘-’ sign)

Run hours counter 8+2 digits (99,999,999 hours and 59 minutes max)

Overload status EEEE indication when the value being measured is exceeding the ‘Continuous inputs overload’ (max measurement

Max and min indication Max instantaneous variables: 9999; energies: 999,999,999.9 or 9,999,999,999

Front Position Status Indicators

Virtual alarms Four red status indicators available in case of virtual alarm (AL1-AL2- AL3-AL4).

Energy consumption Red status indicator (only kWh)

capacity)

Min instantaneous variables: 0.000; energies 0.0

The real alarm is just the activation of the proper static or relay output if the proper module is available

68 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Technical Specifications Appendix B

Table 40 - Display, Status Indicators, and Commands

Attribute Value

kWh pulsating 0.001 kWh/kVARh by pulse if the Ct ratio by VT ratio is ≤ 7

0.01 kWh/kVARh by pulse if the Ct ratio by VT ratio is ≥7.1 ≤ 70.0

0.1 kWh/kVARh by pulse if the Ct ratio by VT ratio is ≥70.1 ≤700.0 1 kWh/kVARh by pulse if the Ct ratio by VT ratio is ≥700.1 ≤ 7000 10 kWh/kVARh by pulse if the Ct ratio by VT ratio is ≥7001 ≤ 70.00k 100 kWh/kVARh by pulse if the Ct ratio by VT ratio is >70.01k Max frequency: 16 Hz, according to EN50470-1

Rear position Status Indicators

On the base Green as power-on

On communication modules Two status indicators: one for TX (green) and one for RX (amber)

Key-pad For variable selection, programming of the instrument working parameters, ‘dmd’, ‘max’, total energy, and partial energy

Reset

Table 41 - Main Functions

Attribute Value

Password Numeric code of max four digits; two protection levels of the programming data

1st level Password ‘0’, no protection

2nd level Password from 1…9999, all data are protected

System selection

System 3P.n unbalanced load 3-phase (4-wire Wye)

System 3P unbalanced load 3-phase (3-wire) Delta

Three currents and three line-to-line voltage measurements For ARON connection, two currents (with special wiring on screw terminals) and three line-to-line voltage

measurements.

System 3P.1 balanced load 3-phase (3-wire), one current and three line-to-line measurements.

3-phase (4-wire), one current and three line-to-neutral voltage measurements.

System 3P.2 balanced load 3-phase (2-wire), one current and one line-to-neutral (L1) voltage measurement

System 2P 2-phase (3-wire) Split-phase

System 1P 1-phase (2-wire) Single phase

Transformer ratio

VT (PT) 1.0…999.9 / 1000…9999

CT 1.0…999.9 / 1000…9999 (up to 50 kA in case of CT with 5 A secondary current)

Filter

Operating range Selectable from 0…100% of the input display scale

Filtering coefficient Selectable from 1…256

Filter action Measurements, analog signal retransmission, serial communication (fundamental variables: V, A, W, and their derived

Displaying

Number of variables Up to five variables per page. See Front Panel Features

Backlight The backlight time is programmable from 0 (always on) to 255 minutes

ones)

on page 11. Seven different set of variables available according to

the application being selected. See Display Features on page 13

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 69

Appendix B Technical Specifications

Table 41 - Main Functions

Attribute Value

Virtual alarms

Working condition Basic unit (indication only) or with (P) optional digital output modules

No. of alarms Up to 4

Working mode Up alarm and down alarm

Controlled variables The alarms can be connected to any instantaneous variable. See List of Connectable Variables

Set-point adjustment From 0…100% of the display scale

Hysteresis From 0 to full scale

On-time delay 0…9999 s Response time, min ≤ 200 ms, filters excluded. Set-point on-time delay: ‘0 s’

Reset By using the front keypad. It is possible to reset the following data:

• All max and dmd values

• Total energy (kWh, kVARh)

• Partial energy (kWh, kVARh)

Clock

Functions Universal clock and calendar

Time format Hour: minutes: seconds with selectable 24 hours or AM/PM format

Date format Day-month-year with selectable DD-MM-YY or MM-DD-YY format

Battery life Ten years

Easy connection function For all display selections, both energy and power measurements are independent from the current direction. The

displayed energy is always ‘imported’

on page 72

Table 42 - General Specifications

Attribute Value

Temperature, operating -25…40 °C (-13…104 °F) (R.H. from 0…90% noncondensing at 40 °C) according to EN62053-21, EN50470-1 and

Temperature, storage -30…70 °C (-22…158 °F) (R.H. < 90% noncondensing @ 40 °C) according to EN62053-21, EN50470-1 and EN62053- 23

Installation category Cat. III (IEC60664, EN60664)

Insulation See Tab le 44

Dielectric strength 4 kV AC rms for 1 minute

Noise rejection CMRR 100 dB, 48…62 Hz

EMC According to EN62052-11

Electrostatic discharge 15 kV air discharge

Immunity to radiated electromagnetic fields Test with current: 10V/m from 80…2000 MHz

Burst On current and voltage measuring inputs circuit: 4 kV

Immunity to conducted disturbances 10V/m from 150 KHz…80 MHz

Surge On current and voltage measuring inputs circuit: 4 kV; on ‘L’ auxiliar y power supply input: 1 kV

Radio frequency suppression According to CISPR 22

Standard compliance

Safety IEC60664, IEC61010-1 EN60664, EN61010-1

Metrology EN62052-11, EN62053-21, EN62053-23, EN50470-3. MID ‘annex MI-003’

EN62053- 23

Isolation Between Inputs and Outputs (1 minute)

Test without any current: 30V/m from 80…2000 MHz

70 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Table 42 - General Specifications

TIP

Attribute Value

Pulse output DIN43864, IEC62053-31

Approvals CE, cULus (E56639)

Connections Screw-type

Cable cross-section area Max 2.5 mm

Screw tightening torque: 0.4 N•m min/0.8 N•m max Suggested screw tightening torque: 0.5 N•m

Housing DIN

Dimensions (WxHxD) Module holder: 96 x 96 x 50 mm

Digital and analog output modules: 89.5 x 63 x 16 mm Serial and Ethernet Communication modules: 89.5 x 63 x 20 mm

Depth behind panel, max 81.7 mm

Material ABS, self-extinguishing: UL 94 V-0

Mounting Panel mounting

Pollution degree 2

Protection degree, front

Protection degree, screw terminals IP20

Weight, approx 400 g (0.88 lb) (packing included)

(1)

IP65, UL Type 4x indoor (NEMA4x indoor), UL Type 12 (NEMA12), for use on flat surface of a Type 4X Indoor enclosure; for use on flat surface of a Type 12 enclosure.

(14 AWG)

Technical Specifications Appendix B

(1) Use with 60 °C or 70 °C copper conductor. Maximum surrounding air temperature 40 °C. Install the device in a pollution degree 2 environment. Open Type Device. The terminals L1, L2, and L3 are acquired

by a circuit where devices or system, including filters or ai r gaps, are used to control overvoltages at the maximum rated impulse withstand voltage peak of 6.0 kV. Devices or system is evaluated by using the requirements in the Standard for Transient Voltage Surge Suppressors, UL 1449. Tighten terminals to 0.79 be more than 5.3 W.

N•m (7 lb•in). The sum of the internal power consumption of the assembled modules is not

Table 43 - Power Supply Specification

Attribute Value

Auxiliary power supply Nominal: 120/240V AC (50/60 Hz) or 120/240V DC

Range: 100…240V AC (48…62 Hz)

Power consumption 6VA

Table 44 - Isolation Between Inputs and Outputs (1 minute)

Measuring Inputs Relay Outputs Communication

Port

Measuring Inputs - 4 kV 4 kV 4 kV 4 kV

Relay outputs 4 kV 2 kV 4 kV 4 kV 4 kV

Communication port 4 kV 4 kV - 4 kV 4 kV

Analog Outputs 4 kV 4 kV 4 kV 0 kV 4 kV

Aux. power supply 4 kV 4 kV 4 kV 4 kV -

Analog Outputs Auxiliary Power

Supply

The channel isolation of the current inputs is 100V AC maximum and therefore require external current transformers.

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 71

Appendix B Technical Specifications

List of Connectable Variables

The variables that are listed in this table can be connected to the following items:

• Analog outputs (all variables except energy values and run hour counter)

• Pulse (digital relay)outputs (only energy values)

• Alarms (except energy, hour counter, and max values)

(X) = available; (O) = not available (variable not available on the display); (#) Not available (the relevant page is not displayed); (1) Max value with data storage

Table 45 - Variables

No Variable 1-ph. Sys (1P) 2-ph. Sys (2P) 3-ph. 3/4-wire

Balanced Sys (3P.1)

1 VL-N sys O X X X # X sys= system=  (1)

2 VL1 X X X X # X (1)

3 VL2 O X X X # X (1)

4VL3 O O X X # X (1)

5 VL-L sys O X X X X X sys= system= (1)

6 VL1-2 # X X X X X (1)

7VL2-3 # O X X X X (1)

8 VL3-1 # O X X X X (1)

9 AL1 X X X X X X (1)

10 AL2 O X X X X X (1)

11 AL3 O O X X X X (1)

12 VA sys X X X X X X sys= system=  (1)

13 VA L1 X X X X # X (1)

14VA L2OXXX # X(1)

15 VA L3 O O X X # X (1)

16 var sys X X X X X X sys= system=  (1)

17 var L1 X X X X # X (1)

18 var L2 O X X X # X (1)

19 var L3 O O X X # X (1)

20 W sys X XXXXXsys= system=  (1)

21 WL1 X X X X # X (1)

22 WL2 O X X X # X (1)

23 WL3 O O X X # X (1)

24 PF sys X X X X X X sys= system=  (1)

25 PF L1XXXX# X (1)

26 PF L2 O X X X # X (1)

27PF L3OOXX # X (1)

28 Hz X X X X X X (1)

29 Phase seq.OXXXXX

30Run Hours XXX X XX

31kWh (+) X X XXXXTotal

3-ph. 2-wire Balanced Sys (3P.2)

3-ph. 3-wire Unbal. Sys (3P)

3-ph. 4-wire Unbal. Sys (3P.n)

Notes

72 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Table 45 - Variables

kWh, Accuracy (RDG) Depending on the Current

Percentage error limits for class index B

6A (I

max

)

6A (I

max

)

5A (I

)

5A (I

)

0.25A (I

)

0.25A (I

)

0.05A (I

min)

Accuracy limits (Real energy) Start-up current: 5 mA

kvarh, Accuracy (RDG) Depending on the Current

Error (uncertainty)

Accuracy limits (Reactive energy) Start-up current: 5 mA

PF=1

PF=L0.5

or C0.8

6A (I

max

)

6A (I

max

)

5A (I

)

5A (I

)

0.25A

0.5A

0.1A

0.25A

sin φ =1

sin φ =0.5

+1.0%

+1.5%

-1.0%

-1.5%

+2.0%

+2.5%

-2.0%

-2.5%

Technical Specifications Appendix B

No Variable 1-ph. Sys (1P) 2-ph. Sys (2P) 3-ph. 3/4-wire

Balanced Sys (3P.1)

3-ph. 2-wire Balanced Sys (3P.2)

3-ph. 3-wire Unbal. Sys (3P)

3-ph. 4-wire Unbal. Sys (3P.n)

Notes

32 kVARh (+) X X X X # X Total

33 kWh (+) X X X X X X Partial

34 kVARh (+) X X X X # X Partial

35kWh (-) X XX XXXTotal

36 kVARh (-) X X X X # X Total

37 kWh (-) X X X X X X Partial

38 kVARh (-) X X X X # X Partial

Figure 26 - Accuracy

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 73

Appendix B Technical Specifications

Phase variables

Instantaneous eective voltage

Figure 27 - Calculation Formulas

System variables

Equivalent three-phase voltage

Three-phase power factor

(TPF)

Instantaneous real power

Instantaneous power factor

Instantaneous eective current

Instantaneous apparent power

Instantaneous reactive power

Three-phase reactive power

Three-phase real power

Three-phase apparent power

Energy metering

Where: i= considered phase (L1, L2 or L3)

P = real power; Q = reactive power;

=starting and ending time points

1,t2

of consumption recording; n = time unit; Δ t= time interval between two successive power consumptions;

= starting and ending discrete

1,n2

time points of consumption recording

74 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Appendix C

PowerMonitor 500 EtherNet/IP Device Profile

This section describes the specific CIP Objects, Instances, Attributes, and Services that are supported by the PowerMonitor™ 500 system. This information is for anyone wishing to integrate the PowerMonitor 500 system into existing or planned shop floor networks.

General

Object Model and Interface

Identity Object - CLASS CODE 0x0001

For this device profile, we use a PowerMonitor 500 unit and an EtherNet/IP communication module to provide power and energy metering data via an EtherNet/IP network. The data is accessed as instances of the device Assembly Object.

This profile documents objects that are proprietary, or in some way that is altered from their generic behavior. Standard CIP objects that are generic in their interface are documented in the EtherNet/IP specification.

The PowerMonitor 500 system is represented by the following Object Model.

Object Class Class Code Instance Numbers Number of Connections

Identity 0x0001 1 0

Assembly 0x0004 100d…108d 18

The Identity Object is used to provide identification information about the device. Each node supports at least one instance of the identity object. The Identity Object is used by applications to determine which nodes are on the network. The Identity Object supports Class Attributes (Instance 0) and Instance 1.

See Section 5-2 of the CIP Common Specification for full details of this object.

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 75

Appendix C PowerMonitor 500 EtherNet/IP Device Profile

Identity Object Class Attributes (Instance 0)

Attr ID Access Name Data Type Default Value

0x01 Get Revision UINT 1

0x02 Get Max Instance UINT 1

0x03 Get Number of

0x06 Get Maximum ID

0x07 Get Maximum ID

(1) Attribute ID 0x03 is not returned for serv ice type Get Attribute All.

(1)

Instances

Number Class Attributes

Number Instance Attributes

UINT 1

UINT 7

Instance 1 (PowerMonitor 500 device and Communication module)

Instance 1 represents the PowerMonitor 500 device with its EtherNet/IP module. Instance 1 of the Identity Object is the one that is browsed by RSLinx® software, relevant to the complete device, that is, the PowerMonitor 500 device and Communication module.

Instance 1 of the Identity Object reports the following instance-specific attribute values.

Identity Object Instance 1 Attributes

Attribute ID Access Name Data Type Value

0x01 Get Vendor ID UINT 1 (Rockwell Automation)

0x02 Get Device Type UINT 0x92 (146d)

0x03 Get Product Code UINT See Product Code Values

0x04 Get Revision Struct of : Dynamic (varies with the

Major Revision USINT

Minor Revision USINT

0x05 Get Status WORD Dynamic

0x06 Get Serial Number UDINT 940000000…950000000

0x07 Get Product Name SHORT_STRING PowerMonitor 500

communication firmware revisio n)

table

76 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Product Code Values

PowerMonitor 500 EtherNet/IP Device Profile Appendix C

Part Number Name Product

Code

1420-V1-ENT 146 - PowerMonitor 500 4 PowerMonitor 500 (240V AC, No I/O)

1420-V1P-ENT 146 - PowerMonitor 500 5 PowerMonitor 500 (240V AC, Digital I/O)

1420-V1A-ENT 146 - PowerMonitor 500 6 PowerMonitor 500 (240V AC, Analog I/O)

1420-V2-ENT 146 - PowerMonitor 500 7 PowerMonitor 500 (600V AC, No I/O)

1420-V2P-ENT 146 - PowerMonitor 500 8 PowerMonitor 500 (600V AC, Digital I/O)

1420-V2A-ENT 146 - PowerMonitor 500 9 PowerMonitor 500 (600V AC, Analog I/O)

Description

Catalog Number 1420-V1-ENT

Catalog Number 1420-V1P-ENT

Catalog Number 1420-V1A-ENT

Catalog Number 1420-V2-ENT

Catalog Number 1420-V2P-ENT

Catalog Number 1420-V2A-ENT

Identity Object Services

Service Code Class/Instance Usage Service Name

0x01 Class/Instance Get_Attributes_All

0x0E Class/Instance Get_Attribute_Single

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 77

Appendix C PowerMonitor 500 EtherNet/IP Device Profile

Get Attribute All Service

The Get Attribute All service returns a concatenation of all class or instance attributes.

The following example shows how to configure your message instruction configuration for the Get Attribute All Service type for the Logix Designer application. In this example, we read the class attributes (Instance 0) of the Identity Object.

Parameter Choice Notes

Message Type CIP Generic

Service Type Custom

Service Code 1 (hex) 1 = Get Attribute All

e = Get Attribute Single

Instance 0 0 = Identity Object Class Attributes

1 = Identity Object Instance 1 Attributes

Class 1 (hex) 1 = Identity Object

Attribute 0 (hex) This parameter is irrelevant for Get Attribute All service, but a value must be

Source Element See Notes This element is irrelevant for the Get Attribute All service, however it must be

Source Length See Notes This parameter is irrelevant for the Get Attribute All service but must be

Destination Element

See Notes This element is the first element of the controller tag that stores the data being

entered in this parameter for the Customer service type.

completed for the Custom service type. In this example, the Source Element and the Destination Element are set to the same array.

completed. The value can be less than or equal to the Source Element byte size to avoid error.

read. The tag is an array of the applicable data type the same length as the Identity Instance. In this example, the tag is an array of five INT elements.

78 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

PowerMonitor 500 EtherNet/IP Device Profile Appendix C

Get Attribute Single Service

The Get Attribute Single service returns the single attribute that is specified by the parameter Attribute ID.

Request Parameters

Parameter Data Type Description

Attribute ID UINT Identifies the attribute to be read/returned

The following example shows how to create your message instruction configuration for the Get Attribute Single Service type for the Logix Designer application. In this example, we read the Instance 1 attributes of the Identity Object.

Parameter Choice Notes

Message Type CIP Generic

Service Type Get Attribute Single

Service Code e (hex) e = Get Attribute Single

Instance 1 0 = Identity Object Class Attributes

1 = Identity Object Instance 1 Attributes

Class 1 (hex) 1 = Identity Object

Attribute 3 (hex) This parameter is the attribute ID of the specific attribute to be read. In

Source Element N/A Not applicable to a Read

Source Length N/A Not applicable to a Read

Destination Element See Notes This element is the first element of the controller tag that stores the

this example, 3 = Product Code.

data being read. The tag is an array of the applicable data type the same length as the Attribute. In this example, the tag is an array of one INT element.

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 79

Appendix C PowerMonitor 500 EtherNet/IP Device Profile

Assembly Object - CLASS CODE 0x0004

The Assembly Object collects attributes from multiple objects, allowing data to or from each object to be sent or received over a connection. Assembly Objects are used to produce and/or consume data to/from the network. An instance of the Assembly Object can both produce and consume data from the network.

Static assemblies are factory determined and cannot be modified. Members cannot be added or deleted. The implementation of the Assembly Object are static. See Section 5-5 of the CIP Common Specification for full details of this object.

Assembly Object Class Attributes

Attr ID Access Name Data Type Default Value

0x01 Get Revision UINT 2

0x02 Get Max Instance UINT 108d

0x03 Get Number of Instances UINT 9

0x04 Get Optional Attributes List STRUCT of UINT

0x06 Get Maximum ID Number Class

Attribu tes

0x07 Get Maximum ID Number Instance

Attribu tes

ARRAY of UINT

UINT 7

UINT 4

0x0001, {0x0004}

Assembly Object Instance Attributes

Attr ID Access Name Data Type Default Value

0x03 Get Data Instance Dependent

0x04 Get Size Size (in bytes) of the Data attribute Instance Dependent

(1) S ee Chapter 4 for more information.

(1)

All member data that is packed into one array.

(1)

80 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

PowerMonitor 500 EtherNet/IP Device Profile Appendix C

Assembly Object Instances

The communication module Assembly Object supports nine instances (instances 100d to 108d). The Data attributes of these instances can be accessed via Class 1 scheduled connections and via Class 3 or UCMM unscheduled connections.

See Appendix A

, PowerMonitor 500 EtherNet/IP Device Profile for more

information on the content of the Assembly Instances.

Assembly Instance Size (No. of elements) Data Type Data Table Description

100 20 UINT Product Information

101 12 REAL Real-time Voltage and Current

102 18 REAL Real-time Power, PF, Frequency

103 12 REAL Max Voltage and Current

104 17 REAL Max Power, PF, Frequency

105 12 REAL Demand Voltage and Current

106 17 REAL Demand Power, PF, Frequency

107 18 REAL Energy Meters

108 2 UINT Alarm and Output Status

Assembly Object Services

Service Code Class/Instance Usage Service Name

0x0E Class/Instance Get Attribute Single

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 81

Appendix C PowerMonitor 500 EtherNet/IP Device Profile

Get Attribute Single Service

The Get Attribute Single service returns the single attribute that is specified by the parameter Attribute ID.

Parame ter C hoice Notes

Message Type CIP Generic

Service Type Get Attribute Single

Service Code e (hex) e = Get Attribute Single

Instance 102 This parameter is the Assembly Instance of the specific

Class 4 (hex) 4 = Assembly Object

Attribute 3 (hex) 3 = Data

Source Element N/A Not applicable to a Read

Source Length N/A Not applicable to a Read

Destination Element See Notes This element is the first element of the controller tag that

data table to be read. In this example, 102 = Real-time Power, P F, Frequ ency

4 = Size of data

stores the data being read. The tag is an array of the applicable data type the same length as the Attribute. In this example, the tag is an array of 18 REAL elements.

82 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

PowerMonitor 500 EtherNet/IP Device Profile Appendix C

Connections

The Assembly Object supports both scheduled (Class 1) and unscheduled connections (Class 3 and UCMM). Both connections are used to access instances 100d to 108d of the Assembly Object:

• UDP - Nine Class 1 connections each to the nine Assembly Instances 100 to 108 at 100 ms RPI ran stable

• TCP - Nine Class 3 connections each to the nine Assembly Instances 100 to 108 at 200 ms RPI ran stable

• Both - UDP and TCP can run simultaneously

Heartbeat Instances

With the Assembly Instances shown earlier, the communication module also recognizes two heartbeat instances. A heartbeat instance is a virtual output instance that is specified by devices wishing to establish Input Only and Listen Only Class 1 I/O connections to the communication module. Data cannot be read from or written to a heartbeat instance. The heartbeat instance is merely a programming construct that serves to keep the connection active.

Technical Notes

The communication module heartbeat instances are Instance 98 for the Input Only connection and Instance 99 for the Listen Only connection.

Behavior

The purpose of the Assembly Object is to act as a network interface to the PowerMonitor 500 unit data. That data is accessed by various means: Class 1 or Class 3 connections and also with UCMM messages.

This section lists additional technical information about Ethernet network communication.

Parameters

For the EtherNet/IP communication module, set the following parameters by using Programming mode through the base module front panel:

• IP address

• Subnet

• Gateway

• Modbus TCP/IP port

• Address Conflict Detect (ACD)

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 83

Appendix C PowerMonitor 500 EtherNet/IP Device Profile

IMPORTANT

Modbus TCP/IP

The communication module supports Modbus TCP/IP. The protocol is the same as the PowerMonitor 500 unit with RS-485 (Modbus RTU). See Chapter 4 for protocol details. In this product, only one Modbus TCP/IP connection (one socket) is allowed.

The EtherNet/IP and Modbus TCP/IP do not run concurrently. If ModbusTCP/IP communication occurs, EtherNet/IP communication stops temporarily but recovers in a minute or two.

We recommend that you use Modbus TCP/IP to configure or write to the PowerMonitor 500 unit and that you use Ethernet/IP to read the PowerMonitor 500 unit.

ACD

If an address conflict is detected from the communication module, then the base module displays ‘ACD Found’. In that case, it is necessary to check the network configuration, resolve the problem, and then cycle control power to the power monitor to re-establish communication.

TCP/IP Port

Default EtherNet/IP ports include the following:

• UDP (implicit message): 2222 (0x08AE)

• TCP (explicit message): 44818 (0xAF12)

You can reassign the default Modbus TCP/IP port: 502 (0x01F6).

84 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Index

Numerics

485 option 67

A option 67 about PowerMonitor 500 access information pages

10, 73

accuracy additional button functions address

Modbus physical

alarm configuration alarm icons analog output specifications analog outputs

configuration

35, 59

billing 9

buttons

additional functions descriptions 26

calculation formulas 74 catalog number explanation change

decimal point multiplier

CIP generic

class 1 comman specifications commands communication

EtherNet⁄IP Modbus ports RS-232 10, 43 RS-485

communication commands configurable alarms configuration

alarm analog output analog outputs communication relay outputs communication RS-232 communication RS-485 communication

configuration alarms configuration base unit configuration flow chart

control

10, 43

58 58

28-31

cost allocation current transformer wiring

data tables 47 data types supported decimal point change diagrams,wiring digital filter programming examples digital filtering operation digital output specifications digital outputs wiring dimensions

display

display description 26 display specifications

10, 17

optional modules

10, 13

alarm icons features

icons

44 27

electronic data sheet 38 energy metering values energy meters specifications

specifications

energy meter

entering password EtherNet/IP communication

assembly object assembly object instances 81 byte order common services device profile explicit messaging identity object identity object instance attributes implicit messaging Modbus TCP/IP technical notes 83

explicit messaging

factory installed options

modules

wiring

FactoryTalk EnergyMetrix

features

filter CO

filter S formulas

32-34

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 85

Index

front panel

11, 26

buttons indicators

functions 9

general specifications 70 geometric representation ground connection

icons

alarm display 13

IEC vs NEMA diagrams implicit messaging indications indicators information access input specifications installation IP65 isolation between inputs and outputs

17, 18

9, 10

line amplifier 44 list of variables load profiling

72-73

P option specifications 66 panel cut-out password physical address ports

power and power factor

power supply 10 power supply wiring power system

power system control PowerMonitor 500

product information programming mode

protection

pulse output specifications

EtherNet/IP RS-485/RS-232

geometric representation

monitoring

about configuration cut-out 17 dimensions features functions 9 installation panel installation wiring terminals 18

9, 10

IP65 NEMA 12 10 NEMA 4X

main functions specifications 69 menu page numbers message setup Modbus

address commands communication configure alarms configure base unit data types supported energy metering values functions supported real-time metering demand real-time metering values register format register maps status

TCP/IP 43

monitoring multiplier change

38, 40

50, 51, 52, 53

optional modules

dimensions

54, 55

real-time metering demand 54, 55 real-time metering values register format register maps relay outputs

configuration

RS-232

configuration wiring

RS-485

configuration wiring

50, 51, 52, 53

save changes 27 serial communication specifications shielded cable single-phase software

FactoryTalk EnergyMetrix

86 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

specifications

485 option A option analog output 67 command digital output display energy meters general input 65 isolation between inputs and outputs main functions P option 66 power supply pulse output relay output 66 RS-485 and RS-232 serial communication status indicators

status status indicators specifications sub-billing

three-phase 10

Index

variables 72-73 voltage ranges

wiring

analog outputs digital outputs Ethernet 24 RS-232

RS-485

wiring diagrams wiring terminals

Rockwell Automation Publication 1420-UM001E-EN-P - March 2016 87

Index

Notes:

88 Rockwell Automation Publication 1420-UM001E-EN-P - March 2016

Rockwell Automation Support

Use the following resources to access support information.

Documentation Feedback

Your comments will help us serve your documentation needs better. If you have any suggestions on how to improve this document, complete the How Are We Doing ? form at http://literature.rockwellautomation.com/idc/groups/literature/documents/du/ra-du002_-en-e.pdf

Technical Support Center

Knowledgebase Articles, How-to Videos, FAQs, Chat, User Forums, and Product Notification Updates.

https://rockwellautomation.custhelp.com/

Local Technical Support Phone Numbers Locate the phone number for your country. http://www.rockwellautomation.com/global/support/get-support-now.page

Direct Dial Codes

Find the Direct Dial Code for your product. Use the code to route your call directly to a technical support engineer.

http://www.rockwellautomation.com/global/support/direct-dial.page

Literature Library

Installation Instructions, Manuals, Brochures, and Technical Data.

http://www.rockwellautomation.com/global/literature-library/overview.page

Product Compatibility and Download Center (PCDC)

Get help determining how products interact, check features and capabilities, and find associated firmware.

http://www.rockwellautomation.com/global/support/pcdc.page

Rockwell Otomasyon Ticaret A.Ş., Kar Plaza İş Merkezi E Blok Kat:6 34752 İçerenköy, İstanbul, Tel: +90 (216) 5698400

Rockwell Automation maintains current product environmental information on its website at http://www.rockwellautomation.com/rockwellautomation/about-us/sustainability-ethics/product-environmental-compliance.page.

Allen-Bradley, Rockwell Software, Rockwell Automation, PowerMonitor, FactoryTalk EnergyMetrix, RSNetWorx, CompactLogix, ControlLogix, RSLinx, RSLogix, and Studio 5000 Logix Designer are trademarks of Rockwell Automation, Inc.

Trademarks not belonging to Rockwell Automation are property of their respec tive companies.

Publication 1420-UM001E-EN-P - March 2016 PN-XXXXXX-XX

Allen-Bradley 1420-V1A, 1420-V1-485, 1420-V1, 1420-V1-ENT, 1420-V1P-ENT User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Important User Information

Summary of Changes

New and Updated Information

Table of Contents

Preface

About This Manual

Intended Audience

Catalog Number Explanation

Additional Resources

About the PowerMonitor 500 Unit

PowerMonitor 500 Features and Functions

Front Panel Features

Front Panel Indicators and Control Buttons

Additional Button Functions

Display Features

Display Icons

Alarm Icons

Selecting Data to Display

Installation

Wiring Diagrams

Supply Power

Factory Installed Option Wiring

Configure with the Display

Edit Decimal Point and Multiplier

Configuration Flowchart

Digital Filtering Operation

Digital Filter Programming Examples

Analog Output Configuration Examples

Alarm Configuration Example

EtherNet/IP Communication

Electronic Data Sheet (EDS)

Explicit Messaging - Message Setup with CIP Generic

Implicit Messaging - Generic Ethernet Module Input Data Connection

Modbus Communication

Modbus Functions Supported

Data Types Supported

Modbus Register Format

Summary of Data Tables

Geometric Representation of Power and Power Factor

Data Tables

Product Information

Real-time Metering Values (voltage and current)

Real-time Metering Values (power, PF, frequency)

Maximum Metering Values (voltage and current)

Maximum Metering Values (power, PF, frequency)

DMD Metering Values (voltage and current)

DMD Metering Values (power, PF, frequency)

Total and Partial Energy Meters - EtherNet/IP Data Table

Alarm and Output Status

List of Connectable Variables

General

Object Model and Interface

Identity Object - CLASS CODE 0x0001

Identity Object Class Attributes (Instance 0)

Instance 1 (PowerMonitor 500 device and Communication module)

Identity Object Instance 1 Attributes

Identity Object Services

Get Attribute All Service

Get Attribute Single Service

Assembly Object - CLASS CODE 0x0004

Assembly Object Class Attributes

Assembly Object Instance Attributes

Assembly Object Instances

Assembly Object Services

Get Attribute Single Service

Connections

Heartbeat Instances

Technical Notes

Behavior

Parameters

Modbus TCP/IP

TCP/IP Port

Index
