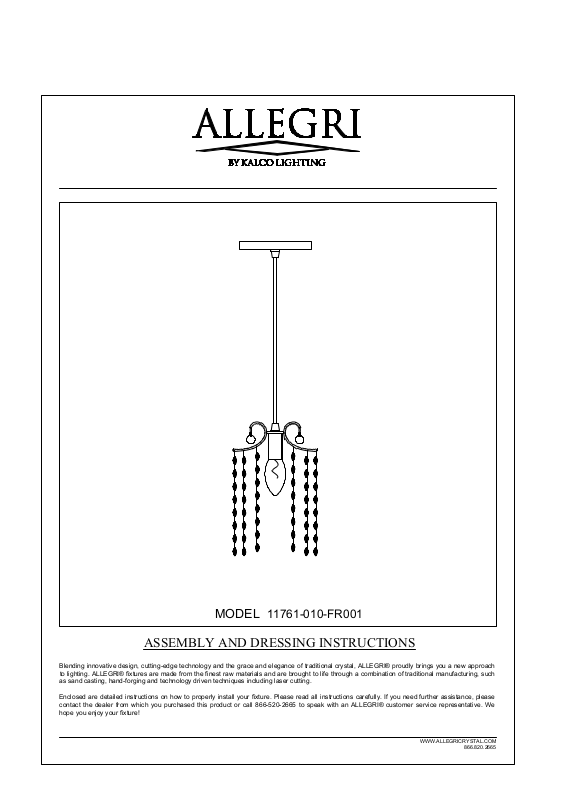

Allegri 11761010FR1BV, 11761010FR1LT, 11761010FR1BO, 11761010FR105, 11761010FR104 User Manual

MODEL 11761-010-FR001

ASSEMBLY AND DRESSING INSTRUCTIONS

Blending innovative design, cutting-edge technology and the grace and elegance of traditional crystal, ALLEGRI® proudly brings you a new approach
to lighting. ALLEGRI® fixtures are made from the finest raw materials and are brought to life through a combination of traditional manufacturing, such
as sand casting, hand-forging and technology driven techniques including laser cutting.

Enclosed are detailed instructions on how to properly install your fixture. Please read all instructions carefully. If you need further assistance, please
contact the dealer from which you purchased this product or call 866-520-2665 to speak with an ALLEGRI® customer service representative. We
hope you enjoy your fixture!

WWW.ALLEGRICRYSTAL.COM

866.820.2665

ASSEMBLY AND DRESSING INSTRUCTIONS

GENERAL NOTES

v For your safety and proper operation of fixture, read and understand all instructions completely before commencing installation.

v This fixture is suited for dry locations. Never install fixture on damp ceiling; room should be dry and well ventilated.

v Extreme care should be taken to avoid damage to the surface of lighting fixture and wires. Wearing gloves is recommended for installation.

v Connect ribbed wire of lighting fixture to live wire, while smooth wire of lighting to neutral. Connect bare copper or silver color ground wire of

fixture to the double colored or green wire of outlet box.

v Use UL LISTED wire nuts for the wiring connections in this fixture. Wrap wire nut connections with UL LISTED electrical tape.

v Keep lighting away from acid, alkali and other corrosive chemical or gas; clean the fixture with a clean cloth only.

v Fixture must be firmly secured when installing ceiling tube, chain pipe and other connecting parts.

v Never cover the lighting fixture when power is connected.

v Disconnect the power before installing, cleaning and/or replacing light bulb.

v Extreme care should be taken when installing and cleaning of Glass and/or Crystal Components.

v This product is rated 110-130V/60HZ bulb 40W Maximum.

v Save these instructions for future reference.

WARNING

The electricity must be turned off at the main fuse box or circuit breaker before installing this fixture. Turning the power off using the light switch may

not be sufficient to prevent electrical shock.

*ALLEGRI will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

WARNING!

CONTENTS ARE FRAGILE

HANDLE WITH CARE

THE METAL FRAME, FINISH AND CRYSTAL COMPONENTS OF THIS CHANDELIER ARE VERY DELICATE.

PLEASE EXERCISE EXTREME CAUTION DURING UNPACKING AND INSTALLATION.

PLACE ALL PIECES TOGETHER IN A NUMERICAL ORDER AND IN THE ORIENTATION DEPICTED.

REFER TO THE PARTS LIST TO AVOID ANY CONFUSION BETWEEN PARTS THE PARTS NUMBER MUST COINCIDE.

CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJURY AND

PROPERTY DAMAGE. All electrical components must be installed only by a Licensed Electrician.

This product must be installed in accordance with the National Electric Code (NEC), and appropriate local electrical code(s), by a
person familiar with the construction and operation of the product and the hazard involved.*

CAUTION: Do not exceed maximum wattage note on fixture. Uses only recommended bulbs with fixture.

WWW.ALLEGRICRYSTAL.COM

866.820.2665

P2

Canopy

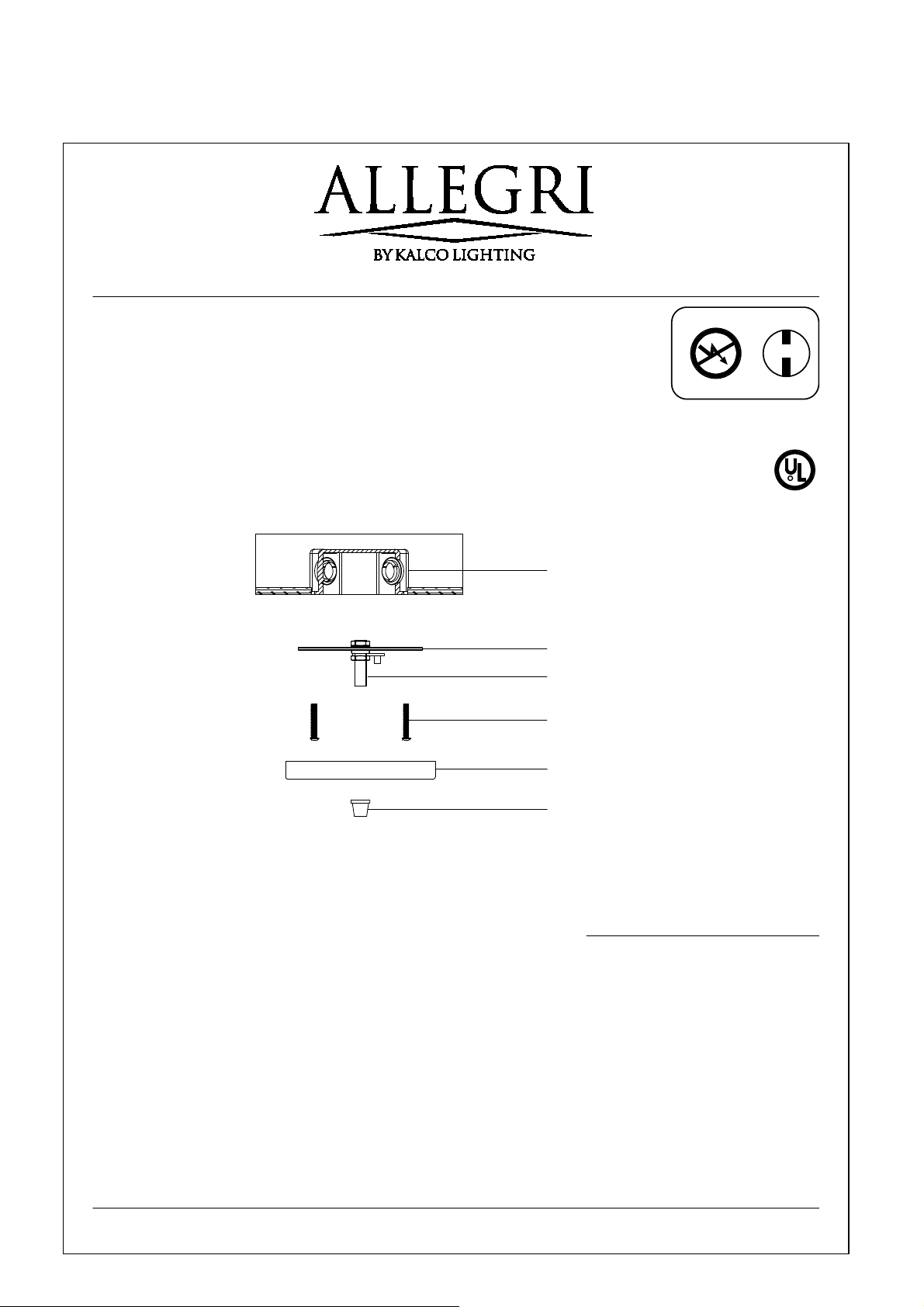

CANOPY MOUNTING INSTRUCTION

WARNING

Electrical Danger

Turn Power Off

All electrical components must be
installed by a licensed electrician in
accordance with the National
Electric code and the appropriate
local electrical codes.

c

R

INSTALL CANOPY AS FOLLOWS

CAUTION: Be sure power is off at the main
breaker box prior to installation.

1. Drill a hole on main ceiling beam and pass
Solid Nipple through.

2. Place Washer and Hex Nut on top of Solid
Nipple to hold.

3. Take Outlet Box through Solid Nipple and
screw Plate Hickey, then screw Plate Hickey to
main ceiling beam with 4 screws.

4. Secure the Washer and Hex Nut to Solid
Nipple from top side of main ceiling beam.

5. Screw Collar Loop to Nipple as shown, raise
Canopy flat to ceiling and secure it with Collar
Loop Ring.

6. Hang Chain to Collar Loop with the Easy Link,
Proceed to fixture frame assembly Step 1.

WWW.ALLEGRICRYSTAL.COM

866.820.2665

Outlet box (by others)

Mounting block

Solid Nipple

Screw

Metal lathe

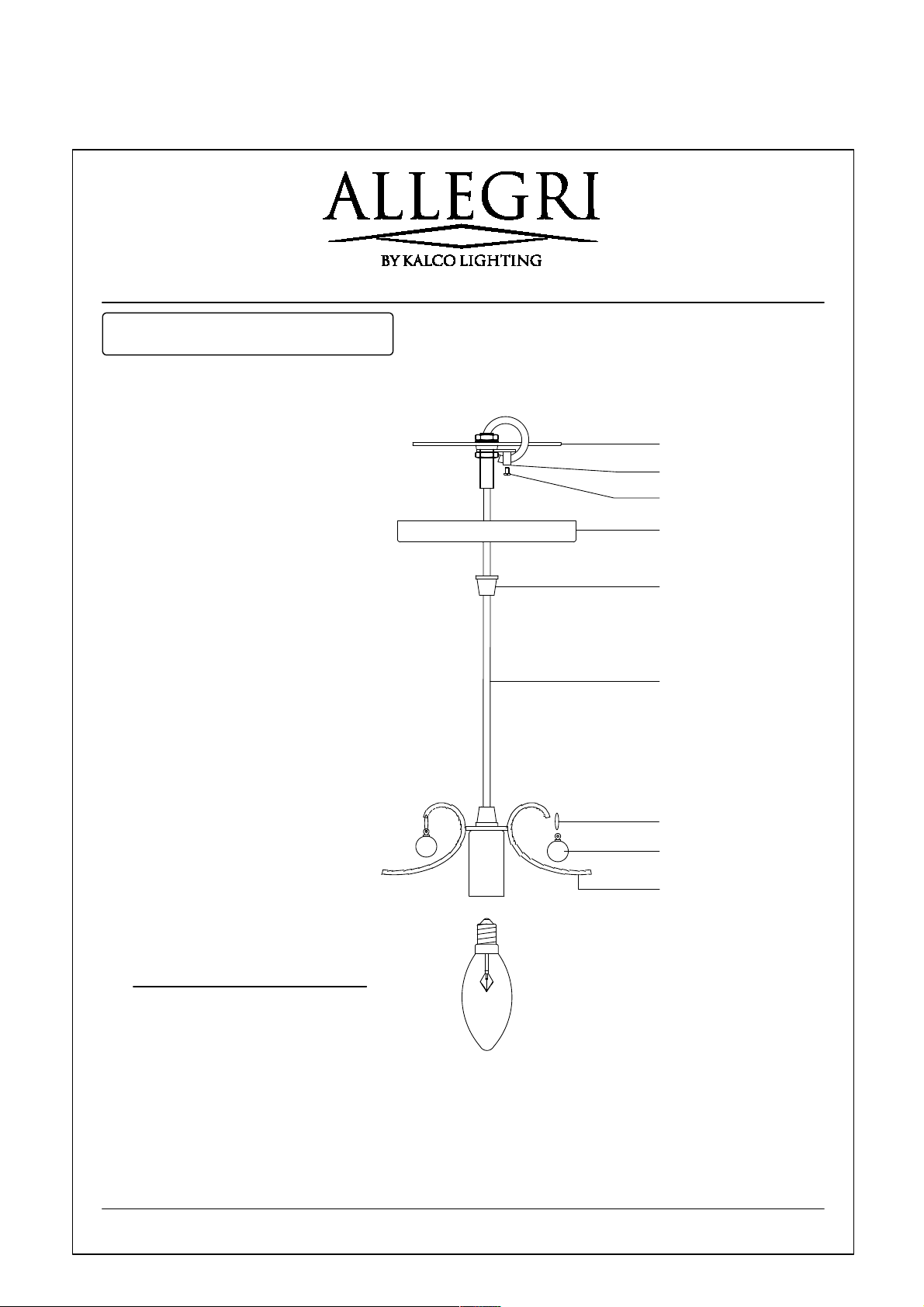

FRAME ASSEMBLY INSTRUCTIONS

INSTALLATION

a. Turn off electricity, take all parts from part box.
b. Connect the main wire with the power supply

circuit. See wire connection diagram.

c.Fix part #8 to part #9 by using part #7.

d. Put part #6 through part #1,#4,#5 then screw to part

#2.

e. Screw part #5to part #1.
f. Check the installation and attach bulb into lamp

holder.

WWW.ALLEGRICRYSTAL.COM

866.820.2665

MODEL 11761-010-FR001

1-Mounting block

2-Wire lock sleeve

3-Screw

4-Canopy

5-Metal lathe

6-Wire

9-Main body

8-Metal ball

7-Loop

ATTENTION

1. Take all crystal or glass parts carefully from carton, then
put them on a clean cloth.

2. Installing all crystal clusters per above illustration from top
to bottom.

Quantity

Code

You will need 1 - Cand.Buld
40 Watts Recommended
40 Watts Max
Bulb not included

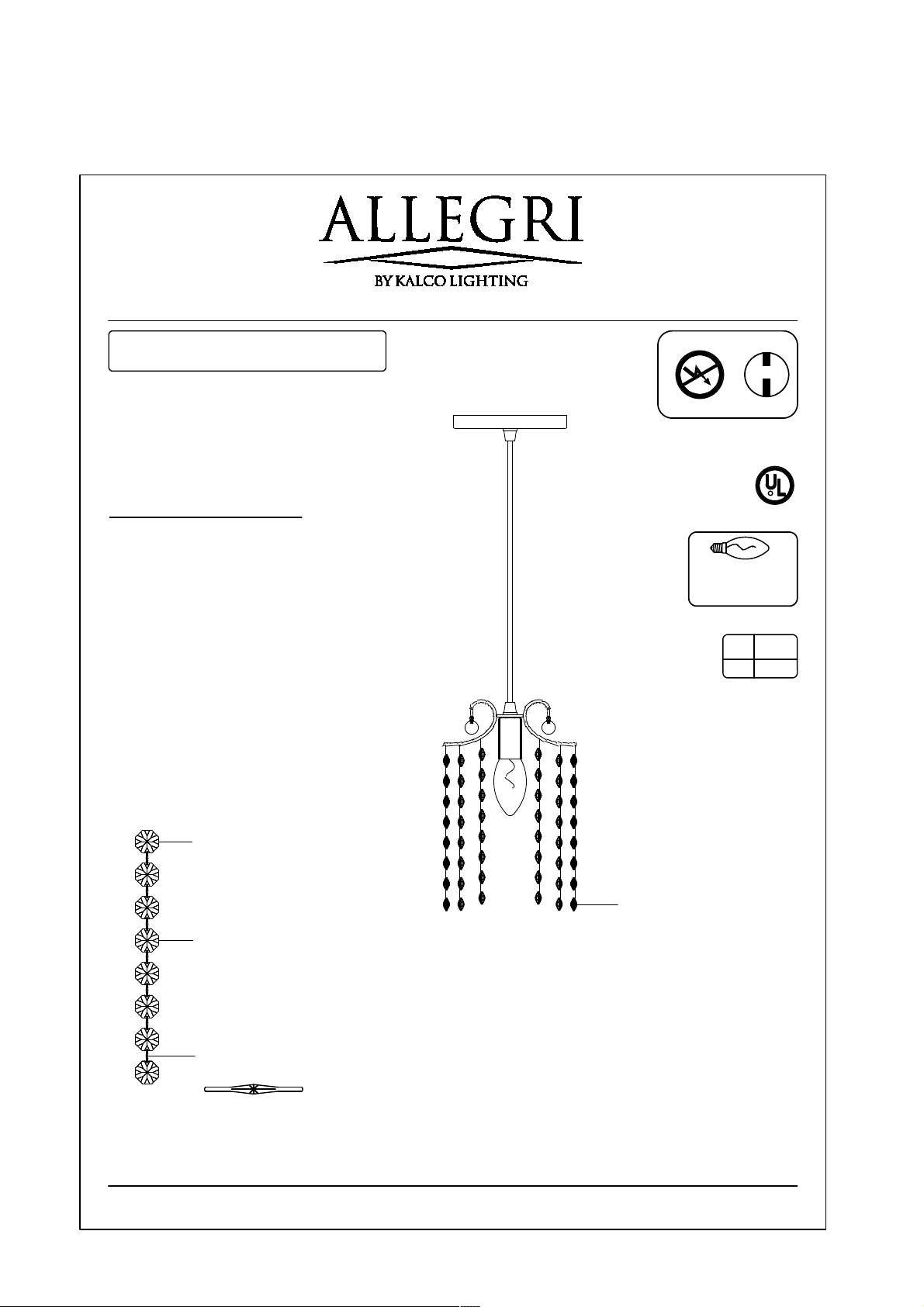

CRYSTAL DRESSING INSTRUCTION

MODEL 11761-010-FR001

WARNING

Electrical Danger

Turn Power Off

All electrical components must be installed by a
licensed electrician in accordance with the
National Electric code and the appropriate local
electrical codes.

c

R

WWW.ALLEGRICRYSTAL.COM

866.820.2665

A

36

A

A

R401081-014-00-0 (1 hole)
2 pc (top and bottom only)

R401080-014-00-0 (2 hole)
6 pc

B135-0027-04
7 pcs chrome pin

LIGHTING CARE INFORMATION

Ever y ALL EGRI® fi xture is o f hei rloom qual ity a nd wi ll la st fo r gen erati ons. To en sure it re tains its brill iance and

splendor for years to come, proper care and regular cleaning are necessary.

It is recommended that ALLEGRI® fixture, and particularly their crystal trim, be lightly dusted with a feather or lambs wool

du s ter, o r so f t br u sh ev e ry t w o mo n ths, o r wh e neve r it a ppea r s dul l or d usty . A th o roug h cle a ning s houl d be

completed every six months.

Before cleaning an ALLEGRI® fixture, first locate the fixture's trim diagram. This will assist in replacing the crystal trim in
its proper location after cleaning. Should a replacement trim diagram be required, please call
866-820-2665 to speak with an ALLEGRI® customer service representative, who can provide a new diagram.

ALLEGRI® recommends several different cleaning methods, depending on the ty pe of fix ture. Som e fixture s can be

cleaned with limited removal of crystal, while others must be completely untrimmed.

Place a soft towel or blanket directly beneath the fixture to limit the damage to both the crystal and the surface below the

fixture, should a piece of crystal be dislodged during the cleaning process. Extreme care must be taken around any

electrical fixture. For personal safety and the safety of the fixture, be sure that the fixture has been turned off. Never rotate or

spin the fixture as this can cause the fixture to lose support and fall. Instead, move around the fixture while cleaning.

White Glove Method

Prepare a cleaning solution of one part isopropyl alcohol to three parts distilled water and place in a clean spray bottle.
Do not use packaged cleaning fluids, as many of these contain ammonia, which may degrade the finish of the fixture and

the quality of the crystal.

Wearing white cotton gloves, spray one glove with the solution and keep one dry. Gently polish each crystal with the damp
glove and immedia t e l y w i p e i t w i t h t h e d r y g l o v e . D o n o t t u g o r p u l l o n t h e c r y s t a l , a s t h is may cause the

connectors to chip or crack the crystal, or dislodge it from the fixture.

Warning: To reduce the risk of personal injury due to fire and/or electric shock, never spray solution at or near the fixture.

Crystal Removal Method

Gently remove trim and hand-wash the crystal in lukewarm water using a mild detergent. Rinse in clean water and dry with a

soft clean cl oth. Do not so ak fini shed cr ys tal suc h as SW AROVSKI ELEMEN TS Colo rs: Tea k, Gold en Shadow or

Silver Shade, for extended periods, as this may degrade the crystal's finish.

With the fixture untrimmed and turned off, wipe the frame, including the light bulbs once they are completely cool, with a soft

cloth.

Wearing white gloves, finger-cots or using a soft clean cloth, gently replace the trim as directed in the trim diagram.
