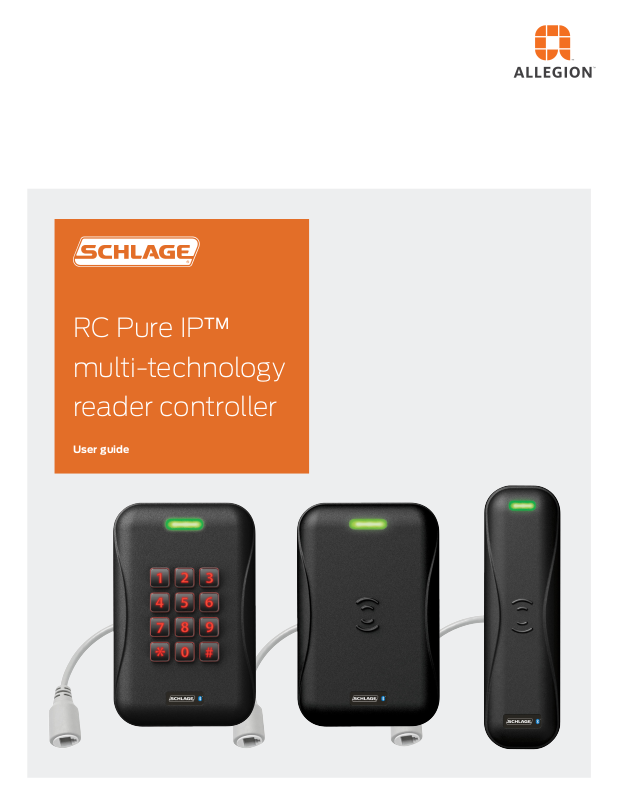

Allegion RC11, RC15, RCK15 User Manual
RC Pure IP
TM
multi-technology
reader controller
User guide
FCC Statement
Model FCC ID IC ID
RC11
RC15
RCK15
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
(1) Reorient or relocate the receiving antenna.
(2) Increase the separation between the equipment and receiver.
(3) Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
(4) Consult the dealer or an experienced radio/TV technician for help.
XPB-RC11 8053B-RC11
XPB-RC15 8053B-RC15
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence.L’exploitation est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
For RF Safety and per FCC and Industry Canada regulations, the product should never be
installed within 8-inches (20cm) of typical people locations.
U.S. Patent Nos.
7,775,429
8,662,386
9,153,083
9,336,633
7,676,839
U.S. Application No.
14/019,924
Contents
ii FCC Statement
iv Contact information
iv Warnings and cautions
5 Before you begin
5 General requirements
6 Reader controller specifications
7 Installation location guidelines
9 Reader controller reset button
10 Wiring
10 Powering the reader controllers
11 Door wiring
13 Lock wiring using PoE
13 Door sensor wiring
14 Advanced Security Module (ASM) wiring
15 Configuring communications
15 Reader controllers to host soware
16 Appendix A: Power options
16 PoE Power Budget Calculations
17 Additional power options
18 Dual power sources
19 Appendix B: Additional wiring considerations
19 ASM LED status index
19 Wiring two readers to one lock
20 Managing inductive load challenges
21 PoE: Magnetic lock, ASM and PIR
22 Appendix C: UL Disclaimers
iii • Schlage • Reader controller
Contact information
If you need assistance, contact technical support at:
1-877-671-7011
www.allegion.com/us
MIFARE® and DESFire™ are registered trademarks of NXP B.V.
Warnings and cautions
WARNING
Warnings indicate potentially hazardous conditions,
which if not avoided or corrected, may cause death or
Cautions indicate potentially hazardous conditions,
which if not avoided or corrected, may cause minor or
moderate injury. Cautions may also warn against
Notices indicate a condition that may cause equipment
serious injury.
CAUTION
unsafe practices.
NOTICE
or property damage only.
iv • Schlage • Reader controller
Before you begin
This guide discusses each wiring process separately. Understanding all of these processes makes a project much simpler and
helps guarantee success. To install a Reader Controller unit, you must complete four key tasks:
1. Mount the Reader Controller in the appropriate location. Recommended locations and wiring methods shall be in
accordance with 1) the National Electrical Code, {ANSI/NFPA 70}; 2) International Building Code {IBC}, and 3) Americans
with Disabilities Act {ADA}.
2. Supply power to the Reader Controller. This may be accomplished with power being provided on the Ethernet data cable
(Power over Ethernet [PoE / PoE+ / IEEE 802.3af]) or through an external DC power source (12VDC). When powering from
PoE or PoE+, in order for the system to be UL294 V7 compliant, the Power Sourcing Equipment (PSE) injector or end point
must be compliant to UL294 or UL294B standards.
3. Wire the unit to the door’s locks and other components for physical access control.
4. Connect the unit to the data network for communication with the host access control system.
The Reader Controller complies with UL 294 V6 and is rated for the following performance levels:
Standby power Level I
Endurance Level IV
Line Security Level I
Destructive Attack Level I (ASM required)
General requirements
• If PoE is not being used, then use only UL-listed, access control, power-limited power supplies with an ‘AC on’ indicator light
clearly visible on the enclosure. Power supplies should provide at least four hours of standby power.
• Never connect power supplies to a switch-controlled receptacle.
• Install the Schlage system in accordance with the National Electrical Code NFPA 70, IBC, and ADA requirements, or the
Canadian Electrical Code, C22.1-02. (Local authority has jurisdiction.)
• Use only UL-listed wire or cabling recognized suitable for Schlage power supply and data communications, in accordance
with the National Electrical Code.
• Where possible, separate Schlage equipment and cabling from sources of electromagnetic interference (EMI). Where this is
not possible, take other steps to reduce the effect of EMI on cabling or equipment.
• Protect input and output terminals adequately from transient signals. Also, connect these terminals to power-limited
circuitry.
• The readers are UL Listed for standalone operation only. Reference to operation with the server have not been investigated
by UL.
• Operation with the ASM has not been investigated by UL.
• Accessories connected to the readers shall be UL Listed.
• The reader controllers are intended to be used with the building’s communication system and not intended for direct
outside connection.
• All input/output wiring shall employ earth grounded shielded cable. The maximum wiring distance is 30 m, same room.
• The minimum conductor gauge permitted to connect between the PSE or power injector and the device shall be 26 AWG
(0.13 mm2) for patch cords; 24 AWG (0.21 mm2) for horizontal or riser cable.
• Premise network equipment shall be UL Listed for compliance with UL60950-1 or UL62368-1.
• Intended for Alternative A PoE sources. NEC, Class 3 wiring methods shall be followed.
• Compliance to ULC-S319, Electronic Access Control Systems, would be invalidated through the use of any add-on,
expansion, memory or other module manufactured or supplied by the manufacturer or manufacturer’s representative.
• In POE applications, installation shall be in accordance with Article 725.121, Power Sources for Class 2 and Class 3 circuits.
5 • Schlage • Reader controller
Before you begin | Reader controller specifications
Reader controller specifications
Model RC11 RC15 RCK15
Reader controller Type Mobile enabled multi-technology Mobile enabled multi-tech w/keypad
Mounting Style Mullion Single Gang
Standards ISO 14443A, ISO 15693
Certifications FCC Certification, IC Certification, UL 294/cUL Listed, RED Directive, CE Mark, IP65, REACH,
Frequency 2.4 GHz, 13.56 MHz and 125 kHz
Technology Supported (See Appendix C: UL Disclaimers on page 22.)
CSN
Proximity
Smart
Mobile (NFC)
Mobile (Bluetooth)
Read Range
Prox FSK
Prox ASK
MIFARE Classic EV1
MIFARE Plus
MIFARE DESFire EV1
MIFARE DESFire EV2
Schlage Mobile Credential
(Bluetooth) (short range-standard)
Schlage Mobile Credential
(Bluetooth) (long range-optional)
Users 64,000
Audits 5,000
Schedules 32
Holidays 32
Auto Events 448
Communication Standards 10/100 Mbps, Half or Full Duplex
Power Options Power Over Ethernet (PoE/PoE+), (IEEE 802.3af/at)
Outputs Locking mechanism: 600 mA @ 12VDC max
Signal Inputs Door Position Switch (DPS)
Operating Temperature -31°F (-40°C) to 151°F (66°C)
Dimensions 5.94” x 1.77” x 1”
Bluetooth SIG, RoHS3
Up to 1.75" (4.4 cm) Up to 4.0" (10.1 cm) Up to 4.0" (10.1 cm)
Up to 1.5" (3.8 cm) Up to 3.25" (8.2 cm) Up to 3.25" (8.2 cm)
Up to 1.75" (4.4 cm) Up to 2.0" (5.1 cm) Up to 2.0" (5.1 cm)
Up to 0.25" (0.6 cm) Up to 1.25" (3.2 cm) Up to 1.25" (3.2 cm)
Up to 0.5" (1.3 cm) Up to 1.5" (3.8 cm) Up to 1.5" (3.8 cm)
Up to 1.5" (3.8 cm) Up to 2.0" (5.1 cm) Up to 2.0" (5.1 cm)
5’ (1.5 m)
30’ (9.1 m)
Ethernet, WebSockets, Standard Cat5e or better Cable
DHCP Addressing Supported
Transport Layer Security (TLS) version 1.2
Advanced Encryption Standard (AES), 256-bit
DC Power: 12VDC +/- 10% at 300 mA
Î PLEASE NOTE: 300 mA current rating does not include locking mechanism
current. Consult your product documentation.
Advanced Security Module Outputs
RS-485 (future use)
2x General Purpose Outputs (TTL logic levels at ± 24mA)
Request to Exit (REX)
Auxiliary Input (AUX)
5.13” x 3.25” x 1” (130 x 83 x 25 mm)
(150 x 45 x 25 mm)
6 • Schlage • Reader controller
Before you begin | Installation location guidelines
Installation location guidelines
When selecting the location where you are going to mount the Reader Controller, a few guidelines should be observed.
1. In humid environments, a drip-loop should be formed in the Reader Controller’s cables, before the cables enter the unit.
2. The Reader Controller should be protected from extreme heat and sunlight. It is rated for conditions up to 151 F. A direct
southern exposure, in the Southwest area of the United States may exceed these ratings.
3. The cables extending from the back of the Reader Controller’s field wiring cable is available in a two standard lengths (10'
or 25' [3 m or 7.62 m]). The door wiring must terminate within that distance or less than 98' (30m) from the Reader
Controller.
4. The wall mounting templates are shown in Figure 1.1: RC11 Mounting and Figure 1.2: RC15/RCK15 Mounting.
5. The selected location should meet ADA requirements. Check local regulations for more information.
Template to scale. Check
scaling when printing.
1"
(25.4)
Figure 1.1: RC11 Mounting
5 ²³"
(145.256)
2 "
(40.481)
²³"
(18.415)
1 ³"
(27.940)
Alternate hole
1 ¹" (28.575)
1" (25.400)
2 places
2 "
(62.128)
4 ³"
(101.600)
mm in
parenthesis
7 • Schlage • Reader controller
