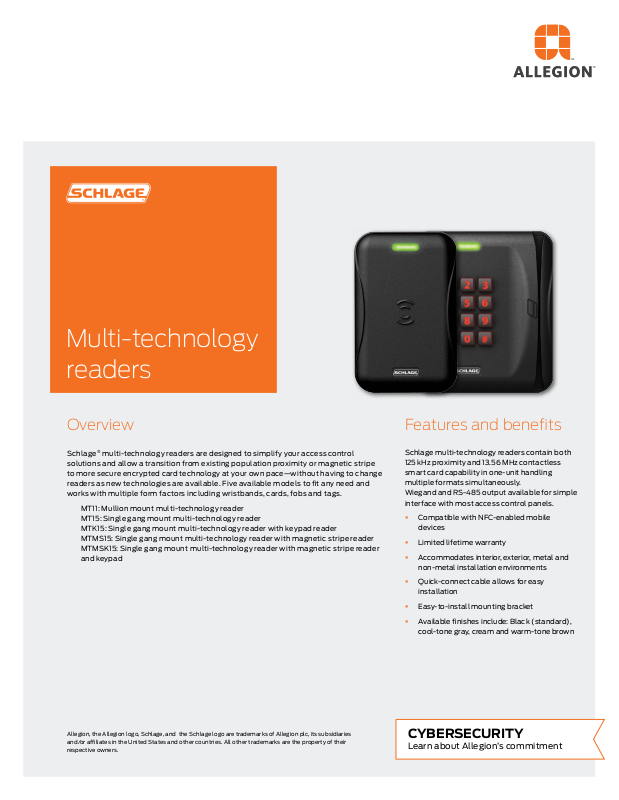

Allegion MT11, MT15, MTK15, MTMS15, MTMSK15 Datasheet
Multi-technology
readers
Overview
Schlage® multi-technology readers are designed to simplify your access control
solutions and allow a transition from existing population proximity or magnetic stripe
to more secure encrypted card technology at your own pace—without having to change
readers as new technologies are available. Five available models to fit any need and
works with multiple form factors including wristbands, cards, fobs and tags.
MT11: Mullion mount multi-technology reader
MT15: Single gang mount multi-technology reader
MTK15: Single gang mount multi-technology reader with keypad reader
MTMS15: Single gang mount multi-technology reader with ma gnetic stripe reader
MTMSK15: Single gang mount multi-technology reader with magnetic stripe reader
and keypad
Features and benefits
Schlage multi-technology readers contain both
125 kHz proximity and 13.56 MHz contactless
smart card capability in one-unit handling
multiple formats simultaneously.
Wiegand and RS-485 output available for simple
interface with most access control panels.
§ Compatible with NFC-enabled mobile
devices
§ Limited lifetime warranty
§ Accommodates interior, exterior, metal and
non-metal installation environments
§ Quick-connect cable allows for easy
installation
§ Easy-to-install mounting bracket
§ Available finishes include: Black (standard),
cool-tone gray, cream and warm-tone brown
Allegion, the Allegion logo, Schlage, and the Schlage logo are trademarks of Allegion plc, its subsidiaries
and/or aliates in the United States and other countries. All other trademarks are the property of their
respective owners.
CYBERSECURITY
Learn about Allegion’s commitment
*
Model
Reader type Multi-technology
Frequency 13.56 MHz and 125 kHz 13.56 MHz and 125 kHz and magnetic stripe
FIPS 201-1 & 201-2 compliant Yes
Standard default PIV output 75 bit PIV
Standards SO 14443A, 14443B, 15693
Certifications FCC Certification • IC Certification • UL 294 Listed • RED Directive (15 EU Countries) • CE Mark • IP65
Voltage range 5-16 VDC
Power supply Linear DC
Current requirement
(at 12 VDC and
25 C; mAmps)
Read range Proximity: Up to 5" (12.7 cm)
Cable specification 18 AWG, 5 conductor stranded/shielded
System interfaces Wiegand / Clock & Data / RS-485
Cabling distance Wiegand output: 500 ft (152 m)
Physical dimensions
(H x W x D)
Operating temperatures -40
Weight 5.7 oz 9.1 oz 9.3 oz 8.9 oz 9.5 oz
Material PBT Polymer
Technologies supported in default mode
Schlage Proximity
HID® Proximity
GE/CASI ProxLite
AWID® Proximity
LenelProx
Schlage smart cards using
MIFARE Classic
Schlage smart cards using
MIFARE Plus
Schlage smart cards using
MIFARE DESFire EV1 and
EV2
DESFire® CSN
HID iCLASS® CSN
Inside Contactless
PicoTag® CSN
ST Microelectronics® CSN
Texas Instruments Tag-It®
CSN
Phillips I-Code® CSN
®
®
MT11 MT15 MTK15 MTMS15 MTMSK15
mullion
MT11
Avg. 100 mA
Peak 170 mA
5.91" x 1.72" x 0.81"
15 cm x 4.4 cm x 2.1 cm
°
to 158°F
(-40° to 70°C)
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n n
n n n n
MT11-485
Avg. 115 mA
Peak 145 mA
Multi-technology
single gang
MT15 & MT15-485
Avg. 120 mA
Peak 200 mA
5.1" x 3.25" x 0.76"
12.9 cm x 8.3 cm x 1.9 cm
-40° to 158°F
(-40° to 70°C)
Multi-technology with
keypad single gang
MTK15 & MTK15-485 Avg.
120 mA
Peak 230 mA
MIFARE Classic: Up to 4" (10 cm)
MIFARE Plus: Up to 1" (2.5 cm)
MIFARE DESFire EV1 / EV2: Up to 2” (5.1 cm)
PIV credential: Up to 2.5" (6.5 cm)
5.1" x 3.25" x 0.76"
12.9 cm x 8.3 cm x 1.9 cm
-40° to 158°F
(-40° to 70°C)
Multi-technology with
magnetic stripe
**
MTMS15 & MTMS15-485
Avg. 120mA
Peak 200mA
***
(OSDP)
4.43" x 5.17" x 1.15"
11.25 cm x 13.13 cm x 2.92 cm
-31° to 151°F
(-35° to 67°C)
Multi-technology with
magnetic stripe and keypad
MTMSK15 & MTMSK15-485
Avg. 120mA
Peak 230mA
4.43" x 5.17" x 1.15"
11.25 cm x 13.13 cm x 2.92 cm
-31° to 151°F
(-35° to 67°C)
Color
options
Black
(standard)
†
Cream
Cool tone
gray
Warm tone
brown
* Some features and benefits listed on the front may not be applicable to the smart-only and proximity-only readers.
** Other output options available through configuration.
*** RS-485 model numbers include “-485” after the original model number. For example, MT11-485 is the RS-485
version of the multi-technology mini-mullion reader. Multi-drop, Open Standard Device Protocol (OSDP).
†
Lead time may apply for non-standard colors
