Allegion Briton User Manual

REDEFINING DOOR HARDWARE SPECIFICATION

specication Supply managementProduct data Consultation Access & securityTraining

for performance

and design

inspec by Allegion provides a complete door scheduling and speciﬁcation advice service to architects, end users and contractors, suitable for applications across various sectors.

Allegion can save you valuable time, oering the following services:

Preparation of door hardware speciﬁcation and detailed master key schedules

Consulting on necessary building regulations with pre-installation meetings & post installation inspections

Individual product data sheets and specialist advice and training

Speciﬁcation hardware

Global brands serving global markets

Allegion helps keep people safe where they live, work and visit. As a leading provider of security products and solutions for homes and businesses, Allegion specialises in security around the doorway and beyond: everything from residential and commercial locks, door closers and exit devices, to access control and workforce productivity systems.

Continual product development across the product ranges delivers innovative access and security solutions for the diering requirements within the healthcare, education, hospitality, transport and commercial markets worldwide.

© 2015 Allegion plc. Bricard, Briton, CISA®, Falcon®, Glynn-Johnson®, INSPEC, ITOTM, Ives®, LCN®, Normbau®, Schlage®, Steelcraft® and Von Duprin® are the property of Allegion plc. All rights reserved. All other brand names, product names or trademarks are the property of their respective owners.

www.allegion.com/uk

Speciﬁcation hardware - The Allegion legacy Speciﬁcation hardware - The Allegion legacy

Allegion by numbers

A history of innovative product design and development

Whilst Allegion is a new name in the security industry, we are not new. We have over 130 years of expertise in keeping people safe and secure with category leading products. From inventing the ﬁrst door closer in 1877 and the “panic release bar” exit device in 1908 to pioneering the ﬁrst-ever electric-controlled lock, our brands have been innovators for almost as long as people have locked doors. This entrepreneurial spirit is at the core of who we are.

1877

1889

1907

1908

1920

1926

$2 billion

2013 annual

revenue

1942

Countries

where we work

1973

8000

Employees

1994

120

Countries our

products are

sold

Global brands

2012

650

U.S patents

held

2013

7000

Global channel

partners

LCN door closers designed for and installed at Boston’s Trinity Church - they are still in use today.

Staying focused on the future means we will always ﬁnd new ground to break.

In 1889 we invented the ﬁrst masterkey system - it remains the standard for convenient access today.

The ﬁrst Briton door closer was launched in 1907.

Mechanical hardware lies at the foundation of our business and will always be at the core of what we do. In a world still dominated by manually operated doors, mechanical hardware provides the most direct, tactile, reliable and cost eective means of providing safety and security. On-going development of mechanical solutions across all our brands ensures that our products continue to set new standards of performance, build quality and reliability.

We do, however, recognise that for some applications such as the hospitality sector, the future lies in addressing the needs of an increasingly connected world. Electronic solutions don’t replace our mechanical products – they make them more powerful. That’s why our core strength in mechanical security, when combined with digital, mobile and interconnected electronic solutions makes us a leader in our markets.

We invented the panic exit device in 1908 and it was granted the ﬁrst exit device patent in 1909.

We were awarded the ﬁrst patent for the cylindrical lock and the push button lock in 1920.

We patented the ﬁrst electrically controlled lock in

1926.

We pioneered the design and development of the hollow steel door in 1942.

Development of the ﬁrst panic exit device with electric latch retraction.

The Accuﬁt door closer installation was developed to reduce installation time and improve accuracy.

Continual investment in design and technology ensures Allegion products continue to set the standard

CISA eSigno wireless access control. For further information please contact your Allegion Specification Consultant.

Briton cam action closers are developed with low opening forces suitable for DDA applications

Allegion was incorporated in Ireland in May 2013 and debuted on the NYSE in December 2013.

www.allegion.com/uk

Speciﬁcation hardware - Our integrated oering Speciﬁcation hardware - Our integrated oering

As the manufacturer of building products it puts our speciﬁcation team in a unique position to provide the most detailed and expert advice to architects, contractors and

REDEFINING DOOR HARDWARE SPECIFICATION

inspec solutions, providing safe and ecient environments

For over 100 years, since the launch of the ﬁrst Briton door closer in 1907 our brands have been synonymous with the very best in door controls and exit hardware. It is a well-earned reputation based on a tradition of producing high quality, highly engineered products, designed to stand the test of time and to endure the rigours of life in buildings throughout the world. In recent years this hallmark of quality has been applied to a much wider range of products including locks, cylinders, door furniture and accessories. This broad range of products has been brought together to form inspec, an integrated and comprehensive package of speciﬁcation product solutions and services to suit today’s construction industry.

All our speciﬁcation products are developed to exceed the latest European standards and where applicable are CE marked and Certiﬁre approved. In most cases products are tested to achieve the highest grades recognised within each standard and are covered by a 10 year mechanical guarantee. It’s what makes Briton, CISA, LCN and Von Duprin names to trust.

Type of building Expected frequency

High frequency Daily Yearly

Large dept.store entrance 5,000 1,825,000

Large oce building entrance 4,000 1,460,000

Hospital corridor & surgical doors

School entrance 1,250 456,000

Oce stairwell 500 182,000

Medium frequency

Hospital consulting rooms 100 36,500

School corridors 100 36,500

Oce building corridors 80 29,200

Storage room 50 18,250

Low frequency

Residential entrance 30 10,950

Residential interior 20 7,300

3,000 1,095,000

Furthermore, because we know that the real world is not like a test lab and that most of the problems associated with disfunctioning hardware are as a result of poor installation, we have strived to ensure that our products are easy to install accurately everytime. Our Accuﬁt installation system for example has been proven to signiﬁcantly reduce these issues.

other speciﬁers.

Expertise in the design and manufacture of complete door solutions for commercial applications has led to us supplying solutions for many prestigious projects.

At the core of our $2 billion business is the knowledge and experience of the 8000 dedicated employees behind our brands. We help our customers navigate their toughest security challenges, and we help builders and property owners dierentiate themselves by providing innovative and secure solutions. Operational excellence is a key part of what we do for our customers, and is a focus for our employees.

Our trained speciﬁcation writers and experts not only help our customers adhere to codes and standards – we help advocate for and raise those security standards in the ﬁrst place, in markets around the world.

Because we believe in the quality and craftsmanship of our products, we want to ensure that they meet their full potential. All of our speciﬁcation consultants provide you with unmatched service and expertise in the hardware purchasing process. From determining the unique needs of your building to being wellversed in various building codes—including local and national building regulations—meeting with an Allegion consultant will leave your architectural vision intact and secure.

During our assessment of your needs, we’ll communicate any areas of concern to you so that we can identify aesthetically and functionally appropriate customisable solutions. What’s more, we oer products that exceed the highest security standards and can communicate seamlessly with other systems and features within a building for the ultimate in safety and security.

We are both a RIBA manufacturers’ network member and accredited RIBA core curriculum provider. Our products can also be found in RIBA’s NBS plus speciﬁcation solution and we are working to make our hardware available within the RIBA BIM Library as part of our dedication to providing a holistic, best practice approach to meet the demands of modern construction.

www.allegion.com/uk

Speciﬁcation hardware - Case studies Speciﬁcation hardware - Case studies

Case study: Dubai International Airport

Case study: Suolk New College

Providing life safety solutions for passengers, workers and visitors at this world class entry point for the Middle East.

Currently the 10th busiest airport in the world with over 60 million passengers annually, Dubai International Airport has 72 passport control gates, 30 baggage claim belts and 60 aerobridges for passenger loading and unloading.

The Brief

The challenge for Allegion was in providing security and life safety products for a working facility that addressed all the requirements of passengers, workers and visitors.

The solution

Creating a world class entry point for the Middle East called for a solution which encompassed the design of the terminal’s escape routes to the passenger ﬂow from curb to gate.

Allegion’s solution highlighted on three main aspects of security, reliability and life safety.

Dubai management was concerned about key duplication. A patented proprietary keyway was provided by Schlage for their mechanical access control.

The eciency of the security is compromised if doors do not close properly, every time. The architects were therefore guided to the speciﬁcation of the LCN 4000 series of cast iron closers. These heavy duty closers oer the versatility the maintenance personnel required while also oering the durability of 10 million cycles. Such high performance results in low maintenance costs and less replacements with material going to landﬁll, thus better protecting the environment.

In such a complex environment, life safety is a critical element. The architects selected Von Duprin panic and emergency exit hardware solutions with delayed egress features which guard against unauthorised entry to the tarmac. Von Duprin oers the most durable devices available, being cycle tested to over 1 million cycles.

Ironmongery and complete steel doorsets for the new £44 million replacement building in Central Ipswich.

This new 22,100m² college facility includes engineering and construction workshops, IT suites, creative arts and media areas, general teaching and training rooms, a performance area, hair and beauty studio, including a spa, and a food court. The new development replaces the College’s original buildings, some of which dated back to the 1960s.

Allegion was selected to fulﬁl the precise ironmongery speciﬁcation. As a result a large quantity of ironmongery from the Briton and CISA product ranges was supplied in association with a steel doorset manufacturer to achieve the high performance standards and aesthetic requirements set out in the speciﬁcation.

Everything from door controls, lockcases, exit hardware and cylinder locks through to door furniture and pull handles were installed throughout the building to provide a sense of uniformity and continuity throughout the scheme.

Over 550 Briton 1100 Series overhead door closers were supplied as they oer a concise, cost eective door closing solution together with a wide variety of features and options.

Installation of Briton panic exit hardware, together with stainless steel pull handles means that the door furniture provides a feeling of continuity and conformity across the whole scheme.

Briton 7500 Series cylinders together with Briton 5500 Series lockcases added to the co-ordinated design for the project. The 7500 Series is especially designed for this type of medium security application. It features a patented system which makes unauthorised copying of keys virtually impossible. The combination of key control and additional functions makes the 7500 Series ideally suited for school and college applications.

For further case studies please go to our website.

www.allegion.com/uk

Speciﬁcation hardware - Standards & testing Speciﬁcation hardware - Standards & testing

All Allegion products are designed to satisfy a comprehensive

Exceeding the highest industry

array of performance requirements including ﬁre testing on timber

standards

Products which are generically referred to as ‘architectural ironmongery’ are heavily regulated by European standards requiring mechanical, durability and corrosion testing, and by ﬁre testing requirements. It provides the construction industry with ﬁre safety and security products which have proven and reliable performance, with consistent manufacturing quality.

Allegion products are designed and manufactured to meet, or in many cases, exceed these stringent requirements. Wherever applicable our products are CE marked, guaranteeing their performance and ensuring they are ﬁt for purpose.

Many architectural ironmongery products are required to be CE marked in accordance with the Construction Products Directive, including panic and emergency exit hardware and door controls.

From July 2013 the introduction of mandatory CE marking under the Construction Products Regulation came into force. For any building product which is covered by a harmonised standard, it will be a legal requirement for that product to be CE marked.

A number of EN standards covering exterior and interior doorsets are at various stages of development. Consequently the mandatory CE marking of doorsets came into force from July 2013 (initially on exterior doors only). The only way to meet this requirement is for all parts of a doorset; the door, frame, any seals, glazing and all the associated ironmongery items required for the doorset to perform it designated function, to be supplied from the same source and be CE marked as a doorset.

This applies even if the individual components are themselves CE marked.

At Allegion we are accustomed to working with all major timber and steel door manufacturers to ensure our products can be integrated into fully compliant and CE marked doorset packages wherever applicable. All our CE marked products are available with a Declaration of Performance document which can be downloaded from the Allegion website.

Currently the only completed standard is that for external doors with no ﬁre or smoke resistance. Several of the standards which cover doorsets including internal ﬁre doors have been deﬁned by the European Commission. Publication of the documents has been delayed. From the 1st September 2016 new ﬁre resisting doorsets can be voluntarily CE marked. After September 2019, all ﬁre resisting doorsets supplied in the EU (including the UK) must be CE marked in compliance with the standard.

and steel door applications and durability testing, in some cases beyond 2 million test cycles.

Accessibility Issues

The concept of universal access is not new but it still provides a challenge for the construction industry. To meet obligations under the Equalities Act, Approved Document M of The Building Regulations and BS 8300 continue to be the yardsticks by which conformity is measured.

Allegion is able to oer guidance and product solutions to cover the following areas:

 Low energy door controls

 Electromagnetic door controls

 High eciency mechanical door controls to meet

the conﬂicting requirements of BS 8300 and ﬁre safety requirements of EN 1154

 Colour contrast in ironmongery for visual

impairment

 Comprehensive ﬁttings programme for

washrooms, showers and WCs

 Ironmongery which conforms to the

recommendations of BS 8300

www.allegion.com/uk

Briton Speciﬁcation Series

Contents

Product type Page

Briton, Randi & Normbau Cavere 14 - 34 door hardware

Briton & LCN overhead door controls 35 - 59

Briton ﬂoor springs 60 - 61

Photography by Craig Auckland

Briton low energy door operator 62 - 64

Briton & Von Duprin exit hardware 65 - 78

Briton euro proﬁle cylinder lockcases 79 - 85

Briton & CISA cylinders 86 - 91

Simons Voss access control 92 - 93

Briton hinges 94 - 95

Brio door gear 96

Normbau Cavere sanitary ﬁttings 97

Zero seals 98

Allegion accreditations 99

Market solutions 100 - 101

Briton door hardware

Briton door hardware is ideally suited to commercial applications which beneﬁt from complete integration of design and high quality ﬁnish across the hardware requirement of the building combined with very high levels of performance.

www.allegion.com/uk

Briton 4700 Series speciﬁcation door hardware

Quality starts with performance and durability

The ﬁrst point of contact for anyone entering and moving around a building is the door hardware, whether that is a pull handle or a lever handle. In addition to having the right look, the hardware you select must have the right feel and ﬁnish and be backed up by a level of performance which will ensure the hardware is suited to the application and the amount of use it will have to endure.

Briton 4700 Series speciﬁcation door hardware - Lever furniture

The Briton Speciﬁcation Series of door hardware is a high quality, high speciﬁcation range of lever and pull handle door furniture in satin stainless steel. The range encompasses the complete hardware requirement of the large majority of doorsets.

Lever furniture features a unique ﬁxing method which provides a ﬁrm, positive and highly durable installation. When combined with designs which meet the requirements of BS 8300, successful ﬁre testing to 90 minutes on timber doors and 4 hours on steel doors and our 10 year guarantee, Briton Speciﬁcation Series hardware is ideally suited to new build or refurb installations which require a classical contemporary appeal.

4707 Lever

applicable

products only

To support the performance characteristics, Briton Speciﬁcation hardware has the following features:

 Back to back ﬁxing bolts and threaded bushes on

lever furniture provide a strong through ﬁxing.

 Spindle is ﬁxed to the inside and the outside

lever handle by "break thru" grub screws providing greater security and durability.

 All lever handles achieve EN 1906 Grade 4, the

highest grade of use within the standard

 Grub screw ﬁxings on levers concealed from

view on the underside.

 Slimline roses only 4mm thick.

 Precision engineered levers are preﬁxed to the

rose or plate inner by hi-tensile circlip.

 Unique 'ClickFit' system provides a positive snap

ﬁt for pressed rose and escutcheon covers.

 Torx head ﬁxings supplied with all leversets and

plate mounted levers provide a high quality look and minimise tampering.

 Comprehensively tested to EN 1634 for use in

timber ﬁre doors up to 90 minutes and steel doors up to 4 hours (see ﬁre test certiﬁcate for further details).

 All stainless steel construction Grade 304 with

Grade 3 corrosion resistance to EN 1670.

Grade 4 category of use is deﬁned as suitable for high

frequency use on doors which are subject to frequent violent

use, e.g football stadiums, oil rigs, barracks, public toilets.

Ref: 4701.20.140

Return to door, round bar lever

Type:

Dimensions: Ø20 x 140mm

Certiﬁcation:

Other: Approved for use with escape locks to

Mounted on 52mm dia. concealed ﬁx roses with bolt through ﬁxings

EN 1906 Grade 4 EN 1670 Grade 3 EN 1634 Up to 90 minutes (timber) EN 1634 Up to 4 hour (steel)

EN 179 for emergency exit applications Supplied as a pair with 8mm spindle and bolt through ﬁxings for 44 - 54mm doors*

Ø52

Ø20

140

all dimensions are in mm

* Alternative ﬁxing pack for 55 - 65mm doors (4701.55-65.FS)

www.allegion.com/uk

Briton 4700 Series speciﬁcation door hardware - Lever furniture Briton 4700 Series speciﬁcation door hardware - Lever furniture

Classically contemporary style

Ref: 4701.20.175

Extended return to door, round bar lever

Type:

Dimensions: Ø20 x 175mm

Certiﬁcation:

Other: Approved for use with escape locks to

Mounted on 52mm dia. concealed ﬁx roses with bolt through ﬁxings

EN 1906 Grade 4 EN 1670 Grade 3 EN 1634 Up to 90 minutes (timber) EN 1634 Up to 4 hr (steel)

EN 179 for emergency exit applications Supplied as a pair with 8mm spindle and bolt through ﬁxings for 44 - 54mm doors*

Ø52

Ø20

175

all dimensions are in mm

* Alternative ﬁxing pack for 55 - 65mm doors (4701.55-65.FS)

Ref: 4703.20.140

Straight, round bar lever

Type:

Dimensions: Ø20 x 140mm

Certiﬁcation:

Other: Supplied as a pair with 8mm spindle and

Mounted on 52mm dia. concealed ﬁx roses with bolt through ﬁxings

EN 1906 Grade 4 EN 1670 Grade 3 EN 1634 Up to 90 minutes (timber) EN 1634 Up to 4 hr (steel)

bolt through ﬁxings for 44 - 54mm doors*

Ø52

Ø20

140

all dimensions are in mm

* Alternative ﬁxing pack for 55 - 65mm doors (4701.55-65.FS)

Ref: 4701.22.140

Return to door, round bar lever

Type:

Dimensions: Ø22 x 140mm

Certiﬁcation:

Other: Approved for use with escape locks to

www.allegion.com/uk

Mounted on 52mm dia. concealed ﬁx roses with bolt through ﬁxings

EN 1906 Grade 4 EN 1670 Grade 3 EN 1634 Up to 90 minutes (timber) EN 1634 Up to 4 hr (steel)

EN 179 for emergency exit applications Supplied as a pair with 8mm spindle and bolt through ﬁxings for 44 - 54mm doors*

Ø52

Ø22

140

all dimensions are in mm

* Alternative ﬁxing pack for 55 - 65mm doors (4701.55-65.FS)

www.allegion.com/uk

Briton 4700 Series speciﬁcation door hardware - Lever furniture Briton 4700 Series speciﬁcation door hardware - Lever furniture

Ref: 4704

Straight mitred round bar lever

Type:

Mounted on 52mm dia. concealed ﬁx roses with bolt through ﬁxings

Dimensions: Ø20 x 140mm

EN 1906 Grade 4

Certiﬁcation:

EN 1670 Grade 3 EN 1634 Up to 90 minutes (timber) EN 1634 Up to 4 hr (steel)

Other: Supplied as a pair with 8mm spindle and

bolt through ﬁxings for 44 - 54mm doors*

Ø52

Ø20

Ref: 4706

Wing design formed lever

Type:

Mounted on 52mm dia. concealed ﬁx roses with bolt through ﬁxings

Dimensions: 68 x 130mm

Ø52

EN 1906 Grade 4

140

all dimensions are in mm all dimensions are in mm

Certiﬁcation:

EN 1670 Grade 3 EN 1634 Up to 90 minutes (timber) EN 1634 Up to 4 hr (steel)

Other: Supplied as a pair with 8mm spindle and

* Alternative ﬁxing pack for 55 - 65mm doors (4701.55-65.FS)

bolt through ﬁxings for 44 - 54mm doors*

* Alternative ﬁxing pack for 55 - 65mm doors (4701.55-65.FS)

130

Ref: 4705.20.140

Curved mitred round bar lever

Type:

Mounted on 52mm dia. concealed ﬁx roses with bolt through ﬁxings

Dimensions: Ø20 x 135mm

EN 1906 Grade 4

Certiﬁcation:

EN 1670 Grade 3 EN 1634 Up to 90 minutes (timber) EN 1634 Up to 4 hr (steel)

Other: Supplied as a pair with 8mm spindle and

bolt through ﬁxings for 44 - 54mm doors*

www.allegion.com/uk

Ø52

Ø20

135

all dimensions are in mm

* Alternative ﬁxing pack for 55 - 65mm doors (4701.55-65.FS)

www.allegion.com/uk

Briton 4700 Series speciﬁcation door hardware - Lever furniture Briton 4700 Series speciﬁcation door hardware - Lever furniture accessories

Ref: 4713.4 4714.4 4715.4 Description: Euro proﬁle cylinder escutcheon Lever key escutcheon Blank escutcheon Dimensions: Ø52 x 4mm Ø52 x 4mm Ø52 x 4mm Other: Concealed ﬁxings with snap on cover. Supplied as pairs as standard.

Bolt through ﬁxings supplied as standard suitable for doors 44mm-54mm

Ref: 4707

Hollow cut away ﬂat lever

Type:

Mounted on 52mm dia. concealed ﬁx roses with bolt through ﬁxings

Dimensions: 56.5 x 135mm

EN 1906 Grade 4

Certiﬁcation:

EN 1670 Grade 3 EN 1634 Up to 90 minutes (timber) EN 1634 Up to 4 hr (steel)

Other: Supplied as a pair with 8mm spindle and

bolt through ﬁxings for 44 - 54mm doors*

Ø52

56.5

135

all dimensions are in mm

* Alternative ﬁxing pack for 55 - 65mm doors (4701.55-65.FS)

Ref: 4710 4711 Description: Bathroom turn & indicator Bathroom extended turn &

indicator Dimensions: Ø52 x 4mm Ø52 x 4mm Other: Supplied with 8mm spindle.

Bolt through ﬁxings supplied as standard suitable for doors 38 - 44mm For doors 44 - 54mm thick please specify 4710.XSP (for 4710) or 4711.XSP (for 4711)

Ref: 4708

Hollow curve form lever

Type:

Mounted on 50mm dia. concealed ﬁx roses with bolt through ﬁxings

Dimensions: 60 x 122mm

EN 1906 Grade 4

Certiﬁcation:

EN 1670 Grade 3 EN 1634 Up to 90 minutes (timber) EN 1634 Up to 4 hr (steel)

Other: Supplied as a pair with 8mm spindle and

bolt through ﬁxings for 44 - 54mm doors*

all dimensions are in mm

Ø52

* Alternative ﬁxing pack for

55 - 65mm doors (4701.55-

65.FS)

122

www.allegion.com/uk

Briton 4700 Series speciﬁcation door hardware - Lever furniture Briton 4700 Series speciﬁcation door hardware - Pull handles

Please note:

Fixing packs for all pull handles must be ordered separately (see page 25)

Ref: 4702BP.B.22.140 4702BP.EC.22.140 Description: Plate mounted lever handle Ø22

Blank plate for use with latches

Plate mounted lever handle Ø22 Backplate with cutout for euro proﬁle cylinders for use with sashlocks

Dimensions: 170 x 170 x 2mm 170 x 170 x 2mm

Certiﬁcation:

EN 1906 Grade 4 & EN 1670 Grade 3. Included in ﬁre tests to EN 1634 (see ﬁre test reports for further information)

Other: Supplied as a pair with bolt through ﬁxings and 8mm spindle suitable for doors 44 - 54mm *

* Alternative ﬁxing pack for 55 - 65mm doors (4701.55-65.FS)

5072507863

Ref: 4702BP.WC Description: Plate mounted lever handle Ø22

170

Backplate with bathroom function turn and indicator

Dimensions: 170 x 170 x 2mm

EN 1906 Grade 4 & EN 1670 Grade 3.

Certiﬁcation:

Included in ﬁre tests to EN 1634 (see ﬁre test reports for further information)

Other: Supplied as a pair with bolt through ﬁxings and

8mm spindle suitable for doors 44 - 54mm* Plate assemblies are handed - see below

46/44

centres

all dimensions are in mm

Description: D pull handle - Round bar section

Ref:

4721.20.200

4721.22.200

4721.20.300

4721.22.300

4721.20.400

170

4721.22.400

Diameter: mm 20 22 20 22 20 22 20 22

Centres: 200 300 400 600

170

4721.20.600

20/22

4721.22.600

Description: Mitred handle - Round bar section

Ref:

4722.20.200

4722.22.200

4722.20.300

4722.22.300

Diameter: mm 20 22 20 22 20 22 20 22

Centres: 200 300 400 600

centres

4722.20.400

46/44

4722.22.400

4722.20.600

20/22

4722.22.600

Backplate handing

Left hand

4702BP.WC.22.140.SS.L

www.allegion.com/uk

* Alternative ﬁxing pack for 55 - 65mm doors (4701.55-65.FS)

Right hand

4702BP.WC.22.140.SS.R

27. 5

140

all dimensions are in mm

www.allegion.com/uk

Briton 4700 Series speciﬁcation door hardware - Pull handles Briton 4700 Series speciﬁcation door hardware - Pull handle ﬁxings

Ø10

45 - 63

Ø9.5

45 - 58

8 - 12

Hole Ø 10mm

Ø32

centres

48 150

all dimensions are in mm

Description: Cranked pull handle - Round bar section

Ref:

4723.32.400 4723.32.600

Diameter: mm 32 32

Centres: 400 600

Please note:

Fixing packs for all pull handles must be ordered separately (see page 25)

centres

Description: Pillar pull handle - Round bar section

Ref:

Diameter: mm 32 32

Centres: 200 400

4724.32.400 4724.32.600

Ø32

100

Pull handle ﬁxings

All Briton 4700 Series pull handles can be ordered individually and must be ordered together with a standard ﬁxing pack which contains all the components required to mount the pull handle in any of the 4 applications shown below.

For back to back assembly simply order two individual pull handles plus two standard ﬁxing packs.

Bolt through - single pull handle

Ø10

pull handle length

45 - 63

Secret ﬁx - single pull handle

Ø9.5

Back to back pair on timber door

Ø10

45 - 58

Back to back pair on glass door

Hole Ø 10mm

8 - 12

all dimensions are in mm

Ref: Description

4726

Standard ﬁxing pack for timber, metal or glass doors

Rose mount ﬁxings

Briton 4721 and 4722 pull handles can be ordered with an optional face ﬁxed rose. One ﬁxing pack is required for each pull handle and they must be ordered according to the pull handle diameter (20 or 22mm).

Roses are supplied with stainless steel face ﬁxing screws. Snap ﬁt push on covers conceal all ﬁxings.

Ø52

Ref: Description

4725.20

4725.22 Face ﬁxed rose mounting kit for 22mm

Face ﬁxed rose mounting kit for 20mm diameter pull handles.

diameter pull handles.

www.allegion.com/uk

Briton 4700 Series speciﬁcation door hardware - Completing the package Briton 4700 Series speciﬁcation door hardware - Completing the package

A range of accessories completes the integrated door

width and height to order

hardware package

Description:

Options: Plain or engraved.

4730.75.375 75mm x 375mm Plain

4730.75.475 75mm x 475mm Plain

4730.75.675 75mm x 675mm Plain

4731.75.375 75mm x 375mm Engraved 'PUSH'

4731.75.475 75mm x 475mm Engraved 'PUSH'

4731.75.675 75mm x 675mm Engraved 'PUSH'

4732.75.375 75mm x 375mm Engraved 'PULL'

4732.75.475 75mm x 475mm Engraved 'PULL'

4732.75.675 75mm x 675mm Engraved 'PULL'

Push and Pull plates for use with bolt through pull handles

Radiused corners with face ﬁxing screws. Supplied singly.

Kick plates

Kick plates are available in Grade 304 stainless steel in heights and widths to order. Plates have square corners as standard but are also available with radiused corners (5mmR or 10mmR).

Supplied with face ﬁxings as standard (self adhesive option also available).

Other options and materials are available - please ask for details.

Plates are priced per square metre.

Ref: Description

4760.304 Kick plate 1.2mm thick. Satin stainless

steel Grade 304. Square corners with face ﬁxing screws.

4761.304 Kick plate 1.5mm thick. Satin stainless

steel Grade 304. Square corners with face ﬁxing screws.

91.5

www.allegion.com/uk

Accessories

The Briton Speciﬁcation Series includes a selection of additional components required to complete a doorset speciﬁcation. All accessory components are manufactured in satin stainless steel to match the principal items.

For lock cases and cylinders please refer to page 80.

For surface mounted or concealed door controls please refer to page 36.

all dimensions are in mm

Ref: Description

4733 Cylinder pull with aperture for euro proﬁle

cylinder. Supplied with stainless steel face ﬁxings.

www.allegion.com/uk

Briton 4700 Series speciﬁcation door hardware - Completing the package Briton 4700 Series speciﬁcation door hardware - Completing the package

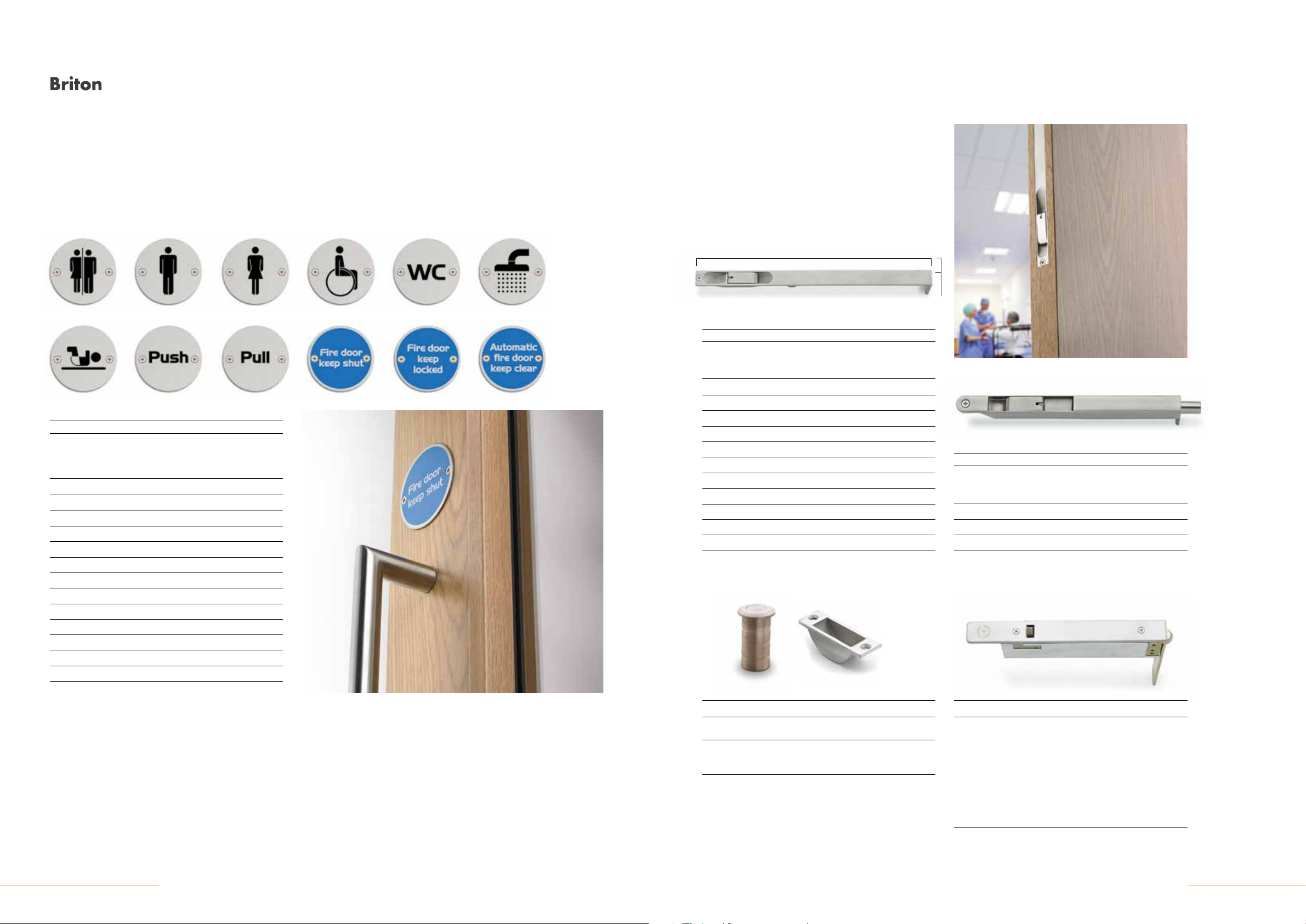

Symbols & signage

A range of 76mm dia. face ﬁxed stainless steel signs and symbols are available.

Description: Signs & symbols Options: A range of face ﬁxed signs and symbols.

All 76mm Ø x 1.5mm stainless steel. Supplied singly complete with wood screw ﬁxings.

Ref: Description

4750.01 Unisex symbol

4750.02 Male symbol

4750.03 Female symbol

4750.04 Disabled symbol

4750.05 WC sign

4750.06 Shower symbol

4750.07 Baby Change symbol

4750.08 Push

4750.09 Pull

4750.10 Fire door keep shut

4750.11 Fire door keep locked

4750.12 Automatic ﬁre door keep clear

Flush bolts

Used to secure the inactive leaf of an equal or unequal pair of doors. The Briton Speciﬁcation series includes a range of stainless steel lever action ﬂush bolts. Available square or radius ended and in various lengths to suit door height.

Tested to EN 12051:1999 and Graded 4 3 - 0 1 3 1

length

all dimensions are in mm

Description: Flush bolts Options: In a range of lengths and with square

or radiused ends. Supplied singly with stainless steel ﬁxings.

Ref: Size End Type

4735.R.20.202 202mm x 20mm Radiused

4735.R.20.300 300mm x 20mm Radiused

4735.R.20.450 450mm x 20mm Radiused

4735.R.20.600 600mm x 20mm Radiused

4735.R.20.914

4735.S.20.202 202mm x 20mm Square

4735.S.20.300 300mm x 20mm Square

4735.S.20.450 450mm x 20mm Square

4735.S.20.600 600mm x 20mm Square

4735.S.20.914

914mm x 20mm Radiused

914mm x 20mm Square

20mm width

Description: Flush bolts - Fully enclosed Options: With square or radiused ends.

Supplied singly.

Ref: Size End Type

4739.R.18.225 225mm x 18mm Radiused

4739.S.18.225 225mm x 18mm Square

www.allegion.com/uk

Ref: Description

4736 Plunger type dust excluding ﬂoor socket

for use with ﬂush bolts - concealed ﬁxing

4737 Easy clean ﬂoor socket for use with ﬂush

bolts - face ﬁxing.

Ref: Description

FB41P Automatic ﬂush bolt - Bolt is actuated by

the closing action of the door. Meets ANSI A156.3 Type 25. Supplied as a pair. Fully automatic - inactive door is latched, bolts are extended when active door closes. Bolts retract when active door is opened. Low activation forces - top bolt has no spring tension.

www.allegion.com/uk

Briton 4700 Series speciﬁcation door hardware - Completing the package Briton 4700 Series speciﬁcation door hardware - Completing the package

Ref: 4740 4741 4742 4743

Description:

Dimensions: Ø45 x 24mm Ø40 x 38mm Ø46 x 26mm Ø50 x 90mm Other: Supplied with stainless steel ﬁxings

Ref: Description

482 Security door guard in cast steel

Domed ﬂoor mounted door stop

Ø45

all dimensions are in mm

Floor mounted door stop

Ø40

Wedge shaped ﬂoor mounted door stop

Ø46

Ref: Description

U696 Door viewer - small

For door thicknesses 35 - 52mm Maximum viewing angle 150˚

U698* Door viewer - large

For door thicknesses 35 - 54mm Maximum viewing angle 180˚ *Fire tested to EN 1634 for use on timber ﬁre doors up to 60 minutes

Wall or skirting mounted door stop

Ø50

Ref: Description

4744 Single hook - small, face ﬁxed

4745.1 Single hook - large, face ﬁxed

4745.2 Double hook - large, face ﬁxed

All hooks supplied with stainless steel face ﬁxings

Door co-ordinator

The use of a co-ordinator is required for double doors where one leaf must close ﬁrst, for example rebated double doors ﬁtted with door closing devices. The co-ordinating unit is mounted on the underside of the transom. The trigger arrangement of the co-ordinator ensures the active leaf is held open until the inactive leaf closes and triggers the release of the active leaf.

all dimensions are in mm

Calculating the correct size

The unit is designed to suit equal or unequal pairs according to the minimum door opening widths.

The co-ordinator is available in dierent lengths to suit dierent door conﬁgurations and sizes. The coordinator must be at least 150mm longer than the active leaf and less than the overall door opening

width measured between frame stops. The Briton door co-ordinator has the following features:

 CE marked and certiﬁed to EN 1158

Active leaf

co-ordinator

 Aluminium section 41 x 16mm

 Anodised aluminium ﬁnish

Opening width between frame stops

 Fire tested to EN 1634 for 2 hour rating on timber

and mineral composite, 4 hour on steel doors.

Ref: Description For door opening widths

COR32 Channel length 813mm 864 - 1320mm

COR42 Channel length 1067mm 1320 - 1828mm

COR52 Channel length 1320mm 1575 - 2337mm

100

Ø48

100

150 min.

Ø48

www.allegion.com/uk

Randi lever furniture range Randi lever furniture range

Since the beginning, Randi’s design philosophy has been: Simplicity and ﬂexibility. To create the best possible function in the most suitable material using the simplest possible expression. The ﬂexible range of door handles, standard ﬁttings and bathroom ﬁttings can be combined in countless variations. The four comprehensive ranges include: Randi-line, Classic-Line, Novo-Line and Line 18.

The Randi ranges are a result of a combination of close collaborations with leading architects. They are recognised by professionals throughout the world for their technical and aesthetic quality and timeless, elegant Scandinavian designs.

C.F. Møller Architects, Benedicte & Poul Erik Find, Friis & Moltke Design and Jørn Schütze are the Danish designers who have together created the Randi ranges.

The collaboration with C.F. Møller Architects began in the mid-eighties. A whole new series of lever handles and trim was designed for the construction of Skejby Hospital. This timeless series of lever handles with matching escutcheons and backplates, has become a real classic in the Randi-Line® range.

Architecture, function and ergonomics are the foundations of the newest exciting series of trim

- Randi-Line® Komé - designed by C.F. Møller Architects and representing a serious contender for a modern classic.

Friis & Moltke are noted within the design world for their all-round attention to detail, often in stark contrast to more traditional designs within the sector in that they theme all components into a wholesome, sculptured and colourful drama.

Over the years, more products have been designed by Friis & Moltke Design in collaboration with Randi. The range of trim – Randi-Line® Square - was designed with the desire to shape a range of characteristic lever handles. The latest lever handle, Randi-Line® Grata, features a unique mix of materials, making it possible to create harmony with the interior of the building.

Ref. 1060

Slender lever handle, ø16 mm solid, representing a complete design line by C.F. Møller Architects

• Ø52x4 mm concealed ﬁx roses or solid roses Ø50

x 2 mm.

• Available in satin stainless steel (AISI 304) or

brass.

• Supplied in pairs, for door thickness 34-58 mm or

58-82 mm, specify door thickness when ordering.

• Standard spindle 8x8 mm. Also available with a

9x9 mm spindle.

• Certiﬁcation: EN 1906 Grade 4

Ref. 1073

Ref. 1075

The characteristic SQUARE lever handle,

bination of satin stainless steel and black

composite . 150x30x5 mm

• Solid roses 50x50x2 mm.

• Available on backplate design.

• Available in satin stainless steel (AISI 304) or brass.

• Supplied in pairs, for door thickness 34-58 mm or 58-82 mm, specify door thickness when ordering.

• Standard spindle 8x8 mm.

• Certiﬁcation: EN 1906 Grade 4

Ref. 1077

www.allegion.com/uk

Randi-Line® Komé is a timeless, symmetrical and ergonomic lever handle, ø19 mm solid, designed by C.F. Møller Architects, representing a complete series of trim

• Ø52x4 mm concealed ﬁx roses or solid roses Ø50 x 2 mm.

• Available in satin stainless steel (AISI 304) or brass.

• Supplied in pairs, for door thickness 34-58 mm or 58-82 mm, specify door thickness when ordering.

• Standard spindle 8x8 mm.

• Certiﬁcation: EN 1906 Grade 4

”Grata” means welcome, and its welcoming appearance is the main feature of Grata, a lever handle by Friis & Moltke Design.

• Ø52x4 mm concealed ﬁx roses or solid roses Ø50 x 2 mm.

• The lever handle, ø19 mm, is available in stainless steel (AISI 304), stainless steel with black POM or stainless steel with oak.

• Supplied in pairs, for door thickness 34-58 mm or 58-82 mm, specify door thickness when ordering.

• Standard spindle 8x8 mm.

• Certiﬁcation: EN 1906 Grade 4

www.allegion.com/uk

Cavere by Normbau - Lever furniture

Cavere architectural hardware is part of Normbau’s range of ironmongery which has the added protection of an antibacterial agent. The antibacterial technology is embedded within the material during production in all products to provide an extra level of hygiene. Manufactured from Aluminum it is both light, durable, environmentally friendly and easily recyclable.

Suitable for use in hospitals, care homes and other types of public access buildings, the Cavere range has been designed with sheer simplicity and a unique design in mind.

A small selection is shown here. Please contact us for details of the full range.

Ref: 700.791 700.181 700.291 700.491

Cavere formed lever

Type:

Dimensions: 67 x 135mm 20Ø x 60 x 140mm 20Ø x 55 x 140mm 65 x 141mm

Certiﬁcation:

Ref: 700.STG.122 700.STG.522

Type:

Dimensions:

Mounted on 55mm dia. concealed ﬁx roses with bolt through ﬁxings

EN 1906 Grade 4 EN 1906 Grade 4 EN 1906 Grade 4 EN 1906 Grade 4

Cavere pillar ﬁxed pull handles - straight

Multiple pull handle lengths/centres 350/150 up to 1600/1400 Projection 79mm straight / 88mm cranked

Cavere return to door lever Mounted on 55mm dia. concealed ﬁx roses with bolt through ﬁxings

Cavere pillar ﬁxed pull handles - cranked

Cavere mitred lever Mounted on 55mm dia. concealed ﬁx roses with bolt through ﬁxings

Ref: 7500.110 7500.120 7500.130 Type: Single hook Double hook Double hook Dimensions: 18 x 60mm 54 x 60mm 40 x 60mm

Ref: 7500.100 Type: Single hook - rose mounted Dimensions: 40Ø x 40mm

Cavere curved lever Mounted on 55mm dia. concealed ﬁx roses with bolt through ﬁxings

Photography by Craig Auckland

Briton and LCN door controls

The need to satisfy a variety of performance requirements including ﬁre safety, convenience, privacy, disabled access, reliability and the ability to cope with very high trac requires a robust and comprehensive range of solutions.

The Briton and LCN ranges of door controls are capable of all that and more, whether the application is a busy hospital, school or university or the heavy duty requirements of transport applications.

www.allegion.com/uk

Door controls - Introduction

An essential element in safeguarding lives and property

The principal objective of a door closer is to close a door and in the case of unlatched ﬁre doors in a corridor, to keep the doors closed in the event of a ﬁre. Most applications where the speciﬁcation of a door closing device is mandatory, must use a product which conforms to the requirements of European Standard EN 1154 (or EN 1155 for electrically controlled units) and be CE marked accordingly.

The standard applies to all surface mounted or concealed overhead door closers, transom mounted closers and ﬂoor springs.

EN 1154 - A harmonised standard designed for life safety

Digit 1 - Category of use

For all internal and external doors for use by the public

- grade 3: For closing doors from at least 105˚open

- grade 4: For closing doors from 180˚ open

Digit 2 - Number of test cycles

- grade 8: 500,000 test cycles

Digit 3 - Test door mass/size

Seven grades are identiﬁed - see table opposite on page 25

Digit 4 - Fire behaviour

- grade 0: Not suitable for use on ﬁre/smoke door assemblies

- grade 1: Suitable for use on ﬁre/smoke door assemblies

Digit 5 - Safety

All door closers are required to satisfy the essential requirement of safety in use - only grade 1 is identiﬁed.

Digit 6 - Corrosion resistance

Five grades of resistance are identiﬁed to EN 1670

- grade 0: No deﬁned corrosion resistance

- grade 1: Mild resistance (24 hours)

- grade 2: Moderate resistance (48 hours)

- grade 3: High resistance (96 hours)

- grade 4: Very high resistance (240 hours)

All forms of “Controlled Door Closing Devices” are covered by a harmonised European Standard, EN 1154. It provides details on product types and classiﬁes products by use, test cycles, door mass, corrosion resistance and product performance requirements using a six digit classiﬁcation code.

Closers which are controlled by an electromagnetic function must comply with the additional requirements of EN 1155.

Fire doors

Within EN 1154, certain recommendations are made for closing devices used on ﬁre door assemblies. These include:

 Closers size 1 and 2 are not considered suitable

for use on ﬁre doors.

 Door closers shall not include a hold-open

device unless it is an electrically powered device connected to the building ﬁre alarm system.

 Control regulators shall be either concealed or

operable only by means of a tool.

3-4

1-7

0/1

0-4

Closing force v Opening force

The closing force required to fulﬁll the life saving ﬁre-safety function demanded by EN 1154 can, for some elderly or disabled people, be dicult to overcome and the door can become a barrier to safe and easy access for them.

Within the detail of BS 8300 and Approved Document M of Building Regulations, there is a requirement to achieve low opening forces to satisfy the need for easy and universal accessibility. As a consequence there is a conﬂict between the required closing force for ﬁre safety and the desirable opening resistance which requires special consideration in the speciﬁcation process.

We strongly recommend you discuss such applications with an Allegion Speciﬁcation Consultant who can advise on the most appropriate solution.

Mounting positions and closer power

Slide arm -

Door mounted pull side

Projecting arm -

Regular ﬁxing (door mounted

pull side)

Where closer power is stated it will usually apply to a closer ﬁtted either in Regular ﬁxing applications (in the case of projecting arm closers) or in Door mounted pull side applications (for slide arm closers).

The closer power may vary for other mounting applications and consequently we recommend you check with your Allegion Speciﬁcation Consultant or technical team.

EN Closer power settings

Within EN 1154 seven closer power ratings are identiﬁed according to the maximum door leaf weight and width.

These are theoretical ﬁgures and the ﬁnal closing power of any door closing device will be subject to any number of variables such as:

 Accuracy of closer installation

 Accuracy of door installation

 Friction in hinges

 Negative or positive air pressure

Because of such variables, the speciﬁcation of an adjustable door closer is recommended to allow for site variables.

Slide arm -

Door mounted push side

Projecting arm -

Transom ﬁxing (transom

mounted push side)

Slide arm -

Transom mounted pull side

Projecting arm -

Parallel ﬁxing (door mounted

push side)

EN Size

1 20 750

2 40 850

3 60 950

4 80 1100

5 100 1250

6 120 1400

7 160 1600

Max. door weight

Slide arm -

Transom mounted push side

Max. door width

(kg)

(mm)

www.allegion.com/uk

Briton and LCN Door Controls

A guide to specifying door

The importance of accessibility

Durability and heavy use

closers

The Equalities Act - disability legislation

Easy opening, reliable closing

In contrast to a conventional rack and pinion door closer in a slide channel application, the linear cam action principle of the Briton Cam Action Series of door closers is extremely ecient. The initial opening force decreases very rapidly as the door opens allowing children and the elderly to overcome the closing power without any problem.

During testing, the Briton cam action closers produced opening forces well within the requirements of Approved Doc M and BS 8300.

Series Briton 2700 Briton 2300 Briton 2400 LCN 4040XP Briton 2130 Briton 1100 Briton 996 Briton 2820

Description

Accessibility

Selecting the right closer

In most cases selecting the most appropriate door control will be dependent on a number of factors and the priority of each. These will include:

 Frequency of use  Type of application (e.g school, library, factory)  User proﬁle - The Equality Act consideration  Door situation/size/weight/ﬁre resistance  Budget  Aesthetics  Operating characteristics and other features

High performance easy opening

cam action overhead door closer

Commercial easy opening cam

action overhead door closer

Legislation aimed at providing universal accessibility of buildings requires service providers to make “reasonable adjustments to the physical features of their premises to overcome barriers to access”.

Approved Doc M of the Building Regulations and BS 8300 both provide guidance in establishing recommended maximum opening forces for door controls to assist less able users.

High eciency Briton closers which are capable of meeting the required levels of opening and closing forces are marked with the “Wheelchair Symbol” but accurate installation, hinge friction, door seals and

Concealed easy opening cam

action overhead door closer

Heavy duty, rack and pinion

overhead door closer

variable air pressure can all have a bearing on the opening resistance of the ﬁnal doorset.

For doors which must also meet the stringent closing force requirements of EN 1154 for ﬁre door applications, it may be more appropriate to use electromagnetic hold open or swing free closers or a powered opening solution. These must be CE marked in accordance with the requirements of EN 1155. All these options are available within the Allegion product portfolio.

For additional guidance in the selection process please contact Allegion on 01922 707400.

High performance, rack and

pinion overhead door closer

Medium duty rack and pinion

overhead door closer

Use and abuse

For some applications; schools, colleges and leisure facilities for example, the opportunity for and likelihood of abusive use of the door is relatively high in comparison with an oce suite. In reality, any application where there is little incentive to exercise care is prone to the door closer being subjected to some extreme behaviour. In these cases we would recommend the following features:

Dedicated electromagnetic

hold-open or swing-free

closers

Medium duty ﬂoor spring

Concealed closers - When the door is closed a

concealed closer has no projecting arms and the closer body cannot be accessed from either side of the door. This makes it particularly resistant to vandalism and tampering.

Slide arm - Unlike a projecting arm closer, the slide

arm and track reduces the possibility of damage.

Backcheck facility - The action of throwing a door

open violently can damage the closer, the door and the surrounding frame and walls. The backcheck facility provides a hydraulic dampening to avoid such damage. This is not intended to replace a door stop.

Hold open - For doors which are subjected to high

frequency or constant use, the option to keep the door in the open position is both convenient and prevents excessive wear. This feature is not permitted on ﬁre doors. For ﬁre door applications, the hold-open (or swingfree) feature may be achieved through use of an electromagnetic hold-open or swing-free function which is linked to the building ﬁre alarm or detection system. This option is available on several Briton and LCN series door closers.

Easy opening cam action

Slide arm for slimline appearance and to minimise abuse

Concealed closer for optimum aesthetics and abuse resistance

Suitable for ﬁre doors to EN 1634 2hr timber/1hr steel 2hr timber

Frequency of use High Medium Medium Very high Very high Medium Medium High

Electromagnetic hold-open

Cover options A-line/Softline Trimplate/Softline n/a Rounded Cover (metal) Square (classic)/Luxury/Curved Square (classic)/Softline Square (classic) n/a

Finish options SES/SSS/PSS/PBS SES/SSS/PSS SE/SS/PS (arm only)

Budget comparison ££££ £££ £££ ££££ ££££ ££ ££££ ££

High end commercial

Typical applications

www.allegion.com/uk

speciﬁcations, leisure centres,

care homes, hospitals, schools,

nStandard Available as an option/variant

n n n

30/60 min timber 90min composite

nurseries

Internal doors in primary schools,

nurseries, care homes, hotels,

commercial oces

Internal doors in primary schools,

nurseries, care homes, hotels,

commercial oces

* dependant on cover option

subject to minimum door thickness - see page 47 for details

13 painted or plated ﬁnishes

(7 ﬁnishes certiﬁed to EN 1634)

speciﬁcations, leisure centres

2hr timber 2hr timber/4hr steel* 2hr timber/4hr steel 2hr timber 1hr timber

SES/GES/SSS/PSS SES/GES/SSS/PSS/PBS SE/GE/PB SS/PS

High end commercial

speciﬁcations, leisure centres

Warehouses, industrial units,

internal oce/school doors,

back of house doors

www.allegion.com/uk www.allegion.com/uk

40 41

High trac doors, corridors,

schools, hospitals

High trac doors, corridors

and double action doors, shopping centres & retail

units

Briton 2700 Series - Cam action

42.0

72.0

552.0

14.0

142.0

23.0

Ø13,00

30.0

575.0

26.0

57,06

77.5

289.0

160.0

175.0

44.0

Briton 2700 Series - oering the beneﬁts of easy opening and reliable closing

The Briton 2700 Series is a precision manufactured cam-action, slide channel door closer, in a compact, overhead, surface ﬁxed unit. Providing exceptional ease of use by reducing the resistance encountered when opening the door, the Briton 2700 Series bridges the gap between the requirements for ﬁre and smoke control and ease of operation required for accessibility.

Briton 2700 Series - Cam action

Briton 2700 with standard A-Line cover with matching silver arm and track

Briton 2700 with Softline cover in satin stainless steel with matching arm and slide track

443.3

428.2

Features & Beneﬁts

 Cast iron body with a naturally high graphite

content is self lubricating, providing high levels of durability and long life performance.

 High performance cam action technology allows

reliable closer power setting for ﬁre door applications yet still be easy to open.

 Full complement bearings provide increased

bearing load for ecient operation and improved reliability.

 FAST PowerAdjust dial feature allows installers

to see the current power setting.

 Silicon chrome alloy steel springs for superior

strength and reliability.

 High quality hydraulic ﬂuid with built-in

temperature compensation.

 Unique ‘Accuﬁt’ installation template and

mounting plate ensures a quick, simple and accurate installation.

 All-over ‘A-line’ metal cover in a smooth,

contemporary design; secured by simple, unobtrusive spring-clips to conceal the main door closer ﬁxings (A-line cover only).

 Optional ‘Softline’ cover design to suite with

most other Briton closers.

 Co-ordinated track design with concealed ﬁxings.

 A wide range of adjustable functions for easy

adaptation to speciﬁc door applications - see speciﬁcation table.

 Optional mechanical hold-open facility

(Not to be used on ﬁre door applications) or electromagnetic hold-open option available.

The Briton 2700 Series is CE marked to EN1154 (EN1155 for electronic variants) and ﬁre tested to EN1634 on timber doors to achieve a 2 hour ﬁre rating, and 1 hour for metal doors.

20.0

106.5

67.1

42.0

57.0

Standard closers with/without mechanical hold open (door mounted - pull side shown).

Product features Product references

Pull side door / Push side transom mounting

Push side door / Pull side transom mounting

Variable closing power EN size 2 - 5* 2 - 5 3 - 5 3 - 5

FAST power adjust dial

Accuﬁt template & Accuﬁt mounting plate

Maximum angle of opening (pull side) 180˚ 180˚ 120˚ 120˚

Separate closing speed & latch action adjustment

Adjustable backcheck

Adjustable delayed action

In-built temperature compensation

Mechanical hold-open facility

Electromagnetic hold-open facility

Matching slide channel, arm & cover ﬁnish

Dimensions (body L x D x H mm)

Channel/slide arm 443 x 20mm 443 x 20mm 575 x 26mm 575 x 26mm

Finishes available SSS; PSS; PBS; SES (for both cover options and matching track)

Warranty period 10yrs 10yrs 10yrs mechanical / 2yrs electrical

77.5

97.0

175.0

142.0

289 x 57 x 70mm 289 x 57 x 70mm 289 x 57 x 70mm 289 x 57 x 70mm

160.0

289.0

2720BD.T 2721BD.T 2720BD.TE 2721BD.TE

n n n n

70.0

43.0

door mount only

n n

all dimensions are in mm

door mount only

CE Classiﬁcation 4 8 2-5 1 1 3 3 8 3-5 1 1 3

nStandard Available as an option/variant

www.allegion.com/uk www.allegion.com/uk

For declaration of performance please go to the website

* EN 2 - 4 when push-side transom mounted

Briton 2300 Series - Cam action Briton 2300 Series - Cam action

Briton 2300 Series - Easy opening cam action technology in a simple, slimline package

Briton 2300 closer options showing the radiused slide in trimplate which covers all the ﬁxings and adjustment screws or the optional all-over ‘Softline’ cover which is available in a range of ﬁnishes.

This option provides an opportunity to suite the Briton 2300 closer with other Briton closers.

The Briton 2300 Series incorporates the same high eciency cam action as the Briton 2700 Series, providing the same exceptional ease of use by reducing the resistance encountered when initialising the opening of the door.

The Briton 2300 Series is oered as a simpliﬁed version of the Briton 2700 and is available with either a slide in trimplate or with a curved ‘Softline’ all-over cover which will suite with other Briton overhead door controls.

Easy Opening, Reliable Closing

In contrast to a conventional rack and pinion door closer in a slide channel application, the linear cam action principle of the Briton 2300 Series is extremely ecient. The initial opening force decreases very rapidly as the door opens allowing, in particular, children and the elderly to overcome the closing power without any problem.

The Briton 2300 Series is CE marked to EN1154 and ﬁre tested to EN1634 on timber doors to achieve a 2 hour ﬁre rating.

Features & Beneﬁts

 Extruded aluminium body.

 High performance cam action technology

allows reliable closer power setting for ﬁre door applications yet remains easy to open.

 Full complement bearings provide increased

bearing load for ecient operation and improved reliability.

 Adjustable power, EN 2-4.

 Silicon chrome alloy steel springs for superior

strength and reliability.

 High quality hydraulic ﬂuid with built-in

temperature compensation.

 Radiused slide in cover and spindle cap conceals

the main door closer ﬁxings and adjustment screws.

 Alternative ‘Softline’ cover, secured by simple

unobtrusive spring clips.

 Co-ordinated track design with concealed ﬁxings.

 Accuﬁt template provides quick and easy

installation.

 Optional mechanical hold-open facility (Not to

be used on ﬁre door applications).

444

Closers with slide in trimplate

Product features Product references

Pull side door / Push side transom mounting

Push side door / Pull side transom mounting

Variable closing power EN size 2 - 4 2 - 4

Accuﬁt template

Maximum angle of opening* 180˚ 180˚

Separate closing speed & latch action adjustment

Adjustable backcheck

Adjustable delayed action

In-built temperature compensation

Mechanical hold-open

Matching slide channel, arm & cover ﬁnish

All over metal cover

Dimensions (with trimplate L x D x H mm) 240 x 56 x 49mm 240 x 56 x 49mm

Dimensions (with cover L x D x H mm) 270 x 68 x 63mm 270 x 68 x 63mm

Channel/slide arm 444 x 20mm 444 x 20mm

Warranty period 10yrs 10yrs

80.5

150

215

2320B.T 2321B.T

n n

240

100

428

nStandard

* When door mounted.

Transom mounted closers are

restricted to 120˚ opening.

80.5

all dimensions are in mm

Available as an option

www.allegion.com/uk

CE Classiﬁcation 4 8 2-4 1 1 3

For declaration of performance please go to the website

www.allegion.com/uk

Briton 2400 Series - Cam action Briton 2400 Series - Cam action

Briton 2400 Series - Cam action in a compact concealed overhead closer

440

Versatile and elegant

The Briton 2400 Series is a precision manufactured cam-action, slide channel door closer, in a compact concealed unit. With the closer body mounted within the top of the door and the slide track within the head frame, the Briton 2400 Series oers high resistance to abuse and being fully concealed when the door is closed, oers a highly aesthetic solution.

Providing exceptional ease of use by reducing the resistance encountered when opening the door, the Briton 2400 Series bridges the gap between the requirements for ﬁre and smoke control and ease of operation required for accessibility.

Due to the door and frame preparation required, the Briton 2400 is ideally suited to factory door preparation.

The Briton 2400 Series is CE marked to EN1154 and ﬁre tested to EN1634-1 on timber and composite doors to achieve up to a 90 minute ﬁre rating when installed with the approved intumescent gasket set (Briton 2420.IP). Certiﬁre approval pending.

www.allegion.com/uk

Features & Beneﬁts

 Compact, extruded aluminium body and slide

track requiring minimal removal of material from the door and frame.

 High performance cam action technology

allows reliable closer power setting for ﬁre door applications yet still be easy to open.

 Suitable for 44m and 54mm thick ﬁre doors with

approved intumescent pack.

 Needle roller bearings provide increased bearing

load for ecient operation and improved reliability.

 Adjustable power, EN 2-4.

 Silicon chrome alloy steel springs for superior

strength and reliability.

 High quality hydraulic ﬂuid with built-in

temperature compensation.

 Powder coated or plated steel track arm with

nylon runner.

 Non handed design is suitable for all applications

and has a maximum opening angle of 120˚.

 Optional cushion stop (ref: 2420.CS) helps

prevent doors coming into contact with adjacent walls (note: this is not a backcheck function).

 Optional mechanical hold-open unit can be

retroﬁtted into the slide track (Not to be used on ﬁre door applications).

8.5

all dimensions are in mm

Product features Product ref.

CE marked and EN 1154 compliant

Variable closing power EN size 2 - 4

Min. door thickness:

- FD30 - timber doors

- FD60 - timber doors

- FD90 - composite doors

Maximum angle of opening 120˚

Separate closing speed & latch action

adjustment

Cushion stop

Hold open facility

Arm & track ﬁnish Silver, SS or PS

Dimensions (L x D x H mm) 242 x 42 x 32mm

Channel/slide arm 440 x 17mm

Warranty period 10yrs

CE Classiﬁcation 3 8 2-4 1 1 3

2420T

44mm

54mm

58mm

242

For declaration of performance please go to the website

338

320

Speciﬁcation Tip

Intumescent gasket set (2420.IP)

A signiﬁcant amount of ﬁre resisting doorset material is removed when concealed closers are mortised into the door leaf. The intumescent gasket set will provide the additional performance that is required to protect the door from integrity failure during ﬁre conditions.

It is particularly important with these closers to check that the details of the ﬁre test certiﬁcation are relevant to your intended door application.

nStandard

Available as an option/variant

www.allegion.com/uk

LCN 4040 Series - High performance LCN 4040 Series - High performance

Designed for institutional and other demanding high trac applications

The LCN 4040SE slide arm closer with electomagnetic hold-open facility within the track.

The 4040 Series is LCN’s most durable and ﬂexible heavy duty closer, fully certiﬁed to both EN 1154 and to ANSI A156.4. With over 10 million test cycles undertaken, the LCN4040 will cope with even the most gruelling applications and has earned an unrivalled reputation for extreme durability and reliability in use.

Available for regular, transom and parallel mounting applications plus versions with track arm and electromagnetic hold-open.

Features & Beneﬁts

68.0265.0

 Cast iron body and forged steel armset.

 Double heat treated steel pinion for exceptional

resistance to wear and tear.

89.0

 Silicon chrome alloy steel springs for superior

strength and reliability.

16.0

311.0

 Full compliment low friction bearing.

 LCN Green Dial spring force indicator to provide

visual identiﬁcation of the closer power setting.

 Self adhesive installation template reduces

installation time and dramatically improves accuracy of ﬁtting.

all dimensions are in mm

 ‘All-over’ metal cover in a range of architectural

ﬁnishes with matching arms (or track).

 Electromagnetic hold-open version (4040 SE

(hold-open between 90˚ to 120˚).

Product features -ANSI Product references

4040XP 4040XPT 4040SE

ANSI Standard 156.4 Grade 1

ANSI Standard 156.15 & NFPA 101

ANSI Maximum door width (interior/exterior) mm 1524/1219mm 1219mm 1219mm

Product features - CE Product references

CE marked and EN 1154 compliant

CE marked and EN 1155 compliant

EN power size (Regular ﬁxing - door mount pull side) 1 - 5 2 - 4 3 - 4

EN power size (Parallel ﬁxing - door mount push side) 1 - 5

EN power size (Transom ﬁxing - pull side) 1 - 3

CE Classiﬁcation 3 8 1-5 1 1 3 4 8 2-4 1 1 3 3 8 3-4 1 1 3

n n

4040XP 4040XPT 4040SE

n n

19.0 27.0

95.0

57.0

The LCN 4040 Series is tested and certiﬁed under ANSI Standard A156.4 and UL listed for use on timber doors to achieve a 2 hour ﬁre rating and 1 hour for steel doors.

www.allegion.com/uk

Product features Product references

4040XP 4040XPT 4040SE

Adjustable closing power with Green Dial indicator

Installation template

Maximum angle of opening (controlled closing) 105˚ 180˚ 110˚

Adjustable closing speed & latch action

Adjustable backcheck

Delayed action

Tri-pack armset for door or transom mounting

Mechanical hold open facility (non ﬁre doors)

Electromagnetic hold-open facility

Projecting arm closer

Slide channel and arm

Finishes available 7 no. painted ﬁnishes available

Warranty period 10yrs 10yrs 10yrs

nStandard Available as an option/variant

For declaration of performance please go to the website

n n n

n n

www.allegion.com/uk

Briton 2130 Series - Rack & pinion closers

Briton 2130 Series - oering the highest quality of performance and design choice

The highly versatile 2130 Series was designed to combat the practical and economic concerns with conventional door closer installation. As a result it can demonstrate an average 30 - 35% labour saving on installation.

But the beneﬁts are much deeper than this. The increased degree of accuracy achieved when installing a Briton 2130 Series closer dramatically improves its eciency and longevity.

Design and performance options to suit all applications

Within the Briton 2130 Series there are a number of options to choose from to suit your application. These include:

 Projecting arm or slide track options which

provide a neat architectural look and reduce the chances of misuse.

 Three cover options, oering the Classic Briton

closer cover which will suite with other Briton ranges, the rounded L cover and the gently curved S cover.

 Metallic covers are available in 5 ﬁnishes with

matching arms and bracket or track.

 Electromagnetic slide track hold-open option.

Features & Beneﬁts

 Cast iron body provides rugged durability.

 Hardened steel rack and pinion mechanism

with needle roller bearings for exceptionally smooth and ecient operation and high levels of durability.

 Silicon chrome alloy steel springs for superior

strength and reliability.

 High quality hydraulic ﬂuid with built-in

temperature compensation.

 Quick release arm assembly allows the closer

to be disconnected and reconnected quickly without the need to alter the arm arrangement. This speeds up the installation process and enables the closer body and bracket to be ﬁxed independently allowing for much greater accuracy.

www.allegion.com/uk

 Unique Accuﬁt backplate system reduces

installation time and dramatically improves accuracy of ﬁtting.

 Choice of ‘all-over’ cover options in a range of

architectural ﬁnishes with matching arms.

 Fixed or power adjustable depending on model

from EN 2 - 6 (refer to speciﬁcation table).

 Also available as a slide track closer.

 Multiple adjustable functions depending on

model (refer to speciﬁcation table)

 Optional hold open armset is adjustable from

80˚ to 180˚ opening angle. (Not to be used on

ﬁre door applications).

www.allegion.com/uk

Briton 2130 Series - Closer options Briton 2130 Series - Closer options

Closers with Classic cover

For ﬁre door applications which are required to be held open, or for applications requiring ease of access, the Briton 2130B.TE electro-magnetic hold-open closer is ideal.

Briton 2130B.TE with L cover in satin stainless steel

An electromagnet in the slide track is designed to hold the door open during normal use and is connected to the building ﬁre alarm system. On sounding the ﬁre alarm, or in the event of power failure, the electromagnet is deactivated and releases the door closer mechanism to close the door in the normal controlled manner.

It is particularly suited for use in areas where a standard door closer could be inconvenient or would impede the ﬂow of people in medium or high trac applications such as a cinema foyer or hospital corridor. The use of electro-magnetic hold-open door controls are recommended in applications which are designed to meet the levels of accessibility called for in Approved Document M Access to and use of buildings.

Closers with L or S cover

A B

2130B.T with Classic (C), L or S cover

490

Features of the Briton 2130B.TE closer

 Designed to, and compliant with, EN 1155,

the most recent legislation for performance, reliability and safety.

 Satisﬁes the requirements of Approved

Document M Access to and use of buildings

 Fail safe electronics guarantee door release in the

event of a ﬁre or power failure.

 Track mounted 24v DC solenoid with an eective

and reliable holding force.

 Manual override allows the door to be pulled

closed at any time.

 On-board test switch simulates ﬁre condition to

check operation.

 Fully adjustable hold-open angle from 85˚ to

110˚.

 24v transformer/rectiﬁer available.

Integrated design

When compared to the use of a standard closer and separate electomagnetic door holder the integrated Briton 2130B.TE has the following beneﬁts:

 Reduced installation time and cost.

 Less susceptible to malicious damage.

 Ensures twisting forces on the door leaf are

eliminated.

 Aesthetically superior as it avoids intrusive

bracketry and other components on the door.

 Can be used where there is no reveal wall.

Power requirements

The closer power requirements are 24V DC, 90mA nominal. Transformers and relay interfaced to the ﬁre alarm system can also be supplied to link the electricity supply and the ﬁre alarm system.

FSR transformer/rectiﬁer

For use with ﬁre/smoke check electro-magnetic door control units where 24V DC is not available for the continuous rating required. A socket is provided to accept a plug-in relay.

all dimensions are in mm

Product features

CE marked

Variable closing power EN size 2 - 6 2 - 4 3 - 4

Power adjustment by spring or template spring spring spring

Accuﬁt template & Accuﬁt mounting plate

Maximum angle of opening 180˚ 180˚ 105˚

Adjustable closing speed & latch action

Adjustable backcheck

Adjustable delayed action

Mechanical hold open facility (non ﬁre doors)

Electromagnetic hold open facility

Projecting arm closer

Slide channel and arm

Cover variants available (C; L; S) C/L/S C/L/S C/L/S

Warranty period 10yrs 10yrs 10yrs/2yrs

CE Classiﬁcation 4 8 2-6 1 1 3 4 8 2-4 1 1 3 3 8 3-4 1 1 3

nStandard

Available as an option/variant

closer ref. body cover a b c

2130B 2130B.T 2130B.TE

n n n

n n

66mm 310mm 55mm

62mm 318mm 74mm

71mm 318mm 76mm

www.allegion.com/uk

For declaration of performance please go to the website

www.allegion.com/uk

Briton 1100 Series - Medium duty Briton 1100 Series - Medium duty

Briton 1100 Series - a comprehensive range of medium duty overhead closers

The Briton 1100 Series is designed to provide a midrange product with a choice of the most popular options, in a concise, cost-eective package. The Briton 1100 Series is a simple system which comprises 3 body sizes, each available as standard with a slidein trimplate or with optional classic square or softline all-over covers.

The combinations of performance and cover options provides a highly comprehensive series of closers which can be suited across a wide range of functions and applications.

Note: All covered variants have a ﬂatform arm as standard. All trimplate variants have screw thread arms as standard.

Briton 1130B.T with Softline cover in satin stainless steel ﬁnish.

The Briton 1100 Series is CE marked to EN 1154, ﬁre tested to EN 1634 and Certiﬁre Approved for use on timber doors to achieve a 2 hour ﬁre rating and 4 hours on steel doors, trimplate variants only.

1120/1130 only

Features & Beneﬁts

 Cast aluminium body

 Precision needle roller bearings allied with rack

and pinion mechanism provides ecient operation and high levels of durability.

 High quality silicon chrome alloy steel used for

the coil spring.

 High quality hydraulic ﬂuid with built-in

temperature compensation.

 Screw thread armset manufactured from forged

steel for additional strength and durability supplied for all trimplate variants.

 Available with snap joint arm for quick and easy

installation and future maintenance.

 All-over cover option in classic square or rounded

softline variants to conceal all ﬁxings and adjustment screws providing a neat appearance and reducing the risk of vandalism and tampering.

 Trimplate option is a simple and cost eective

means of concealing ﬁxing and adjustment screws.

 Adjustable power variants.

 Separate closing speed and latch action

adjustment provides total accuracy of adjustment of the full closing cycle.

 Adjustable backcheck (1120B & 1130B) minimises

the risk of damage to the door, its hardware and the surrounding structure.

 Optional hold-open armset allows the door to be

held in the open position for convenience. (Not to be used on ﬁre door applications).

www.allegion.com/uk

Briton 1100 Series - Medium duty Briton 1100 Series - Medium duty

With enough performance and design options to suit virtually any application

The Briton 1100 Series provides a wide choice of trimplate, classic or softline cover available in a selection of sprayed and metallic ﬁnishes which will satisfy the large majority of applications. Because of the comprehensive nature of the design and performance options, closers can be selected to suit their location in the knowledge that they will remain visually consistent throughout the building.

490

From left to right: Briton 1110.S, Briton 1130B.T.S, Briton 1110.C, Briton 1130B.T.C and below, Briton 1130B.TE & Briton 1130B.TE.S

Briton 1130B.TE Electromagnetic hold-open

It is particularly suited for use in areas where a standard door closer could be inconvenient or would impede the ﬂow of people in medium or high trac applications such as a cinema foyer or hospital corridor. The use of electromagnetic hold-open door controls are recommended in applications which are designed to meet the levels of accessibility called for in Approved Document M Access to and use of Buildings.

Features of the Briton 1130B.TE closer

 Designed to, and fully compliant with EN 1155.

 Satisﬁes the requirements of Approved

Document M Access to and use of Buildings.

 Fail safe electronics guarantee door release in the

event of a ﬁre alarm or power failure.

 Track mounted 24v DC solenoid with an eective

and reliable holding force.

 Manual override allows the door to be pulled

closed at any time.

 On-board test switch simulates ﬁre condition to

check operation.

 Fully adjustable hold-open angle from 85˚ to 110˚.

 24v transformer/rectiﬁer power supply unit

available.

Closers with trimplate

Product features Product references

CE marked

Fixed closing power EN size 3

Adjustable closing power EN size 2 - 4 2 - 4 2 - 6* 2 - 4

Power adjustment by spring or template template spring spring n /a spring

Maximum angle of opening 105˚ 180˚ 180˚ 180˚ 180˚

Adjustable closing speed & latch action

Adjustable backcheck

Tri-pack armset for regular, transom and parallel

mounting options

Mechanical hold-open facility (non ﬁre doors)

Projecting arm closer

Slide channel and arm

Trimplate cover option

All over cover variants available C (classic)/ S(softline) - all variants

Guarantee period 10yrs 10yrs 10yrs 10yrs 10yrs

CE Classiﬁcation 3 8 2-4 1 1 3 4 8 2-4 1 1 3 4 8 2-6 1 1 3 4 8 3 1 1 3 4 8 2-4 1 1 3

all dimensions are in mm

closer ref. 1110 1120B 1130B 1110.T 1130B.T

A B C

38.5mm 38.5mm 48mm 38.5mm 48mm

207mm 236mm 297mm 207mm 257mm

60mm 60mm 60mm 60mm 60mm

1110 1120B 1130B 1110.T 1130B.T

n n n n n

n n n

n n n n n

* Note: In parallel mounting position, power size is EN 2 - 5

n n n

n n

nStandard

Available as an option/variant

www.allegion.com/uk

For declaration of performance please go to the website

www.allegion.com/uk

Briton 996 Series - Electromagnetic closers Briton 996 Series - Electromagnetic closers

3558 min.

Features & Beneﬁts

 Selectable for Hold-open or Swing-free operation

Briton 996 Series - a dedicated

 Pressure die cast aluminium body giving rugged

durability.

electro-magnetic hold-open or

 Steel rack and pinion mechanism is heat treated

for strength and durability.

 Coil springs manufactured in silicon chrome alloy

swing-free closer

steel for superior strength and reliability.

 Unit is supplied with armset and bracket for

regular or transom mounting and is self handed to reduce the number of stockholding units required. For parallel mounting please specify when ordering.

 Fabricated steel cover available in a range of

architectural ﬁnishes which suite with the Briton 2000 and 2130 closers with Classic covers to complement a variety of door hardware ranges.

 ‘Catch plate’ can be set to operate in hold-open

or swing-free operation during installation to suit individual doorset requirements within a building.

 Electromagnet is controlled by the building ﬁre

alarm/detector system and activates the ‘catch plate’ to ensure the door closes automatically in the event of a ﬁre.

 Optional rear cable entry allows units to be

installed with concealed cable using a separate concealed door loop to protect the closer against vandalism.

 Supplied with armoured power loop to run power

safely from the door frame to the closer unit.

 Adjustable closing speed and latch action

provides total control of the full closing cycle.

Speciﬁcation Tip

We recommend the speciﬁcation of a higher power closer than the door size denotes as the spring function will not be active until the actuation of the ﬁre alarm. This will assist in overcoming positive or negative air pressure.

The Briton 996 Series is CE marked to EN 1154 and EN 1155 for electrically controlled closing devices, ﬁre tested to EN 1634 and Certiﬁre Approved for use on timber doors to achieve a 2 hour ﬁre rating.

Parallel mounted version illustrated

Typically used on ﬁre rated doors where the hold-open or swing-free feature is required either in high trac areas for convenience or in situations where it would be dicult to satisfy the maximum opening force requirements of Part M of The Building Regulations.

The Briton 996 Series is a range of closers with an integrated electro-magnetic hold open mechanism. Each unit can be set to either ‘hold-open’ or ‘swingfree’ operation. In either case the spring closing function of the closer can be temporarily disabled to allow free passage. When de-activated via a connection to the building ﬁre alarm or smoke detection system, the electromagnet disengages and the door closer closes the door in the normal manner to maintain ﬁre safety.

years

all dimensions are in mm

Product features Product references

9963/01 9963/66 9964/01 9964/66 9965/01 9965/66

CE marked (EN 1155)

Fixed closing power EN size 3 3 4 4 5 5

Maximum angle of opening

(controlled closing)

Adjustable closing speed & latch action

Regular and transom mounting

Parallel mounting

Hold-open adjustment

Free-swing operation

years

Cover variants available Classic Classic Classic Classic Classic Classic

Guarantee period All variants - 10yrs mechanical / 2 years electrical

CE Classiﬁcation 3 8 3 1 1 3 3 8 3 1 1 3 3 8 4 1 1 3 3 8 4 1 1 3 3 8 5 1 1 3 3 8 5 1 1 3

n n n n n n

110˚ 110˚ 110˚ 110˚ 110˚ 110˚

n n n n n n

n n n

n n n n n n

305

www.allegion.com/uk

nStandard

For declaration of performance please go to the website

www.allegion.com/uk

Briton 2820 Series - Floor springs Briton 2820 Series - Floor springs

Briton 2820 Series - a range of

130

108

56 ~

medium duty ﬂoor springs for single or double action doors

Features & Beneﬁts

 High grade cast iron ﬂoor spring body.

 Heat treated high alloy steel mechanism with

ball bearing race for optimum eciency.

 Corrosion resistant galvanised steel, zinc coated

and powder coated steel cement box.

 Low proﬁle 40mm deep cement box.

 Full adjustment of the mechanism for perfect

door alignment.

 Stainless steel cover plate available in satin or

polished ﬁnish.

52~55

all dimensions are in mm

307

325

307

Accessory Pack

A series of accessories are available for single or double action doors.

Briton 2820 Series Floor Springs

The Briton 2820 Series ﬂoor springs are designed for high trac single and double action doors. They are ideally suited to:

 Timber, metal and tempered glass doors

 Areas where a discreet, high quality aesthetic is

required

 Areas where a surface closer may be subject to

abuse

 Applications where ﬂoor depth is limited

Performance

Briton 2820 Series ﬂoor springs are CE marked to EN 1154 and ﬁre tested to EN 1634 on timber doors to achieve a 1 hour ﬁre rating.

Mounted within a low proﬁle cement box, the Briton 2820 Series ﬂoor springs are suitable for single and double action doors with a maximum opening angle of 130˚ and with optional hold-open facility (for nonﬁre doors only).

Briton 2820 Series ﬂoor springs are ﬁxed power units with adjustable closing speed and adjustable latch action. All units are compatible with a series of single and double action pivots and bottom straps.

 Hardened steel spindle with spindle cover plate.

 Easy access to ﬂoor spring adjustments for

closing speed and latch action. Adjusters cannot be backed out of the closer body.

 Mechanical hold-open option for non ﬁre doors

Product features

2823.SS 2824.SS 2823.SS.HO.90 2823.SS.HO.105

CE marked

Fixed closing power EN size 3 4 3 3

Conforms to EN 1154

Suitable for single action doors

Suitable for double action doors

Maximum angle of opening 130˚ 130˚ 130˚ 130˚

Adjustable closing speed & latch action

Mechanical hold-open (non ﬁre doors) n90˚ n105˚

Dimensions cement box 307 x 108 x 40mm; cover plate 325 x 130mm

Cover plate in satin stainless steel

Cover plate in polished stainless steel

Guarantee period 10yrs 10yrs 10yrs 10 yrs

n n

n n n n

Product Description

2820 DAP Double action accessory pack

2820 SAP Single action accessory pack

2820.CP.PS Cover plate in polished stainless steel

2820. CP.SAP.PS

Cover caps for single action pack in polished stainless steel finish

www.allegion.com/uk

CE Classiﬁcation 3 8 3 1 1 3 3 8 4 1 1 3

nStandard

Available as an option/variant

For declaration of performance please go to the website

www.allegion.com/uk

Briton 2500 Series - Low energy operator Briton 2500 Series - Low energy operator

121

153 Min.

121

Low Energy Operator Features and Options

Power assisted opening for convenience or for less able users

The Low Energy swing operator is a surface mounted electromechanical unit which is designed speciﬁcally to provide a means of automating new or existing single doors. The ﬂexible microprocessor control allows activation by motion sensors, push button or by manual activation. In manual activation mode, the operator will provide power assisted opening of the door and spring power closing like a conventional door closer.

With an array of built-in safety features, the Low Energy operator is an ideal means of providing easy access for low trac entrance doors, internal doors and disabled WC facilities.

The standard Low Energy operator gives precise door control in all conditions, monitoring the door position and allowing simple adjustment of the door operating parameters such as the opening and closing speeds. In addition, provision is made for extra controls including:

 Automatic operation mode (selectable option)

allows activation by either motion sensor, manual push pad/plate or via an integrated access control device

 Push & Go (selectable option) allows activation

by gently pushing or pulling the door

 Manual operation allows the door to be easily

operated as a standard manual door whilst still giving smooth action over the door cycle

 Power Boost (selectable option) in the ﬁnal

closing phase ensures the door reaches the fully closed position

 Safety stop halts the door when an object or

person is encountered

 Delayed action holding is adjustable 0 - 30 sec.

 Additional safety sensors can be door mounted

 Emergency egress allows manual door opening

 Available in satin anodised aluminium ﬁnish and

a range of powder coated RAL colours

114

External

Unit with armset for 'Outward Opening' doors

153 Min.

Typical applications

The Low Energy operator provides a highly economic solution to the obligation placed on service providers to comply with legislation concerning access for disabled users as recommended in Approved Document M of Building Regulations. This totally self contained unit can be applied to existing hinged or pivoted timber, metal or glazed doors without altering the doors or frames. It may also be combined with electronic access control which will simultaneously unlock and activate the opening of the door.

The addition of other safety features such as the Allegion Fingersafe (2550.FG) and the ability to install monitor sensors helps to ensure compliance with EN 16005:2012 at the time of installation.

Unit with slide track arm for ﬁtting to the pull side of the door.

Please note: Briton 2500 Series operators should only

be fittted by a qualified installer or electrical engineer.

all dimensions are in mm

Product features Product references

2550.C 2550.T.C

CE marked

Mounted on Pull side of door (with track arm)

Mounted on Push side of door (with projecting arms)

Maximum / Min. door width * 1200 / 660mm 1200 / 760mm

Maximum leaf weight 80 kg 80 kg

Adjustable opening & closing speed

Adjustable delayed closing 1 - 30 seconds 1 - 30 seconds

Power requirements 240V ac ± 10%

Dimensions Operator 112 x 121 x 710mm

Guarantee period 1 year

Minimum clear opening width (Building Regulations Part M) - 800mm for new constructions; 750mm for existing buildings.

n n

Unit with slide track for 'Inward Opening' doors

www.allegion.com/uk

For declaration of performance please go to the website

www.allegion.com/uk

Briton 2500 Series - Low energy operator

Accessories

A selection of accessories is available for use with the Briton operator including rubber ﬁnger protection and activation buttons.

For additional accessories please contact your

Allegion Speciﬁcation Consultant for further

information or guidance on the selection of

accessories.

Birmingham Central Library - photography by Tony Hisgett

Accessory Description

2550.AP Arm pack push - regular

2550.T.AP Arm pack pull - slide channel

2550.FG Rubber Finger Safe

2550.PP.L.PTO

2550.PP.S.PTO

Push pad - large with engraving “Push to Open” and surface mounting box

Push pad - narrow with engraving “Push to Open” and surface mounting box

Briton and Von Duprin exit hardware

In commercial and public buildings, the safety and security of the people who visit them and work in them are paramount considerations. From their earliest patented designs in the US and UK dating back to the start of the last century, Allegion has been pioneering the development of the most reliable and durable panic exit solutions available anywhere in the world.

www.allegion.com/uk

Panic & emergency exit hardware - Introduction Panic & emergency exit hardware - Introduction

Panic or emergency?

From 1st January 2010 it became mandatory for all exit devices to comply with the latest revisions of EN 1125 or EN 179 and CE marking.

All Briton 560 - 570 and 376 Series exit devices have been tested and certiﬁed to prove compliance with the latest standards EN 1125 & EN 179 which govern the application of panic and emergency exit hardware, but which standard applies to which application?

Panic Applications - Conforming to EN 1125

PANIC APPLICATION EN 1125:2008

A 'panic' application is where the exit door is used by members of the public and must provide “safe and eective escape through the doorway with minimum eort and without prior knowledge of operation”.

Typical applications include:

 Shops

 Schools

 Hospitals

 Theatres and Cinemas

Testing and CE Marking

Rigorous testing is continually being carried out on the Briton range of exit hardware providing peace of mind for speciﬁers, distributors, installers and users.

Low operating force

Repeatedly tested to operate at 50% lower than the standard requirement, ensuring that the door can be operated with minimum force, for example by small children, the elderly and people with special needs.

Two tests are undertaken. The ﬁrst is to operate the door with a maximum force of 80 Newtons.

The second test simulates a panic situation whereby the door is put under 1000 Newton pressure to simulate a group of people pushing against the door.

The operating force on the device with this weight should not exceed 220 Newtons.

Abusing the push bar

The push bar is attacked with a force equivalent to a 16 stone man (1000 Newtons) pulling/pushing it in all directions and standing on it, after which the bar must still operate.

EMERGENCY APPLICATION

- EN 179:2008

According to EN1125 the length of the panic exit device should be as near as possible the eective width of the opening and not less than 60% of the width of the opening.

Emergency Applications - Conforming to EN 179

An 'emergency' application is where the exit door is in a low occupancy environment and will only be used by trained personnel, such as in a place of work never accessed by the public or people unfamiliar with the escape drill.

Typical applications include:

 Oces

 Private Flats & Apartments

 Store Rooms & Boiler Rooms

Products used in emergency applications require only a single point of operation e.g. pushpads or levers.

Cycle testing

All Briton products have been tested to 500,000 cycles over and above the EN requirements of 200,000 cycles, ensuring durability for everyday use. Von Duprin panic exit hardware is tested beyond 500,000 cycles

The ﬁnger trap test

To reduce the risk of trapping ﬁngers and/or the blocking of the panic device, any gap shall not trap a test rod of 10mm dia. at any position of the bar travel during the operation of the panic device.

Abusing the bolt

Testing the bolt strength involves the equivalent of the combined strength of 4 people trying to pull the bolt away from the door.

An attempted break-in is simulated to test the security of the bolt, force is applied to the anti-thrust device as if the bolt were being ‘jemmied’ out of its socket.

Corrosion resistance

A test which measures how suitable the exit device is for varying environmental conditions. All Briton 376 Series hardware has been tested to EN 1670 Building Corrosion Requirements and has achieved at least grade 3 (high resistance). This ensures the product will function correctly in wet, polluted and exterior environments. Note, for panic and emergency exit hardware the corrosion resistance grade is based on performance not aesthetic ﬁnish.

www.allegion.com/uk

Panic & emergency exit hardware - Introduction Briton 560-570 Series - Features and beneﬁts

A guide to specifying panic and emergency exit hardware

Which system to choose

Having ﬁrst determined whether the application requires a panic or emergency exit solution there are number of additional considerations which will determine the most appropriate product. These could include:

 Aesthetic considerations - push bar or touch bar  Designed to satisfy ANSI or EN standards  Single point or multi-point latching for security  Frequency of use may require a heavy duty

solution

 Additional features such as hold-back or alarm

connection

 Optional outside access device for external entry

Single or multi-point security

Both panic and emergency exit solutions are available as rim devices providing a single central latch point or with latching points at the top and bottom of the door. The modular nature of the Briton 560 - 570 Series allows you to build a solution which is tailored speciﬁcally to the needs of your door providing up to 4 latching points on a single door.

Fast and accurate installation in just 7 minutes.

The Briton 560 and 570 panic exit devices oer:

 Robust construction with improved durability

suitable for all heavy trac applications.

 Technologically advanced design with proven

performance and reliability.

 Grip function on 570 touch bar design allows the

door to be pulled closed.

 Shaped cross bar end piece to allow easier

access to door lock.

 Suitable for doors with a minimum clear opening

width down to 500mm. This can be reduced to 350mm where side latches are not required.

 Unique assembly which reduces installation time

by as much as 50%

Installation beneﬁts

 Easy-to-use Accuﬁt templates and backplates

for panic devices and pullman latches

 Patented Fast-Fix cable system replaces

conventional vertical rods connecting operating units and pullman latches

 Fine adjustments of the cable system are

possible in-situ for maximum accuracy during installation

 Minimal measuring is required to prepare the

units to suit the door height

 Quick and simple snap on covers for operating

mechanisms and pullman latches

Series

Description

Touch bar operation

Push bar operation

Push pad operation

CE marked to EN 1125

CE marked to EN 179

Approved to ANSI A156.3

Rim latch device

Vertical bolt device

Electric latch retraction

No. of latching points 1 to 3 1 to 5 1 to 5 1 to 5

No. of test cycles 500,000 500,000 500,000 500,000

Certiﬁed for use on ﬁre doors 2hr timber 2hr timber/2hr steel 2hr timber/2hr steel 2hr timber/2hr steel

Suitable for single doors

Sutiable for double doors

Budget comparison ££££ ££ - £££ ££ - £££ ££

Typical applications

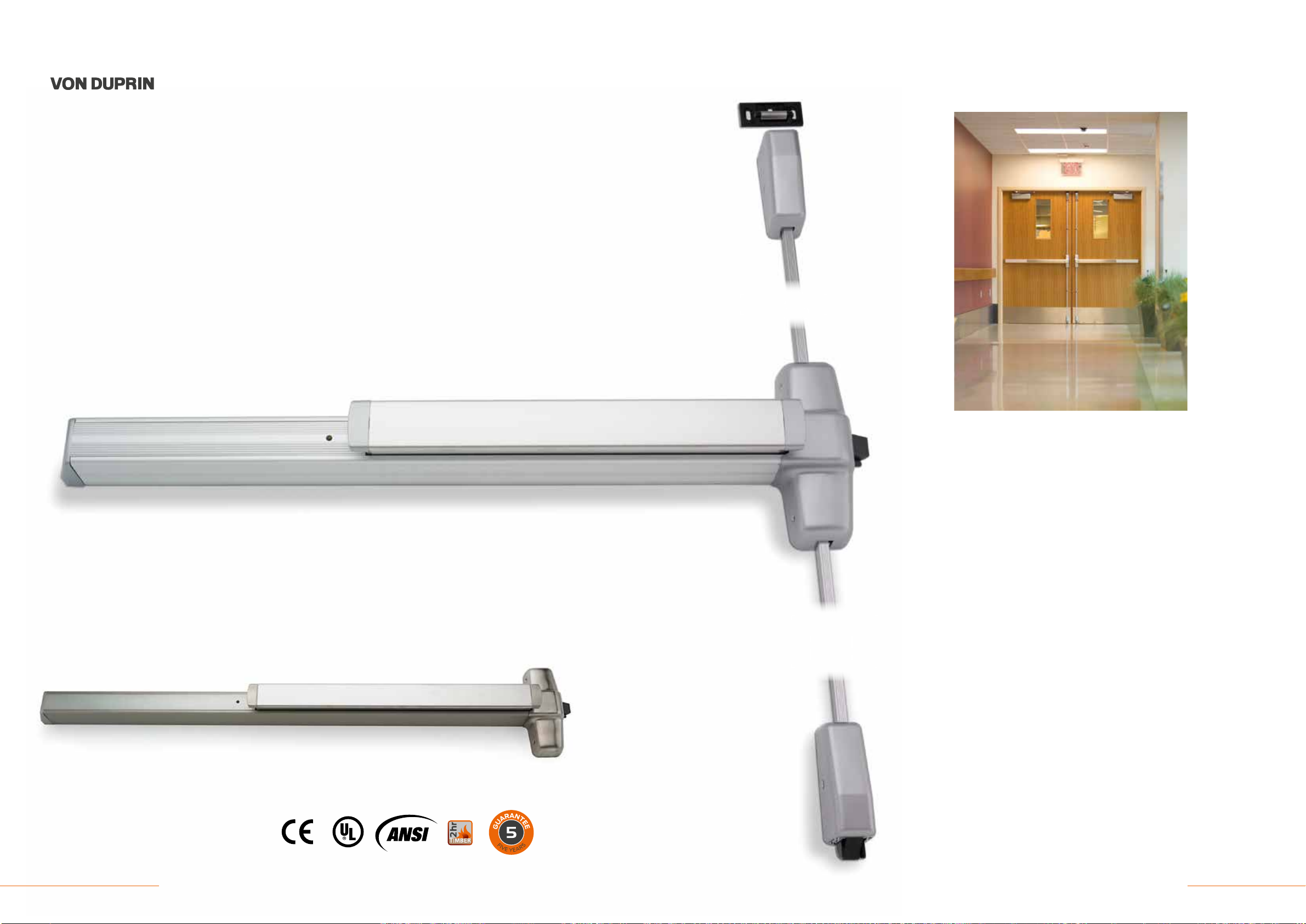

Von Duprin 98/99

Series

Very heavy duty panic

exit hardware

n n

n n n

n n n n

High speciﬁcation

applications and

situations requiring a

heavy duty solution

Briton 570 Series Briton 560 Series Briton 581

Modular panic exit

hardware system

Medium to high

end commercial

applications

Modular panic exit

hardware system

Medium to high

end commercial

applications

Modular emergency exit

hardware system

Medium to high

end commercial

applications

www.allegion.com/uk

See for yourself how easy it is to install. Scan the QR code.

www.allegion.com/uk

Briton panic & emergency exit hardware Briton 560-570 Series - The modular system

Modular CE marked exit

Pushbar or touch bar

At the heart of the system is the activation device which is

hardware from single to multi-point locking

available in a 'push bar' design or the lower projection 'touch bar'. Each device can be used on its own to provide single point latching or with the addition of universal pullman latches for multi-point latching.

Top Pullman

Briton 560 and Briton 570 panic exit devices have been designed to oer modular solutions for mid to high end speciﬁcation, providing a combination of style, safety and optimum security. The basis for each solution is a pushbar or touch bar device which can be used independently to provide single point locking or with additional optional modular locking elements. The use of additional modular locking units and other accessories oers increased ﬂexibility and adaptability to suit individual requirements.

Briton 561 push bar device in SE ﬁnish (silver with black end cases)

Briton 581 Push Pad

For applications which are not used by members of the public (and therefore classed as emergency exit applications) there is a push pad operator which has the following features:

 Complies with EN 179 suitable for emergency exit

applications only.

 Suitable for use on single doors or in combination on double

doors.

 Single point latching.

 Suitable for use with additional pullman latch kits.

Pullman latches

Pullman latches provide a smooth and quiet closing action, ideal for interconnecting doors in highly populated areas.

Available as top/bottom or side acting latches where installation of the striker to the ﬂoor is not practical.

In all cases the pullman latch is connected to the Pushbar or Touch bar activation device using a unique adjustable stainless steel cable which is fully concealed beneath extruded cover channels.

Upper Side Pullman

Briton 571 touch bar device in SES ﬁnish (silver with matching end cases)

Additional side pullman latches (right) can be added to the system. These can be used at any position above or below the activation device to produce 4 point latching on a single door.

Lower Side Pullman

Security Designed to provide immediate escape at any time these devices also provide a high level of security from intruders from the outside. The anti-thrust device in the latch and pullmans prevents unauthorised retraction of the latches and the modular design allows various levels of multi-point locking.

www.allegion.com/uk

Bottom Pullman

www.allegion.com/uk

139

Briton 560-570 Series - Options

Briton 560-570 Series - Dimensions

Typical applications

Outside Access

Briton 560

A series of outside access devices is available for use with any of the Briton 560-570 Series exit

56.5

561

574.V 574.S

devices. They provide a simple means of

108

106

accessing the door from the outside.

100

Max. 1300

22.9

3 point locking Components required

Briton 571.1* Briton 574.S Finish SES

3 point locking Components required

Briton 571.1* Briton 574.VS Finish SES

3 point locking Components required

Briton 561 Briton 574.VS Finish SES

* The 571 device is available in 2 lengths (specify 571.1 for 1200mm wide and 571.2 for 840mm wide).

Device Type

Panic exit device

Emergency exit device

Touch bar operator

Push bar operator

Push pad operator

Pullman latches top/bottom n/a n/a

Pullman latches side acting n/a n/a

Pullman latches - top and side acting bottom combination

Touch bar with mortice nightlatch

Features

Fast-Fix cable system

Vertical cable cover cut on-site

Self handed

Handed - specify when ordering

Alarmed

Dogged hold-open facility

5 year guarantee

Finishes

Powder coated silver (SE, SES)

Plated finishes (SS, SSS-PVD, PS, PB)

561

571.1

571.2

573.N.1

573.N.2

581

57 4.V

574.S

n n n n n

n n n n

n n

n/a n /a

n n

n n n n n

n n n n n n n n n

n n

o o o o o o

n n n n n n n n n n n

n n n n n n n n n n

all dimensions are in mm

Briton 581

139

4355

108

Max. 2500

Briton 1413.LE

Lever variant. Available in silver ﬁnish as standard.

Briton 570

571.1

571.2

56.5

57 4.VS .L

57 4.VS .R

574.AS

Briton 1413.KE

L - 42

Knob variant. Available in silver ﬁnish as standard.

139

108

65.5

38.7

574.V 574.S

52.5

38.7

573.N.1

573.N.2

L - 42

Briton 9260 digital

code lock (Not

suitable for use on 581 or 573.N)

nStandard

Available as an

option/variant

139

all dimensions are in mm

165

108

Key:

L= 1200mm or 840mm

www.allegion.com/uk

For declaration of performance please go to the website

www.allegion.com/uk

Heavy duty CE marked panic exit hardware designed for extreme applications

The 98 and 99 Series panic exit hardware designed and manufactured by Von Duprin is a thoroughly comprehensive range of solutions which can be applied to any single or double door requiring immediate escape. The robust construction not only satisﬁes the requirements of EN 1125 for CE marking but has passed the stringent testing necessary for approval to ANSI A156.3 and UL listing.

The solutions available range from purely mechanical touch bar exit devices to electronic latch retraction for more sophisticated control applications. At the heart of each solution is a touch bar actuating device which is oered as either a rim latch device, with surface mounted vertical bolts or with 3 point locking using pullman latches.

Von Duprin 98 & 99 Series - Features Von Duprin 98 & 99 Series - Features

Von Duprin 98 Series panic device, 9857 with grooved case

The 98 and 99 Series panic exit hardware are distinguished by the smooth or grooved mechanism cover. All functional variations are available in both styles and are available in dierent lengths to suit doors from 610mm to 1200mm door leaf widths.

Von Duprin 99 Series panic devices have a smooth case shown with stainless steel ﬁnish

Features & beneﬁts

The Von Duprin 98 and 99 Series panic exit hardware has the following features and options:

 CE marked and fully compliant with EN 1125 for

use on Panic Exit doors.

 Single, double or three point latching.

 Single point rim latching or with vertical bolts and

pullman latches.

 Shoots and touch bar can be cut on-site to suit

door widths/heights.

 Adjustable shoots.

 Slimline extruded aluminium vertical rods

 Self handed.

 Options with electric latch retraction which can

be interfaced with additional features such as delayed egress and alarm functions.

 Hold-open (dogged) options available.

 Fire tested on timber doors to EN 1634 and

suitable for use on ﬁre doors up to 2 hours.

 Tested in conjunction with external trim to

provide access from outside.

www.allegion.com/uk

Von Duprin 98 & 99 Series

Typical applications of single and double door combinations

Rebated double doors Non-rebated double doorsSingle point latching Two point latching Three point latching

Primary opening leaf

Single doors oering single, double or triple point latching Double door combinations for rebated or non rebated double doors

Von Duprin 98 & 99 Series

Certiﬁcation - ANSI Product references

98 Series - Ribbed casing 98 98F EL98 9827 9827F 9857 9857F

99 Series - Smooth casing 99 99F EL99 9927 9927F 9957 9957F

ANSI A156.3 Approved - Grade 1

n n n n n n n

Certiﬁcation - EN Product references

98 Series - Ribbed casing 98 98F EL98 9827 9827F 9857 9857F

99 Series - Smooth casing 99 99F EL99 9927 9927F 9957 9957F

CE marked

Conforms to EN 1125

Fire tested to EN 1634-1

n n n n n n n

2 hour 2 hour 2 hour 2 hour 2 hour 2 hour 2 hour

for timber ﬁre doors

CE Classiﬁcation 3 7 6 B 1 3 2 2 B A

Product features Product references

98 Series - Ribbed casing 98 98F EL98 9827 9827F 9857 9857F

99 Series - Smooth casing 99 99F EL99 9927 9927F 9957 9957F

Single point rim latch

Vertical bolts

n n n

n n n n

No. of latching points 1 1 1 2 2 3 3

Adjustable shoots

Electric latch retraction

n n n n n

Dogged hold-open

Fire tested to EN 1634

n n n n n n n

Guarantee period 3yrs 3yrs 1yr 5yrs 5yrs 5yrs 5yrs

97 (neutral) 78 (depressed)

3955

114

7060

203

457or 610

838 or 1143

all dimensions are in mm

nStandard

www.allegion.com/uk

Available as an option/variant

www.allegion.com/uk

Von Duprin 98 & 99 Series

Outside trim

The operating characteristics of the Von Duprin 98 and 99 Series panic exit hardware can be adapted to suit individual applications by the use of an outside access device, speciﬁcally designed to provide authorised access from outside. These units are tested in association with the panic exit hardware as shown in the table below.

 Tested in conjunction with exit devices to provide

access from outside by key.

 A range of knob, lever or dummy trim to be

selected according to the access required from outside.

 Suitable for single or double doors.

 Units bolt through from the exit device for a

strong and secure assembly.

Product features Product references

98 Series - Ribbed casing 98 98F EL98 9827 9827F 9857 9857F

99 Series - Smooth casing 99 99F EL99 9927 9927F 9957 9957F

990DT 990NL 991K

Trim option 990DT

Trim option 990NL

Trim option 991K

n n n n n n n

n n n

Photography by Craig Auckland

Cylinder locks and cylinders

Mechanical locking remains the most common means of providing ﬂexible and cost-eective security for all types of building from residential applications to oces, factories, schools and colleges.

Primarily, they oer a range of security from simple privacy through to high security applications oering sophisticated masterkeyed access control.

www.allegion.com/uk

Cylinder lockcases - IntroductionCylinder lockcases - Introduction

Flexibility and simplicity oered by mortice cylinder locks

For most doors, particularly internal doors, a Briton mechanical lock case represents the most eective and direct means of providing privacy and security for commercial applications.

Briton lock cases have Grade 3 category of use and can be used on internal and external doors.

 Modular dimensions across a range of functions

allows for factory preparation of doors and frames

 Allows simple replacement of the cylinder if keys

are lost or stolen to quickly reinstate security

 Cylinders available in various functions to ﬁne

tune the operating characteristics of the lock

 Cylinders available allow sophisticated multi-

level masterkeying for access control

 Modular dimensions allow for lock

interchangeability to upgrade security

CE marked to EN 12209

Physical characteristics of type, operation and performance of lock cases is tested/assessed in accordance with EN 12209. This produces an 11 digit classiﬁcation code which describes its type and grading according to various test criteria. The table below gives an outline of the classiﬁcation and the performance of a typical example.

Example

1-3

A-X

1-7

0/1

0-G

Digit 1 - Category of use

Three grades are identiﬁed Grades 1 - 3

Digit 2 - Durability

Twelve grades are identiﬁed Grades A - X

Digit 3 - Door mass and closing force

Nine grades are identiﬁed Grades 1 - 9

Digit 4 - Suitability for ﬁre/smoke doors

Two grades are identiﬁed Grades 0 - 1

Digit 5 - Safety

Only Grade 0 is identiﬁed

Digit 6 - Corrosion resistance

Eight grades are identiﬁed to EN 1670 Grades 0 - G

Grade 3 - High frequency of use by public or others with little incentive to take care and with a high chance of misuse - eg. public doors

Grade X - 200,00 test cycles with 120N side load on latch bolt

Grade 8 - Up to 200kg door mass, 15N maximum closing force.

Grade 1 - Suitable for use on fire/smoke resisting assemblies subject to satisfactory fire testing or assessment

Grade 0 - No safety requirement

Grade G - Very high corrosion resistance 240 hours salt spray at -20˚C to +80˚C

Escape functions

Where locks are incorporated in doors which are on an escape route in an oce suite for example, lock cases should be certiﬁed to EN 179 for emergency exit use. Such locks can be operated by a single action on the lever in the direction of the escape route which will withdraw the latchbolt and the deadbolt simultaneously to give immediate escape.

1-7

A-R

0-4

0-H

www.allegion.com/uk www.allegion.com/uk

Digit 7 - Security and drill resistance

Seven grades are identiﬁed Grades 1 - 7

Digit 8 - Field of door application

Eight categories are identiﬁed to EN 1670 Grades 0 - G

Digit 9 - Type of key operation

Nine types are identiﬁed Type 0 - H

Digit 10 - Type of spindle operation

Five types are identiﬁed Grades 0 - 4

Digit 11 - Key identiﬁcation requirement

Nine categories are identiﬁed Grades 0 - H

Grade 4 - High security and no drill resistance

Category A - Mortice type with unrestricted application

Type A - Cylinder lock or latch, manual locking

Type 2 - Lock or latch for unsprung lever handle operation

Category 0 - No requirement for key identification

Briton 5600 - Euro proﬁle cylinder lockcase range Briton 5600 - Euro proﬁle cylinder lockcase range

Dimensionally co-ordinated lockcases

Product ref. Function/description Centres CE Classiﬁcation

5650 Nightlatch function operated by a half set of levers on the

inside of the door to retract the latchbolt. Single cylinder on the

outside operates the latchbolt with a single key turn. Latchbolt is

automatically locked by the anti-thrust latch.

Features & Beneﬁts

 96 hour corrosion resistance.

 Modular design allowing simpliﬁed door preparation

and lock interchangeability with Briton 5500 Series.

 Grade 304 stainless steel single piece forend

available radiused or square ended with matching strike.

 Quick reversible latch allows quick and trouble free

on-site handing without the need to dismantle the lockcase.

Briton 5660 Cylinder Panic Escape Sashlock

5660 Escape lock with split follower - Latchbolt withdrawn by lever

handle from both sides. Split follower function enables both

the deadbolt and latchbolt to be withdrawn simultaneously by

inside lever handle. Easily reversible escape mechanism.

Radiused and square forends are available with matching strikes. Add sux .R or .S to product code:

e.g 5650.R for radiused forend and strike, 5650.S for square forend and strike.

93.5

3.5

72mm 3X810F1BB20

72mm 3X810F3BA20

(EN 12209) 376B1442AB/D

(EN179)

 Proﬁled latch and forend provides very positive

location and a smooth, quiet operation.

 Stainless steel latch for corrosion resistance.

 Sintered steel 8mm follower.

 30˚ follower action with springing suitable for high

frequency applications.

 Positive follower angle (1˚) reduces the eect of wear

which can lead to lever droop.

 Stainless steel deadbolt with 20mm throw on a single

turn of the cylinder.

 Bolt through ﬁxing holes to DIN 18251 making the lock

compatible with most European hardware ranges.

 Nightlatch has anti-thrust latch to prevent forced

latch retraction when the door is closed.

 Escape mechanism of 5660 escape sashlock can be

easily reversed on site to suit all handing options.

Conforms to European Standards EN 12209 and EN 179 and carries the CE mark.

4572

all dimensions are in mm

60.5

21,5 46

165

235

185

150

www.allegion.com/uk

For declaration of performance please visit the website.

www.allegion.com/uk

Briton 5500 - Euro proﬁle cylinder lockcase range Briton 5500 - Euro proﬁle cylinder lockcase range

High performance euro proﬁle lockcase series suitable for all high end speciﬁcations

Features & Beneﬁts

 96 hour corrosion resistance.

 Modular design allowing simpliﬁed door preparation

and lock interchangeability.

 Grade 316 stainless steel single piece forend. Optional

square ended forend is also available.

 Quick reversible latch allows quick and trouble free

on-site handing without the need to dismantle the lockcase.

 Proﬁled latch and forend provides very positive

location and a smooth, quiet operation.

 Chrome plated steel latch for corrosion resistance.

 Cast follower with phosphor bronze bushes reduces

wear of follower during extended use.

 8mm follower is designed to grip the spindle to

eliminate unwanted tolerance between components.

Briton 5520 Cylinder Sashlock

Product ref. Function/description Centres CE Classiﬁcation

5510 Deadlock - cylinder operates deadbolt only 72mm 3X810G4BA00

5520 Sashlock - lever operation of latchbolt, cylinder operation of

deadbolt. Cylinder to latch function.

5530 Bathroom lock - lever operation of latchbolt, 8mm bathroom

turn follower to operate deadbolt

5535 Bathroom deadbolt - 8mm bathroom turn follower to operate

deadbolt only

5540 Latch - lever operation of latchbolt only n/a 3X810G-B020

5550 Nightlatch - lever operation from inside to withdraw the

latchbolt, cylinder from outside. Hold-back function.

5555 Nightlatch - lever operation from inside to withdraw the

latchbolt, cylinder from outside. No hold-back function.

5560 Escape sashlock - lever operation of latchbolt, cylinder operation

of deadbolt from either side. Inside lever withdraws latchbolt and deadbolt simultaneously for immediate escape. (This is not a split follower lock and must be used with a double cylinder)

Radiused and square forends are available with matching strikes. Add sux .R or .S to product code:

e.g 5510.R for radiused forend and strike, 5510.S for square forend and strike.

72mm 3X810G4BA20

78mm 3X810G-B020

n/a 3X810G-B000

72mm not CE marked

72mm 3X8100G-B020

72mm 3X810G4BA20

(EN 12209) 376B1442AB/D

(EN179)

 30˚ follower action with springing suitable for high

frequency applications.

 Positive follower angle (1˚) reduces the eect of wear

which can lead to lever droop.

 Drill resistant heavy duty hardened deadbolt with

22mm throw on a single turn of the cylinder.

 Chrome plated steel bolt for corrosion resistance.

 Bolt through ﬁxing holes to DIN 18251 making the lock

compatible with most European hardware ranges.

 Sleeved ﬁxing holes assist in bolt location, provide

added strength to the lockcase and help prevent mechanical failure due to ingress of foreign objects.

www.allegion.com/uk

Conforms to European Standards EN 12209 and EN 179 and carries the CE mark. Tested to EN 1634.

4572

all dimensions are in mm

For declaration of performance please go to the website

21,5 46

165

235

185

www.allegion.com/uk

150

Briton & CISA - Security cylinder ranges Briton & CISA - Security cylinder ranges

A guide to selecting the right cylinder in the right place

Selecting the right cylinder system

In selecting the most appropriate cylinder system for any given application, a few simple factors should be considered:

 The need for physical security from forced entry.

 The balance between the convenience of getting

duplicate keys cut and the security of strict key control whereby keys can only be obtained from the manufacturer under a letter of authority.

 The size of the system and the need for complex

masterkeying capabilities.

EN 1303:2005

The performance of cylinders is governed by the European standard EN 1303 which tests and asseses cylinders most importantly on:

 Durability.

 Key Related Security.

 Attack Resistance.

 Fire resistance to EN 1634-1.

Addressing physical security

An intruder seeking to break open a door will in most cases choose to “attack” the lock cylinder using the tools of the trade: drills, pliers, lock picks and other lock-forcing tools.

Methods of protecting against forced entry are ‘defensive’ features of passive security.

1 - Push resistance

A projecting cam on the cylinder can prevent it from being forced out of the lockcase by a hammer blow.

2 - Drill resistance

The incorporation of steel pins within the cylinder are designed to resist or delay attacks from drilling.

3 - Pick resistance

Special pin conﬁgurations can resist the manipulation of the pins in an attempt to simulate the key.

4 - Snap resistance

The inclusion of hardened steel laminates within the body of the cylinder can prevent violent twisting and snapping of the cylinder.

5 - Bump resistance

Bumping of cylinders is becoming more of an issue throughout Europe, particularly as there is no sign of forcible entry for homeowners to claim on insurance.

Patent protection

Since copyright protection on keys was abolished in 1999, it is now possible for anybody to produce and sell most types of keys. The only systems that can truly protect against illegal keyblank duplications are patented key systems. Manufacturers are able to take legal action against any authorized third parties who distribute copies of patented keys without permission.

Security Card

Oers a high level of service personalisation, giving further protection to the end user. The CISA authorised duplication system is the perfect solution for ensuring that keys can only be duplicated with the owner’s consent on production of the security card. Supplied only with CISA standard dier products.

Anti-barricade function

In some circumstances, such as secure institutions, care homes and psychiatric facilities it is desirable to prevent the inside thumbturn being used to forcibly hold the deadbolt in the locked position. A clutch mechanism within the cylinder isolates the thumbturn from the keyway so that in an emergency the key will override the thumbturn if it is being held.

Classroom function

If a teacher needs to leave a room full of pupils for a short while, they can lock the door from the outside to prevent unauthorised personnel from entering whilst being reassured the door can always be opened from the inside, even when locked. The cylinder can never be locked by the thumbturn from the inside.

Construction Keying

During the construction process, keys can easily become lost or stolen which can lead to loss of security. If Construction Keying is speciﬁed the building contractor will be issued with speciﬁc contractors keys for each of the cylinders. At the point of ‘hand-over’ the building owner/occupier inserts the proper ‘system’ keys into each cylinder and in the process renders the contractors keys inoperative.

Masterkeying

Masterkeying is the organisation of a keyed locking system where a hierarchy of access is produced. As the level of authority rises, so the ability to access cylinders in the system increases until access to all the cylinders in a system is available to a single Grand Masterkey.

www.allegion.com/uk

Briton cylinders - 75-29 Series CISA cylinders - Astral Series

Briton 75-29 Series with patent protection to 2029

Features and beneﬁts

 Key proﬁle with patented technology which

prevents unauthorised key duplication to 2029.

 Key blanks carry a lifetime warranty.

 'Through-cut' technology utilies a unique process

to produce the patented undercut design.

 6 pin tumbler system with additional 'check pin'

for extra security.

 Raised plug with unique slotted face for improved

aesthetics.

 Plug ﬁnish matches the cylinder body which is

available in satin nickel, polished chrome and polished brass ﬁnishes to match most quality hardware ranges.

 Full range of euro proﬁle and oval proﬁle

cylinders in symmetrical and oset lengths.

 Trim cylinder, trim mortice cylinders and cam

locks also available

Patented system

In addition to the 6 conventional cylinder pins, the Briton 75-29 Series incorporates a unique 'check pin' with a small hook on its tip. The tip of the pin corresponds to the special undercut on the key proﬁle. Only with the correct key inserted is the 'check pin' lifted clear and the cylinder is free to rotate.

CISA multi-level solutions integrated into a single system

TS007:2012

Licence KM532990

CISA oers a wide range of cylinders from basic security with good masterkeying capability, which are ideal for residential homes and commercial oces through to high security cylinders with a large capacity masterkey system, which are prominent on high proﬁle buildings such as banks, high security laboratories and airports.

The Astral Series comprises 3 individual cylinder ranges which are fully compatible with each other and can be incorporated into the same masterkey system if required.

Features and beneﬁts

 Patented system (Astral Tekno) to 2026.

 Kitemarked TS007 - 1 Star (Astral S).

 10 pin key bitting system.

 BKP bump resistant device (Astral S / Tekno).

 Snap resistant laminated core (Astral S).

 DIN standard sintered steel cam.

 Multi-function options including classroom and

construction keying functions.

 Security code card required for key duplication,

standard dier products only.

 Full range of euro proﬁle cylinders in symmetrical

and oset cylinder lengths.

 Thumbturn design provides an easy grip and is

compatible with most hardware designs.

 Thumbturn design provides an easy grip and is

compatible with most hardware designs.

 Multi-function options including classroom

function.

 Backwards compatible with Briton 7500 Series.

CE Classiﬁcation

Briton 75-29 Series cylinders are fully tested to EN 1303:2005 and have the following classiﬁcation.

EN1303:2005

Briton 75-29 1 6 0 0 0 C 5 2*

* when used with security escutcheon see page 82.

www.allegion.com/uk

Category of

use

Durability Door mass

Fire

resistance

Safety

Corrosion

resistance

Key related

security

Attack

resistance

Astral and Astral S double cylinders showing the

laminated snap-resistant core on the Astral S, a

physical and visual deterrent to attack.

CE Classiﬁcation

CISA Astral cylinders are fully tested to EN 1303:2005 and have the following classiﬁcation.

EN1303:2005

Astral Tekno 1 6 0 1 0 C 6 0

Astral S 1 6 0 1 0 C 6 2*

Astral 1 6 0 1 0 C 6 0

* drilling and torque resistance

Category of

use

Durability Door mass

Fire

resistance

Safety

Corrosion

resistance

Key related

security

www.allegion.com/uk

Attack

resistance

Briton & CISA cylinder selector Briton & CISA cylinder selector

Features and options Briton 75-29 Astral Tekno Astral S Astral Features and options

No. of pins 6 + check pin 2 row 10 pin 10 pin 10 pin No. of pins

Push resistant projecting cam

Anti-pick pins

Anti-drill

Bump resistant

Snap resistant

Patent protection up to 2029 up to 2026 Patent protection

Protected key duplication

Code card required for key duplication

No. of differs 30,000 1.6 million 1.6 million 1.6 million No. of differs

Masterkeying capacity TBA* up to 63,000 keys up to 63,000 keys up to 63,000 keys Masterkeying capacity

n n n n

n n

n n n n

n n n

Push resistant projecting cam

Anti-pick pins

Anti-drill

Bump resistant

Snap resistant

Protected key duplication

Code card required for key duplication

EN 1303:2005 Classification 1 6 0 0 0 C 5 2 1 6 0 1 0 C 6 0 1 6 0 1 0 C 6 2 1 6 0 1 0 C 6 0 EN 1303:2005 Classification

Kitemarked TS007:2012

Anti-barricade function

Classroom function

Construction keying function

* Dependent on the complexity of the masterkey system

nStandard Available as an option/variant

Kitemarked TS007:2012

Anti-barricade function

Classroom function

Construction keying function

www.allegion.com/uk

For declaration of performance please go to the website

www.allegion.com/uk

Simons Voss - Access control Simons Voss - Access control

Award winning electronic locking solutions

Access control gives you the power to decide who has access into and around your building. Conventional lock and key systems are a very basic form of access control and oer little protection if a key is copied, lost or stolen. Changing locks and replacing keys can be a very costly ongoing issue, which makes these systems very dicult to manage. Electronic access control simply replaces mechanical locks and keys with a fully managed secure system, eliminating the mentioned risks.

If a person’s access card or transponder is lost, stolen or simply no longer required, it can easily be deleted from use without compromising any other people’s access rights.

Simons Voss develops and produces award winning electronic locking solutions that seamlessly integrate into new and existing building infrastructures.

Product Features & Beneﬁts

 Easy installation

 Enhanced security; products operating in

conjunction with the physical door lock, the most secure part of the door

 Battery operated; wireless and extremely

ecient with very low maintenance

 Simple programming; in order to replace a

lost or stolen card or transponder

 Audit Trail and Time Zone Management of

all products

 Discreet and sympathetic design; in order

to blend into any environment

 Modular and scaleable, products can be

upgraded at any time

 Wireless technology; all products are

capable of being managed in an IT based wireless managed system

Digital Smart Handle - 3062.SC

The Simons Voss digital door ﬁtting combines intelligent access control with elegant and ergonomic design. Behind its slim, ﬂat exterior lines highly innovative technology.

 Can be used with existing Mifare

SmartCards

 Battery life up to 130,000

actuations or 10 years on stand-by

 Up to 64,000 SmartCards per

Smart Handle

 NFC compatible and networkable

Digital Locking Cylinder - 3061.SC

Digital locking cylinder with integrated RFID reader.

 Can be used with existing Mifare

SmartCards

 Up to 64,000 SmartCards or

transponders per cylinder

 Can be used with any Euro proﬁle

cylinder lock

 NFC compatible and networkable

Digital Smart Relay - 3063

The digital Smart Relay can serve as an access control reader or key switch for electrically actuated doors, gates, barriers and lifts for example.

 Winner of the Red Dot design

award 2010

 NFC compatible and networkable

Smart Card

Mifare Classic and Mifare DESFire standard cards.

 ISO 7816 format

Transponder 3064

Used for identiﬁcation purposes in the 3060 System.

 IP65 with bonded housing IP66

 Push button activation

 Battery life of 400,000 actuations

PIN Code Terminal - 3068

Battery operated Pin Code Terminal, integrated wirelessly in the 3060 System.

 500 PINs

 Dual veriﬁcation for use in

conjunction with SmartHandle, SmartRelay or Digital Cylinder

 Time zoned PINs

 Typical read range up to 40cm

(SmartHandle) or 120cm (SmartRelay)

Digital Padlocks - 3061.SC

Digital padlock with cylinder thumbturn.

 Shackle diameter 11mm

 Self-locking and Non self-locking

options

 Battery life up to 65,000

operations

 Operating temp; -25˚C to +55˚C

 Up to 64,000 Smart Cards per

padlock

 Network ready with integrated

Lock Node

www.allegion.com/uk

Briton 4800 Series - Hinges Briton 4800 Series - Hinges

High performance stainless steel hinges for commercial applications

The ﬁrst step in specifying hardware for any door is the method of hanging. Unless the door is to be ﬁtted with a ﬂoor spring the door will be ﬁtted with hinges, normally with 3 hinges per leaf (or more for larger or heavier doors, ﬁtted in a pattern in accordance with BS EN 1935). The use of high quality hinges which are accurately ﬁtted can have a signiﬁcant bearing on the operating characteristics of the door which in turn will aect the eciency of other hardware items, notably door closers and mortice locks.

Product ref. Size Dog bolt Material Grade Finish CE Classiﬁcation

4801 102 x 76 x 3 304 .SS / .PS 4 7 6 1 1 4 0 13

4802 102 x 89 x 3 304 .SS / .PS 4 7 6 1 1 4 0 13

4803 102 x 102 x 3 304 .SS / .PS 4 7 6 1 1 4 0 13

4801.316 102 x 76 x 3 316 .SS / .PS 4 7 6 1 1 4 0 13

4802.316 102 x 89 x 3 316 .SS / .PS 4 7 6 1 1 4 0 13

4803.316 102 x 102 x 3 316 .SS / .PS 4 7 6 1 1 4 0 13

4811 102 x 76 x 3

4812 102 x 89 x 3

4813 102 x 102 x 3

4811.316 102 x 76 x 3

4812.316 102 x 89 x 3

4813.316 102 x 102 x 3

304 .SS / .PS 4 7 6 1 1 4 0 13

316 .SS / .PS 4 7 6 1 1 4 0 13

Features & Beneﬁts

 Five knuckle ball bearing hinges.

 CE marked to EN 1935:2002 Grade 13.

 Suitable for timber and metal doors up to 120kgs.

 Template drilled for consistency and accuracy.

 Available in Grade 316 or Grade 304 stainless

steel and in satin or polished ﬁnish.

 Also available with machine screws for use with

metal doorsets.

 Options for security dog bolt.

76 89 102

102

all dimensions are in mm

4811 dog bolt variant

www.allegion.com/uk

For declaration of performance please go to the website

www.allegion.com/uk

Brio sliding door gear Normbau Cavere sanitary ﬁttings

Elegant design with expert engineering

Brio products combine precision materials with latest innovation to produce smooth operating, reliable door hardware which conform to internal testing of BS EN 1527. Timber and glass panels can utilise Brio’s Open Rail range which oers a modern, exposed industrial aesthetic while the Zero Clearance range provides seamless concealment of hardware. Brio’s Single Run provides numerous options making it a solution to all straight sliding applications.

Zero Clearance Glass

 Concealed hardware within the aluminium glazing strip

provides a 2.5mm shadow line between the top of the panel and the ceiling

 8 precision bearings per panel allows for easy, smooth

and silent operation

 Maximum capacity of 180kg makes it suitable for 10-

12mm thick toughened glass panels up to 3m high and

1.5m wide

 Stainless steel options enable use in wet space

applications

Single Run

 Dierent capacity systems from 80-350kg allows for

ﬂexibility in design and cost

 Precision bearings and numerous hanger ﬁxing options

for timber, aluminium, MDF and more makes Single Run truly versatile

Supporting people with physical disabilities

The Cavere range provides support for people with physical disabilities in their daily life so that they live in a comfortable environment. Designed by Danish architects C.F. Møller, cavere provides a unique combination of design simplicity whilst achieving strength and robustness without becoming a dominating presence.

Clear and elegant in design the range of bathroom ﬁttings have been designed so that they are simple and universally attractive, without compromising safety. The key element is the ergonomic triangular gripping proﬁle with semi- circular edges which ensures secure grab and support.

Cavere bathroom ﬁtting are available in a variety of ﬁnishes.

Metallic Metallic Brilliant Aubergine Anthracite Silver White

Zero Clearance Timber

 Hardware is installed within the top of the door allowing

for a 2.5mm shadow line between the top of the panel and ceiling

 Maximum capacity of 350kg allows this system to move

large room dividing panels within seconds

 Various ﬂoor guide options make panels appear as if they

ﬂoat between ﬂoor and ceiling which provides a truly minimal appearance

www.allegion.com/uk

Open Rail Glass

 Stainless steel strap ﬁxings provide a striking system

while nylon inlaid tyres move soundlessly over the stainless steel rail

 100kg capacity allows ﬂexibility of use with 8-12mm thick

toughened glass

Open Rail Timber

 Options of round or square rails, top or face ﬁx ﬁttings

and multiple guides make this striking system elegant and practical

 Exposed bearings with 150kg capacity for 2m wide

panels makes this system a unique balance between industrial and sleek

Antibacterial protection is built into each Cavere product, inhibiting the growth of harmful micro-organisms such as bacteria and mould.

www.allegion.com/uk

Zero Seals Allegion accreditations

Zero Door & Window Sealing Systems

Zero has been designing and manufacturing world class door and window sealing systems for over 90 years. Over the decades Zero has pioneered countless innovations for achieving maximum performance in door and window sealing systems. In the process, Zero has earned a worldwide reputation for exacting standards in the design and quality of its products.

ZERO air control seals

Silicone teardrop seals have been tested to BS476 Part 31.1 and EN1634.3 and have a leakage not exceeding 3m³/m/h i.e. less than 3 cubic metres per metre of frame crack per hour at 25 Pa.

They have been tested for air inﬁltration (positive pressure) where high pressure pushes the door against the seal, and also for the more onerous air exﬁltration (negative pressure) where high pressure pushes the door away from the seal. By specifying a complete “Air Control System” you can be assured that the components installed for head, jamb and sill perform properly together.

ZERO Soundtrap sealing systems

Our proven acoustic seal systems satisfy a wide range of common commercial and industrial sound-control applications for single swinging doors - as well as providing privacy behind pairs of doors for typical oce applications.

They provide STC 52 rating when properly ﬁtted with STC 55 or higher acoustic doors which satisﬁes the typical needs of recording studios, theatres and cinemas. They are also suitable for oce buildings and other commercial facilities that need to mute very loud noise originating from outside.

In particular Zero oers high quality specialist seals to stop the passage of ﬁre, smoke, sound, air pressure, EMI, RFI and weather. Zero’s wide range of seals can be categorised into the following main components:

Thresholds; from flat low thresholds to V3 and ramps.

Automatic drop seals; light duty through to heavy duty and fire rated patterns to EN1634.1.

Frame seals; mortice and surface fixed

Meeting stile seals; mortice and surface mounted options

Secondary frame seals; for acoustic performance

Sill sweeps; neoprene and brush seal options

Committed to achieving the highest levels of performance

Door & Hardware Federation

Allegion is member of the DHF which provides valuable information on the latest legislation and technical speciﬁcations which are developed in association with BSI.

Guild of Architectural Ironmongers

Allegion is represented on the trade body for architectural ironmongers and manufacturers. It has an internationally recognised education programme for technical consultants in the industry.

RIBA

Allegion is a provider of CPD programmes on various aspects of architectural ironmongery and door controls.

NBS Plus

Allegion is a long term subsriber to NBS Plus and is able to oer the recognised national standard speciﬁcation system for the UK construction industry.

Kitemark

The Kitemark - instantly recognised worldwide as a symbol of trust, integrity and quality is a registered certiﬁcation mark owned and awarded by BSI.

Guarantees

All Allegion products are provided with extended guarantee periods of up to 10 years.

FM 00401

OHS 554851

EMS 66705

BS EN ISO 9001 Certiﬁcation

Allegion operates under the world’s most widely recognized management, health and safety and environmental standards.

Through continuous monitoring this ensures we maintain consistently high levels of performance and service in all areas of our business.

UKAS and ANAB

Our ISO 9001, ISO 14001 and ISO 18001 certiﬁcations are all assessed to national and international standards, using BSI who are accredited by UKAS and ANAB.

CE marking

Allegion is committed to CE marking of products wherever possible to meet EU safety, health or environmental requirements and is an indicator of a product’s compliance with EU legislation.

Certiﬁre approval

Recognised by regulatory authorities worldwide, the CERTIFIRE scheme is an internationally respected mark of ﬁre safety and one of the most authoritative in the industry. Many Allegion products have Certiﬁre approval.

BS 8300

Wherever appropriate, Allegion provides products and solutions to meet the recommendations of BS 8300 (meeting the needs of disabled people - code of practice).

Incorporating DSMA & ABHM

www.allegion.com/uk

Market solutions Market solutions

Market solutions Product solutions for dierent market needs

Keeping people safe and secure where they work, rest and visit

Our products are tested to the latest European standards, CE marked where relevant and Certiﬁre approved.

Allegion oers a suite of around-the-door safety and security solutions to meet your customer's needs. Whether you're looking to secure a commercial or residential building, we have a range of mechanical and electronic solutions.

It is our belief that, by providing your customers with a portfolio of innovative brands such as Briton, SimonsVoss Technologies and Schlage, Allegion can create unique product packages which integrate together to work in a variety of industries.

HEALTHCARE

Market sectors

Requirements within the built environment can vary signiﬁcantly depending on the application. Whilst Allegion products are, in general, designed to suit the most generic requirements, many of them incorporate features which are particularly beneﬁcial in certain market solutions.

Healthcare Durable and hygienic solutions Antibacterial handles and grab rails with built in protection

Education Total lockdown facility for security

and peace of mind

Commercial Traditional and premium door

furniture solutions which are used

frequently

Hospitality Convenience and easy access Safe, secure and reliable solutions when on the go

Experts by your side

Our professional speciﬁcation writers are skilled in guiding you to selecting the most appropriate products for each speciﬁc market solution based on performance, certiﬁcation, aesthetics and budget.

to prevent the growth of harmful micro-organisms in healthcare environments

Manage access easily with one co-ordinated range of products for schools, colleges and universities

Helping keep people safe and secure where they work

Leisure Functional, reliable and convenient

door solutions

Transportation Heavy duty, durable products

that withstand high usage

Accessible and durable products that are built to last and aids high people traffic around the building

Safeguarding people on the move. Providing life safety solutions for passengers, workers and visitors

EDUCATION COMMERCIAL HOSPITALITY LEISURE TRANSPORT

www.allegion.com/uk

100

www.allegion.com/uk

101

About Allegion

Allegion (NYSE: ALLE) is a global pioneer in safety and security, with leading brands

like CISA

, Interﬂex®, LCN®, Schlage® and Von Duprin®. Focusing on security around the door and adjacent areas, Allegion produces a range of solutions for homes, businesses, schools and other institutions. Allegion is a $2 billion company, with products sold in almost 130 countries.

For more, visit allegion.com/uk

Cl/Sfb

Uniclass

November 2016

(31.59)

L4181

Allegion (UK) Limited

35 Rocky Lane, Aston Birmingham B6 5RQ

Tel: +44 (0) 121 380 2400 Email: contactuk@allegion.com Web: allegion.com/uk

www.allegion.com/uk

102

Allegion International AG

Dubai United Arab Emirates

Tel: +971 4 818 8999 Email: contactmea@allegion.com Web: allegion.com

Allegion Briton User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
