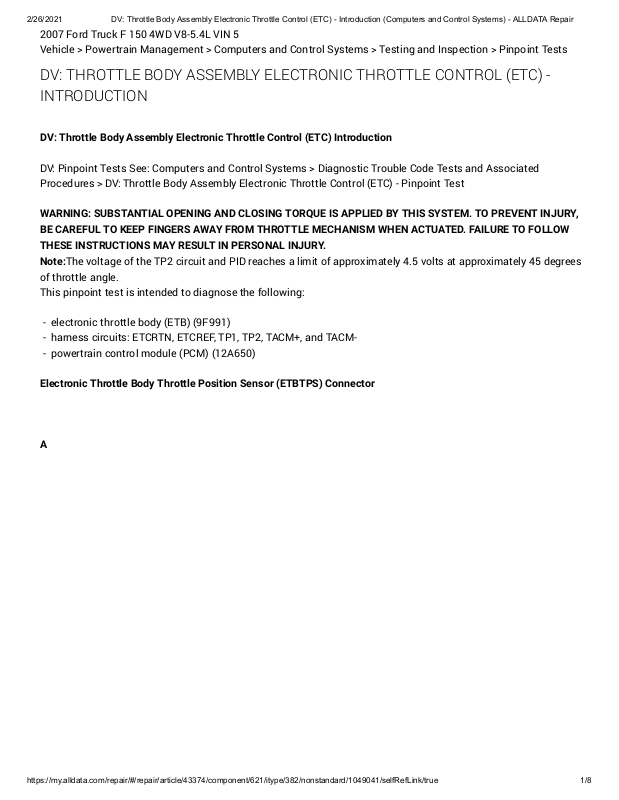

2007 Ford Truck F 150 4WD V8-5.4L VIN 5
Vehicle > Powertrain Management > Computers and Control Systems > Testing and Inspection > Pinpoint Tests
DV: THROTTLE BODY ASSEMBLY ELECTRONIC THROTTLE CONTROL (ETC) INTRODUCTION
DV: ( ) IntroductionThrottle Body Assembly Electronic Throttle Control ETC
DV: Pinpoint Tests See: Computers and Control Systems > Diagnostic Trouble Code Tests and Associated
Procedures > DV: Throttle Body Assembly Electronic Throttle Control (ETC) - Pinpoint Test
WARNING: SUBSTANTIAL OPENING AND CLOSING TORQUE IS APPLIED BY THIS SYSTEM. TO PREVENT INJURY,
BE CAREFUL TO KEEP FINGERS AWAY FROM WHEN ACTUATED. FAILURE TO FOLLOW
THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
THROTTLE MECHANISM
Note:The voltage of the TP2 circuit and PID reaches a limit of approximately 4.5 volts at approximately 45 degrees
of throttle angle.
This pinpoint test is intended to diagnose the following:
-electronic throttle body (ETB) (9F991)
-harness circuits: ETCRTN, ETCREF, TP1, TP2, TACM+, and TACM-powertrain control module (PCM) (12A650)

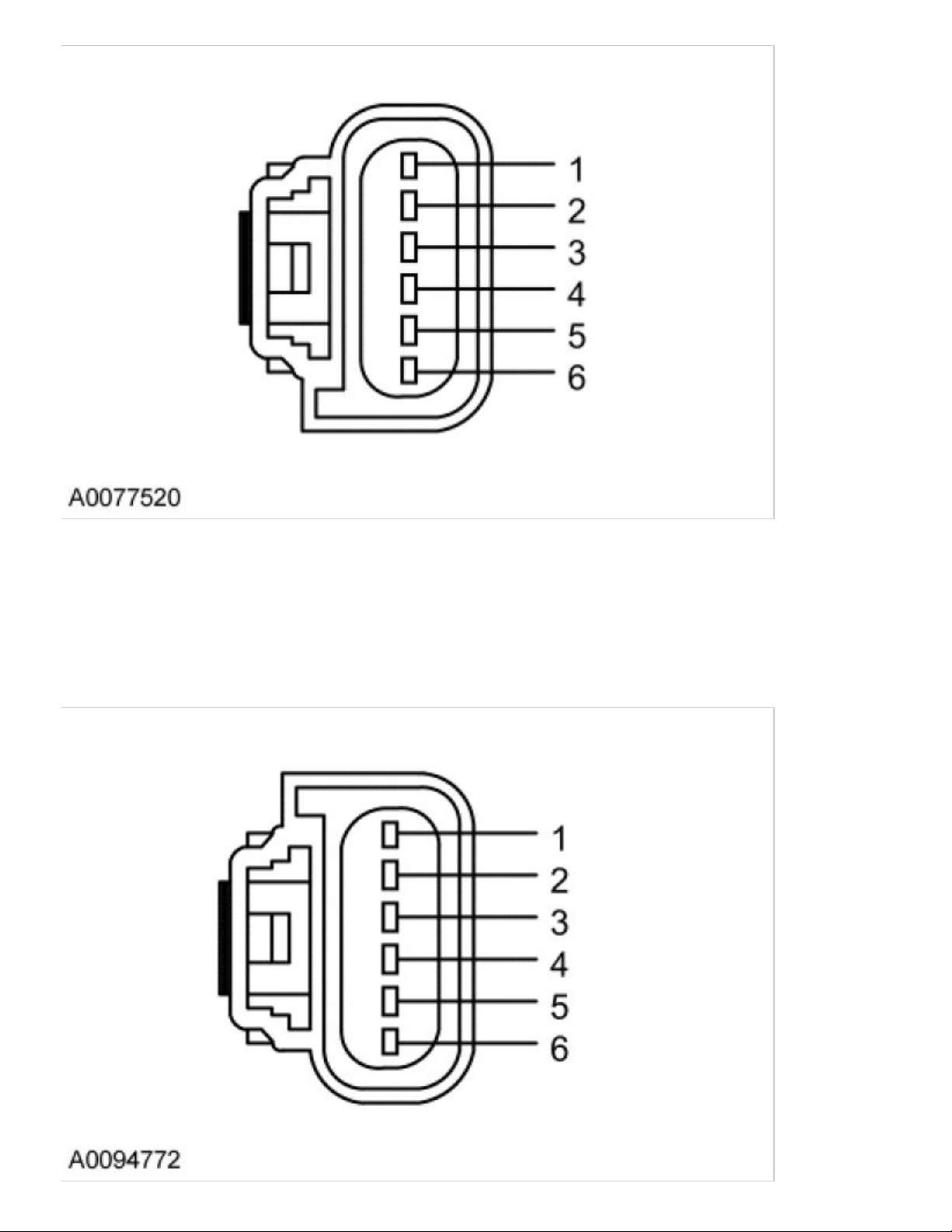

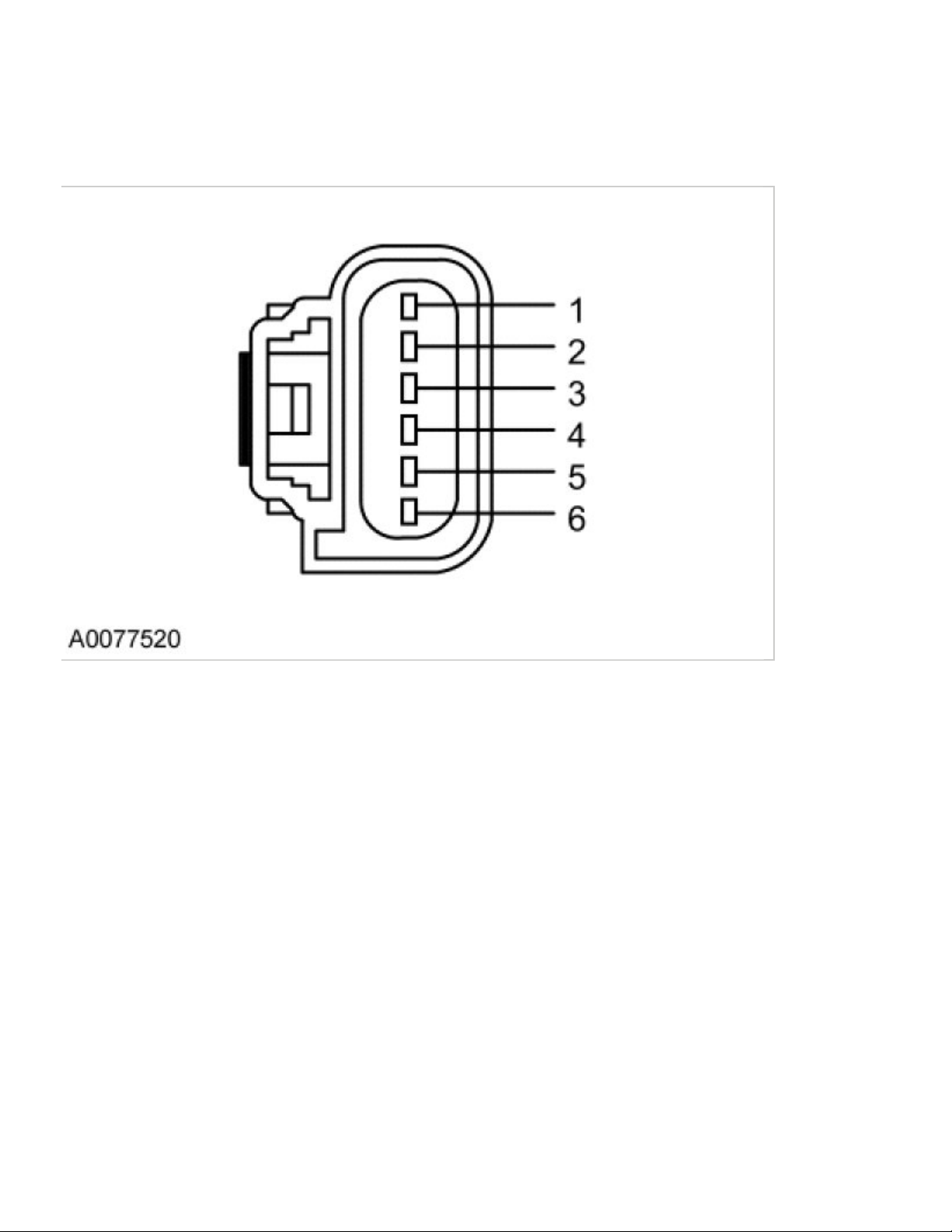

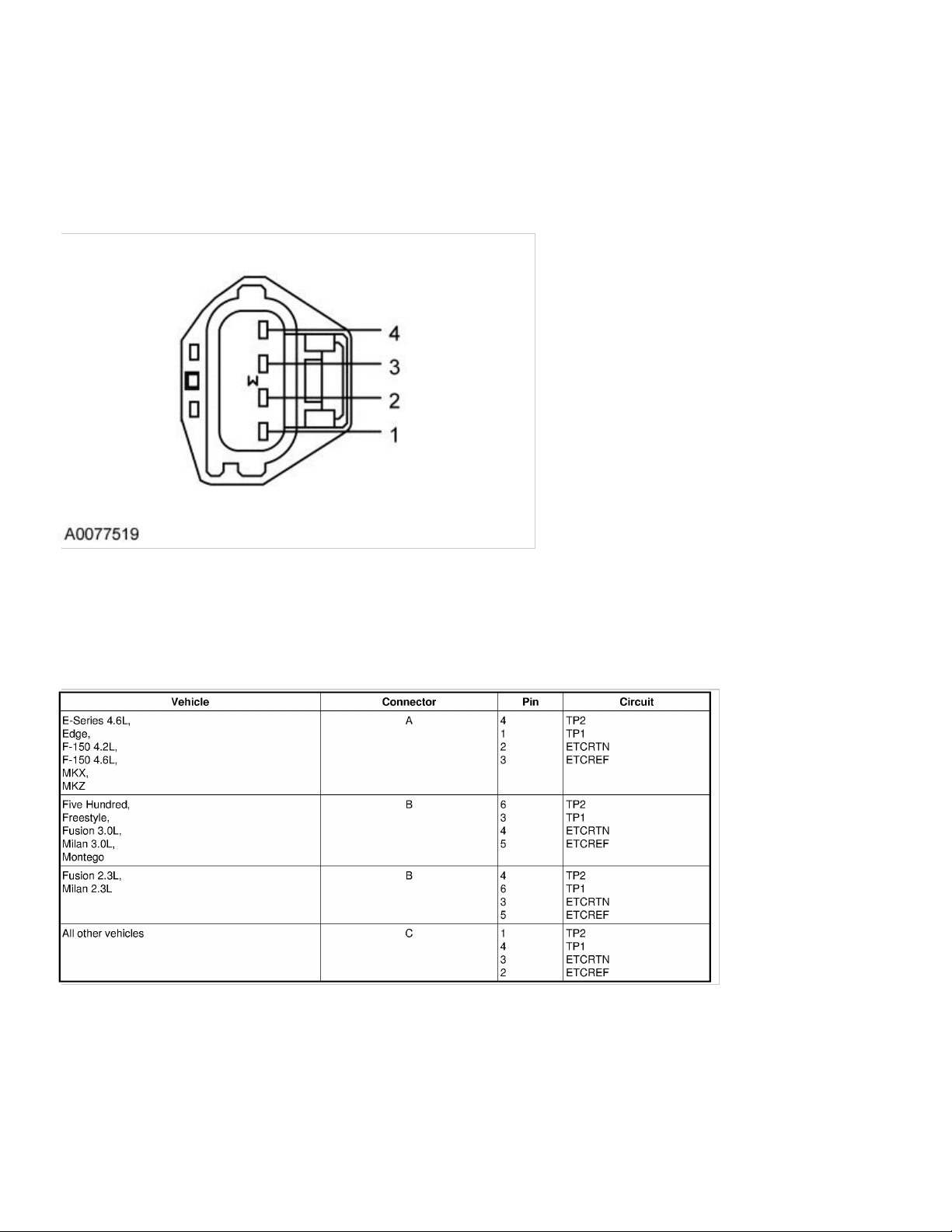

(ETBTPS) ConnectorElectronic Throttle Body Throttle Position Sensor
A
https://my.alldata.com/repair/#/repair/article/43374/component/621/itype/382/nonstandard/1049041/selfRefLink/true 1/8
Page 2
2/26/2021 DV: Throttle Body Assembly Electronic Throttle Control (ETC) - Introduction (Computers and Control Systems) - ALLDATA Repair
B
https://my.alldata.com/repair/#/repair/article/43374/component/621/itype/382/nonstandard/1049041/selfRefLink/true 2/8
Page 3
2/26/2021 DV: Throttle Body Assembly Electronic Throttle Control (ETC) - Introduction (Computers and Control Systems) - ALLDATA Repair
C

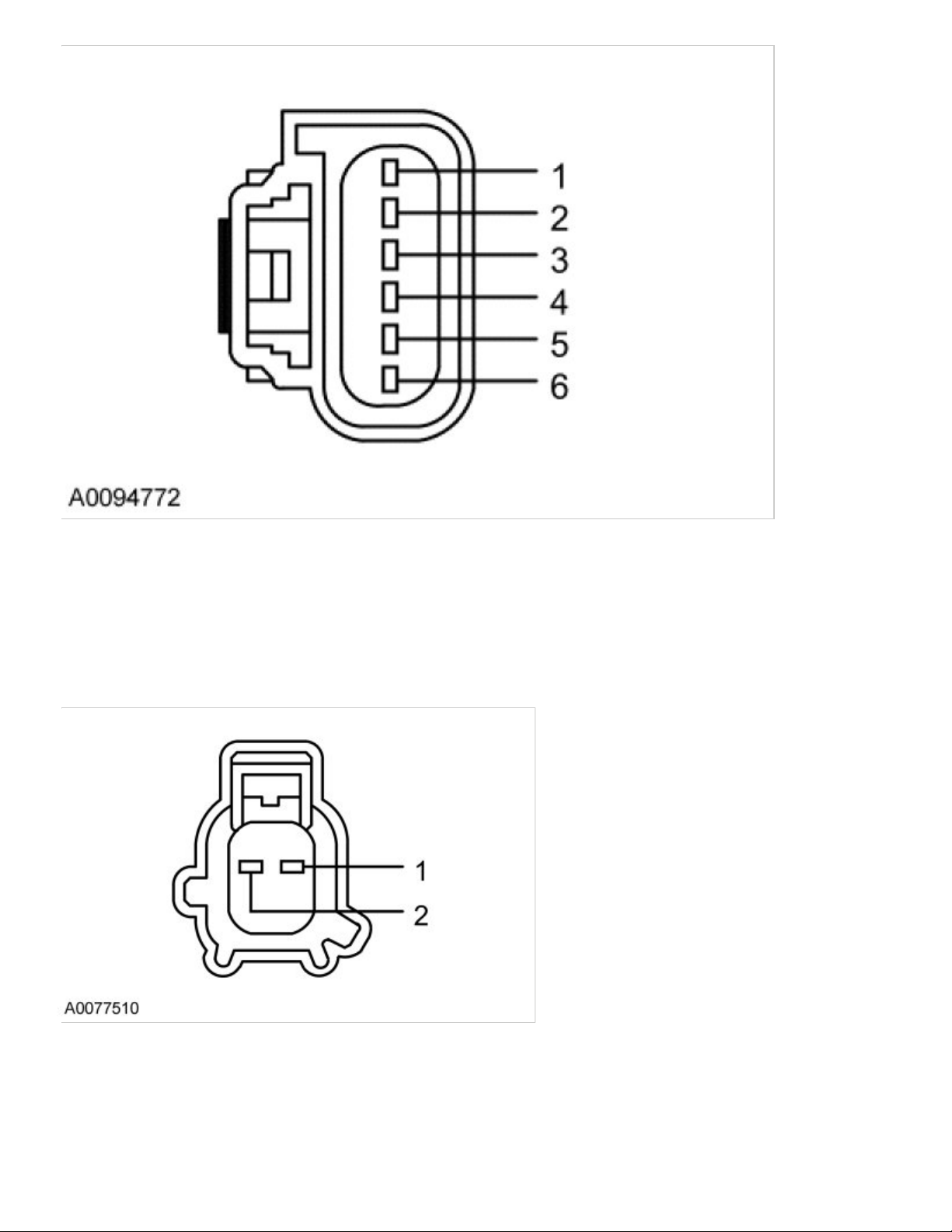

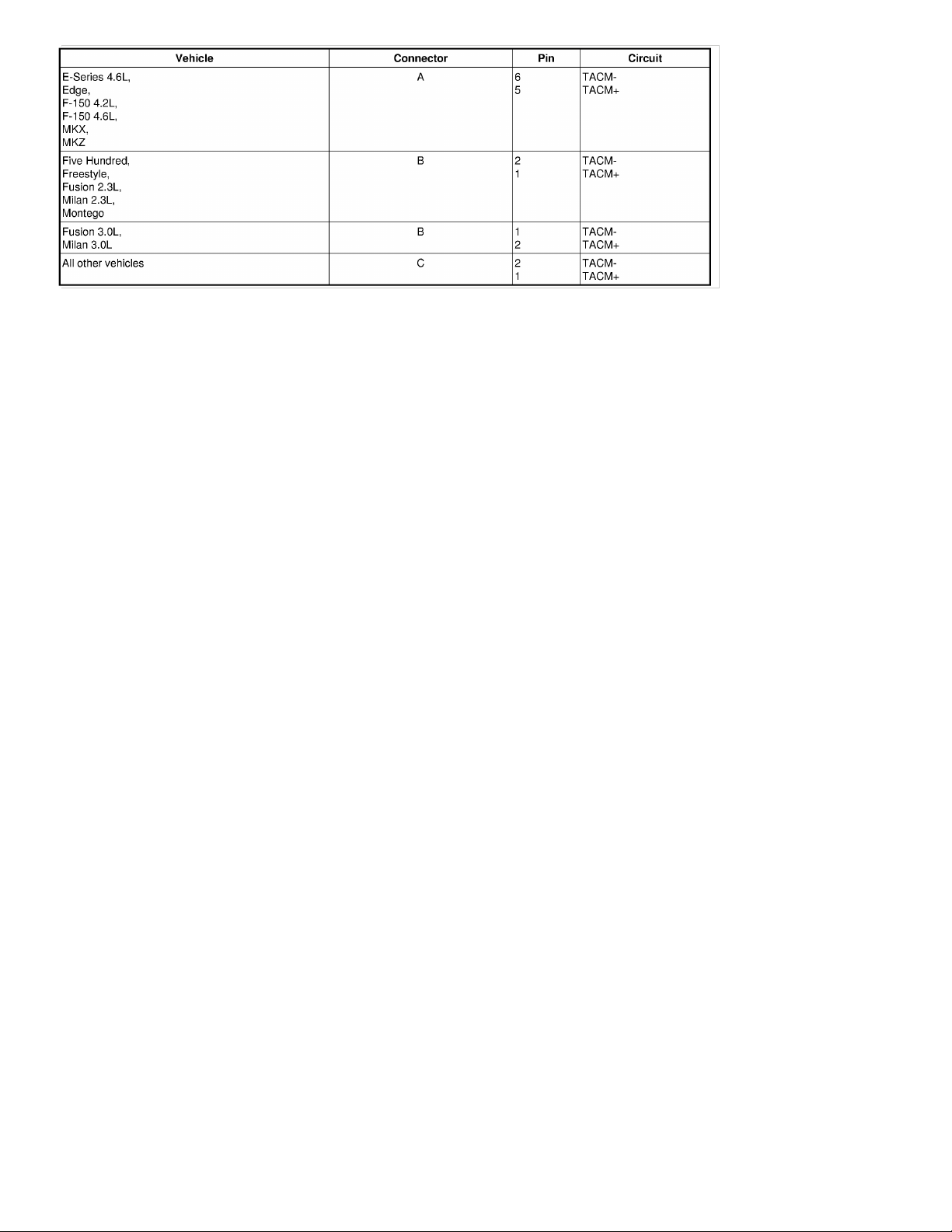

(ETBTACM) ConnectorElectronic Throttle Body Throttle Actuator Control Motor
https://my.alldata.com/repair/#/repair/article/43374/component/621/itype/382/nonstandard/1049041/selfRefLink/true 3/8
Page 4
2/26/2021 DV: Throttle Body Assembly Electronic Throttle Control (ETC) - Introduction (Computers and Control Systems) - ALLDATA Repair
A
B
https://my.alldata.com/repair/#/repair/article/43374/component/621/itype/382/nonstandard/1049041/selfRefLink/true 4/8
Page 5
2/26/2021 DV: Throttle Body Assembly Electronic Throttle Control (ETC) - Introduction (Computers and Control Systems) - ALLDATA Repair
C
https://my.alldata.com/repair/#/repair/article/43374/component/621/itype/382/nonstandard/1049041/selfRefLink/true 5/8
Page 6
2/26/2021 DV: Throttle Body Assembly Electronic Throttle Control (ETC) - Introduction (Computers and Control Systems) - ALLDATA Repair

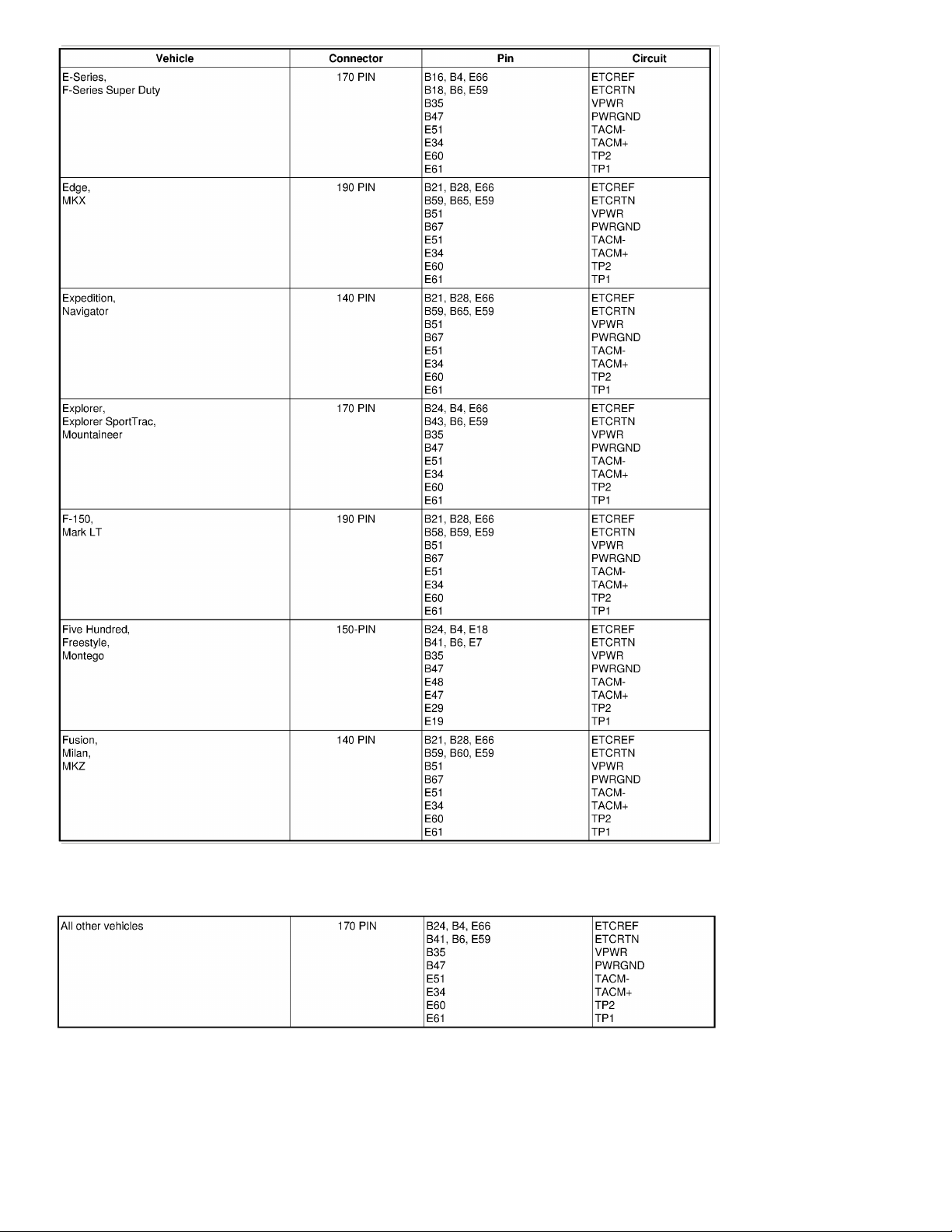

Powertrain (PCM) ConnectorControl Module
For PCM connector views or reference values, refer to Section 6 See: Computers and Control Systems > Diagnostic
Trouble Code Tests and Associated Procedures > SECTION 6: Reference Values.
