A-Link WL54, WL54AP2 User Manual

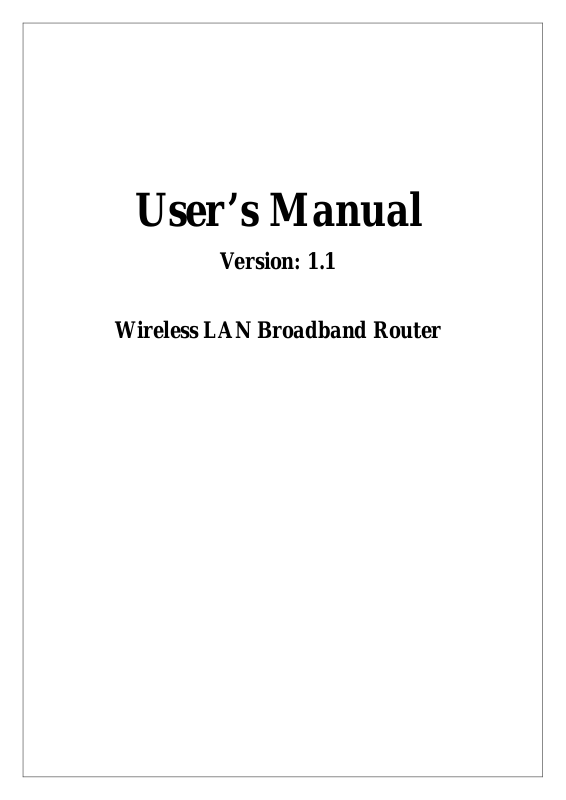

User’s Manual

Version: 1.1

Wireless LAN Broadband Router

Trademarks

Copyright @2005
Contents are subject to change without notice.
All trademarks belong to their respective proprietors.

Copyright Statement

THIS DOCUMENT CONTAINS OF PROPRIETARY TECHNICAL INFORMATION THAT IS THE PROPERTY OF
THIS COMPANY. AND NO PART OF THIS DOCUMENTATION MAY BE REPRODUCED, STORED IN A RETRIEVAL
SYSTEM OR TRANSMITTED IN ANY FORM OR BY ANY MEANS, ELECTRICAL OR MECHANICAL, BY
PHOTOCOPYING, RECORDING, OR OTHERWISE, WITHOUT THE PRIOR WRITTEN CONSENT OF THIS
COMPANY.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenc e
to radio or television reception, which can be determined by turning th e equi pment off and on, the user is enco uraged to
try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the follo wing two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interferenc e
that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved b y the party responsible for compliance could voi d
the user's authority to operate this equipment.

IMPORTANT NOTE:
FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled enviro nment. This equipment
should be installed and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0

Table of Contents

REVISION HISTORY .....................................................................................................................I

TERMINOLOGY...........................................................................................................................II

1 INTRODUCTION....................................................................................................................1

1.1 PACKAGE CONTENTS............................................................................................................1

1.2 PRODUCT SPECIFICATIONS ................................................................................................... 1

1.3 PRODUCT FEATURES ............................................................................................................ 2

1.4 FRONT PANEL DESCRIPTION................................................................................................. 3

1.5 REAR PANEL DESCRIPTION................................................................................................... 4

2 INSTALLATION ..................................................................................................................... 6

2.1 HARDWARE INSTALLATION .................................................................................................. 6

2.2 SOFTWARE INSTALLATION.................................................................................................... 6

3 SOFTWARE CONFIGURATION ......................................................................................... 7

3.1 PREP ARE YOUR PC TO CONFIGURE THE WLAN BROADBAND ROUTER ................................ 7

3.2 CONNECT TO THE WLAN BROADBAND ROUTER ................................................................. 9

3.3 MANAGEMENT AND CONFIGURATION ON THE WLAN BROADBAND ROUTER ....................... 9

3.3.1 Status.......................................................................................................................... 9

3.3.2 Setup Wizard............................................................................................................ 11

I Operation Mode........................................................................................................... 11

II Time Zone Setting........................................................................................................ 12

III LAN Interface Setup................................................................................................ 12

IV WAN Interface Setup............................................................................................... 13

V Wireless Basic Settings................................................................................................ 13

VI Wireless Security Setup ........................................................................................... 14

3.3.3 Operation Mode....................................................................................................... 14

3.3.4 Wireless - Basic Settings..........................................................................................15

3.3.5 Wireless - Advanced Settings .................................................................................. 16

3.3.6 Wireless - Security Setup......................................................................................... 18

I WEP Key Setup ........................................................................................................... 20

3.3.7 Wireless - Access Control........................................................................................ 21

3.3.8 WDS Settings........................................................................................................... 22

i

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0

I WDS Security Setup.................................................................................................... 23

II WDS AP Table.............................................................................................................24

3.3.9 Site Survey............................................................................................................... 25

3.3.10 LAN Interface Setup................................................................................................ 25

3.3.11 WAN Interface Setup............................................................................................... 27

I Static IP........................................................................................................................ 27

II DHCP Client................................................................................................................ 28

III PPPoE ...................................................................................................................... 30

IV PPTP ........................................................................................................................ 32

3.3.12 Firewall - Port Filtering ........................................................................................... 33

3.3.13 Firewall - IP Filtering............................................................................................... 34

3.3.14 Firewall - MAC Filtering......................................................................................... 35

3.3.15 Firewall - Port Forwarding....................................................................................... 36

3.3.16 Firewall - DMZ........................................................................................................ 38

3.3.17 VPN Setting............................................................................................................. 38

I VPN Setup - Edit Tunnel ............................................................................................. 40

II Advanced IKE Setup.................................................................................................... 42

3.3.18 Management - Statistics........................................................................................... 43

3.3.19 Management - DDNS .............................................................................................. 44

3.3.20 Management - Time Zone Setting............................................................................ 45

3.3.21 Management - Log................................................................................................... 45

3.3.22 Management - Upgrade Firmware........................................................................... 46

3.3.23 Management Save/ Reload Settings......................................................................... 47

3.3.24 Management - Password Setup................................................................................ 48

3.3.25 Logout...................................................................................................................... 48

4 FREQUENTLY ASKED QUESTIONS (FAQ).................................................................... 50

4.1 W

4.2 W

HAT AND HOW TO FIND MY PC’S IP AND MAC ADDRESS?............................................... 50

HAT IS WIRELESS LAN? ................................................................................................. 50

4.3 WHAT ARE ISM BANDS? .................................................................................................... 50

4.4 HOW DOES WIRELESS NETWORKING WORK?....................................................................... 50

4.5 WHAT IS BSSID? ............................................................................................................... 51

4.6 WHAT IS ESSID? ............................................................................................................... 51

4.7 W

HAT ARE POTENTIAL FACTORS THAT MAY CAUSES INTERFERENCE? ................................. 52

4.8 WHA T ARE THE OPEN SYSTEM AND SHARED KEY AUTHENTICA TIONS?.............................. 52

4.9 WHAT IS WEP?..................................................................................................................52

4.10 W

ii

HAT IS FRAGMENT THRESHOLD?..................................................................................... 52

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0

4.11 WHAT IS RTS (REQUEST TO SEND) THRESHOLD?.............................................................. 53

4.12 WHAT IS BEACON INTERVAL?............................................................................................. 53

4.13 WHAT IS PREAMBLE TYPE?................................................................................................ 54

4.14 WHAT IS SSID BROADCAST? ............................................................................................. 54

4.15 WHAT IS WI-FI PROTECTED ACCESS (WPA)? .................................................................... 54

4.16 WHAT IS WPA2?................................................................................................................ 55

4.17 WHAT IS 802.1X AUTHENTICATION? .................................................................................. 55

4.18 WHAT IS TEMPORAL KEY INTEGRITY PROTOCOL (TKIP)? ................................................. 55

4.19 WHAT IS ADVANCED ENCRYPTION STANDARD (AES)? ...................................................... 55

4.20 WHAT IS INTER-ACCESS POINT PROTOCOL (IAPP)?........................................................... 55

4.21 WHAT IS WIRELESS DISTRIBUTION SYSTEM (WDS)?......................................................... 56

4.22 WHAT IS UNIVERSAL PLUG AND PLAY (UPNP)?................................................................. 56

4.23 WHAT IS MAXIMUM TRANSMISSION UNIT (MTU) SIZE?.................................................... 56

4.24 WHAT IS CLONE MAC ADDRESS?...................................................................................... 56

4.25 WHAT IS DDNS?................................................................................................................ 56

4.26 WHAT IS NTP CLIENT? ...................................................................................................... 56

4.27 WHAT IS VPN?................................................................................................................... 56

4.28 WHAT IS IPSEC?................................................................................................................ 57

5.1 EXAMPLE ONE – PPPOE ON THE WAN ................................................................................... 58

5.2 EXAMPLE TWO – FIXED IP ON THE WAN ................................................................................ 60

iii

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0

Revision History

DATE REVISION OF USER’S MANUAL FIRMWARE

2005/4/7 First release (Version 1.0) V1.2.0
2005/6/15 Add product with SMA Antenna info V1.2.x

i

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0

Terminology

3DES Triple Data Encryption S tandard
AES Advanced Encryption Standard
ANSI American National Standards Institute
AP Access Point
CCK Complementary Code Keying
CSMA/CA Carrier Sense Multiple Access/ Collision Avoidance
CSMA/CD Carrier Sense Multiple Access/ Collision Detection
DDNS Dynamic Domain Name Server
DH Diffie-Hellman Algorithm
DHCP Dynamic Host Configuration Protocol
DSSS Direct Sequence Spread Spectrum
EAP Extensible Authentication Protocol
ESP Encapsulating Security Payload
FCC Federal Communications Commission
FTP File Transfer Protocol
IEEE Institute of Electrical and Electronic Engineers
IKE Internet Key Exchange
IP Internet Protocol
ISM Industrial, Scientific and Medical
LAN Local Area Network
MAC Media Access Control
MD5 Message Digest 5
NAT Network Address Translation
NT Network Termination
NTP Network Time Protocol
PPTP Point to Point Tunneling Protocol
PSD Power Spectral Density
RF Radio Frequency
SHA1 Secure Hash Algorithm
SNR Signal to Noise Ratio
SSID Service Set Identification
TCP Transmission Control Protocol
TFTP Trivial File Transfer Protocol

ii

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0

TKIP Temporal Key Integrity Protocol
UPNP Universal Plug and Play
VPN Virtual Private Network
WDS Wireless Distribution System
WEP Wired Equivalent Privacy
WLAN Wireless Local Area Network
WPA Wi-Fi Protected Access

iii

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0

1 Introduction

The Wireless LAN Broadband Router is an affordable IEEE 802.11b/g wireless LAN
broadband router solution; setting SOHO and enterprise standard for high performance, secure,
manageable and reliable WLAN.

This document describes the steps required for the initial IP address assign and other WLAN
router configuration. The description includes the implementation of the above steps.

1.1 Package contents

The package of the WLAN Broadband Router includes the following items,

9 The WLAN Broadband Router
9 The AC to DC power adapter
9 The Documentation CD
9 1.8M RJ-45 Cable Line

1.2 Product Specifications

Product Name WLAN Broadband Router
Standard 802.11b/g(Wireless), 802.3(10BaseT), 802.3u(100BaseT)
Data Transfer Rate 54Mbps(Wireless), 100Mbps(Ethernet)
Modulation Method CCK(802.11b), OFDM(802.11g)
Frequency Band 2.4GHz – 2.497GJz ISM Band, DSSS
RF Output Power CCK< 17 dBm, OFDM< 13.5 dBm
Receiver Sensitivity 802.11b -80 dBm@8%, 802.11g -68 dBm@5%
Operation Range 30 to 280 meters (depend on surrounding)
Antenna External Antenna
LED Power, Active (WLAN), Act/Link (Ethernet)
Security 64 bit/ 128 bit WEP, WPA, WPA2, port filtering, IP filtering,

LAN interface One 10/100BaseT with RJ45 connector (WAN)

MAC filtering, port forwarding and DMZ hosting

Four 10/100BaseT with RJ45 connectors (LAN)
Power Consumption 7.5V DC Power Adapter
Operating Temperature 0 ~ 50oC ambient temperature
Storage Temperature -20 ~ 70oC ambient temperature
Humidity 5 to 90 % maximum (non-condensing)
Dimension 137 x 96 x 35 mm

1

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0

1.3 Product Features

¾ Complies with IEEE 802.11b/g standard for 2.4GHz Wireless LAN.
¾ Supports bridging, routing, VPN, WISP functions between wireless and wired

Ethernet interfaces.

¾ Supports 64-bit and 128-bit WEP, WPA, WPA2 encryption/decryption function to

protect the wireless data transmission.

¾ Supports IEEE 802.1x Authentication.
¾ Support W i-Fi Protected Access Authentica tion with Radius and Pre-Shared Key

mode.

¾ Supports Inter-Access Point Protocol (IAPP).
¾ Supports Wireless Distribution System (WDS).
¾ Supports IEEE 802.3x full duplex flow control on 10/100M Ethernet interface.
¾ Supports DHCP server to provide clients auto IP addresses assignment.
¾ Supports DHCP client for Ethernet WAN interface auto IP address assignment.
¾ Supports static and dynamic IP routing.
¾ Supports PPPoE on Ethernet WAN interface.
¾ Supports clone MAC address function.
¾ Supports firewall security with port filtering, IP filtering, MAC filtering, port

forwarding, trigger port and DMZ hosting functions.

¾ Supports WEB based management and configuration.
¾ Supports PPTP Client on Ethernet WAN interface.
¾ Supports UPnP for automatic Internet access.
¾ Supports Dynamic DNS service.
¾ Supports NTP client service.
¾ Supports Log table and remote Log service.
¾ Support Setup Wizard mode.
¾ Supports V irtual Private Network (VPN) connection.
¾ Supports IPSEC tunnel encryption(3DES/AES128) and authentication(MD5/SHA1)
¾ Supports WISP (Wireless ISP).

2

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0

1.4 Front Panel Description

Power LED
WLAN LED

LAN LED

Figure 1 –WLAN Broadband Router Front Panel

LED Indicator State Description

WAN LED

1. Power LED

2. WLAN LED

3. WAN LED

ACT

10/100M

4. LAN LED

On

Off
Flashing

Off

Flashing

Off

On

Off

The WLAN Broadband Router is powered on.
The WLAN Broadband Router is powered off.

Data is transmitting or receiving on the
antenna.
No data is transmitting or receiving on the
antenna.

Data is transmitting or receiving on the WAN
interface.
No data is transmitting or receiving on the
WAN interface.
Connection speed is 100Mbps on WAN
interface.
Connection speed is 10Mbps on WAN
interface.

ACT

Flashing

Data is transmitting or receiving on the LAN
interface.

Off

No data is transmitting or receiving on the LAN
interface.

10/100M

On

Connection speed is 100Mbps on LAN
interface.

3

Off

Connection speed is 10Mbps on LAN interface.

r

r

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0

1.5 Rear Panel Description

Fixed Antenna

Reset

WAN

Figure 2 – WLAN Broadband Router Rear Panel (Fixed Antenna)

LAN Powe

SMA Antenna

WAN

LAN Powe

Reset

Figure 2.1 – WLAN Broadband Router Rear Panel (SMA Antenna)

4

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0

Interfaces Description

1. Antenna

(Fixed / SMA)

The Wireless LAN Antenna.

(Figure 2 / Figure 2.1)

2. Reset Push continually the reset button 5 ~ 10 seconds to reset the

configuration parameters to factory defaults.

3. WAN

The RJ-45 socket allows WAN connection through a Category
5 cable. Support auto-sensing on 10/100M speed and half/ full
duplex; comply with IEEE 802.3/ 802.3u respectively.

4. LAN

The RJ-45 sockets allow LAN connection through Category 5
cables. Support auto-sensing on 10/100M speed and half/ full
duplex; comply with IEEE 802.3/ 802.3u respectively.

5. Power

The power jack allows an external DC +7.5 V power supply
connection.
The external AC to DC adaptor provide adaptive power
requirement to the WLAN Broadband Router.

5

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0

2 Installation

2.1 Hardware Installation

Step 1: Place the Wireless LAN Broadband Router to the best optimum transmission

location. The best transmission location for your WLAN Broadband Router is
usually at the geographic center of your wireless network, with line of sign to all
of your mobile stations.

Step 2: Connect the WLAN Broadband Router to your wired network. Connect the

Ethernet WAN interface of WLAN Broadband Router by category 5 Ethernet
cable to your switch/ hub/ xDSL modem or cable modem. A straight-through
Ethernet cable with appropriate cable length is needed.

Step 3: Supply DC power to the WLAN Broadband Router. Use only the AC/DC power

adapter supplied with the WLAN Broadband Router; it may occur damage by
using a different type of power adapter.

The hardware installation finished.

2.2 Software Installation

¾ There are no software drivers, patches or utilities installation needed, but only the

configuration setting. Please refer to chapter 3 for software configuration.

Notice: It will take about 55 seconds to complete the boot up sequence after

powered on the WLAN Broadband Router; Power LED will be active,
and after that the WLAN Activity LED will be flashing to show the
WLAN interface is enabled and working now.

6

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0

3 Software configuration

There are web based management and configuration functions allowing you to have the jobs
done easily.

The WLAN Broadband Router is delivered with the following factory default parameters on
the Ethernet LAN interfaces.

Default IP Address: 192.168.1.254
Default IP subnet mask: 255.255.255.0
WEB login User Name: <empty>
WEB login Password: <empty>

3.1 Prepare your PC to configure the WLAN Broadband Router

For OS of Microsoft Windows 95/ 98/ Me:

1. Click the Start button and select Settings, then click Control Panel. The Control

Panel window will appear.

Note: Windows Me users may not see the Network control panel. If so, select View
all Control Panel options on the left side of the window

2. Move mouse and double-click the right button on Network icon. The Network

window will appear.

3. Check the installed list of Network Components. If TCP/IP is not installed, click the

Add button to install it; otherwise go to step 6.

4. Select Protocol in the Network Component Type dialog box and click Add button.

5. Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK

button to install the TCP/IP protocol, it may need the Microsoft Windows CD to
complete the installation. Close and go back to Network dialog box after the TCP/IP
installation.

6. Select TCP/IP and click the properties button on the Network dialog box.

7. Select Specify an IP address and type in values as following example.
9 IP Address: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is

good to connect the Wireless LAN Access Point.

9 IP Subnet Mask: 255.255.255.0

8. Click OK and reboot your PC after completes the IP parameters setting.

For OS of Microsoft Windows 2000, XP:

1. Click the Start button and select Settings, then click Control Panel. The Control

7

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0

Panel window will appear.

2. Move mouse and double-click the right button on Network and Dial-up Connections

icon. Move mouse and double-click the Local Area Connection icon. The Local Area

Connection window will appear. Click Properties button in the Local Area
Connection window.

3. Check the installed list of Network Components. If TCP/IP is not installed, click the

Add button to install it; otherwise go to step 6.

4. Select Protocol in the Network Component Type dialog box and click Add button.

5. Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK

button to install the TCP/IP protocol, it may need the Microsoft Windows CD to
complete the installation. Close and go back to Network dialog box after the TCP/IP
installation.

6. Select TCP/IP and click the properties button on the Network dialog box.

7. Select Specify an IP address and type in values as following example.
9 IP Address: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is

good to connect the Wireless LAN Access Point.

9 IP Subnet Mask: 255.255.255.0

8. Click OK to completes the IP parameters setting.

For OS of Microsoft Windows NT:

1. Click the Start button and select Settings, then click Control Panel. The Control

Panel window will appear.

2. Move mouse and double-click the right button on Network icon. The Network

window will appear. Click Protocol

tab from the Network window.

3. Check the installed list of Network Protocol window. If TCP/IP is not installed, click

the Add button to install it; otherwise go to step 6.

4. Select Protocol in the Network Component Type dialog box and click Add button.

5. Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK

button to install the TCP/IP protocol, it may need the Microsoft Windows CD to
complete the installation. Close and go back to Network dialog box after the TCP/IP
installation.

6. Select TCP/IP and click the properties button on the Network dialog box.

7. Select Specify an IP address and type in values as following example.
9 IP Address: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is

good to connect the Wireless LAN Access Point.

9 IP Subnet Mask: 255.255.255.0

8. Click OK to complete the IP parameters setting.

8

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0

3.2 Connect to the WLAN Broadband Router

Open a WEB browser, i.e. Microsoft Internet Explore, then enter 192.168.1.254 on the
URL to connect the WLAN Broadband Router.

3.3 Management and configuration on the WLAN Broadband Router

3.3.1 Status

This page shows the current status and some basic settings of the device, includes
system, wireless, Ethernet LAN and WAN configuration information.

Screen snapshot – Status

Item Description

System
Uptime It shows the duration since WLAN Broadband Router is

powered on.

Firmware version It shows the firmware version of WLAN Broadband

Router.

9

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0

Wireless configuration
Mode It shows wireless operation mode
Band It shows the current wireless operating frequency.
SSID It shows the SSID of this WLAN Broadband Router.

The SSID is the unique name of WLAN Broadband
Router and shared among its service area, so all devices

attempts to join the same wireless network can identify it.
Channel Number It shows the wireless channel connected currently.
Encryption It shows the status of encryption function.
Associated Clients It shows the number of connected clients (or stations,

PCs).
BSSID It shows the BSSID address of the WLAN Broadband

Router. BSSID is a six-byte address.
LAN configuration
IP Address It shows the IP address of LAN interfaces of WLAN

Broadband Router.
Subnet Mask It shows the IP subnet mask of LAN interfaces of WLAN

Broadband Router.
Default Gateway It shows the default gateway setting for LAN interfaces

outgoing data packets.
DHCP Server It shows the DHCP server is enabled or not.
MAC Address It shows the MAC address of LAN interfaces of WLAN

Broadband Router.
WAN configuration
Attain IP Protocol It shows how the WLAN Broadband Router gets the IP

address. The IP address can be set manually to a fixed

one or set dynamically by DHCP server or attain IP by

PPPoE / PPTP connection.
IP Address It shows the IP address of WAN interface of WLAN

Broadband Router.
Subnet Mask It shows the IP subnet mask of WAN interface of WLAN

Broadband Router.
Default Gateway It shows the default gateway setting for WAN interface

outgoing data packets.
MAC Address It shows the MAC address of WAN interface of WLAN

Broadband Router.

10

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0

3.3.2 Setup Wizard

This page guides you to configure wireless broadband router for first time

Screen snapshot – Setup Wizard

I Operation Mode

This page followed by Setup Wizard page to define the operation mode.

Screen snapshot – Operation Mode

11

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0

II Time Zone Setting

This page is used to enable and configure NTP client

Screen snapshot – Time Zone Settings

III LAN Interface Setup

This page is used to configure local area network IP address and subnet
mask

Screen snapshot – LAN Interface Setup

12

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0

IV WAN Interface Setup

This page is used to configure WAN access type

Screen snapshot – WAN Interface Setup

V Wireless Basic Settings

This page is used to configure basic wireless parameters like Band, Mode,
Network Type SSID, Channel Number, Enable Mac Clone(Single
Ethernet Client)

Screen snapshot – Wireless Basic Settings

13

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0

VI Wireless Security Setup

This page is used to configure wireless security

Screen snapshot – Wireless Security Setup

3.3.3 Operation Mode

This page is used to configure which mode wireless broadband router acts

Screen snapshot – Operation Mode

Item Description

Gateway Traditional gateway configuration. It always connects

internet via ADSL/Cable Modem. LAN interface, WAN

14
