Thank you for purchasing your new Alinco transceiver. This instruction manual contains important safety and operating
instructions. Please read this manual carefully before using the product and keep it for future reference.
ALINCO, INC
NOTICE / Compliance Information Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular moudulation. If this equipment
does cause harmful interference to radio or tele vision reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equi pment into an outlet on a circ uit different from that t o
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Information in this document is subject to change without notice or oblig ation. All
brand names and trademarks are the property of their respective owners. Alinco
cannot be liable for pictorial or typographical inaccuracies. Some parts, options
and/or accessories are unavailable in c ertain areas. Changes or modifications not
expressly approved by the party responsible for comp liance could void the user’s
authority to operate the equipment.

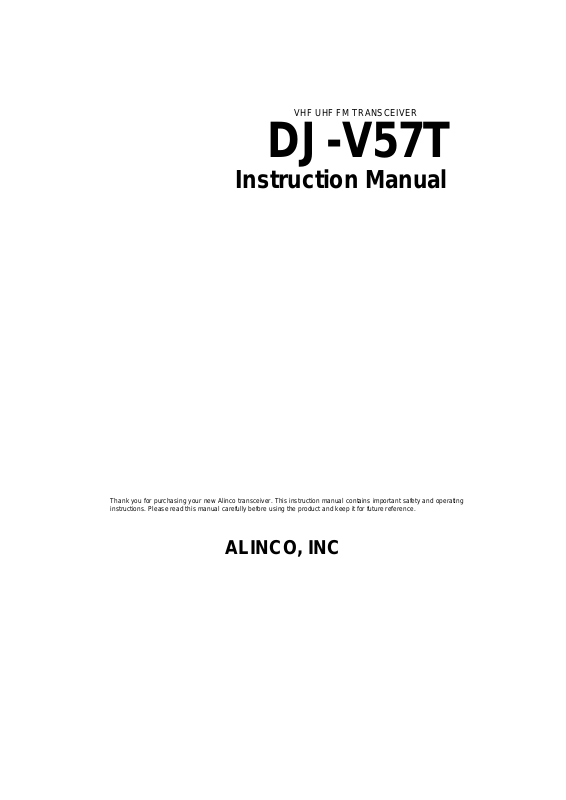

VHF UHF FM Transceiver
FCC Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to th e
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
IC Statement:
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation
of the device.
Warning
To prevent any hazard during operatio n of Alinco's radio product, in this manual
and on the product you may find symbols shown below. Please read and
understand the meanings of these symbols before starting to use the product.
Danger
Alert
Caution
This symbol is intended to alert the user to an immediate danger that
may cause loss of life and property if the user disregards the warning.
This symbol is intended to alert the user to a possible hazard that
may cause loss of life and property if the user disregards the warning.
This symbol is intended to alert the user to a possible hazard that may
cause loss of property or injure the user if the warning is disregarded.
Alert symbol. An explanation is given.
Warning symbol. An explanation is given.
Instruction symbol. An explanation is given.
4
Alert
■ Environment and condition of use
Do not use this product in close proximity to other electronic devices, especially
medical ones. It may cause interference to those devices.
Keep the radio out of the reach of children.
In case a liquid leaks from t he product, do not touch it. It may damage your skin.
Rinse with plenty of cold water if the liquid contacted your skin.
Never operate this product in facilities where radio products are prohibited for use
such as aboard aircraft, in airports, in ports, within or near the operating area of
business wireless stations or their relay stations.
Use of this product may be prohibited or illegal outside of your country. Be informed in
advance when you travel.
The manufacturer declines any responsibilities against loss of life and/or property due
failure of this product when used to perform important tasks like life-guarding,
surveillance, and rescue.
to a
Risk of explosion if battery is replaced with an incorrect type.
Dispose of, or recycle used batteries according to your local regulations.
The manufacturer declines any responsibilities against loss of life and property due to
a failure of this product when used with or as a part of a device made by third parties.
Use of third party accessory m ay result in damage to this pr oduct. It will void our
warranty for repair.
■ Handling this product
Be sure to reduce the audio output level to minimum before using an earphone or a
headset. Excessive audio may damage hearing.
Do not open the unit without permission or instruction from the manufacturer.
Unauthorized modification or re pair may result in electric shock, fire and/or
malfunction.
Do not operate this product in a wet place such as shower room. It may result in
electric shock, fire and/or malfunction.
Do not place the product in a container carrying conductive materials, such as water or
metal in close proximity to the product. A short-circuit to the product may resul t in el ect ri c
shock, fire and/or malfunction.
■ About chargers
Do not use adapters other than having the specified voltage. It may result in electric
shock, fire and/or malfunction.
Warning
Do not plug multiple devices using an adapter into a single wall outlet. It may result in
overheating and/or fire.
Do not handle adapter with a wet hand. It may result in electric shock.
Securely plug the adapter in to the wall outlet. Insecure insta llation may result in
short-circuit, electronic shock and/or fire.
Do not use the adapter if the plug or socket contacts are dirty. Overheating and/or
short-circuiting may result in fire, electric shock and/or damage to the product.
■ About power supply
Use only appropriate, reliable power supply of correct voltage and capacity.
Do not connect cables in reverse polarity. It may result in electric shock, fire and/or
malfunction.
Do not plug multiple devices including the power supply into a single wall outlet. It
result in overheating and/or fire.
Do not handle a power supply with a wet hand. It may result in electric shock.
may
5
Warning
■ Cigar-lighter cable
■ In case of emergency
In case of the following situation(s), please turn off the produc t, switch off the source of
power, then remove or unplug the power-cord. Please contact your local dealer of this
product for service and assistance. Do not use the product until the t roubl e is resolved. Do
not try to troubleshoot the problem by yourself.
• When a strange sound, smoke and/or strange odor comes out of the product.
• When the product is dropped or the case is broken or cracked.
• When a liquid penetrated inside.
• When a power cord (including DC cables, AC cables and adapters) is damaged.
■ Maintenance
Securely plug the power supply to the wall outlet. Insecure installation may result in
short-circuiting, electronic shock and/or fire.
Do not plug the power supply into the wall socket if the contacts are dirty.
Short-circuit and/or overheating may result in fire, electric shock and/or damage to
product.
Do not modify or remove fuse-assembly from the DC cable. It may result in fire,
electric shock and/or damage to the product.
the
Do not use the cable at any other than the specified voltage. It may result in electric
shock, fire and/or malfunction.
Do not handle cigar cable with a wet hand. It may result in electric shock.
For your safety, turn off then remove all related AC lines to the product and its
accessories from the wall outlet if a thunderstorm is likely.
Do not open the unit and its accessories. Please consult with your local dealer of this
product for service and assistance.
happens.
6
Caution
■ Environment and condition of use
Do not use the product in proximity to a TV or a radio. It may cause interference or
receive interference.
Do not install in a humid, dusty or insufficiently ventilated place. It may result in
electric shock, fire and/or malfunction.
Do not install in an unstable or vibrating position. It may result in electric shock, fire
and/or malfunction when/if the product falls to the ground.
Do not install the product in proximity to a source of heat and humidity such as a
heater or a stove. Avoid placing the unit in direct sunlight.
Be cautious of a dew formation. Please completely dry the product before use when it
■ About Transceiver
Be cautious of the whip antenna when carried in your shirt-pocket etc. It may make
contact with your eye and cause injury.
Do not connect devices other than specified ones to the jacks and ports on the
product. It may result in damage to the devices.
Turn off and remove the power source (AC cable, DC cable, battery, cigar cable,
charger adapter etc.) from the product when the product is not in use for extended
period of time or in case of maintenance.
Never pull the cord alone when you unplug AC cable form the wall outlet.
Use a clean, dry cloth to wipe off dirt and condensation from the surface of the
product. Never use thinner or benzene for cleaning.
■ About power supply
Use only reliable powe r supply of specific DC output range and be mind ful of the
polarity of the cable and DC-jack.
Always turn off the power supply when connecting or disconnecting the cables.
When using an external antenna, make sure that the anten na ground is not common w ith
the ground of the power supply.
Warning
European users: When a unit is powered from an external DC power source (adapter,
power supply, cigar-plug etc.), make sure tha t this power supply has approval to the le v el
of IEC/EN 60950-1.
■ Lightning
Any person is not safe outdoor during thunderstorm and lightning. This condition is getting worse
if somebody keeps a hand-held radio; chances of being hit by lightning are doubled since lightning
may hit a radio antenna as well. At this time, there is no hand-held radio having any kind of
protection against lightning current (which is higher than 10 kA.). Note also that no car provides
adequate protection of its passengers or drivers against lightning as well. Therefore, Alinco will not
take responsibility for any danger associated with using its hand-held radios outdoor or inside the
car during lightning.
■ Notice to California resident users
The Safe Drinking Water and Toxic Enforcement Act of 1986 of the State of California determines
that lead and cadmium are considered carcinogens and reproductive toxicants. The product that
comes with this manual is free from dangerous materials such as lead and cadmium as per RoHS
order of EU.
■ Limited Power Source
Please note that the receiver enclosure only provides mechanical protection of its internal parts; it
will not contain a fire within the device if the fire starts under certain fault conditions. Alinco will not
take responsibility for any fire hazard associated with powering the receiver or charging its batteries
using a power source which does not belong to the limited power sources in the meaning of EN
60950-1. Excluded from possible use with the receiver are most car cigarette lighters and some DC
(AC/DC) power supplies. Make sure that the power supply used with the receiver is a limited power
source.
7
Introduction
Introduction
Thank you very much for purchasing this excellent Alinco Transceiver. Our products
are ranked among the finest in the world. This radio has been manufactured with
state of the art technology and it has been tested carefully at our factory. It is
designed to operate to your satisfaction for many years under normal use.
PLEASE READ THIS MANUAL COMPLETELY TO LEARN ALL THE FUNCTIONS
THE PRODUCT OFFERS. WE MADE EVERY ATTEMPT TO WRITE THIS
MANUAL TO BE AS COMPREHENSIVE AND EASY TO UNDERSTAND AS
POSSIBLE. IT IS IMPORTANT TO NOTE THAT SOME OF THE OPERATIONS
MAY BE EXPLAINED IN RELATION TO INFORMATION IN PREVIOUS
CHAPTERS. BY READING JUST ONE PART OF THE MANUAL, YOU RISK NOT
UNDERSTANDING THE COMPLETE EXPLANATION OF THE FUNCTION.
“TV” as used in this manual refers to analog television.
