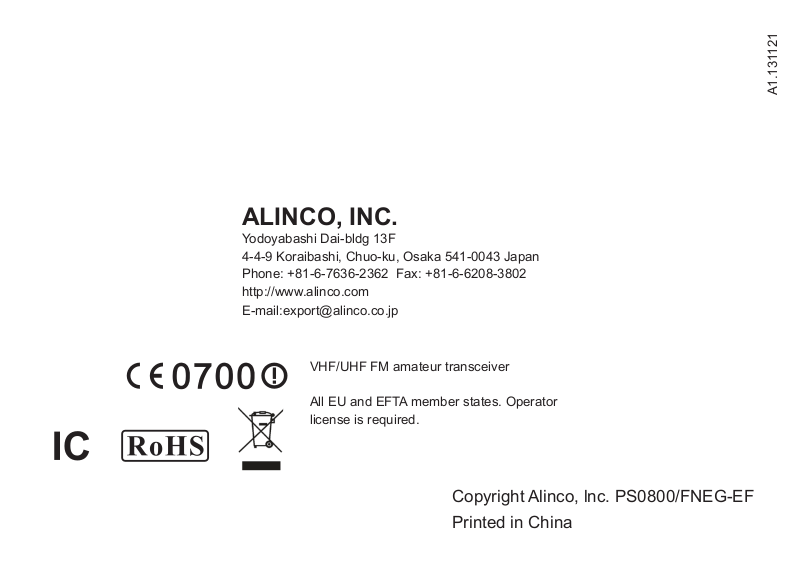

Alinco DJ 500TB User manual

ALINCO, INC.

Yodoyabashi Dai-bldg 13F
4-4-9 Koraibashi, Chuo-ku, Osaka 541-0043 Japan
Phone: [phone] Fax: [phone]
http://www.alinco.com

E-mail:[e-mail]

VHF/UHF FM amateur transceiver

144.000~145.995MHz / 430.000~439.995MHz
All EU and EFTA member states. Operator
license is required.

Copyright Alinco, lnc. PS0800/FNEG-EF

Printed in China

A1.131121

VHF/UHF FM Handheld Transceiver

DJ-500

Instruction Manual

Thank you for purchasing your new Alinco transceiver. Please read this manual
care fully befo re using the prod uct to ensur e ful l performa nce, and keep thi s
manual for future reference as it contains information on after-sales service.
In case addendum or errata sheets are included with this product, please read
those materials and keep them together with this instruction manual for future
reference.

Introduction

Thank you very much for purchasing this excellent Alinco transceiver. Our products are ranked among the

nest in the world. This radio has been manufactured with state of the art technology and it has been tested

carefully at our factory. It is designed to operate to your satisfaction for many years under normal use.

Please read this manual completely from the first page to the last, to learn all the functions the
product offers. It is important to note that some of the operations may be explained in relation
to information in previous chapters. By reading just one part of the manual, you may risk not
understanding the complete explanation of the function.

Before transmitting

There are many radio stations operating in proximity to the frequency ranges this product covers. Be careful
not to cause interference when transmitting around such radio stations.

■

Lightning

Any person is not safe outdoor during thunderstorm and lightning. This condition is getting worse if
somebody keeps a hand-held radio; chances of being hit by lightning are doubled since lightning may hit a
radio antenna as well. At this time, there is no hand-held radio having any kind of protection against lightning
current (which is higher than10 kA.). Note also that no car provides adequate protection of its passengers or
drivers against lightning as well. Therefore, Alinco will not take responsibility for any danger associated with
using its hand-held radios outdoor or inside the car during lightning.

■

About IP54 rating / Dust and splash resistant

About IP54 rating

5: Dust protected / Ingress of dust is not entirely prevented, but it must not enter in sufcient quantity to

interfere with the satisfactory operation of the equipment; complete protection against contact.

4: Splashing water / Water splashing against the enclosure from any direction shall have no harmful effect.

Test duration: 5 minutes / Water volume: 10 litters per minute / Pressure: 80~100 kN/m²

The IP54 designation provides for limited dust and splash proong of the radio per specied above. This

compatibility is factory guaranteed for a period of one year provided all the jack covers are securely in
place, any accessories connected must be specified genuine Alinco accessories and the radio has not
been disassembled by the customer. The factory has tested and made the equipment compatible to IP54

certication during engineering. However, please understand that this equipment is NOT certied IP54

compliant but is designed to remain operational when used in hard conditions and is in no way stating that
you should attempt to wash the radio for cleaning. Warranty will not cover radios that are water/dust damage
due to negligence or misuse of the product.

■

Covering ranges

You may expect a range of approx.3km/2 miles or more at high-power when located on a at, noise-free

place like on a beach. However, it may vary drastically depending on how to wear and carry the radios,
surrounding locations/conditions and static noise levels (below or near power transmission lines), etc. In
urban areas with many buildings or inside a building, such covering range will become drastically short even
to several tens of meters.

Features

■ Output power selectable 5W/2.5W/1W(0.2W)

■ Li-Ion battery pack and stand-charger as standard accessories

■ Alphanumeric name tags

■ FM broadcast 76-108MHz receiver built-in

■ Selectable Battery-save parameters

■ Busy Channel Lockout

■ CTCSS/DCS Encode/Decode, DTMF, 5-Tone

■ VOX built-in

■ Emergency, Alarm signal, Various scan modes, Key lock, Wide/Narrow operations

and more at NO extra costs.

Conformity Symbols

Tested to comply MIL-STD-810G

-Shock: Method 514.6/I,IV -Vibration: Method 516.6/I

NOTICE / Compliance Information Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Information in this document is subject to change without notice or obligation. All brand names and
trademarks are the property of their respective owners. Alinco cannot be liable for pictorial or typographical
inaccuracies. Some parts, options and/or accessories are unavailable in certain areas. Changes or

modications not expressly approved by the party responsible for compliance could void the user's authority

to operate the equipment.

144/440MHz FM amateur radio handheld transceiver DJ-500T

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

For Customers in Canada:

MODEL:3070C-DJ500T

Le présent apareil est conforme aux CNR d'lndustrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage,et.
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, mème si le brouillage est susceptible

d'en compromettre le fonctionnement.

CE Conformity Information

This device is in compliance with the essential requirements of R&TTE Directive 1999/5/EC.

A copy of the certicate by the notied body can be reviewed at http://www.alinco.com/usa.html.

DJ-500E
VHF/UHF FM amateur radio handheld transceiver

144.000~145.995MHz, 430.000~439.995MHz

This device is authorized for use in all EU and EFTA member states.

An operator's license is required for this device.

Manufacturer:
Alinco, Inc. Electronics Div. Yodoyabashi-Dai Bldg 13F, 4-4-9, Koraibashi, Chuo-ku, Osaka 541-0043 Japan

Alert

Environment and condition of use

Use of this product may be prohibited or illegal outside of your country. Be informed in advance when you
travel.

It is recommended that you check local traffic regulations regarding the use of a radio equipment while
driving. Some countries prohibit or apply restrictions for the operation of radios and mobile-phones while
driving.

Do not use this product in close proximity to other electronic devices, especially medical ones. It may cause
interference to those devices.

Keep the radio out of the reach of children.

In case a liquid leaks from the product, do not touch it. It may damage your skin. Rinse with plenty of cold
water if the liquid contacted your skin.

Never operate this product in facilities where radio products are prohibited for use such as aboard aircraft, in
airports, in ports, within or near the operating area of business wireless stations or their relay stations.

The manufacturer declines any responsibilities against loss of life and/or a property due to a failure of this
product when used to perform important tasks like life-guarding, surveillance, and rescue.

Do not use multiple radios in very close proximity. It may cause interference and/or damage to the product(s).

Risk of explosion if battery is replaced with an incorrect type.

The manufacturer declines any responsibilities against loss of life and property due to a failure of this product
when used with or as a part of a device made by third parties.

Use of third party accessory may result in damage to this product. It will void our warranty for repair.

Handling this product

Be sure to reduce the audio output level to minimum before using an earphone or a headset. Excessive audio
may damage hearing.

Do not open the unit without permission or instruction from the manufacturer. Unauthorized modication or
repair may result in electric shock, re and/or malfunction and voids warranty.

Do not operate this product in a wet place such as in a shower room. It may result in electric shock, re and/

or malfunction, This product is splash-proof but not a complete water-proof.

Do not place the product in a container carrying conductive materials, such as water or metal in close

proximity. A short-circuit to the product may result in electric shock, re and/or malfunction.

About chargers

Do not use adapters other than having the specified voltage. It may result in electric shock, fire and/or
malfunction,Never turn on the radio while charging.

Do not plug multiple devices using an adapter into a single wall outlet. It may result in overheating and/or re.

Do not handle adapter with a wet hand. It may result in electric shock.

Securely plug the adapter into the wall outlet. Insecure installation may result in short-circuit, electronic shock and/or

re.

Do not use the adapter if the plug or socket contacts are dirty. Overheating and/or short-circuiting may result in re,

electric shock and/or damage to the product.

In case of emergency

In case of the following situation(s), please turn off the product, switch off the source of power, then
remove or unplug the power-cord. Please contact your local dealer of this product for service and
assistance. Do not use the product until the trouble is resolved. Do not try to troubleshoot the problem
by yourself.

When a strange sound, smoke and/or strange odor comes out of the product.

●

When the product is dropped or the case is broken or cracked.

●

When a liquid penetrated inside.

●

When a power cord (including DC cables, AC cables and adapters) is damaged

●

For your safety, turn off then remove all related AC lines to the product and its accessories from the wall outlet
if a thunderstorm is likely.

Maintenance

Do not open the unit and its accessories. Please consult with your local dealer of this product for service and
assistance.

Alert

Environment and condition of use

Do not use the product in proximity to a TV or a radio. It may cause interference or receive interference.

Do not install in a humid, dusty or insufficiently ventilated place. It may result in electric shock, fire and/or
malfunction.

Do not install in an unstable or vibrating position. It may result in electric shock, re and/or malfunction when/if

the product falls to the ground.

Do not install the product in proximity to a source of heat and humidity such as a heater or a stove. Avoid
placing the unit in direct sunlight.

Be cautious of a dew formation. Please completely dry the product before use when it happens.

About transceiver

Be cautious of the whip antenna when carried in your shirt-pocket etc. It may make contact with your eye and
cause injury.

Do not connect devices other than specied ones to the jacks and ports on the product. It may result in damage

to the devices.

Turn off and remove the power source (AC cable, DC cable, battery, cigar cable, charger adapter etc.) from the
product when the product is not in use for extended period of time or in case of maintenance.

Never pull the cord alone when you unplug AC cable form the wall outlet.

Use a clean, dry cloth to wipe off dirt and condensation from the surface of the product. Never use thinner or
benzene for cleaning.

Check with your local waste officials for details on recycling or proper disposal of the electronics product,
battery-packs and accessories in your area.

TABLE OF CONTENTS

STANDARD ACCESSORIES

Standard Accessories

BATTERY INFORMATION

Charging Operation
Battery Charger Type
Notice for Charging Battery
How to Charge the battery pack
How to Store the Battery

.............................................................................................................................................................................. 02

INSTALLATION & CONNECTION

Installing / Removing the Li-ion Battery
Installing / Removing the Antenna
Installing / Removing the Belt Clip
Accessories

.............................................................................................................................................................................................. 08

Installing the Hand Strap

GETTING ACQUAINTED

LCD Display
Front Panel
Side Panel

.............................................................................................................................................................................................10

............................................................................................................................................................................................... 11

................................................................................................................................................................................................. 12

BASIC OPERATIONS

Power On and off
Adjusting Audio output level
Switch between Main band and Sub band
Switch between Channel mode
Change Channel Through Main Dial

I

................................................................................................................................................................................... 13

.......................................................................................................................................................... 01

.......................................................................................................................................................................... 01

................................................................................................................................................................. 02

........................................................................................................................................................................... 02

.............................................................................................................................................................. 02

..................................................................................................................................................... 04

.................................................................................................................................................................... 06

.................................................................................................................................................................... 09

...................................................................................................................................................................10

........................................................................................................................................................................... 13

............................................................................................................................................................. 13

....................................................................................................................

............................................................................................................................................... 07

...................................................................................................................................... 07

................................................................................................................................................. 07

................................................................................................................................................08

...............................................................................................................................14

.................................................................................................................... 14

................................................................................................................. 14

TABLE OF CONTENTS

Channel Input by Keypad
Monitor / Squelch Off
Receiving
Transmitting
Alarm

...................................................................................................................................................................................................15

.............................................................................................................................................................................................. 16

............................................................................................................................................................................................................ 16

Side Key [PF1] function instruction
Side key [PF2] function instruction
Channel Edit
Delete channel

............................................................................................................................................................................................. 17

........................................................................................................................................................................................ 18

Programming scan

ADVANCED OPERATIONS

FM Radio Receiver

.................................................................................................................................................................. 15

........................................................................................................................................................................... 15

............................................................................................................................................... 16

................................................................................................................................................ 17

................................................................................................................................................................................ 18

.............................................................................................................................................................. 19

...............................................................................................................................................................................19

Add or Cancel DTMF, 5TONE Signaling
CTCSS/DCS Scan
Offset Direction

................................................................................................................................................................................ 20

....................................................................................................................................................................................... 20

Frequency Scan, Channel Scan or FM Search
Scan Channel Skip
Frequency Reverse
TX Power selection
Stopwatch function
DTMF Code Searching And Setup
Keypad lock

............................................................................................................................................................................... 21

.............................................................................................................................................................................. 22

............................................................................................................................................................................... 22

................................................................................................................................................................................ 22

................................................................................................................................................ 23

.............................................................................................................................................................................................. 23

Switch between Dual mode and Single mode
CTCSS/DCS Encode Setup
CTCSS/DCS Decode Setup

............................................................................................................................................................. 25

............................................................................................................................................................. 25

.................................................................................................................................... 19

...................................................................................................................... 20

......................................................................................................................... 24

II

TABLE OF CONTENTS

CTCSS/DCS Encode / Decode Synchronous Setup
Choose To Transmit 5TONE
Add or Cancel DTMF, 5TONE Sgnaling
Signaling Combination
Frequency Step

...................................................................................................................................................................................... 28

Wide/ Narrow FM Mode
Frequency Reverse
Talk Around
Offset Frequency

.............................................................................................................................................................................. 29

...............................................................................................................................................................................................29

...................................................................................................................................................................................30

Editing Channel name
Busy Channel Lockout
Prohibits transmitting
Band Limit
Sub band display
Beep sounds

.................................................................................................................................................................................................32

................................................................................................................................................................................... 32

............................................................................................................................................................................................ 33

Time-Out-Timer (TOT)

............................................................................................................................................................ 27

..................................................................................................................................... 27

........................................................................................................................................................................ 28

.....................................................................................................................................................................29

......................................................................................................................................................................... 30

........................................................................................................................................................................ 31

........................................................................................................................................................................... 31

......................................................................................................................................................................... 33

Voice Operated Transmission (VOX)(An optional earphone-microphone is necessary)
Voice Operated Transmission (VOX) Delay Time
Automatic Power Off Time
DTMF Transmitting Time
Squelch level
Scan Dwell Time

............................................................................................................................................................................................ 36

....................................................................................................................................................................................36

Function Icon Stay Time
LCD Backlight

.......................................................................................................................................................................................... 37

LCD Backlight Color
Self ID inquiry

III

.......................................................................................................................................................................................... 38

................................................................................................................................................................35

.................................................................................................................................................................... 35

..................................................................................................................................................................... 37

............................................................................................................................................................................. 38

........................................................................................................... 26

.................................................................................................................34

...................................34

TABLE OF CONTENTS

Tone Pulse Frequency
Battery Save
FM radio

......................................................................................................................................................................................... 39

................................................................................................................................................................................................. 40

SET MODE OPERATIONS

Display Mode
Reset

....................................................................................................................................................................................... 41

........................................................................................................................................................................................................ 41

AUXILIARY FUNCTIONS

Cable Cloning

DEFAULT SETTINGS
OPTIONAL ACCESSORIES

....................................................................................................................................................................39

............................................................................................................................................................ 41

............................................................................................................................................................... 42

...................................................................................................................................................................................... 42

........................................................................................................................................................................ 43

........................................................................................................................................................44

RECOMMENDED INSTALLATION OF EARPHONE MICROPHONE
TECHNICAL SPECIFICATION
TROUBLE SHOOTING GUIDE
ATTACHED CHART

CTCSS Frequency Chart
1024 groups DCS frequency chart

...........................................................................................................................................................................50

................................................................................................................................................... 46

.................................................................................................................................................. 48

............................................................................................................................................................... 50

........................................................................................................................................... 51

......................................................... 45

IV

STANDARD ACCESSORIES

Standard Accessories

Antenna Battery

Belt Clip Instruction

Manual

NOTE: Accessories may differ depending on the version you have purchased. Please contact your local
dealer for details of standard accessories and the warranty-policy before purchase.

01

Charger AC Adaptor

Hand Strap

BATTERY INFORMATION

Charging Operation

The battery is not charged at the factory, so please charge it before use. Charge the battery for the rst

time after purchase or extended storage (more than 2 months) may not bring the battery to its normal
operating capacity. After repeating fully charge/ discharge cycle for two or three times, the operating
capacity will reach the best performance. The battery life is over when its operating time decreases
even though it is fully and correctly charged and it must be replace to new one.

Battery Charger Type

Please use Alinco's designated charger, other models may cause explosion. After installing the battery,

when the radio displays low battery, please charge the battery.

Notice for Charging Battery

▲Do not shortcircuit the charger. Never attempt to remove the casing from the battery, otherwise the

warranty is void and you risk serious damage to yourself and properties.

▲The ambient temperature should be between 5℃ and 40℃ while charging. Charging outside this

range may not charge the battery.

▲Always switch off the transceiver before charging. Otherwise, it may not charge correctly.

▲To avoid interfering the charging procedure, please do not cut off the power or take out the battery

during charging.

▲Do not recharge the battery if it is already fully charged. This may shorten the life of the battery or

damage the battery.

▲Do not charge the battery or transceiver when wet. Dry it before charging to avoid danger.

02

BATTERY INFORMATION

Caution

• Risk of explosion, generation of heat or leak of chemicals inside if the battery is replaced by an

incorrect type or reverse polarity. Use always the recommended types of batteries in this manual only.

• The battery pack isn't fully charged when shipped. It must be charged before use.

• Charging should be conducted in a temperature range of +5ºC to +40ºC (+41ºF to +104ºF).

• Don't modify, dismantle, incinerate or immerse the battery pack in the water as this can be dangerous.

• Never short-circuit the battery pack terminals, as this can cause damage to the equipment or lead to

heating of the battery which may cause burns.

• Unnecessary prolonged charging (overcharging) can deteriorate battery performance.

• The battery pack should be stored in a dry place where temperature is in -10ºC to +45ºC (-14ºF to
+113ºF) range. Temperatures outside this range can cause the battery liquid to leak. Exposure to

prolonged high humidity can cause corrosion of metal components.

• Battery-packs are a consuming part. When its operating time becomes considerably short after a

normal charge, please consider that the pack is exhausted and replace it with a new one.

• The battery pack is recyclable. Check with your local waste ofcials for details on recycling options or

proper disposal in your area.

• Use specified genuine chargers only to charge battery packs. Use of other chargers may cause

damage to products, you and your property.

• Never carry battery packs together with conductive articles such as metals in a same bag to prevent

from short-circuiting. Put the packs only in nylon bags to carry them safely.

• Even if you do not use the battery pack for a long time, charge it at least once every three months to

prevent deterioration.

03

BATTERY INFORMATION

How to Charge the battery pack

1.Plug the AC adaptor into the AC outlet, then plug into the
DC jack, the indicator lights orange for 1 second and goes
out---waits to charge.

2.Slide the battery or t ra ns ce iv er with battery in to the
charger; make sure the battery terminals are in contact
with the charging terminals. LED turns into twinkling RED

---pre-charging begins.

3.Pre-charging for about 5 minutes, LED twinkles stop then
charging begins.

4.It takes about 4 hours to fully charge the battery, and LED
turns to green when the charge is complete.

Warning: Never charge while the radio is turned on. When turned on, the charger can't detect the
charging voltage properly and LED fails to indicate charge status correctly.

5. Charging Process:

Status LED

Stand-by (self-examine orange lights
1second when power on) ----------------------­ Pre-charging (pre-charging stage) ---------------- Red light twinkles for about 5 minutes
Charging (charge in constant current.) ------------- RED light lightens for about 4 hours
Fully charged (charge in constant voltage) ----------- Green light

None

04

BATTERY INFORMATION

6. LED Indicator:

STATUS

LED

NOTE:
▲ Trouble means battery heating, short-circuit or charger malfunction. Remove the battery pack from

the charger immediately and contact to your local dealer for services.

▲ The max trickle pre-charging time is 30 minutes. In case the red indicator continues to blink longer,

please stop charging and consult with your local dealer for services.

▲ It is known that Li-Ion battery packs heat up over 400℃ by itself when kept in a temperature of

over 80℃ for extended period of time. Although the packs are protected against overheating with a
protective circuit, never leave the battery packs in a car or similar locations in hot seasons.

▲ Li-ion packs may deteriorate by over 30% regardless of conditions after 3 years. This is a nature of Li-

ion pack and not a defect of the product.

▲ The charger is to charge the battery pack only. It is not an AC adapter to operate the radio. Never

attempt to transmit the radio with using the charger as it will cause the damage to the charger and a
repair/replace may become necessary.

▲ The charge should be conducted in an ambient temperature with a proper air-conditioning in an

extremely hot or cold seasons.

▲ Try charging the battery pack only when having trouble charging with the radio.In case the radio may

have troubles, the charge can't be conducted properly. If the battery pack can be charged alone, please
take the radio to your local dealer for services.

05

self-examine
when power on

Orange
(for 1 second)

(No battery) Pre-charging

None

Red blinks for 5
minutes

Charge
normally

Red Green

Fully

Charged

Trouble

Red blinks
alternatively

BATTERY INFORMATION

How to Store the Battery

1.The battery should be kept in the status of 50% discharge when storing.

2.It should be kept in cool, dry environment and remove it from the transceiver.

3.Keep away from source of heat and direct sunlight.

NOTE: Incorrect storage will damage both the battery pack and the radio. Please always remove the
battery pack from the radio when not in use.

06

INSTALLATION & CONNECTION

Installing / Removing the Li-ion Battery

1.Match the three grooves of the battery pack with the
corresponding guides on the back of the transceiver,
then push it.

2.Press the battery and transceiver rmly together until the

release latch on the top of the transceiver locks. After
hearing a "click" sounds, the battery has been locked.

3.To remove the battery, slide up the release latch and
remove the pack away from the transceiver.

Installing / Removing the Antenna

Installing the Antenna:

1. Hold the antenna by its base.

2. Align the grooves at the base of the antenna with the protrusions
on the antenna connector.

3. Slide the antenna down and turn it clockwise until it stops.

4. Confirm that the antenna is secu rely connected. Check the
connection from time to time.

Removing the Antenna:

Turn the antenna counter-clockwise to disconnect the antenna.

NOTE: Do not use third-party antenna as it may radiate more RF
that exceeds SAR limit guidances.

07

INSTALLATION & CONNECTION

Installing / Removing the Belt Clip

Installing the Belt Clip:

1. Put the belt clip on the back of the unit, and the screw clockwise
until it stops.

2. Conrm that the belt clip is securely attached.

* Tighten up the screw occasionally.

Removing the Belt Clip:

Turn the screw counter-clockwise to remove the belt clip.
Caution: Use the screws of specified size only. Others may cause

damage to the product. (screws size PM Φ 2.5mm x 3mm)

Accessories

Open the jack cover and insert the accessory
plug into the jack, as shown.

When the accessory is not used, please be sure
to put on cover with securely.

08

INSTALLATION & CONNECTION

NOTE:

1.To keep the radio dust and splash resistant, the cover must be closed properly with the original supplied
cover.

2.The radio is not dust and splash resistant while using the optional accessory risking that the water may
penetrate inside through the plug.

Installing the Hand Strap

Attach the hand strap as shown.

09

GETTING ACQUAINTED

LCD Display

Following are the meaning of the icons and signs shown on the display.

Frequency

Reverse

Offset direction

Optional Signaling

Receiving instructions

DCS

CTCSS

FUNC Icon

Main Channel

Sub-channel

FM radio

TX Power

Busy Channel

NOTE:

Battery capacity indicator(full) No power, replace battery pack or charge battery

Battery capacity remnant

Real time display receiving signal
strength/Power Indicator

VOX Function

Scan Skip

Narrow band

Battery Capacity

Function Menu Serial
No. / Main Channel
No. serial No.

Keypad Lock

Sub-channel

10

GETTING ACQUAINTED

Front Panel

Antenna

Speaker

Microphone

LCD

Numeric keys

NOTE: Please do not close the microphone hole.

11

Main dial

Power / Volume Switch

TX/RX indicator, Main RX is Green,
Sub RX is Blue, TX is Red

A key/Function key
C key/Down key/Main/Sub Exchange key
C key/Down key/Channel/

D key, Exit key

GETTING ACQUAINTED

Side Panel

PTT key

PF1 key (1 Primary Function key)

PF2 key (2 Primary Function key)

Left Panel Right Panel

Acce ssory and PC
programming port

Belt Clip

Battery

12

BASIC OPERATIONS

Power On and off

Turn【POWER】/【VOLUME】dial clockwise to power on.

Turn it counterclockwise to power off.

Adjusting Audio output level

Press and hold 【PF2】 key to monitor white noise to refer to the current audio
level.

Turn【POWER】/【VOLUME】dial clockwise to increase the audio level,
counterclockwise to decrease.

CAUTION:
NEVER USE EARPHONE while adjusting audio level. The max audio output is 1W, and it's loud
enough to hurt your eardrums.
You may feel a static shock when wearing an earphone in a dry atomosphere but it's not a defect of
product but a cause of nature.It is the same shock you feel typically when opening a door of a car in
certain conditions.

13

BASIC OPERATIONS

Switch between Main band and Sub band

Press key to switch between Main band and Sub band.

Switch between Channel mode

Press key to switch between channel mode.

Change Channel Through Main Dial

NOTE: This transceiver has 10 step size: 2.5) 5) 6.25) 8.33) 10) 12.5) 20) 25) 30 and 50 KHz) channel steps.

In channel mode, you can change the current channel to desired one through main dial, turn clockwise to
the next channel, counter-clockwise turn to the last channel.

14

BASIC OPERATIONS

Example: To enter 435.0125, press [4][3][5][0][1][2] then 5 appears and sets automatically. To enter 435.100,
press [4][3][5][1][0][0]. By pressing the last [0], a dot appears after the MHz unit and
the frequency is set. When an invalid numbers are entered, the display will return to
the current state and an error beep sounds.

NOTE: This product operates in accordance with legally assigned frequnecy only. In the FM receiver mode,
the frequency step size input by numeric keys is 50KHz.

Channel Input by Keypad

In Frequency + Channel or Channel + Name Tag mode, you may select the channel by entering three
channel digits (000-199). If the entered channel has not been preprogrammed, a beep sounds to alert you
that input is wrong and then return to current channel.

Monitor / Squelch Off

In case the receiving signal is weak and the audio is intermittently cut off by the squelch, press and hold
[PF2] key. As long as this key is pressed, the squelch including TSQ/DCS unmutes making the audio
easier to hear.

Receiving

When a signal is received, the LED lights will light up, the main channel receives indicator a green, (Sub-

channel receives indicator blue and the TDR Mark will ash following), and you can hear the received call.

15

BASIC OPERATIONS

NOTE: Please be aware of the squelch level and selective-calling settings such as CTCSS and DCS as you
may risk not hearing the receiving signal.

Transmitting

1. Select the frequency by using the dial or keypad.

2. Press the PTT key. The red TX indicator turns on while transmitting.

3. While holding down the PTT key, speak into the unit at normal voice from the distance of 5cm (2").

4. Release the PTT key to receive.
Before transmitting, it is recommended to monitor the channel you are going to use to ensure it is not
busy by pressing and holding [PF2] key.

Alarm

Press and hold alarm key until LCD displays "ALARM", Emergency alarm function is started. This
transceiver has 4 Alarm modes for optional, can be setup in programming software. Power off transceiver
to exit Alarm.

NOTE: Please use programming software to choose the Alarm mode or close Alarm.

Side Key【PF1】function

The Side [PF1] key can realized functions as below:

1.In receiving mode, press to check current voltage.

16

BASIC OPERATIONS

2.In receiving mode, press and hold to alarm.(you can shut off this function by software)

3.In transmitting mode, press to transmitting selected Tone-pulse signaling.

4.Press this key to power on transceiver, and get into wire cloning mode.

NOTE: The tone pulse frequency can be set to 1750Hz, 1450Hz, 1000Hz or 2100Hz in programming software.

Side key [PF2] function

Monitor function (squelch off or momentary off per preprogramming).

1. Turn the main dial while pressing and holding this key to set the squelch level.

2. While transmitting, press this key to transmit preprogrammed 5-tone or DTMF tone signaling.

3. Pressing and holding this key while turning on for 2 seconds to enter to the parameter setting mode.

4. Turn on with this key and key pressed together to perform the factroy reset.

Channel Edit

1. In main channel frequency mode or sub-channel frequency mode, enter the frequency and signaling as
desired, after pressing key, the top left corner of LCD displays " ", then press , the channel

number twinkling means getting into store/delete channel mode.

2. Turn main dial to select the desired channel address to store.

3. Press

stored.

17

key, and then hold for 2 seconds, after two "beep" sounds, this channel has been

BASIC OPERATIONS

Delete channel

1.In Standby state, after pressing key, the top left corner of LCD displays " ", then press , the
channel number twinkling means getting into store/delete channel mode.

2.Turn selector knob to select the channel which you want to delete.

3.Press
the channel has been deleted.

key, and hold key for 2 seconds, the frequency disappear with in two "beep" sounds,

18

ADVANCED OPERATIONS

FM Radio Receiver

1. In standby state, after pressing key, while icon is displayed on the top left
corner, then press
function is on.

2. While "FM ON" is indicated on the display, press
function, FM radio is on when LCD displays "FM ON", FM radio is off when LCD
displays "FM OFF".

3. When FM radio is on, press
meeting stations, scan will stay 5 seconds then resume.

4.Press

NOTE: When the radio is on) the Sub-channel receives will turn off. To use FM radio function) user must
set RADIO function on 31th menu to be ON) otherwise can not use FM radio function normally.

key to exit FM radio mode.

Add or Cancel DTMF, 5TONE Signaling

In standby state, press key, the top left corner of LCD displays " " icon, press

key, LCD displays "T " icon, it means current channel add DTMF signal decode
function. Repeat above operation, LCD still displays "
channel add 5TONE signal decode function. Repeat above operation, "T" icon disappears, optional signal
decode function is cancelled.

NOTE: When this function is on) user must setup 5th menu to be TONE option) then DTMF/5TONE can
be used.

19

key again, LCD displays "FM" icon and "FM ON", FM radio

key to turn on/off FM radio

key rstly, then press key to scan broadcasting stations,when

" icon, it means current

T

ADVANCED OPERATIONS

CTCSS/DCS Scan

After pressing key, the top left corner of LCD displays " ", then press
to enter CTCSS / DCS scan. When signaling scanned matches the setting of the
transceiver, stop for 15 seconds then scan again. Press any keys except , ,

to exit scanning.

NOTE: This function is invalid when the main channel is in channel display mode or
current mode without signaling setup. Scan CTCSS when the current channel is set
to CTCSS) scan DCS when the channel is set to DCS.
Turn main dial to change the CTCSS / DCS scan direction.

Offset Direction

In standby state, press key, the top left corner of LCD displays " " icon, press

key to choose offset direction.

(+): Positive offset, TX frequency is higher than RX frequency.

(-): Negative offset, TX frequency is lower than RX frequency.

Select OFF for simplex operation.

Channel Scan or FM Search

While receiving, after pressing key, while icon is displayed on the top left corner, press key
to begin frequency scan or channel scan. Scan-resume condition can be set in the set mode that will be

20

ADVANCED OPERATIONS

explained later. Default is timed and resumes scanning after 5 seconds regardless of receiving state.

1.Channel Scan

In channel mode, it scans in accordance with preprogrammed channels. Press any key except
or

keys to stop scanning.

3.FM Search
In FM broadcast receiver mode, it scans in accordance with 100KHz step. Press any key except

or

keys to stop scanning.

NOTE:

Turn the main dial clockwise or counter-clockwise to change scan direction.
Channels selected as "skip channels" won't be scanned during the channel scanning.

Scan Channel Skip

In Channel mode, after pressing key, press key to set the current channel

to be skipped while channel-scanning, and 'S' icon appears to indicate the channel

is set as the skip. Repeat the operations to cancel channel scan skip setting. The S
icon will dessapear.

NOTE: This feature is available only in the Channel modes.

21

,

,

ADVANCED OPERATIONS

Frequency Reverse

In standby state, press key, the top left corner of LCD displays " " icon, then press to set the
current channel to Reverse function, Repeat the operations to cancel channel Reverse function.

1. When LCD displays "R" icon, it means current arrow directed channel open the
frequency reverse function, the TX frequency and RX frequency is interchanged, if
CTCSS/DCS signaling is set, it will also interchange.

2. When "R" icon disappears, it means reverse function is close.

TX Power selection

In standby state, press key, the top left corner of LCD displays " " icon, then
press

Stopwatch function

1. In standby state, press key, the top left corner of LCD displays " " icon, then

2. Press

3. Press [PF1], [PF2] or

key to choose High/Low power for current arrow directed channel.

L: Power is 1W.

M: Power is 2.5W.

H: Power is 5W.

press

When timing is pause, press

to enter into stopwatch function.

key to start timing. Under this state, press key to pause timing.

key to continue timing.

key to exit stop watch function.

22

ADVANCED OPERATIONS

NOTE: During timing, press key to stop timing and displays current data, press this key again to clear timer.

DTMF Code Searching And Setup

After pressing key, the top left corner of LCD displays " " then press key, it displays the
current DTMF group. (16 groups in total)

1.Turn main dial to select the desired group and DTMF data, and press PTT to

transmit the desired DTMF data. It displays EMPTY when DTMF data is not
programmed yet.

2.Press

for 2 seconds to enter DTMF editing menu. Use numerical keys to enter DTMF
characters. Press [PF2] key to transmit the tones, save the data and exit.

Keypad lock

Keypad lock function is useful to prevent from wrong operation, In stand-by state,
after pressing key, while " " icon is displayed on the top left corner, press and
hold key for 2 seconds to start keypad lock function. Repeat to cancel the key
lock function.

NOTE: When keypad is locked, only PTT / PF1 / PF2 / A key are usable.

23

key, the top left corner of LCD displays " ", press and hold key

ADVANCED OPERATIONS

Switch between Dual mode and Single mode

In order to reduce the working main channel suffer from sub-channel interference, can
quickly close the sub-channel.

1. In standby mode, press the
the sub-channel.

2. Press the
original sub-channels

3. After clicking

key again, the transceiver main channel will become to show the

button, return to the dual-band radio show.

key, the transceiver shows main channel and close

24

ADVANCED OPERATIONS

CTCSS/DCS Encode Setup

1.After pressing A key, the top left corner of LCD displays " " then press key.

2.Press

3.Press

4.Turn main dial to choose the desired CTCSS / DCS encodeing tone. See
appendix for details of available tones.

5.Press

CTCSS/DCS Decode Setup

By using this function with CTCSS/DCS encode feature, you hear only signals
that are sent with matching tones. (Such operations are often reffered to as Tone­Squelch or DCS squelch)

1.After pressing
key.

2.Press

3.Press

25

/ key to choose menu 01 and display "T-CDC".

key to choose CTCSS, DSC or OFF. When DCS is selected, press

key to choose positive or inverse code.

key or key to conrm and exit.

key, the top left corner of LCD displays " " then press

/ key to choose menu 02 and display " R-CDC ".

key to choose CTCSS, DSC or OFF. When DCS is selected, press

key to choose positive or inverse code.

ADVANCED OPERATIONS

4.Tu rn main dial to choos e the de sired CT CSS / DCS decodeing tone. See
appendix for details of available tones.

5.Press

Note: You may set the encoding and decoding tones separately.

CTCSS/DCS Encode / Decode Synchronous Setup

This function is for adjusting CTCSS/DCS encode/decode synchronous.

1. Press key, the top left corner of LCD displays " " icon, then press key.

2. Press

3. Press
choose DCS positive or inverse code.

4. Turn main dial to choose the desired CTCSS / DCS encodeing/decodeing tone. See appendix for details
of available tones.

5. Press

key or key to conrm and exit.

/ key to choose menu 03 and display "RT-CDC".

key to choose CTCSS, DCS or OFF, when DCS signaling is selected, press key to

or key to conrm and exit.

26

ADVANCED OPERATIONS

Choose To Transmit 5TONE

By preprogramming the 2-Tone setting in advance, you may select the tone and transmit it.

1.After pressing

2.Press

3.Turn main dial to choose the desired 5-Tone signal. Press PTT to transmit the
tone. Up to 100 tones are programmable.

4.Press

Add or Cancel DTMF, 5TONE Sgnaling

This function is DTMF and 5TONE setting

1. Press

2. Press

3. Rotate channel switch to choose desired optional signaling.

DTMF: current optional signaling is DTMF

5TONE: current optional signaling is 5TONE

OFF: close optional signaling

4. Press

27

key, the top left corner of LCD displays " " then press key.

/ key to choose menu 04 and display "5TONE ".

key or key to conrm and exit.

key, the top left corner of LCD displays " " icon, then press key.

/ key to choose menu 05 and display "TONDEC".

key or key to conrm and exit.

ADVANCED OPERATIONS

Signaling Combination

You may combine the signaling functions of different system.

1.After pressing

2.Press

3.Turn main dial to choose the desired signaling combinations mentioned below.

SQ: Hear all communications regardless of the signaling tones.

CT/DCS: Hear only the signals with matching CTCSS or DCS tones.

Tone: Hear only the signals with matching DTMF, 5-Tone tones.

CT&TO: Hear only the signals with matching CTCSS, DCS, DTMF, 5-Tone tones.

CT/TO: Hear only the signals with matching any one of CTCSS, DCS, DTMF,

5-Tone tones.

4.Press key or key to conrm and exit.

key, the top left corner of LCD displays " " then press key.

/ key to choose menu 06 and display "SIGNAL".

28

ADVANCED OPERATIONS

Wide/ Narrow FM Mode

1.After pressing key, the top left corner of LCD displays " " then press key.

2.Press

3.Turn main dial to choose the desired bandwidth frequnecy.
Available parameters are 12.5(narrow) and 25KHz(wide).

4.Press

Frequency Reverse

This function temporary reverses the transmitting and receiving frequencies and signaling tone settings.

1.After pressing

2.Press

3.Turn main dial to choose the desired parameter.
ON: enable frequency reverse.
OFF: disable frequency reverse.

4.Press

This function is not available when Talk Around function is activated.

Talk Around

1.After pressing key, the top left corner of LCD displays " " then press key.

2.Press

29

/ key to choose menu 08 and display " W/N".

key or key to conrm end exit.

key, the top left corner of LCD displays " " then press key.

/ key to choose menu 09 and display "REV".

key or key to conrm end exit.

/ key to choose menu 10 and display "TAL KAR".

ADVANCED OPERATIONS

3.Turn main dial to choose the desired parameter.

TX=RX: talk around enables
OFF: talk around disables

4: Press

Offset Frequency

1.After pressing key, the top left corner of LCD displays " " then press key.

2.Press

3.Turn main dial to choose the desired Offset frequnecy.
Available parameters are 0.00 to 69.9975MHz in step size selected in menu 07.

4.Press

Editing Channel name

1. Press key, the top left corner of LCD displays " " icon, then press key.

2. Press

3. Rotate channel switch to choose desired character, press
character and move shift to next character. Press
character.

4. Press

NOTE: This feature is available only in the Channel modes.

key or key to conrm end exit.

/ key to choose menu 11 and display "OFF SET".

key or key to conrm end exit.

/ key to choose menu 12 and display "NAME".

key to conrm current

key back to the previous

key or key to conrm and exit.

30

ADVANCED OPERATIONS

Busy Channel Lockout

This function prohibits the transmitting when the channel is busy.

1.After pressing

2.Press

3.Turn main dial to choose the desired parameter.
REPEAT: Signaling busy lock. It suspends transmitting when receives a matching

carrier but incorrectsignaling tones.

BUSY: Carrier busy lock. It suspends transmitting when receives any carrier signal.

OFF: PTT operation is always possible without busy channel lockout.

4.Press

Prohibits transmitting

1.After pressing key, the top left corner of LCD displays" " then press key.

2.Press

3.Turn main dial to choose the desired parameter.

ON:Transmitting is allowed

OFF:Transmitting disabled

4.Press

31

key, the top left corner of LCD displays " ", then press key.

/ key to choose menu 13 and display "RPLOCK".

key or key to conrm end exit.

/ key to choose menu 14 and display "TX".

key or key to conrm end exit.

ADVANCED OPERATIONS

Sub Band Display

1. Press key, the top left corner of LCD displays " " icon, then press key.

2. Press

3. Rotate channel switch to choose desired setup.

FREQ: Display sub band frequency or channel.

VOLT: Display current battery voltage.

OFF: Sub band display is disabled.

4. Press

/ key to choose menu 16 and display "DSP SUB".

key or key to conrm and exit.

32

ADVANCED OPERATIONS

Beep sounds

1. Press key, the top left corner of LCD displays " " icon, then press key.

2. Press

3. Rotate channel switch to choose desired setup.

ON: Beep sounds is enabled.

OFF: Beep sounds is disabled.

4. Press

Time-Out-Timer (TOT)

The purpose of Time-out-Timer is to restrict transceiver for continuous long-term transmission. When the
continuous transmission time is beyond the preset time, transceiver is forced to stop transmitting and make
a beep sound.

1. Press

2. Press

3. Rotate channel switch to choose desired setup.
1~27 minutes, total 27minutes of TOT for optional, each interval is 1minute.

4. Press

33

/ key to choose menu 17 and display "BEEP".

key or key to conrm and exit.

key, the top left corner of LCD displays " " icon, then press key.

/ key to choose menu 18 and display "TOT".

key or key to conrm and exit.

ADVANCED OPERATIONS

Voice Operated Transmission (VOX)

When this function is on, the transmitting can be started by voice, no need to press [PTT] key.

1. Press key, the top left corner of LCD displays " " icon, then press key.

2. Press

3. Rotate channel switch to choose desired setup.

1~10 : Total 10 VOX levels for optional.
OFF: VOX function is disabled.

1 is most sensitive, 10 is less sensitive that requires more voice level to activate VOX.

4. Press

NOTE: VOX is not usable in noisy areas as it may start transmitting by the back noise.

/ key to choose menu 19 and display "VOX".

key or key to conrm and exit.

(An optional earphone-microphone is necessary)

Voice Operated Transmission (VOX) Delay Time

If transceiver returns to receive mode instantly after VOX calling, it may cause calling voice missing. To
avoid this problem, user can set a suitable delay time.

1. Press key, the top left corner of LCD displays " " icon, then press key.

2. Press

3. Rotate channel switch to choose desired setup.

0.5S-3S: Total 27 levels for optional, each interval is 0.1S

4. Press

/ key to choose menu 20 and display "VDELAY".

key or key to conrm and exit.

34

ADVANCED OPERATIONS

Automatic Power Off Time

When this function is on, transceiver will automatic power off when reach the preset time.

1. Press

2. Press

3. Rotate channel switch to choose desired setup.

30MIN: Automatic Power-Off after 30 minutes.
1HOUR: Automatic Power-Off after one hour.
2HOUR: Automatic Power-Off after two hours.

4. Press

DTMF Transmitting Time

1. Press key, the top left corner of LCD displays " " icon, then press key.

2. Press

3. Rotate channel switch to choose desired setup.

50MS: Each DTMF signal transmits 50ms, interval 50ms
100MS: Each DTMF signal transmits 100ms, interval 100ms
200MS: Each DTMF signal transmits 200ms, interval 200ms
300MS: Each DTMF signal transmits 300ms, interval 300ms
500MS: Each DTMF signal transmits 500ms, interval 500ms

4. Press

35

key, the top left corner of LCD displays " " icon, then press key.
/ key to choose menu 21 and display "APO".

key or key to conrm and exit.

/ key to choose menu 22 and display "DTMF".

key or key to conrm and exit.

ADVANCED OPERATIONS

Squelch level

This function is used for setup intensity of receiving signals, transceiver will hear calls when receiving
signal intensity achieve preset data, otherwise, transceiver will keep mute.

1. Press key, the top left corner of LCD displays " " icon, then press key.

2. Press

3. Rotate channel switch to choose desired setup.
00~09: 10 levels of squelch in total for optional, “00” is minimum setup value

4. Press

Scan Dwell Time

There are three kinds of scan dwell time for optional.

1. Press

2. Press

3. Rotate channel switch to choose desired setup.

5ST: When scanning matched signal, transceiver will stop scaning for 5seconds

10ST: When scanning matched signal, transceiver will stop scaning for 10seconds then resume.
15ST: When scanning matched signal, transceiver will stop scaning for 15seconds then resume.
2SP: When scanning matched signal, transceiver will stop scaning, 2seconds after signal disappeared,

4. Press

/ key to choose menu 23 and display "SQL".

(normally open)

key or key to conrm and exit.

key, the top left corner of LCD displays " " icon, then press key .

/ key to choose menu 24 and display "SCAN".

then resume.

then resume.

key or key to conrm and exit.

36

ADVANCED OPERATIONS

Function Icon Stay Time

1. Press key, the top left corner of LCD displays " " icon, then press key.

2. Press

3. Rotate channel switch to choose desired setup.

FUNCT: When nished function setting or enter into function menu, icon disappeared.
1SEC: When nished function setting or enter into function menu, icon stay 1second

2SEC: When nished function setting or enter into function menu, icon stay 2seconds

3SEC: When nished function setting or enter into function menu, icon stay 3seconds

ALWAYS: Function icon is always display, only when pressing function key again, the

4. Press

NOTE: When function icon is staying, user can setup desired functions continuously, no need press function
key every time.

LCD Backlight

1. Press key, the top left corner of LCD displays " " icon, then press key.

2. Press

3. Rotate channel switch to choose desired setup.

37

/ key to choose menu 25 and display "FTIME".

then disappeared

then disappeared

then disappeared

icon will disappear.
key or key to conrm and exit.

/ key to choose menu 26 and display "LIGHT".

ADVANCED OPERATIONS

AUTO: Backlight will automatic closed after a period.

OFF: Always off.

ON: Always on.

4. Press

LCD Backlight Color

There are three kinds of backlight color for optional.

1. Press

2. Press

3. Rotate channel switch to choose desired setup.

ORG: Orange backlight

SAKURA: Pink backlight

WHITE: White backlight

4. Press

Self ID inquiry

1. Press key, the top left corner of LCD displays " " icon, then press key.

2. Press

3. Rotate channel switch to choose desired setup.

key or key to conrm and exit.

key, the top left corner of LCD displays " " icon, then press key.

/ key to choose menu 27 and display "COLOR".

key or key to conrm and exit.

/ key to choose menu 28 and display "ID".

38

ADVANCED OPERATIONS

The ID code displaying on LCD is transceiver self ID code.

4. Press

NOTE: When current channel add 5TONE to be optional signaling, LCD displays 5TONE self ID code,
otherwise displays DTMF self ID code.

Tone Pulse Frequency

This function is used for waking up sleeping repeater, it needs a certain intensity of Tone Pulse to wake up
sleeping repeater. In general, as long as the repeater has been waked up, no need to transmit Tone Pulse
again in preset time.

1. Press

2. Press

3. Rotate channel switch to choose desired setup.

1750HZ, 2100HZ, 1450HZ, 1000HZ, 4 kinds of Tone Pulse for optional

4. Press

Battery Save

User can setup battery save ratio according to requirements. The standby time can be extended when
enable battery save function, but if save ratio setting too high, it may cause voice missing.

1. Press

2. Press

39

key or key to conrm and exit.

key, the top left corner of LCD displays " " icon, then press key.

/ key to choose menu 29 and display "TBST".

key or key to conrm and exit.

key, the top left corner of LCD displays " " icon, then press key.

/ key to choose menu 30 and display "SAVE".

ADVANCED OPERATIONS

3. Rotate channel switch to choose desired setup.

OFF: Battery Save is disabled.
1:2 The standby time between normal working state and battery saving mode is 1:2
1:3 The standby time between normal working state and battery saving mode is 1:3
1:5 The standby time between normal working state and battery saving mode is 1:5
1:8 The standby time between normal working state and battery saving mode is 1:8
AUTO: Battery save ratio is adjusting automatically.

4. Press

NOTE: The Battery Save function is temporarily suspended when a key is operated or a signal is received.

FM radio

1. Press key, the top left corner of LCD displays " " icon, then press key.

2. Press

3. Rotate channel switch to choose desired setup.

ON: FM radio function is enable.
OFF: FM radio function is disable.

4. Press

NOTE: Only when this function is setting ON, FM radio can be normally used.

Remind: When single band UHF or VHF in standby, proposed setup is 1:8, when dual band VV,UU or
UV in standby, proposed setup is 1:2.

key or key to conrm and exit.

/ key to choose menu 31 and display "RADIO".

key or key to conrm and exit.

40

SET MODE OPERATIONS

Display Mode

This parameter determines the LCD display mode. This parameter may not be available for dealer­programmed radios.

1.Pressing and holding [PF2] key to turn on the radio to enter the Set mode.

2.Press

3.Turn the main dial to select the desired parameter.

FREQ: channel frequency + channel number display

CH: channel number display.

NAME: Channel name+ Channel number display

4.Press

RESET

In case the radio is malfunctioning or you may resume the default conditions of the
radio, please perform this factory reset.

1.Pressing and holding [PF2] key to turn on the radio to enter the Set mode.

2.Press

3.Turn the main dial to select the desired parameter.

FACT: Restore factory default

INIT: Restore custom parameters only to default leaving the memory

OFF: Do not perform reset

41

/ key to choose menu 01 and display "DSP".

key or key to conrm and exit.

/ key to choose menu 02 and display "RESTOR".

AUXILIARY FUNCTIONS

4. Press key to exit.

5. Press

Cable Cloning

With this function, you can copy the programming data of the transceiver to another one; it can copy
parameters and memory programming data to another transceiver.

Connection: Use wire cloning cable to connect main transceiver with sub- transceiver through reading /

Setup: main transceiver party

1.Hold [PF1] side key to power on, LCD displays "CLONE", main transceiver enters
into copy mode.

2.Press [PF1] key, LCD displays "CLONE XX", XX means the transmitted data quantity.

3.After data copies completely, LCD displays "CLONE OK".

4.Main transceiver stays in this mode preparing to next copy, restart main transceiver to exit copy mode.

Setup: sub-transceiver party.

1.When receiving data, LCD displays "CLONE XX ", XX means the received data quantity.

2.After data received sub-transceiver returns to normal mode.

3.Power off, take over cable line and link to another sub-transceiver which you want to copy.

If data can not transfer successfully, power off main transceiver and sub-transceiver, check the cable line
and repeat the process.

key to perform the reset.

writing programmable interface.

42

DEFAULT SETTINGS

Frequency 435MHz/145MHz

Memory Channel

TX Power Hi

Keylock OFF

CTCSS/DCS Decode/Encode OFF

Optional Signaling OFF

Frequency Step 12.5KHz

Channel Spacing 25KHz

Frequency Reverse OFF

Talk Around OFF

Offset Frequency(UHF/VHF) 5MHz/0.6MHz

Busy Channel Lockout OFF

TX Function ON

Band Limit ON

Sub Band Display Frequency

Beep sounds ON

Time-Out-Timer 3min

VOV setup OFF

VOX Delay 0.5sec

Automatic Power Off OFF

43

CH0:435MHz
CH1:145MHz
CH2-CH199:Blank

DTMF Transmitting Time 50msec

Squelch level 3

Scan Dwell Time 5sec

Function Icon Stay Time Function

LCD Backlight Auto

LCD Backlight Color Orange

Tone Pulse Frequency 1750Hz

Battery Save 1:2

FM Radio ON

OPTIONAL ACCESSORIES

EA-228 VHF/UHF & FM radio Antenna

EBC-34 Belt Clip

EBP-87 Li-ion Battery Pack (DC 7.4V 1500mAh)

EBP-88 Li-ion Battery Pack (DC 7.4V 1700mAh)

EDC-189 Li-ion Battery Charger

EDC-190E AC Adaptor (220V Linear type)

EDC-191E AC Adaptor (220V)

EDC-191T AC Adaptor (120V)

EME-56A Earphone Microphone

EMS-76 Speaker microphone

44

RECOMMENDED INSTALLATION OF EARPHONE MICROPHONE

Earphone

Use a clip to x with collar.

Clip the PTT unit closer to your mouth.

Carry the radio on the side or the back of your body,

and the cable should go around the back as shown.

Clamp the excessive length of cable at your waist

45

TECHNICAL SPECIFICATION

Technical Specications

General

Frequency Range (T ver)

Frequency Range (E ver)

Modulation F3E(16K0F3E/11K0F3E / RX only WFM)

Programmable channels 200 channels

Operation Voltage DC7.4V(Battery only)

Battery Life More than 12 Hours(1500mAh), by 5-5-90 working cycle

Frequency Stability ±2.5ppm

Temperature range

Dimensions
(Projections not included/approx.)

Weight *approx 227g or 8.01oz (with battery pack and antenna)

TX 420~450MHz

RX 400~480MHz

TX 430~440MHz

RX 430~440MHz

Operating:-20～+55℃(-4～131°F) / Charging:+5～+40℃
(+41～104°F)

59(W) x 98(H) x 35(D) mm

2.32"(W) x 3.86"(H) x 1.38"(D)

46

TECHNICAL SPECIFICATION

Receiver

Sensitivity(12dB SINAD) wide -12dBu, Narrwo -9dBu

Selectivity - 6dB: 12kHz or more /- 60dB: 30kHz or less

Audio output power 1W (10% distortion)

Transmitter

high 5W

Output power (Approx.)

Spurious emissions - 60dB or less

Max.deviation(Wide/Narrow) ±5kHz / ±2.5kHz

' All specications are subject to change without notice or obligation.

* ALINCO and Alinco logo are registered trademarks of Alinco, Inc in many countries including USA, Russia, EU states

and China.

47

middle 2.5W

low 1W(0.2W)

TROUBLE SHOOTING GUIDE

Problem Corrective Action

A.The battery may be exhausting. Recharge or replace the battery.

No power

Battery power dies shortly after
charging.

Transceiver cannot scan Squelch is open. Adjust the level.

All band is noisy Adjust squelch level.

No sound when using earphone.

Communication distance
becomes short, and Low
sensitivity

Cannot talk or hear other
members in your group

Can not power on or frequent
power off

B.The battery may not be installed correctly. Remove the battery and

install it again.
C.The power switch is broken; send it to local dealers to repair.
D.Battery life is end; contact to local dealers to replace.

The battery is exhausted. Replace the battery pack with a new one.

Earphone or the jack is broken. Please contact with local dealers for
inspection.

A.Check whether the antenna is in good conduction and the antenna

base do not come adrift.
B.Antenna may be broken. Consult your local dealer for services.

A.Different frequency or channel, please change it.
B.Different CTCSS / DCS / DTMF, please reset it.
C.Out of communication range.

Check if the battery pack is securely attached.

48

TROUBLE SHOOTING GUIDE

The receiving sound level is low
or intermittent

Receiving signal is intermittent.

Loudspeaker sounds lower or
with dry noise after certain time of
usage.(Speaker magnet attracts
iron powders)

Receive voice from the other
parties and can not transmit

Receiving indicator with green
light but no sound

NOTE: Alinco guarantees the supply of minimum-necessary spare parts such as battery-packs, components
and mechanical parts for at least 5 years after the production of this product is terminated except in case of
accidents beyond control.

49

Consult with local dealers for inspection.

A.Out of communication range or obstruct by walls, buildings etc.

Change position to transmit.

B.4Internal components may be in trouble, please contact with local

dealers to repair.

Check whether the loudspeaker is broken, Iron powder or dusts is in
the loudspeaker. Please contact with local dealers to repair.

Interference is being received. BCLO activated.

A.Low volume, increase the audio level.
B.Volume switch or loudspeaker is broken, please contact with local

dealers to repair.

C.Earphone jack is broken, please contact with local dealers to

repair.

ATTACHED CHART

CTCSS Frequency Chart

1 62.5 12 94.8 23 136.5 34 177.3 45 218.1
2 67.0 13 97.4 24 141.3 35 179.9 46 225.7
3 69.3 14 100.0 25 146.2 36 183.5 47 229.1
4 71.9 15 103.5 26 151.4 37 186.2 48 233.6
5 74.4 16 107.2 27 156.7 38 189.9 49 241.8
6 77.0 17 110.9 28 159.8 39 192.8 50 250.3
7 79.7 18 114.8 29 162.2 40 196.6 51 254.1
8 82.5 19 118.8 30 165.5 41 199.5 52

9 85.4 20 123.0 31 167.9 42 203.5
10 88.5 21 127.3 32 171.3 43 206.5
11 91.5 22 131.8 33 173.8 44 210.7

user-dened

50

ATTACHED CHART

1024 groups DCS frequency chart

000 001 002 003 004 005 006 007
010 011 012 013 014 015 016 017
020 021 022 023 024 025 026 027
030 031 032 033 034 035 036 037
040 041 042 043 044 045 046 047
050 051 052 053 054 055 056 057
060 061 062 063 064 065 066 067
070 071 072 073 074 075 076 077
100 101 102 103 104 105 106 107
110 111 112 113 114 115 116 117
120 121 122 123 124 125 126 127
130 131 132 133 134 135 136 137
140 141 142 143 144 145 146 147
150 151 152 153 154 155 156 157
160 161 162 163 164 165 166 167
170 171 172 173 174 175 176 177
200 201 202 203 204 205 206 207
210 211 212 213 214 215 216 217
220 221 222 223 224 225 226 227
230 231 232 233 234 235 236 237
240 241 242 243 244 245 246 247
250 251 252 253 254 255 256 257

51

ATTACHED CHART

260 261 262 263 264 265 266 267
270 271 272 273 274 275 276 277
300 301 302 303 304 305 306 307
310 311 312 313 314 315 316 317
320 321 322 323 324 325 326 327
330 331 332 333 334 335 336 337
340 341 342 343 344 345 346 347
350 351 352 353 354 355 356 357
360 361 362 363 364 365 366 367
370 371 372 373 374 375 376 377
400 401 402 403 404 405 406 407

410 411 412 413 414 415 416 417
420 421 422 423 424 425 426 427
430 431 432 433 434 435 436 437
440 441 442 443 444 445 446 447
450 451 452 453 454 455 456 457
460 461 462 463 464 465 466 467
470 471 472 473 474 475 476 477
500 501 502 503 504 505 506 507
510 511 512 513 514 515 516 517
520 521 522 523 524 525 526 527
530 531 532 533 534 535 536 537
540 541 542 543 544 545 546 547

52

ATTACHED CHART

550 551 552 553 554 555 556 557
560 561 562 563 564 565 566 567
570 571 572 573 574 575 576 577
600 601 602 603 604 605 606 607
610 611 612 613 614 615 616 617
620 621 622 623 624 625 626 627
630 631 632 633 634 635 636 637
640 641 642 643 644 645 646 647
650 651 652 653 654 655 656 657
660 661 662 663 664 665 666 667
670 671 672 673 674 675 676 677
700 701 702 703 704 705 706 707
710 711 712 713 714 715 716 717
720 721 722 723 724 725 726 727
730 731 732 733 734 735 736 737
740 741 742 743 744 745 746 747
750 751 752 753 754 755 756 757
760 761 762 763 764 765 766 767

770 771 772 773 774 775 776 777

53

The SAR limit of USA (FCC) is 8 W/kg averaged over one gram of tissue. Device
types DJ-500 (FCC ID: PH3DJ-500TB) has also been tested against this SAR limit.
The highest SAR value reported under this standard during product certification for
use when properly worn on the body is 4.656 W/kg and for head is 3.340 W/kg.
. This device was tested for typical body-worn operations with the back of the
handset kept 25mm from the body. To maintain compliance with FCC RF exposure
requirements, use accessories that maintain a 25mm separation distance between
the user's body and the back of the handset. The use of belt clips, holsters and
similar accessories should not contain metallic components in its assembly. The use
of accessories that do not satisfy these requirements may not comply with FCC RF
exposure requirements, and should be avoided.

The SAR limit of USA (FCC) is 8 W/kg averaged over one gram of tissue. Device
types DJ-500 (FCC ID: PH3DJ-500TB) has also been tested against this SAR limit.
The highest SAR value reported under this standard during product certification for
use when properly worn on the body is 4.656 W/kg and for head is 3.340 W/kg.
. This device was tested for typical body-worn operations with the back of the
handset kept 25mm from the body. To maintain compliance with FCC RF exposure
requirements, use accessories that maintain a 25mm separation distance between
the user's body and the back of the handset. The use of belt clips, holsters and
similar accessories should not contain metallic components in its assembly. The use
of accessories that do not satisfy these requirements may not comply with FCC RF
exposure requirements, and should be avoided.

This device must be restricted to work related operations in an Occupational/Controlled RF

exposure Environment, not exceeding a maximum transmitting duty factor of 50%. All qualified

end-users of this device must have the knowledge to control their exposure conditions and/or

duration to comply with the Occupational/Controlled MPE limit and requirements.

The device was SAR tested a distance of 25mm for the held to face position.
