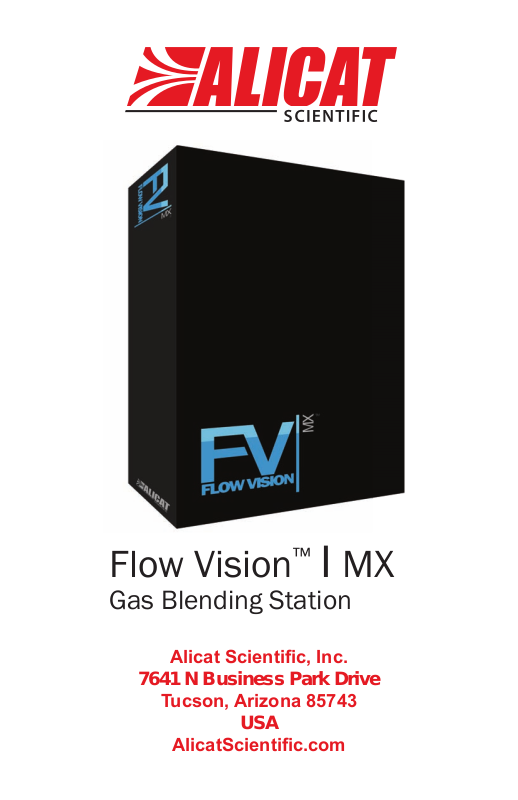

Alicat Flow Vision MX User Manual

Flow Vision

™

I MX

Gas Blending Station

Alicat Scienti c, Inc.

7641 N Business Park Drive

Tucson, Arizona 85743

USA

AlicatScienti c.com

1

Notice: Alicat Scientic, Inc. reserves the right to make any
changes and improvements to the products described in
this manual at any time and without notice. This manual is
copyrighted. This document may not, in whole or in part, be
copied, reproduced, translated, or converted to any electronic
medium or machine readable form, for commercial purposes,
without prior written consent from the copyright holder.

Note: Although we provide assistance on Alicat Scientic
products both personally and through our literature, it is the
complete responsibility of the user to determine the suitability
of any product to their application.

The manufacturer does not warrant or assume responsibility for
the use of its products in life support applications or systems.

For more information regarding this or any Alicat product, please
contact us at:

Alicat Scientic, Inc

7641 N Business Park Drive

Tucson, Arizona 85743

USA

Ph: 520-290-6060

888-290-6060

Fax: [phone]

email: info@alicatscientic.com

Web site: www.alicatscientic.com

1/12/2012 Rev.0 DOC-FVISIONMXMAN

2

Table of Contents
Welcome to Flow Vision™ MX 4
System Requirements 4

Overview 5

Creating a Blend 6

Guided Setup 6
Manual Setup 7

Blending Gases 8
Adjusting Concentrations 8
Changing Flow Rates 9
Saving a Blend 10
Loading a Blend 10

Changing Flow Units 10
Changing Decimal Places 10
Using the Terminal 11

3

Welcome to Flow Vision™ Gas Blending Station

Flow Vision™ MX is a graphical software package that aides in the process of

mixing gases. Currently, up to six Alicat Scientic, Inc.™ mass ow controllers
are supported.

System Requirements

Supported Operating Systems: Microsoft® Windows® XP, Windows®
Vista, Windows® 7

Software: Microsoft®.NET Framework 3.5

Hard Disk: Up to 10 MB of available space may be required for

installation. Data logs may require additional space.

Hardware: Available COM port, at least one Alicat Scientic, Inc.™ mass
ow controller

Display: Minimum of 860 x 860

4
