Algolith VLD-1002-MD User Manual

Advanced Image Processing Solutions

Dual SD/HD Video Delay

Installation and Operation Manual

C3034-8001-100

Copyright Algolith 2008, all rights reserved

VLD-1002-MD

Guide to installation and operation

Table of Contents

Safety ........................................... 3

Introduction ................................... 4

Overview ............................................... 4

Main Features ........................................ 4

The Algogear Series ............................... 5

Installation and setup .....................6

Static Discharge ..................................... 6

Board Installation ................................... 6

Installation and setup .....................7

Power Consumption ............................... 8

Front Module .......................................... 8

Rear Input / Output Module Labels .......... 9

Output Channels ................................... 10

Controls .............................................. 11

Product Status Area ............................. 11

Basic Tree View ................................... 11

Operation .................................... 11

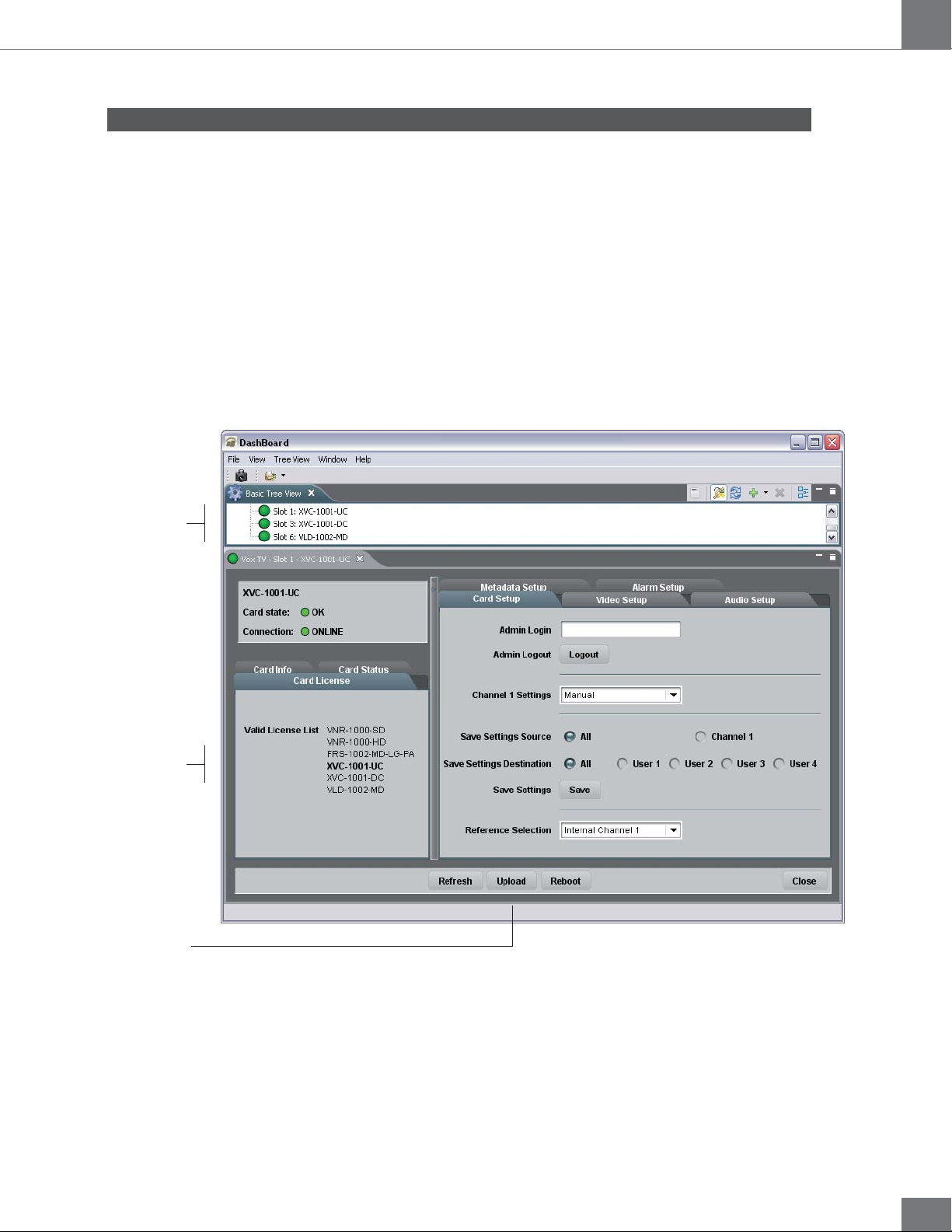

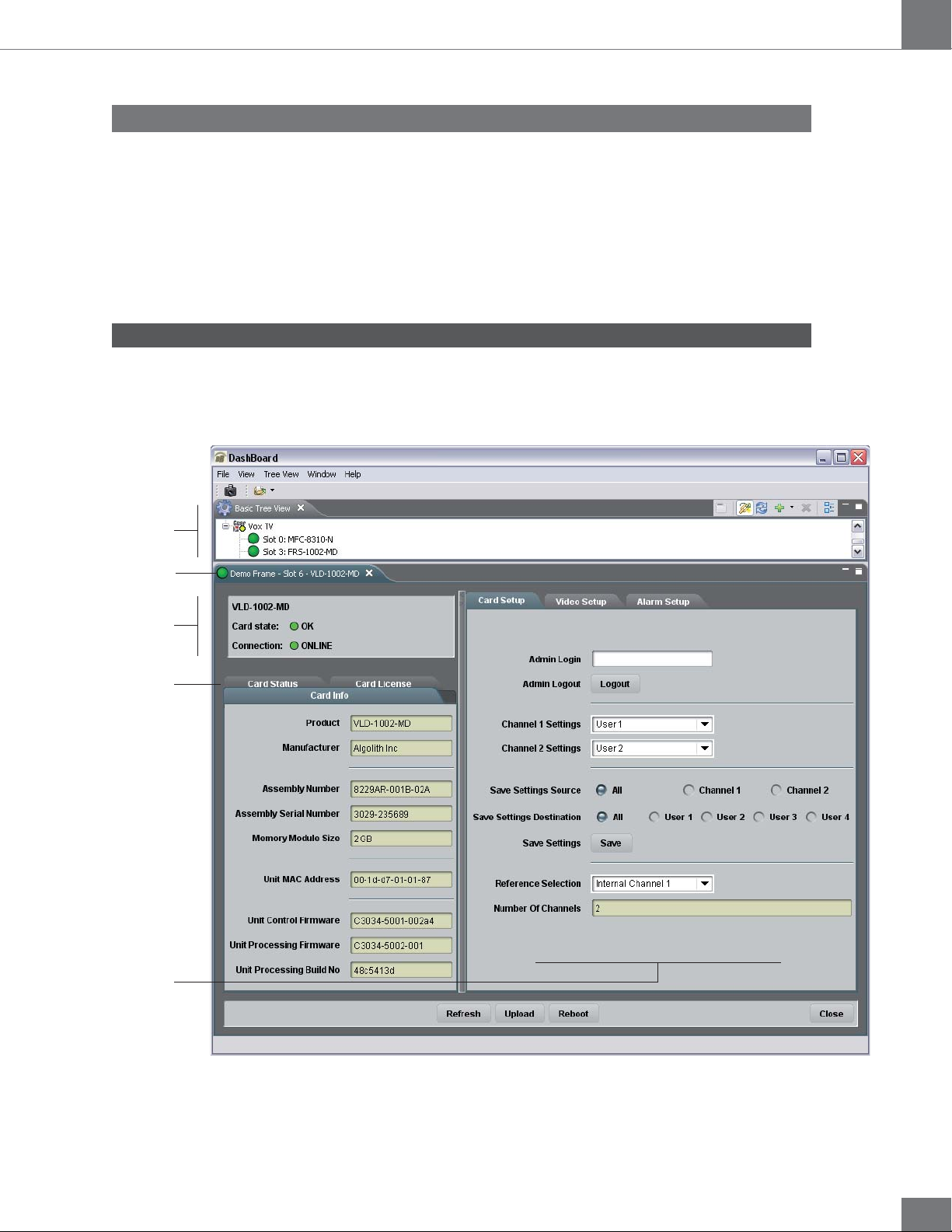

The Dashboard Software Interface.............. 11

The Basic Tree View Window ................. 12

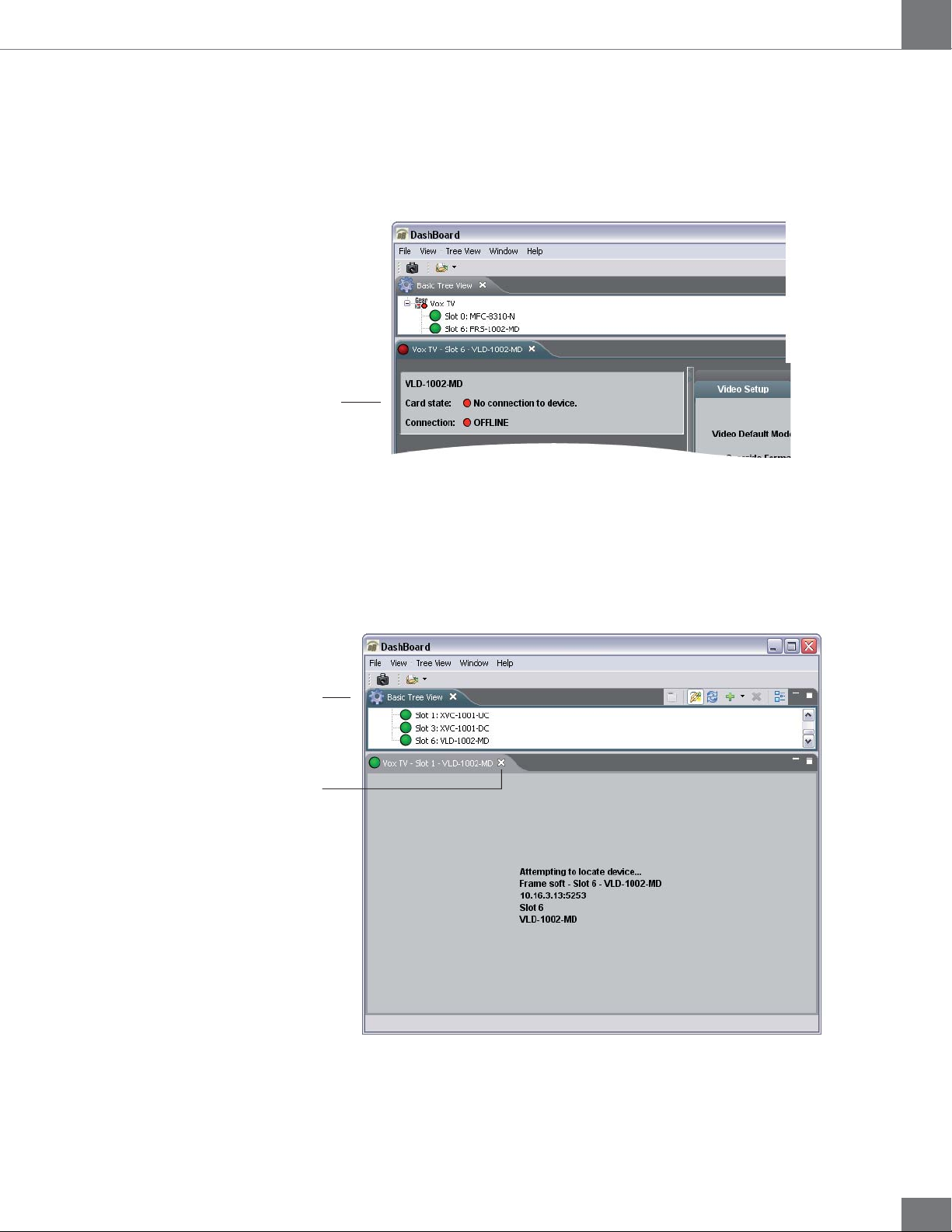

The Product Status Area ....................... 12

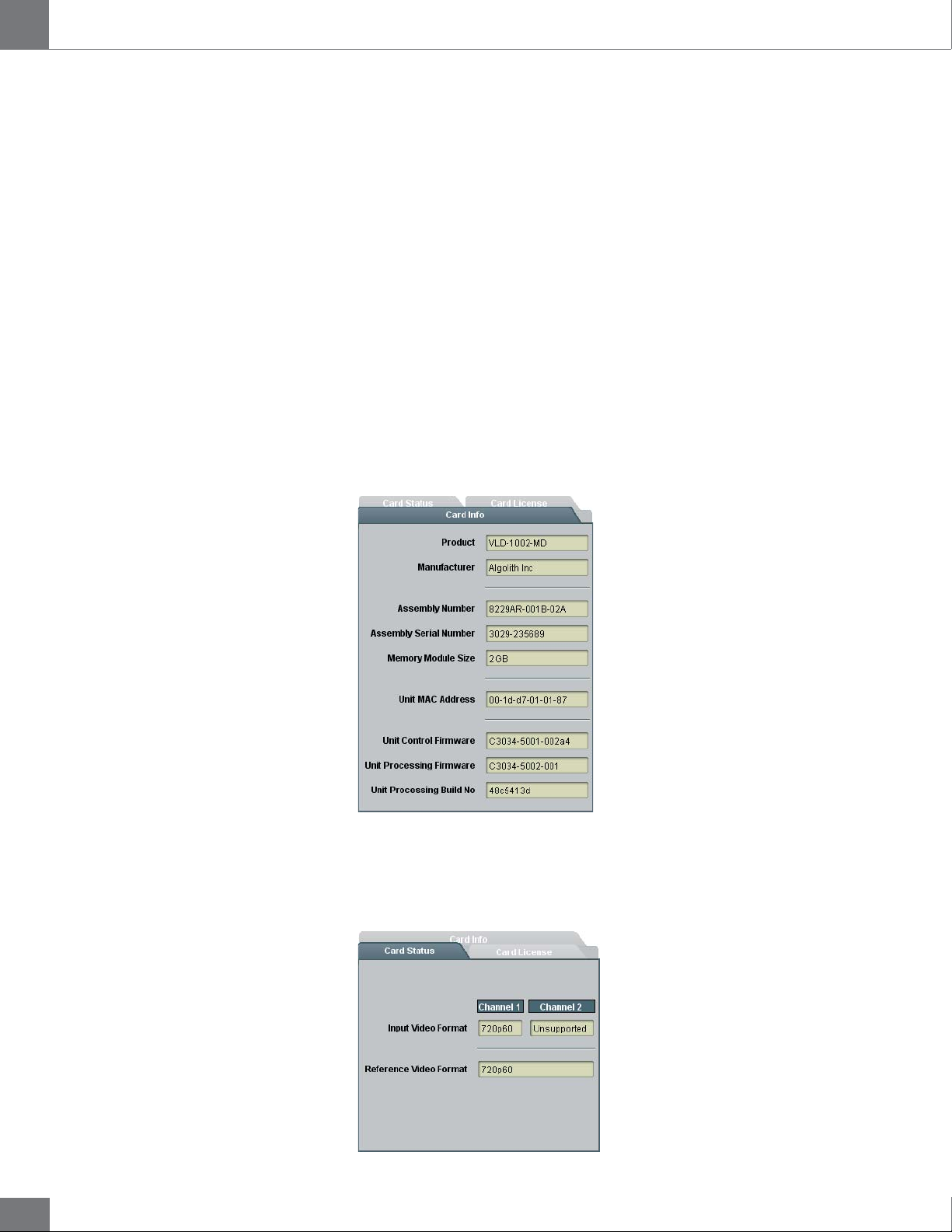

The Card Info Window ........................... 12

The Card Status Window ....................... 12

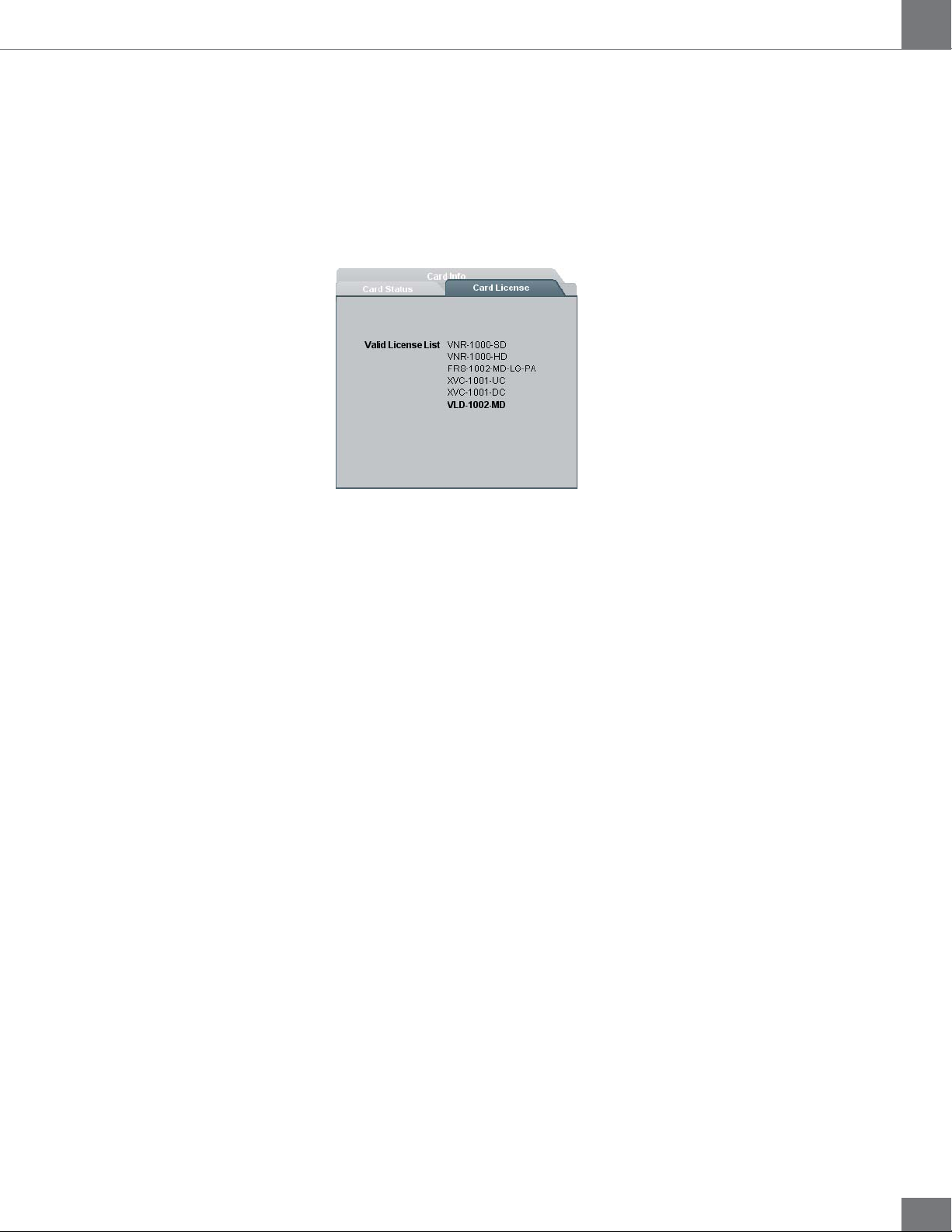

The Card License Window ..................... 13

Control ................................................ 13

Login to administrator level ................... 14

Adjusting Parameters ................................ 14

The Administrator Level ........................ 14

Recall & apply settings ......................... 15

Save settings ....................................... 15

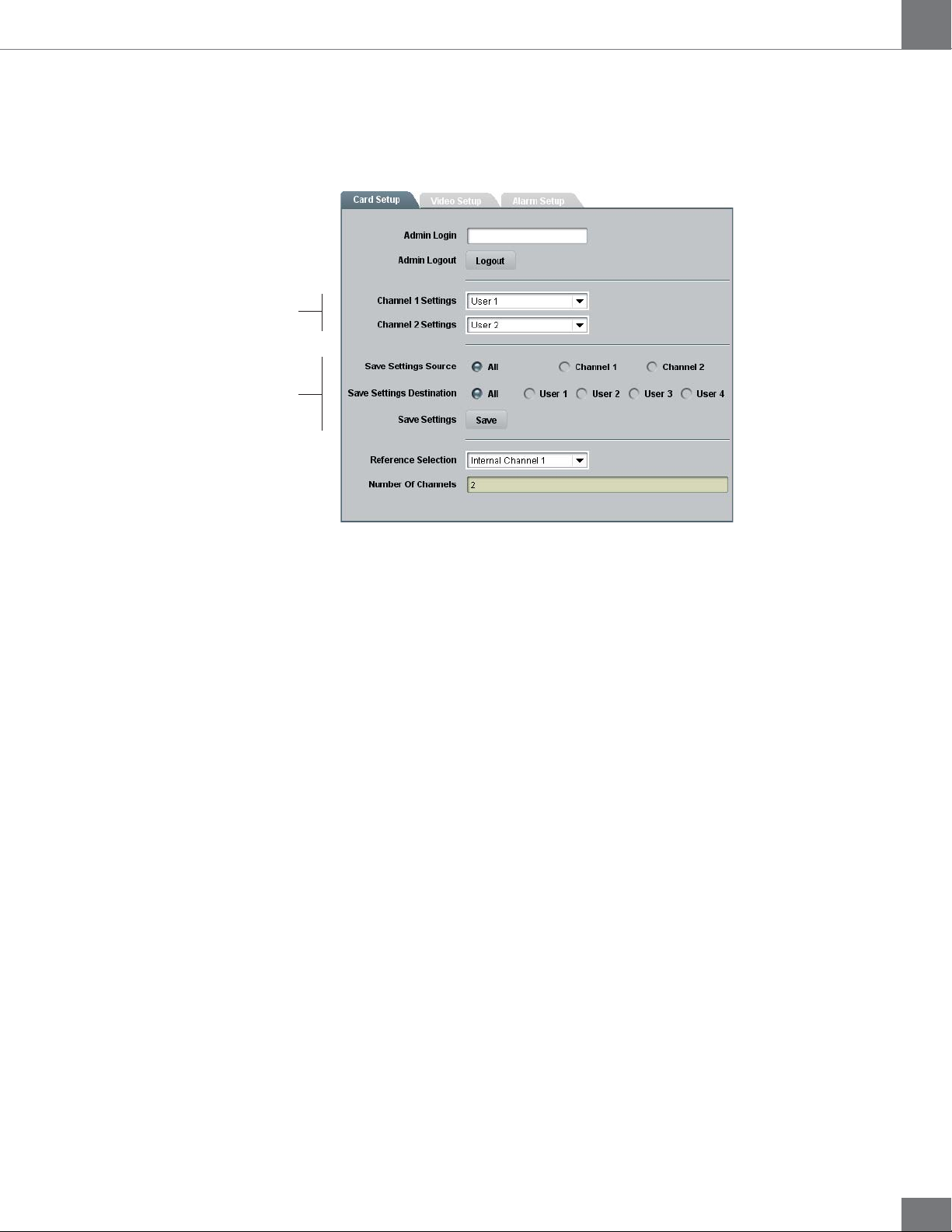

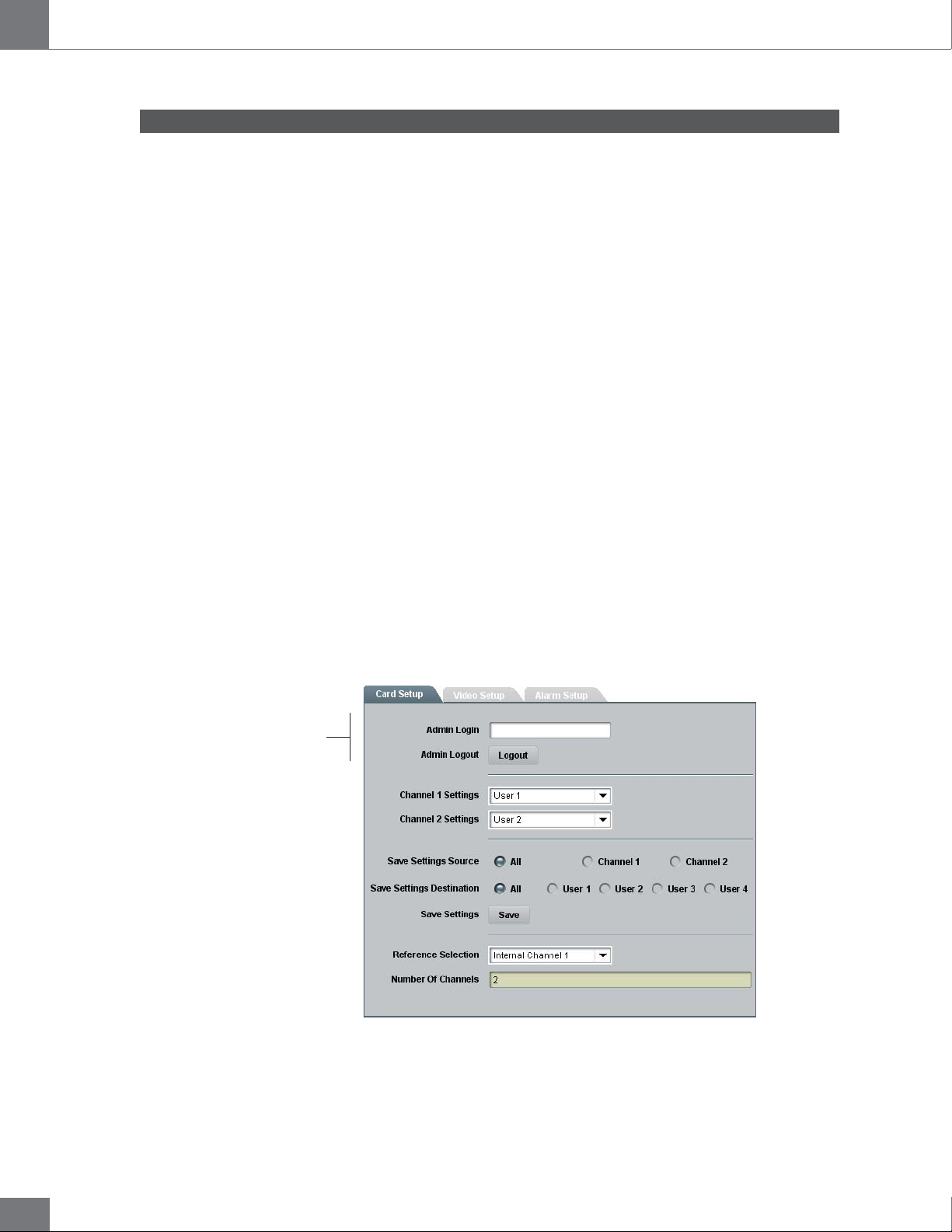

The Card Setup Window ....................... 15

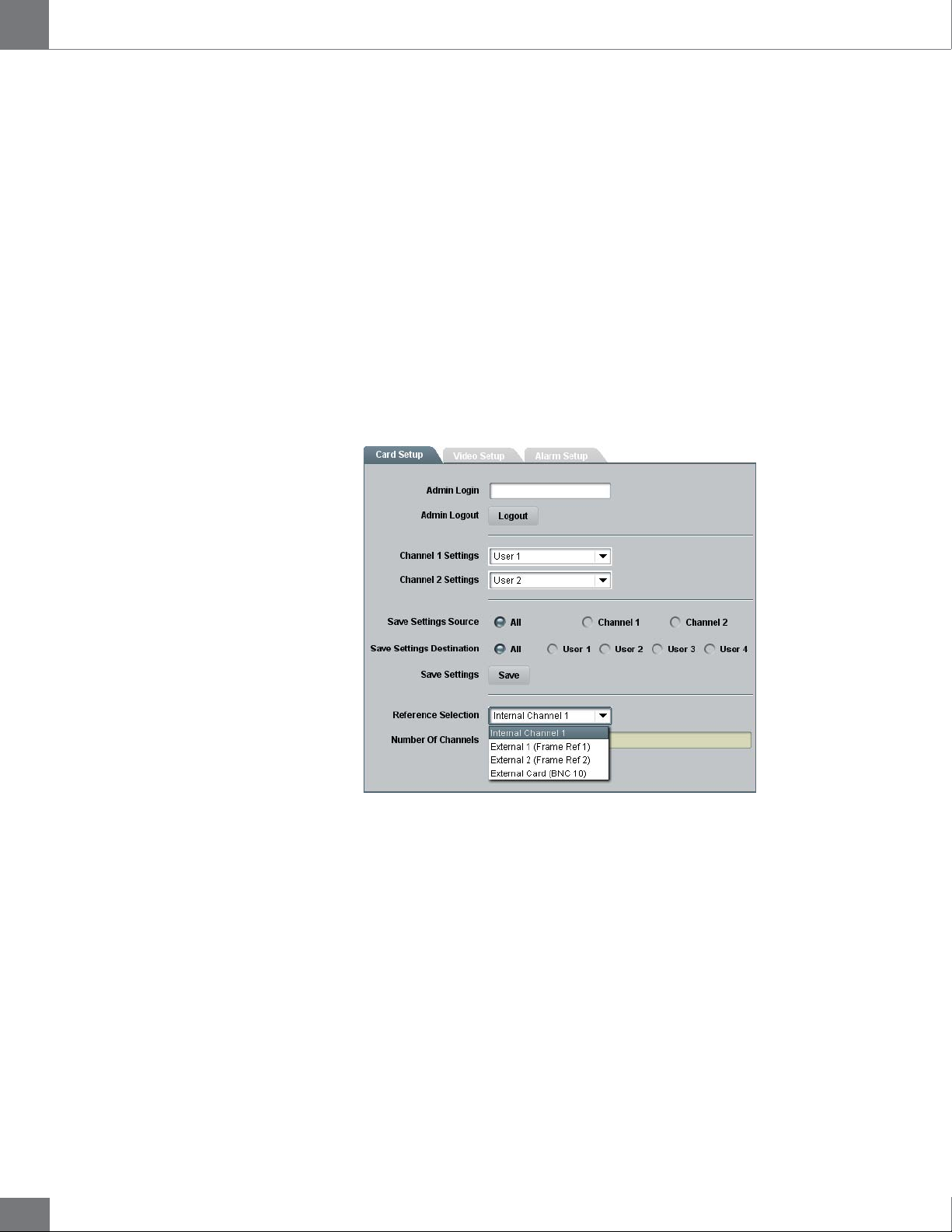

Selecting the Reference ........................ 16

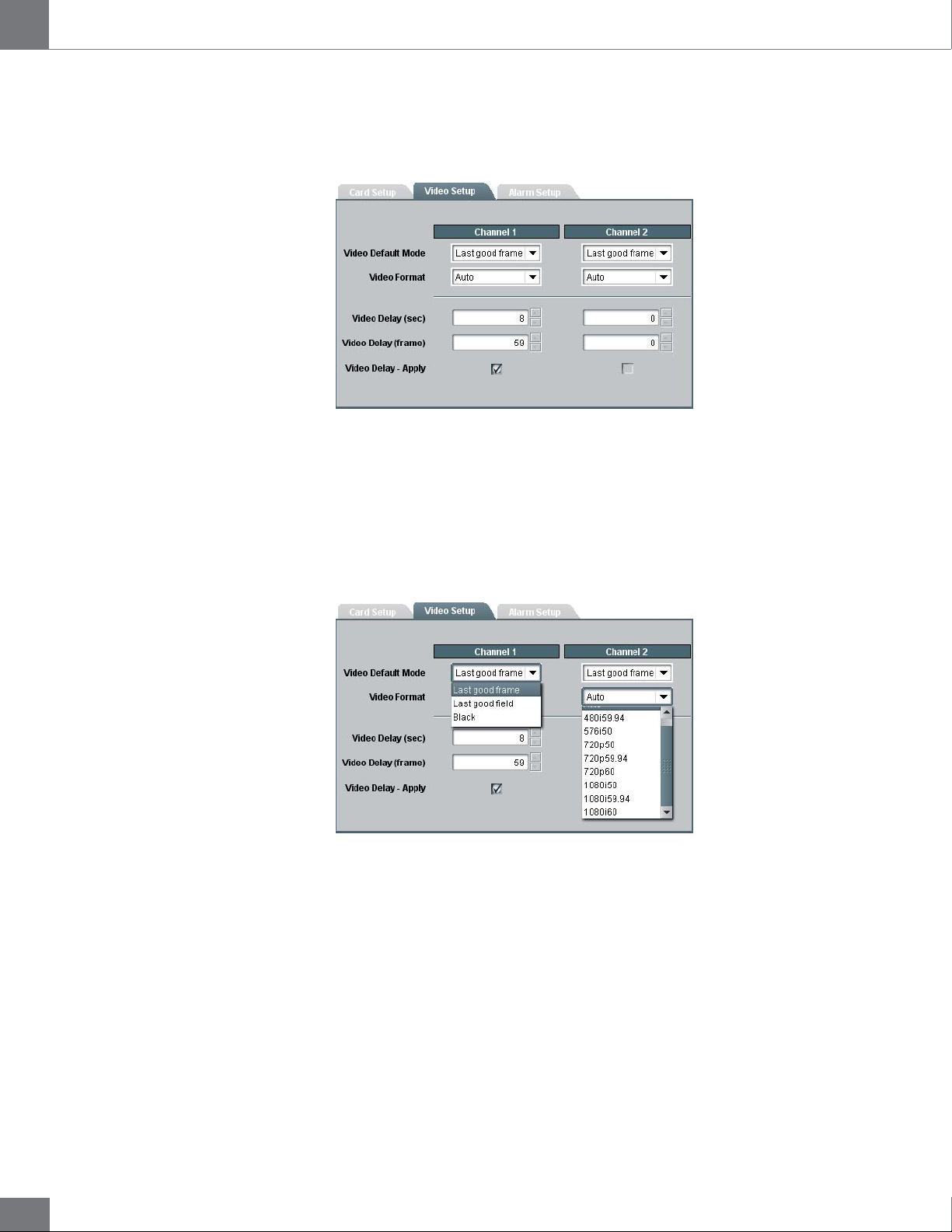

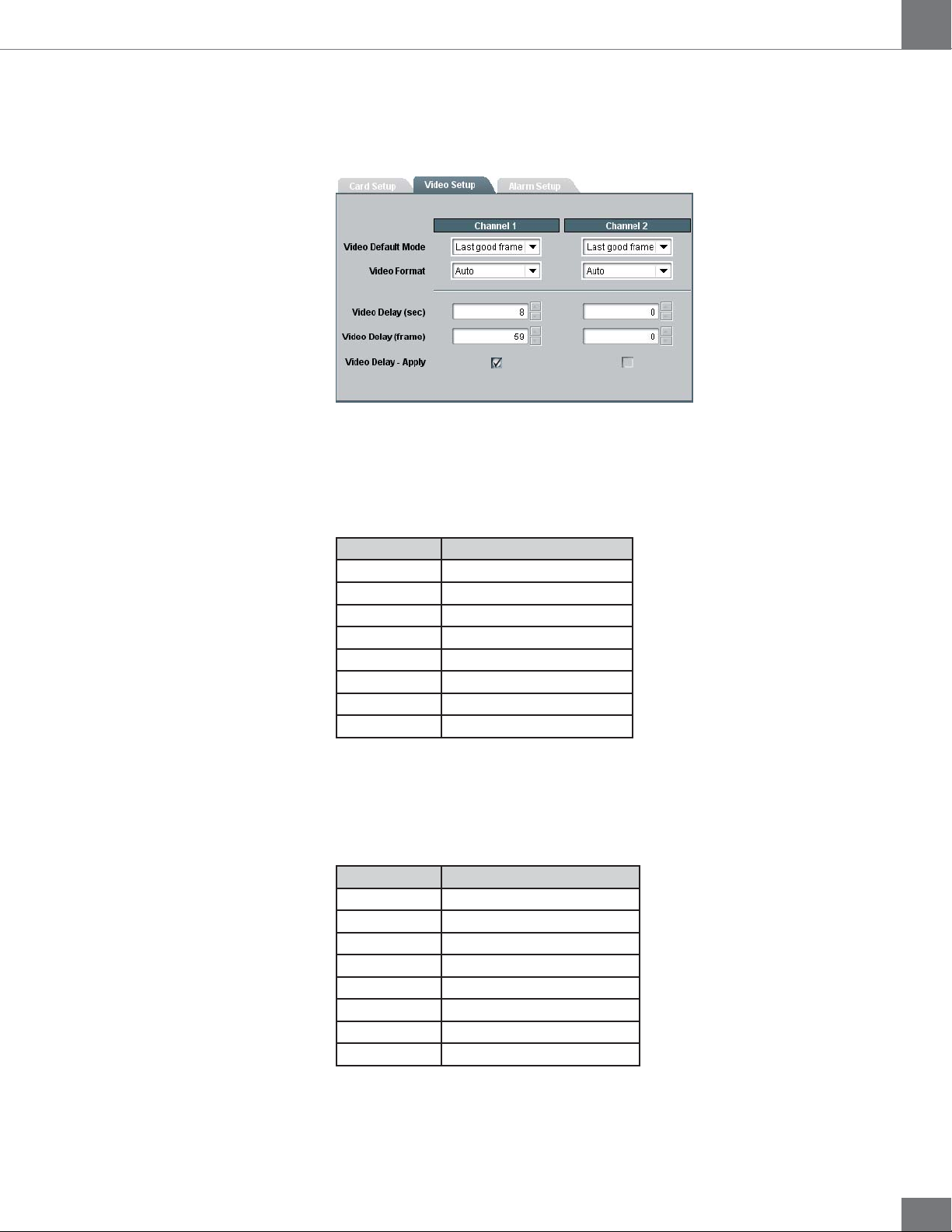

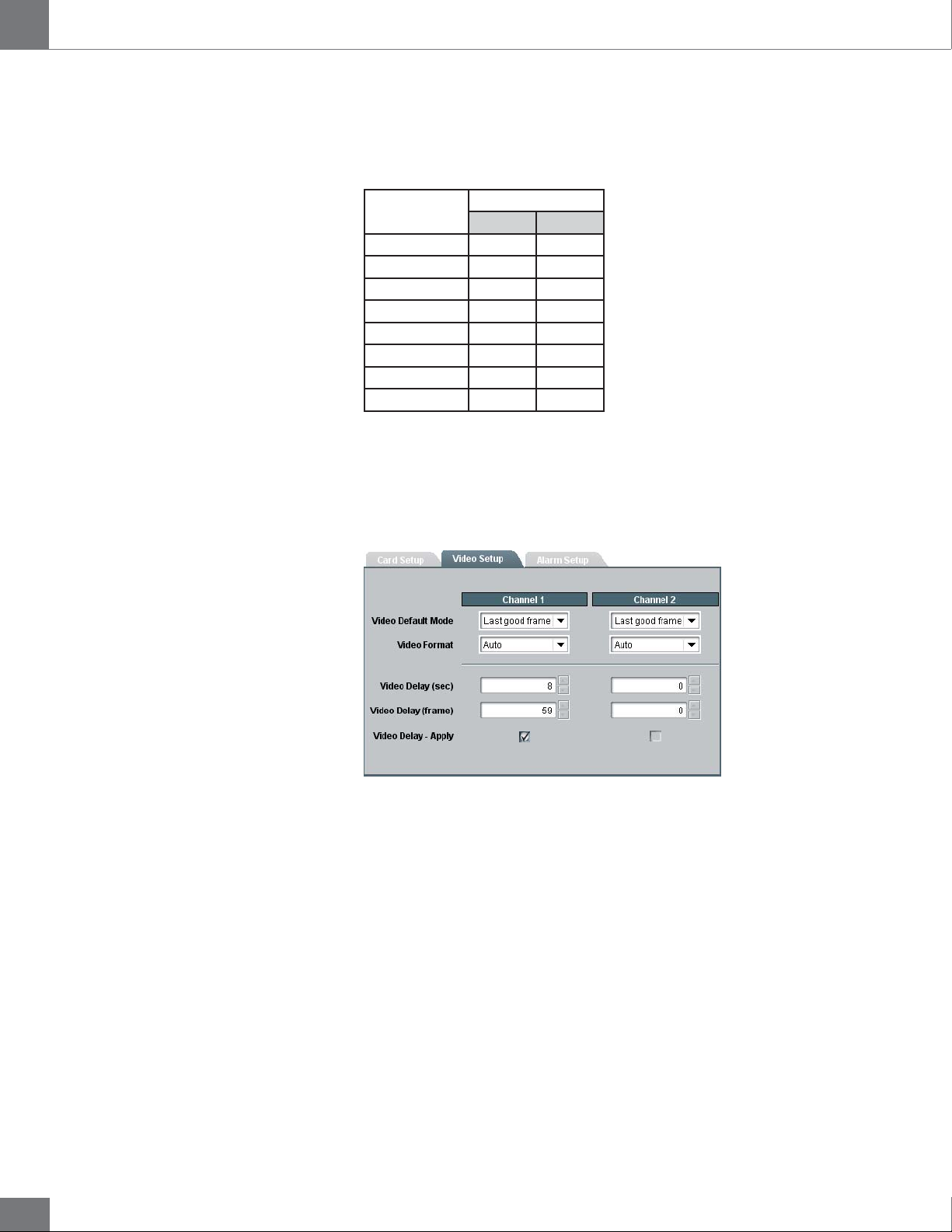

Video Setup Window ............................. 18

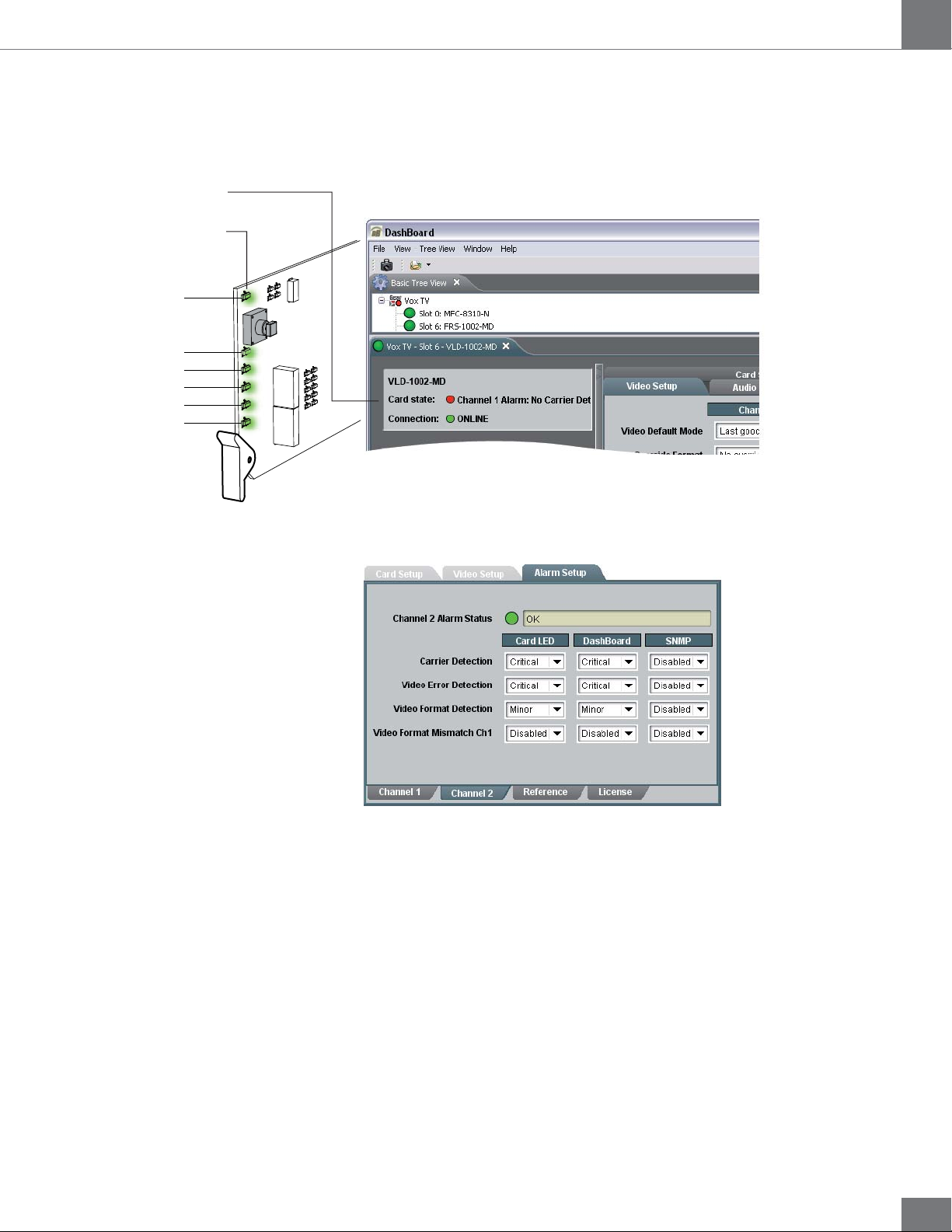

The Alarm Setup Window ...................... 21

Specifi cations ..............................28

Limited Warranty .........................29

Contact us ..................................29

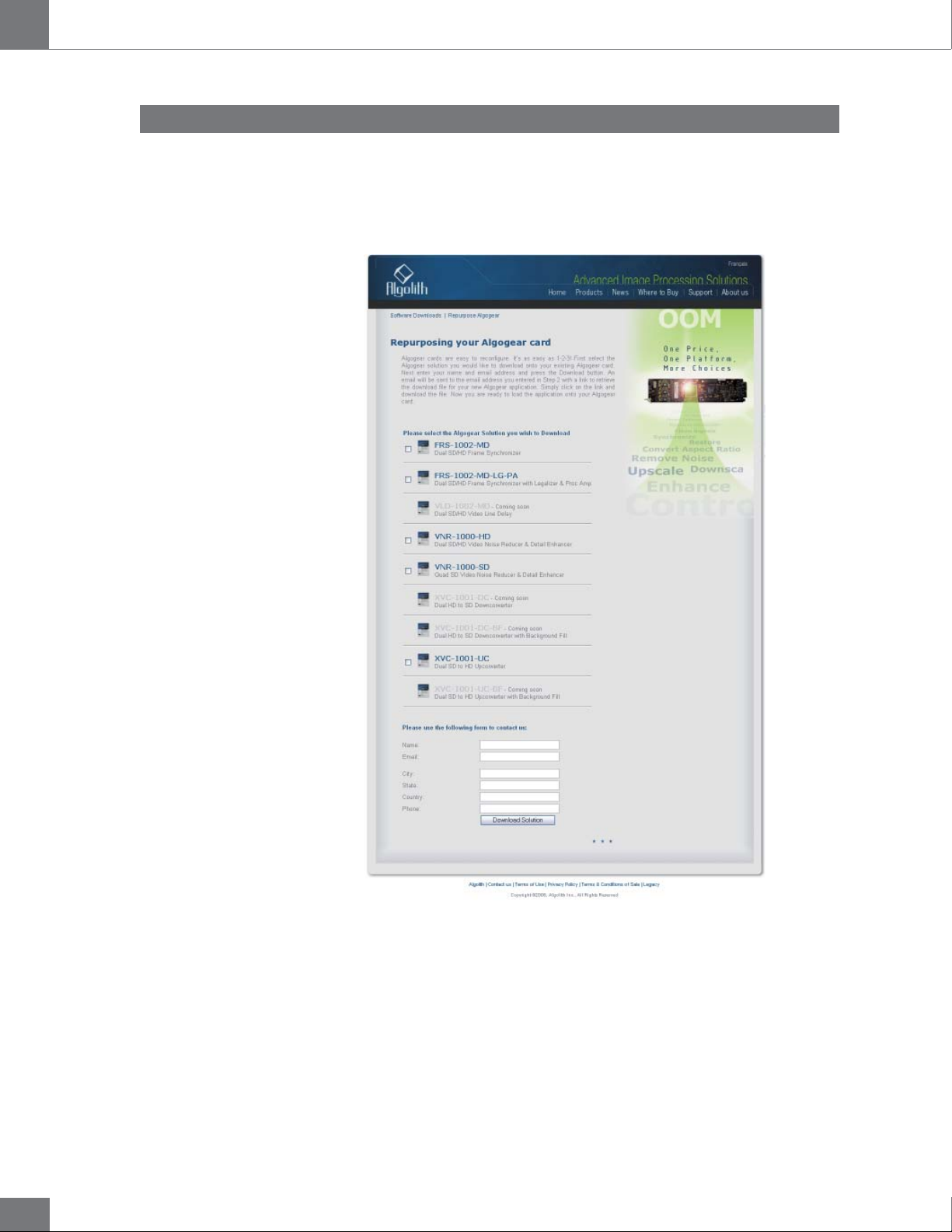

How to Repurpose your Card ........22

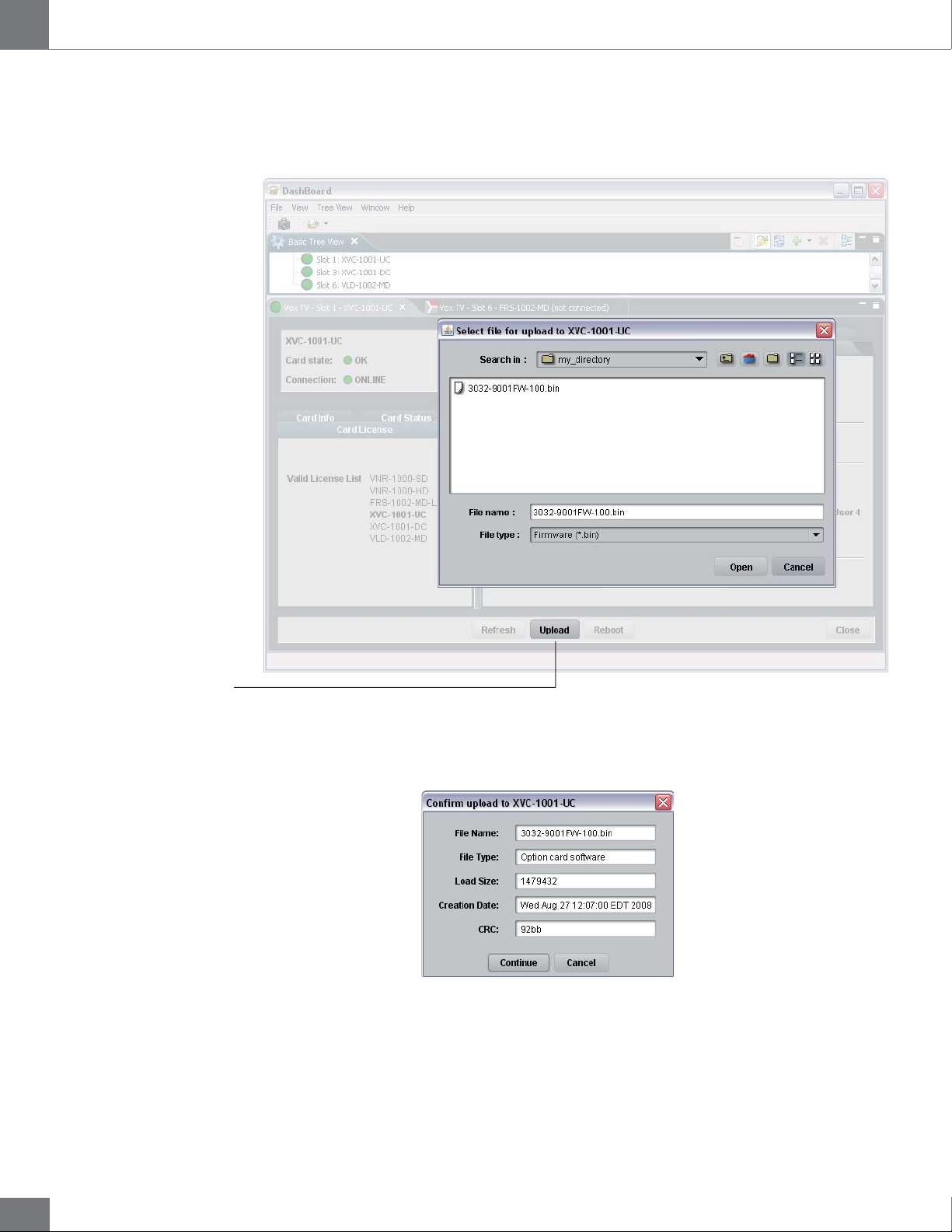

Load the new product onto your card ......... 23

2

Guide to installation and operation

VLD-1002-MD

Safety

Before using this product, carefully review all the safety
precautions in this user guide, and all the important
regulatory and safety notices in the openGear DFR­8310-C Multi-Definition Digital Products Frame User
Manual.

CAUTION

This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the pro­duct’s enclosure that may be of suffi­cient magnitude to constitute a risk of
electric shock to persons.

This symbol is intended to alert the
user to the presence of important
operating and maintenance (servi­cing) instructions in the literature
accompanying the appliance.

Restrictions on Hazardous Substances

Directive 2002/95/EC—commonly known as
the European Union (EU) Restriction on Hazardous
Substances (RoHS)—sets limits on the use of certain
substances found in electrical and electronic equip­ment. The intent of this legislation is to reduce the
amount of hazardous chemicals that may leach out of
landfill sites or otherwise contaminate the environment
during end-of-life recycling. The Directive takes effect
on July 1, 2006, and it refers to the following hazar­dous substances:

Electromagnetic Compatibility

This equipment has been tested and found to comply with the
limits for a class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when this equipment is operated in
a commercial environment. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interfe­rence to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which
case users will be required to correct the interference at their own
expense. Changes or modifications to this equipment not expressly
approved by Algolith Inc. could void the user’s authority to operate
this equipment.

Waste from Electrical and Electronic
Equipment (WEEE) Compliance

The European Union (EU) Directive 2002/96/EC
on Waste from Electrical and Electronic Equipment
(WEEE) deals with the collection, treatment, reco­very, and recycling of electrical and electronic waste
products. The objective of the WEEE Directive is to
assign the responsibility for the disposal of associated
hazardous waste to either the producers or users of
these products. Effective August 13, 2005, produ­cers or users will be required to recycle electrical and
electronic equipment at end of its useful life, and may
not dispose of the equipment in landfills or by using
other unapproved methods. (Some EU member states
may have different deadlines.)

Equipment that complies with the EU directive will be
marked with a WEEE-compliant emblem, as shown in
the figure below.

• Lead (Pb)

• Mercury (Hg)

• Cadmium (Cd)

• Hexavalent Chromium (Cr-V1)

• Polybrominated Biphenyls (PBB)

• Polybrominated Diphenyl Ethers (PBDE)

According to this EU Directive, this product is fully
RoHS-compliant and “lead-free.”

Please insure that this equipment is properly recycled
at its end-of-life. Algolith invites you to contact your
local or regional waste administration if you need
any information on how to dispose of this equipment
in an environmentally friendly and health conscious
manner.

3

VLD-1002-MD

Guide to installation and operation

Introduction

Overview

The Algogear VLD-1002-MD Video Delay is designed for delay applications
in both standard and high-definition SDI environments on up to 2 channels.
It supports all popular standard-definition and high-definition video formats
including 480i59.94, 576i50, 720p50, 720p59.94, 720p60, 1080i50,
1080i59.94 and 1080i60. Delay programming can be added in time
units (seconds) and video units (frames). The VLD-1002-MD provides up
to 4 seconds of delay in HD and 24 seconds in SD with the optional 2 GB
SODIMM (Small Outline Dual Inline Memory Module).

The VLD-1002-MD will automatically delay all 16 channels (4 groups) of
embedded audio to compensate for the video delay. In addition, ancillary
data, closed caption and time code information are also delayed according
to video.

Main Features

• Dual channel SD/HD video delay

• Dual outputs per channel, output format follows input format

• Delay programming in time units (seconds) and video units (frames)

• Up to 4 seconds of delay for HD and up to 24 seconds of delay for
SD, at 2GB memory in a 2 channel configuration

• Passes Ancillary Data (including embedded audio)

• SNMP Support

• Controlled by easy-to-use DashBoard software

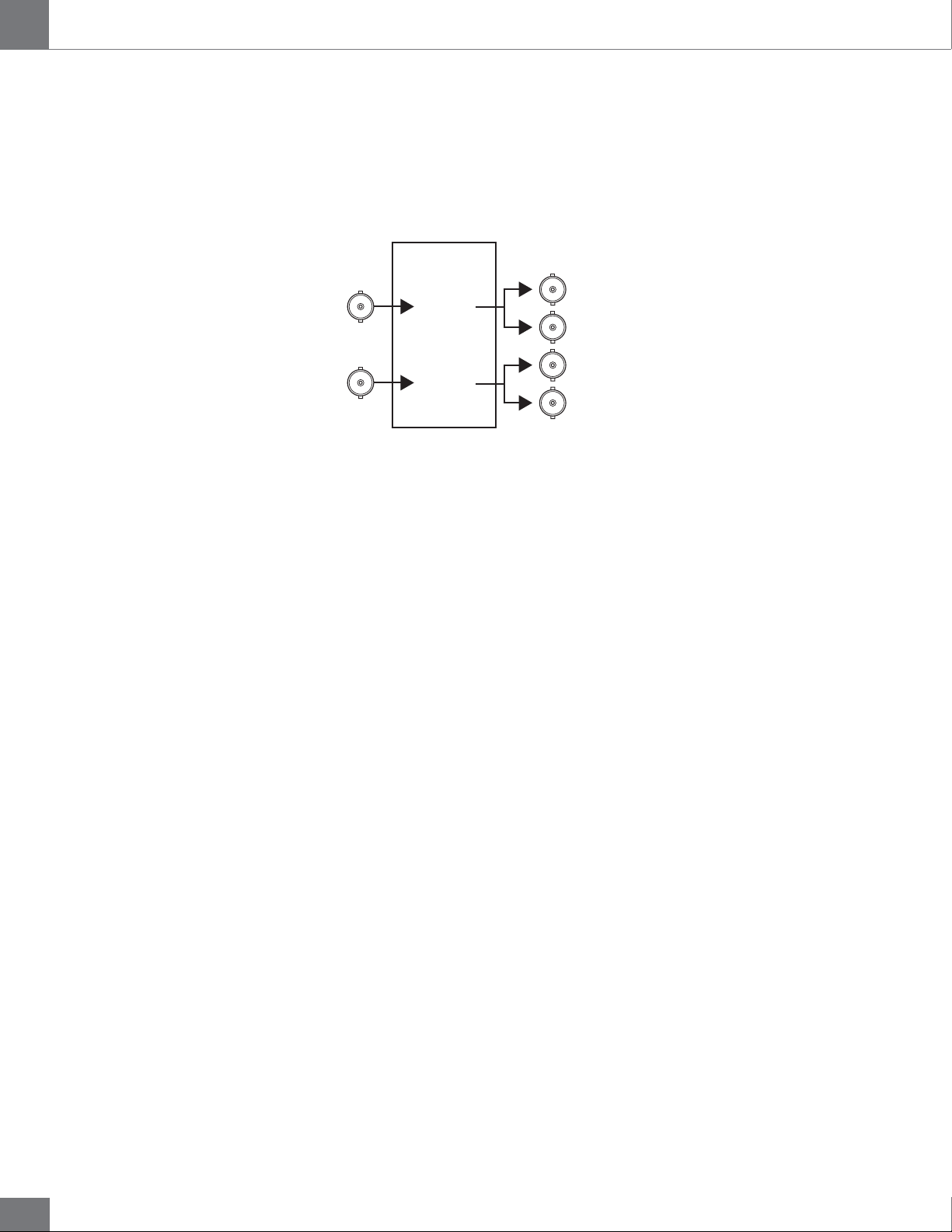

Input 1

Input 2

Card Ref
Frame Ref 1
Frame Ref 2

Genlock

Variable

Delay
Buffer

Output 1A

Output 1B

Output 2A

Output 2B

Control

4

Guide to installation and operation

The Algogear Series

VLD-1002-MD

Designed for openGear, Algogear is a flexible, future-proof, modular
solution that can maximize bandwidth, clean, synchronize and scale
media. Algogear delivers unparalleled value and flexibility to broadcasters
leveraging the Algogear solution, giving the ground-breaking ability to
reprogram the cards with any of the available Algogear solutions at any
time, at no cost.

If you have a simple configuration that will change as your needs evolve,
you can continue to change the functionality of the Algogear cards,
reconfiguring them to meet your needs over time.

The list of Algogear applications is quickly evolving. Visit www.algolith.
com for a current list of available applications and news about products
coming soon.

Card Identification

Rear module labels and card identification labels for each Algogear
application available at the time of purchase are included with your card.
In addition, an installation CD is provided which includes the user guides
of all Algogear applications available at the time of purchase. To request
additional rear module labels, card identification labels and user guides
email us at [email protected].

See the «How to Repurpose your Algogear Card» section of this manual
for more information (page 22).

5

VLD-1002-MD

Guide to installation and operation

Installation and setup

Static Discharge

Whenever handling the VLD-1002-MD and other related equipment, please
observe all static discharge precautions as described in the following
note:

Static discharge can cause serious damage to sensitive semiconductor
devices. Avoid handling circuit boards in high static environments such
as carpeted areas, and when wearing synthetic fiber clothing. Always
exercise proper grounding precautions when working on circuit boards
and related equipment.

Board Installation

Use the following procedure to install the VLD-1002-MD in an openGear
(DFR-8310-N) distribution frame with cooling fans:

Due to power consumption and heat dissipation requirements, the VLD­1002-MD must only be installed in a frame with the cooling fan option
installed.

1. Refer to the User Manual of the openGear 8300 series frame
to ensure that the frame is properly installed according to
instructions.

2. A maximum of 8 VLD-1002-MD or other Algogear cards can be
installed in the DFR-8310 series frame.

Do not populate the openGear frame with more than 8 Algogear
cards. Attempting to do so may damage the cards, the frame
or both.

3. After selecting the desired frame and installation slot, hold the
VLD-1002-MD card by the edges and carefully align the card
edges with the slots in the frame. Then fully insert the card into
the frame until the rear connection plugs are properly seated
on the midplane and rear modules.

6

Guide to installation and operation

Installation and setup

VLD-1002-MD

The VLD-1002-MD card is installed in the openGear frame.

openGear frame

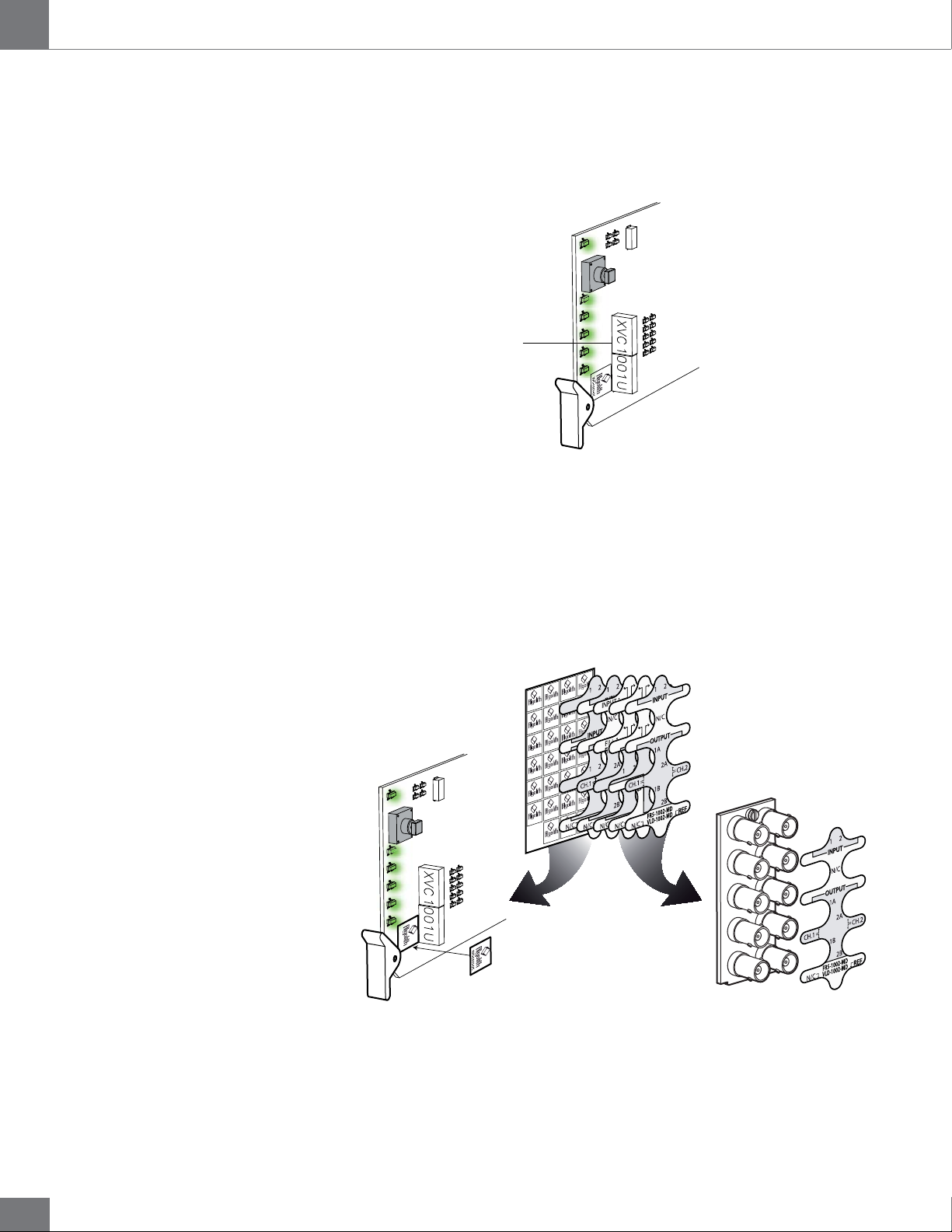

The VLD-1002-MD card requires a BNC rear output module. Depending on the
frame model you purchased, your frame may be equipped with a fixed 100
BNC rear panel.

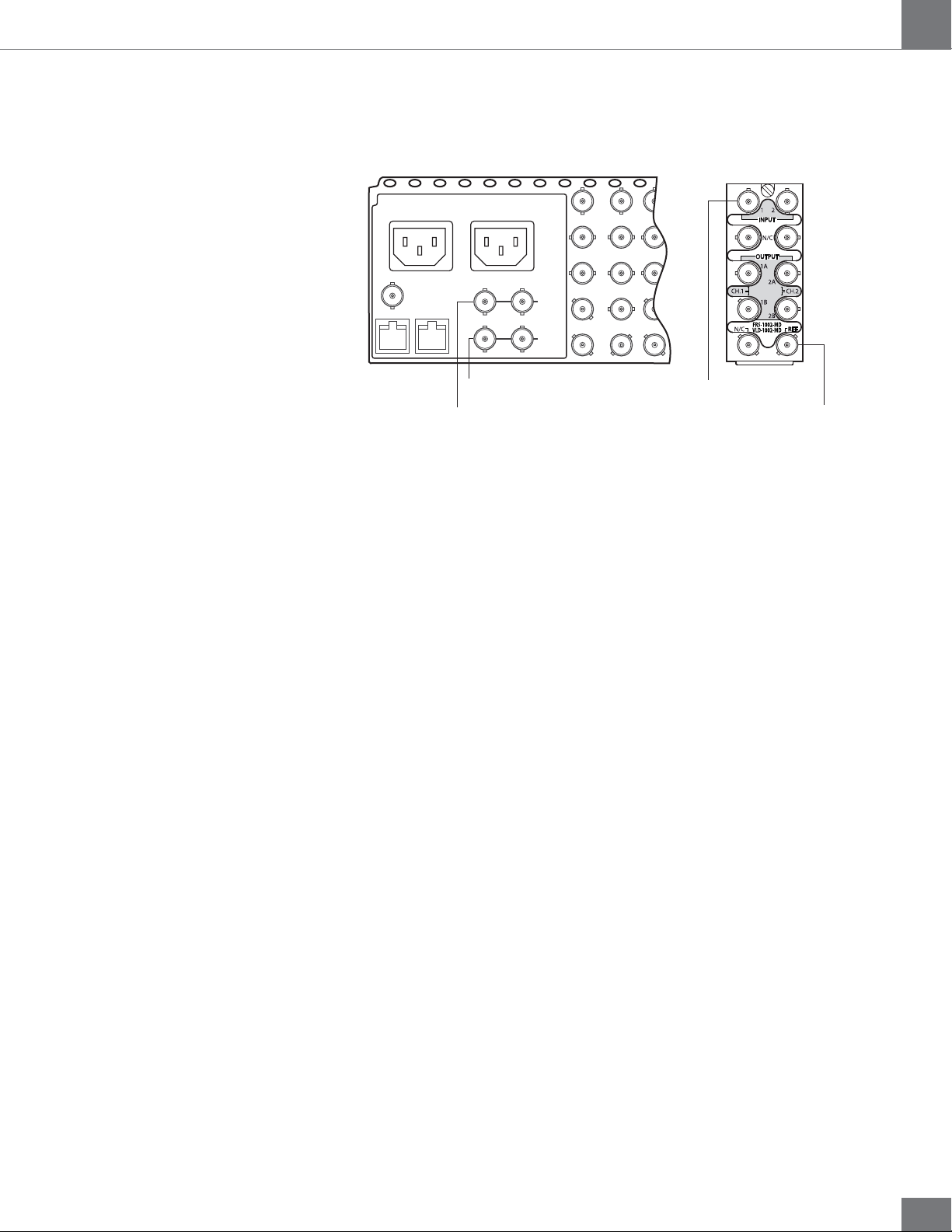

openGear frame with a fixed 100 BNC rear panel

Your frame model may have a modular rear panel, to accommodate different
types of cards. You will then need to purchase and install a 10 BNC single rear
module for each VLD-1002-MD card in your openGear frame.

openGear frame with a modular rear panel

For information on the openGear frame and how to install your VLD-1002­MD card and your rear modules, see the DFR-8310-C Multi Definition Digital
Products Frame and Power Supply (PS-8300) User Manual, provided with your
installation CD.

7

VLD-1002-MD

Guide to installation and operation

Power Consumption

The power rating of the openGear frame allows 125 watts to be
redistributed over 10 slots. A single slot may exceed 12 watts but the
overall power consumption shall not be above 125 watts.

The VLD-1002-MD dissipates 14 watts.

An openGear frame, when populated with Algogear cards only
shall use no more than 8 slots.

Blank slot fillers can be used to block slots in an openGear frame. A
warning message is affixed to the VLD-1002-MD card and other Algogear
cards to ensure the user is aware of the card’s power consumption when
installing new systems, or rearranging frame configurations.

Front Module

openGear frame

Blocked frame slot

Algogear cards

DO NOT REMOVE

ALGOGEAR

ALGOGEAR

The VLD-1002-MD card is identified with a product label located near
the card’s front edge. When installed in a frame and powered, the card
displays the product name on a dot matrix display. See drawing below.

ALGOGEAR

Card status (DS1)

Input 1 status (DS2)

Input 2 status (DS3)
Not used on VLD-1002-MD (DS4)
Not used on VLD-1002-MD (DS5)

Card reference status (DS6)

ALGOGEAR

VLD1

Dot matrix display

002M

VLD-1002-MD

Product label

8

Guide to installation and operation

Rear Input / Output Module Labels

VLD-1002-MD

6 status LEDs are located near the VLD-1002-MD card’s front edge.
Consult the graphic and color code below to identify the LEDs and their
meanings.

Card Status - LED color code

Green Yellow Red

Normal Minor Problem Critical error

Algolith’s VLD-1002-MD card comes with the rear module labels of every
available Algogear product at the time of purchase. To identify your card
and the connectors at the back of the openGear frame, simply push the
appropriate label onto the BNC connectors to identify the card’s inputs
and outputs.

INPUT 1

34

FILL 1

1B

1A

1C

SAFE 1

34

VNR-1000-SD

Select the
appropriate label

XVC-1001-UC

VLD-1002-MD

BNC 1 Input 1 Input 2 BNC 2

BNC 3 No Connection No Connection BNC 4

BNC 5 Output 1A Output 2A BNC 6

BNC 7 Output 1B Output 2B BNC 8

BNC 9 No Connection Reference BNC 10

Rear labelPush onto connectors

9

VLD-1002-MD

Guide to installation and operation

Output Channels

The VLD-1002-MD has 2 HD/SD-SDI inputs and 4 HD/SD-SDI outputs. Each
channel in the Dashboard user interface corresponds to the matching
input number. The label on the card’s BNC rear output module, at the back
of the openGear frame, identifies the inputs and outputs.

INPUTS

1

2

USER INTERFACE

Channel 1

Channel 2

OUTPUTSDASHBOARD

1A

1B

2A

2B

10

Guide to installation and operation

Operation

The Dashboard Software Interface

VLD-1002-MD

Once installed in the openGear frame, the VLD-1002-MD card is controlled
through the Dashboard software (version 2.2 or higher).

For information on how to install the software and to manage openGear
frames in Dashboard, please consult the Dashboard Software User
Manual, provided on the installation CD you have received with this
purchase, or visit our website at: http://www.algolith.com/support/

documentation

Dashboard is the openGear frame’s graphical user interface. Users
can remotely access and operate the VLD-1002-MD card through the
Dashboard software. The graphic below illustrates the basic window
structure of the interface.

Basic Tree View

Selected Frame & Card

Product Status Area

Card Info, Card Status

& Card License

Controls

In Dashboard, values displayed in yellow fields cannot be modified as they
are «read only».

11

VLD-1002-MD

Guide to installation and operation

The Basic Tree View Window

All openGear frames and compatible cards in your system are displayed
in the Basic Tree View window.

Select the card you wish to control in the Basic Tree View window.
For more information on the device list please consult the Dashboard
Software User Manual.

The Product Status Area

The product status area of the Dashboard interface displays the selected
card’s product name, the card’s status (i.e. OK, Upgrade in Progress,
Alarm, or Error) and connection status (i.e. Online or Offline).

The Card Info Window

The Card Info window displays the product and manufacturer’s name, and
information that may be useful for maintenance, such as the assembly
information, unit MAC address and firmware information.

12

The Card Status Window

The Card Status window displays the input video format for each
channel, and the reference video input.

Guide to installation and operation

The Card License Window

VLD-1002-MD

In order to be able to repurpose your Algogear card, a license must be
available within the card for the Algogear product you want to switch to.
The Card License Window displays the Algogear product that were
available at the time of your purchase, and for which you have a license.

For more information on how to repurpose your Algogear card, see the
«How to Repurpose your Algogear Card» section, on page 22.

Control

The user can control the VLD-1002-MD’s various parameters in the
Card Setup, Video Setup and Alarm Setup windows.

The following section describes how to adjust these parameters.

13

VLD-1002-MD

Guide to installation and operation

Adjusting Parameters

The VLD-1002-MD card provides an extra level of control and security with
an administrator password-protected level, in which the parameters of the
card can be modified and controlled. The non password-protected level or
«read only» mode, where no password is entered, allows users to view the
various settings, but does not permit changes to be made.

The Administrator Level

To protect against unwanted modification of operating parameters, the
interface provides an administrator level (password-protected) mode
which allows users the right to modify card settings.

Admin Login

The Admin Login section can be found in the Card Setup window. Enter
the password «algolith» to gain full access to the administrator level.

Once the password is entered, the Card Setup window changes to
allow modification to the various settings. Allow a few seconds for the
password login to take effect.

Login to administrator level

The administrator mode remains active until you click the Logout
button.

Admin Logout

Use the Logout button to quit the administrator level. Once you have
logged out, the Card Setup window reverts back to the «read only»
mode and the preset settings cannot be modified.

Allow a few seconds for the logout to take effect.

14

Guide to installation and operation

The Card Setup Window

Recall & apply settings

Save settings

VLD-1002-MD

The Card Setup window allows the configuration of parameters affecting
the overall functionality of the card.

Save Settings Destination

The Save Settings Destination function allows the user to save up to
4 configurations of the VLD-1002-MD card’s parameters per channel.
Once you have configured the card to your liking in the Video Setup and
Audio Setup tabs of the Dashboard interface, select a name under which
the configuration will be saved, beside the Save Settings Destination
function, and hit the Save button. Parameters can be saved as:

• All (applies the settings to User 1, 2, 3 and 4)

• User 1

• User 2

• User 3

• User 4

Settings can be saved by channel (1 or 2), or for both channels together
(All) in the Save Settings Source section.

Channel Settings

Once the parameters are saved to memory, the configuration becomes
available as a preset in the Channel 1 Settings or Channel 2 Settings
drop down menus.

Factory settings can be restored by selecting Default in the Channel 1
Settings or Channel 2 Settings drop down menus. The preset applies
to the selected channel only. The preset is applied immediately.

Following boot up of the card, the settings are automatically restored
from the channel selected settings.

15

VLD-1002-MD

Guide to installation and operation

Selecting the Reference

The VLD-1002-MD card provides four methods for referencing the
incoming video signal. At the bottom of the Card Setup window, the
reference selection can be chosen from a drop down menu. The reference
selection is automatically saved and will be restored after power-up.

The VLD-1002-MD accepts tri-level, bi-level and black burst reference
signals. The video inputs can be synchronized with the house sync
signal.

The VLD-1002-MD card synchronizes the video input 1 and the video input
2 with the same reference signal. Therefore, it is mandatory for input 1
and input 2 to be of the same video format.

Reference Selection

The Reference Selection function allows the user to select from 4
possible synchronization signals.

16

Select from:

Internal Ch1: Extracts the reference from the channel 1 (input 1) video
signal. With this selection, the VLD-1002-MD card needs a valid video
signal at input 1 to properly synchronize. If you are only connecting one
video signal to the VLD-1002-MD card’s rear module, use input 1.

External 1 (Frame Ref 1): The openGear frame has a distributed frame
reference, allowing a single incoming reference sync signal to feed
information to all modules in a frame. External 1 uses the reference signal
from the openGear frame’s REF 1 input.

External 2 (Frame Ref 2): Uses the reference signal from the openGear
frame’s REF 2 input.

16

Guide to installation and operation

VLD-1002-MD

External Card (BNC 10): Uses the reference signal from the VLD-1002­MD card’s rear module REF input.

openGear Frame

Gear

open

VLD-1002-MD rear module

DFR-8310

RossBus ETHERNET

PSU 2

PSU 2

REF1
LOOP

REF2
LOOP

External 1 (Frame ref 1)

Internal Ch1 (BNC 1)External 2 (Frame ref 2)

External Card (BNC 10)

17

VLD-1002-MD

Guide to installation and operation

Video Setup Window

The Video Setup window allows the configuration of video parameters
affecting the individual channels of the card.

Video Default Mode

The Video Default mode function is used if no valid video is detected
at the input. The VLD-1002-MD can be set to respond to these problems
with the Video Default Mode function. Select from:

• Last good frame (output image freezes to the last good frame)

• Last good field (output image freezes to the last good field)

• Black (a black image is generated at the output)

Video Format

The Video Format function allows the user to manually override the
detected input video format and force another format at the output. Users
may select from:

• Auto

• 480i59.94

• 576i50

• 720p50

• 720p59.94

• 720p60

• 1080i50

• 1080i59.94

• 1080i60

18

Guide to installation and operation

VLD-1002-MD

Video Delay

The Video Delay function allows users to adjust the video delay in
increments of frames and seconds.

Video Delay (sec)

The Video Delay (sec) function allows users to adjust the video delay
in increments of one second. The following table lists the possible values
according to the video format:

Format Video Delay (sec) values

408i59.94 1 - 24

576i50 1 - 24

720p50 1 - 4

720p59.94 1 - 4

720p60 1 - 4

1080i50 1 - 4

1080i59.94 1 - 4

1080i60 1 - 4

Video Delay (frame)

The Video Delay (frame) function allows users to adjust the video delay
in increments of one frame. The following table lists the possible values
according to the video format:

Format Video Delay (frame) values

408i59.94 1 - 29

576i50 1 - 24

720p50 1 - 49

720p59.94 1 - 59

720p60 1 - 59

1080i50 1 - 24

1080i59.94 1 - 29

1080i60 1 - 29

19

VLD-1002-MD

Guide to installation and operation

Maximum Delay in Seconds & Frames

The maximum video delay per channel varies with the input video’s frame
rate, and is reached with the following settings in seconds and frames:

Video

Format

480i59.94 24 15

576i50 24 15

720p50 4 25

720p59.94 4 31

720p60 4 31

1080i50 4 12

1080i59.94 4 15

1080i60 4 15

Maximum delay

Seconds Frames

Video Delay - Apply
In order for your settings to be applied, you must check the Video Delay

- Apply check box. The video delay is not automatically applied to your

input video while you are changing the values in the seconds and frames
fields of the dialog box.

20

Guide to installation and operation

The Alarm Setup Window

Alarms reported to Dashboard

Alarms reported to card’s LED

Card status (DS1)

Input 1(DS2)

Input 2 (DS3)
Not used (DS4)
Not used (DS5)

Card Reference (DS6)

ALGOGEAR

VLD-1002-MD

Problems detected by the VLD-1002-MD card are transmitted as alarms
to the card’s LED, to the Dashboard interface, and to the optional SNMP
monitoring. The problems detected can be reported to the user as minor
alarms or critical alarms.

The Alarm Setup window allows the user to set the alarm level at which
many types of errors will be reported to the LEDs or to Dashboard,
independently for channel 1 and 2, for the reference signal and for the
license key detection. The alarm signals can also be disabled.

Minor: When the alarm level for a specific type or error is set to minor,
the card’s LED will report the problem with a yellow light and Dashboard
with a yellow circle next to an error message describing the problem.

Critical: When the alarm level for a specific type or error is set to critical,
the card’s LED will report the problem with a red light and Dashboard with
a red circle next to an error message describing the problem.

Carrier and video detection errors on input 1 are always reported as
critical and cannot be set otherwise.

The Alarm Setup settings are automatically saved to memory and are
recalled after a power-up.

21

VLD-1002-MD

Guide to installation and operation

How to Repurpose your Algogear Card

Algogear cards are easy to reconfigure. First, visit our website in the
support section, at: http://www.algolith.com/support/downloads/

repurpose-algogear

You will find a list of the Algogear products available for you.

22

Select the Algogear solution you would like to download onto your existing
Algogear card. Next enter your name and email address and press the
Download Solution button. An email will be sent to you with a link to
retrieve the download file for your new Algogear application.

Save the file on the PC which you will use to run Dashboard and access
the Algogear card you want to repurpose. You are now ready to load the

application onto your Algogear card.

Guide to installation and operation

Load the new product onto your card

VLD-1002-MD

The instructions below will help you quickly and easily repurpose your
Algogear card with a new Algogear application. Please take the time to
read through the steps before beginning the process so that you have all
the necessary information on hand before you begin.

Repurposing an Algogear card can only be done through the 1.
Dashboard software application (to download Dashboard visit
http://www.algolith.com/support/downloads/index.html).
In order to repurpose your Algogear card, you will need to
be able to access it in Dashboard.

Before you repurpose your Algogear card with a new applica-2.
tion, view the application licenses that are authorized to run on
your Algogear card by selecting the Card License info tab in
Dashboard.

Select the card you

want to repurpose

The selected card can

be repurposed to any

of the Algogear products

listed in the Card

License tab

Click on the Upload button

to select the .BIN file you

have downloaded from

Algolith’s website

NOTE: If you cannot find the license for the application you want to
program the card with, or you cannot find the Card License info tab,
STOP IMMEDIATELY and call Algolith customer support at:

1.877.ALGOLITH ext 3509.

Now that you have validated the license, you are ready to repurpose 3.
your Algogear card with the .BIN file you have downloaded.

23

VLD-1002-MD

Guide to installation and operation

Next you will need to upload the downloaded file onto the 4.
Algogear card. Click on the Upload button to select the .BIN file
in the directory in which it is stored, and click the Open button.

Click Upload to get to

the .BIN file

You will get a confirmation dialog box that displays the selected
upload file name, type, size, and the file creation date. Click on
Continue to start the uploading process (an Uploading Progress
dialog box opens).

NOTE: Pressing the Cancel button while uploading will leave the card in
an invalid state. Do not click Cancel unless the uploading progress has
stopped completely for 60 seconds or more. The uploading process can
take a few minutes.

24

Guide to installation and operation

Card is in the process of

being repurposed

VLD-1002-MD

Be patient! The upgrade process can take a few minutes. While the 5.
files are being decompressed, the Dashboard user interface dis­plays an «Upgrade in Progress» message. After decompression,
the files are installed and Dashboard loses connection with the card.
An error message is then displayed. See graphic below.

This step is normal in the upgrade process and must not be
interrupted.

Basic Tree View

Close the device window

displaying the Algogear card

that is no longer valid

When the repurposing process is completed, Dashboard can no lon-6.
ger locate the functions of the initial card and the menu disapears.
You will need to close the current device view in Dashboard as it is
no longer valid and re-open the device from the Basic Tree View.

25

VLD-1002-MD

Guide to installation and operation

Once the card has rebooted, you should see the name of 7.
the new Algogear product you have installed on the dot
matrix display located on the board.

XVC1001U

Dot matrix display

ALGOGEAR

NOTE: If you don’t see the product name, but instead the following
message: “LICENSE?”, an error has occurred with the license file
and you should contact Algolith customer support immediately for

assistance at 1.877.ALGOLITH ext 3509.

Many stickers and labels were provided with your original purcha-8.
se, in order for you to be able to identify your card and the rear
module BNCs correctly in the event that you repurposed your
card. Select the appropriate labels and install them as follows:

XVC-1001-UC

XVC-1001-UC

XVC-1001-DC

XVC-1001-UC

XVC-1001-UC

XVC-1001-DC

XVC-1001-UC

XVC-1001-UC

VLD-1002-MD

VNR-1000-SD

XVC-1001-UC

VLD-1002-MD

VNR-1000-SD

XVC-1001-UC

VLD-1002-MD

FRS-1002-MD

XVC-1001-UC

XVC-1001-UC

FRS-1002-MD

XVC-1001-UC

XVC-1001-UC

XVC1001U

VLD-1002-MD

ALGOGEAR

Labels of all Algogear products
provided with your original purchase

Replace ID label on card Replace rear module label on frame

4

3

XVC-1001-UC

XVC-1001-UC

XVC-1001-UC

XVC-1001-UC

34

XVC-1001-UC

VNR-1000-SD

XVC-1001-UC

INPUT 1

FILL 1

SAFE 1

XVC-1001-UC

1B

1A

1C

26

Guide to installation and operation

VLD-1002-MD

Congratulations, you have successfully repurposed your Algogear card.

To request new rear module labels and card labels, email your name,
shipping address, phone number and the Algogear applications you
require at [email protected].

27

VLD-1002-MD

Specifi cations*

Guide to installation and operation

SD/HD SDI Video

Signal: SD (SMPTE 259M-C) (270 Mbps)
HD (SMPTE 292M) (1.485, 1.485/1001 Gbps)
Formats: SD 480i59.94, 576i50
HD 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60
Format autodetected
Ancillary Data: Passthrough

Video Inputs

Connectors: Two (2) BNC
Return Loss: SD >21 dB up to 270 Mbps
HD >14 dB up to 1.5 Gbps
Impedance: 75 Ω unbalanced

Video Outputs

Connectors: Four (4) BNC
Return Loss: SD >17 dB up to 270 Mbps
HD >11 dB up to 1.5 Gbps
Jitter: SD < 0.2 UI
HD < 0.3 UI
Impedance: 75 Ω unbalanced

Reference

Connector: One (1) BNC, SMPTE 170
bi-level, tri-level

Control:

Inputs: One (1) RJ-45 on frame
Software: Dashboard

Emedded Audio: Automatic Detection

Power: 14 W

* Specifications are subject to change without notice.

28

Guide to installation and operation

Limited Warranty

VLD-1002-MD

Limited Warranty Coverage

Algolith Inc. warrants that the equipment it manufactures shall be free
from defects in material and workmanship for a period of two (2) years
from the date of purchase. If equipment fails due to such defects, Algolith
Inc. will, at its option, repair or provide a replacement for the defective
part or product.

Equipment that fails after the warranty period, has been operated or
installed in a manner other than that specified by Algolith, or has been
subjected to abuse or modification, will be repaired for time and material
charges at the Buyer’s expense.

All out-of-warranty repairs are warranted for a period of ninety (90) days
from the date of shipment from the factory.

A purchase receipt or other proof of the original purchase date is required
for warranty service.

Algolith Inc. makes no other warranties, expressed or implied, of
merchantability, fitness for a particular purpose or otherwise. Algolith’s
liability for any cause, including breach of contract, breach of warranty,
or negligence, with respect to products sold by it, is limited to repair or
replacement by Algolith, at its sole discretion.

Contact us

In no event shall Algolith Inc. be liable for any incidental or consequential
damages, including loss of profits.

Algolith Inc.

400 Isabey
Montréal, Québec, Canada
H4T 1V3

t. 514.335.9867
t. 877.ALGOLITH
f. 514.333.9873

Via Internet

General Information: [email protected]

Visit us at:

www.algolith.com

29
