Algo 8301 Installation/configuration Manual

8301 Paging Adapter & Scheduler (FW 1.5)

8301 Paging Adapter & Scheduler

FW Version 1.5

Installation & Configuration

Order Codes

8301 Paging Adapter & Scheduler

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 1 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Table of Contents

IMPORTANT SAFETY INFORMATION ...................................................................................................... 9

ABOUT THE ALGO 8301 PAGING ADAPTER & SCHEDULER .................................................................... 10

TYPICAL APPLICATION ......................................................................................................................... 11

GETTING STARTED - QUICK INSTALL & TEST ......................................................................................... 12

INSTALLATION ..................................................................................................................................... 13

WEB INTERFACE ................................................................................................................................... 13

SIP PAGING: ONE ADAPTER ................................................................................................................. 14

SIP PAGING: MULTIPLE ALGO SIP ENDPOINTS (USING MULTICAST) ..................................................... 15

SIP PAGING: MULTIPLE ALGO SIP ENDPOINTS (USING INDIVIDUAL SIP EXTENSIONS) .......................... 16

BACKGROUND MUSIC STREAMING ...................................................................................................... 16

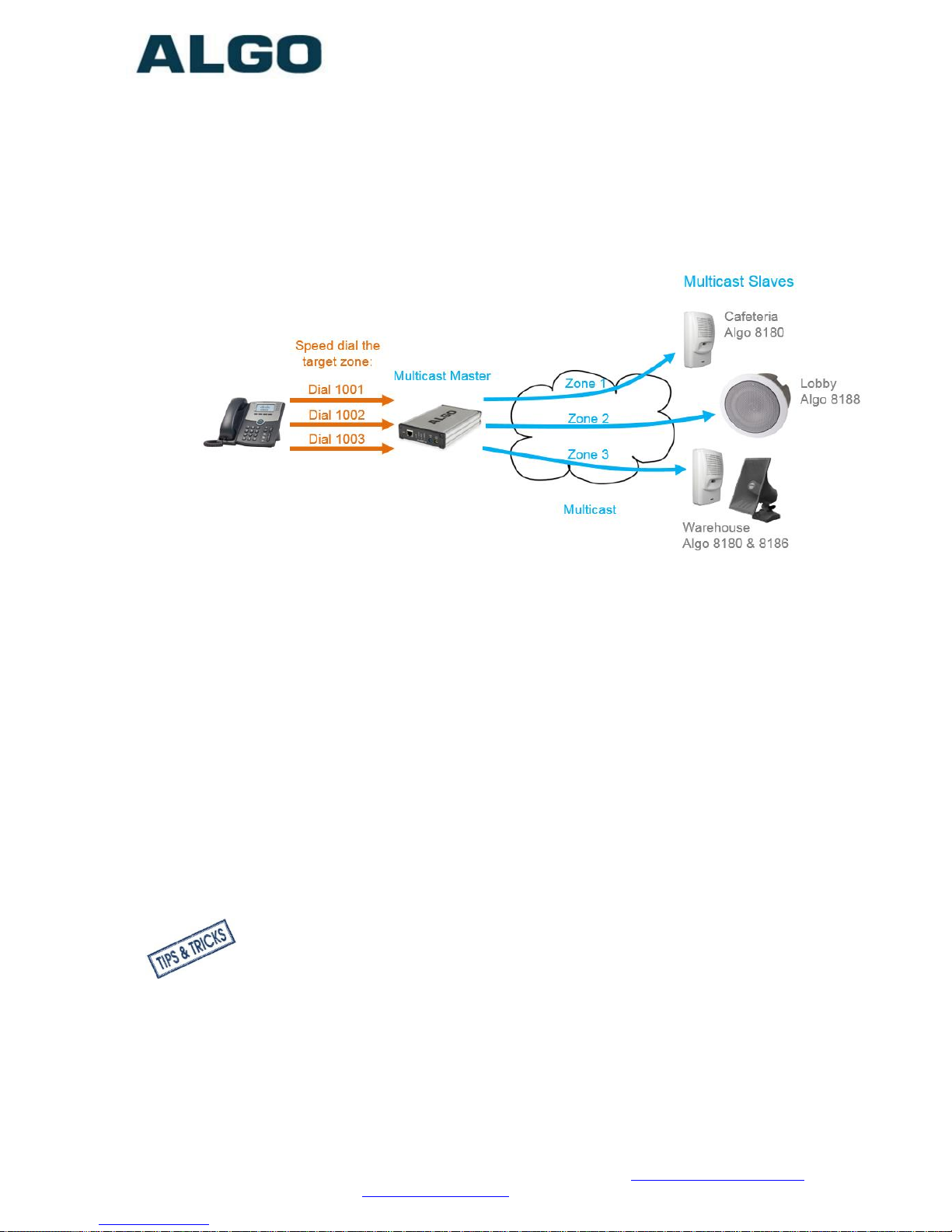

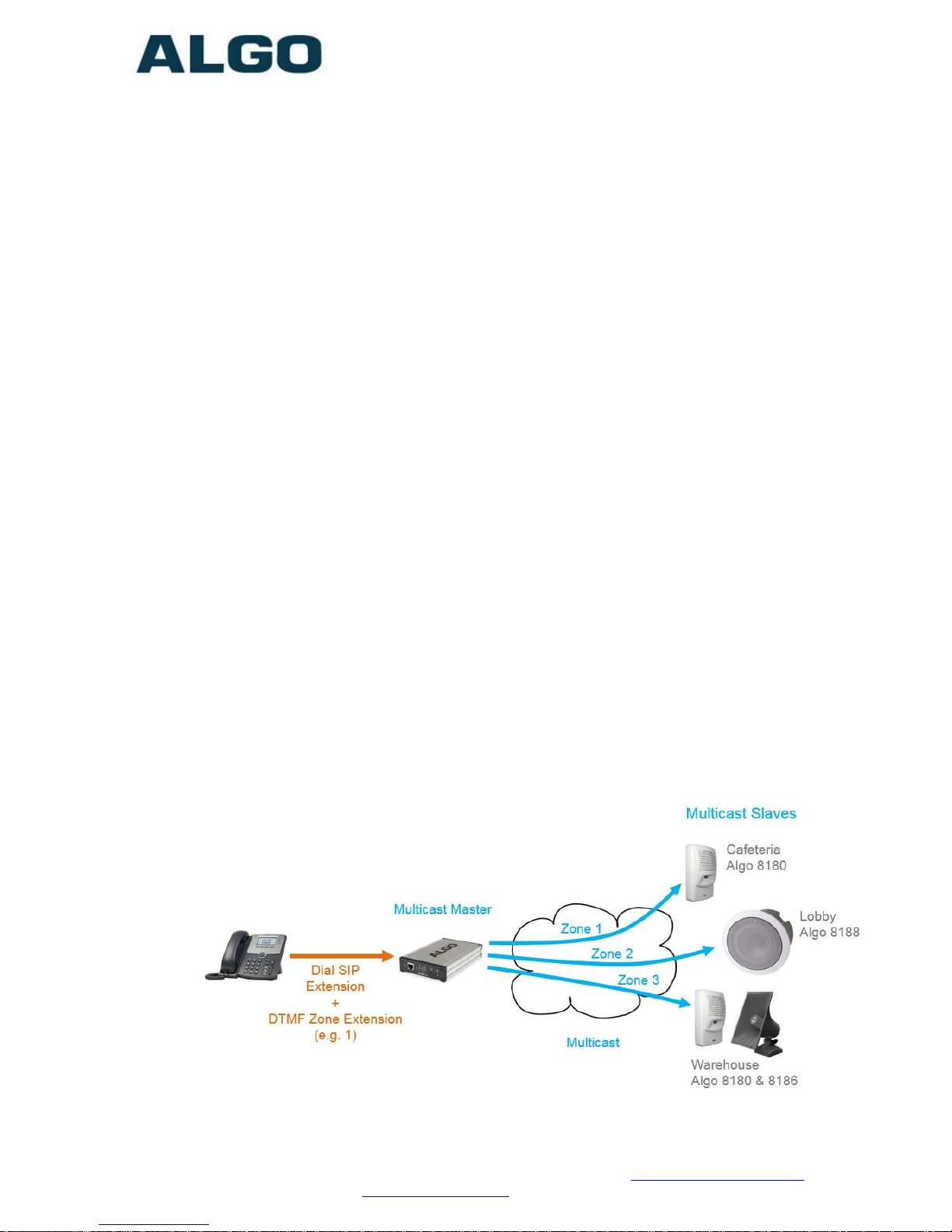

MULTICAST PAGE ZONES ..................................................................................................................... 17

POLYCOMTM GROUP PAGING ............................................................................................................... 18

SIP RING EVENT ................................................................................................................................... 19

SIP ACTIVATED NOTIFICATION ALERTS................................................................................................. 19

WIRING CONNECTIONS ........................................................................................................................ 19

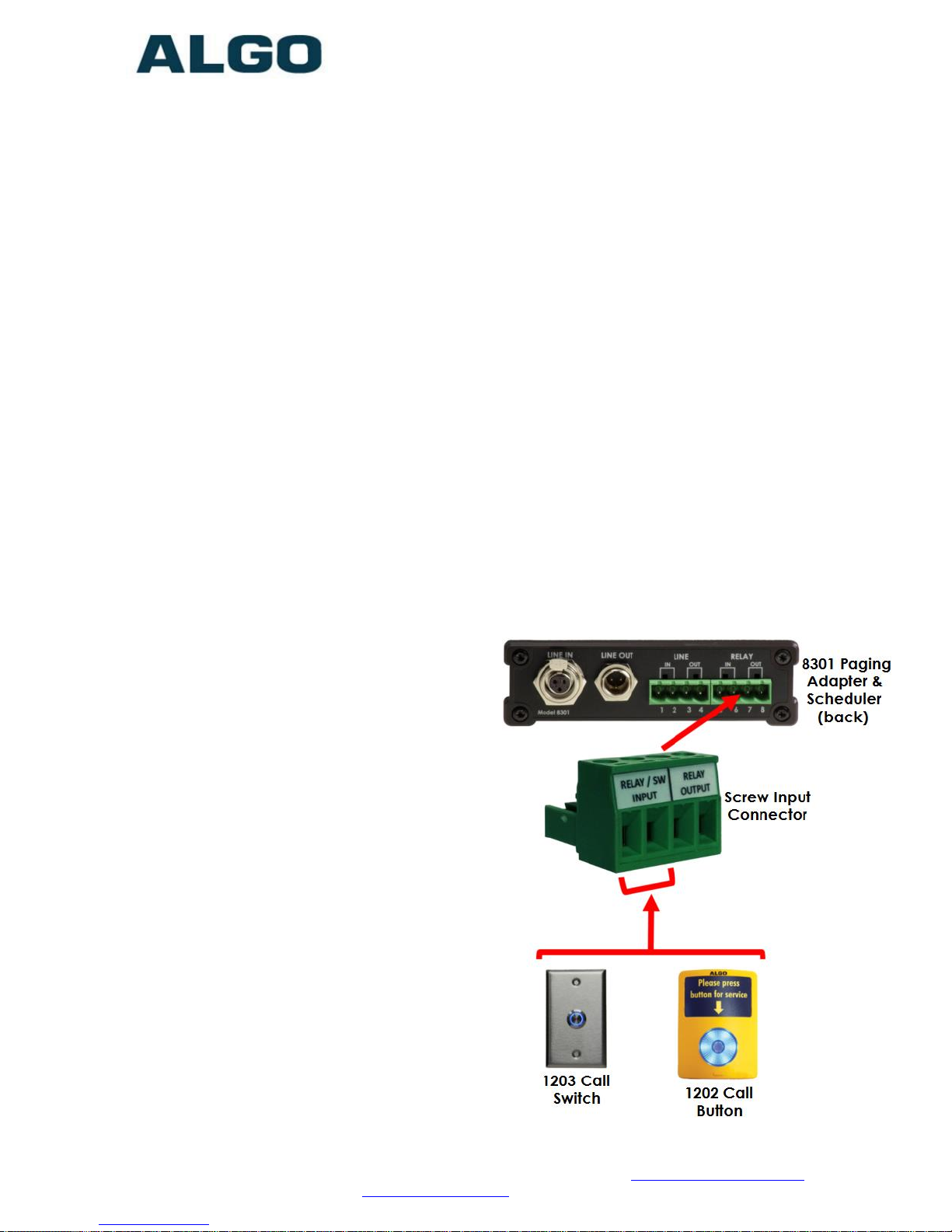

CONNECTING INPUT DEVICES TO 8301 ..................................................................................................... 19

NETWORK CONNECTION ........................................................................................................................ 20

AUX IN (FRONT) ................................................................................................................................. 21

AUX OUT (FRONT) ............................................................................................................................. 21

LINE IN XLR-MINI (BACK) ................................................................................................................... 21

LINE OUT XLR-MINI (BACK) ............................................................................................................... 21

TERMINAL BLOCK LINE IN ...................................................................................................................... 21

TERMINAL BLOCK LINE OUT ................................................................................................................... 21

TERMINAL BLOCK RELAY IN .................................................................................................................... 22

TERMINAL BLOCK RELAY OUT ................................................................................................................. 22

BLUE LED INDICATORS ......................................................................................................................... 22

SIP ................................................................................................................................................... 22

MULTICAST ........................................................................................................................................ 22

INPUT ................................................................................................................................................ 22

OUTPUT ............................................................................................................................................. 22

RESET ................................................................................................................................................... 23

WEB INTERFACE LOGIN ........................................................................................................................ 24

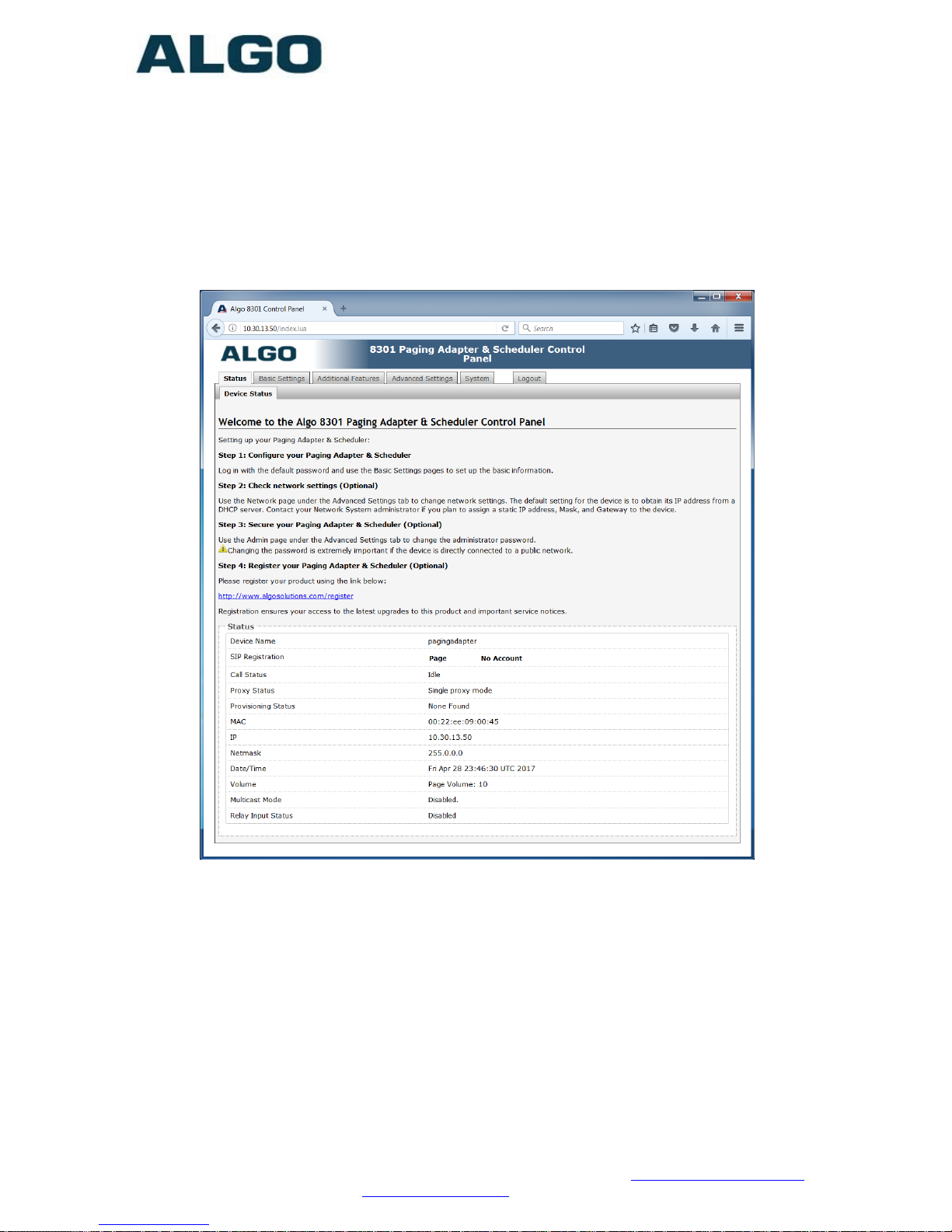

STATUS .............................................................................................................................................. 24

BASIC SETTINGS TAB – SIP.................................................................................................................... 25

SIP DOMAIN (PROXY SERVER) ................................................................................................................ 25

RING/ALERT MODE.............................................................................................................................. 26

RING EXTENSION ................................................................................................................................. 26

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 2 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

PAGE EXTENSION ................................................................................................................................. 26

AUTHENTICATION ID ............................................................................................................................ 26

AUTHENTICATION PASSWORD ................................................................................................................. 26

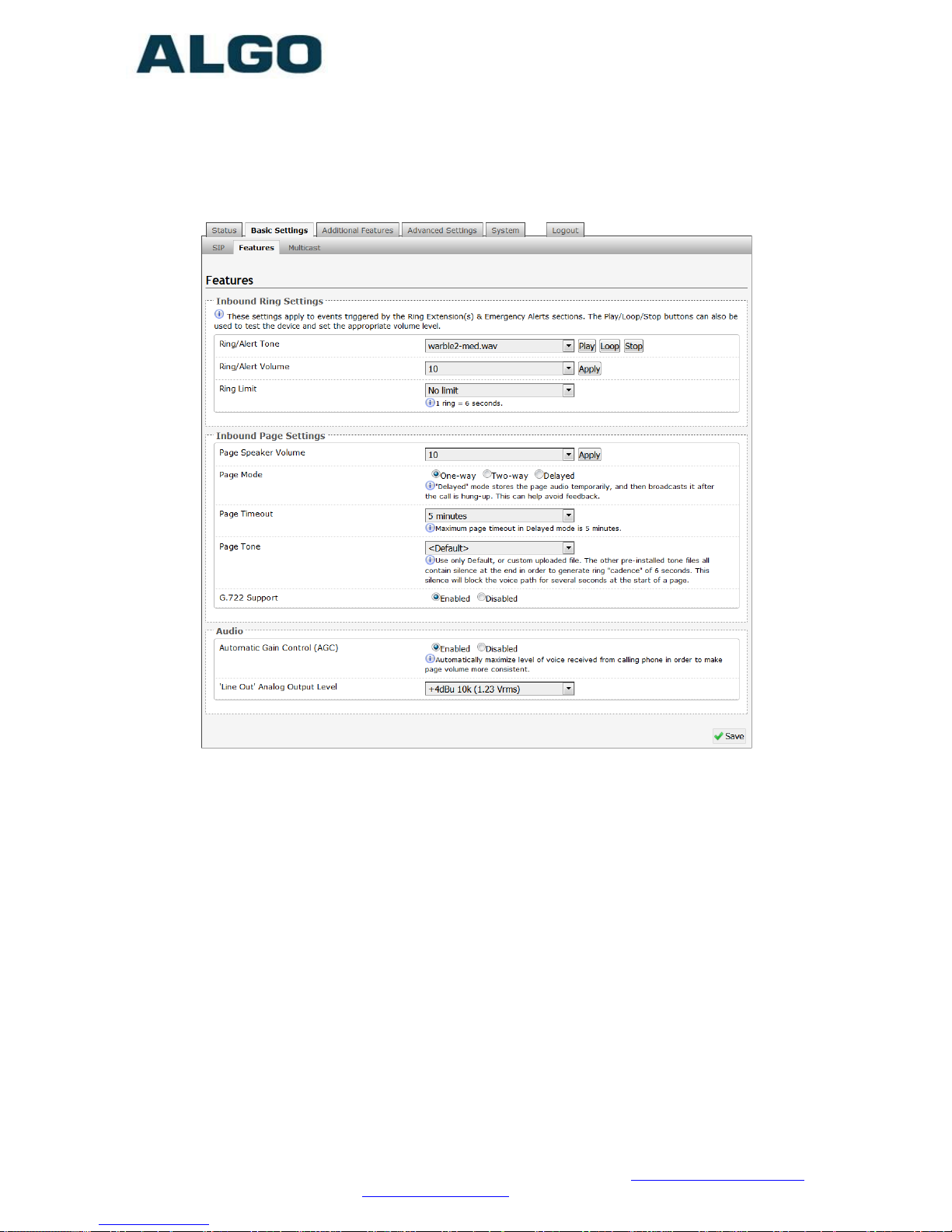

BASIC SETTINGS TAB – FEATURES ........................................................................................................ 27

RING/ALERT TONE ............................................................................................................................... 27

RING/ALERT VOLUME ........................................................................................................................... 28

RING LIMIT ......................................................................................................................................... 28

PAGE SPEAKER VOLUME ........................................................................................................................ 28

PAGE MODE ....................................................................................................................................... 28

PAGE TIMEOUT ................................................................................................................................... 28

PAGE TONE ........................................................................................................................................ 28

G.722 SUPPORT .................................................................................................................................. 29

AUTOMATIC GAIN CONTROL (AGC) ......................................................................................................... 29

‘LINE OUT’ ANALOG OUTPUT LEVEL ......................................................................................................... 29

MULTICAST IP ADDRESSES ................................................................................................................... 30

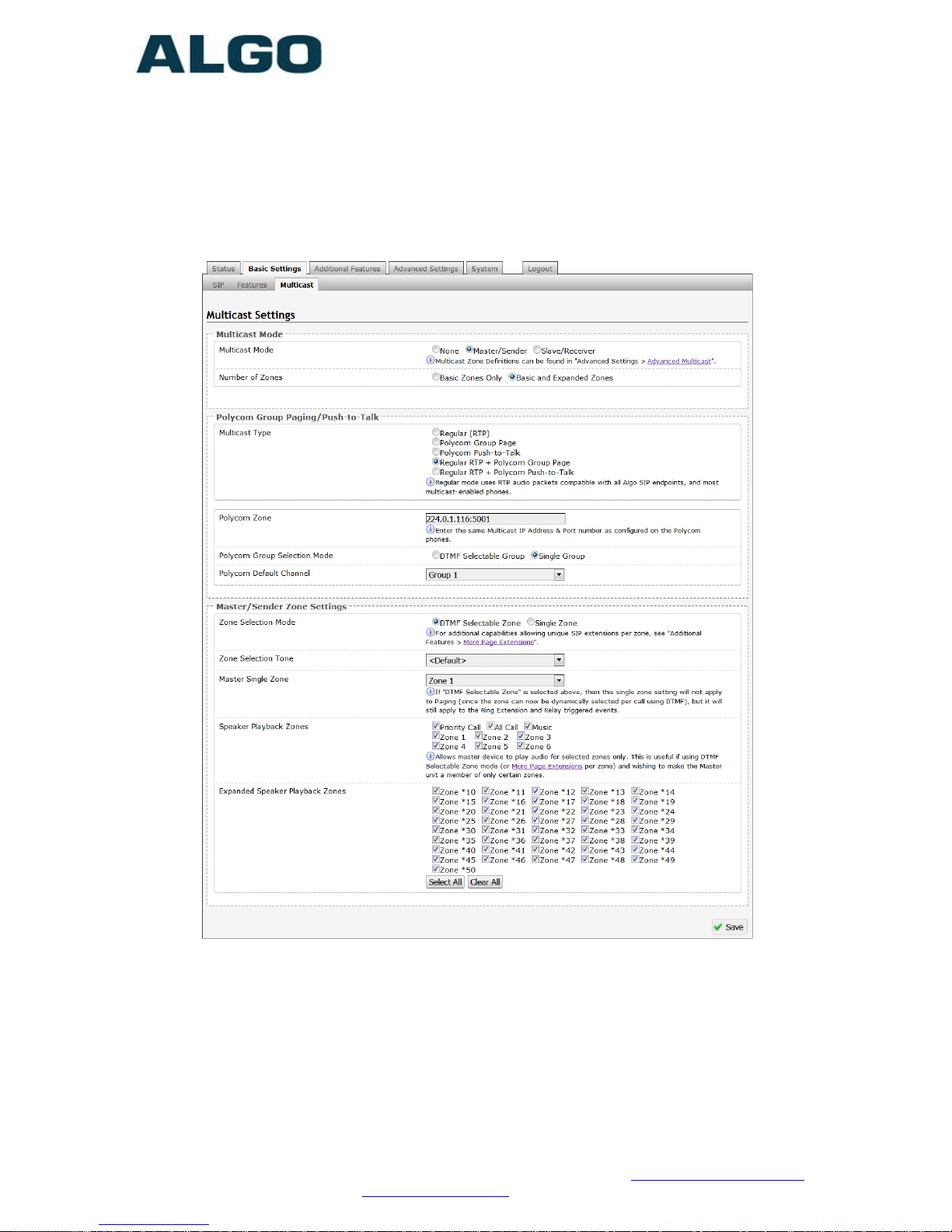

BASIC SETTINGS TAB - MULTICAST (MASTER SETTINGS) ...................................................................... 31

MULTICAST MODE (MASTER/SENDER SELECTED) ....................................................................................... 31

NUMBER OF ZONES .............................................................................................................................. 32

MULTICAST TYPE ................................................................................................................................. 32

POLYCOM GROUP SELECTION MODE ........................................................................................................ 32

ZONE SELECTION MODE ........................................................................................................................ 32

MASTER SINGLE ZONE .......................................................................................................................... 33

SPEAKER PLAYBACK ZONES..................................................................................................................... 33

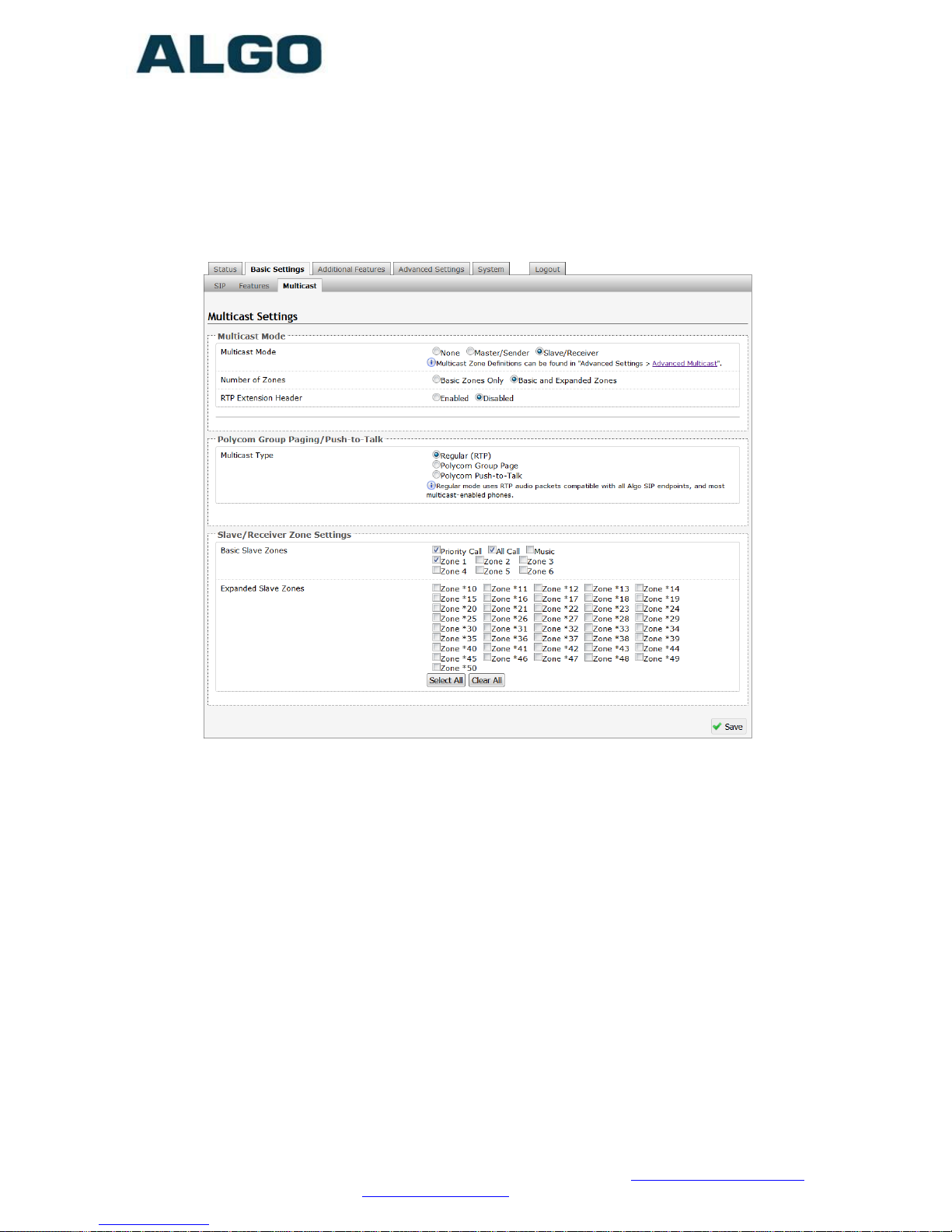

BASIC SETTINGS TAB - MULTICAST (SLAVE SETTINGS) .......................................................................... 34

MULTICAST MODE (SLAVE SELECTED) ....................................................................................................... 34

NUMBER OF ZONES .............................................................................................................................. 34

MULTICAST TYPE - REGULAR .................................................................................................................. 35

SLAVE ZONES ...................................................................................................................................... 35

MULTICAST TYPE – POLYCOM GROUP PAGING/PUSH-TO-TALK ...................................................................... 35

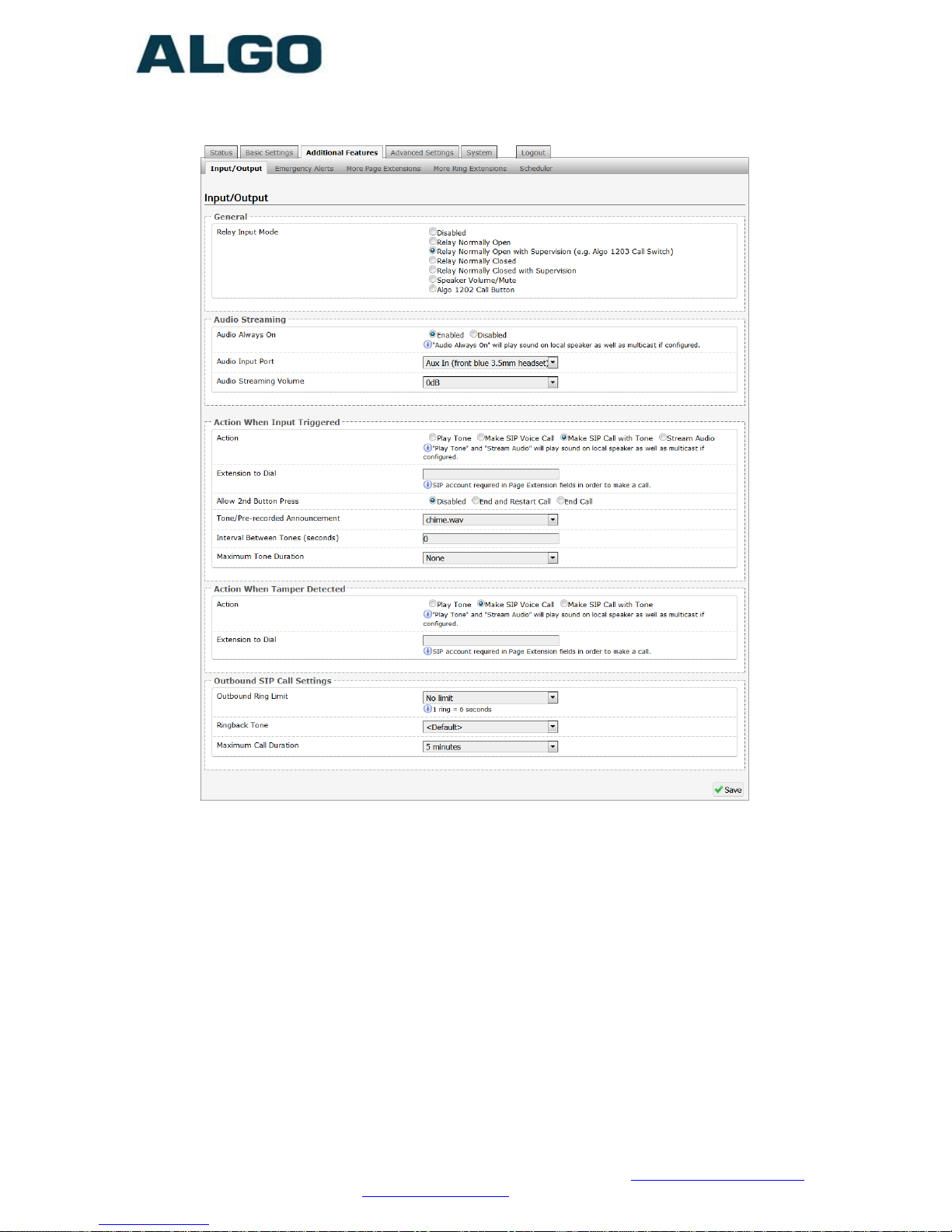

ADDITIONAL FEATURES TAB – INPUT/OUTPUT .................................................................................... 37

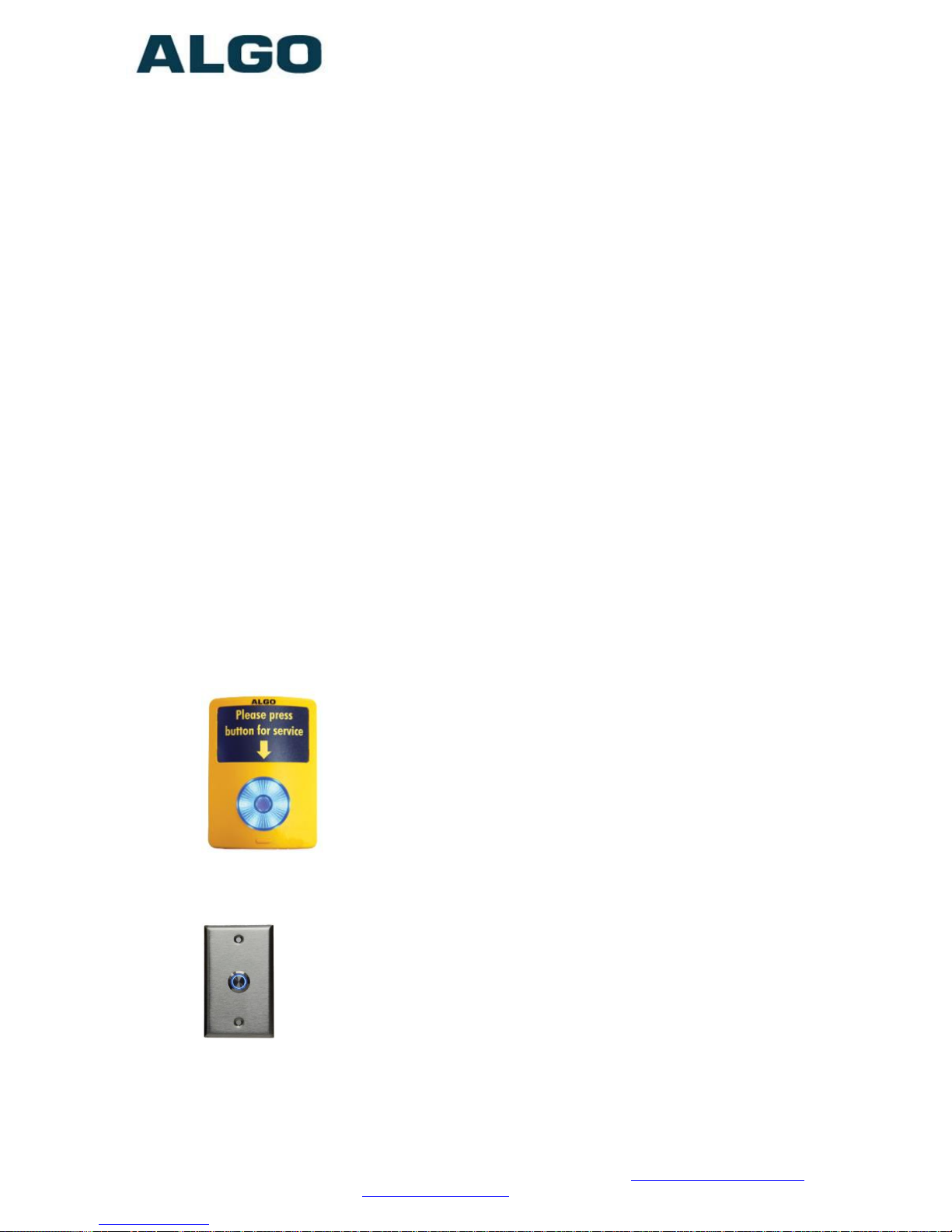

1202 CALL BUTTON ............................................................................................................................. 37

1203 CALL SWITCH .............................................................................................................................. 37

AUDIO ALWAYS ON .............................................................................................................................. 38

ACTION – PLAY TONE ........................................................................................................................... 39

ACTION - MAKE SIP VOICE CALL ............................................................................................................. 39

ACTION - MAKE SIP CALL WITH TONE ...................................................................................................... 39

ACTION – STREAM AUDIO...................................................................................................................... 39

ACTION WHEN TAMPER DETECTED (SUPERVISION) ...................................................................................... 40

SPEAKER VOLUME/MUTE ...................................................................................................................... 40

DIALING EXTENSION ............................................................................................................................. 40

INTERVAL BETWEEN TONES .................................................................................................................... 40

MAXIMUM TONE DURATION .................................................................................................................. 40

OUTBOUND RING LIMIT ........................................................................................................................ 40

RINGBACK TONE .................................................................................................................................. 41

MAXIMUM CALL DURATION ................................................................................................................... 41

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 3 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

CALL BUTTON ..................................................................................................................................... 41

AUDIO INPUT PORT .............................................................................................................................. 41

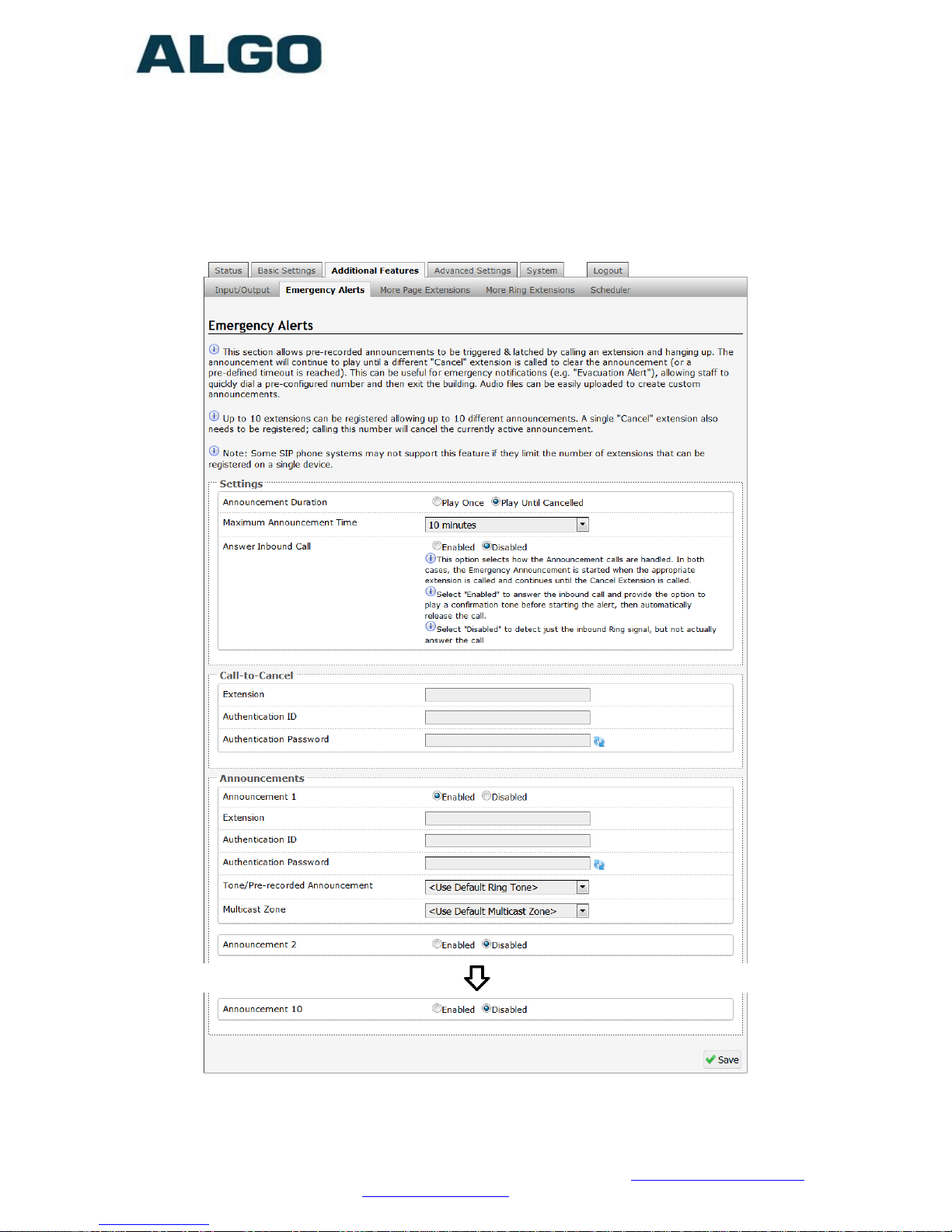

ADDITIONAL FEATURES TAB – EMERGENCY ALERTS ............................................................................ 42

ADDITIONAL FEATURES TAB – MORE PAGE EXTENSIONS ..................................................................... 44

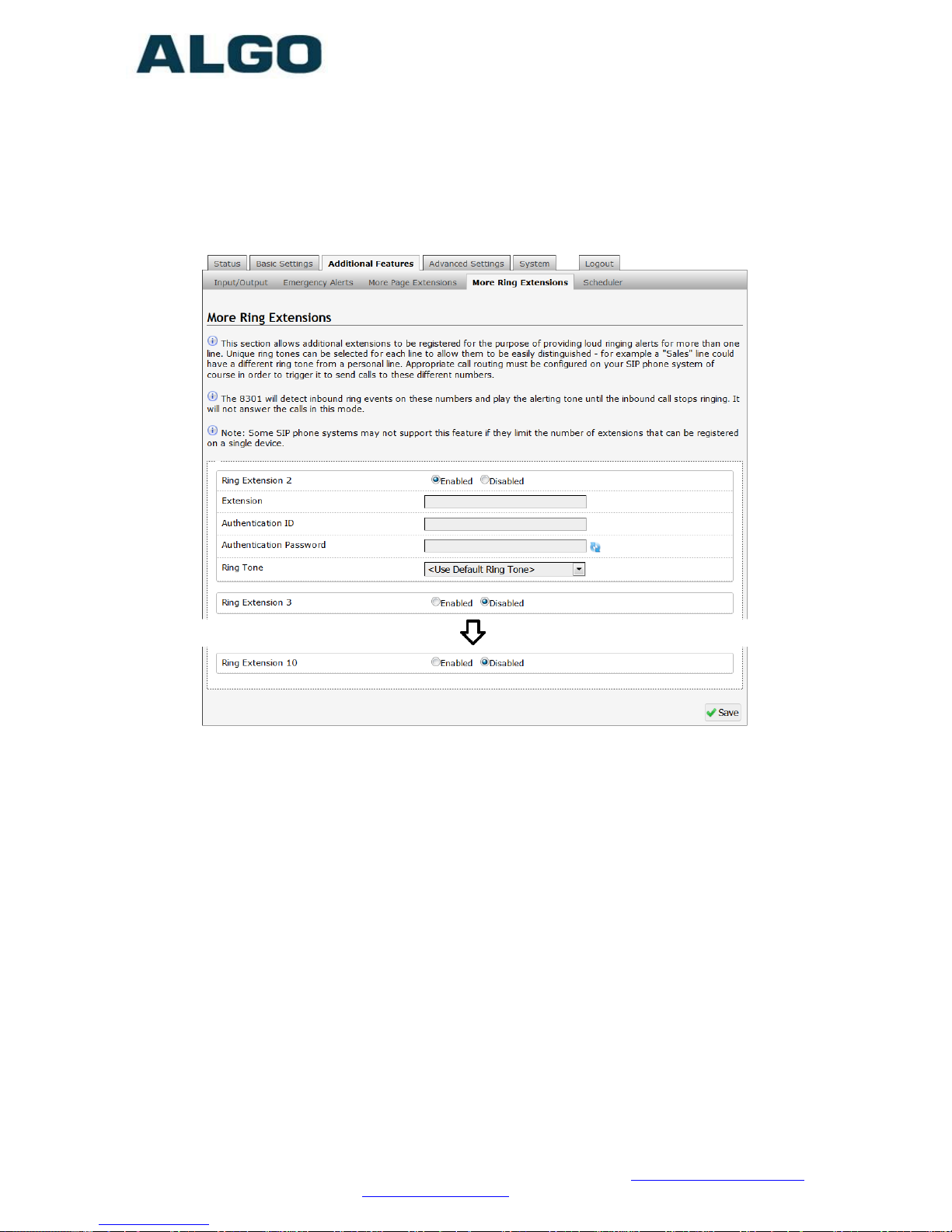

ADDITIONAL FEATURES TAB – MORE RING EXTENSIONS ..................................................................... 45

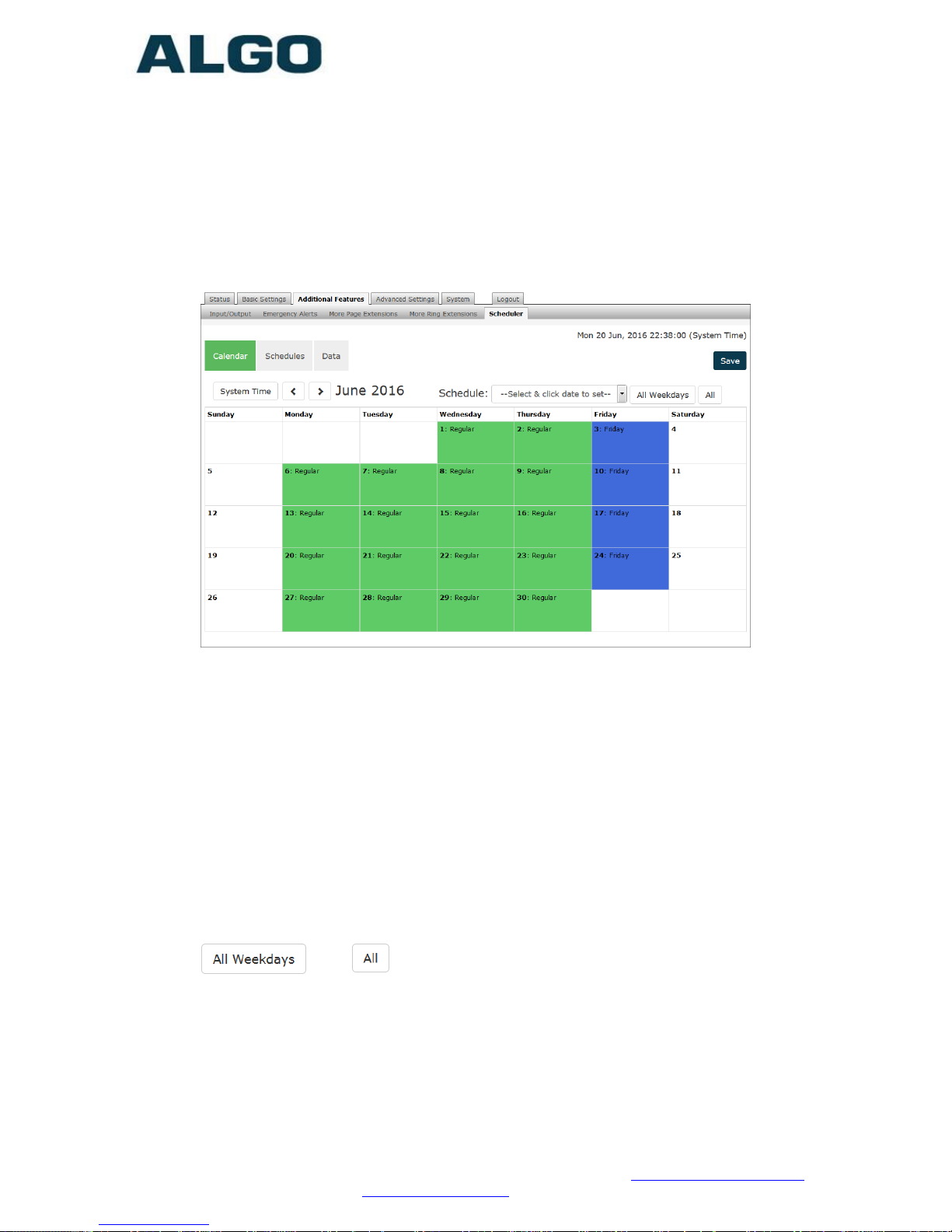

SCHEDULER TAB – CALENDAR .............................................................................................................. 46

SCHEDULER TAB – SCHEDULES ............................................................................................................. 47

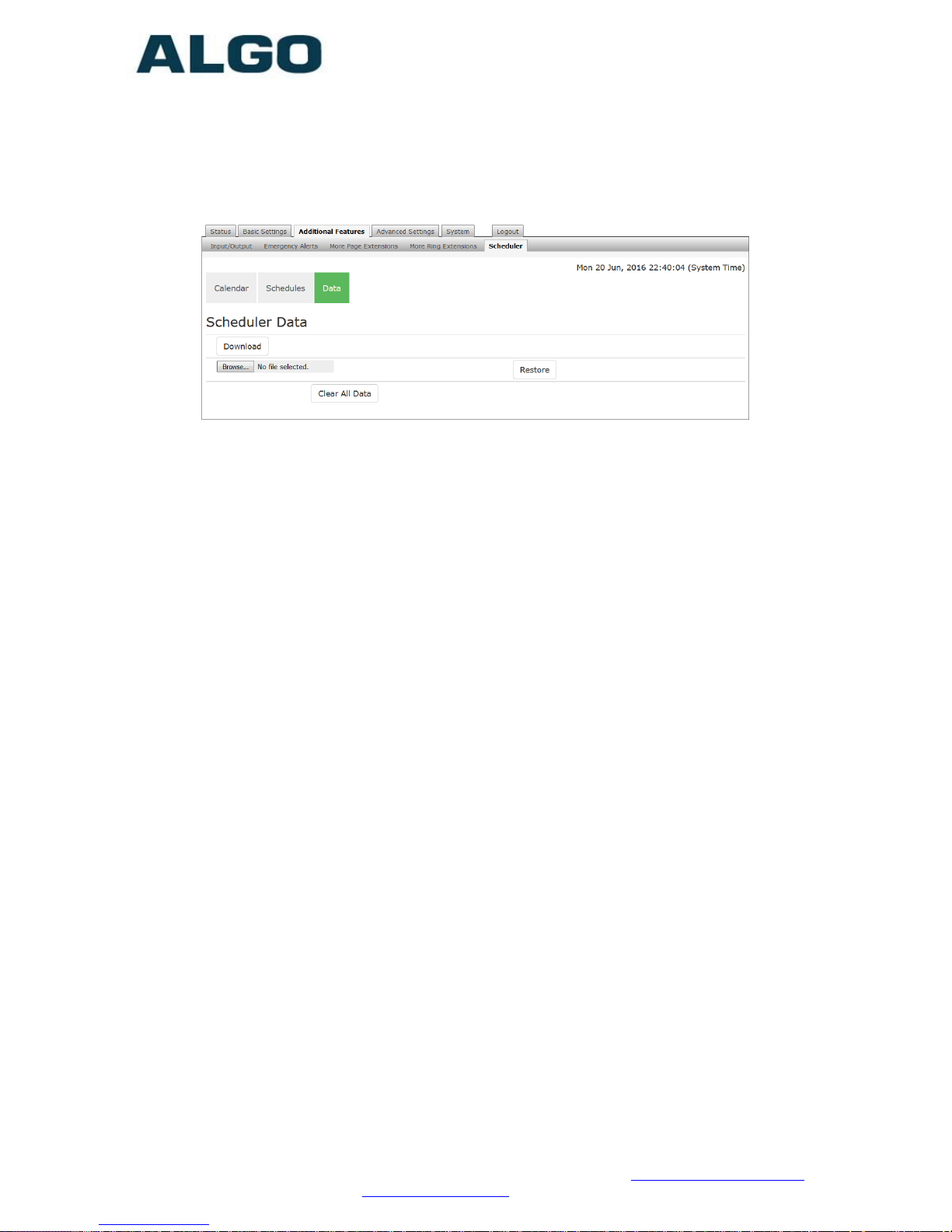

SCHEDULER TAB – DATA ...................................................................................................................... 48

DOWNLOAD ....................................................................................................................................... 48

RESTORE ............................................................................................................................................ 48

CLEAR ALL DATA .................................................................................................................................. 48

ADVANCED SETTINGS TAB - NETWORK ................................................................................................ 49

PROTOCOL ......................................................................................................................................... 49

VLAN MODE ...................................................................................................................................... 49

VLAN ID ........................................................................................................................................... 50

VLAN PRIORITY .................................................................................................................................. 50

DIFFERENTIATED SERVICES (6-BIT DSCP VALUE) ......................................................................................... 50

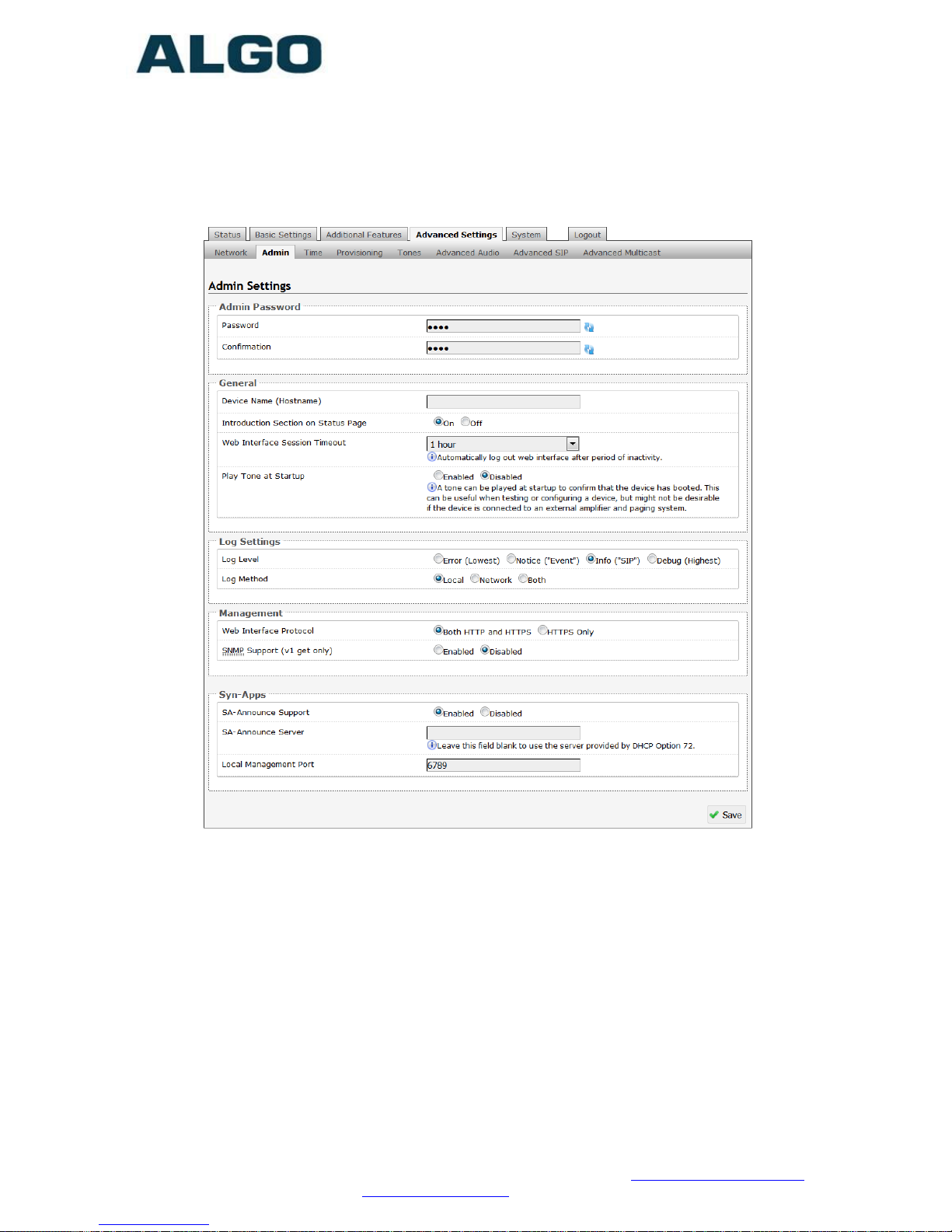

ADVANCED SETTINGS TAB – ADMIN .................................................................................................... 51

PASSWORD ......................................................................................................................................... 51

CONFIRMATION ................................................................................................................................... 52

DEVICE NAME (HOSTNAME) ................................................................................................................... 52

INTRODUCTION SECTION ON STATUS PAGE ................................................................................................ 52

WEB INTERFACE SESSION TIMEOUT .......................................................................................................... 52

PLAY TONE AT STARTUP ........................................................................................................................ 52

LOG LEVEL .......................................................................................................................................... 52

LOG METHOD ..................................................................................................................................... 52

LOG SERVER ....................................................................................................................................... 52

WEB INTERFACE PROTOCOL ................................................................................................................... 52

FORCE STRONG PASSWORD .................................................................................................................... 53

ALLOW SECURE SIP PASSWORD .............................................................................................................. 53

SNMP SUPPORT (V1 GET ONLY) ............................................................................................................. 53

SA-ANNOUNCE SUPPORT ...................................................................................................................... 53

SA-ANNOUNCE SERVER ........................................................................................................................ 54

LOCAL MANAGEMENT PORT ................................................................................................................... 54

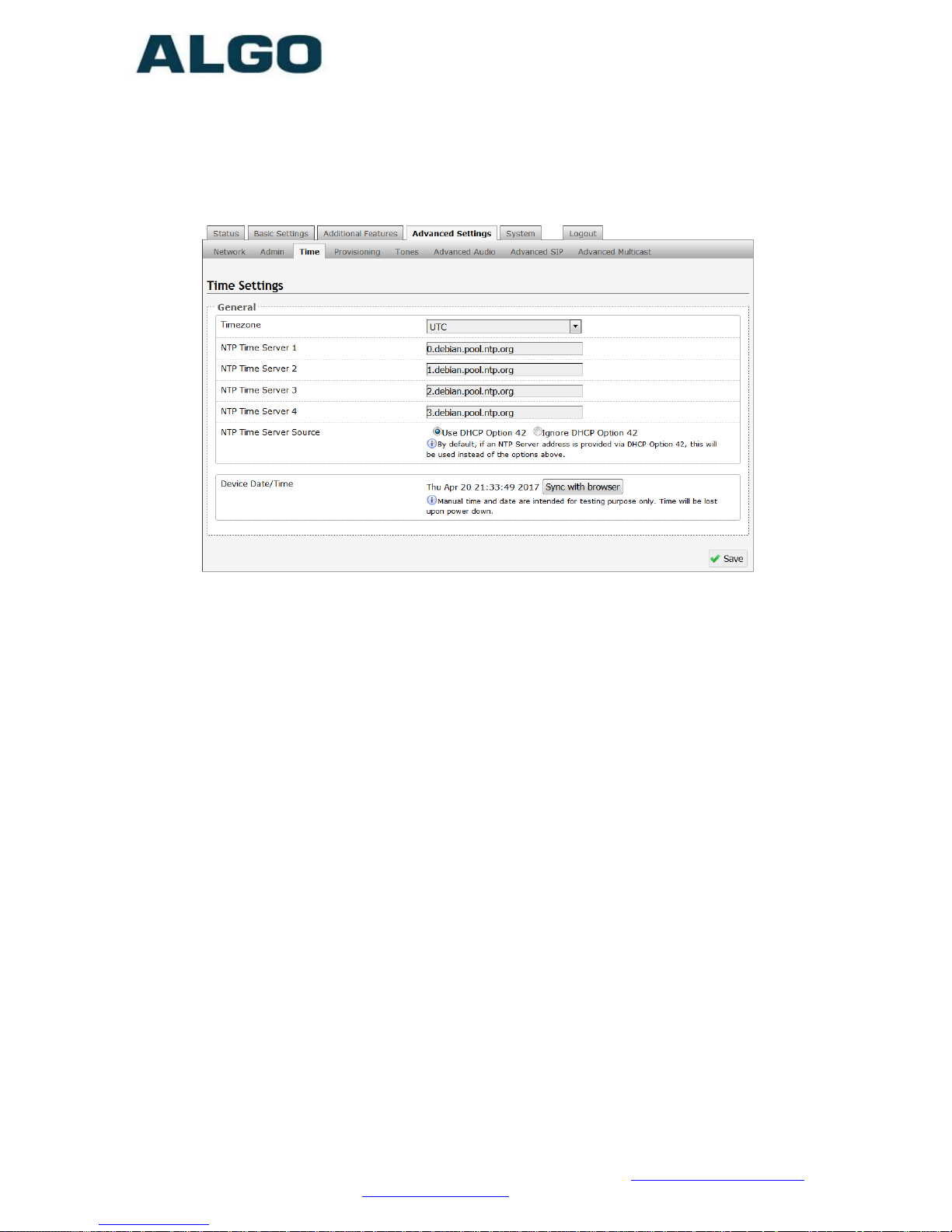

ADVANCED SETTINGS TAB – TIME........................................................................................................ 55

TIMEZONE .......................................................................................................................................... 55

NTP TIME SERVERS 1/2/3/4................................................................................................................. 55

NTP TIME SERVER SOURCE .................................................................................................................... 55

DEVICE DATE/TIME .............................................................................................................................. 55

ADVANCED SETTINGS TAB – PROVISIONING ........................................................................................ 57

MD5 CHECKSUM ................................................................................................................................. 58

GENERATING A GENERIC CONFIGURATION FILE ............................................................................................ 58

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 4 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

GENERATING A SPECIFIC CONFIGURATION FILE ............................................................................................. 59

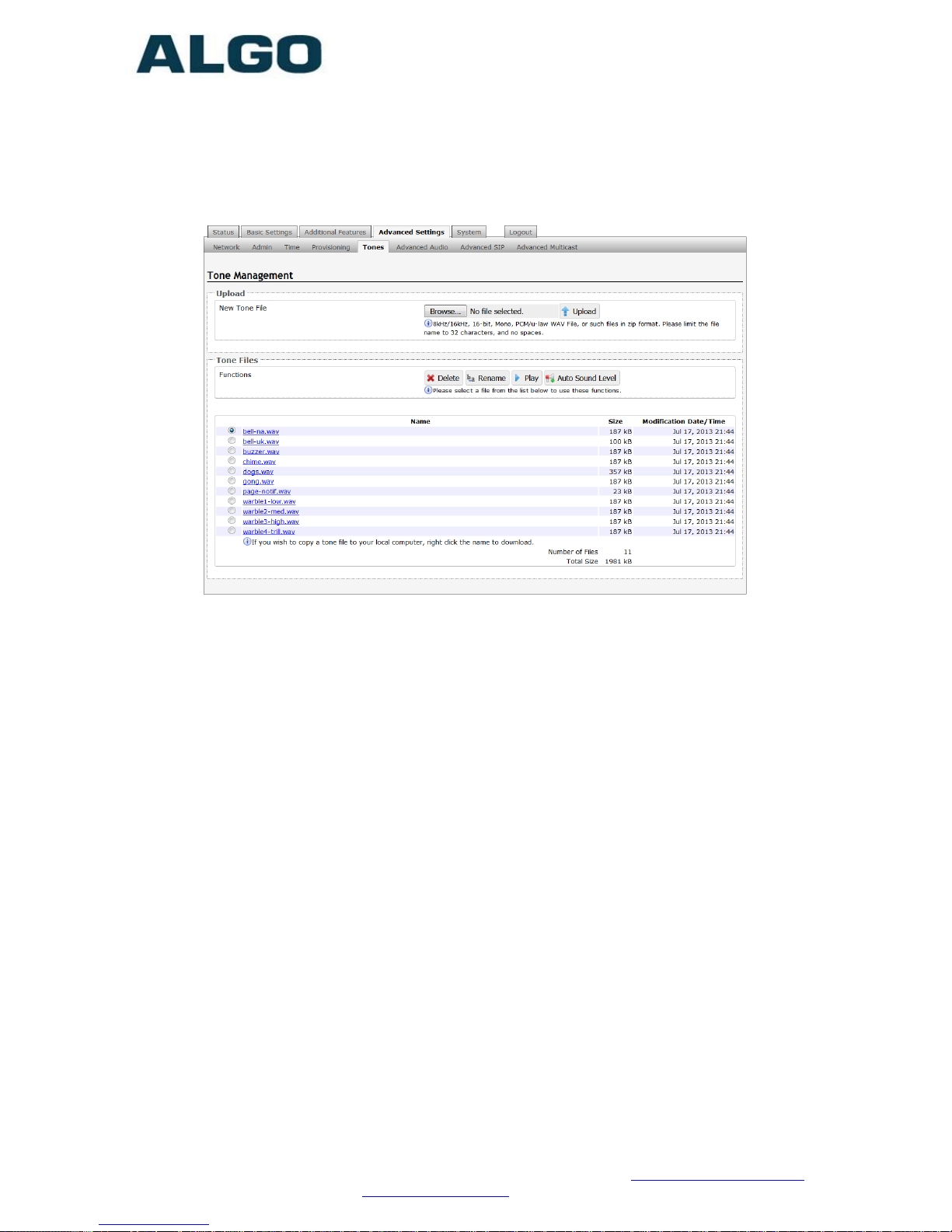

ADVANCED SETTINGS TAB – TONES ..................................................................................................... 60

UPLOADING CUSTOM AUDIO FILES .......................................................................................................... 60

TONE FILES INCLUDED IN MEMORY .......................................................................................................... 61

ADVANCED SETTINGS TAB – ADVANCED AUDIO .................................................................................. 62

DYNAMIC RANGE COMPRESSION (DRC) ................................................................................................... 62

DYNAMIC RANGE COMPRESSION GAIN ..................................................................................................... 62

JITTER BUFFER RANGE ........................................................................................................................... 62

GENERATE IN-BAND DTMF TONES .......................................................................................................... 63

ALWAYS SEND RTP MEDIA .................................................................................................................... 63

SPEAKER FILTER G.711 ......................................................................................................................... 63

MICROPHONE FILTER G.711 .................................................................................................................. 63

SPEAKER FILTER G.722 ......................................................................................................................... 63

MICROPHONE FILTER G.722 .................................................................................................................. 63

SPEAKER NOISE FILTER .......................................................................................................................... 63

MICROPHONE NOISE FILTER ................................................................................................................... 63

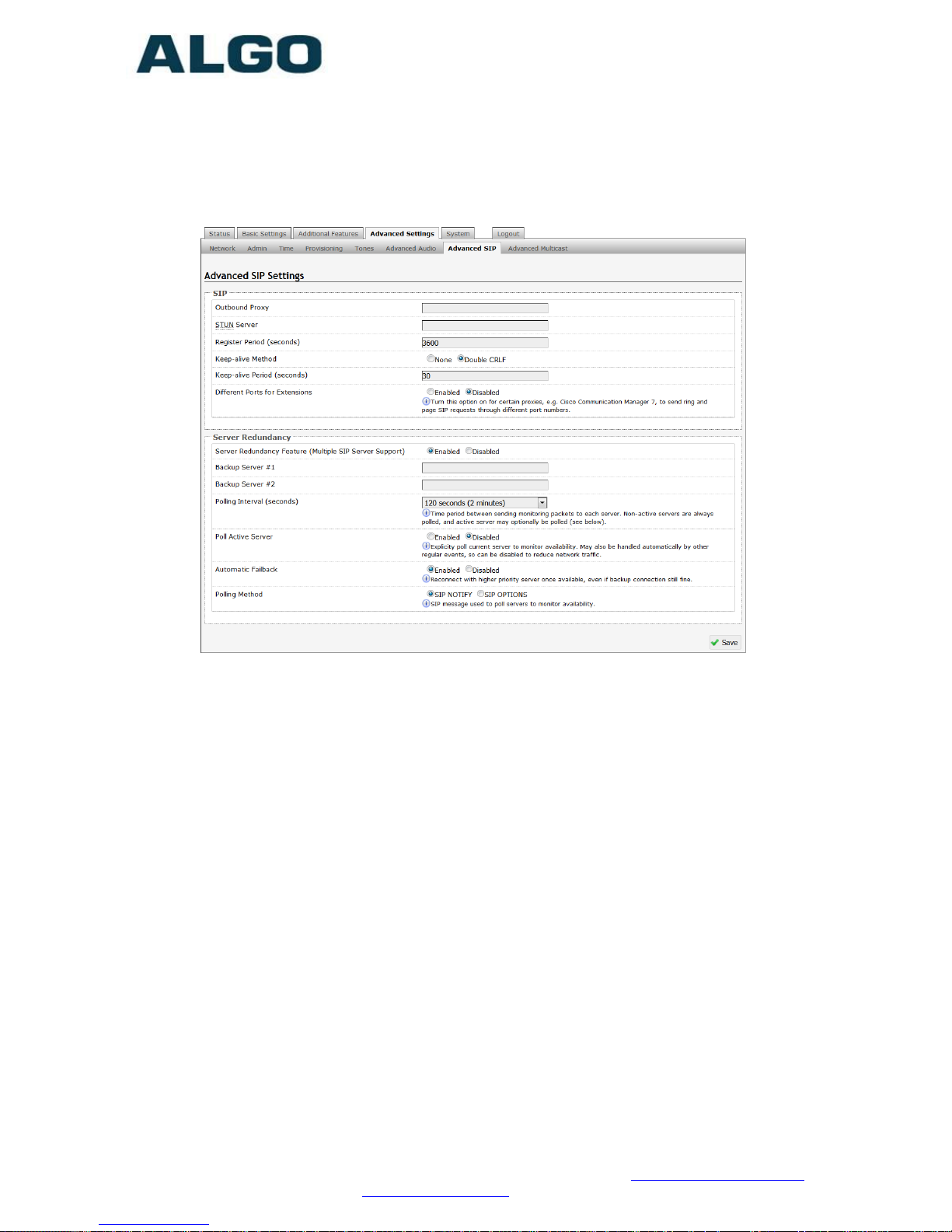

ADVANCED SETTINGS TAB – ADVANCED SIP ........................................................................................ 64

OUTBOUND PROXY .............................................................................................................................. 64

STUN SERVER .................................................................................................................................... 64

REGISTER PERIOD (SECONDS) .................................................................................................................. 64

KEEP-ALIVE METHOD ............................................................................................................................ 65

DIFFERENT PORTS FOR EXTENSIONS ......................................................................................................... 65

SERVER REDUNDANCY FEATURE .............................................................................................................. 65

BACKUP SERVER #1 .............................................................................................................................. 65

BACKUP SERVER #2 .............................................................................................................................. 65

POLLING INTERVALS (SECONDS) ............................................................................................................... 65

POLL ACTIVE SERVER ............................................................................................................................ 66

AUTOMATIC FAILBACK .......................................................................................................................... 66

POLLING METHOD ............................................................................................................................... 66

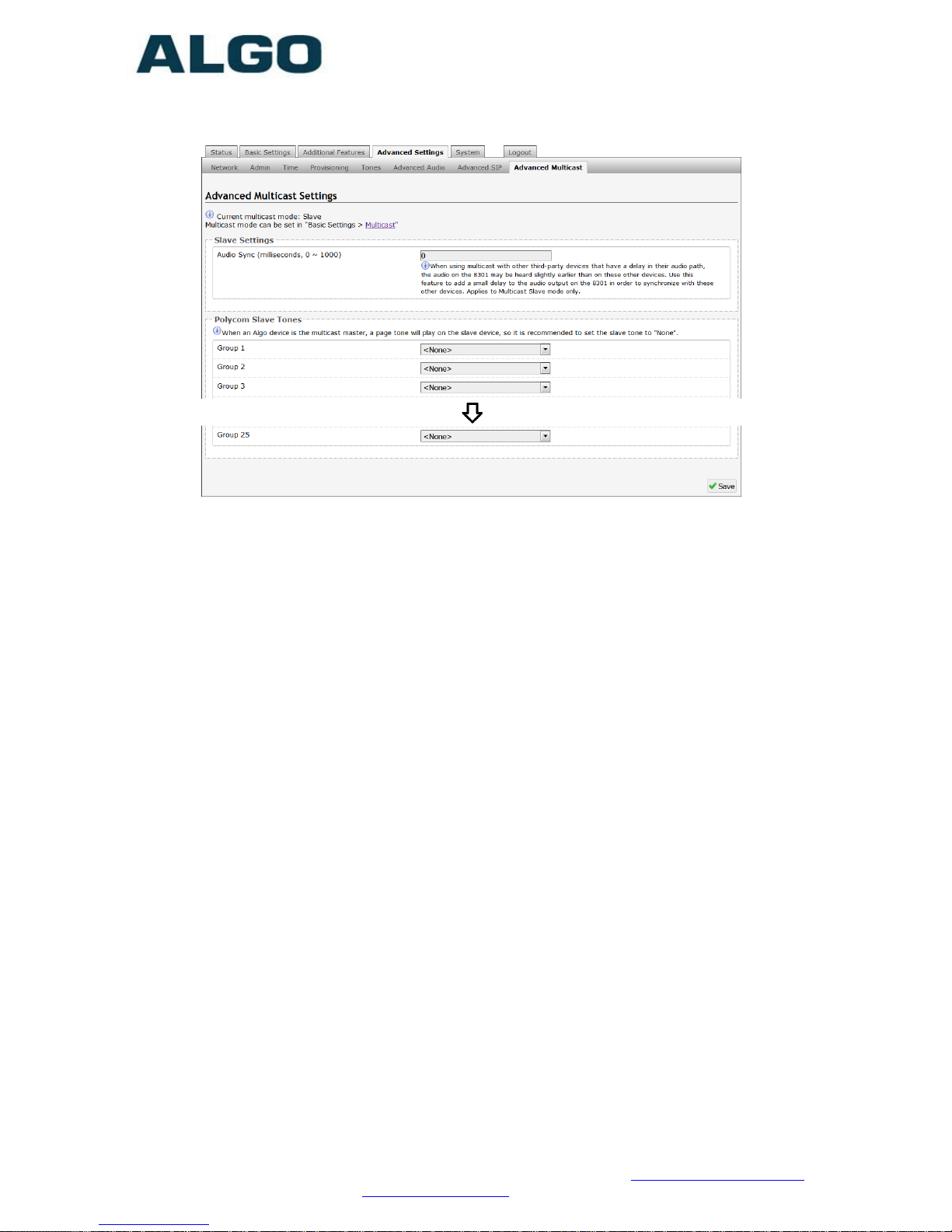

ADVANCED SETTINGS TAB – ADVANCED MULTICAST........................................................................... 67

AUDIO SYNC (SLAVE MODE) .................................................................................................................. 67

MASTER OUTPUT CODEC (MASTER MODE) ............................................................................................... 67

MASTER OUTPUT PACKETIZATION TIME (MASTER MODE) ............................................................................ 68

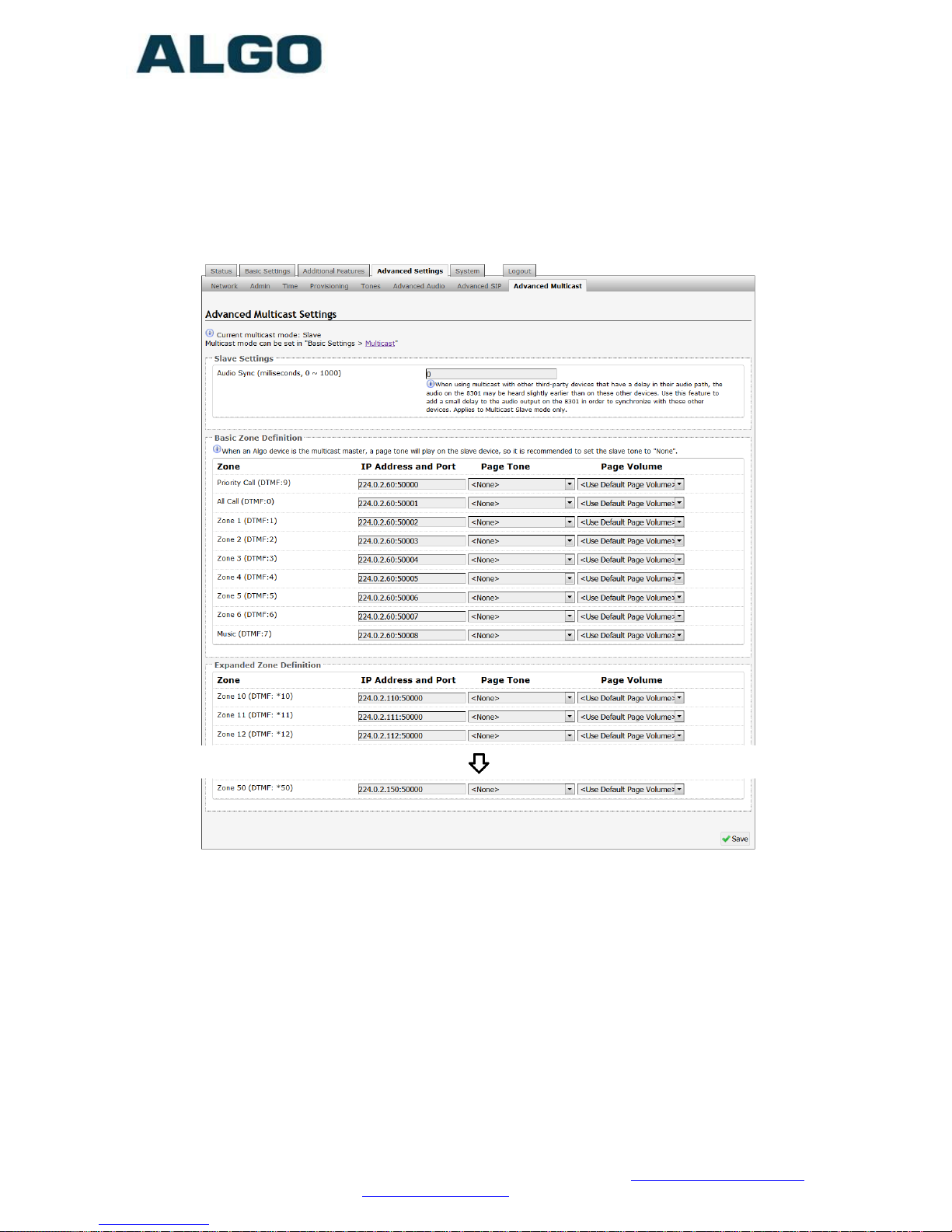

ZONE DEFINITION ................................................................................................................................ 68

PAGE TONE AND PAGE VOLUME .............................................................................................................. 68

POLYCOM SLAVE TONES ........................................................................................................................ 69

SYSTEM TAB - MAINTENANCE .............................................................................................................. 70

DOWNLOAD CONFIGURATION FILE ........................................................................................................... 70

RESTORE CONFIGURATION FILE ............................................................................................................... 70

RESTORE CONFIGURATION TO DEFAULTS ................................................................................................... 70

REBOOT THE DEVICE ............................................................................................................................. 70

METHOD............................................................................................................................................ 71

FIRMWARE IMAGE ............................................................................................................................... 71

MD5 CHECKSUM ................................................................................................................................. 71

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 5 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

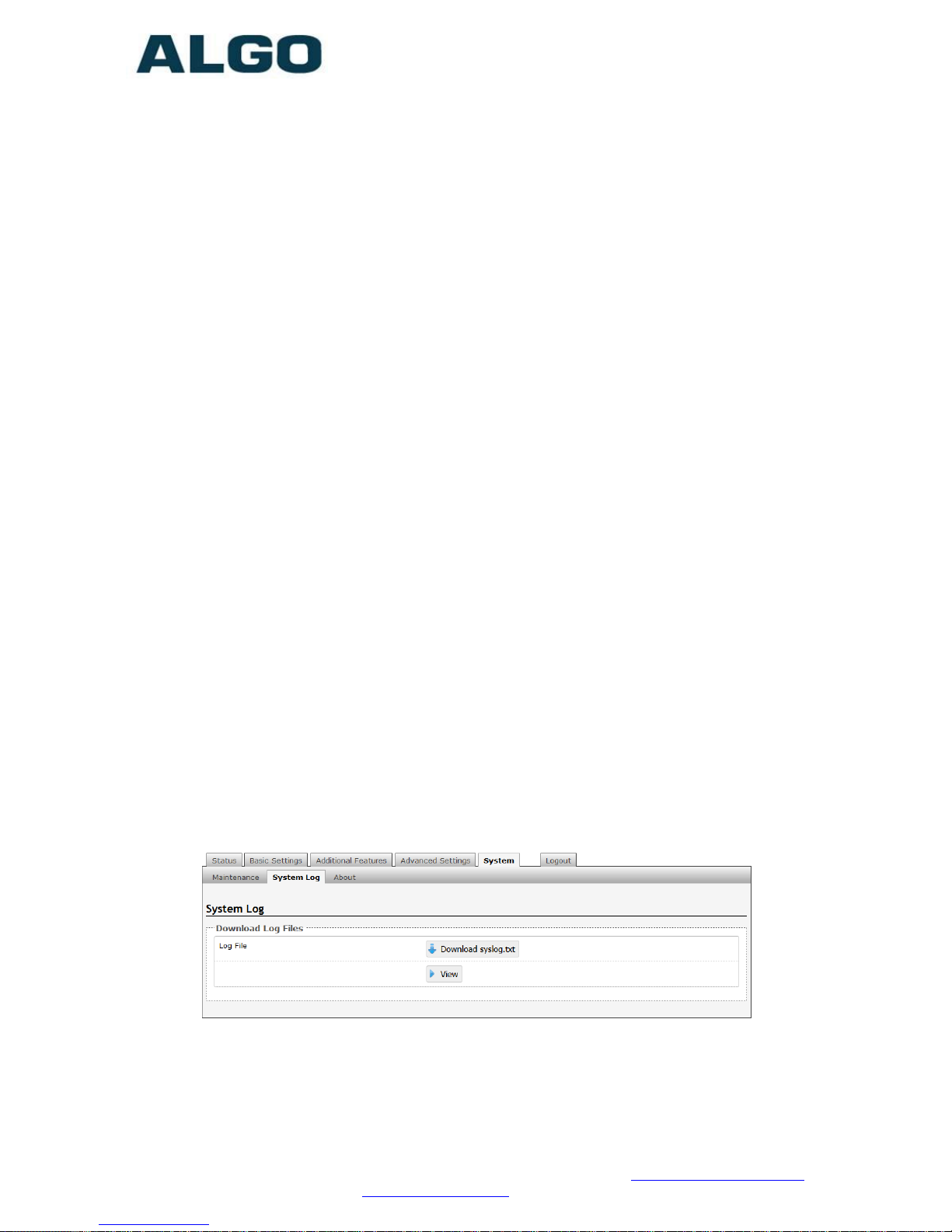

SYSTEM – SYSTEM LOG ........................................................................................................................ 71

SPECIFICATIONS ................................................................................................................................... 72

FCC COMPLIANCE STATEMENT ............................................................................................................ 74

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 6 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Important Safety Information

This product is powered by a certified limited power source (LPS), Power
over Ethernet (PoE); through CAT5 or CAT6 connection wiring to an IEEE

802.3af compliant network PoE switch. The product is intended for
installation indoors. All wiring connections to the product must be in the
same building. If the product is installed beyond the building perimeter or
used in an inter-building application, the wiring connections must be
protected against overvoltage / transient. Algo recommends that this
product be installed by a qualified electrician.

If you are unable to understand the English language safety information
then please contact Algo by email for assistance before attempting an
installation [e-mail].

Consignes de Sécurité Importantes

Ce produit est alimenté par une source d’alimentation limitée certifiée

(alimentation par Ethernet); des câbles de catégorie 5 et 6 joignent un
commutateur réseau à alimentation par Ethernet homologué IEEE 802.3af.

Le produit est conçu pour être installé à l’intérieur. Tout le câblage rattaché

au produit doit se trouver dans le même édifice. Si le produit est installé
au-delà du périmètre de l’édifice ou utilisé pour plusieurs édifices, le
câblage doit être protégé des surtensions transitoires. Algo recommande
qu’un électricien qualifié se charge de l’installation de ce produit.

Si vous ne pouvez comprendre les consignes de sécurité en anglais,

veuillez communiquer avec Algo par courriel avant d’entreprendre
l’installation au [e-mail].

Información de Seguridad Importante

Este producto funciona con una fuente de alimentación limitada (Limited
Power Source, LPS) certificada, Alimentación a través de Ethernet (Power
over Ethernet, PoE); mediante un cable de conexión CAT5 o CAT6 a un
conmutador de red con PoE en cumplimiento con IEEE 802.3af. El producto
se debe instalar en lugares cerrados. Todas las conexiones cableadas al
producto deben estar en el mismo edificio. Si el producto se instala fuera
del perímetro del edificio o se utiliza en una aplicación en varios edificios,
las conexiones cableadas se deben proteger contra sobretensión o
corriente transitoria. Algo recomienda que la instalación de este producto
la realice un electricista calificado.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 7 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Si usted no puede comprender la información de seguridad en inglés,
comuníquese con Algo por correo electrónico para obtener asistencia antes
de intentar instalarlo: [e-mail].

Wichtige Sicherheitsinformationen

Dieses Produkt wird durch eine zertifizierte Stromquelle mit begrenzter
Leistung (LPS – Limited Power Source) betrieben. Die Stromversorgung
erfolgt über Ethernet (PoE – Power over Ethernet). Dies geschieht durch
eine Cat-5-Verbindung oder eine Cat-6-Verbindung zu einer IEEE 802.3af­konformen Ethernet-Netzwerkweiche. Das Produkt wurde konzipiert für die
Installation innerhalb eines Gebäudes. Alle Kabelverbindungen zum
Produkt müssen im selben Gebäude bestehen. Wenn das Produkt jenseits
des Gebäudes oder für mehrere Gebäude genutzt wird, müssen die
Kabelverbindungen vor Überspannung und Spannungssprüngen geschützt
werden. Algo empfiehlt das Produkt von einem qualifizierten Elektriker
installieren zu lassenv.

Sollten Sie die englischen Sicherheitsinformationen nicht verstehen,
kontaktieren Sie bitte Algo per Email bevor Sie mit der Installation
beginnen, um Unterstützung zu erhalten. Algo kann unter der folgenden E­Mail-Adresse erreicht werden: [e-mail].

安全须知

本产品由认证的受限电源（LPS），以太网供电（PoE），通过CAT5或CAT6线路联接至IEEE

802.3af兼容的PoE网络交换机供电。本产品适用于室内或建筑物周边安装。所有联接本产品的

线路必须源自同一建筑物。本产品如需用于超出建筑物周边范围或跨建筑物的安装，线路联接
部分必须有过压和瞬态保护。Algo建议本产品由专业电工安装。

如果您对理解英文版安全须知有问题，安装前请通过电子邮件和Algo联系，

[e-mail]。

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 8 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Important Safety Information

EMERGENCY COMMUNICATION

If used in an emergency communication application, the 8301 Paging
Adapter & Scheduler should be routinely tested. SNMP supervision is
recommended for assurance of proper operation.

DRY INDOOR LOCATION ONLY

The 8301 Paging Adapter & Scheduler is intended for dry indoor
locations only. For outdoor locations Algo offers weatherproof speakers
and strobe lights.

CAT5 or CAT6 connection wiring to an IEEE 802.3af compliant
network PoE switch must not leave the building perimeter
without adequate lightning protection.

No wiring connected to the 8301 Paging Adapter & Scheduler
may leave the building perimeter without adequate lightning
protection.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 9 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

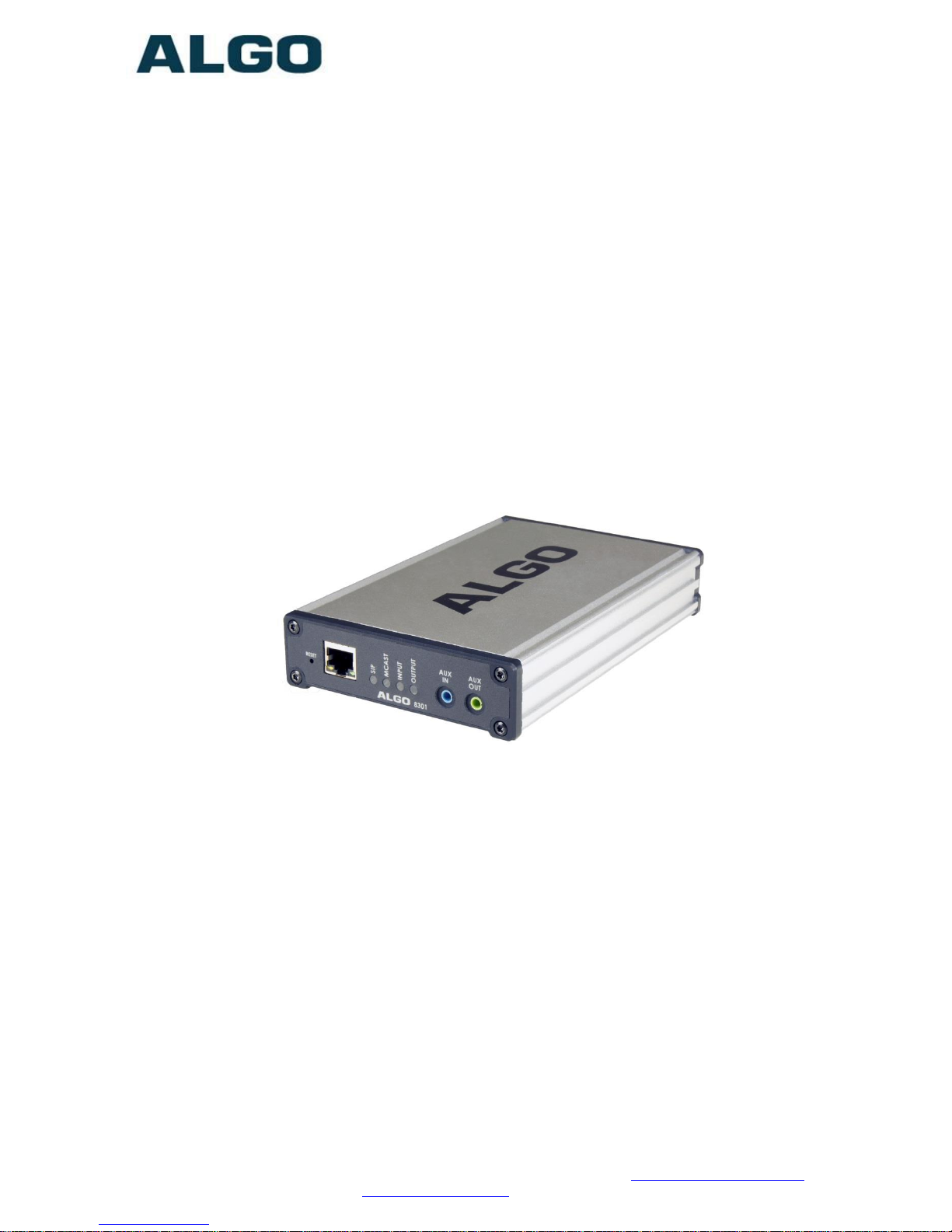

About the Algo 8301 Paging Adapter &
Scheduler

The 8301 Paging Adapter & Scheduler is a PoE SIP compliant and
multicast capable IP adapter designed for integrating consumer,
commercial, and professional audio amplifiers into an IP based
Unified Communications environment for voice paging and
notification. The 8301 is also a Scheduler. Relying on the NTP server,
the 8301 can provide bells, tones, and customer service or
emergency announcements for schools, retail, manufacturing,
healthcare, etc. 1GB of memory is available in the device to store
WAV files, which can be played via the 8301 Line Out and, if desired,
as a multicast to other Algo speakers, paging adapters and strobes.

Dual SIP extensions provide both voice paging and notification (ring)
capability. One or both extensions can be registered with any
Communication Server (hosted or enterprise) that supports 3rd party
SIP Endpoints.

Connection to the amplifier is made using a balanced and isolated
line level output provided as both a XLR-mini connection and
pluggable terminal block for twisted pair wiring. Audio level can be
adjusted manually or set to a defined level independent of input.

Multiple adapters in a SIP environment require only one adapter to
register as a SIP extension. Multicasting capabilities allow the SIP
registered adapter to page and simultaneously stream multicast
audio to the other adapters.

The 8301 Paging Adapter & Scheduler is configured using central
provisioning features or by accessing a web interface using browsers
such as Google Chrome, Firefox, or Internet Explorer.

What is Included

 8301 Paging Adapter & Scheduler
 Network Cable
 Wall Mount Bracket

What is not Included

 Optional Wall Switch (Algo 1202 or 1203)
 Optional 2504 Output XLR-Mini Female to XLR Male
 Optional 2505 Input XLR-Mini Male to XLR Female
 This Installation Guide (www.algosolutions.com/8301/guide)

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 10 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Typical Application

The 8301 Paging Adapter & Scheduler is typically used to connect an
existing paging amplifier to a UC environment either as a SIP
extension or multicast endpoint.

The Line Output of the 8301 is connected directly to the dry audio
input on an amplifier with an input impedance between 600 Ohm and
10 kOhm.

For amplifiers connected directly to the dry page port of an existing
telephone system, the 8301 will provide a very similar interface
providing both dry page audio and dry contact closure to activate the
amplifier (if required).

For amplifiers connected to a FXS port or ATA through a “telephone
answering device” the 8301 will replace the answering device and
eliminate the need for a FXS port or ATA.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 11 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Getting Started - Quick Install & Test

This guide provides important safety information which should be

read thoroughly before permanently installing the adapter.

1. Connect the 8301 Paging Adapter & Scheduler to an IEEE 802.3af

compliant PoE network switch. The blue lights on the front will
remain on until boot up is completed – about 30 seconds.

2. After the blue lights turn off, press the reset switch (RST) to hear the

IP address over the analog outputs (eg. headset can be connected to
the green output port). The IP address may also be discovered by

downloading the Algo locator tool to find Algo devices on your
network: www.algosolutions.com/locator

3. Connect the adapter LINE OUT to an amplifier using the mini-XLR

connector or pluggable terminal block.

4. Access the 8301 Paging Adapter & Scheduler web page by entering

the IP address into a browser (Chrome, IE, Firefox etc) and login
using the default password algo.

5. Enter the IP address for the SIP server into the SIP Domain field

under the BASIC SETTINGS > SIP tab.

6. Enter the page SIP extension and password. (Note the adapter

supports two types of SIP extensions. The page extension auto­answers for voice page announcements. The ring extension plays an
audio WAV file over the speaker without answering.)

7. Make a call to the adapter by dialling the page SIP extension of the

adapter from a telephone.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 12 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Installation

The 8301 is wall mountable in a horizontal orientation using the
supplied bracket.

Example installation on ½” drywall:

Use appropriate drywall anchors for #8 screws,
and pre-drill per anchor manufacturer’s
instructions. Insert 4 anchors into the wall, and
then attach bracket to wall anchors using #8
screws. Snap the 8301 into the bracket.

Connect the 8301 to a PoE network switch.

Connect the audio output of the 8301 to an amplifier using either the
mini-XLR output (male pins) or pluggable terminal block. The 8301
provides a dry audio output and dry contact closure.

An optional XLR output audio cable (Algo 2504) may be ordered for
audio amplifiers using standard XLR input connectors.

Web Interface

The 8301 Paging Adapter & Scheduler is configurable using the web
interface or provisioning features.

After boot up the blue lights on the front will turn off and the adapter
will have obtained an IP address. If there is no DHCP server the 8301
Paging Adapter & Scheduler will default to the static IP address

192.168.1.111.

The IP address may be discovered by downloading the Algo locator
tool to find Algo devices on your network:

www.algosolutions.com/locator

Enter the IP address (eg. 192.168.1.111) into a browser such as
Google Chrome, Firefox, or Internet Explorer (other than IE9). The
web interface should be visible and the default password will be algo
in lower case letters.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 13 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

SIP Paging: One Adapter

The 8301 Paging Adapter & Scheduler can be registered as a third
party SIP extension with a hosted or enterprise Communications
Server supporting 3rd party SIP endpoints.

To register the adapter with the SIP server, use the Basic Settings >
SIP tab in the web interface to enter the Communication Server IP
address, extension, username, and password. This information will be
available from the IT Administrator.

If VLAN is used, navigate to the Advanced Settings > Network tab
to set VLAN options.

(Note, once the adapter is using VLAN you will need to be on the same
VLAN to access the web interface.)

The adapter may now be accessed by dialling its assigned extension
from a telephone, device, or client. The adapter will auto-answer, play
the default WAV pre-announce tone, and allow voice paging until
disconnected.

There are a number of configurable adapter options:

 Increase or Decrease Speaker Volume
 Enable AGC (automatic gain control)
 Customize pre-announce tone WAV file

The best voice paging quality and intelligibility will be obtained using
the G.722 wideband audio codec. Most current IP telephones support
G.722 which is sometimes referred to as “HD” voice or audio.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 14 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

SIP Paging: Multiple Algo SIP Endpoints
(Using Multicast)

Multicast features in the 8301 Paging Adapter & Scheduler require
that only the first adapter be registered as a SIP extension.
Additional Algo SIP endpoints, including any combination of paging
adapters, speakers, and strobes, may be added as multicast Slaves
receiving a stream from the SIP registered Master adapter, provided
that only a single audio stream will be active at any given time
across any or all of the devices. If multiple unique audio streams are
needed simultaneously more than one Master device will be required.

The Master adapter will simultaneously stream audio to the Slave
adapters. The Slave adapters do not require SIP extensions and do
not need to register with the SIP Communication Server.

To enable multicast streaming from the Master adapter, go to the
web interface and navigate to the Basic Settings > Multicast tab.
Choose multicast mode “Master/Sender” and pick “All Call” for the
Master single zone.

To enable multicast monitoring in the Algo SIP endpoint Slaves, go to
the web interface for each endpoint and navigate to the Basic
Settings > Multicast tab. This time though, choose multicast mode
“Slave/Receiver”. There is no need to select a zone as the
endpoint will automatically monitor the “All Call” zone IP address.

The page pre-announce tone is generated from the Master. The
speaker volume can be increased or decreased for each multicast
Slave individually.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 15 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

SIP Paging: Multiple Algo SIP Endpoints
(Using Individual SIP extensions)

In some cases it may be desirable for every adapter to have a SIP
extension. Multicast may still be used to page multiple Algo SIP
endpoints, but each endpoint can also be called individually or
generate a call when appropriately configured.

An Algo SIP endpoint configured as a SIP Multicast Slave will give its
highest priority to a page using its SIP extension.

Communication Servers with the capability of dialling many SIP
extensions simultaneously for paging may be able to create zones by
calling “paging groups” in order to page telephone speakers in
conjunction with speaker endpoints.

Background Music Streaming

The 8301 Paging Adapter & Scheduler, set as a Multicast master, can
stream background music to other Algo slave devices on the network
from a music source connected to the 8301’s AUX Input.

When multicasting music, ensure that Automatic Gain Control (AGC)

is ‘Disabled’ in Basic Settings > Features tab on all the slave
devices. Meanwhile, on the Multicast master device, select ‘G.722’ for

the Master Output Codec setting in Advanced Settings >
Advanced Multicast tab.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 16 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Multicast Page Zones

The 8301 Paging Adapter & Scheduler supports nine “basic” multicast
zones. These zones are defined by the multicast IP addresses.

Somewhat arbitrarily, these zones are defined below but may be
used in other ways. The important consideration is that there is a
priority hierarchy – streaming activity on a zone higher on the list will
be treated as a higher priority than a zone lower on the list – with
music being the lowest priority.

 Priority
 All Call
 Zone 1
 Zone 2
 Zone 3
 Zone 4
 Zone 5
 Zone 6
 Music

There are two options for Paging to multiple zones: “DTMF Selectable
Mode” or via multiple page extensions.

The “DTMF Selectable Mode” offers a dynamic page zone selection

and requires only the Master device to have a registered SIP
Extension. To page, dial the SIP extension of the Master device and
then dial the desired DTMF page zone (e.g. 1, 2, etc.) on the keypad.

Note: DTMF codes for zones 10 and higher start with an “*”.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 17 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Alternatively, multiple SIP extensions can be registered on the
Master device. Each extension is mapped to a unique zone, allowing
zones to be called directly (for instance from speed-dial keys)

without the use of DTMF. See “Additional Features > More Page
Extensions”.

“Expanded” zones can also be enabled, allowing up to 50 zones in

total. These have the same behaviours as the basic zones, but are
hidden by default to simplify the interface.

PolycomTM Group Paging

The 8301 Paging Adapter & Scheduler has been designed to support
Polycom Group Paging.

The 8301 Paging Adapter & Scheduler can be added to a Polycom
Group Page so that voice paging is heard over Polycom telephone
speakers and overhead paging simultaneously.

Polycom Group Paging can be configured on the Basic Settings >
Multicast tab.

The 8301 Paging Adapter & Scheduler may be accessed remotely via
SIP and may generate a multicast page within the LAN sending voice
page to both Algo paging endpoints and Polycom telephones. Audio
delay may be added to the 8301 Paging Adapter & Scheduler to
synchronize with voice page over the Polycom telephone speakers.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 18 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

SIP Ring Event

Set Monitoring Mode to "Monitor Ring". When a call is made to the
SIP extension the 8301 Paging Adapter & Scheduler will play the
selected WAV file from memory. Often, the 8301 will be part of a
hunt group or ring group to ring in conjunction with a telephone.

SIP Activated Notification Alerts

In addition to voice paging, the 8301 Paging Adapter & Scheduler can
play audio files for emergency, safety, and security announcements,
customer service, shift changes, etc.

Audio WAV files can be stored in adaptor memory and played over a
speaker in response to an event such as a ring, relay input or
automated schedule, and also multicast to other Algo SIP endpoints
on the network. See Additional Features > Emergency Alerts and

Additional Features > Input/Output tabs for more details.

Wiring Connections

Connecting Input Devices
to 8301

The input relay to the Algo 8301
Paging Adapter & Scheduler can
be prompted by any normally
open, normally closed switch,
Algo 1202 Call Button, or Algo
1203 Call Switch. The input
switches can be connected to the
back of the 8301 via a Terminal

Block on the “Relay SW Input”

pair.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 19 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

1202 Call Button: A pair of wires from the
terminal block Relay Input on the back of the
8301 Paging Adapter & Scheduler can connect to
the centre pair of the modular connector at the
back of the Call Button.

1203 Call Switch: A pair of wires can be run from
the back of the device via a screw output connector
to the 8301 Paging Adapter & Scheduler via the
Relay Input.

8301 Paging Adapter & Scheduler: Front View

8301 Paging Adapter & Scheduler: Back View

Network Connection

Connect RJ45 jack from PoE network switch or non-PoE network
and 48V 350 mA IEEE 802.3af compliant power injector.

There are two lights on the Ethernet jack:

Green light: On when Ethernet is working, flickers off to indicate
activity on the port.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 20 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Amber light: Off when successful 100Mbps link is established.
Typically on only briefly at power up. (Exception: the amber LED

behaviour will be reversed on “Rls 1” hardware)

Under normal conditions, the Amber light will turn on immediately
after the Ethernet cable is first connected. This indicates that PoE
power has been successfully applied. Once the device connects to the
network, it will switch to the Green light instead, which will typically
flicker indicating traffic on the network.

AUX IN (Front)

Analog line level input from iPod or similar device for music input.
Non-isolated.

AUX OUT (Front)

Analog line level output for compatible PC speakers or headset. Non­isolated.

LINE IN XLR-MINI (Back)

Balanced and isolated audio (page or music) input can be configured
for pass-through to Line Out (when paging is idle), or for broadcast
via multicast.

LINE OUT XLR-MINI (Back)

Balanced and isolated audio output to external amplifier. Locking
mini-XLR female to standard XLR male cable available. Output level
defined using web interface.

Terminal Block Line In

Balanced and isolated wire pair input parallel to XLR-MINI LINE IN
(polarity independent).

Terminal Block Line Out

Balanced and isolated wire pair output parallel to XLR-MINI LINE OUT
(polarity independent).

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 21 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Terminal Block Relay In

By default, these terminals are inactive. Connection options are a
normally closed switch, normally open switch, 1202 Call Button, 1203
Call Switch, or EOL resistor termination.

Terminal Block Relay Out

By default these terminals provide a contact closure when the 8301
Paging Adapter is active.

Blue LED Indicators

All 4 blue lights will be on during power up and boot process.

SIP

Steady light will appear when the SIP extension is registered. The
light will blink when the device is engaged in a SIP page/ring.

Multicast

Steady light will appear when 8301 receives multicast messages as a
Slave. The light will blink when 8301 sends output to the Slaves as a
Master.

Input

The Input light is ‘on’ when the device is actively using an analog

input port, based on the configuration set in the web interface and
the active state (it does not detect a physical connection to the audio
jack).

Output

Output light is on when analog output is enabled.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 22 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Reset

A recessed reset button (RST) next to the Ethernet Jack can only

be used to reset the 8301 Paging Adapter & Scheduler at time of
power up. To reset, reboot or power cycle the 8301 Paging Adapter
& Scheduler, wait until the SIP LED flashes and then press and
hold the reset button until the SIP LED begins a double flash
pattern. Release the reset button and allow the unit to complete its
boot process. Do not press the reset button until the SIP LED
begins flashing. A reset will set all configuration options to
factory default including the password.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 23 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Web Interface Login

The web interface requires a password which is "algo" by default.
This password can be changed using the Admin tab after logging in
the first time.

Status

The device’s Status page will be available before and after log on.

The section can be used to check 8301’s SIP Registration status of

the Ring/Page extensions, Call Status, Multicast Mode (Slave/Master),
Relay Input Status, Proxy Status, and general MAC, IP, Netmask,
Date/Time, and Timezone information.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 24 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Basic Settings Tab – SIP

SIP Server information and Credentials should be obtained from your

telephone system administrator or hosted account provider. After
saving the settings, see the Status tab to confirm the registration was
successful.

Note: Any time changes are made to settings in the Web
Interface the "Save" key must be clicked to save the changes

SIP Domain (Proxy Server)

SIP Server Name or IP Address

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 25 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Ring/Alert Mode

Option for adding a second SIP extension for ring detection and
playing WAV file. When activated, screen expands to enter second
SIP extension parameters.

Ring Extension

This is the SIP extension for the 8301’s Ring parameter. The device

will detect inbound ring events on this extension and play the alerting
tone (and multicast if configured) until the inbound call stops ringing.
It will not answer the call on this extension.

Page Extension

This is the SIP extension for the 8301 Paging Adapter & Scheduler’s
Page parameter. The device will auto-answer any inbound call

received on this extension and provide a voice paging path (and
multicast if configured).

Authentication ID

May also be called Username for some SIP servers, and in some
cases may be the same as the SIP extension used for the associated
Ring and/or Page parameter.

Authentication Password

SIP password provided by the system administrator for the SIP
account used for the associated Ring and/or Page parameter.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 26 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Basic Settings Tab – Features

Ring/Alert Tone

Select WAV file to play when a ring event is detected on the SIP Ring
extension. The WAV file may be played immediately to an associated
speaker from the web interface for test purposes using the Play,
Loop, and Stop buttons. During multicast, the device will broadcast
an audio stream using the Master’s selected ring tone.

Note: This is the “Default” tone that will be played if selected for

Multicast, Additional Ring Extension settings.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 27 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Ring/Alert Volume

Set speaker volume for SIP ring event. This setting is an amplifier

gain control and the output level will also depend on the levels

recorded into the source WAV file played from memory. This setting

is only used for local tones, and not when receiving multicast (see

Page Speaker Volume below).

Ring Limit

Typically set to no limit, this feature can be used to set a limit on how

long the associated speaker will ring before timing out. A new ring

event is required before the speaker will play the WAV file again.

Page Speaker Volume

Speaker page volume control for SIP or multicast paging. This setting

is an amplifier gain control and output level will depend on streaming

level. This setting will apply to all multicast, regardless of content.

Page Mode

A call to the SIP page extension can be one-way or delayed. In delay

mode, the adapter will store the page into memory and then play

after disconnect.

In delay mode, press “#” to cancel a page while the recording state is

in process to prevent it from being sent after hanging up.

Page Timeout

A time limit may be set for an active page.

Page Tone

Select pre-announce tone for paging. Use only Default, or custom

uploaded file. The other pre-installed tone files all contain silence at

the end in order to generate ring "cadence" of 6 seconds. This silence

will block the voice path for several seconds at the start of a page.

The “Default” tone will play the page-notif.wav file.

Note: The “Default Page Tone”, in Advanced Multicast, will play the

tone set here.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 28 www.algosolutions.com

+4dBu 10k (1.23 Vrms)

0dBu 10k (0.775 Vrms)

0dBV 10k (1.0 Vrms)

-10dBV 10k (0.316 Vrms)

0dBm 600 ohm (0.755 Vrms)

-10dBm 600 ohm (0.245 Vrms)

8301 Paging Adapter & Scheduler (FW 1.5)

G.722 Support

Enable or disable the G.722 codec.

Automatic Gain Control (AGC)

Normalizes the audio level. Automatically maximize level of voice

received from calling phone in order to make page volume more

consistent.

‘Line Out’ Analog Output Level

The following output levels are available, allowing the 8301 to

interface with a wide variety of devices:

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 29 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Multicast IP Addresses

Each 8301 Paging Adapter & Scheduler has its own IP address, and

shares a common multicast IP and port number (multicast zone) for

multicast packets. The master transmits to a configurable multicast

zone, and the slave units listen to all the multicast zones assigned to

them.

The network switches and router see the packet and deliver it to all

the members of the group. The multicast IP and port number must

be the same on all the Master and Slave units of one group. The user

may define multiple zones by picking different multicast IP addresses

and/or port numbers.

1. Multicast IP addresses range: 224.0.0.0/4

(from 224.0.0.0 to 239.255.255.255)

2. Port numbers range: 1 to 65535

3. By default, the 8301 Paging Adapter &

Scheduler is set to use the multicast IP
address 224.0.2.60 and the port numbers
50000-50008

Make sure that the multicast IP address and port number do not

conflict with other services and devices on the same network.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 30 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Basic Settings Tab - Multicast (Master
Settings)

Multicast Mode (Master/Sender Selected)

If Master is enabled the 8301 Paging Adapter & Scheduler will

broadcast an IP stream when activated in addition to playing the

audio. Note: the 8301 cannot be both a multicast Master and Slave

simultaneously.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 31 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Number of Zones

Select “basic” zones if configuring nine or fewer multicast zones or

“expanded” to configure up to 50 zones. The expanded zones have

the same behaviour as the basic speaker playback zones, but are

hidden by default to simplify the interface.

Multicast Type

The 8301 Paging Adapter & Scheduler may broadcast multicast
paging, compatible with Polycom “on premise group paging”
protocol and most multicast-enabled phones that use RTP audio
packets.

Select “Regular” if solely multicasting to Algo SIP endpoints and/or
multicast-enabled phones.

To multicast page announcements solely to Polycom phones, select
“Polycom Group Page” or “Push-to-Talk”. Then, configure the 8301
with “Polycom Zone” (IP Address and Port) and “Polycom Default
Channel”.

Note: always ensure that the multicast settings on all Slaves match
those of the Master.

Select “Regular RTP + Polycom Group Page/Push-to-Talk” to
multicast page audio to both Polycom phones, Algo SIP endpoints,
and multicast-enabled phones.

Polycom Group Selection Mode

“Single Zone” always broadcasts on one pre-configured Polycom

Group. In “DTMF Selectable Zone” mode, the group is determined by

the DTMF selection between 1 and 25.

Note: DTMF codes for groups 10 and higher start with an “*”.

Zone Selection Mode

“Single Zone” always broadcasts on one IP address. In “DTMF

Selectable Zone” mode, the IP address is determined by the zone

selected. The DTMF zone definitions can be found in the “Advanced

Settings > Advanced Multicast” tab. For more information see pages

14-15. Note: DTMF code for zones 10 and higher starts with an “*”.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 32 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Master Single Zone

IP address for multicast broadcast. If “DTMF Selectable Zone” is

chosen above, this setting will not apply to Paging, since the zone

can now be dynamically selected per call via DTMF. However, the

specified “Master Single Zone” setting is still used for any multicast

events triggered by the Ring, analog input, or the relay input.

Speaker Playback Zones

Allows Master device to play audio for selected zones only. This is

useful if using DTMF Selectable Zone mode (or More Page Extensions

per zone) and wishing to make the Master unit a member of only

certain zones.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 33 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Basic Settings Tab - Multicast (Slave
Settings)

Multicast Mode (Slave Selected)

If Slave mode is enabled the 8301 Paging Adapter & Scheduler will

activate when receiving a multicast message. Will mimic audio

stream, but use local volume settings (“Page Speaker Volume” in

“Basic Settings > Features”).

Number of Zones

Select “basic” zones if configuring nine or fewer multicast zones or

“expanded” to configure up to 50 zones. The expanded zones have

the same behaviour as the basic Slave zones, but are hidden by

default to simplify the interface.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 34 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Multicast Type - Regular

Select “Regular” if solely multicasting to Algo SIP endpoint(s) and/or

multicast-enabled phone(s) that use RTP audio packets.

Slave Zones

Select multicast slave zones for the 8301 Paging Adapter & Scheduler

to monitor. Note that multicast zone priority is based on the zone

definition list order (top to bottom).

Multicast Type – Polycom Group Paging/Push-to-Talk

The 8301 Paging Adapter & Scheduler may receive multicast paging
compatible with Polycom “on premise group paging” protocol.

To configure the 8301 as a slave to play Polycom page

announcements, select “Group Page” or “Push-to-Talk”. Then enter

the Polycom Zone (IP Address and Port) that matches the

configuration of the Polycom phones and Channels. The “Default

Channel” is the target group in a Polycom paging environment.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 35 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

The Polycom phone used as page audio source for the 8301 Paging
Adapter & Scheduler(s) must be configured to use either the G.711
or G.722 audio codec. The Polycom phone(s) must also be

configured with the “Compatibility” setting
(“ptt.compatibilityMode”) disabled in order for this codec setting

to be applied.

If using a Polycom phone as the Multicast master, a tone may be set
for any of the 25 Polycom Groups configured on the Algo device. If
an Algo device is used as a Multicast master, a tone does not have to
be set as the Algo master will provide its own tone. Polycom Group
Tones can be set in Advanced Settings > Advanced Multicast tab.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 36 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Additional Features Tab – Input/Output

When triggered by an input relay, Algo 8301 Paging Adapter &

Scheduler can perform actions such as playing a pre-recorded

announcement over the speaker(s), sending the announcement as a

private message to a phone, or initiating a two-way conversation

between the speaker and a phone.

The input relay to the Algo 8301 Paging Adapter & Scheduler can be
prompted by any normally open or normally closed switch. Algo
offers the 1202 Call Button or the 1203 Call Switch with supervision.
Via supervision settings, notification actions can also be triggered if
the input switch is disconnected.

The 8301 Paging Adapter & Scheduler can execute the following

actions when triggered by an input relay:

 Play Tone
 Make SIP Voice Call
 Make SIP Call with Tone
 Stream Audio

1202 Call Button

The Algo 1202 Call Button is a one-touch button for
event notification and response. It can be used with
the 8301 for improved customer service, emergency
notification, and non-emergency alerting. The Call
Button’s one-touch button can trigger a single or
continuous action, which can be halted via the small
cancel/reset button located below the main call
button.

1203 Call Switch

The Algo 1203 Call Switch is a simple contact closure
switch with an illuminated button and supervision
capabilities. When used in conjunction with the 8301, the
1203 can prompt a single action with one-touch, or a
continuous action if the button is held.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 37 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Audio Always On

Enable or disable the local speaker to always play a sound on the

local speaker and multicast if configured.

Note: Audio Streaming Always On cannot be used when the relay

trigger action is set to “Stream Audio” or “Make SIP Voice Call”. To

enable Audio Streaming Always On, set Relay Input Mode to

“Disabled”, or set Action When Input Triggered to “Play Tone” or

“Make SIP Call with Tone”.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 38 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Action – Play Tone

When the 8301 receives input, a tone or a pre-recorded WAV file will
play over speaker via the Line Out, or multicast if enabled. This
function can be used to call support/assistance in service or retail
environments, notify about an emergency at a specific location in
medical/educational facilities, or sound an alarm during an intrusion.

 Action When Input Triggered:

o Tone/Pre-recorded Announcement
o Tone Duration

Action - Make SIP Voice Call

Upon receiving input, a voice path will open for an intercom-like call
via a microphone (connected to AUX IN) to a pre-configured phone
extension. This option can be used when a call needs to be made
from a public place where a phone would not be practical to use.

 Action When Input Triggered:

o Dialing Extension
o Allow 2nd Button Press
o Audio Input Port

 Outbound SIP Call Settings:

o Outbound Ring Limit
o Ringback Tone
o Maximum Call Duration

Action - Make SIP Call with Tone

An input can also generate a private call to a pre-configured phone
extension with a pre-recorded message. For instance, a call to a

supervisor’s phone notifying about an emergency or intrusion at

some location. Make SIP Call with Tone has the following options:

 Action When Input Triggered:

o Dialing Extension
o Allow 2nd Button Press
o Tone/Pre-recorded Announcement
o Interval Between Tone (seconds)
o Maximum Tone Duration

 Outbound SIP Call Settings:

o Outbound Ring Limit
o Ringback Tone

Action – Stream Audio

Will play sound from audio input on a local speaker as well as
multicast if configured.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 39 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Action When Tamper Detected (Supervision)

In addition to the main events, the device can be configured with
supervision to also execute one of the above three actions, except
Stream Audio, in case the input switch is disconnected due to wiring
failure or after being tampered with. For example, a tone could sound
over the speaker(s), or a private pre-recorded message could be sent
to a specified phone extension. The supervision configuration options
will appear once a relay option with supervision is selected. See the
Electrical Specification section for details on supervision detection
circuit.

Speaker Volume/Mute

Apply an external switch (short-circuit) across the Relay Input

terminals in order to mute the speaker. This allows a temporary

"disable" switch to control the device if desired, for example in a

boardroom to block paging during important meetings.

If volume control is desired, instead use a 5k-ohm (or 10k-ohm)

logarithmic potentiometer (rated for 1 Watt) to set the current across

the Relay Input terminals. Volume steps are applied at 4mA intervals

based on a nominal 13V source voltage (40mA current-limited).

0mA = regular (full) volume, down to mute at 40mA.

Leave the Relay Input terminals open (no-connect) for regular full-

volume operation when in this mode.

Dialing Extension

SIP account required in Page Extension fields in order to make a call.

Interval Between Tones

Specify the time delay (seconds) between tones.

Maximum Tone Duration

Select the maximum tone duration. The tone will be terminated once
the maximum time is reached.

Outbound Ring Limit

Typically set to ensure that a call will not reach voicemail. This
feature can be used to set a limit on how long the speaker will ring
before timing out.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 40 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Ringback Tone

If enabled, a ringback tone will play over the speaker during an
outbound SIP call, while waiting for the far-end party to answer.

Maximum Call Duration

Select the maximum call length. The call will be terminated once the
maximum time is reached. In the event that a call inadvertently
reaches voicemail or gets accidentally left on hold, this setting
ensures that the 8301 returns on-hook.

Call Button

While the 8301 can be configured to play the WAV file only once, it

can also be enabled to play it continuously with just one touch on the

1202 Call Button. The action can then be stopped via the smaller oval

cancel button located below the main call button on the 1202.

Audio Input Port

Select an audio input port and choose if it is normally open/closed or

a multicast master. “Aux Input” is the front blue 3.5mm jack for

headsets (iPods/iPhones). “Aux Output” is the front green 3.5

headset with microphone (headsets or PC speakers). “Line Input” is

the back terminal block and XLR.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 41 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Additional Features Tab – Emergency
Alerts

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 42 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Emergency Alerts allow for an announcement to be triggered &
latched by calling a pre-configured Emergency extension and hanging
up. The announcement will continue to play until a different "Cancel"
extension is called to clear the announcement (or a pre-defined
timeout is reached). The Emergency Alerts are useful for emergency
notifications (e.g. evacuation, lockdown, medical emergency, etc.),
allowing staff to quickly dial a pre-configured number under such
circumstances.

If the “Answer Inbound Call” option is “Enabled” the call is auto­answered and a confirmation tone is played before starting the alert.

If “Disabled”, the alert is triggered just by the inbound ring, without

answering the call. (In both instances, the announcement will play

until the time limit is reached or the “Cancel Extension” is called).

The auto-answering option can be useful when the caller cannot hear
announcement from their location. However, in instances where the
call might go to a group/multiple extensions (including this device),
the auto-answer may intercept that call and prevent it from ringing
on other devices.

Up to 10 extensions can be registered allowing up to 10 different
announcements. Audio files can also be easily uploaded to create
custom announcements.

Note: Some SIP phone systems may not support this feature if they

limit the number of extensions that can be registered on a single

device.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 43 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Additional Features Tab – More Page
Extensions

Additional SIP extensions can be registered for each page zone that

will be used. This allows the advantage of dialing directly to a page

zone without needing to enter DMTF (e.g. speed-dial keys can be

used), but may require additional SIP licenses depending on the SIP

provider.

To configure additional page extensions (up to 50) click “Enable”

beside the target extension and enter the Extension, Authentication

ID, and Authentication password.

Note: Some SIP phone systems may not support this feature if they

limit the number of extensions that can be registered on a single

device.

Multicast Zone Definitions can be found in "Advanced Settings >

Advanced Multicast".

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 44 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Additional Features Tab – More Ring
Extensions

Up to 10 SIP Ring extensions can be registered. To configure

additional ring extensions click “Enable” beside the target extension

and enter the Extension, Authentication ID, and Authentication

password.

A unique Ring Tone can be assigned to each extension if desired.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 45 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Scheduler Tab – Calendar

The Scheduler can be deployed along with Algo IP speakers, paging
adapters and strobes to provide bell scheduling and automated
announcements.

Once a bell schedule has been configured in the Schedules tab (see
below), it can be added to the desired dates on the calendar. Multiple
different schedules can be created. For example, Fridays might have
a different schedule than the other weekdays.

From the drop down menu at the top of the calendar, select a
schedule (e.g. Regular weekday), then click on the calendar dates to
implement the schedule. When finished, click Save.

To clear the schedule from the entire month, select None (clear)
from the drop down menu, and click on the dates to clear.

and buttons can be used instead of clicking
individual dates to implement a specific schedule throughout the
month or to clear existing schedule for the whole month.

The schedule will need to be applied to each month separately.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 46 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Scheduler Tab – Schedules

Click to add a bell schedule that will be implemented on specific
calendar days. Give a Schedule Name and pick a Colour in
Calendar to represent the schedule on the calendar (see above).

Select the schedule, and in the Current Schedule section, add
events to the schedule. Specify the event Description, Time, Audio
file to be played, and the Page Zone.

The chosen audio file will be playing over the network via multicast to
all other Algo network devices (e.g. 8186, 8188, 8180, 8128, 8301,
8373, etc.) that are configured as Slaves on this zone.

- Delete schedule or event button

- Copy event button

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 47 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Scheduler Tab – Data

Download

Allows a backup of the schedule with times and calendar dates to be
downloaded for backup purposes. Note that this backup is
independent from the rest of the configuration backup on the device.

Restore

Upload and restore a saved Scheduler/Controller data file.

Clear All Data

Clears all the Scheduler/Controller data, including saved schedules
and set calendar dates.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 48 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Advanced Settings Tab - Network

Protocol

DHCP is an IP standard designed to make administration of IP

addresses simpler. When selected, DHCP will automatically configure

IP addresses for each 8301 Paging Adapter & Scheduler on the

network. Alternatively the 8301 Paging Adapter & Scheduler can be

set to a static IP address.

VLAN Mode

Enables or Disables VLAN Tagging. VLAN Tagging is the networking

standard that supports Virtual LANs (VLANs) on an Ethernet network.
The standard defines a system of VLAN tagging for Ethernet frames
and the accompanying procedures to be used by bridges and
switches in handling such frames. The standard also provides
provisions for a quality of service prioritization scheme commonly
known as IEEE 802.1p and defines the Generic Attribute Registration
Protocol.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 49 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

VLAN ID

Specifies the VLAN to which the Ethernet frame belongs. A 12-bit
field specifying the VLAN to which the Ethernet frame belongs. The
hexadecimal values of 0x000 and 0xFFF are reserved. All other
values may be used as VLAN identifiers, allowing up to 4094 VLANs.
The reserved value 0x000 indicates that the frame does not belong to
any VLAN; in this case, the 802.1Q tag specifies only a priority and is
referred to as a priority tag. On bridges, VLAN 1 (the default VLAN
ID) is often reserved for a management VLAN; this is vendor specific.

VLAN Priority

Sets the frame priority level. Otherwise known as Priority Code Point
(PCP), VLAN Priority is a 3-bit field which refers to the IEEE 802.1p
priority. It indicates the frame priority level. Values are from 0
(lowest) to 7 (highest).

Differentiated Services (6-bit DSCP value)

Provides quality of service if the DSCP protocol is supported on your
network. Can be specified independently for SIP control packets
versus RTP audio packets.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 50 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Advanced Settings Tab – Admin

Password

Password to log into the 8301 Paging Adapter & Scheduler web

interface. You should change the default password algo in order to

secure the device on the network. If you have forgotten your

password, you will need to perform a reset using the Reset Button in

order to restore the password (as well as all other settings) back to

the original factory default conditions.

For additional password security see “Force Strong Password” below.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 51 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Confirmation

Re-enter network admin password

Device Name (Hostname)

Name to identify the device in the Algo Network Device Locator Tool.

Introduction Section on Status Page

Allows the introduction text to be hidden from the login screen.

Web Interface Session Timeout

Set the maximum period of inactivity after which the web interface
will log out automatically.

Play Tone at Startup

A tone can be played at startup to confirm that the device has
booted. This can be useful when testing or configuring a device, but
might not be desirable if the device is connected to an external
amplifier and paging system.

Log Level

Use on the advice of Algo technical support only.

Log Method

Allows the 8301 Paging Adapter & Scheduler to write to external

Syslog server if the option for external (or both) is selected.

Log Server

If “Network” or “Both” is selected this is the address of the Syslog
server on the network.

Web Interface Protocol

HTTPS is always enabled on the device. Use this setting to disable
HTTP. When HTTP is disabled, requests will be automatically
redirected to HTTPS. Also note that since the device can have any
address on the local network, no security certificate exists, and thus
most browsers will provide a warning when using HTTPS.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 52 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Force Strong Password

When enabled, ensures that a secure password is provided for the

device’s web interface for additional protection. The password

requirements are:

- Must contain at least 10 characters

- Must contain at least 1 uppercase character

- Must contain at least 1 digit (0 – 9)

- Must contain at least 1 special character

Allow Secure SIP Password

Allows SIP passwords to be stored in the configuration file in an
encrypted format, to prevent viewing and recovery. Once enabled,

the SIP “Realm” field should be entered and all the configured

Authentication Password(s) must be re-entered in the Basic Settings
> SIP tab, and any other locations where SIP extension have been
configured, to save the encrypted password(s).

If the Realm is changed at a later time, all the passwords will also
need to be re-entered again to save the passwords with the new
encryption.

To obtain your SIP Realm information, contact your SIP Server
administrator (or check the SIP log file for a registration attempt).
The Realms may be the same or different for all the extensions used.

SNMP Support (v1 get only)

Additional SNMP support is anticipated for future, but the 8301
Paging Adapter & Scheduler will respond to a simple status query for
automated supervision. Contact Algo technical support for more
information.

SA-Announce Support

Syn-Apps’ SA-Announce paging application converts unicast streams
to multicast and delivers them to the target endpoints. The feature
can only be used on the 8301 when Multicast Master Mode is disabled
(set to ‘None’) in the Basic Settings > Multicast tab.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 53 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

SA-Announce Server

Enter the SA-Announce Server to use the Syn-Apps paging feature.
To use the server provided by the DHCP Option 72, leave the field
blank.

Local Management Port

Enter the local management port.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 54 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Advanced Settings Tab – Time

Network time is used for logging events into memory for
troubleshooting.

Timezone

Select timezone.

NTP Time Servers 1/2/3/4

The adapter will attempt to use Timer Server 1 and work down the
list if one or more of the time servers become unresponsive.

NTP Time Server Source

When “Use DHCP Option 42” is chosen, if an NTP Server address is

provided via the DHCP Option 42, that NTP Server will be used

instead of the 4 mentioned above. Alternatively, “Ignore DHCP Option
42” can be chosen to only use servers mentioned above.

Device Date/Time

This field shows the current time and date as set on the device. If
testing the device on a lab network that may not have access to an

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 55 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

external NTP server, the “Sync with browser” button can be used to

temporarily set the time on the device.

Note, this time value will be lost at power down, or overwritten if NTP

is currently active. Time and date are used only for logging purposes
and for the Scheduler.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 56 www.algosolutions.com

Note: It is recommended that Provisioning Mode be set to
Disabled if this feature is not in use. This will prevent
unauthorized re-configuration of the device if DHCP is
used.

8301 Paging Adapter & Scheduler (FW 1.5)

Advanced Settings Tab – Provisioning

Provisioning allows installers to pre-configure 8301 Paging Adapter &
Scheduler units prior to installation on a network. It is typically used
for large deployments to save time and ensure consistent setups.

The device can be provisioned via the Auto mode (where all three
DHCP options (Option 66/160/150) will be automatically checked for
an active provisioning server), just one of the three specified DHCP
options, or a Static Server. In addition, there are four different ways

to download provisioning files from a “Provisioning Server”: TFTP

(Trivial File Transfer Protocol), FTP, HTTP, or HTTPS.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 57 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

For example, 8188 configuration files can be automatically
downloaded from a TFTP server using DHCP Option 66.
This option code (when set) supplies a TFTP boot server address to
the DHCP client to boot from.

DHCP must be enabled if using DHCP Option 66/160/150, in order for
Provisioning to work.

One of two files can be uploaded on the Provisioning Server (for
access via TFTP, FTP, HTTP, or HTTPS):

Generic (for all 8301 Paging Adaptors) algop8301.conf
Specific (for a specific MAC address) algom[MAC].conf

Both protocol and path is supported for Option 66, allowing for

http://myserver.com/config-path to be used.

MD5 Checksum

In addition to the .conf file, an .md5 checksum file must also be
uploaded to the Provisioning server. This checksum file is used to
verify that the .conf file is transferred correctly without error.

A tool such as can be found at the website address below may be
used to generate this file:

http://www.fourmilab.ch/md5

The application doesn’t need an installation. To use the tool, simply

unzip and run the application (md5) from a command prompt. The
proper .md5 file will be generated in the same directory.

If using the above tool, be sure to use the “-l” parameter to generate
lower case letters.

Generating a generic configuration file

1. Connect 8301 to the network

2. Access the 8301 Web Interface Control Panel

3. Configure the 8301 with desired options

4. Click on the System tab and then Maintenance.

5. Click “Backup” to download the current configuration file

6. Save the file settings.txt

7. Rename file settings.txt to algop8301.conf

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 58 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

8. File algop8301.conf can now be uploaded onto the Provisioning

server

If using a generic configuration file, extensions and credentials have
to be entered manually once the 8301 Paging Adapter & Scheduler
has automatically downloaded the configuration file.

Generating a specific configuration file

1. Follow steps 1 to 6 as listed in the section “Generating a generic

configuration file”.

2. Rename file settings.txt to algom[MAC address].conf (e.g.

algom0022EE020009.conf)

3. File algom[MAC address].conf can now be uploaded on the

Provisioning server.

The specific configuration file will only be downloaded by the 8301
Paging Adapter & Scheduler with the MAC address specified in the
configuration file name. Since all the necessary settings can be
included in this file, the 8301 will be ready to work immediately after
the configuration file is downloaded. The MAC address of each 8301
Paging Adapter & Scheduler can be found on the back label of the
unit.

For more Algo SIP endpoint provisioning information, see:

www.algosolutions.com/provision

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 59 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Advanced Settings Tab – Tones

Uploading Custom Audio Files

Custom audio files (WAV format) may be uploaded into memory (1

GB) to play for notification applications.

An existing file may also be modified by downloading the original via

the links in the web interface, making the desired changes, and then

uploading the new version with a different name. Audio files must be

in the following format:

 WAV format
 8kHz or 16kHz (sampling rate)
 16-bit PCM, or u-law
 Mono

A zip files containing one or more audio files may also be uploaded.

File names must be limited to 32 characters, with no spaces.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 60 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Tone Files Included in Memory

The 8301 Paging Adapter & Scheduler includes several pre-loaded
WAV files that can be selected to play for various events. The web
interface allows selection of the WAV file and also the ability to play
the WAV file immediately over the speaker for testing. Files may also
be deleted or renamed.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 61 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Advanced Settings Tab – Advanced Audio

Dynamic Range Compression (DRC)

If enabled, compresses the dynamic range of page audio to increase
loudness.

Dynamic Range Compression Gain

Higher compression gain increases distortion.

Jitter Buffer Range

The jitter buffer removes the jitter in arriving network packets by

temporarily storing them. This process corrects the inconsistent

delays on the network. It is recommended to use the lowest value.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 62 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Generate In-Band DTMF Tones

If enabled, plays DTMF tones to the analog output during a SIP call to
allow interoperability with DTMF-controlled multi-zone amplifiers.

Always Send RTP Media

If enabled, audio packets will be sent at all times, even during one
way paging mode. This option is needed in cases when the server
expects to see audio packets at all times.

Speaker Filter G.711

G.711 speaker filter.

Microphone Filter G.711

G.711 microphone filter.

Speaker Filter G.722

G.722 speaker filter.

Microphone Filter G.722

G.722 microphone filter.

Speaker Noise Filter

Enables heavy filtering below 150Hz to reduce mains induced noise
(fans).

Microphone Noise Filter

Enables heavy filtering below 150Hz to reduce mains induced noise
(fans).

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 63 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Advanced Settings Tab – Advanced SIP

Outbound Proxy

IP address for outbound proxy. A proxy (server) stands between a
private network and the internet.

STUN Server

IP address for STUN server if present.

Register Period (seconds)

Maximum requested period of time where the 8301 Paging Adapter &

Scheduler will re-register with the SIP server. Default setting is 3600

seconds (1 hour). Only change if instructed otherwise.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 64 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Keep-alive Method

If Double CRLF is selected the 8301 Paging Adapter & Scheduler will

send a packet every 30 seconds (unless changed) to maintain

connection with the SIP Server if behind NAT.

Different Ports for Extensions

Enable different ports for extensions for certain proxies such as Cisco

Communication Manager 7, to send ring and page SIP requests

through different port numbers.

Server Redundancy Feature

Two secondary SIP servers may be configured. The 8301 Paging

Adapter & Scheduler will attempt to register with the primary server

but switch to a secondary server when necessary. The configuration

allows re-registration to the primary server upon availability or to

stay with a server until unresponsive.

If Server Redundancy is selected the web page will expand as shown
below.

Backup Server #1

If primary server is unreachable the 8301 Paging Adapter &

Scheduler will attempt to register with the backup servers. If

enabled, the 8301 Paging Adapter & Scheduler will always attempt to

register with the highest priority server.

Backup Server #2

If backup server #1 is unreachable the 8301 Paging Adapter &

Scheduler will attempt to register with the 2nd backup server. If

enabled, the 8301 Paging Adapter & Scheduler will always attempt to

register with the highest priority server.

Polling Intervals (seconds)

Time period between sending monitoring packets to each server.
Non-active servers are always polled, and active server may
optionally be polled (see below).

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 65 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Poll Active Server

Explicitly poll current server to monitor availability. May also be
handled automatically by other regular events, so can be disabled to
reduce network traffic.

Automatic Failback

Reconnect with higher priority server once available, even if backup
connection is still fine.

Polling Method

SIP message used to poll servers to monitor availability.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 66 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Advanced Settings Tab – Advanced
Multicast

Audio Sync (Slave Mode)

When paging to the 8301 as well as other third party devices, the low

latency of the 8301 may lead other devices. By adding audio delay up

to one second, the 8301 may be synchronized with other speakers or

telephones that have greater latency.

Master Output Codec (Master Mode)

Audio encoding format used by the master device when sending

output to the slaves.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 67 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Master Output Packetization Time (Master Mode)

The size of the audio packets sent by the master to the slaves. 20ms

recommended, unless a different value is specifically required for

compatibility with other devices.

Zone Definition

The “Expanded” Slave or Master zones can be enabled/disabled in

Basic Settings > Multicast. Default IP addresses and ports may be

revised for any given zone in the table.

Ensure that the Address and Port settings are the same for all master

and slave devices.

Page Tone and Page Volume

Master Mode: By default, the same tone can be set for all Slave

zones in the Basic Settings > Features tab. Unique paging tones may

be revised for any given Slave zone in the table above.

Slave Mode: When an Algo device is the multicast Master, a page

tone will play on the Slave device, so it is recommended to set the

slave tone to “None”. If a page is received from a non-Algo device

that doesn’t send a tone, a tone can be inserted on the Slaves

(above) each time they detect page audio starting, allowing them to

play a tone.

By default, the same page volume can be set for all Slave zones in

the Basic Settings > Features tab. Unique page volumes may be

revised on a per-zone basis in the table above. For instance,

emergency pages can be louder on certain Slave speakers.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 68 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Polycom Slave Tones

A tone may be set for any of the 25 Polycom Groups. If using an Algo

device as a Multicast master, it is recommended to set the slave

tones to “None” to avoid conflicts, as the Algo devices already

multicast a tone by default.

These settings are available only if the 8301 is set as a Multicast

Slave and “Polycom Group Page” or “Polycom Push-to-Talk” are

selected in the Basic Settings > Multicast tab.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 69 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

System Tab - Maintenance

Download Configuration File

Save the device settings to a text file for backup or to
setup a provisioning configuration file.

Restore Configuration File

Restore settings from a backup file.

Restore Configuration to Defaults

Resets all 8301 Paging Adapter & Scheduler device settings to factory

default values.

Reboot the Device

Reboots the device.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 70 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Method

Specify whether the firmware files will be downloaded from the local

computer or a remote URL.

Firmware Image

Point to the firmware image provided by Algo

MD5 Checksum

Point to the checksum file provided by Algo

Upgrade 8301 Paging Adapter & Scheduler Firmware

1. From the top menu, click on System, then Maintenance.

2. In the Upgrade section, click on Choose File and select the

8301 Paging Adapter & Scheduler firmware file to upload.
Note that both the FW firmware and MD5 checksum files
must be loaded.

3. Click Upgrade

4. After the upgrade is complete, confirm that the firmware

version has changed (refer to top right of Control Panel).

System – System Log

System log files are automatically created and assist with
troubleshooting in the event the 8301 Paging Adapter & Scheduler
does not behave as expected.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 71 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

Specifications

Power Input: 48 V PoE IEEE 802.3af Class 0

Max 4W - Idle nominal 2W

Dimensions: 6.5'' x 4.27'' x 2.3'' (cm x cm x cm)

Mounting: Wall mountable or tabletop

Weight: 2.2 lb (1.0 Kg)

SIP: Multiple extensions for Page or Alerting

Multicast: Receive or transmit

Codec Support: G.711 A-law, G.711 u-law, G.722, Polycom Group

Page

AUX Input: 3.5mm jack for iPod/iPhone

AUX Output: 3.5mm jack for headset or PC speakers

Line Input: Female mini-XLR 10 kOhm balanced maximum

level +4 dBu. Transformer isolated internally

Line Output: Low impedance balanced output

Line level -10 dBm/0 dBm/+4 dBu
Transformer isolated internally
Male mini-XLR connector and pluggable terminal
block

Audio Delay: Programmable 1-1000 ms synchronization delay

Audio Memory: 1 GByte

Speech Processing: ALC, filtering, compression

Page Mode: Live or cache and release

Relay Output: Normally open or normally closed

Max rating 30V 50 mA

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 72 www.algosolutions.com

Active

Idle

Tamper

Normally Open

>4mA

<4mA

N/A

Normally Open
with
Supervision

>20mA

4-20mA

<4mA

Normally Closed

<4mA

>4mA

N/A

Normally Closed
with
Supervision

4-20mA

>20mA

<4mA

8301 Paging Adapter & Scheduler (FW 1.5)

Relay Input: Normally open or normally closed dry contact

supervision. Algo 1202 Call Button, Algo 1203 Call
Switch, EOL resistor termination

Relay Input Current
Draw Detection
Thresholds:

Nominal 12V source, current limited to 40mA.
Typical supervision resistor value = 1k ohm.

Configuration: Web interface or auto-provisioning server.

Provisioning: TFTP, FTP, or HTTP

Supervision: SNMP

NAT: STUN, CRLF Keep Alive

Processor: Linux OS ARM Cortex-A8 32-Bit RISC Processor

Environmental: +32 to +122 deg F (0 to +50 deg C);

Suitable for dry indoor environments only.

Document 90-00070 Algo Communication Products Ltd [phone]

2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 73 www.algosolutions.com

8301 Paging Adapter & Scheduler (FW 1.5)

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy, and if
it is not installed and used in accordance with the instruction manual, it may
cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in
which case the user will be required to correct the interference at his own
expense.

Document 90-00070 Algo Communication Products Ltd [phone]
2017-08-30 4500 Beedie St Burnaby BC Canada V5J 5L2 [e-mail]
Page 74 www.algosolutions.com
