Algo 8128 User Manual

8128 SIP Strobe Light (G2)

8128 SIP Strobe Light (G2)

User Guide

Document 90-00100C
11/27/2019
Page 1

Optional Accessories:
X128A AMBER lens cover
X128B BLUE lens cover
X128R RED lens cover

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

Table of Contents

IMPORTANT SAFETY INFORMATION......................................................................................................4

OVERVIEW................................................................................................................................................. 8

Introduction.......................................................................................................................................... 8

What's New (compared to the original 8128)..................................................................................... 8

Key Features........................................................................................................................................ 9

Terminal Block Reset........................................................................................................................ 10

SETUP AND INSTALLATION................................................................................................................... 11

Getting Started - Quick Install & Test............................................................................................... 11

Ceiling and Wall Mounting................................................................................................................ 12

Programming and Configuration...................................................................................................... 12

Inputs/Outputs................................................................................................................................... 13

FEATURES............................................................................................................................................... 14

SIP Paging: Single 8128.................................................................................................................... 14

SIP Ring Event................................................................................................................................... 14

Multicast Overview............................................................................................................................ 14

SIP Paging: Multiple 8128 (Using Multicast).................................................................................... 15

SIP Paging: Multiple Strobe (Using Individual SIP extensions).....................................................15

SIP Activated Notification Alerts...................................................................................................... 15

TLS for SIP Signaling and Provisioning.......................................................................................... 16

WEB INTERFACE BASIC SETTINGS...................................................................................................... 21

Web Interface Login.......................................................................................................................... 21

Status.................................................................................................................................................. 22

Basic Settings Tab – SIP................................................................................................................... 22

Basic Settings Tab – Features.......................................................................................................... 24

Basic Settings Tab – Strobe............................................................................................................. 25

Basic Settings Tab – Multicast.........................................................................................................25

Basic Settings Tab – Multicast (Master Settings)...........................................................................27

Basic Settings Tab – Multicast (Slave Settings).............................................................................28

WEB INTERFACE ADDITIONAL FEATURES......................................................................................... 30

Additional Features Tab – Input/Output........................................................................................... 30

Additional Features Tab – Emergency Alerts.................................................................................. 32

Additional Features Tab – More Page Extensions.......................................................................... 34

Additional Features Tab – More Ring Extensions..........................................................................35

WEB INTERFACE ADVANCED SETTINGS............................................................................................. 37

Advanced Settings Tab – Network................................................................................................... 37

Advanced Settings Tab – Admin...................................................................................................... 39

Advanced Settings Tab – Time......................................................................................................... 42

Advanced Settings Tab – Provisioning............................................................................................ 43

Advanced Settings Tab – Advanced Audio..................................................................................... 45

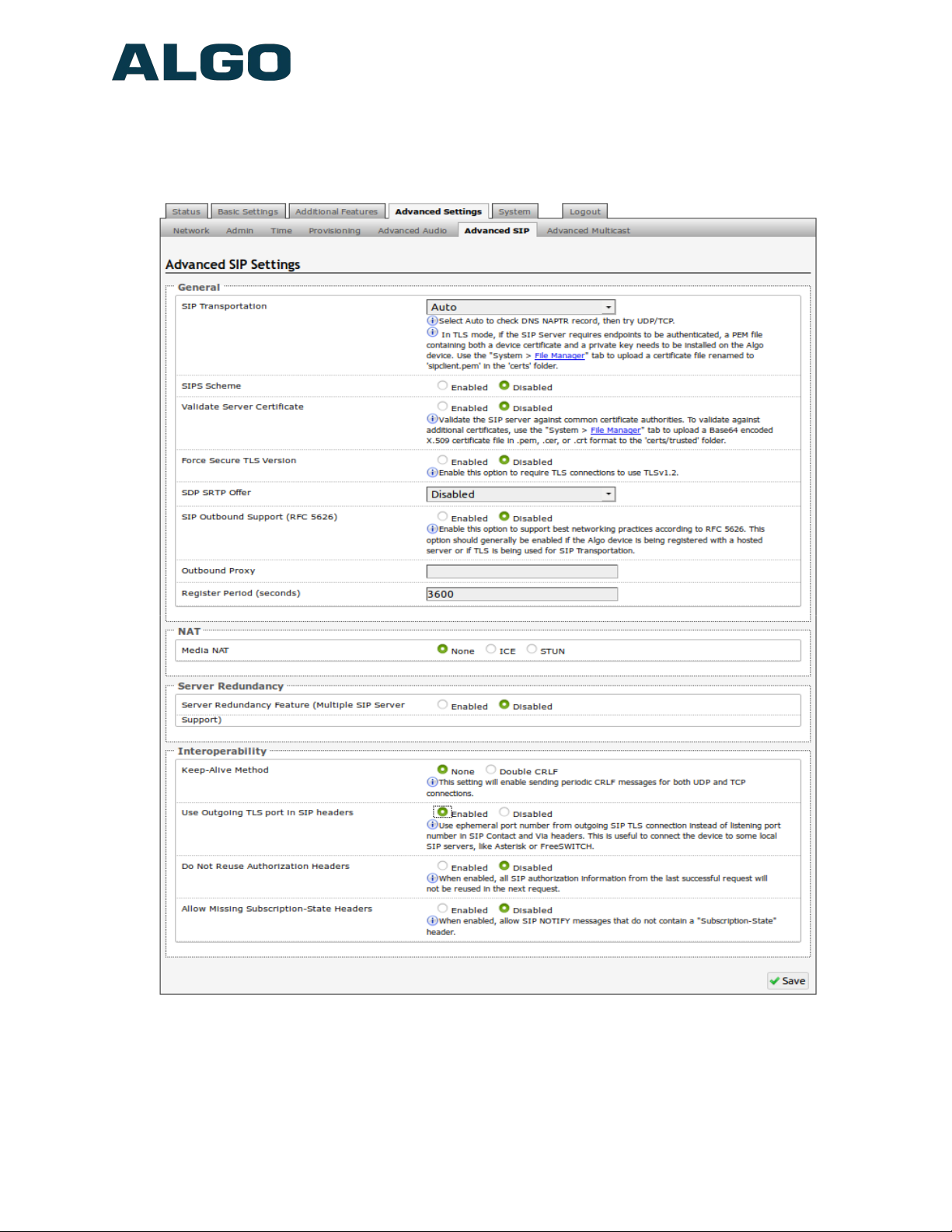

Advanced Settings Tab – Advanced SIP.........................................................................................47

Advanced Settings Tab – Advanced Multicast................................................................................ 50

WEB INTERFACE SYSTEM..................................................................................................................... 51

System Tab – Maintenance............................................................................................................... 51

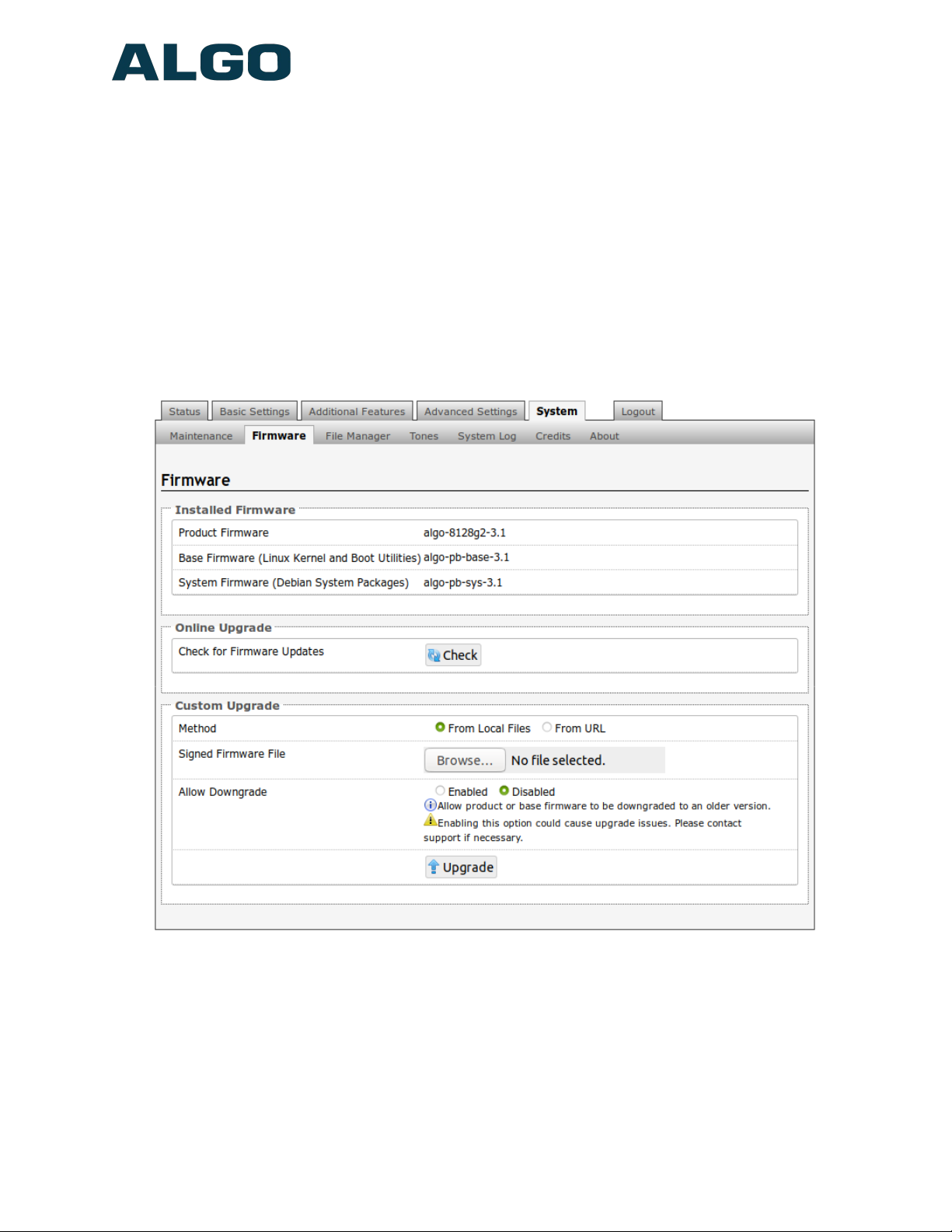

System Tab – Firmware..................................................................................................................... 52

Document 90-00100C
11/27/2019
Page 2

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

Advanced Settings Tab – File Manager...........................................................................................53

System Tab – System Log................................................................................................................ 54

WIRING CONNECTIONS.......................................................................................................................... 54

Network Connection.......................................................................................................................... 54

Connecting Input Devices................................................................................................................. 54

SPECIFICATIONS..................................................................................................................................... 56

FCC COMPLIANCE STATEMENT........................................................................................................... 57

Document 90-00100C
11/27/2019
Page 3

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

Important Safety Information

Important Safety Information

This product is powered by a certified limited power source (LPS), Power over
Ethernet (PoE); through CAT5 or CAT6 connection wiring to an IEEE 802.3at PoE+

or 802.3af compliant network PoE switch. The product is intended for installation

indoors. All wiring connections to the product must be in the same building. If the
product is installed beyond the building perimeter or used in an inter-building
application, the wiring connections must be protected against
overvoltage/transient. Algo recommends that this product is installed by a qualified
electrician.

If you are unable to understand the English language safety information then
please contact Algo by email for assistance before attempting an installation

[e-mail].

Consignes de Sécurité Importantes

Ce produit est alimenté par une source d’alimentation limitée certifiée (alimentation
par Ethernet); des câbles de catégorie 5 et 6 joignent un commutateur réseau à
alimentation par Ethernet homologué IEEE 802.3at PoE+ or 802.3af. Le produit est
conçu pour être installé à l’intérieur. Tout le câblage rattaché au produit doit se
trouver dans le même édifice. Si le produit est installé au-delà du périmètre de
l’édifice ou utilisé pour plusieurs édifices, le câblage doit être protégé des
surtensions transitoires. Algo recommande qu’un électricien qualifié se charge de
l’installation de ce produit.

Si vous ne pouvez comprendre les consignes de sécurité en anglais, veuillez
communiquer avec Algo par courriel avant d’entreprendre l’installation au

[e-mail].

Información de Seguridad Importante

Este producto funciona con una fuente de alimentación limitada (Limited Power
Source, LPS) certificada, Alimentación a través de Ethernet (Power over Ethernet,
PoE); mediante un cable de conexión CAT5 o CAT6 a un conmutador de red con
PoE en cumplimiento con IEEE 802.3at PoE+ or 802.3af. El producto se debe
instalar en lugares cerrados. Todas las conexiones cableadas al producto deben
estar en el mismo edificio. Si el producto se instala fuera del perímetro del edificio
o se utiliza en una aplicación en varios edificios, las conexiones cableadas se

Document 90-00100C
11/27/2019
Page 4

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

deben proteger contra sobretensión o corriente transitoria. Algo recomienda que la
instalación de este producto la realice un electricista calificado.

Si usted no puede comprender la información de seguridad en inglés,
comuníquese con Algo por correo electrónico para obtener asistencia antes de
intentar instalarlo: [e-mail].

Wichtige Sicherheitsinformationen

Dieses Produkt wird durch eine zertifizierte Stromquelle mit begrenzter Leistung
(LPS – Limited Power Source) betrieben. Die Stromversorgung erfolgt über
Ethernet (PoE – Power over Ethernet). Dies geschieht durch eine Cat-5­Verbindung oder eine Cat-6-Verbindung zu einer IEEE 802.3at PoE+ or 802.3af­konformen Ethernet-Netzwerkweiche. Das Produkt wurde konzipiert für die
Installation innerhalb eines Gebäudes. Alle Kabelverbindungen zum Produkt
müssen im selben Gebäude bestehen. Wenn das Produkt jenseits des Gebäudes
oder für mehrere Gebäude genutzt wird, müssen die Kabelverbindungen vor
Überspannung und Spannungssprüngen geschützt werden. Algo empfiehlt das
Produkt von einem qualifizierten Elektriker installieren zu lassenv.

Sollten Sie die englischen Sicherheitsinformationen nicht verstehen, kontaktieren
Sie bitte Algo per Email bevor Sie mit der Installation beginnen, um Unterstützung
zu erhalten. Algo kann unter der folgenden E-Mail-Adresse erreicht werden:

[e-mail].

安全须知

本产品由认证的受限电源（LPS）以太网供电（PoE）通过 CAT5 或 CAT6 线路联接至
IEEE 802.3at PoE+ or 802.3af 兼容的 PoE 网络交换机供电。本产品适用于室内或建筑物周

边安装。所有联接本产品的线路必须源自同一建筑物。本产品如需用于超出建筑物周边范
围或跨建筑物的安装线路联接部分必须有过压和瞬态保护。Algo 建议本产品由专业电工
安装。

如果您对理解英文版安全须知有问题安装前请通过电子邮件和 Algo 联
系[e-mail]。

EMERGENCY COMMUNICATION

The 8128 SIP Strobe Light is not intended for fire alarm signaling applications. The
8128 SIP Strobe Light is intended for informative signaling in conjunction with
unified communication systems. The 8128 Strobe Light is suitable for OSHA and
ADA compliance when properly located and configured

Document 90-00100C
11/27/2019
Page 5

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

DO NOT LOOK DIRECTLY

Do not look directly at the 8128 SIP Strobe Light while operating in close proximity,
as vision may be affected. The LEDs in the 8128 light are classified according to
the IEC 62471-2006 standard as “RG-1” for risk group 1. This is defined as “Low

risk. No photobiological hazard under normal behavioral limitations.”

PHOTO-SENSITIVITY

Photo-sensitivity in some people with epilepsy can trigger seizures from flashing or
flickering lights. It is possible that some flash patterns of the 8128 SIP Strobe Light
could trigger a seizure for some individuals under some conditions. High intensity
patterns should only be selected if necessary for the 8128 to be effective.

WET OR OUTDOOR ENVIRONMENTS

The 8128 SIP Strobe Light is intended for indoor or outdoor locations and may be
subjected to spray or weather provided the rear wiring cavity is properly sealed to
prevent water ingress.

Gaskets included with the 8128 SIP Strobe Light may be effective against water
ingress on some, but not all surfaces in which case additional protective measures
must be taken such as a perimeter sealant.

CAT5 or CAT6 connection wiring to an IEEE 802.3at PoE+ or 802.3af compliant
network PoE switch must not leave the building perimeter without adequate
lightning protection.

No wiring connected to the 8128 SIP Strobe Light may leave the building
perimeter without adequate lightning protection.

Document 90-00100C
11/27/2019
Page 6

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

Overview

Introduction

The 8128 SIP Strobe Light (G2) is a SIP compliant, multicast capable, PoE high­intensity white strobe light. The flash intensity can be chosen to suit the application
and environment. There are non-flashing patterns for passive gentle notification
and aggressive patterns for maximum conspicuity in busy environments.

The 8128 is typically wall or ceiling mounted. The 360° x 180° visibility, 11
available flash patterns, 3 intensity settings, and optional colored covers (amber,
blue, and red) makes the 8128 suitable for notification and alerting of telephone,
emergency, safety, and security events. Light output is equally intense in every
direction unless a directional pattern is chosen.

The 8128 SIP Strobe Light can be activated by:

• SIP Ring

• SIP In-Use (Subscribe Notify)

• Dry contact closure input

• Multicasting

Multiple Algo endpoints in a SIP environment require only one device to register as
a SIP extension. Multicasting capabilities allow the SIP registered strobe to flash
and simultaneously stream multicast events to the other Algo strobes, speakers
and paging adapters in any combination and number of endpoints.

The 8128 SIP Strobe Light is configured using central provisioning features or by
accessing a web interface using browsers such as Google Chrome or Firefox.

What's New (compared to the original 8128)

The 8128 SIP Strobe Light (G2) is the next generation of the popular Algo 8128.
The device has upgraded hardware capable of running the latest security and
encryption standards, including TLS, ensuring secure communication with hosted
SIP providers.

Designed to include all the features of the original 8128, the second generation
has a number of new features such as enhanced multicast options, dedicated
‘Emergency Alert’ Extensions, and more.

As this device now runs on a new hardware platform, note that the firmware files
are different compared to the original 8128. For assistance migrating provisioning
files for this new device, please contact Algo support.

Document 90-00100C
11/27/2019
Page 7

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

Key Features

SIP Extensions

The 8128 connects to an on-premise or hosted communication server in the same
way as a SIP telephone. To register the 8128 with the server requires the following
information:

1. IP address (e.g. 192.168.1.111) or domain name (e.g. myserver.com) of the
SIP Server

2. SIP extension (e.g. 3790)

3. Authentication ID

4. Password

The 8128 supports two SIP extensions which behave differently – RING and
PAGE. One or both may be used depending on the application. If the RING
extension is called the 8128 will not answer. Instead, it will flash a light pattern until
the inbound call stops ringing. Typically the RING extension is programmed as
part of a hunt group so that it receives a ring signal simultaneously with one or
more devices.

If the PAGE extension is called, the 8128 will answer and flash a light pattern until
the call is ended.

Multicasting

Allows multiple units to simultaneously flash light patterns. The 8128 can be
configured as a multicast ‘Master’ device to send a multicast stream to other slave
devices. The 8128 can be configured as a multicast ‘Slave’ device to flash a light
pattern when a stream is received from a multicast ‘Master’ device. Any
number/combination of Algo IP speaker, paging adapter, or strobe endpoint can
be configured as multicast ‘Slaves’. This feature provides scalability without
requiring each endpoint Slave to be registered with a SIP extension.

PolycomTM Group Paging

The 8128 supports Polycom Group Paging. The 8128 can be added to a Polycom
Group Page so that voice paging activates a flash pattern while active.

Configuration & Provisioning

Configuration can be done through a web interface control panel or central
provisioning features. Central provisioning allows units to be pre-configured for a
specific server prior to deployment in the field. Configuration files are automatically
downloaded from a server (via TFTP, FTP, HTTP, HTTPS) using DHCP.

Document 90-00100C
11/27/2019
Page 8

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

Terminal Block Reset

The reset relay terminal on the back can be used to reset the 8128 SIP Strobe
Light at time of power up. To return all the settings to the factory default for the
8128, wait until the LED flashes, then connect the reset terminals and hold until
the 8128 LED begins a double flash pattern. Release the reset connection and
allow the unit to complete its boot process.

A reset will set all configuration options to factory default including the
password.

Document 90-00100C
11/27/2019
Page 9

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

Setup and Installation

Getting Started - Quick Install & Test

This guide provides important safety information which should be read
thoroughly before permanently installing the strobe.

1. Connect the 8128 SIP Strobe Light to a 802.3af compliant PoE network switch using

the RJ45 jack in the back recess of the housing.

2. Allow the 8128 SIP Strobe Light time to boot, about 30 seconds. While booting the
Strobe will activate a small dim white light in the center.

3. If there is no DHCP server found the 8128 SIP Strobe Light will default to the static

IP address 192.168.1.111. Most often however the 8128 will be assigned an IP
address. The IP address may be discovered by downloading the Algo Locator Tool
to find Algo devices on your network: www.algosolutions.com/locator

4. Access the 8128 web page by entering the IP address into a browser (Chrome,
Firefox etc.) and login using the default password: algo

8128 SIP Strobe Light (G2)

5. Enter the IP address for the SIP server into the SIP Domain field under the Basic
Settings > SIP tab.

6. Enter the Ring and/or Page SIP extension and credentials. Leave the credentials
blank for either extension if there is no intended use to have both registered.

(Note: The strobe supports multiple Ring, Emergency Alert, and Page SIP
extensions. The Page extension auto-answers and flashes a light pattern. The Ring
and Emergency Alert extensions will flash a light pattern without answering.)

7. Make a test call from a telephone to the strobe for one or both extensions. The Page
SIP extension should auto-answer and flash the light pattern. The Ring SIP
extension will flash the light pattern without answering the call.

Document 90-00100C
11/27/2019
Page 10

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

Ceiling and Wall Mounting

The 8128 SIP Strobe Light can be wall or ceiling mounted. Concealed wiring may
enter from the wall into the wiring cavity. Alternatively, surface wiring may enter
through a channel from the bottom edge. The channel is intended for cabling 0.2”
or 5mm in diameter and is intentionally snug to protect against moisture ingress.

The 8128 can be mounted in any orientation but both the bracket and housing
identify TOP. This keeps the bracket wiring chase on the bottom and the RJ45 jack
on the top side.

The mounting plate may be used to mount over flush or surface mounted electrical
boxes or mud rings and fits securely to a 2 gang electrical box (not included) for
installation with wiring conduit.

The 8128 SIP Strobe Light is rated for wet locations however care must be taken
to ensure that water does not enter the wiring cavity. The supplied gaskets or
sealant must be used to protect the wiring cavity in wet environments. In dry indoor
environments the gaskets are not required. If the wall gasket is used with surface
wiring, then the gasket should be attached after placing the cable into the wiring
channel.

The 8128 should not be installed beyond a building perimeter without adequately
protecting the building wiring from lightning surge.

Programming and Configuration

After connecting the 8128 to a network, PoE will attempt to obtain an IP address
from the DHCP server. If there is no DHCP server or the attempt was
unsuccessful, the 8128 will default to the static IP address 192.168.1.111.

Document 90-00100C
11/27/2019
Page 11

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

Note: If you don’t have a PoE switch, you’ll need a PoE or PoE+ injector installed
between the 8128 and the network switch. The PoE injector will supply 48V dc to
the 8128. Most PoE injectors are capable of providing more power than the 8128
requires (12.95 W). Ensure that the PoE injector is fully compliant to the IEEE

802.3at PoE+ or 802.3af standard.

The IP address may be discovered by downloading the Algo locator tool to find Algo
devices on your network: www.algosolutions.com/locator

Enter the IP address (e.g. 192.168.1.111) into a browser such as Google Chrome or
Firefox. The web interface should be visible and the default password will be algo in
lower case letters.

Inputs/Outputs

On the back, the 8128 SIP Strobe Light has a relay output, relay input and terminal
block reset. Door Control relay.

Terminal Block Relay In

By default, these terminals are inactive. Connection options are a normally closed
switch, normally open switch, 1202 Call Button, 1203 Call Switch, or EOL resistor
termination.

Terminal Block Relay Out

By default these terminals provide a contact closure when the 8128 SIP Strobe
Light is active.

Terminal Block Reset

To return all settings to a factory default, use a wire pair to short these terminals at
start up—continue until all the 8128 LEDs start a pulsing flash pattern.

Document 90-00100C
11/27/2019
Page 12

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

Features

SIP Paging: Single 8128

The 8128 SIP Strobe Light can be registered as a third-party SIP extension with a
hosted or enterprise Communications Server supporting 3rd party SIP endpoints.

To register the strobe with the SIP server, use the Basic Settings > SIP tab in the
web interface to enter the Communication Server IP address, extension,
username, and password. This information will be available from the IT
Administrator.

If VLAN is used, navigate to the Advanced Settings > Network tab to set VLAN
options.

Important: once the strobe is using VLAN you will need to be on the same VLAN to
access the web interface.

The strobe may now be accessed by dialing its assigned extension from a
telephone, device, or client. The strobe will auto-answer and flash a light pattern.

There are a number of configurable strobe options:

• Flash Pattern

• Brightness

SIP Ring Event

Set Monitoring Mode to ‘Monitor Ring’ and enter credentials. When a call is made
to the SIP extension the 8128 will flash the selected light pattern. Often, the 8128
will be part of a hunt group or ring group to flash in conjunction with a telephone.

Multicast Overview

In addition to the ring and page features, the 8128 is able to both send and receive
IP multicast messages over the network to support larger deployment for both
paging and ring/notification. This provides a scalable and efficient method of
building large scale notification solutions.

An Algo 8128 can be configured as a Master endpoint. When the SIP Page
extension is dialed from a phone, the 8128 will auto-answer, and flash a light
pattern. Simultaneously, the registered 8128 endpoint broadcasts the audio over
the network using RTP multicast to any number/combination of Algo IP speakers,
paging adapters, and strobes as required.

Document 90-00100C
11/27/2019
Page 13

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

The Slave endpoints require a PoE network connection but do not require
registration to the communication server.

Multicasting can also be used to distribute loud ring or other alerting (e.g. safety,
security, or emergency events) over multiple Algo endpoints (e.g. 8190, 8186,
8188, 8138, 8201, 8301, and 8373).

SIP Paging: Multiple 8128 (Using Multicast)

To use 8128 multicast feature, setup an 8128 Strobe Light as a Multicast master.

The Master device will flash a light pattern normally while simultaneously
streaming audio to the slave speakers. The Slave speakers do not require SIP
extensions and do not need to register with the SIP Communication Server.

To enable multicast streaming from the 8128 SIP Strobe Light go to its web
interface and navigate to the Basic Settings > Multicast tab. Choose multicast
mode ‘Master/Sender’ and zone ‘All Call’. The multicast addresses pre­populated in the table, under Advanced Settings > Advanced Multicast section,
will work in most cases and should only be altered for rare cases.

To enable multicast monitoring in the 8128, go to the web interface for each strobe
and again navigate to the Basic Settings > Multicast tab. This time though,
choose multicast mode ‘Slave/Receiver’ There is no need to select a zone as the
strobe will automatically monitor the ‘All Call’ zone IP address.

Note: See “Basic Setting Tab – Multicast” section bellow for more configuration
options and instructions.

SIP Paging: Multiple Strobe (Using Individual SIP extensions)

In some cases, it may be desirable for every strobe to have a SIP extension.
Multicast may still be used to page multiple strobes but each strobe can also be
called individually or generate a call when appropriately configured.

A strobe configured as a SIP Multicast Slave will give its highest priority to the
‘Priority Call’ zone. Other than the ‘Priority Call’ zone, a page using its SIP
extension, has priority over all other multicast zones.

Communication Servers with the capability of dialing many SIP extensions
simultaneously for paging may be able to create zones by calling “page groups”
and also page telephone speakers in conjunction with overhead speakers.

SIP Activated Notification Alerts

In addition to voice paging, the 8128 can multicast audio files for emergency,
safety, and security announcements, customer service, shift changes, etc.

Document 90-00100C
11/27/2019
Page 14

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

Audio WAV files can be stored in strobe memory and also multicast to other Algo
SIP endpoints on the network. See Additional Features > Emergency Alerts and

Additional Features > Input/Output for more details.

PolycomTM Group Paging

The 8128 SIP Strobe Light has been designed to support Polycom Group Paging.

The 8128 can be added to a Polycom Group Page so that voice paging is heard
over Polycom telephone speakers and visually alerted simultaneously.

TLS for SIP Signaling and Provisioning

Algo devices that support firmware 1.6.4 or later support Transport Layer Security
(TLS). This feature adds security by ensuring that Algo products can trust the
hosted SIP server. This is useful for when third-party devices or attackers may try
to intercept, replicate, or alter Algo products, and try to connect to the server. TLS
protocol will ensure that third parties cannot read/modify any actual data.
Previously security was less of a concern because phone systems were on
isolated networks, but hosted services are becoming increasingly more common.
Using a hosted SIP service requires traffic to be sent over the public internet and
thus much more susceptible to attacks. Signed certificates are an important piece
in the Algo device’s operation, to ensure the security, integrity, and privacy of its
communication. Algo components that use TLS are Provisioning and SIP
Signaling.

Document 90-00100C
11/27/2019
Page 15

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

These Algo devices each come pre-loaded with certificates from a list of trusted
certificate authorities (CA), which are installed in the hardware at the time of
manufacture. Note these pre-installed trusted certificates are not visible to users
and are separate from the ‘certs’ folder.

The TLS handshake happens to make sure that the client and server can trust
each other, and once that trust is established, the two parties can freely send
encrypted data and decrypt any data that they receive. After the TLS handshake
process is complete, a TLS session is established, and the server and client can
then exchange messages that are symmetrically encrypted with shared (pre­master) secret key.

Provisioning

Provisioning is secured by setting the ‘Download Method’ to ‘HTTPS’ (under the
Advanced Settings > Provisioning tab)

Document 90-00100C
11/27/2019
Page 16

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

Setting provisioning to ‘HTTPS’ prevents configuration files from being read by
unwanted third-party devices/ attackers. This resolves the potential risk of having
sensitive data: admin passwords and SIP credentials stolen.

Important: To verify the server you must ‘Enable’ the ‘Validate Server Certificate’
option. This then checks if the certificate that is provided by the server is signed by
any of the CAs included in the list of trusted CAs (used by the Debian infrastructure
and Mozilla browsers). If we receive a certificate signed by any of these CAs, then
that server will be trusted. Certificates can also be manually uploaded using the
‘File Manager’.

The ‘Validate Server Certificate’ parameter can also be enabled through
provisioning:

prov.download.cert = 1

Document 90-00100C
11/27/2019
Page 17

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

SIP Signaling

SIP Signaling is secured by setting ‘SIP Transportation’ to ‘TLS’ (under the
Advanced Settings >Advanced SIP tab)

Setting ‘SIP Transportation’ from ‘Auto’ (default) to ‘TLS’, ensures the encryption of
SIP traffic. Setting ‘SDP SRTP Offer’ to ‘Standard’ or ‘Optional’, means the SIP
call’s RTP data will be left unencrypted if the other party does not support SRTP.

Document 90-00100C
11/27/2019
Page 18

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

Setting ‘SDP SRTP Offer’ to ‘Standard’, encrypts RTP voice data, meaning the
normal audio RTP packets will now be secure (SRTP). This means SIP calls will
be rejected if other party does not support SRTP. The ‘Standard’ option secures
the audio data between parties, by making sure that it’s not left out in the open for
third parties to later reconstruct and listen to.

Important: In order for a SIP server to validate the Algo device, an additional
certificate has to be installed on the Algo device manually. For Firmware v1.7, the
only way to add this user certificate file is to use a ‘.pem’ file type extension and
have the file named ‘sipclient’. This is done by manually adding a file named
‘sipclient.pem’, which contains a device certificate and private key, to the ‘certs’
folder (under the ‘Advanced Settings’ tab File Manager’). In the future, ‘.crt’, ‘.cer’,
and ‘.der’ certificate extensions will also be supported and you will not be restricted
to naming the file ‘sipclient.pem’.

Document 90-00100C
11/27/2019
Page 19

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

Web Interface Basic Settings

Web Interface Login

The web interface requires a password which is ‘algo’ by default. This password
can be changed in the Admin tab after logging in the first time.

Web Interface is accessed by entering 8128’s IP Address into the web browse.

Important: It is highly recommended to change the default password if the device is
directly connected to a public network.

Document 90-00100C
11/27/2019
Page 20

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

Status

The device’s Status page will be available before and after log on. The section can
be used to check 8128’s SIP Registration status of the Ring/Page extensions, Call
Status, Multicast Mode, Relay Input Status, Proxy Status, and general MAC, IP,
Netmask, Date/Time, and Timezone information.

The Status page can be hidden when logged out for security purposes under the
Advanced Settings > Admin tab.

Basic Settings Tab – SIP

SIP Server information and Credentials should be obtained from your telephone
system administrator or hosted account provider. After saving the settings, see the
Status page to confirm that the registration was successful.

Important: Any time changes are made to settings in the web interface the ‘Save’
button must be clicked to save the changes.

Document 90-00100C
11/27/2019
Page 21

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

SIP Domain (Proxy Server)

The IP address (e.g. 192.168.1.111) or domain name (e.g. myserver.com) of the
SIP Server

Ring/Alert Mode

Option for enabling/disabling/or subscribing to a Ring/Alert SIP extension. If
activated, screen expands to enter SIP extension parameters for a Ring/Alert
Extension.

The device will detect inbound ring events on this extension then flash a light
pattern and multicast (if configured) the alerting tone until the inbound call stops
ringing. It will not answer the call on this extension.

Subscribe Notify

Can subscribe to and notify, for when a Ring Extension is dialed (‘Ring’) and/or
when the Ring is answered (‘Both Ring & In-Use’ or ‘In-Use’).

You must first configure a ‘Page Extension’, and then can configure a ‘Ring/Alert
Extension’ to subscribe to.

You can subscribe to just the ‘Ring’ Alert Event, for which when the ring extension
is called. You can subscribe to just an ‘In-Use’ Alert Event as well, for which when
the ring extension is called, the 8128 will only flash a light pattern once the ring is
actually answered. Lastly, you can subscribe to both Alert Events by using ‘Both
Ring & In-Use’, for which the 8128 will flash a light pattern, when the subscribed
ring extension, is being called and when its in-use.

Ring Extension

This is the SIP extension for the 8128 strobe’s Ring parameter. The device will
detect inbound ring events on this extension and flash a light pattern (and
multicast the alerting tone if configured) until the inbound call stops ringing. It will
not answer the call on this extension.

Page Extension

This is the SIP extension for the 8128 strobe. The device will auto-answer any
inbound call received on this extension and flash a light pattern and provide a
voice paging path for multicast (if configured).

Authentication ID

May also be called Username for some SIP servers and in some cases may be the
same as the SIP extension used for the associated Ring and/or Page parameter.

Document 90-00100C
11/27/2019
Page 22

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

Authentication Password

SIP password provided by the system administrator for the SIP account used for
the associated Ring and/or Page parameter.

Basic Settings Tab – Features

Ring Limit

Typically set to no limit, this feature can be used to set a limit on how long the
strobe will ring before timing out. A new ring event is required before the strobe will
flash a light pattern and play the WAV file again

Page Timeout

A time limit may be set for an active page.

G.722 Support

Enable or disable the G.722 codec.

DTMF Detection Type

Different DTMF detection options are given.

Document 90-00100C
11/27/2019
Page 23

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

Strobe Pattern

Select strobe pattern to flash when page/ring event is detected on the SIP
Page/Ring extension.

Idle Pattern

Select strobe pattern to flash when ‘Call Status’ is in Idle mode.

Basic Settings Tab – Strobe

Pattern Definitions

Several different strobe patterns can be configured with a Flash Pattern and
Brightness.

Configured strobe patterns are named to simplify the selection elsewhere.

On the 8128 a drop down option Strobe Pattern is displayed next to features that
allow patterns to be associated with actions such as page, ring, or multicast.

Application Intensity/Strobe

No Description Wall Ceiling High Med Low

1 Rotate Fast ● ●
2 Rotate Slow ● ●
3 Multi-strobe Fast ● ● ● ●
4 Multi-strobe Slow ● ● ● ●
5 Rotating Strobe ● ● ●
6 Steady ● ● ●
7 Side to Side ● ●
8 Flashing ● ● ●

9 Classic Strobe Fast ● ● ●
10 Classic Strobe Medium ● ● ●
11 Classic Strobe Slow ● ● ●

Basic Settings Tab – Multicast

Multicast IP Addresses

Each 8128 SIP Strobe Light has its own IP address, and shares common multicast
IP and port numbers (multicast zone) for multicast packets. The master device
transmits to a configurable multicast zone, and the slave units listen to all the
multicast zones assigned to them.

Document 90-00100C
11/27/2019
Page 24

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

The network switches and router see the packet and deliver it to all the members
of the group. The multicast IP and port number must be the same on all the master
and slave units of one group. The user may define multiple zones by picking
different multicast IP addresses and/or port numbers.

1. Multicast IP addresses range: 224.0.0.0/4 (from 224.0.0.0 to

239.255.255.255)

2. Port numbers range: 1 to 65535

3. By default, the 8128 SIP Strobe Light is set to use the multicast IP
address 224.0.2.60 and the port numbers 50000-50008

Make sure that the multicast IP address and port number do not conflict with other
services and devices on the same network.

Multicast Page Zones

The 8128 SIP Strobe Light supports nine “basic” multicast zones. These zones are
defined by the multicast IP addresses.

Somewhat arbitrarily, these zones are defined below but may be used in other
ways. The important consideration is that there is a priority hierarchy – streaming
activity on a zone higher on the list, will be treated as a higher priority than a zone
lower on the list – with music being the lowest priority.

1. Priority

2. All Call

3. Zone 1

4. Zone 2

5. Zone 3

6. Zone 4

7. Zone 5

8. Zone 6

9. Music

“Expanded” zones can also be enabled, in the Basic Settings > Multicast tab,
allowing up to 50 zones in total. These have the same behaviors as the basic
zones, but are hidden by default to simplify the interface.

Document 90-00100C
11/27/2019
Page 25

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

Basic Settings Tab – Multicast (Master Settings)

8128 SIP Strobe Light (G2)

Multicast Mode (Master/Sender Selected)

If master is enabled the 8128 SIP will broadcast an IP stream when activated and
flash a light pattern.

Multicast Type – Regular

Select ‘Regular (RTP)’ if solely multicasting to Algo SIP endpoint(s) and/or
multicast enabled phone(s) that use RTP audio packets.

Number of Zones

Select “Basic Zones Only” if configuring nine or fewer multicast zones (shown
beside “Speaker Playback Zones”) or select “Basic and Expanded Zones” to
configure up to 50 zones. The expanded zones have the same behavior as the
basic Slave zones, but are hidden by default to simplify the interface.

Document 90-00100C
11/27/2019
Page 26

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

Basic Settings Tab – Multicast (Slave Settings)

8128 SIP Strobe Light (G2)

Multicast Mode (Slave Selected)

If Slave is enabled the 8128 will activate when receiving a multicast message and
flash a light pattern.

Multicast Type – Regular

Select ‘Regular (RTP)’ if solely receiving from Algo SIP endpoint(s) and/or
multicast enabled phone(s) that use RTP audio packets.

Document 90-00100C
11/27/2019
Page 27

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

Multicast Type – Polycom Group Paging/Push-to-Talk

The 8128 may receive multicast paging compatible with Polycom “on premise
group paging” protocol.

To configure the 8128 as a slave to receive Polycom page announcements, select
“Group Page” or “Push-to-Talk”. Then enter the Polycom Zone (IP Address and
Port) that matches the configuration of the Polycom phones and Channels. The
“Default Channel” is the target group in a Polycom paging environment.

Number of Zones

Select ‘basic’ zones if configuring nine or fewer multicast zones or ‘expanded’ to
configure up to 50 zones. The expanded zones have the same behavior as the
basic Slave zones, but are hidden by default to simplify the interface.

Slave Zones

Select one or more multicast zones for the 8128 SIP Strobe Light to monitor. Note
that multicast zone priority is based on the zone definition list order (top to bottom).

Document 90-00100C
11/27/2019
Page 28

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

Web Interface Additional Features

Additional Features Tab – Input/Output

8128 SIP Strobe Light (G2)

Input Relay Terminal Function

When triggered by an input relay, the 8128 can flash a light pattern.

Relay Input Mode

The input relay to the 8128 SIP Strobe Light can be prompted by any normally
open or normally closed switch. For the 8128, Algo offers the 1202 Call Button and
the 1203 Call Switch with supervision. Via supervision settings, flash patterns can
also be triggered if the input switch is disconnected.

Document 90-00100C
11/27/2019
Page 29

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

1203 Call Switch

The 1203 Call Switch is a simple contact closure switch with an
illuminated button and supervision capabilities. When used in
conjunction with the 8128, the 1203 can prompt a single action with
one-touch, or a continuous action if the button is held.

1202 Call Button

The 1202 Call Button is a one-touch button for event notification and
response. It can be used with the 8128 for improved customer service,
emergency notification, and non-emergency alerting. The Call Button’s
one-touch button can trigger a flash pattern action, which can be halted
via the small cancel/reset button located below the main call button.

Action when Input Triggered

The relay input may be used to trigger the 8128 SIP Strobe Light only while the
input is active.

Action When Tamper Detected (Supervision)

In addition to the main events, the device can be configured with supervision to
also execute a strobe action in case the device goes offline due to wiring failure or
after being tampered with. The supervision configuration options will appear once
a relay option with supervision is selected. See the Electrical Specification section
for details on supervision detection circuit.

Output Relay

Enable or disable the output relay.

Document 90-00100C
11/27/2019
Page 30

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

Additional Features Tab – Emergency Alerts

8128 SIP Strobe Light (G2)

Emergency Alerts allow for an announcement (chosen strobe pattern) to be
triggered & latched by calling a pre-configured Emergency extension and hanging
up. The announcement will continue to flash a light pattern until a different
"Cancel" extension is called to clear the announcement (or a defined timeout is
reached). The Emergency Alerts are useful for emergency notifications (e.g.
evacuation, lock down, medical emergency, etc.), allowing staff to quickly dial a
pre-configured number under such circumstances.

If the “Answer Inbound Call” option is “Enabled” the call is auto-answered and a
confirmation tone is played through multicast (if configured) before starting the
alert. If “Disabled”, the alert is triggered just by the inbound ring, without answering
the call. (In both instances, the announcement will stay active until the time limit is
reached or the “Cancel Extension” is called). The auto-answering option can be
useful when the caller cannot hear announcement from their location. However, in

Document 90-00100C
11/27/2019
Page 31

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

instances where the call might go to a group/multiple extensions (including this
device), the auto-answer may intercept that call and prevent it from ringing on
other devices.

Up to 10 extensions can be registered allowing up to 10 different announcements.
Audio files can also be easily uploaded to create custom announcements.

Note: Some SIP phone systems may not support this feature if they limit the
number of extensions that can be registered on a single device.

Note: The 8128 does not have speaker mounted. If using both Algo audio and
visible devices, both audible and visual alerting can be achieved.

Document 90-00100C
11/27/2019
Page 32

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

Additional Features Tab – More Page Extensions

8128 SIP Strobe Light (G2)

Additional SIP extensions can be registered for each multicast zone that will be
used. This allows the advantage of dialing directly to a zone without needing to
enter DTMF (e.g. speed-dial keys can be used), but may require additional SIP
licenses depending on the SIP provider.

To configure additional page extensions (up to 50) click “Enable” beside the target
extension and enter the Extension, Authentication ID, and Authentication
password.

Document 90-00100C
11/27/2019
Page 33

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

The 8128 will auto-answer any inbound calls received on these numbers and
provide a voice paging path and multicast if configured.

Note: that only a single call can be active at a time.

Additional Features Tab – More Ring Extensions

Up to 10 SIP Ring extensions can be registered. To configure additional ring
extensions, click “Enable” beside the target extension and enter the Extension,
Authentication ID, and Authentication password. A unique Ring Tone can be
assigned to each extension if desired.

Document 90-00100C
11/27/2019
Page 34

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

Web Interface Advanced Settings

Advanced Settings Tab – Network

8128 SIP Strobe Light (G2)

Protocol

DHCP is an IP standard designed to make administration of IP addresses simpler.
When selected, DHCP will automatically configure IP addresses for each 8128 on
the network. Alternatively, the 8128 can be set to a static IP address.

Document 90-00100C
11/27/2019
Page 35

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

VLAN Mode

Enables or Disables VLAN Tagging. VLAN Tagging is the networking standard that
supports Virtual LANs (VLANs) on an Ethernet network. The standard defines a
system of VLAN tagging for Ethernet frames and the accompanying procedures to
be used by bridges and switches in handling such frames. The standard also
provides provisions for a quality of service prioritization scheme commonly known
as IEEE 802.1p and defines the Generic Attribute Registration Protocol.

VLAN ID

Specifies the VLAN to which the Ethernet frame belongs. A 12-bit field specifying
the VLAN to which the Ethernet frame belongs. The hexadecimal values of 0x000
and 0xFFF are reserved. All other values may be used as VLAN identifiers,
allowing up to 4094 VLANs. The reserved value 0x000 indicates that the frame
does not belong to any VLAN; in this case, the 802.1Q tag specifies only a priority
and is referred to as a priority tag. On bridges, VLAN 1 (the default VLAN ID) is
often reserved for a management VLAN; this is vendor specific.

VLAN Priority

Sets the frame priority level. Otherwise known as Priority Code Point (PCP), VLAN
Priority is a 3-bit field which refers to the IEEE 802.1p priority. It indicates the
frame priority level. Values are from 0 (lowest) to 7 (highest).

802.1x Authentication

Credentials to access LAN or WLAN that have 802.1X network access control
(NAC) enabled. This information will be available from the IT Administrator.

Differentiated Services (6-bit DSCP value)

Provides quality of service if the DSCP protocol is supported on your network. Can
be specified independently for SIP control packets versus RTP audio packets.

DNS Caching Mode

In "SIP" mode, only the results of DNS queries for SIP requests will be cached. In
"All" mode, the results of all DNS queries will be cached.

Document 90-00100C
11/27/2019
Page 36

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

Advanced Settings Tab – Admin

8128 SIP Strobe Light (G2)

Password

Password to log into the 8128 SIP Strobe Light web interface. You should change
the default password algo in order to secure the device on the network. If you
have forgotten your password, you will need to perform a reset using the Reset

Document 90-00100C
11/27/2019
Page 37

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

Button in order to restore the password (as well as all other settings) back to the
original factory default conditions.

For additional password security see “Force Strong Password” below.

Confirmation

Re-enter network admin password.

Device Name (Hostname)

Name to identify the device in the Algo Network Device Locator Tool.

Introduction Section on Status Page

Allows the introduction text to be hidden from the login screen.

Show Status Section on Status Page when Logged Out

Use this option if you wish to block access to the status page when logged out.
The settings and configurations, on the status page, will be hidden entirely unless
you’re logged in – this feature is useful when you want only trusted users to view
possible sensitive device information.

Display Switch Port ID on Status Page

Switch port ID can be displayed on the status page, however the switch must
support LLDP or CDP.

Web Interface Session Timeout

Set the maximum period of inactivity after which the web interface will log out
automatically.

Log Level

Use on the advice of Algo technical support only.

Log Method

Allows the 8128 to write to external Syslog server if the option for external (or both)
is selected.

Log Server

If external (or both) is selected this is the address of the Syslog server on the
network.

Web Interface Protocol

HTTPS is always enabled on the device. Use this setting to disable HTTP. When
HTTP is disabled, requests will be automatically redirected to HTTPS. Also note
that since the device can have any address on the local network, no security

Document 90-00100C
11/27/2019
Page 38

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

certificate exists, and thus most browsers will provide a warning when using
HTTPS.

Force Strong Password

When enabled, ensures that a secure password is provided for the device’s web
interface for additional protection. The password requirements are:

 Must contain at least 10 characters
 Must contain at least 1 uppercase character
 Must contain at least 1 digit (0 – 9)
 Must contain at least 1 special character

Allow Secure SIP Password

Allows SIP passwords to be stored in the configuration file in an encrypted format,
to prevent viewing and recovery. Once enabled, the SIP “Realm” field should be
entered and all the configured Authentication Password(s) must be re-entered in
the Basic Settings > SIP tab, and any other locations where SIP extension have
been configured, to save the encrypted password(s).

If the Realm is changed at a later time, all the passwords will also need to be re­entered again to save the passwords with the new encryption.

To obtain your SIP Realm information, contact your SIP Server administrator (or
check the SIP log file for a registration attempt). The Realms may be the same or
different for all the extensions used.

SNMP Support

Additional SNMP support is anticipated for future, but the 8128 SIP Strobe Light
will respond to a simple status query for automated supervision. Contact Algo
technical support for more information.

System Integrity Checking

This feature verifies installed system packages to ensure they have not been
tampered with by running ‘Perform Check’. Enabling this feature may cause
reboots and upgrades to take 30 seconds longer. Verification results can be found
on the Status page.

Local Management Port

Enter the local management port for the SA-Announce Server.

InformaCast Support

This feature requires a valid InformaCast license to be activated. Please contact

[e-mail] for assistance.

Document 90-00100C
11/27/2019
Page 39

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

Advanced Settings Tab – Time

8128 SIP Strobe Light (G2)

Network time is used for logging events into memory for troubleshooting.

Time Zone

Select time zone.

NTP Time Servers 1/2/3/4

The strobe will attempt to use Timer Server 1 and work down the list if one or more
of the time servers become unresponsive.

NTP Time Server Source

When “Use DHCP Option 42” is chosen, if an NTP Server address is provided via
the DHCP Option 42, that NTP Server will be used instead of the 4 mentioned
above. Alternatively, “Ignore DHCP Option 42” can be chosen to only use servers
mentioned above.

Device Date/Time

This field shows the current time and date as set on the device. If testing the
device on a lab network that may not have access to an external NTP server, the
“Sync with browser” button can be used to temporarily set the time on the device.

Document 90-00100C
11/27/2019
Page 40

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

Manually Override Time

For testing purpose, you may also override the time setting.

Note: This time value will be lost at power down, or overwritten if NTP is currently
active. Time and date are used only for logging purposes and are not typically
required.

Advanced Settings Tab – Provisioning

8128 SIP Strobe Light (G2)

Note: It is recommended that Provisioning Mode be set to Disabled if this feature is
not in use. This will prevent unauthorized re-configuration of the device if DHCP is
used.

Provisioning allows installers to pre-configure 8128 SIP Strobe Light units prior to
installation on a network. It is typically used for large deployments to save time and
ensure consistent setups.

The device can be provisioned via the Auto mode (where all three DHCP options
(Option 66/160/150) will be automatically checked for an active provisioning

Document 90-00100C
11/27/2019
Page 41

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

server), just one of the three specified DHCP options, or a Static Server. In
addition, there are four different ways to download provisioning files from a
“Provisioning Server”: TFTP (Trivial File Transfer Protocol), FTP, HTTP, or
HTTPS.

For example, 8128 configuration files can be automatically downloaded from a
TFTP server using DHCP Option 66. This option code (when set) supplies a TFTP
boot server address to the DHCP client to boot from.

Important: DHCP must be enabled if using DHCP Option 66/160/150, in order for
Provisioning to work.

One of two files can be uploaded on the Provisioning Server (for access via TFTP,
FTP, HTTP, or HTTPS):

Generic (for all Algo 8128 Strobes) algop8128.conf

Specific (for a specific MAC address) algom[MAC].conf

Both protocol and path is supported for Option 66, allowing for

http://myserver.com/config-path to be used.

MD5 Checksum

In addition to the .conf file, an .md5 checksum file must also be uploaded to the
Provisioning server. This checksum file is used to verify that the .conf file is
transferred correctly without error.

A tool such as can be found at the website address below may be used to
generate this file: http://www.fourmilab.ch/md5

The application doesn’t need an installation. To use the tool, simply unzip and run
the application (md5) from a command prompt. The proper .md5 file will be
generated in the same directory.

If using the above tool, be sure to use the “-l” parameter to generate lower case
letters.

Generating a generic configuration file

1. Connect 8128 to the network

2. Access the 8128 Web Interface Control Panel

3. Configure the 8128 with desired options

4. Click on the System tab and then Maintenance.

5. Click “Download” to download the current configuration file

6. Save the file settings.txt

Document 90-00100C
11/27/2019
Page 42

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

7. Rename file settings.txt to algop8128.conf

8. File algop8128.conf can now be uploaded onto the Provisioning server

If using a generic configuration file, extensions and credentials have to be entered
manually once the 8128 SIP Strobe Light has automatically downloaded the
configuration file.

Generating a specific configuration file

1. Follow steps 1 to 6 as listed in the section “Generating a generic
configuration file”.

2. Rename file settings.txt to algom[MAC address].conf (e.g.
algom0022EE020009.conf)

3. File algom[MAC address].conf can now be uploaded on the Provisioning
server.

The specific configuration file will only be downloaded by the 8128 with the MAC
address specified in the configuration file name. Since all the necessary settings
can be included in this file, the 8128 will be ready to work immediately after the
configuration file is downloaded. The MAC address of each 8128 Strobe can be
found on the back label of the unit.

For more Algo SIP endpoint provisioning information, see: www.algosolutions.com/

provision

Advanced Settings Tab – Advanced Audio

Always Send RTP Media

If enabled, audio packets will be sent at all times while a call is active. This option
is needed in cases when the server expects to see audio packets at all times.

Document 90-00100C
11/27/2019
Page 43

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

Advanced Settings Tab – Advanced SIP

8128 SIP Strobe Light (G2)

SIP Transportation

Which transport layer protocol to use for SIP messages. Setting ‘SIP
Transportation’ to ‘TLS’, ensures the encryption of SIP traffic.

SIPS Scheme

Only visible when ‘SIP Transportation’ set to ‘TLS’. Enabling SIPS Scheme
requires the SIP connection from endpoint to endpoint to be secure.

Document 90-00100C
11/27/2019
Page 44

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

SDP SRTP Offer

Setting ‘SDP SRTP Offer’ to ‘Optional’, means the SIP call’s RTP data will be left
unencrypted if the other party does not support SRTP. Setting ‘SDP SRTP Offer’
to ‘Standard’, encrypts RTP voice data, meaning the normal audio RTP packets
will now be secure (SRTP). This means SIP calls will be rejected if other party
does not support SRTP. The ‘Standard’ option secures the audio data between
parties, by making sure that it’s not left out in the open for third parties to later
reconstruct and listen to.

SIP Outbound Support (RFC 5626)

Enable this option to support best networking practices according to RFC 5626.
This option should generally be enabled if the Algo device is being registered with
a hosted server or if TLS is being used for SIP Transportation.

Outbound Proxy

IP address for outbound proxy. A proxy (server) stands between a private network
and the internet.

Register Period (seconds)

Maximum requested period of time where the 8128 SIP Strobe Light will re-register
with the SIP server. Default setting is 3600 seconds (1 hour). Only change if
instructed otherwise.

Media NAT

IP address for STUN server if present or IP address/credentials for a TURN
server.

Server Redundancy Feature

Two secondary SIP servers may be configured. The 8128 SIP Strobe Light will
attempt to register with the primary server but switch to a secondary server if
necessary. The configuration allows re-registration to the primary server upon
availability or to stay with a server until unresponsive.

Backup Server #1

Only visible if ‘Server Redundancy Feature’ is enabled. If primary server is
unreachable the 8128 SIP Strobe Light will attempt to register with the backup
servers. If enabled, the 8128 will always attempt to register with the highest priority
server.

Backup Server #2

Only visible if ‘Server Redundancy Feature’ is enabled. If backup server #1 is
unreachable the 8128 SIP Strobe Light will attempt to register with the 2nd

Document 90-00100C
11/27/2019
Page 45

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

backup server. If enabled, the 8128 will always attempt to register with the highest
priority server.

Polling Intervals (seconds)

Only visible if ‘Server Redundancy Feature’ is enabled. Time period between
sending monitoring packets to each server. Non-active servers are always polled,
and active server may optionally be polled (see below).

Poll Active Server

Only visible if ‘Server Redundancy Feature’ is enabled. Explicitly poll current
server to monitor availability. May also be handled automatically by other regular
events, so can be disabled to reduce network traffic.

Automatic Failback

Only visible if ‘Server Redundancy Feature’ is enabled. Reconnect with higher
priority server once available, even if backup connection is still fine.

Polling Method

Only visible if ‘Server Redundancy Feature’ is enabled. SIP message used to poll
servers to monitor availability.

Keep-alive Method

If Double CRLF is selected the 8128 will periodically send a CRLF message for
both UDP and TCP connections to maintain connection with the SIP Server.

Keep-alive Interval

Interval in seconds that the CRLF message should be sent.

Use Outgoing TLS port in SIP headers

Use ephemeral port number from outgoing SIP TLS connection instead of listening
port number in SIP Contact and Via headers. This is useful to connect the device
to some local SIP servers, like Asterisk or FreeSWITCH.

Do Not Reuse Authorization Headers

When enabled, all SIP authorization information from the last successful request
will not be reused in the next request.

Document 90-00100C
11/27/2019
Page 46

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

Advanced Settings Tab – Advanced Multicast

8128 SIP Strobe Light (G2)

The default prepopulated multicast addresses above will work in most cases and
should only be altered for rare cases.

RTCP Port Selection

Select the port on which RTCP packets will be sent or received. If using the 'Next
Higher Port' option, ensure that the default multicast zone definitions are modified
such that zones are only assigned to even-numbered ports, leaving the next
higher odd-numbered ports free for RTCP packets.

Zone Definition

The “Expanded” Slave or Master zones can be enabled/disabled in Basic Settings
> Multicast. Default IP addresses and ports may be revised for any given zone in
the table.

Important: Ensure that the Address and Port settings are the same for all master
and slave devices.

Strobe Pattern

When the 8128 Strobe Light is the multicast Slave, a strobe pattern will flash each
time a multicast stream is detected.

By default, the same flash pattern can be set for all Slave zones in the Basic
Settings > Features tab. Unique flash patterns may be revised on a per-zone basis

Document 90-00100C
11/27/2019
Page 47

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

in the table above. For instance, emergency pages can be different on certain
Slave strobes.

Web Interface System

System Tab – Maintenance

Download Configuration File

Save the device settings to a text file for backup or to setup a provisioning
configuration file.

Restore Configuration File

Restore settings from a backup file.

Restore Configuration to Defaults

Resets all 8128 SIP Strobe Light device settings to factory default values.

Download Backup File

Saves the device settings (configuration) and all the files in File Manager:
certificates, licenses, and tones to a backup zip file.

Document 90-00100C
11/27/2019
Page 48

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

Restore from Backup Zip File

Restores the device settings (configuration) and all the files in File Manager:
certificates, licenses, and tones from a backup zip file

Restore All Settings and Files to Defaults

Resets the device settings (configuration) and all the files in File Manager:
certificates, licenses, and tones to factory default values.

Reboot the Device

Reboots the device.

System Tab – Firmware

Method

Specify whether the firmware files will be downloaded from the local computer or a
remote URL.

Signed Firmware File

Point to the SFW file provided by Algo

Document 90-00100C
11/27/2019
Page 49

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

How To Upgrade 8128 SIP Strobe Light Firmware

1. From the top menu, click on System, then Firmware.

2. In the Upgrade section, click on Choose File and select the 8128 strobe
firmware file to upload. Note that a SFW file must be loaded.

3. Click Upgrade

4. After the upgrade is complete, confirm that the firmware version has changed
(refer to top right of Control Panel).

Advanced Settings Tab – File Manager

8128 SIP Strobe Light (G2)

Uploading Certificate Files

To use TLS SIP Signaling and provisioning, the certificate is required for a SIP server to
validate the Algo device.

The TLS certificate can be uploaded to the certs folder. Rename the certificate to
‘sipclient’ using ‘.pem’ filetype extension before uploading.

For the HTTPS provisioning, a certificate can also be manually uploaded into the certs
folder through file manager.

Document 90-00100C
11/27/2019
Page 50

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

System Tab – System Log

System log files are automatically created and assist with troubleshooting in the
event the 8128 SIP Strobe Light does not behave as expected.

Document 90-00100C
11/27/2019
Page 51

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

Wiring Connections

Network Connection

The strobe provides a RJ45 jack for network connection. A cable run from the switch can
be terminated to a modular jack with connection by patch cord, or terminated with a RJ45
plug.

PoE (Power over Ethernet) must be 48V 350 mA IEEE 802.3at PoE+ or 802.3af compliant
whether provided by the network switch or injector.

There are two lights on the Ethernet jack:

Green light: On when Ethernet is working, flickers off to indicate activity on the port.

Amber light: Off when successful 100Mbps link is established. Typically On only

briefly at power up.

Under normal conditions, the Amber light will turn on immediately after the Ethernet cable
is first connected. This indicates that PoE power has been successfully applied. Once the
device connects to the network, it will switch to the Green light instead, which will typically
flicker indicating traffic on the network.

Connecting Input Devices

The dry contact relay on the 8128 SIP Strobe Light can be prompted by any
normally open, normally closed switch, Algo 1202 Call Button and Algo 1203 Call
Switch. The input switches can be connected to the back of the back of the 8128
via the “IN”.

Connection options can be configured from normally open switch, to normally
closed switch, to Algo 1202 Call Button with large blue button, to Algo 1203 single
gang backlit Call Switch, or as an EOL resistor termination. The connection
options can then be configured to complete an ‘Action’ when Relay Input is
triggered.

Note: See “Additional Features Tab – Input/Output” section of this user doc for
additional information on input device configuration

Document 90-00100C
11/27/2019
Page 52

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

C; 10-95% RH non-condensing. Dry indoor
location only unless wiring cavity protected from water
ingress.

Specifications

Power Input: 48V PoE IEEE 802.3af Class 0 (Max 12.95 W)

Strobe Triggers: SIP extension ring, Subscribe/Notify, multicast, dry

SIP: Multiple extensions for Page or Alerting

Audio Memory: 1 GByte available

Relay Output: Normally open, activated when 8128 is in use

Max 30 V 50 mA

Relay Input: Normally open or normally closed dry contact,

Algo 1202 Call Box, Algo 1203 Wall Switch, EOL
termination

Flash Patterns: 11 Selectable Patterns

Relay Input Current
Draw Detection
Thresholds:

Normally Open >4mA <4mA N/A

Normally Open
with Supervision

Normally Closed <4mA >4mA N/A

Normally Closed
with supervision

Active Idle Tamper

>20mA 4-20mA <4mA

4-20mA >20mA <4mA

Nominal 12V source, current limited to 40mA
Typical supervision resistor value = 1k ohm

Configuration: Web interface or provisioning

Provisioning: TFTP, FTP, HTTP, HTTPS

Supervision: SNMP

NAT: STUN, CRLF Keep Alive

Processor: Linux OS ARM Cortex-A8 32-Bit RISC Processor

Environmental: -20°C to +50°

Compliance: EN60950:2001, IEEE 802.3-2008, RFC3261, RoHS,

CE, FCC, CSA (USA & Canada)

Document 90-00100C
11/27/2019
Page 53

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]

8128 SIP Strobe Light (G2)

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy, and if it is not installed and used in accordance
with the instruction manual, it may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference, in which case the user will be required to correct the
interference at his own expense.

Document 90-00100C
11/27/2019
Page 54

Algo Communication Products Ltd

4500 Beedie St Burnaby BC Canada V5J 5L2

www.algosolutions.com

[e-mail]

[phone]
