8001 IP Alerter
Installation & User Guide
Visual & Audible Alerting Interface for
Nortel IP Phones 2002 & 2004 with CS 1000
8001 IP Alerter
90-00028-03 2
8001 IP Alerter
Introduction and Overview
The 8001 IP Alerter is an add-on device
that allows external visual or audible
alerters (purchased separately) to be used
with Nortel’s IP 2002 and 2004
telephones with a Communication Server
1000 (CS 1000).
By connecting to the back of the
telephone, the IP Alerter is able to decode
information to provide two relay outputs –
one for Ring and one for In-Use. Each
relay output is compatible with Algo’s
1825 Duet Plus Loud Ringer, 1127 Visual
Alerter, or 1126 Strobe Light.
Typical applications include ring
notification in noisy or noise-sensitive
environments such as factories,
warehouses, hospital nurseries and
recording studios. Other applications
include use in emergency service
environments where telephone answering
and quick response are critical (e.g. fire,
ambulance, and police).
How it works By connecting to the telephone’s Key
Expansion Module (KEM) port, the IP
Alerter is able to decode information to
provide two relay outputs – one for Ring
and one for In-Use. These outputs are
8001 IP Alerter
www.algosolutions.com 3
compatible with Algo’s 1825 Duet Plus
Loud Ringer, 1127 Visual Alerter, and
1126 Strobe Light.
Key Features • Monitors IP telephone for Ring and In-
Use at the telephone location
• May be connected directly to
telephone, or downstream of one or
more Key Expansion Modules
• Powered by telephone
Requirements &
Compatibility
• Requires Nortel CS 1000 (Release
4.0 and later)
• IP 2002 or 2004 telephone
Using the Alerter
Connecting to
Phone or KEM
1. Remove telephone or KEM from stand
2. Attach the loose ribbon cable connector of the 8001 IP Alerter by pressing
it firmly into the Expansion module
port on the telephone or KEM
3. Press the 8001 IP Alerter firmly
together with the telephone or KEM
until the alerter locks into place
4. Reattach the telephone or KEM stand
Configuration The 8001 IP Alerter appears to the CS
1000 system just as a KEM would. To
configure the device, set Key 0 of the
Alerter (the “KEM”) in System
Programming as an appearance of the
line to be monitored.
8001 IP Alerter
90-00028-03 4
Connection to
External Visual
or Audible
Alerters
The IP Alerter has two different output
connections, one for Ring indication and
one for In-Use indication
Each of the outputs can be connected to
one of two different external visual
alerting devices (from Algo):
• 1127 Visual Alerter (for low-intensity
desktop/office or near-area visual
notification)
• 1126 Strobe Light (for high-intensity
wide-area visual notification)
As an alternative to one of the above
alerting devices, the Ring output can be
connected to the Algo 1825 Duet Plus
Loud Ringer. In addition, the output of the
1825 can be connected to an external
loud speaker such as the Algo 1185 Horn
Speaker.

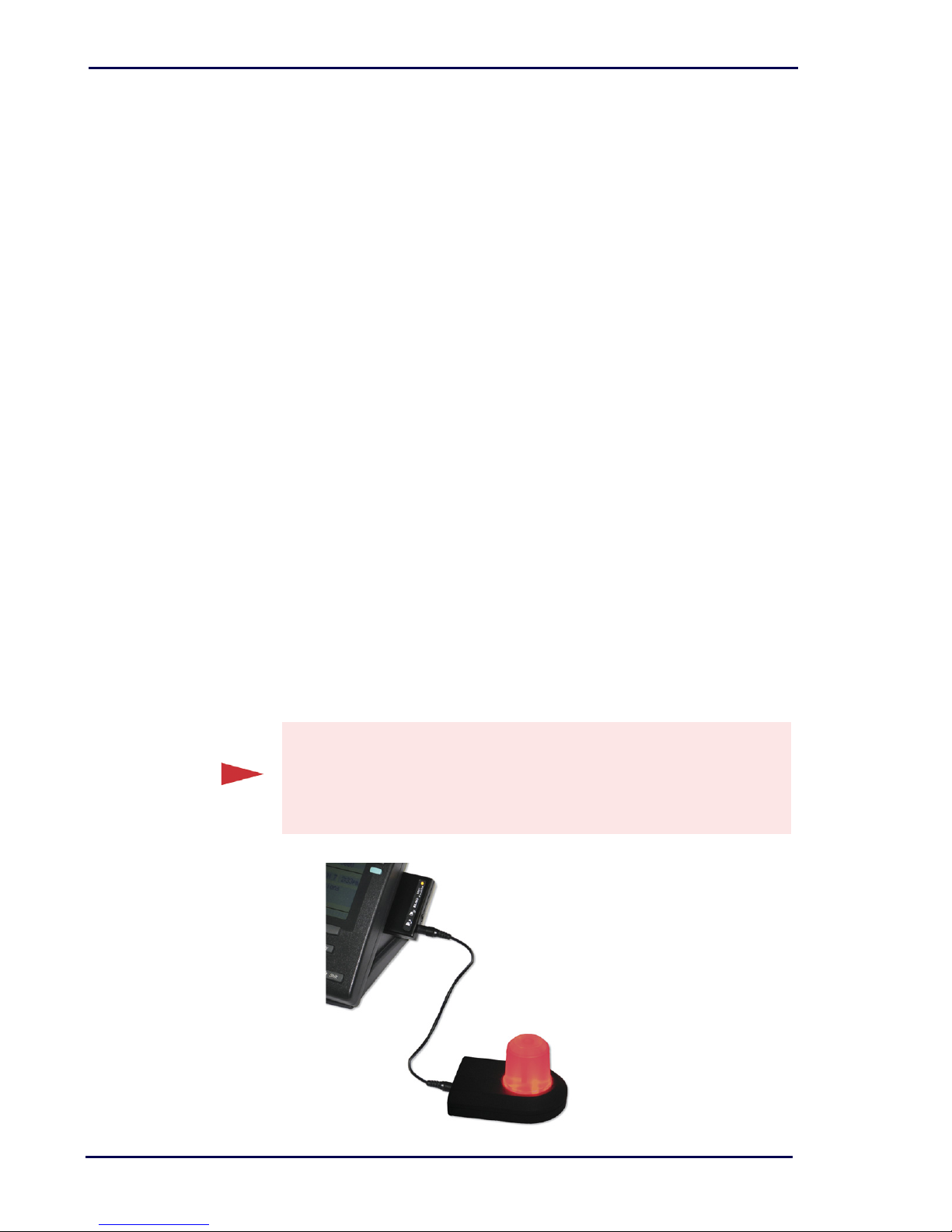

Typical application
with Algo 1127
Visual Alerter
connected to the
In-Use relay output
For details about using and setting up external
alerter devices, please consult the
documentation provided with those products.
Specifications
www.algosolutions.com 5
Specifications
General
Dimensions 3 x 5.5 x 9cm (1.2 x 2.2 x 3.5”)
Weight 40g (1.4 oz.)
Power No external power required. Power is
provided from phone or KEM
Color Charcoal grey
Telephony
Compatibility Nortel IP Phones 2002 and 2004 with CS
1000 Version 4.0 or later. Note: Firmware
update to version B63 required for pre-phase
2 telephones.
Relay Outputs
Number of Outputs Two: one each for Ring and In-Use indication
Connection 2.5mm jack
Voltage Max 30V SELV
Current Max 50mA non-inductive
Regulatory
Requirements Met FCC Part 15/B, RoHS, CSA (USA & Canada),
CE
Specifications
90-00028-03 6
Hardware Warranty and Repair
Each 8001 IP Alerter is warranted to be
free of defects in material and
workmanship for a period of 18 months
from the date of manufacture. A label on
the bottom of the unit identifies the
manufacturing code in the year and week
format (0820YYXXXX for the twentieth
week of 2008).
If you need to return the product for
repair, please contact Algo
Communication Products Ltd for a Return
Merchandise Authorization (RMA) number
and instructions prior to shipment. All
products returned for repair should be
shipped freight prepaid with the RMA#
clearly visible on the package. Products
will be returned freight collect for out-ofwarranty repairs or returned prepaid for
warranty repairs in Canada or the USA.
In North America, ship product for repair
with RMA# to:
Algo Communication Products Ltd.
Repair Centre
4500 Beedie Street
Burnaby, BC
Canada, V5J 5L2
Outside of North America, please contact
Algo for the name of the nearest repair
centre.
Specifications
www.algosolutions.com 7
Technical Support
Support for your 8001 IP Alerter is
available from the supplier that you
purchased the product from, or by
contacting Algo directly:
Support Hours: 7am to 4pm Pacific Time
support@algosolutions.com
Toll-free: 1-877-884-2546 (Canada &
USA only)
Tel: (604) 454-3792
Fax: (604) 437-5726
You can also access resources on the
Algo website (www.algosolutions.com/
supportcenter) where you will find a
Knowledge Base section, Application
Notes, the latest version of this guide,
software updates, and other information.
If you experience any trouble installing or
using the 8001 IP Alerter, we are certainly
interested in hearing about it and hope
that you will let us know.
Optional Enhancement Products
90-00028-03 8
Optional Enhancement Products
1127P Visual Alerter
A desktop or mountable visual indicator
for message waiting, in-use or ring.
Visible from all angles. Available in red,
green, or blue.
www.algosolutions.com/1127
1126P Strobe Light
A highly visible strobe light indicator
available with clear, red, amber, or blue
lens.
www.algosolutions.com/1126
1825P Duet Plus
Multi-application loud ringer and paging
amplifier for business telephone systems
in an office or industrial environment.
www.algosolutions.com/1825
1185 Horn Speaker
Weatherproof, 8 Ohm horn speaker can
be used to significantly increase the
volume of the 1825P Duet Plus Ringer.
www.algosolutions.com/1185
