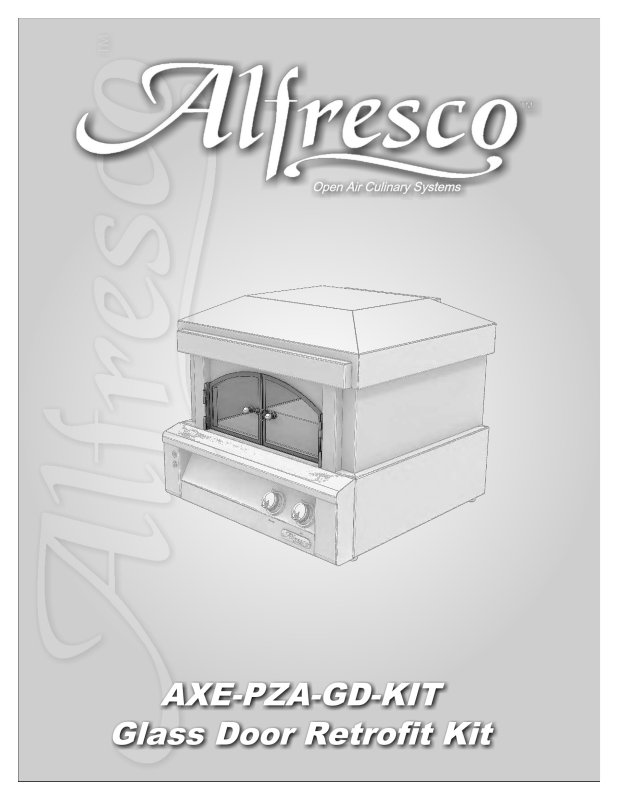

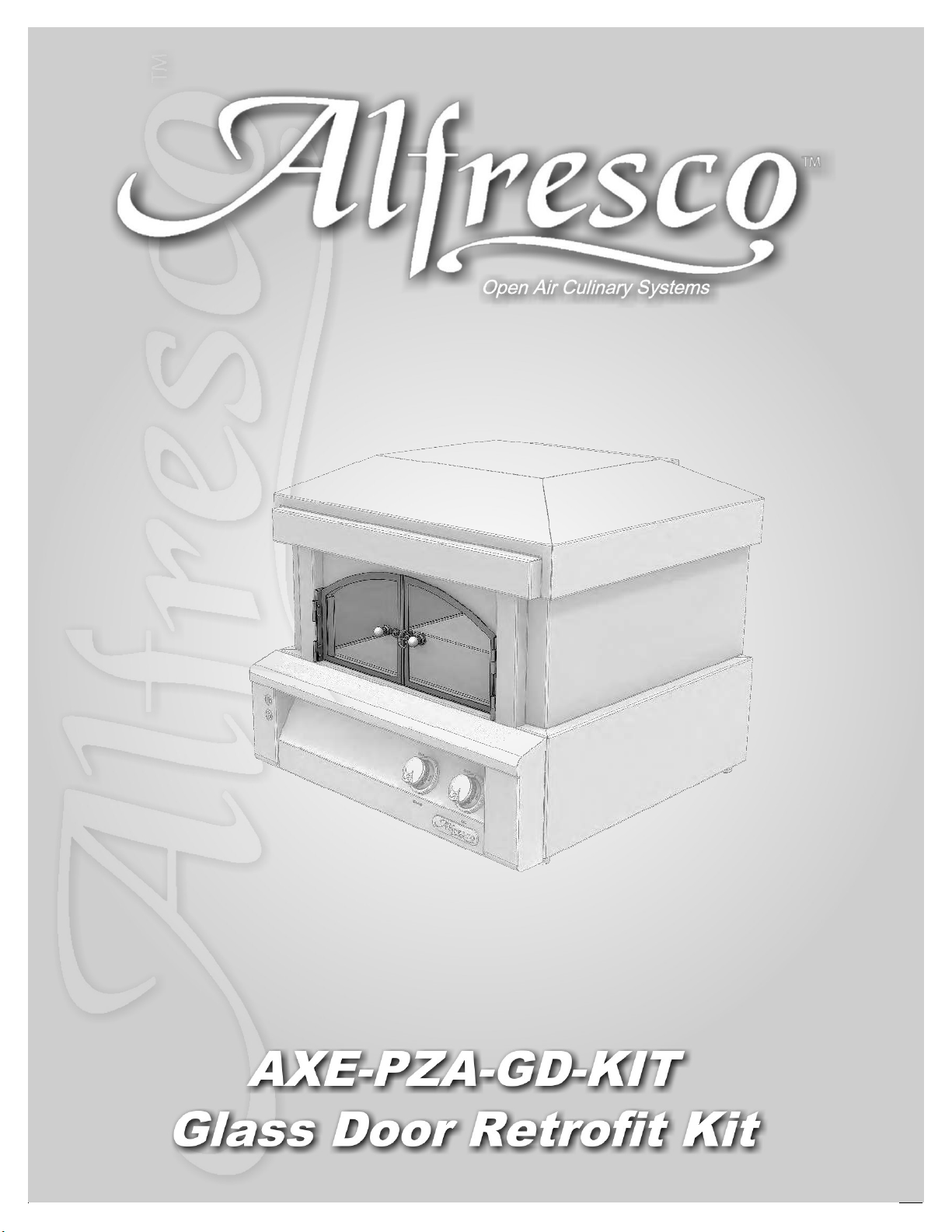

AXE-PZA-GD-KIT
ALFRESCO GLASS DOOR RETROFIT KIT FOR AXE-PZA PIZZA OVEN.
INSTALLATION INSTRUCTIONS:
WARNING: DO NOT ATTEMPT TO FOLLOW THESE PROCEDURES UNLESS THE UNIT
IS COMPLETELY COOL TO THE TOUCH INSIDE OR OUTSIDE. THE UNIT CAN REMAIN VERY HOT ON THE INSIDE FOR SEVERAL HOURS AFTER COOKING.
STEP 1:
Lift and remove the existing solid stainless
steel doors out of the AXE-PZA unit.
This procedure will leave only the hinge
mechanism that is attached to the body of
the pizza oven unit.
STEP 2:
Reach inside the unit and you
will find two wingnuts on each,
left and right, hinge bodies.
The wingnuts are located at a
45°angle, next to the inside
corners at the front of the Pizza unit as shown on the right
illustration.
EXISTING STAINLESS
SOLID DOORS
LIFT AND REMOVE
WINGNUT LOCATIONS
NOTE: If the unit has been
HINGE BODY
used several times, the wignuts might be very tight due to
heating and cooling cycles. In
VIEW FROM THE INSIDE OF THE UNIT
such case, it is recommended
that the wingnuts be removed
while wearing safety or work
gloves.
Once the wingnuts have been removed, the body of the hinge should be able to slide with ease straight
out. Only the threaded studs will remain attached to the body of the AXE-PZA oven unit. Repeat this
procedure for the body hinge on the opposite side of the oven unit.
Save the wingnuts as they will be required to install the new hinge assembly.
STEP 3:
Now you can reinstall the new hinge body. The new hinge body is longer (extends further to the front of
the oven unit) to accommodate the new glass door thickness and it allows the doors to fully open.
You will need to install the new hinge body onto the existing threaded studs used by the solid stainless
doors. Fasten the new hinge body with the wingnuts and tighten them up. (See illustration below)
NOTE: The new hinge body has larger “obround” slots than the previous stainless door hinge body. This
will allow you to align the glass doors correctly when they are properly mounted. Follow Step 4 for alignment of the doors if necessary.
REINSTALL THE WINGNUTS
NEW HINGE
BODY
VIEW FROM THE
INSIDE OF THE
UNIT
STEP 4: DOOR ALIGNMENT (if necessary)
Once the hinge bodies have been installed on the left and right
front corners of the oven body, reinstall the new glass doors in the
same fashion as the stainless doors were removed on STEP 1.
If necessary, align the doors by loosening the wingnuts.
Start by loosening the bottom wingnut and slide the hinge body
left ◄ or right ► to align the glass door. This will cause the hinge
body to rotate on the top wingnut and help you to align the door
properly.
Close the class door to verify that the glass door is flat and parallel to the bottom edge of the oven cavity opening.
HINGE
ALIGNMENT
UP & DOWN
LEFT & RIGHT
HINGE
ADJUSTMENT
Repeat this procedure with the opposite side body hinge and close
both doors to verify that they are level. Verify that the “gap” between both doors is parallel or that one
door is not higher than the other.
If necessary, you can loosen both wingnuts and slide the entire hinge body up ▲ or down▼ to adjust the
height of both glass doors.
One both doors are aligned correctly (same height and parallel to the bottom of the opening), tighten the
wignuts one more time to make sure they will stay in that position. Repeated heating cycles of the oven
will tighten wingnuts further.
3
Your new Pizza Oven Glass Doors are now ready for use giving you a complete view of the items being
cooked or baked within the oven .
NOTE:
The specially treated glass that the doors are made with reflects a lot of heat back into the oven cavity,
consequently you will need to adjusts your temperatures accordingly for cooking or baking.
Additionally, the knobs handles mounted on the glass will remain cooler to the touch when compared to
the handles used on the original stainless doors of the oven.
Regardless, exercise caution when operating the oven and opening and closing the glass doors; the
glass doors will still be very hot to the touch when cooking.
It is always recommended to use oven gloves or mitts to safely open and close the doors when the oven
has reached proper operating temperatures.
ORIGINAL SOLID STAINLESS STEEL
NEW GLASS DOORS INSTALLED WHEN FULLY ASSEMBLED.
AXE-PZA-GD-KIT INSTALLATION MANUAL
Alfresco™ GOURMET GRILLS
ALL RIGHTS RESERVED ● 11/2018
