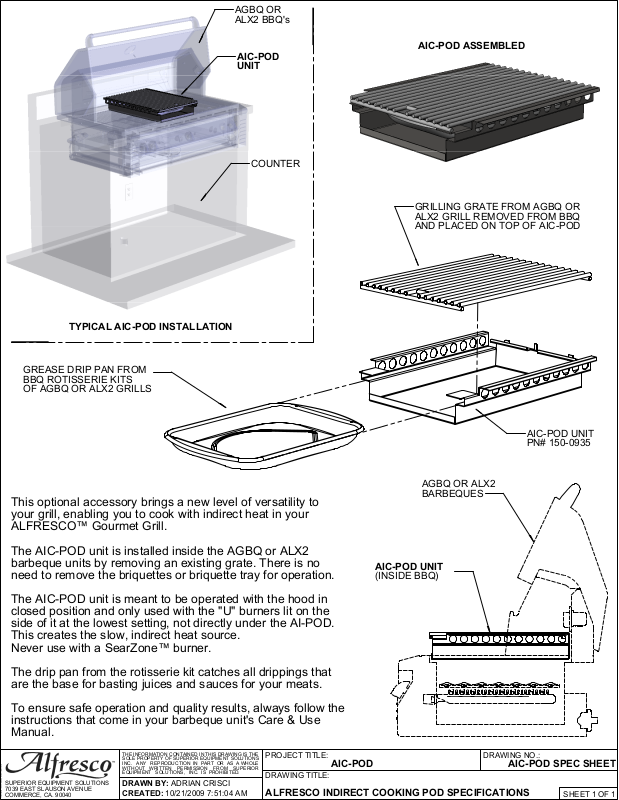

Page 1
AGBQ OR
ALX2 BBQ's
AIC-POD
UNIT
COUNTER
AIC-POD ASSEMBLED
GRILLING GRATE FROM AGBQ OR
ALX2 GRILL REMOVED FROM BBQ
AND PLACED ON TOP OF AIC-POD
TYPICAL AIC-POD INSTALLATION
GREASE DRIP PAN FROM
BBQ ROTISSERIE KITS
OF AGBQ OR ALX2 GRILLS
This optional accessory brings a new level of versatility to
your grill, enabling you to cook with indirect heat in your
ALFRESCO™ Gourmet Grill.
The AIC-POD unit is installed inside the AGBQ or ALX2
barbeque units by removing an existing grate. There is no
need to remove the briquettes or briquette tray for operation.
The AIC-POD unit is meant to be operated with the hood in
closed position and only used with the "U" burners lit on the
side of it at the lowest setting, not directly under the AI-POD.
This creates the slow, indirect heat source.
Never use with a SearZone™ burner.
AIC-POD UNIT
PN# 150-0935
AGBQ OR ALX2
BARBEQUES
AIC-POD UNIT
(INSIDE BBQ)
The drip pan from the rotisserie kit catches all drippings that
are the base for basting juices and sauces for your meats.
To ensure safe operation and quality results, always follow the
instructions that come in your barbeque unit's Care & Use
Manual.
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
LAST SAVED BY: »» adrian «« Wednesday, October 21, 2009 2:54:27 PM
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
DRAWN BY:
CREATED:
ADRIAN CRISCI
10/21/2009 7:51:04 AM
PROJECT TITLE:
DRAWING TITLE:
ALFRESCO INDIRECT COOKING POD SPECIFICATIONS
AIC-POD
DRAWING NO.:
AIC-POD SPEC SHEET
SHEET 1 OF 1
