AGVPC
VERSAPOWER™ COOKING SYSTEM
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
LAST SAVED BY: »» adrian «« Tuesday, July 28, 2009 1:36:20 PM
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
DRAWN BY:
CREATED:
ADRIAN CRISCI
7/3/2008 8:34:07 AM
PROJECT TITLE:
AGVPC
DRAWING TITLE:

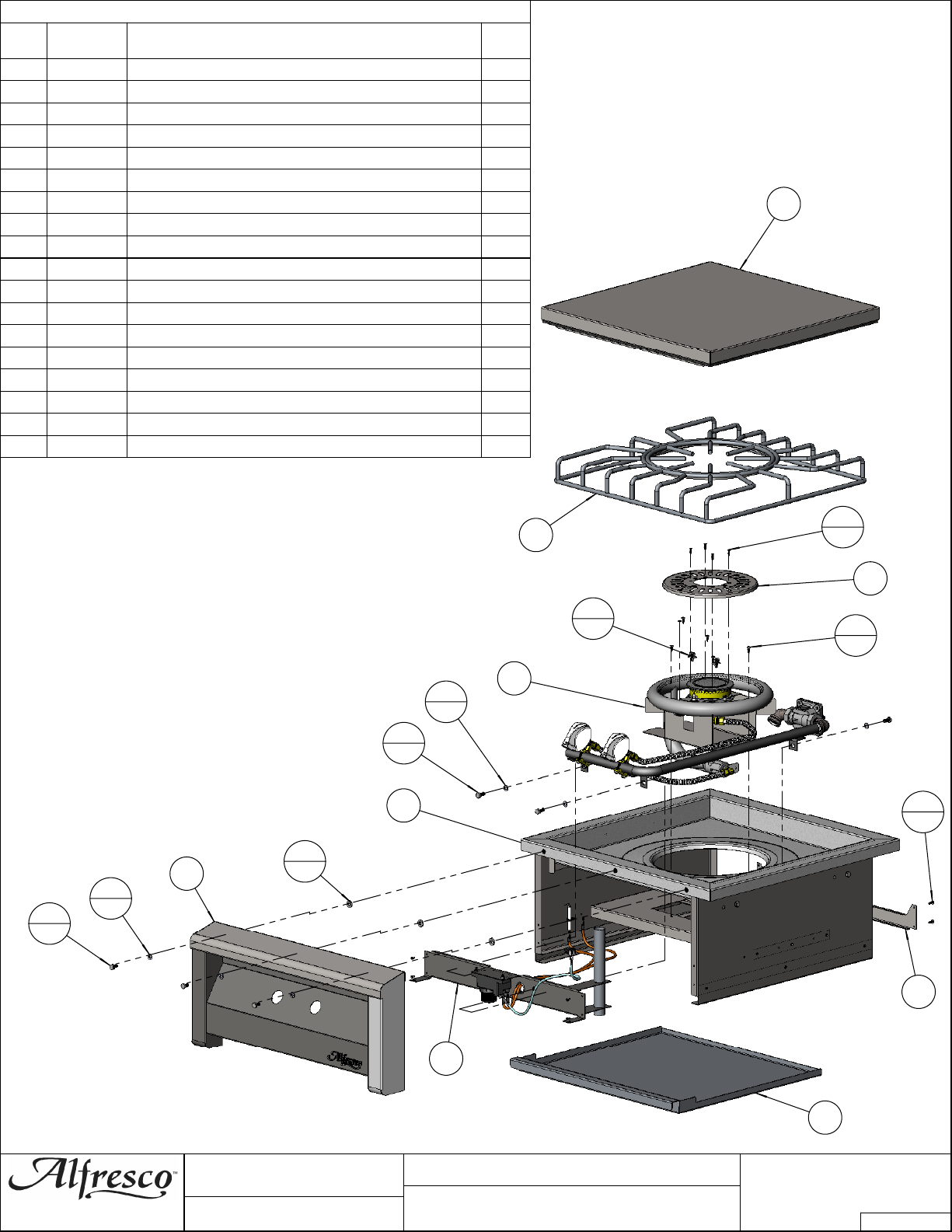

AGVPC - VERSA-POWER™ COOKER
DRAWING NO.:
500-0063A
SHEET 1 OF 1
BILL OF MATERIAL
PART
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
NUMBER
100-1475
100-1478
100-1482
200-0087
200-0087
200-0089
200-0092
200-0098
200-0111
200-0194
200-0219
210-0258
510-0378
510-0379
510-0381
510-0382
510-0385
510-0387
DESCRIPTION
AGVPC BACK BODY BRACKET
AGVPC TOP DECK BURNER CAP
AGVPC GREASE TRAY
WASHER - 1/4" SPRING LOCK- REGULAR - SS
1/4" LOCK WASHER
1/4-20 X 1/2 - HEX HEAD BOLT
1/4 X 1/8 X 5/8 FLAT WASHER - SPACER
SCREW 6-32 X ½" - FLAT HEAD 82° - PHILIPS
SCREW 8-18 X ½ - SS - MMC# 92364A194
POP RIVET Ø.125 X .063- .125 RANGE
HEX HD MACHINE SCREW 1/4-20 UNC X 5/8 LONG SS
CABLE TIE - T&B L-5-50PM-9
AGVPC - BODY ASSEMBLY
AGVPC - FRONT ASSEMBLY
AGVPC - IGNITER ASSEMBLY
AGVPC - MANIFOLD ASSEMBLY
AGVPC - GRATE ASSEMBLY - POT / WOK USE
AGVPC - COVER
QTY
1
1
1
3
3
4
3
4
10
4
2
2
1
1
1
1
1
1
18
8
17
4
2
12
2
9
10
16
4
3
11
2
13
9
10
7
14
3
5
6
3
4
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
LAST SAVED BY: »» adrian «« Tuesday, July 28, 2009 2:14:17 PM
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
DRAWN BY:
CREATED:
ADRIAN CRISCI
7/3/2008 9:36:06 AM
15
PROJECT TITLE:
AGVPC
DRAWING TITLE:
AGVPC - VERSA-POWER™ COOKER
1
3
DRAWING NO.:
500-0063B
SHEET 1 OF 1
BILL OF MATERIAL
PART
NO.
1
2
3
4
5
NUMBER
100-1472
200-0086
200-0093
290-0031
510-0380
DESCRIPTION
AGVPC FRONT PANEL
1/4-20 X 3/8 - TRUSS HEAD - PHILIPS SCREW
WASHER - PUSH LOCK 1/8" ID X 3/8" OD (FOR LOGO)
LOGO - ALFRESCO
AGVPC - FRONT ASSEMBLY- WELDED PARTS
QTY.
1
4
2
1
1
5
2
4
1
3
2
4
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
LAST SAVED BY: »» adrian «« Tuesday, July 08, 2008 8:47:28 AM
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
DRAWN BY:
CREATED:
ADRIAN CRISCI
7/3/2008 1:44:22 PM
PROJECT TITLE:
AGVPC
DRAWING TITLE:

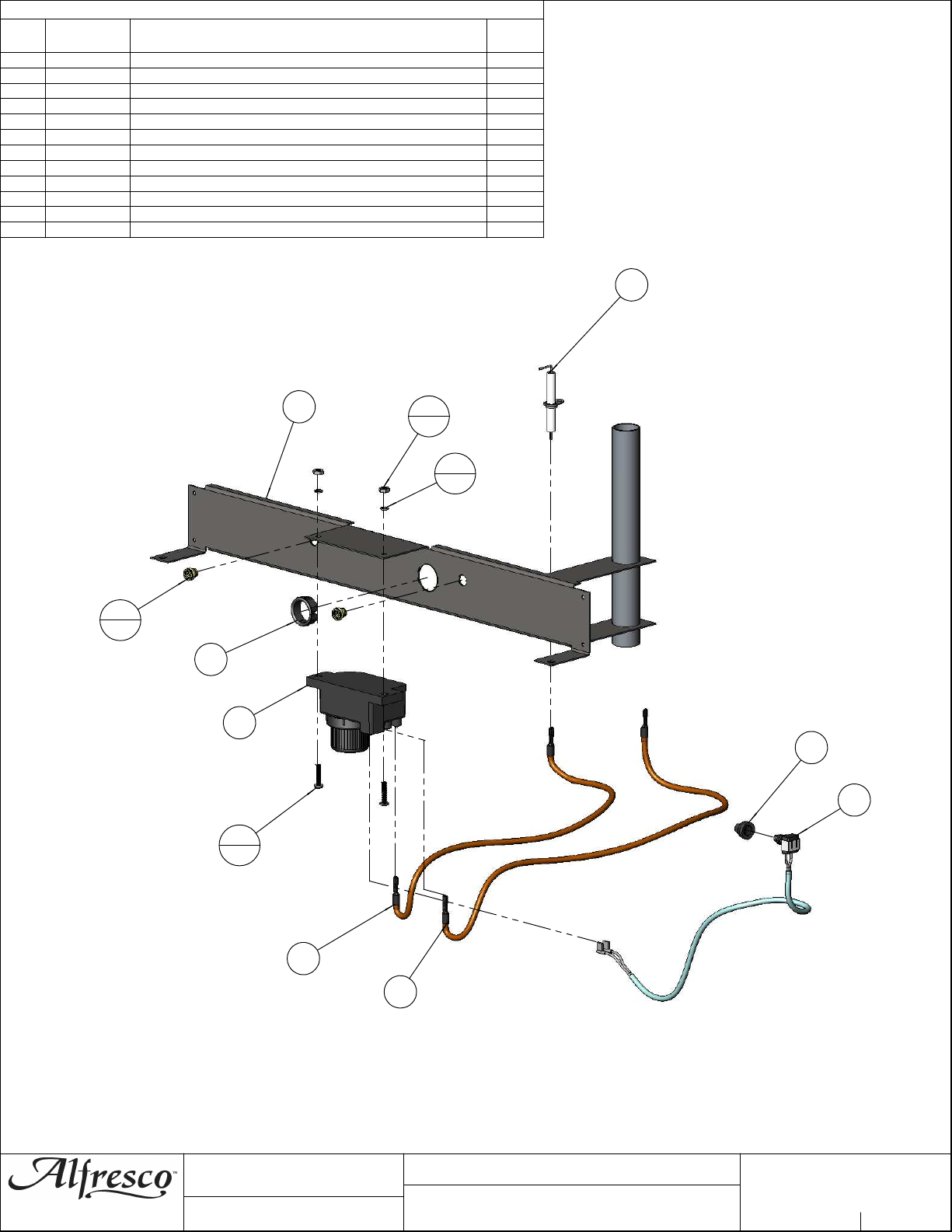

AGVPC - FRONT ASSEMBLY
DRAWING NO.:
510-0379
SHEET 1 OF 1
BILL OF MATERIAL
PART
NO.
NUMBER
1 200-0071 RIVNUT ¼-20 OPEN END 2
2 200-0079 8-32 X 3/4 - PAN HEAD - PHILIPS SCREW 2
3 200-0080 8-32 - DOUBLE CHAMFER - HEX NUT 2
4 200-0081 BUSHING HEYCO OCB-1000 - PART # 2878 1
5 200-0200 WASHER - # 8 - LOCK SPRING - SS 2
6 210-0191 ELECTRODE - "L" SHAPED 1
7 210-0195 IGNITER MODULE - 2 POINTS (WITH CAP) 1
8 210-0198 SWITCH - WEATHER BOOT & CAP 1
9 210-0216 AGVPC IGNITION WIRE (TO THE CENTER BURNER) 1
10 210-0216 AGVPC IGNITION WIRE (TO THE RING BURNER) 1
11 210-0340 AGVPC IGNITION SWITCH - OFF [ON] MOMENTARY 1
12 510-0398 AGVPC - IGNITER ASSEMBLY ► WELDED PARTS 1
DESCRIPTION QTY.
• ELECTRODE SHOWN IS FOR RING
6
BURNER ASSEMBLY ONLY.
• CENTER BURNER ELECTRODE IS
BUILT-IN WITH BURNER
(SEE DRAWING 510-0382 AND / OR SIDE-
BURNER DRAWING)
12
3
2
5
2
1
2
4
7
8
11
2
2
10
9
NOTE:
ITEM 12 (ASSEMBLY 510-0398) IS SHOWN FOR ILLUSTRATION AND GENERAL ASSEMBLY PURPOSES ONLY.
THIS ASSEMBLY IS ACTUALLY PART OF THE MAIN BODY ASSEMBLY 510-0378 SHOWN ON DRAWING 500-0063B
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
LAST SAVED BY: »» adrian «« Thursday, July 17, 2008 2:07:55 PM
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
DRAWN BY:
CREATED:
ADRIAN CRISCI
7/9/2008 2:20:27 PM
AGVPC
DRAWING TITLE:
AGVPC - IGNITER ASSEMBLY
DRAWING NO.:PROJECT TITLE:
510-0381
SHEET 1 OF 1
BILL OF MATERIAL
PART
NO.
NUMBER
1
100-0941
2
100-1067
3
200-0274
4
220-0280
5
220-0293
6
220-0298
7
290-0030
8
290-0042
9
510-0383
10
SEE NOTE
11
SEE NOTE
DESCRIPTION
AGVPC - BURNER GAS LINE - 3/8" X 24" -SS
SMOKER & SZ™ ORIFICE BRACKET
ELBOW 90°- CAST IRON - 1/2" FPT x 1/2" MPT
REGULATOR GAS - MAXITROL RV48CL440002
ELBOW 1/4" FPT x 3/8" COMP
MANIFOLD - SIDE BURNER - DUAL VALVE
KNOB BBQ - ALFRESCO "A" LETTER
GAS VALVE - SIDE BURNER - WITH INTERNAL ORIFICE
AGVPC - RING BURNER ASSEMBLY
AGVPC - CENTER BURNER ASSEMBLY
AGVPC PERIMETER BURNER NOZZLE ORIFICE
QTY.
2
1
2
1
1
1
2
2
1
1
1
NOTE:
THE FOLLOWING ITEMS WILL
CHANGE PART NUMBERS DEPENDING
UPON THE GAS SUPPLY, NATURAL GAS
(NG) OR LIQUID PROPANE (LP)
10
9
7
2
1
2
3
2
4
8
8
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
LAST SAVED BY: »» adrian «« Monday, August 18, 2008 11:25:17 AM
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
DRAWN BY:
CREATED:
ADRIAN CRISCI
7/3/2008 2:16:21 PM
11
6
PROJECT TITLE:
AGVPC
DRAWING TITLE:
AGVPC - MANIFOLD ASSEMBLY
5
2
DRAWING NO.:
510-0382
SHEET 1 OF 1
BILL OF MATERIAL
PART
NO.
1
2
3
4
NUMBER
510-0448
510-0449
200-0087
200-0089
DESCRIPTION
AGVPC - TOP BODY SUBASSEMBLY
AGVPC - BOTTOM BODY SUBASSEMBLY
WASHER - 1/4" SPRING LOCK- REGULAR - SS
1/4-20 X 1/2 - HEX HEAD BOLT
QTY.
1
1
4
4
1
4
4
3
4
2
NOTE:
AGVPC UNITS BUILT AFTER 07/2009 HAVE BODIES BUILT WITH TWO ASSEMBLIES, TOP (510-0448), ITEM 1 AND
BOTTOM (510-0449), ITEM 2, MAKING THE TOP OR BOTTOM ASSEMBLIES REPLACEABLE BY THEMSELVES.
FOR REPLACEMENT, VERIFY IF THE AGVPC UNIT'S BODY HAS SIDE MOUNTED BOLTS (ITEM 4) TO ORDER TOP
OR BOTTOM ASSEMBLIES AS NEEDED.
IF THE UNIT
DOES NOT
HAVE SIDE BOLTS, THEN THE ENTIRE ASSEMBLY 510-0378 MUST BE ORDERED FOR
PROPER REPLACEMENT.
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
LAST SAVED BY: »» adrian «« Wednesday, July 29, 2009 8:52:01 AM
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
DRAWN BY:
CREATED:
ADRIAN CRISCI
7/28/2009 2:46:31 PM
PROJECT TITLE:
AGVPC
DRAWING TITLE:
AGVPC - BODY ASSEMBLY
DRAWING NO.:
510-0378 MANUAL
SHEET 1 OF 1

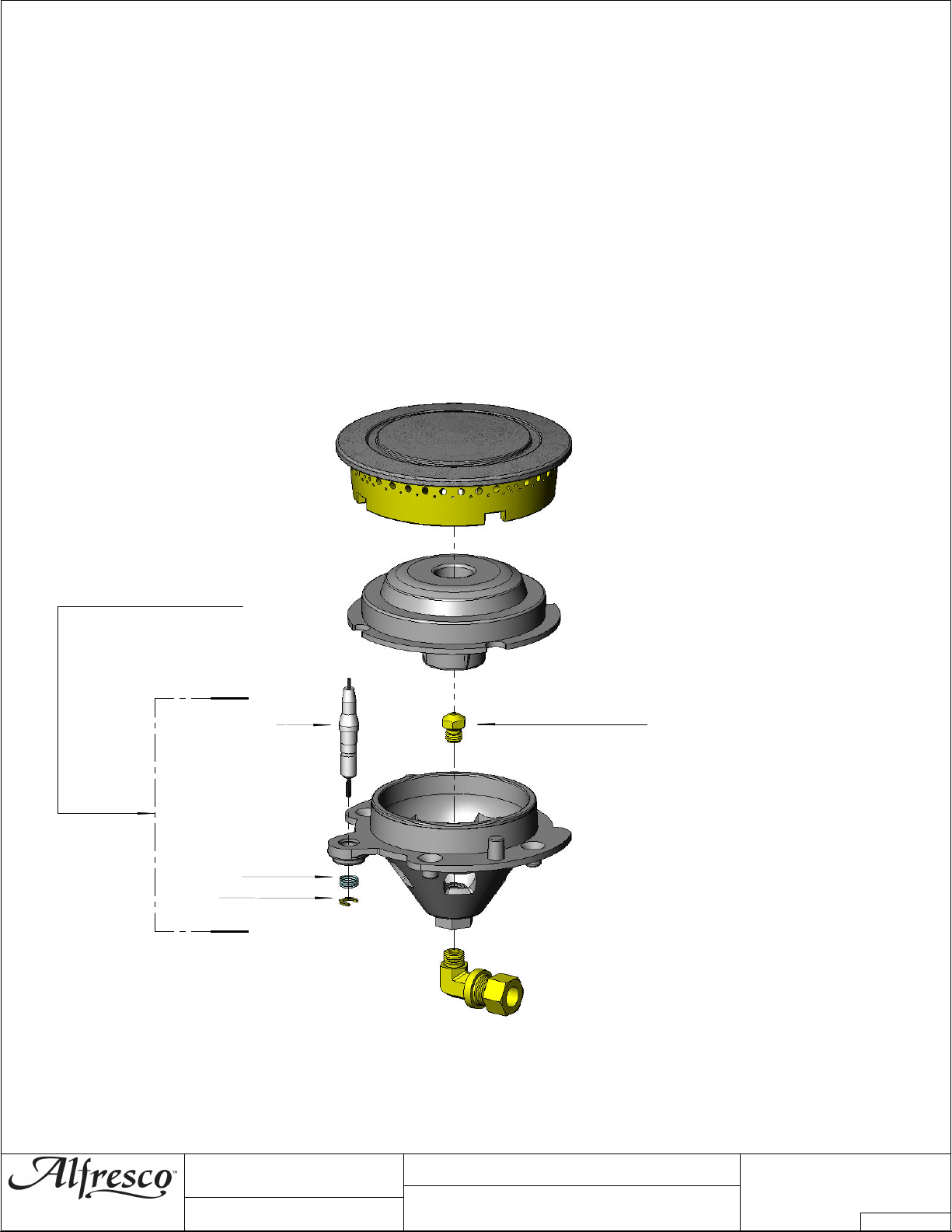

NOTE:
SIDE BURNER ASSEMBLIES ARE USED IN AGBQ AND ALX2 BARBEQUES, AGVPC UNIT (VERSAPOWER™) COOKING
SYSTEMS AS WELL AS
INDIVIDUAL UNITS (AGSB-2) BUT CAN ALSO BE ORDERED AS A WHOLE UNIT (KIT) FOR
NATURAL GAS (NG) OR LIQUID PROPANE (LP).
COMPLETE KITS NUMBERS:
NATURAL GAS (NG) = 290-0070
LIQUID PROPANE (LP) = 290-0071
CAPS, ORIFICES AND ELECTRODES CAN BE INDIVIDUALY REPLACED IF REQUIRED - SEE NUMBERS BELOW.
EXTERIOR CAP
(REPLACEMENT PART # 290-0072)
ELECTRODE ASSEMBLY
REPLACEMENT PART #:
290-0074
(INCLUDES ELECTRODE,
SPRING AND CLIP)
INNER CAP
(REPLACEMENT PART# 290-0222)
ELECTRODE
SPRING
CLIP
ORIFICE
REPLACEMENT PARTS:
NG # 220-0368
LP # 220-0369
VENTURI FUNNEL AND
ELECTRODE ASSEMBLY
(KIT PARTS)
ELBOW 90° FITTING
3/8"Ø COMP. X 1/8"ØMPT
(KIT PART)
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
LAST SAVED BY: »» adrian «« Tuesday, July 29, 2008 9:12:46 A M
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
DRAWN BY:
CREATED:
ADRIAN CRISCI
3/29/2005 5:09:13 PM
PROJECT TITLE:
AGSB-2 UNIT
DRAWING TITLE:
SIDE BURNER ASSEMBLY >>> SEE NOTE
DRAWING NO.:
SIDE BURNER
SHEET 1 OF 1
