Page 1
Music System
Installation and Operation Manual
Page 2
Music System
NOTICE
This manual is the Music System Installation and Operation Manual v1.0.
All rights reserved. No part of this document may be reproduced or transmitted in any form,
by any means (electronic, photocopying, recording, or otherwise) without the prior written
permission of Aleen Technologies.
The trademark and service marks Aleen, including the Aleen mark and logo, are the exclusive
property of Aleen Technologies, and may not be used without permission. All other marks
mentioned in this material are the property of their respective owners.
Additional copies of this manual may be obtained from Aleen. Reproduction of this manual
or parts thereof without written permission from Aleen is strictly prohibited.
Aleen reserves the right to modify the hardware and software described in the manual without
prior notice. However, changes made to the hardware or software described does not
necessarily render this publication invalid.
WARRANTY
In the event that the product proves to be defective in workmanship or materials within a
period of one year from date of shipment, Aleen shall repair or replace the product at its
discretion. Transportation will be the responsibility of the dealer/distributor. Under no
circumstances shall Aleen be liable for consequential or special damages, loss of revenue
or user/dealer expenses arising out of or in connection with the use or performance of
the product, whether based on contract, tort, or any other legal agreement.
The following shall void the above warranty: malfunctions resulting from fire, accident,
neglect, abuse, or acts of God; use of improper electrical power; or repair of, tampering with
or alteration of the product by anyone other than Aleen authorized personnel.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 3
Music System i
Table of Contents
1. Introduction ............................................................................................................................1
1.1 Manual Audience and Contents .............................................................................................1
1.2 System Description ................................................................................................................1
1.2.1 General Description...........................................................................................................1
1.2.2 Physical Description..........................................................................................................2
1.2.3 Technical Data...................................................................................................................4
1.2.3.1 Programming Cable Specifications ..............................................................................4
1.2.3.2 Network Cable Specifications ......................................................................................4
1.2.3.3 Technical Specifications...............................................................................................5
1.3 Workflow ...............................................................................................................................6
2. Installation..............................................................................................................................7
2.1 Unpacking ..............................................................................................................................7
2.2 General Installation Information ............................................................................................8
2.3 Music System Installation Instructions ..................................................................................9
2.4 Remote Access using VPN ..................................................................................................10
2.4.1 Installation of the VPN Software ....................................................................................12
3. Music Software ....................................................................................................................17
3.1 General .................................................................................................................................17
3.2 Music Utility Program (MUP) .............................................................................................17
3.2.1 File Menu.........................................................................................................................19
3.2.1.1 New.............................................................................................................................20
3.2.1.2 Open............................................................................................................................20
3.2.1.3 Close ...........................................................................................................................20
3.2.1.4 Save.............................................................................................................................21
3.2.1.5 Save As .......................................................................................................................21
3.2.1.6 Open Default...............................................................................................................21
3.2.1.7 Print.............................................................................................................................22
3.2.1.8 Print Preview ..............................................................................................................23
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 4
Music System ii
3.2.1.9 Print Setup ..................................................................................................................24
3.2.1.10 Recent File ..................................................................................................................24
3.2.1.11 Options........................................................................................................................25
3.2.1.12 Exit..............................................................................................................................25
3.2.2 View Menu ......................................................................................................................26
3.2.2.1 Toolbar........................................................................................................................26
3.2.2.2 Status Bar....................................................................................................................26
3.2.3 Communication ...............................................................................................................27
3.2.3.1 Read Configuration.....................................................................................................28
3.2.3.2 Send Configuration.....................................................................................................29
3.2.3.3 Read Recordings.........................................................................................................30
3.2.3.4 Update Recordings......................................................................................................32
3.2.3.5 Backup ........................................................................................................................35
3.2.3.6 Restore ........................................................................................................................36
3.2.3.7 Software Upgrade .......................................................................................................37
3.2.3.8 Communication Selection...........................................................................................38
3.2.3.9 Password .....................................................................................................................39
3.2.3.10 Reset ...........................................................................................................................40
3.2.4 Parameters .......................................................................................................................40
3.2.4.1 Network Settings ........................................................................................................41
3.2.4.2 Date & Time ...............................................................................................................41
3.2.5 Tasks................................................................................................................................42
3.2.5.1 Task Editor..................................................................................................................42
3.2.5.2 Task Schedule.............................................................................................................44
3.2.6 Statistics...........................................................................................................................46
3.2.6.1 General........................................................................................................................46
3.2.7 Help .................................................................................................................................46
3.2.7.1 Help Topics.................................................................................................................46
3.2.7.2 About MUP.................................................................................................................47
3.2.8 Device Selection..............................................................................................................47
3.2.8.1 New Folder .................................................................................................................48
3.2.8.2 New Device ................................................................................................................49
3.2.8.3 Delete..........................................................................................................................50
3.2.8.4 Edit..............................................................................................................................50
3.2.8.5 Select...........................................................................................................................50
3.2.8.6 Close ...........................................................................................................................51
3.2.8.7 Help.............................................................................................................................51
3.3 File Types.............................................................................................................................51
3.4 IP-Remote Utility Program (E-RAP) ...................................................................................52
3.4.1 File Menu.........................................................................................................................53
3.4.1.1 New Folder .................................................................................................................54
3.4.1.2 New Device ................................................................................................................55
3.4.1.3 New Task ....................................................................................................................56
3.4.1.4 Exit..............................................................................................................................58
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 5
Music System iii
3.4.2 Edit Menu ........................................................................................................................58
3.4.2.1 Delete..........................................................................................................................59
3.4.2.2 Edit..............................................................................................................................59
3.4.3 View Menu ......................................................................................................................60
3.4.3.1 Toolbar........................................................................................................................60
3.4.3.2 Status Bar....................................................................................................................60
3.4.3.3 Shortcuts Menu...........................................................................................................61
3.4.4 Help Menu .......................................................................................................................61
3.4.4.1 Help Topics.................................................................................................................61
3.4.4.2 About E-RAP..............................................................................................................62
3.4.5 Reports.............................................................................................................................62
4. MP3 File Size Calculation Table .........................................................................................64
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 6
Music System 1
Chapter 1. Introduction
1. Introduction
1.1 Manual Audience and Contents
The Music System Installation and Operation Manual is intended for System Installers and
Administrators, responsible for the installation, setup and programming of the Music System.
Note:
Please read this manual before the installation, programming and operation of the Music
System.
This manual contains the following:
Chapter Heading
1 Introduction
2 Installation
3 Music Software
4 MP3 File Size Calculation Table
1.2 System Description
1.2.1 General Description
The Music System is one of Aleen’s unique Music and Messaging on Hold solutions that can
be controlled via the LAN. It can be remotely programmed through IP connectivity and can,
depending on the file size, hold up to 100 MP3 music/messaging files.
The Music System offers 32Mb of recording space and has an internal clock to schedule
daily, weekly and holiday playback lists.
The E-RAP (IP – Remote Access Program) is a central administration program that handles
all client databases. E-RAP is capable of uploading MP3 music files to thousands of remote
specific Music Systems via the IP network.
The MUP (Music Utility Program) is used for configuring and maintaining the Music
System. The user-friendly MUP is capable of uploading configuration information to and
downloading it from the Music System.
The configuration file contains the list of announcement messages, predefined schedules for
playing messages, adjustments of the volume level via software, flash memory usage
statistics and other configuration settings.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 7
Music System 2
Chapter 1. Introduction
The MUP can perform a Full Backup and Restore of the Music System configuration
information, using an IP connection.
Main Features:
Stand-alone device
Up to 32Mb storage memory
1 Audio output (either for an 600 or 8 connection)
High quality audio
E-RAP utility for remote programming
Local utility program (MUP)
Programmable via Network or RS-232 connection
Ethernet connection
Supports MP3 format
Daily task scheduler
1.2.2 Physical Description
The Music System has been designed to fit in the same housing as the rest of the Aleen Music
family of products.
Figure 1-1: Front View
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 8
Music System 3
Chapter 1. Introduction
The front view shows a number of indicators, which have been described below.
Figure 1-2: Indicators
Indicator Color Function
Power Green Indicates that the power is on
Playback Red Indicates that information is played back to a caller
TxD/RxD Yellow Indicates that the Music System is in the data
transfer/receive mode
LAN Link Green Indicates that the Music System is connected to and
accessed via the LAN
Figure 1-3: Side View – Connectors
Connector Function
9V DC Connection of Power Supply
RS-232 Connection to PC
Ethernet Network connection
Output - 8 Connection to the PABX (see note)
Output – 600 Connection to the PABX (see note)
Ext. Audio In Connection from external audio device
Notes:
The Music System can only be connected to one PABX at a time.
The Audio output and Audio input are only Mono.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 9
Music System 4
Chapter 1. Introduction
1.2.3 Technical Data
1.2.3.1 Programming Cable Specifications
The Music System comes with a special programming cable. The following picture describes
that cable:
Figure 1-4: RS-232 Cable specifications
1.2.3.2 Network Cable Specifications
The Music System comes with a network cable. The specifications are:
Figure 1-5: Network cable
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 10
Music System 5
Chapter 1. Introduction
1.2.3.3 Technical Specifications
Memory Capacity 32MB
Local Utility Program MUP
Remote Download E-RAP
Ethernet Connection RJ-45 socket (10/100Mbps)
Serial Communication Port RJ-11 socket (RS-232 up to 115000 bps)
Supported Voice Format MP3
Daily Task Scheduler Yes
Maximum Number of Recorded Files Depending on File size up to 100
Programmable RS-232 or network (using TCP/IP
capabilities)
Real-Time Clock Yes
Watch Dog Yes
Flash Memory For 32MB recording time and 32MB buffer
Display 4 LED’s
Audio output to audio equipment Up to 2.0V p-p@ on impedance 8 (3.5mm
mono/stereo audio socket)
Audio output to PBX Up to 1.5V p-p@ on impedance 600 (RJ-11
socket, pin 2 and 3)
Audio input from external devices Up to 0dB audio input > 10k (3.5mm
mono/stereo audio socket)
Power Supply
Input:
Output
110VAC, 60Hz
220VAC, 50Hz
9VDC, 800mA
Dimensions (HxWxD) 200x220x30mm
7.9x8.7x1.2 inch
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 11
Music System 6
Chapter 1. Introduction
1.3 Workflow
The following picture shows a schematic overview of a basic installation of the Music
System:
Figure 1-6: Music System Quick Installation Flow
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 12
Music System 7
Chapter 2. Installation
2. Installation
2.1 Unpacking
The following table describes the contents of the Music System package.
Note:
Should the package be damaged or should items from the packing list be missing, contact
your distributor directly.
Nr. Item Quantity
1 Music System 1
2 Installation CD with MUP software, Manual, E-
RAP software, MP3 examples
3 Power Supply (Input: 110VAC, 60Hz or 220VAC,
50Hz)(Output 9VDC, 800mA)
4 Network cable RJ-45 – RJ-45 1
5 RS-232 cable D-Type 9 pin – RJ-11 1
6 Screws and plugs 2
7 Drill template 1
1
1
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 13
Music System 8
Chapter 2. Installation
2.2 General Installation Information
The following picture shows an example of a setup for the Music System:
MUP
Remote PC
LAN Server
LAN TCP/IP
Gateway IP Address
Port 500 TCP and UDP
Gateway
Firewall
XXX.XXX.XXX.XXX
Internet
Music-Tel-E
NAT
Network Addresses Translatio n
Port 10254 TCP
Firewall
The picture shows a remote setup, where the PC connects to the Music System through
firewalls and the Internet. Before the remote setup can work, the Music System needs to be
initialized locally. This initial installation process is done by linking a PC and the Music
System locally via the RS-232 connection as has been described in the following chapter.
During the initial installation process the Music System has to be defined in Network Settings
and the Device Selection window of the MUP program. In the Network Settings window you
will have to insert the IP Address of the Music System, Subnet Mask and Gateway IP
Address (all provided by your local network administrator). In the Device Selection window
the Music System entry has to be added . It needs to be named and its IP Address needs to be
inserted. When using a PC for connecting to the Music System, the filled in IP address is
sufficient for the MUP to find it locally or remote.
Legal IP Local IP
66.100.100.128 192.168.21.100
LAN TCP/IP
Figure 2-1: Music System Remote Setup
Local IP
192.168.21.100
LAN Server
The MUP uses the TCP protocol and port 10254 is used for the data-transfer between the
MUP and the Music System.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 14
Music System 9
Chapter 2. Installation
2.3 Music System Installation Instructions
Connect the Music System via its RS-232 socket to the COM port of the PC
Connect the Power Supply to the Music System
Now the initial software installation of the Music Utilities can start.
To install the MUP and E-RAP software on the PC:
Insert the CD in the Drive
Run the Music System Utility software (SETUP.EXE)
Run the MUP program from Start/Programs/Music System Utility Programs 1.xx
Click on Parameters/Network Settings
Fill in the IP address information (IP Address, Subnet Mask and Gateway IP Address)
Click on OK
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 15
Music System 10
Chapter 2. Installation
Make sure that you have chosen the correct COM port
Click on OK
Now the IP Address has been set. Either continue with the installation via the RS-232
connection (locally) or disconnect the RS-232 connection and configure the Music System
from a remote location (within the local domain or in a remote domain) via the Ethernet
connection. When deciding to configure the Music System from a remote location via the
Ethernet connection, the network cable needs to be connected to the Ethernet socket on the
Music System. It should be clear that when you are going to use a PC from a remote domain,
you will access the Music System via the Internet. This connection is less secure than with a
VPN (Virtual Private Network) connection.
The following paragraph describes the procedure for Remote Access using VPN (Virtual
Private Network).
2.4 Remote Access using VPN
Contrary to the remote access possibility via the Internet, remote access via VPN is a secure
connection. For this you will first have to download/install the appropriate VPN software. A
schematic overview of the Remote Setup via VPN is as follows:
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 16
Music System 11
Chapter 2. Installation
MUP
Remote PC with VPN
client installed.
User Name: XXXX
Password: XXXX
Port 500 TCP and UDP
To
192.168.21.100
Remote PC
LAN Server
LAN TCP/IP
Gateway IP Address
XXX.XXX.XXX.XXX
Gateway
Firewall
Internet
Music-Tel-E
Port 10254 TCP
Local IP
Firewall
LAN TCP/IP
192.168.21.100
Figure 2-2 Music System Remote Setup via VPN
The following paragraph will illustrate this with the installation and configuration of the
Check Point VPN-1 SecuRemote/SecureClient NG – Feature Pack 3 software. This is one of
the possible VPN packages.
LAN Server
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 17
Music System 12
Chapter 2. Installation
2.4.1 Installation of the VPN Software
1) Run the Setup.exe and the following screen will appear:
2) Click on Next
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 18
Music System 13
Chapter 2. Installation
3) Click on Yes (after reading and accepting the License Agreement)
4) If needed, change the Destination folder by clicking on the Browse button and click on
Next
5) Select “Install VPN-1 SecuRemote” by clicking on the radio button before the installation
to be selected
6) Click on Next
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 19
Music System 14
Chapter 2. Installation
7) Select “Install on all network adapters only” by clicking on the radio button before the
installation to be selected
8) Click on Next
9) If needed, read the README file or click on No
After the installation the last installation window will appear:
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 20
Music System 15
Chapter 2. Installation
10) Select “Yes, I want to restart my computer now” by clicking on the radio button before
this line of text.
11) Click on Finish
The computer will reboot and after the startup, you will see an icon of an envelope with a
golden key on it.
12) Click on the icon
13) Click on Tools/Advanced IKE Settings
14) Mark both “Force UDP encapsulation” and “Support IKE over TCP”
15) Click on OK
16) Click on Sites/Create New
17) Enter the IP Address of the Firewall of the Target LAN in the Name/IP box
18) Click on OK
19) Insert your username and password accepted in the VPN network
20) Click on OK 3 times until you see the icon resembling two buildings with the previously
entered IP Address
21) Right click on My Network Places and select Properties
22) Right click on the Local Area Network or Dial-up Connection icon and select Properties
23) Double click on Internet Protocol TCP/IP
24) Click on the Advanced button
25) Click on the WINS tab
26) Click on Add and add the IP Address of your Target LAN WINS server
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 21
Music System 16
Chapter 2. Installation
27) Close all windows with OK
This finalizes the complete installation and configuration of the VPN software. Now you can
connect to the Music System with MUP as if you are in the same domain as the Music
System.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 22
Music System 17
Chapter 3. Music Software
3. Music Software
3.1 General
The initial installation of the Music software is simple as described in the previous chapter.
The MUP and E-RAP software and their Help files have been added to a menu under the
Start/Programs menu. In this Chapter the Music Utility Program (MUP) will be described.
The E-RAP software will be described at a later stage.
3.2 Music Utility Program (MUP)
The MUP is a user-friendly program, which helps you to configure the Music System. The
toolbar and menus are discussed in the following paragraphs.
Notes:
Remember that for all actions you will have to have the Music System device selected.
Should you have forgotten this, the program will inform you and guide you to the Device
Selection menu.
When performing configuration related tasks (backup, restore, etc.), make sure that the
running tasks have been stopped (change the end time in the Task schedule). Don’t forget to
activate this task after the configuration related task has been performed.
When making a change in the configuration (e.g. changing the volume level of an Audio file),
the change will only become active after you have sent the information to the device via the
Send Configuration function.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 23
Music System 18
Chapter 3. Music Software
Figure 3-1: MUP Main Screen
The following function buttons can be pressed on the main screen’s toolbar:
Button Function
New – Starts a new MUP configuration file
Open – Opens an existing MUP
configuration file
Save – Saves the open MUP configuration
file
Print – Prints the contents of the open MUP
configuration file
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 24
Music System 19
Chapter 3. Music Software
The following menu’s can be accessed via the main screen:
Menu Item Functions in Menu Item
File New, Open, Close, Save, Save As, Open
Default, Print, Print Preview, Print Setup,
Recent File, Options, Exit
View Toolbar, Status Bar
Communication Read Configuration, Send Configuration,
Read Recordings, Upgrade Recordings,

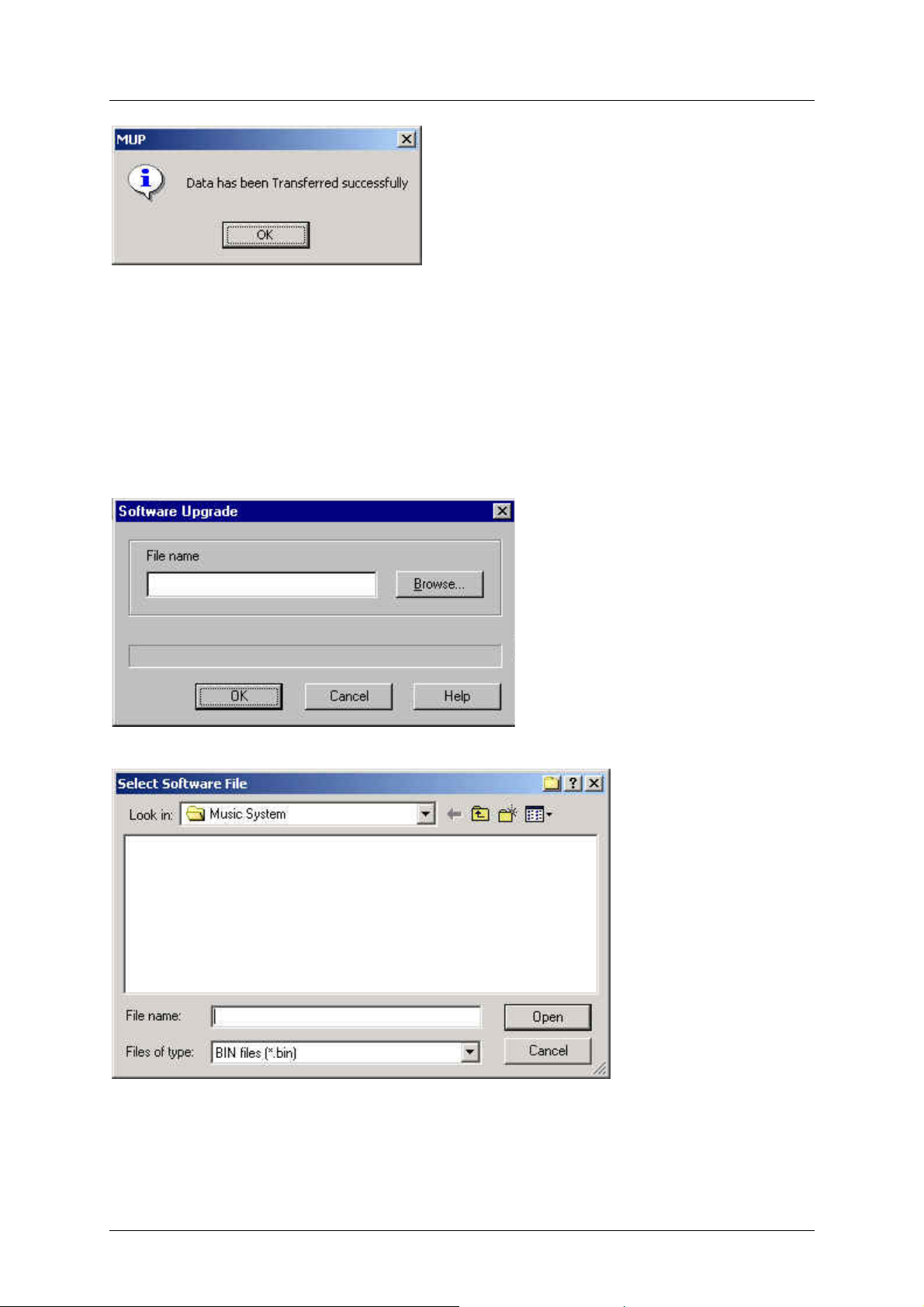

Backup, Restore, Software Upgrade,

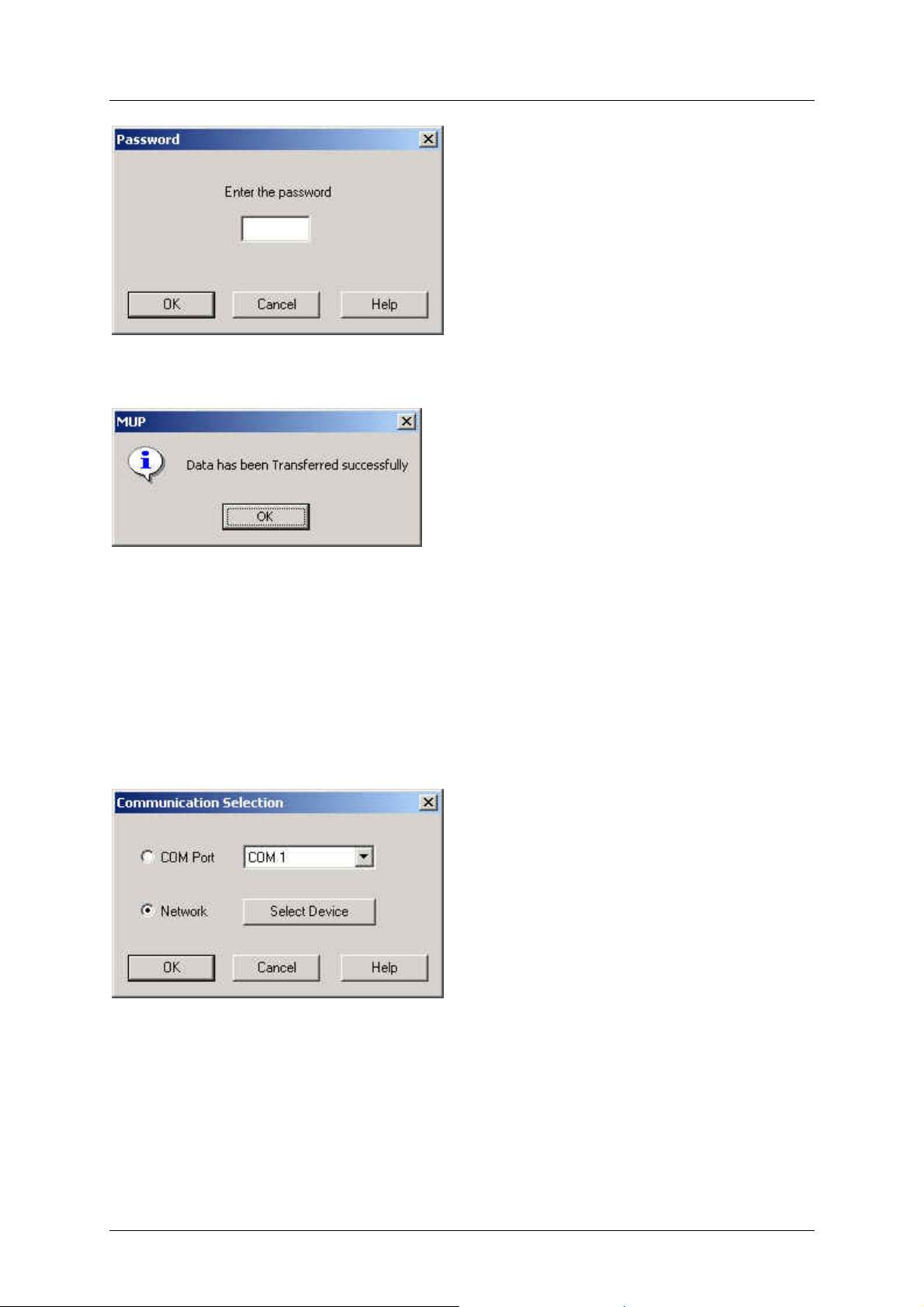

Communication Selection, Password, Reset
Parameters Network Settings, Date & Time

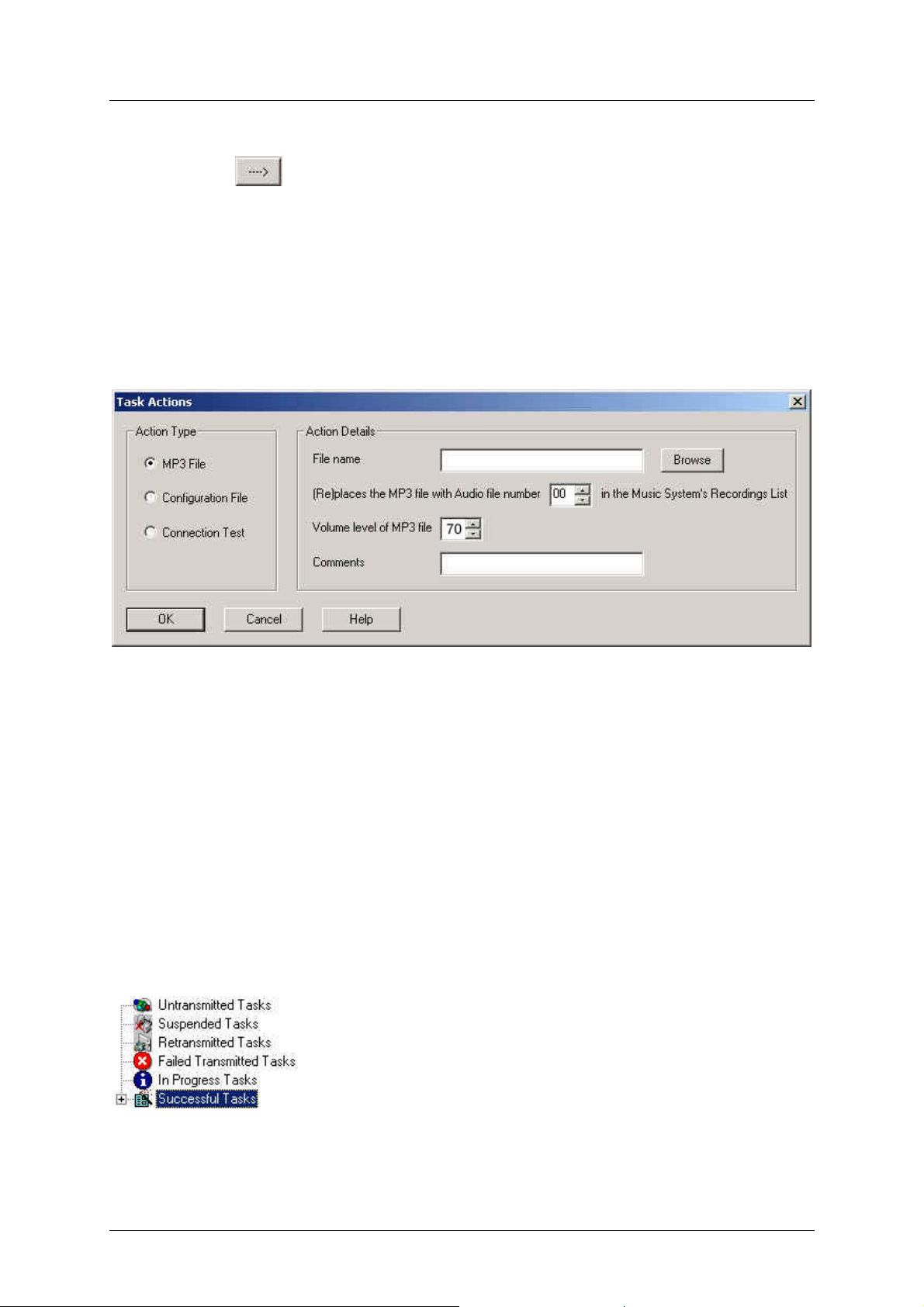

Tasks Task Editor, Task Schedule
Statistics General
Help Help Topics, About MUP
3.2.1 File Menu
The File menu contains the following functions:
Function Description
New Start a new MUP configuration file
Open Open an MUP configuration file
Close Close the current configuration file
Save Save an MUP configuration file
Save As Save an MUP configuration file under a
different name
Open Default Open the default MUP configuration file
Print Print the contents of the configuration file
Print Preview Preview the information to be printed

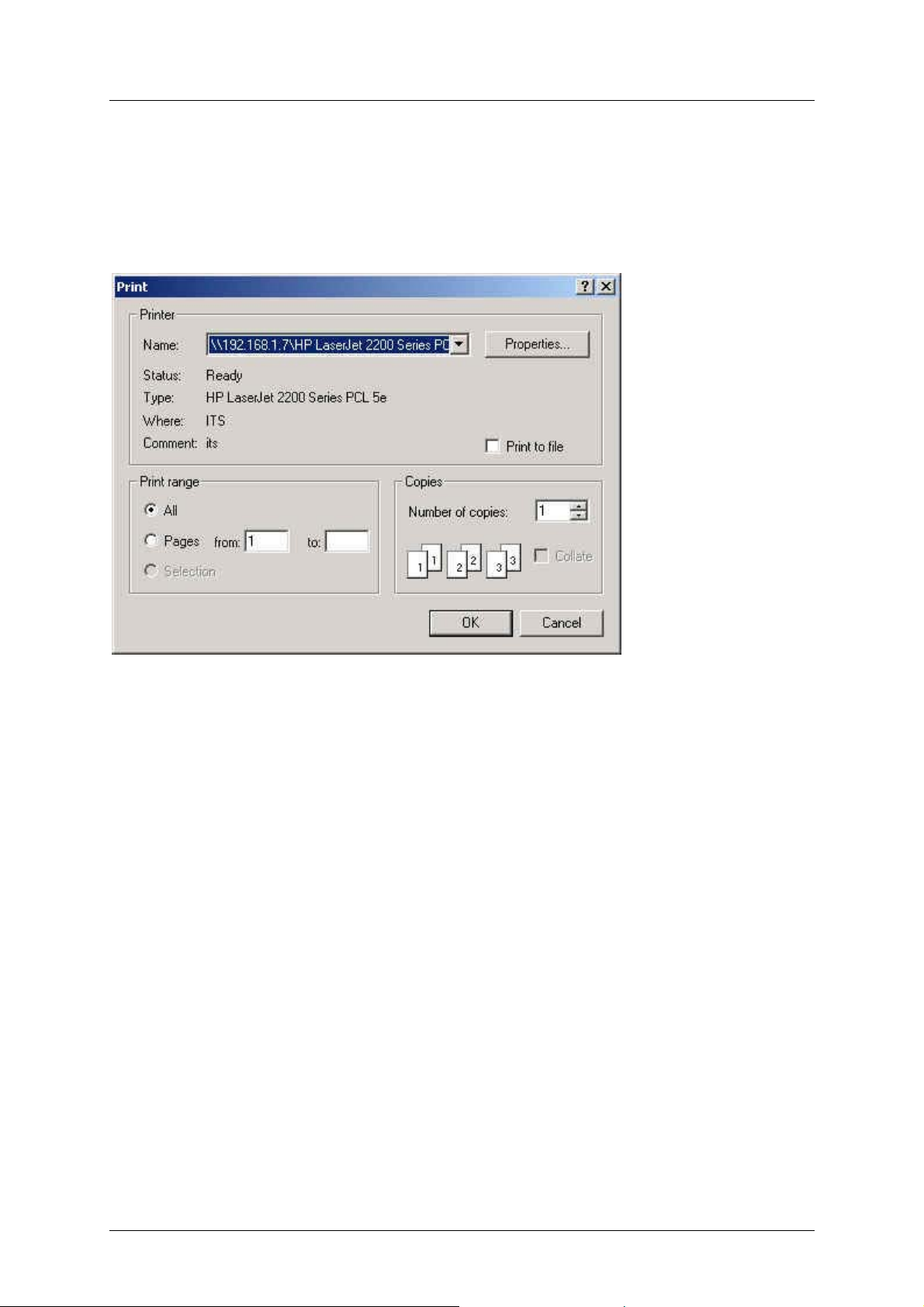

Print Setup Setup the printer for printing
Recent File Recently used files

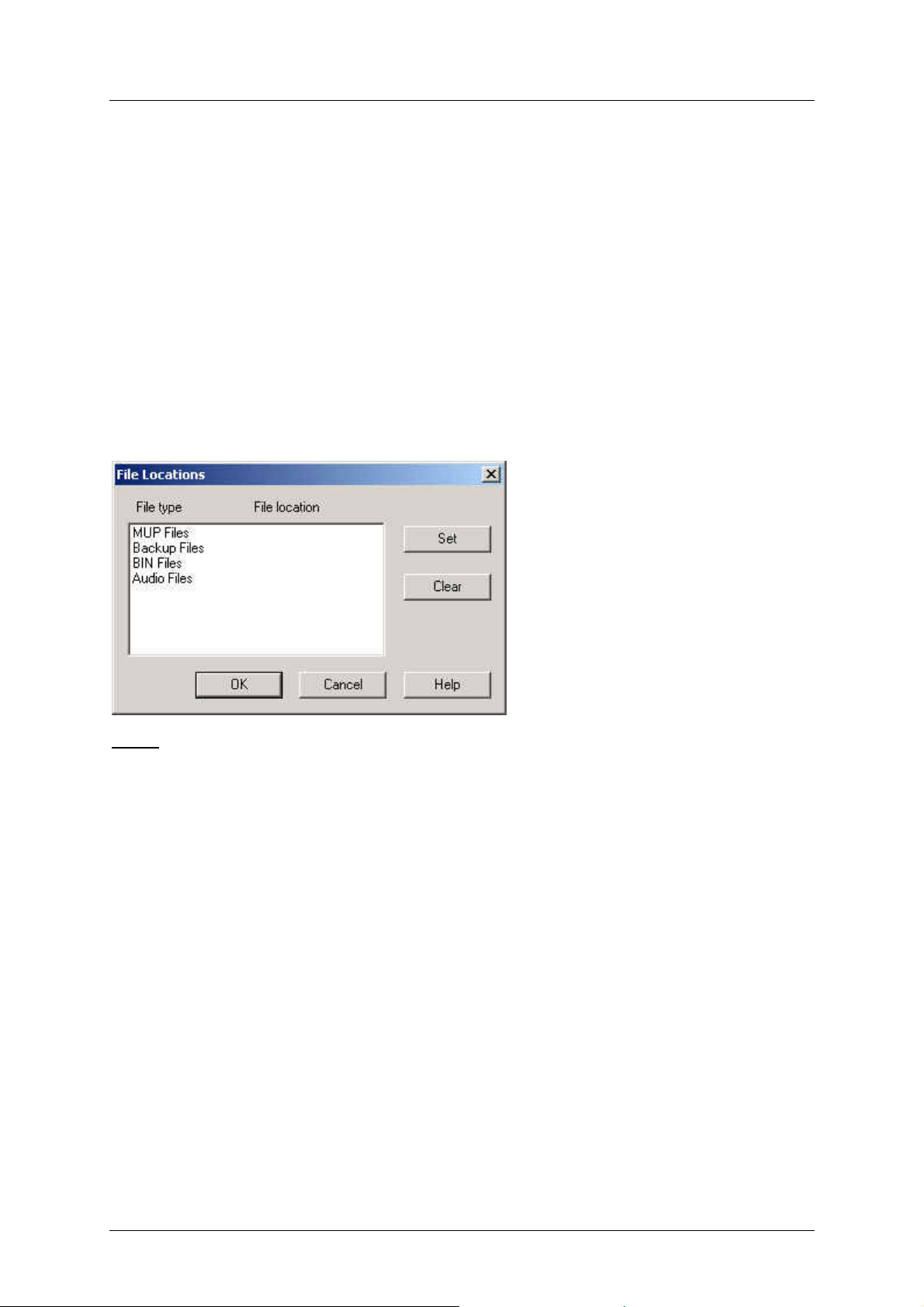

Options File location options
Exit Exit the program
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 25
Music System 20
Chapter 3. Music Software
3.2.1.1 New
To start a new MUP configuration file:
Click on File
Click on New
Now you will start with an empty MUP configuration file.
3.2.1.2 Open
To open an MUP configuration file from your local hard drive or the network:
Click on File
Click on Open
Browse for the required file and select it
Click on Open in the open window
The configuration file will be loaded.
3.2.1.3 Close
To close the current MUP configuration file:
Click on File
Click on Close
The current file will be closed, without saving or uploading the file to the Music System.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 26
Music System 21
Chapter 3. Music Software
3.2.1.4 Save
To save an MUP configuration file to your local hard drive or the network:
Click on File
Click on Save
The current file will be saved in the previously defined location on the hard drive or the
network.
3.2.1.5 Save As
To save an MUP configuration file with a new name or to save a new MUP configuration file
on the hard drive or the network:
Click on File
Click on Save As
Select the location to where you want to save the MUP configuration file
Insert the name for the MUP configuration file
Click on Save in the Save As window
The current file will be saved in the specified location, with the specified name.
3.2.1.6 Open Default
To open the default MUP configuration file:
Click on File
Click on Open Default
The default MUP configuration file will be opened.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 27
Music System 22
Chapter 3. Music Software
3.2.1.7 Print
To print the contents of the open MUP configuration file:
Click on File
Click on Print
If needed, change the printer properties, Print range and number of copies
Click on OK
The required printout will be printed.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 28
Music System 23
Chapter 3. Music Software
3.2.1.8 Print Preview
To preview the contents of the open MUP configuration file:
Click on File
Click on Print Preview
In this window you can activate the Print function, zoom in and out, show 1 or 2 pages and
close the window.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 29
Music System 24
Chapter 3. Music Software
3.2.1.9 Print Setup
To setup the print result:
Click on File
Click on Print Setup
If needed, modify the attached printer, paper size and orientation
Click on OK
The printer has now been setup to provide you with the required print result.
3.2.1.10 Recent File
This section in the File menu shows the files you recently opened, during the ongoing
session.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 30
Music System 25
Chapter 3. Music Software
3.2.1.11 Options
To define the location of the files created by the Music System:
Click on File
Click on Options
Select the file for which you want to define the location
Click on Set
Define the locations
Click on OK
Click on Ok
Repeat the steps for the different files shown in the following picture.
Note:
The description of the file types can be found in Chapter 3.3.
3.2.1.12 Exit
To exit the Music Utility Program:
Click on File
Click on Exit
The Music Utility Program will now be closed without saving the current open file. Should
you want to save the changes made in the current MUP configuration file, please use
File/Save or File/Save As first.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 31
Music System 26
Chapter 3. Music Software
3.2.2 View Menu
The View menu contains the following functions:
Function Description
Toolbar Show a row with buttons under the menus
Status Bar Show status information at the bottom of the
main screen
3.2.2.1 Toolbar
To view the Toolbar:
Click on View
Click on Toolbar
The Toolbar function will be marked in the View menu. This will show a row with buttons
under the menus.
3.2.2.2 Status Bar
To view the Status Bar:
Click on View
Click on Status Bar
The Status Bar function will be marked in the View menu. This will show a row with status
information at the bottom of the main screen.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 32
Music System 27
Chapter 3. Music Software
3.2.3 Communication
The Communication menu contains the following functions:
Function Description
Read Configuration Read configuration information from the
Music System
Send Configuration Send configuration information to the Music
System
Read Recordings Read the list of audio files in the MUP
Update Recordings Update the list of audio files in the Music
System
Backup Make a backup of the Music System database
Restore Restore the backup of the Music System
database
Software Upgrade Upgrade the Music System software
Communication Selection Select the communication type between the
PC and the Music System and define the
locations of the device(s)
Password Change the Music System password
Reset Reset the Music System
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 33
Music System 28
Chapter 3. Music Software
3.2.3.1 Read Configuration
To read the current configuration of the Music System:
Click on Communication
Click on Read Configuration
Click on OK
Click on OK to remove the message that the data has been received successfully.
Now you are able to make changes to the configuration of the Music System.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 34
Music System 29
Chapter 3. Music Software
3.2.3.2 Send Configuration
To send the configuration to the Music System:
Click on Communication
Click on Send Configuration
Click on OK
Fill in the password
Click on OK
Click on OK to remove the message that the data has been sent successfully.
The updated configuration data has been sent to the Music System.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 35
Music System 30
Chapter 3. Music Software
3.2.3.3 Read Recordings
To read the current list of music files in the system:
Click on Communication
Click on Read Recordings
Click on Recording Files List
Select the files to Read
Click on Set Path
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 36
Music System 31
Chapter 3. Music Software
Click on Browse
Select the location you want the file to be downloaded to
Click on Open (to accept the location and given filename)
Click on OK
Click on OK
Click on OK
Click on OK when data has been received successfully
The required music files have been downloaded from the system.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 37
Music System 32
Chapter 3. Music Software
3.2.3.4 Update Recordings
To Update the current list of music files in the system:
Click on Communication
Click on Update Recordings
Click on Recording Files List
Select a file number
Click on Set File
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 38
Music System 33
Chapter 3. Music Software

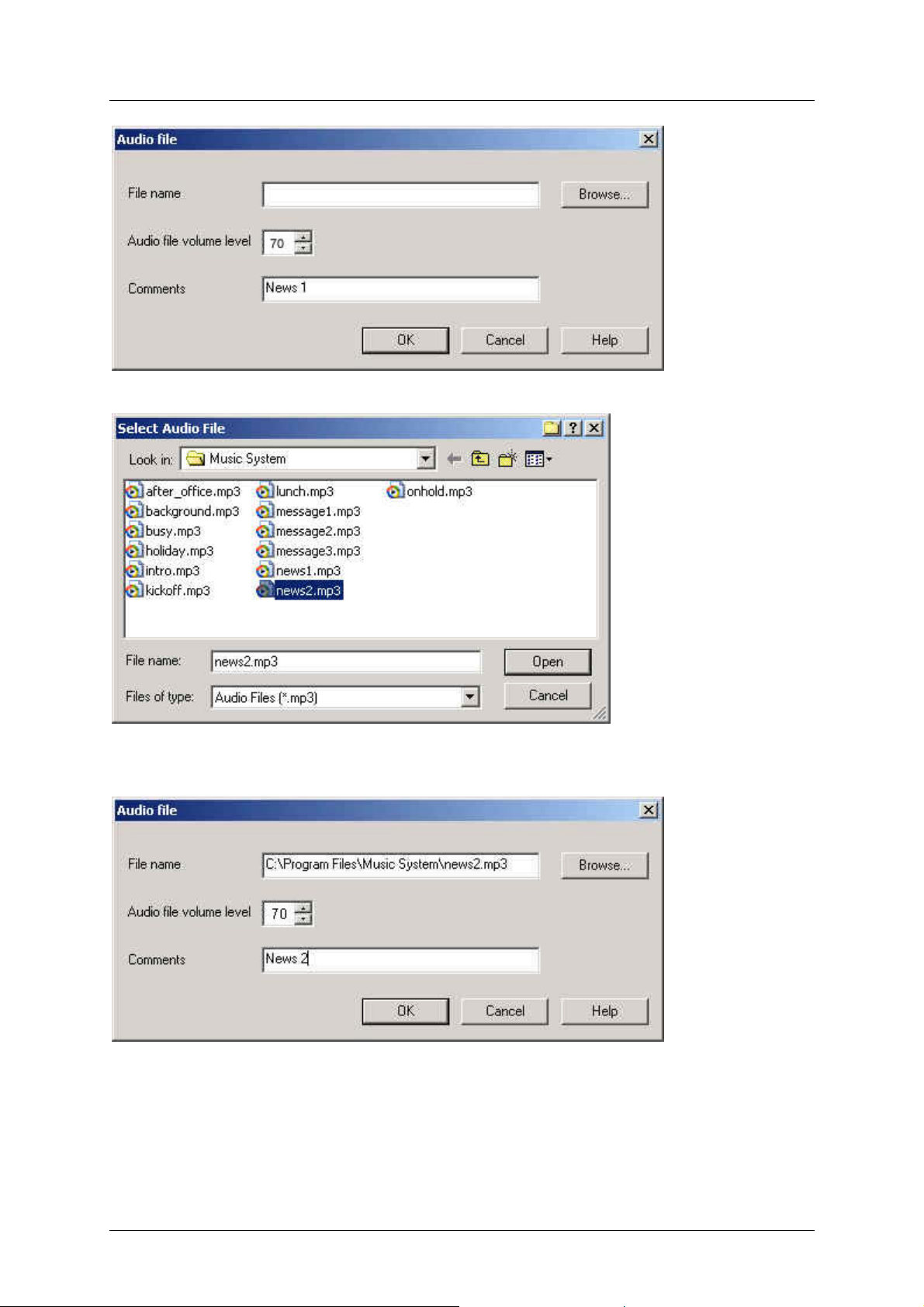

Click on Browse
Select the location you want the file to be uploaded from
Click on Open
Set the volume level
Insert a description (Comments)
Click on OK
Click on OK
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 39
Music System 34
Chapter 3. Music Software

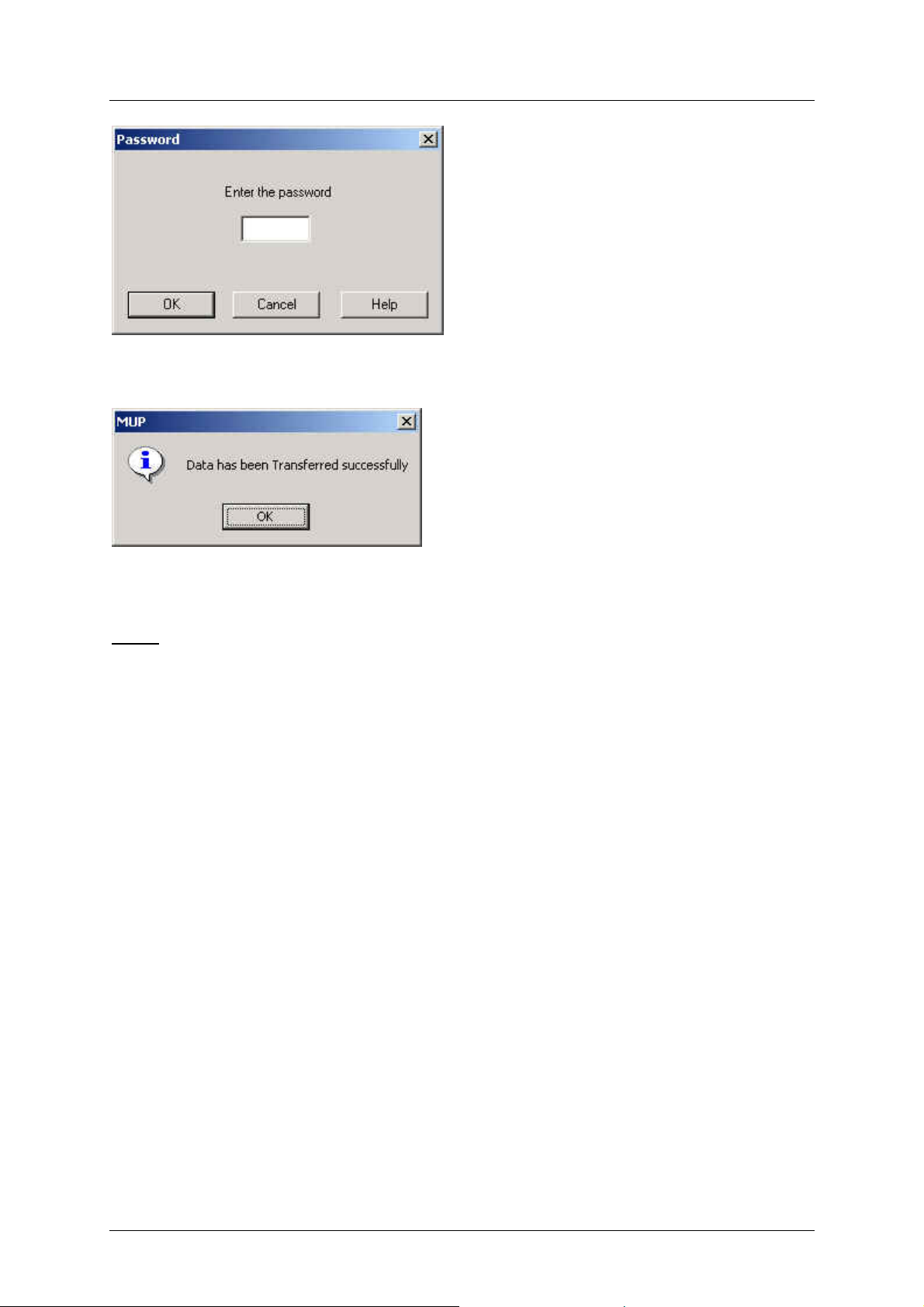

Enter password
Click on OK
Click on OK when data has been transferred successfully
The current list of music files in the system has been updated.
Note:
The music files should not be uploaded from the desktop or desktop folders as this will result
in an error.
The recommended MP-3 file configuration is:
Mode: Mono
Bandwidth: 22 kHz
Bit Rate: 48kBps.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 40
Music System 35
Chapter 3. Music Software

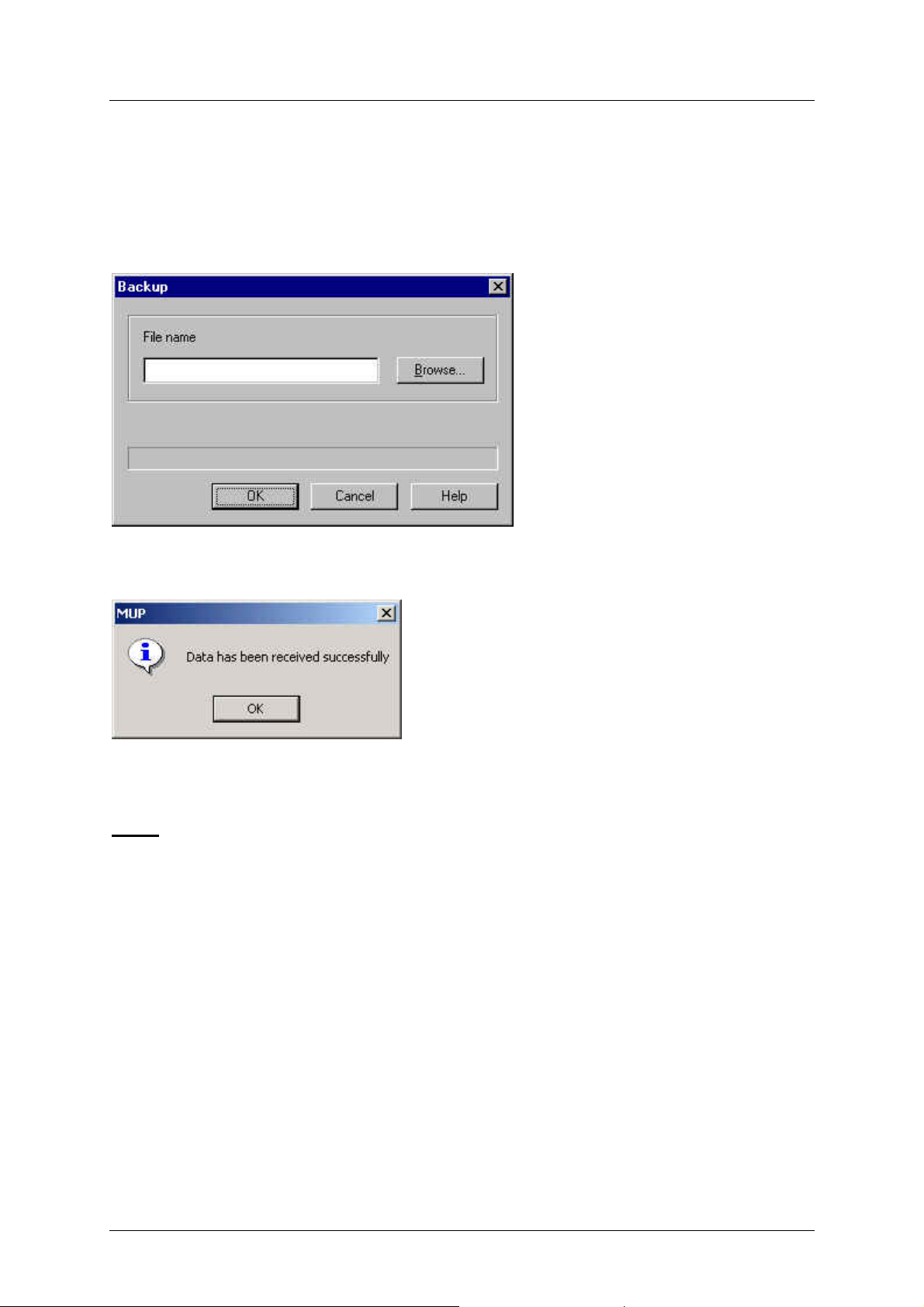

3.2.3.5 Backup
To create a full backup of the Music System:
Click on Communication
Click on Backup
Fill in the backup filename (browse if you want to change the directory)
Click on OK
Click on OK to remove the message that the data has been received successfully.
The backup file can now be used for another system or as a backup for the current system.
Note:
Before performing a Backup or Restore, always stop all running tasks. This is done by
entering the Task Schedule window and change the end-time of all currently running tasks.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 41
Music System 36
Chapter 3. Music Software

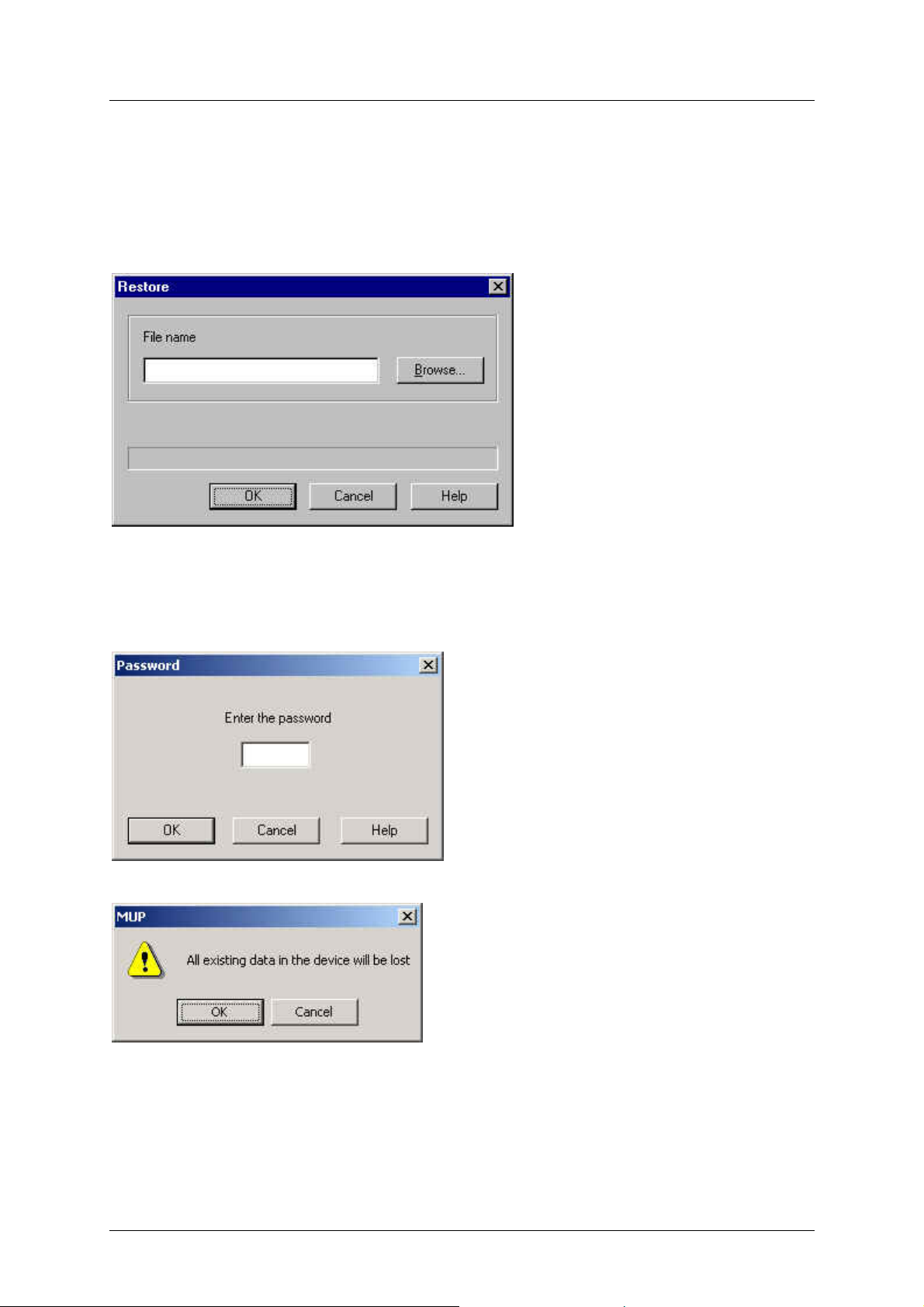

3.2.3.6 Restore
To restore a full backup of the Music System:
Click on Communication
Click on Restore
Fill in the filename of the backup to be restored (browse if you want to change the
directory)
If you used Browse, Click on Open
Click on OK
Fill in the password (default is 1234)
Click on OK after reading the warning and accepting the consequences
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 42
Music System 37
Chapter 3. Music Software
Click on OK to remove the message that the data has been transferred.
The Music System now contains all the information from the backup.
3.2.3.7 Software Upgrade
To upgrade the System Software (not the configuration data), make sure you have an RS-232
connection to the Music System and that all running tasks have been stopped:
Click on Communication
Click on Software Upgrade
Browse for the upgrade file (*.BIN)
Click on Open
Click on OK
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 43
Music System 38
Chapter 3. Music Software
Fill in the password (default 1234)
Click on OK
Click on OK to remove the message that the data has been transferred successfully
3.2.3.8 Communication Selection
The Communication selection defines the communication method, you will be using (via
COM Ports or via the network). Apart from this the Music device button in this window,
leads you to the Device Selection screen, which will be described in chapter 4.2.8. At this
point the following steps have to be taken to select the communication method:
Click on Communication
Click on Communication selection
Select the used communication method (either Network or COM Port (including the
number of the COM Port))
Click on OK
The communication method has been defined.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 44
Music System 39
Chapter 3. Music Software
3.2.3.9 Password
To input a new password:
Click on Communication
Click on Password
Fill in the Current (default) Password (default = 1234)
Fill in the New Password
Fill in the password in the Confirm New Password field
Click on OK
Click on OK to click away the message, that the password has been changed successfully.
The password has been changed.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 45
Music System 40
Chapter 3. Music Software
3.2.3.10 Reset
To perform a hardware reset to the Music System:
Click on Communication
Click on Reset
Click in OK
This will reset the Music System.
3.2.4 Parameters
The Parameters menu contains the following functions:
Function Description
Network Settings Define the network parameters for the Music
System
Date & Time Define the Date and Time on the Music
System
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 46
Music System 41
Chapter 3. Music Software
3.2.4.1 Network Settings
To set the network parameters for the Music System:
Click on Parameters
Click on Network Settings
The following window will be shown:
This information is essential for when you want to connect to the Music System locally. This
information, together with the Communication Selection defines the communication flow.
Note:
The initial network setting can only be done via the RS-232 connection.
3.2.4.2 Date & Time
To go to the date and time parameters of the Music System:
Click on Parameters
Click on Date & Time
The current window will show the date and time of the Music System (if connected). If the
Music System is not connected, you will get the request to connect to the Music System.
When the communication parameter to the Music System is set to COM 1 and there is no
physical connection, a time-out error and an error that date and time to the device have not
been set will appear. After the second error the Date & Time window will appear with the
information from the PC.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 47
Music System 42
Chapter 3. Music Software
3.2.5 Tasks
The Tasks menu contains the following functions:
Function Description
Task Editor Define a task
Task Schedule Schedule a task

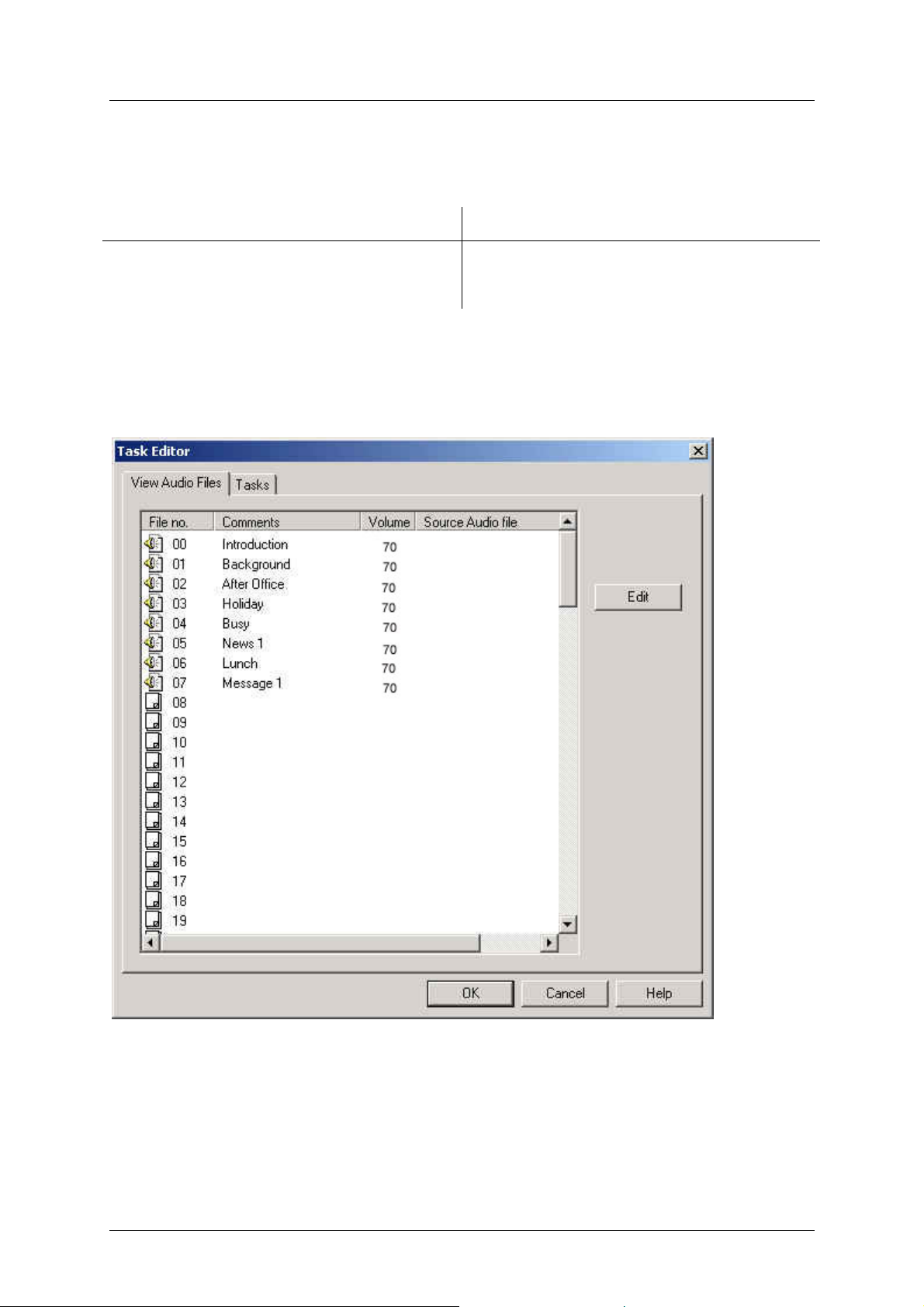

3.2.5.1 Task Editor
The Task Editor windows contain 2 tabs, View Audio Files and Tasks. Before you are able to
update the information in the Tasks tab, you will have to make sure that you have information
in the View Audio Files tab.
If not, add the Audio files via Update Recordings (Communications Menu). You can have a
maximum of 100 file numbers defined (00-99).
In the View Audio Files the following File number information can be edited:
Comments – This should describe the contents of the music/information file.
Volume – This is the playback volume of the music/information file (level 01 till 99,
where 99 is the highest volume level).
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 48
Music System 43
Chapter 3. Music Software
The next step is to set tasks on the task tab.
On the Tasks tab you have to define:
The task number – This number will be used when scheduling the chosen
music/information. You can define up to 20 tasks.
Within each task number the following information blocks need to be edited:
The Background Themes – This block defines which and how the background
information will be presented. You can define 10 Background Themes per task.
The Interrupt Messages – this block defines which and how the extra information will be
presented. You can define 10 Interrupt Messages per task.
For the Background Themes you have to define and mark:
The Audio file number – This is the number of the Audio file that will be run in the
background (this number is taken from the View Audio Files list).
Random play – Should you have more than 1 Audio file number defined, the system will
play the selected Audio files at random.
External background – The Background music can also be created by connecting a radio
or endless recording to the Music System. In this case this checkbox needs to be marked.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 49
Music System 44
Chapter 3. Music Software
All other Background related settings will then be disabled. The interrupt messages will
not be influenced.
For the Interrupt messages you have to define and mark:
The Audio file number – This is the number of the Audio file that will be run, interrupting
the background Audi file.
Cyclic play mode – This instructs the Music System to repeat the interrupt message(s) at
a time, set by the Loop interval and Interrupt messages interval.
Loop interval – This instructs the Music System to repeat the interrupt message(s) at the
specified time.
Interrupt messages interval – This defines the time between each interrupt message in the
group of interrupt messages.
Note:
Background Themes and Interrupt Messages need to be marked from 1 till n where number 1
is the first and n is the last. Unmarking a task in this range will result in an error message.
3.2.5.2 Task Schedule
The Task Schedule window contains 2 tabs, Daily Schedule and Holidays.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 50
Music System 45
Chapter 3. Music Software
On the Daily Schedule tab, you are able to define the day of the week and the time for which
a certain pre-defined task should be run. Per day you can set 10 tasks. A full day runs from
00:00 to 23:59.
In the Holidays tab, yearly holidays, the times and task to run, can be defined.
The information is defined in the following screen:
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 51
Music System 46
Chapter 3. Music Software
3.2.6 Statistics
The Statistics menu contains the following function:
Function Description
General Show product version and used and total
memory size
3.2.6.1 General
To get the general statistics:
Click on Statistics
Click on General
Now you will get a window, in which the software version of the Music System, total flash
memory size and used flash memory size can be found. Close will take you back to the main
screen of the MUP.
3.2.7 Help
The Help menu contains the following functions:
Function Description
Help Topics The Help function in the MUP
About MUP Version information about the MUP software
3.2.7.1 Help Topics
To go to Help:
Click on Help
Click on Help Topics
You will now be able to search in the Help module for the topics you need.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 52
Music System 47
Chapter 3. Music Software
3.2.7.2 About MUP
By clicking on Help and then on About MUP, you will get the version information of the
Music Utility Program.
3.2.8 Device Selection
The Device Selection is a sub function in the Communication Selection window
(Communication Menu). With this function you can select the Music System on which you
want to perform maintenance. The following paragraphs contain the explanation of the
window and examples of how to edit it.
The left pane of the window provides a graphical tree of the available previously defined
devices. The left pane contains the Root (which can’t be deleted) and can contain several
Folders. These Folders can be used as separations between different Sub Folders and groups
of devices. Each folder or Sub Folder contains one or more devices. The devices will be
shown in the right pane.
The functions in this window can be described as follows:
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 53
Music System 48
Chapter 3. Music Software

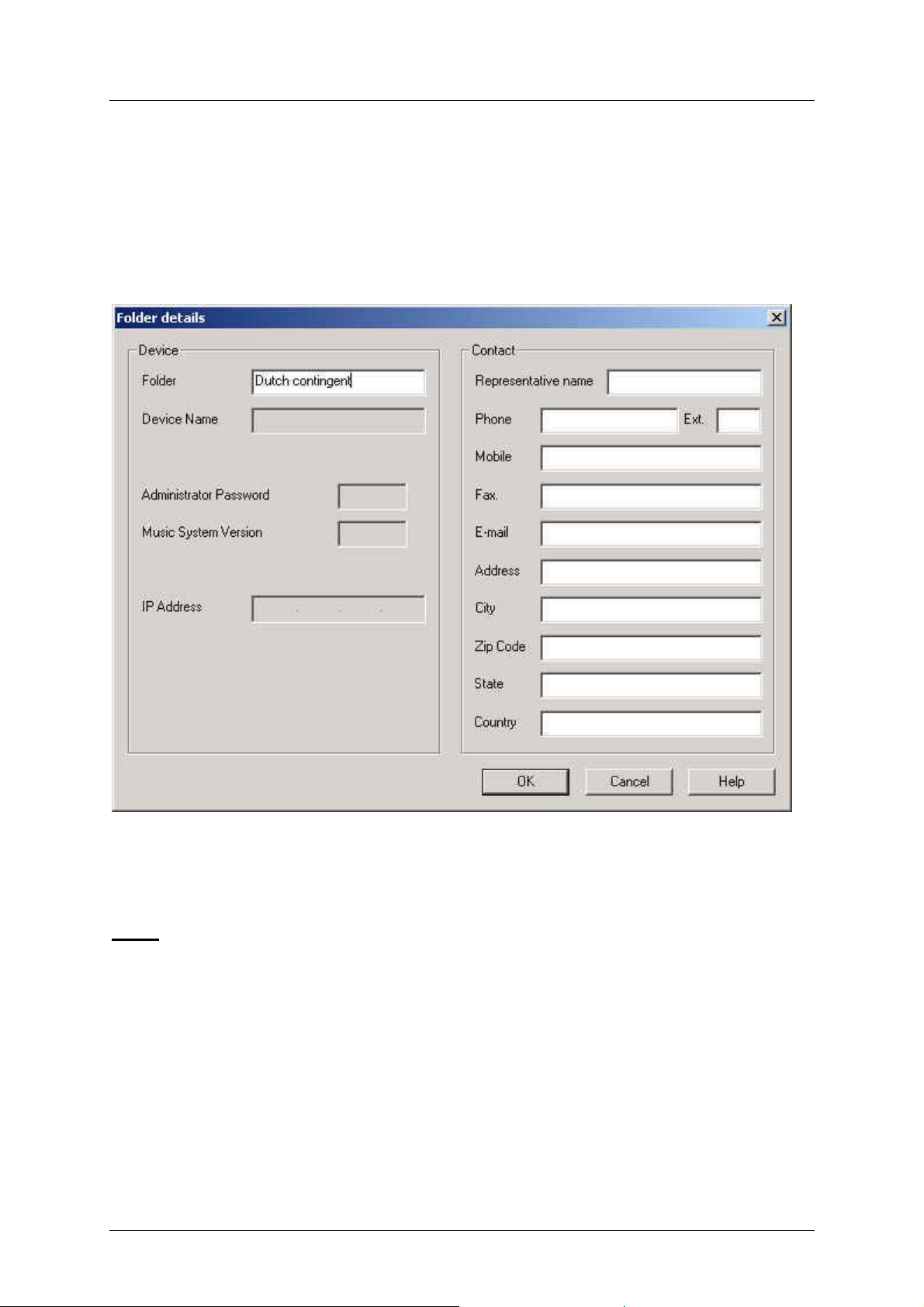

3.2.8.1 New Folder
To create a new folder:
Click on Communication
Click on Communication Selection
Click on Select Device
Click on New Folder
Fill in the name of the folder
Click on OK
Click on Close
Now the new folder has been created and the new device can be added to this folder.
Note:
For administrative purposes it is useful to fill in the contact information of the person
responsible for this folder.
It is possible to add another folder as a sub folder.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 54
Music System 49
Chapter 3. Music Software

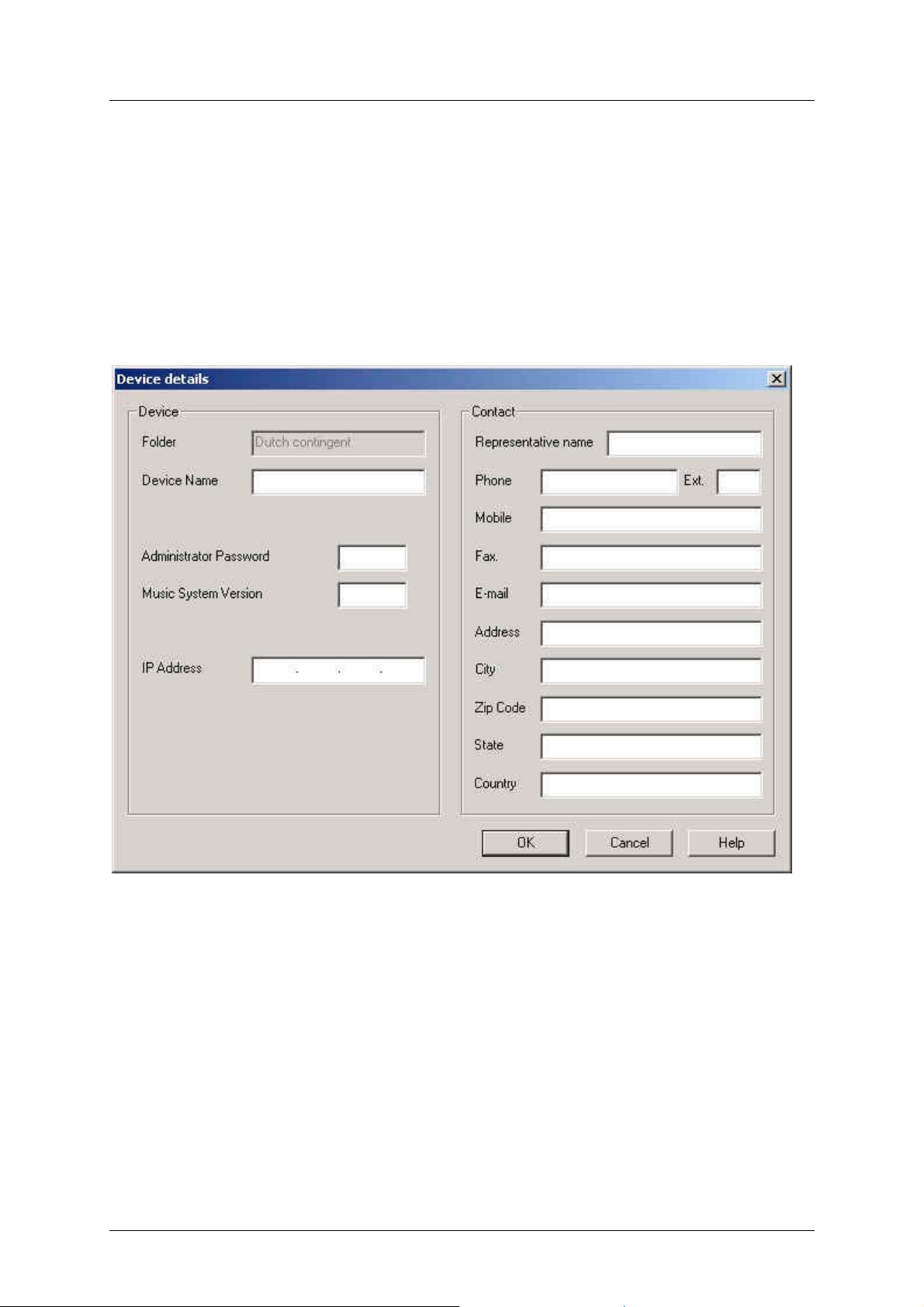

3.2.8.2 New Device
To add a new device to the Folder:
Click on Communication
Click on Communication Selection
Click on Select Device
Click on the required Folder
Click on New Device
Fill in the Device Name
Fill in the Administrator’s password (default 1234)
Fill in the Music System version (optional, but advisable)
Fill in the IP Address
Fill in the complete contact information (optional, but advisable)
Click on OK
Click on Close
Now the device has been added to the folder in the tree.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 55
Music System 50
Chapter 3. Music Software

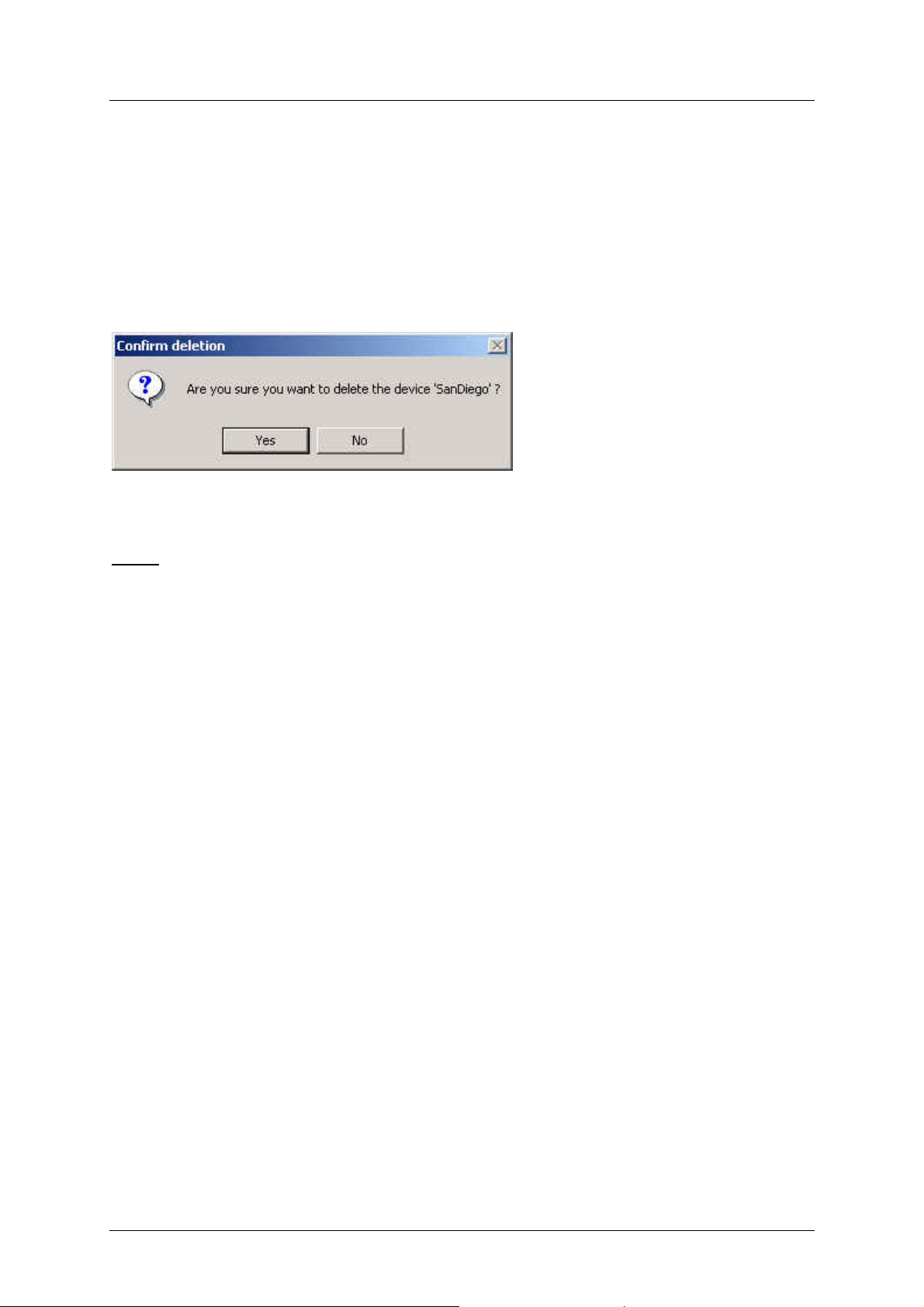

3.2.8.3 Delete
To delete a Device and/or Folder:
Click on Communication
Click on Communication Selection
Click on Select Device
Click on the required Folder (and the Device)
Click on Delete
Click on Yes
Click on Close
Now the Folder and/or the Device have been deleted, depending on the selection made.
3.2.8.4 Edit
To edit a Folder or Device:
Click on Communication
Click on Communication Selection
Click on Select Device
Click on the required Folder or Device
Click on Edit
Make the changes in the window
Click on OK
Click on Close
Now the required change has been made to the Folder or Device.
3.2.8.5 Select
To select a Music System:
Click on Communication
Click on Communication Selection
Click on Select Device
Click on the required Folder and Device
Click on Select
Click on OK
Click on Close
Now the Music System has been selected and you can start configuring the device.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 56
Music System 51
Chapter 3. Music Software
3.2.8.6 Close
Close closes the Device Selection window and closes it, bringing you back to the MUP main
screen.
3.2.8.7 Help
This function opens the Help related to this window and functions in this window.
3.3 File Types
When working with the MUP software you will come across file of the following file
extensions:
*.MUP
This is the file containing all the configuration parameters, excluding the Audio files. The
*.MUP file can be found in the same directory as ERAP.EXE and MUP.EXE, unless you
have changed the location while saving or via the File/Options menu.
*.MP3
This is a music file, used in the Music System. The *.MP3 file can be found in the same
directory as ERAP.EXE and MUP.EXE, unless you have changed the location while
saving or via the File/Options menu.
*.BIN
This is the extension of the software upgrade file. This file can only be uploaded into the
Music System when directly connected via the RS-232. When connected via the network,
the function is grayed out. The *.BIN file can be found in the same directory as
ERAP.EXE and MUP.EXE, unless you have changed the location while saving or via the
File/Options menu.
*.MBU
This is the backup file that will be created when performing a Backup action in the MUP
program. This file can be used to restore the information of the Music System after a
crash or corruption of the information (use the Restore function). The *.MBU file
contains all the Music System configuration parameters and Audio files. The *.MBU file
can be found in the same directory as ERAP.EXE and MUP.EXE, unless you have
changed the location while saving or via the File/Options menu.
*.MDB
This is the database with the device table data (information about the devices, Folders and
Contacts). This file can be found in the same directory as ERAP.EXE and MUP.EXE.
Notes:
Should you want to transfer the complete device table to another computer with the
installation of the MUP, copy the *.MDB file.
The *.MDB and *.MBU files contain all the information needed to duplicate the complete
installation of the current Music System, including the device table in the MUP.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 57
Music System 52
Chapter 3. Music Software
3.4 IP-Remote Utility Program (E-RAP)
E-RAP, the IP-Remote Utility Program for the Music System is the utility used for remote
programming of the Music System device(s). This utility uses the same database with device
information as the MUP utility and therefore the device information has not to be inserted
again.
The main window of E-RAP is shown below:
The E-RAP Main window contains a Menu Bar, Toolbar, Status bar and four panes, which
are described below:
The Panes in the Main Window
Left Pane With Shortcut Menus to Device List, Tasks
and Reports
Middle Pane With an overview of Task statuses or Root,
Folder and Device information
Right Pane With a one-line report of the task(s) or
device(s)
Bottom Pane With a real-time activity log of the tasks
performed
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 58
Music System 53
Chapter 3. Music Software
The following function buttons can be pressed on the main window’s toolbar, when the
action is allowed:
Button Function
Create New Task
Create New Folder
Create New Device
Edit Selection
Delete Selection
The following menu’s can be accessed via the main screen:
Menu Item Functions in Menu Item
File New Folder, New Device, New Task, Exit
Edit Delete, Edit
View Toolbar, Status Bar, Shortcuts Menu
Help Help Topics, About E-RAP
3.4.1 File Menu
The File menu contains the following functions:
Function Description
New Folder To create a new collection of devices related
to each other (device group)
New Device To create a new device in a folder
New Task To define a task to be performed
Exit To exit the program
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 59
Music System 54
Chapter 3. Music Software
3.4.1.1 New Folder
To create a new folder:
Click on the Device List in the left pane
Click on File
Click on New Folder
Fill in the name of the folder
Click on OK
The new folder has now been created and the new device can be added to this folder.
Note:
For administrative purposes it is useful to fill in the contact information of the person
responsible for this folder.
It is possible to add another folder as a subfolder.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 60
Music System 55
Chapter 3. Music Software
3.4.1.2 New Device
To add a new device to a Folder:
Click on Device List in the left pane
Click on the required folder
Click on File
Click on New Device
Fill in the Device Name
Fill in the Administrator’s password (default 1234)
Fill in the Music System version (optional, but advisable)
Fill in the IP Address
Fill in the complete contact information (optional, but advisable)
Click on OK
Now the device has been added to the folder in the tree.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 61
Music System 56
Chapter 3. Music Software
3.4.1.3 New Task
To create a new task:
Click on New Task in the left pane
Click on File
Click on New Task
Click on Browse to add target devices
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 62
Music System 57
Chapter 3. Music Software
Select the required device
Click on the button to add the device to the selection
Repeat the previous steps for all the required devices
Click on OK
The device or devices have now been added to the Target Devices list.
Insert the date and time for the start and finish of the Task Execution
Add the number of attempts
Click on Browse to add Actions
Mark the required Action Type
MP3 File – Update of the Audio Files to the Music System (browse for the required
Audio file, insert the Audio File number to which it should be connected, insert the
required volume and add comments)
Configuration File – Update of the Configuration File (browse for the required
configuration file (*.MUP)
Connection test – Test if there is a connection with the Music System
Click on OK
Repeat the Task Action steps for all actions to be performed on the selected devices
Click on OK to add the Task to the queue.
When the Task Execution takes place, the task is taken from the queue and executed. By
clicking on the different Task statuses in the middle pane (see below).
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 63
Music System 58
Chapter 3. Music Software
Status information is shown in the right pane:
The bottom pane will show the real-time activity log of the tasks performed:
3.4.1.4 Exit
To exit the E-RAP, IP-Remote Access Program:
Click on File
Click on Exit
The IP-Remote Access Program will now be closed.
3.4.2 Edit Menu
The Edit menu contains the following functions:
Function Description
Delete Delete a selected Folder or Device
Edit Edit a selected Folder or Device
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 64
Music System 59
Chapter 3. Music Software
3.4.2.1 Delete
To delete a selected folder or device:
Click on Device List in the left pane
Click on the required folder or device
Click on Edit
Click on Delete
Click on Yes
Now the folder or device has been deleted.
Note:
When deleting a folder, make sure the folder does not contain devices; otherwise you will get
a warning that you cannot delete the folder.
Clicking on the device and clicking on de delete button will also give you the Confirm
deletion window.
3.4.2.2 Edit
To edit a selected folder or device:
Click on Device List in the left pane
Click on the required folder or device
Click on Edit
Click on Edit
Edit the Folder Details or Device Details
Click on OK
Now the details have been edited.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 65
Music System 60
Chapter 3. Music Software
3.4.3 View Menu
The View menu contains the following functions:
Function Description
Toolbar Show a row with buttons under the menus
Status Bar Show status information at the bottom of the
main screen
Shortcuts Menu Show the left pane with action buttons
3.4.3.1 Toolbar
To view the Toolbar:
Click on View
Click on Toolbar
The Toolbar function will be marked in the View menu. This will show a row with buttons
under the menus.
3.4.3.2 Status Bar
To view the Status Bar:
Click on View
Click on Status Bar
The Status Bar function will be marked in the View menu. This will show a row with status
information at the bottom of the main screen.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 66
Music System 61
Chapter 3. Music Software
3.4.3.3 Shortcuts Menu
To view the shortcuts menu:
Click on View
Click on Shortcuts Menu
The Shortcuts Menu will be marked in the View menu. This will show the action buttons in
the left pane.
3.4.4 Help Menu
The Help menu contains the following functions:
Function Description
Help Topics The Help function in the E-RAP
About E-RAP Version information about the E-RAP
software
3.4.4.1 Help Topics
To go to Help:
Click on Help
Click on Help Topics
You will now be able to search in the Help module for the topics you need.
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 67
Music System 62
Chapter 3. Music Software
3.4.4.2 About E-RAP
By clicking on Help and then on About E-RAP, you will get the version information about
the IP-Remote Access Program.
3.4.5 Reports
By clicking on the Reports button in the left pane,
The Report window opens.
In this window the following information is has to be filled in or marked:
Mark the Root, Folder or Device for which you want the report
Select the Report type
Device List Report – information about the selected devices
Tasks Report – information about the defined tasks, which tasks (in Task Status drop
down menu) and Time Period (start and finish of the period)
Mark the Task Details
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 68
Music System 63
Chapter 3. Music Software
Task Files list (list of the files handled by the tasks)
Cause of Failure (list of errors and reasons for it)
Mark the Device Details which you want to have specified in the report
Click on View Report
Now the report is opened in Notepad and can be saved, printed and edited.
Click on close to close the Report window
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Page 69
Music System 64
Chapter 4. MP3 File Size Calculation Table
4. MP3 File Size Calculation Table
The following table shows the Maximum available recording time per MP3 file type.
Mode Bandwidth Bit-rate Quality File size for
1 min. of
recording
time
Mono 8kHz 28 Kbit low 181 Kb 2h 50 min
Mono 8kHz 48 Kbit low 362 Kb 1h 40 min
Mono 16kHz 32 Kbit medium 248 Kb 2h 10 min
Mono 16kHz 48 Kbit medium 361 Kb 1h 40 min
Mono 16kHz 96 Kbit medium 722 Kb 45 min
Mono 16kHz 128 Kbit medium 963 Kb 32 min
Mono 22kHz 32 Kbit good 248 Kb 2h 10 min
Mono 22kHz 48 Kbit good 361 Kb 1h 40 min
Mono 22kHz 96 Kbit good 722 Kb 45 min
Mono 22kHz 128 Kbit good 963 Kb 32 min
Mono 44kHz 32 Kbit good 248 Kb 2h 10 min
Mono 44kHz 48 Kbit good 361 Kb 1h 40 min
Mono 44kHz 96 Kbit excellent 722 Kb 45 min
Mono 44kHz 128 Kbit excellent 962 Kb 32 min
Maximum
recording
time
Installation and Operation manual v1.0 November 2003 Copyright 2003 by Aleen
Loading...
