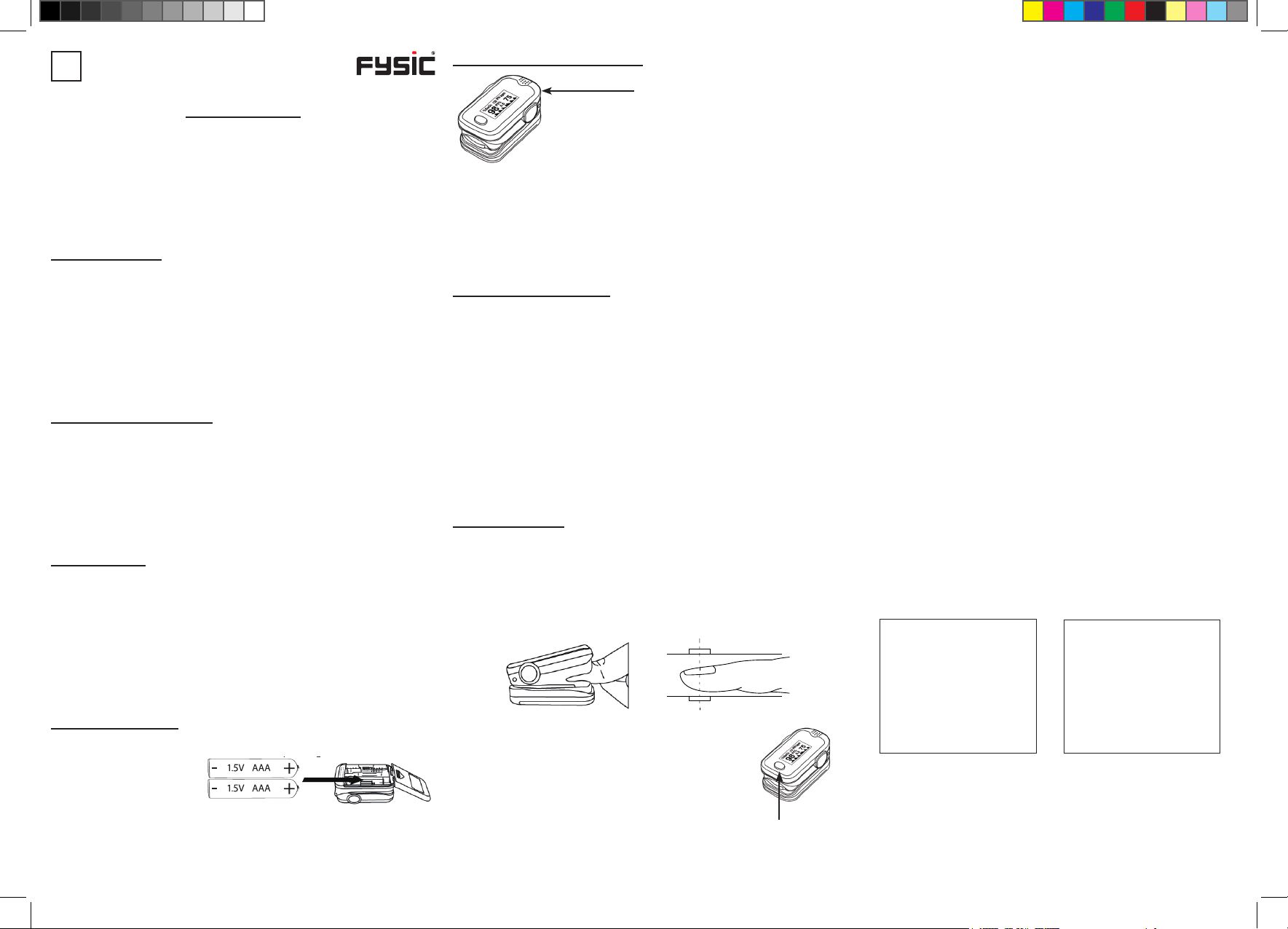

Alecto FPO-11 User manual

GB

FPO-11

Puls oximeter

Introduction:

The Fysic FPO-11 is a pulse Oximeter which
measures the percentage of the amount of oxy­gen found in the blood.

Intended use:
The Pulse Oximeter is a non-invasive device
intended for spot checking of functional oxygen
saturation of arterial hemoglobin (SpO2) and
pulse rate (PR). This portable device is indicated
for use in adult patients in clinical institution and
home environments.

Measuring principle:
By shining an infra-red light through the skin, the

reected light will be compared with the emitted

light which will in turn analyze the color of the red

blood cells. This colour measured will reect the

amount of oxygen in the blood.

Do not use:
Do not use the FPO-11 with an irregular heart
beat (Atrial Fibrillation).

Installation:

The FPO-11 comes with two included batteries, a
wrist strap and a protective case.

Install batteries:

1. Slide the battery cover o󰀨 of the FPO-11

2. Insert the two
supplied batte­ries, be sure to
take note of the positive and negative poles
(+ and -)

3. Place the battery cover back onto the FPO-11

Fastening the wristband:

5. Readings in the display:

1. Push the thin cord through the
hole on the FPO-11 and then
make a loop from the cord.

2. Put the thick part of the strap through the loop.

3. Pull the thick part of the cord all the way
through the loop tugging slightly to tighten it.

Use:

Preparations & tips:

• Make sure that you are familiar with the ope­ration of the pulse Oximeter.

• Avoid bright lights.

6. The FPO-11 will turn o󰀨 15 seconds after the

• Remove articial nails and/or nail polish.

• Wash your hands before using.

• Make sure your hands are warm to ensure a
good blood circulation.

• Sit quietly before and during the taking of the
measurement.

Setting an alarm:

You can set alarm tones to give alert signals when
the level of the oxygen in your blood, or the pulse
rate exceeds the adjustable upper or lower values.

1. Turn on the FPO-11 by quickly pressing the

Measurement:

1. Open the clip and place your nger on the

2. Hold down the on/o󰀨 button for more than one
FPO-11 with the nail facing upwards, as
shown on the adjacent picture; use your mid-

3. Now release the on/o󰀨 button. You will see

dle nger preferably pushing it gently towards

the back of the Oximeter.

2. Turn on the FPO-11 by pressing the

on/o󰀨 button.

3. If necessary, the reading direction
of the display can be changed by

• The line with the star at the end is the active line.

• Press quickly on the on/o󰀨 button to move the
pressing the on/o󰀨 button repea­tedly.

• Press and hold the on/o󰀨 button to change

4. Do not move your nger during the measurement.

- The “% SpO2” shows the percentage of
oxygen in the blood.

- The “PRbpm” gives the pulse rate of the
pulse per minute.

- The PI (Perfusion Index) is the ratio of the

pulsatile blood ow to the non-pulsatile
blood ow. The PI’s values range from

0.02% for very weak pulses to 20% for
strong pulses.

- Depending on the selected reading di­rection, a pulsating bar graph shows the
strength of the heartbeat or the heart rate
can be seen at the bottom of the display.

clip has been taken o󰀨 the nger.

on/o󰀨 button.

second to open the settings menu.

one of the following statements:

Limit Setup *
SPO2 Hi 100
SPO2 Lo 94
PR Hi 130
PR Lo 50

+/- +

Exit

Remind Setup *
Sound Reminder on

Beep o󰀨
Demo o󰀨

Restore Ok
Brightness 4

Exit

star to the next line.

the setting of the current line.

Screen 1

- Limit Setup To go to the other menu

- SpO2 Hi Set hi levels of oxygen
percentage

- SpO2 Lo Set low levels of oxygen
percentage

- PR Hi Set high levels of pulse
rate

- PR Lo Set low levels of pulse rate

- +/- Switch between going

higher or lower

- Exit To exit the menu

Screen 2

- Remind Setup To go to the other menu

- Sound reminder To switch the alarm on or o󰀨

- Beep To switch the pulse rate

alarm on or o󰀨

- Demo to play a demo (power o󰀨 to

- Restore To restore back to factory
settings

- Brightness To set the display intensity

- Exit To exit the menu

Maintenance:

Cleaning and storage:

• The device is non-sterile and not intended to be
sterilized.

• Clean the black rubber nger sleeve before and
after using with medicinal alcohol (> 95%).

• The exterior part of the tester can be cleaned
using a damp cloth. The FPO-11 is not water­proof, so DO NOT immerse in water.

• Keep the pulse Oximeter out of the reach of
children, and preferably inside the included
case in a dry place.

• See the technical specications regarding
storage conditions.

start again without the demo)

Batteries:

• The batteries can power the unit for over 20
hours continuously.

• If the device will not be used for a long period
(> 2 months), remove the batteries. Doing so
prevent any possible damage from leaking
batteries.

• Replace the batteries when the battery indi­cator shows that the batteries are running low
(display: or ).

• Always place two identical batteries, type
alkaline, size AAA.

• Rechargeable batteries should not be used
due to their lower voltage.

Environment:

• Should the device need to be discarded,

hand it over to your supplier. They
will dispose of it in an environmen-

tally friendly manner.

• Empty batteries can be returned to the sup­plier or disposed of in an environmentally­friendly manner according to your local regu­lations. Do not dispose of used batteries with
your normal household waste.

Technical:

• 24 months Warranty ● FPO-11 does not con­tain any service components/accessories ●

maintenance only through the service depart­ment of Fysic.

Calibration:

• The FPO-11 does not need to be calibrated.

Declaration of Conformity:

• http://DOC.hesdo.com/FPO-11-DOC.pdf

Specications:

• Display: Colour, type OLED

• Pulse rate:
Range: 30bpm ~ 250bpm
Resolution: 1bpm
Accuracy: 1bpm
Strength: bar chart
(bpm = beats per minute)

• SpO2:
Range: 35 -100%
Resolution: 1%
Accuracy: 90% -100%: ±2%
70% - 90%: ±3%
< 70%: unspecied

• Perfusion Index:
Range: 0-20%
Resolution: 0,1%
Accuracy: 0% - 1%: 0,1%
1% - 20%: 1%

• Batteries: 2x AAA, 1.5V, Alkaline
Consumption: 30mA (nominal)
Battery life: >20 hours continuous use

• Dimensions, weight:

62,8 x 38 x 29mm / 51 grams (incl. batt)

• Surroundings:
Operating temperature: 5°C ~ 40°C
Storage temperature: -10°C ~ 50°C
Operating humidity: 15% ~ 80%
Storage Humidity: 10% ~ 93%

: Shanghai International Holding Corp.

GmbH (Europe).

Ei󰀨estrasse 80, 20537, Hamburg, Germany.

: Shenzhen AEON Technology Co. LTD.
RM6H02, Block 27-29, Tianxia IC Industrial Park
Majialong, No. 133 of Yiyuan Road, Nantou
Street, Nanshan District, Shenzhen, China.
Model: A340

v1.20123
