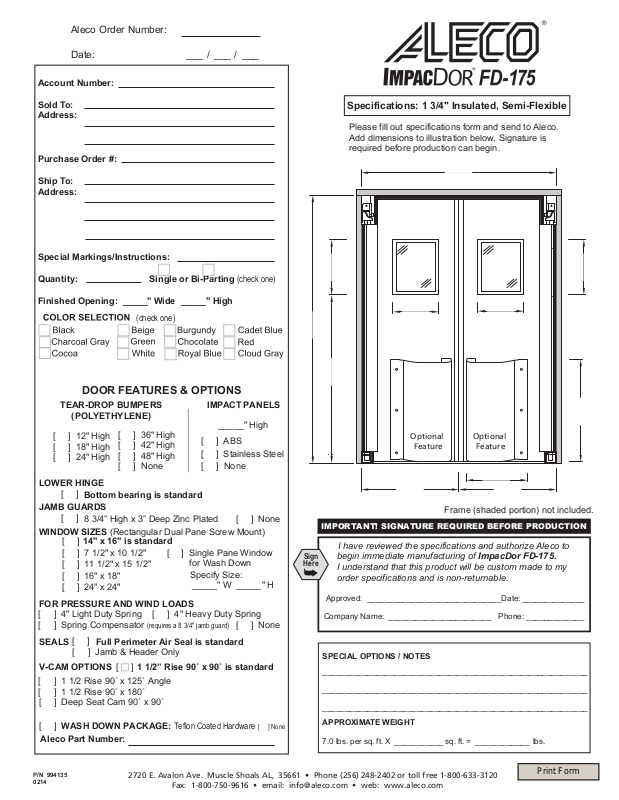

Aleco FD-175 User Manual

Aleco Order Number:

Print Form

Date: ___ / ___ / ___

Account Number:

Sold To:
Address:

Purchase Order #:

Ship To:
Address:

Special Markings/Instructions:

Quantity: Single or Bi-Parting (check one)

Finished Opening: _____" Wide _____" High

(check one)

DOOR FEATURES & OPTIONS

TEAR-DROP BUMPERS

(POLYETHYLENE)

[ ] 12" High
[ ] 18" High
[ ] 24" High

[ ] 36" High
[ ] 42" High
[ ] 48" High

IMPACT PANELS

_____" High

[ ] ABS
[ ] Stainless Steel
[ ] None[ ] None

Specifications: 1 3/4" Insulated, Semi-Flexible

Please fill out specifications form and send to Aleco.
Add dimensions to illustration below. Signature is
required before production can begin.

Optional

Feature

Optional

Feature

LOWER HINGE

[ ]

Bottom bearing is standard

JAMB GUARDS

[ ]

8 3/4” High x 3” Deep Zinc Plated

WINDOW SIZES (Rectangular Dual Pane Screw Mount)

14" x 16" is standard

[ ]
[ ] 7 1/2" x 10 1/2"
[ ] 11 1/2" x 15 1/2"
[ ] 16" x 18"
[ ] 24" x 24"

[ ] Single Pane Window
for Wash Down

Specify Size:
_____" W _____" H

FOR PRESSURE AND WIND LOADS

[ ] 4" Light Duty Spring [ ] 4" Heavy Duty Spring
[ ] Spring Compensator

SEALS

[ ]

Full Perimeter Air Seal is standard

(requires a 8 3/4" jamb guard)

[ ] Jamb & Header Only

V-CAM OPTIONS

[ ]

1 1/2” Rise 90˚ x 90˚ is standard

[ ] 1 1/2 Rise 90˚ x 125˚ Angle
[ ] 1 1/2 Rise 90˚ x 180˚

[ ] Deep Seat Cam 90˚ x 90˚

[ ] WASH DOWN PACKAGE: Teflon Coated Hardware

Aleco Part Number:

P/N 994135
0214

2720 E. Avalon Ave. Muscle Shoals AL, 35661 • Phone [phone] or toll free 1-800-633-3120

Fax: [phone] • email: [e-mail] • web: www.aleco.com

[ ] None

[ ] None

[ ] None

Frame (shaded portion) not included.

IMPORTANT! SIGNATURE REQUIRED BEFORE PRODUCTION

I have reviewed the specifications and authorize Aleco to

Sign
Here

begin immediate manufacturing of

ImpacDor FD-175.

I understand that this product will be custom made to my
order specifications and is non-returnable.

Approved: ______________________________Date:______________

Company Name: _______________________ Phone: _____________

SPECIAL OPTIONS / NOTES

___________________________________________________________

___________________________________________________________

___________________________________________________________

APPROXIMATE WEIGHT

7.0 lbs. per sq. ft. X ___________ sq. ft. = ____________ lbs.
