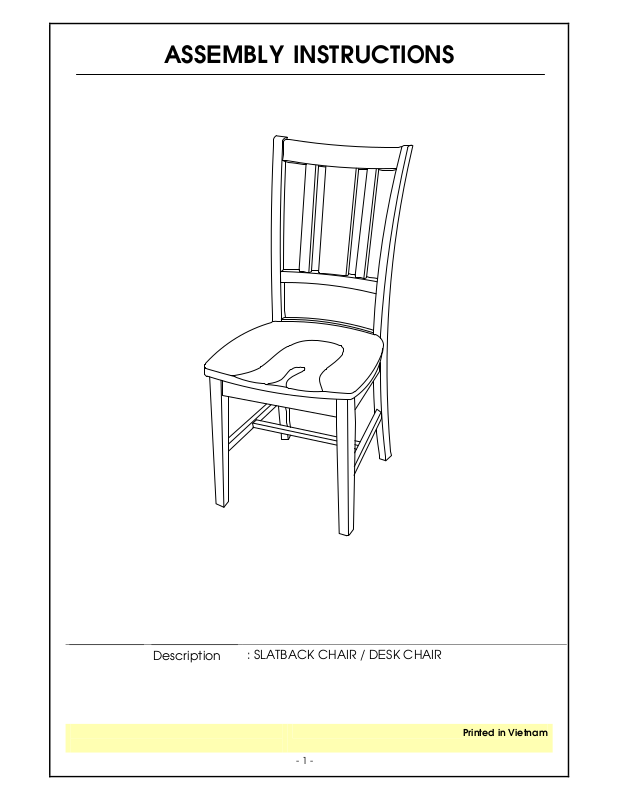

ASSEMBLY INSTRUCTIONS
Description
: SLATBACK CHAIR / DESK CHAIR
- 1 -
Printed in Vietnam
BEFORE ASSEMBLY
Thank you for purchasing this quality product. This product has been designed for easy assembly
and constructed for durability. Please take the time to read and follow the assembly instructions
carefully.
Be sure to check all packing material carefully for small parts which may have come loose inside the
carton during shipment. Please separate, identify, and count all parts and metal hardware.
Compare with part list to be sure all parts are present.
If hardware is missing, or you need help with assembly, please call us.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the
parts from being scratched.
- Remove all wrapping material, including staples & packing straps before you start to
assemble.
- DO NOT tighten all screws and bolts until completely assembled.
- Keep all hardware parts out of reach of children.
ASSEMBLY TOOLS REQUIRED
NOT INCLUDED
- 2 -
Printed in Vietnam
PART LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing,
please make sure you have all of the following parts:
NO Description Qty Sketch NO Description Qty Sketch
A Chair back 1
C Chair Seat 1
Side
E
Stretcher
(L-R)
2
B Seat Frame 1
D
F
Front Leg
(L-R)
Middle
Stretcher
2
1
HARDWARE LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing,
please make sure you have all of the following hardware:
NO Description Qty Sketch NO Description Qty Sketch
1
3
5
(6.5 x 11mm)
7
(M3.5 x 15mm)
Short bolt
( M6 x 40mm)
Long bolt
(M6 x 80mm)
Lock Washer
Screw
3 2
4 4
11
2
Medium bolt
(M6 x 60mm)
Long Screw
(M4 x 35mm)
6
8
Flat Washer
(6.5 x 19mm)
Allen Key
(M4x80mm)
4
8
11
1
Printed in Vietnam
- 3 -
STEP 1
Attach seat frame (B) to the back (A) with bolts (1) and (3), and washers (5) and (6), as shown below.
Tighten with Allen key (8).
Note: DO NOT tighten any of the bolts, until the chair is assembled, then put on a flat level surface to
make sure the chair is level and then tighten the bolts.
STEP 2
Attach front legs (D) to the seat frame (B) with bolts (2), and washers (5) and (6). Tighten with Allen
key (8).
Place side stretchers (E) and middle stretcher (F) between front and back legs. Attach stretchers with
the screws (4) and ( 7) as shown below. Tighten with a screwdriver.
Printed in Vietnam
- 4 -
STEP 3
Attach the seat (C) to top of the seat frame (B) with screws (4) .Tighten with a screwdriver.
- 5 -
Printed in Vietnam
