Read this instruction carefully. See hardware and furniture part list for guidance.
Be sure all parts are complete, before you assemble. Place all wooden furniture
parts on a clean and flat soft surface to prevent from being scratched.
Follow the figure to start assembling.
CAUTIONS : 1. Do not FULLY - TIGHTEN the nut or nut bolt until all nut or bolt is ready assembed.
2. Do not OVER - TIGHTEN the nut or bolt to avoid causing damages to the thread.
3. Keep all hardware parts out of reach of children.
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.
Tool needed : Screwdriver & Hammer (not provided).

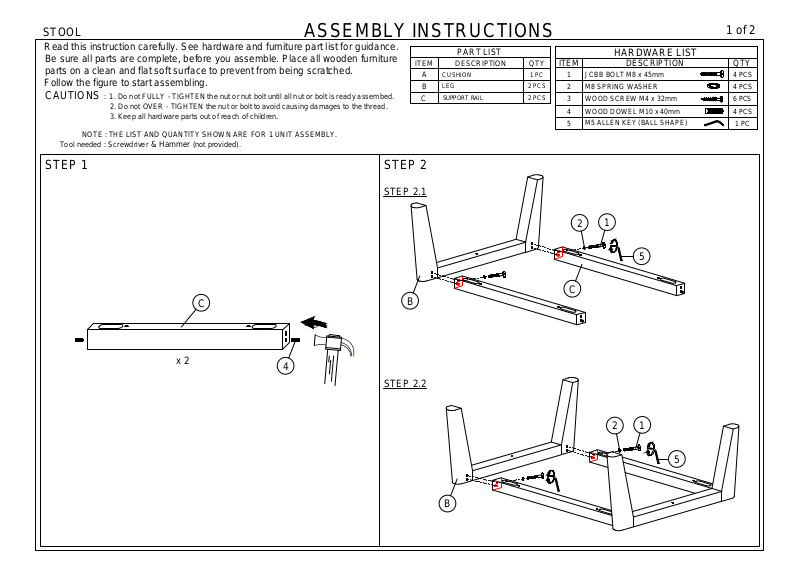

ASSEMBLY INSTRUCTIONS
PART LIST
ITEM DESCRIPTION
QTY
A
CUSHION 1 PC
B
LEG 2 PCS
C
SUPPORT RAIL 2 PCS
HARDWARE LIST
ITEM DESCRIPTION
QTY
1 JCBB BOLT M8 x 45mm 4 PCS
2 M8 SPRING WASHER 4 PCS
3 WOOD SCREW M4 x 32mm 6 PCS
4 WOOD DOWEL M10 x 40mm 4 PCS
5
M5 ALLEN KEY (BALL SHAPE)
1 PC
STEP 1
1 of 2
STEP 2
STEP 2.1
STEP 2.2
C
4
B
C
5
1
2
5
1
2
B
x 2
STOOL
STEP 3
ASSEMBLY INSTRUCTIONS
2 of 2
STEP 4
STEP 3.1
STEP 3.2
A
B
Follow marking line
assemble leg.
3
x 6
