PART LIST
ITEM DESCRIPTION
QTY
A
CUSHION 1 PC
B
LEG (LEFT)
1 PC
C
LEG (RIGHT)
1 PC
D
SUPPORT RAIL 2 PCS
HARDWARE LIST
ITEM DESCRIPTION
QTY
1
JCBB BOLT M8 x 45mm 4 PCS
2 JCBC BOLT M6 x 45mm 4 PCS
3 M8 SPRING WASHER 4 PCS
4 WOOD DOWEL M10 x 40mm 4 PCS
5
M4 ALLEN KEY (BALL SHAPE)
1 PC
6
M5 ALLEN KEY (BALL SHAPE)
1 PC
Read this instruction carefully. See hardware and furniture part list for guidance.
Be sure all parts are complete, before you assemble. Place all wooden furniture
parts on a clean and flat soft surface to prevent from being scratched.
Follow the figure to start assembling.
CAUTIONS : 1. Do not FULLY - TIGHTEN the nut or nut bolt until all nut or bolt is ready assembed.
2. Do not OVER - TIGHTEN the nut or bolt to avoid causing damages to the thread.
3. Keep all hardware parts out of reach of children.
NOTE : THE LIST AND QUANTITY SHOWN ARE FOR 1 UNIT ASSEMBLY.
Tool needed : Hammer (not provided).

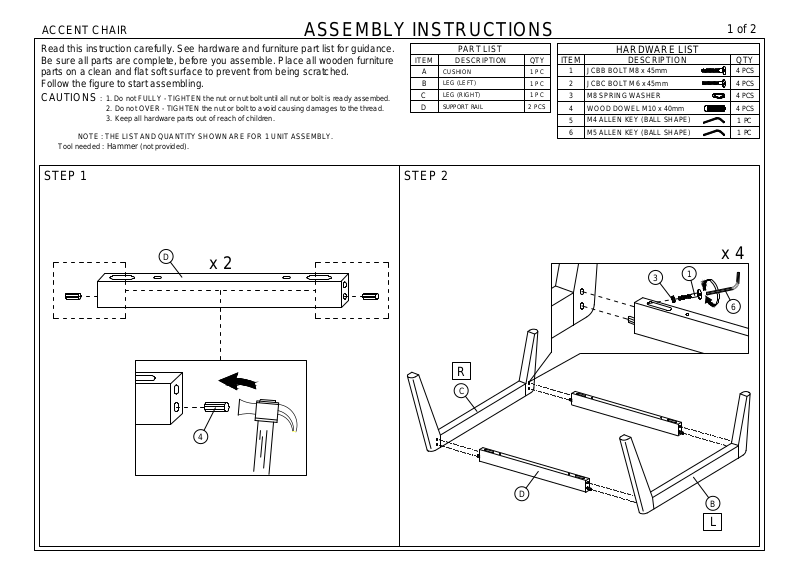

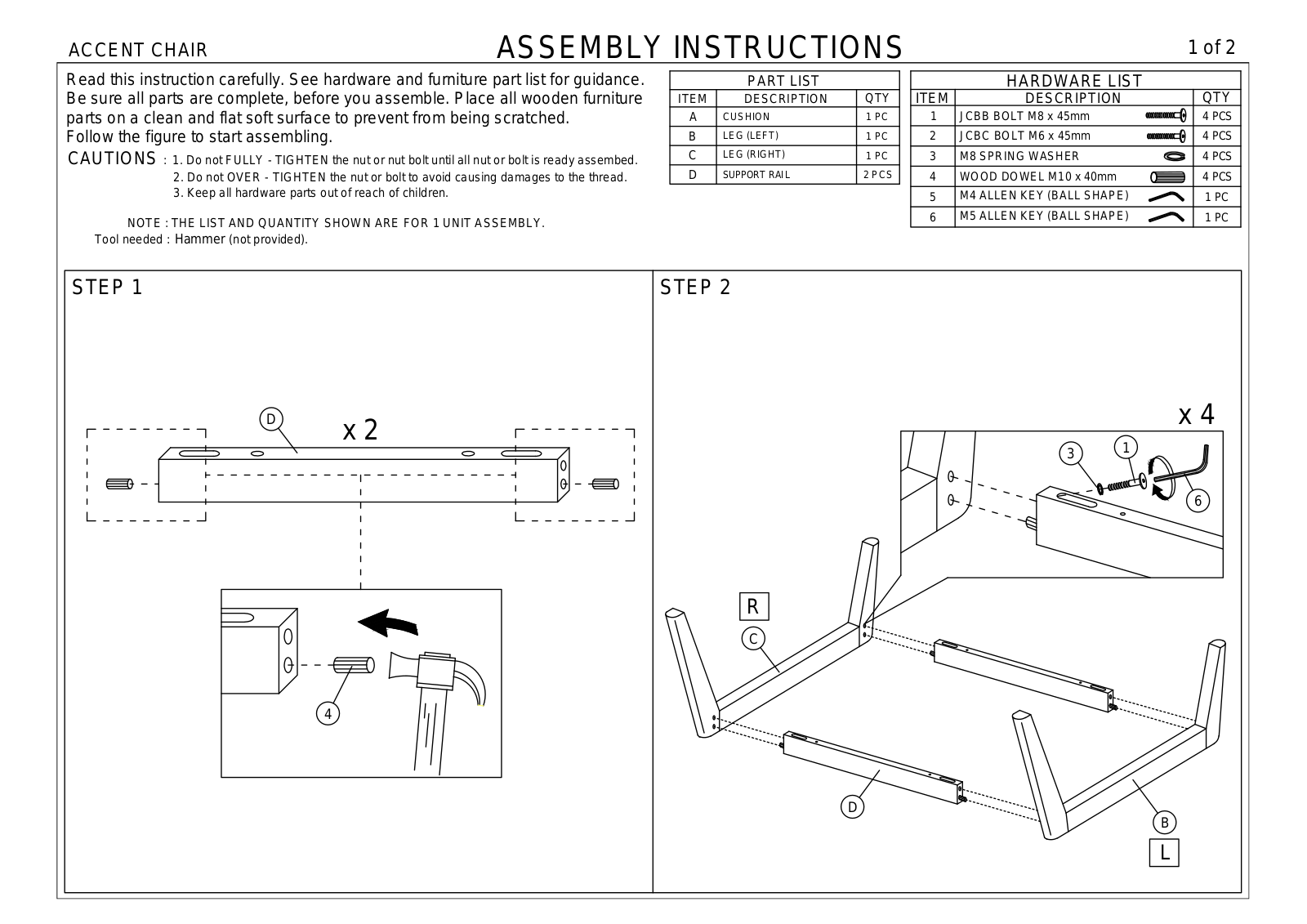

1 of 2
x 2
x 4
STEP 1 STEP 2
D
C
B
D
6
1
3
4
R
L
ACCENT CHAIR
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS

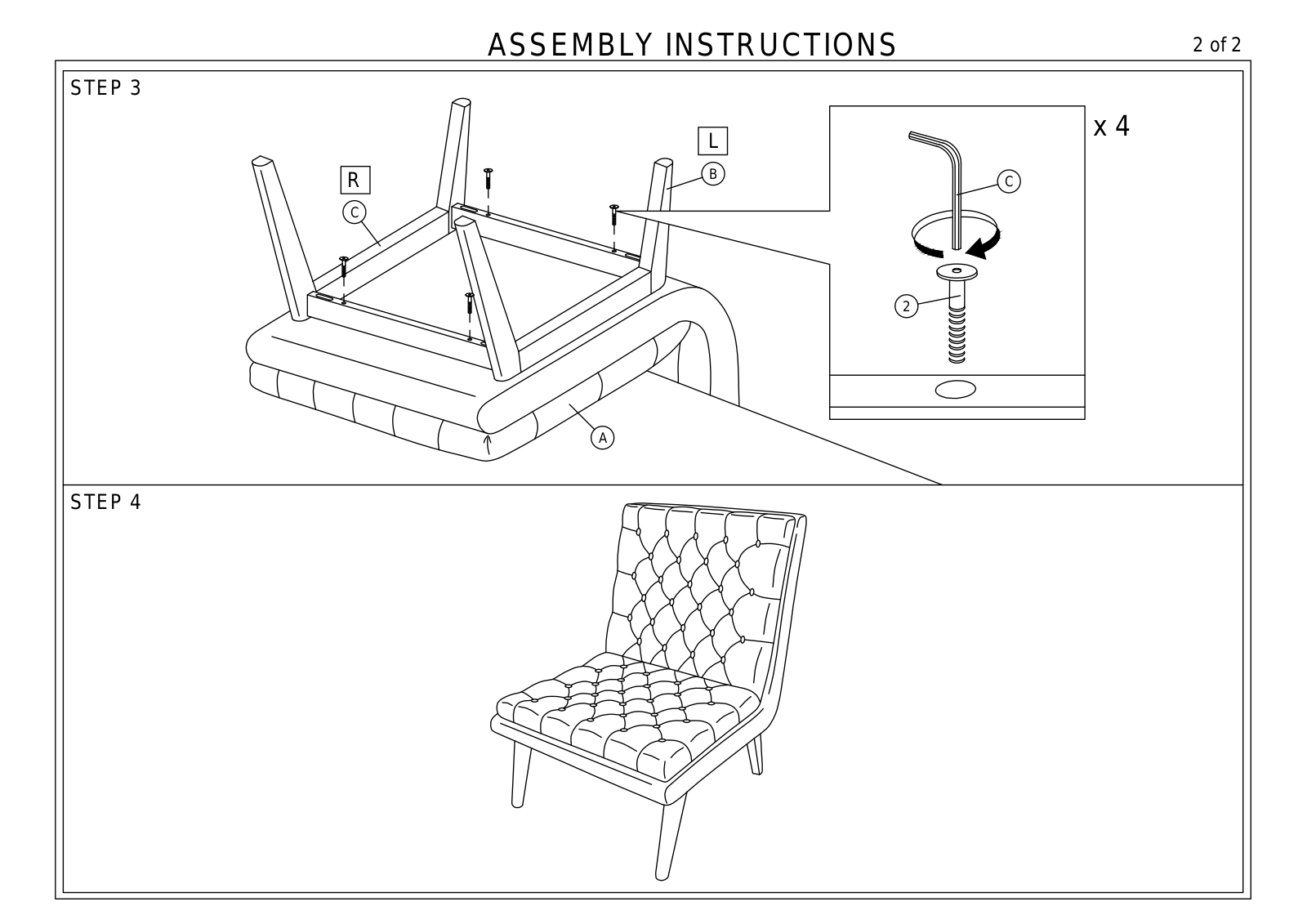

2 of 2
x 4
STEP 3
STEP 4
2
C
A
C
R
B
L
