Caution : You must read this before you proceed
Ottoman
Page 1 OF 5
Label Picture Description QTY
A Ottoman 1
B Wooden Leg 4
Label Picture Description QTY
①
Washer Ring 7
Before
Beginning
Assembly:
Page 2 OF 5

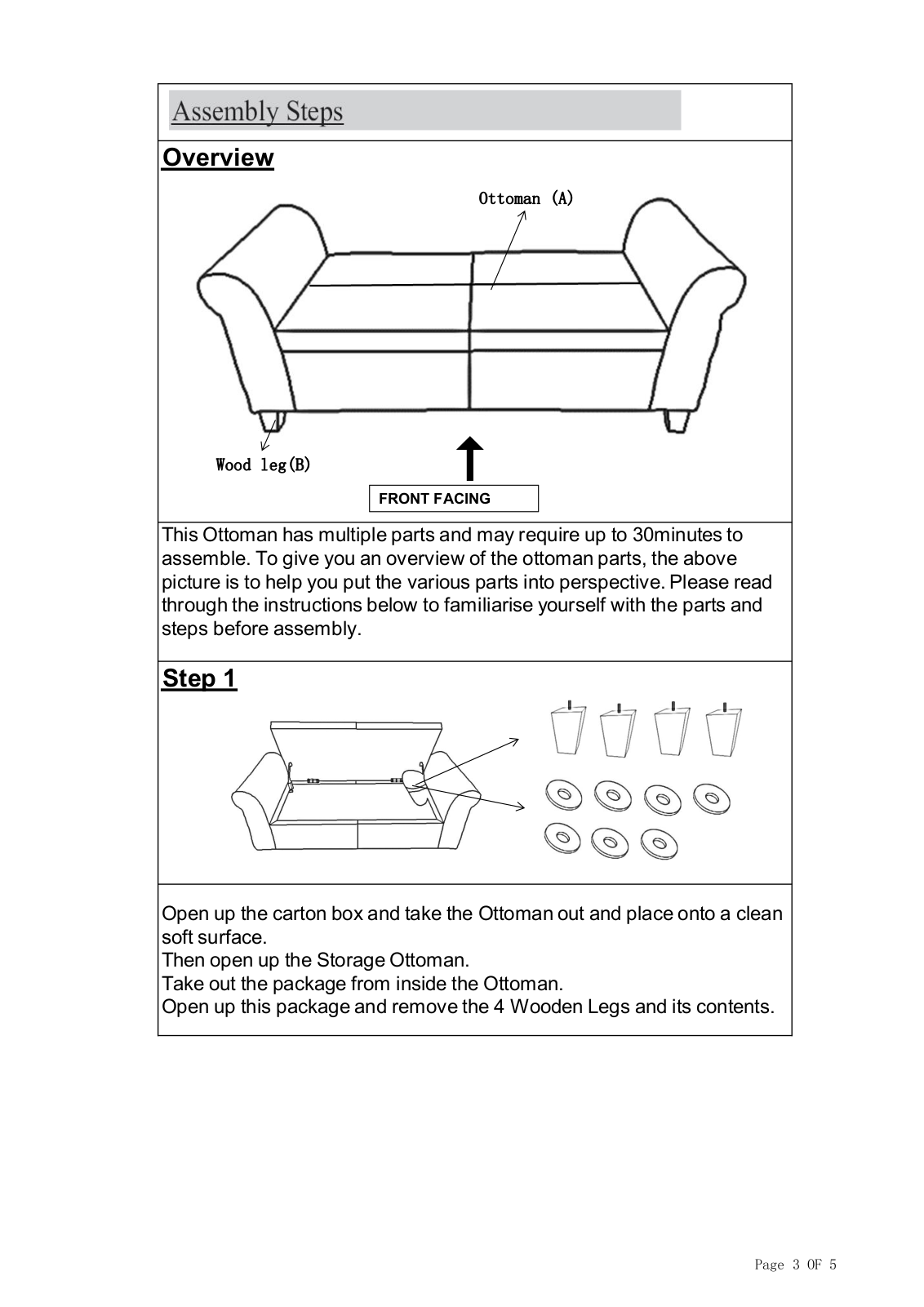

Overview
This Ottoman has multiple parts and may require up to 30minutes to
assemble. To give you an overview of the ottoman parts, the above
picture is to help you put the various parts into perspective. Please read
through the instructions below to familiarise yourself with the parts and
steps before assembly.
Step 1
Open up the carton box and take the Ottoman out and place onto a clean
soft surface.
Then open up the Storage Ottoman.
Take out the package from inside the Ottoman.
Open up this package and remove the 4 Wooden Legs and its contents.
Wood leg(B)
Ottoman (A)
FRONT FACING
Page 3 OF 5
Step 2
Install the first leg(B) into the bottom of the Storage Ottoman(A) by
placing 1 (ONE) piece of Washer Ring on the threaded stem.
The use of Washer Rings improves tightness and security of leg after
assembly.
Tighten by turning the leg clockwise.
Repeat the same step to install the three remaining legs.
Note : The use of Washer Rings are OPTIONAL and is especially
useful to help alleviate slight wobbleness . Some Legs may need
more than one whilst some legs do not need any.
Step 3
Place the Storage Ottoman right side up, test for eveness.
Where you find this Storage Ottoman being uneven, identify the
corresponding leg and "add or remove" a Washer Ring to achieve
evenness.
Turn the Ottoman the right side up and it is ready for use.
This Ottoman can only be used on a flat, level surface.
B
A
Page 4 OF 5
Page 5 OF 5
