ASSEMBLY INSTRUCTIONS

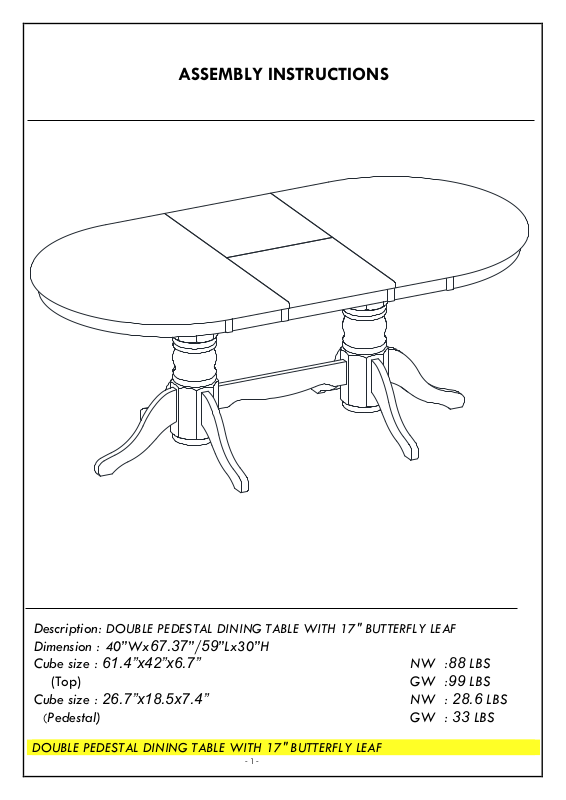

Description: DOUBLE PEDESTAL DINING TABLE WITH 17" BUTTERFLY LEAF
Dimension : 40”Wx67.37”/59”Lx30”H
Cube size : 61.4”x42”x6.7” NW :88 LBS
(Top)
GW :99 LBS
Cube size : 26.7”x18.5x7.4” NW : 28.6 LBS
Pedestal)
(
DOUBLE PEDESTAL DINING TABLE WITH 17" BUTTERFLY LEAF
- 1 -
GW : 33 LBS
BE
FORE ASSEMBLY
Thank
you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability.
Please take the time to read and follow the assembly instructions carefully.
Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment. Please
separate, identify, and count all parts and metal hardware. Compare with part list to be sure all parts are present. If hardware is
missing or you have difficulty assembling this product, please call for us.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched.
- Remove all wrapping material, including staples & packing straps before you start to ass
- DO N
- Ke
OT tighten all screws and bolts until completely assembled
ep all hardware parts out of reach of children.
.
emble.
PART LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the
following parts:
NO Desc
A Top 1 B Ped
C Leg 6 D Cros
ription Qty Sketch NO Description Qty Sketch
estal 2
sbar 1
HARDWARE LIST
When
unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of
the following hardware:
NO Desc
1
ription Qty Sketch NO Description Qty Sketch
xagon nut
He
(M8x13mm)
16
2
t washer
Fla
(8.5x19 mm)
16
Wren
Loc
3
(8.5x13 mm)
k washer
16
4
ch
(13mm) 1
DOUBLE PEDESTAL DINING TABLE WITH 17" BUTTERFLY LEAF
- 2 -
P 1
STE
Attach
below. Tighten with wrench (4).
crossbar (D) and legs (C) to pedestals (B) with nuts (1), washers (2) and (3) as shown
C
2
C
D
C
B
STEP
Carefully put Top (A) on pedestals (B).Attach Top (A) to pedestals (B) with hexagon nuts
(1), washers (2) and (3) as shown below. Tighten with wrench (4).
2
DOUBLE PEDESTAL DINING TABLE WITH 17" BUTTERFLY LEAF
- 3 -
P 3
STE
latch 2 end pieces of table top by the latches underneath table top. Pull the 2 ends of the
Un
table top apart.
P 4
STE
Unfold the butterfly leaf with the apron at both ends straightened up as shown on the Step 6.
Place flattened butterfly leaf at the center of the table. Then push two end pieces inward making
sure all pins & holes aligned. Latch them together by the 4 latches underneath table top
DOUBLE PEDESTAL DINING TABLE WITH 17" BUTTERFLY LEAF
- 4 -
