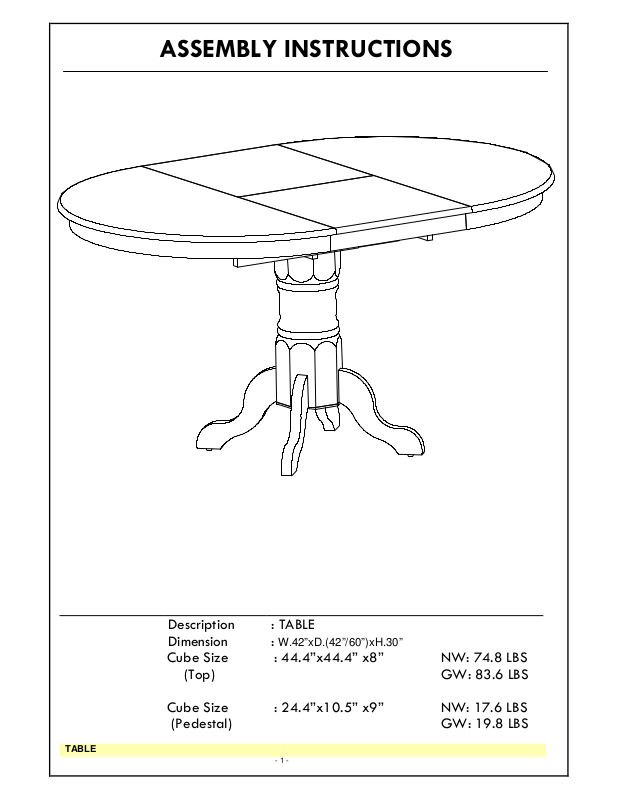

ASSEMBLY INSTRUCTIONS
Description
Dimension
: TABLE
:
W.42”xD.(42”/60”)xH.30”
Cube Size : 44.4”x44.4” x8” NW: 74.8 LBS
(Top) GW: 83.6 LBS
Cube Size : 24.4”x10.5” x9” NW: 17.6 LBS
(Pedestal) GW: 19.8 LBS
TABLE
- 1 -
PART
LIST
NO Description
Qty Sketch
NO
Description
Qty Sketch
HARDWARE LIST
NO Description
Qty Sketch
NO
Description
Qty Sketch
BEFORE ASSEMBLY
Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. Please take
the time to read and follow the assembly instructions carefully.
Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment. Please separate,
identify, and count all parts and metal hardware. Compare with part list to be sure all parts are present.
If hardware is missing or you have difficulty assembling this product, please call for us.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched.
- Remove all wrapping material, including staples & packing straps before you start to assemble.
- DO NOT tighten all screws and bolts until completely assembled.
- Keep all hardware parts out of reach of children.
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following
parts:
A Top 1
B
Pedestal
column
1
C Leg 4
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the
following hardware:
Flat washer
1
( Φ8.5xΦ19mm)
12
Lock washer
2
( Φ8.5xΦ13mm)
12
Hexagon nut
3
5
(M8x13mm)
Allen key
(4mm)
TABLE
12
1
4
Wrench
(M13mm)
1
- 2 -
STEP 1
Attach Legs (C) to column (B) by using Nuts (3), and Washers (2) and (1). Tighten with Wrench (4) as shown
below.
STEP 2
Use the Allen key (5) to loosen the bolts, and take off the plate underneath of the table top.
REMOVED
UNSCREW
5
X6
A
TABLE
- 3 -
STEP 3
STEP 4
Place the plate on top of the column (B), attach with washers (1), (2) and nuts (3). Tighten with the Wrench (4) as
shown below.
Carefully put the pedestal block on the bottom side of the table top, attach the top to plate with bolts
(from step 2) and tighten with the Allen key (5)
TABLE
- 4 -
STEP 5
STEP 6
Stand the table upright. Unlock the table top from both sides underneath of the top as shown below.
Pull the 2 parts of the table top apart.
Lift the butterfly leaf on, and spread it at center of open table top. Lock the table top parts at underneath as shown
below.
TABLE
- 5 -
