Alcott Hill W004780141 Assembly Instructions

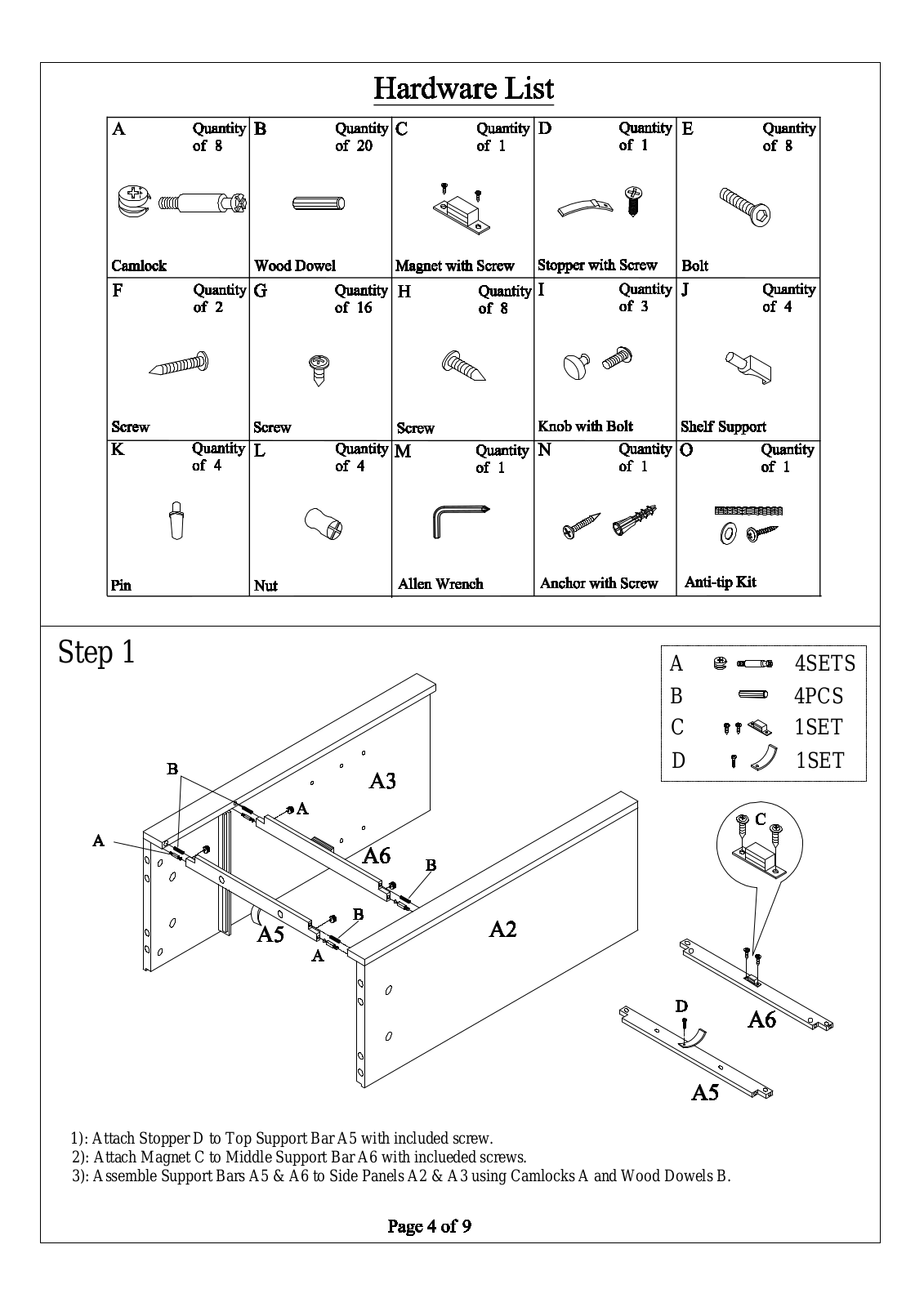

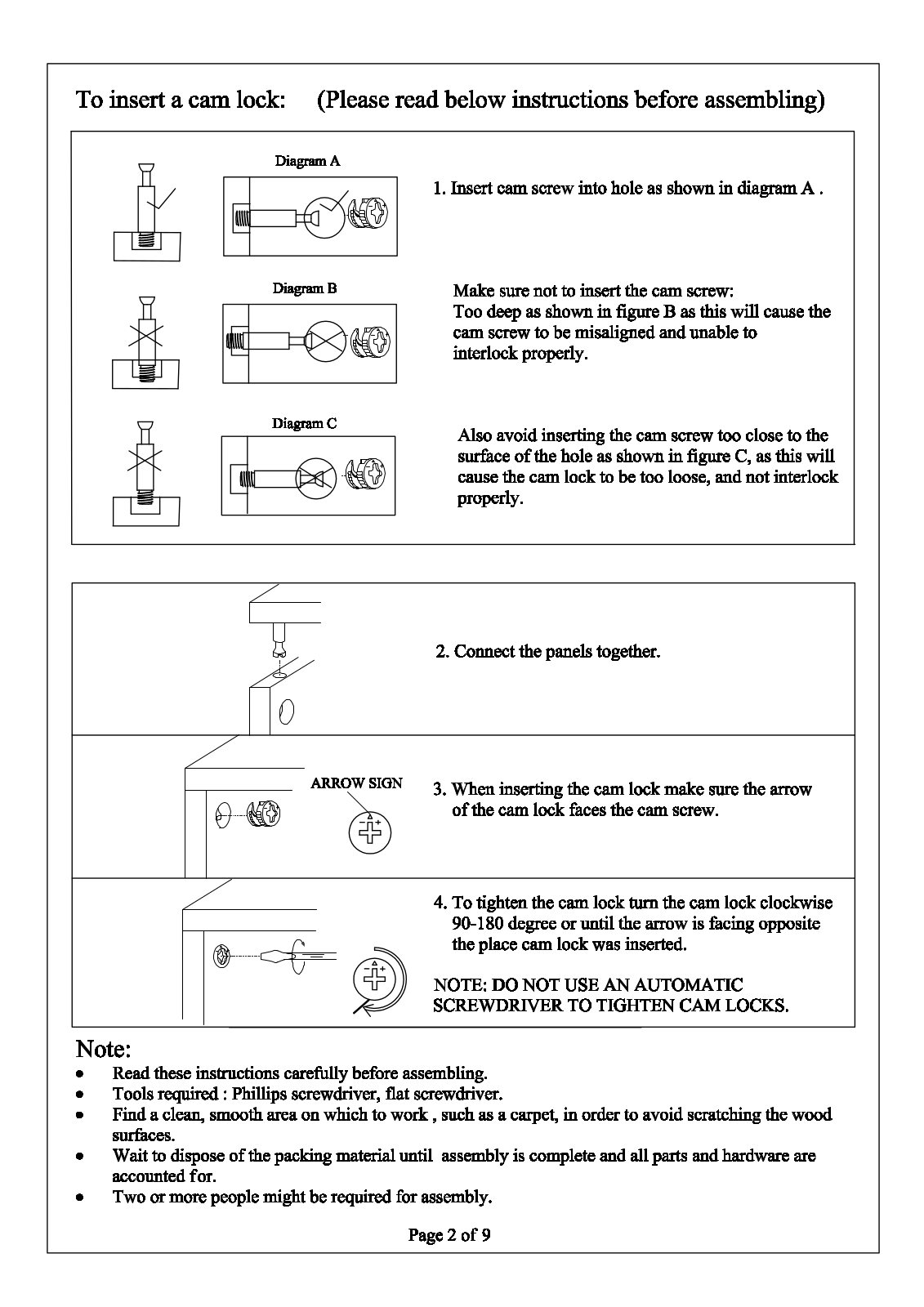

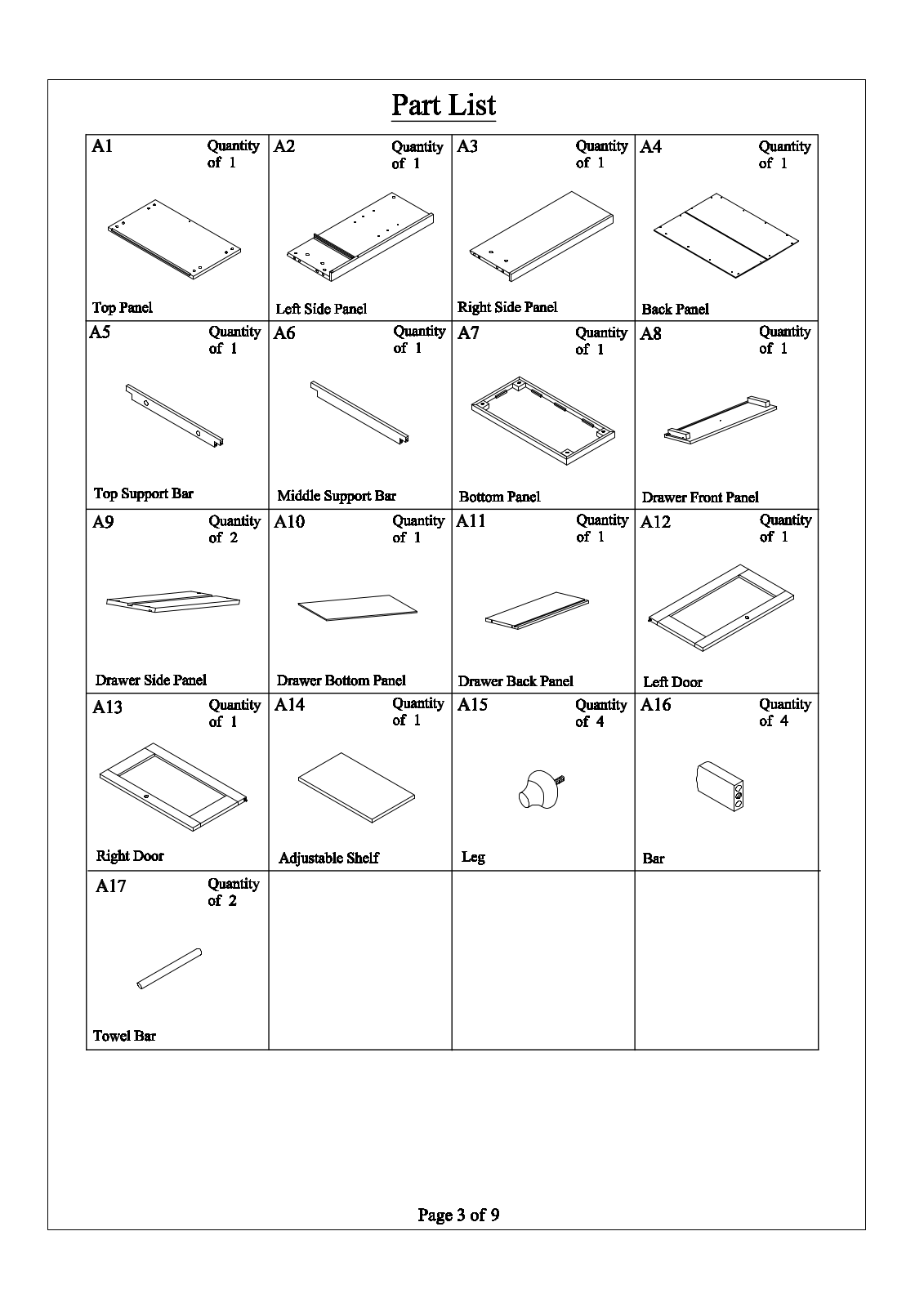

Step 1
A 4SETS B 4PCS C 1SET
D 1SET
1): Attach Stopper D to Top Support Bar A5 with included screw.
2): Attach Magnet C to Middle Support Bar A6 with inclueded screws.
3): Assemble Support Bars A5 & A6 to Side Panels A2 & A3 using Camlocks A and Wood Dowels B.

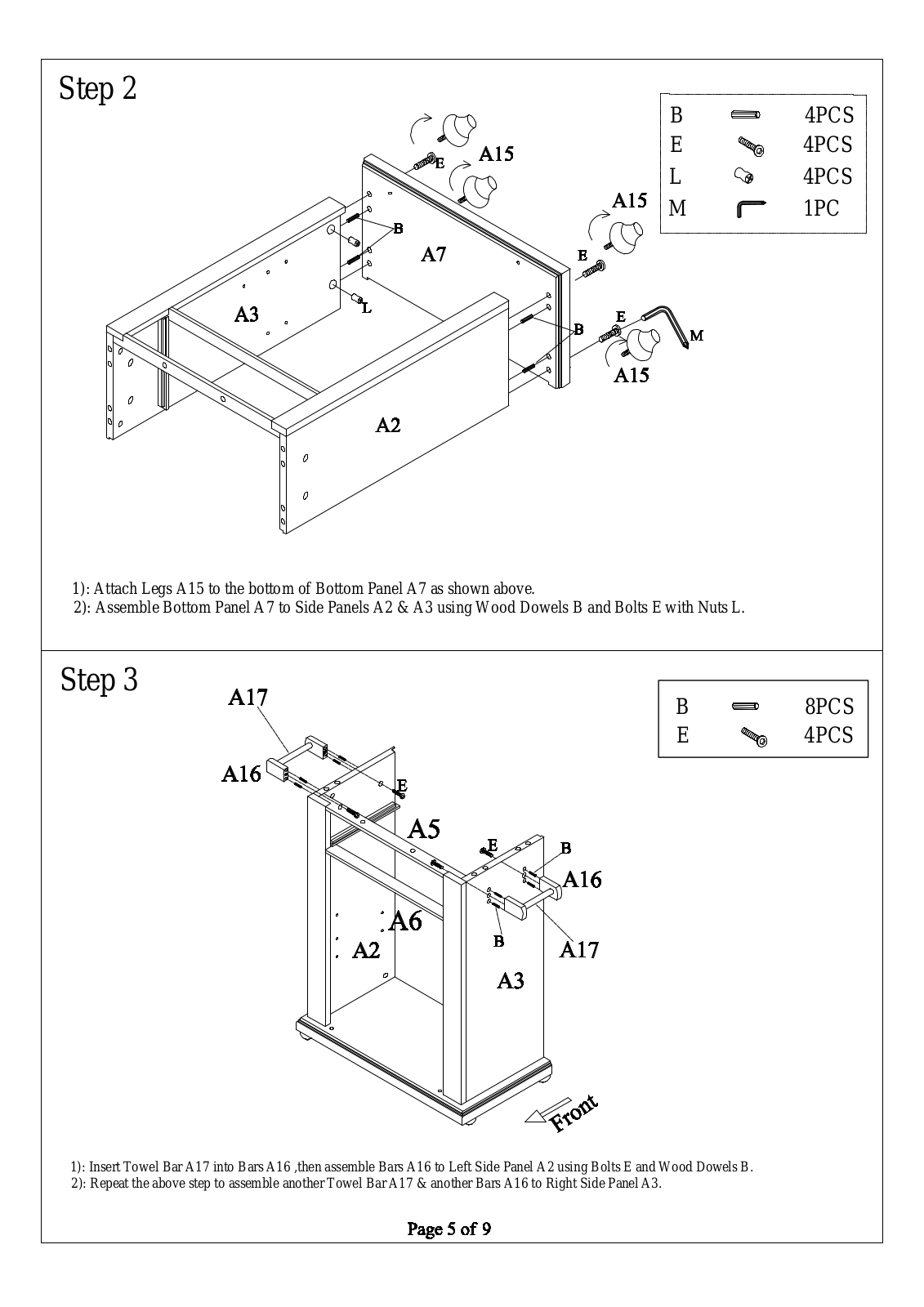

Step 2
B 4PCS
E 4PCS L 4PCS M 1PC
2): Assemble Bottom Panel A7 to Side Panels A2 & A3 using Wood Dowels B and Bolts E with Nuts L.
Step 3
B 8PCS E 4PCS
1): Insert Towel Bar A17 into Bars A16 ,then assemble Bars A16 to Left Side Panel A2 using Bolts E and Wood Dowels B.
2): Repeat the above step to assemble another Towel Bar A17 & another Bars A16 to Right Side Panel A3.

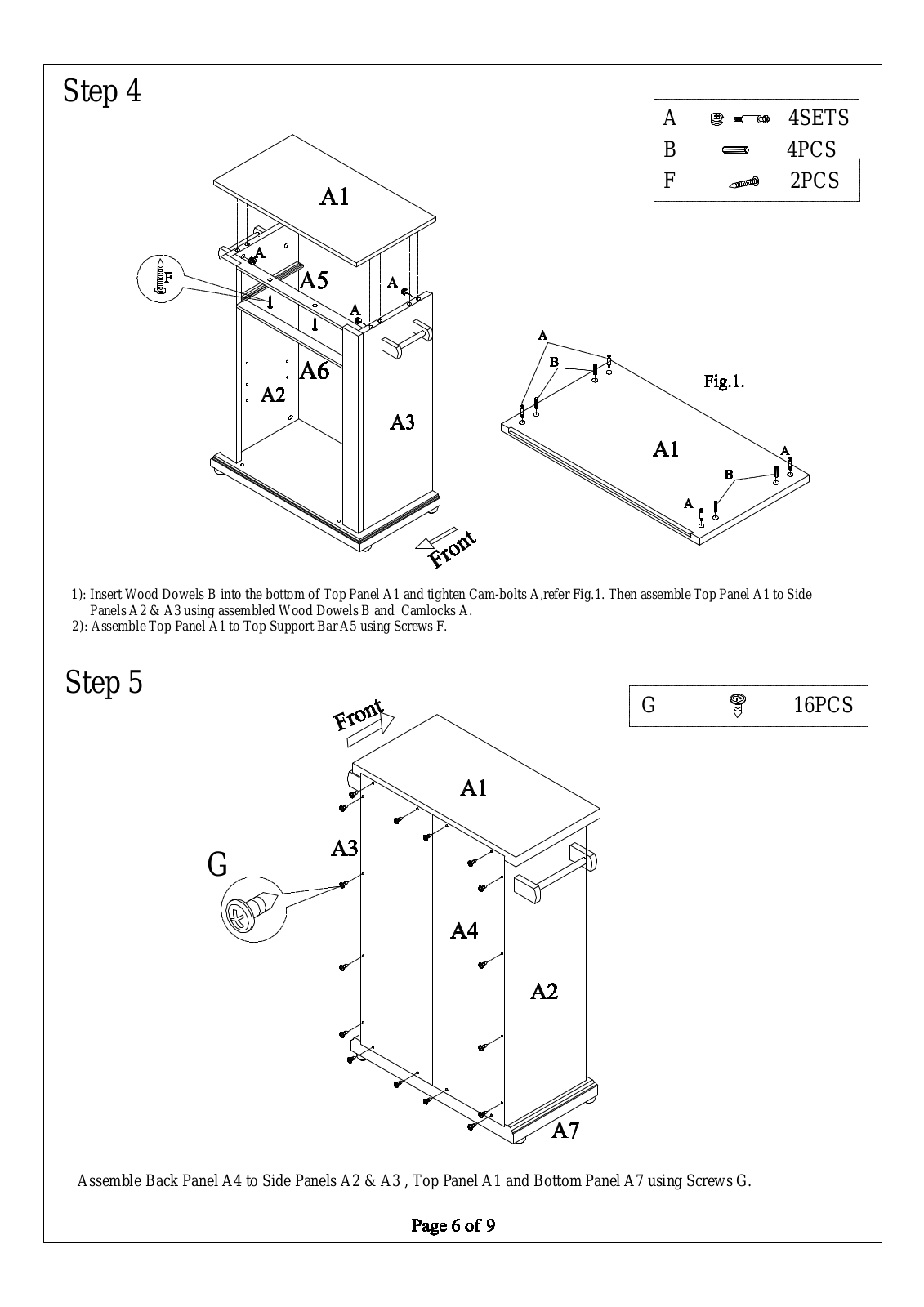

Step 4
A 4SETS B 4PCS F 2PCS
1): Insert Wood Dowels B into the bottom of Top Panel A1 and tighten Cam-bolts A,refer Fig.1. Then assemble Top Panel A1 to Side Panels A2 & A3 using assembled Wood Dowels B and Camlocks A.
2): Assemble Top Panel A1 to Top Support Bar A5 using Screws F.
Step 5
G 16PCS
G
Assemble Back Panel A4 to Side Panels A2 & A3 , Top Panel A1 and Bottom Panel A7 using Screws G.

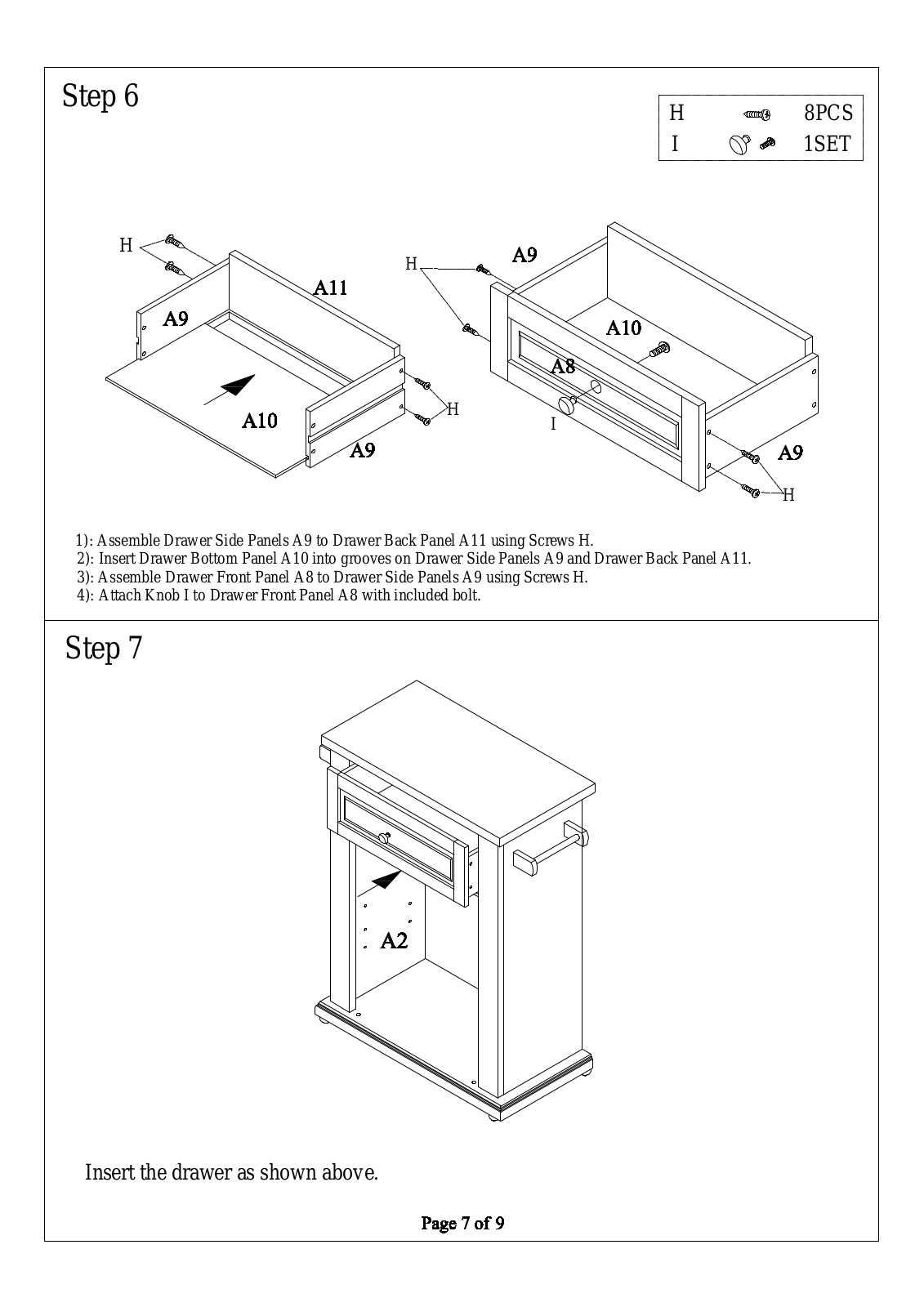

Step 6
H
H 8PCS
I 1SET
H
H
I
1): Assemble Drawer Side Panels A9 to Drawer Back Panel A11 using Screws H.
2): Insert Drawer Bottom Panel A10 into grooves on Drawer Side Panels A9 and Drawer Back Panel A11.
3): Assemble Drawer Front Panel A8 to Drawer Side Panels A9 using Screws H.
4): Attach Knob I to Drawer Front Panel A8 with included bolt.
Step 7
H
Insert the drawer as shown above.

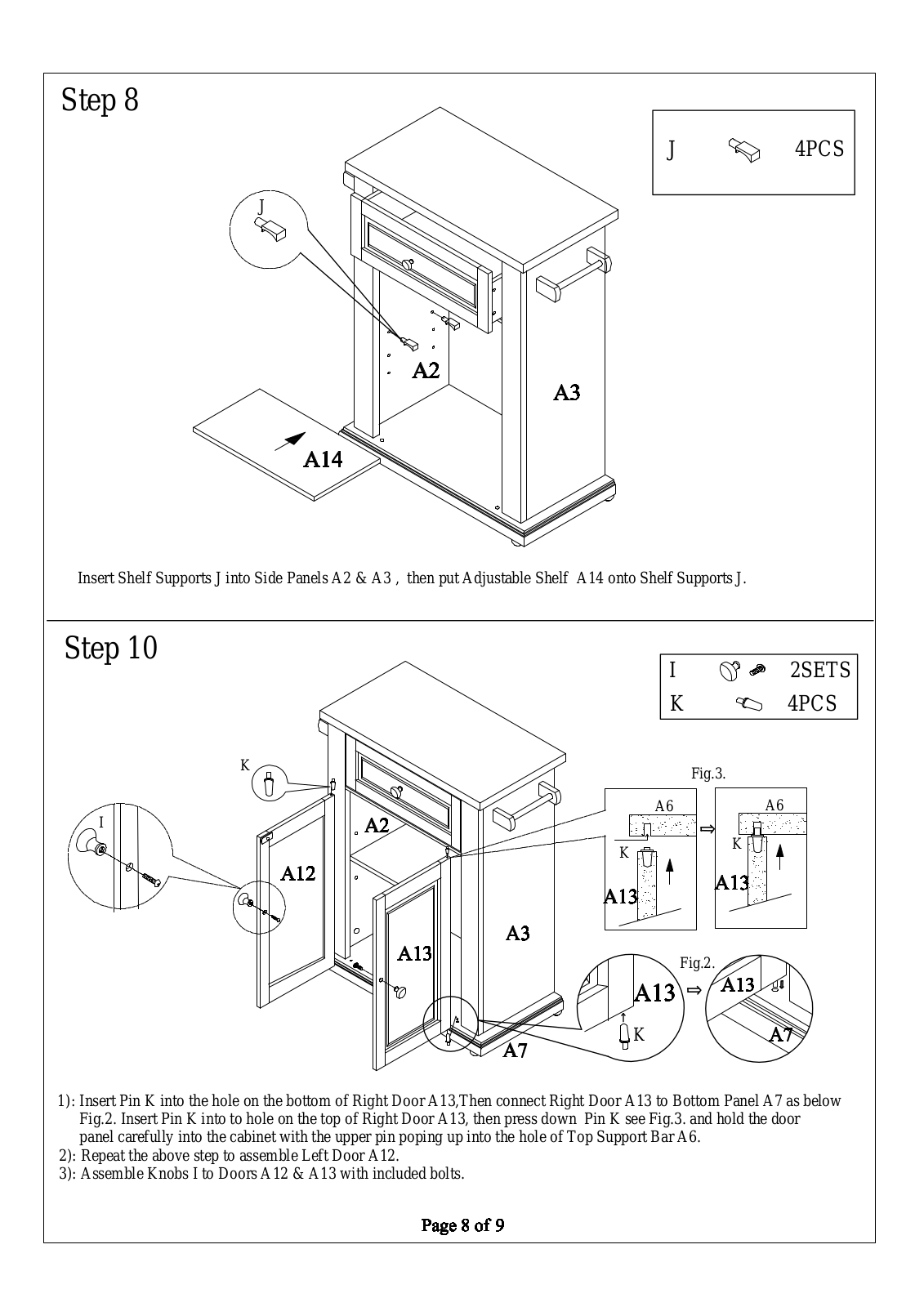

Step 8
J 4PCS
J
Insert Shelf Supports J into Side Panels A2 & A3 , then put Adjustable Shelf A14 onto Shelf Supports J.
Step 10
I 2SETS K 4PCS
K
I
K
Fig.3.
A6
Fig.2.
A6
K
K
1): Insert Pin K into the hole on the bottom of Right Door A13,Then connect Right Door A13 to Bottom Panel A7 as below Fig.2. Insert Pin K into to hole on the top of Right Door A13, then press down Pin K see Fig.3. and hold the door panel carefully into the cabinet with the upper pin poping up into the hole of Top Support Bar A6.
2): Repeat the above step to assemble Left Door A12.
3): Assemble Knobs I to Doors A12 & A13 with included bolts.

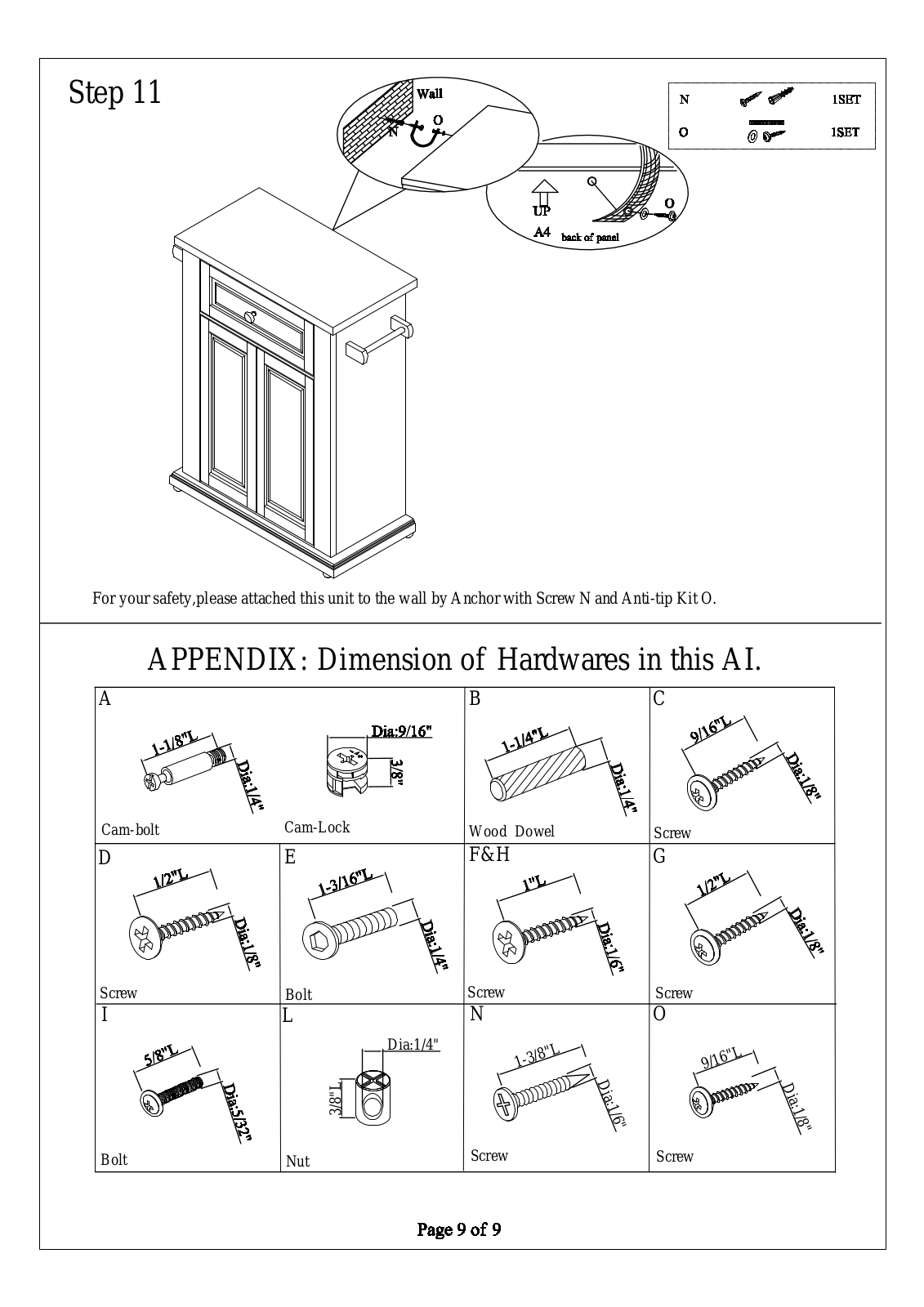

Step 11
For your safety,please attached this unit to the wall by Anchor with Screw N and Anti-tip Kit O.
APPENDIX: Dimension of Hardwares in this AI.
A
Cam-bolt
D
Screw
I
Cam-Lock
E
Bolt
L
Dia:1/4"
B
Wood Dowel
F&H
Screw
N O
1-3/8"L
Dia:1/6"
C
Screw
G
Screw
9/16"L
Dia:1/8"
Bolt
Nut
3/8"L
Screw
Screw
